1. TRANSACTION
 INTRODUCTION
 TRANSACTION CONCEPT
 STATES
 ACID PROPERTY
 IMPLEMENTATION OF ATOMICITY AND
DURABILITY
 CONCURRENT EXECUTION
 SERIAL AND SORTING
 RECOVERABILITY
 TRANSACTION DEFINITION IN SQL

2. INTRODUCTION
 A transaction consists of a sequence of query and/or update
statements.
 The SQL standard specifies that a transaction begins implicitly
when an SQL statement is executed.
 One of the following SQL statements must end the transaction:
Commit work
Rollback work

3. A transaction is a unit of program execution that accesses and
possibly updates various data items.
Usually, a transaction is initiated by a user program written
in a high-level data-manipulation language (typically SQL), or
programming language
(for example, C++, or Java), with embedded database
accesses in JDBC or ODBC.
A transaction is delimited by statements (or function calls) of
the form begin transaction and end transaction.
The transaction consists of all operations executed between
the begin transaction and end transaction.
TRANSACTION CONCEPT

4. STATE DIAGRAM OF A
TRANSACTION

5. STATES
 We establish a simple abstract transaction model. A
transaction must be in one of the following states:
 Active, the initial state; the transaction stays in this
state while it is executing.
 Partially committed, after the final statement has
been executed.
 Failed, after the discovery that normal execution can
no longer proceed.
 Aborted, after the transaction has been rolled back
and the database has been restored to its
state prior to the start of the transaction.
 Committed, after successful completion.

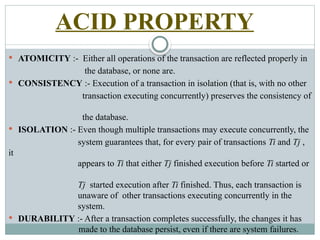

6. ACID PROPERTY
 ATOMICITY :- Either all operations of the transaction are reflected properly in
the database, or none are.
 CONSISTENCY :- Execution of a transaction in isolation (that is, with no other
transaction executing concurrently) preserves the consistency of
the database.
 ISOLATION :- Even though multiple transactions may execute concurrently, the
system guarantees that, for every pair of transactions Ti and Tj ,
it
appears to Ti that either Tj finished execution before Ti started or
Tj started execution after Ti finished. Thus, each transaction is
unaware of other transactions executing concurrently in the
system.
 DURABILITY :- After a transaction completes successfully, the changes it has
made to the database persist, even if there are system failures.

7. 1.The recovery- management component of a database system
implements the support for atomicity and durability.
E.g. the shadow-database scheme:
2.All updates are prefabricated on a shadow copy of the
database
 db_pointer is made to repair to the updated shadow copy
after
 the transaction reaches inclined commit and
 all updated pages make been flushed to disk.
IMPLEMENTATION OF ATOMICITY AND
DURABILITY

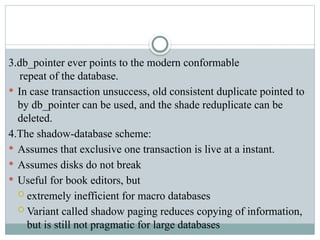

8. 3.db_pointer ever points to the modern conformable
repeat of the database.
 In case transaction unsuccess, old consistent duplicate pointed to
by db_pointer can be used, and the shade reduplicate can be
deleted.
4.The shadow-database scheme:
 Assumes that exclusive one transaction is live at a instant.
 Assumes disks do not break
 Useful for book editors, but
 extremely inefficient for macro databases
 Variant called shadow paging reduces copying of information,
but is still not pragmatic for large databases

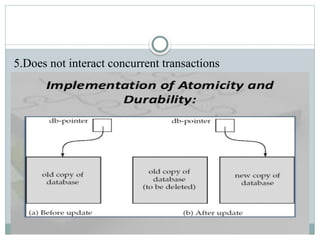

9. 5.Does not interact concurrent transactions

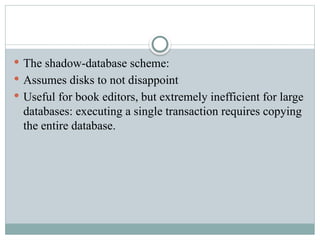

10.  The shadow-database scheme:
 Assumes disks to not disappoint
 Useful for book editors, but extremely inefficient for large
databases: executing a single transaction requires copying
the entire database.

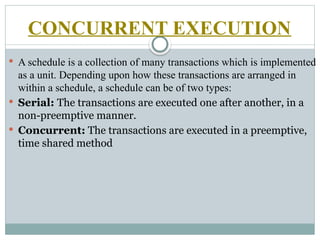

11.  A schedule is a collection of many transactions which is implemented
as a unit. Depending upon how these transactions are arranged in
within a schedule, a schedule can be of two types:
 Serial: The transactions are executed one after another, in a
non-preemptive manner.
 Concurrent: The transactions are executed in a preemptive,
time shared method
CONCURRENT EXECUTION

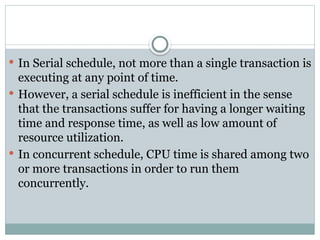

12.  In Serial schedule, not more than a single transaction is
executing at any point of time.
 However, a serial schedule is inefficient in the sense
that the transactions suffer for having a longer waiting
time and response time, as well as low amount of
resource utilization.
 In concurrent schedule, CPU time is shared among two
or more transactions in order to run them
concurrently.

15. SERIALAND SORTING
 Basic Assumption – Each transaction preserves database
consistency.
 Thus serial execution of a set of transactions preserves database
consistency.
 A (possibly concurrent) schedule is serializable if it is equivalent to
a serial schedule. Different forms of schedule equivalence give rise
to the notions of:
1. conflict serializability
2. view serializability
 We ignore operations other than read and write instructions, and
we assume that transactions may perform arbitrary
computations on data in local buffers in between reads and
writes. Our simplified schedules consist of only read and
write instructions.

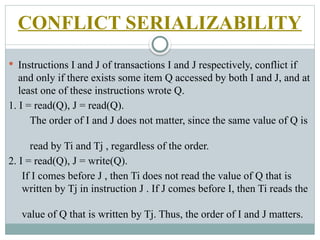

16. CONFLICT SERIALIZABILITY
 Instructions I and J of transactions I and J respectively, conflict if
and only if there exists some item Q accessed by both I and J, and at
least one of these instructions wrote Q.
1. I = read(Q), J = read(Q).
The order of I and J does not matter, since the same value of Q is
read by Ti and Tj , regardless of the order.
2. I = read(Q), J = write(Q).
If I comes before J , then Ti does not read the value of Q that is
written by Tj in instruction J . If J comes before I, then Ti reads the
value of Q that is written by Tj. Thus, the order of I and J matters.

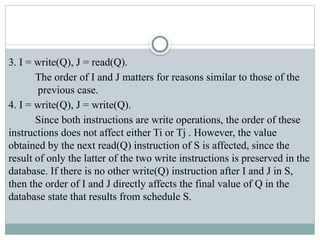

18. 3. I = write(Q), J = read(Q).
The order of I and J matters for reasons similar to those of the
previous case.
4. I = write(Q), J = write(Q).
Since both instructions are write operations, the order of these
instructions does not affect either Ti or Tj . However, the value
obtained by the next read(Q) instruction of S is affected, since the
result of only the latter of the two write instructions is preserved in the
database. If there is no other write(Q) instruction after I and J in S,
then the order of I and J directly affects the final value of Q in the
database state that results from schedule S.

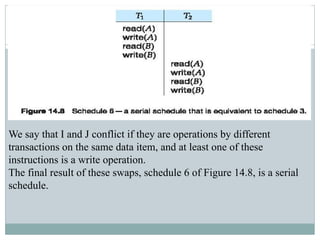

19. We say that I and J conflict if they are operations by different
transactions on the same data item, and at least one of these
instructions is a write operation.

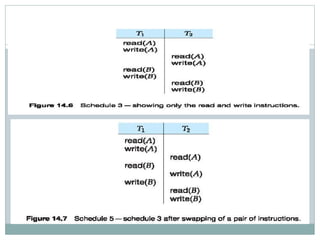

The final result of these swaps, schedule 6 of Figure 14.8, is a serial
schedule.

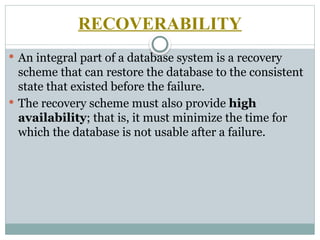

20. RECOVERABILITY
 An integral part of a database system is a recovery
scheme that can restore the database to the consistent
state that existed before the failure.
 The recovery scheme must also provide high
availability; that is, it must minimize the time for
which the database is not usable after a failure.

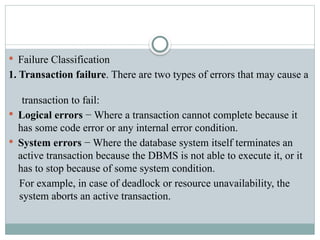

21.  Failure Classification
1. Transaction failure. There are two types of errors that may cause a
transaction to fail:
 Logical errors − Where a transaction cannot complete because it
has some code error or any internal error condition.
 System errors − Where the database system itself terminates an
active transaction because the DBMS is not able to execute it, or it
has to stop because of some system condition.
For example, in case of deadlock or resource unavailability, the
system aborts an active transaction.

22. 2. System Crash
 There are problems − external to the system − that may cause the
system to stop abruptly and cause the system to crash.
3. Disk Failure
 Disk failures include formation of bad sectors, unreachability to the
disk, disk head crash or any other failure, which destroys all or a
part of disk storage.

23. Recovery and Atomicity
When a DBMS recovers from a crash, it should maintain the
following −
 It should check the states of all the transactions, which were
being executed.
 A transaction may be in the middle of some operation; the
DBMS must ensure the atomicity of the transaction in this
case.
 It should check whether the transaction can be completed
now or it needs to be rolled back.
 No transactions would be allowed to leave the DBMS in an
inconsistent state.

24. There are two types of techniques, which can help a DBMS
in recovering as well as maintaining the atomicity of a
transaction −
 Maintaining the logs of each transaction, and writing them
onto some stable storage before actually modifying the
database.
 Maintaining shadow paging, where the changes are done on
a volatile memory, and later, the actual database is updated.

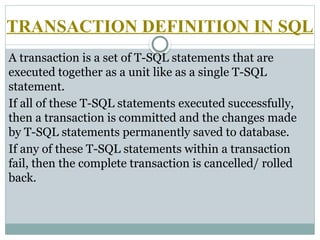

25. TRANSACTION DEFINITION IN SQL
A transaction is a set of T-SQL statements that are
executed together as a unit like as a single T-SQL
statement.
If all of these T-SQL statements executed successfully,
then a transaction is committed and the changes made
by T-SQL statements permanently saved to database.
If any of these T-SQL statements within a transaction
fail, then the complete transaction is cancelled/ rolled
back.

26. Types Of Transactions
1. Implicit Transaction
 Implicit transactions are maintained by SQL Server for each and
every DDL (CREATE, ALTER, DROP, TRUNCATE), DML
(INSERT, UPDATE, DELETE) statements.
 All these T-SQL statements runs under the implicit transaction. If
there is an error occurs within these statements individually, SQL
Server will roll back the complete statement.
2. Explicit Transaction
 Explicit transactions are defined by programmers.
 In Explicit transaction we include the DML statements that need to
be execute as a unit.
 Since SELECT statements doesn’t modify data. Hence
generally we don’t include Select statement in a transaction.
