This document provides an overview of exception handling in Java. It defines exceptions as events that disrupt normal program flow and discusses different types of exceptions including checked exceptions that must be handled and unchecked exceptions that do not require handling. It also covers how to declare, throw, and catch exceptions in code as well as best practices for logging exceptions. Finally, it summarizes exception handling in WebSphere Commerce, including application-specific and system exceptions.

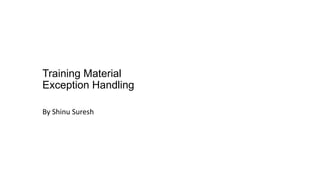

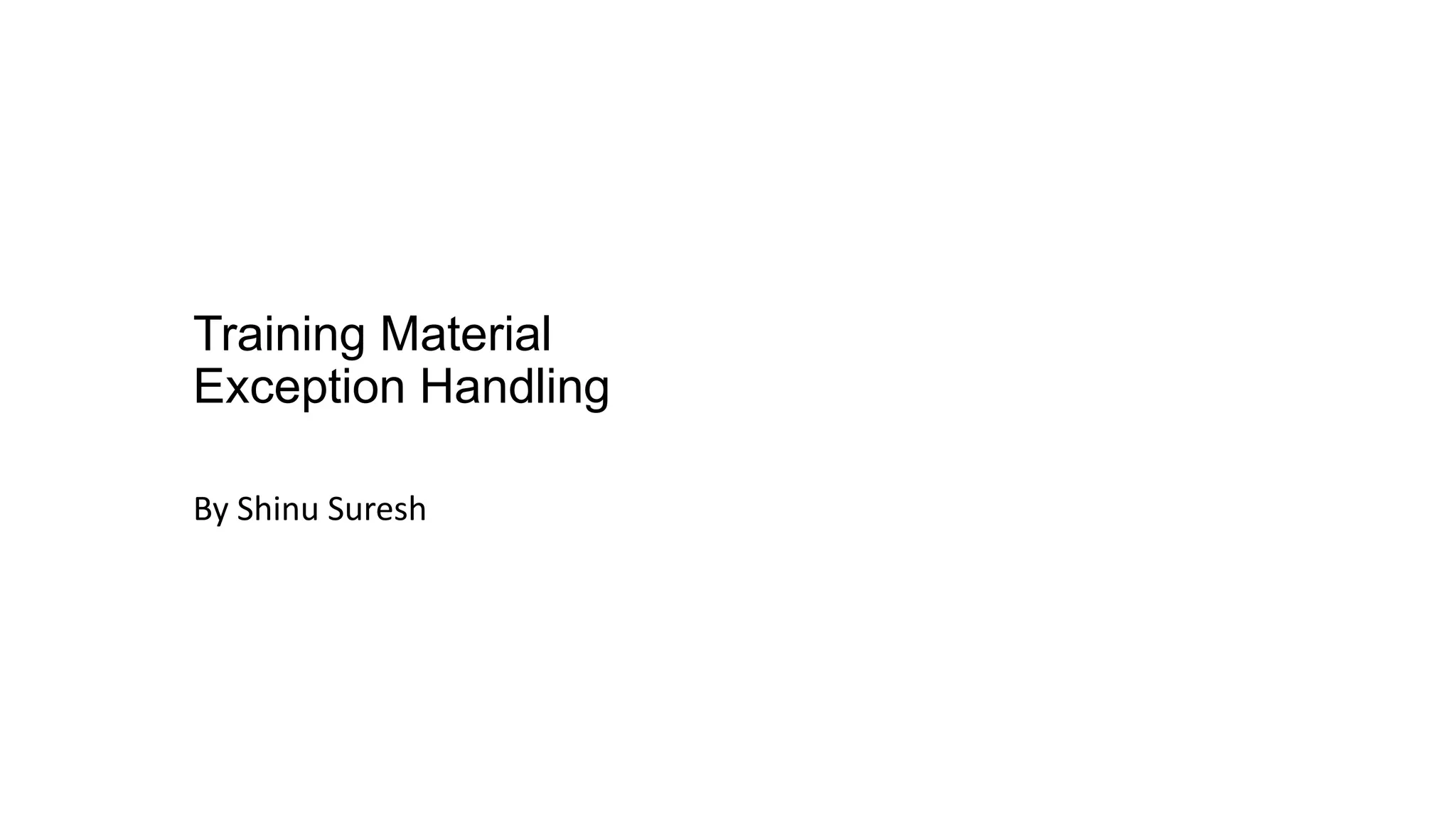

1. Training Material
Exception Handling
By Shinu Suresh

2. Agenda
• Exceptions
• Exceptions by Nature
• Types of Exceptions
• Handling Exceptions
• Handling Exceptions in Websphere Commerce

3. Exceptions
“An exception is an event, which occurs during the execution of a
program, that disrupts the normal flow of the program’s instructions”
• Exceptional conditions are not necessarily rare

4. Nature of Exceptions
• Exceptions due to programming errors
Exceptions are generated due to programming errors
(e.g., NullPointerException and IllegalArgumentException). The client code usually
cannot do anything about programming errors.
• Exceptions due to client code errors
Client code attempts something not allowed by the API, and thereby violates its
contract.
• Exceptions due to resource failures
Exceptions that get generated when resources fail. For example: network connection
fails.
• The parameters given to the method are not well defined (i.e. are wrong /
null where they must not be)

5. Cont..
• The "constellation" of the parameter values are not expected in the given
way by the method (because if parameter "a" has a certain value, "b" must
not be of another certain value)
• The caller of the method simply calls it in an improper way (i.e. the
environmental conditions are not correct, needed resources are not
allocated yet etc.)
• The method allocates external resources (i.e. open connections, file
handles etc.) and does not free them (thus leading to an invalid internal
state of the program, the operating system or other components like
databases)
• The method relies on external resources (i.e. file system, database etc.)
which are not available at the moment they are needed

6. Types of Exception
• Checked exceptions: Exceptions that inherit from the Exception class
are checked exceptions. Client code has to handle the checked
exceptions thrown by the API, either in a catch clause or by
forwarding it outward with the throws clause.
• Unchecked exceptions: RuntimeException also extends from
Exception. However, all of the exceptions that inherit from
RuntimeException get special treatment. There is no requirement for
the client code to deal with them, and hence they are called
unchecked exceptions.

7. Object Throwable
Error
LinkageError
VirtualMachineError
StackOverrflowError
OutOfMemoryError
Exception
IOException
FileNotFoundException
SocketException
UnKnownHostException
NoSuchMethodException
RuntimeException
NullPointerException
ClassCastException
IndexOutOfBoundsException
Checked
UnChecked

8. Java.lang.Error
• Errors (members of the Error family) are usually thrown for more serious
problems, such as OutOfMemoryError, that may not be so easy to handle.
In general, code you write should throw only exceptions, not errors. Errors
are usually thrown by the methods of the Java API, or by the Java virtual
machine itself.
• Errors usually signal abnormal conditions that you wouldn't want a
program to handle. Problems with linking, such as NoClassDefFoundError,
or memory, such as StackOverflowError, could happen just about anywhere
in a program. In the rare cases in which they happen, it is usually
reasonable that the thread terminate.
• Java Language Specification advises against throwing errors. It is intended
that errors be thrown only by the Java runtime.

9. Checked vs Unchecked
Client reaction when exception happens Exception Type
Client code cannot do anything Make it an UnChecked Exception
Client code will take some useful recovery actions
based on information in exception
Make it Checked Exception
If you are throwing an exception to indicate an
improper use of your class, you are signalling a
software bug
Descend from RuntimeException which will make it
UnChecked
If you are throwing an exception to indicate not a
software bug but an abnormal condition that client
programmers should deal with every time they use
your method
Make it Checked Exception
One design approach often discussed in the context of object-oriented programming is the Design by Contract
approach. This approach to software design says that a method represents a contract between the client (the
caller of the method) and the class that declares the method. The contract includes preconditions that the
client must fulfil and postconditions that the method itself must fulfil.

10. Handling Exceptions
• Declaring Exception
Method should declare the exception it throws in its signature
UnChecked exceptions need not be thrown
• Throwing an Exception
When program encounters an abnormal operation, the method containing the erroneous statement
create an appropriate Exception object and throw it
public void methodD() throws XxxException, YyyException { // method's signature // method body throw XxxException
and YyyException }
public void methodD() throws XxxException, YyyException { // method's signature
// method's body ... ...
// XxxException occurs
if ( ... )
throw new XxxException(...); // construct an XxxException object and throw to JRE
... // YyyException occurs
if ( ... )
throw new YyyException(...); // construct an YyyException object and throw to JRE ...
}

11. Handling Exceptions Cont.
• Catching an Exception
When a method throws an exception, the Java runtime searches backward through the call stack for a
matching exception handler. Each exception handler can handle one particular class of exception. If no
exception handler is found in the call stack, the program terminates.
public void methodC() { // no exception declared
...
try {
... // uses methodD() which declares XxxException & YyyException
methodD();
...
} catch (XxxException ex) {
// Exception handler for XxxException
...
} catch (YyyException ex} { // Exception handler for YyyException
...
} finally { // optional
// These codes always run, used for cleaning up
}
...
}

12. Handling Exceptions in Websphere
Commerce
• Well defined and simple to use in customized code
• Supports multicultural stores
• Tightly integrated with Logging system
Two Types of Exceptions primarily
Exception
ECApplicationException ECSystemException

13. Exception Flow
Solution Controller
invokes Controller
Command
Command throws
exception
(ECApplicationException
or ECSystemException)
Struts determines error
global forward and
invoke specified error
view

14. • ECApplicationException
This exception is thrown if the error is related to user input and will always fail. For
example, when a user enters an invalid parameter, an ECApplicationException is
thrown. When this exception is thrown, the solution controller does not retry the
command, even if it is specified as a retriable command.
• ECSystemException
This exception is thrown if a runtime exception or a WebSphere Commerce
configuration error is detected. Examples of this type of exception include
1. Create exceptions
2. Remote Exception
3. EJB Exceptions
When this type of exception is thrown, the solution controller retries the command if
the command is retriable and the exception was caused by either a database deadlock
or database rollback.

15. Points to remember
• Exceptions should generally be allowed to propagate up the stack
ultimately resulting in a roll-back and error response. This might mean
catching and re-throwing exceptions. If this is the case, exceptions should
always include the original exception so that the root cause is known. An
example would be a retry in the case of a network failure etc.
• If the operation can be retried then it should be.
• Exceptions should not be used to implement business logic (there is a
performance overhead with throwing an exception)
• Exceptions should never just be caught and ignored
• Exception handling framework will be developed for the project wherein all
Exceptions will be either XApplicationException or XSystemException

16. Example
try{
//---------------------
//<Business logic>
//---------------------
}catch(ECApplicationException e){
throw new XApplicationException(exp.getECMessage(),this.CLASS_NAME,METHOD_NAME, LoggerIdentifier.COMPONENT_CATALOG);
} catch(ECSystemException e){
throw new XSystemException(exp.getECMessage(),this.CLASS_NAME,METHOD_NAME, LoggerIdentifier.COMPONENT_CATALOG);
}
1. Produces a stack trace for any exception caught.
2. Parameters are logged at the time of the exception.
3. ECExceptions and its subclasses are logged only once.

17. Exception Logging
• Uses WCS Logging framework
• Entering and exiting method logging must be provided
• Use entering () and exiting () methods on the Logger and not log
(Level.INFO, "Entering method xxx...");
• Different log levels are there for a reason. So be careful what you will log
using INFO level. Probably no one (except you) is interested in list of
parameters and values going to your direct SQL query or details about a
person. This should be really using FINE or lower.
• Log a meaningful message. Parameter=value type of message doesn't
count as meaningful
• Logging liberally with FINE which will help in debugging issues in LIVE

18. JSP And Error handling
• Use StoreErrorDataBean to display store specific error messages in JSP
page
The databean provides getter methods to
• Retrieve the store error key, <ECMessageKey>.<Error Code>
• Retrieve the error message parameters, that is, the substitution
parameters used in the error messages
StoreDataBean rely on existence of store error message properties file.
Eg:- storeErrorMessages_ locale.properties

19. Using StoreDataBean in JSP
<wcbase:useBean id="storeError“ classname="com.ibm.commerce.common.beans.StoreErrorDataBean“ scope="page">
<c:set target="${storeError}" property="resourceBundleName“ value="${sdb.jspStoreDir}/storeErrorMessages" />
</wcbase:useBean>
<c:if test="${!empty storeError.key}">
<c:set var="errorMessage" value="${storeError.message}" />
</c:if>
//storeErrorMessages_ locale.properties
_ERR_CMD_INVALID_PARAM.2020 = Type an e-mail address in the E-mail address field.

20. Payment Exceptions
Exception BaseException
EDPException
InvalidDataException
CommunicationException
ConfigurationException
PluginException
InvalidDataException
CommunicationException
InternalErrorException
TimeoutException
FinancialException
ApprovalExpiredException
InvalidPaymentInstructionExcepiton
PaymentInstructionBlockedException

21. Payment Exceptions cont
• EDPException
The root exception of the Payment rules engine
• PluginException
The root exception of the payments plug-in. Throw this exception in case of
exceptional scenarios or if you don’t find any suitable exceptions in the already existing
ones
For more reference
http://pic.dhe.ibm.com/infocenter/wchelp/v7r0m0/topic/com.ibm.commerce.paymen
ts.events.doc/refs/rppppcspec.htm?resultof=%22%70%61%79%6d%65%6e%74%22%2
0%22%65%72%72%6f%72%22%20%22%68%61%6e%64%6c%69%6e%67%22%20%22
%68%61%6e%64%6c%22%20

22. Thank You
