The document discusses the traction control system (TCS), which is an active safety feature designed to maintain tire traction in slippery conditions, with its development tracing back to 1971. It outlines how TCS operates through the vehicle’s ECU by adjusting ignition timing, fuel supply, and throttle control based on wheel speed differences, thus enhancing vehicle stability and safety. While TCS is beneficial in various terrains and helps prevent accidents, it has limitations in snow and slippery conditions and is typically found in high-end vehicles with higher maintenance costs.

2. TEAM MEMBERS
• PRESENTEDBY
1.MUHAIYUDEENNAFEES– 180021601071
2.MUHAMMADHISHAM -180021601070
3.MUHAMMADADAM -180021601069

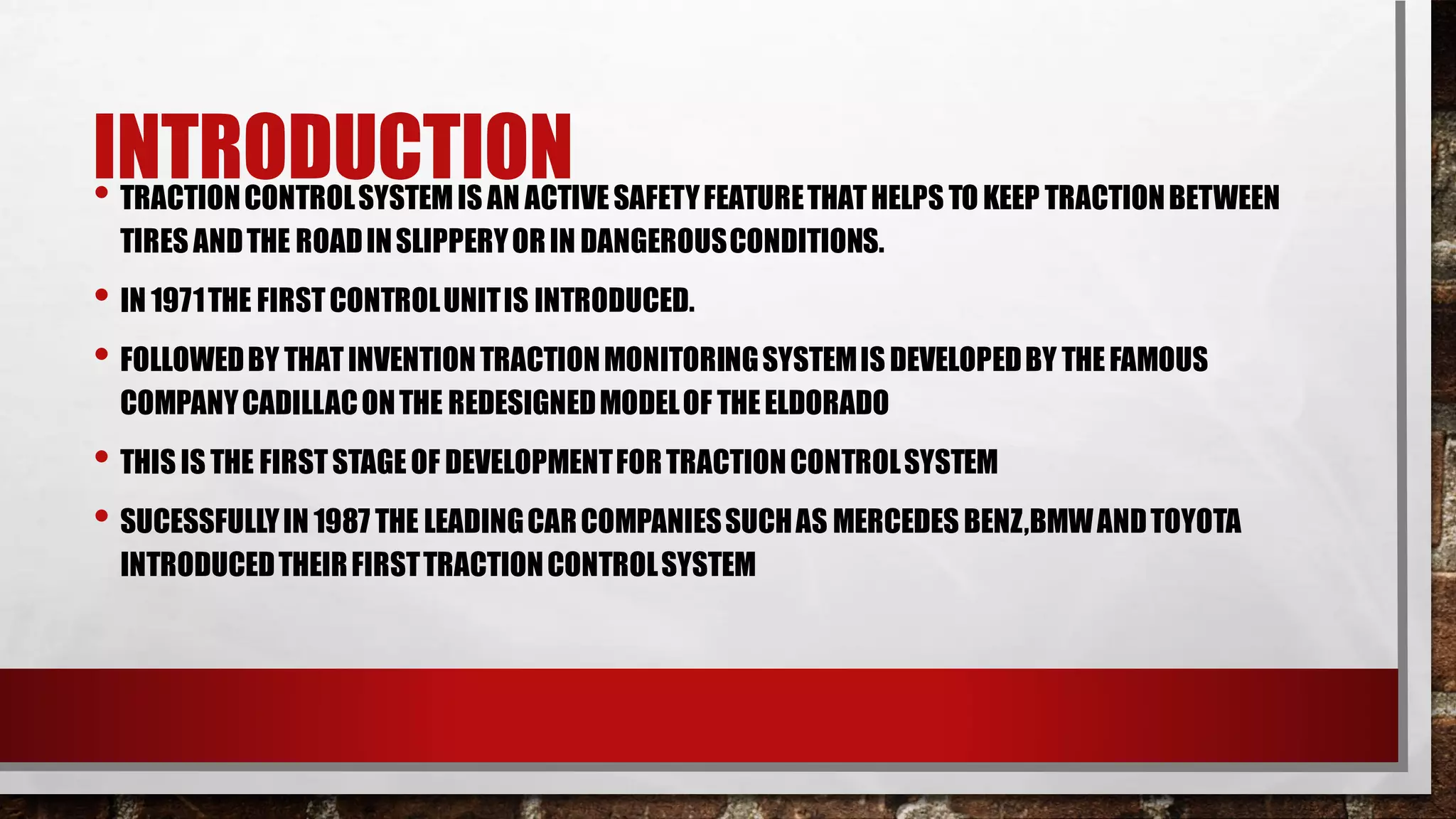

3. INTRODUCTION
• TRACTIONCONTROLSYSTEMIS AN ACTIVESAFETYFEATURETHATHELPS TO KEEP TRACTIONBETWEEN
TIRES ANDTHE ROADINSLIPPERYORIN DANGEROUSCONDITIONS.
• IN 1971THE FIRSTCONTROLUNITIS INTRODUCED.
• FOLLOWEDBY THATINVENTIONTRACTIONMONITORINGSYSTEMISDEVELOPEDBY THEFAMOUS
COMPANYCADILLACONTHE REDESIGNEDMODELOF THEELDORADO
• THIS IS THE FIRSTSTAGEOF DEVELOPMENTFORTRACTIONCONTROLSYSTEM
• SUCESSFULLYIN 1987 THE LEADINGCARCOMPANIESSUCHAS MERCEDES BENZ,BMWANDTOYOTA
INTRODUCEDTHEIRFIRSTTRACTIONCONTROLSYSTEM

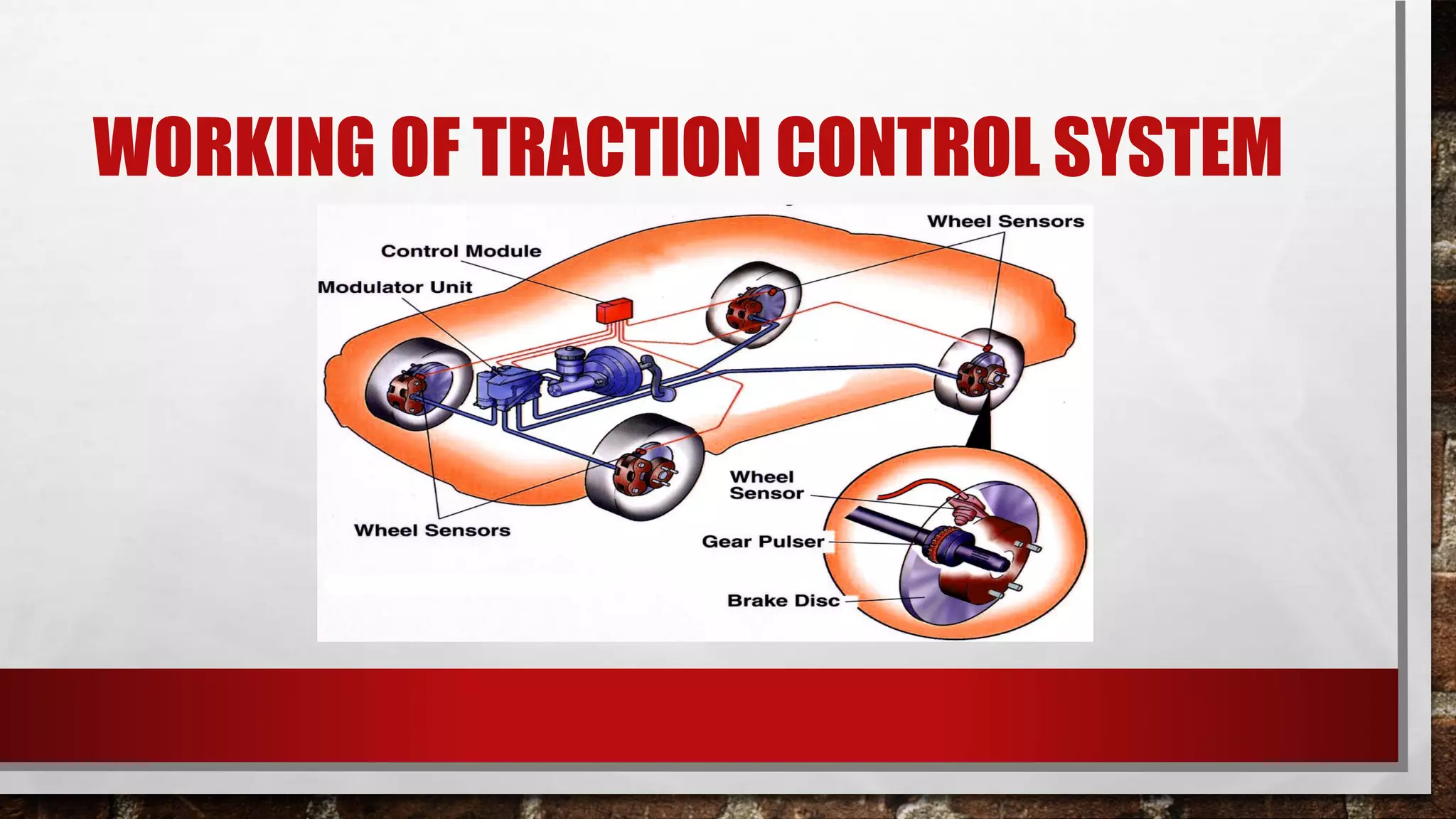

4. WORKING OF TRACTION CONTROL SYSTEM

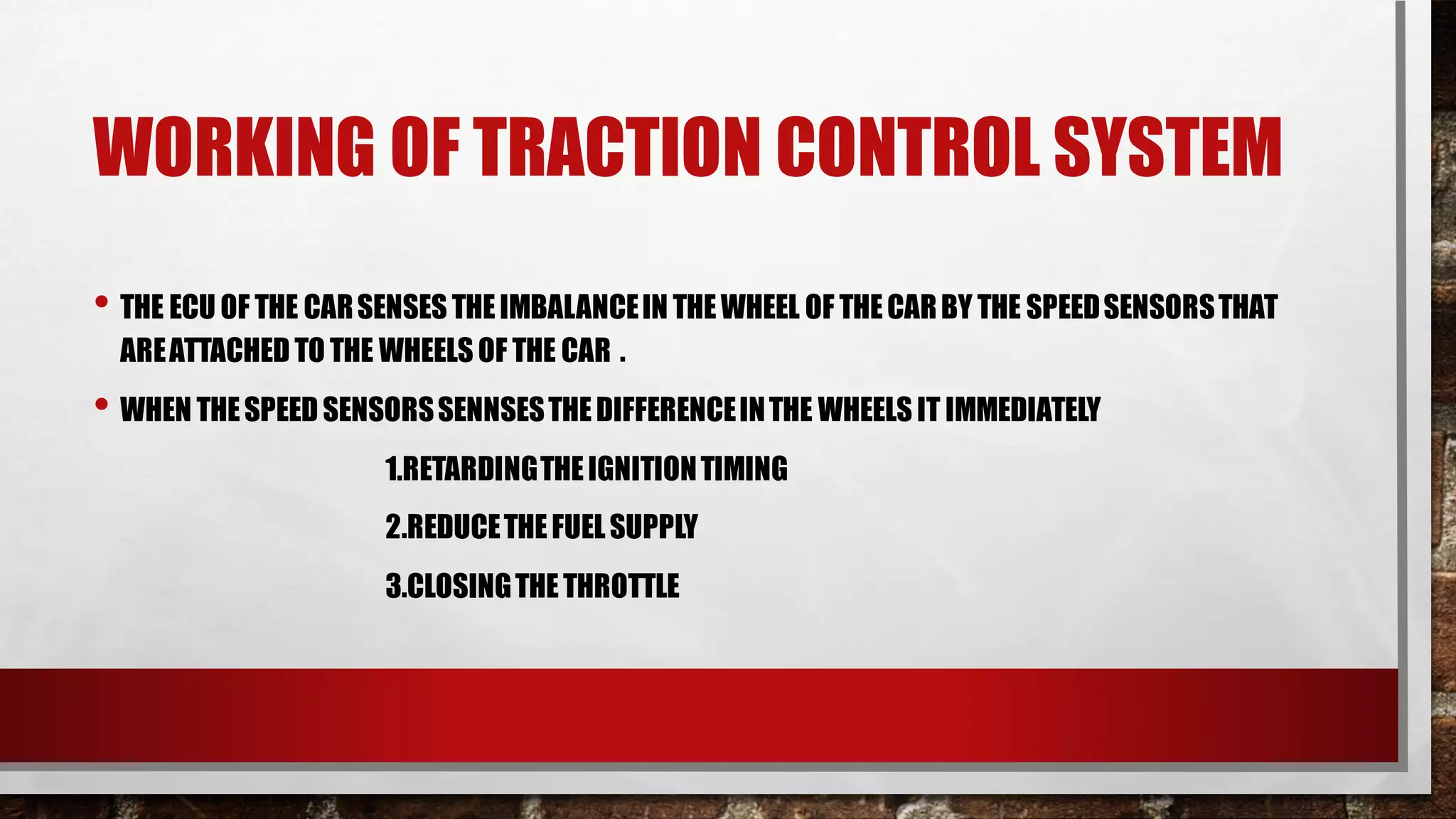

5. WORKING OF TRACTION CONTROL SYSTEM
• THE ECU OF THE CARSENSES THEIMBALANCEIN THEWHEEL OF THECARBY THE SPEEDSENSORSTHAT
AREATTACHED TO THE WHEELS OF THE CAR .
• WHEN THESPEEDSENSORSSENNSESTHEDIFFERENCEINTHE WHEELS IT IMMEDIATELY
1.RETARDINGTHEIGNITIONTIMING
2.REDUCETHEFUELSUPPLY
3.CLOSINGTHETHROTTLE

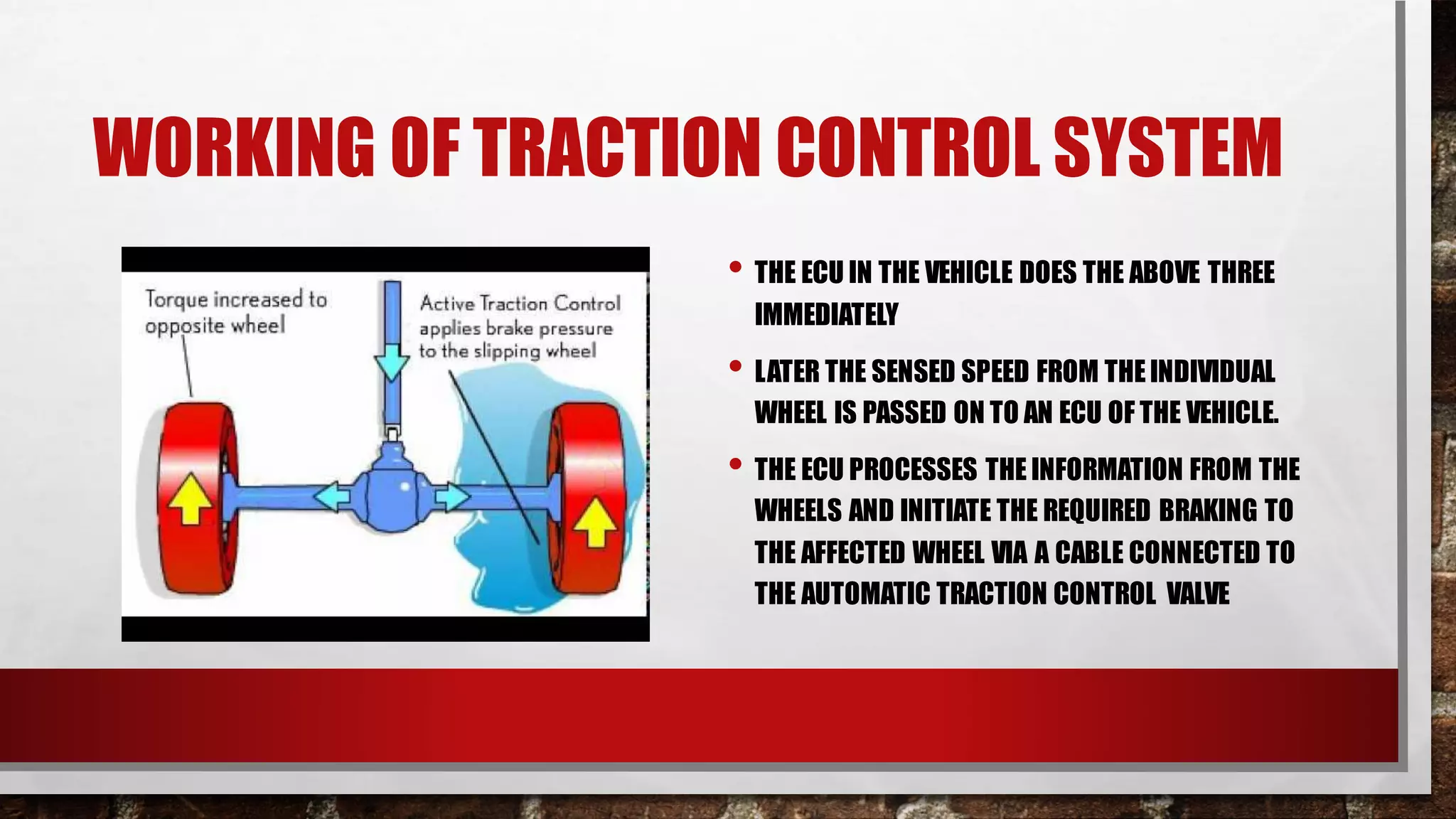

6. WORKING OF TRACTION CONTROL SYSTEM
• THE ECU IN THE VEHICLE DOES THE ABOVE THREE
IMMEDIATELY
• LATER THE SENSED SPEED FROM THEINDIVIDUAL
WHEEL IS PASSED ON TO AN ECU OF THE VEHICLE.
• THE ECU PROCESSES THE INFORMATION FROM THE
WHEELS AND INITIATE THE REQUIRED BRAKING TO
THE AFFECTED WHEEL VIA A CABLE CONNECTED TO
THE AUTOMATIC TRACTION CONTROL VALVE

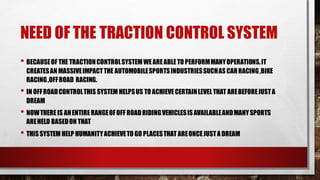

7. NEED OF THE TRACTION CONTROL SYSTEM
• BECAUSEOF THE TRACTIONCONTROLSYSTEMWEAREABLETO PERFORMMANYOPERATIONS.IT
CREATESAN MASSIVEIMPACTTHE AUTOMOBILESPORTSINDUSTRIESSUCHASCARRACING,BIKE
RACING,OFFROAD RACING.
• IN OFFROADCONTROLTHIS SYSTEM HELPSUS TO ACHIEVECERTAINLEVELTHAT AREBEFOREJUSTA
DREAM
• NOWTHEREIS ANENTIRERANGEOFOFF ROADRIDINGVEHICLESISAVAILABLEANDMANYSPORTS
AREHELD BASEDON THAT
• THISSYSTEM HELP HUMANITYACHIEVETO GO PLACESTHAT AREONCEJUSTA DREAM

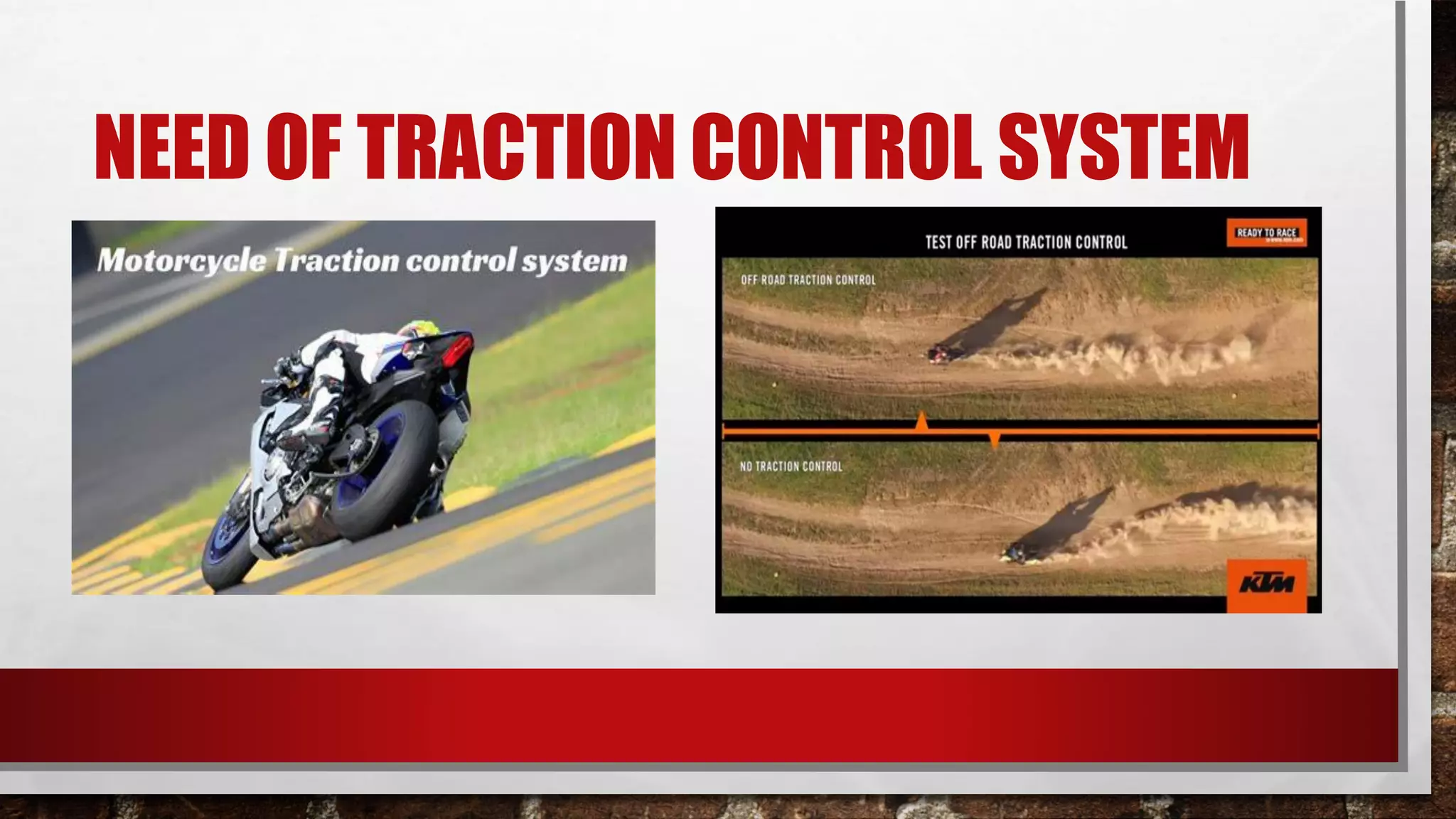

8. NEED OF TRACTION CONTROL SYSTEM

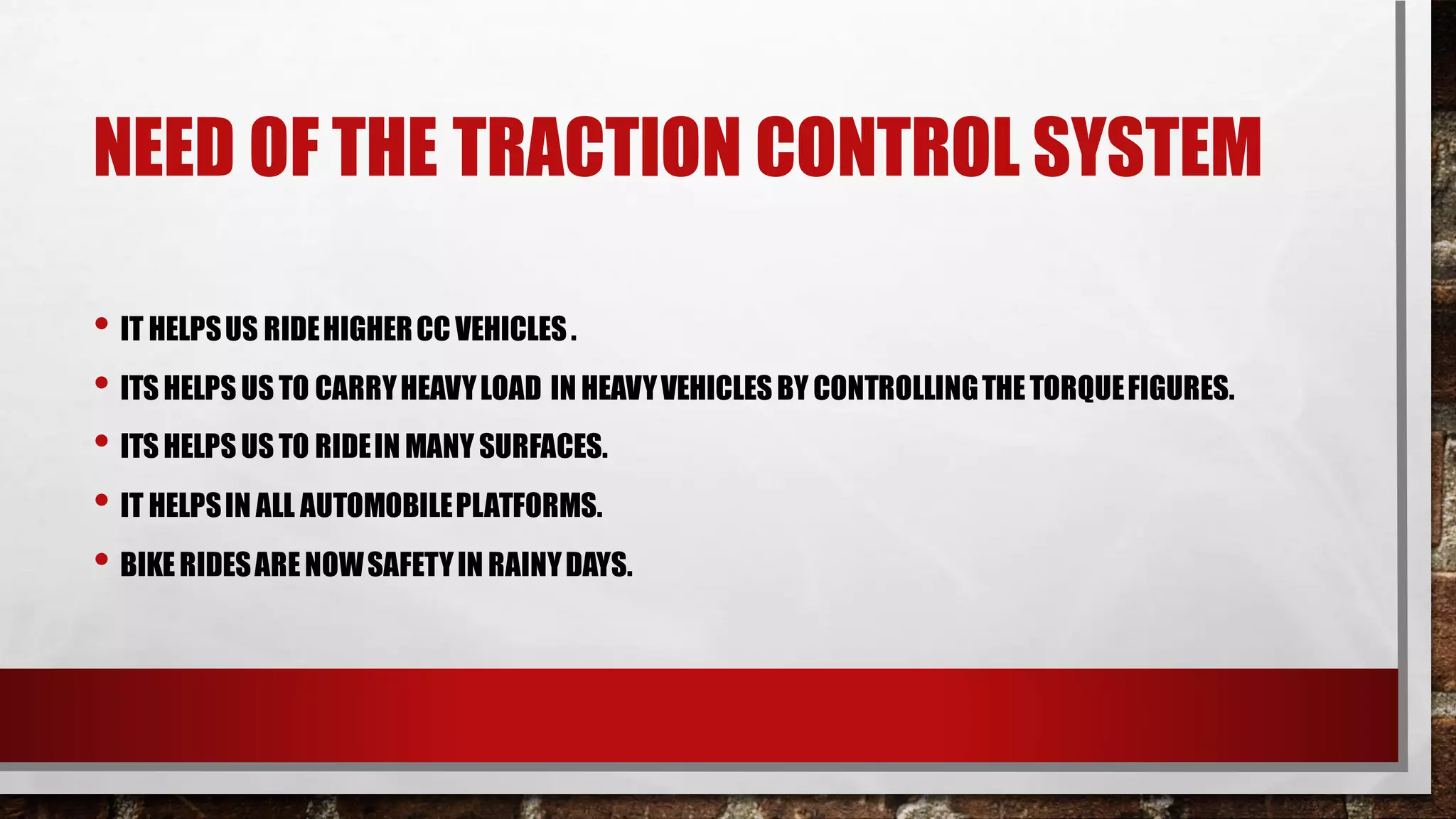

9. NEED OF THE TRACTION CONTROL SYSTEM
• IT HELPSUS RIDEHIGHERCC VEHICLES.
• ITS HELPS US TO CARRYHEAVYLOAD IN HEAVYVEHICLESBY CONTROLLINGTHETORQUEFIGURES.
• ITS HELPS US TO RIDEIN MANY SURFACES.
• IT HELPSIN ALL AUTOMOBILEPLATFORMS.
• BIKERIDESARENOWSAFETYIN RAINYDAYS.

10. TYPES OF TRACTION CONTROL SYSTEM
• CONTROLLINGTHEWHEELSLIPPAGE ISTHE AIMOFTRACTIONCONTROLSYSTEMBASEDONTHEMODEOFCONTROLITCAN
BE BROADLYCLASSIFIEDINTO
1. TORQUEMANAGED
2.BRAKEDAPPLIEDTCS
• TORQUEMANAGEMENTINTCSISOBTAINEDBY
1.RETARDINGOFIGNITIONTIMING
2.REDUCEDORCUTFUELINJECTIONPULSESTO ONEORMORECYLINDERS.
3.INCREASE EGRFLOW.

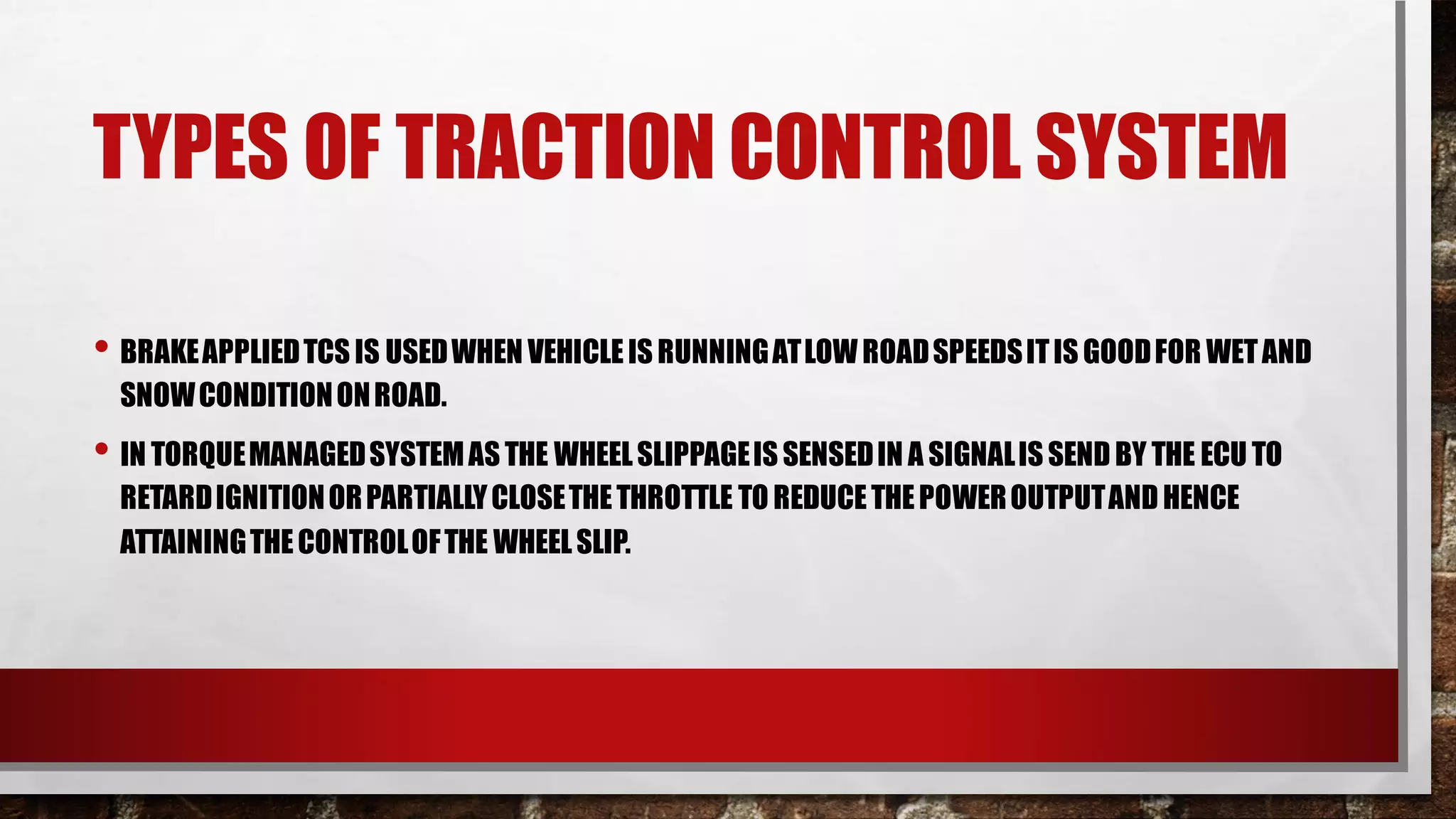

11. TYPES OF TRACTION CONTROL SYSTEM
• BRAKEAPPLIEDTCS IS USEDWHEN VEHICLEISRUNNINGATLOWROADSPEEDSITISGOODFOR WETAND
SNOWCONDITIONONROAD.
• IN TORQUEMANAGEDSYSTEMASTHE WHEELSLIPPAGEISSENSEDIN A SIGNALISSENDBY THE ECU TO
RETARDIGNITIONORPARTIALLYCLOSETHETHROTTLE TO REDUCETHEPOWEROUTPUTAND HENCE
ATTAININGTHECONTROLOFTHE WHEELSLIP.

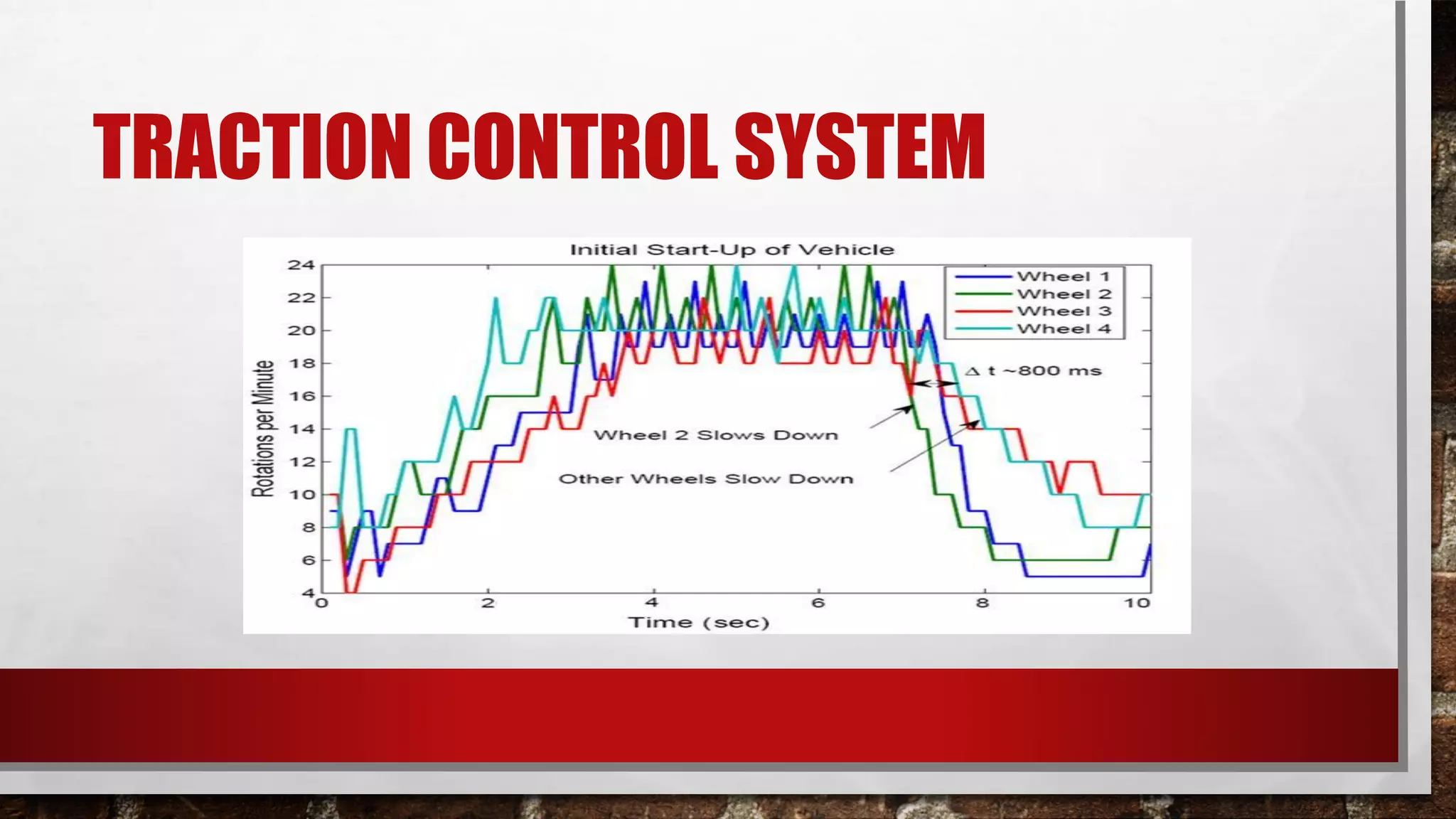

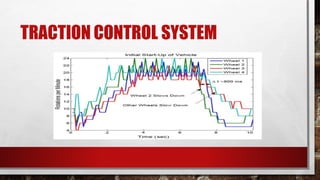

12. TRACTION CONTROL SYSTEM

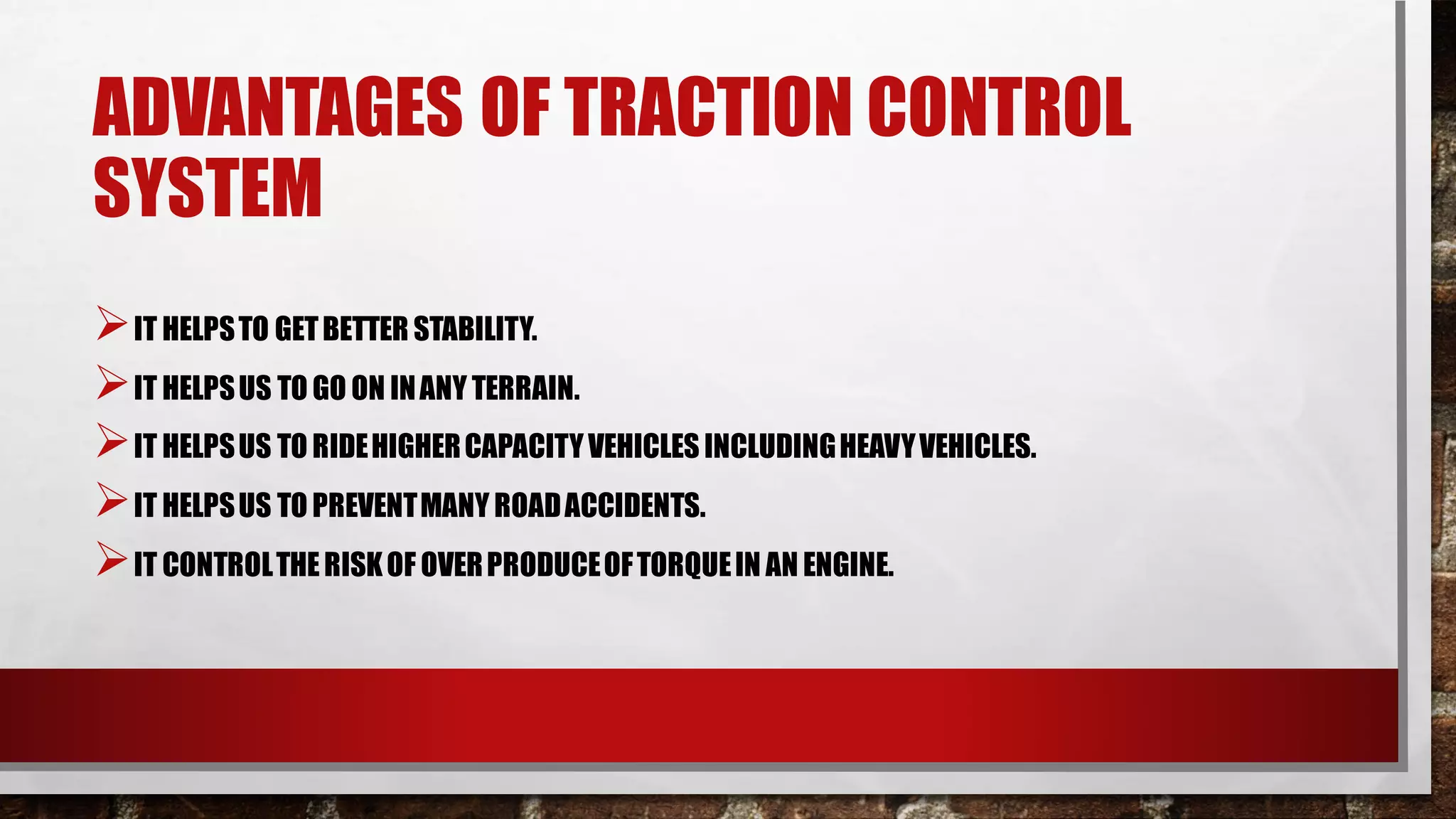

13. ADVANTAGES OF TRACTION CONTROL
SYSTEM
➢IT HELPSTO GETBETTER STABILITY.
➢IT HELPSUS TO GO ON INANY TERRAIN.
➢IT HELPSUS TO RIDEHIGHERCAPACITYVEHICLES INCLUDINGHEAVYVEHICLES.
➢IT HELPSUS TO PREVENTMANY ROADACCIDENTS.
➢IT CONTROLTHERISKOF OVERPRODUCEOFTORQUEIN AN ENGINE.

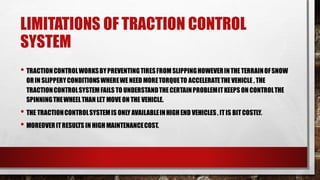

14. LIMITATIONS OF TRACTION CONTROL
SYSTEM
• TRACTIONCONTROLWORKSBYPREVENTINGTIRESFROMSLIPPINGHOWEVERINTHETERRAINOFSNOW
ORIN SLIPPERYCONDITIONSWHEREWENEED MORETORQUETO ACCELERATETHEVEHICLE , THE
TRACTIONCONTROLSYSTEMFAILS TO UNDERSTANDTHECERTAINPROBLEMITKEEPSON CONTROLTHE
SPINNINGTHEWHEELTHAN LET MOVEON THE VEHICLE.
• THE TRACTIONCONTROLSYSTEMIS ONLY AVAILABLEINHIGHEND VEHICLES, ITIS BITCOSTLY.
• MOREOVERITRESULTS IN HIGH MAINTENANCECOST.

15. THANKING YOU
