The document describes several point-to-point wireless backhaul solutions for distances between 5 to over 20 miles. The TR-5821 solution includes a 40dBm radio, 21dB antenna, and mounting bracket for a 5 mile range. The TR-5826, TR-5829, and TR-5832 solutions include higher gain external antennas - 26dBi, 29dBi, and 32dBi grids and dishes respectively - for ranges of 10, 20, and extended miles along with an enclosure and cable. All solutions include power over ethernet and operate in the 5GHz band.

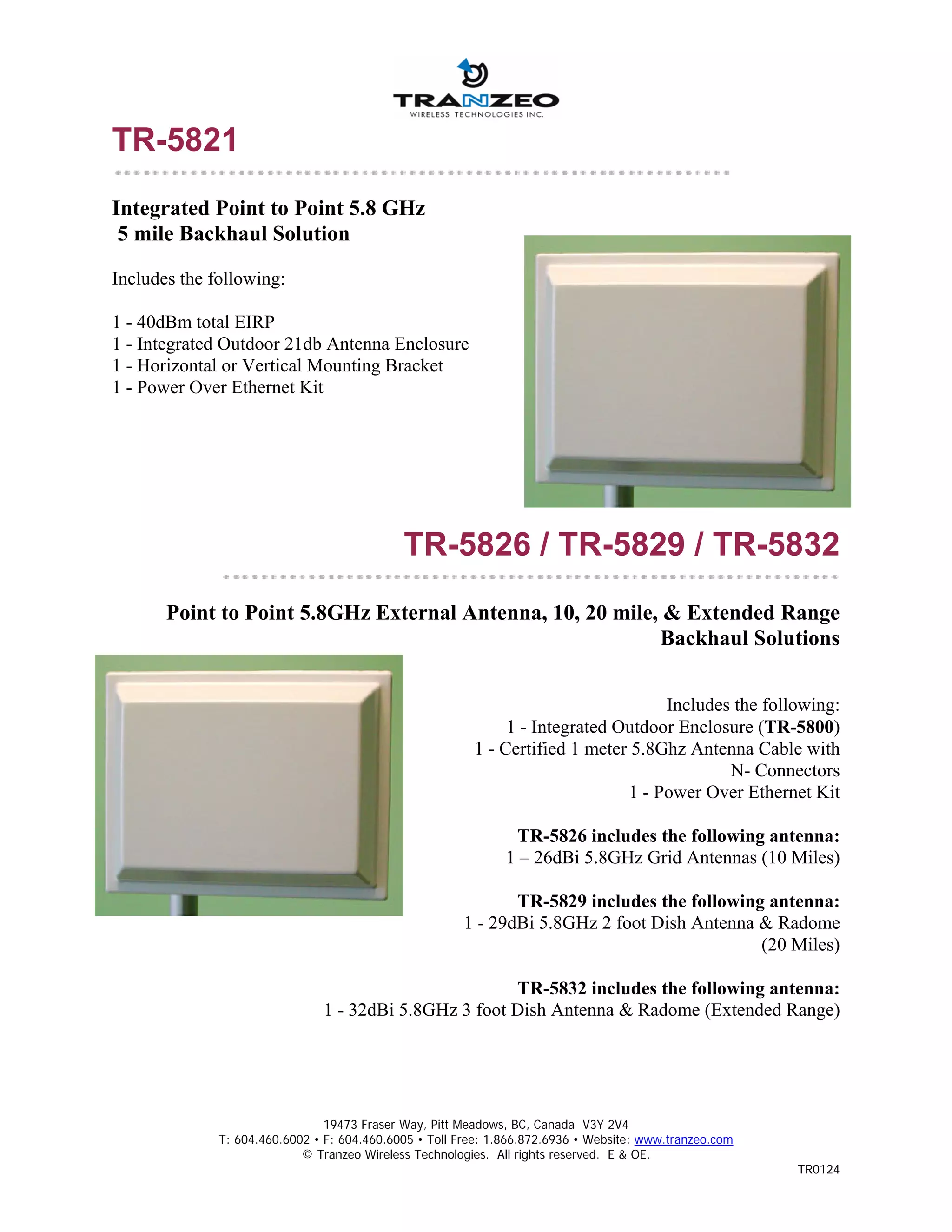

1. TR-5821
Integrated Point to Point 5.8 GHz
5 mile Backhaul Solution
Includes the following:
1 - 40dBm total EIRP
1 - Integrated Outdoor 21db Antenna Enclosure
1 - Horizontal or Vertical Mounting Bracket
1 - Power Over Ethernet Kit
TR-5826 / TR-5829 / TR-5832
Point to Point 5.8GHz External Antenna, 10, 20 mile, & Extended Range
Backhaul Solutions
Includes the following:
1 - Integrated Outdoor Enclosure (TR-5800)
1 - Certified 1 meter 5.8Ghz Antenna Cable with
N- Connectors
1 - Power Over Ethernet Kit
TR-5826 includes the following antenna:
1 – 26dBi 5.8GHz Grid Antennas (10 Miles)
TR-5829 includes the following antenna:
1 - 29dBi 5.8GHz 2 foot Dish Antenna & Radome
(20 Miles)
TR-5832 includes the following antenna:
1 - 32dBi 5.8GHz 3 foot Dish Antenna & Radome (Extended Range)
19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4
T: 604.460.6002 • F: 604.460.6005 • Toll Free: 1.866.872.6936 • Website: www.tranzeo.com
© Tranzeo Wireless Technologies. All rights reserved. E & OE.
TR0124

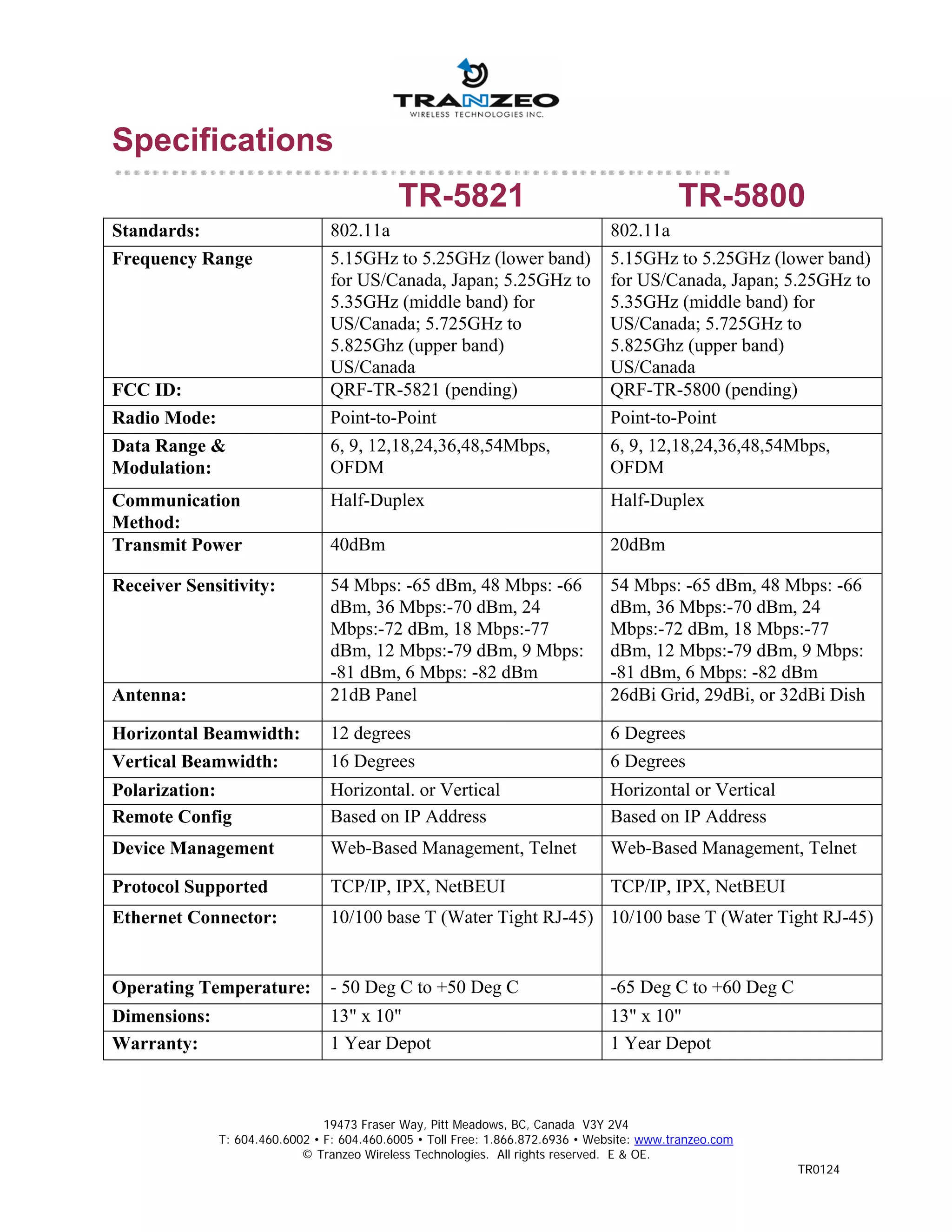

2. Specifications
TR-5821 TR-5800
Standards: 802.11a 802.11a
Frequency Range 5.15GHz to 5.25GHz (lower band) 5.15GHz to 5.25GHz (lower band)
for US/Canada, Japan; 5.25GHz to for US/Canada, Japan; 5.25GHz to
5.35GHz (middle band) for 5.35GHz (middle band) for
US/Canada; 5.725GHz to US/Canada; 5.725GHz to
5.825Ghz (upper band) 5.825Ghz (upper band)
US/Canada US/Canada
FCC ID: QRF-TR-5821 (pending) QRF-TR-5800 (pending)
Radio Mode: Point-to-Point Point-to-Point
Data Range & 6, 9, 12,18,24,36,48,54Mbps, 6, 9, 12,18,24,36,48,54Mbps,
Modulation: OFDM OFDM
Communication Half-Duplex Half-Duplex
Method:
Transmit Power 40dBm 20dBm
Receiver Sensitivity: 54 Mbps: -65 dBm, 48 Mbps: -66 54 Mbps: -65 dBm, 48 Mbps: -66
dBm, 36 Mbps:-70 dBm, 24 dBm, 36 Mbps:-70 dBm, 24
Mbps:-72 dBm, 18 Mbps:-77 Mbps:-72 dBm, 18 Mbps:-77
dBm, 12 Mbps:-79 dBm, 9 Mbps: dBm, 12 Mbps:-79 dBm, 9 Mbps:
-81 dBm, 6 Mbps: -82 dBm -81 dBm, 6 Mbps: -82 dBm
Antenna: 21dB Panel 26dBi Grid, 29dBi, or 32dBi Dish
Horizontal Beamwidth: 12 degrees 6 Degrees
Vertical Beamwidth: 16 Degrees 6 Degrees
Polarization: Horizontal. or Vertical Horizontal or Vertical
Remote Config Based on IP Address Based on IP Address
Device Management Web-Based Management, Telnet Web-Based Management, Telnet
Protocol Supported TCP/IP, IPX, NetBEUI TCP/IP, IPX, NetBEUI
Ethernet Connector: 10/100 base T (Water Tight RJ-45) 10/100 base T (Water Tight RJ-45)
Operating Temperature: - 50 Deg C to +50 Deg C -65 Deg C to +60 Deg C
Dimensions: 13" x 10" 13" x 10"
Warranty: 1 Year Depot 1 Year Depot
