Lazy loading content, tracking impressions, animation triggers - for many years we have utilised scroll handlers to detect when to trigger such actions. Now modern browsers are supporting IntersectionObserver, a new API that comes with better performance, and results in cleaner code. In this talk I will show you what Intersection Observer is, what type of code it replaces and why it is a better alternative. Slides from talk given at: - FEL in London on September 28th, 2017 - Paris.js on September 27th, 2017 - BerlinJS on September 21st, 2017 ---- Snips are hiring - join us for an amazing adventure working with AI in the heart of Paris (no remote). Currently looking for one frontend dev, as well as for many other non web roles: https://snips.ai/jobs

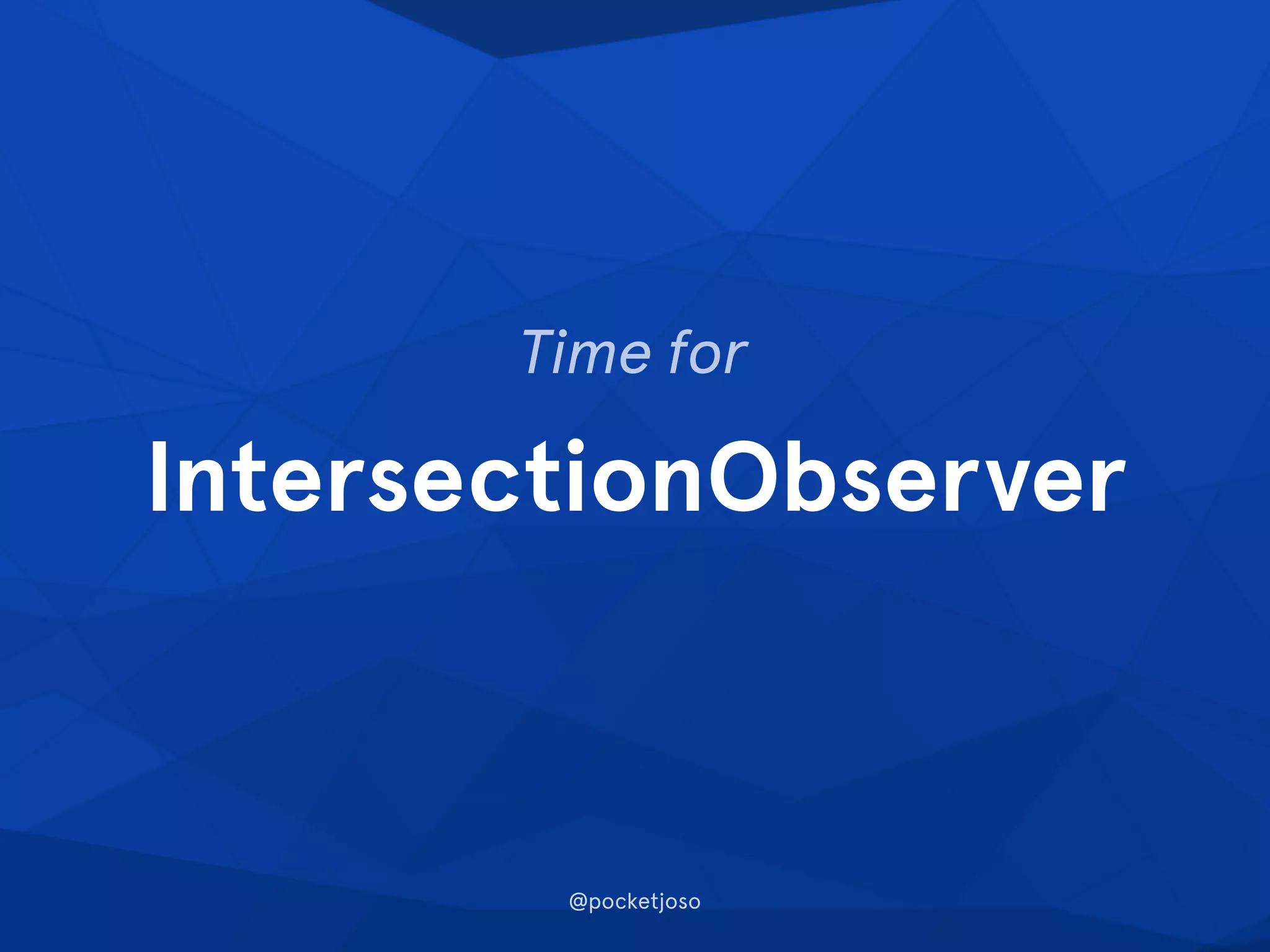

1. IntersectionObserver
Time for
@pocketjoso

2. Open source, web perf, tooling, React
Critical css: Penthouse, criticalcss.com
About me
@pocketjoso pocketjoso
Jonas Ohlsson Aden
https://jonassebastianohlsson.com
Lead Front end team
Using Voice AI to make technology disappear

3. Today’s talk
• What is IntersectionObserver❔
• Why you need it 👊
• How to use it (today) 🚀

4. What is
IntersectionObserver
❔
Default behaviour is in-view monitoring
‘root’ can be changed (advanced use cases)

5. Some usages areas 🎯
• lazy loading content
• in-view tracking
• animation triggers

6. in-view animation trigger

7. Why is it needed?
We’ve been doing these things for years!

8. Why is it needed?
..without it you end up with
• complex code
• performance issues
more on why: https://github.com/w3c/IntersectionObserver/blob/gh-pages/explainer.md#observing-position

9. Why complex and badly
performing? (historically)
• ‘scroll’ fires too often, needs to be
throttled
useful: https://css-tricks.com/debouncing-throttling-explained-examples/
why getBoundingClientRect is slow https://gist.github.com/paulirish/5d52fb081b3570c81e3a
• useful DOM methods are too slow 🐌, f.e.
DOMElement.getBoundingClientRect
• workarounds requires caching expensive DOM
read values, and then cache invalidation..

10. IntersectionObserver
to the rescue! 🎉

11. const observer = new
window.IntersectionObserver(onIntersect)
function onIntersect (entries) {
entries.forEach(entry => {
if (entry.isIntersecting) {
console.log('element intersecting!')
}
})
}
observer.observe(DOMElement)
👍
in-view monitoring
with IntersectionObserver

12. Why is it needed?
recap
• avoid complex code
• avoid performance issues
more on why: https://github.com/w3c/IntersectionObserver/blob/gh-pages/explainer.md#observing-position
✅

13. IntersectionObserver
performance built in 🏇
• callback doesn’t fire continuously
- and internally uses requestIdleCallback*
• not magic: do keep handler execution quick
• no need for getBoundingClientRect()
- intersection checks handled and optimised by
browser
*so far only in Chrome

14. Why is it needed?
recap
• avoid complex code
• avoid performance issues
✅
✅

15. IntersectionObserver
performance built in 🏇
• callback doesn’t fire continuously
- and internally uses requestIdleCallback*
• not magic: do keep handler execution quick
• no need for getBoundingClientRect()
- intersection checks handled and optimised by
browser
*so far only in Chrome

16. IntersectionObserver
for animations
• don’t use if need continuous updates; tracing
scroll position
-> Parallax effects ❌
• can use if okay with delayed (async) updates
-> enter/exit animation trigger ✅
✅ Just test your use case

17. IntersectionObserver
what else do we need to know?
full API docs: https://developer.mozilla.org/en-US/docs/Web/API/Intersection_Observer_API

18. in-view detection
via entry.isIntersecting
const observer = new
window.IntersectionObserver(onIntersect)
function onIntersect (entries) {
entries.forEach(entry => {
if (entry.isIntersecting) {
console.log('element intersecting!')
}
})
}
observer.observe(DOMElement)
In my opinion the easiest way to do this

19. entry.isIntersecting
• Not whether entry is intersecting or not
• whether the element now intersects more or
less than before
⚠ in earlier version of spec the behaviour was the former; and it’s still the case in polyfills, and early Edge

20. in view detection
via entry.intersectionRatio
const observer = new
window.IntersectionObserver(onIntersect)
function onIntersect (entries) {
entries.forEach(entry => {
if (entry.intersectionRatio > 0) {
console.log('element intersecting!')
}
})
}
observer.observe(DOMElement)
(not enough to just use intersectionRatio)

21. intersectionRatio =
area intersecting / total area
by default: area in view

22. Image credit: https://developers.google.com/web/updates/2016/04/intersectionobserver
root
(Viewport)
intersectionRatio =
area intersecting /
total area

23. in view detection
via intersectionRatio
const observer = new IntersectionObserver(
onIntersect,
{threshold: [0.01]} // default: [0]
)
function onIntersect (entries) {
entries.forEach(entry => {
if (entry.intersectionRatio > 0) {
console.log('element intersecting!')
}
})
}
observer.observe(DOMElement)
You need to add a custom threshold

24. in view detection
via intersectionRatio
const observer = new IntersectionObserver(
onIntersect,
{threshold: [0.01]} // default: [0]
)
function onIntersect (entries) {
entries.forEach(entry => {
if (entry.intersectionRatio > 0) {
console.log('element intersecting!')
}
})
}
observer.observe(DOMElement)
threshold + intersectionRatio demo: https://codepen.io/pocketjoso/pen/jGqgPB
threshold: array of intersectionRatio values
when crossed triggers onIntersect callback

25. in view detection
via intersectionRatio
const observer = new IntersectionObserver(
onIntersect,
{threshold: [0.01]} // Note: above 0
)
function onIntersect (entries) {
entries.forEach(entry => {
// without 0.01 threshold
// we can get false negatives here
if (entry.intersectionRatio > 0) {
console.log('element intersecting!')
}
})
}
⚠
To avoid false negatives

26. thresholds and callbacks
• onIntersect also fires when observer.observe() is called
• No guarantee of one onIntersect call per threshold -
callback is ~ throttled, time-overlapping calls omitted
• ⚠ Possible to get no callbacks is scrolling past too
quickly
• ✅ Should not be a problem for most use cases

27. determine direction
• entry.boundingClientRect: static read-
only value - we get it for free! 🎉
• together with entry.isIntersecting we
can determine direction
function onIntersect (entries) {
entries.forEach(entry => {
// entry.boundingClientRect
// entry.isIntersecting
}

28. re-use observer
const observer = new
window.IntersectionObserver(onIntersect)
[…document.querySelectorAll('.myClass')]
.forEach(DOMElement => observer.observe(DOMElement))
also possible using multiple observers,
if need different observer configuration

29. observer.unobserve & entry.target
const observer = new
window.IntersectionObserver(onIntersect)
function onIntersect (entries) {
entries.forEach(entry => {
if (entry.isIntersecting) {
// f.e. lazy load image here
// then stop observing.
// entry.target is the DOMElement
// we called observer.observe with
observer.unobserve(entry.target)
}
})
}
[…document.querySelectorAll(‘.lazy-load’)]
.forEach(DOMElement => observer.observe(DOMElement))

30. disconnect
const observer = new
window.IntersectionObserver(onIntersect)
// later - tears down all observing
observer.disconnect()
use case: on navigation (leaving page) in
Single Page Application

31. rootMargin
px or percent
Can use negative margins
const observer = new IntersectionObserver(
onIntersect,
{ rootMargin: '0px 0px 0px 0px' }
)
observer.observe(DOMElement)
rootMargin demo: https://codepen.io/pocketjoso/pen/GMqJYx?editors=0110

32. rootMargin
• Use positive margin to fire onIntersect earlier
- for lazy loading logic
• Could use negative margin to delay onIntersect,
to have more of the element in-view already…
..but better define such “margin” relative to the element:
const observer = new IntersectionObserver(
onIntersect,
{threshold: [0.2]} // update when 20% in-view instead of 0%
)

33. Support?
http://caniuse.com/#feat=intersectionobserver

34. Support strategies
1. Progressive enhancement
2. Polyfill
https://cdn.polyfill.io/v2/polyfill.js?features=IntersectionObserver)
Configure polyfill to poll for changes from css (:hover, animations) and other user interactions:
https://github.com/w3c/IntersectionObserver/tree/master/polyfill#configuring-the-polyfill

35. How we use at
• React
• Declarative code

36. Declarative
(order: Big Mac)
vs
Imperative
(recipe: cut the cucumber, rinse the salad…)

37. DOM manipulation -
imperative
const observer = new IntersectionObserver(
onIntersect,
{threshold: [0.01]} // default: [0]
)
function onIntersect (entries) {
entries.forEach(entry => {
if (entry.intersectionRatio > 0) {
console.log('element intersecting!')
}
})
}
observer.observe(DOMElement)
We want to avoid repeating this kind of code

38. <InViewMonitor
classNameInView='animated fadeInUp'
>
<ElementToAnimateIn />
</InViewMonitor>
How we use at
• “Reveal” animations

39. <InViewMonitor
childPropsInView={{ playVideo: true }}
>
<VideoPlayer />
</InViewMonitor>
How we use at
• Auto play/stop video
- save GPU and mobile battery

40. <InViewMonitor
onInView={() => trackEvent(‘VideoPlayerInView')}
>
<VideoPlayer />
</InViewMonitor>
How we use at
• track components coming into view
• .. or any other custom functionality

41. How we use at
• declarative & easy to use
• Uses IntersectionObserver under the hood
Open source! 🎉
https://snipsco.github.io/react-inview-monitor/
react-inview-monitor

42. Summary
• IntersectionObserver is here -
ready to use today (with a polyfill)
• For in-view detection, it is an easier and
better performing alternative than scroll
listeners

43. We’re hiring..
https://snips.ai/jobs

44. That’s all! 🥂
Thank you! 🙏
@pocketjoso

45. Resources
https://developer.mozilla.org/en-US/docs/Web/API/Intersection_Observer_API
https://developers.google.com/web/updates/2016/04/intersectionobserver
https://github.com/w3c/IntersectionObserver/blob/gh-pages/explainer.md
https://davidwalsh.name/intersection-observers
http://deanhume.com/home/blogpost/lazy-loading-images-using-intersection-
observer/10163
https://www.youtube.com/watch?v=ncYQkOrKTaI&list=PLNYkxOF6rcIBykcJ7bvTpqU7vt-
oey72J&index=7
https://corydowdy.com/blog/lazy-loading-images-with-intersection-observer
https://alligator.io/js/intersection-observer
http://caniuse.com/#feat=intersectionobserver
https://developers.google.com/web/updates/2017/09/sticky-headers
@pocketjoso
