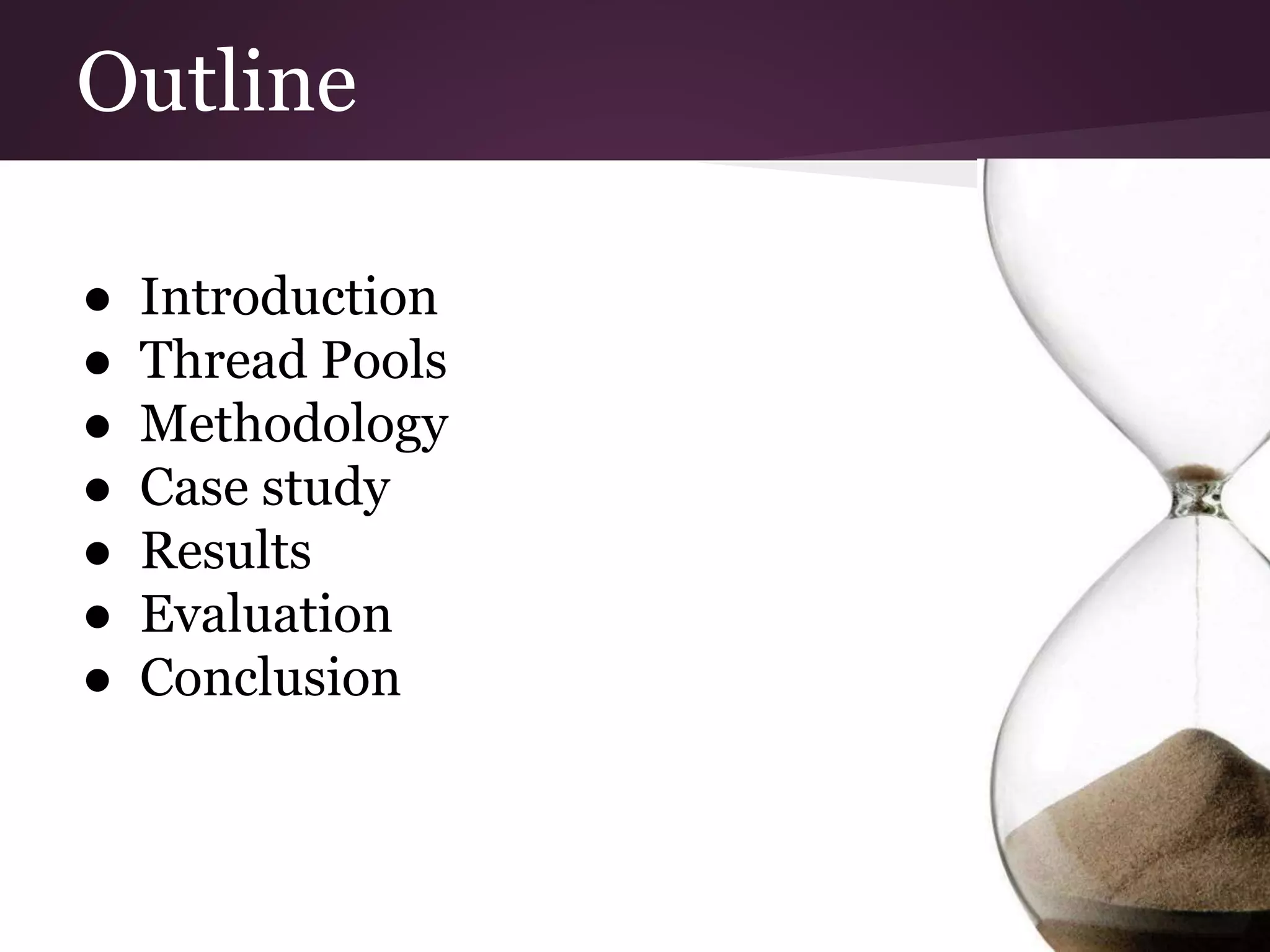

Outline
● Introduction
● Thread Pools
● Methodology
● Case study
● Results
● Evaluation
● Conclusion
2

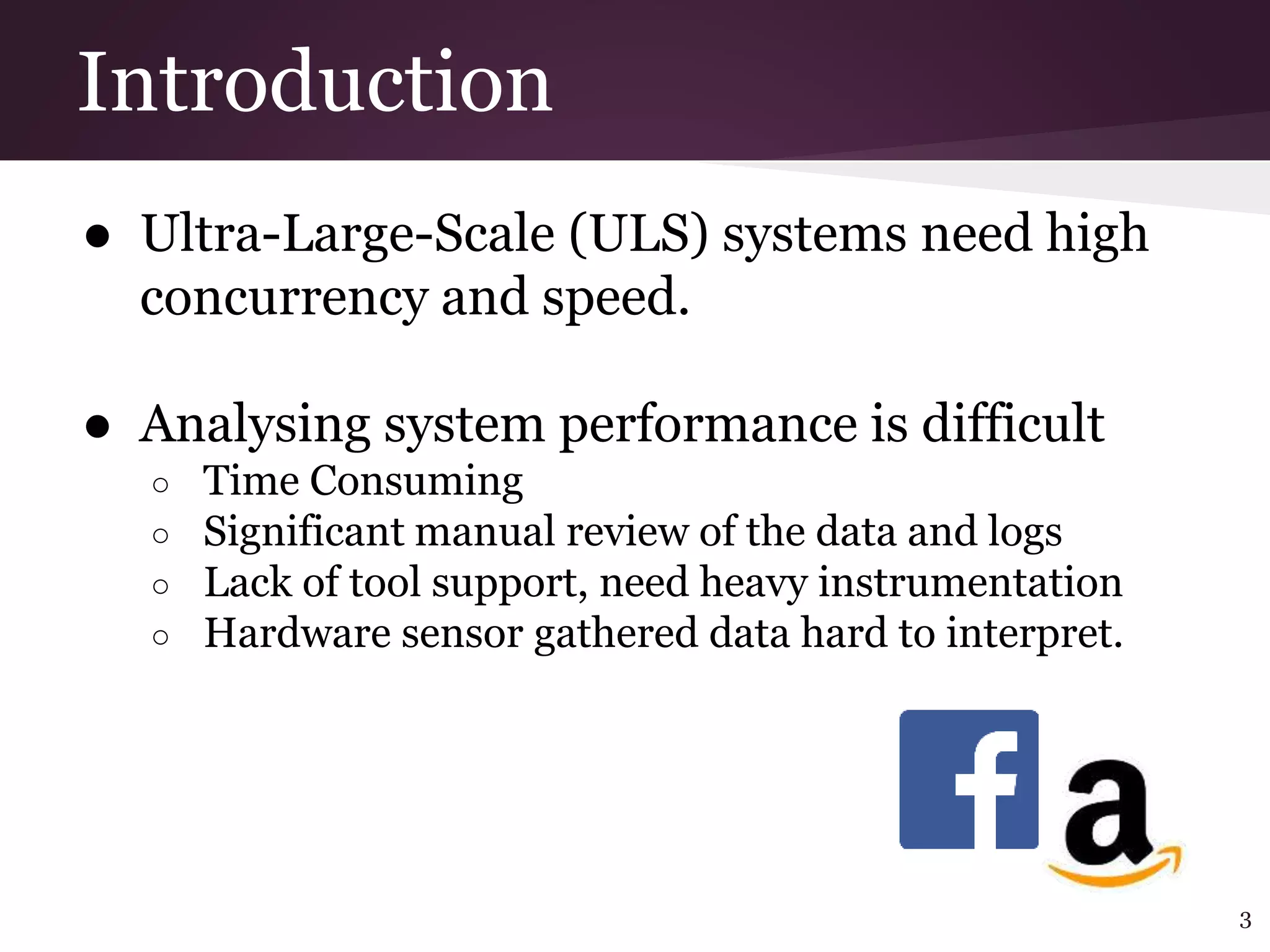

Introduction
● Ultra-Large-Scale (ULS) systems need high
concurrency and speed.
● Analysing system performance is difficult
○ Time Consuming
○ Significant manual review of the data and logs
○ Lack of tool support, need heavy instrumentation
○ Hardware sensor gathered data hard to interpret.
3

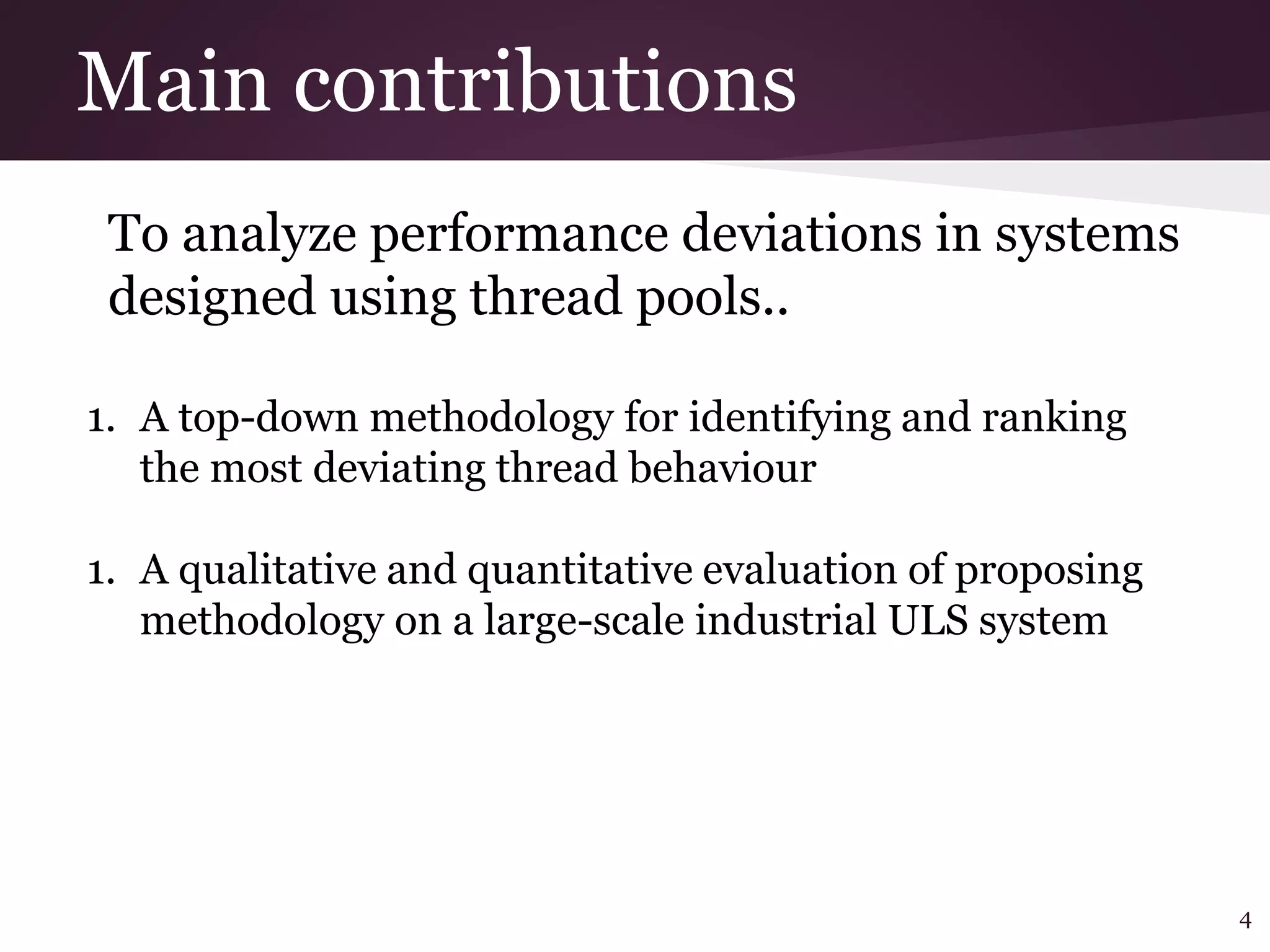

Main contributions
To analyze performance deviations in systems
designed using thread pools..
1. A top-down methodology for identifying and ranking
the most deviating thread behaviour
1. A qualitative and quantitative evaluation of proposing
methodology on a large-scale industrial ULS system
4

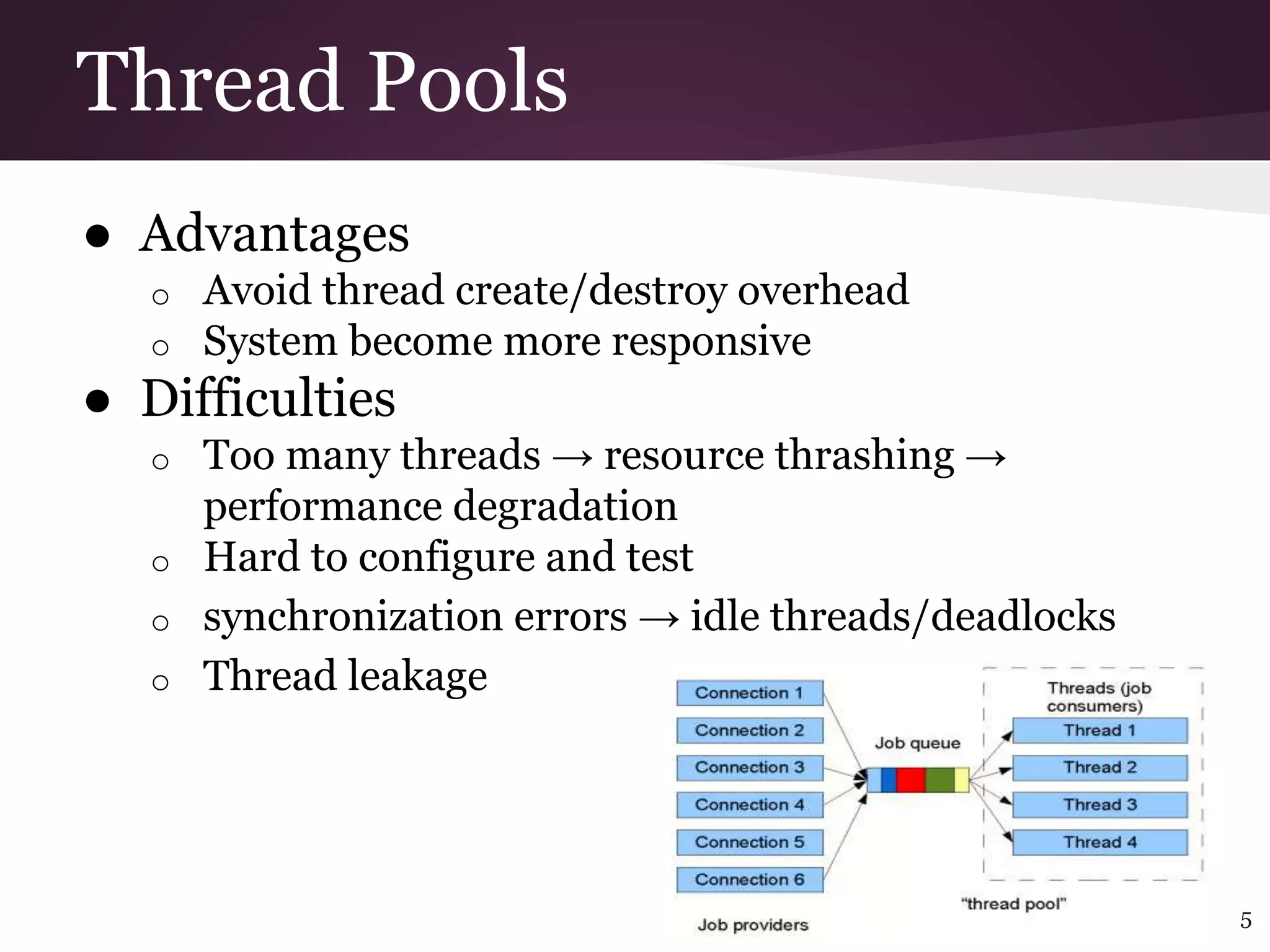

Thread Pools
● Advantages
o Avoid thread create/destroy overhead
o System become more responsive
● Difficulties
o Too many threads → resource thrashing →
performance degradation
o Hard to configure and test
o synchronization errors → idle threads/deadlocks
o Thread leakage
5

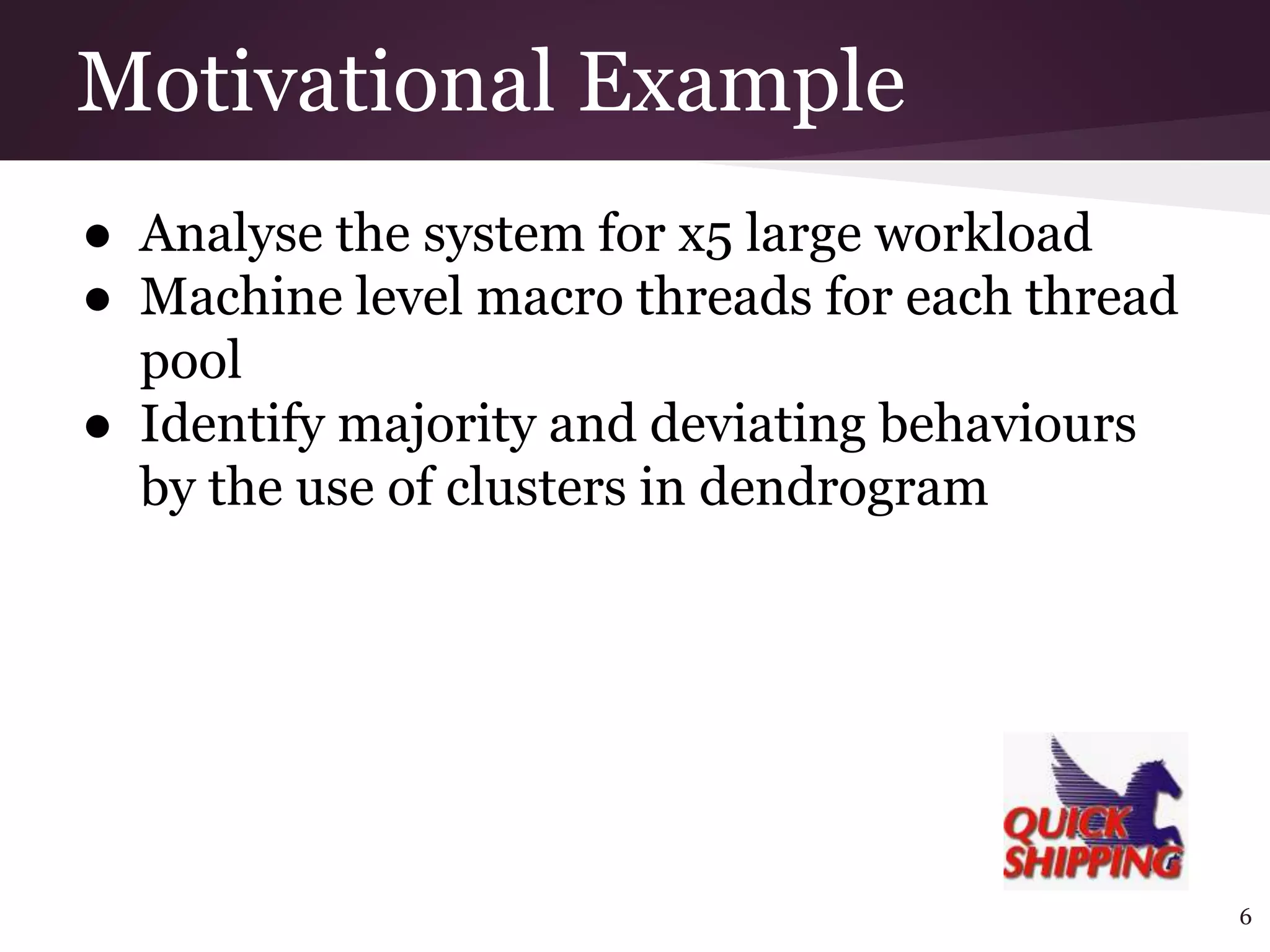

Motivational Example
● Analyse the system for x5 large workload
● Machine level macro threads for each thread
pool
● Identify majority and deviating behaviours
by the use of clusters in dendrogram
6

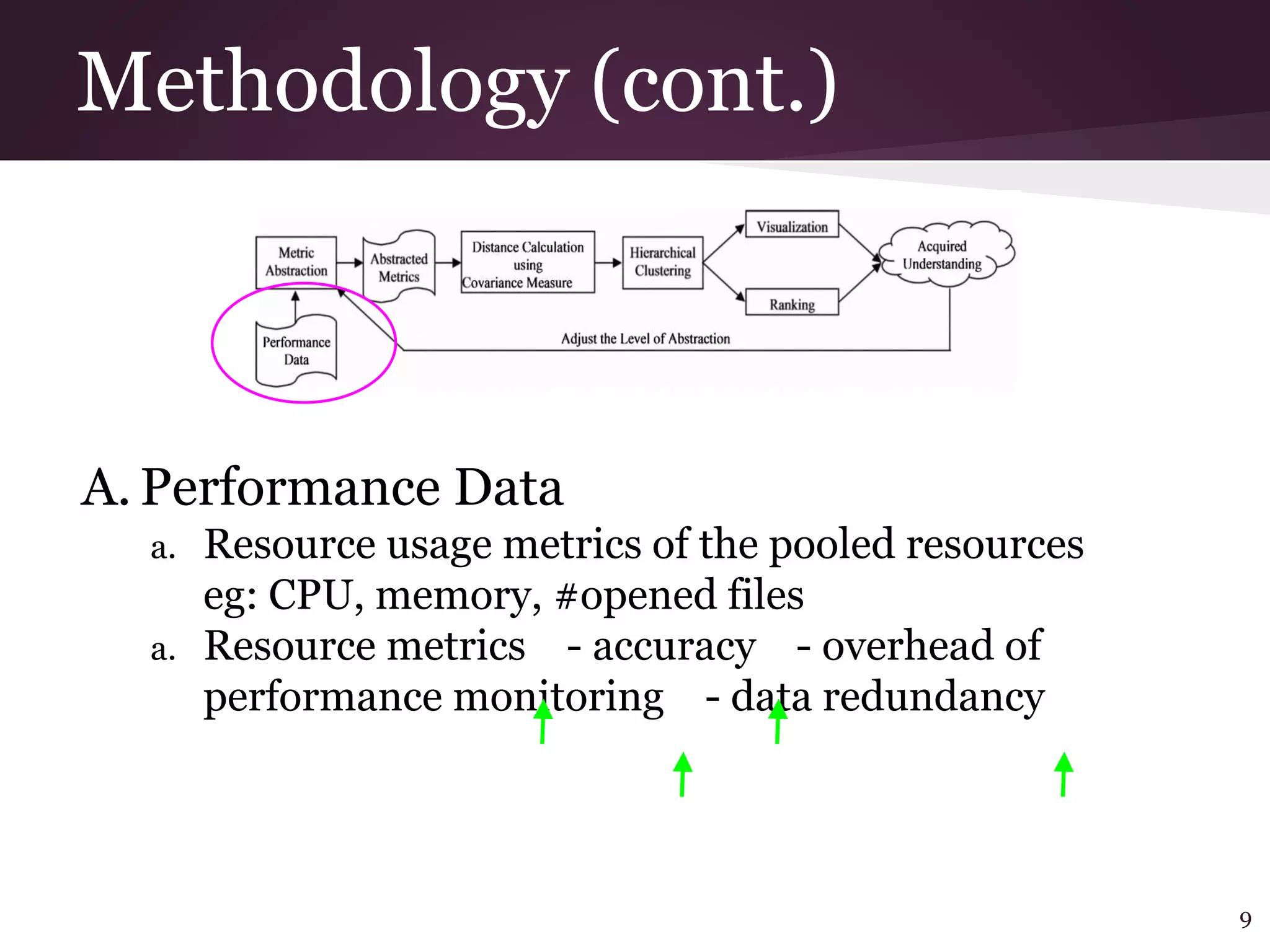

Methodology (cont.)
A. Performance Data
a. Resource usage metrics of the pooled resources
eg: CPU, memory, #opened files
a. Resource metrics - accuracy - overhead of
performance monitoring - data redundancy
9

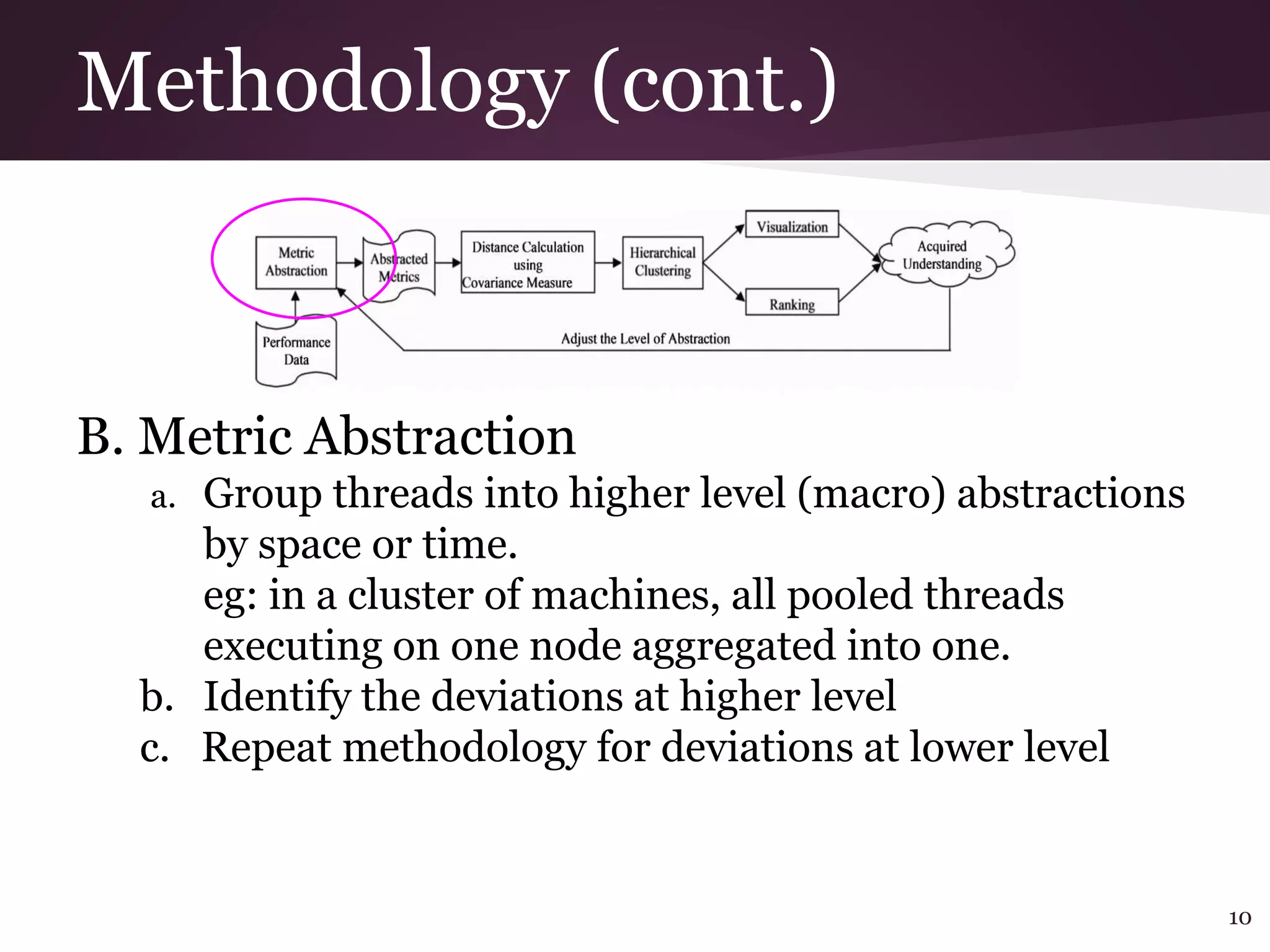

Methodology (cont.)
B. Metric Abstraction
a. Group threads into higher level (macro) abstractions
by space or time.
eg: in a cluster of machines, all pooled threads
executing on one node aggregated into one.
b. Identify the deviations at higher level
c. Repeat methodology for deviations at lower level
10

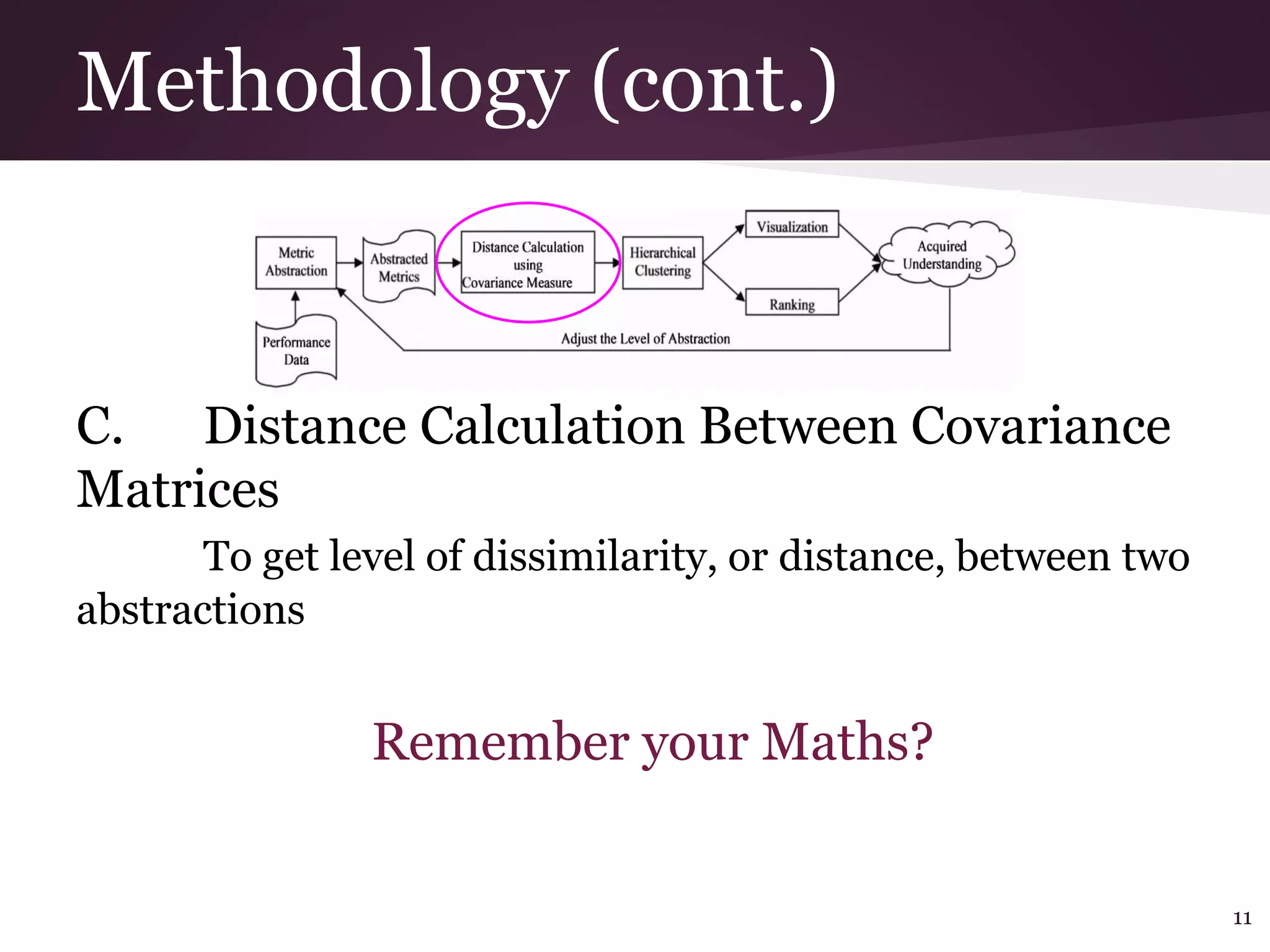

Methodology (cont.)
C. Distance Calculation Between Covariance
Matrices
To get level of dissimilarity, or distance, between two
abstractions
11

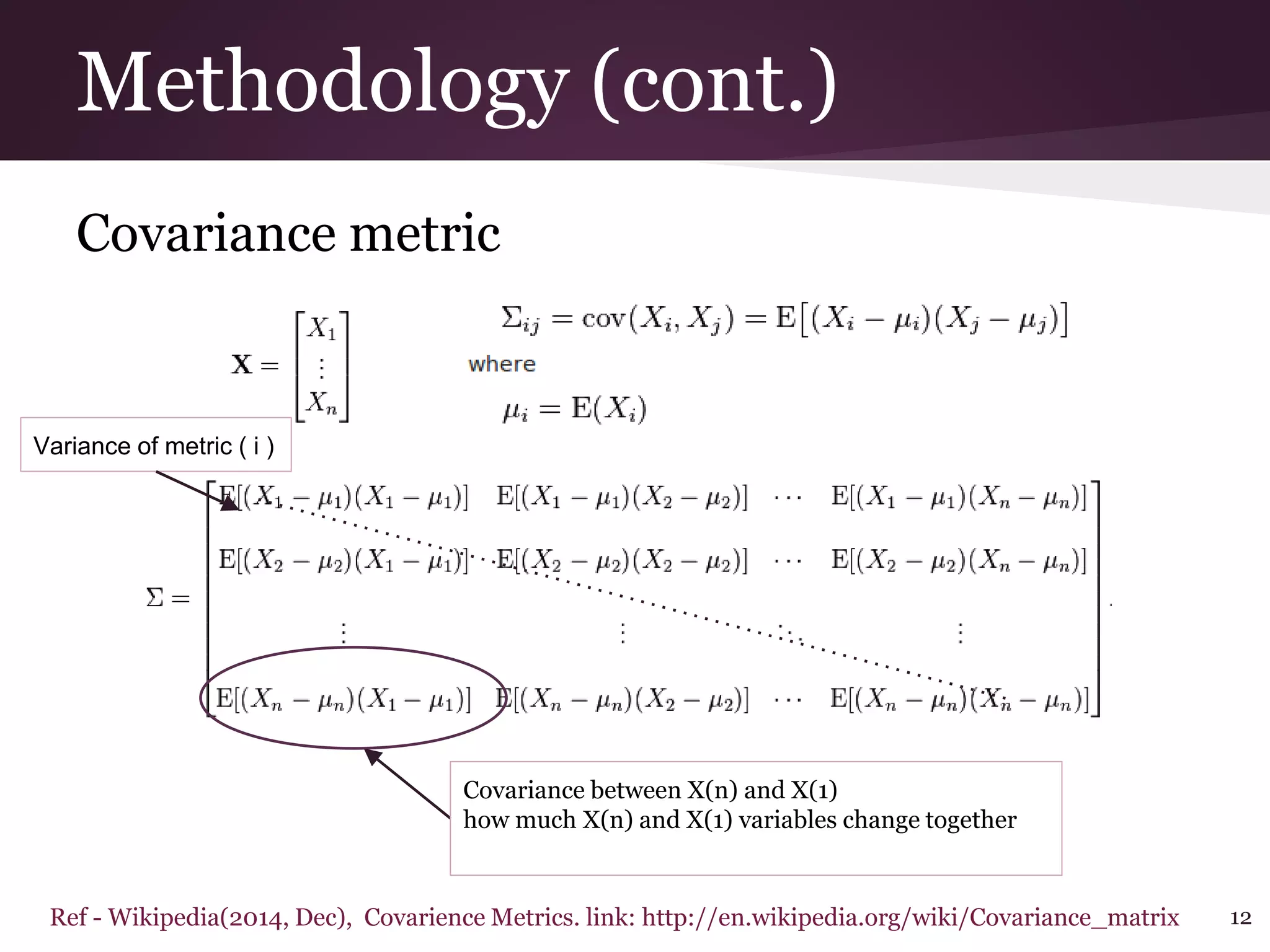

Remember your Maths?

Methodology (cont.)
Covariance metric
12
Covariance between X(n) and X(1)
how much X(n) and X(1) variables change together
Ref - Wikipedia(2014, Dec), Covarience Metrics. link: http://en.wikipedia.org/wiki/Covariance_matrix
Variance of metric ( i )

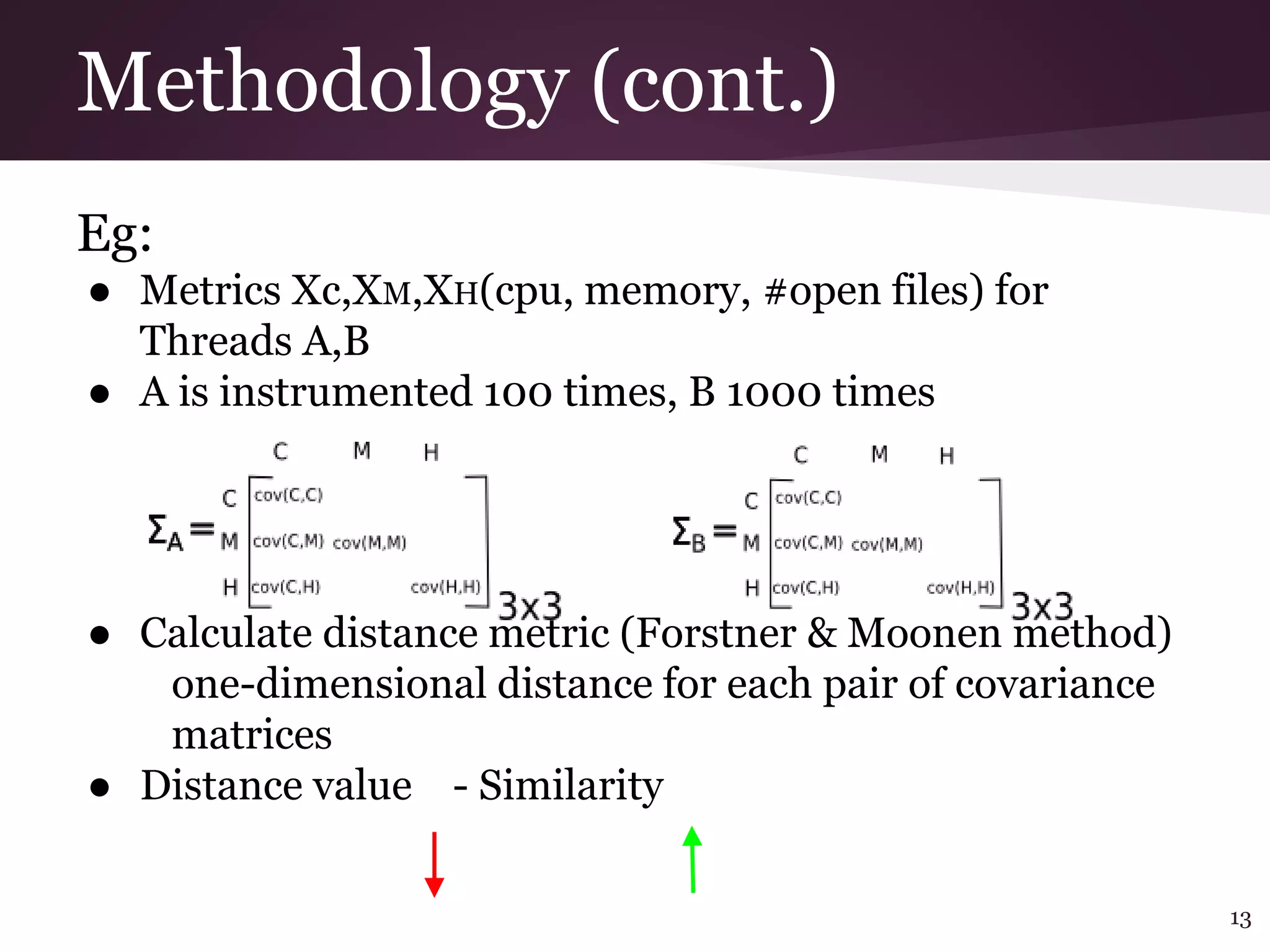

Methodology (cont.)
Eg:
● Metrics Xc,XM,XH(cpu, memory, #open files) for
Threads A,B
● A is instrumented 100 times, B 1000 times
● Calculate distance metric (Forstner & Moonen method)
one-dimensional distance for each pair of covariance
matrices
● Distance value - Similarity
13

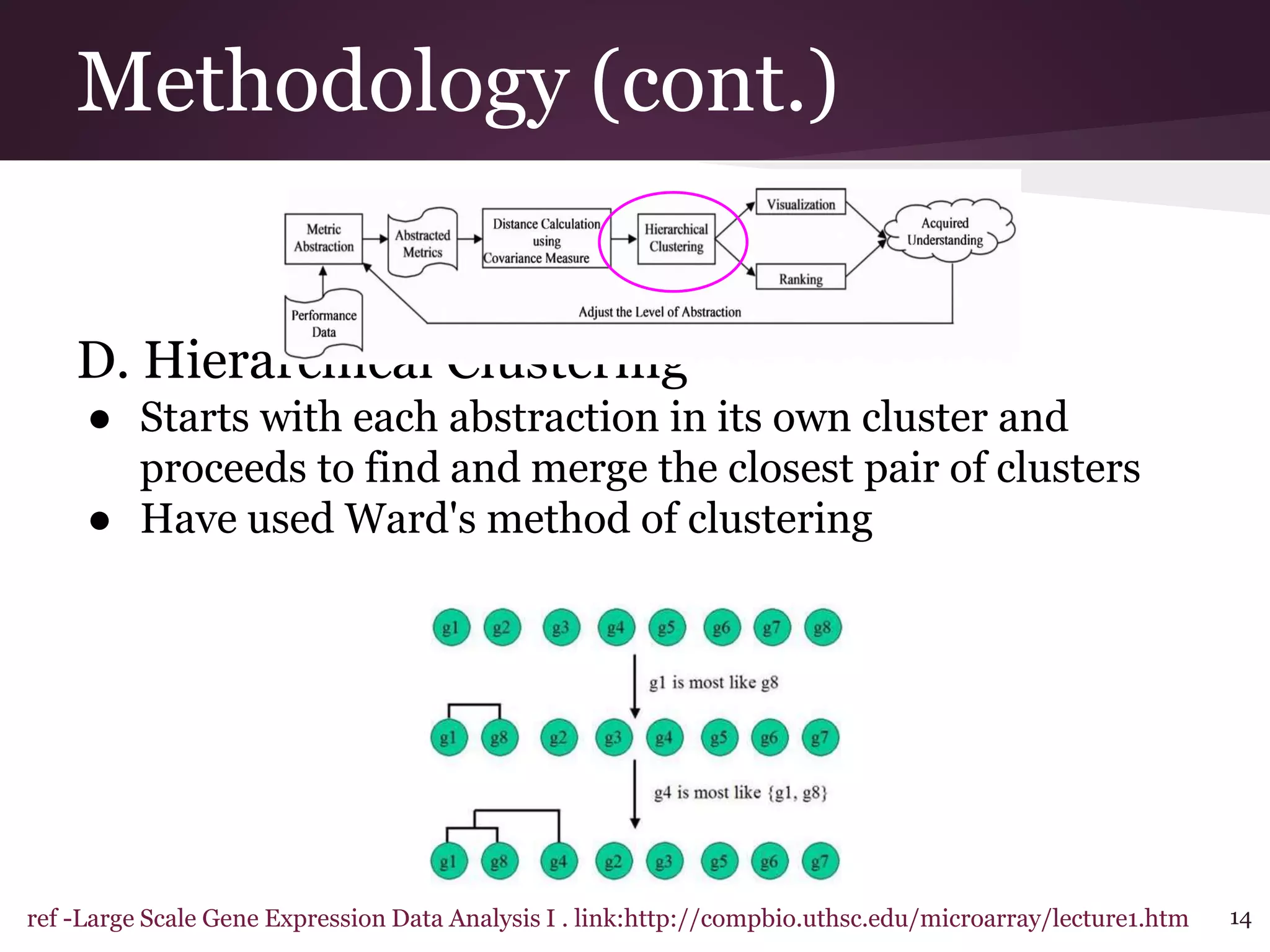

Methodology (cont.)
D. Hierarchical Clustering
● Starts with each abstraction in its own cluster and
proceeds to find and merge the closest pair of clusters
● Have used Ward's method of clustering
14ref -Large Scale Gene Expression Data Analysis I . link:http://compbio.uthsc.edu/microarray/lecture1.htm

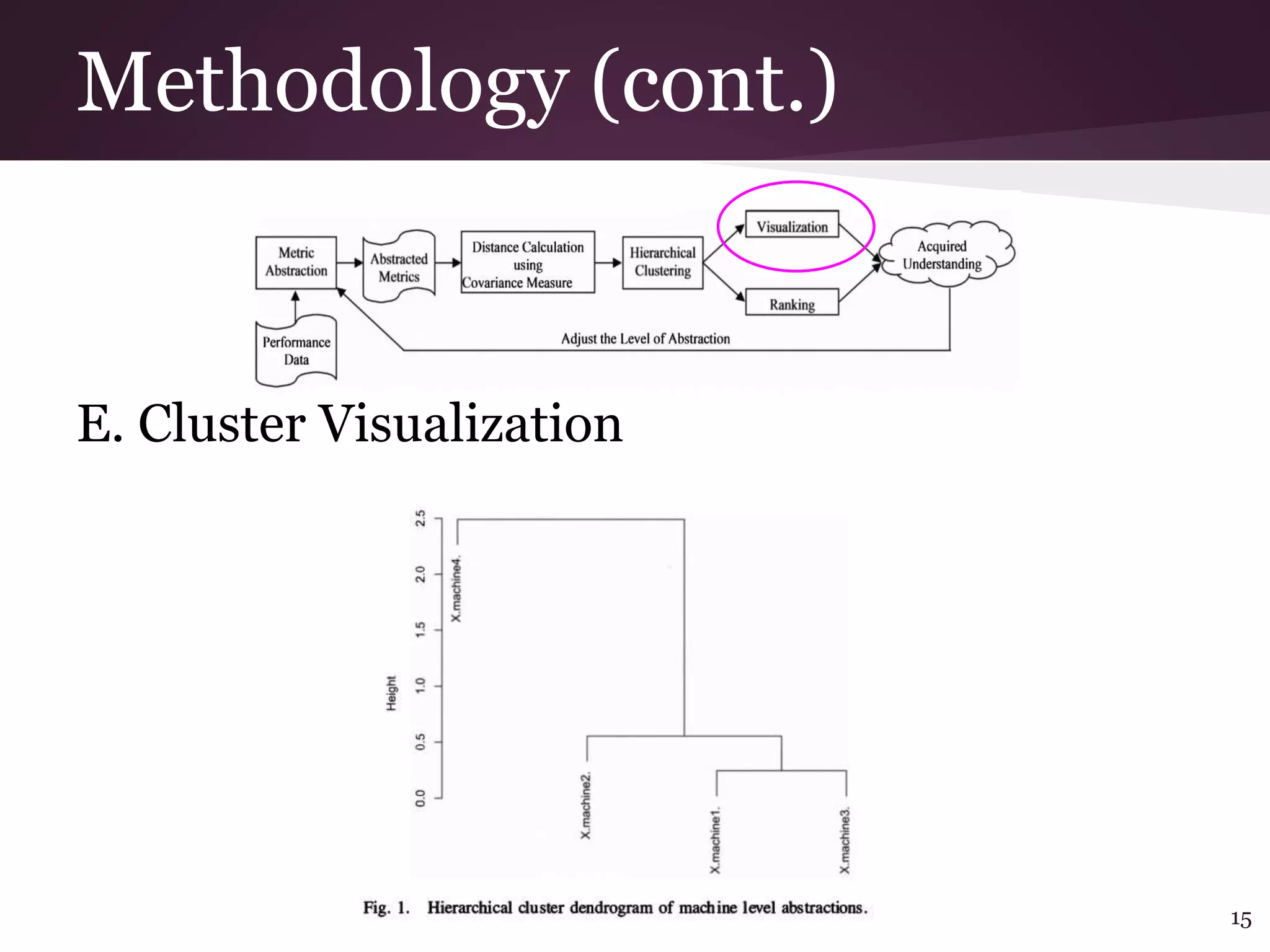

Methodology (cont.)
E. Cluster Visualization
15

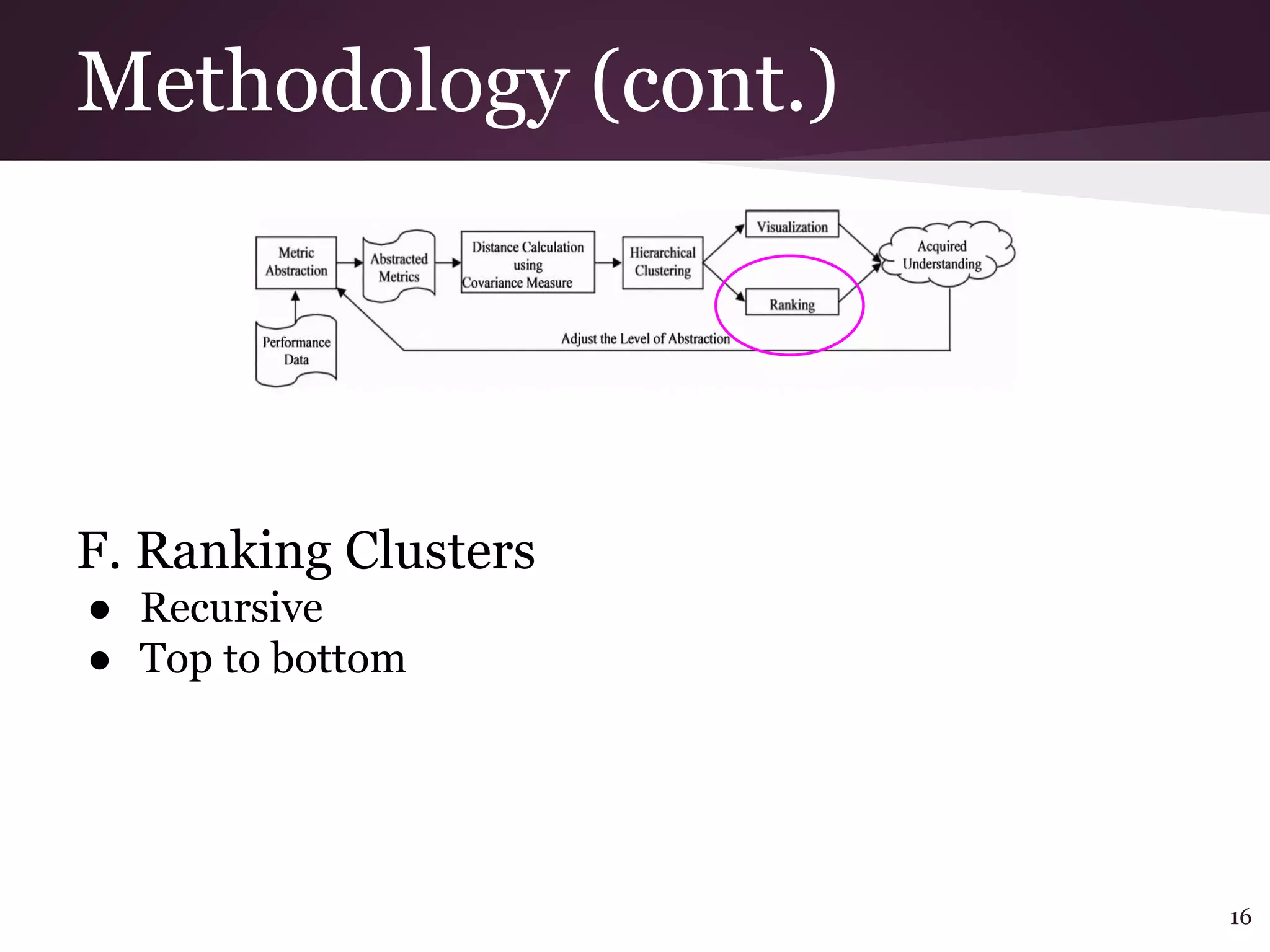

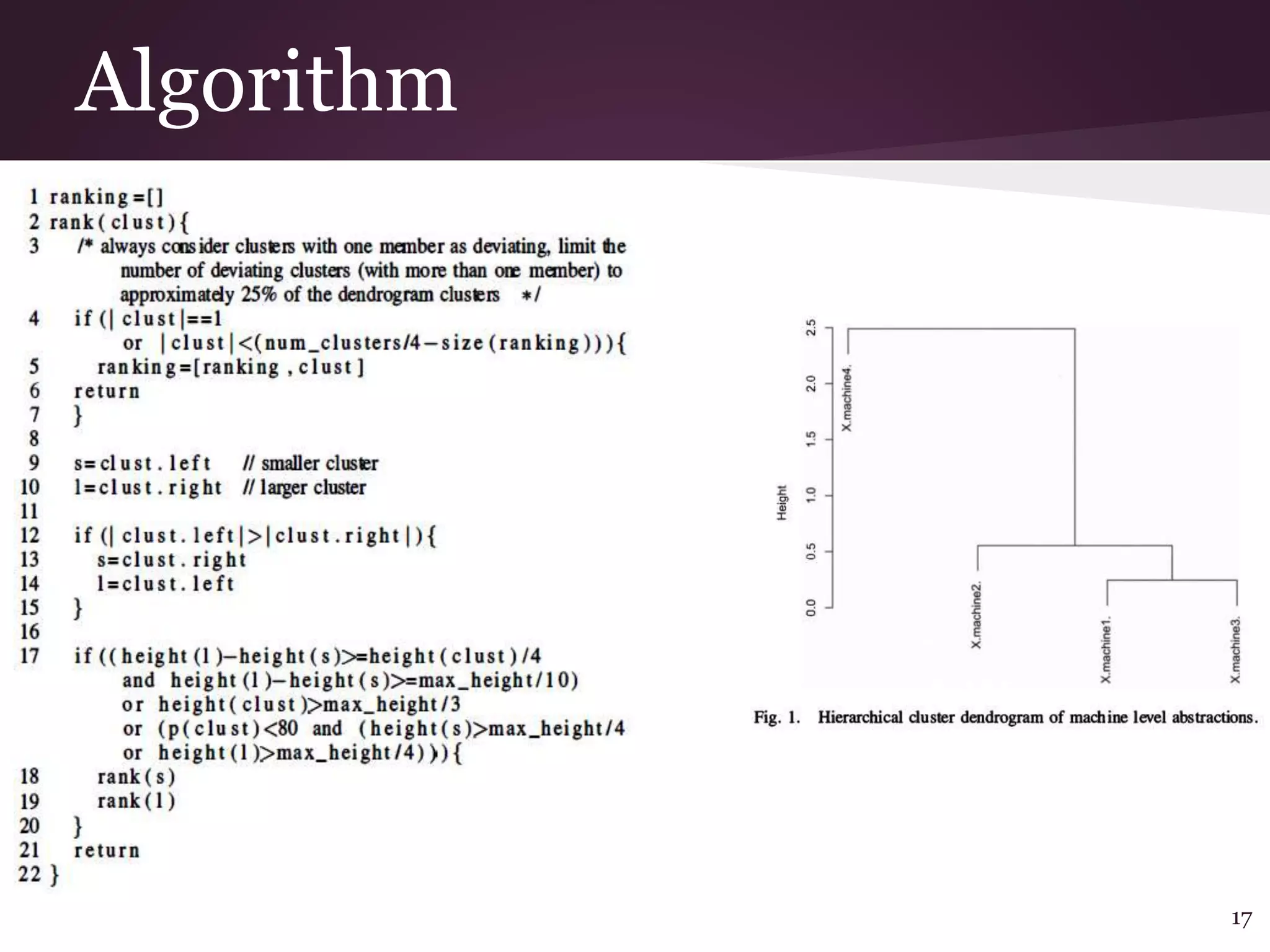

Methodology (cont.)
F. Ranking Clusters
● Recursive
● Top to bottom
16

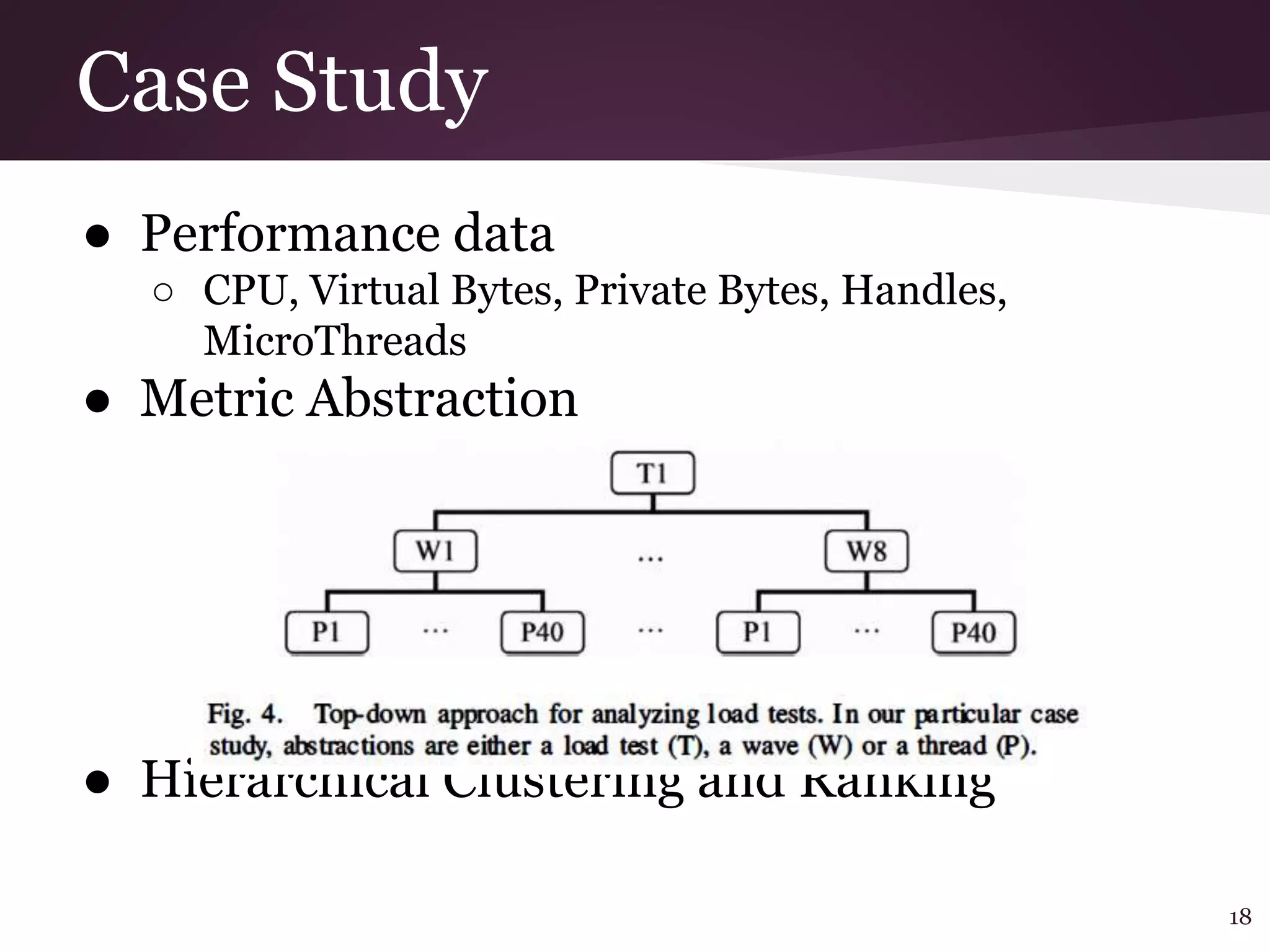

Case Study
● Performance data
○ CPU, Virtual Bytes, Private Bytes, Handles,
MicroThreads
● Metric Abstraction
● Hierarchical Clustering and Ranking
18

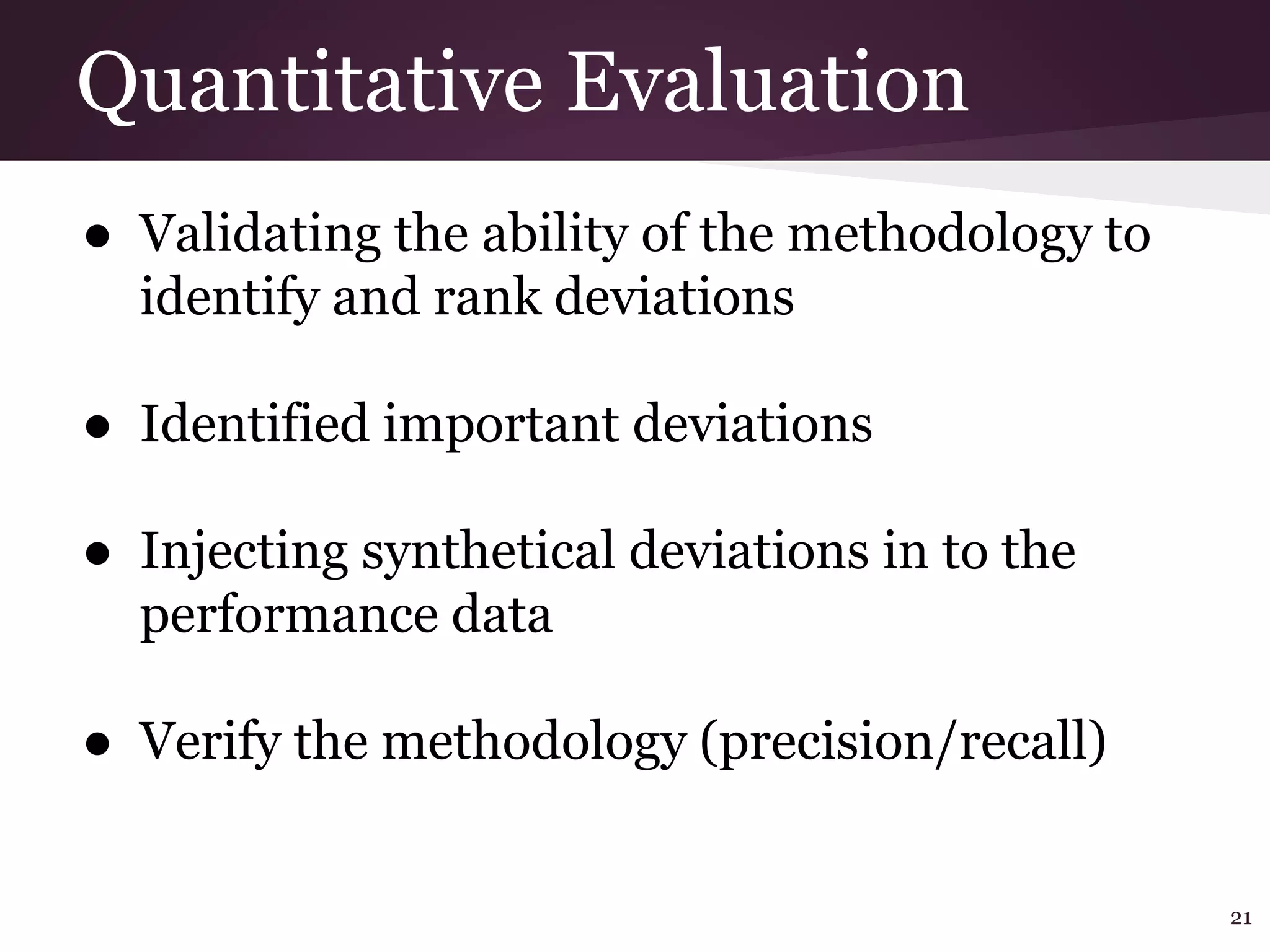

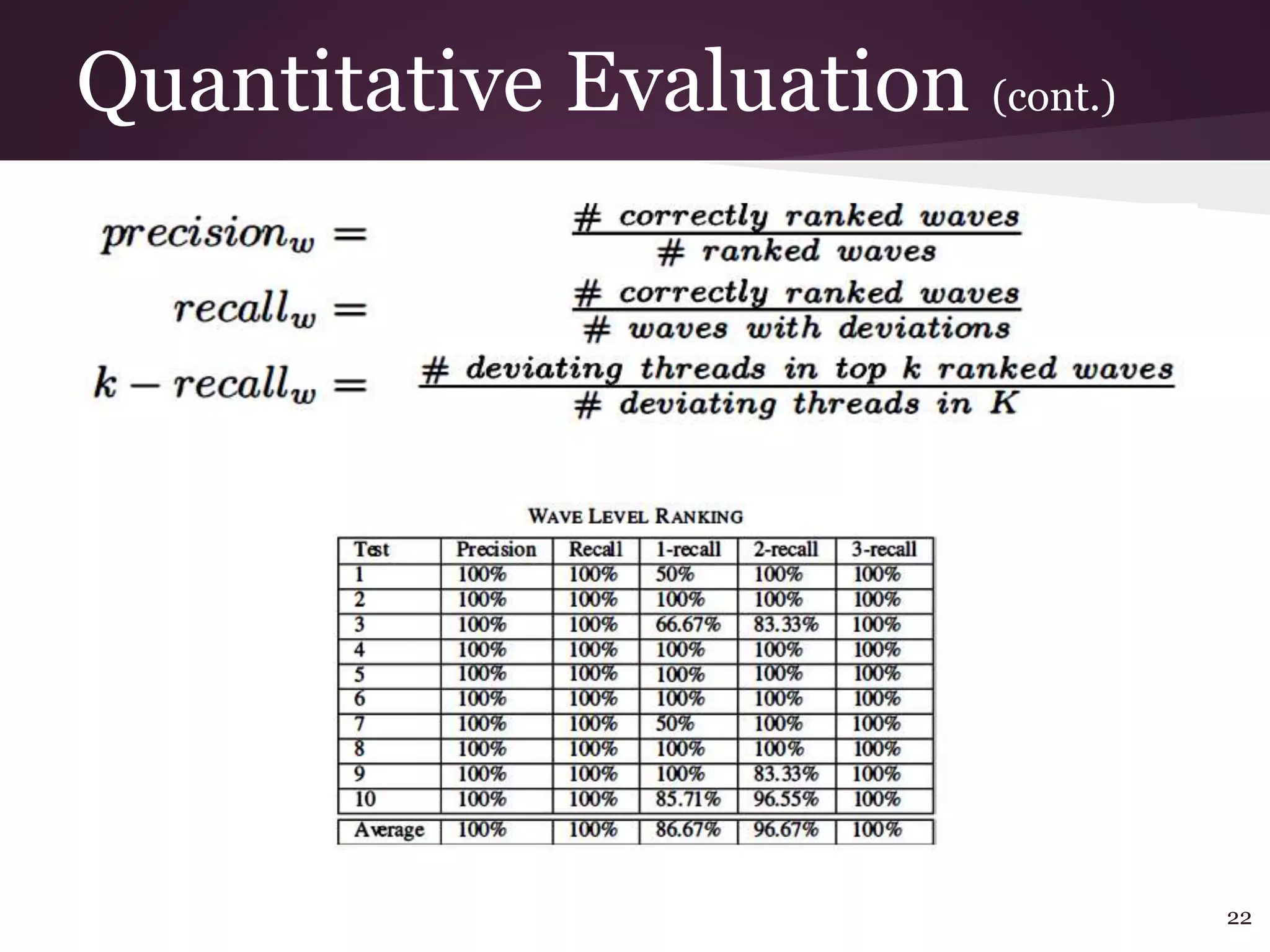

Quantitative Evaluation
● Validating the ability of the methodology to
identify and rank deviations
● Identified important deviations
● Injecting synthetical deviations in to the
performance data
● Verify the methodology (precision/recall)
21

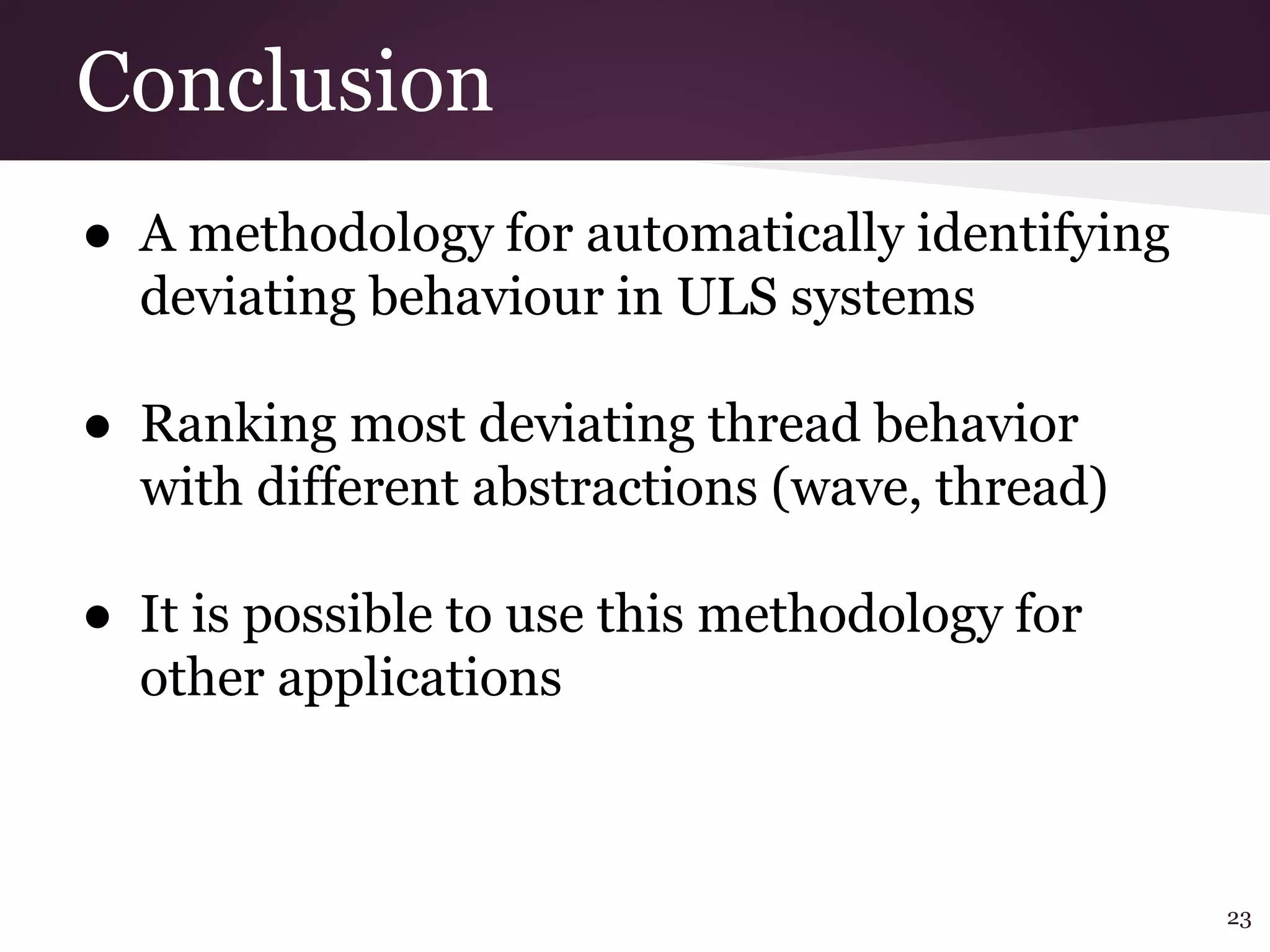

Conclusion
● A methodology for automatically identifying
deviating behaviour in ULS systems
● Ranking most deviating thread behavior
with different abstractions (wave, thread)
● It is possible to use this methodology for
other applications
23

The document compares the use of artificial neural networks (ANNs) and model trees (MTs) for rainfall-runoff modelling. It tests these techniques on a European catchment to predict runoff 1, 3, and 6 hours ahead. The results show that both ANNs and MTs produced excellent results for 1-hour ahead prediction, acceptable results for 3-hour prediction, and conditional acceptable results for 6-hour prediction. While the performance of ANNs and MTs was similar for 1-hour predictions, ANNs performed slightly better for longer lead times. However, MTs have the advantage of producing more understandable and adjustable models of varying complexity and accuracy.

Data Compression in Data mining and Business Intelligencs

ShahDhruv21

This document discusses various techniques for numerosity reduction in data mining. Numerosity reduction aims to reduce the volume of data while maintaining integrity. Methods include parametric approaches like regression and log-linear models, and non-parametric methods such as histograms, clustering, sampling, and data cube aggregation. Histograms bin data into buckets to store average values, while clustering partitions data into groups. Sampling obtains a representative subset of data. Data cube aggregation precomputes and stores multidimensional summarized data. Together, these techniques provide more efficient analysis of large datasets.

Concurrent Replication of Parallel and Distributed Simulations

Gabriele D'Angelo

Parallel and distributed simulations enable the analysis of complex systems by concurrently exploiting the aggregate computation power and memory of clusters of execution units. In this work we investigate a new direction for increasing both the speedup of a simulation process and the utilization of computation and communication resources. Many simulation-based investigations require to collect independent observations for a correct and significant statistical analysis of results. The execution of many independent parallel or distributed simulation runs may suffer the speedup reduction due to rollbacks under the optimistic approach, and due to idle CPU times originated by synchronization and communication bottlenecks under the conservative approach. We present a parallel and distributed simulation framework supporting concurrent replication of parallel and distributed simulations (CR-PADS), as an alternative to the execution of a linear sequence of multiple parallel or distributed simulation runs. Results obtained from tests executed under variable scenarios show that speedup and resource utilization gains could be obtained by adopting the proposed replication approach in addition to the pure parallel and distributed simulation.

5.4 mining sequence patterns in biological data

Krish_ver2

This document discusses methods for mining sequence patterns in biological data, including alignment algorithms and hidden Markov models. It covers pairwise and multiple sequence alignment algorithms like Needleman-Wunsch, Smith-Waterman, BLAST, and FASTA. Hidden Markov models are introduced as a method to find conserved patterns or features in long biological sequences, such as CpG islands. The document outlines how hidden Markov models incorporate states, transitions, and emission probabilities to represent probabilistic sequences and can be used for tasks like evaluation, decoding, and learning on biological sequence data.

Build the "right" regression suite using Behavior Driven Testing (BDT)

Anand Bagmar

An Industrial Case Study of Automatically Identifying Performance Regression-...

SAIL_QU

1) Performance regressions in software can be caused by changes that impact resources like CPU usage, memory, disk I/O, and network I/O. 2) A study of performance regressions in industrial software identified the most common causes, like adding frequently executed database queries or mismatched database indices. 3) The study leveraged a repository of performance data across versions to analyze regression causes by comparing counter values and finding patterns associated with known causes.

An Industrial Case Study on the Automated Detection of Performance Regression...

SAIL_QU

This document presents an approach for automatically detecting performance regressions in heterogeneous environments. It uses association rule mining on performance counter data from past tests to generate performance rules. These rules are then used to detect violation metrics in a new test by identifying significant changes in rule confidence values. Results are combined from multiple heterogeneous lab environments using a weighted voting method based on environment similarities. The approach is evaluated on real-world systems using F-measure and is shown to outperform single model and bagging methods for detecting performance regressions.

INDUSTRIAL SICKNESS IN INDIA

sengel_an

May 2015 talk to SW Data Meetup by Professor Hendrik Blockeel from KU Leuven & Leiden University. With increasing amounts of ever more complex forms of digital data becoming available, the methods for analyzing these data have also become more diverse and sophisticated. With this comes an increased risk of incorrect use of these methods, and a greater burden on the user to be knowledgeable about their assumptions. In addition, the user needs to know about a wide variety of methods to be able to apply the most suitable one to a particular problem. This combination of broad and deep knowledge is not sustainable. The idea behind declarative data analysis is that the burden of choosing the right statistical methodology for answering a research question should no longer lie with the user, but with the system. The user should be able to simply describe the problem, formulate a question, and let the system take it from there. To achieve this, we need to find answers to questions such as: what languages are suitable for formulating these questions, and what execution mechanisms can we develop for them? In this talk, I will discuss recent and ongoing research in this direction. The talk will touch upon query languages for data mining and for statistical inference, declarative modeling for data mining, meta-learning, and constraint-based data mining. What connects these research threads is that they all strive to put intelligence about data analysis into the system, instead of assuming it resides in the user. Hendrik Blockeel is a professor of computer science at KU Leuven, Belgium, and part-time associate professor at Leiden University, The Netherlands. His research interests lie mostly in machine learning and data mining. He has made a variety of research contributions in these fields, including work on decision tree learning, inductive logic programming, predictive clustering, probabilistic-logical models, inductive databases, constraint-based data mining, and declarative data analysis. He is an action editor for Machine Learning and serves on the editorial board of several other journals. He has chaired or organized multiple conferences, workshops, and summer schools, including ILP, ECMLPKDD, IDA and ACAI, and he has been vice-chair, area chair, or senior PC member for ECAI, IJCAI, ICML, KDD, ICDM. He was a member of the board of the European Coordinating Committee for Artificial Intelligence from 2004 to 2010, and currently serves as publications chair for the ECMLPKDD steering committee.

ME Synopsis

Poonam Debnath

1) The document discusses mining data streams using an improved version of McDiarmid's bound. It aims to enhance the bounds obtained by McDiarmid's tree algorithm and improve processing efficiency. 2) Traditional data mining techniques cannot be directly applied to data streams due to their continuous, rapid arrival. The document proposes using Gaussian approximations to McDiarmid's bounds to reduce the size of training samples needed for split criteria selection. 3) It describes Hoeffding's inequality, which is commonly used but not sufficient for data streams. The document argues that McDiarmid's inequality, used appropriately, provides a more efficient technique for high-speed, time-changing data streams.

PEARC17:A real-time machine learning and visualization framework for scientif...

Feng Li

High-performance computing resources are currently widely used in science and engineering areas. Typical post-hoc approaches use persistent storage to save produced data from simulation, thus reading from storage to memory is required for data analysis tasks. For large-scale scientific simulations, such I/O operation will produce significant overhead. In-situ/in-transit approaches bypass I/O by accessing and processing in-memory simulation results directly, which suggests simulations and analysis applications should be more closely coupled. This paper constructs a flexible and extensible framework to connect scientific simulations with multi-steps machine learning processes and in-situ visualization tools, thus providing plugged-in analysis and visualization functionality over complex workflows at real time. A distributed simulation-time clustering method is proposed to detect anomalies from real turbulence flows.

Thesis Presentation

Dimitrios Apostolos Chalepakis Ntellis

This document describes research on using Bayesian networks to model gene expression data related to breast cancer. The goals are to identify new or known gene interactions, examine network properties, and find significant genes. The methodology involves learning networks from 82 genes using different variable types and sample groups. Centrality metrics are used to identify important "hub" genes. Networks are analyzed to determine if they exhibit small-world or scale-free properties common in biological networks. The results could confirm known pathways or identify new ones relevant to breast cancer.

Workshop nwav 47 - LVS - Tool for Quantitative Data Analysis

Olga Scrivner

This document provides an overview of the Language Variation Suite (LVS) toolkit. The LVS is a web application designed for sociolinguistic data analysis. It allows users to upload spreadsheet data, perform data cleaning and preprocessing, generate summary statistics and cross tabulations, create data visualizations, and conduct various statistical analyses including regression modeling, clustering, and random forests. The workshop will cover the structure and functionality of the LVS through practical examples and exercises using sample sociolinguistic datasets.

Fahroo - Optimization and Discrete Mathematics - Spring Review 2013

The Air Force Office of Scientific Research

Threads and Concurrency Identifying Performance Deviations in Thread Pools

Pushpalanka Jayawardhana

Semantics in Sensor Networks

Oscar Corcho

ICDE-2015 Shortest Path Traversal Optimization and Analysis for Large Graph C...

Waqas Nawaz

Waqas Nawaz Khokhar presented research on optimizing shortest path traversal and analysis for large graph clustering. The presentation outlined challenges with traditional graph clustering approaches for big real-world graphs. It proposed four optimizations: 1) a collaborative similarity measure to reduce complexity from O(n3) to O(n2logn); 2) identifying overlapping shortest path regions to avoid redundant traversals; 3) confining traversals within clusters to limit unnecessary graph regions; and 4) allowing parallel shortest path queries to reduce latency. Experimental results on real and synthetic graphs showed the approaches improved efficiency by 40% in time and an order of magnitude in space while maintaining clustering quality. Future work aims to address intermediate data explosion

Evaluating Classification Algorithms Applied To Data Streams Esteban Donato

Esteban Donato

This document summarizes and evaluates several algorithms for classification of data streams: VFDTc, UFFT, and CVFDT. It describes their approaches for handling concept drift, detecting outliers and noise. The algorithms were tested on synthetic data streams generated with configurable attributes like drift frequency and noise percentage. Results show VFDTc and UFFT performed best in accuracy, while CVFDT and UFFT were fastest. The study aims to help choose algorithms suitable for different data stream characteristics like gradual vs sudden drift or frequent vs infrequent drift.

Data Mining: Mining stream time series and sequence data

Datamining Tools

This document discusses various methodologies for processing and analyzing stream data, time series data, and sequence data. It covers topics such as random sampling and sketches/synopses for stream data, data stream management systems and queries, the Hoeffding tree and Very Fast Decision Tree (VFDT) algorithms for classification, ensemble methods and concept drift, clustering of evolving data streams, trend analysis and similarity search for time series data, Markov chains for sequence analysis, and algorithms like the forward algorithm, Viterbi algorithm, and Baum-Welch algorithm for hidden Markov models.

Data Mining: Mining stream time series and sequence data

DataminingTools Inc

This document discusses various methodologies for processing and analyzing stream data, time series data, and sequence data. It covers topics such as random sampling and sketches/synopses for stream data, data stream management systems, the Hoeffding tree and VFDT algorithms for stream data classification, concept-adapting algorithms, ensemble approaches, clustering of evolving data streams, time series databases, Markov chains for sequence analysis, and algorithms like the forward algorithm, Viterbi algorithm, and Baum-Welch algorithm for hidden Markov models.

Eswc2009

fanizzi

ReduCE is a machine learning method called a reduced Coulomb energy network for approximate classification of individuals using ontologies. It learns a model called an RCE network from a training set of pre-classified individuals and background knowledge base. The model can then be used to approximately classify other individuals by outputting a predicted classification and likelihood. Experiments showed the method had good performance with high accuracy and low error rates on several ontologies compared to a standard reasoner.

AI for automated materials discovery via learning to represent, predict, gene...

Deakin University

Taming Big Data!

Ian Foster

My talk at the Winter School on Big Data in Tarragona, Spain. Abstract: We have made much progress over the past decade toward harnessing the collective power of IT resources distributed across the globe. In high-energy physics, astronomy, and climate, thousands work daily within virtual computing systems with global scope. But we now face a far greater challenge: Exploding data volumes and powerful simulation tools mean that many more--ultimately most?--researchers will soon require capabilities not so different from those used by such big-science teams. How are we to meet these needs? Must every lab be filled with computers and every researcher become an IT specialist? Perhaps the solution is rather to move research IT out of the lab entirely: to leverage the “cloud” (whether private or public) to achieve economies of scale and reduce cognitive load. I explore the past, current, and potential future of large-scale outsourcing and automation for science, and suggest opportunities and challenges for today’s researchers.

Capter10 cluster basic : Han & Kamber

Houw Liong The

The document describes different types of clustering algorithms, including partitioning, hierarchical, density-based, and grid-based methods. Partitioning methods like k-means and k-medoids aim to partition objects into k clusters by optimizing an objective function. Hierarchical clustering builds a hierarchy of clusters based on distance, either through an agglomerative (bottom-up) or divisive (top-down) approach. Density-based methods identify clusters based on density rather than distance. Grid-based methods quantize the space into a finite number of cells that form a grid structure.

Capter10 cluster basic

Houw Liong The

This document summarizes Chapter 10 of the book "Data Mining: Concepts and Techniques (3rd ed.)" which covers cluster analysis. The chapter introduces different types of clustering methods including partitioning methods like k-means and k-medoids, hierarchical methods, density-based methods, and grid-based methods. It discusses how to evaluate the quality of clustering results and highlights considerations for cluster analysis such as similarity measures, clustering space, and challenges like scalability and high dimensionality.

Graphical Structure Learning accelerated with POWER9

Ganesan Narayanasamy

Model Evaluation in the land of Deep Learning

Pramit Choudhary

1. The document discusses model interpretation and techniques for interpreting machine learning models, especially deep neural networks. 2. It describes what model interpretation is, its importance and benefits, and provides examples of interpretability algorithms like dimensionality reduction, manifold learning, and visualization techniques. 3. The document aims to help make machine learning models more transparent and understandable to humans in order to build trust and improve model evaluation, debugging and feature engineering.

Shift-Robust Node Classification via Graph Adversarial Clustering Neurips 202...

ssuser2624f71

This document proposes a framework called SRNC to make graph neural networks robust against distribution shifts in graph-structured data. SRNC uses unlabeled target graph data to facilitate model generalization. It incorporates graph adversarial clustering to identify latent classes in the target data by breaking infrequent edges between potential clusters. This allows SRNC to jointly model the target class probability distribution Pr(x_t, y_t) on the graph. The framework can handle both open-set and close-set shifts, whereas previous work only addressed one or the other. Experiments on three benchmarks show SRNC can detect over 70% of open-set samples.

Graspan: A Big Data System for Big Code Analysis

Aftab Hussain

We built a disk-based parallel graph system, Graspan, that uses a novel edge-pair centric computation model to compute dynamic transitive closures on very large program graphs. We implement context-sensitive pointer/alias and dataflow analyses on Graspan. An evaluation of these analyses on large codebases such as Linux shows that their Graspan implementations scale to millions of lines of code and are much simpler than their original implementations. These analyses were used to augment the existing checkers; these augmented checkers found 132 new NULL pointer bugs and 1308 unnecessary NULL tests in Linux 4.4.0-rc5, PostgreSQL 8.3.9, and Apache httpd 2.2.18. - Accepted in ASPLOS ‘17, Xi’an, China. - Featured in the tutorial, Systemized Program Analyses: A Big Data Perspective on Static Analysis Scalability, ASPLOS ‘17. - Invited for presentation at SoCal PLS ‘16. - Invited for poster presentation at PLDI SRC ‘16.

Oracle Database 19c New Features for DBAs and Developers.pptx

Remote DBA Services

Similar to Threads concurrency identifying performance deviations in thread pools(1)

Declarative data analysis

South West Data Meetup

ME Synopsis

Poonam Debnath

PEARC17:A real-time machine learning and visualization framework for scientif...

Feng Li

Thesis Presentation

Dimitrios Apostolos Chalepakis Ntellis

Workshop nwav 47 - LVS - Tool for Quantitative Data Analysis

Olga Scrivner

Fahroo - Optimization and Discrete Mathematics - Spring Review 2013

The Air Force Office of Scientific Research

Threads and Concurrency Identifying Performance Deviations in Thread Pools

Pushpalanka Jayawardhana

Semantics in Sensor Networks

Oscar Corcho

ICDE-2015 Shortest Path Traversal Optimization and Analysis for Large Graph C...

Waqas Nawaz

Evaluating Classification Algorithms Applied To Data Streams Esteban Donato

Esteban Donato

Data Mining: Mining stream time series and sequence data

Datamining Tools

Data Mining: Mining stream time series and sequence data

DataminingTools Inc

This document discusses various methodologies for processing and analyzing stream data, time series data, and sequence data. It covers topics such as random sampling and sketches/synopses for stream data, data stream management systems, the Hoeffding tree and VFDT algorithms for stream data classification, concept-adapting algorithms, ensemble approaches, clustering of evolving data streams, time series databases, Markov chains for sequence analysis, and algorithms like the forward algorithm, Viterbi algorithm, and Baum-Welch algorithm for hidden Markov models.

Eswc2009

fanizzi

AI for automated materials discovery via learning to represent, predict, gene...

Deakin University

Taming Big Data!

Ian Foster

Capter10 cluster basic : Han & Kamber

Houw Liong The

Capter10 cluster basic

Houw Liong The

Graphical Structure Learning accelerated with POWER9

Ganesan Narayanasamy

Model Evaluation in the land of Deep Learning

Pramit Choudhary

Shift-Robust Node Classification via Graph Adversarial Clustering Neurips 202...

ssuser2624f71

Similar to Threads concurrency identifying performance deviations in thread pools(1) (20)

Declarative data analysis

ME Synopsis

PEARC17:A real-time machine learning and visualization framework for scientif...

Thesis Presentation

Workshop nwav 47 - LVS - Tool for Quantitative Data Analysis

Fahroo - Optimization and Discrete Mathematics - Spring Review 2013

Threads and Concurrency Identifying Performance Deviations in Thread Pools

Semantics in Sensor Networks

ICDE-2015 Shortest Path Traversal Optimization and Analysis for Large Graph C...

Evaluating Classification Algorithms Applied To Data Streams Esteban Donato

Data Mining: Mining stream time series and sequence data

Eswc2009

AI for automated materials discovery via learning to represent, predict, gene...

Taming Big Data!

Capter10 cluster basic : Han & Kamber

Capter10 cluster basic

Graphical Structure Learning accelerated with POWER9

Model Evaluation in the land of Deep Learning

Shift-Robust Node Classification via Graph Adversarial Clustering Neurips 202...

Recently uploaded

Graspan: A Big Data System for Big Code Analysis

Aftab Hussain

Oracle Database 19c New Features for DBAs and Developers.pptx

Remote DBA Services

Hand Rolled Applicative User ValidationCode Kata

Philip Schwarz

Could you use a simple piece of Scala validation code (granted, a very simplistic one too!) that you can rewrite, now and again, to refresh your basic understanding of Applicative operators <*>, <*, *>? The goal is not to write perfect code showcasing validation, but rather, to provide a small, rough-and ready exercise to reinforce your muscle-memory. Despite its grandiose-sounding title, this deck consists of just three slides showing the Scala 3 code to be rewritten whenever the details of the operators begin to fade away. The code is my rough and ready translation of a Haskell user-validation program found in a book called Finding Success (and Failure) in Haskell - Fall in love with applicative functors.

Automated software refactoring with OpenRewrite and Generative AI.pptx.pdf

timtebeek1

SWEBOK and Education at FUSE Okinawa 2024

Hironori Washizaki

Energy consumption of Database Management - Florina Jonuzi

Green Software Development

Revolutionizing Visual Effects Mastering AI Face Swaps.pdf

Undress Baby

The quest for the best AI face swap solution is marked by an amalgamation of technological prowess and artistic finesse, where cutting-edge algorithms seamlessly replace faces in images or videos with striking realism. Leveraging advanced deep learning techniques, the best AI face swap tools meticulously analyze facial features, lighting conditions, and expressions to execute flawless transformations, ensuring natural-looking results that blur the line between reality and illusion, captivating users with their ingenuity and sophistication. Web:- https://undressbaby.com/

May Marketo Masterclass, London MUG May 22 2024.pdf

Adele Miller

Microservice Teams - How the cloud changes the way we work

Sven Peters

A lot of technical challenges and complexity come with building a cloud-native and distributed architecture. The way we develop backend software has fundamentally changed in the last ten years. Managing a microservices architecture demands a lot of us to ensure observability and operational resiliency. But did you also change the way you run your development teams? Sven will talk about Atlassian’s journey from a monolith to a multi-tenanted architecture and how it affected the way the engineering teams work. You will learn how we shifted to service ownership, moved to more autonomous teams (and its challenges), and established platform and enablement teams.

原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样

mz5nrf0n

原版一模一样【微信：741003700 】【美国纽约州立大学奥尔巴尼分校毕业证学位证书】【微信：741003700 】学位证，留信认证（真实可查，永久存档）offer、雅思、外壳等材料/诚信可靠,可直接看成品样本，帮您解决无法毕业带来的各种难题！外壳，原版制作，诚信可靠，可直接看成品样本。行业标杆！精益求精，诚心合作，真诚制作！多年品质 ,按需精细制作，24小时接单,全套进口原装设备。十五年致力于帮助留学生解决难题，包您满意。本公司拥有海外各大学样板无数，能完美还原海外各大学 Bachelor Diploma degree, Master Degree Diploma 1:1完美还原海外各大学毕业材料上的工艺：水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠。文字图案浮雕、激光镭射、紫外荧光、温感、复印防伪等防伪工艺。材料咨询办理、认证咨询办理请加学历顾问Q/微741003700 留信网认证的作用: 1:该专业认证可证明留学生真实身份 2:同时对留学生所学专业登记给予评定 3:国家专业人才认证中心颁发入库证书 4:这个认证书并且可以归档倒地方 5:凡事获得留信网入网的信息将会逐步更新到个人身份内，将在公安局网内查询个人身份证信息后，同步读取人才网入库信息 6:个人职称评审加20分 7:个人信誉贷款加10分 8:在国家人才网主办的国家网络招聘大会中纳入资料，供国家高端企业选择人才

Empowering Growth with Best Software Development Company in Noida - Deuglo

Deuglo Infosystem Pvt Ltd

Do you want Software for your Business? Visit Deuglo Deuglo has top Software Developers in India. They are experts in software development and help design and create custom Software solutions. Deuglo follows seven steps methods for delivering their services to their customers. They called it the Software development life cycle process (SDLC). Requirement — Collecting the Requirements is the first Phase in the SSLC process. Feasibility Study — after completing the requirement process they move to the design phase. Design — in this phase, they start designing the software. Coding — when designing is completed, the developers start coding for the software. Testing — in this phase when the coding of the software is done the testing team will start testing. Installation — after completion of testing, the application opens to the live server and launches! Maintenance — after completing the software development, customers start using the software.

ALGIT - Assembly Line for Green IT - Numbers, Data, Facts

Green Software Development

KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD

rodomar2

A Study of Variable-Role-based Feature Enrichment in Neural Models of Code

Aftab Hussain

Understanding variable roles in code has been found to be helpful by students in learning programming -- could variable roles help deep neural models in performing coding tasks? We do an exploratory study. - These are slides of the talk given at InteNSE'23: The 1st International Workshop on Interpretability and Robustness in Neural Software Engineering, co-located with the 45th International Conference on Software Engineering, ICSE 2023, Melbourne Australia

Top Features to Include in Your Winzo Clone App for Business Growth (4).pptx

rickgrimesss22

How to write a program in any programming language

Rakesh Kumar R

GOING AOT WITH GRAALVM FOR SPRING BOOT (SPRING IO)

Alina Yurenko

Essentials of Automations: The Art of Triggers and Actions in FME

Safe Software

In this second installment of our Essentials of Automations webinar series, we’ll explore the landscape of triggers and actions, guiding you through the nuances of authoring and adapting workspaces for seamless automations. Gain an understanding of the full spectrum of triggers and actions available in FME, empowering you to enhance your workspaces for efficient automation. We’ll kick things off by showcasing the most commonly used event-based triggers, introducing you to various automation workflows like manual triggers, schedules, directory watchers, and more. Plus, see how these elements play out in real scenarios. Whether you’re tweaking your current setup or building from the ground up, this session will arm you with the tools and insights needed to transform your FME usage into a powerhouse of productivity. Join us to discover effective strategies that simplify complex processes, enhancing your productivity and transforming your data management practices with FME. Let’s turn complexity into clarity and make your workspaces work wonders!

LORRAINE ANDREI_LEQUIGAN_HOW TO USE WHATSAPP.pptx

lorraineandreiamcidl

WhatsApp offers simple, reliable, and private messaging and calling services for free worldwide. With end-to-end encryption, your personal messages and calls are secure, ensuring only you and the recipient can access them. Enjoy voice and video calls to stay connected with loved ones or colleagues. Express yourself using stickers, GIFs, or by sharing moments on Status. WhatsApp Business enables global customer outreach, facilitating sales growth and relationship building through showcasing products and services. Stay connected effortlessly with group chats for planning outings with friends or staying updated on family conversations.

OpenMetadata Community Meeting - 5th June 2024

OpenMetadata

The OpenMetadata Community Meeting was held on June 5th, 2024. In this meeting, we discussed about the data quality capabilities that are integrated with the Incident Manager, providing a complete solution to handle your data observability needs. Watch the end-to-end demo of the data quality features. * How to run your own data quality framework * What is the performance impact of running data quality frameworks * How to run the test cases in your own ETL pipelines * How the Incident Manager is integrated * Get notified with alerts when test cases fail Watch the meeting recording here - https://www.youtube.com/watch?v=UbNOje0kf6E

Recently uploaded (20)

Graspan: A Big Data System for Big Code Analysis

Oracle Database 19c New Features for DBAs and Developers.pptx

Hand Rolled Applicative User ValidationCode Kata

Automated software refactoring with OpenRewrite and Generative AI.pptx.pdf

SWEBOK and Education at FUSE Okinawa 2024

Energy consumption of Database Management - Florina Jonuzi

Revolutionizing Visual Effects Mastering AI Face Swaps.pdf

May Marketo Masterclass, London MUG May 22 2024.pdf

Microservice Teams - How the cloud changes the way we work

原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样

Empowering Growth with Best Software Development Company in Noida - Deuglo

ALGIT - Assembly Line for Green IT - Numbers, Data, Facts

KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD

A Study of Variable-Role-based Feature Enrichment in Neural Models of Code

Top Features to Include in Your Winzo Clone App for Business Growth (4).pptx

How to write a program in any programming language

GOING AOT WITH GRAALVM FOR SPRING BOOT (SPRING IO)

Essentials of Automations: The Art of Triggers and Actions in FME

LORRAINE ANDREI_LEQUIGAN_HOW TO USE WHATSAPP.pptx

OpenMetadata Community Meeting - 5th June 2024

Threads concurrency identifying performance deviations in thread pools(1)

1. Identifying Performance Deviations in Thread Pools Mark D. Syer, Bram Adams and Ahmed E. Hassan (Software Analysis and Intelligence Lab (SAIL) School of Computing, Queen's University, Canada) 1

2. Outline ● Introduction ● Thread Pools ● Methodology ● Case study ● Results ● Evaluation ● Conclusion 2

3. Introduction ● Ultra-Large-Scale (ULS) systems need high concurrency and speed. ● Analysing system performance is difficult ○ Time Consuming ○ Significant manual review of the data and logs ○ Lack of tool support, need heavy instrumentation ○ Hardware sensor gathered data hard to interpret. 3

4. Main contributions To analyze performance deviations in systems designed using thread pools.. 1. A top-down methodology for identifying and ranking the most deviating thread behaviour 1. A qualitative and quantitative evaluation of proposing methodology on a large-scale industrial ULS system 4

5. Thread Pools ● Advantages o Avoid thread create/destroy overhead o System become more responsive ● Difficulties o Too many threads → resource thrashing → performance degradation o Hard to configure and test o synchronization errors → idle threads/deadlocks o Thread leakage 5

6. Motivational Example ● Analyse the system for x5 large workload ● Machine level macro threads for each thread pool ● Identify majority and deviating behaviours by the use of clusters in dendrogram 6

7. Motivational Example(Cont) 7

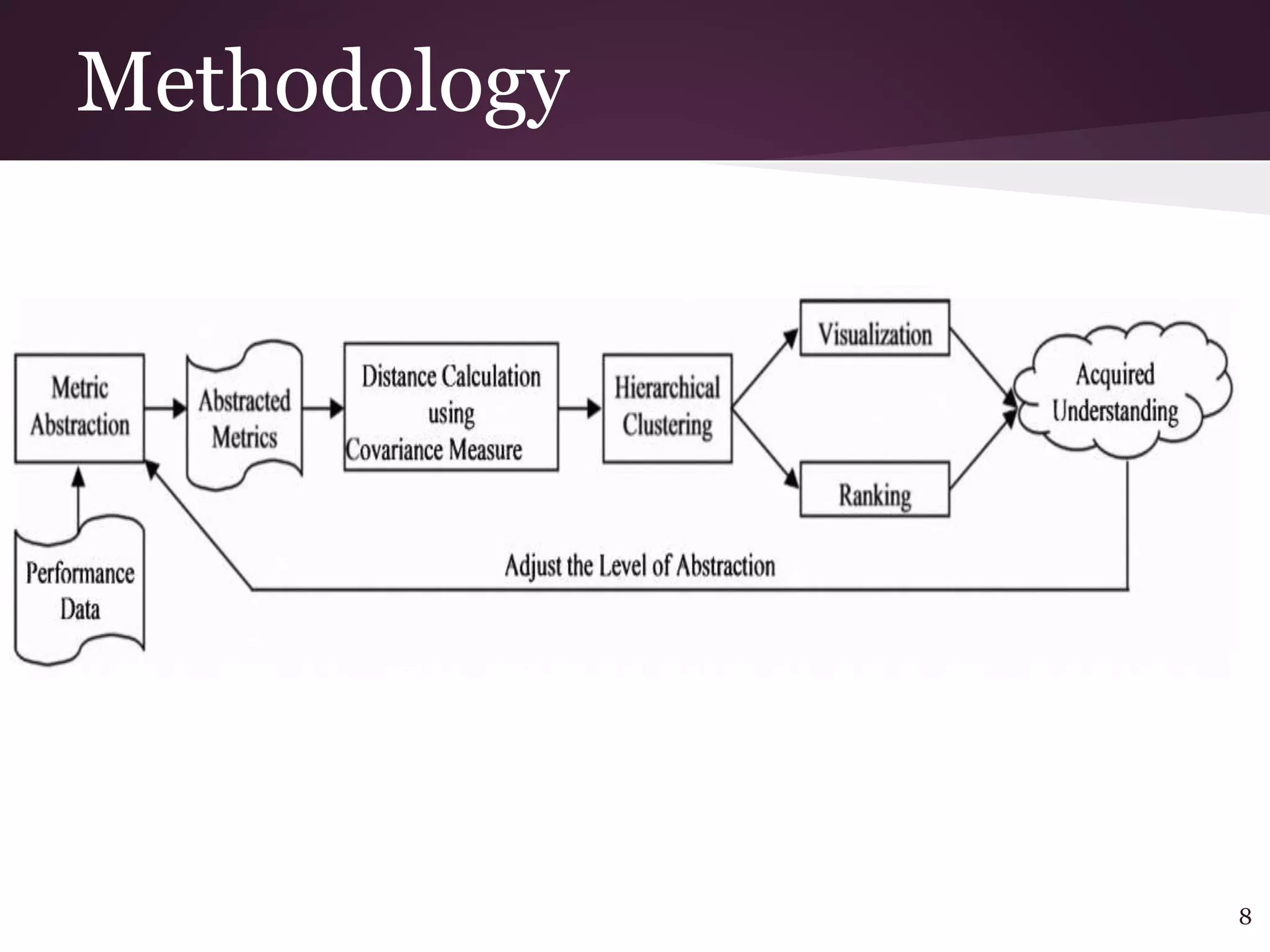

8. Methodology 8

9. Methodology (cont.) A. Performance Data a. Resource usage metrics of the pooled resources eg: CPU, memory, #opened files a. Resource metrics - accuracy - overhead of performance monitoring - data redundancy 9

10. Methodology (cont.) B. Metric Abstraction a. Group threads into higher level (macro) abstractions by space or time. eg: in a cluster of machines, all pooled threads executing on one node aggregated into one. b. Identify the deviations at higher level c. Repeat methodology for deviations at lower level 10

11. Methodology (cont.) C. Distance Calculation Between Covariance Matrices To get level of dissimilarity, or distance, between two abstractions 11 Remember your Maths?

12. Methodology (cont.) Covariance metric 12 Covariance between X(n) and X(1) how much X(n) and X(1) variables change together Ref - Wikipedia(2014, Dec), Covarience Metrics. link: http://en.wikipedia.org/wiki/Covariance_matrix Variance of metric ( i )

13. Methodology (cont.) Eg: ● Metrics Xc,XM,XH(cpu, memory, #open files) for Threads A,B ● A is instrumented 100 times, B 1000 times ● Calculate distance metric (Forstner & Moonen method) one-dimensional distance for each pair of covariance matrices ● Distance value - Similarity 13

14. Methodology (cont.) D. Hierarchical Clustering ● Starts with each abstraction in its own cluster and proceeds to find and merge the closest pair of clusters ● Have used Ward's method of clustering 14ref -Large Scale Gene Expression Data Analysis I . link:http://compbio.uthsc.edu/microarray/lecture1.htm

15. Methodology (cont.) E. Cluster Visualization 15

16. Methodology (cont.) F. Ranking Clusters ● Recursive ● Top to bottom 16

17. Algorithm 17

18. Case Study ● Performance data ○ CPU, Virtual Bytes, Private Bytes, Handles, MicroThreads ● Metric Abstraction ● Hierarchical Clustering and Ranking 18

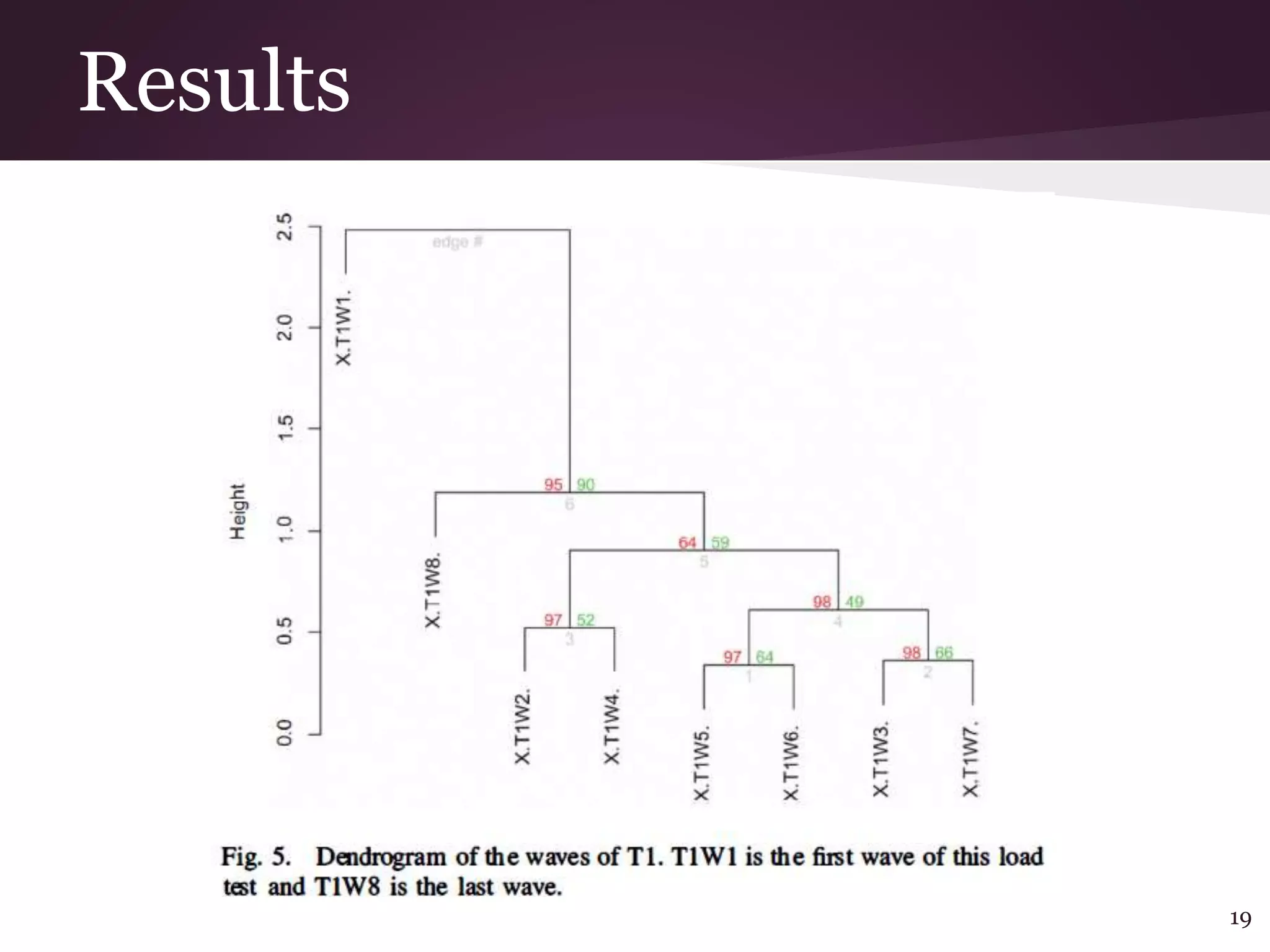

19. Results 19

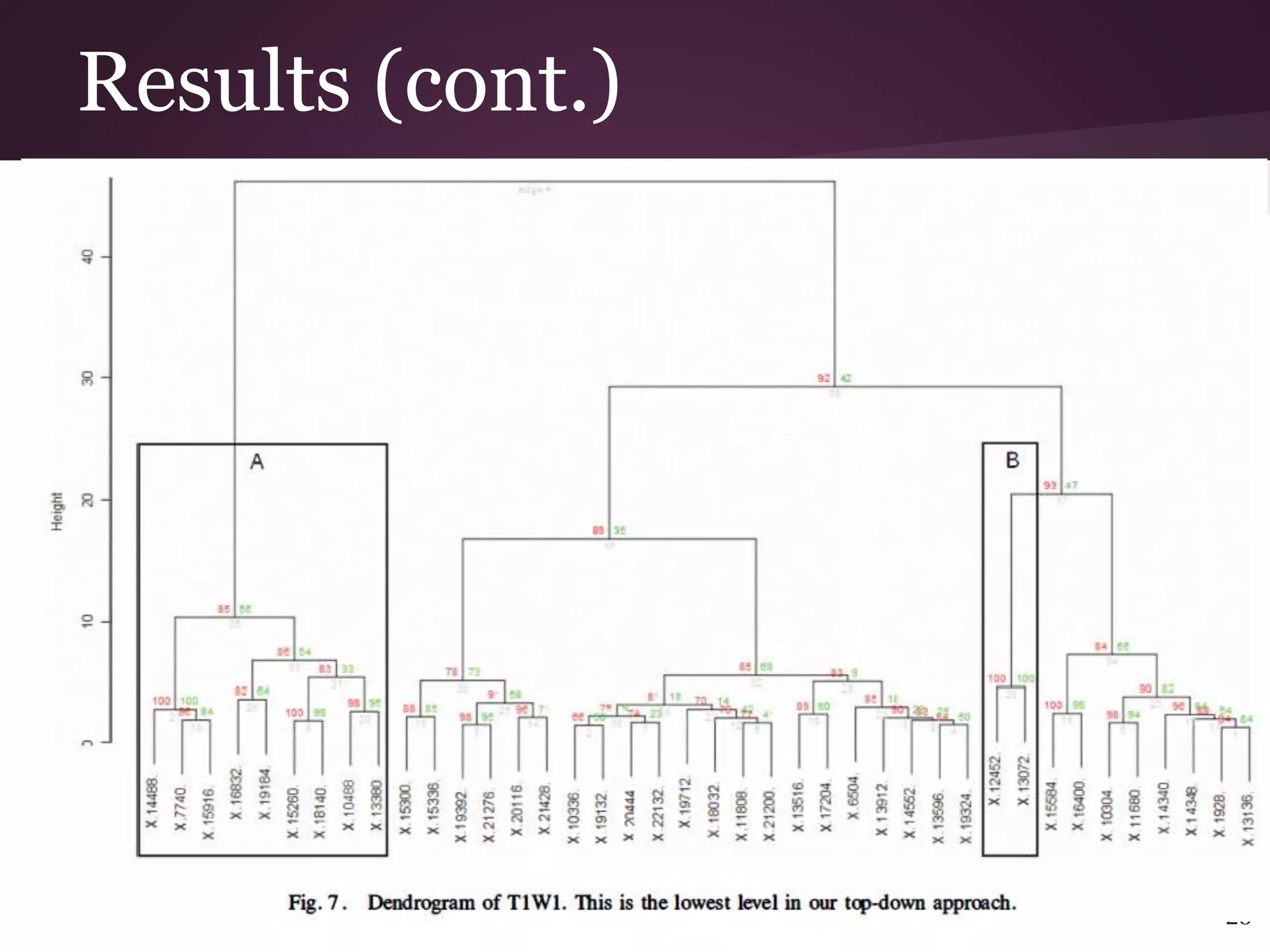

20. Results (cont.) 20

21. Quantitative Evaluation ● Validating the ability of the methodology to identify and rank deviations ● Identified important deviations ● Injecting synthetical deviations in to the performance data ● Verify the methodology (precision/recall) 21

22. Quantitative Evaluation (cont.) 22

23. Conclusion ● A methodology for automatically identifying deviating behaviour in ULS systems ● Ranking most deviating thread behavior with different abstractions (wave, thread) ● It is possible to use this methodology for other applications 23

24. Thank You! 24

Editor's Notes

10 sec
15 sec
30 sec- ULS - data, connections, hardware , 300-400 items are sold per second, 13 minl trasactions per second need - near-perfect up-time, hundreds or even thousands of concurrent connections, speed Performance analysis- determine maximum operating capacity, validate non-functional requirements, cover bottlenecks hrs to days . jprofiler, j-test CPU/memory resource metrics very hard to interpret
30 sec Performance deviation in ULS systems that are designed using the thread pools architectural pattern. can be applied with very little understanding of the architecture even
4 min -a design pattern, technique for designing scalable multithreaded and distributed systems. - explain diagram -useful in server applications where work items are typically short-lived and the number of incoming work items is large Ad; -. - abling incoming work items to be assigned and executed quickly Dis resource thrashing- resources expended to manage the threads increases at the expense of the resources available to process the work items thread syncs issues - deadlock where all threads in the pool are waiting for a work item on the queue to be processed, but there are no "available" threads to process that work item Thread leakage - when a thread finishes processing its work item, but fails to return to the pool
1 min test system with newly integrated package tracking system - fast method top down aggregate each machine's thread data into one macro thread at the machine level,
1 min iterative, top-down methodology notice two groups of behaviour: on the threads of machine4 one thread for cluster competition for access to the database between machine4 and the other machines is affecting the access time
30
30 sec resource usage metrics of
1 min Top down apply method at high level abstractions
sample - http://stattrek.com/matrix-algebra/covariance-matrix.aspx every covariance matrix is symmetric covariance is a measure of how much two random variables change together. If the greater values of one variable mainly correspond with the greater values of the other variable, and the same holds for the smaller values, i.e., the variables tend to show similar behavior, the covariance is positive expected value of a random variable is intuitively the long-run average value of repetitions of the experiment it represents. For example, the expected value of a die roll is 3.5 because
1.30
1min
cluster visualization - Once we calculated hierarchical clustering, details cluster visualization would be helpful to manually identify any deviating behavior in a particular abstraction. clusters of abstractions are visualized using hierarchical cluster dendrograms.These are binary tree like diagrams that show each stage of the clustering procedure as nested clusters.The height of the dendrogram is proportional to the distance between clusters. Higher the height higher the deviation. 1 min
Ranking clusters - Once the hierarchical cluster dendrograms have been generated, they are analyzed to identify and rank the most deviating behaviour. The authors have formalized an algorithm from their experiences analyzing dendrograms. We can recognize some characteristics of the algorithm. recursive top to bottom min: 1
2 min
2 min Subject system: the case study is based on data of an industrial ultra-large-scale system. These system follow thread pool architecture. The threads of the thread pool manage their own micro-threds. But they are been ignored due to unavailability of metrics. Performance Data: The Data in this case study consists of five resource usage metrics.The metrics are sampled approximately every 7 seconds. CPU - Percentage of CPU time in use VirtualBytes - Amount of virtual address space in use PrivateBytes - Amount of private( non-shared) memory in use Handles - Number of open file handles MicroThreads - Number of allocated micro-threads Hierarchical Clustering The authors have used pvclust and R package for hierarchical clustering, to cluster abstractions. (R is a free software environment for statistical computing and graphics) For ranking clusters: need to use algorithm
0.5 min
1 min
To verify at the wave level need to use this, and to verify at the thread level can be used same set of equations 1min
1 min

Threads concurrency identifying performance deviations in thread pools(1)

Recommended

Recommended

More Related Content

Similar to Threads concurrency identifying performance deviations in thread pools(1)

Similar to Threads concurrency identifying performance deviations in thread pools(1) (20)

Recently uploaded

Recently uploaded (20)

Threads concurrency identifying performance deviations in thread pools(1)

Editor's Notes
