Thermal pollution occurs when human activity raises or lowers the temperature of natural bodies of water. The main causes are power plants and industrial facilities that use water for cooling and return it at a higher temperature. This can harm aquatic life through thermal shock, decreased oxygen levels, changes in metabolism and biodiversity. Common mitigation methods include cooling ponds, towers, and closed-loop systems that release cooler water. Thermal pollution also stems from urban runoff and dam operations, with impacts varying by season and location. Strategies like green infrastructure aim to lessen these temperature changes in waterways.

1. Thermal
pollution in
water

2. • Thermal pollution, sometimes called "thermal enrichment", is
the degradation of water quality by any process that changes
ambient water temperature.
• Thermal pollution is the rise or fall in the temperature of a
natural body of water caused by human influence.
• Thermal pollution, unlike chemical pollution, results in a change
in the physical properties of water.
• A common cause of thermal pollution is the use of water as
a coolant by power plants and industrial manufacurers.
• Urban runoff—stormwater discharged to surface waters from
rooftops, roads and parking lots—and reservoirs can also be a
source of thermal pollution.
• Thermal pollution can also be caused by the release of very
cold water from the base of reservoirs into warmer rivers.
• When water used as a coolant is returned to the natural
environment at a higher temperature, the sudden change in
temperature decreases oxygen supply and affect ecosystem
composition.

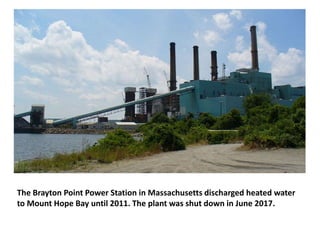

3. The Brayton Point Power Station in Massachusetts discharged heated water
to Mount Hope Bay until 2011. The plant was shut down in June 2017.

4. • Fish and other organisms adapted to particular temperature
range can be killed by an abrupt change in water temperature
(either a rapid increase or decrease) known as "thermal
shock".
• Warm coolant water can also have long term effects on water
temperature, increasing the overall temperature of water
bodies, including deep water.
• Seasonality effects how these temperature increases are
distributed throughout the water column.
• Elevated water temperatures decrease oxygen levels, which
can kill fish and alter food chain composition, reduce species
biodiversity, and foster invasion by new thermophilic species.
Sources and control of thermal pollution
Industrial wastewater
• In the United States about 75 to 80 percent of thermal
pollution is generated by power plants.

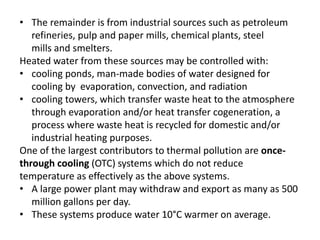

5. • The remainder is from industrial sources such as petroleum
refineries, pulp and paper mills, chemical plants, steel
mills and smelters.
Heated water from these sources may be controlled with:
• cooling ponds, man-made bodies of water designed for
cooling by evaporation, convection, and radiation
• cooling towers, which transfer waste heat to the atmosphere
through evaporation and/or heat transfer cogeneration, a
process where waste heat is recycled for domestic and/or
industrial heating purposes.
One of the largest contributors to thermal pollution are once-
through cooling (OTC) systems which do not reduce
temperature as effectively as the above systems.
• A large power plant may withdraw and export as many as 500
million gallons per day.
• These systems produce water 10°C warmer on average.

6. Lake Stechlin, Germany, received coolant discharge from the nuclear power
plant Rheinsberg starting in the 1960s. The plant was operational for 24 years,
closing in June 1990.

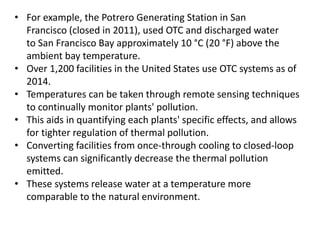

7. • For example, the Potrero Generating Station in San
Francisco (closed in 2011), used OTC and discharged water
to San Francisco Bay approximately 10 °C (20 °F) above the
ambient bay temperature.
• Over 1,200 facilities in the United States use OTC systems as of
2014.
• Temperatures can be taken through remote sensing techniques
to continually monitor plants' pollution.
• This aids in quantifying each plants' specific effects, and allows
for tighter regulation of thermal pollution.
• Converting facilities from once-through cooling to closed-loop
systems can significantly decrease the thermal pollution
emitted.
• These systems release water at a temperature more
comparable to the natural environment.

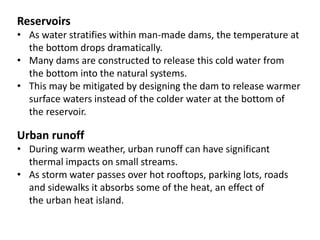

8. Reservoirs
• As water stratifies within man-made dams, the temperature at
the bottom drops dramatically.
• Many dams are constructed to release this cold water from
the bottom into the natural systems.
• This may be mitigated by designing the dam to release warmer
surface waters instead of the colder water at the bottom of
the reservoir.
Urban runoff
• During warm weather, urban runoff can have significant
thermal impacts on small streams.
• As storm water passes over hot rooftops, parking lots, roads
and sidewalks it absorbs some of the heat, an effect of
the urban heat island.

9. .

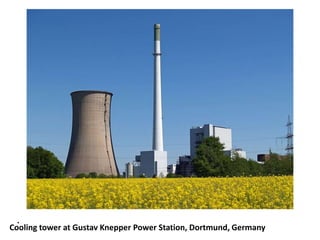

Cooling tower at Gustav Knepper Power Station, Dortmund, Germany

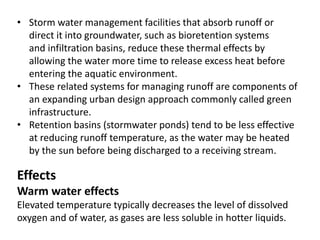

10. • Storm water management facilities that absorb runoff or
direct it into groundwater, such as bioretention systems
and infiltration basins, reduce these thermal effects by
allowing the water more time to release excess heat before
entering the aquatic environment.
• These related systems for managing runoff are components of
an expanding urban design approach commonly called green
infrastructure.
• Retention basins (stormwater ponds) tend to be less effective
at reducing runoff temperature, as the water may be heated
by the sun before being discharged to a receiving stream.
Effects
Warm water effects
Elevated temperature typically decreases the level of dissolved
oxygen and of water, as gases are less soluble in hotter liquids.

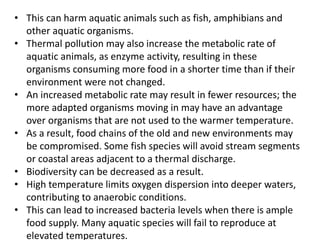

11. • This can harm aquatic animals such as fish, amphibians and
other aquatic organisms.
• Thermal pollution may also increase the metabolic rate of
aquatic animals, as enzyme activity, resulting in these
organisms consuming more food in a shorter time than if their
environment were not changed.
• An increased metabolic rate may result in fewer resources; the
more adapted organisms moving in may have an advantage
over organisms that are not used to the warmer temperature.
• As a result, food chains of the old and new environments may
be compromised. Some fish species will avoid stream segments
or coastal areas adjacent to a thermal discharge.
• Biodiversity can be decreased as a result.
• High temperature limits oxygen dispersion into deeper waters,
contributing to anaerobic conditions.
• This can lead to increased bacteria levels when there is ample
food supply. Many aquatic species will fail to reproduce at
elevated temperatures.

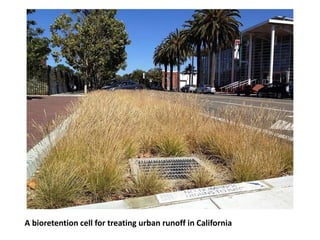

12. A bioretention cell for treating urban runoff in California

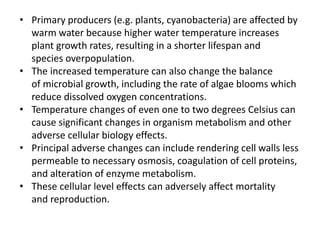

13. • Primary producers (e.g. plants, cyanobacteria) are affected by
warm water because higher water temperature increases
plant growth rates, resulting in a shorter lifespan and
species overpopulation.
• The increased temperature can also change the balance
of microbial growth, including the rate of algae blooms which
reduce dissolved oxygen concentrations.
• Temperature changes of even one to two degrees Celsius can
cause significant changes in organism metabolism and other
adverse cellular biology effects.
• Principal adverse changes can include rendering cell walls less
permeable to necessary osmosis, coagulation of cell proteins,
and alteration of enzyme metabolism.
• These cellular level effects can adversely affect mortality
and reproduction.

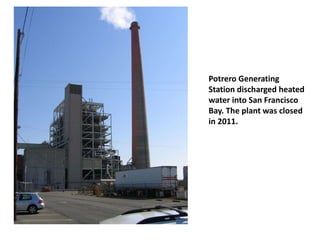

14. Potrero Generating
Station discharged heated
water into San Francisco
Bay. The plant was closed
in 2011.

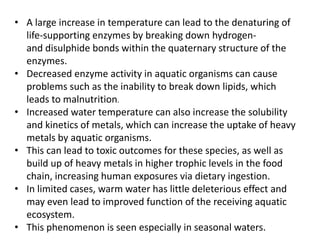

15. • A large increase in temperature can lead to the denaturing of
life-supporting enzymes by breaking down hydrogen-
and disulphide bonds within the quaternary structure of the
enzymes.
• Decreased enzyme activity in aquatic organisms can cause
problems such as the inability to break down lipids, which
leads to malnutrition.
• Increased water temperature can also increase the solubility
and kinetics of metals, which can increase the uptake of heavy
metals by aquatic organisms.
• This can lead to toxic outcomes for these species, as well as
build up of heavy metals in higher trophic levels in the food
chain, increasing human exposures via dietary ingestion.
• In limited cases, warm water has little deleterious effect and
may even lead to improved function of the receiving aquatic
ecosystem.
• This phenomenon is seen especially in seasonal waters.

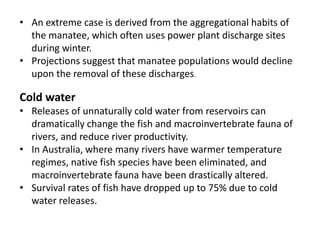

16. • An extreme case is derived from the aggregational habits of
the manatee, which often uses power plant discharge sites
during winter.
• Projections suggest that manatee populations would decline
upon the removal of these discharges.
Cold water
• Releases of unnaturally cold water from reservoirs can
dramatically change the fish and macroinvertebrate fauna of
rivers, and reduce river productivity.
• In Australia, where many rivers have warmer temperature
regimes, native fish species have been eliminated, and
macroinvertebrate fauna have been drastically altered.
• Survival rates of fish have dropped up to 75% due to cold
water releases.

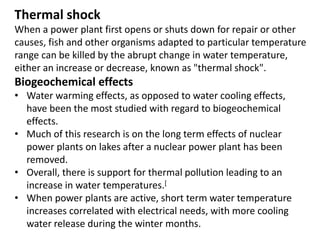

17. Thermal shock
When a power plant first opens or shuts down for repair or other
causes, fish and other organisms adapted to particular temperature
range can be killed by the abrupt change in water temperature,
either an increase or decrease, known as "thermal shock".
Biogeochemical effects
• Water warming effects, as opposed to water cooling effects,
have been the most studied with regard to biogeochemical
effects.
• Much of this research is on the long term effects of nuclear
power plants on lakes after a nuclear power plant has been
removed.
• Overall, there is support for thermal pollution leading to an
increase in water temperatures.[
• When power plants are active, short term water temperature
increases correlated with electrical needs, with more cooling
water release during the winter months.

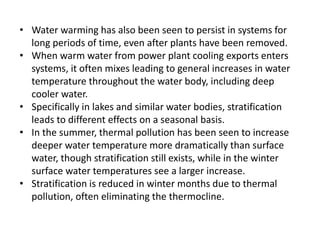

18. • Water warming has also been seen to persist in systems for
long periods of time, even after plants have been removed.
• When warm water from power plant cooling exports enters
systems, it often mixes leading to general increases in water
temperature throughout the water body, including deep
cooler water.
• Specifically in lakes and similar water bodies, stratification
leads to different effects on a seasonal basis.
• In the summer, thermal pollution has been seen to increase
deeper water temperature more dramatically than surface
water, though stratification still exists, while in the winter
surface water temperatures see a larger increase.
• Stratification is reduced in winter months due to thermal
pollution, often eliminating the thermocline.

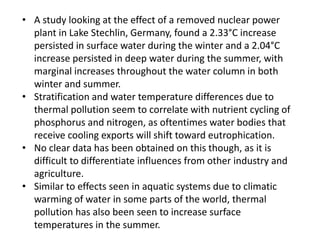

19. • A study looking at the effect of a removed nuclear power
plant in Lake Stechlin, Germany, found a 2.33°C increase
persisted in surface water during the winter and a 2.04°C
increase persisted in deep water during the summer, with
marginal increases throughout the water column in both
winter and summer.
• Stratification and water temperature differences due to
thermal pollution seem to correlate with nutrient cycling of
phosphorus and nitrogen, as oftentimes water bodies that
receive cooling exports will shift toward eutrophication.
• No clear data has been obtained on this though, as it is
difficult to differentiate influences from other industry and
agriculture.
• Similar to effects seen in aquatic systems due to climatic
warming of water in some parts of the world, thermal
pollution has also been seen to increase surface
temperatures in the summer.

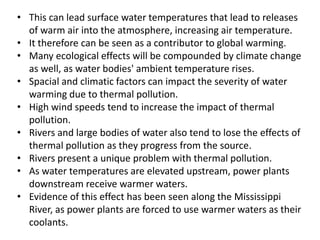

20. • This can lead surface water temperatures that lead to releases
of warm air into the atmosphere, increasing air temperature.
• It therefore can be seen as a contributor to global warming.
• Many ecological effects will be compounded by climate change
as well, as water bodies' ambient temperature rises.
• Spacial and climatic factors can impact the severity of water
warming due to thermal pollution.
• High wind speeds tend to increase the impact of thermal
pollution.
• Rivers and large bodies of water also tend to lose the effects of
thermal pollution as they progress from the source.
• Rivers present a unique problem with thermal pollution.
• As water temperatures are elevated upstream, power plants
downstream receive warmer waters.
• Evidence of this effect has been seen along the Mississippi
River, as power plants are forced to use warmer waters as their
coolants.

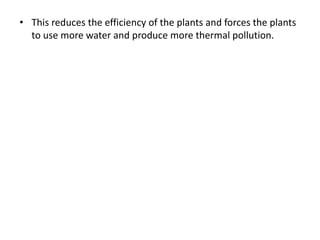

21. • This reduces the efficiency of the plants and forces the plants
to use more water and produce more thermal pollution.
