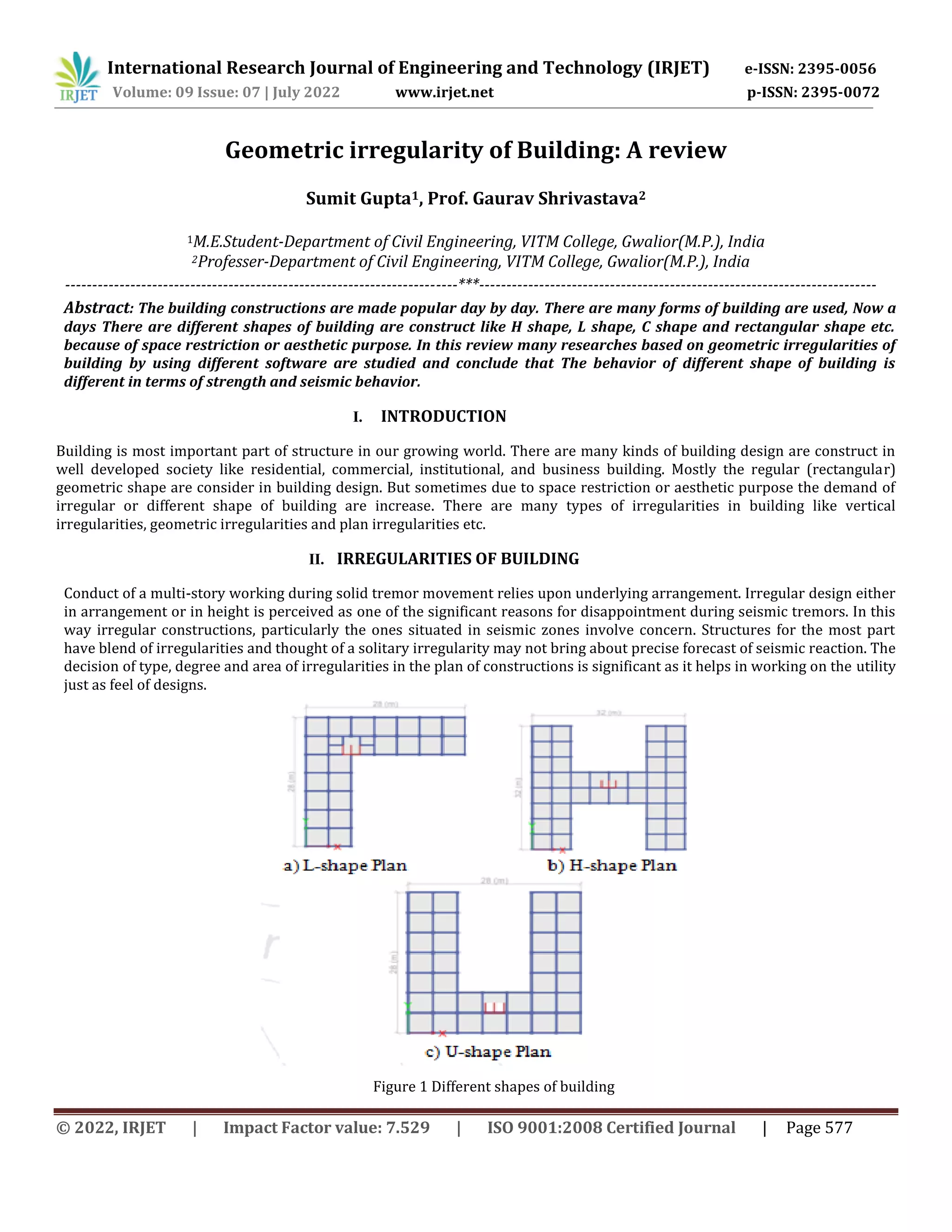

Geometric irregularity of Building: A review
Sumit Gupta1, Prof. Gaurav Shrivastava2
1M.E.Student-Department of Civil Engineering, VITM College, Gwalior(M.P.), India
2Professer-Department of Civil Engineering, VITM College, Gwalior(M.P.), India
------------------------------------------------------------------------***-------------------------------------------------------------------------
Abstract: The building constructions are made popular day by day. There are many forms of building are used, Now a
days There are different shapes of building are construct like H shape, L shape, C shape and rectangular shape etc.
because of space restriction or aesthetic purpose. In this review many researches based on geometric irregularities of
building by using different software are studied and conclude that The behavior of different shape of building is
different in terms of strength and seismic behavior.
I. INTRODUCTION
Building is most important part of structure in our growing world. There are many kinds of building design are construct in
well developed society like residential, commercial, institutional, and business building. Mostly the regular (rectangular)
geometric shape are consider in building design. But sometimes due to space restriction or aesthetic purpose the demand of
irregular or different shape of building are increase. There are many types of irregularities in building like vertical
irregularities, geometric irregularities and plan irregularities etc.
II. IRREGULARITIES OF BUILDING
Conduct of a multi-story working during solid tremor movement relies upon underlying arrangement. Irregular design either
in arrangement or in height is perceived as one of the significant reasons for disappointment during seismic tremors. In this
way irregular constructions, particularly the ones situated in seismic zones involve concern. Structures for the most part
have blend of irregularities and thought of a solitary irregularity may not bring about precise forecast of seismic reaction. The
decision of type, degree and area of irregularities in the plan of constructions is significant as it helps in working on the utility
just as feel of designs.
Figure 1 Different shapes of building
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 09 Issue: 07 | July 2022 www.irjet.net p-ISSN: 2395-0072

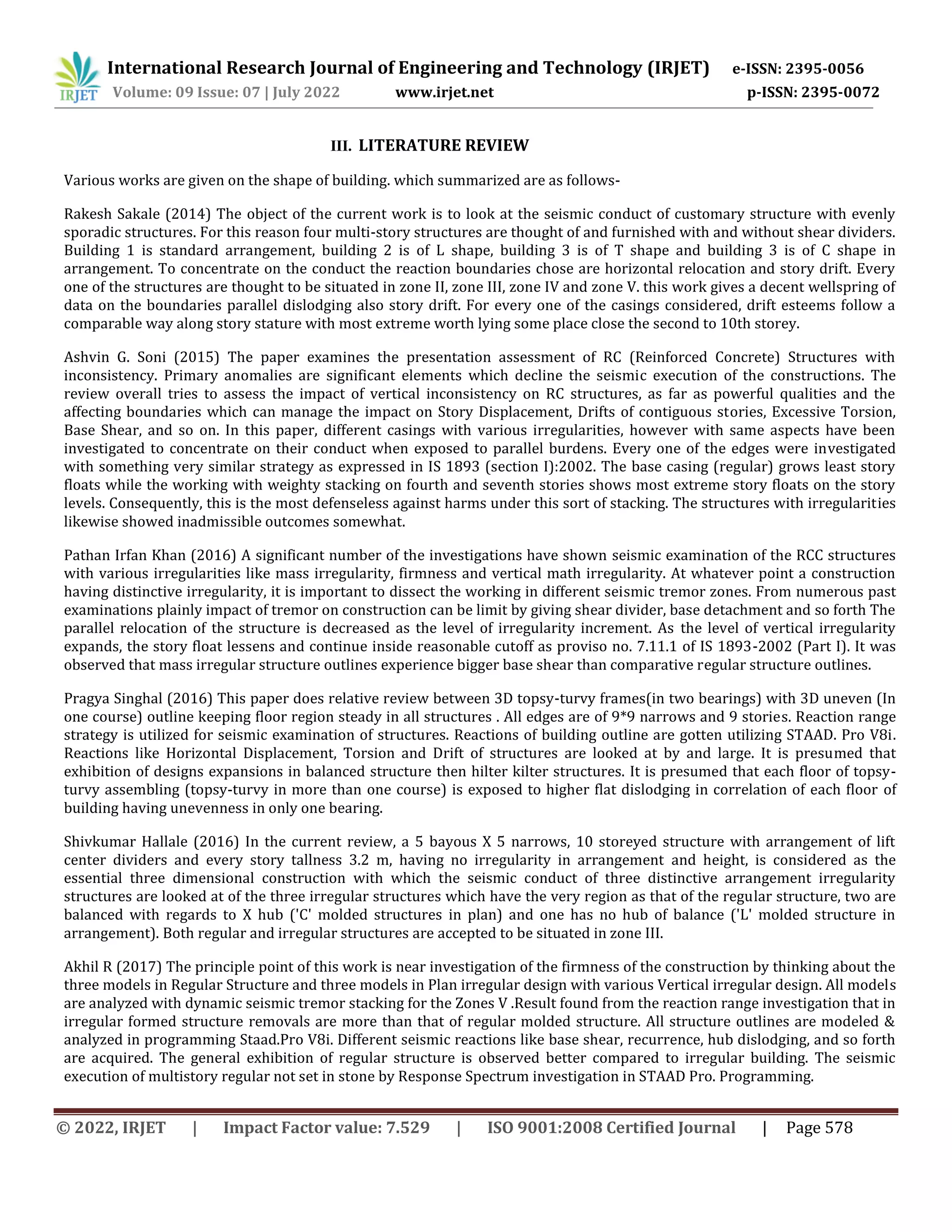

III. LITERATURE REVIEW
Various works are given on the shape of building. which summarized are as follows-
Rakesh Sakale (2014) The object of the current work is to look at the seismic conduct of customary structure with evenly
sporadic structures. For this reason four multi-story structures are thought of and furnished with and without shear dividers.
Building 1 is standard arrangement, building 2 is of L shape, building 3 is of T shape and building 3 is of C shape in
arrangement. To concentrate on the conduct the reaction boundaries chose are horizontal relocation and story drift. Every
one of the structures are thought to be situated in zone II, zone III, zone IV and zone V. this work gives a decent wellspring of
data on the boundaries parallel dislodging also story drift. For every one of the casings considered, drift esteems follow a
comparable way along story stature with most extreme worth lying some place close the second to 10th storey.
Ashvin G. Soni (2015) The paper examines the presentation assessment of RC (Reinforced Concrete) Structures with
inconsistency. Primary anomalies are significant elements which decline the seismic execution of the constructions. The
review overall tries to assess the impact of vertical inconsistency on RC structures, as far as powerful qualities and the
affecting boundaries which can manage the impact on Story Displacement, Drifts of contiguous stories, Excessive Torsion,
Base Shear, and so on. In this paper, different casings with various irregularities, however with same aspects have been
investigated to concentrate on their conduct when exposed to parallel burdens. Every one of the edges were investigated
with something very similar strategy as expressed in IS 1893 (section I):2002. The base casing (regular) grows least story
floats while the working with weighty stacking on fourth and seventh stories shows most extreme story floats on the story
levels. Consequently, this is the most defenseless against harms under this sort of stacking. The structures with irregularities
likewise showed inadmissible outcomes somewhat.
Pathan Irfan Khan (2016) A significant number of the investigations have shown seismic examination of the RCC structures
with various irregularities like mass irregularity, firmness and vertical math irregularity. At whatever point a construction
having distinctive irregularity, it is important to dissect the working in different seismic tremor zones. From numerous past
examinations plainly impact of tremor on construction can be limit by giving shear divider, base detachment and so forth The
parallel relocation of the structure is decreased as the level of irregularity increment. As the level of vertical irregularity
expands, the story float lessens and continue inside reasonable cutoff as proviso no. 7.11.1 of IS 1893-2002 (Part I). It was
observed that mass irregular structure outlines experience bigger base shear than comparative regular structure outlines.
Pragya Singhal (2016) This paper does relative review between 3D topsy-turvy frames(in two bearings) with 3D uneven (In
one course) outline keeping floor region steady in all structures . All edges are of 9*9 narrows and 9 stories. Reaction range
strategy is utilized for seismic examination of structures. Reactions of building outline are gotten utilizing STAAD. Pro V8i.
Reactions like Horizontal Displacement, Torsion and Drift of structures are looked at by and large. It is presumed that
exhibition of designs expansions in balanced structure then hilter kilter structures. It is presumed that each floor of topsy-
turvy assembling (topsy-turvy in more than one course) is exposed to higher flat dislodging in correlation of each floor of
building having unevenness in only one bearing.
Shivkumar Hallale (2016) In the current review, a 5 bayous X 5 narrows, 10 storeyed structure with arrangement of lift
center dividers and every story tallness 3.2 m, having no irregularity in arrangement and height, is considered as the
essential three dimensional construction with which the seismic conduct of three distinctive arrangement irregularity
structures are looked at of the three irregular structures which have the very region as that of the regular structure, two are
balanced with regards to X hub ('C' molded structures in plan) and one has no hub of balance ('L' molded structure in
arrangement). Both regular and irregular structures are accepted to be situated in zone III.
Akhil R (2017) The principle point of this work is near investigation of the firmness of the construction by thinking about the
three models in Regular Structure and three models in Plan irregular design with various Vertical irregular design. All models
are analyzed with dynamic seismic tremor stacking for the Zones V .Result found from the reaction range investigation that in
irregular formed structure removals are more than that of regular molded structure. All structure outlines are modeled &
analyzed in programming Staad.Pro V8i. Different seismic reactions like base shear, recurrence, hub dislodging, and so forth
are acquired. The general exhibition of regular structure is observed better compared to irregular building. The seismic
execution of multistory regular not set in stone by Response Spectrum investigation in STAAD Pro. Programming.

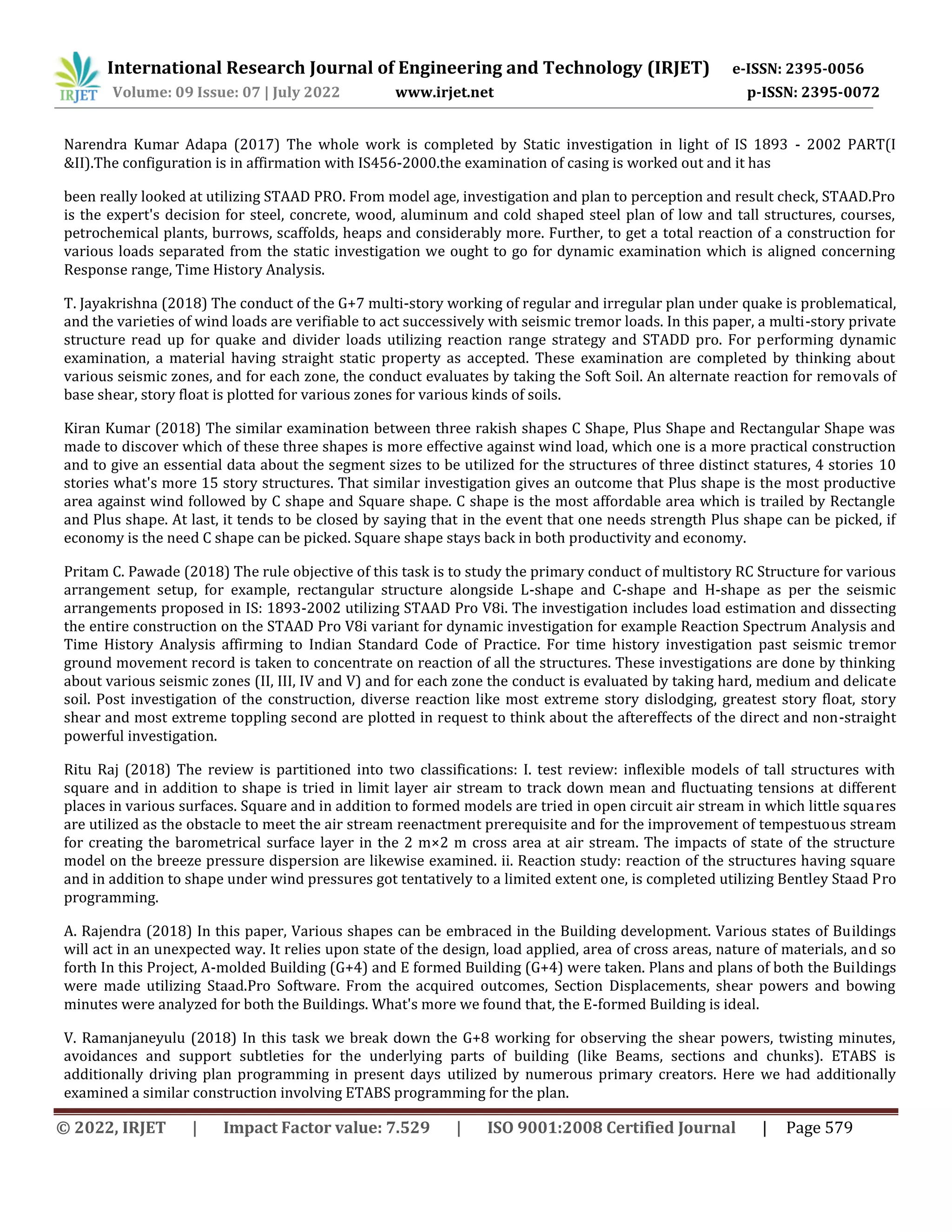

Narendra Kumar Adapa (2017) The whole work is completed by Static investigation in light of IS 1893 - 2002 PART(I
&II).The configuration is in affirmation with IS456-2000.the examination of casing is worked out and it has
been really looked at utilizing STAAD PRO. From model age, investigation and plan to perception and result check, STAAD.Pro
is the expert's decision for steel, concrete, wood, aluminum and cold shaped steel plan of low and tall structures, courses,
petrochemical plants, burrows, scaffolds, heaps and considerably more. Further, to get a total reaction of a construction for
various loads separated from the static investigation we ought to go for dynamic examination which is aligned concerning
Response range, Time History Analysis.
T. Jayakrishna (2018) The conduct of the G+7 multi-story working of regular and irregular plan under quake is problematical,
and the varieties of wind loads are verifiable to act successively with seismic tremor loads. In this paper, a multi-story private
structure read up for quake and divider loads utilizing reaction range strategy and STADD pro. For performing dynamic
examination, a material having straight static property as accepted. These examination are completed by thinking about
various seismic zones, and for each zone, the conduct evaluates by taking the Soft Soil. An alternate reaction for removals of
base shear, story float is plotted for various zones for various kinds of soils.
Kiran Kumar (2018) The similar examination between three rakish shapes C Shape, Plus Shape and Rectangular Shape was
made to discover which of these three shapes is more effective against wind load, which one is a more practical construction
and to give an essential data about the segment sizes to be utilized for the structures of three distinct statures, 4 stories 10
stories what's more 15 story structures. That similar investigation gives an outcome that Plus shape is the most productive
area against wind followed by C shape and Square shape. C shape is the most affordable area which is trailed by Rectangle
and Plus shape. At last, it tends to be closed by saying that in the event that one needs strength Plus shape can be picked, if
economy is the need C shape can be picked. Square shape stays back in both productivity and economy.
Pritam C. Pawade (2018) The rule objective of this task is to study the primary conduct of multistory RC Structure for various
arrangement setup, for example, rectangular structure alongside L-shape and C-shape and H-shape as per the seismic
arrangements proposed in IS: 1893-2002 utilizing STAAD Pro V8i. The investigation includes load estimation and dissecting
the entire construction on the STAAD Pro V8i variant for dynamic investigation for example Reaction Spectrum Analysis and
Time History Analysis affirming to Indian Standard Code of Practice. For time history investigation past seismic tremor
ground movement record is taken to concentrate on reaction of all the structures. These investigations are done by thinking
about various seismic zones (II, III, IV and V) and for each zone the conduct is evaluated by taking hard, medium and delicate
soil. Post investigation of the construction, diverse reaction like most extreme story dislodging, greatest story float, story
shear and most extreme toppling second are plotted in request to think about the aftereffects of the direct and non-straight
powerful investigation.
Ritu Raj (2018) The review is partitioned into two classifications: I. test review: inflexible models of tall structures with
square and in addition to shape is tried in limit layer air stream to track down mean and fluctuating tensions at different
places in various surfaces. Square and in addition to formed models are tried in open circuit air stream in which little squares
are utilized as the obstacle to meet the air stream reenactment prerequisite and for the improvement of tempestuous stream
for creating the barometrical surface layer in the 2 m×2 m cross area at air stream. The impacts of state of the structure
model on the breeze pressure dispersion are likewise examined. ii. Reaction study: reaction of the structures having square
and in addition to shape under wind pressures got tentatively to a limited extent one, is completed utilizing Bentley Staad Pro
programming.
A. Rajendra (2018) In this paper, Various shapes can be embraced in the Building development. Various states of Buildings
will act in an unexpected way. It relies upon state of the design, load applied, area of cross areas, nature of materials, and so
forth In this Project, A-molded Building (G+4) and E formed Building (G+4) were taken. Plans and plans of both the Buildings
were made utilizing Staad.Pro Software. From the acquired outcomes, Section Displacements, shear powers and bowing
minutes were analyzed for both the Buildings. What's more we found that, the E-formed Building is ideal.
V. Ramanjaneyulu (2018) In this task we break down the G+8 working for observing the shear powers, twisting minutes,
avoidances and support subtleties for the underlying parts of building (like Beams, sections and chunks). ETABS is
additionally driving plan programming in present days utilized by numerous primary creators. Here we had additionally
examined a similar construction involving ETABS programming for the plan.

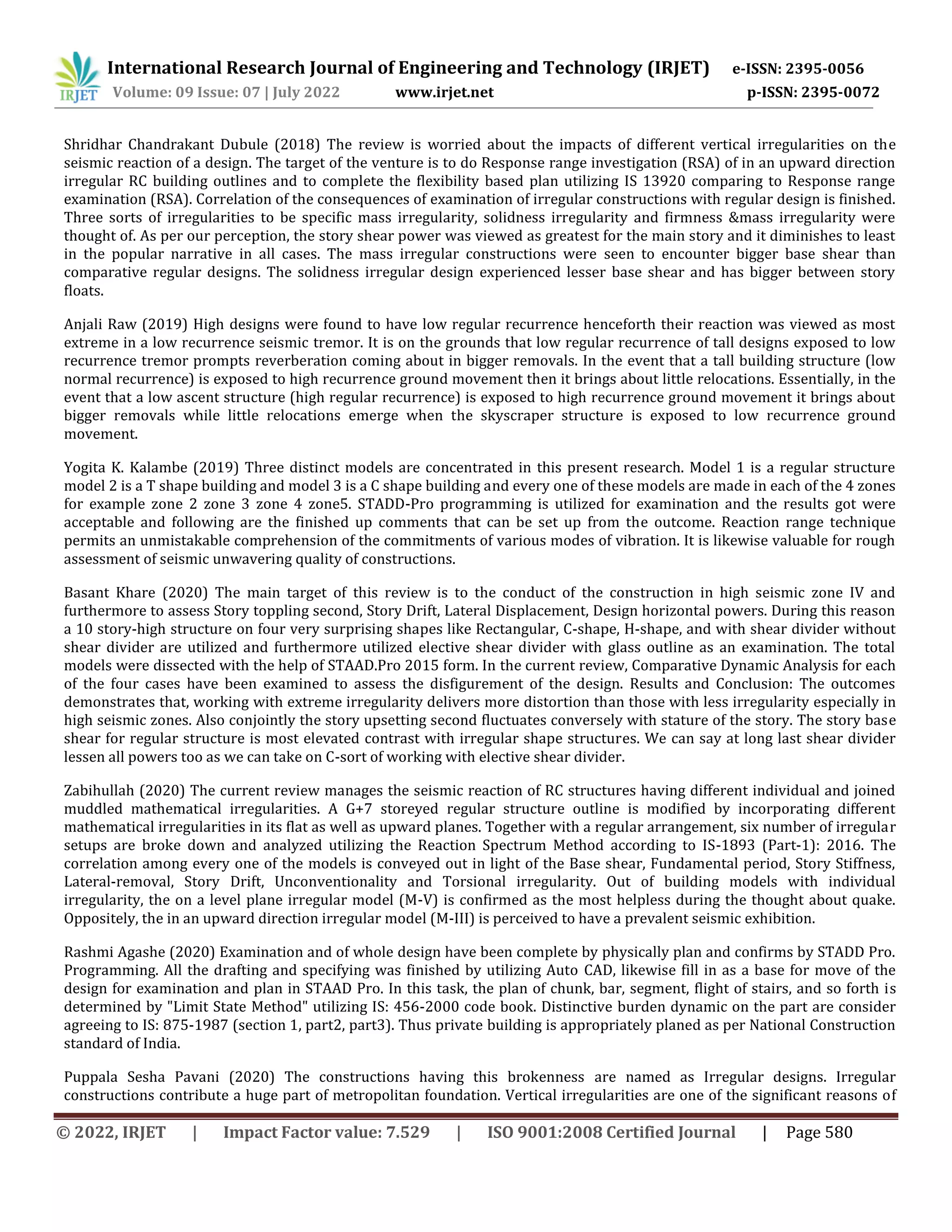

Shridhar Chandrakant Dubule (2018) The review is worried about the impacts of different vertical irregularities on the
seismic reaction of a design. The target of the venture is to do Response range investigation (RSA) of in an upward direction
irregular RC building outlines and to complete the flexibility based plan utilizing IS 13920 comparing to Response range
examination (RSA). Correlation of the consequences of examination of irregular constructions with regular design is finished.
Three sorts of irregularities to be specific mass irregularity, solidness irregularity and firmness &mass irregularity were
thought of. As per our perception, the story shear power was viewed as greatest for the main story and it diminishes to least
in the popular narrative in all cases. The mass irregular constructions were seen to encounter bigger base shear than
comparative regular designs. The solidness irregular design experienced lesser base shear and has bigger between story
floats.
Anjali Raw (2019) High designs were found to have low regular recurrence henceforth their reaction was viewed as most
extreme in a low recurrence seismic tremor. It is on the grounds that low regular recurrence of tall designs exposed to low
recurrence tremor prompts reverberation coming about in bigger removals. In the event that a tall building structure (low
normal recurrence) is exposed to high recurrence ground movement then it brings about little relocations. Essentially, in the
event that a low ascent structure (high regular recurrence) is exposed to high recurrence ground movement it brings about
bigger removals while little relocations emerge when the skyscraper structure is exposed to low recurrence ground
movement.
Yogita K. Kalambe (2019) Three distinct models are concentrated in this present research. Model 1 is a regular structure
model 2 is a T shape building and model 3 is a C shape building and every one of these models are made in each of the 4 zones
for example zone 2 zone 3 zone 4 zone5. STADD-Pro programming is utilized for examination and the results got were
acceptable and following are the finished up comments that can be set up from the outcome. Reaction range technique
permits an unmistakable comprehension of the commitments of various modes of vibration. It is likewise valuable for rough
assessment of seismic unwavering quality of constructions.
Basant Khare (2020) The main target of this review is to the conduct of the construction in high seismic zone IV and
furthermore to assess Story toppling second, Story Drift, Lateral Displacement, Design horizontal powers. During this reason
a 10 story-high structure on four very surprising shapes like Rectangular, C-shape, H-shape, and with shear divider without
shear divider are utilized and furthermore utilized elective shear divider with glass outline as an examination. The total
models were dissected with the help of STAAD.Pro 2015 form. In the current review, Comparative Dynamic Analysis for each
of the four cases have been examined to assess the disfigurement of the design. Results and Conclusion: The outcomes
demonstrates that, working with extreme irregularity delivers more distortion than those with less irregularity especially in
high seismic zones. Also conjointly the story upsetting second fluctuates conversely with stature of the story. The story base
shear for regular structure is most elevated contrast with irregular shape structures. We can say at long last shear divider
lessen all powers too as we can take on C-sort of working with elective shear divider.
Zabihullah (2020) The current review manages the seismic reaction of RC structures having different individual and joined
muddled mathematical irregularities. A G+7 storeyed regular structure outline is modified by incorporating different
mathematical irregularities in its flat as well as upward planes. Together with a regular arrangement, six number of irregular
setups are broke down and analyzed utilizing the Reaction Spectrum Method according to IS-1893 (Part-1): 2016. The
correlation among every one of the models is conveyed out in light of the Base shear, Fundamental period, Story Stiffness,
Lateral-removal, Story Drift, Unconventionality and Torsional irregularity. Out of building models with individual
irregularity, the on a level plane irregular model (M-V) is confirmed as the most helpless during the thought about quake.
Oppositely, the in an upward direction irregular model (M-III) is perceived to have a prevalent seismic exhibition.
Rashmi Agashe (2020) Examination and of whole design have been complete by physically plan and confirms by STADD Pro.
Programming. All the drafting and specifying was finished by utilizing Auto CAD, likewise fill in as a base for move of the
design for examination and plan in STAAD Pro. In this task, the plan of chunk, bar, segment, flight of stairs, and so forth is
determined by "Limit State Method" utilizing IS: 456-2000 code book. Distinctive burden dynamic on the part are consider
agreeing to IS: 875-1987 (section 1, part2, part3). Thus private building is appropriately planed as per National Construction
standard of India.
Puppala Sesha Pavani (2020) The constructions having this brokenness are named as Irregular designs. Irregular
constructions contribute a huge part of metropolitan foundation. Vertical irregularities are one of the significant reasons of

disappointments of designs during quakes. For instance structures with delicate story were the most eminent constructions
which imploded. Along these lines, the impact of upward irregularities in the seismic exhibition of constructions turns out to
be truly significant. Stature insightful changes in firmness and mass render the unique attributes of these structures not quite
the same as the regular structure. The point of this venture is to complete Time history Analysis (THA) of in an upward
direction irregular RC. Regular and irregular structures of G+10 displayed and examined in Staad genius programming.
Examination of the aftereffects of investigation and plan of irregular constructions with regular design was done.
Smita (2020) The principle point of this work is near investigation of the solidness of the construction by thinking about the
three models in Regular Structure and three models in Plan irregular design with various Vertical irregular design. All models
are investigated with dynamic tremor stacking for the Zones V. Result found from the reaction range investigation that in
irregular formed construction removals are more than that of regular molded structure. All structure outlines are displayed
and dissected in programming Staad. Ace CE. Different seismic reactions like base shear; recurrence, hub removal, and so on
are acquired. The general exhibition of regular structure is tracked down better compared to irregular structure .The seismic
presentation of multi-story regular not set in stone by Response Spectrum investigation in STAAD Pro. Programming.
Akramul Haque (2021) The principle reason for this paper is to study the underlying conduct of multistory Reinforcement
concrete structure for various arrangement design, for example, rectangular shape as regular alongside L-shape, C-shape, T-
shape, H shape, Z-shape as per the seismic arrangements. In this review 16 stories building are dissected by utilizing ETABS-
2015 and BNBC Code 2015. There are six a few models are investigated to discover the steadiness because of seismic burden.
Mohamed Hamud Mohamed (2021) Planning and examination of primary structures by manual computation is a convoluted
and tedious work, it isn't dependably the most ideal choice. A PC supported program named Staad.Pro is accessible which
permits it to plan and examine an underlying structure in a simple manner and consume less time preceding its development.
Staad.Pro can likewise apply static and dynamic burdens and their mixes in a very basic technique. The Staad.Pro
programming can plan and break down a design for various sorts of a materials like cement, steel and wood.
K. Venkatesh (2021) Irregular structure has huge part of present day, metropolitan framework. Building structure has mass
solidness and strength irregularity known as irregular structure. Irregular structures are arranged in high seismicity zone;
the job of primary architect is more challengeable. Irregular constructions, similar to structures having a L-molded
arrangement, that can be characterized "irregular" as indicated by both discerning rules and irregularity rules given by rules,
show that, assuming the stomachs are inflexible and the sections are conveyed by the shape, the irregularity is "clear".
Lopsidedness may indeed exist in an ostensibly symmetric construction due to vulnerability in the assessment of focus of
mass and solidness, incorrectness in the estimation of the components of primary components.
IV. CONCLUSION
After read all the above researches, we conclude that the different shape of building behave differently in case of strength and
seismic performance in various software. Some shapes have better strength, some shapes have better aesthetic and some
shape of building cover less space. So overall conclusion says, the shapes of building are affect building performance majorly.
REFERENCES
[1] Sakale R, Arora R and Chouhan J (2014) " Seismic Behavior Of Buildings Having Horizontal Irregularities" International
jornal of structural and civil engineering research ISSN 2319 – 6009 www.ijscer.com Vol. 3, No. 4
[2] Soni A., Agrawal D. And Pande A. (2015) " Effect of Irregularities in Buildings and their Consequences" International
Journal of Modern Trends in Engineering and Research (IJMTER) Volume 02, Issue 04, ISSN 2349–9745
[3] Khan P. and Dhamge N.R. (2016) " " Review Paper On Seismic Analysis Of Multistoried Rcc Building Due To Mass
Irregularity ". International Journal of Scientific Development and Research (IJSDR) ISSN: 2455-2631 Volume 1 Issue 6.
[4] Singhal P. (2016) " Study Of Response Of Vertically Irregular Buildings To Seismic Excitations Keeping Floor Area
Constant " International conference on recent trends in engineering and science and management.

[5] Hallale S. and H Sharada (2016) " Seismic Behavior of Buildings with Plan Irregularity with and Without Structural Infill
Action " Researchgate International Journal of Recent Advances in Engineering & Technology (IJRAET) ISSN 2347 - 2812,
Volume-4, Issue -4.
[6] Akhil R and Kumar S (2017) " Seismic Analysis Of Regular And Irregular Buildings With Vertical Irregularity Using
Staad.Pro" International Research Journal of Engineering and Technology (IRJET) ISSN: 2395 -0056 Volume: 04 Issue: 06
[7] Adapa N (2017) " Static Analysis and Design of Multi- Storied (G+4) Residential Building Using Staad-Pro 2007"
International Journal of Advanced Technology and Innovative Research Volume. 09, IssueNo.03.
[8] T. Jayakrishna, K. Murali, Powar S and J Seetunya (2018) " Seismic Analysis Of Regular And Irregular Multi-Storey
Buildings By Using Staad-Pro" International Journal of Civil Engineering and Technology (IJCIET) Volume 9, Issue 1
[9] Kumar K and U. Dhiyaanesh (2018) " Comparative analysis of wind load on different non-circular shaped buildings"
International Journal of Pure and Applied Mathematics Volume 119 No. 16 2018, 4809-4815.
[10] Pritam C, P. Saklecha, and Milind R(2018) Comparison and analysis of regular and irregular configuration of multistory
building in various seismic zones and various type of soil" International Advanced Research Journal in Science,
Engineering and Technology ISO 3297:2007 Certified Vol. 5, Issue 6.
[11] Raj R, Sharma A and Chohan S (2018) " Response of Square and Plus Shaped Buildings on Varying Wind Loads
Urbanization Challenges in Emerging Economies.
[12] A .Rajendra, Naidu D and Venkateswarlu D. (2018) " Comparative Analysis Of A, E Shaped Buildings Using Staad.Pro"
International Journal of Research and Analytical Reviews (IJRAR) Volume 5, Issue 4.
[13] V raman and V cheeranjivi (2018) " Comparative Study On Design Results Of A Multi-Storied Building Using Staad Pro
And Etabs For Regular And Irregular Plan Configuration" International Research Journal of Engineering and Technology
(IRJET) e-ISSN: 2395-0056 Volume: 05 Issue: 01.
[14] Dobule S (2018) " Seismic Analysis And Design Of Vertically Irregular R.C. Building Frames" International journal of
advance research in science and engineering volume 7.
[15] Raw A and Verma A (2019) " Seismic Analysis and Design of Vertically Irregular Mutistoried RC Concrete Building using
Staad Pro V8i" International Journal of Trend in Scientific Research and Development (IJTSRD) Volume 4 Issue 1.
[16] Yogita K. Kalambe and Sanjay Denge (2019) " Seismic Analysis of R.C.C. Building With Plan Irregularities" www.ijsart.com
Volume 5 Issue 6.
[17] Khare B and Gholgate K (2020) " Analysis of Different Shape of High Rise Building with Alternative RCC Shear Walls
Using STAAD Pro" International Journal of Progressive Research in Science and Engineering Volume-1, Issue-3.
[18] Zabihullah, Priyanka Singh and Mohammad Zamir Aryan (2020) " Effect of (Vertical & Horizontal) Geometric
Irregularities on the Seismic Response of RC Structures" International Journal on Emerging Technologies 11(3): 965-974
[19] Rashmi Agashe, Marshal Baghele, Vaishanvi Deshmukh, Sharad Khomane and Gaurav Patle (2020) To Study Analysis and
Design of Multi-Storey building using STAAD-pro. and Comparing with Manual Calculations" International Research
Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 07 Issue: 04.
[20] Pavani S and Rao M (2020) " Seismic Evalution Of Irregular Structure Using Staad Pro" International Research Journal of
Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 07 Issue: 07.
[21] Smita and Juhi (2020) " Study of irregular multi-storey RC frame subjected to seismic condition analysis with STAAD Pro
V8i software" International Journal of Advance Research, Ideas and Innovations in Technology.

[22] Md Ali Akber (2021) " Impact Of Regular And Irregular Reinforced Concrete Structure Under Seismic Conditions"
ResearchGate.
[23] Mohamed Hamud Mohamed, Hanad Muse Ali and Abdikadir Hassan (2021) " A Review On Design And Analysis Of Multi-
Storey Building By Staad.Pro" Journal of Emerging Technologies and Innovative Research (JETIR) ISSN-2349-5162.
[24] K venketash (2021) " Design and Analysis of Irregular Building Using STAAD Pro Without Earthquake Load"
International Journal of Recent Advances in Multidisciplinary Topics Volume 2, Issue 11

Thermal Analysis of Tube with Helical Coil Inserts Using CFD

More Related Content

Similar to Thermal Analysis of Tube with Helical Coil Inserts Using CFD

More from IRJET Journal

Recently uploaded

Thermal Analysis of Tube with Helical Coil Inserts Using CFD
