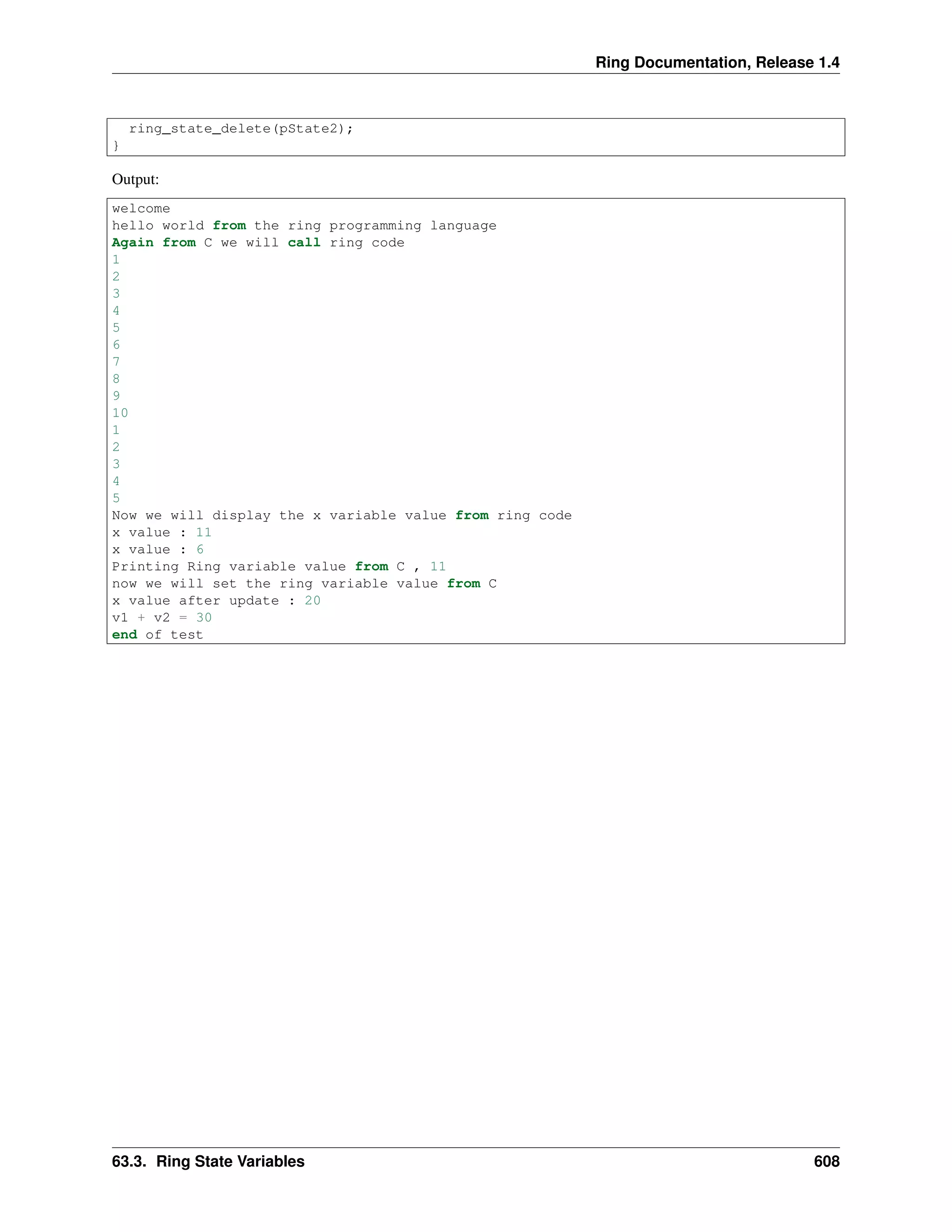

1. Ring Documentation, Release 1.4
ring_state_delete(pState2);
}
Output:
welcome
hello world from the ring programming language
Again from C we will call ring code
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
Now we will display the x variable value from ring code
x value : 11
x value : 6
Printing Ring variable value from C , 11
now we will set the ring variable value from C
x value after update : 20
v1 + v2 = 30
end of test
63.3. Ring State Variables 608

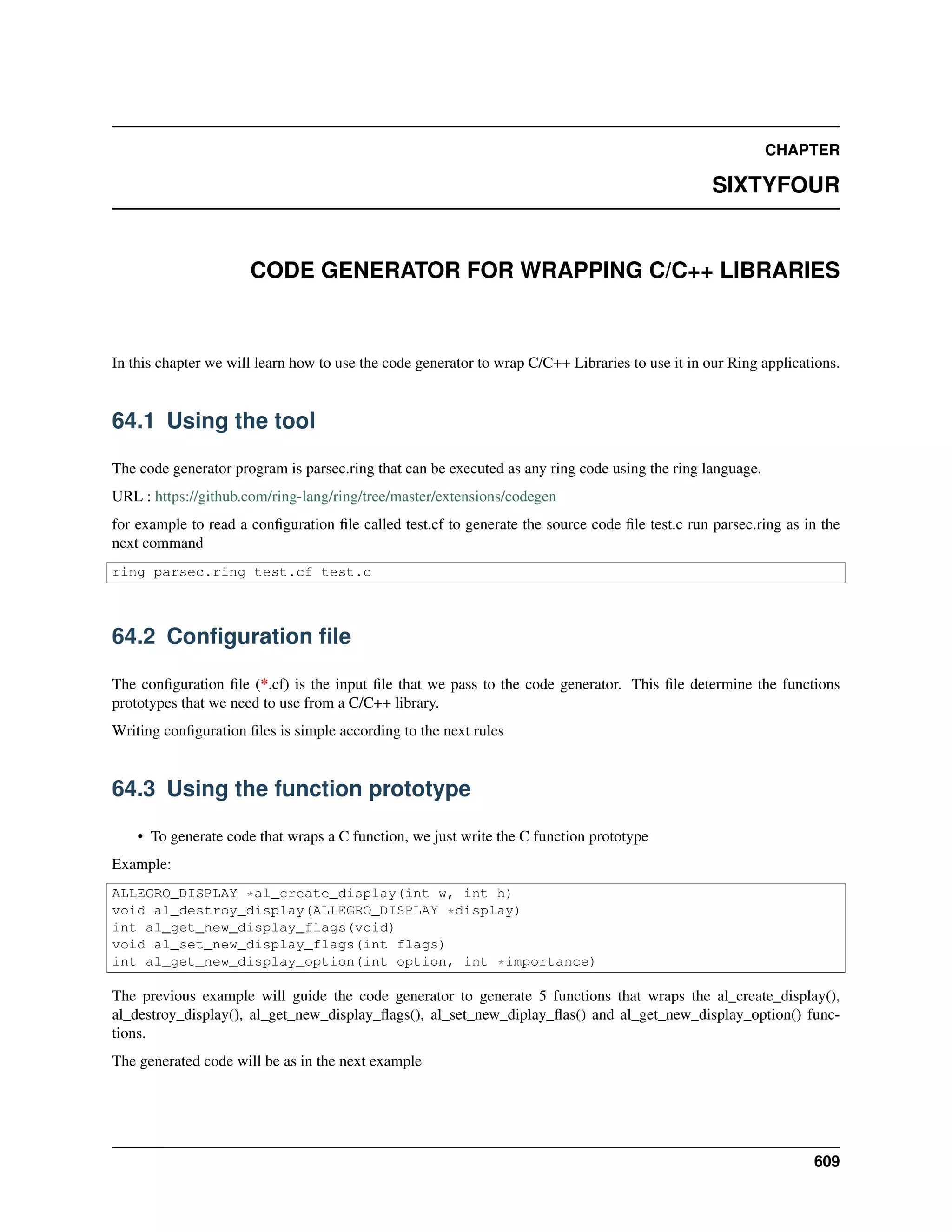

2. CHAPTER
SIXTYFOUR
CODE GENERATOR FOR WRAPPING C/C++ LIBRARIES
In this chapter we will learn how to use the code generator to wrap C/C++ Libraries to use it in our Ring applications.
64.1 Using the tool
The code generator program is parsec.ring that can be executed as any ring code using the ring language.
URL : https://github.com/ring-lang/ring/tree/master/extensions/codegen
for example to read a configuration file called test.cf to generate the source code file test.c run parsec.ring as in the
next command
ring parsec.ring test.cf test.c
64.2 Configuration file
The configuration file (*.cf) is the input file that we pass to the code generator. This file determine the functions
prototypes that we need to use from a C/C++ library.
Writing configuration files is simple according to the next rules
64.3 Using the function prototype
• To generate code that wraps a C function, we just write the C function prototype
Example:
ALLEGRO_DISPLAY *al_create_display(int w, int h)
void al_destroy_display(ALLEGRO_DISPLAY *display)
int al_get_new_display_flags(void)
void al_set_new_display_flags(int flags)
int al_get_new_display_option(int option, int *importance)
The previous example will guide the code generator to generate 5 functions that wraps the al_create_display(),
al_destroy_display(), al_get_new_display_flags(), al_set_new_diplay_flas() and al_get_new_display_option() func-
tions.
The generated code will be as in the next example
609
4. Ring Documentation, Release 1.4
{
if ( RING_API_PARACOUNT != 2 ) {
RING_API_ERROR(RING_API_MISS2PARA);
return ;
}
if ( ! RING_API_ISNUMBER(1) ) {
RING_API_ERROR(RING_API_BADPARATYPE);
return ;
}
if ( ! RING_API_ISSTRING(2) ) {
RING_API_ERROR(RING_API_BADPARATYPE);
return ;
}
RING_API_RETNUMBER(al_get_new_display_option( (int ) RING_API_GETNUMBER(1),
RING_API_GETINTPOINTER(2)));
RING_API_ACCEPTINTVALUE(2) ;
}
from the previous example we can see how much of time and effort is saved using the Code Generator.
64.4 Adding code to the generated code
• To generate code directly type it between <code> and </code>
Example :
<code>
/* some C code will be written here */
</code>
We use this feature when we need to do something without the help of the code generator. for example including
header files and defining constants using Macro.
64.5 Prefix for Functions Names
• To determine a prefix in all of the functions names type it between <funcstart> and </funcstart> for ex-
ample when we wrap the Allegro game programming library and we need all of the library functions
to start with “al” we type the next code in the configuration file
<funcstart>
al
</funcstart>
64.6 Generate function to wrap structures
• To generate functions that wrap structures (create/delete/get structure members)
just type the structures names between <struct> and </struct> also after the structure name you can type the structure
members between { } separated by comma.
Example
64.4. Adding code to the generated code 611
5. Ring Documentation, Release 1.4
<struct>
ALLEGRO_COLOR
ALLEGRO_EVENT { type , keyboard.keycode , mouse.x , mouse.y }
</struct>
from the previous example we will generate two function to create/delete the structure ALLEGRO_COLOR Also we
will generate two functions to create/delete the structure ALLEGRO_EVENT and four functions to get the structure
ALLEGRO_EVENT members (type, keyboard.keycode, mouse.x, mouse.y).
64.7 Determine Structure Members Types
You can determine the pointer name before the strucuture member name.
Example:
SDL_Surface {flags,SDL_PixelFormat *format,w,h,pitch,void *pixels,void *userdata,locked,void *lock_da
64.8 Defining Contants
You can define constatants using <constant> and </constant>
The generator will generate the required functions to get the constant values
And will define the constants to be used with the same name in Ring code using *.rh file that will be generated too.
rh = Ring Header
Example:
<constant>
MIX_DEFAULT_FORMAT
SDL_QUIT
SDL_BUTTON_LEFT
SDL_BUTTON_MIDDLE
SDL_BUTTON_RIGHT
</constant>
Note: You will need to pass the *.rh file name to parsec.ring after the generated source file name.
Example:
ring ..codegenparsec.ring libsdl.cf ring_libsdl.c ring_libsdl.rh
64.9 Register New Functions
We can register functions by typing the function prototype between <register> and </register> We need this feature
only when we don’t provide the function prototype as input directly where we need to write the code of this function.
Example:
<register>
void al_exit(void)
</register>
64.7. Determine Structure Members Types 612
6. Ring Documentation, Release 1.4
<code>
RING_FUNC(ring_al_exit)
{
if ( RING_API_PARACOUNT != 0 ) {
RING_API_ERROR(RING_API_BADPARACOUNT);
return ;
}
exit(0);
}
</code>
In the previous example we register the al_exit() function. This function is not part of the Allegro Library, it’s just an
extra function that we need to add. Then the code if this function is written inside <code> and </code>. This function
call the exit() function from the C language library.
64.10 Writing comments in the configuration file
• To type comments just type it between <comment> and </comment>
Example:
<comment>
configuration files
</comment>
64.11 Executing code during code generation
• To ask from the code generator to execute Ring code during reading the configuration file, just
write the code between <runcode> and </runcode>
Example:
<runcode>
aNumberTypes + "al_fixed"
</runcode>
The previoud line of code add the string “al_fixed” to the list aNumberTypes, This list contains types that can be
considered as numbers when the code generator find it in the function prototype.
64.12 Enum and Numbers
We have the list aEnumTypes to use for adding each Enumeration we uses in the functions prototype.
Example:
<runcode>
aNumberTypes + "qreal"
aNumberTypes + "qint64"
aEnumTypes + "Qt::GestureType"
aEnumTypes + "Qt::GestureFlag"
</runcode>
64.10. Writing comments in the configuration file 613
7. Ring Documentation, Release 1.4
64.13 Filtering using Expressions
using <filter> and </filter> we can include/exclude parts of the configuration file based on a condition, for example
<filter> iswindows()
... functions related to windows
</filter>
64.14 Configuration file for the Allegro Library
The next configuration file enable us to use the Allegro library functions. The configuration file size is less than 1000
lines. when the code generator take this file as input the generated source code file in the C language will be 12000
lines of code!
We can see this configuration file as a complete example about using the code generator Also we can use it to know
the functions that can be used from RingAllegro when you use it to create 2D games!
<code>
#define ALLEGRO_NO_MAGIC_MAIN
#include <allegro5/allegro.h>
#include "allegro5/allegro_image.h"
#include <allegro5/allegro_font.h>
#include <allegro5/allegro_ttf.h>
#include <allegro5/allegro_audio.h>
#include <allegro5/allegro_acodec.h>
#include <allegro5/allegro_opengl.h>
#include <allegro5/allegro_direct3d.h>
#include <allegro5/allegro_color.h>
#include <allegro5/allegro_memfile.h>
#include "allegro5/allegro_native_dialog.h"
#include <allegro5/allegro_physfs.h>
#include <allegro5/allegro_primitives.h>
</code>
<funcstart>
al
</funcstart>
<struct>
ALLEGRO_EVENT { type , keyboard.keycode , mouse.x , mouse.y }
ALLEGRO_TIMEOUT
ALLEGRO_SAMPLE_ID
ALLEGRO_COLOR
</struct>
<register>
void al_exit(void)
</register>
<code>
RING_FUNC(ring_al_exit)
{
if ( RING_API_PARACOUNT != 0 ) {
RING_API_ERROR(RING_API_BADPARACOUNT);
return ;
64.13. Filtering using Expressions 614
8. Ring Documentation, Release 1.4
}
exit(0);
}
</code>
int al_init(void)
<comment>
configuration files
</comment>
<runcode>
aNumberTypes + "al_fixed"
</runcode>
ALLEGRO_CONFIG *al_create_config(void)
void al_destroy_config(ALLEGRO_CONFIG *config)
ALLEGRO_CONFIG *al_load_config_file(const char *filename)
ALLEGRO_CONFIG *al_load_config_file_f(ALLEGRO_FILE *file)
bool al_save_config_file(const char *filename, const ALLEGRO_CONFIG *config)
bool al_save_config_file_f(ALLEGRO_FILE *file, const ALLEGRO_CONFIG *config)
void al_add_config_section(ALLEGRO_CONFIG *config, const char *name)
Note: we just provided part of the configuration file, for complete copy check the Ring source code distribution.
64.15 Threads Support
Next, another part of the configutaiton file, it’s important because we can learn from it how to add threads to our Ring
applications by using a threads library.
The idea is using ring_vm_mutexfunctions() and ring_vm_runcodefromthread() to execute Ring code.
<comment>
Threads
</comment>
<code>
void *al_func_thread(ALLEGRO_THREAD *thread, void *pPointer)
{
List *pList;
VM *pVM;
const char *cStr;
pList = (List *) pPointer ;
pVM = (VM *) ring_list_getpointer(pList,2);
cStr = ring_list_getstring(pList,1);
ring_vm_runcodefromthread(pVM,cStr);
ring_list_delete(pList);
return NULL;
}
RING_FUNC(ring_al_create_thread)
{
ALLEGRO_THREAD *pThread;
List *pList;
if ( RING_API_PARACOUNT != 1 ) {
64.15. Threads Support 615
10. Ring Documentation, Release 1.4
64.16 Code Generator Rules for Wrapping C++ Classes
• We can define classes between <class> and </class>
• Between <class> and <class> we set attributes like “name, nonew, para, parent, codename, passvmpointer and
abstract”
• we set the attributes using the style attributename:value or attributename only if no values are required
• The “name” attribute determine the class name in C++ code and this name will be the default name in the Ring
code
• The nonew instruction means that we don’t need new/delete methods
• The parent attribute determine the parent class name
• The codename attribute determine another class name in C++ code
• The passvmpoint instruction means passing the Ring VM pointer to the class constructor when we create new
objects, this happens when we set the codename attribute to a class the we will define and this class need the
Virtual Machine pointer (for example to use it to execute Ring code from C++ code).
• The abstract instruction means that no new method is required for this class “no objects will be created”.
• Using <nodllstartup> we can avoid #include “ring.h”, We need this to write our startup code.
• Using <libinitfunc> we can change the function name that register the library functions
• Using <ignorecpointertype> we can ignore pointer type check
• Using the aStringTypes list when can defined new types that treated like const char *
• Using the aBeforeReturn list when can define code that is inserted after the variable name when we return that
variable from a function
• Using the aNewMethodName list we can define another method name to be used in Ring code when we call
the C++ method. this feature is required because some C++ method may be identical to Ring Keywords like
“load”,”next”,”end” and “done”.
• in method prototype - when we use @ in the method name, we mean that we have the same method with different
parameters (As in C++)
64.17 Using configuration file that wrap C++ Library
To run the code generator to generate code for using C++ library in the Ring application, we can do that as we did
with using C libraries but here we will generate .cpp file instead of *.c file. Also we will determine another file to be
generated (.ring). This file will contains classes in Ring code that wraps C++ functions for using C++ classes and
objects.
ring parsec.ring qt.cf ring_qt.cpp ring_qt.ring
64.18 Configuration file for the Qt Framework
The next configuration file is used to wrap many Qt classes The configuration file is around 3500 lines and generate
C++ code around 56000 lines and generate also Ring code around 9000 lines.
64.16. Code Generator Rules for Wrapping C++ Classes 617
19. Ring Documentation, Release 1.4
</class>
void setText(const char *)
void setClickEvent(const char *)
void setIcon(QIcon)
void setIconSize(QSize)
<class>
name: QLineEdit
para: QWidget *
parent: QWidget
codename: GLineEdit
passvmpointer
</class>
int alignment(void)
void backspace(void)
QCompleter *completer(void)
QMenu *createStandardContextMenu(void)
void cursorBackward(bool mark, int steps)
void cursorForward(bool mark, int steps)
int cursorMoveStyle(void)
int cursorPosition(void)
int cursorPositionAt(QPoint)
void cursorWordBackward(bool mark)
void cursorWordForward(bool mark)
void del(void)
void deselect(void)
QString displayText(void)
bool dragEnabled(void)
int echoMode(void)
void end(bool mark)
void getTextMargins(int *left, int *top, int *right, int *bottom)
bool hasAcceptableInput(void)
bool hasFrame(void)
bool hasSelectedText(void)
void home(bool mark)
QString inputMask(void)
void insert(QString)
bool isModified(void)
bool isReadOnly(void)
bool isRedoAvailable(void)
bool isUndoAvailable(void)
int maxLength(void)
QString placeholderText(void)
QString selectedText(void)
int selectionStart(void)
void setAlignment(int flag)
void setCompleter(QCompleter *c)
void setCursorMoveStyle(int style)
void setCursorPosition(int)
void setDragEnabled(bool b)
void setEchoMode(int)
void setFrame(bool)
void setInputMask(QString)
void setMaxLength(int)
void setModified(bool)
void setPlaceholderText(QString)
64.18. Configuration file for the Qt Framework 626
20. Ring Documentation, Release 1.4
void setReadOnly(bool)
void setSelection(int start, int length)
void setTextMargins(int left, int top, int right, int bottom)
void setValidator(QValidator *v)
QString text(void)
QMargins textMargins(void)
QValidator *validator(void)
void clear(void)
void copy(void)
void cut(void)
void paste(void)
void redo(void)
void selectAll(void)
void setText(QString)
void undo(void)
void setTextChangedEvent(const char *)
void setcursorPositionChangedEvent(const char *)
void seteditingFinishedEvent(const char *)
void setreturnPressedEvent(const char *)
void setselectionChangedEvent(const char *)
void settextEditedEvent(const char *)
Note: Most of the content of the previous configuration file is removed from this documentation, for a complete
version see the Ring source code distribution.
64.19 Configuration Files Examples
You can learn from the next examples
• RingAllegro : https://github.com/ring-lang/ring/blob/master/extensions/ringallegro/allegro.cf
• RingQt : https://github.com/ring-lang/ring/blob/master/extensions/ringqt/qt.cf
• RingLibSDL : https://github.com/ring-lang/ring/blob/master/extensions/ringsdl/libsdl.cf
After modifing the configuration file, You will need to generate the code, You can learn from the next examples
• RingAllegro : https://github.com/ring-lang/ring/blob/master/extensions/ringallegro/gencode.bat
• RingQt : https://github.com/ring-lang/ring/blob/master/extensions/ringqt/gencode.bat
• RingLibSDL : https://github.com/ring-lang/ring/blob/master/extensions/ringsdl/gencode.bat
After generating the code, You will need to build the library, You can learn from the next examples
• RingAllegro : https://github.com/ring-lang/ring/blob/master/extensions/ringallegro/buildvc.bat
• RingQt : https://github.com/ring-lang/ring/blob/master/extensions/ringqt/buildmingw32.bat
• RingLibSDL : https://github.com/ring-lang/ring/blob/master/extensions/ringsdl/buildvc.bat
64.19. Configuration Files Examples 627
