1. The Next Step, Part 2

2. Where have we been?

3. SimpleYUI, inline JS

4. External JS file via <script>

5. Plugin for Node objects

6. Simple Widget

7. Why continue?

8. Then where are we going?

9. Widget provides some structure

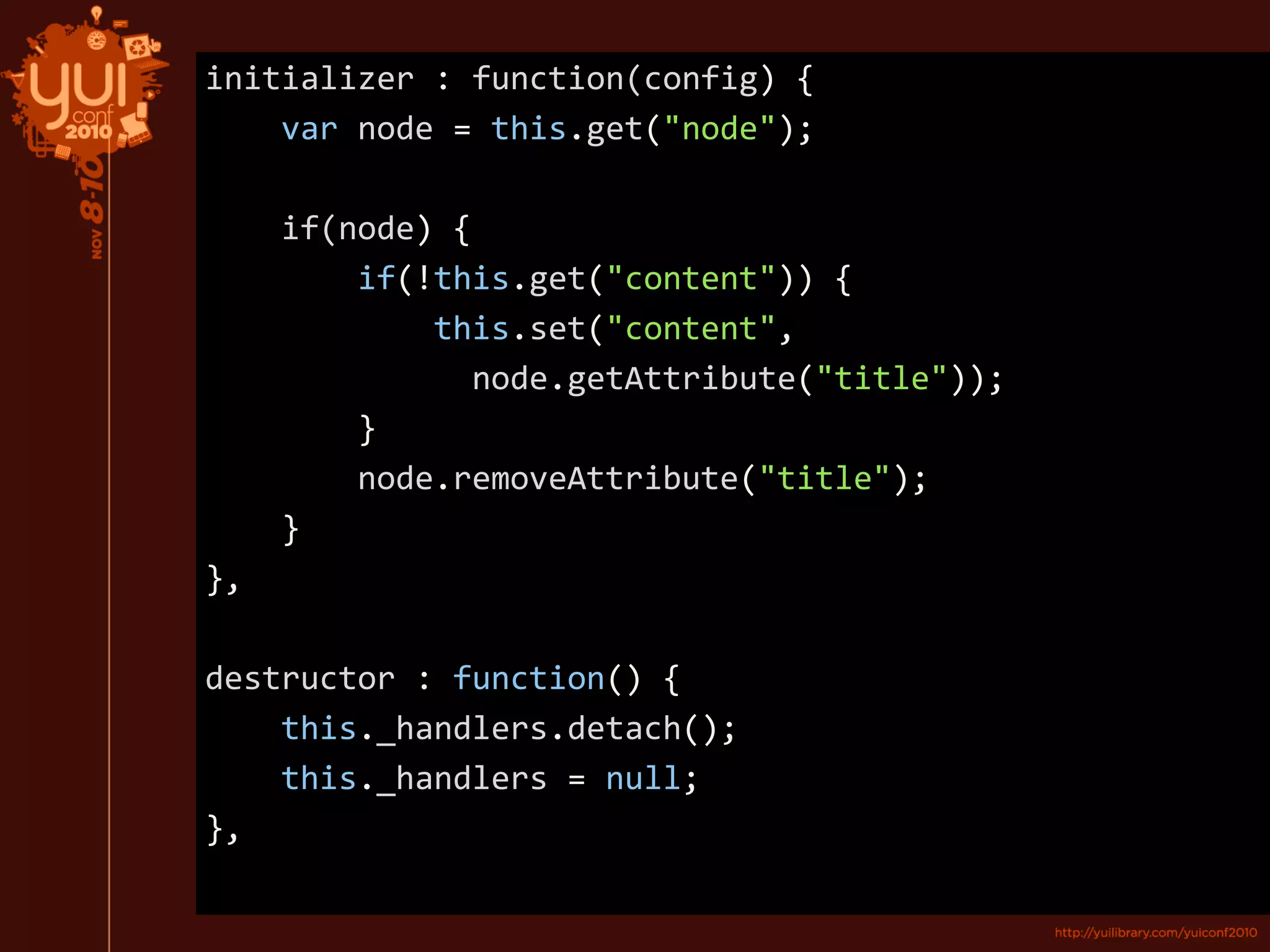

10. initializer : function(config) {
var node = this.get("node");
if(node) {
if(!this.get("content")) {
this.set("content",
node.getAttribute("title"));
}
node.removeAttribute("title");
}
},
destructor : function() {
this._handlers.detach();
this._handlers = null;
},

11. renderUI

12. bindUI

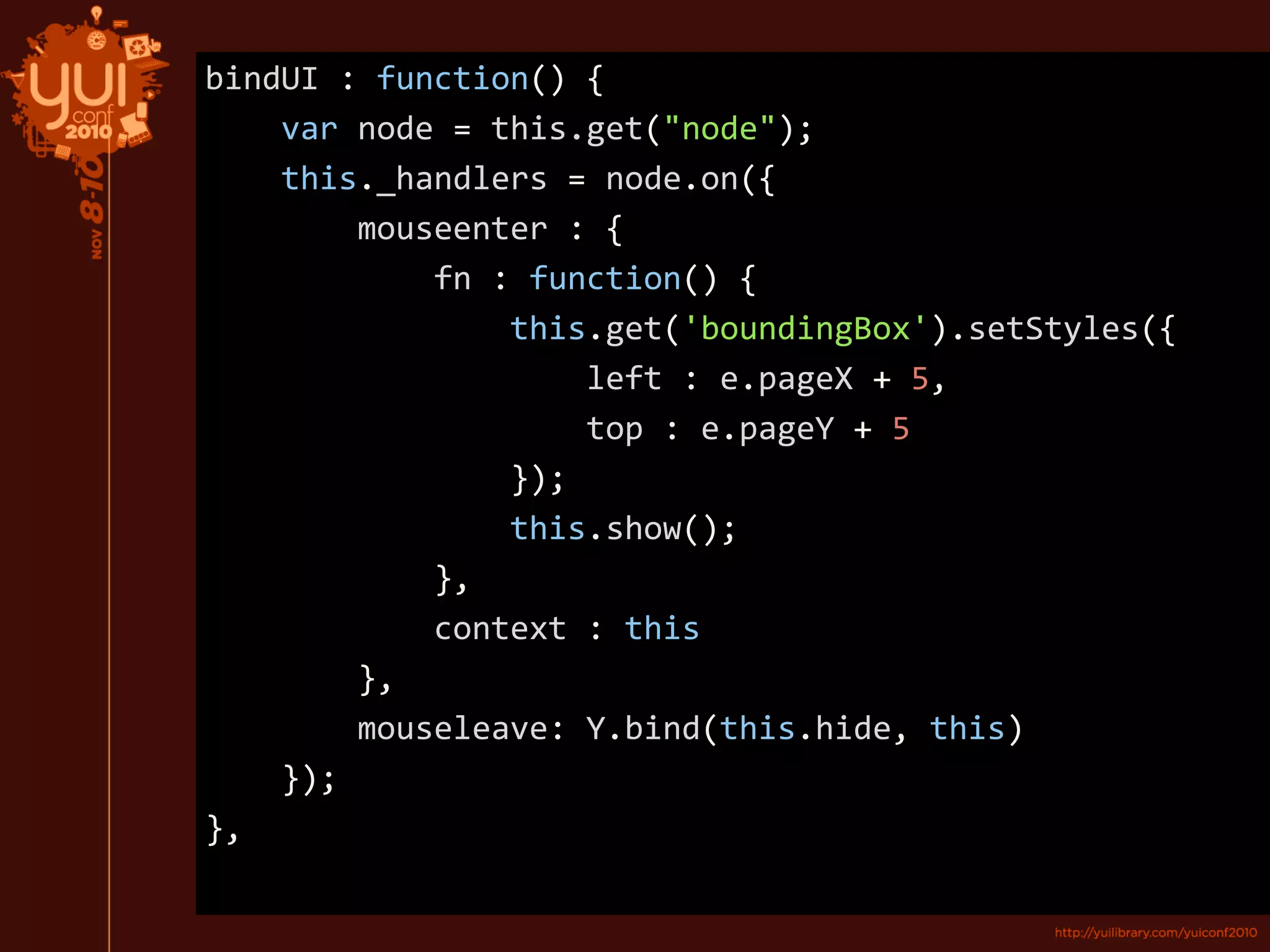

13. bindUI : function() {
var node = this.get("node");
this._handlers = node.on({
mouseenter : {
fn : function() {
this.get('boundingBox').setStyles({
left : e.pageX + 5,
top : e.pageY + 5
});
this.show();
},
context : this
},
mouseleave: Y.bind(this.hide, this)
});
},

14. syncUI

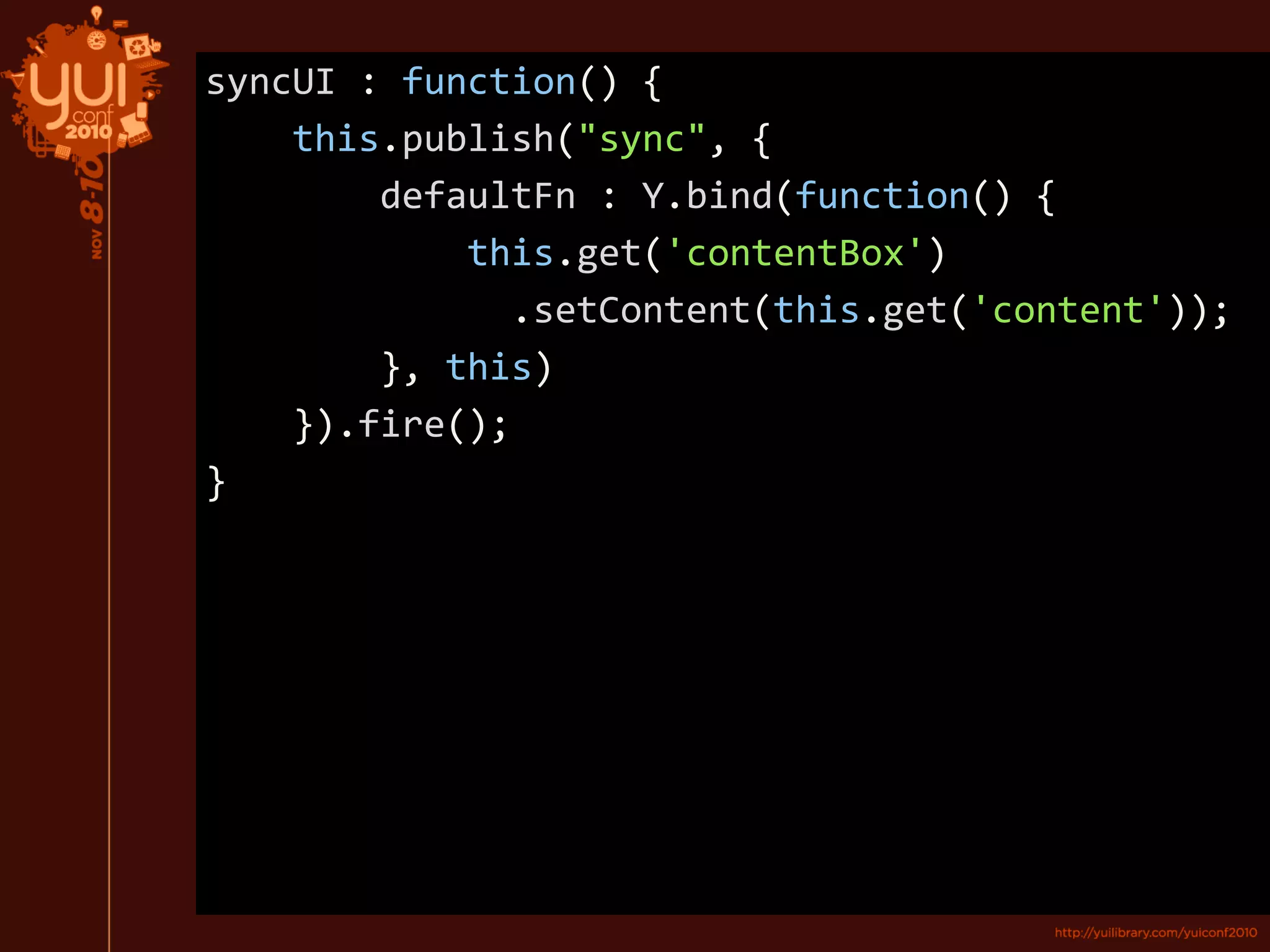

15. syncUI : function() {
this.publish("sync", {
defaultFn : Y.bind(function() {
this.get('contentBox')
.setContent(this.get('content'));
}, this)
}).fire();
}

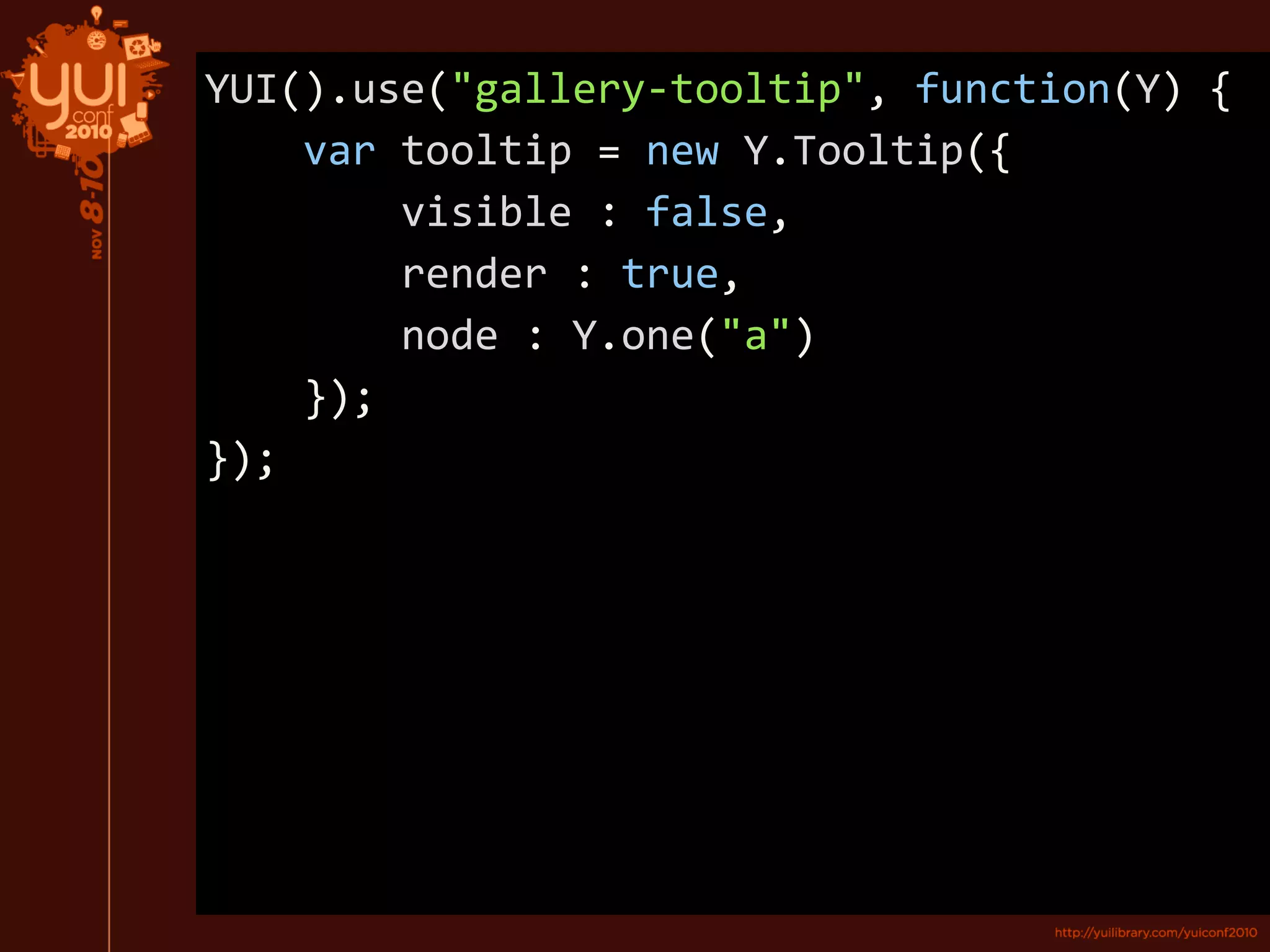

16. YUI().use("gallery-tooltip", function(Y) {
var tooltip = new Y.Tooltip({
visible : false,
render : true,
node : Y.one("a")
});
});

17. Now what?

18. Plugins for new behaviors

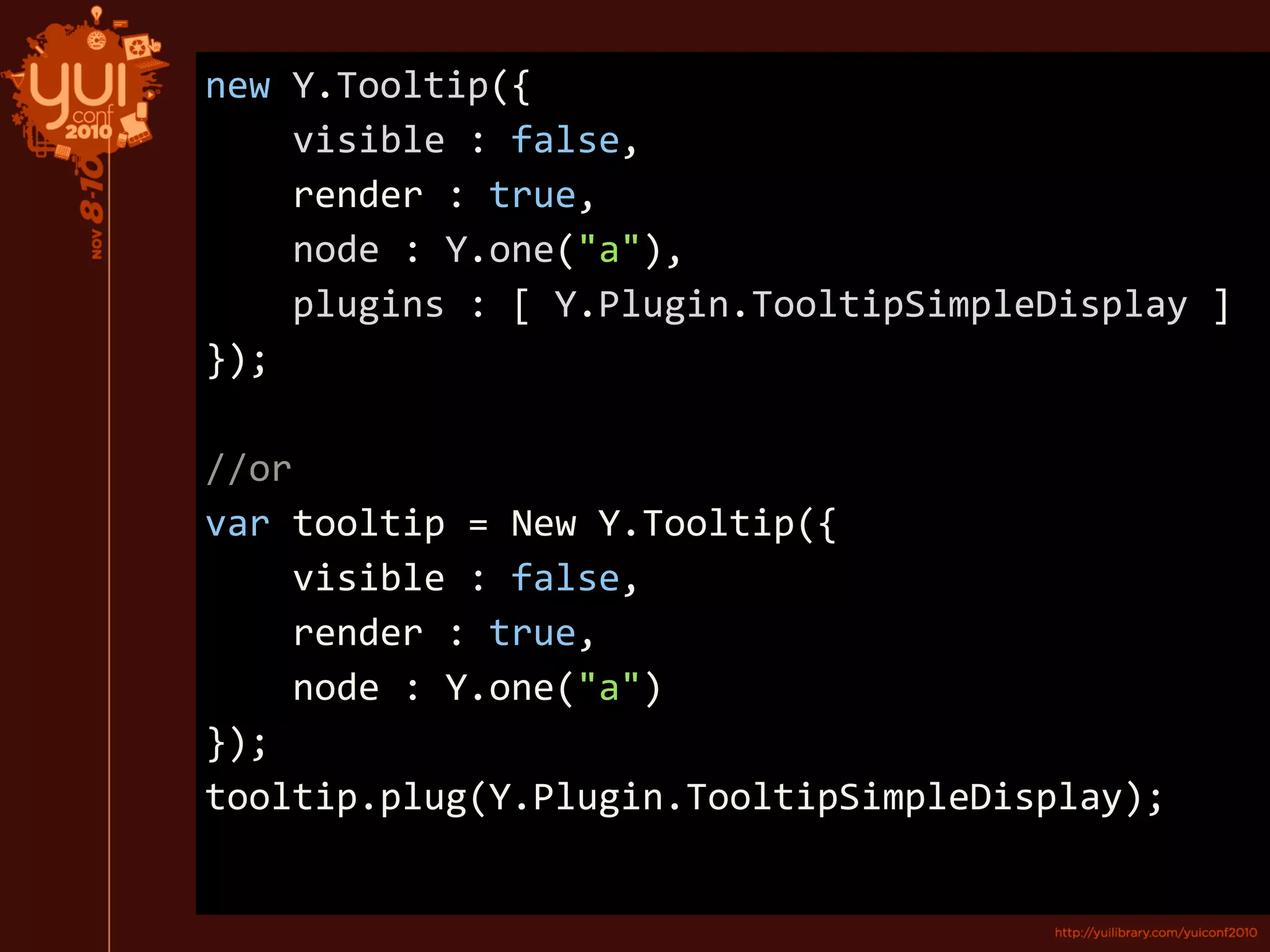

19. new Y.Tooltip({
visible : false,
render : true,
node : Y.one("a"),
plugins : [ Y.Plugin.TooltipSimpleDisplay ]
});
//or
var tooltip = New Y.Tooltip({
visible : false,
render : true,
node : Y.one("a")
});
tooltip.plug(Y.Plugin.TooltipSimpleDisplay);

20. Simple Plugin

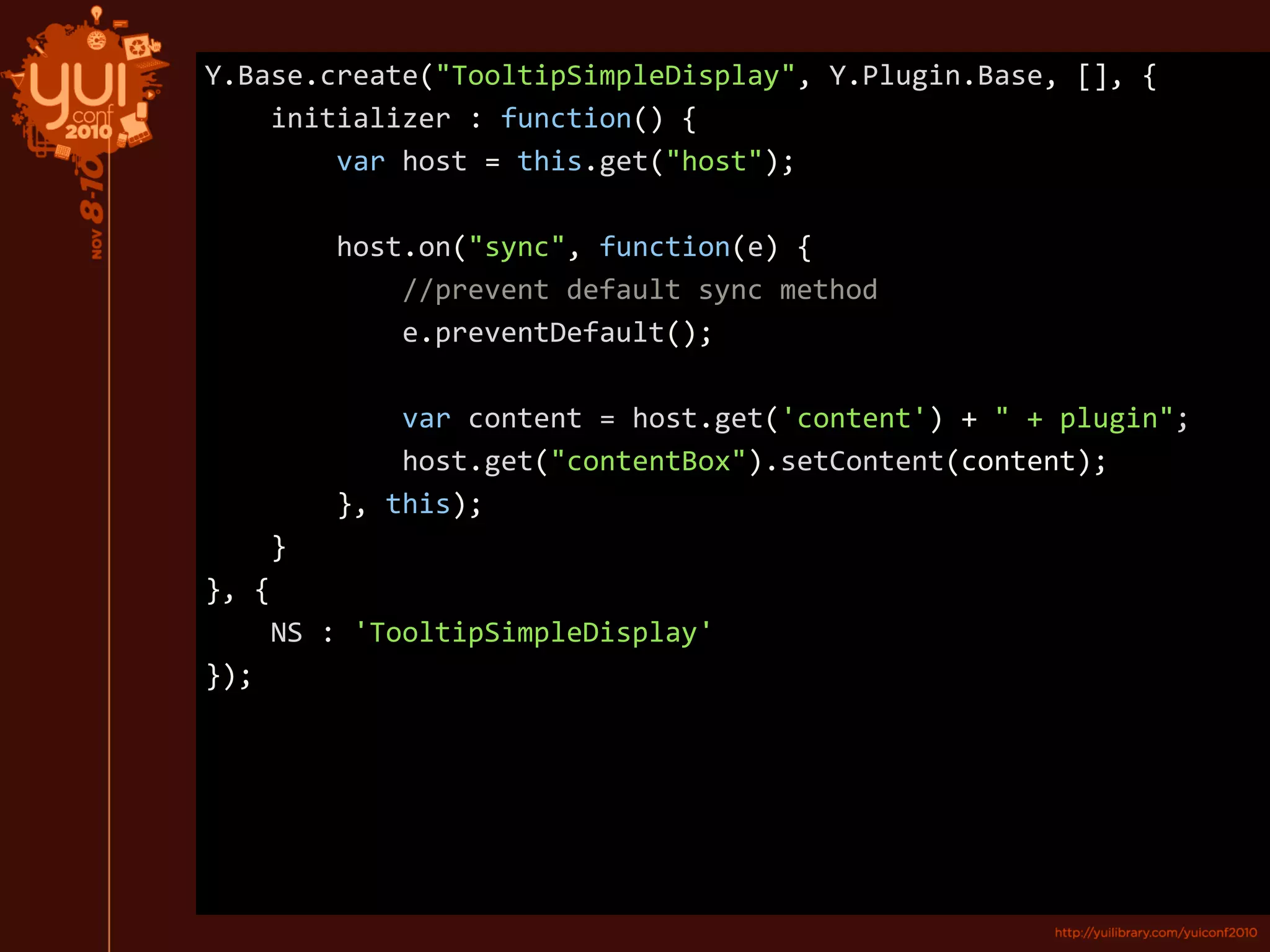

21. Y.Base.create("TooltipSimpleDisplay", Y.Plugin.Base, [], {
initializer : function() {
var host = this.get("host");
host.on("sync", function(e) {
//prevent default sync method
e.preventDefault();
var content = host.get('content') + " + plugin";
host.get("contentBox").setContent(content);
}, this);
}
}, {
NS : 'TooltipSimpleDisplay'
});

22. Powered by Custom Events
That call to preventDefault is important

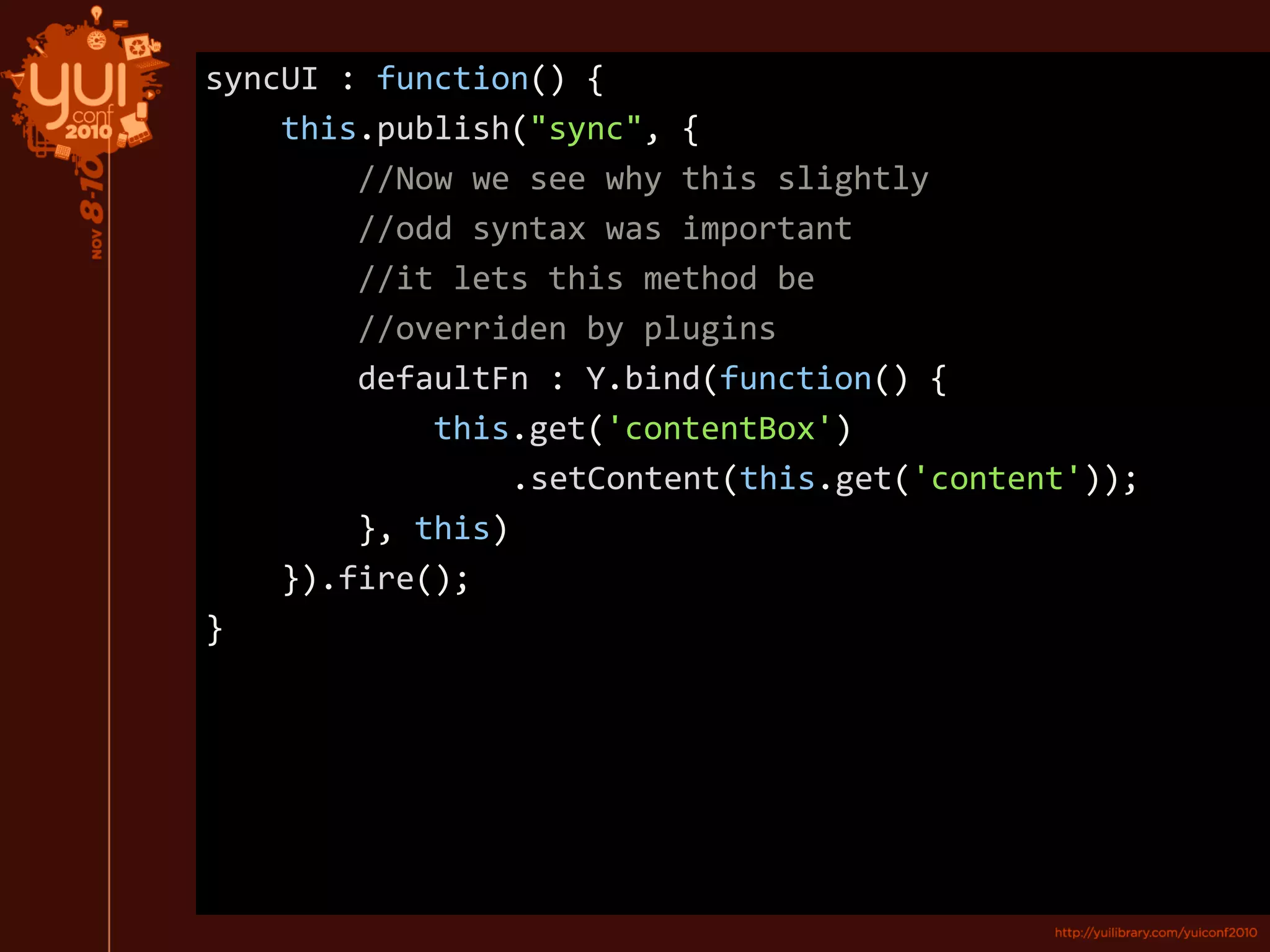

23. syncUI : function() {
this.publish("sync", {
//Now we see why this slightly
//odd syntax was important
//it lets this method be
//overriden by plugins
defaultFn : Y.bind(function() {
this.get('contentBox')
.setContent(this.get('content'));
}, this)
}).fire();
}

24. We can go further
http://www.flickr.com/photos/st3f4n/4501172754/

25. Transitions Module
Adding some flash

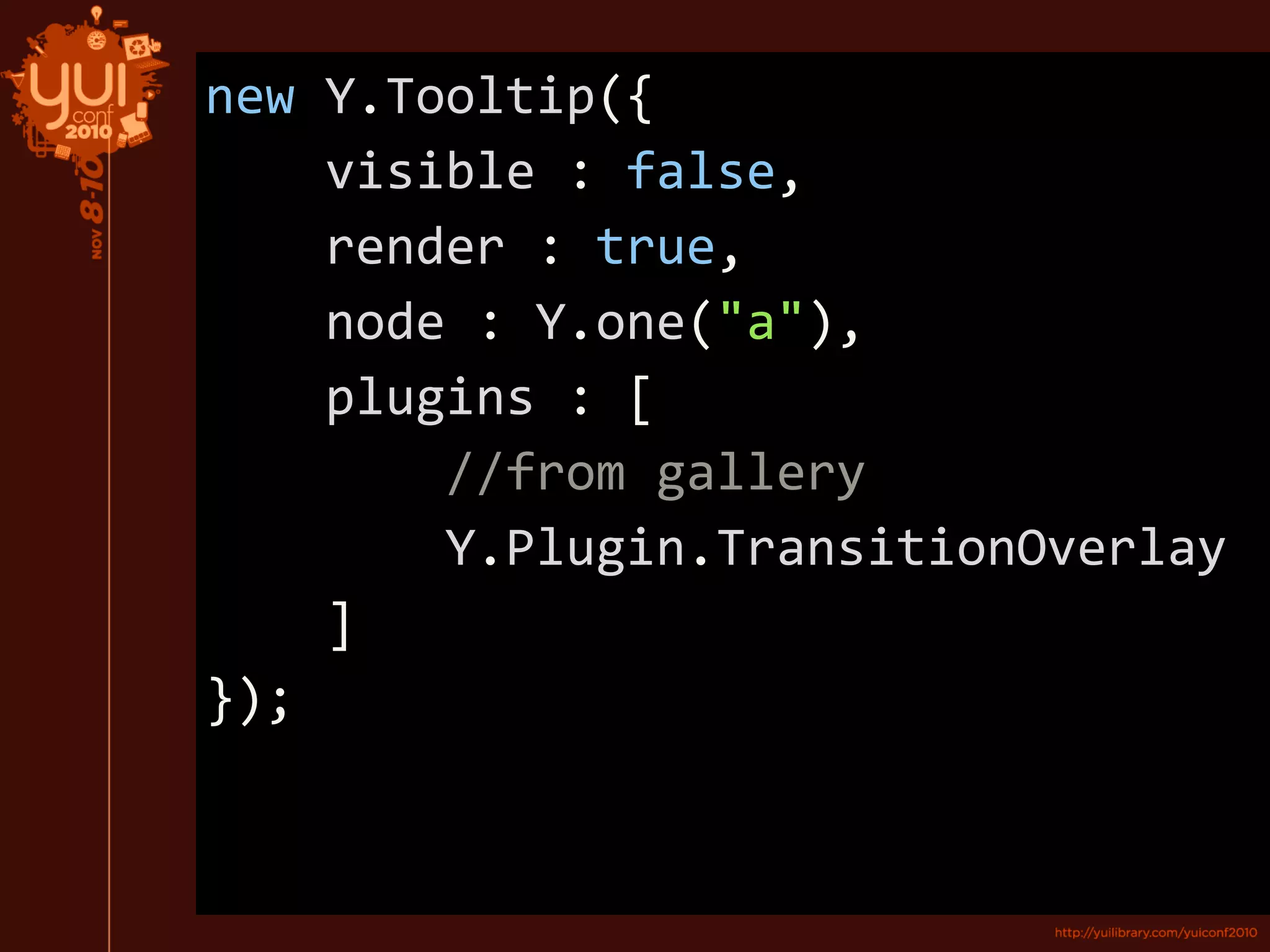

26. new Y.Tooltip({
visible : false,
render : true,
node : Y.one("a"),
plugins : [
//from gallery
Y.Plugin.TransitionOverlay
]
});

27. Still, not really all that useful
http://www.flickr.com/photos/zen/1174874997/

28. WidgetIO

29. YQL

30. WidgetYQL

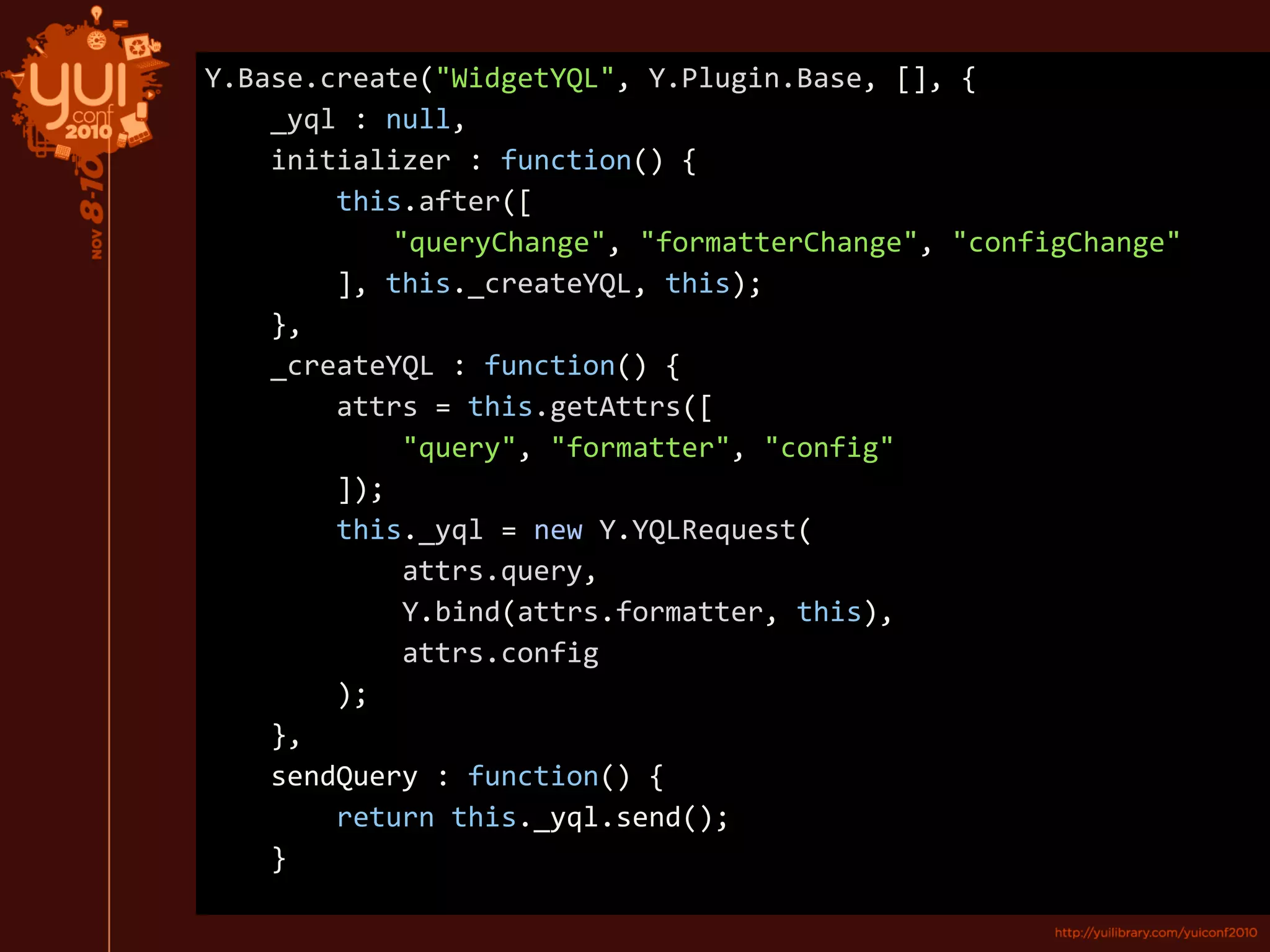

31. Y.Base.create("WidgetYQL", Y.Plugin.Base, [], {
_yql : null,
initializer : function() {
this.after([
"queryChange", "formatterChange", "configChange"
], this._createYQL, this);
},
_ _createYQL : function() {
attrs = this.getAttrs([
"query", "formatter", "config"
]);
this._yql = new Y.YQLRequest(
attrs.query,
Y.bind(attrs.formatter, this),
attrs.config
);
},
sendQuery : function() {
return this._yql.send();
}

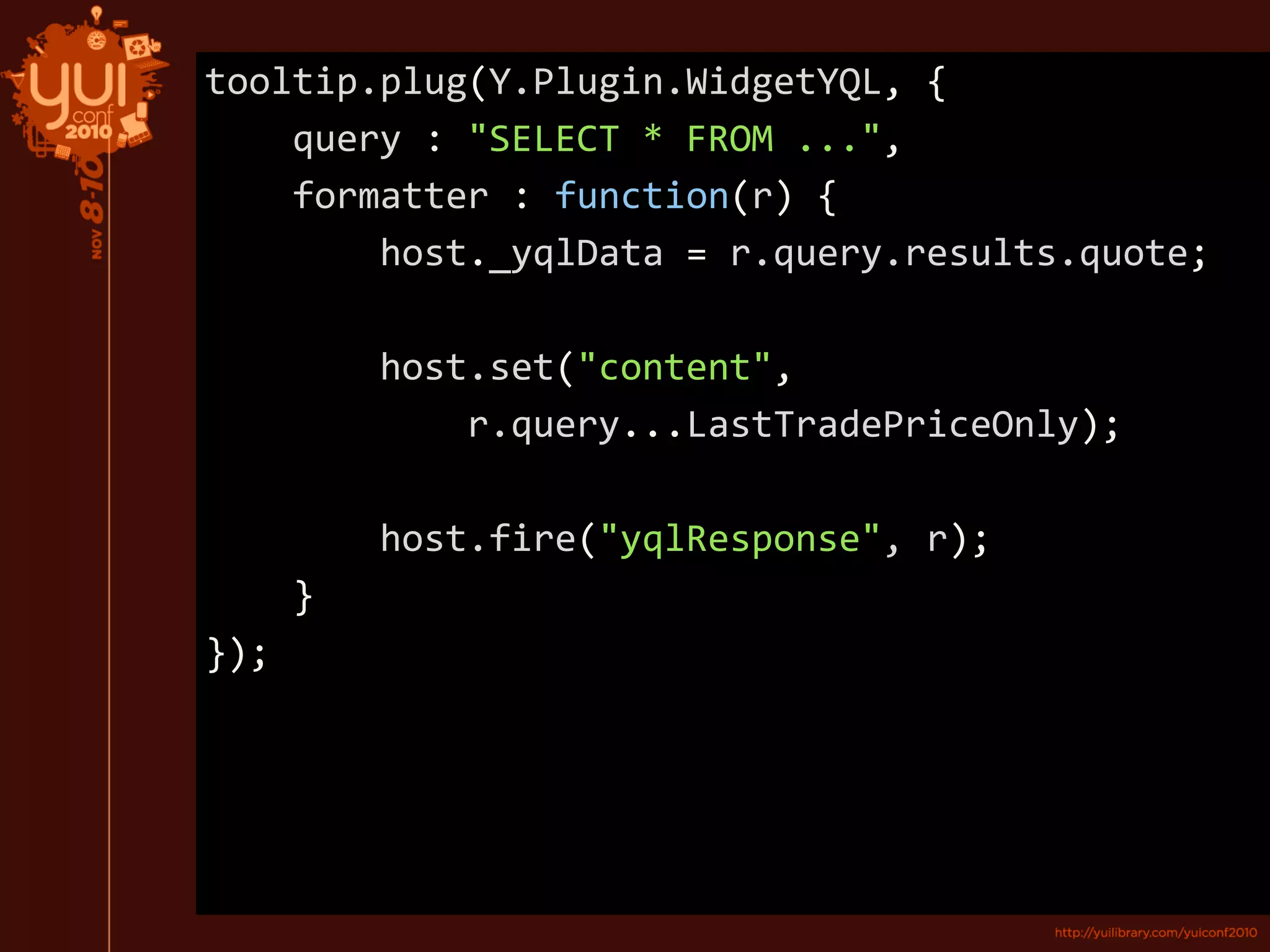

32. tooltip.plug(Y.Plugin.WidgetYQL, {
query : "SELECT * FROM ...",
formatter : function(r) {
host._yqlData = r.query.results.quote;
host.set("content",
r.query...LastTradePriceOnly);
host.fire("yqlResponse", r);
}
});

33. Repeating yourself sucks

34. Plugins are full JS objects

35. Plugins on top of plugins
http://idont/have/a/source/its/just/funny

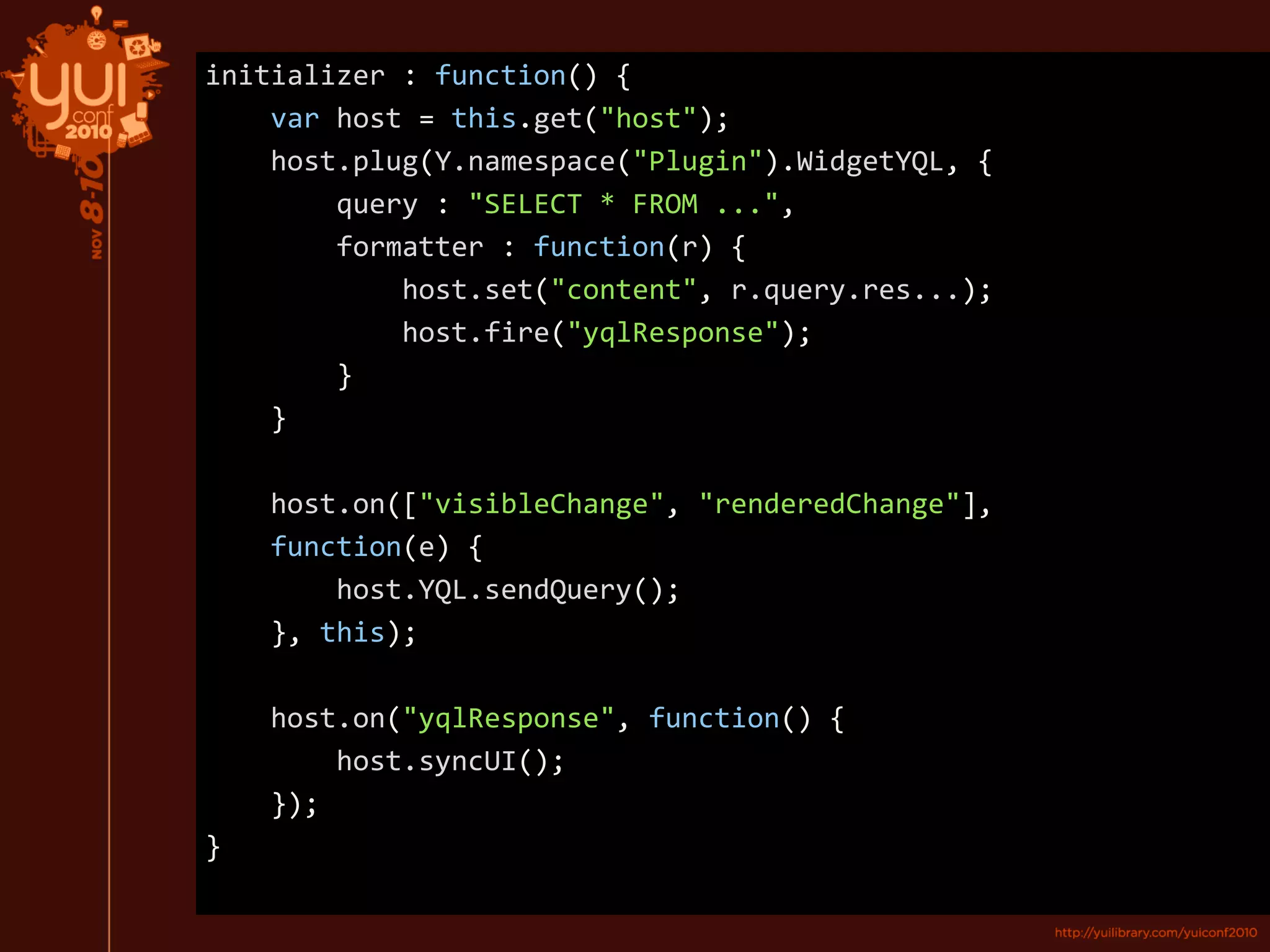

36. initializer : function() {
var host = this.get("host");
host.plug(Y.namespace("Plugin").WidgetYQL, {
query : "SELECT * FROM ...",
formatter : function(r) {
host.set("content", r.query.res...);
host.fire("yqlResponse");
}
}
host.on(["visibleChange", "renderedChange"],
function(e) {
host.YQL.sendQuery();
}, this);
host.on("yqlResponse", function() {
host.syncUI();
});
}

37. Multiple plugins

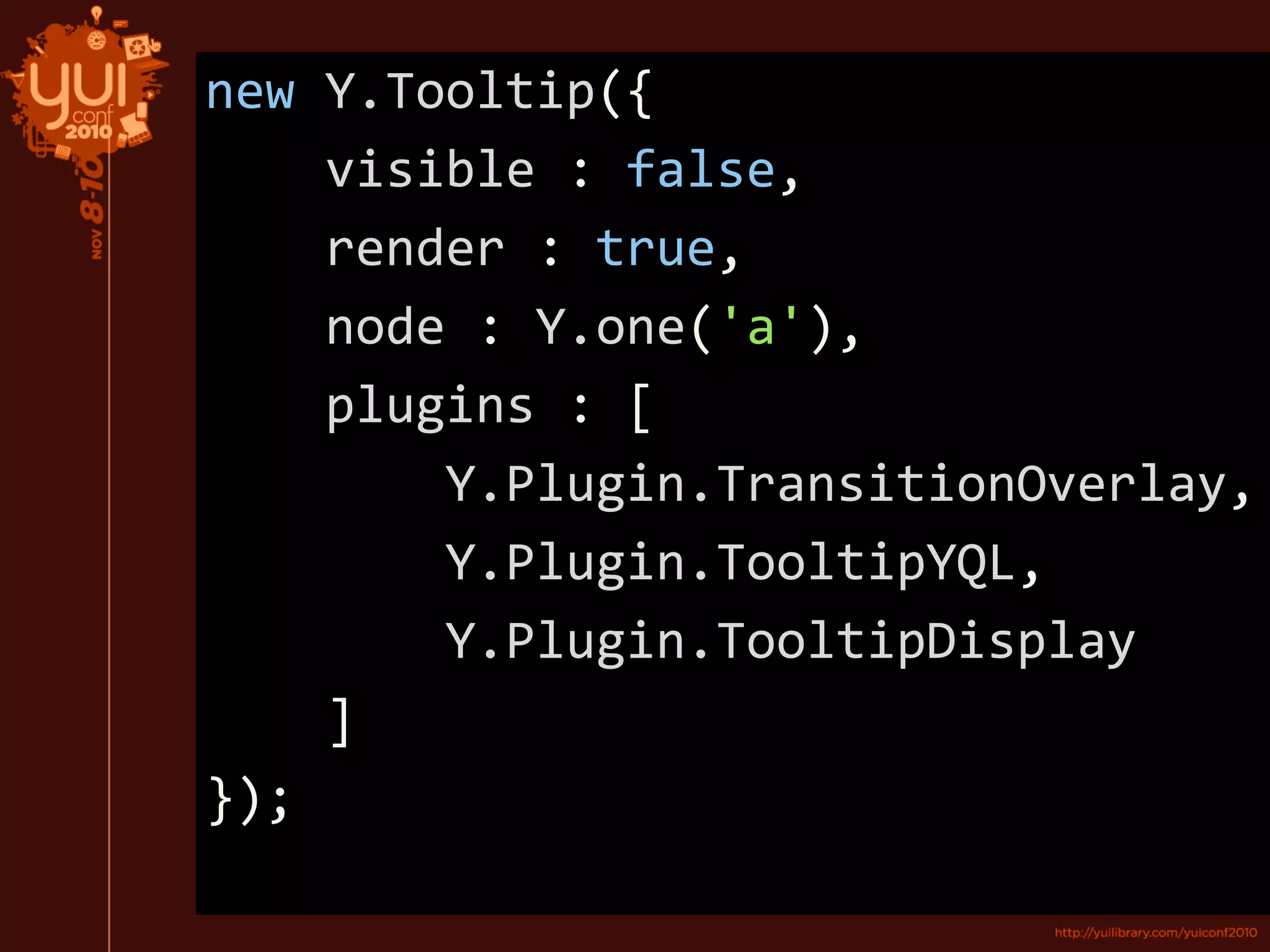

38. new Y.Tooltip({
visible : false,
render : true,
node : Y.one('a'),
plugins : [
Y.Plugin.TransitionOverlay,
Y.Plugin.TooltipYQL,
Y.Plugin.TooltipDisplay
]
});

39. Done? Not so fast.

40. Prove it works, use tests

41. Widget & YUITest

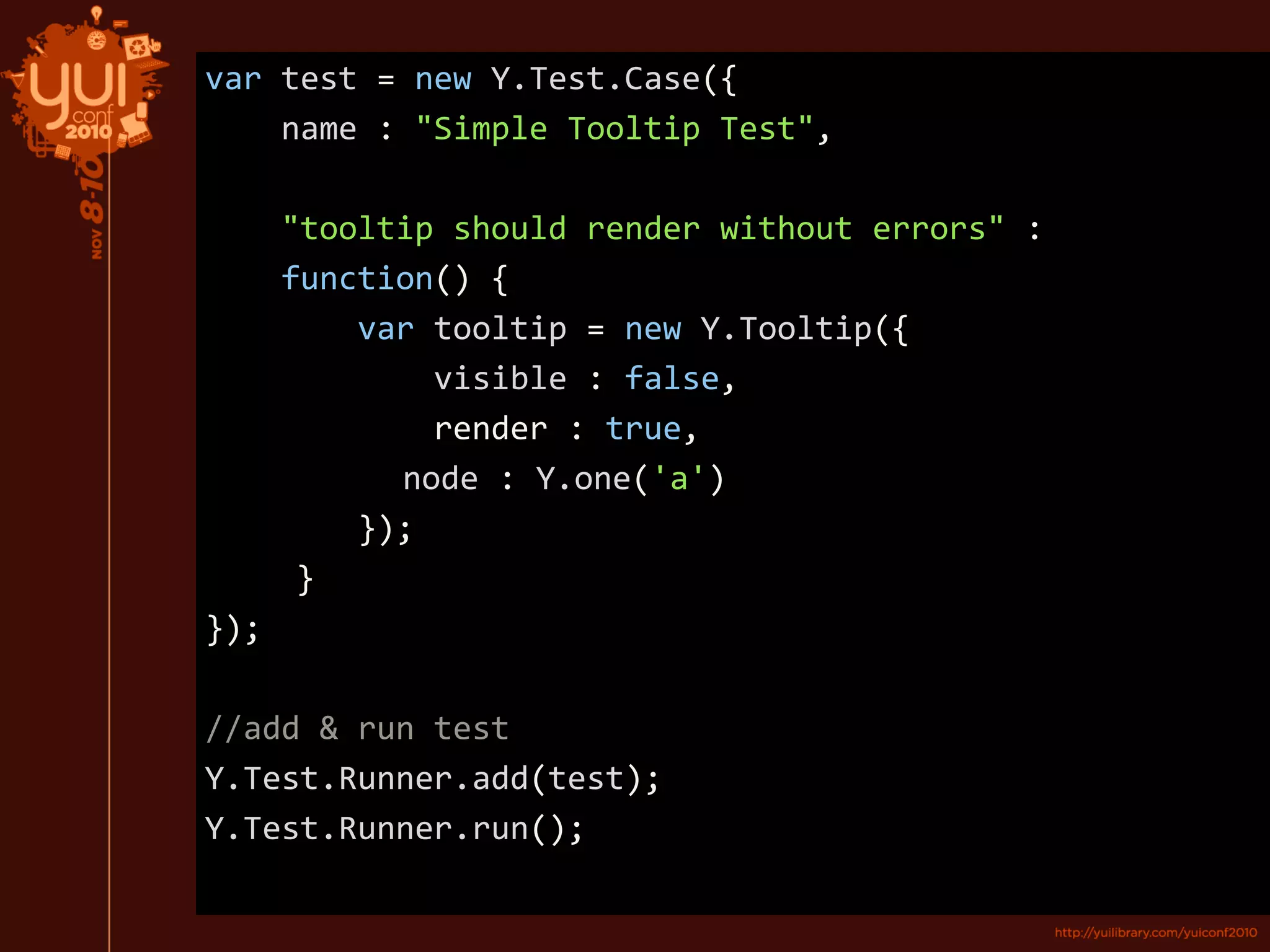

42. var test = new Y.Test.Case({
name : "Simple Tooltip Test",
"tooltip should render without errors" :
function() {
var tooltip = new Y.Tooltip({
visible : false,
render : true,
node : Y.one('a')
});
}
});
//add & run test
Y.Test.Runner.add(test);
Y.Test.Runner.run();

43. Didn’t do anything too dumb
(yet)

44. Not very useful though
http://www.flickr.com/photos/sewitsforyou/3466154372/

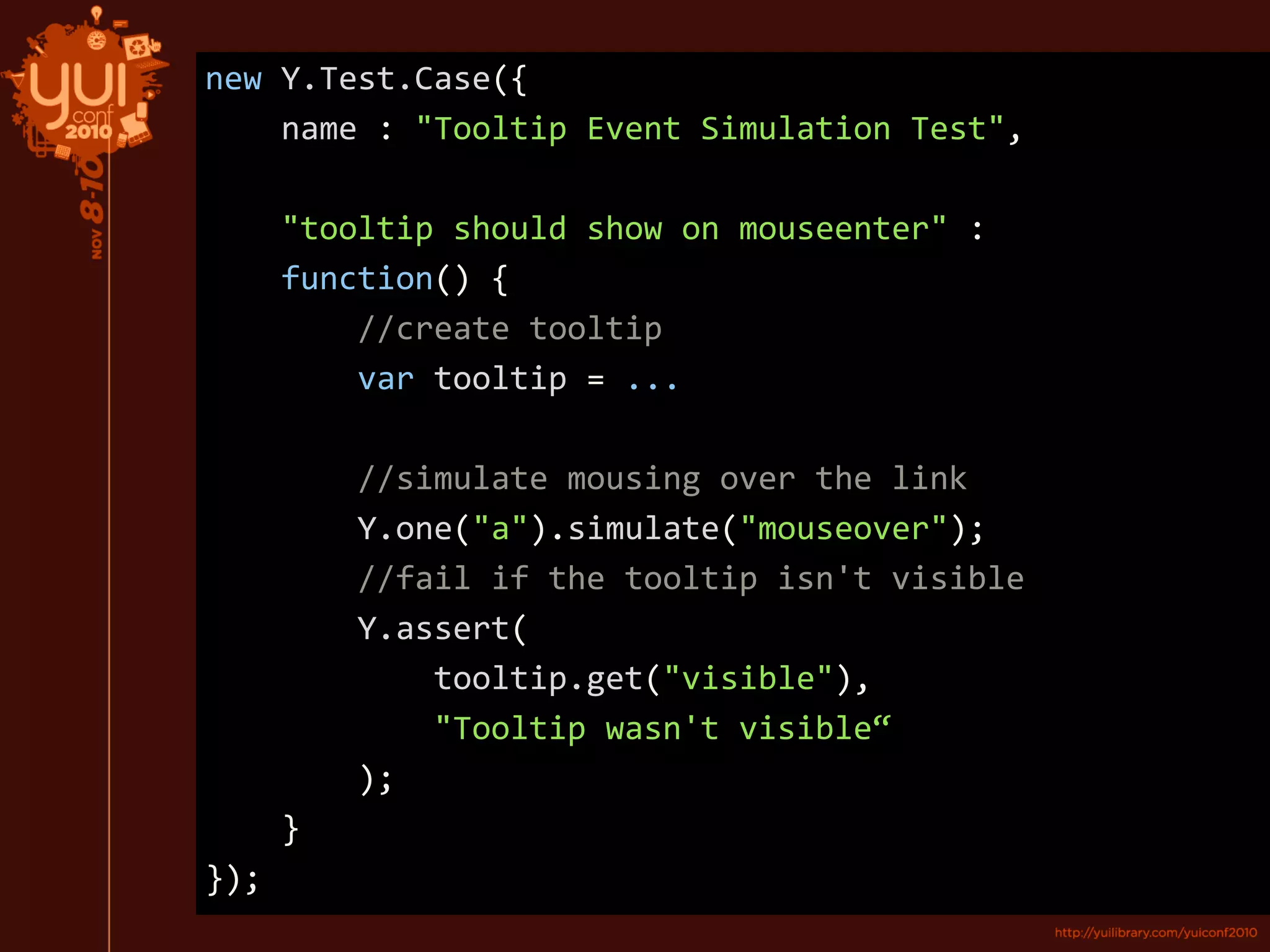

45. Event simulation adds utility

46. new Y.Test.Case({
name : "Tooltip Event Simulation Test",
"tooltip should show on mouseenter" :
function() {
//create tooltip
var tooltip = ...
//simulate mousing over the link
Y.one("a").simulate("mouseover");
//fail if the tooltip isn't visible
Y.assert(
tooltip.get("visible"),
"Tooltip wasn't visible“
);
}
});

47. Lots of JS is async though
Sync tests don’t solve everything

48. this.wait()

49. this.resume()

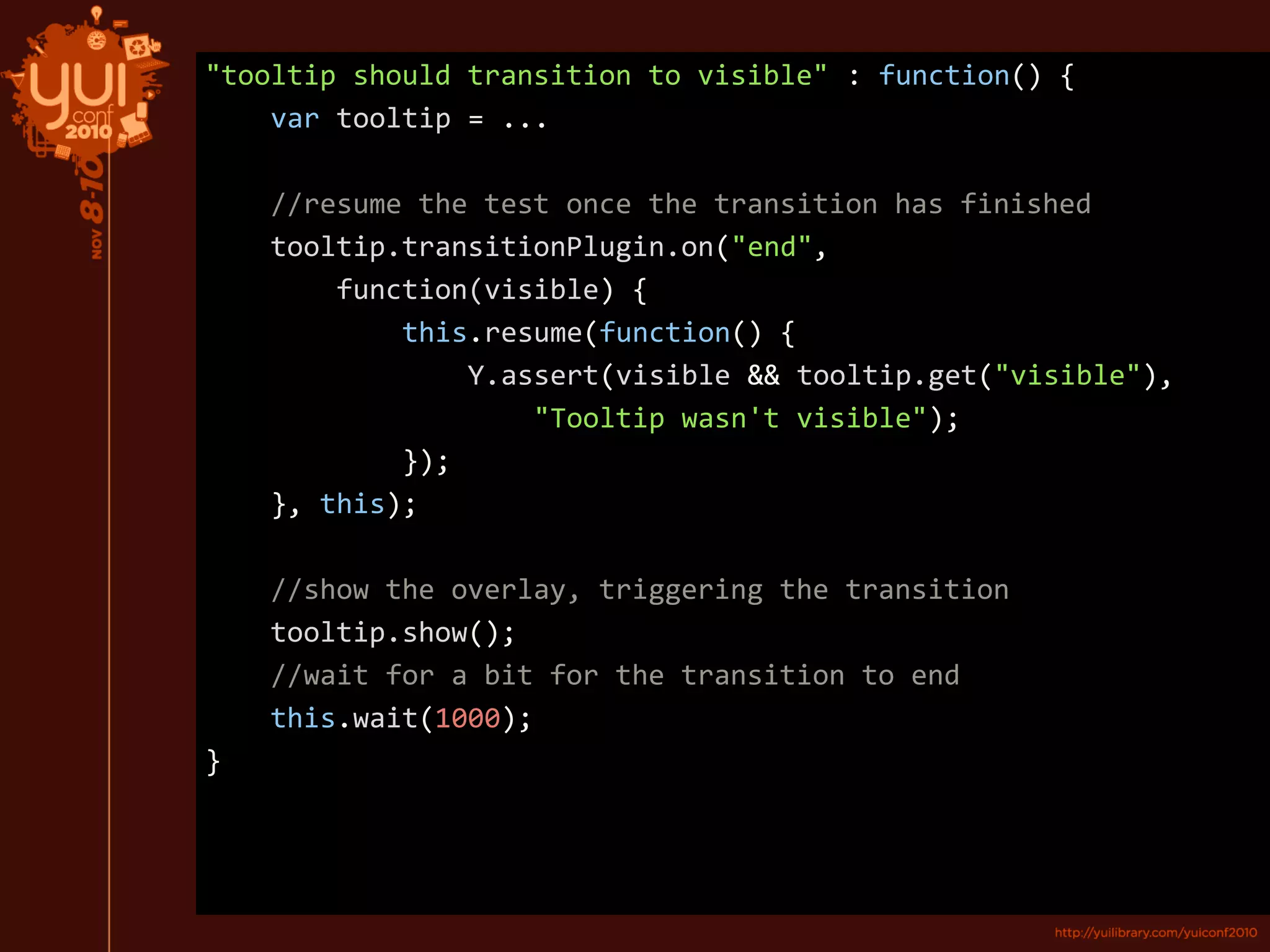

50. "tooltip should transition to visible" : function() {
var tooltip = ...
//resume the test once the transition has finished
tooltip.transitionPlugin.on("end",
function(visible) {
this.resume(function() {
Y.assert(visible && tooltip.get("visible"),
"Tooltip wasn't visible");
});
}, this);
//show the overlay, triggering the transition
tooltip.show();
//wait for a bit for the transition to end
this.wait(1000);
}

51. Inline JS, great for prototyping
Bad for more complicated testing

52. Scaling up the testing

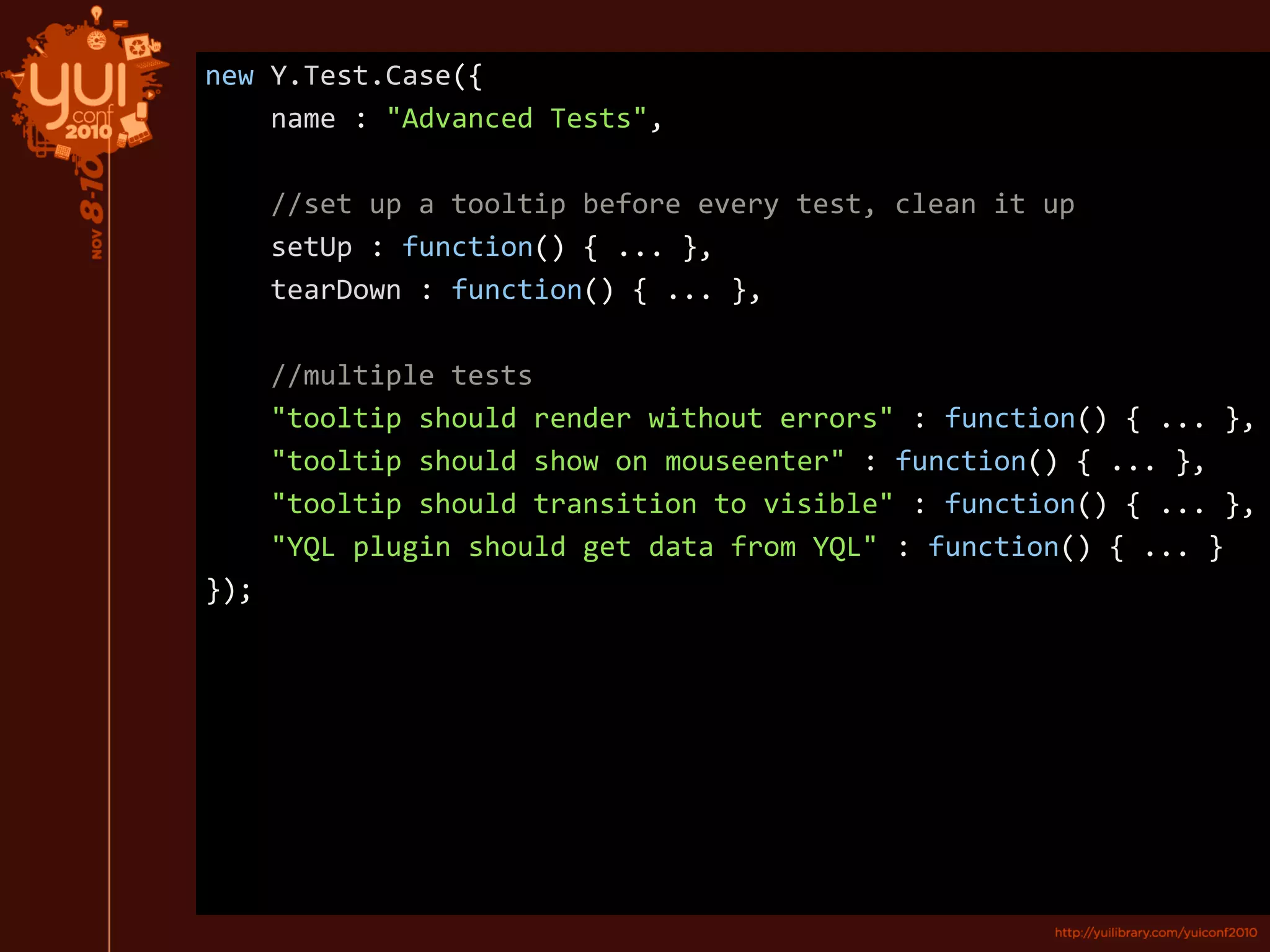

53. new Y.Test.Case({
name : "Advanced Tests",
//set up a tooltip before every test, clean it up
setUp : function() { ... },
tearDown : function() { ... },
//multiple tests
"tooltip should render without errors" : function() { ... },
"tooltip should show on mouseenter" : function() { ... },
"tooltip should transition to visible" : function() { ... },
"YQL plugin should get data from YQL" : function() { ... }
});

54. YUI Gallery
You’ve been meaning to share more anyways, right?

55. One way to flesh out your idea
Definitely not the only one

56. Patrick Cavit
@tivac on twitter
“tivac” in IRC
http://patcavit.com
http://lanyrd.com/people/tivac/
