- 1. The New SynergisHome: Collaboration, Adaptive Reuse and BIM THE NEW SYNERGIS HOME Collaboration, Adaptive Reuse and BIM
- 2. The New SynergisHome: Collaboration, Adaptive Reuse and BIM DEEP GREEN ARCHITECTURE SUSTAINABILITY CONSULTING COMMUNITY ENGAGEMENT Drew Lavine, RA, LEED AP

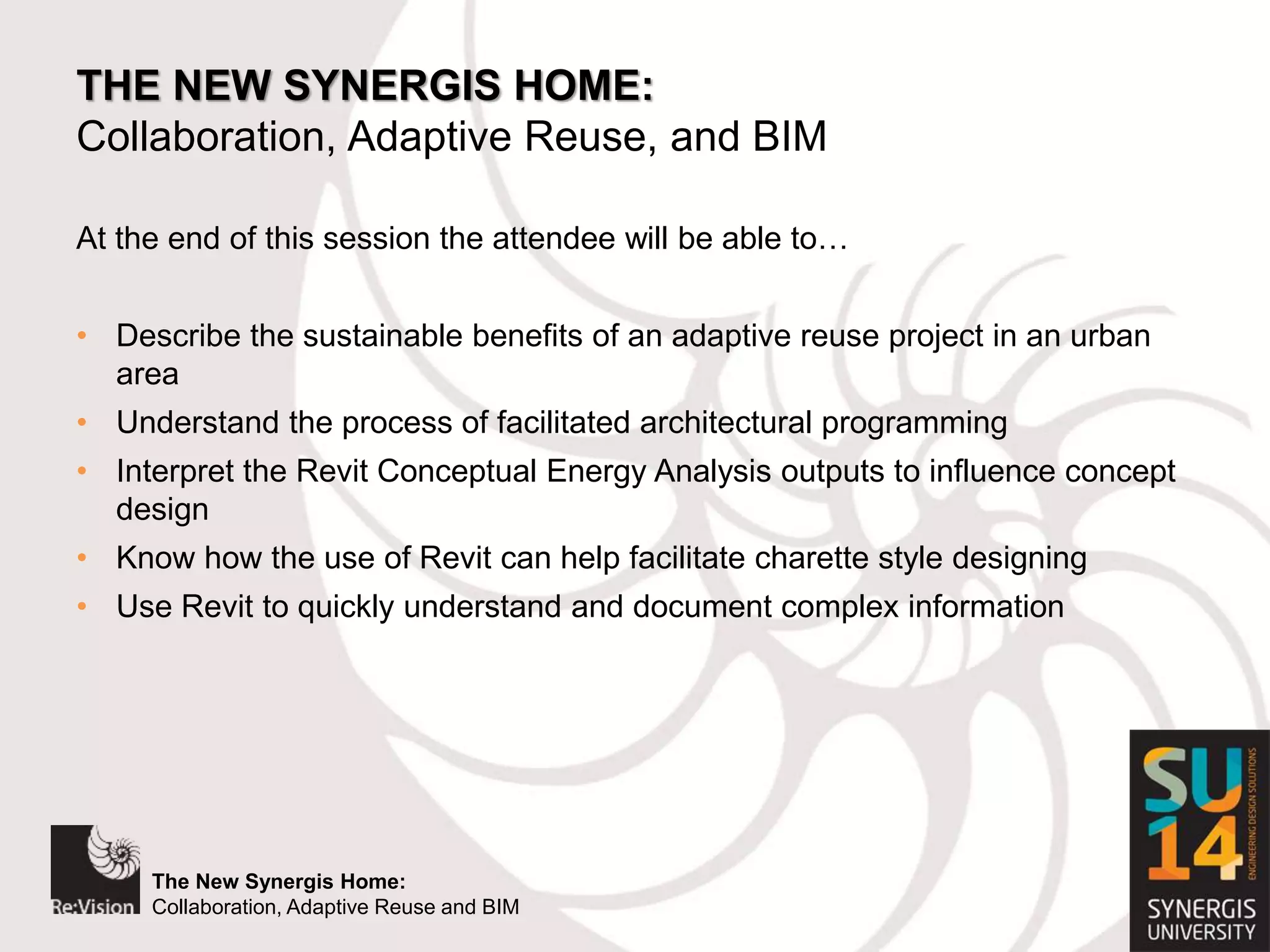

- 3. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM THE NEW SYNERGIS HOME: Collaboration, Adaptive Reuse, and BIM At the end of this session the attendee will be able to… • Describe the sustainable benefits of an adaptive reuse project in an urban area • Understand the process of facilitated architectural programming • Interpret the Revit Conceptual Energy Analysis outputs to influence concept design • Know how the use of Revit can help facilitate charette style designing • Use Revit to quickly understand and document complex information

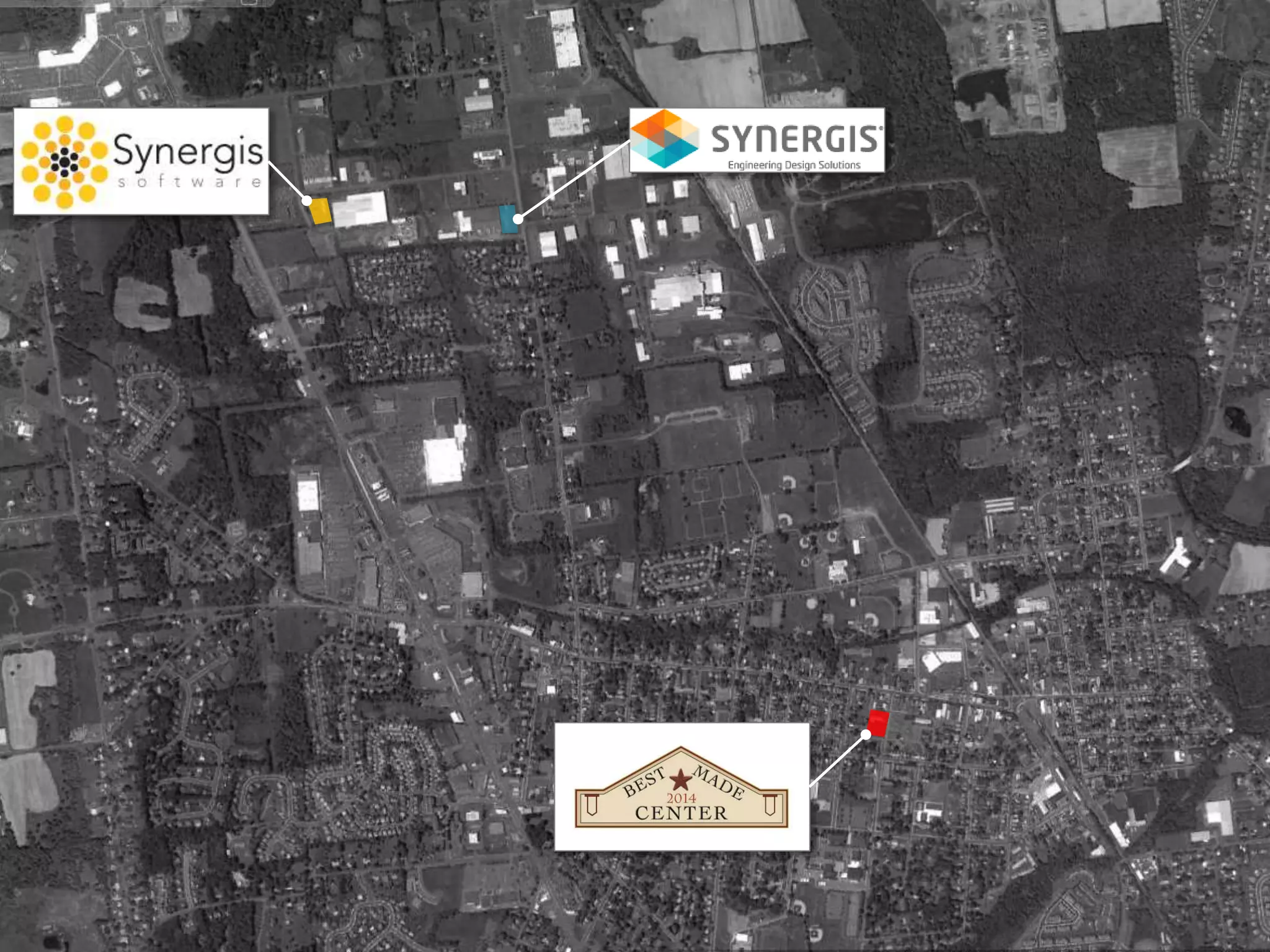

- 4. The New SynergisHome: Collaboration, Adaptive Reuse and BIM
- 5. The New SynergisHome: Collaboration, Adaptive Reuse and BIM
- 6. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

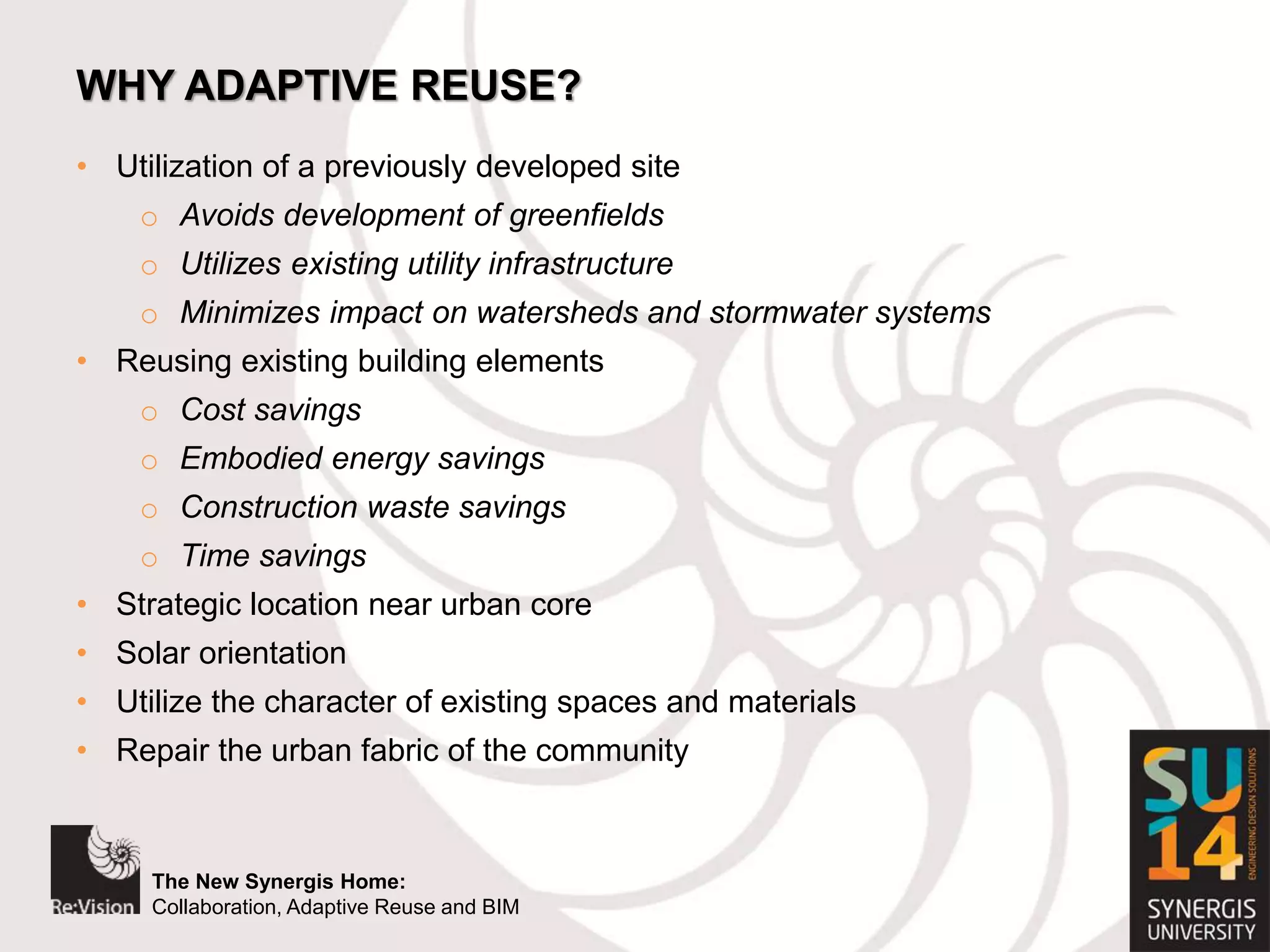

- 7. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM WHY ADAPTIVE REUSE? • Utilization of a previously developed site o Avoids development of greenfields o Utilizes existing utility infrastructure o Minimizes impact on watersheds and stormwater systems • Reusing existing building elements o Cost savings o Embodied energy savings o Construction waste savings o Time savings • Strategic location near urban core • Solar orientation • Utilize the character of existing spaces and materials • Repair the urban fabric of the community

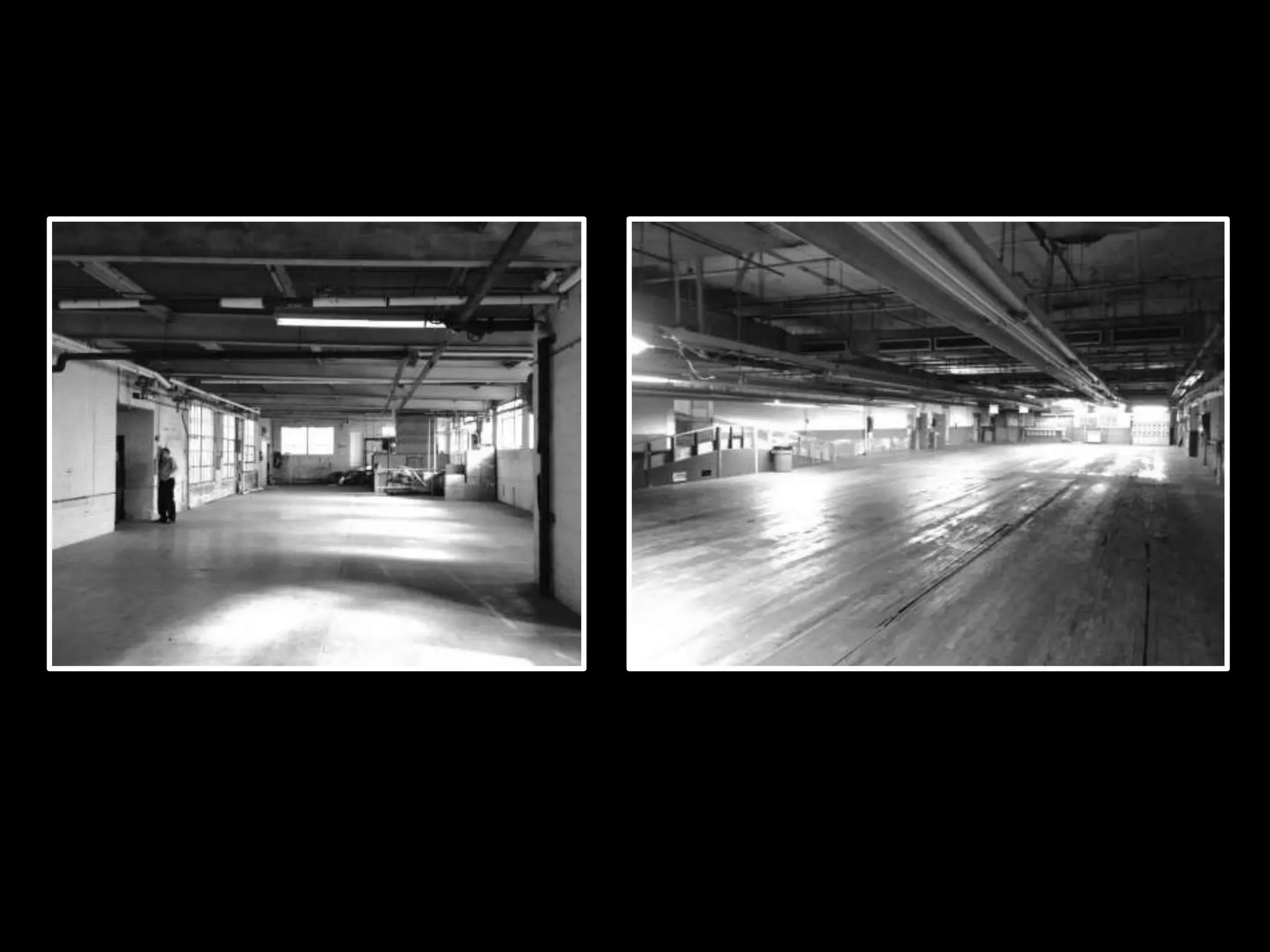

- 8. The New SynergisHome: Collaboration, Adaptive Reuse and BIM
- 9. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

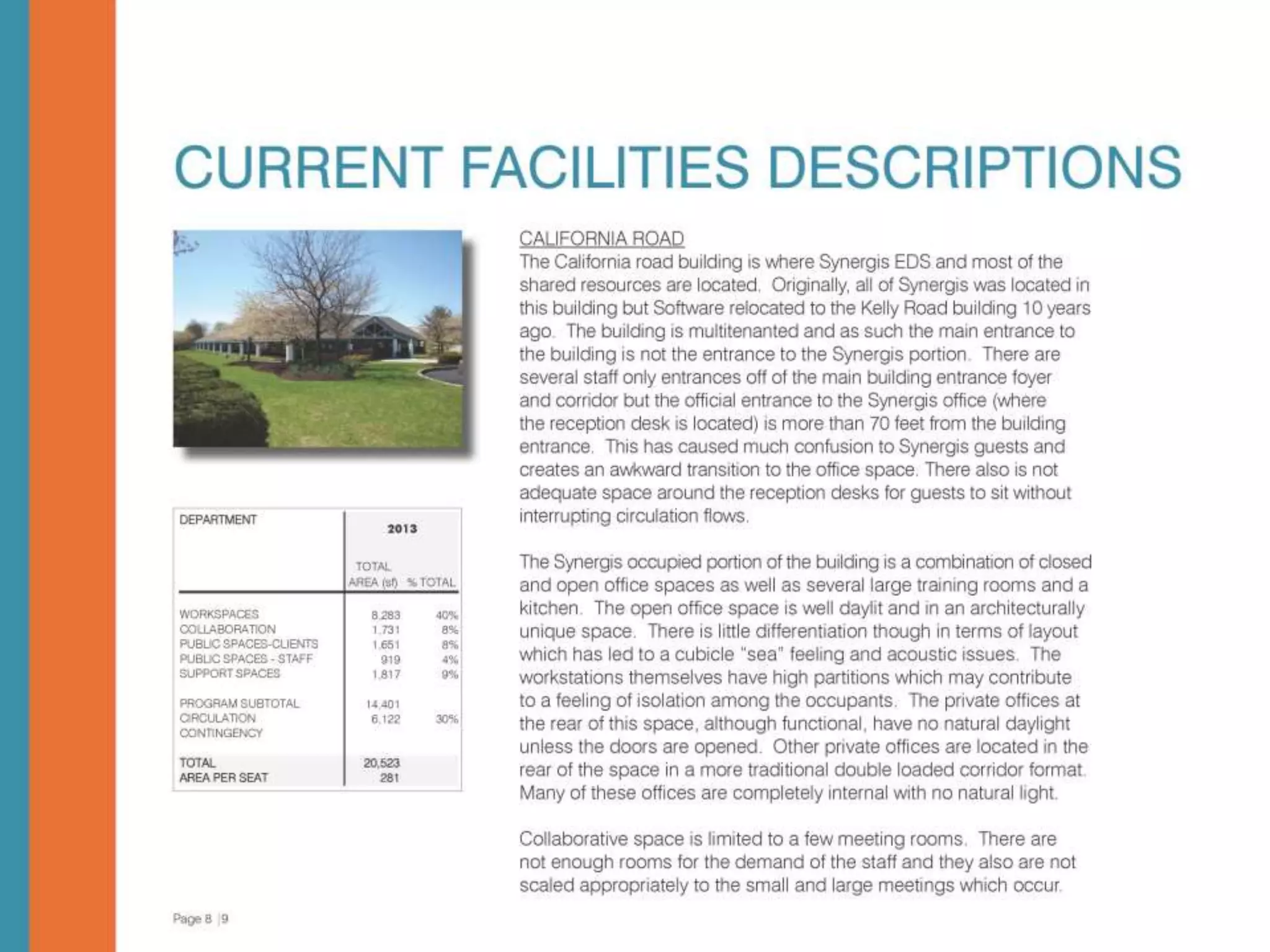

- 10. The New SynergisHome: Collaboration, Adaptive Reuse and BIM
- 11. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

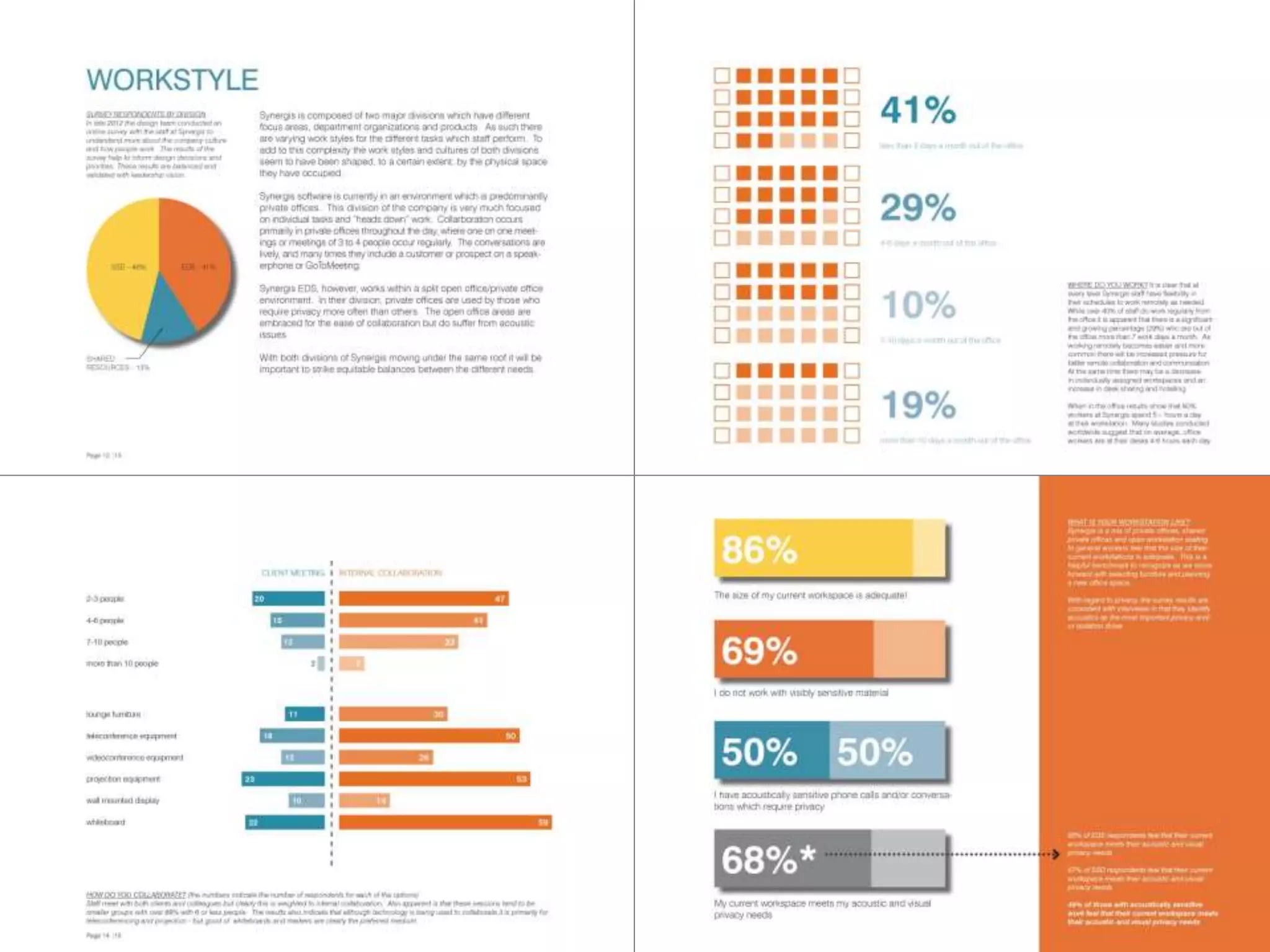

- 12. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

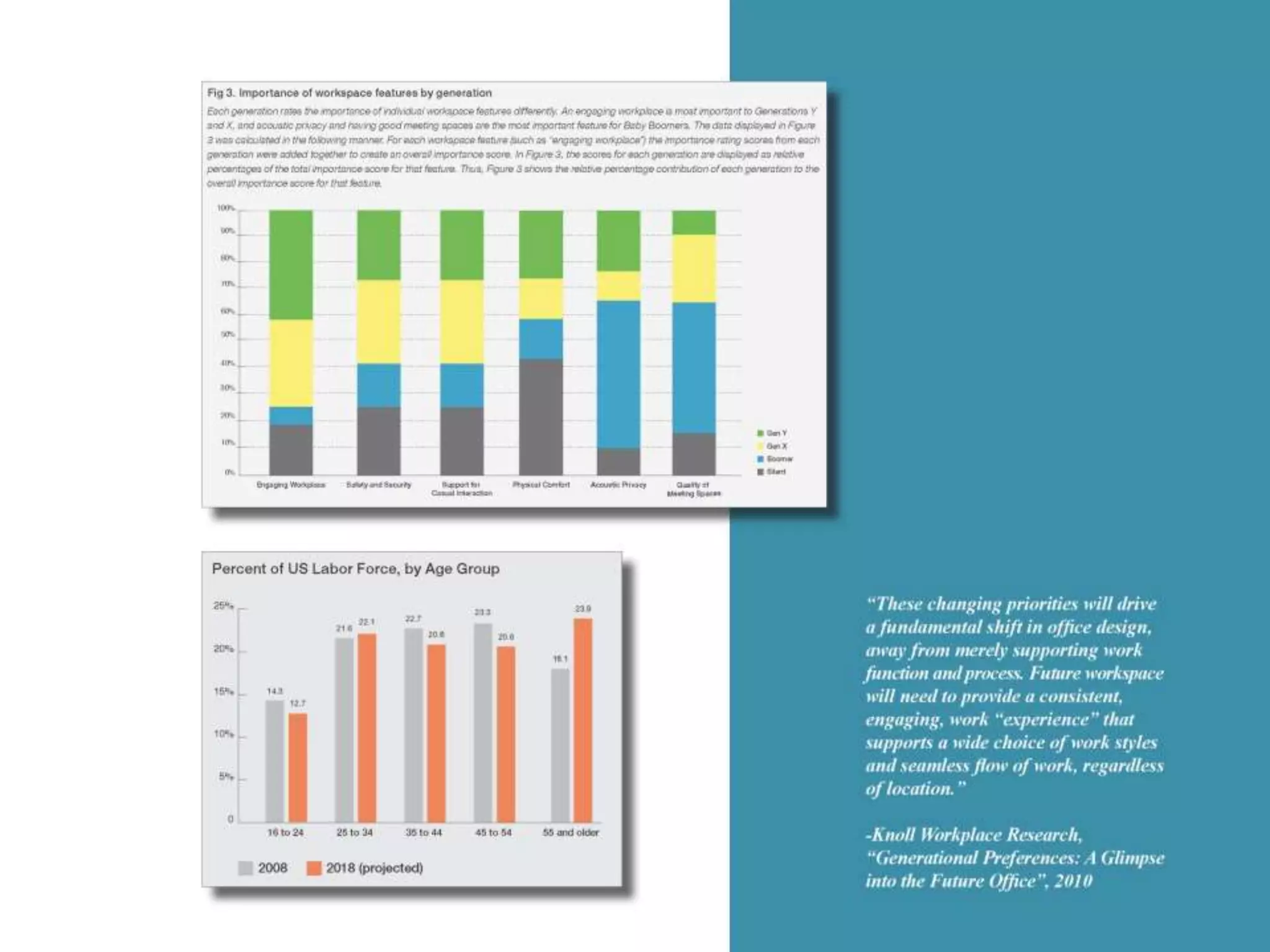

- 13. The New SynergisHome: Collaboration, Adaptive Reuse and BIM
- 14. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

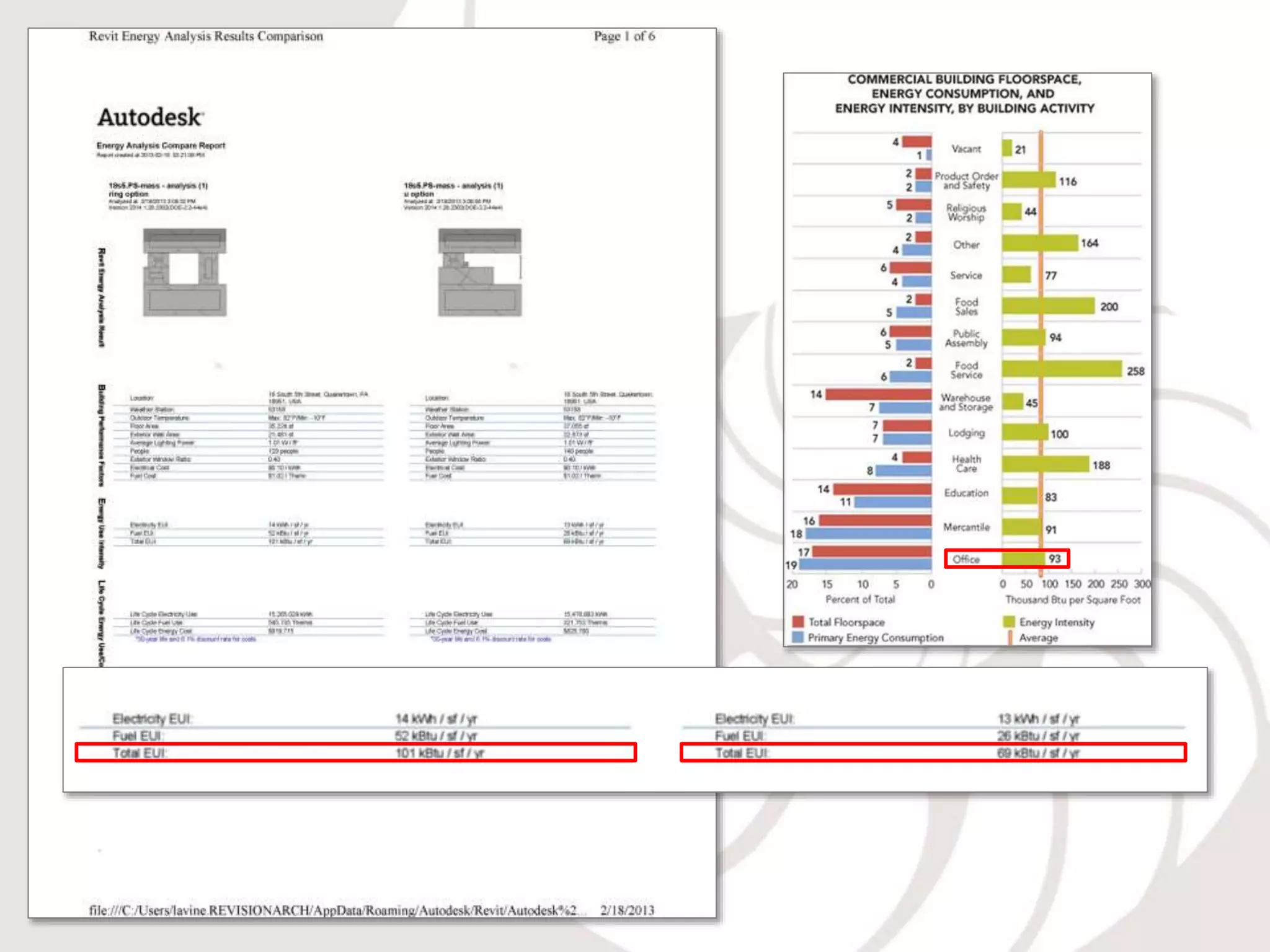

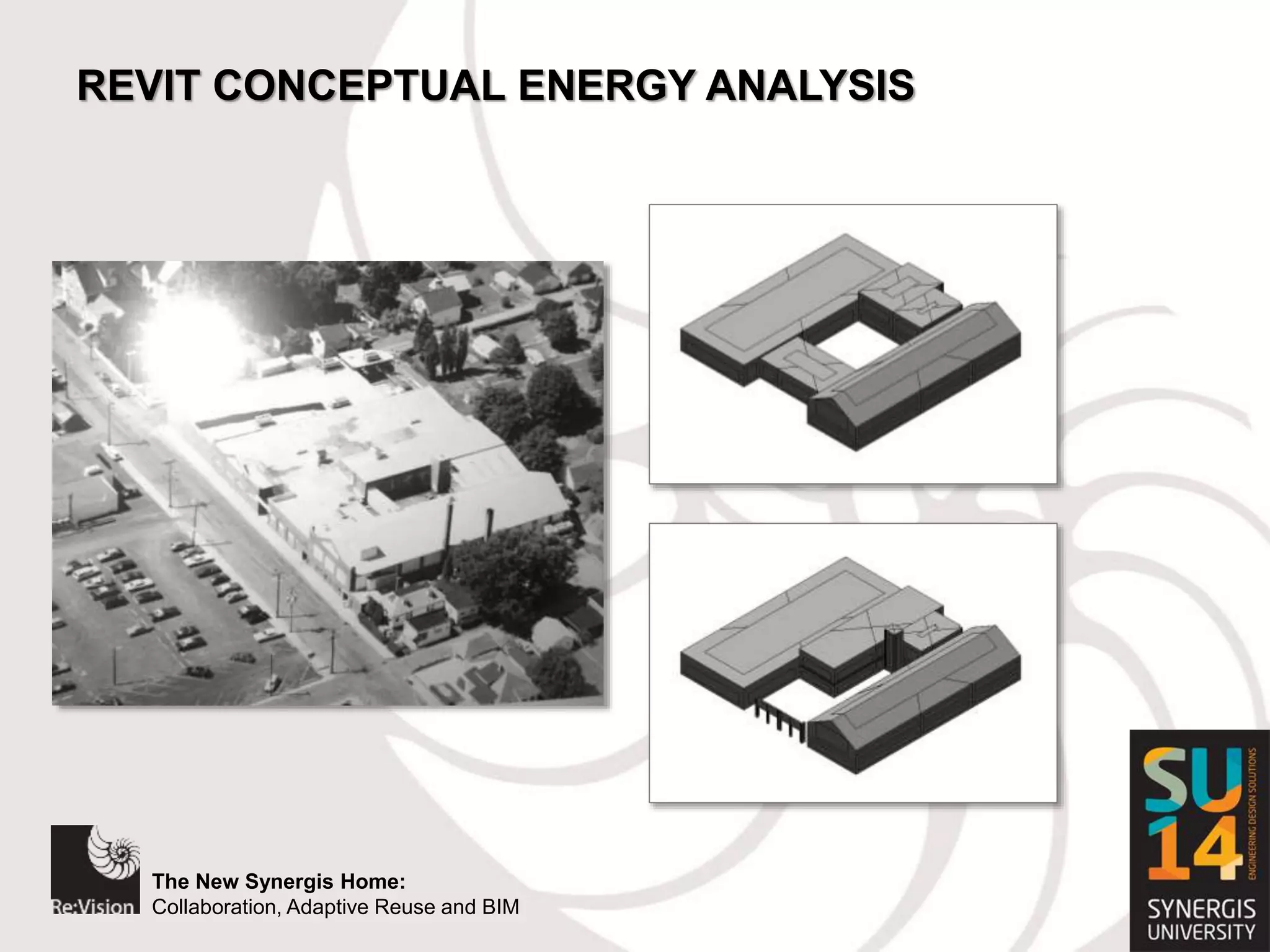

- 15. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM REVIT CONCEPTUAL ENERGY ANALYSIS
- 16. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

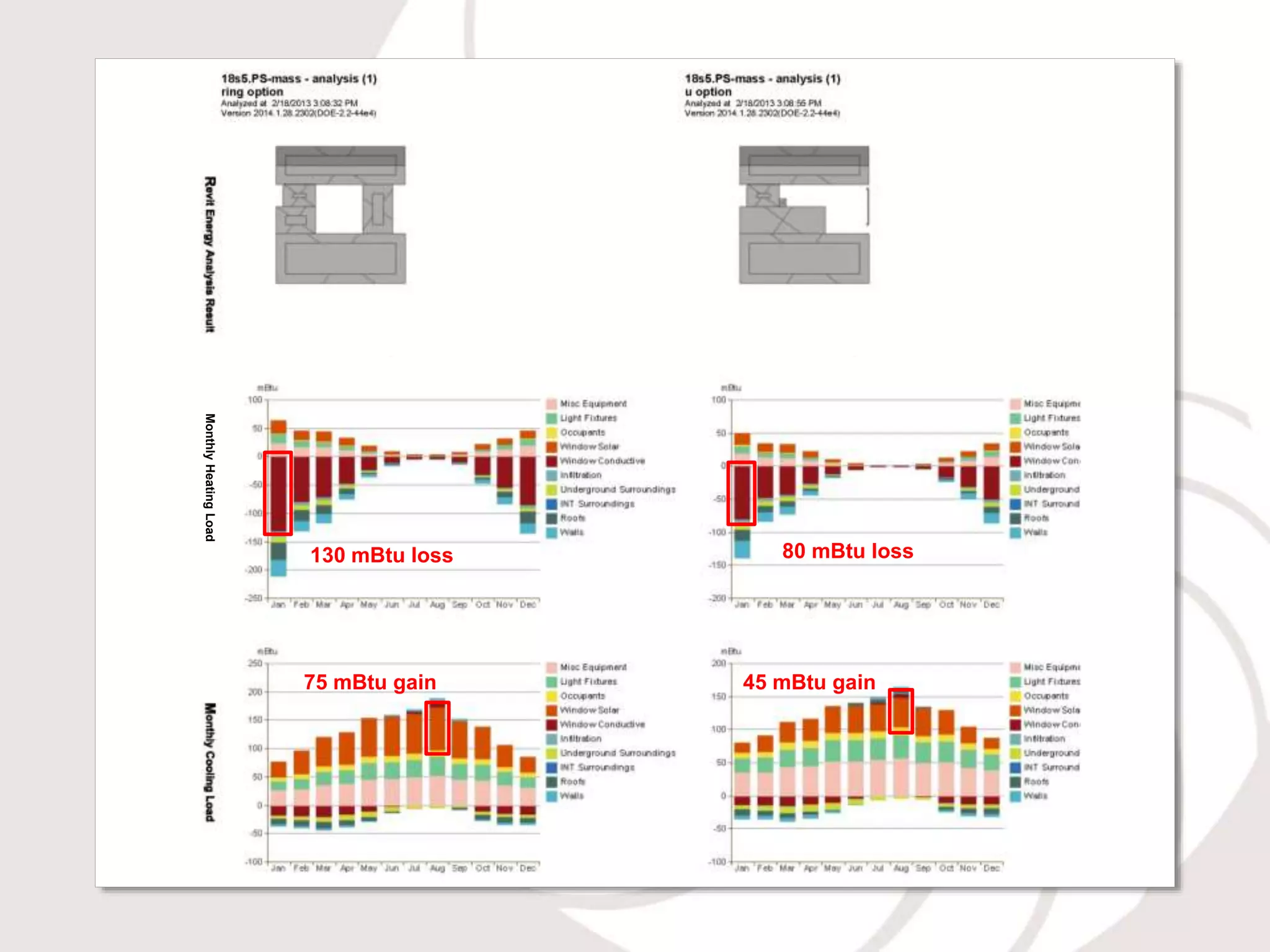

- 17. The New SynergisHome: Collaboration, Adaptive Reuse and BIM MonthlyHeatingLoad 130 mBtu loss 80 mBtu loss 75 mBtu gain 45 mBtu gain
- 18. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM CONCEPT DESIGN

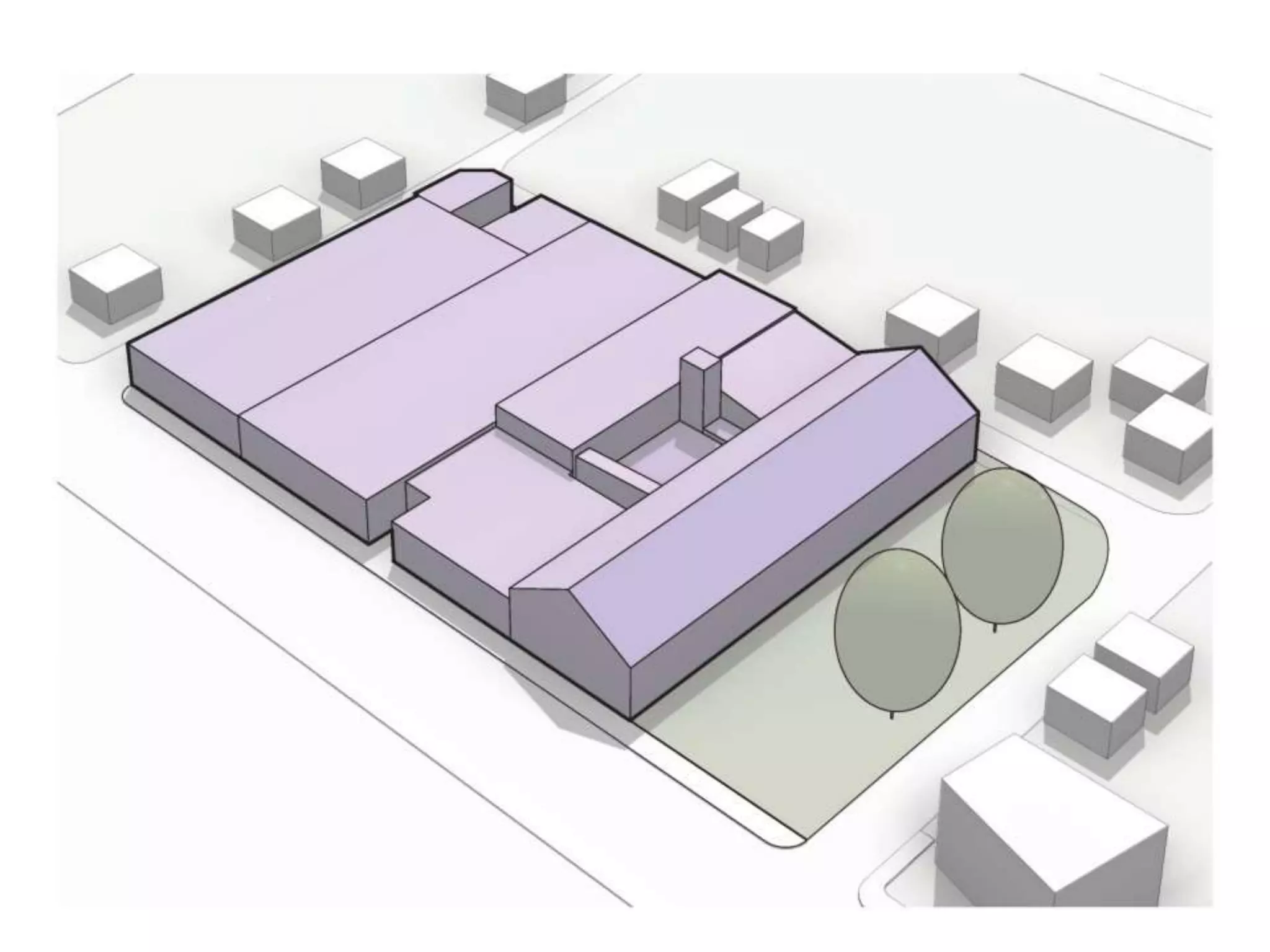

- 19. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM CONCEPT DESIGN

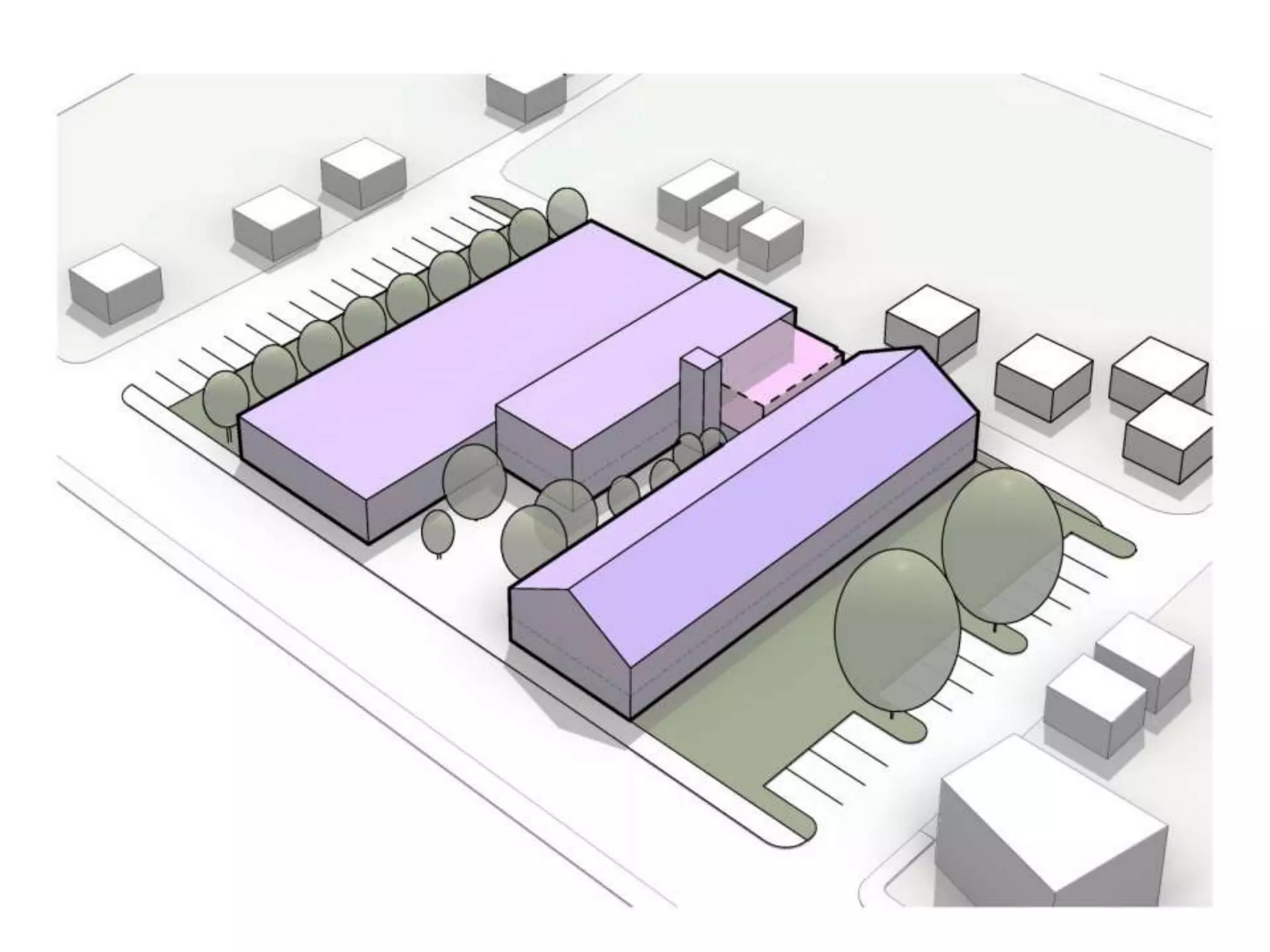

- 20. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM CONCEPT DESIGN
- 21. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM CONCEPT DESIGN

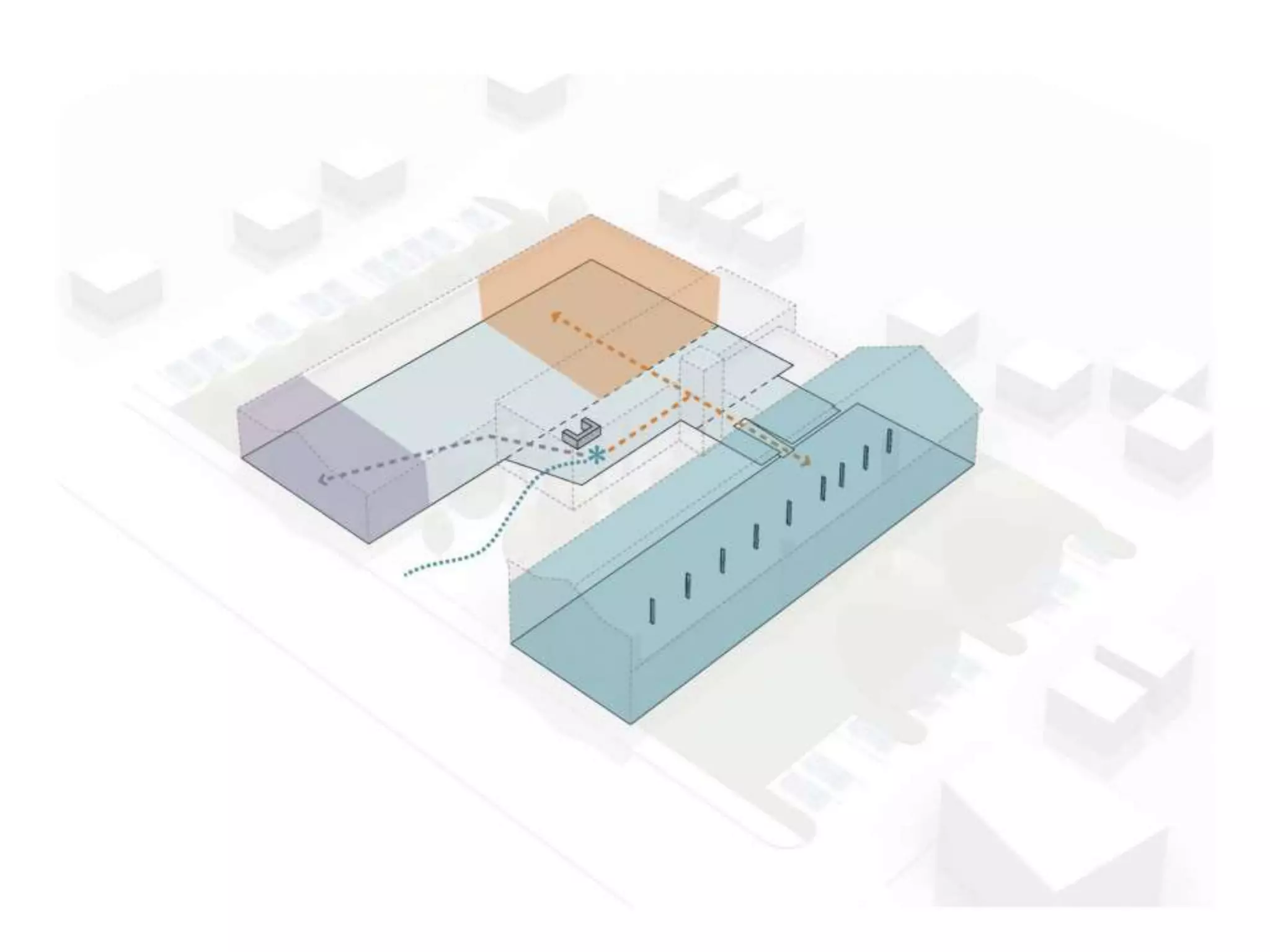

- 22. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM
- 23. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM CONCEPT DESIGN

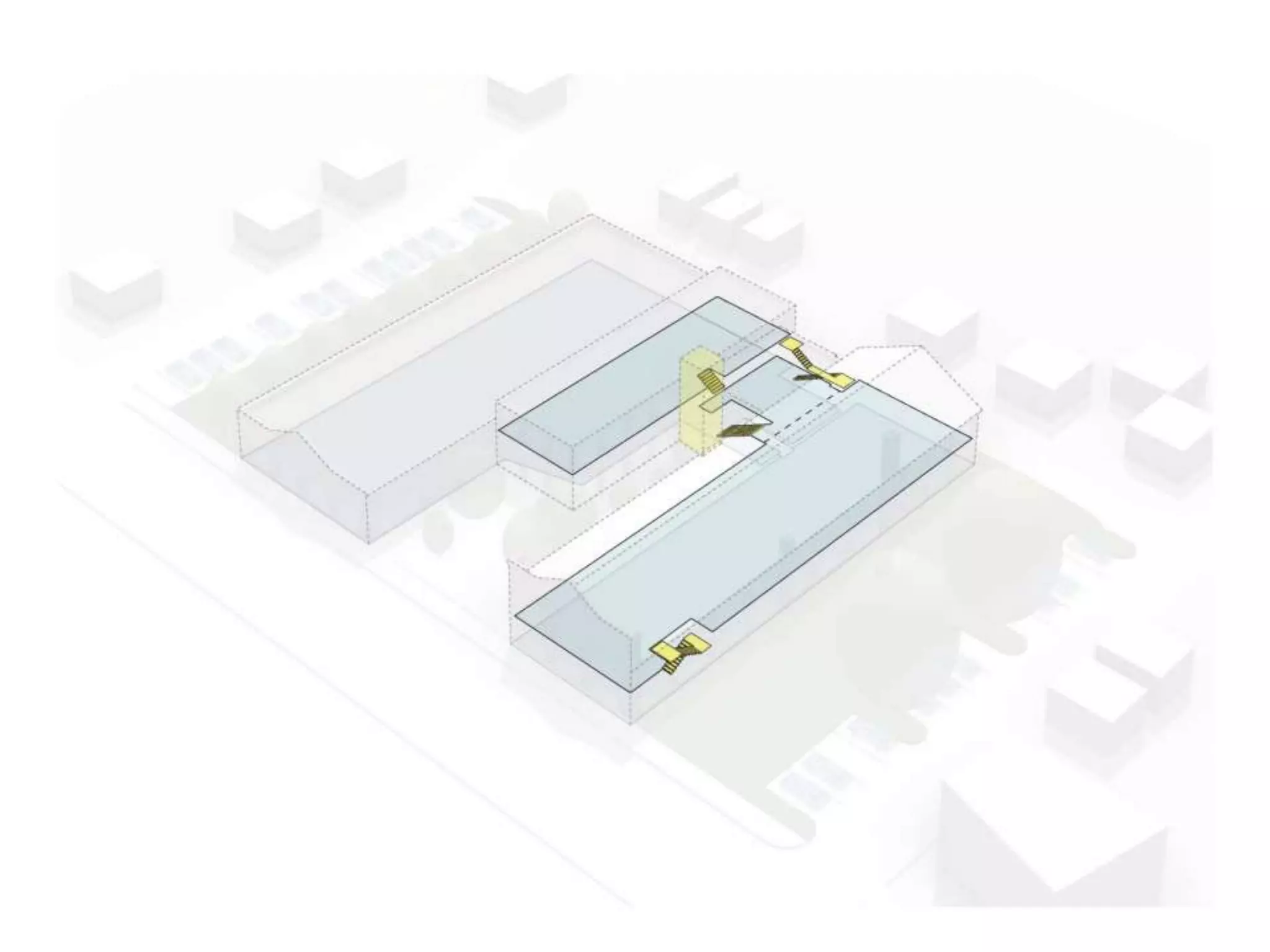

- 24. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM CONCEPT DESIGN

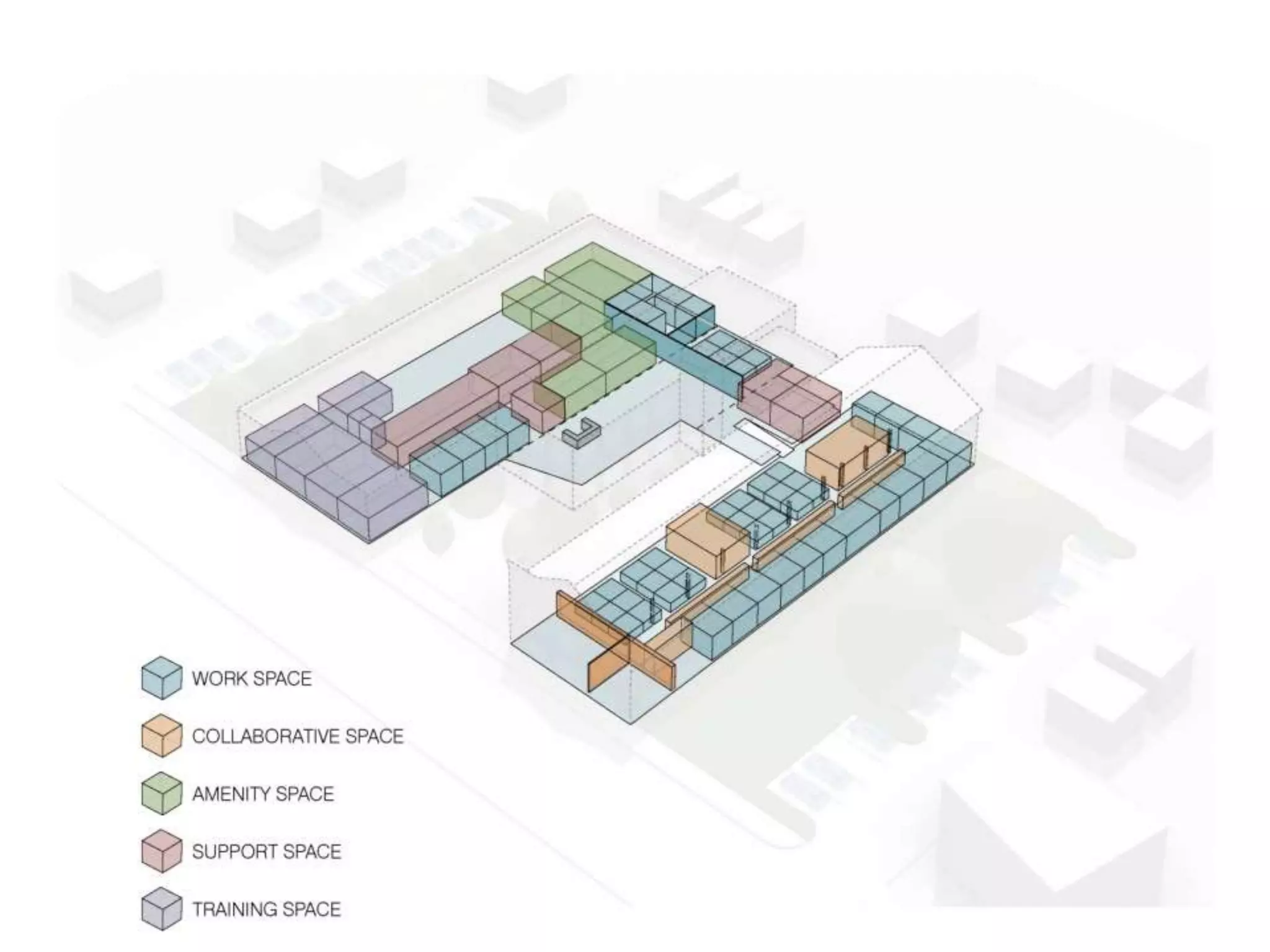

- 25. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM CONCEPT DESIGN

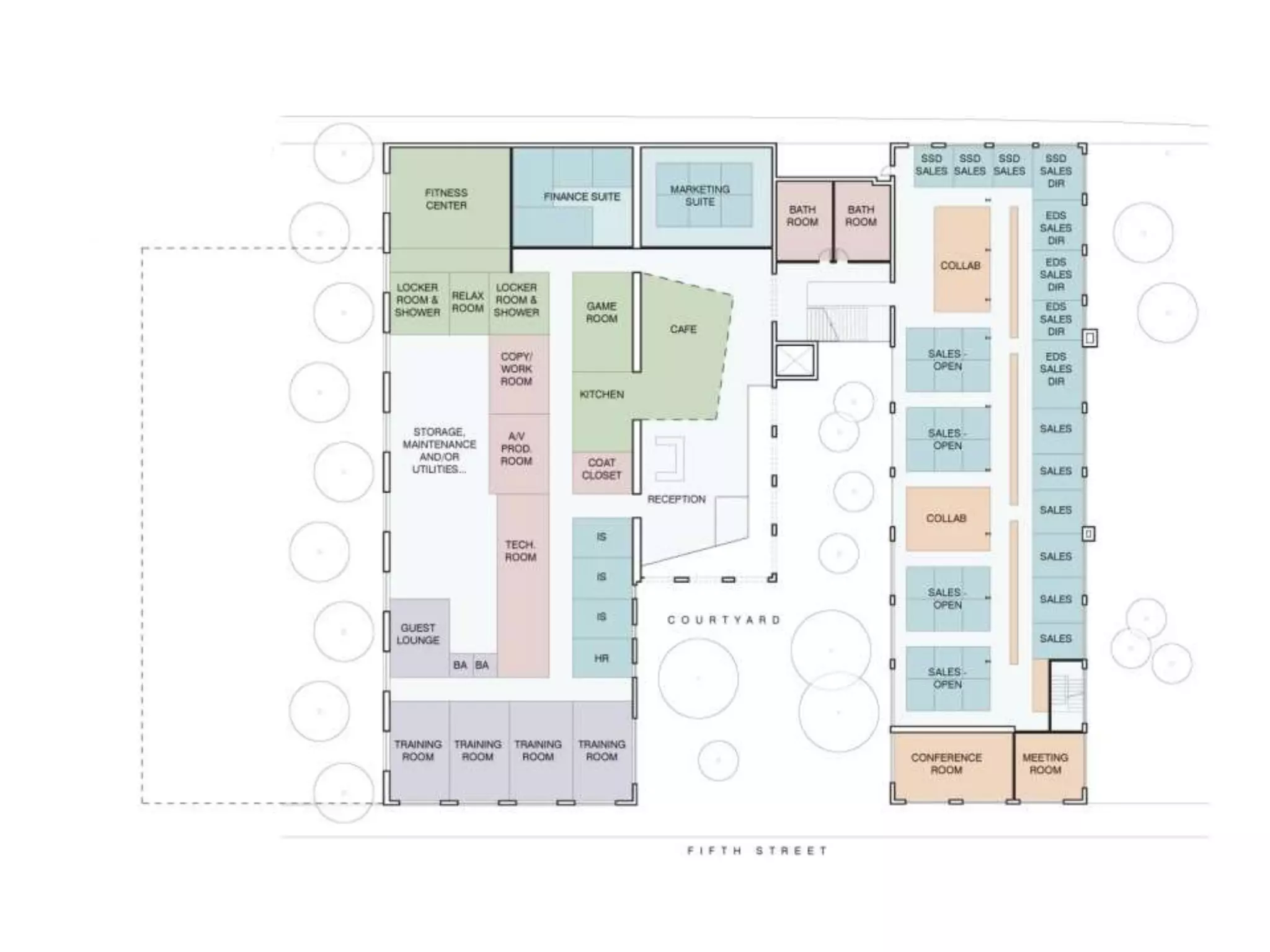

- 26. The New SynergisHome: Collaboration, Adaptive Reuse and BIM
- 27. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

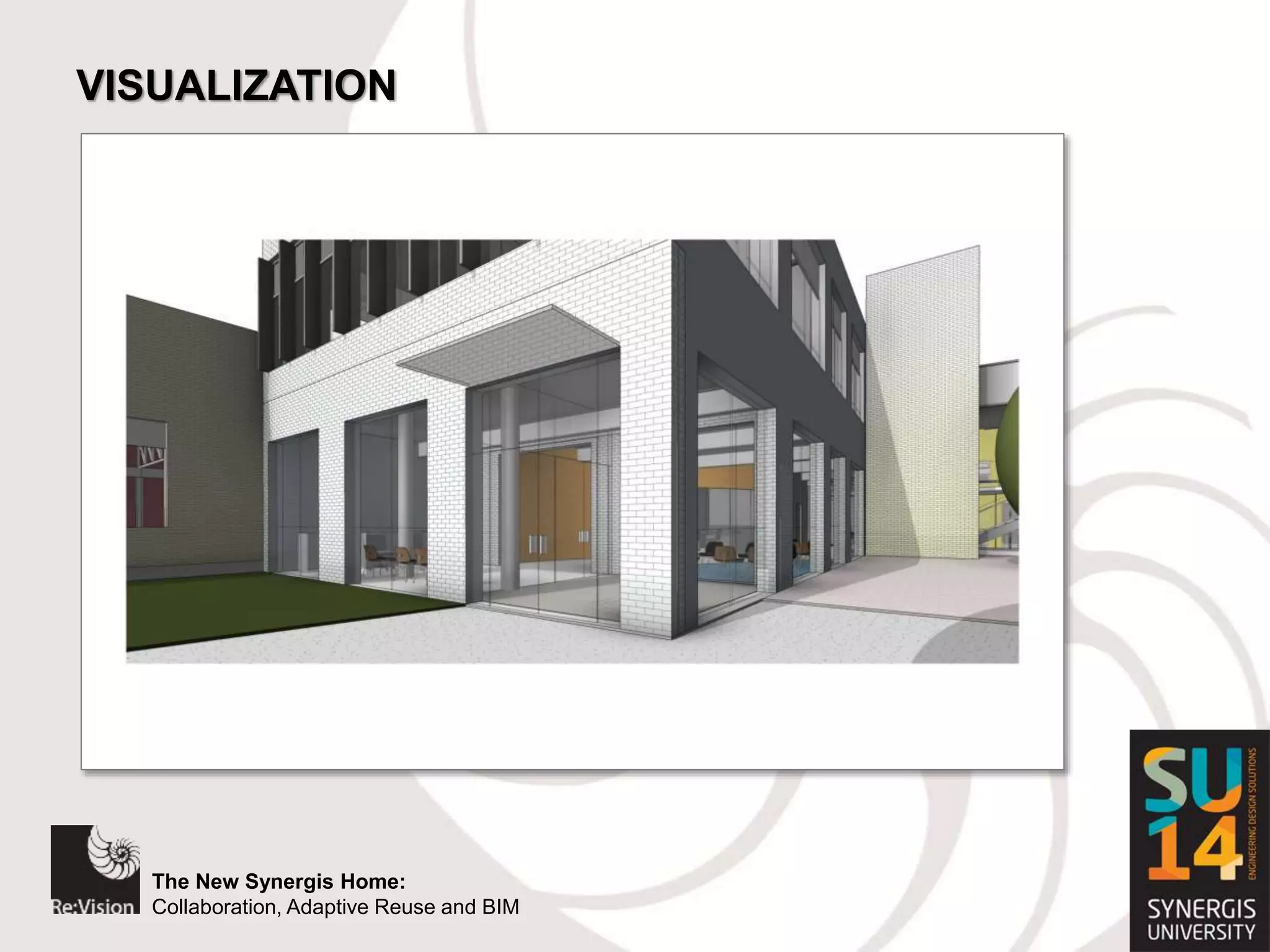

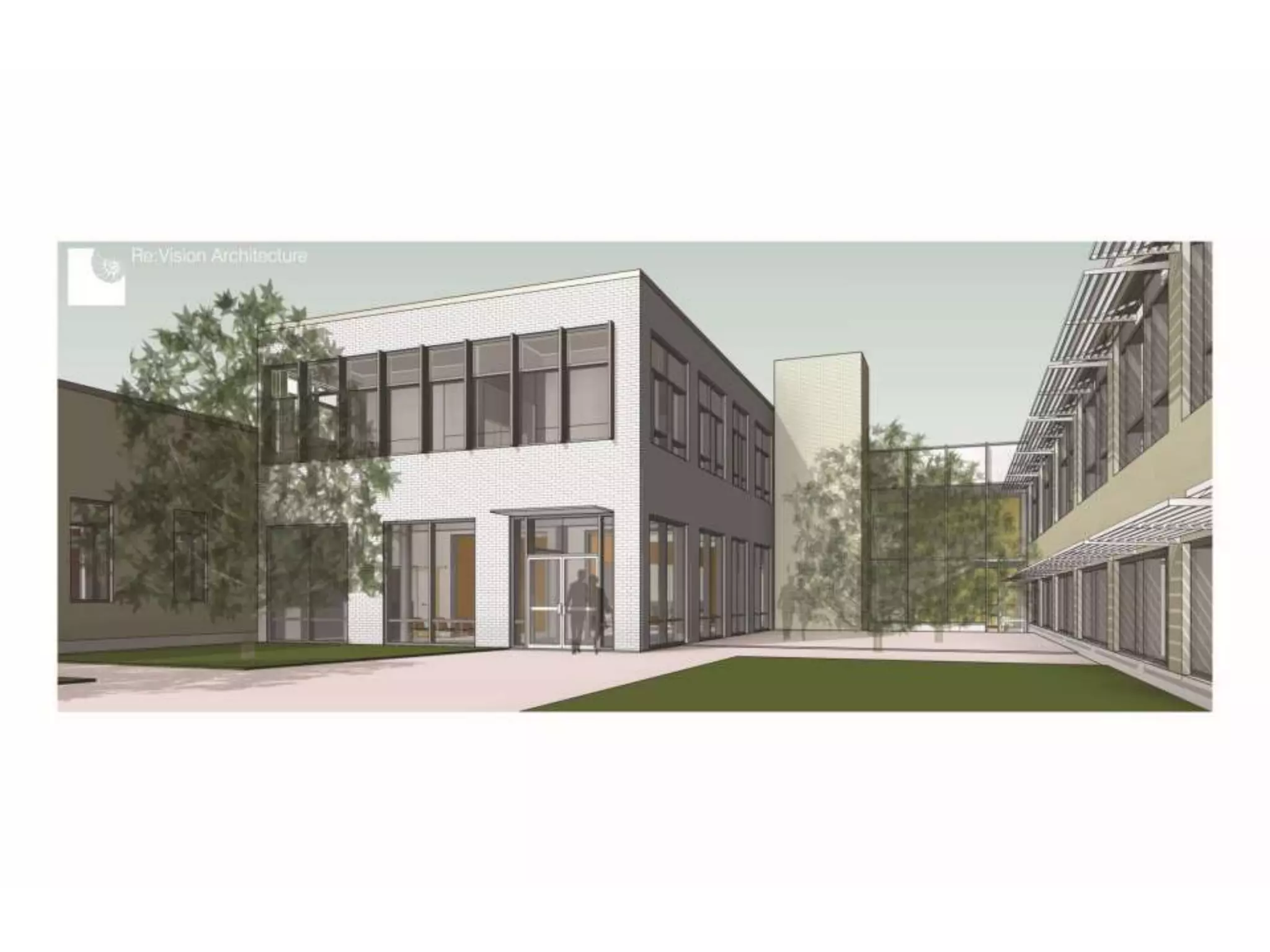

- 28. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM VISUALIZATION

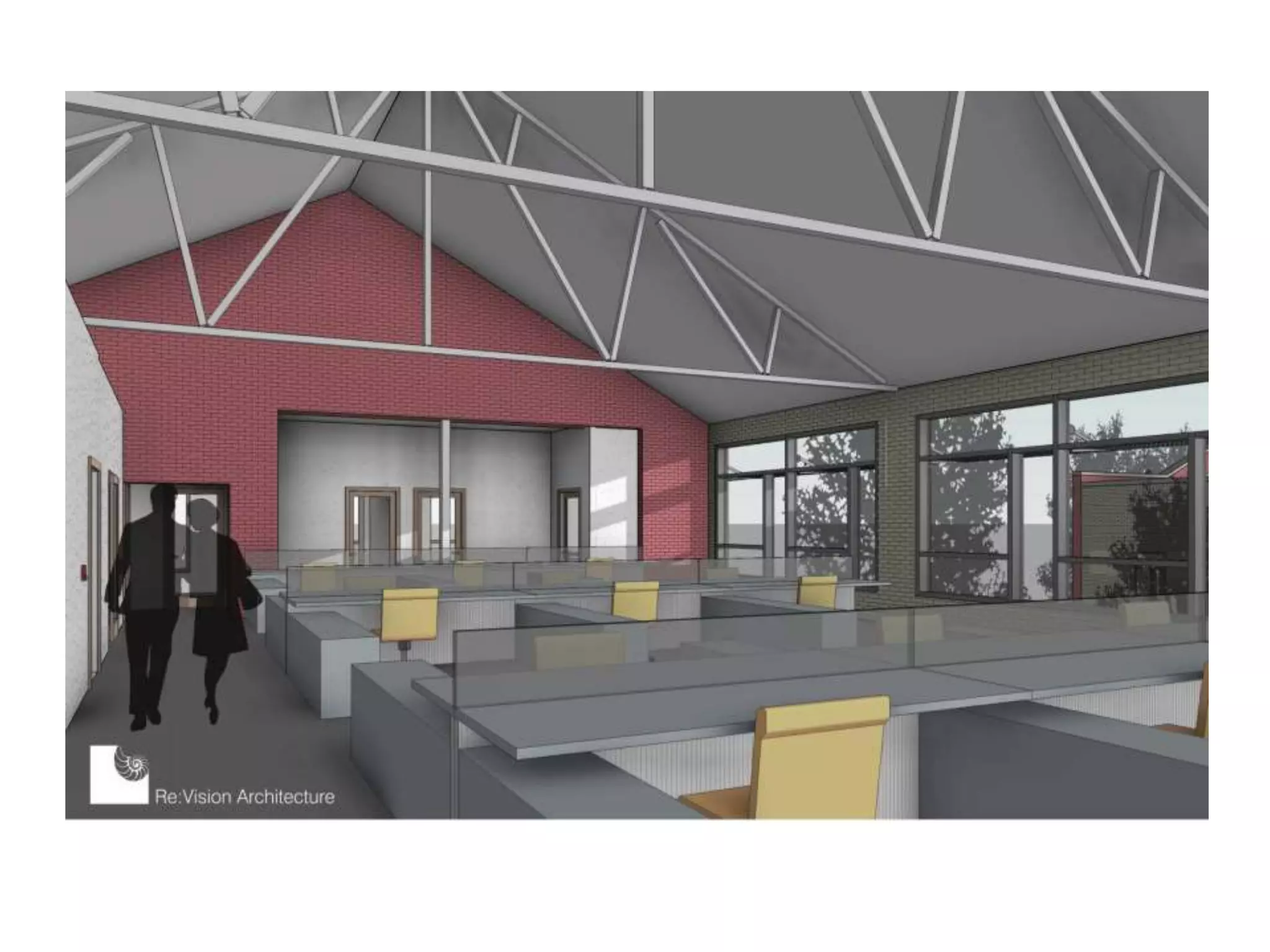

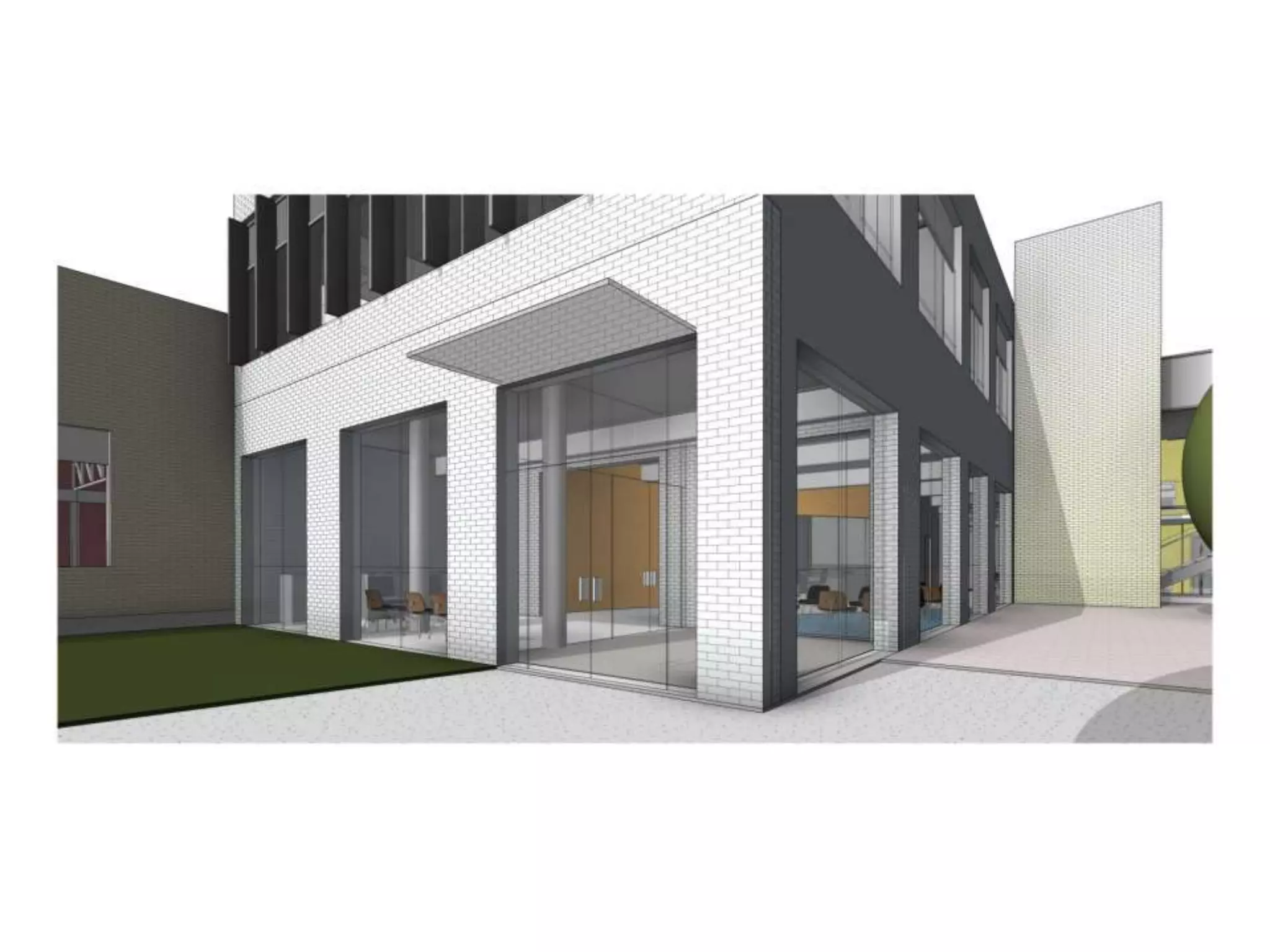

- 29. The New SynergisHome: Collaboration, Adaptive Reuse and BIM
- 30. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

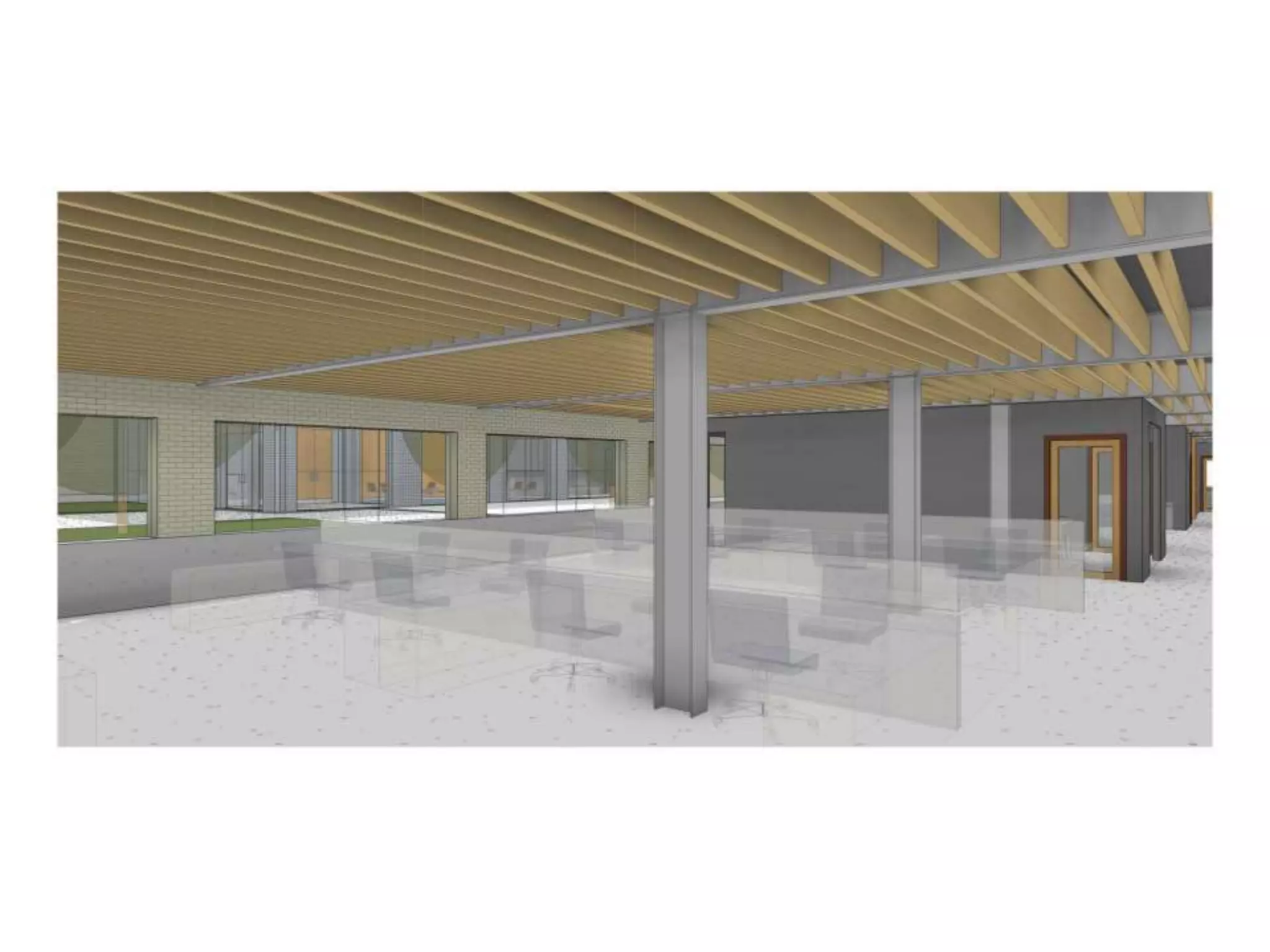

- 31. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

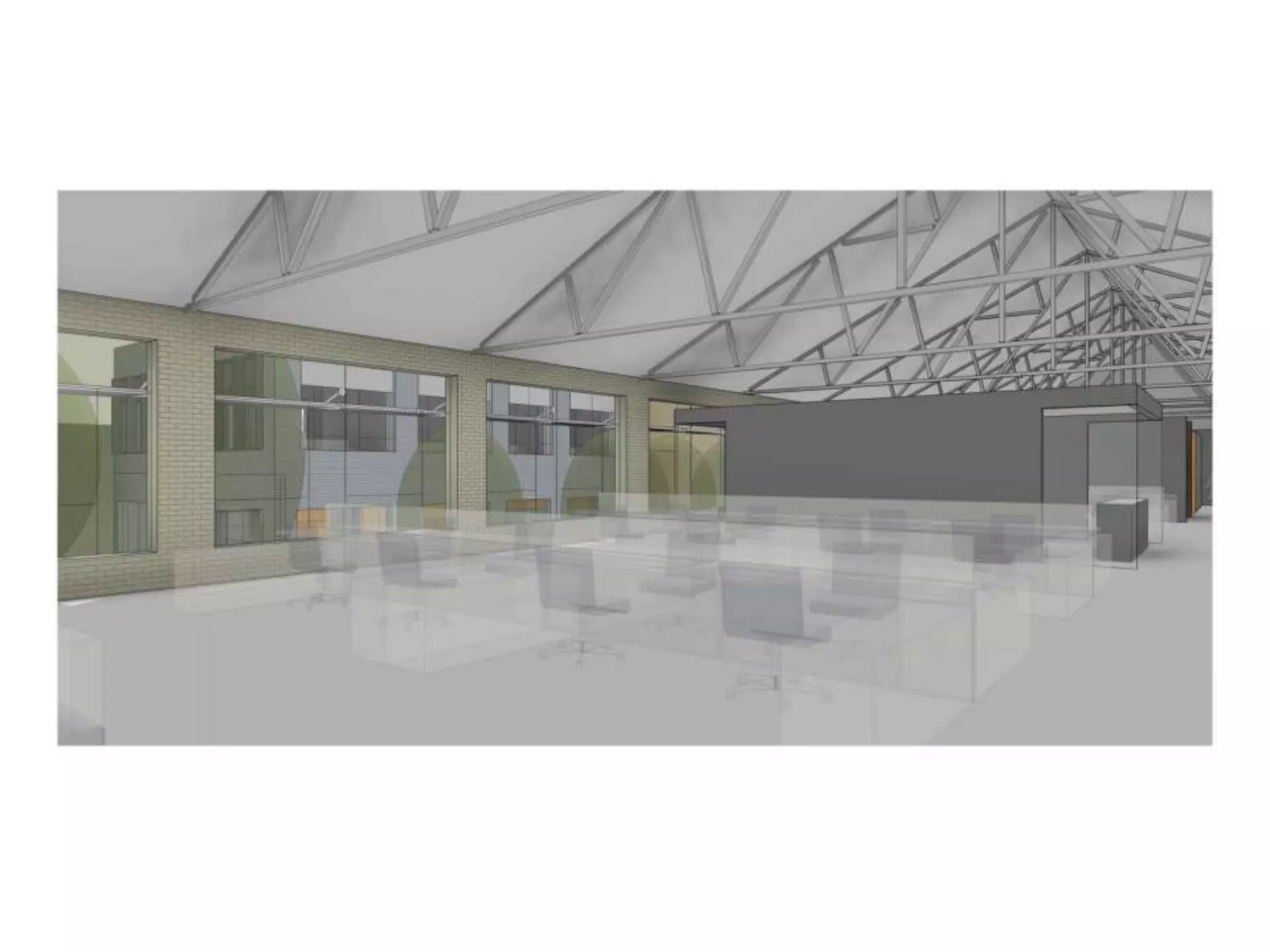

- 32. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

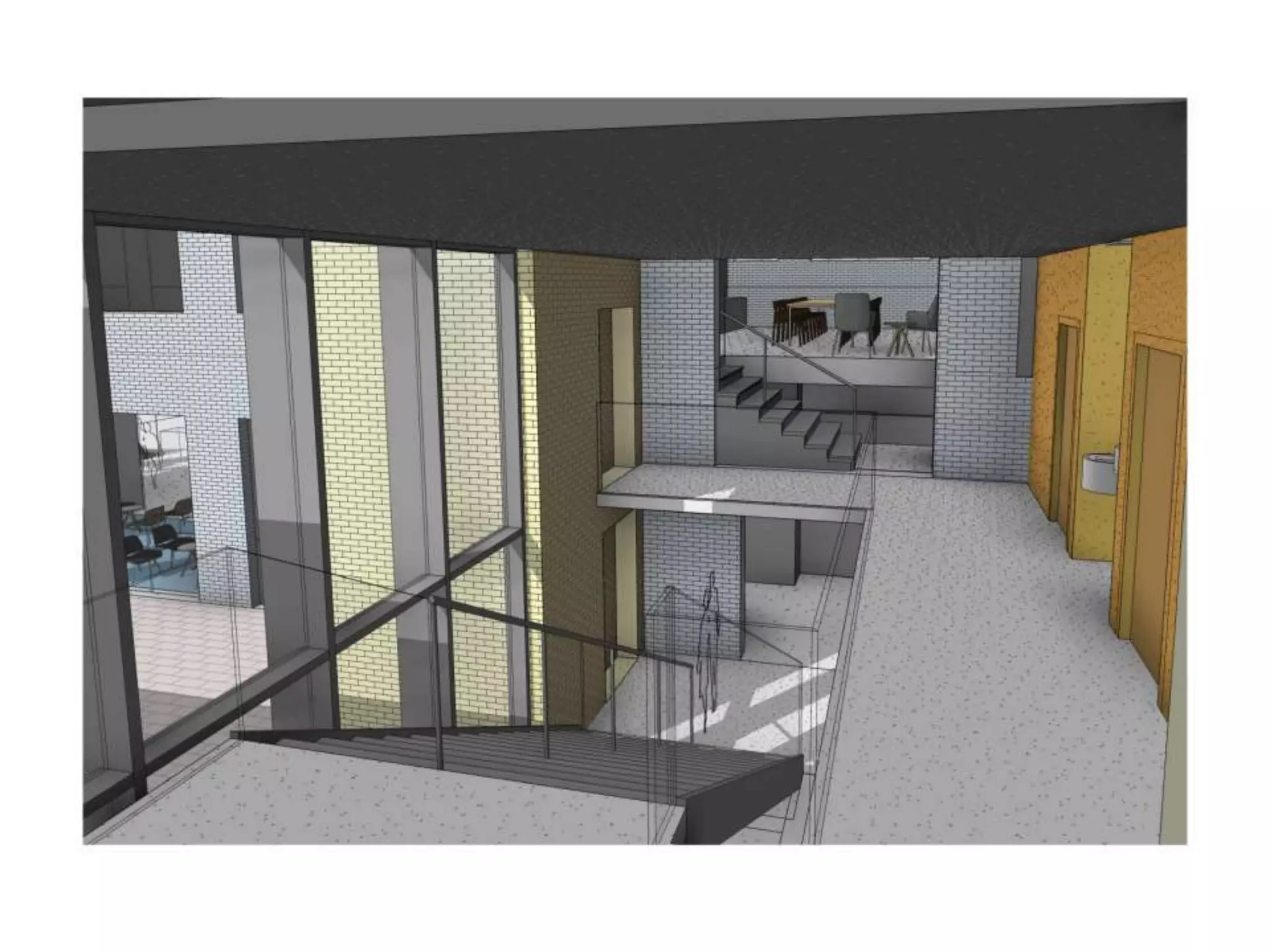

- 33. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

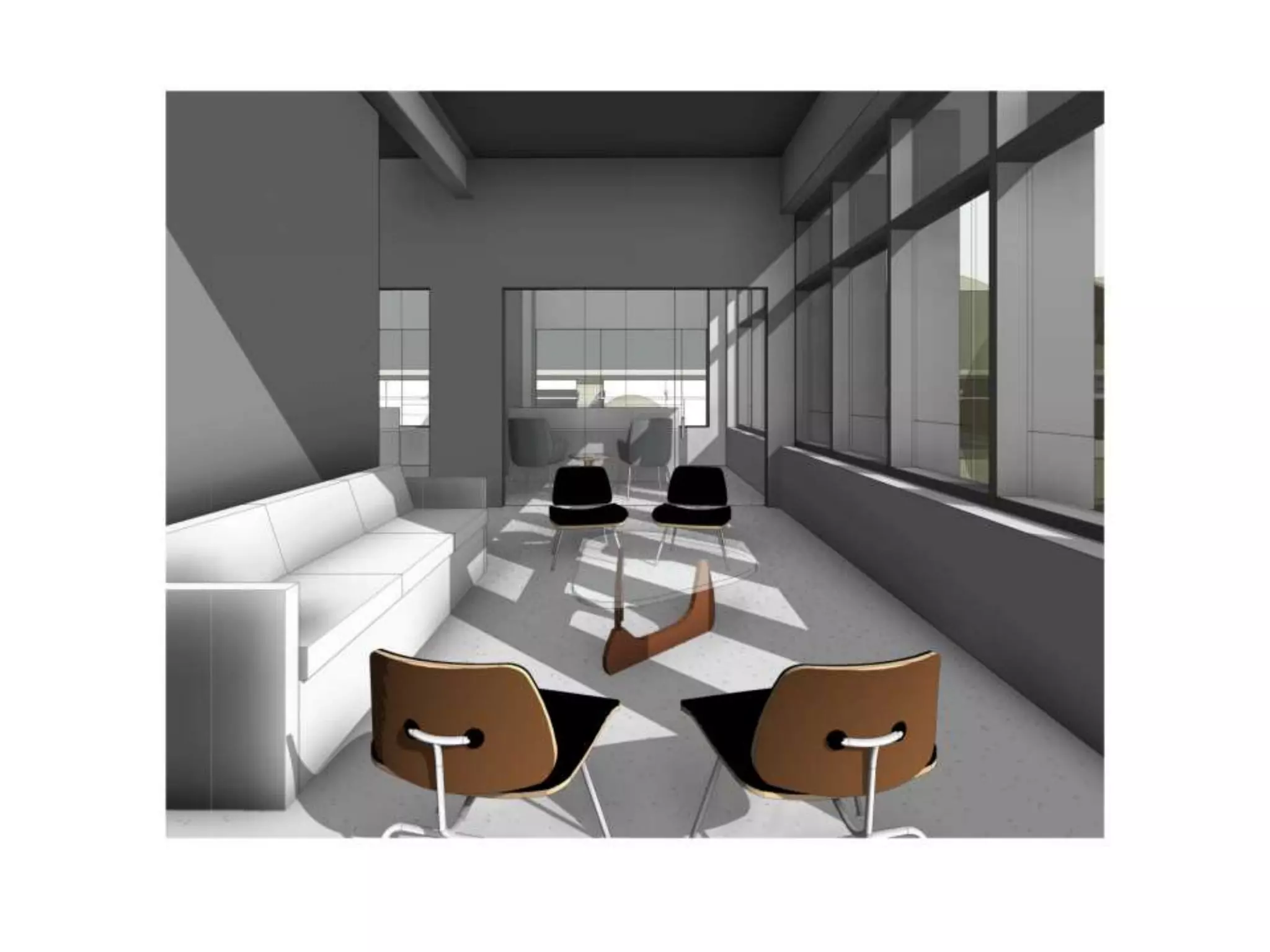

- 34. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

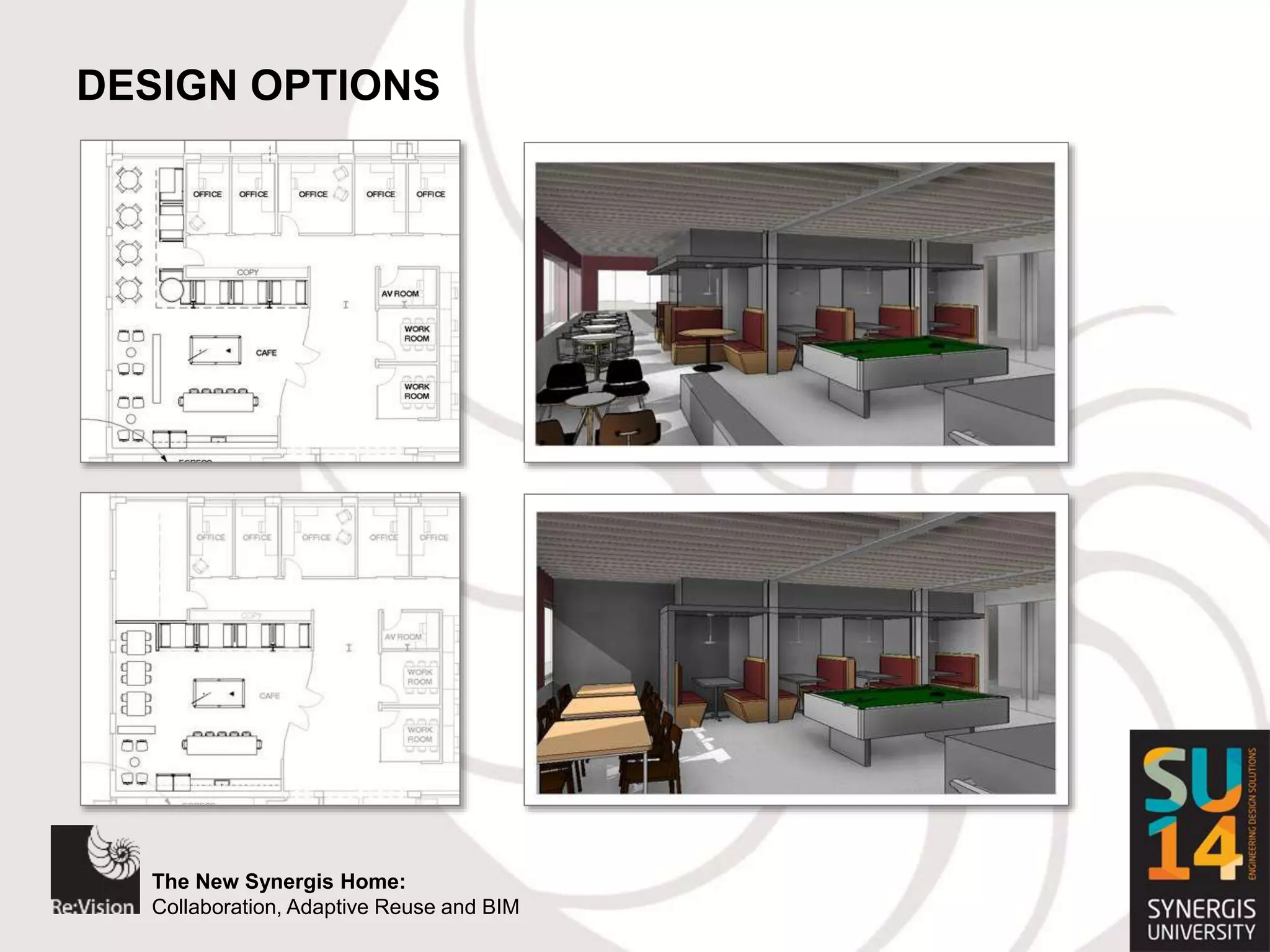

- 35. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM DESIGN OPTIONS

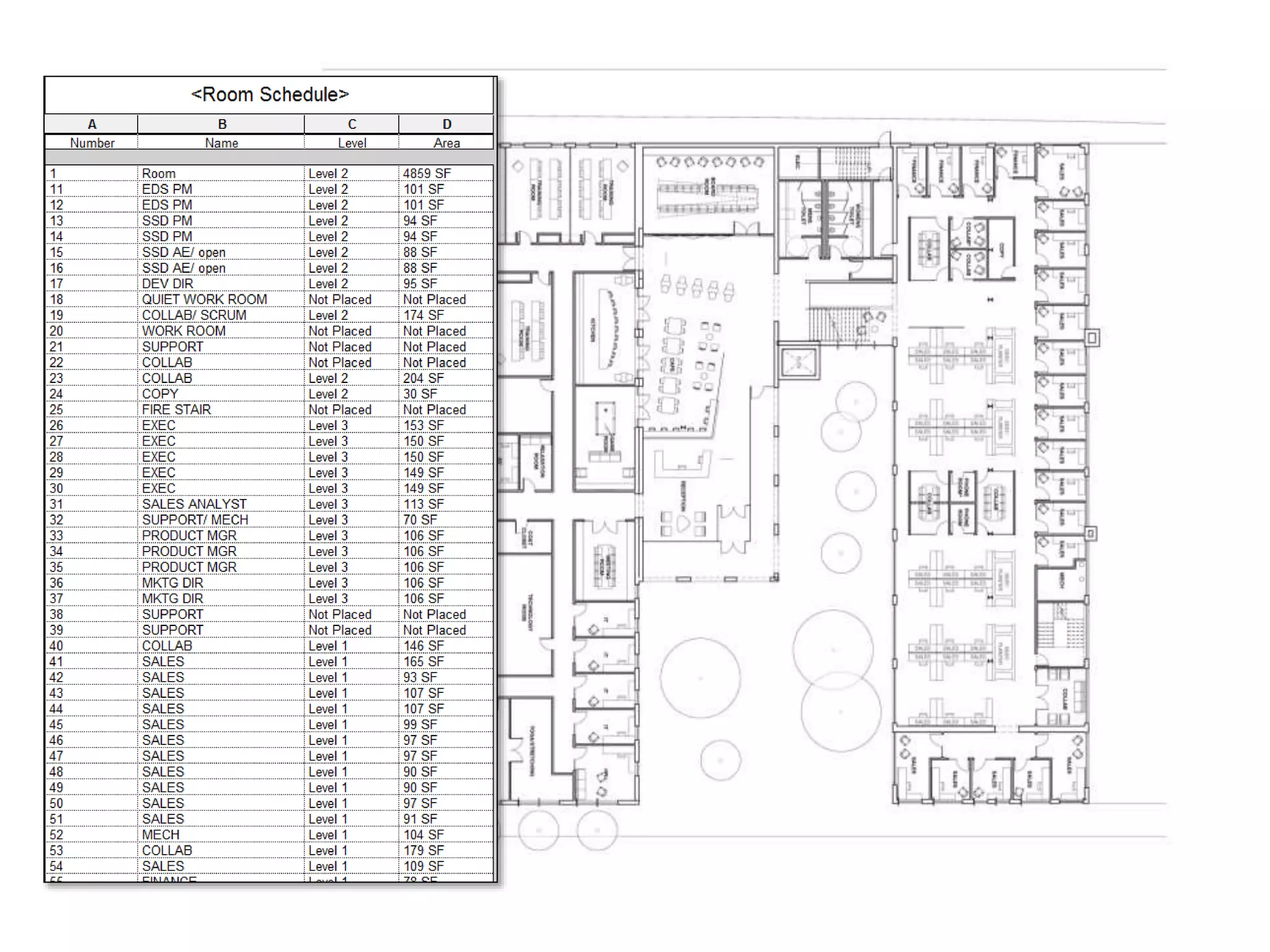

- 36. The New SynergisHome: Collaboration, Adaptive Reuse and BIM COORDINATION
- 37. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM COORDINATION

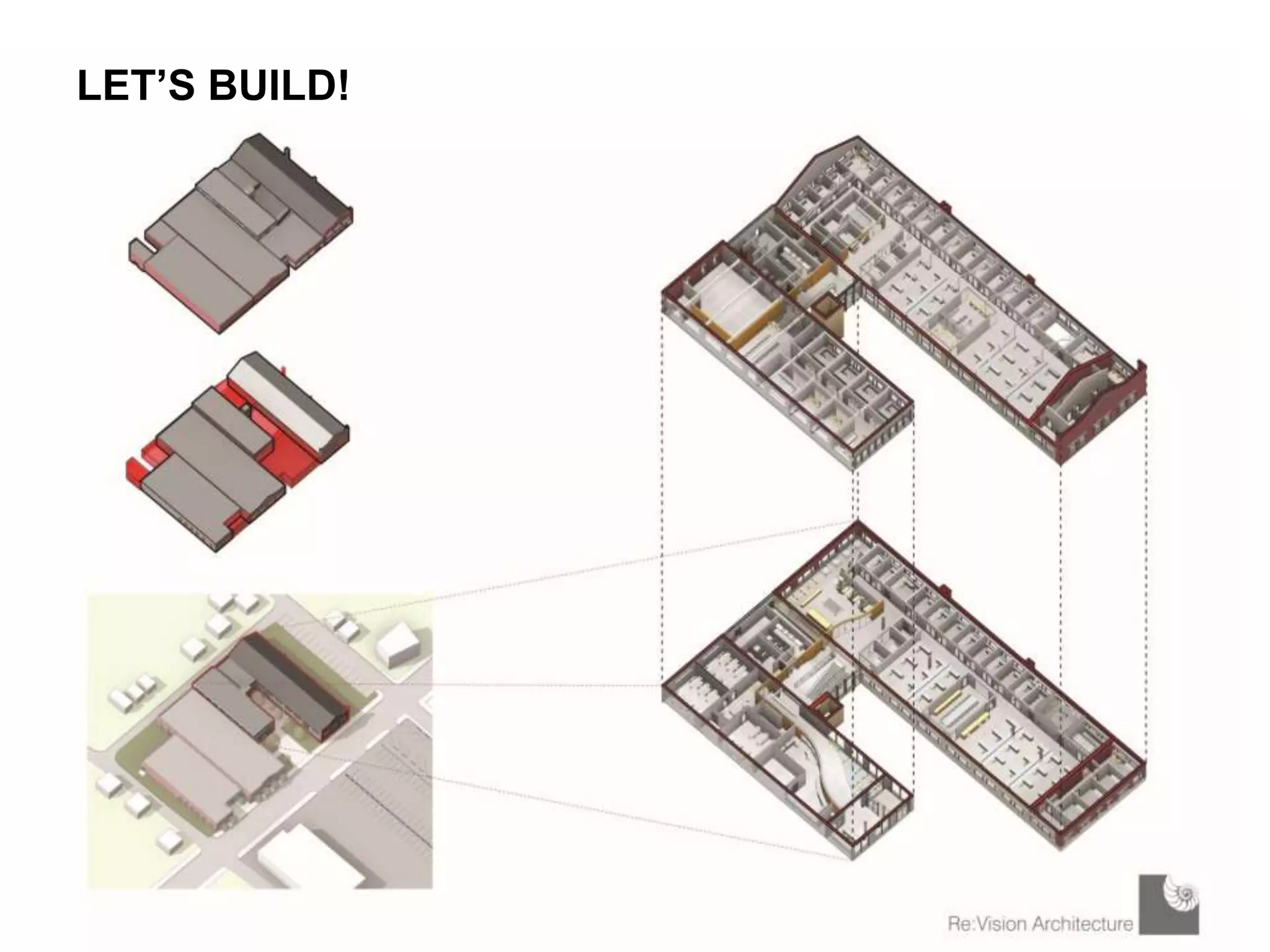

- 38. The New SynergisHome: Collaboration, Adaptive Reuse and BIM LET’S BUILD!

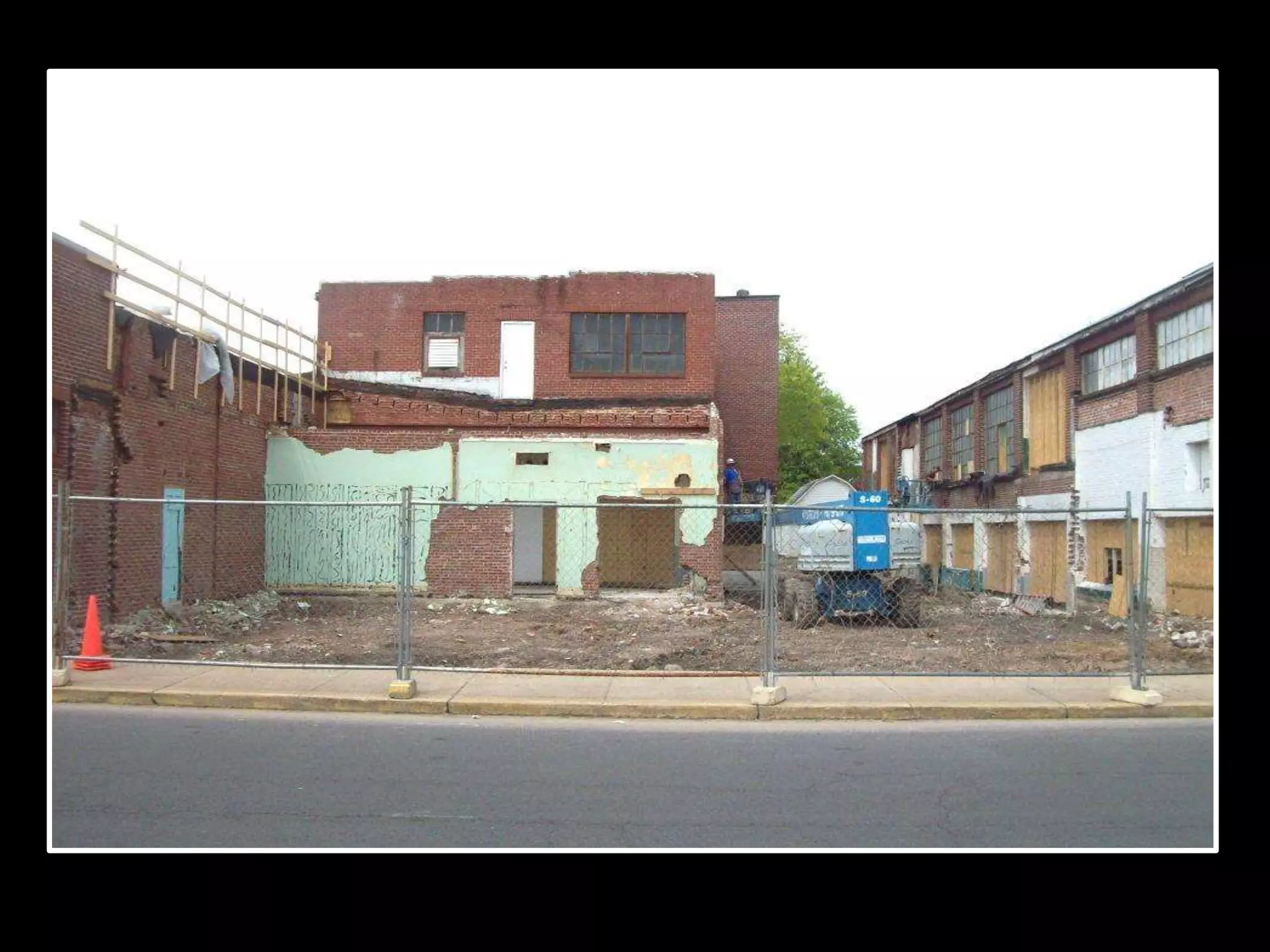

- 39. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

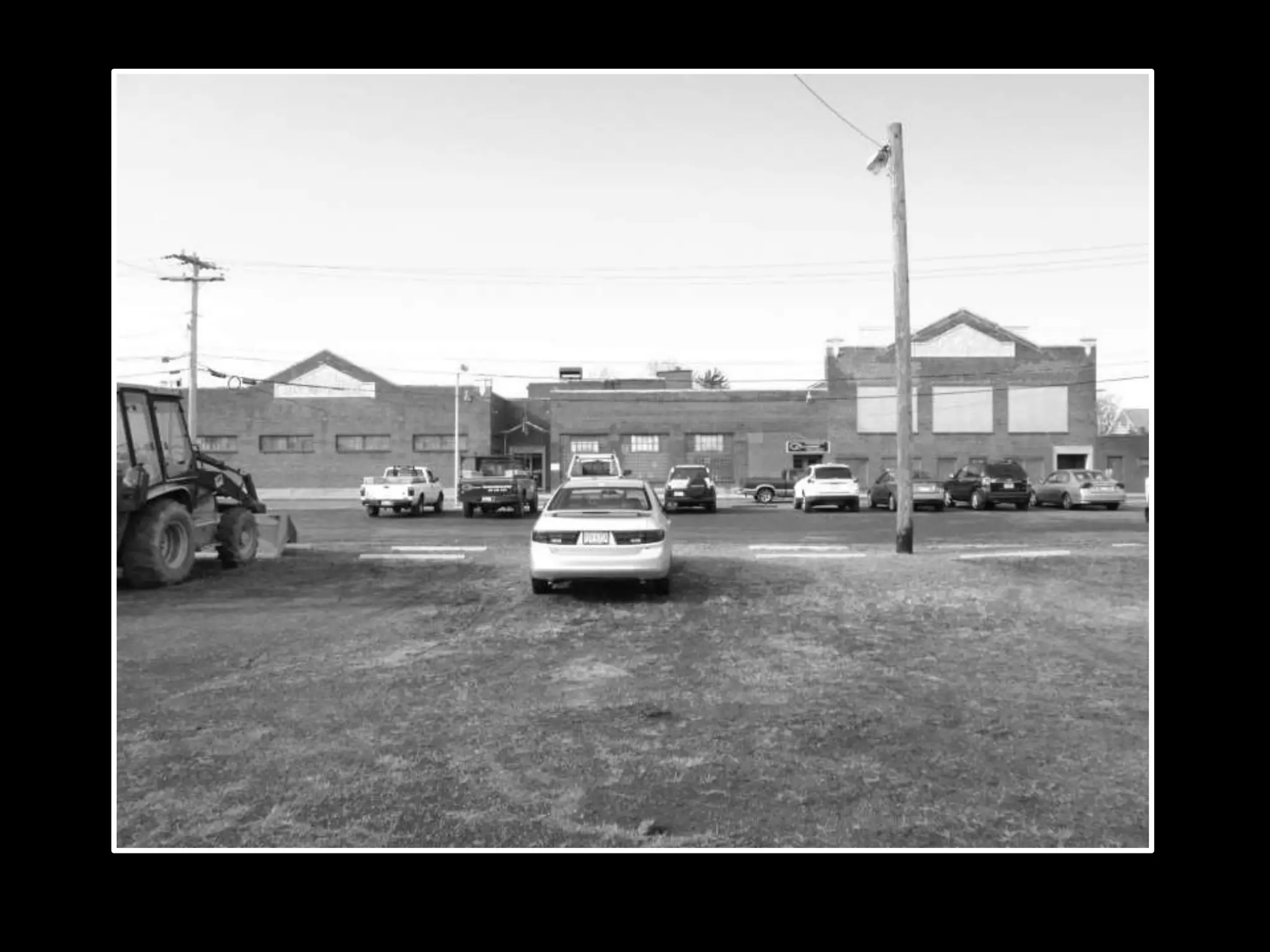

- 40. The New SynergisHome: Collaboration, Adaptive Reuse and BIM
- 41. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

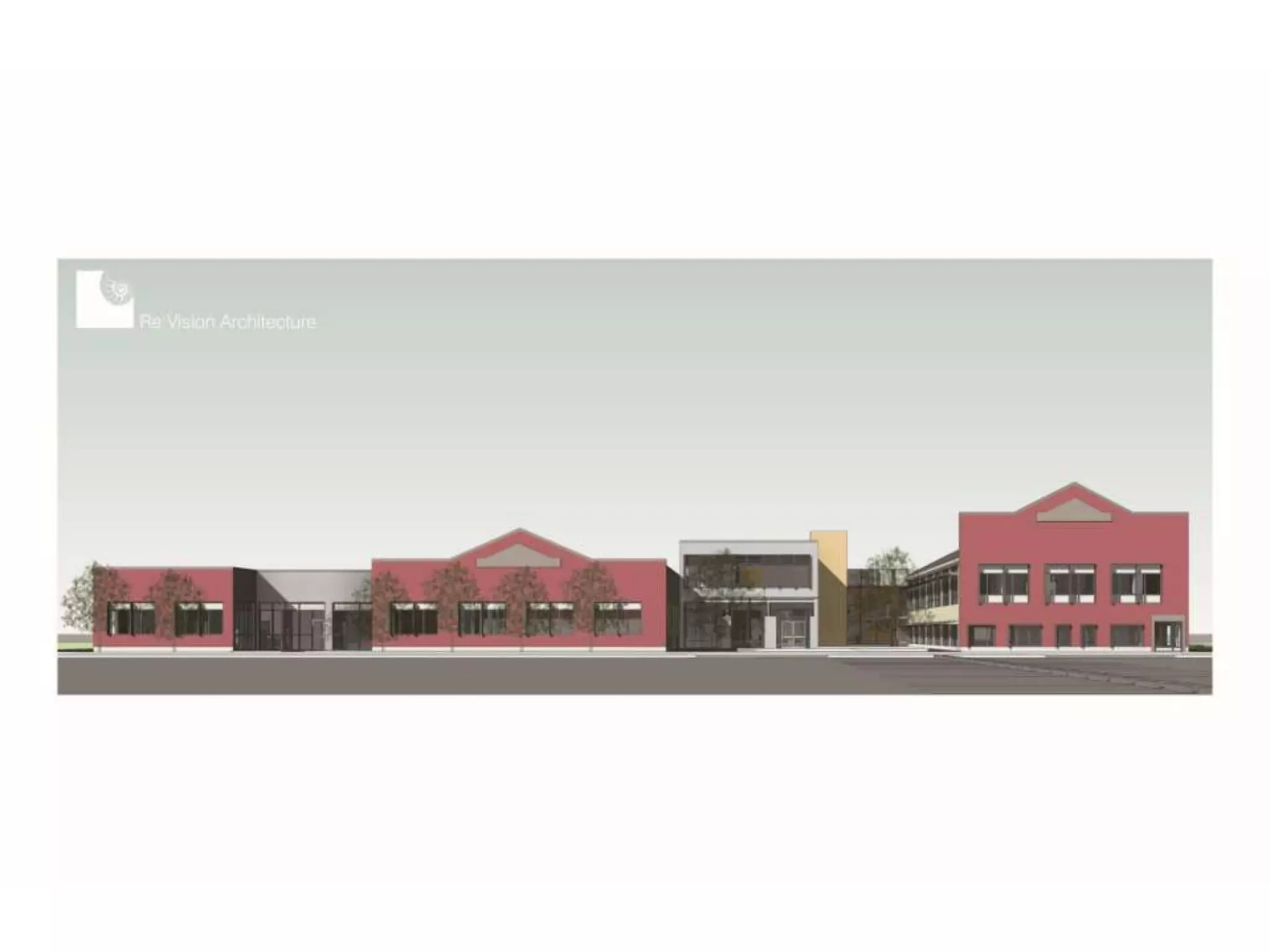

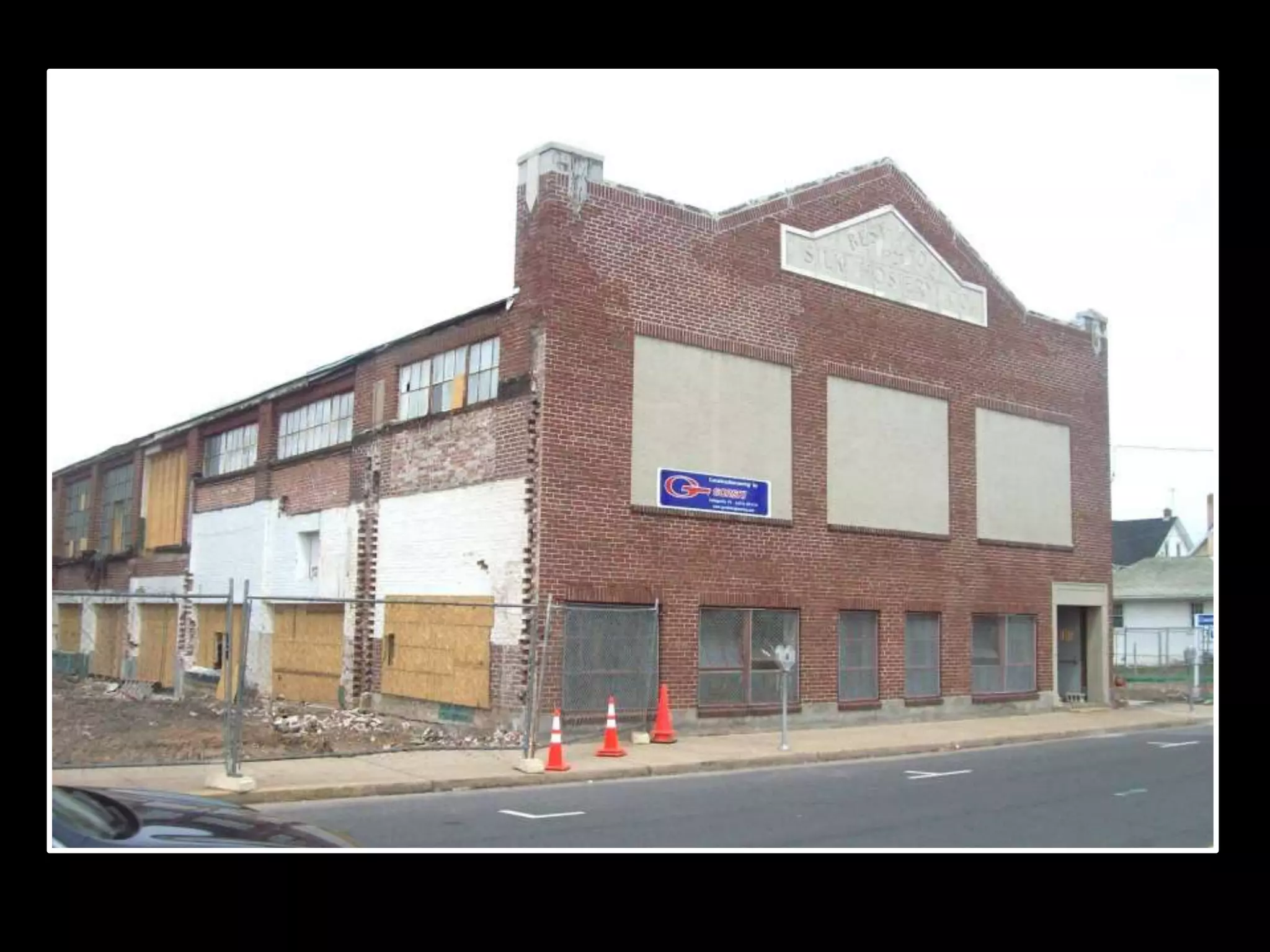

- 42. The New SynergisHome: Collaboration, Adaptive Reuse and BIM
- 43. The New SynergisHome: Collaboration, Adaptive Reuse and BIM
- 44. The New SynergisHome: Collaboration, Adaptive Reuse and BIM
- 45. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

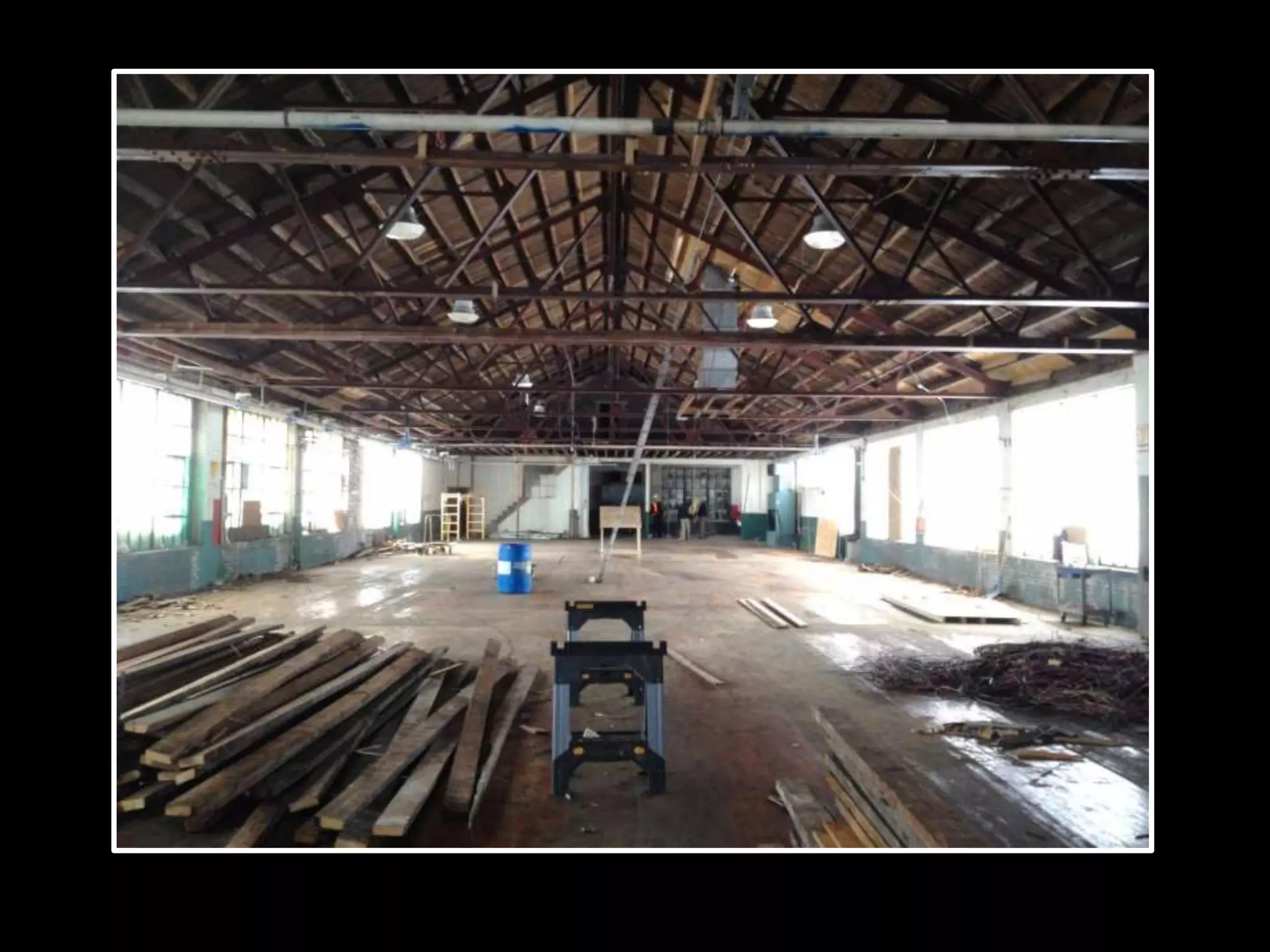

- 46. The New SynergisHome: Collaboration, Adaptive Reuse and BIM

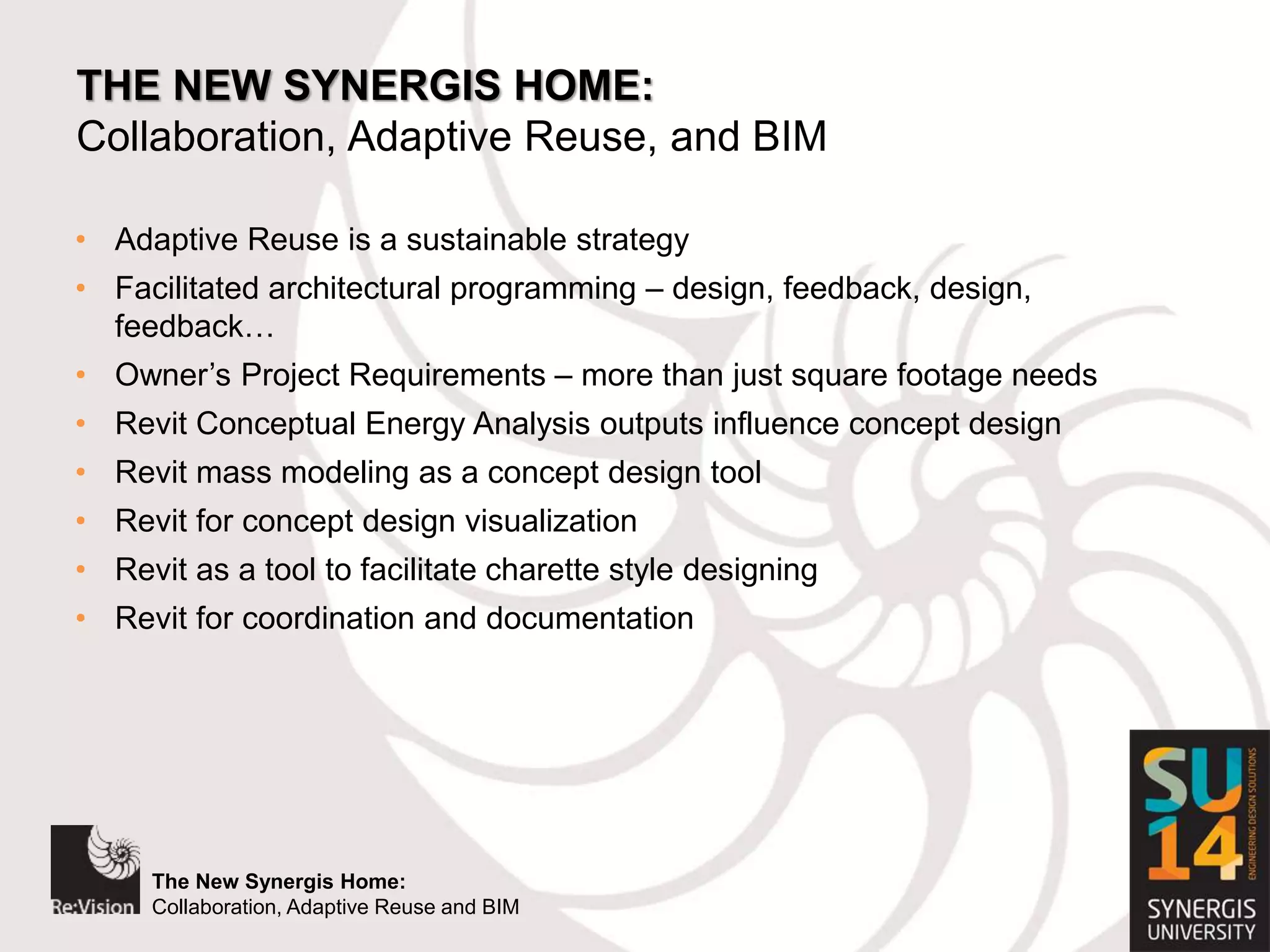

- 47. The New SynergisHome: Collaboration, Adaptive Reuse and BIM The New Synergis Home: Collaboration, Adaptive Reuse and BIM THE NEW SYNERGIS HOME: Collaboration, Adaptive Reuse, and BIM • Adaptive Reuse is a sustainable strategy • Facilitated architectural programming – design, feedback, design, feedback… • Owner’s Project Requirements – more than just square footage needs • Revit Conceptual Energy Analysis outputs influence concept design • Revit mass modeling as a concept design tool • Revit for concept design visualization • Revit as a tool to facilitate charette style designing • Revit for coordination and documentation
- 48. The New SynergisHome: Collaboration, Adaptive Reuse and BIM THE NEW SYNERGIS HOME Collaboration, Adaptive Reuse and BIM
Editor's Notes
- #3 Background on myself Using revit since 2009 Have been with Re:Vision for 3 years. In that time went from an all CAD office with modeling as an additional service to an all revit office with 3d visualization as part of our workflow
- #5 309 N 663 W

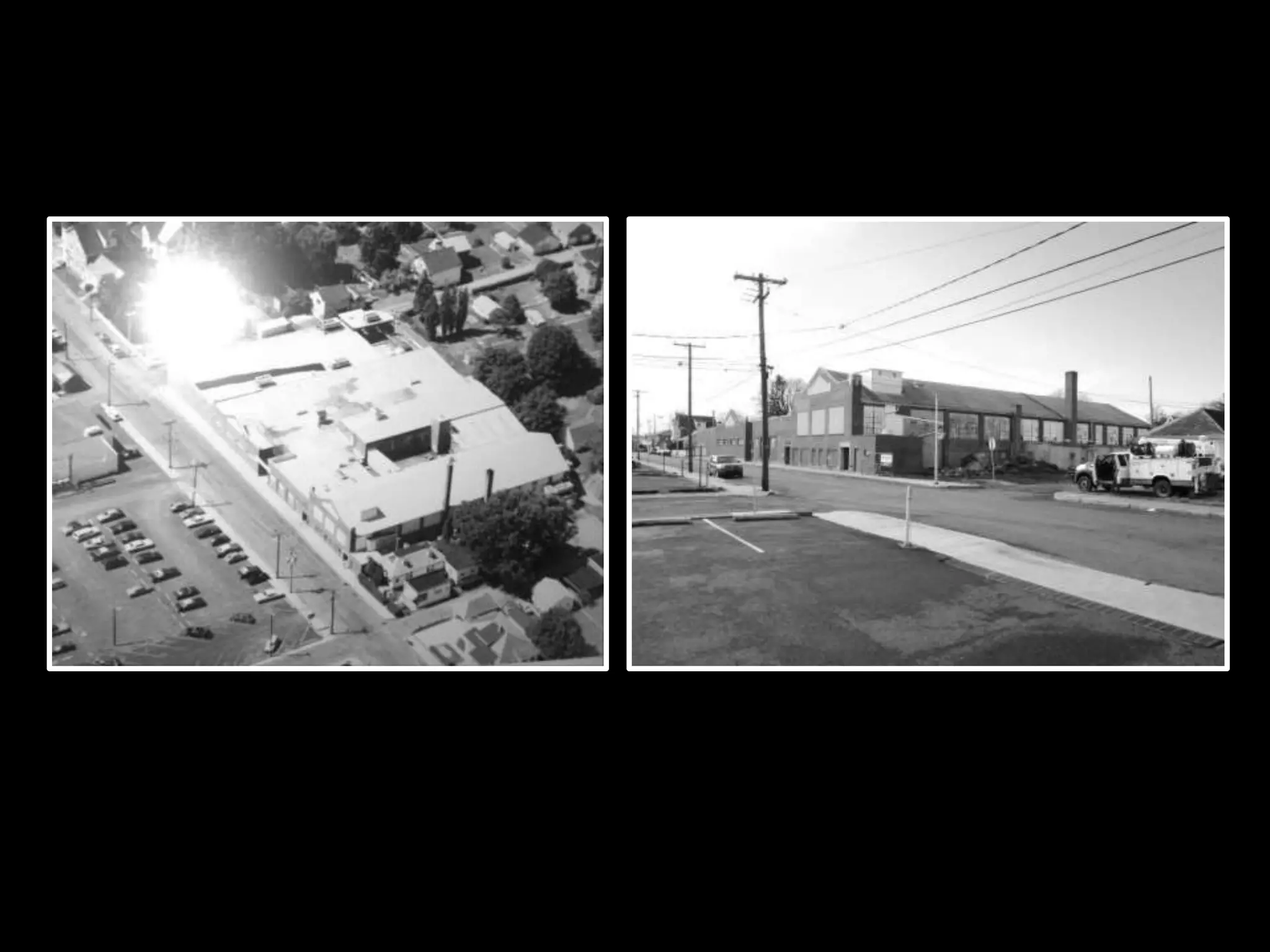

- #6 Best made silk hosiery company c1925
- #9 Leadership workshop – EDS, SSD, ReV, GE Messy process/brainstorming Individual user group interviews On site tours – progressive office spaces

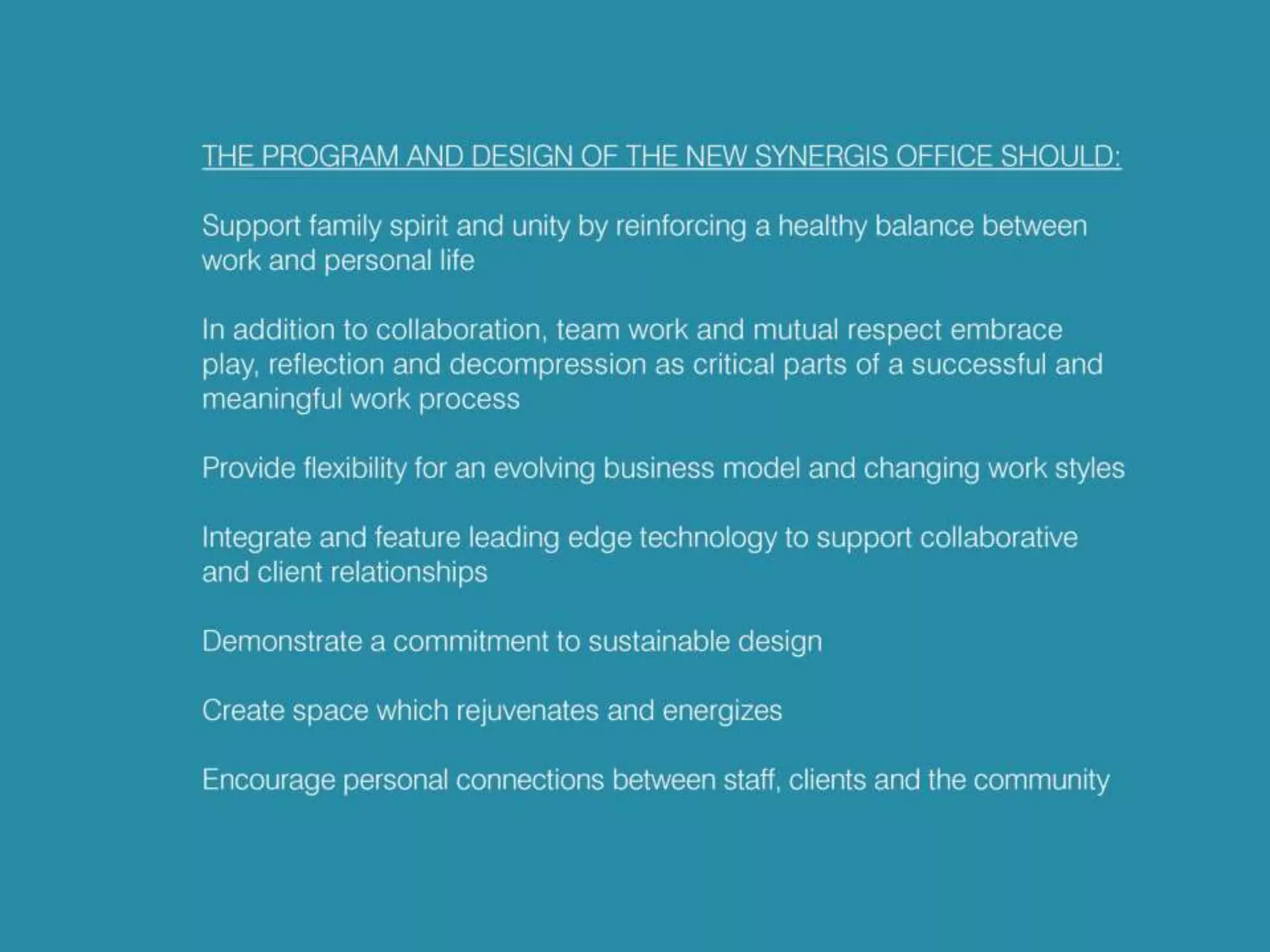

- #10 Touchstones - guiding principles of the project by which we all will judge its success.

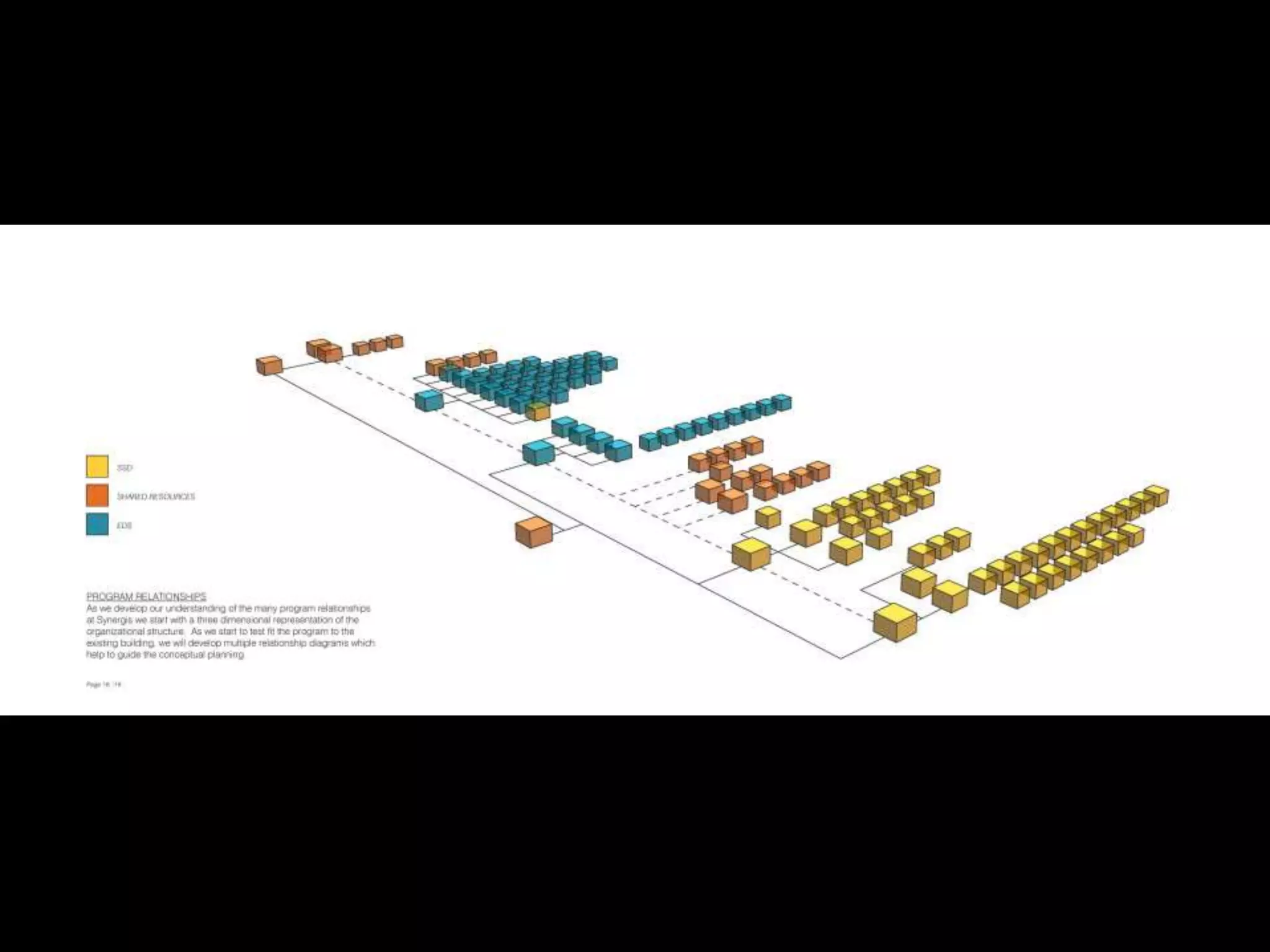

- #13 Understand the heirarch and organization Revit mass model. Actually used these masses to start placing groups in the model of the existing building

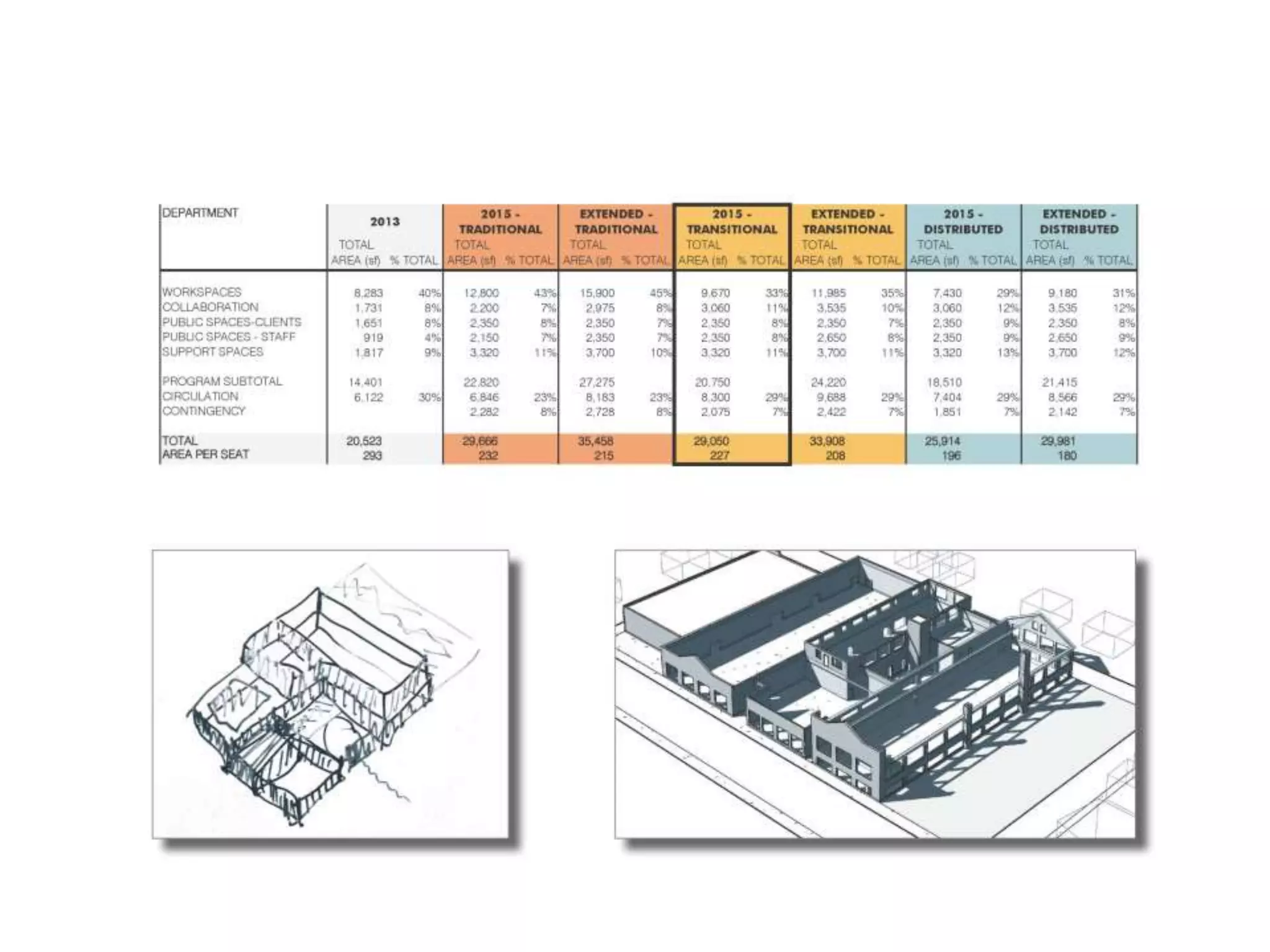

- #15 Multiple program area calculation models Ranged from traditional closed office to a “distributed” open office We’re landing in the middle – approx 26,000 sf for 120 employees
- #16 Started project in Revit 2013. have used CEA in subsequent versions as well. Looking for early feedback for comparative and then iterative design
- #17 Point out area difference and number of stories In terms of dollars, this is a $100,000 life cycle energy cost savings

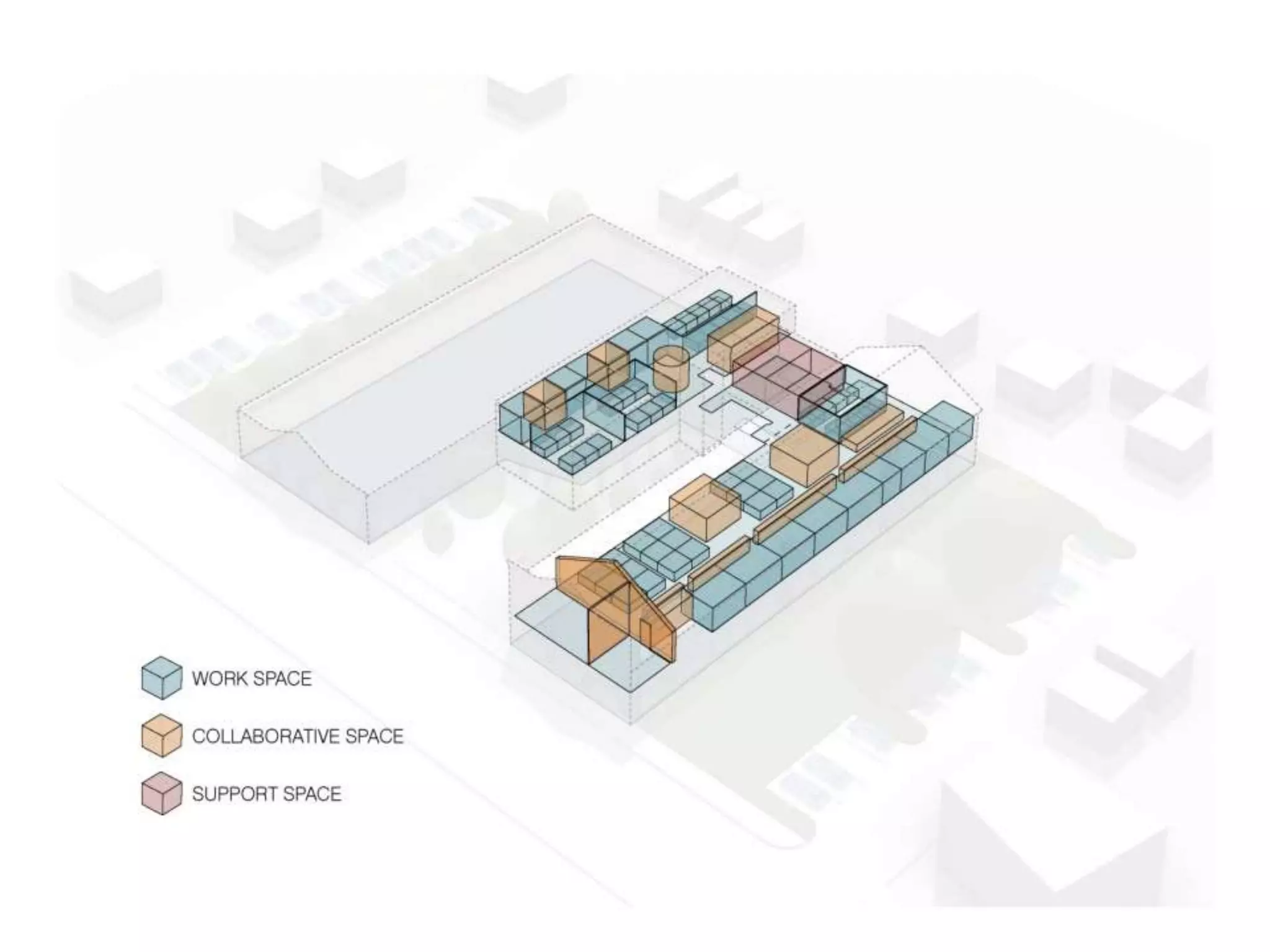

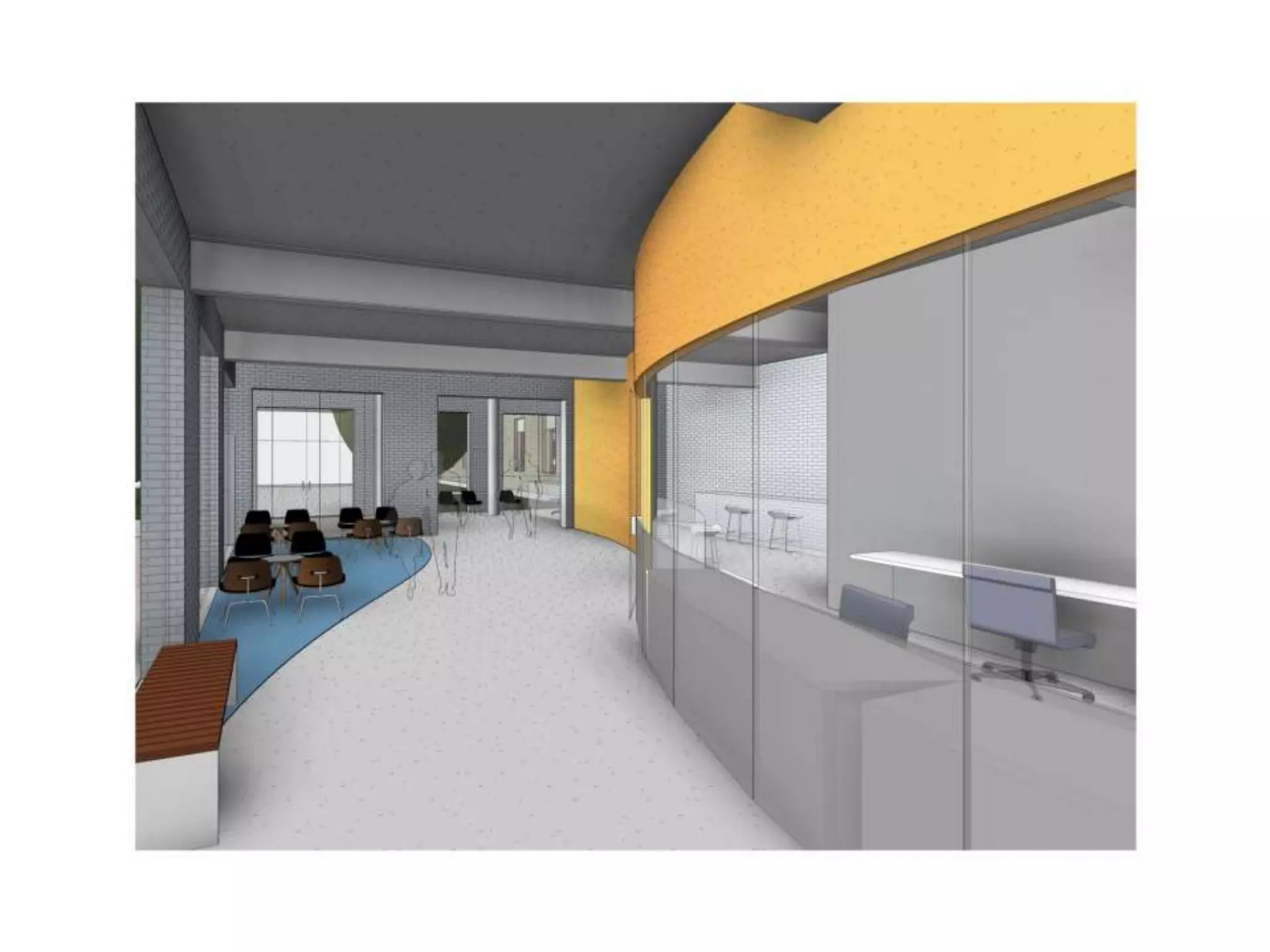

- #23 What’s great about revit is the ability to use it not just for making building models but making 3 dimensional diagrams
- #24 Ability to isolate elements
- #28 Transition from mass to walls Ability to schedule and monitor room areas
- #29 Discuss 3 dimensional thinking vs visualization

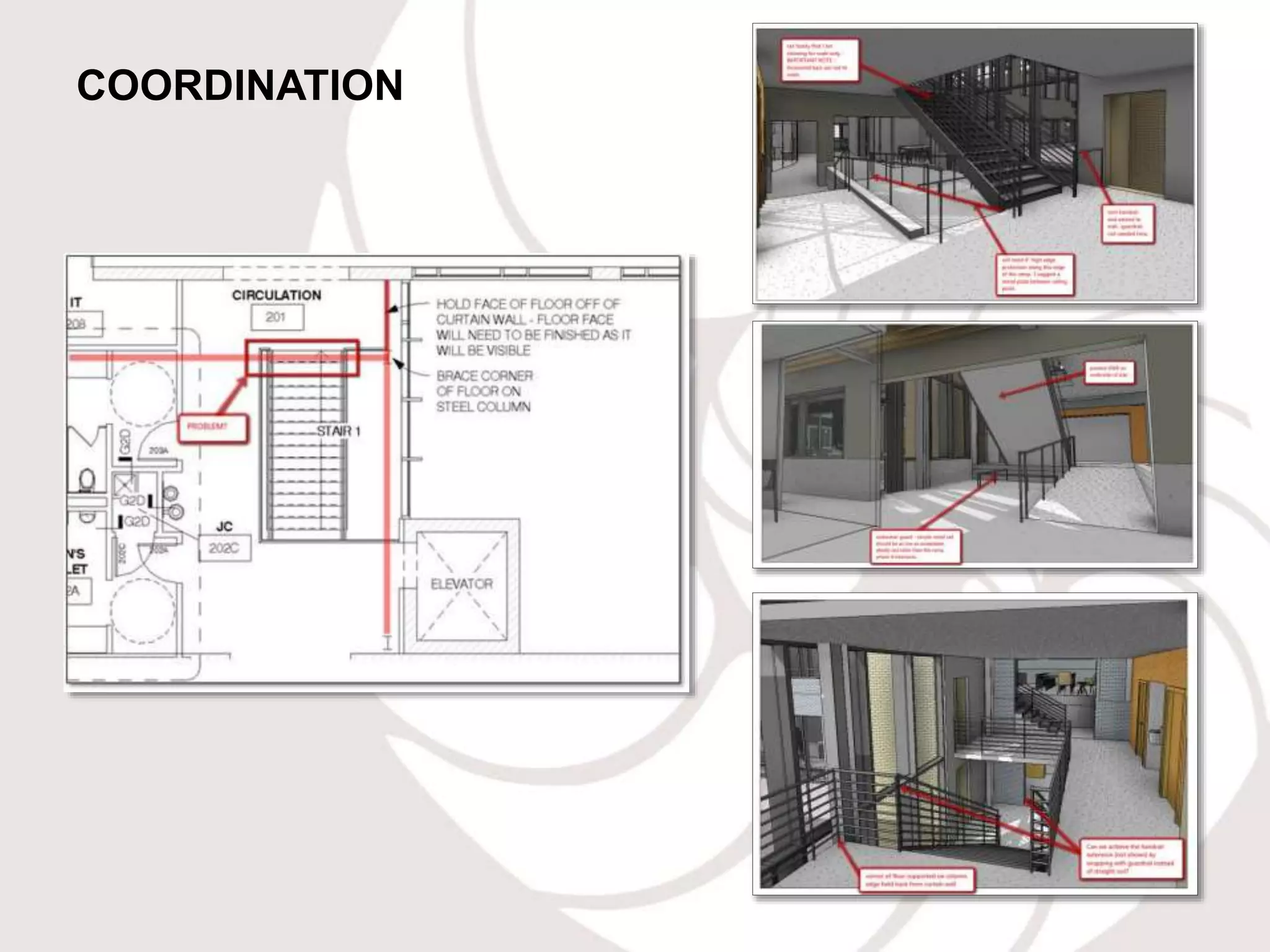

- #37 Ability to quickly encircle a condition and communicate it spatially as opposed to 2 dimensionally

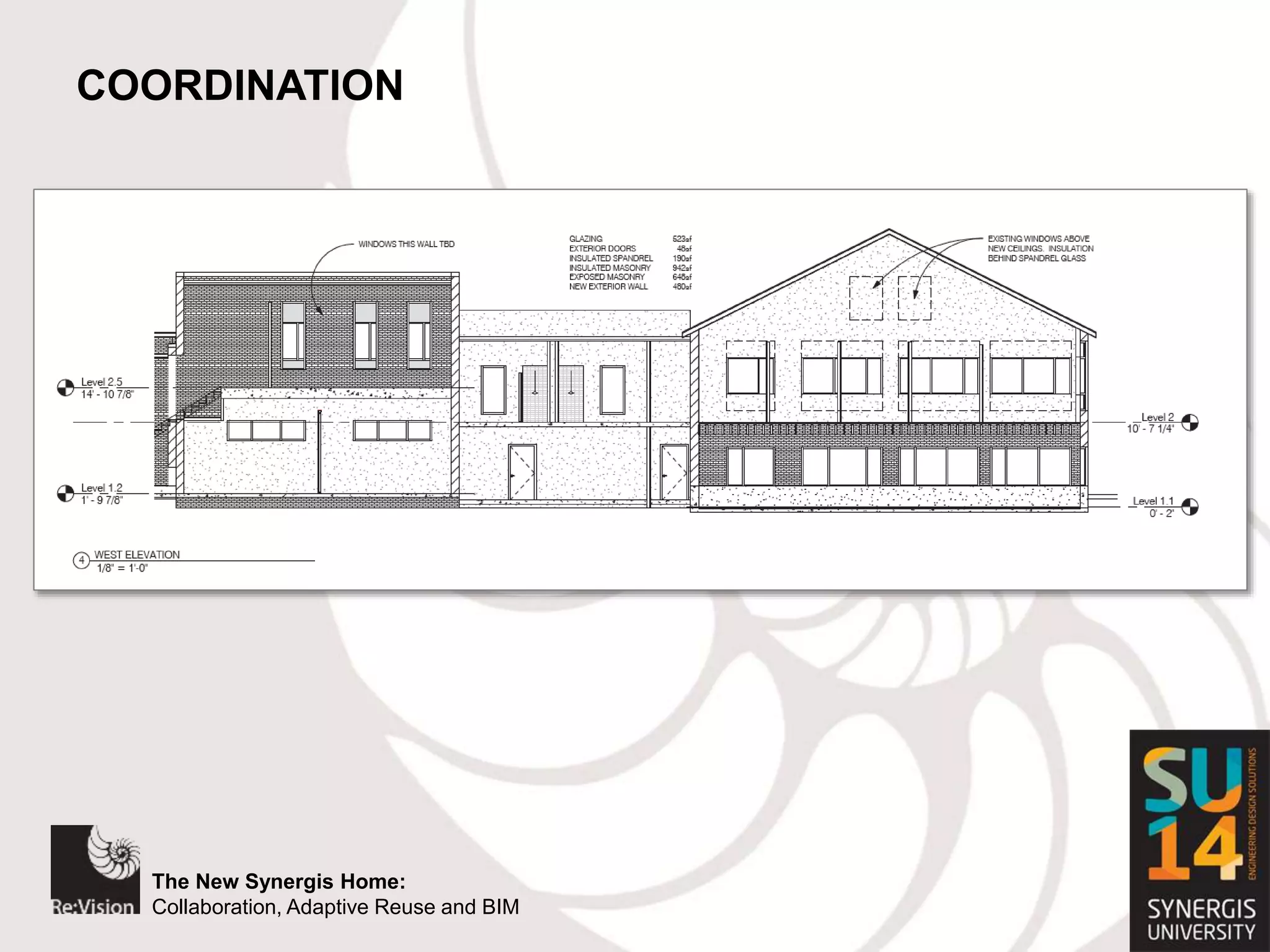

- #38 6,947 sf of masonry wall. Of that 4,342 sf, or 62.5%, is insulated and 2,605 sf, or 37.5%, is uninsulated. Working from the known values we compute that the insulated wall will need to have a U-factor of 0.034 (R-29.4) to achieve an area weighted average Mass Wall U-factor of 0.104. In order to achieve U-0.034, you will need 4” (@R-6/inch) - 5” (@R-5/inch) of spray foam insulation
