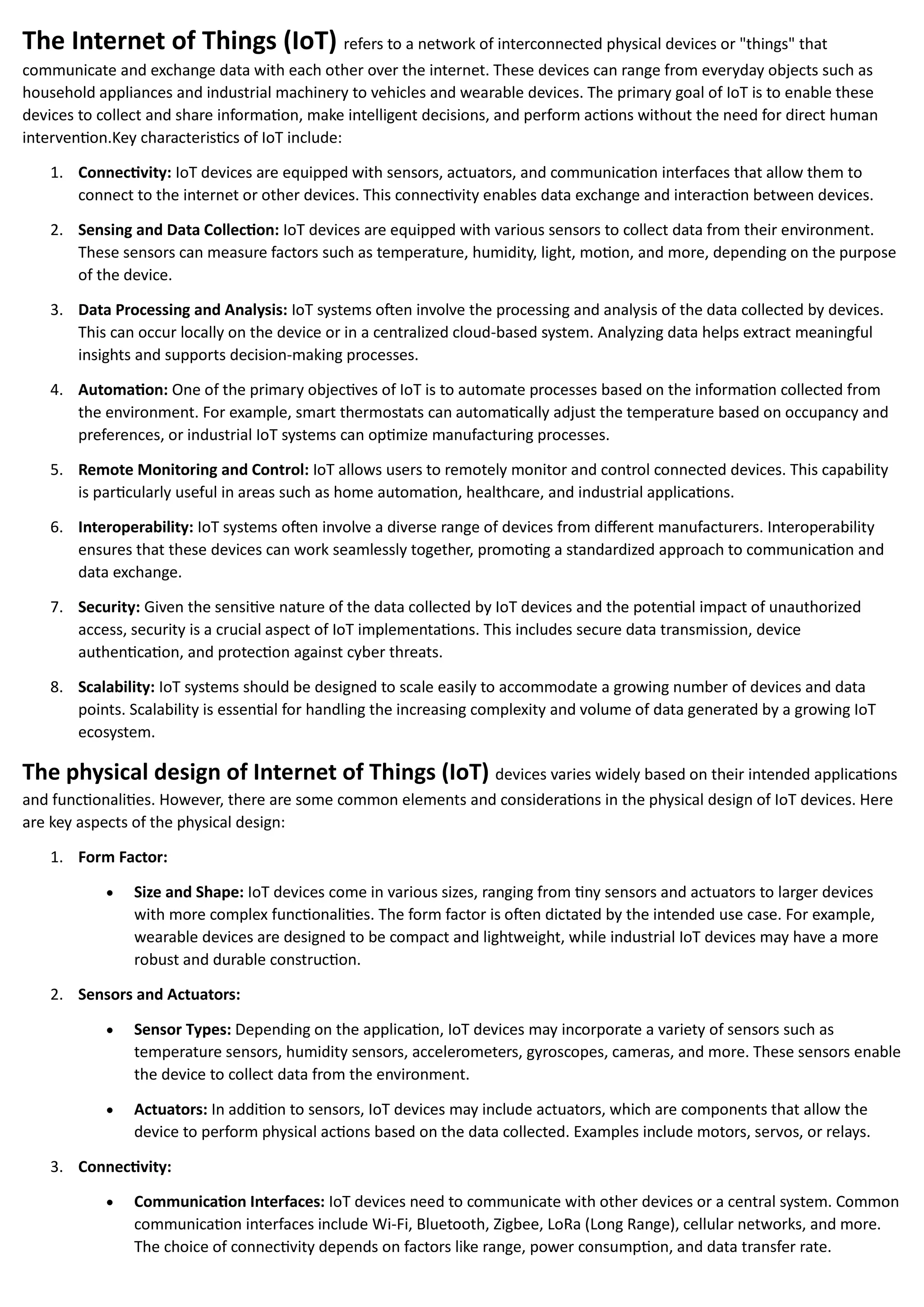

The Internet of Things (IoT) refers to a network of interconnected physical devices or "things" that
communicate and exchange data with each other over the internet. These devices can range from everyday objects such as
household appliances and industrial machinery to vehicles and wearable devices. The primary goal of IoT is to enable these
devices to collect and share information, make intelligent decisions, and perform actions without the need for direct human
intervention.Key characteristics of IoT include:
1. Connectivity: IoT devices are equipped with sensors, actuators, and communication interfaces that allow them to
connect to the internet or other devices. This connectivity enables data exchange and interaction between devices.
2. Sensing and Data Collection: IoT devices are equipped with various sensors to collect data from their environment.
These sensors can measure factors such as temperature, humidity, light, motion, and more, depending on the purpose
of the device.
3. Data Processing and Analysis: IoT systems often involve the processing and analysis of the data collected by devices.
This can occur locally on the device or in a centralized cloud-based system. Analyzing data helps extract meaningful
insights and supports decision-making processes.
4. Automation: One of the primary objectives of IoT is to automate processes based on the information collected from
the environment. For example, smart thermostats can automatically adjust the temperature based on occupancy and
preferences, or industrial IoT systems can optimize manufacturing processes.
5. Remote Monitoring and Control: IoT allows users to remotely monitor and control connected devices. This capability
is particularly useful in areas such as home automation, healthcare, and industrial applications.
6. Interoperability: IoT systems often involve a diverse range of devices from different manufacturers. Interoperability
ensures that these devices can work seamlessly together, promoting a standardized approach to communication and
data exchange.
7. Security: Given the sensitive nature of the data collected by IoT devices and the potential impact of unauthorized
access, security is a crucial aspect of IoT implementations. This includes secure data transmission, device
authentication, and protection against cyber threats.
8. Scalability: IoT systems should be designed to scale easily to accommodate a growing number of devices and data
points. Scalability is essential for handling the increasing complexity and volume of data generated by a growing IoT
ecosystem.
The physical design of Internet of Things (IoT) devices varies widely based on their intended applications
and functionalities. However, there are some common elements and considerations in the physical design of IoT devices. Here
are key aspects of the physical design:
1. Form Factor:
• Size and Shape: IoT devices come in various sizes, ranging from tiny sensors and actuators to larger devices
with more complex functionalities. The form factor is often dictated by the intended use case. For example,
wearable devices are designed to be compact and lightweight, while industrial IoT devices may have a more
robust and durable construction.
2. Sensors and Actuators:
• Sensor Types: Depending on the application, IoT devices may incorporate a variety of sensors such as
temperature sensors, humidity sensors, accelerometers, gyroscopes, cameras, and more. These sensors enable
the device to collect data from the environment.
• Actuators: In addition to sensors, IoT devices may include actuators, which are components that allow the
device to perform physical actions based on the data collected. Examples include motors, servos, or relays.
3. Connectivity:
• Communication Interfaces: IoT devices need to communicate with other devices or a central system. Common
communication interfaces include Wi-Fi, Bluetooth, Zigbee, LoRa (Long Range), cellular networks, and more.
The choice of connectivity depends on factors like range, power consumption, and data transfer rate.

4. Power Source:
• Power Requirements: IoT devices may be powered by batteries, mains electricity, or energy harvesting
methods (such as solar or kinetic energy). The choice of power source depends on factors like the device's
location, intended use, and the availability of power infrastructure.
5. Processing Unit:
• Microcontrollers/Microprocessors: IoT devices typically include a processing unit, often a microcontroller or
microprocessor, which is responsible for data processing and decision-making. The choice of the processing
unit depends on the computational requirements of the device.
6. Memory:
• Storage: IoT devices may include internal memory for storing data locally. This can be important for buffering
data during network outages or for offline functionality. Flash memory is commonly used for this purpose.
7. Environmental Considerations:
• Durability and Robustness: Depending on the deployment environment, IoT devices may need to be resistant
to environmental factors such as moisture, dust, temperature extremes, and physical impact. Industrial IoT
devices, for instance, may require a more rugged design than consumer devices.
8. Security Features:
• Security Measures: Security is a critical aspect of IoT device design. This includes measures such as secure
boot, encryption, and secure communication protocols to protect data and prevent unauthorized access.
9. User Interface:
• User Interaction: Some IoT devices include user interfaces such as displays, buttons, or touchscreens for user
interaction. Others may rely on minimal or no direct user interaction, depending on the application.
10. Scalability:
• Modularity: Some IoT systems are designed with modularity in mind, allowing for easy expansion and
scalability. This is particularly important as the number of connected devices in an IoT ecosystem may grow
over time.
the context of the Internet of Things (IoT), "things" refer to physical devices or objects that are embedded
with sensors, actuators, and other technologies to enable them to connect to the internet, collect and exchange data, and
perform various actions. These things can range from everyday objects to specialized industrial equipment. Here are some
common examples of things in IoT:
1. Smart Appliances:
• Smart Thermostats: Devices that regulate home heating and cooling based on user preferences and
environmental conditions.
• Smart Refrigerators: Refrigerators equipped with sensors to monitor and manage food storage, expiration
dates, and suggest grocery lists.
2. Wearable Devices:
• Smartwatches: Devices that not only tell time but also track health metrics, such as heart rate, steps taken,
and sleep patterns.
• Fitness Trackers: Wearable devices designed to monitor physical activity, exercise, and health-related metrics.
3. Home Automation Devices:
• Smart Lights: Lighting systems that can be controlled remotely and may have features like dimming or
changing color.

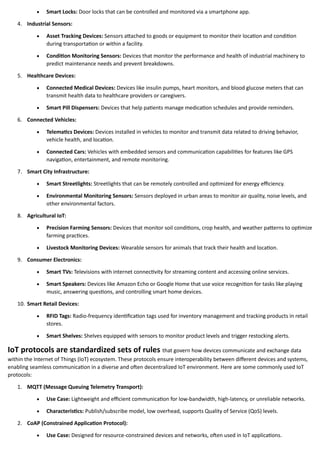

• Smart Locks: Door locks that can be controlled and monitored via a smartphone app.
4. Industrial Sensors:
• Asset Tracking Devices: Sensors attached to goods or equipment to monitor their location and condition
during transportation or within a facility.
• Condition Monitoring Sensors: Devices that monitor the performance and health of industrial machinery to
predict maintenance needs and prevent breakdowns.
5. Healthcare Devices:
• Connected Medical Devices: Devices like insulin pumps, heart monitors, and blood glucose meters that can
transmit health data to healthcare providers or caregivers.
• Smart Pill Dispensers: Devices that help patients manage medication schedules and provide reminders.
6. Connected Vehicles:
• Telematics Devices: Devices installed in vehicles to monitor and transmit data related to driving behavior,
vehicle health, and location.
• Connected Cars: Vehicles with embedded sensors and communication capabilities for features like GPS
navigation, entertainment, and remote monitoring.
7. Smart City Infrastructure:
• Smart Streetlights: Streetlights that can be remotely controlled and optimized for energy efficiency.
• Environmental Monitoring Sensors: Sensors deployed in urban areas to monitor air quality, noise levels, and
other environmental factors.
8. Agricultural IoT:
• Precision Farming Sensors: Devices that monitor soil conditions, crop health, and weather patterns to optimize
farming practices.
• Livestock Monitoring Devices: Wearable sensors for animals that track their health and location.
9. Consumer Electronics:
• Smart TVs: Televisions with internet connectivity for streaming content and accessing online services.
• Smart Speakers: Devices like Amazon Echo or Google Home that use voice recognition for tasks like playing
music, answering questions, and controlling smart home devices.
10. Smart Retail Devices:
• RFID Tags: Radio-frequency identification tags used for inventory management and tracking products in retail
stores.
• Smart Shelves: Shelves equipped with sensors to monitor product levels and trigger restocking alerts.
IoT protocols are standardized sets of rules that govern how devices communicate and exchange data
within the Internet of Things (IoT) ecosystem. These protocols ensure interoperability between different devices and systems,
enabling seamless communication in a diverse and often decentralized IoT environment. Here are some commonly used IoT
protocols:
1. MQTT (Message Queuing Telemetry Transport):
• Use Case: Lightweight and efficient communication for low-bandwidth, high-latency, or unreliable networks.
• Characteristics: Publish/subscribe model, low overhead, supports Quality of Service (QoS) levels.

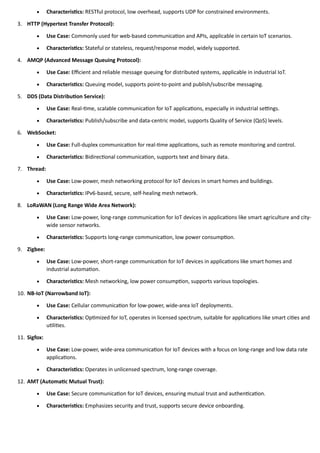

2. CoAP (Constrained Application Protocol):
• Use Case: Designed for resource-constrained devices and networks, often used in IoT applications.

• Characteristics: RESTful protocol, low overhead, supports UDP for constrained environments.
3. HTTP (Hypertext Transfer Protocol):
• Use Case: Commonly used for web-based communication and APIs, applicable in certain IoT scenarios.
• Characteristics: Stateful or stateless, request/response model, widely supported.
4. AMQP (Advanced Message Queuing Protocol):
• Use Case: Efficient and reliable message queuing for distributed systems, applicable in industrial IoT.
• Characteristics: Queuing model, supports point-to-point and publish/subscribe messaging.
5. DDS (Data Distribution Service):
• Use Case: Real-time, scalable communication for IoT applications, especially in industrial settings.
• Characteristics: Publish/subscribe and data-centric model, supports Quality of Service (QoS) levels.
6. WebSocket:
• Use Case: Full-duplex communication for real-time applications, such as remote monitoring and control.
• Characteristics: Bidirectional communication, supports text and binary data.
7. Thread:
• Use Case: Low-power, mesh networking protocol for IoT devices in smart homes and buildings.
• Characteristics: IPv6-based, secure, self-healing mesh network.
8. LoRaWAN (Long Range Wide Area Network):
• Use Case: Low-power, long-range communication for IoT devices in applications like smart agriculture and city-
wide sensor networks.
• Characteristics: Supports long-range communication, low power consumption.
9. Zigbee:
• Use Case: Low-power, short-range communication for IoT devices in applications like smart homes and
industrial automation.
• Characteristics: Mesh networking, low power consumption, supports various topologies.
10. NB-IoT (Narrowband IoT):
• Use Case: Cellular communication for low-power, wide-area IoT deployments.
• Characteristics: Optimized for IoT, operates in licensed spectrum, suitable for applications like smart cities and
utilities.
11. Sigfox:
• Use Case: Low-power, wide-area communication for IoT devices with a focus on long-range and low data rate
applications.
• Characteristics: Operates in unlicensed spectrum, long-range coverage.
12. AMT (Automatic Mutual Trust):
• Use Case: Secure communication for IoT devices, ensuring mutual trust and authentication.
• Characteristics: Emphasizes security and trust, supports secure device onboarding.

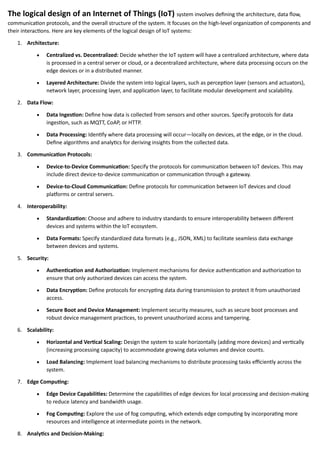

The logical design of an Internet of Things (IoT) system involves defining the architecture, data flow,
communication protocols, and the overall structure of the system. It focuses on the high-level organization of components and
their interactions. Here are key elements of the logical design of IoT systems:
1. Architecture:
• Centralized vs. Decentralized: Decide whether the IoT system will have a centralized architecture, where data
is processed in a central server or cloud, or a decentralized architecture, where data processing occurs on the
edge devices or in a distributed manner.
• Layered Architecture: Divide the system into logical layers, such as perception layer (sensors and actuators),
network layer, processing layer, and application layer, to facilitate modular development and scalability.
2. Data Flow:
• Data Ingestion: Define how data is collected from sensors and other sources. Specify protocols for data
ingestion, such as MQTT, CoAP, or HTTP.
• Data Processing: Identify where data processing will occur—locally on devices, at the edge, or in the cloud.
Define algorithms and analytics for deriving insights from the collected data.
3. Communication Protocols:
• Device-to-Device Communication: Specify the protocols for communication between IoT devices. This may
include direct device-to-device communication or communication through a gateway.
• Device-to-Cloud Communication: Define protocols for communication between IoT devices and cloud
platforms or central servers.
4. Interoperability:
• Standardization: Choose and adhere to industry standards to ensure interoperability between different
devices and systems within the IoT ecosystem.
• Data Formats: Specify standardized data formats (e.g., JSON, XML) to facilitate seamless data exchange
between devices and systems.
5. Security:
• Authentication and Authorization: Implement mechanisms for device authentication and authorization to
ensure that only authorized devices can access the system.
• Data Encryption: Define protocols for encrypting data during transmission to protect it from unauthorized
access.
• Secure Boot and Device Management: Implement security measures, such as secure boot processes and
robust device management practices, to prevent unauthorized access and tampering.
6. Scalability:
• Horizontal and Vertical Scaling: Design the system to scale horizontally (adding more devices) and vertically
(increasing processing capacity) to accommodate growing data volumes and device counts.
• Load Balancing: Implement load balancing mechanisms to distribute processing tasks efficiently across the
system.
7. Edge Computing:
• Edge Device Capabilities: Determine the capabilities of edge devices for local processing and decision-making
to reduce latency and bandwidth usage.
• Fog Computing: Explore the use of fog computing, which extends edge computing by incorporating more
resources and intelligence at intermediate points in the network.
8. Analytics and Decision-Making:

• Define Use Cases: Specify the use cases for analytics and decision-making. Identify key performance indicators
(KPIs) and metrics that need to be monitored and analyzed.
• Machine Learning and AI: Integrate machine learning algorithms and artificial intelligence (AI) models for
predictive analytics and intelligent decision-making.
9. User Interfaces:
• Dashboard and Visualization: Design user interfaces, dashboards, and visualization tools for end-users or
system administrators to monitor and interact with the IoT system.
• Alerts and Notifications: Define mechanisms for generating alerts and notifications based on predefined
thresholds or events.
10. Reliability and Redundancy:
• Failover Mechanisms: Implement failover mechanisms to ensure continuous operation in the event of device
failures or network issues.
• Redundancy: Consider redundancy in critical components to enhance system reliability.
The functional blocks in an Internet of Things (IoT) system represent distinct components or modules
that work together to enable the various functionalities of the system. These blocks handle tasks such as data acquisition,
communication, processing, and user interaction. The specific design and composition of these blocks can vary based on the
application and use case. Here are common functional blocks in an IoT system:
1. Sensors and Actuators:
• Sensors: Devices that collect data from the environment. Examples include temperature sensors, humidity
sensors, motion sensors, and cameras.
• Actuators: Devices that perform physical actions based on commands from the system. Examples include
motors, servos, and relays.
2. Communication Module:
• Handles the transmission and reception of data between IoT devices and other parts of the system.
• Manages communication protocols, such as MQTT, CoAP, HTTP, or others, depending on the requirements of
the application.
3. Edge Devices:
• Responsible for processing data locally on the device or at the edge of the network.
• May involve running algorithms, filtering data, and making initial decisions before transmitting data to the
central system.
4. Gateway:
• Aggregates data from multiple devices in a local area and forwards it to the central system or cloud.
• May perform protocol translation, data preprocessing, and some level of local analytics.
5. Cloud or Central System:
• Cloud Platform: Hosts the central system in the cloud, allowing for scalable and centralized data storage and
processing.
• Central Server: Manages the overall coordination of the IoT system, including data storage, analytics, and
interaction with end-users or other systems.
6. Data Storage:
• Stores the collected data for historical analysis, reporting, and compliance.

• May involve databases, data lakes, or other storage solutions, depending on the volume and nature of the
data.
7. Analytics and Decision-Making:
• Data Analytics Engine: Processes and analyzes the collected data to derive meaningful insights.
• Decision-Making Module: Utilizes analytics results to make intelligent decisions or trigger actions within the
system.
8. Security Module:
• Authentication: Ensures that only authorized devices can access the system.
• Encryption: Secures data during transmission to protect it from unauthorized access.
• Device Management: Manages the security of IoT devices, including secure onboarding and updates.
9. User Interface (UI):
• Dashboard: Provides a visual representation of data and system status.
• Control Interfaces: Allows users to interact with and control IoT devices or view analytics results.
10. Application Programming Interface (API):
• Facilitates integration with third-party applications and services.
• Allows external systems to interact with the IoT system programmatically.
11. Device Management:
• Configuration and Updates: Manages the configuration and software updates of IoT devices.
• Monitoring: Monitors the health and status of devices in the system.
12. Network Infrastructure:
• Connectivity: Provides the underlying network infrastructure, whether it's Wi-Fi, cellular networks, LPWAN, or
other communication technologies.
• Routing and Switching: Ensures the efficient transmission of data between devices and the central system.
In the Internet of Things (IoT), communication models define how devices exchange information
with each other and with central systems or cloud platforms. The choice of communication model depends on factors such as
the nature of the application, network constraints, and the specific requirements of the IoT deployment. Here are some
common IoT communication models:
1. Device-to-Device (D2D) Communication:
• Description: In this model, IoT devices communicate directly with each other without intermediaries. It is a
peer-to-peer communication model.
• Use Case: Local interactions between devices within close proximity, such as smart home devices sharing
information.
2. Device-to-Gateway (D2G) Communication:
• Description: IoT devices communicate with a gateway device, which serves as an intermediary between the
devices and the central system or cloud.
• Use Case: Common in scenarios where devices have limited processing power or connectivity, and a gateway
helps aggregate and forward data to the cloud.
3. Device-to-Cloud (D2C) Communication:
• Description: IoT devices communicate directly with a central cloud platform or server. Data is sent to and
received from the cloud for processing and storage.

• Use Case: Suitable for applications where real-time or periodic data transfer to a centralized system is
required, such as in industrial monitoring or smart city deployments.
4. Fog Computing:
• Description: Fog computing extends the cloud computing paradigm to the edge of the network. In this model,
processing and analysis are performed closer to the data source, reducing latency and bandwidth usage.
• Use Case: Real-time applications where quick decision-making is critical, such as in autonomous vehicles or
industrial automation.
5. Edge-to-Cloud Communication:
• Description: In this hybrid model, some processing occurs on edge devices, and data is transmitted to the
cloud for more extensive analysis and storage.
• Use Case: Combines the benefits of edge computing (low latency) with the scalability and storage capabilities
of the cloud, suitable for applications with diverse computational requirements.
6. Mesh Networking:
• Description: Devices form a mesh network where each device can communicate with nearby devices,
potentially relaying messages to extend the range of communication.
• Use Case: Common in applications like smart homes, where devices collaborate to form a self-healing and
resilient network.
7. Cellular Communication:
• Description: IoT devices communicate using cellular networks (2G, 3G, 4G, or 5G), allowing for wide-area
coverage and reliable connectivity.
• Use Case: Suitable for applications like asset tracking, vehicle telematics, or smart agriculture where devices
are spread across large geographical areas.
8. Satellite Communication:
• Description: IoT devices communicate via satellite links, providing connectivity in remote or inaccessible
locations.
• Use Case: Applications such as environmental monitoring in remote areas, maritime tracking, or precision
agriculture in rural locations.
9. LPWAN (Low-Power Wide-Area Network) Communication:
• Description: LPWAN technologies, such as LoRaWAN or NB-IoT, provide long-range communication with low
power consumption, making them suitable for applications with constrained devices and low data rate
requirements.
• Use Case: Applications like smart agriculture, smart cities, or industrial monitoring.
10. Near Field Communication (NFC):
• Description: Short-range wireless communication technology that allows devices to exchange data when in
close proximity.
• Use Case: Common in applications like contactless payments, access control systems, or pairing devices.
Wireless Sensor Networks (WSNs) are networks of spatially distributed sensors that communicate with each
other and possibly with a central server or data sink, typically using wireless communication. These networks are designed to
monitor and collect data from the environment, and they find applications in various fields such as environmental monitoring,
healthcare, industrial automation, agriculture, and more. Here are key characteristics and components of Wireless Sensor
Networks:
1. Sensor Nodes:

• Description: Individual devices equipped with sensors to measure physical quantities such as temperature,
humidity, light, pressure, or other environmental parameters.
• Function: Collect data from the environment and transmit it to other nodes or a central server.
2. Communication:
• Wireless Communication: Sensor nodes communicate with each other through wireless links, allowing for
flexibility in deployment and reducing the need for complex wiring.
• Communication Protocols: WSNs use specific communication protocols designed for low-power, short-range,
and reliable communication. Examples include Zigbee, Bluetooth Low Energy (BLE), and various custom
protocols.
3. Network Topology:
• Mesh Topology: Sensor nodes often form a mesh network, allowing nodes to communicate with neighboring
nodes. This provides redundancy and ensures robustness in case of node failures.
• Star Topology: In some deployments, nodes may communicate directly with a central base station in a star-like
configuration.
4. Data Aggregation:
• Aggregation Nodes: In larger WSNs, aggregation nodes may be deployed to collect data from multiple sensors
and transmit aggregated data to a central server. This reduces the amount of data transmitted over the
network.
5. Power Management:
• Low Power Design: Sensor nodes are typically battery-powered, and energy efficiency is crucial for extending
the network's lifespan. Nodes often enter sleep mode to conserve power when not actively sensing or
communicating.
• Energy Harvesting: Some WSNs use energy harvesting techniques, such as solar or kinetic energy, to
supplement or replace battery power.
6. Localization:
• Localization Techniques: Knowing the physical location of sensor nodes is essential in many applications. WSNs
use techniques such as GPS, triangulation, or received signal strength (RSS) to estimate the location of nodes.
7. Security:
• Security Protocols: WSNs face security challenges due to their distributed nature. Encryption, authentication,
and secure key management are essential for protecting data and ensuring the integrity of the network.
8. Applications:
• Environmental Monitoring: WSNs are widely used for monitoring environmental parameters such as air
quality, temperature, and humidity.
• Healthcare: In healthcare, WSNs can be deployed for patient monitoring, tracking vital signs, and managing
medical equipment.
• Industrial Automation: WSNs find applications in industrial settings for monitoring equipment, detecting
faults, and optimizing processes.
• Smart Agriculture: WSNs help in precision agriculture by monitoring soil conditions, weather, and crop health.
9. Challenges:
• Limited Resources: Sensor nodes have limited processing power, memory, and communication bandwidth.
• Dynamic Environments: WSNs often operate in dynamic and unpredictable environments, posing challenges
for network stability and reliability.

• Data Fusion and Aggregation: Aggregating data from multiple nodes while preserving accuracy is a challenging
task.
10. Research Areas:
• Routing Algorithms: Developing efficient routing algorithms to optimize data transmission and minimize
energy consumption.
• Fault Tolerance: Designing mechanisms to cope with node failures and ensure the reliability of the network.
• Data Compression: Implementing techniques for compressing and aggregating data to reduce the amount of
transmitted information
Cloud computing is a technology paradigm that involves the delivery of computing services, including servers, storage,
databases, networking, analytics, software, and intelligence, over the internet to offer faster innovation, flexible resources, and
economies of scale. In cloud computing, users can access and utilize computing resources on-demand without the need for
direct management of physical infrastructure. Here are key components and characteristics of cloud computing:
1. Service Models:
• Infrastructure as a Service (IaaS): Provides virtualized computing resources over the internet. Users can rent
virtual machines, storage, and networking components. Examples include Amazon Web Services (AWS) EC2
and Microsoft Azure Virtual Machines.
• Platform as a Service (PaaS): Offers a platform that allows developers to build, deploy, and manage
applications without dealing with the complexity of infrastructure. Examples include Google App Engine and
Heroku.
• Software as a Service (SaaS): Delivers software applications over the internet, eliminating the need for users
to install, maintain, and update software locally. Examples include Salesforce, Microsoft 365, and Google
Workspace.
2. Deployment Models:
• Public Cloud: Services are provided over the internet and are available to anyone who wants to purchase or
use them. Examples include AWS, Microsoft Azure, and Google Cloud Platform.
• Private Cloud: Cloud infrastructure is used exclusively by a single organization. It can be hosted on-premises or
by a third-party provider. Private clouds offer more control over security and customization.
• Hybrid Cloud: Combines public and private cloud environments, allowing data and applications to be shared
between them. This model provides greater flexibility and optimization of existing infrastructure.
3. Essential Characteristics:
• On-Demand Self-Service: Users can provision and manage computing resources as needed without requiring
human intervention from the service provider.
• Broad Network Access: Cloud services are accessible over the network using standard mechanisms, promoting
widespread availability.
• Resource Pooling: Computing resources are pooled to serve multiple customers, with different physical and
virtual resources dynamically assigned and reassigned based on demand.
• Rapid Elasticity: Resources can be quickly scaled up or down to handle varying workloads. Users only pay for
the resources they use.
• Measured Service: Cloud computing resources are metered, and usage is monitored, controlled, and reported.
This pay-as-you-go model allows users to be billed based on their actual usage.
4. Benefits of Cloud Computing:
• Cost Savings: Eliminates the need for upfront investments in hardware and reduces maintenance costs. Users
pay for resources as needed.

• Scalability and Flexibility: Easily scales resources up or down based on demand. Provides flexibility to adapt to
changing business requirements.
• Accessibility and Collaboration: Enables access to data and applications from anywhere with an internet
connection, fostering collaboration and remote work.
• Automatic Updates: Service providers handle updates and maintenance, ensuring that users have access to
the latest features and security patches.
• Security: Cloud providers invest heavily in security measures, often providing more robust security than
individual organizations can achieve on their own.
5. Cloud Service Models:
• Compute Services: Include virtual machines, containers, and serverless computing offerings.
• Storage Services: Offer scalable and durable storage solutions, including object storage, file storage, and
database storage.
• Database Services: Provide managed database solutions, such as relational databases, NoSQL databases, and
data warehousing.
• Networking Services: Include services for virtual networks, content delivery, load balancing, and security.
• Analytics and Machine Learning Services: Offer tools for data analysis, machine learning, and artificial
intelligence.
• Identity and Access Management (IAM): Manage user access, authentication, and authorization to cloud
resources.
• Internet of Things (IoT) Services: Support the development and management of IoT applications and devices.
Big data analysis refers to the process of examining and extracting insights from large and complex datasets that
cannot be easily managed, processed, or analyzed with traditional data processing tools. The term "big data" is used to
describe datasets that are characterized by the three Vs: Volume, Velocity, and Variety. Big data analysis involves utilizing
advanced analytics techniques to uncover patterns, trends, correlations, and other valuable information within these massive
datasets. Here are key aspects of big data analysis:
1. The Three Vs of Big Data:
• Volume: Big data involves large amounts of data that exceed the capacity of traditional database systems. The
sheer volume of data is a defining characteristic of big data.
• Velocity: Data in big data environments is generated, processed, and updated at high speeds. Real-time or
near-real-time processing is often necessary to keep up with the pace of data generation.
• Variety: Big data comes in various formats and types, including structured, semi-structured, and unstructured
data. It includes text, images, videos, log files, sensor data, and more.
2. Data Storage and Management:
• Distributed Storage: Big data is typically stored across distributed file systems or databases to handle large
volumes of data. Examples include Hadoop Distributed File System (HDFS) and Amazon S3.
• NoSQL Databases: NoSQL databases are commonly used for handling unstructured or semi-structured data.
Examples include MongoDB, Cassandra, and Couchbase.
3. Data Processing Frameworks:
• Hadoop: An open-source framework for distributed storage and processing of big data. Hadoop MapReduce is
a programming model for processing and generating large datasets.
• Spark: An in-memory data processing engine that provides faster and more flexible big data processing
compared to Hadoop. Spark supports batch processing, interactive queries, streaming, and machine learning.
4. Analytics and Machine Learning:

• Descriptive Analytics: Involves summarizing and describing historical data to understand what has happened.
• Predictive Analytics: Utilizes statistical algorithms and machine learning models to make predictions about
future events based on historical data.
• Prescriptive Analytics: Recommends actions to optimize outcomes based on analysis and predictions.
5. Data Visualization:
• Charts and Graphs: Representing data visually to facilitate understanding and interpretation.
• Dashboards: Consolidating and displaying key metrics and insights in a centralized interface.
• Interactive Tools: Allowing users to explore and interact with the data for deeper analysis.
6. Challenges in Big Data Analysis:
• Data Quality: Ensuring the accuracy, completeness, and reliability of large datasets.
• Scalability: Handling the increasing volume of data and scaling computational resources to meet processing
demands.
• Security and Privacy: Safeguarding sensitive data and ensuring compliance with privacy regulations.
• Complexity: Dealing with the diversity of data types, sources, and formats.
7. Use Cases:
• Business Intelligence: Extracting insights to inform business decision-making.
• Healthcare Analytics: Analyzing patient data for personalized treatment plans and predictive medicine.
• Financial Fraud Detection: Identifying patterns indicative of fraudulent activities.
• Supply Chain Optimization: Analyzing data to enhance efficiency and reduce costs in the supply chain.
• Social Media Analytics: Analyzing user behavior and sentiment on social media platforms.
8. Tools and Technologies:
• Apache Hadoop: Distributed storage and processing framework.
• Apache Spark: In-memory data processing engine.
• Hive and Pig: High-level languages for querying and analyzing data stored in Hadoop.
• Tableau, Power BI: Data visualization tools.
• Python (with libraries like Pandas, NumPy, and Scikit-learn): Programming language and libraries for data
analysis and machine learning.
Communication protocols play a crucial role in embedded systems, enabling devices to exchange data and
information efficiently. Embedded systems are specialized computing systems that are part of larger systems or products, and
they often have resource constraints such as limited processing power, memory, and energy. Here are some common
communication protocols used in embedded systems:
1. I2C (Inter-Integrated Circuit):
• Description: I2C is a serial communication protocol that allows multiple devices to be connected on the same
bus. It uses two wires for communication (clock and data) and supports multi-master communication.
• Use Cases: Commonly used for communication between sensors, microcontrollers, and other low-to-medium-
speed peripherals in embedded systems.
2. SPI (Serial Peripheral Interface):

• Description: SPI is a synchronous serial communication protocol that involves a master device and one or
more slave devices. It uses multiple wires for communication (MISO, MOSI, SCLK, and CS) and supports high-
speed data transfer.
• Use Cases: Often used for communication between microcontrollers and peripherals like sensors, displays, and
memory devices.
3. UART (Universal Asynchronous Receiver/Transmitter):
• Description: UART is a simple asynchronous serial communication protocol that uses two wires for data
transmission (TX and RX). It allows for point-to-point communication between devices.
• Use Cases: Widely used for serial communication between devices, including communication between
microcontrollers and external modules like GPS modules, Bluetooth modules, and sensors.
4. CAN (Controller Area Network):
• Description: CAN is a robust and reliable serial communication protocol designed for real-time applications in
automotive and industrial environments. It supports multi-master communication and is known for its high
noise immunity.
• Use Cases: Commonly used in automotive systems for communication between electronic control units (ECUs)
and in industrial automation for distributed control systems.
5. MODBUS:
• Description: MODBUS is a widely used serial communication protocol in industrial automation. It can be
implemented over RS-232, RS-485, or TCP/IP and supports master-slave communication.
• Use Cases: Used for communication between programmable logic controllers (PLCs), sensors, and other
industrial devices.
6. Ethernet:
• Description: Ethernet is a widely used networking protocol for wired communication. It operates over a variety
of physical layers, such as twisted pair cables and fiber optics, and supports the TCP/IP protocol stack.
• Use Cases: Embedded systems that require high-speed communication and connectivity to local area networks
(LANs) or the internet.
7. Bluetooth and BLE (Bluetooth Low Energy):
• Description: Bluetooth is a wireless communication protocol designed for short-range communication
between devices. BLE is a power-efficient version of Bluetooth suitable for low-power embedded systems.
• Use Cases: Used in applications such as wireless communication between embedded systems, IoT devices, and
human-machine interfaces.
8. Wi-Fi:
• Description: Wi-Fi is a wireless communication protocol that enables high-speed data transfer over a local area
network. It is commonly used in embedded systems for wireless connectivity.
• Use Cases: Embedded systems requiring internet connectivity, such as smart home devices, IoT devices, and
industrial sensors.
9. MQTT (Message Queuing Telemetry Transport):
• Description: MQTT is a lightweight and efficient messaging protocol designed for low-bandwidth, high-latency,
or unreliable networks. It is commonly used in IoT applications.
• Use Cases: Embedded systems communicating in IoT networks, where low overhead and efficient message
queuing are important.
10. LoRa (Long Range):

• Description: LoRa is a wireless communication protocol designed for long-range communication with low
power consumption. It is suitable for applications like long-range sensor networks.
• Use Cases: Embedded systems in IoT applications that require long-range communication, such as smart
agriculture or smart city deployments.
Deploying an Internet of Things (IoT) solution involves planning and implementing a structured deployment
process. While the specific details of an IoT deployment vary based on the application and requirements, here's a template
that outlines the key steps and considerations:
IoT Deployment Template
1. Define Objectives and Scope:
• Clearly outline the goals and objectives of the IoT deployment.
• Define the scope of the project, including the number of devices, geographical coverage, and expected outcomes.
2. Assessment of Existing Infrastructure:
• Evaluate the current infrastructure and identify any existing systems that can be integrated into the IoT solution.
• Assess the compatibility and readiness of the network, sensors, and other components.
3. Device Selection and Procurement:
• Identify and select the appropriate IoT devices (sensors, actuators, gateways) based on the application requirements.
• Establish relationships with vendors or manufacturers for device procurement.
4. Connectivity Planning:
• Determine the communication protocols and technologies (e.g., MQTT, CoAP, LoRa, Wi-Fi) based on the use case and
network requirements.
• Plan for network connectivity, considering bandwidth, range, and scalability.
5. Data Security and Privacy:
• Develop a comprehensive security strategy, including encryption, authentication, and access control measures.
• Ensure compliance with data protection and privacy regulations.
6. Platform and Cloud Selection:
• Choose an IoT platform or cloud service provider based on the project requirements.
• Consider factors such as scalability, data storage, analytics capabilities, and integration options.
7. Application Development:
• Develop or customize applications for data collection, processing, and visualization.
• Implement edge computing if necessary for local data processing.
8. Integration with Existing Systems:
• Integrate the IoT solution with existing enterprise systems, databases, and third-party applications.
• Ensure seamless communication and data flow between IoT components and other systems.
9. Testing and Quality Assurance:
• Conduct thorough testing of the entire IoT ecosystem, including devices, connectivity, data processing, and application
functionality.
• Perform load testing, security testing, and validate against use case scenarios.
10. Deployment Plan:

• Develop a deployment plan that includes a schedule, resource allocation, and contingency measures.
• Consider a phased deployment approach if applicable, starting with a pilot or small-scale implementation.
11. Training and Documentation:
• Provide training sessions for personnel involved in the operation and maintenance of the IoT solution.
• Create comprehensive documentation, including user manuals, troubleshooting guides, and system architecture
documentation.
12. Monitoring and Maintenance:
• Implement a robust monitoring system to track the performance of devices, connectivity, and applications.
• Establish a maintenance plan for regular updates, security patches, and addressing hardware or software issues.
13. Scalability Planning:
• Plan for future scalability by designing the system to accommodate an increasing number of devices and data volume.
• Consider the potential need for hardware upgrades or additional infrastructure.
14. User Acceptance Testing (UAT):
• Conduct user acceptance testing to validate that the IoT solution meets the requirements and expectations of end-
users.
• Gather feedback and make necessary adjustments.
15. Deployment Rollout:
• Execute the deployment plan according to the defined schedule.
• Monitor the deployment closely and address any issues or challenges that arise.
16. Post-Deployment Evaluation:
• Evaluate the success of the deployment against predefined objectives.
• Collect performance metrics, user feedback, and lessons learned for continuous improvement.
17. Documentation Update:
• Update documentation with any changes made during the deployment process.
• Maintain accurate records for future reference and auditing.
MODULE 2
Home Automation:
1. Smart Lighting:
• Description: Control and automate lighting systems using sensors, timers, or smartphone apps.
• Benefits: Energy savings, customization of lighting scenes, and increased security through automated schedules.
2. Smart Appliances:
• Description: Appliances (e.g., refrigerators, ovens, thermostats) connected to the internet for remote monitoring and
control.
• Benefits: Energy efficiency, remote management, and integration with other smart home devices.
3. Intrusion Detection:
• Description: Use sensors, cameras, or motion detectors to detect unauthorized access or intruders.
• Benefits: Improved security, real-time alerts, and integration with home security systems.

4. Smoke/Gas Detectors:
• Description: Smart detectors connected to a network for real-time monitoring and alerts.
• Benefits: Early detection of potential hazards, remote alerts, and integration with emergency services.
Smart Cities:
1. Smart Parking:
• Description: Utilize sensors and IoT devices to monitor parking space availability in real-time.
• Benefits: Reduced traffic congestion, optimized parking space utilization, and improved user experience.
2. Smart Lighting:
• Description: Energy-efficient and adaptive street lighting systems that respond to real-time conditions.
• Benefits: Reduced energy consumption, increased safety, and enhanced visibility.
3. Smart Roads:
• Description: Incorporate sensors and technology into road infrastructure for real-time traffic management.
• Benefits: Improved traffic flow, reduced congestion, and enhanced safety through adaptive road systems.
4. Structural Health Monitoring:
• Description: Use sensors to monitor the structural health of buildings, bridges, and other infrastructure.
• Benefits: Early detection of structural issues, predictive maintenance, and improved safety.
5. Surveillance:
• Description: Implement intelligent surveillance systems using cameras and analytics for real-time monitoring.
• Benefits: Enhanced security, rapid response to incidents, and deterrence of criminal activities.
6. Emergency Response:
• Description: Integration of IoT devices, sensors, and communication systems for quick response during emergencies.
• Benefits: Improved coordination among emergency services, real-time data for decision-making, and enhanced public
safety.
Common Technologies:
- Wireless Communication:
• Description: Utilize wireless communication protocols (e.g., Wi-Fi, Zigbee, LoRa) for connectivity between devices and
systems.
- IoT Platforms:
• Description: Deploy IoT platforms for data aggregation, analytics, and management of connected devices.
- Data Analytics and AI:
• Description: Analyze data from sensors and devices to derive meaningful insights, optimize operations, and enable
predictive capabilities.
- Cloud Computing:
• Description: Leverage cloud services for scalable storage, processing, and management of data generated by smart
devices.
- Mobile Apps:
• Description: Develop mobile applications to enable users to control and monitor smart home devices or access city
services.

- Cybersecurity Measures:
• Description: Implement robust cybersecurity protocols to protect against unauthorized access and ensure data privacy.
Environmental monitoring using IoT technologies plays a crucial role in assessing and managing various aspects
of the environment. Here's an overview of applications related to weather, air pollution, noise pollution, forest fire detection,
and river flood detection:
Weather Monitoring:
1. Description:
• Utilize IoT sensors to collect real-time data on weather conditions such as temperature, humidity, wind speed, and
precipitation.
2. Benefits:
• Early detection of severe weather events.
• Improved accuracy in weather forecasting.
• Enhanced understanding of local climate patterns.
Air Pollution Monitoring:
1. Description:
• Deploy sensors to measure air quality indicators such as particulate matter (PM), nitrogen dioxide (NO2), sulfur dioxide
(SO2), ozone (O3), and carbon monoxide (CO).
2. Benefits:
• Real-time monitoring of air quality.
• Identification of pollution sources.
• Health alerts and recommendations based on air quality.
Noise Pollution Monitoring:
1. Description:
• Utilize IoT devices to measure and monitor noise levels in different areas.
2. Benefits:
• Identification of noise pollution sources.
• Implementation of noise control measures.
• Compliance monitoring with noise regulations.
Forest Fire Detection:
1. Description:
• Use a network of sensors, cameras, and IoT devices to detect and monitor forest fires in real-time.
2. Benefits:
• Early detection and rapid response to forest fires.
• Prevention of uncontrolled spread and damage.
• Improved safety for wildlife and nearby communities.
River Floods Detection:
1. Description:

• Deploy sensors along riverbanks to monitor water levels, rainfall, and other relevant parameters.
2. Benefits:
• Early warning systems for flood-prone areas.
• Improved disaster preparedness and response.
• Monitoring of river conditions to prevent flooding.
- IoT Sensors:
• Deploy a variety of sensors (temperature, humidity, gas, sound, water level) to collect environmental data.
- Wireless Communication:
• Utilize wireless communication protocols (e.g., LoRa, NB-IoT) for connectivity between sensors and data collection
points.
- Data Analytics:
• Analyze collected data to identify patterns, trends, and anomalies.
• Implement predictive modeling for early warning systems.
- Cloud Computing:
• Store and process large volumes of data in the cloud for scalability and accessibility.
- Machine Learning:
• Implement machine learning algorithms to enhance the accuracy of anomaly detection and prediction models.
- Geographic Information System (GIS):
• Integrate GIS technology for spatial analysis and mapping of environmental data.
- Remote Sensing:
• Use satellite and aerial imagery for broader-scale monitoring and analysis.
- Mobile Apps:
• Develop mobile applications to provide real-time environmental information to users.
- Emergency Alert Systems:
• Integrate with emergency alert systems to disseminate timely information to the public.
Energy, retail, and prognostics can benefit significantly from the integration of Internet of Things (IoT) technologies.
Here's an overview of applications in each domain:
Energy:
1. Smart Grids:
• Description: Utilize IoT devices, sensors, and communication networks to enhance the efficiency, reliability, and
sustainability of electrical grids.
• Benefits:
• Real-time monitoring of electricity usage.
• Integration of renewable energy sources.
• Quick identification and response to faults.
2. Renewable Energy Systems:

• Description: Implement IoT devices and sensors to monitor and optimize renewable energy sources such as solar
panels and wind turbines.
• Benefits:
• Improved energy production efficiency.
• Predictive maintenance for renewable energy assets.
• Integration with smart grids for better energy management.
3. Prognostics:
• Description: Use IoT sensors and data analytics to predict the maintenance needs and lifespan of energy infrastructure
components.
• Benefits:
• Reduction in downtime through predictive maintenance.
• Improved asset management and planning.
• Cost savings through efficient maintenance scheduling.
Retail:
1. Inventory Management:
• Description: Implement RFID tags, sensors, and IoT devices to monitor and manage inventory in real-time.
• Benefits:
• Reduction in out-of-stock situations.
• Improved inventory accuracy.
• Efficient supply chain management.
2. Smart Payments:
• Description: Integrate IoT technologies for contactless payments, mobile payments, and transaction tracking.
• Benefits:
• Faster and more convenient payment processes.
• Enhanced security through biometrics and encryption.
• Integration with loyalty programs.
3. Smart Vending Machines:
• Description: Equip vending machines with sensors, cameras, and connectivity for real-time inventory monitoring and
customer interaction.
• Benefits:
• Efficient restocking and maintenance.
• Personalized customer experiences.
• Integration with mobile apps for seamless transactions.
- IoT Sensors and Devices:
• Deploy various sensors (temperature, motion, RFID) and devices to collect data in real-time.
- Wireless Connectivity:

• Use wireless communication protocols (e.g., NFC, Bluetooth, Wi-Fi) for seamless connectivity.
- Data Analytics:
• Analyze data to derive insights for energy consumption, inventory trends, and customer behavior.
- Cloud Computing:
• Utilize cloud services for scalable storage, processing, and analysis of large datasets.
- Machine Learning:
• Implement machine learning algorithms for demand forecasting, predictive maintenance, and personalized customer
recommendations.
- Mobile Apps:
• Develop mobile applications for remote monitoring, payments, and customer engagement.
- Blockchain Technology:
• Enhance security and transparency in transactions, particularly in smart payments.
- Augmented Reality (AR) and Virtual Reality (VR):
• Implement AR and VR technologies for immersive customer experiences and training.
- Edge Computing:
• Process data closer to the source (e.g., at vending machines or renewable energy systems) for reduced latency and
improved efficiency.
In agriculture, the integration of Internet of Things (IoT) technologies has led to the development of smart farming
practices, enhancing efficiency, resource utilization, and overall crop yield. Here are two key applications in agriculture: smart
irrigation and greenhouse control.
Agriculture:
1. Smart Irrigation:
• Description: Utilize sensors, weather data, and IoT devices to optimize the irrigation process based on the specific
needs of crops, soil moisture levels, and weather conditions.
• Benefits:
• Water conservation through precise irrigation.
• Increased crop yield and quality.
• Reduced operational costs.
• Key Components:
• Soil Moisture Sensors: Measure the moisture content in the soil.
• Weather Stations: Collect real-time weather data.
• IoT-enabled Valves: Control water flow based on sensor readings.
• Data Analytics: Analyze data to determine optimal irrigation schedules.
• Example:
• Soil moisture sensors trigger irrigation only when necessary, ensuring that crops receive the right amount of
water.
2. Greenhouse Control:

• Description: Implement IoT devices and sensors to monitor and control environmental factors within greenhouses,
such as temperature, humidity, light, and ventilation.
• Benefits:
• Precise control of growing conditions.
• Year-round cultivation and extended growing seasons.
• Increased crop yield and quality.
• Key Components:
• Temperature and Humidity Sensors: Monitor climate conditions.
• Automated Ventilation Systems: Adjust airflow as needed.
• Smart Lighting Systems: Optimize light levels for plant growth.
• Environmental Control Systems: Integrate sensors and actuators for comprehensive control.
• IoT Gateway: Facilitate communication between devices.
• Example:
• Automated systems adjust temperature and humidity levels based on real-time sensor data, creating optimal
conditions for plant growth.
• Deploy sensors for monitoring soil, weather, and environmental conditions.
• Use wireless communication protocols (e.g., Zigbee, LoRa, Wi-Fi) for data transmission.
- Data Analytics:
• Analyze collected data to make informed decisions and optimize farming practices.
- Cloud Computing:
• Utilize cloud platforms for storing and processing large datasets.
- Mobile Apps:
• Develop mobile applications for remote monitoring and control of farming operations.
- Machine Learning:
• Implement machine learning algorithms for predictive analytics and optimization of farming practices.
• Enhance traceability and transparency in the supply chain by recording key data points.
- Drones and UAVs:
• Use drones for aerial monitoring of crops and to collect data on large farming areas.
- Precision Agriculture:
• Integrate GPS technology for precision farming, enabling accurate mapping and management of fields.
- Robotics:
• Implement robotic systems for tasks such as planting, harvesting, and weeding.

In industrial settings and health-related applications, the integration of Internet of Things (IoT) technologies offers
numerous benefits. Here are key applications in the industrial and health sectors:
Industry:
1. Machine Diagnosis & Prognosis:
• Description: Utilize IoT sensors and data analytics to monitor the health and performance of industrial machinery,
predict potential issues, and schedule maintenance.
• Benefits:
• Predictive maintenance to reduce downtime.
• Enhanced equipment lifespan.
• Efficient resource allocation for maintenance.
• Key Components:
• IoT Sensors: Monitor machine parameters such as temperature, vibration, and pressure.
• Predictive Analytics: Analyze historical data to predict potential failures.
• Cloud Computing: Store and process large datasets for analysis.
• Industrial IoT (IIoT) Platforms: Manage and integrate data from various machines.
• Example:
• Sensors on a manufacturing machine detect abnormal vibrations, triggering a maintenance alert before a
breakdown occurs.
2. Indoor Air Quality Monitoring:
• Description: Deploy IoT sensors to monitor and assess the air quality in industrial environments, ensuring a healthy
and safe working environment.
• Benefits:
• Employee well-being and health improvements.
• Compliance with safety standards.
• Early detection of indoor pollutants.
• Key Components:
• Air Quality Sensors: Measure parameters such as CO2, particulate matter, and volatile organic compounds
(VOCs).
• IoT Gateways: Transmit data from sensors to central systems.
• Real-time Alerts: Notify personnel in case of air quality deviations.
• Example:
• Sensors in a factory monitor air quality parameters, automatically adjusting ventilation systems to maintain
optimal conditions.
Health & Lifestyle:
1. Health & Fitness Monitoring:
• Description: Utilize wearable devices and IoT sensors to monitor individual health and fitness metrics, such as heart
rate, activity levels, and sleep patterns.
• Benefits:

• Personalized health insights and recommendations.
• Early detection of health issues.
• Improved overall well-being.
• Key Components:
• Wearable Devices: Track physiological parameters.
• Mobile Apps: Display and analyze health data.
• Cloud Storage: Store and sync health information.
• Machine Learning: Provide personalized recommendations based on user data.
• Example:
• A fitness tracker monitors a person's daily activity, heart rate, and sleep patterns, providing insights to improve
overall health.
2. Wearable Electronics:
• Description: Develop and use wearable devices that integrate electronics and sensors to provide functionality beyond
health monitoring, such as smartwatches, augmented reality glasses, and smart clothing.
• Benefits:
• Convenient access to information on the go.
• Integration with other smart devices.
• Enhanced user experiences.
• Key Components:
• Sensors: Capture data relevant to the device's purpose (e.g., accelerometers, gyroscopes, GPS).
• Connectivity: Enable communication with other devices and the internet.
• User Interface: Display information and enable user interaction.
• Power Management: Optimize battery life for continuous use.
• Example:
• A smartwatch with GPS tracking, heart rate monitoring, and a touch screen interface provides users with
fitness insights, notifications, and navigation assistance.
• Deploy various sensors for data collection in real-time.
• Utilize wireless communication protocols (e.g., Bluetooth, Wi-Fi) for seamless connectivity.
- Data Analytics:
• Analyze data for predictive maintenance, health insights, and personalized recommendations.
- Cloud Computing:
• Leverage cloud platforms for storage, processing, and analysis of large datasets.
- Mobile Apps:
• Develop mobile applications for remote monitoring and user interaction.

- Machine Learning:
• Implement machine learning algorithms for predictive analytics and personalization.
• Enhance security and privacy in health-related data transactions.
- Augmented Reality (AR):
• Implement AR technologies for enhanced user experiences, such as in industrial training.
IoT and M2M Introduction:
IoT (Internet of Things):
• IoT refers to a network of interconnected physical devices, vehicles, buildings, and other objects embedded with
sensors, software, and network connectivity.
• The goal is to enable these devices to collect and exchange data, making them "smart" and capable of interacting with
each other and with users.
M2M (Machine-to-Machine):
• M2M communication involves direct communication between devices without human intervention.
• It is a subset of IoT, emphasizing communication between machines for specific purposes, often in an industrial or
enterprise context.
Difference between IoT and M2M:
1. Scope:
• IoT: Encompasses a broader concept of interconnected devices, including consumer electronics, wearables,
and smart home devices.
• M2M: Focuses specifically on direct communication between machines for a particular purpose, often within a
closed system.
2. Interactivity:
• IoT: Emphasizes human interaction with smart devices and the exchange of data between devices and users.
• M2M: Primarily involves direct communication between machines without human intervention.
3. Applications:
• IoT: Has diverse applications, including smart homes, healthcare, agriculture, and consumer electronics.
• M2M: Often applied in industrial settings, such as manufacturing, logistics, and utilities.
4. Scalability:
• IoT: Tends to involve larger-scale deployments with a variety of devices and applications.
• M2M: Typically deployed in more focused and specific use cases, which may not require the same level of
scalability.
SDN and NFV for IoT:
Software Defined Networking (SDN):
• Definition: SDN is an architectural approach that separates the control plane from the data plane in networking,
allowing centralized control and programmability of network devices.
• Role in IoT:
• Enhances network flexibility and adaptability for changing IoT requirements.

• Enables dynamic allocation of network resources based on the needs of IoT applications.
• Facilitates efficient traffic management and reduces latency.
Network Function Virtualization (NFV):
• Definition: NFV involves virtualizing and abstracting network functions, traditionally performed by dedicated hardware
devices, into software-based solutions.
• Role in IoT:
• Allows for the creation and management of virtualized network functions (VNFs) to support IoT applications.
• Enables the rapid deployment and scaling of network functions as needed for IoT services.
• Enhances network agility and reduces the dependency on specific hardware.
Key Considerations for SDN and NFV in IoT:
1. Flexibility and Scalability:
• SDN and NFV provide the flexibility to adapt to changing IoT requirements and scale resources dynamically.
2. Resource Optimization:
• Both technologies help optimize network resources by efficiently allocating and managing virtualized
functions.
3. Latency Reduction:
• SDN and NFV contribute to reducing network latency, crucial for real-time IoT applications.
4. Service Orchestration:
• Orchestration platforms play a crucial role in coordinating and managing the deployment of virtualized
functions to support diverse IoT services.
5. Security:
• Security considerations, including authentication and access control, are paramount in the implementation of
SDN and NFV for IoT to protect against cyber threats.
• Ensuring interoperability among devices and platforms is essential to support the heterogeneous nature of IoT
deployments.
7. Standardization:
• Adherence to industry standards helps ensure compatibility and interoperability within the IoT ecosystem.
• MODULE-3
Designing an Internet of Things (IoT) system involves a structured methodology to ensure that the solution
meets its intended purpose and requirements. Here's an overview of key components in an IoT design methodology:
1. Purpose & Requirements Specification:
• Purpose:
• Define the overarching goal and objectives of the IoT system.
• Identify the problem or opportunity that the IoT solution aims to address.
• Requirements Specification:
• Identify and document functional and non-functional requirements.
• Define user needs, system capabilities, performance criteria, and constraints.

2. Process Specification:
• Description:
• Specify the processes and workflows within the IoT system.
• Define how data flows through the system and the interactions between components.
• Components:
• Workflow diagrams, sequence diagrams, or process flowcharts.
3. Domain Model Specification:
• Description:
• Develop a domain model that represents the key entities, relationships, and interactions within the IoT
domain.
• Identify and define the main concepts and their interrelationships.
• Components:
• Entity-relationship diagrams, domain class diagrams.
4. Information Model Specification:
• Description:
• Define the structure and representation of information within the IoT system.
• Specify data models and formats for effective communication and storage.
• Components:
• Data models, schema definitions, information flow diagrams.
5. Service Specifications:
• Description:
• Specify the services that the IoT system provides.
• Define the interfaces, protocols, and APIs for communication between components.
• Components:
• Service contracts, API documentation, communication protocols.
6. IoT Level Specification:
• Description:
• Define the level or layer within the IoT architecture where the design specifications apply (e.g., edge devices,
cloud services).
• Specify the interactions and interfaces specific to that level.
• Components:
• Interface specifications, level-specific diagrams.
7. Functional View Specification:
• Description:
• Provide a functional view of the entire IoT system.
• Illustrate how different components and services work together to achieve system objectives.
• Components:

• Functional architecture diagrams, system architecture diagrams.
Key Considerations in IoT Design Methodology:
• Ensure that the IoT system can seamlessly integrate with other systems and devices through standardized
interfaces.
2. Scalability:
• Design the system to scale efficiently as the number of devices and data volume increases.
3. Security:
• Integrate robust security measures at every level to protect data, communication, and access.
4. Reliability and Availability:
• Ensure that the IoT system is reliable, and critical services are available when needed.
5. Privacy:
• Address privacy concerns by implementing data protection measures and compliance with privacy regulations.
6. Usability:
• Design the system with a user-centric approach, considering the ease of use for both end-users and
administrators.
7. Lifecycle Management:
• Plan for the entire lifecycle of the IoT solution, including deployment, updates, maintenance, and eventual
decommissioning.
8. Adaptability:
• Design the system to adapt to changing requirements, technologies, and environments.
1. Operational View Specification:
• Description:
• Define how the IoT system operates in different scenarios.
• Specify operational modes, states, and transitions.
• Detail the interactions between components during normal and exceptional conditions.
• Components:
• Operational state diagrams, scenario descriptions, transition matrices.
2. Device & Component Integration:
• Description:
• Specify how devices and components integrate into the overall system architecture.
• Define communication protocols, data formats, and interfaces.
• Detail the interaction patterns between devices, edge components, and cloud services.
• Components:
• Integration diagrams, communication protocols, data flow diagrams.

3. Application Development:
• Description:
• Define guidelines for developing applications that interact with the IoT system.
• Specify APIs, libraries, and development frameworks.
• Detail coding standards, best practices, and security considerations.
• Components:
• Application programming interfaces (APIs), software development kits (SDKs), coding standards
documentation.
4. Case Study on IoT System for Weather Monitoring:
• Description:
• Develop a detailed case study to illustrate the application of the IoT system for weather monitoring.
• Specify the components, devices, and data flows within the system.
• Detail the operational scenarios, integration challenges, and benefits of the system.
• Components:
• System architecture diagrams, data flow diagrams, use case scenarios, performance metrics.
5. Motivation for Using Python:
• Description:
• Provide a rationale for selecting Python as the programming language for IoT application development.
• Highlight the benefits of Python, such as readability, versatility, and a vast ecosystem of libraries.
• Specify how Python meets the specific requirements of the IoT system.
• Components:
• Motivation document, comparison with other languages, list of relevant Python libraries and frameworks.
Key Considerations:
1. Interoperability and Standards:
• Ensure that the IoT system adheres to industry standards and interoperability frameworks.
2. Real-time Data Processing:
• Design components for real-time data processing, critical for weather monitoring applications.
3. Edge Computing:
• Consider the use of edge computing to process data closer to the source, reducing latency and bandwidth
requirements.
4. Data Security and Privacy:
• Implement robust security measures to protect sensitive weather data and ensure compliance with privacy
regulations.
5. Scalability and Flexibility:
• Design the IoT system to scale seamlessly as the number of deployed weather monitoring devices increases.
6. User Interface and Experience:

• Consider the development of user-friendly interfaces for administrators and end-users to interact with the
system.
7. Remote Management and Updates:
• Include mechanisms for remote management and software updates to ensure the system remains up-to-date
and secure.
8. Integration with External Systems:
• Specify integration points with external systems, such as meteorological databases or emergency alert
systems.
9. Environmental Considerations:
• Address the impact of environmental conditions on device functionality, ensuring robustness in various
weather scenarios.
10. Analytics and Visualization:
• Incorporate analytics tools and visualization components to derive meaningful insights from weather data.
11. Fault Tolerance and Redundancy:
• Implement measures to ensure the system's availability and functionality in the presence of failures or disruptions.
IoT Device:
An IoT (Internet of Things) device is a physical device embedded with sensors, actuators, and connectivity features that enable
it to collect and exchange data with other devices or systems over the internet. These devices play a crucial role in building a
network of interconnected "smart" objects, facilitating data-driven decision-making and automation in various applications.
Basic Building Blocks of an IoT Device:
1. Microcontroller or Microprocessor:
• Serves as the brain of the device, executing instructions and controlling operations.
2. Connectivity Module:
• Enables communication with other devices or a central server. Common modules include Wi-Fi, Bluetooth,
Zigbee, or cellular modules.
3. Sensors:
• Collect data from the device's environment. Examples include temperature sensors, humidity sensors,
accelerometers, and more.
4. Actuators:
• Execute physical actions based on commands received. Examples include motors, servos, or relays.
5. Power Supply:
• Provides the necessary power to operate the device. This can be a battery, external power source, or energy
harvesting mechanisms.
6. Memory:
• Stores program instructions and data. Includes RAM (random-access memory) and non-volatile memory like
Flash.
7. User Interface:
• Allows interaction with the device. This can be a display, buttons, LEDs, or other input/output components.
Exemplary Device: Raspberry Pi

About the Board:
• The Raspberry Pi is a single-board computer developed by the Raspberry Pi Foundation. It's a versatile and affordable
platform widely used for educational purposes, prototyping, and IoT projects.
• Key Specifications of Raspberry Pi:
• CPU: ARM-based processor.
• RAM: Varies between models (e.g., 1GB, 2GB, 4GB).
• Connectivity: HDMI, USB ports, GPIO (General Purpose Input/Output), Ethernet, Wi-Fi, Bluetooth.
Linux on Raspberry Pi:
• The Raspberry Pi can run various operating systems, and Linux is a popular choice. Raspbian, a distribution based on
Debian, is commonly used for Raspberry Pi.
Raspberry Pi Interfaces – Serial, SPI, I2C:
• Serial (UART): Universal Asynchronous Receiver-Transmitter for serial communication.
• SPI (Serial Peripheral Interface): Used for high-speed communication between devices on a bus.
• I2C (Inter-Integrated Circuit): Enables communication between devices using a two-wire serial interface.
Programming Raspberry Pi with Python:
• Python is a popular programming language for Raspberry Pi due to its simplicity and a wealth of libraries. Examples of
controlling components:
• Controlling LED with Raspberry Pi:
• Interfacing an LED and Switch with Raspberry Pi:
• Interfacing a Light Sensor (LDR) with Raspberry Pi:
Other IoT Devices: pcDuino, Beagle Bone Black, Cubieboard
• pcDuino:
• A mini PC platform that supports both Arduino and Raspberry Pi ecosystems.
• Features an ARM Cortex-A7 processor, various I/O interfaces, and support for Linux.
• Beagle Bone Black:
• A low-cost, community-supported development platform featuring an AM335x 1GHz ARM Cortex-A8
processor.
• Includes GPIO, I2C, SPI, and other interfaces for hardware interaction.
• Cubieboard:
• A single-board computer with an Allwinner A20 ARM Cortex-A7 dual-core processor.
• Provides various connectivity options and supports Linux distributions
MODULE-4
IoT & Beyond: Use of Big Data and Visualization in IoT:
1. Use of Big Data in IoT:
• Purpose:
• Handle large volumes of data generated by IoT devices.
• Extract valuable insights, patterns, and trends.

• Support predictive analytics and decision-making.
• Components:
• Big Data platforms (e.g., Apache Hadoop, Spark).
• Data storage and processing frameworks.
• Analytics tools and machine learning algorithms.
2. Visualization in IoT:
• Purpose:
• Present complex IoT data in an understandable format.
• Facilitate real-time monitoring and analysis.
• Aid in decision-making for end-users and administrators.
• Components:
• Dashboards and real-time visualization tools.
• Data representation techniques (charts, graphs).
• Augmented reality (AR) for immersive experiences.
Industry 4.0 Concepts:
• Definition: Industry 4.0 represents the fourth industrial revolution, integrating digital technologies into manufacturing
processes for a more connected, automated, and intelligent production environment.
• Key Concepts:
• IoT Integration: Smart factories with interconnected devices and sensors.
• Cyber-Physical Systems: Integration of digital and physical elements.
• Data Analytics: Leveraging data for optimization and predictive maintenance.
• Autonomous Systems: Machines and processes capable of self-optimization.
Overview of RFID:
• Definition: Radio-Frequency Identification (RFID) is a technology that uses wireless communication to identify and
track objects.
• Applications:
• Asset tracking and management.
• Inventory control and supply chain optimization.
• Access control and security.
• Components:
• RFID tags (passive or active).
• RFID readers.
• Middleware for data processing.
Low-Power Design (Bluetooth Low Energy - BLE):
• Bluetooth Low Energy:
• Purpose: Enables energy-efficient communication for IoT devices with lower power consumption.
• Applications: Wearables, healthcare devices, smart home sensors.

• Low-Power Design Principles:
• Sleep Modes: Devices switch to low-power modes when not actively transmitting or receiving data.
• Optimized Protocols: Efficient use of communication protocols to minimize energy consumption.
• Energy Harvesting: Utilizing ambient energy sources for power.
Range Extension Techniques (Data Mining and Mesh Networking):
1. Data Mining:
• Purpose:
• Extract patterns and insights from large datasets.
• Optimize network performance and resource allocation.
• Applications:
• Predictive maintenance.
• Anomaly detection.
2. Mesh Networking:
• Purpose:
• Extend communication range by allowing devices to relay data.
• Enhance reliability and coverage in IoT networks.
• Applications:
• Smart home networks.
• Industrial IoT (IIoT) deployments.
Data-Intensive IoT for Continuous Recognition Applications:
• Continuous Recognition Applications:
• Purpose: Enable real-time and continuous monitoring and analysis.
• Examples: Video surveillance, voice recognition, gesture control.
• Challenges:
• Data Volume: Handling large streams of continuous data.
• Processing Power: Real-time processing requirements.
• Security and Privacy: Protecting sensitive continuous recognition data.
Overview of Android / iOS App Development Tools & Internet of Everything (IoE):
1. App Development Tools:
• Android:
• Android Studio: Official IDE for Android app development.
• Kotlin and Java: Programming languages for Android.
• Android SDK: Software Development Kit for building Android apps.
• iOS:
• Xcode: Integrated development environment for iOS app development.
• Swift and Objective-C: Programming languages for iOS.

• iOS SDK: Software Development Kit for building iOS apps.
2. Internet of Everything (IoE):
• Definition: IoE expands the concept of IoT by including people, processes, and data in addition to devices.
• Components:
• Devices: Connected physical objects.
• People: Interactions and communications.
• Data: Information generated and consumed.
• Processes: Workflows and automation.
• Benefits:
• Holistic connectivity and collaboration.
• Enhanced decision-making through comprehensive data insights.
• Improved efficiency and innovation across various domains.

The Internet of Things.pdf

More Related Content

Similar to The Internet of Things.pdf

More from SONALIKABAL

Recently uploaded

The Internet of Things.pdf
