TCP employs a self-clocking scheme that times the sending of packets. In that, the data packets are sent in a burst when the returning acknowledgement packet5 are received. This self-clocking scheme (also known as ack-clocking) is deemed a key factor to the the burstiness of TCP traffic and the source of various performance problemshigh packet loss, long delay, and high delay jitter. Previous work has suggested contradictively the effectiveness of TCP Pacing as a remedy to alleviate the traffic burstiness. In this paper, we analyze systematically and in more robust experiments the impact of network variabilities on the behavior of TCP clocking schemes. We find that 1) aggregated pacing traffic could be burstier than aggregated ack-clocking traffic. Physical explanation and experimental simulations are provided to support this argument. 2) The round-trip time heterogeneity and flow multiplexing significantly influence the behaviors of both ack-clocking and pacing schemes. Evaluating the performance of clocking schemes without considering these effects is prone to inconsistent results. 3) Pacing outperforms ack-clocking in more realistic settings from the trufic burstiness point of view.

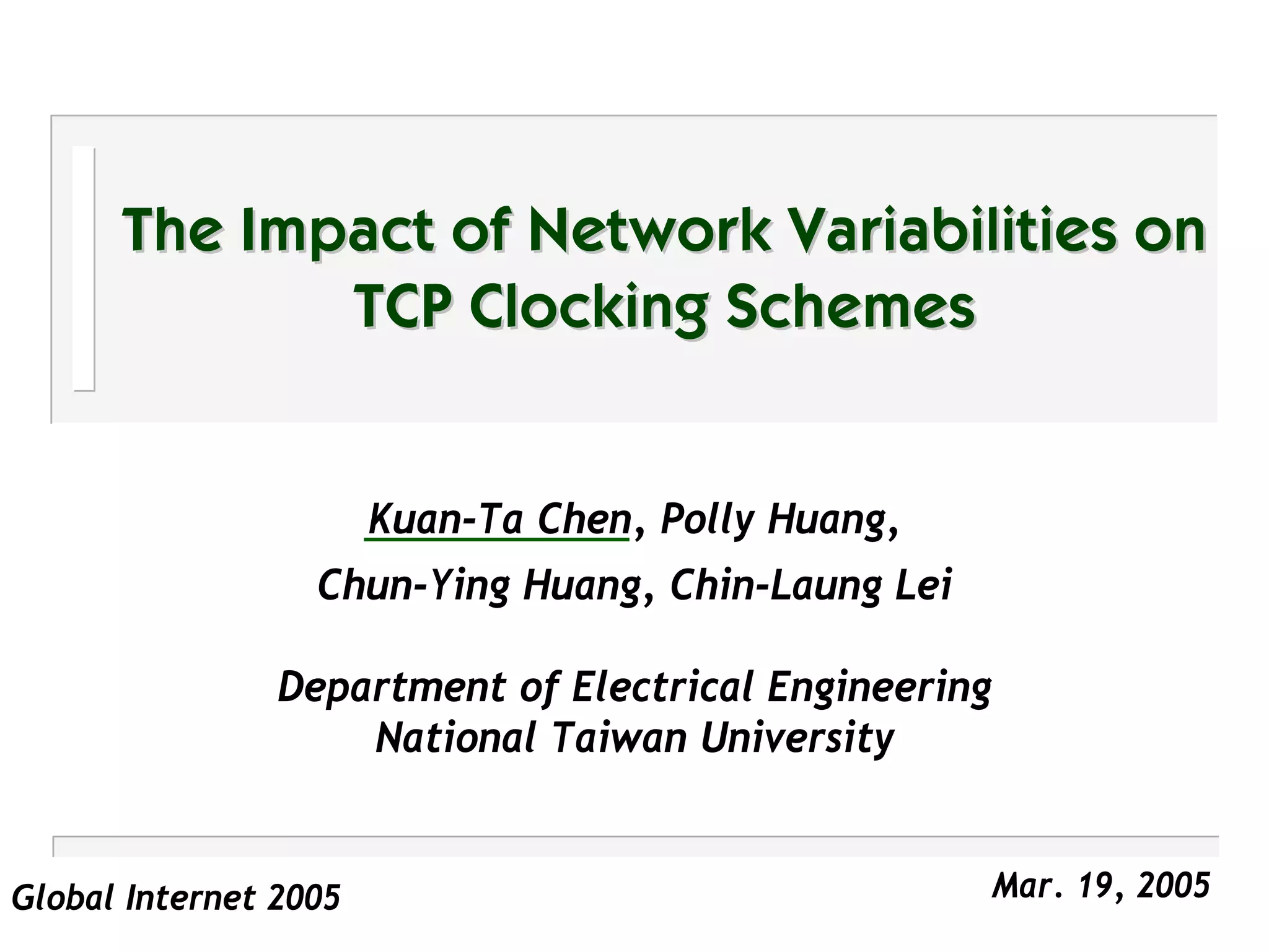

1. The Impact of Network Variabilities on
TCP Clocking Schemes
Kuan-Ta Chen, Polly Huang,
Chun-Ying Huang, Chin-Laung Lei
Department of Electrical Engineering
National Taiwan University
Global Internet 2005 Mar. 19, 2005

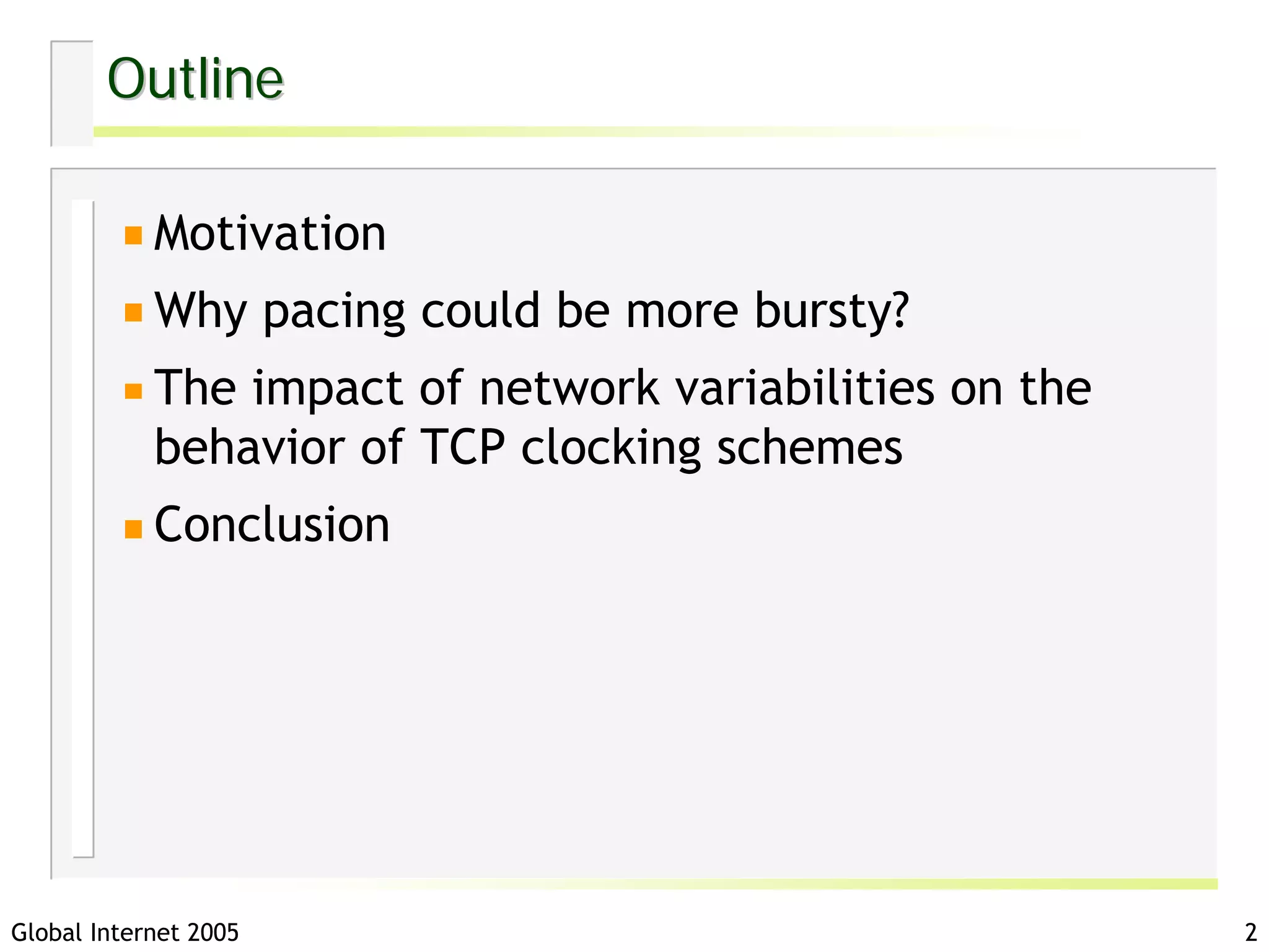

2. Outline
Motivation
Why pacing could be more bursty?
The impact of network variabilities on the
behavior of TCP clocking schemes
Conclusion
Global Internet 2005 2

3. TCP Clocking Schemes
Self-clocking (a.k.a. ack-clocking)
ACKs “self-clock” the data to the rate of the
bottleneck link
Pacing
resembles to a rate control mechanism but
preserves the concept of window control
a common implementation: release a window of
packets evenly within each round-trip time
In intuition, pacing will result in more smooth
traffic, and smooth traffic will lead to better
performance, however, …
Global Internet 2005 3

4. Motivation
Aggarwal, Savage, Anderson found pacing
often results in lower throughput and higher
latency.
We are motivated to evaluate ack-clocking
and pacing schemes with more fundamental
behavioral analysis, especially on the aspect
of traffic burstiness.
Global Internet 2005 4

5. Our main results
Pacing traffic could be more bursty than ack-clocking
traffic.
The comparative traffic burstiness of TCP clocking
schemes are largely affected by network path
properties
whether the round-trip times (RTT) are the same
the number of flows
Pacing is generally less bursty than ack-clocking with
realistic settings, i.e., heterogeneous RTT flows.
Global Internet 2005 5

6. Why pacing could be more bursty?
Intuitively, pacing should be no more bursty
than ack-clocking.
We shall illustrate why the phenomenon could
happen by behavioral models.
Global Internet 2005 6

7. Behavioral models – equal window size
Assumption: 3 flows, the same RTT, equal
window size = 6
t: bottleneck service time are equally
packet trains for a packet
a packet train for each
spaced in a RTT
flow
T/6 T/6 T/6
Global Internet 2005 7

8. Behavioral models – different window size
Assumption: 3 flows, the same RTT, different
windows size = 5, 3, 10, respectively.
T/5 10
T/ T/3
Global Internet 2005 8

9. The effect of window un-synchronization
Generate packet arrival sequences by the
behavioral models
T = 100 ms, t = 0.1 ms, 3 flows
compare two cases
synchronized windows: 30, 30, 30
un-synchronized windows: 20, 30, 40
Observe traffic burstiness based on the
wavelet-based MultiResolution Analysis (MRA)
for the synthesized traffic.
Global Internet 2005 9

10. The energy plot
Ack-clocking
nearly remains
its burstiness
Pacing become
more bursty
The effect can
be amplified by
more flows
(show later)
Global Internet 2005 10

11. Validation and Simulations
Observation: window un-synchronization can
raise burstiness of pacing traffic.
We conduct network simulations to:
validate the observation
examine the impact of flow multiplexing
examine the impacts of other variabilities
Global Internet 2005 11

12. Simulation Setup
the network simulator is ns-2
1--50 flows, RTT are fixed to 100 ms
network topology
1 1
4x Mbps
x Mbps
s R
(bottleneck)
4x Mbps
N N
Global Internet 2005 12

13. The Effect of Multiplexing – Ack-clocking
more bursty in
small scales (still
less bursty than
Poisson)
much less bursty in
large scales
Global Internet 2005 13

14. The Effect of Multiplexing – Pacing
burstiness raises in
all sub-RTT time
scales
due to the effect of
window un-
synchronization.
Global Internet 2005 14

15. The Effect of Multiplexing – A Comparison
50 flows fl pacing is
more bursty in most
of sub-RTT time
scales
the comparative
burstiness of two
schemes are very
different with and
without flow
multiplexing
Global Internet 2005 15

16. Examine the effect of RTT heterogeneity
The simulation setup is almost the same
except:
fixed to 50 flows
RTTs are drawn from an uniform distribution over
(100 ms, 300 ms)
Global Internet 2005 16

17. The Effect of RTT Heterogeneity
Ack-clocking is much
more bursty
mismatch of
round trip times
ack-solicited pkts
are no longer
spaced by t
Pacing is unaffected
RTT/window is
already
randomized by
unsynchronized
windows
Global Internet 2005 17

18. More Network Variabilities
Simulations with additional factors:
multi-hop, two-way traffic, cross-traffic, and their
combinations
ID Topology RTT Two-Way Cross
Heter. Traffic Traffic
Fixed Dumbbell - - -
VarRTT Dumbbell ✓ - -
TwoWay Dumbbell ✓ ✓ -
Cross Dumbbell ✓ - ✓
Real Parking-lot ✓ ✓ ✓
Global Internet 2005 18

19. Network Variabilities on Ack-clocking
The heterogeneity
in flows RTT is a
deciding factor.
Global Internet 2005 19

20. Network Variabilities on Pacing
None of variabilities
significantly affect
pacing’s behavior
As long as RTTs are
heterogeneous:
Ack-cloking is no less
bursty than Poisson
Pacing is no more
bursty than Poisson
flPacing is less
bursty
Global Internet 2005 20

21. Conclusion
Provided physical explanation for ‘why pacing
could be more bursty than ack-clocking’
Comparative burstiness of the TCP clocking
schemes are network condition dependent,
especially RTT heterogeneity and flow
multiplexing.
It’s critical to include sufficient variabilities
in performance evaluation of TCP based
protocols.
Global Internet 2005 21
