The TriCipher Armored Credential System (TACS) provides strong multi-factor authentication for Salesforce.com by seamlessly integrating with its existing username and password system. TACS uses flexible authentication factors like browser cookies, client software, portable storage devices, or smart cards to verify users' identities. It works by having the TriCipher Authentication Gateway validate the user's credentials with the ID Vault, then pass a security token to Salesforce.com to complete the login process single sign-on. This provides organizations secure access to Salesforce.com while allowing users to transition transparently from passwords to stronger authentication.

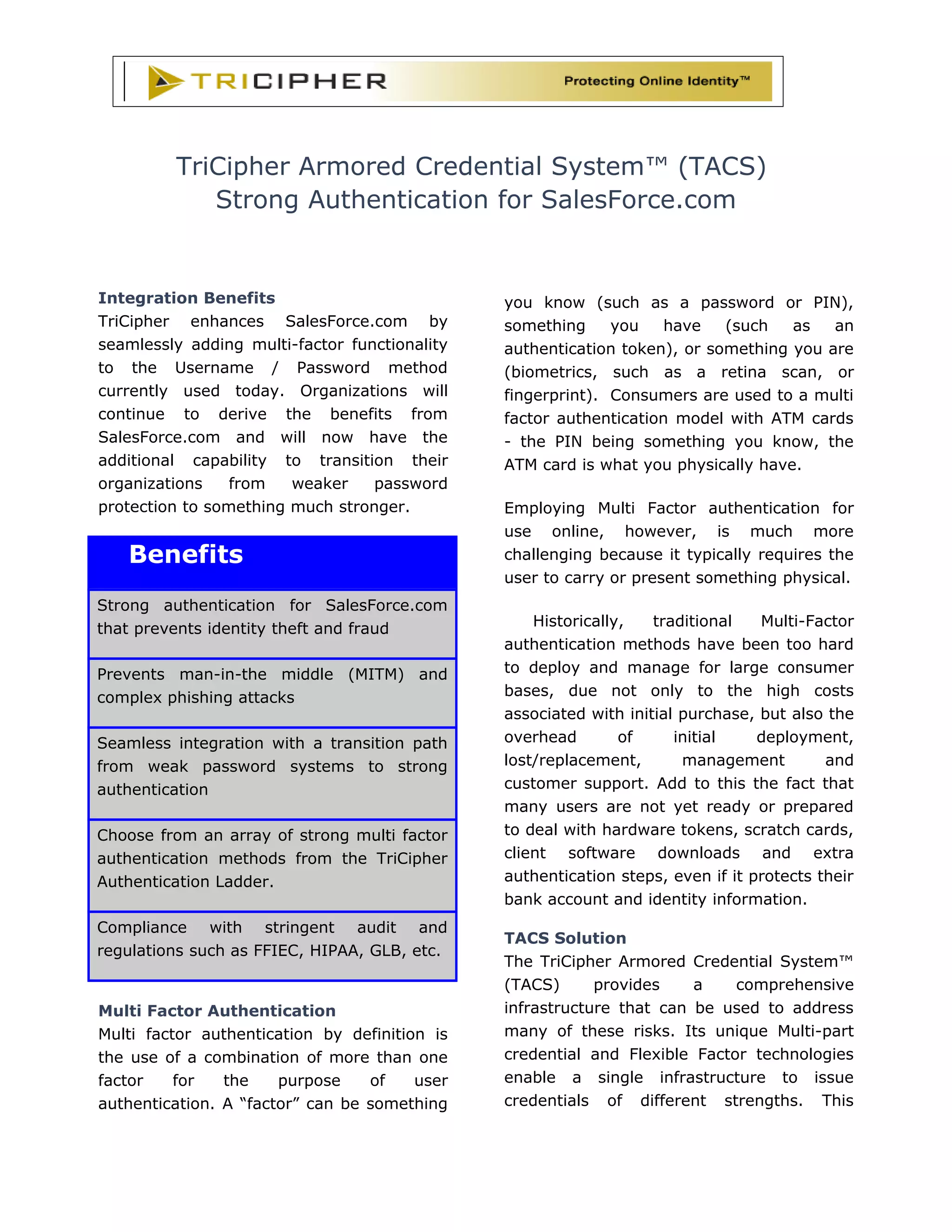

1. TriCipher Armored Credential System™ (TACS)
Strong Authentication for SalesForce.com
Integration Benefits
TriCipher enhances SalesForce.com by
seamlessly adding multi-factor functionality
to the Username / Password method
currently used today. Organizations will
continue to derive the benefits from
SalesForce.com and will now have the
additional capability to transition their
organizations from weaker password
protection to something much stronger.
Benefits
Strong authentication for SalesForce.com
that prevents identity theft and fraud
Prevents man-in-the middle (MITM) and
complex phishing attacks
Seamless integration with a transition path
from weak password systems to strong
authentication
Choose from an array of strong multi factor
authentication methods from the TriCipher
Authentication Ladder.
Compliance with stringent audit and
regulations such as FFIEC, HIPAA, GLB, etc.
Multi Factor Authentication
Multi factor authentication by definition is
the use of a combination of more than one
factor for the purpose of user
authentication. A “factor” can be something
you know (such as a password or PIN),
something you have (such as an
authentication token), or something you are
(biometrics, such as a retina scan, or
fingerprint). Consumers are used to a multi
factor authentication model with ATM cards
- the PIN being something you know, the
ATM card is what you physically have.
Employing Multi Factor authentication for
use online, however, is much more
challenging because it typically requires the
user to carry or present something physical.
Historically, traditional Multi-Factor
authentication methods have been too hard
to deploy and manage for large consumer
bases, due not only to the high costs
associated with initial purchase, but also the
overhead of initial deployment,
lost/replacement, management and
customer support. Add to this the fact that
many users are not yet ready or prepared
to deal with hardware tokens, scratch cards,
client software downloads and extra
authentication steps, even if it protects their
bank account and identity information.
TACS Solution
The TriCipher Armored Credential System™
(TACS) provides a comprehensive
infrastructure that can be used to address
many of these risks. Its unique Multi-part
credential and Flexible Factor technologies
enable a single infrastructure to issue
credentials of different strengths. This

2. allows the enterprise to tailor the type of
credential to the specific level of risk
without having to deploy multiple costly
infrastructures.
The system architecture is designed to allow
TACS to be easily deployed for external
Software as a Service (SaaS) applications
like SalesForce.com and also to protect
internal web applications. Servicing some of
the highest volume financial services
applications for demanding customers,
TACS provides high reliability, availability
and scalability.
TACS provides a variety of Multi Factor
authentication options (see TriCipher
Authentication Ladder below), allowing you
to balance security, cost and ease of use
based on the results of your risk
assessment.
Browser 2 Factor (B2F) strong
authentication
The Browser 2 Factor rung of the TriCipher
Authentication Ladder offers a zero
download strong authentication solution. In
B2F, the 2nd
factor in the form of an
encrypted cookie or a browser certificate is
transparently given to the users’ browser.
Also, as a part of the activation process, the
user selects an image or a secret text
phrase they will recognize when they come
back to the web site. TriCipher is unique in
this clientless offering by going up the
ladder with the B2F Certificate option (as
cookies are susceptible to certain attacks
and can be deleted or copied).
In addition B2F has advantages as:
• Requires no change in user behavior.
The user is completely unaware of
the change and migration to his type
of credential from a password-only
system is transparent (even their
password remains the same).
• No client software. Browser 2 factor
requires no client side software.
• Phishing protection. Browser 2 factor
protects against phishing attacks
whose aim is credential theft.
• Authenticate your web site. Showing
a welcome message reassures the
user that they have reached your
site, not a phisher's replica.
Device 2 Factor (B2F) strong
authentication
Perhaps the easiest to use, deploy and
manage is using the login device as second
factor. With this type of credential, the
second factor is stored securely on the PC.
The user has nothing new to carry, but does
need a small piece of client side software,
the TACS ID Tool. The device 2nd factor

3. provides strong protection against all types
of phishing including man-in-the-middle.
The client software also provides the
additional benefit of performing an optional
security presence check before
authentication. Device 2 factor is often used
for high net worth consumers, business
banking customers, active traders,
administrators at individual branches (or at
client companies) and channels such as
mortgage brokers.
Portable 2 Factor
Portable 2 factor takes advantage of the
security of multi-part credentials to use
commodity storage products or consumer
electronics as a 2nd factor for
authentication. Users can choose something
they carry already such as an MP3 player or
USB memory stick, or the financial
institution can issue something branded.
The 2nd factor in this case is protected by
rolling key technology to defeat would-be
thieves. Portable 2 Factor provides strong
protection against all types of phishing
including man-in-the-middle. The TACS ID
Tool is required for this type of credential
and provides the additional benefit of
performing an optional security presence
check before authentication.
Armored Token 2 Factor
Armored Token 2 factor protects one time
password tokens from man-in-the-middle
attacks. This type of credential also requires
the TACS ID Tool and provides the option of
a security presence check. Armored Token 2
factor is often used to protect existing one
time password deployments.
Additional credential types
TACS provides for other credential types,
including smart cards and using three or
more authentication factors.
TriCipher Authentication Gateway
(TAG) strong authentication
The TAG is an integral part of the TriCipher
Armored Credential System (TACS), The
TriCipher Authentication Gateway (TAG)
acts as a services layer for web applications.
The TAG reduces the time to deploy strong
authentication, increases authentication
performance, and ensures the security of
the login process by providing a single
standardized strong authentication service
for use by every application within an
organization. The TAG, based on patent
pending technology, manages the
authentication for every level of the
TriCipher Authentication Ladder including
passwords, browser cookies/certifications,
PCs, portable devices, tokens, smart cards
and biometrics to provide a unified
authentication infrastructure. When users
log into any web application, they are
handed off to the TAG to manage the entire
authentication process and verify the
credentials of each user with the ID Vault.
Once authenticated through the ID Vault,
the TAG delivers a SAML token to the SaaS
solution like SalesForce.com which either
validates the SAML assertion or passes it via
a back trusted channel to the TAG for re-
validation and then provides the user the
appropriate level of access.
How does the integration work?
The TACS solution consists of the TAG and
the ID Vault. The solution can either be
hosted internal to the organization or as a

4. hosted service.
Users are initially given a strong credential
before the single sign-on feature for
SalesForce.com is turned on. This involves
batch loading the users into the TriCipher
system and generating a one-time-use
activation code that can be sent to the
users via email, SMS or even a phone call.
Based on the type of licensed
SalesForce.com Edition you may need to
request SalesForce.com to turn on single
sign-on (SSO) AFTER your users have
registered for strong authentication. The
Enterprise and Unlimited Editions are more
flexible and allow you to turn on single sign-
on on a per user basis by creating a new
profile for SSO. You can turn on SSO before
the users register and enable SSO
individually for each user by clicking on a
checkbox in SalesForce.com
Users go through a registration period
where they login to the TAG and are given
their second factor for strong
authentication. On the cut-over day, single
sign-on is turned on for the users and they
are provided the HTTP link to login to
SalesForce.com – this can be on an internal
customer portal where users click on a URL
to login to SalesForce.com securely.
The process flow for the user to login to
salesforce.com is as below:
1) User clicks on the URL for Strong
Authentication to SalesForce.com. User
lands on TAG and inputs their username.
2) User then strongly authenticates to TAG.
TAG validates the users’ strong
authentication credentials with the ID Vault.
3) Once the TAG authenticates the users’
strong credential, it submits the user id and
a SAML token (as password) to
SalesForce.com.
4) SalesForce.com then validates the user id
and then sends a SOAP/XML message with
user id and SAML token (the one we passed
them in step 3) to a web service on the
TAG.
5) TAG then validates the SAML token and if
valid it returns a SOAP/XML message
confirming the user authentication to
SalesForce.com
6) SalesForce.com then allows the user to
access (single sign-on) to their
SalesForce.com application.
Users are now required to login to

5. SalesForce.com using TriCipher strong
authentication. Users that try to go directly
to SalesForce.com will not succeed as they
are required to login securely via TriCipher.
Summary
The TriCipher solution gives organizations
powerful, seamless and flexible strong
authentication capabilities to secure access
to SalesForce.com. Customers can further
leverage this central authentication
infrastructure to secure access to internal
and external web applications.
