1. TERREAL FAÇADE
RAINSCREEN, SUNSCREEN,
ACOUSTIC, FACING BRICK
TERRACOTTA, creative, versatile and efficient Façades…
06.02.14

2. 2
TERREAL, a global company,
OPERATING IN MORE THAN 50 COUNTRIES
LOCATIONS
 France
 England
 China
 Italy
 Malaisia
 United States
 Spain

3. 3

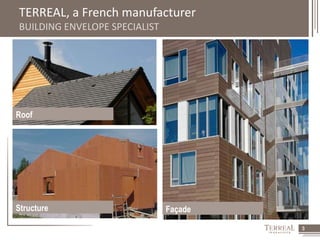

TERREAL, a French manufacturer
BUILDING ENVELOPE SPECIALIST
Roof
Structure Façade

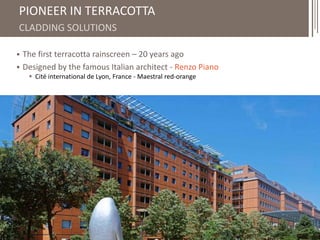

4. 4
PIONEER IN TERRACOTTA
CLADDING SOLUTIONS
 The first terracotta rainscreen – 20 years ago
 Designed by the famous Italian architect - Renzo Piano
 Cité international de Lyon, France - Maestral red-orange

5. 5

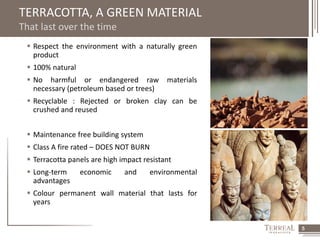

TERRACOTTA, A GREEN MATERIAL
That last over the time
 Respect the environment with a naturally green
product
 100% natural
 No harmful or endangered raw materials
necessary (petroleum based or trees)
 Recyclable : Rejected or broken clay can be
crushed and reused
 Maintenance free building system
 Class A fire rated – DOES NOT BURN
 Terracotta panels are high impact resistant
 Long-term economic and environmental
advantages
 Colour permanent wall material that lasts for
years

6. 6
MODERN USE
Of the most traditioonal building material
 Gives building warmth and character
 Beautiful, rich, earthtone colours
 Works well with other materials – glass, metal,
& wood
 Natural organic tones and variation for modern
architectural designs

7. 7

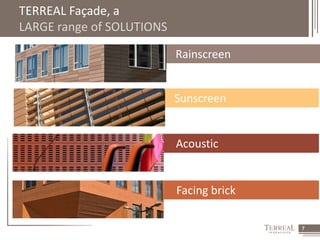

Facing brick
TERREAL Façade, a
LARGE range of SOLUTIONS
Rainscreen
Sunscreen
Acoustic

8. 8

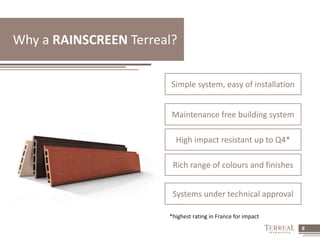

Why a RAINSCREEN Terreal?
Simple system, easy of installation
Maintenance free building system
High impact resistant up to Q4*
Rich range of colours and finishes
Systems under technical approval
*highest rating in France for impact

9. 9

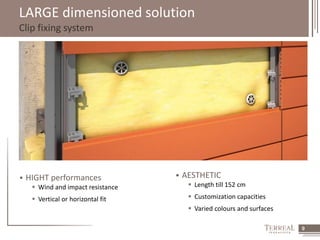

LARGE dimensioned solution
Clip fixing system
 HIGHT performances
 Wind and impact resistance
 Vertical or horizontal fit
 AESTHETIC
 Length till 152 cm
 Customization capacities
 Varied colours and surfaces

10. 10

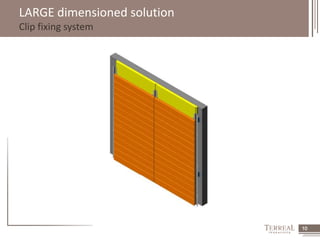

LARGE dimensioned solution
Clip fixing system

11. 11

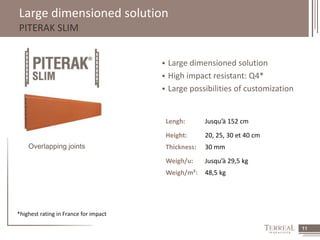

Large dimensioned solution
PITERAK SLIM
 Large dimensioned solution
 High impact resistant: Q4*
 Large possibilities of customization
Overlapping joints
Lengh: Jusqu’à 152 cm
Height: 20, 25, 30 et 40 cm
Thickness: 30 mm
Weigh/u: Jusqu’à 29,5 kg
Weigh/m²: 48,5 kg
*highest rating in France for impact

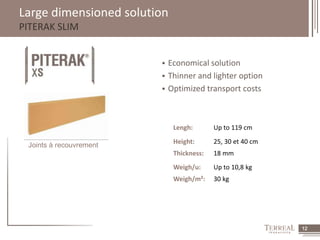

12. 12
Large dimensioned solution
PITERAK SLIM
Joints à recouvrement
 Economical solution
 Thinner and lighter option
 Optimized transport costs
Lengh: Up to 119 cm
Height: 25, 30 et 40 cm
Thickness: 18 mm
Weigh/u: Up to 10,8 kg
Weigh/m²: 30 kg

13. 13

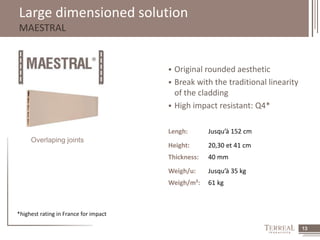

Large dimensioned solution
MAESTRAL
Overlaping joints
 Original rounded aesthetic
 Break with the traditional linearity
of the cladding
 High impact resistant: Q4*
Lengh: Jusqu’à 152 cm
Height: 20,30 et 41 cm
Thickness: 40 mm
Weigh/u: Jusqu’à 35 kg
Weigh/m²: 61 kg
*highest rating in France for impact

14. 14

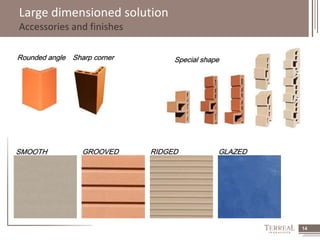

Large dimensioned solution
Accessories and finishes
Rounded angle Sharp corner
Special shape
SMOOTH GROOVED RIDGED GLAZED

15. 15
LIGHT and THIN solutions
 Easy to install
 Low weight : 32kg/m²
 Recut easy on site (horizontal, vertical)
 Ideal for the renovation projects
 Optimized transport costs
 TIME SAVING in processing
 Quick and simple fastening system
 AESTHETIC
 Lenght jusqu’à 120 cm
 13 colours, 6 finitions

16. 16

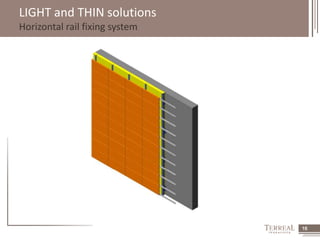

LIGHT and THIN solutions
Horizontal rail fixing system

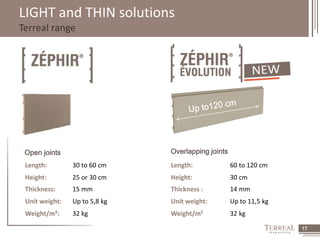

17. 17
LIGHT and THIN solutions
Terreal range
Open joints Overlapping joints
Length: 30 to 60 cm Length: 60 to 120 cm
Height: 25 or 30 cm Height: 30 cm
Thickness: 15 mm Thickness : 14 mm
Unit weight: Up to 5,8 kg Unit weight: Up to 11,5 kg
Weight/m²: 32 kg Weight/m² 32 kg

18. 18

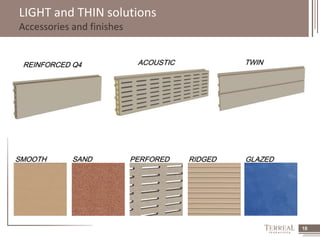

LIGHT and THIN solutions
Accessories and finishes
REINFORCED Q4 ACOUSTIC TWIN
SMOOTH SAND PERFORED RIDGED GLAZED

19. 19

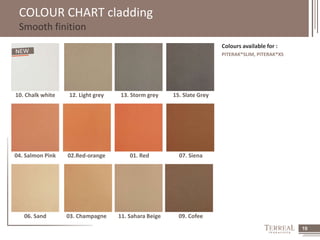

COLOUR CHART cladding
Smooth finition
Colours available for :
PITERAK®SLIM, PITERAK®XS
10. Chalk white 12. Light grey 13. Storm grey 15. Slate Grey
04. Salmon Pink 02.Red-orange 01. Red 07. Siena
06. Sand 03. Champagne 11. Sahara Beige 09. Cofee

20. 20
COLOUR CHART cladding
Smooth finition
Colours available for:
ZÉPHIR®, ZÉPHIR® ÉVOLUTION, MAESTRAL®
Stone Clay Grey Storm Grey
Champagne Dune Pink Red-Orange Red Violine
Sahara Beige Pearl Grey Dark Grey Chocolate Brown Ebony

21. 21

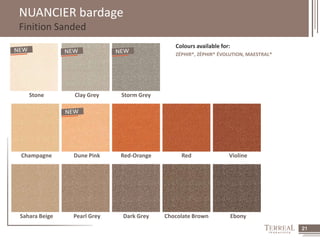

NUANCIER bardage
Finition Sanded
Colours available for:
ZÉPHIR®, ZÉPHIR® ÉVOLUTION, MAESTRAL®
Stone Clay Grey Storm Grey
Champagne Dune Pink Red-Orange Red Violine
Sahara Beige Pearl Grey Dark Grey Chocolate Brown Ebony

22. 22

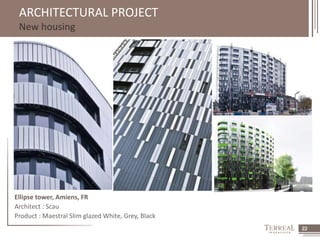

ARCHITECTURAL PROJECT
New housing
Ellipse tower, Amiens, FR
Architect : Scau
Product : Maestral Slim glazed White, Grey, Black

23. 23

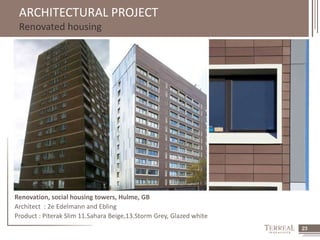

ARCHITECTURAL PROJECT
Renovated housing
Renovation, social housing towers, Hulme, GB
Architect : 2e Edelmann and Ebling
Product : Piterak Slim 11.Sahara Beige,13.Storm Grey, Glazed white

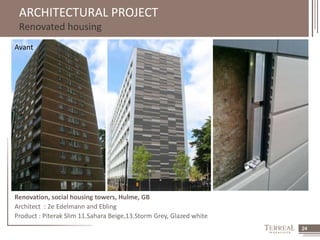

24. 24
ARCHITECTURAL PROJECT
Renovated housing
Avant
Renovation, social housing towers, Hulme, GB
Architect : 2e Edelmann and Ebling
Product : Piterak Slim 11.Sahara Beige,13.Storm Grey, Glazed white

25. 25

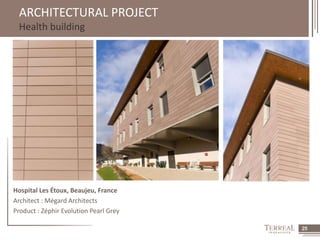

ARCHITECTURAL PROJECT
Health building
Hospital Les Étoux, Beaujeu, France
Architect : Mégard Architects
Product : Zéphir Evolution Pearl Grey

26. 26

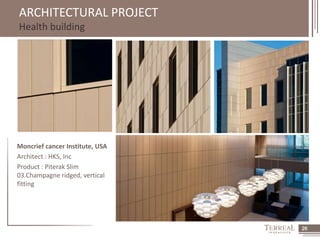

ARCHITECTURAL PROJECT
Health building
Moncrief cancer Institute, USA
Architect : HKS, Inc
Product : Piterak Slim
03.Champagne ridged, vertical
fitting

27. 27

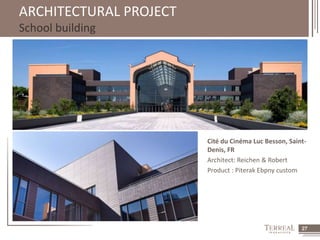

ARCHITECTURAL PROJECT
School building
Cité du Cinéma Luc Besson, Saint-
Denis, FR
Architect: Reichen & Robert
Product : Piterak Ebpny custom

28. 28

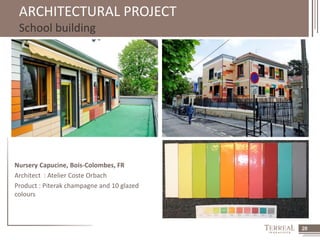

ARCHITECTURAL PROJECT
School building
Nursery Capucine, Bois-Colombes, FR
Architect : Atelier Coste Orbach
Product : Piterak champagne and 10 glazed
colours

29. 29

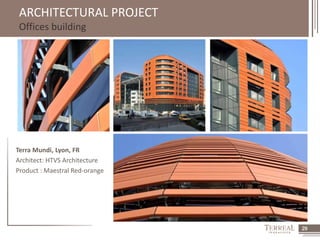

ARCHITECTURAL PROJECT
Offices building
Terra Mundi, Lyon, FR
Architect: HTVS Architecture
Product : Maestral Red-orange

30. 30

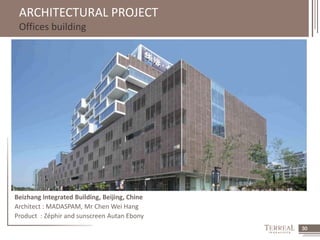

ARCHITECTURAL PROJECT
Offices building
Beizhang Integrated Building, Beijing, Chine
Architect : MADASPAM, Mr Chen Wei Hang
Product : Zéphir and sunscreen Autan Ebony

31. 31

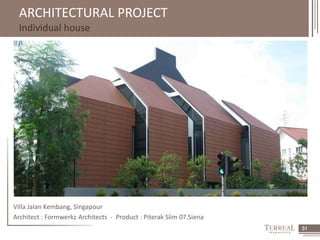

ARCHITECTURAL PROJECT
Individual house
Villa Jalan Kembang, Singapour
Architect : Formwerkz Architects - Product : Piterak Slim 07.Siena

32. 32

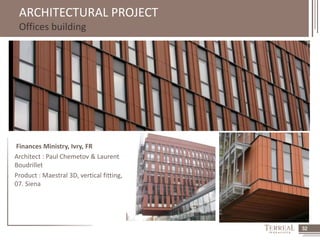

ARCHITECTURAL PROJECT
Offices building
Finances Ministry, Ivry, FR
Architect : Paul Chemetov & Laurent
Boudrillet
Product : Maestral 3D, vertical fitting,
07. Siena

33. 33

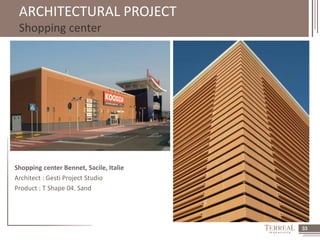

ARCHITECTURAL PROJECT
Shopping center
Shopping center Bennet, Sacile, Italie
Architect : Gesti Project Studio
Product : T Shape 04. Sand

34. 34

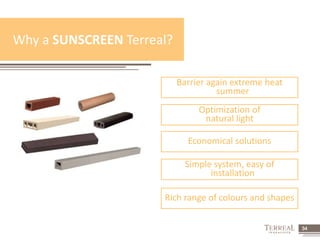

Why a SUNSCREEN Terreal?
Barrier again extreme heat
summer
Optimization of
natural light
Economical solutions
Simple system, easy of
installation
Rich range of colours and shapes

35. 35

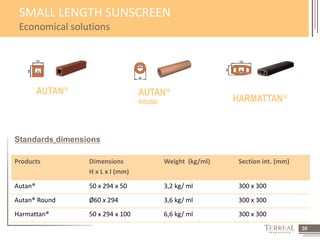

SMALL LENGTH SUNSCREEN
Economical solutions
AUTAN® AUTAN®
Standards dimensions
Products Dimensions
H x L x l (mm)
ROUND HARMATTAN®
Weight (kg/ml) Section int. (mm)
Autan® 50 x 294 x 50 3,2 kg/ ml 300 x 300
Autan® Round Ø60 x 294 3,6 kg/ ml 300 x 300
Harmattan® 50 x 294 x 100 6,6 kg/ ml 300 x 300

36. 36

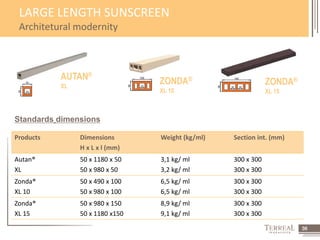

LARGE LENGTH SUNSCREEN
Architetural modernity
Standards dimensions
Products Dimensions
H x L x l (mm)
Weight (kg/ml) Section int. (mm)
Autan®
XL
50 x 1180 x 50
50 x 980 x 50
3,1 kg/ ml
3,2 kg/ ml
300 x 300
300 x 300
Zonda®
XL 10
50 x 490 x 100
50 x 980 x 100
6,5 kg/ ml
6,5 kg/ ml
300 x 300
300 x 300
Zonda®
XL 15
50 x 980 x 150
50 x 1180 x150
8,9 kg/ ml
9,1 kg/ ml
300 x 300
300 x 300
AUTAN®
XL
ZONDA®
XL 10
ZONDA®
XL 15

37. 37

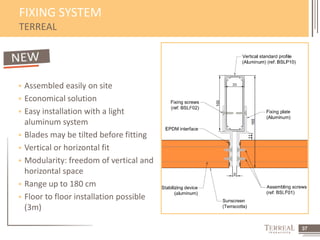

FIXING SYSTEM
TERREAL
 Assembled easily on site
 Economical solution
 Easy installation with a light
aluminum system
 Blades may be tilted before fitting
 Vertical or horizontal fit
 Modularity: freedom of vertical and
horizontal space
 Range up to 180 cm
 Floor to floor installation possible
(3m)

38. 38

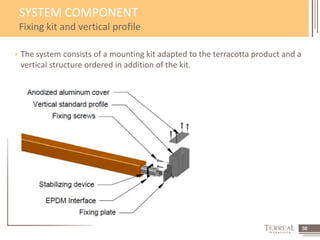

SYSTEM COMPONENT
Fixing kit and vertical profile
 The system consists of a mounting kit adapted to the terracotta product and a
vertical structure ordered in addition of the kit.

39. 39
SHAMAL RANGE
The linear aesthetic of an airplane wing
Products Dimensions
H x L x l (mm)
Weight (kg/ml) Section intérieure
(mm)
Shamal® 14 46 x 1290 x 140 6,8 240 x 280
Shamal® 14
46 x 1313 x 140 7,9 240 x 280
Assembly
Shamal® 20 46 x 1290 x 200 9,6 240 x 280
Shamal® 20
Assembly
46 x 1313 x 200 10,7 240 x 280
SHAMAL®
14
SHAMAL®
20
Available in
assembly
version
Standards dimensions

40. 40

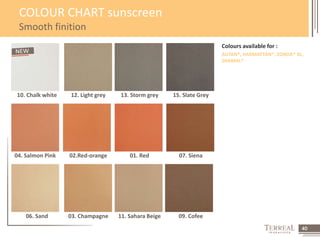

COLOUR CHART sunscreen
Smooth finition
Colours available for :
AUTAN®, HARMATTAN®, ZONDA® XL,
SHAMAL®
10. Chalk white 12. Light grey 13. Storm grey 15. Slate Grey
04. Salmon Pink 02.Red-orange 01. Red 07. Siena
06. Sand 03. Champagne 11. Sahara Beige 09. Cofee

41. 41

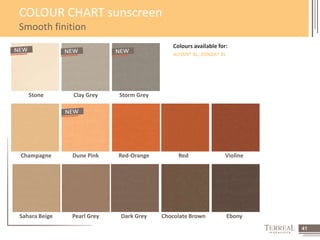

COLOUR CHART sunscreen
Smooth finition
Colours available for:
AUTAN® XL, ZONDA® XL
Stone Clay Grey Storm Grey
Champagne Dune Pink Red-Orange Red Violine
Sahara Beige Pearl Grey Dark Grey Chocolate Brown Ebony

42. 42

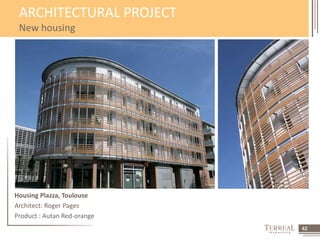

ARCHITECTURAL PROJECT
New housing
Housing Plazza, Toulouse
Architect: Roger Pages
Product : Autan Red-orange

43. 43

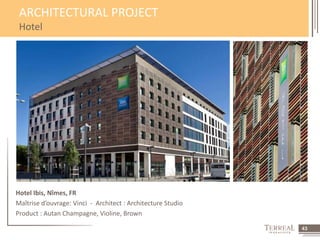

ARCHITECTURAL PROJECT
Hotel
Hotel Ibis, Nîmes, FR
Maîtrise d’ouvrage: Vinci - Architect : Architecture Studio
Product : Autan Champagne, Violine, Brown

44. 44

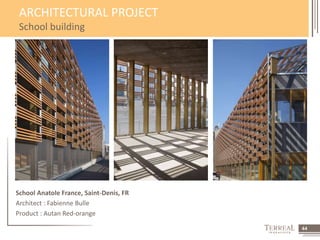

ARCHITECTURAL PROJECT
School building
School Anatole France, Saint-Denis, FR
Architect : Fabienne Bulle
Product : Autan Red-orange

45. 45

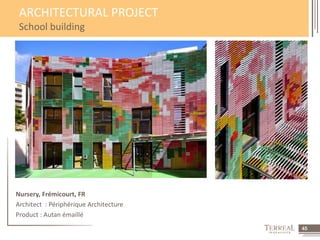

ARCHITECTURAL PROJECT
School building
Nursery, Frémicourt, FR
Architect : Périphérique Architecture
Product : Autan émaillé

46. 46

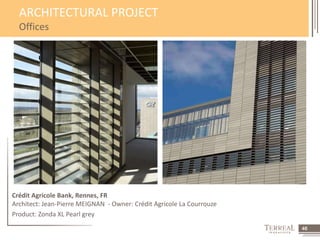

ARCHITECTURAL PROJECT
Offices
Crédit Agricole Bank, Rennes, FR
Architect: Jean-Pierre MEIGNAN - Owner: Crédit Agricole La Courrouze
Product: Zonda XL Pearl grey

47. 47

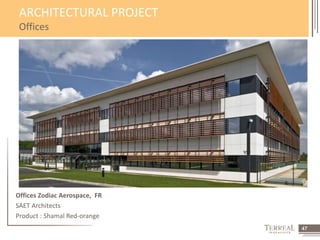

ARCHITECTURAL PROJECT
Offices
Offices Zodiac Aerospace, FR
SAET Architects
Product : Shamal Red-orange

48. 48

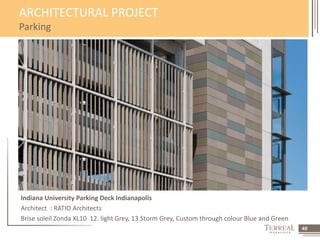

ARCHITECTURAL PROJECT
Parking
Indiana University Parking Deck Indianapolis
Architect : RATIO Architects
Brise soleil Zonda XL10 12. light Grey, 13.Storm Grey, Custom through colour Blue and Green

49. 49

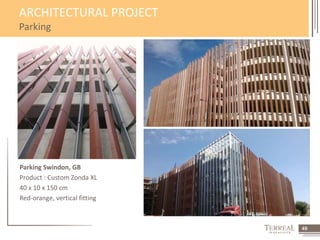

ARCHITECTURAL PROJECT
Parking
Parking Swindon, GB
Product : Custom Zonda XL
40 x 10 x 150 cm
Red-orange, vertical fitting

50. 50

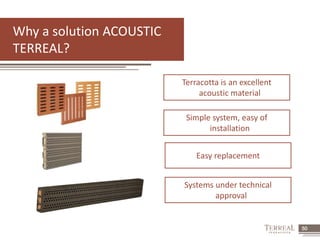

Terracotta is an excellent
acoustic material
Simple system, easy of
installation
Easy replacement
Systems under technical
approval
Why a solution ACOUSTIC
TERREAL?

51. 51

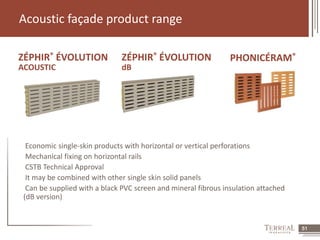

Acoustic façade product range
ZÉPHIR® ÉVOLUTION ZÉPHIR® ÉVOLUTION
PHONICÉRAM®
ACOUSTIC
dB
Economic single-skin products with horizontal or vertical perforations
Mechanical fixing on horizontal rails
CSTB Technical Approval
It may be combined with other single skin solid panels
Can be supplied with a black PVC screen and mineral fibrous insulation attached
(dB version)

52. 52

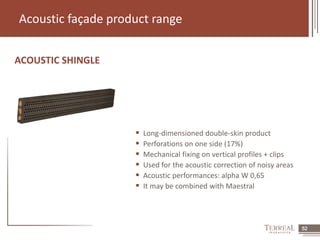

Acoustic façade product range
ACOUSTIC SHINGLE
 Long-dimensioned double-skin product
 Perforations on one side (17%)
 Mechanical fixing on vertical profiles + clips
 Used for the acoustic correction of noisy areas
 Acoustic performances: alpha W 0,65
 It may be combined with Maestral

53. 53

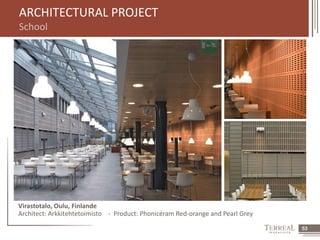

ARCHITECTURAL PROJECT
School
Virastotalo, Oulu, Finlande
Architect: Arkkitehtetoimisto - Product: Phonicéram Red-orange and Pearl Grey

54. 54

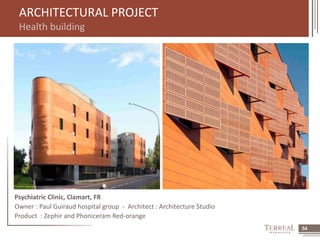

ARCHITECTURAL PROJECT
Health building
Psychiatric Clinic, Clamart, FR
Owner : Paul Guiraud hospital group - Architect : Architecture Studio
Product : Zephir and Phoniceram Red-orange

55. 55

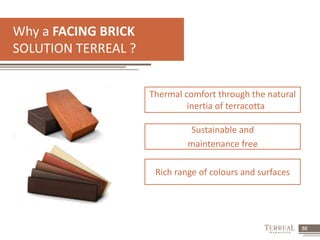

Why a FACING BRICK
SOLUTION TERREAL ?
Thermal comfort through the natural
inertia of terracotta
Sustainable and
maintenance free
Rich range of colours and surfaces

56. 56

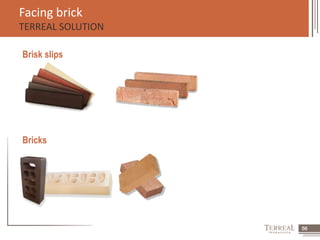

Facing brick
TERREAL SOLUTION
Brisk slips
Bricks

57. 57

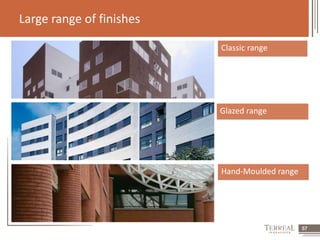

Large range of finishes
Classic range
Glazed range
Hand-Moulded range

58. 58

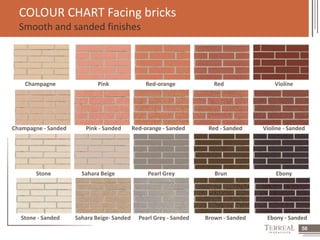

COLOUR CHART Facing bricks
Smooth and sanded finishes
Champagne Pink Red-orange Red Violine
Champagne - Sanded Pink - Sanded Red-orange - Sanded Red - Sanded Violine - Sanded
Stone Sahara Beige Pearl Grey Brun Ebony
Stone - Sanded Sahara Beige- Sanded Pearl Grey - Sanded Brown - Sanded Ebony - Sanded

59. 59

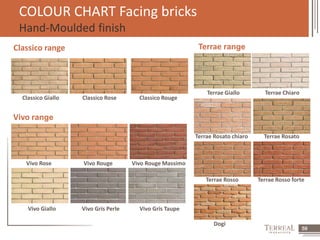

COLOUR CHART Facing bricks
Hand-Moulded finish
Classico range Terrae range
Classico Giallo Classico Rose Classico Rouge
Vivo Rose Vivo Rouge Vivo Rouge Massimo
Vivo Giallo Vivo Gris Perle Vivo Gris Taupe
Terrae Giallo Terrae Chiaro
Terrae Rosato chiaro Terrae Rosato
Terrae Rosso Terrae Rosso forte
Dogi
Vivo range

60. 60

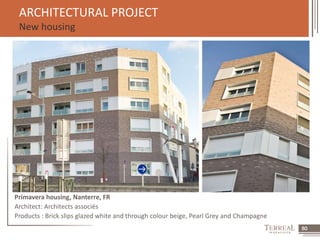

ARCHITECTURAL PROJECT
New housing
Primavera housing, Nanterre, FR
Architect: Architects associés
Products : Brick slips glazed white and through colour beige, Pearl Grey and Champagne

61. 61

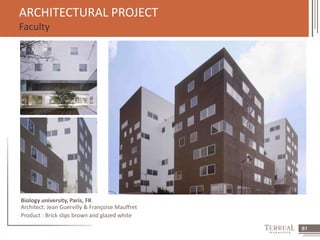

ARCHITECTURAL PROJECT
Faculty
Biology university, Paris, FR
Architect: Jean Guervilly & Françoise Mauffret
Product : Brick slips brown and glazed white

62. 62

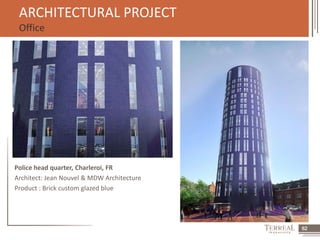

ARCHITECTURAL PROJECT
Office
Police head quarter, Charleroi, FR
Architect: Jean Nouvel & MDW Architecture
Product : Brick custom glazed blue

63. 63

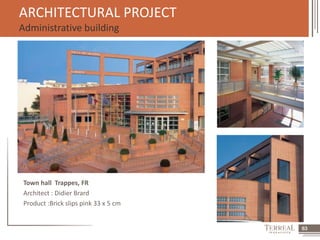

ARCHITECTURAL PROJECT
Administrative building
Town hall Trappes, FR
Architect : Didier Brard
Product :Brick slips pink 33 x 5 cm

64. 64

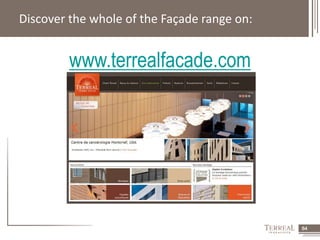

Discover the whole of the Façade range on:
www.terrealfacade.com
