- 1. Day 1 –What is cloud computing and it’s benefits Johan Myburgh 10Tuesdays To Azure Fundamentals
- 2. Things seem complex– they aren’t always It ‘s easy to share knowledge Pay it forward 10Tuesdays
- 3. Johan Myburgh Azure TechnicalTrainer (ATT) @ Microsoft UK Cloud Solution Architect Passionate about people and sharing knowledge jomyburg@microsoft.com @sayedimac aka.ms/johan
- 4. Day 1 What isCloud computing and the benefits of using it? • Shared, multi-tenant infrastructure • Accessible for everyone – even you personally • Massive scale and redundancy • Economies of scale

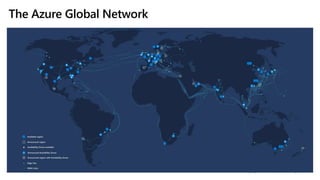

- 5. © Copyright MicrosoftCorporation. All rights reserved. The Azure Global Network

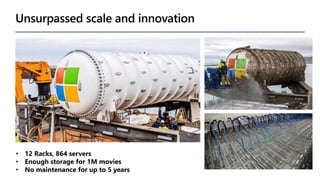

- 6. Unsurpassed scale andinnovation • 12 Racks, 864 servers • Enough storage for 1M movies • No maintenance for up to 5 years
- 7. Why Cloud? Cost CapEx vsOpEx / Pay as you go Switch it off / Delete it Scale DB, VM’s, Storage, IoT Secure Loads of services Basic always-on DDoS + Reach Global High Availability / Elasticity Autoscale / Manual scale / choose your 9’s Monitoring Cloud, On-Prem and other cloud providers Integrated Windows, Office, Dynamics 3rd party Innovative R&D Why Cloud? Cost CapEx vs OpEx / Pay as you go Switch it off / Delete it Scale DB, VM’s, Storage, IoT Secure Loads of services Basic always-on DDoS + Reach Global High Availability / Elasticity Autoscale / Manual scale / choose your 9’s Monitoring Cloud, On-Prem and other cloud providers Integrated Windows, Office, Dynamics 3rd party Innovative R&D

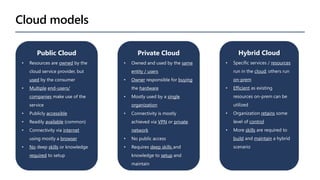

- 8. Cloud models Public Cloud •Resources are owned by the cloud service provider, but used by the consumer • Multiple end-users/ companies make use of the service • Publicly accessible • Readily available (common) • Connectivity via internet using mostly a browser • No deep skills or knowledge required to setup Private Cloud • Owned and used by the same entity / users • Owner responsible for buying the hardware • Mostly used by a single organization • Connectivity is mostly achieved via VPN or private network • No public access • Requires deep skills and knowledge to setup and maintain • On-prem resources Hybrid Cloud • Specific services / resources run in the cloud; others run on-prem • Efficient as existing resources on-prem can be utilized • Organization retains some level of control • More skills are required to build and maintain a hybrid scenario

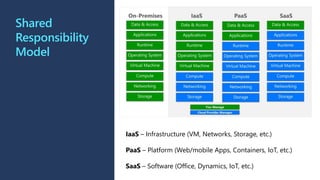

- 9. Shared Responsibility Model IaaS – Infrastructure(VM, Networks, Storage, etc.) PaaS – Platform (Web/mobile Apps, Containers, IoT, etc.) SaaS – Software (Office, Dynamics, IoT, etc.)

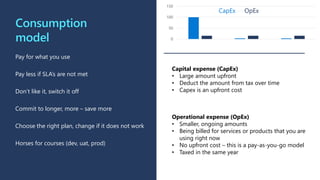

- 10. Consumption model Pay for whatyou use Pay less if SLA’s are not met Don’t like it, switch it off Commit to longer, more – save more Choose the right plan, change if it does not work Horses for courses (dev, uat, prod) Capital expense (CapEx) • Large amount upfront • Deduct the amount from tax over time • Capex is an upfront cost Operational expense (OpEx) • Smaller, ongoing amounts • Being billed for services or products that you are using right now • No upfront cost – this is a pay-as-you-go model • Taxed in the same year 0 50 100 150 CapEx vs OpEx

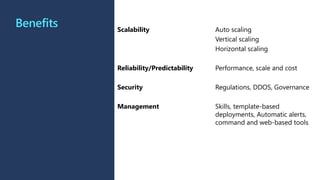

- 11. Benefits Scalability Autoscaling Vertical scaling Horizontal scaling Reliability/Predictability Performance, scale and cost Security Regulations, DDOS, Governance Management Skills, template-based deployments, Automatic alerts, command and web-based tools
- 12. Some services IaaS VirtualNetworks Virtual Machines Storage PaaS App Services Containers (AKS and ACI) SaaS IoT demo Governance - Structure Identity - Azure Active Directory Monitoring – Azure Monitor and App Insights

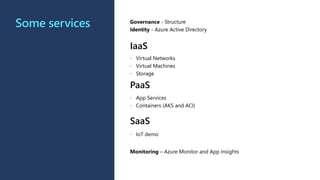

- 13. Some services IaaS VirtualNetworks Virtual Machines Storage PaaS App Services Containers (AKS and ACI) SaaS IoT demo Governance - Structure Identity - Azure Active Directory Monitoring – Azure Monitor and App Insights
- 14. Governance The Azure Structureand Architecture

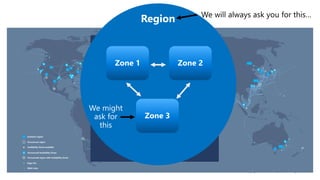

- 15. © Copyright MicrosoftCorporation. All rights reserved. Region We might ask for this

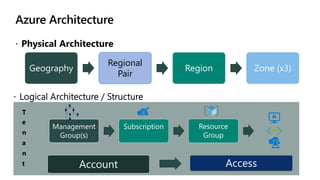

- 16. T e n a n t Azure Architecture PhysicalArchitecture Geography Regional Pair Region Zone (x3) Management Group(s) Subscription Resource Group Account Access
- 17.
- 18.
- 19.

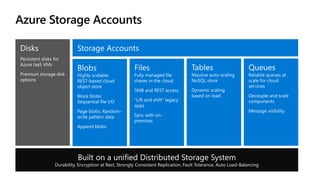

- 20. Disks Azure Storage Accounts Persistentdisks for Azure IaaS VMs Premium storage disk options

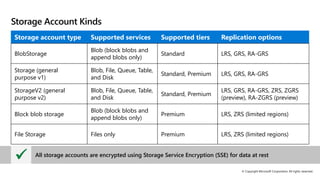

- 21. © Copyright MicrosoftCorporation. All rights reserved. Storage Account Kinds Storage account type Supported services Supported tiers Replication options BlobStorage Blob (block blobs and append blobs only) Standard LRS, GRS, RA-GRS Storage (general purpose v1) Blob, File, Queue, Table, and Disk Standard, Premium LRS, GRS, RA-GRS StorageV2 (general purpose v2) Blob, File, Queue, Table, and Disk Standard, Premium LRS, GRS, RA-GRS, ZRS, ZGRS (preview), RA-ZGRS (preview) Block blob storage Blob (block blobs and append blobs only) Premium LRS, ZRS (limited regions) File Storage Files only Premium LRS, ZRS (limited regions) All storage accounts are encrypted using Storage Service Encryption (SSE) for data at rest

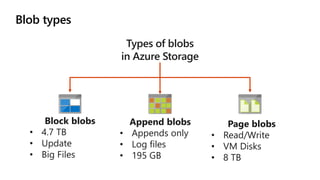

- 22. Blob types Page blobs •Read/Write • VM Disks • 8 TB Block blobs • 4.7 TB • Update • Big Files Append blobs • Appends only • Log files • 195 GB
- 23.

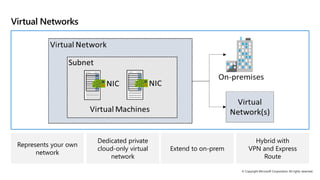

- 24. © Copyright MicrosoftCorporation. All rights reserved. Virtual Networks Represents your own network Dedicated private cloud-only virtual network Extend to on-prem Hybrid with VPN and Express Route
- 25.

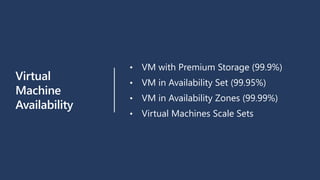

- 26. Virtual Machine Availability • VM withPremium Storage (99.9%) • VM in Availability Set (99.95%) • VM in Availability Zones (99.99%) • Virtual Machines Scale Sets
- 27. © Copyright MicrosoftCorporation. All rights reserved. Virtual Machine Connections Remote Desktop Protocol for Windows (RDP) Secure Shell Protocol for Linux (SSH) Bastion via the Portal over SSL
- 28. PaaS App Service Plansand App Services

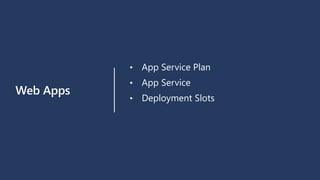

- 29. Web Apps • AppService Plan • App Service • Deployment Slots
- 30. © Copyright MicrosoftCorporation. All rights reserved. App Service Plan Features/Plans Free Shared (dev/test) Basic (dedicated dev/test) Standard (production workloads) Premium (enhanced scale and performance) Isolated (high-performance, security and isolation) Web, mobile, or API apps 10 100 Unlimited Unlimited Unlimited Unlimited Disk space 1 GB 1 GB 10 GB 50 GB 250 GB 1 TB Auto Scale – – – Supported Supported Supported Deployment Slots 0 0 0 5 20 20 Max Instances – – Up to 3 Up to 10 Up to 30 Up to 100 Shared Dedicated Isolated

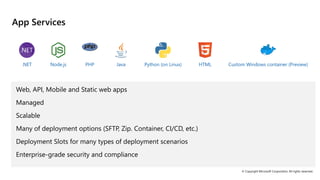

- 31. © Copyright MicrosoftCorporation. All rights reserved. App Services Web, API, Mobile and Static web apps Managed Scalable Many of deployment options (SFTP, Zip. Container, CI/CD, etc.) Deployment Slots for many types of deployment scenarios Enterprise-grade security and compliance
- 32.

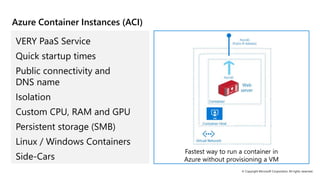

- 33. © Copyright MicrosoftCorporation. All rights reserved. Azure Container Instances (ACI) VERY PaaS Service Quick startup times Public connectivity and DNS name Isolation Custom CPU, RAM and GPU Persistent storage (SMB) Linux / Windows Containers Side-Cars Fastest way to run a container in Azure without provisioning a VM
- 34.

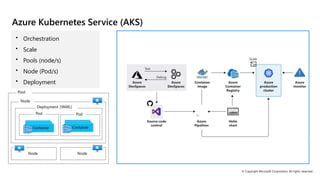

- 35. © Copyright MicrosoftCorporation. All rights reserved. Azure Kubernetes Service (AKS) • Orchestration • Scale • Pools (node/s) • Node (Pod/s) • Deployment
- 36.

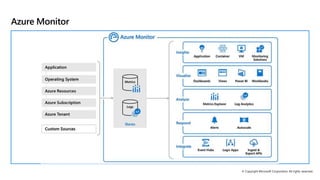

- 37. © Copyright MicrosoftCorporation. All rights reserved. Azure Monitor

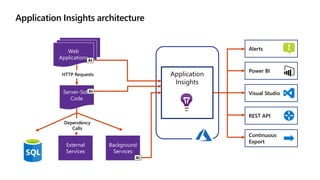

- 38. Application Insights architecture Background Services Application Insights Server-Side Code Alerts PowerBI REST API Continuous Export AI AI HTTP Requests Dependency Calls Web ApplicationsAI External Services Visual Studio
- 39. Summary What wecovered • Why Cloud? • Governance • Identity • IaaS • PaaS • SaaS • Monitoring Where from here? https://aka.ms/learn https://esi.microsoft.com https://aka.ms/az204labs
- 40.
Editor's Notes
- #3 Exam AZ-900: Microsoft Azure Fundamentals - Certifications | Microsoft Learn
- #6 Azure global infrastructure experience (microsoft.com) Create Your Azure Free Account Today | Microsoft Azure
- #22 An Azure storage account contains all of your Azure Storage data objects: blobs, files, queues, tables, and disks. The storage account provides a unique namespace for your Azure Storage data that is accessible from anywhere in the world over HTTP or HTTPS. Data in your Azure storage account is durable and highly available, secure, and massively scalable.
- #23 Storage account overview - https://docs.microsoft.com/en-us/azure/storage/common/storage-account-overview Create an Azure Storage account - https://docs.microsoft.com/en-us/azure/storage/common/storage-account-create Upgrade to a general-purpose v2 storage account - https://docs.microsoft.com/en-us/azure/storage/common/storage-account-upgrade Create an Azure Storage account - https://docs.microsoft.com/learn/modules/create-azure-storage-account/
- #24 Azure Storage supports three types of blobs: block, append, and page. Each blob type is designed to handle specific types of objects in storage. For example, block blobs are ideal for media files, append blobs are suitable for log files, and page blobs almost directly emulate storage disks. Let’s find out about the different blob types that are available for storage.
- #26 Azure Virtual Networks - https://azure.microsoft.com/en-us/services/virtual-network/ What is Azure Virtual Network? - https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-overview
- #29 How to connect and sign on to an Azure virtual machine running Windows - https://docs.microsoft.com/en-us/azure/virtual-machines/windows/connect-logon How to use SSH keys with Windows on Azure - https://docs.microsoft.com/en-us/azure/virtual-machines/linux/ssh-from-windows What is Azure Bastion? - https://docs.microsoft.com/en-us/azure/bastion/bastion-overview
- #32 App Service pricing - https://azure.microsoft.com/en-us/pricing/details/app-service/windows/
- #33 App Service pricing - https://azure.microsoft.com/en-us/pricing/details/app-service/windows/
- #35 What is Azure Container Instances? - https://docs.microsoft.com/en-us/azure/container-instances/container-instances-overview
- #37 What is Azure Container Instances? - https://docs.microsoft.com/en-us/azure/container-instances/container-instances-overview
- #39 What is Azure Monitor - https://docs.microsoft.com/en-us/azure/azure-monitor/overview
- #40 You install a small instrumentation package in your application, and set up an Application Insights resource in the Microsoft Azure portal. The instrumentation monitors your app and sends telemetry data to the portal. (The application can run anywhere—it doesn't have to be hosted in Azure.) You can instrument not only the web service application but also any background components and the JavaScript in the webpages themselves. In addition, you can pull in telemetry from the host environments such as performance counters, Azure diagnostics, or Docker logs. You can also set up web tests that periodically send synthetic requests to your web service. All these telemetry streams are integrated in the Azure portal, where you can apply powerful analytic and search tools to the raw data.
- #42 Thank the attendees, customer point-of-contact (PoC), and Microsoft PoC. Stage additional follow through on Parking lot items via Microsoft contacts.
