Overtec 5 FR is a low pressure injection moulding system designed for efficiently sealing and protecting electrical and electronic components with a cost-effective approach. It utilizes a polyamide resin with a UL-V0 flammability rating, applicable in various sealing needs such as connectors and housings while reducing production costs and time to market. The system allows for fast de-moulding in low-cost aluminium tools, enhancing production efficiency significantly.

1. Industrial Suppliers of Sealants and Adhesives
ADDING VALUE TO INDUSTRY
www.Techsil.co.uk

2. Industrial Suppliers of Sealants and Adhesives
ADDING VALUE TO INDUSTRY

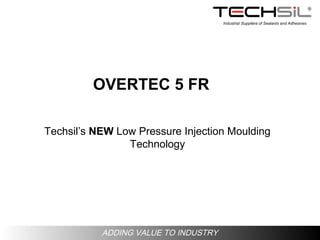

OVERTEC 5 FR
Techsil’s NEW Low Pressure Injection Moulding
Technology

3. Industrial Suppliers of Sealants and Adhesives
ADDING VALUE TO INDUSTRY
What is Overtec 5 FR ?
High Pressure Injection Moulding
Gravity Casting
Overtec 5Fr
Low pressure mould system
Pressure
Process time
Overtec 5FR is a low pressure moulding system,
positioned between high pressure short cycle time
processes for mass production and gravity fed long
cycle time processes for small runs and prototypes.
Overtec 5FR seals and protects electrical / electronic
components in a cost effective way through increased
production and low cost tooling.

4. Industrial Suppliers of Sealants and Adhesives
ADDING VALUE TO INDUSTRY
Overtec 5 FR Overview
OVERTEC 5 FR is a black or amber polyamide resin specifically designed for
over-moulding. It has UL-V0 flammability rating (flame retardant) and excellent
electrical properties,
Components can be electrically insulated and sealed from water without the
need of housing or the use of slow 2-component casting/potting resins.
Low cost aluminium moulds can be designed to form Connectors, Grommets,
Strain Reliefs, IP protection and Housings for electrical and automotive
components such as cable glands, connector housings, PCB encapsulations,
sensors, and many other sealing applications
The component or cables are placed in the low cost tooling and OVERTEC 5
FR is injected using a specially designed glue gun that features both accurate
and adjustable temperature control to ensure consistent over-moulding..
Finished component cost, capital outlay and time to market can be reduced
significantly.

5. Industrial Suppliers of Sealants and Adhesives
ADDING VALUE TO INDUSTRY
Overtec 5 FR Applications
Strain relief
Connectors
Overmoulded PCBs
Sensors
Cable Glands
IP protection

6. Industrial Suppliers of Sealants and Adhesives
ADDING VALUE TO INDUSTRY
What is Overtec 5 FR ?
Material Technology
•High Performance Polyamide
•ULV0 Flammability rating (FR)
•Water Resistant
•High & Low temperature resistance
•Very high molten tack
•Good adhesion to many substrates including PCB, PVC,
•Available in stick and bulk forms
•Black & Amber colours

7. Industrial Suppliers of Sealants and Adhesives
ADDING VALUE TO INDUSTRY
Overtec 5 FR Product Specifications
Properties Overtec 5FR
Form 15mm sticks + Bulk Prills
Application Temperature 180°c - 230°c
Brookfield Viscosity 4800cps @ 190°c
2300cps @ 210°c
Softening Point 158°c
Heat Resistance 135°c
Low Temperature (TG) -35°c
Dielectric Constant (1mz) 3.5
Dielectric Strength 3 x 1012 Ωcm
Specific Resistance 23 KV/mm

8. Industrial Suppliers of Sealants and Adhesives
ADDING VALUE TO INDUSTRY

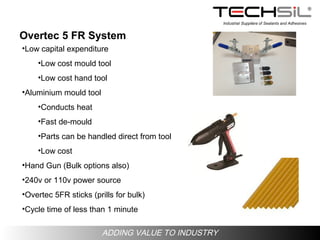

Overtec 5 FR System
•Low capital expenditure
•Low cost mould tool
•Low cost hand tool
•Aluminium mould tool
•Conducts heat
•Fast de-mould
•Parts can be handled direct from tool
•Low cost
•Hand Gun (Bulk options also)
•240v or 110v power source
•Overtec 5FR sticks (prills for bulk)
•Cycle time of less than 1 minute

9. Industrial Suppliers of Sealants and Adhesives
ADDING VALUE TO INDUSTRY

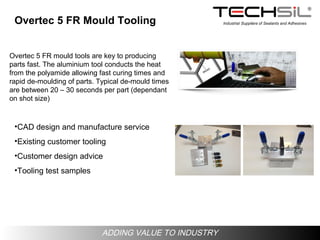

Overtec 5 FR Mould Tooling
•CAD design and manufacture service
•Existing customer tooling
•Customer design advice
•Tooling test samples
Overtec 5 FR mould tools are key to producing
parts fast. The aluminium tool conducts the heat
from the polyamide allowing fast curing times and
rapid de-moulding of parts. Typical de-mould times
are between 20 – 30 seconds per part (dependant
on shot size)

10. Industrial Suppliers of Sealants and Adhesives
ADDING VALUE TO INDUSTRY
For further advice and latest pricing contact us at
Techsil Ltd
Tel +44 (0)1789 773232
technical@techsil.co.uk
www.techsil.co.uk
