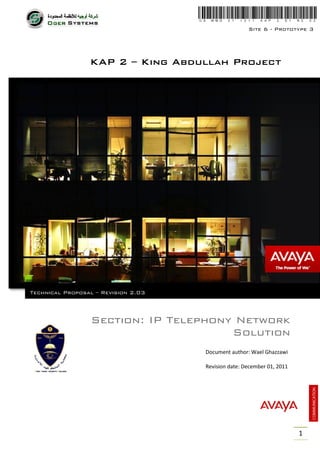

1. Site 6 - Prototype 3
KAP 2 – King Abdullah Project
Technical Proposal – Revision 2.03
Section: IP Telephony Network
Solution
Document author: Wael Ghazzawi
Revision date: December 01, 2011
1

2. Site 6 - Prototype 3
Table of Contents
Introduction ............................................................................................................................................ 3
Single Line Diagram ................................................................................................................................ 4
Quantitative Analysis ............................................................................................................................. 5
Bill of Quantities ..................................................................................................................................... 6
Component Specifications ..................................................................................................................... 9
Phone Sets Power Load ........................................................................................................................ 11
Power Load & Heat Dissipation ........................................................................................................... 12
Appendix............................................................................................................................................... 13
A. Specification Sheet – 8488-SO-06-03-039-FD-T-300-00.dwg;
B. Specification Sheet – 8488-SO-06-03-039-FD-T-310-00.dwg;
C. Specification Sheet – 8488-SO-06-03-039-FD-T-320-00.dwg;
D. Data Sheet – HP DL360G7SRVR
E. Data Sheet – Avaya 450G
F. Data Sheet – Avaya 1608-I BLK
G. Data Sheet – Avaya 9621G
2

3. Site 6 - Prototype 3
Introduction
This Technical Submittal details the proposed HP Data Network Solution designed to be
deployed in PROTOTYPE 3 (Site 6), “Soldiers Institute in King Fahad Security College” subject to
the initial riser diagram(s) with:
Reference number:
8488-SO-06-03-039-FD-T-300-00.dwg;
8488-SO-06-03-039-FD-T-310-00.dwg;
8488-SO-06-03-039-FD-T-320-00.dwg;
Titled: “King Fahad Security College in Riyadh Educational Building”
Consultant: “Not Specified”
File Description: The riser diagram(s) reflect the cabinet layout for the Low Current Rooms that
are distributed over (Ground, 1st, 2nd floors). This allows the generation of a quantitative
analysis table that reflects the number of IP Nods allowing the determination of the required
system solution capacity.
3

4. Site 6 - Prototype 3
Single Line Diagram
The Following Diagram provides a high detail equivalent Riser diagram for the IP Telephony
Solution required equivalent to the information provided in the passive riser diagram (subject
to the project riser drawing: “8488-SO-06-03-039-FD-T-3X0-00.dwg”) with special emphases on
showing the exact models constituting each stage of the design.
4

5. Site 6 - Prototype 3
Quantitative Analysis
The table below uses quantitative analysis based on the drawing(s) “Structured cabling network
– Master Plan” projecting the exact number and type of Nods connected to each Low Current
room in addition to projecting the number of switches and patch panels required to service
them.
Educational Building
Ground Floor
Copper Switch Security
Cabinet UPC T/D IPTV
N# Cabinet Patch Panel - 24 Outlets
Size Capacity outlets Outlets
24U Ports (DC- CCTV)
1 LC Cabinet GR32A 42 U 4 KW - 3 U 2 2 20 4 9
2 LC Cabinet GR44 42 U 4 KW - 3 U 2 2 28 7 6
3 LC Cabinet GR55A 42 U 4 KW - 3 U 2 2 25 8 6
4 LC Cabinet GR72 42U 4 KW - 3 U 2 2 24 8 6
5 LC Cabinet GR83A 42 U 4 KW - 3 U 2 2 16 5 7
First Floor
Copper Switch Security
Cabinet UPC T/D IPTV
Cabinet Patch Panel - 24 Outlets
Size Capacity outlets Outlets
24U Ports (DC- CCTV)
6 LC Cabinet 029 42 U 4 KW - 3 U 4 4 58 2 10
7 LC Cabinet 048 42U 4 KW - 3 U 3 3 41 12 4
8 LC Cabinet 065 42 U 4 KW - 3 U 9 9 164 12 7
9 LC Cabinet 082 42 U 4 KW - 3 U 4 4 67 12 6
10 LC Cabinet 100A 42 U 4 KW - 3 U 2 2 30 7 7
2nd Floor
Copper Switch Security
Cabinet UPC T/D IPTV
Cabinet Patch Panel - 24 Outlets
Size Capacity outlets Outlets
24U Ports (DC- CCTV)
11 LC Cabinet 052 42 U 4 KW - 3 U 3 3 31 8 7
12 LC Cabinet 081 42 U 4 KW - 3 U 4 4 51 12 8
13 LC Cabinet 106A 42 U 4 KW - 3 U 8 8 138 9 13
14 LC Cabinet 134 42 U 4 KW - 3 U 4 4 57 12 6
15 LC Cabinet 158A 42 U 4 KW - 3 U 3 3 32 8 6
5

6. Site 6 - Prototype 3
Bill of Quantities
The tables below provide a quantitative list of the required components/Sub-components, to
achieve the required performance criteria as set forth in the project specifications and in
alignment with the notes provided by the consultant on the approved drawings.
Line # General D. Vendor P# Material ID Description ∑ Qty
1.1 183443 CM S87XX MODEL 1
MGMT R6 SITE ADMIN - STD/ENT ED 1
216893
1.2 LIC
AVAYA AURATM STDED R6 293
225150
1.3 101-1000NEWLIC
SAL STDALN GATEWAY LIC R1.5 1
1.4 227272
DWNLD
1.5 227273 SAL POLICY SRVR LIC R1.5 DWNLD 1
1.6 259401 MEDIA ENCRYPTION R6+/MBT 1
1.7 260054 AES 6.X BSC TSAPI FOR BNDL 293
DL360G7SRVR CM5.2.1+ 2
263764
1.8 S/D/MBT/SBC
R6 LARGE ENT DUPLX SOLUTION 1
266522
1.9 TRACKING
1.10 405362641 PWR CORD USA 2
1.11 700500751 ADMIN TOOLS R6.0 CD 1
PROGNOSIS VOIP MONITORING R3 1
700500754
Communication 1.12 CD
1.1 Avaya 405362641 PWR CORD USA 2
Manager 1.13
1.14 700381254 COMPACT FLASH 128MB RHS 1
G450 MP80 W/POWER SUPPLY 2
700459456
1.15 NON-GSA
MM711 ANLG MEDIA MODULE - NON 4
700466626
1.16 GSA
MM710B E1/T1 MEDIA MODULE - 2
700466634
1.17 NON GSA
AVAYA AURATM SYSTEM PLTFRM 2
700500929
1.18 6.0.3 DVD
1.19 700500961 AVAYA AURATM R6.0.1 MEDIA DVD 2
1.20 700383326 96XX RPLCMNT LINE CORD 283
1.21 700395445 120A CSU CABLE 50FT RHS 2
1.22 232253 SA CM MODEL 1
SA PREF AURATM R6 SE 101-1000 N1 293
238921
1.23 1YPP
1.24 240505 SA PREF AES R6 BSC TSAPI 1YPP 293
1.25 185146 INTRG MGMT NEW MODEL 1
6

7. Site 6 - Prototype 3
Bill of Quantities (Continued)
The tables below provide a quantitative list of the required components/Sub-components, to
achieve the required performance criteria as set forth
Line # General D. Vendor P# Material ID Description ∑ Qty
MGMT R6 SITE ADMIN LIC - 1
216891
1.26 ASA/VAM
216894 MGMT R6 NTWK MGMT LIC - NM 1
1.27
MGMT R6 PERF-ADMIN 50 VOICE SYS 1
216897
1.28 LIC
SAL STDALN GATEWAY LIC R1.5 1
227272
1.29 DWNLD
232255 SA INTGR MGMT MODEL 1
1.30
SA PREF IMR6 SITE ADM ASA/VAM 1
241716
1.31 1YPP
241726 SA PREF IM R6 NTWK MGMT 1YPP 1
1.32
SA PREF IM R6 PERF-ADM 50 VCE 1
241736
1.33 1YPP
Communication
1.2 Avaya
Manager 184048 MM MODEL 1
1.34
MM SIP ITG 48 CHNL N/ENCRPT 1
190930
1.35 N/CARDS
MM R5.X SPEECH TRACKING 1 SEAT 293
223959
1.36 NEW
224261 MM R5.X AV STORE SEAT TRACKING 1
1.37
SAL STDALN GATEWAY LIC R1.5 1
227272
1.38 DWNLD
227273 SAL POLICY SRVR LIC R1.5 DWNLD 1
1.39
MMR5.2 MAS AP LIC AVSTORE NEW 1
228140
1.40 AVSRVR
MM R5.2 MSS APP LIC NEW AVAYA 1
228141
1.41 SRVR
7

8. Site 6 - Prototype 3
Bill of Quantities (Continued)
The tables below provide a quantitative list of the required components/Sub-components, to
achieve the required performance criteria as set forth
Line # General D. Vendor P# Material ID Description ∑ Qty
228159 MM R5.2 1 SEAT NEW 293
1.42
259724 MM R5.X NEW SYSTEM TRACKING 1
1.43
264184 DL360 MAS SRVR MM AVSTR 1
1.44
264186 DL360 MSS SRVR MM 1
1.45
405362641 PWR CORD USA 3
1.46
Communication
1.3 Avaya AM KEYBOARD US TYPE WITH 1
Manager
700403520
1.47 MOUSE RHS
AM KVM SWITCH 2-PORT /W CABLES 1
700403785
1.48 RHS
232258 SA MSGING MODEL 1
1.49
231929 SA PREF MOD MSG R5 SEAT 1YPP 293
1.50
700458532 IP PHONE 1608-I BLK 268
1.51
2. Phone Sets Avaya
700480601 IP PHONE 9621G 15
1.52
8

9. Site 6 - Prototype 3
Component Specifications
Based on the previous section we will now start discussing our solution components and
present a general overview on their performance details.
(1) Communication Manager: This represents the main singular point of data aggregation
for the IP Phone Calls, where IP and external outgoing and incoming call requests are
processed and redirected to establish either an internal connection (Extension to
extension call), internal to external or Extension to internal calls. Within this particular
solution the communication manager acts as well as the Voice Mail Server with
auto-reply and redirect capabilities that is developed in a software environment
allowing for integration of 3rd party productivity and analysis software solutions to
enhance the productivity. The main item that makes up the Communication Manager is:
a. “DL360G7SRVR CM5.2.1” HP Server running Avaya software solution
Where item (a) holds and integrates most of the software packages listed in the BoQ
above having the server hardware developed by HP running the priority software of
Avaya and is especially designed for deployment in medium to large scale enterprise
solutions for highly critical applications with high performance levels and redundancy
requirements.
Refer to Appendix 1: Data Sheet- HP DL360G7 Server
(2) Voice Gateway: This represents the Edge interface between STC hardware and the
Communication Manager is meant to handle the connection of SIP, E1 and even analogue
phone lines to the system allowing for external phone calls. What is important to note is
that the Voice Gateway represented in our solution by the G450 as well is expandable by
special modules that allows connecting analogue phone sets and analogue fax lines to
the IP based solution. The main item that makes up the Voice Gateway is:
a. “G450” Avaya Analogue Voice Gateway
Where item (a) is meant in this designed solution to act as a modular voice gateway that
allows the connection of external lines to the Communication Manager, as well as
expanding the support of the IP Based solution to analogue lines given that the proper
modules are installed in their designated locations.
Refer to Appendix 2: Data Sheet – Avaya G450
(3) Telephone Sets: The Phone Sets and based on the requirements and the specifications
both quantitative and technical resulted in selecting the following two models:
a. “1608-I BLK” Avaya Phone Set
b. “9621G” Avaya Advanced Phone Set
Where item (a) and (b) are directly connected to the designated ports in each room and
programed with the generally defined extension as will be requested by the client.
Refer to Appendix 3: Data Sheet – Avaya 1608-I BLK
9

10. Site 6 - Prototype 3
Component Specifications (continued)
Refer to Appendix 3: Data Sheet – Avaya 9621G
10

11. Site 6 - Prototype 3
Phone Sets Power Load
The following section will present the Power Load ratting of the components making up the
above presented IP Telephony Solution for the purpose of facilitating the PoE requirements of
the data switches to be used.
N# Vendor - Model/Device Maximum Power Load Data-rate Model Number
9621G
1. 4.19 Watt 10/100/1000 700480601
1608I-BLK
2. 3.82 Watt 10/100 700480601
Note: We would recommend the use of HP switches since they support Class 1 PoE devices on
all ports of their switches allowing indiscriminant connection without worrying for overloading
the PoE maximum capacity.
11

12. Site 6 - Prototype 3
Power Load and Heat Dissipation
The following section will present the Power Load ratting of the components making up the
above presented Data Solution for the purpose of facilitating electric-design power calculation
concerning the power-cable amp-load ratting and UPS ratting required for this section of the
MTR. In addition the BTU head dissipation of each component and operational temperature is
listed to help determine the best suited HVAC cooling system ratting.
Operational
N# Vendor - Model/Device Maximum Power Load Maximum Heat Dissipation
Temperature
G450
Avaya Voice Gateway
0 – 45 degree
1. 400 Watt 1780 BTU/hr (1878 kJ/hr)
Celsius
HP Proliant DL360 G7
0 – 45 degree
2. 920 Watt 2968.6 BTU/hr (3132.04 kJ/hr)
Celsius
Note: To achieve the highest performance the room temperature must be kept at a maximum of
, As well note that the BTU ratting specified above is per unit quantity, the HVAC must in
addition take into consideration the dissipation of any additional active or radiant passive
device placed within the same area.
12

13. Site 6 - Prototype 3
Appendix
13
