- 1. STRICTLY PRIVATE & CONFIDENTIAL Portof Spain November 2007 Sept. 15, 2010 T&TEC Video Surveillance Overview
- 2. 2 SecurityTSTT ……………………………………………………….. Introduction What are weoffering Home Enterprise Gov’tOn-the-go Video Surveillance Alarm Monitoring Video Surveillance Alarm Monitoring Alarm Monitoring Tracking & Mobile Video / Notification Video surveillance (ADSL/WiMax)
- 3. 3 SecurityTSTT ……………………………………………………….. Why TSTT Security Successful deployment of extensive Video Surveillance Network for the MNS ‐ Approximately 400 cameras deployed ‐ Ongoing maintenance provided For large projects, TSTT offers 24-hour video and alarm monitoring at flexible prices as it can leverage its assets and monitoring rooms. Potential reuse of existing and projected Control Rooms for other Government entities, thus reducing costs IT friendly, integrated security management providing real‐time monitoring, command and control, automation, database administration, and report management in a single unified system ‐‐ “one stop” shopping
- 4. 4 SecurityTSTT ……………………………………………………….. Why TSTT Security Residential Alarm Monitoring, TSTT launched a state‐of‐the‐ art Security service in November 2009 and has over 5000 users Recently launched Response Services (Armed and Medical), planning to launch Residential Video Verification Leverage TSTT’s scale to deploy “best‐in‐class” solutions at affordable prices o Widely deployed Metro Ethernet Network o WiMax network with over 100 cell sites, can provide bandwidth service in areas not covered by Metro E network
- 5. 5 SecurityTSTT ……………………………………………………….. Why TSTT Security Ability to offer turnkey solutions depending on customer preference: o Asset Purchase – TSTT sells equipment to T&TEC o Managed Services – Equipment usage for 3 – 5 years – 24x7 technical support and response – Provision of spares & maintenance – Optional: Bandwidth provision – Optional: Monitoring o Lease to own – 2 – 4 year lease term – Maintenance included – 10% to 60% down payment for equipment – Upfront payment for installation
- 6. 6 SecurityTSTT ……………………………………………………….. T&TEC (Trinidad &Tobago Electricity Commission) serves some 407,092 domestic, commercial, industrial and street lighting customers in 5 regional divisions with responsibility to manage the supply of power and energy to all of the Republic of Trinidad and Tobago. TSTT has the capability to design a cost effective Video Surveillance solution based on IP megapixel camera technology providing quality monitoring and recording and with less cameras The implementation of advanced video surveillance solutions have been recorded to reduce vandalism and property damage by 70%, and robberies by 40% though out large corporate organizations Situation Analysis
- 7. 7 SecurityTSTT ……………………………………………………….. Typical Solution Topology Monitoring Center IPVideo Surveillance Network SIMPLIFIED ARCHITECTURE Video Analytics Propose an IT friendly, integrated security management providing real-time monitoring, command and control, automation, database administration, and report management in a single unified system -- allows the managing security operations over T&TEC, IT network infrastructure CCTV system (with local recording and monitoring station) 2x 3 megs pixel cameras 7x 2 meg pixel cameras 1 x Ex Site PTZ All cameras has rugged enclosures 10x NEMA boxes Security System Administrator
- 8. 8 SecurityTSTT ……………………………………………………….. Unified Command andControl Threat Monitoring Video Surveillance Manager Physical Access Manager IP Interoperability and Collaboration Solution Threat Response Digital Signag e Radios, Mobile Phones, IP Phones, Soft Phones Threat Detection IP Surveillance Cameras IP Gateways for Access Control Sensors Unified Command and Control IP Network TSTT will commit to providing immediate notification to T&TEC security 24/7 TSTT can store all incidents for a period of 6 months and submit to T&TEC security and police department as required TSTT command center can monitor critical areas - TSTT will determine the incidents requiring response (abuse, suspicious actions, conflicts etc..) When there is an incident - TSTT will inform T&TEC security and if necessary escalate to the police
- 9. 9 SecurityTSTT ……………………………………………………….. What Degree ofSecurity Is Required? 20% PTZ 50% Fixed 80% Combination PTZ and Fixed 100% System Integration PTZ, Fixed and Access Designing a Video Security system can be overwhelming without the right tools and knowledge.

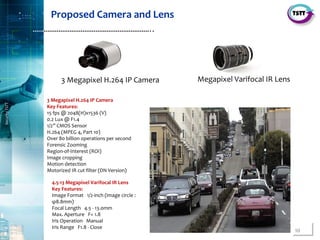

- 10. 10 SecurityTSTT ……………………………………………………….. 3 Megapixel H.264IP Camera Key Features: 15 fps @ 2048(H)x1536 (V) 0.2 Lux @ F1.4 1/2” CMOS Sensor H.264 (MPEG 4, Part 10) Over 80 billion operations per second Forensic Zooming Region-of-Interest (ROI) Image cropping Motion detection Motorized IR cut filter (DN Version) 4.5-13 Megapixel Varifocal IR Lens Key Features: Image Format 1/2-inch (image circle : φ8.8mm) Focal Length 4.5 - 13.0mm Max. Aperture F= 1.8 Iris Operation Manual Iris Range F1.8 - Close Megapixel Varifocal IR Lens3 Megapixel H.264 IP Camera Proposed Camera and Lens

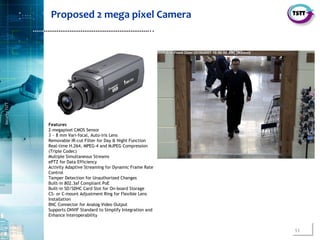

- 11. 11 SecurityTSTT ……………………………………………………….. Features 2-megapixel CMOS Sensor 3~ 8 mm Vari-focal, Auto-iris Lens Removable IR-cut Filter for Day & Night Function Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec) Multiple Simultaneous Streams ePTZ for Data Efficiency Activity Adaptive Streaming for Dynamic Frame Rate Control Tamper Detection for Unauthorized Changes Built-in 802.3af Compliant PoE Built-in SD/SDHC Card Slot for On-board Storage CS- or C-mount Adjustment Ring for Flexible Lens Installation BNC Connector for Analog Video Output Supports ONVIF Standard to Simplify Integration and Enhance Interoperability Proposed 2 mega pixel Camera
- 12. 12 SecurityTSTT ……………………………………………………….. EXPLOSIONPROOF CCTV CAMERAPAN AND TILT POSITIONING SYSTEM (COLOR) •The explosion proof CCTV camera pan and tilt drive system shall be a totally integrated system consisting of an integral receiver/driver, environmentally sealed enclosure components, variable speed/high speed pan and tilt drive unit with continuous 360° rotation, and on-screen programmable autofocus camera optics package. It shall be designed for hazardous/explosive areas, and it shall be designed to mount horizontally or inverted with a pan range from –90 to +90°. ExampleUsing AV8180 PTZ View

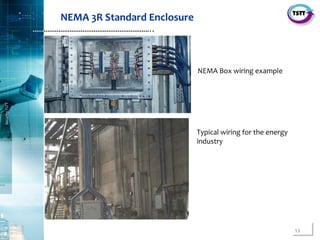

- 13. 13 SecurityTSTT ……………………………………………………….. NEMA 3R StandardEnclosure Typical wiring for the energy industry NEMA Box wiring example
- 14. 14 SecurityTSTT ……………………………………………………….. Aimetis Symphony™ Professional– IP Video & Integrated Alarm Management Aimetis Symphony™ Professional combines the robust video recording features of the Standard license with enterprise wide system scalability, third party system integration, and centralized event management capabilities. Rich API for easy integration with alarms, I/Os, access control and other event based systems Server farm and virtualization Microsoft Active Directory Integrated Time Line provides overview of alarm activity Robust video management recording features: Remote live view Video playback Record on motion Integrated site map PTZ control Multi-stream camera support Nexlink 4U Rackmount Servers are high-density server system supporting quad 64-bit Intel® Xeon™ processors and provide exceptional performance and availability for medium-sized to large businesses. Proposed server and Software
- 15.

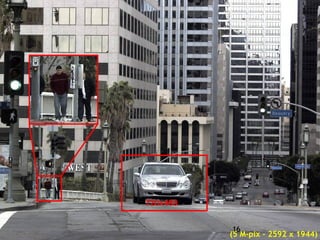

- 16. 16 SecurityTSTT ……………………………………………………….. Increase Coverage (CIF –320 x 240) (VGA – 640 x 480)(D1 – 720 x 480) (HDTV 1 – 1280 x 720) (1.3 M-pix – 1280 x 1024) (2 M-pix – 1600 x 1200) (HDTV 2 – 1920 x 1080) (3 M-pix – 2048 x 1536) (5 M-pix – 2592 x 1944) 720x480 16

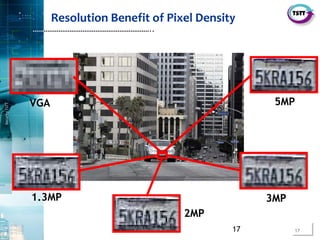

- 17. 17 SecurityTSTT ……………………………………………………….. Resolution Benefit ofPixel Density VGA 5MP 3MP 2MP 1.3MP 17
- 18. 18 SecurityTSTT ……………………………………………………….. IP Video VGA VGA VGA VGAVGA VGA VGA VGA VGA VGA VGA VGA VGA VGA 640 480 1,280 960 2,048 1,532 VGA 1.3 Megapixel 3 Megapixel 1.3 Mega = 4 VGA 3 Mega 1 Day of 1.3 Megapixel = 3185 TB
