The document proposes an electronic security installation for the Food and Drugs Authority that includes CCTV cameras, access control systems, and other physical security measures. It provides an overview of the assessment conducted, highlights risks around access control and CCTV, outlines priority areas for installation, and presents design criteria and equipment specifications. The proposal recommends a full security system from Afwest International Security, highlighting their experience, support, and some client examples.

2. PRESENTATION BY:
EMMANUEL ANIM
BUSINESS DEVELOPMENT & PROJECT MANAGER
AFWEST INTERNATIONAL
SECURITY – ELECTRONIC
SECURITY INSTALLATION
FOR
FOOD AND DRUGS AUTHORITY

3. MAIN CONTENTS IN THE PROPOSAL
General Overview Of Assessment
Risk Assessment Highlights
Priority Areas
Design Criteria
Pictures, Specifications & Quantities of some
Materials proposed
Why Choose Afwest Int. Security
Some Clients of Afwest Int. Security
Conclusion & Questions if Any

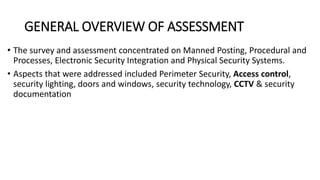

4. GENERAL OVERVIEW OF ASSESSMENT
• The survey and assessment concentrated on Manned Posting, Procedural and
Processes, Electronic Security Integration and Physical Security Systems.
• Aspects that were addressed included Perimeter Security, Access control,
security lighting, doors and windows, security technology, CCTV & security
documentation

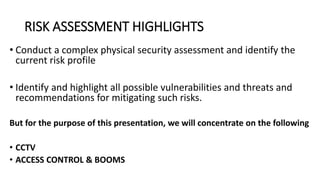

5. RISK ASSESSMENT HIGHLIGHTS
• Conduct a complex physical security assessment and identify the
current risk profile
• Identify and highlight all possible vulnerabilities and threats and
recommendations for mitigating such risks.
But for the purpose of this presentation, we will concentrate on the following
• CCTV
• ACCESS CONTROL & BOOMS

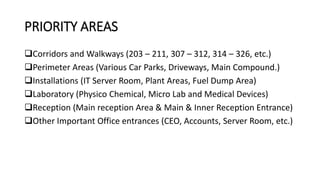

6. PRIORITY AREAS
Corridors and Walkways (203 – 211, 307 – 312, 314 – 326, etc.)
Perimeter Areas (Various Car Parks, Driveways, Main Compound.)
Installations (IT Server Room, Plant Areas, Fuel Dump Area)
Laboratory (Physico Chemical, Micro Lab and Medical Devices)
Reception (Main reception Area & Main & Inner Reception Entrance)
Other Important Office entrances (CEO, Accounts, Server Room, etc.)

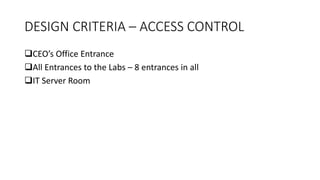

7. DESIGN CRITERIA – ACCESS CONTROL
CEO’s Office Entrance
All Entrances to the Labs – 8 entrances in all
IT Server Room

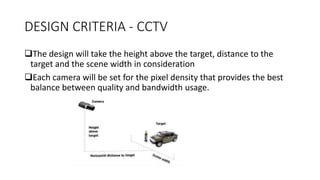

8. DESIGN CRITERIA - CCTV
The design will take the height above the target, distance to the
target and the scene width in consideration
Each camera will be set for the pixel density that provides the best
balance between quality and bandwidth usage.

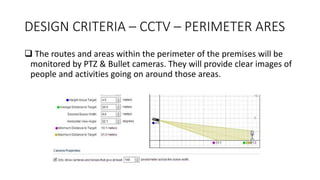

9. DESIGN CRITERIA – CCTV – PERIMETER ARES
 The routes and areas within the perimeter of the premises will be
monitored by PTZ & Bullet cameras. They will provide clear images of
people and activities going on around those areas.

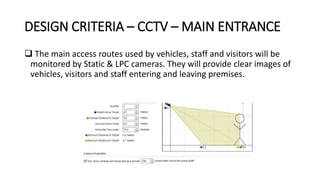

10. DESIGN CRITERIA – CCTV – MAIN ENTRANCE
 The main access routes used by vehicles, staff and visitors will be
monitored by Static & LPC cameras. They will provide clear images of
vehicles, visitors and staff entering and leaving premises.

11. DESIGN CRITERIA – CCTV – CORRIDORS, LABS
 High resolution dome cameras will be installed in corridors, labs,
reception and server room. The cameras will provide details of
individuals on these areas.

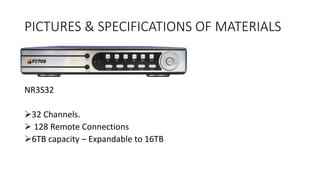

12. PICTURES & SPECIFICATIONS OF MATERIALS
NR3S32
32 Channels.
 128 Remote Connections
6TB capacity – Expandable to 16TB

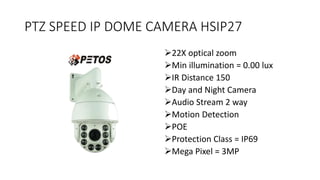

13. PTZ SPEED IP DOME CAMERA HSIP27
22X optical zoom
Min illumination = 0.00 lux
IR Distance 150
Day and Night Camera
Audio Stream 2 way
Motion Detection
POE
Protection Class = IP69
Mega Pixel = 3MP

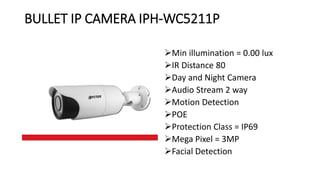

14. BULLET IP CAMERA IPH-WC5211P
Min illumination = 0.00 lux
IR Distance 80
Day and Night Camera
Audio Stream 2 way
Motion Detection
POE
Protection Class = IP69
Mega Pixel = 3MP
Facial Detection

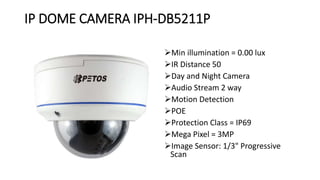

15. IP DOME CAMERA IPH-DB5211P
Min illumination = 0.00 lux
IR Distance 50
Day and Night Camera
Audio Stream 2 way
Motion Detection
POE
Protection Class = IP69
Mega Pixel = 3MP
Image Sensor: 1/3" Progressive
Scan

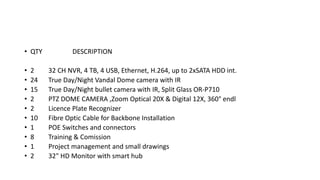

16. • QTY DESCRIPTION
• 2 32 CH NVR, 4 TB, 4 USB, Ethernet, H.264, up to 2xSATA HDD int.
• 24 True Day/Night Vandal Dome camera with IR
• 15 True Day/Night bullet camera with IR, Split Glass OR-P710
• 2 PTZ DOME CAMERA ,Zoom Optical 20X & Digital 12X, 360° endl
• 2 Licence Plate Recognizer
• 10 Fibre Optic Cable for Backbone Installation
• 1 POE Switches and connectors
• 8 Training & Comission
• 1 Project management and small drawings
• 2 32" HD Monitor with smart hub

17. • QTY DESCRIPTION
• 11 PETOS NETWORKED ALL-IN-ONE READER
• 11 SP300KG Maglock
• 11 Exit Push Buttons
• 11 12-7AH Battery
• 11 Manual Call Point Base DMN 787G
• 2 Sure Stop Hydraulic Stopper

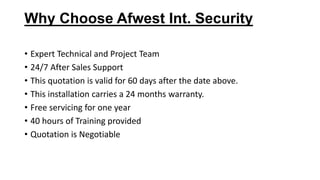

18. Why Choose Afwest Int. Security
• Expert Technical and Project Team
• 24/7 After Sales Support
• This quotation is valid for 60 days after the date above.
• This installation carries a 24 months warranty.
• Free servicing for one year
• 40 hours of Training provided
• Quotation is Negotiable

19. SOME CLIENTS OF AFWEST INT. SECURITY

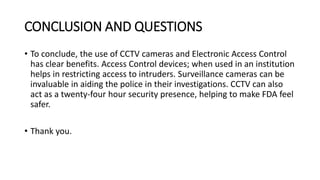

20. CONCLUSION AND QUESTIONS
• To conclude, the use of CCTV cameras and Electronic Access Control
has clear benefits. Access Control devices; when used in an institution
helps in restricting access to intruders. Surveillance cameras can be
invaluable in aiding the police in their investigations. CCTV can also
act as a twenty-four hour security presence, helping to make FDA feel
safer.
• Thank you.
