Taking Control of your Bluetooth Devices
The document discusses managing Bluetooth Low Energy (BLE) devices, focusing on protocols, UUIDs, and device characteristics. It highlights tools for scanning and controlling devices, such as using the Gatttool and Bluepy libraries, and provides examples of characteristic read and write commands. Further resources and links for learning about BLE and available software are also included.
![Bluetooth [in]security](https://cdn.slidesharecdn.com/ss_thumbnails/bluetoothinsecurity-160203162816-thumbnail.jpg?width=640&height=640&fit=bounds)
Taking Control of your Bluetooth Devices
- 1. Helen Sherwood-Taylor PyCon UK September2016 TAKING CONTROL OF YOUR BLUETOOTH DEVICES
- 2. BLUETOOTH LOW ENERGY BLE BTLE "Bluetooth Smart" aka: Partof Bluetooth 4.0
- 3. BLE FEATURES Simple protocols Lowbandwidth Short range Low power Widely used
- 4.

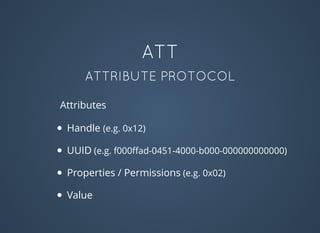

- 5. ATT ATTRIBUTE PROTOCOL Handle (e.g.0x12) UUID (e.g. f000ffad-0451-4000-b000-000000000000) Properties / Permissions (e.g. 0x02) Value Attributes

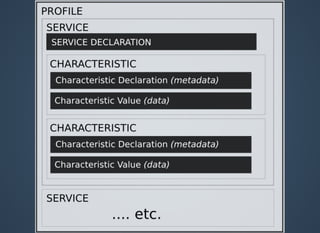

- 6. GATT GENERIC ATTRIBUTE PROFILE Buildson attributes Services / characteristics hierarchy All contribute to device profile
- 8. STANDARD UUIDS Defined byBluetooth Special Interest Group (SIG) Based on Bluetooth Base UUID Refer to with first 32 bits Can be looked up in spec e.g. heart rate, wind speed, latitude xxxxxxxx-0000-1000-8000-00805F9B34FB

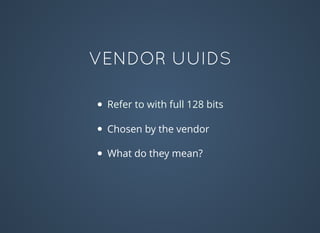

- 9. VENDOR UUIDS Refer towith full 128 bits Chosen by the vendor What do they mean?
- 10. INGREDIENTS HARDWARE Bluetooth lightbulb Controlling device(Android phone) ANALYSIS File transfer (adb?) Wireshark CONTROL Linux box BlueZ bluepy
- 11.

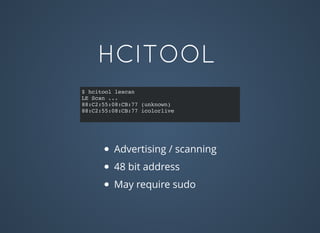

- 12. HCITOOL $ hcitool lescan LEScan ... 88:C2:55:08:CB:77 (unknown) 88:C2:55:08:CB:77 icolorlive Advertising / scanning 48 bit address May require sudo

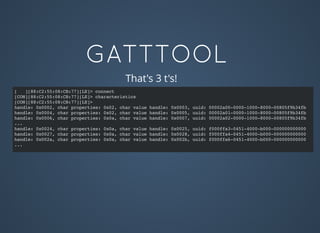

- 13. GATTTOOL [ ][88:C2:55:08:CB:77][LE]> connect [CON][88:C2:55:08:CB:77][LE]>characteristics [CON][88:C2:55:08:CB:77][LE]> handle: 0x0002, char properties: 0x02, char value handle: 0x0003, uuid: 00002a00-0000-1000-8000-00805f9b34fb handle: 0x0004, char properties: 0x02, char value handle: 0x0005, uuid: 00002a01-0000-1000-8000-00805f9b34fb handle: 0x0006, char properties: 0x0a, char value handle: 0x0007, uuid: 00002a02-0000-1000-8000-00805f9b34fb ... handle: 0x0024, char properties: 0x0a, char value handle: 0x0025, uuid: f000ffa3-0451-4000-b000-000000000000 handle: 0x0027, char properties: 0x0a, char value handle: 0x0028, uuid: f000ffa4-0451-4000-b000-000000000000 handle: 0x002a, char properties: 0x0a, char value handle: 0x002b, uuid: f000ffa6-0451-4000-b000-000000000000 ... That's 3 t's!

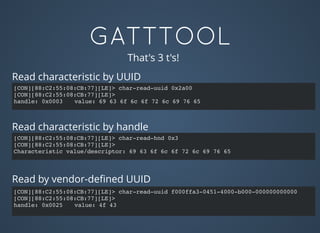

- 14. GATTTOOL [CON][88:C2:55:08:CB:77][LE]> char-read-hnd 0x3 [CON][88:C2:55:08:CB:77][LE]> Characteristicvalue/descriptor: 69 63 6f 6c 6f 72 6c 69 76 65 That's 3 t's! Read characteristic by UUID [CON][88:C2:55:08:CB:77][LE]> char-read-uuid 0x2a00 [CON][88:C2:55:08:CB:77][LE]> handle: 0x0003 value: 69 63 6f 6c 6f 72 6c 69 76 65 [CON][88:C2:55:08:CB:77][LE]> char-read-uuid f000ffa3-0451-4000-b000-000000000000 [CON][88:C2:55:08:CB:77][LE]> handle: 0x0025 value: 4f 43 Read characteristic by handle Read by vendor-defined UUID

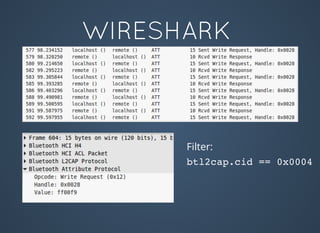

- 15. LOG CAPTURE Android DeveloperOptions Toggle Do stuff in app Download log Repeat
- 16.

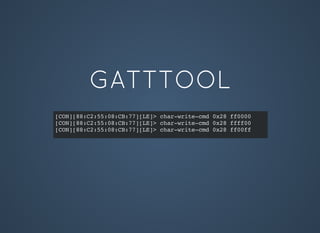

- 17. GATTTOOL [CON][88:C2:55:08:CB:77][LE]> char-write-cmd 0x28ff0000 [CON][88:C2:55:08:CB:77][LE]> char-write-cmd 0x28 ffff00 [CON][88:C2:55:08:CB:77][LE]> char-write-cmd 0x28 ff00ff

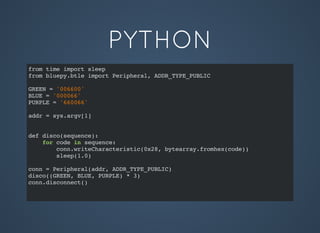

- 18. PYTHON from time importsleep from bluepy.btle import Peripheral, ADDR_TYPE_PUBLIC GREEN = '006600' BLUE = '000066' PURPLE = '660066' addr = sys.argv[1] def disco(sequence): for code in sequence: conn.writeCharacteristic(0x28, bytearray.fromhex(code)) sleep(1.0) conn = Peripheral(addr, ADDR_TYPE_PUBLIC) disco((GREEN, BLUE, PURPLE) * 3) conn.disconnect()
- 19.
- 20. RESOURCES icolorlive bulb (orsearch for bluetooth bulb) - Wireshark - pyshark (python lib for processing logs) - BlueZ - bluepy - https://www.amazon.co.uk/dp/B01FR6QNH0/ https://www.wireshark.org/ https://github.com/KimiNewt/pyshark http://www.bluez.org/ https://github.com/IanHarvey/bluepy

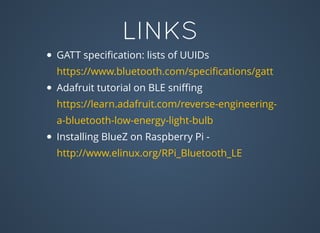

- 21. LINKS GATT specification: listsof UUIDs Adafruit tutorial on BLE sniffing Installing BlueZ on Raspberry Pi - https://www.bluetooth.com/specifications/gatt https://learn.adafruit.com/reverse-engineering- a-bluetooth-low-energy-light-bulb http://www.elinux.org/RPi_Bluetooth_LE
- 22. THANK YOU! twitter: @helenst github:@helenst http://helen.st/
