T430-01-Introduction to HTML.pptx

Learning Outcomes
● What is HTML
● Commonly used HTML tags

What is HTML?
What is HTML?
● HTML stands for Hypertext Markup Language
● Used to create the structure and content of a website
HTML is not a programming language. It is a markup language.
● A programming language contains instructions for how a computer can carry out
logical operations.
● A markup language defines a set of rule for formatting and arranging the elements in a
document
● Thus, HTML does not have the concept of variables, conditionals, loops, arrays, etc.

HTML Consists of Tags
HTML defines elements in a webpage using tags.
Tags are used to:
● Define the user interface elements (button, links, textboxes)
● Define text or media (paragraph text, video, audio, images)
● Define the structure of the page (header, main, section, footer)

Example of a Tag
HTML elements consist of opening and closing tags.
Opening Tag: Defines the beginning of the element. The name of the tag is enclosed
between the < and > symbols
Closing Tag: Defines the end of the element. Syntax is the same as the opening tab, the tag
contains a / immediate after the < symbol.
Content: This is the content of the element
Element: The element is defined as the opening tag, the content, and the closing tag,
together.

Example of a Tag
Tags can have attributes
Attribute: An attribute specifies extra information about the element.
● The contents of the attribute will not appear on the website.
● However, the attribute often contains information to configure the behaviour or visual
appearance of the element
Syntax of an attribute:
● The attribute is always an attribute name, followed by an = (equals) symbol, followed
by the attribute’s value.
● The value is always enclosed in double quotes (“)

Some Tags Do Not Have an Explicit Closing Tag
Not every element has an explicit closing tag.
Examples:
● <img src=”donut.png” />
○ NOT: <img></img>
● <br />
○ NOT: <br></br>
● <input type=”text” />
○ NOT: 1<input> </input>
These tags are enclosed within the < and /> symbols.
These tags are also known as empty elements.
● Empty elements do not enclose any content

Creating an HTML page
1/ Create a file with the extension .html
2/ Open the file in a notepad editor or a IDE.
3/ Add the boilerplate code for defining a webpage:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>

</body>
</html>
4/ Save the file
5/ Open the file in a web browser.

Structure of a Webpage
● The first tag is <!DOCTYPE html>
○ This is not an HTML tag. Rather, this tag provides information to the browser abou
what type of document the browser should be prepared to read
○ The html word indicates that the browser should expect to read an HTML page.
● The next tag is the <html> tag
○ This tag defines the start and end of the webpage.
○ All tags for the webpage must be defined within the html tag.
● Inside the html tag, there are two tags: <head> and <body>
○ The contents of the <head></head> provide information about the webpage
■ Examples: the title of the webpage, information for search engine crawlers
○ The <body></body> tag contains the elements you want the webpage to display.
■ The visual output of the page should be defined inside the <body></body>
tag

Commonly Used Tags - Displaying Text
Tags for displaying text:
● <h1>, <h2>, <h3>, <h4>, <h5>, <h6>
○ Known as heading elements
○ Heading elements specify parts of the webpage’s content as headings or
subheadings
○ H1 is used as the main heading
○ h2, h3, h4, h5, and h6 are used as sub heading, sub-sub heading, sub-sub-sub
heading, etc
○ The number (1,2,3,4) is used to describe the importance of the text relative to
other headings. Heading 1 is more important than Heading 2. Heading 2 is more
important than Heading 3, etc. Heading 6 is the least important.
○ Heading tags are NOT used for font sizing!
● <p></p>
○ Known as the paragraph element
○ Used to add a block of text to the webpage.
○ Can be used for a single line of text, or for multiple lines of text

Commonly Used Tags - Displaying Text
Tags for displaying text:
● <a href=”http://www.discord.com”>Click Me</a>
● <p></p>
○ Known as the paragraph element
○ Used to add a block of text to the webpage.
○ Can be used for a single line of text, or for multiple lines of text

Commonly Used Tags - Displaying Media
Tags for displaying media:
● <img src=””/>
○ Known as the image element
○ Used to display an image on the page
○ The link to the image is defined in the element’s src attribute
○ Can display a local image file, or a image located at a url
○ This tag does not have an explicit closing tag
● <video></video>
○ Known as the video element
○ Displays a video
● <audio></audio>
○ Known as the audio element.
○ Plays an audio file

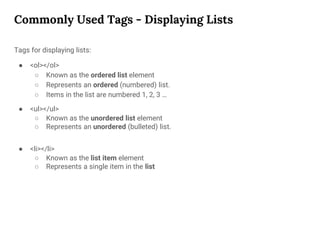

Commonly Used Tags - Displaying Lists
Tags for displaying lists:
● <ol></ol>
○ Known as the ordered list element
○ Represents an ordered (numbered) list.
○ Items in the list are numbered 1, 2, 3 …
● <ul></ul>
○ Known as the unordered list element
○ Represents an unordered (bulleted) list.
● <li></li>
○ Known as the list item element
○ Represents a single item in the list

Commonly Used Tags - Displaying Table
Tags for displaying tabular data (tables)
● <table></table>
○ Known as as the table element.
○ Defines the start and end of the table.
● <tr></tr>
○ Known as the table row element.
○ Defines the start/end of a single row in the table
● <th></th>
○ Known as the table heading element
○ Defines a heading row
○ A heading row is used to define the column headings in the table.
○ [OPTIONAL] The usage of the th tag is optional. Not every table will have column
headings.
○ <th> is a more specific form of the <tr> tag
● <td></td>
○ Defines a single cell in the table

Commonly Used Tags - Displaying Forms
Tags for creating form elements
● <label></label>
○ Used as a label for the form elements
○ Typically, every form element has a corresponding label
● <input type=”text”>
○ Creates a input box
○ Use the placeholder attribute to add a hint
○ See here for types of input boxes (email, phone number, etc)
● <button></button>
○ Adds a button
● <input type=”checkbox”>
○ Adds a checkbox element
● <input type=”radio”>
○ Adds a radio button
○ Use the name attribute to create a radio group
● <select></select>
○ Create a drop down list
○ Define the drop down list’s items with <option> tags

Container Elements
Some elements act as containers for other content or elements. Container elements are
used to:
● organize the webpage’s content into logical sections
● group a related set of elements together, for the purpose of layout & styling
Container elements are considered to be either 1) semantic or 2) non-semantic.
● Semantic container:
○ An container whose name describes the purpose or meaning of its contents
● Non-semantic container:
○ A container that does not convey meaning/purpose about its contents

Semantic Container Tags
Examples of semantic tags include:
● <article>
● <aside>
● <details>
● <figcaption>
● <figure>
● <footer>
● <header>
● <main>
● <nav>
● <section>
● <time>
These elements can be used to define the different parts of the website

Semantic Container Tags
Commonly used semantic container tags include:
● <article></article>
○ Used for blog entries, newspaper or magazine articles, forum post
● <figure></figure>
○ A figure or diagram
● <footer></footer>
○ The content at the bottom of a webpage, such as copyright and company
information
● <header></header>
○ The content at the top of the webpage, such as a menu bar or company logo
● <main></main>
○ The main section of the webpage
● <nav></nav>
○ Used to contain any elements related to in-page navigation
● <section></section>
○ A section of the webpage

Non Semantic Containers
Non semantic container elements are:
● <div></div>:
○ Acts as a generic container for elements
○ Typically used to group a set of elements together so that a common styling or
layout can be applied to the elements
● <span></span>
○ Used to group a block of text together so that a common styling can be applied to
the text

Semantic vs. Non Semantic Containers
Semantic containers communicate meaning/purpose about the container’s contents
Consider these examples:
Semantic Container Non-semantic
container
Both containers store an h1 and p element.
● However, it is obvious from the <article> tag that the h1 and p element are related to
content for a blog post or news article.
● It is not obvious from the <div> tag what the h1 and p are used for.
<footer>
<h1>Lorem ipsum</h1>
<p>Lorem ipsum</p>
</footer>
<div>
<h1>Lorem ipsum</h1>
<p>Lorem ipsum</p>
</div>
