This document provides information about Bossmanfilter T-strainers, which are used for filtration in pipelines. T-strainers come in standard sizes from 3/4" to 48" and can filter particles as small as 40 microns. They are available in conical, basket, and plate configurations out of materials like stainless steel, carbon steel, monel, and titanium. T-strainers can be installed horizontally or vertically in pipelines.

1. R

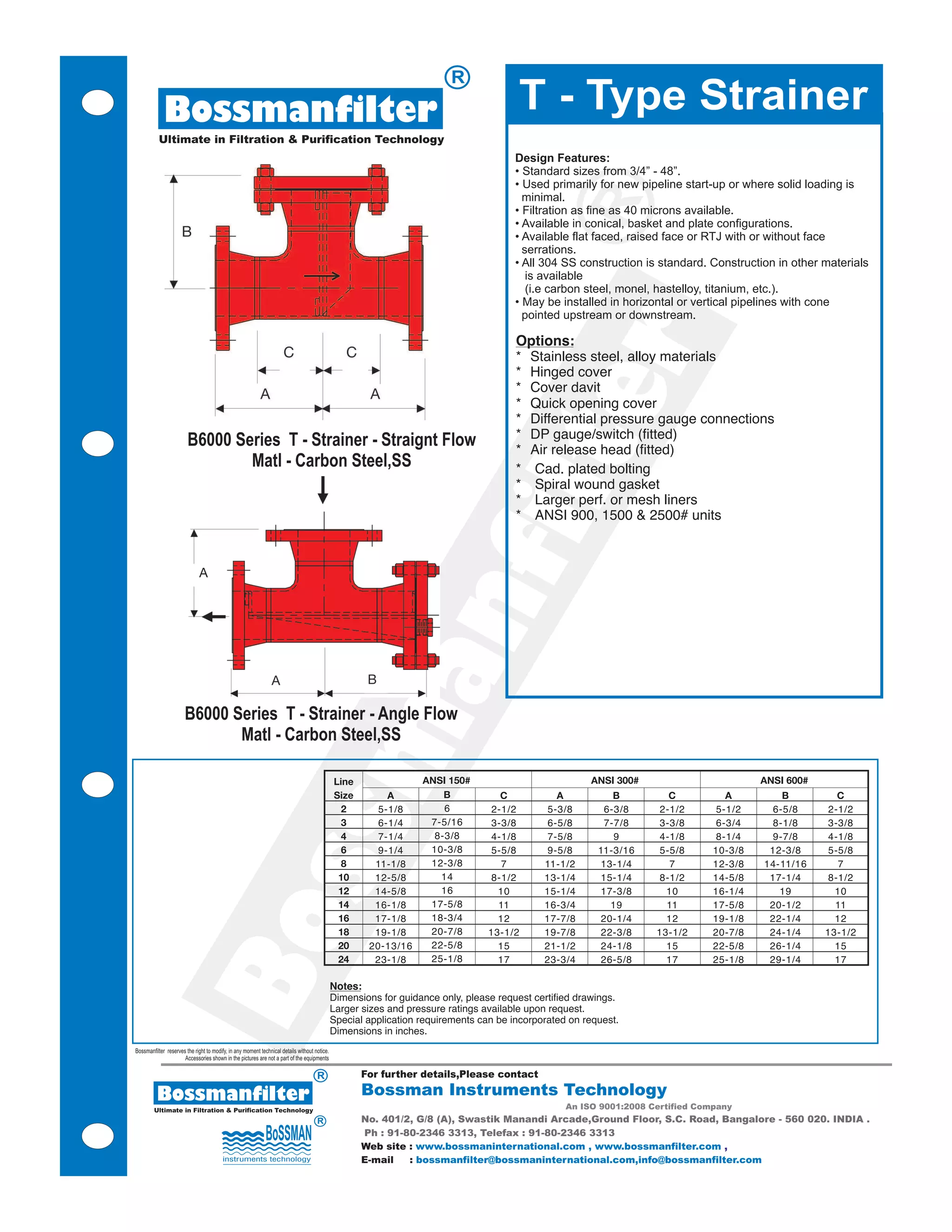

Bossmanfilter T - Type Strainer
Ultimate in Filtration & Purification Technology
Design Features:
• Standard sizes from 3/4” - 48”.
• Used primarily for new pipeline start-up or where solid loading is
minimal.
R
• Filtration as fine as 40 microns available.
• Available in conical, basket and plate configurations.
• Available flat faced, raised face or RTJ with or without face
serrations.
• All 304 SS construction is standard. Construction in other materials
is available
(i.e carbon steel, monel, hastelloy, titanium, etc.).
• May be installed in horizontal or vertical pipelines with cone
pointed upstream or downstream.
er
B6000 Series T - Strainer - Straignt Flow
t
Matl - Carbon Steel,SS
fil
an
B6000 Series T - Strainer - Angle Flow
m
Matl - Carbon Steel,SS
ss
Bo
Bossmanfilter reserves the right to modify, in any moment technical details without notice.
Accessories shown in the pictures are not a part of the equipments
R For further details,Please contact
Bossmanfilter Bossman Instruments Technology
Ultimate in Filtration & Purification Technology An ISO 9001:2008 Certified Company
R No. 401/2, G/8 (A), Swastik Manandi Arcade,Ground Floor, S.C. Road, Bangalore - 560 020. INDIA .
Ph : 91-80-2346 3313, Telefax : 91-80-2346 3313
Web site : www.bossmaninternational.com , www.bossmanfilter.com ,
E-mail : bossmanfilter@bossmaninternational.com,info@bossmanfilter.com
