This document discusses using Hadoop, Elasticsearch, and Storm for real-time analytics and anomaly detection. Hadoop is used for its big data processing capabilities. Elasticsearch enables powerful search and analytics on large datasets. Storm allows for real-time computation on streaming data. Together this platform allows building models from large datasets using Hadoop, detecting anomalies in real-time with Elasticsearch, and reacting to live data flows using Storm's stream processing. Examples of uses include recommendations that optimize results in real-time and fraud prevention that can route suspicious transactions for further analysis.

1. Copyright Elasticsearch 2014 Copying, publishing and/or distributing without written permission is strictly prohibited
Real-time Analytics &
Anomaly detection
using Hadoop, Elasticsearch and Storm
Costin Leau
@costinl

2. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited

3. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Interesting != Common
Datasets tend to have hot / common entities
Monopolize the data set
Create too much noise
Cannot be easily avoided
Common = frequent
Interesting = frequently different

4. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Finding the uncommon
Background vs foreground == things that stand out
Example:
Background: “flu”
“H5N1” appears in 5 / 10M docs
H5N1
flu

5. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited

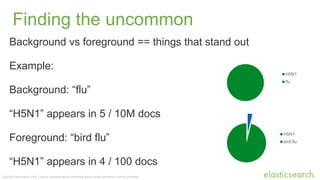

Finding the uncommon
Background vs foreground == things that stand out
Example:
Background: “flu”
“H5N1” appears in 5 / 10M docs
Foreground: “bird flu”
“H5N1” appears in 4 / 100 docs
H5N1
flu
H5N1
bird flu

6. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited

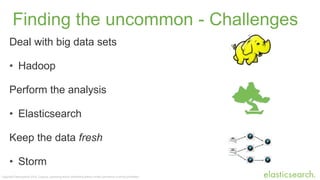

Finding the uncommon - Challenges
Deal with big data sets
• Hadoop
Perform the analysis
• Elasticsearch
Keep the data fresh
• Storm

7. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited

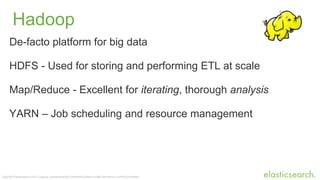

Hadoop
De-facto platform for big data
HDFS - Used for storing and performing ETL at scale
Map/Reduce - Excellent for iterating, thorough analysis
YARN – Job scheduling and resource management

8. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Elasticsearch
Open-source real-time search and analytics engine
• Fully-featured search
Relevance-ranked text search
Scalable search
High-performance geo, temporal, range and key lookup
Highlighting
Support for complex / nested document types *
Spelling suggestions
Powerful query DSL *
“Standing” queries *
Real-time results *
Extensible via plugins *
• Powerful faceting/analysis
Summarize large sets by any combinations of
time, geo, category and more. *
“Kibana” visualization tool *
* Features we see as differentiators
• Management
Simple and robust deployments *
REST APIs for handling all aspects of administration/monitoring *
“Marvel” console for monitoring and administering clusters *
Special features to manage the life cycle of content *
• Integration
Hadoop (Map/Red,Hive,Pig,Cascading..)*
Client libraries (Python, Java, Ruby, javascript…)
Data connectors (Twitter, JMS…)
Logstash ETL framework *
• Support
Development and Production support with tiered levels
Support staff are the core developers of the product *

9. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Elasticsearch
Open-source real-time search and analytics engine

10. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited

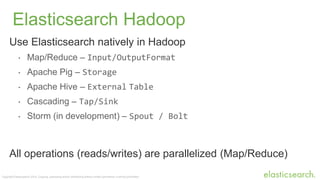

Elasticsearch Hadoop
Use Elasticsearch natively in Hadoop
‣ Map/Reduce – Input/OutputFormat
‣ Apache Pig – Storage
‣ Apache Hive – External Table
‣ Cascading – Tap/Sink
‣ Storm (in development) – Spout / Bolt
All operations (reads/writes) are parallelized (Map/Reduce)

11. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Storm
Distributed, fault-tolerant, real-time computation system
Perform on-the-fly queries
React to live data
Prevention
Routing

12. Copyright Elasticsearch 2014 Copying, publishing and/or distributing without written permission is strictly prohibited
Discovering
the relevant

13. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Inverted index
Inverting Shakespeare
‣ Take all the plays and break them down word by word
‣ For each word, store the ids of the documents that contain it
‣ Sort all tokens (words)
token doc freq. postings (doc ids)
Anthony 2 1, 2
Brutus 1 5
Caesar 2 2, 3
Calpurnia 2 4, 5

14. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Relevancy
How well does a document match a query?
step query d1 d2
The text brown fox The quick brown fox likes
brown nuts
The red fox
The terms (brown, fox) (brown, brown, fox, likes, nuts,
quick)
(red, fox)
A frequency vector (1, 1) (2, 1) (0, 1)
Relevancy - 2? 1?

15. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Relevancy - Vector Space Model
• How well q matches d1 and d2?
‣ The coordinates in the vector represent weights per term
‣ The simple (1, 0) vector we discussed defines these weights based on the
frequency of each term
‣ But to generalize:
.
2
1
1
tf: brown
tf: fox
q: (brown, fox)
d1: (brown, brown, fox)
d2: (fox)

16. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Relevancy TF-IDF
Term frequency / Inverse Document Frequency
TF = the more a token appears in a doc, the
more important it is
IDF = the more documents containing the term,
the less important it is

17. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Ranking Formula
Called Lucene Similarity
Can be ignored (was an
attempt to make query
scores comparable across
indices, it’s there for
backward compatibility)
Core TF/IDF weight
Score of a
document for a
given query
Normalized doc length,
shorter docs are more
likely to be relevant
than longer docs
Boost of
query term t

18. Copyright Elasticsearch 2014 Copying, publishing and/or distributing without written permission is strictly prohibited
Discovering
the interesting

19. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Frequency differentiator
TF-IDF by-itself is not enough
need to compare the DF in foreground vs background
Precision vs Recall balance

20. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Single-set analysis
A C F H I K
A B C D E … X Y Z W
Query results
Dataset

21. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited

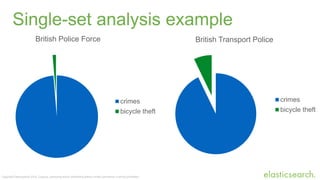

Single-set analysis example
crimes
bicycle theft
crimes
bicycle theft
British Police Force British Transport Police

22. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Multi-set analysis
A B C D E … X Y Z W
A C F H I K M Q R
…
Query results
Dataset
A B C D .. J L M N O .. U
Aggregate

23. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited

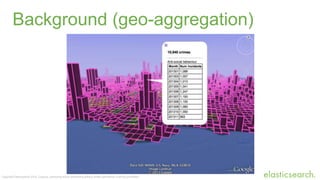

Background (geo-aggregation)

24. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Foreground (geo-aggregation)

25. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Hadoop
Off-line / slow learning
‣ In-depth analysis
‣ Break down data into hot spots
‣ Eliminate noise
‣ Build multiple models

26. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Elasticsearch
Search features
‣ Scoring, TF-IDF
‣ Significant terms (multi-set analysis)
Aggregations
‣ Buckets & Metrics

27. Copyright Elasticsearch 2014 Copying, publishing and/or distributing without written permission is strictly prohibited
Reacting
to data

28. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
Reacting to data
Prevent
execute queries as data flows in  build a model
Route
place suspicious data into a dedicate pipeline

29. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited

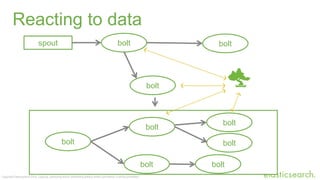

Reacting to data
spout bolt
bolt
bolt
bolt
bolt bolt
bolt
bolt
bolt

30. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited

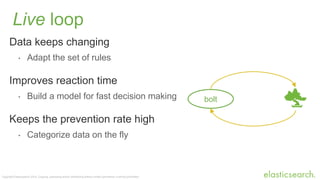

Live loop
Data keeps changing
‣ Adapt the set of rules
Improves reaction time
‣ Build a model for fast decision making
Keeps the prevention rate high
‣ Categorize data on the fly
bolt

31. Copyright Elasticsearch 2014 Copying, publishing and/or distributing without written permission is strictly prohibited
Putting it all together

32. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited
The Big Picture
HDFS
Slow, in-depth
learning
Fast, real-time
learning
ETL

33. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited

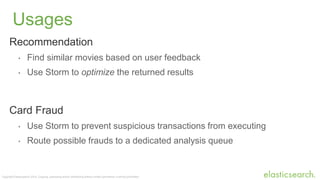

Usages
Recommendation
‣ Find similar movies based on user feedback
‣ Use Storm to optimize the returned results
Card Fraud
‣ Use Storm to prevent suspicious transactions from executing
‣ Route possible frauds to a dedicated analysis queue

34. Copyright Elasticsearch 2014. Copying, publishing and/or distributing without written permission is strictly prohibited

35. Copyright Elasticsearch 2014 Copying, publishing and/or distributing without written permission is strictly prohibited
Q&A
Thank you!
@costinl
