The document discusses different solutions for handling transactions at a supermarket checkout. Solution 1 proposes creating a separate transaction for each item, persisting the items with inactive status and committing after payment to set the order to active. Solution 2 keeps a long transaction open during processing, saving items without changing quantities until payment commits and updates quantities and cash amounts. Solution 3 keeps all changes in memory until a transaction at the end saves the full order to the database. Solution 4 uses pessimistic locking to serialize transactions, immediately updating the database for each item and locking concurrent transactions until commit.

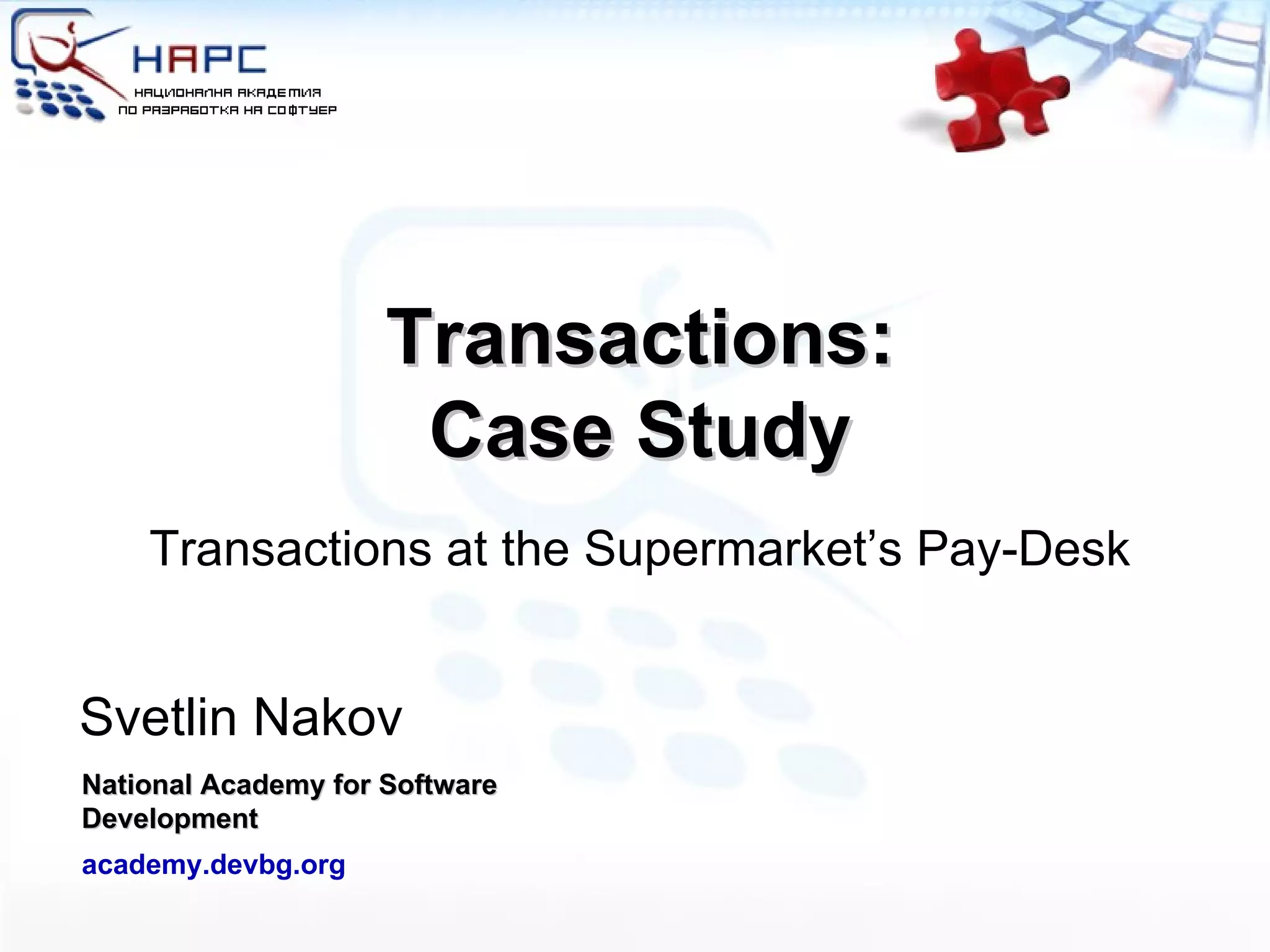

1. Transactions: Case Study Svetlin Nakov National Academy for Software Development academy.devbg.org Transactions at the Supermarket’s Pay-Desk

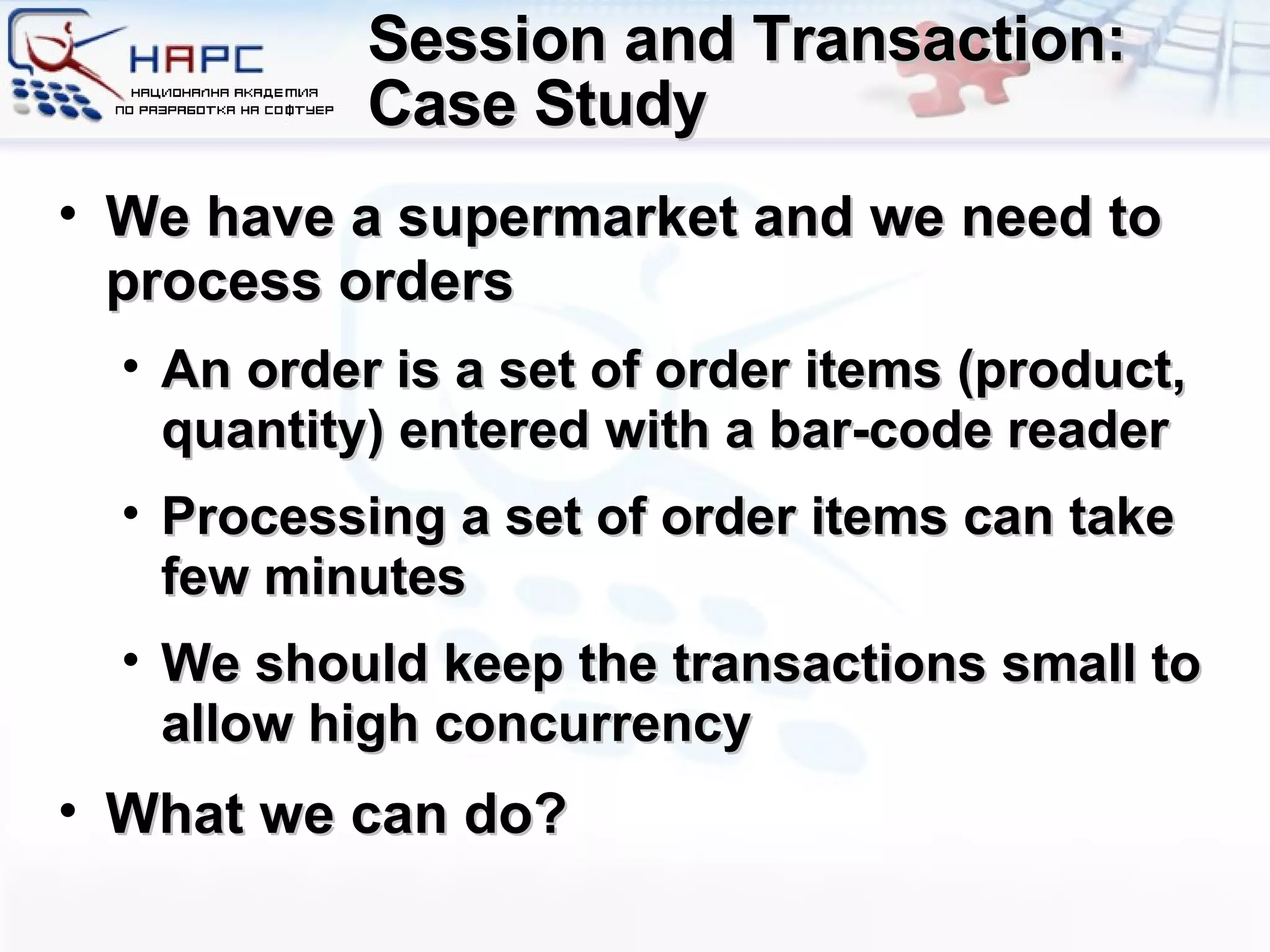

2. Session and Transaction: Case Study We have a supermarket and we need to process orders An order is a set of order items (product, quantity) entered with a bar-code reader Processing a set of order items can take few minutes We should keep the transactions small to allow high concurrency What we can do?

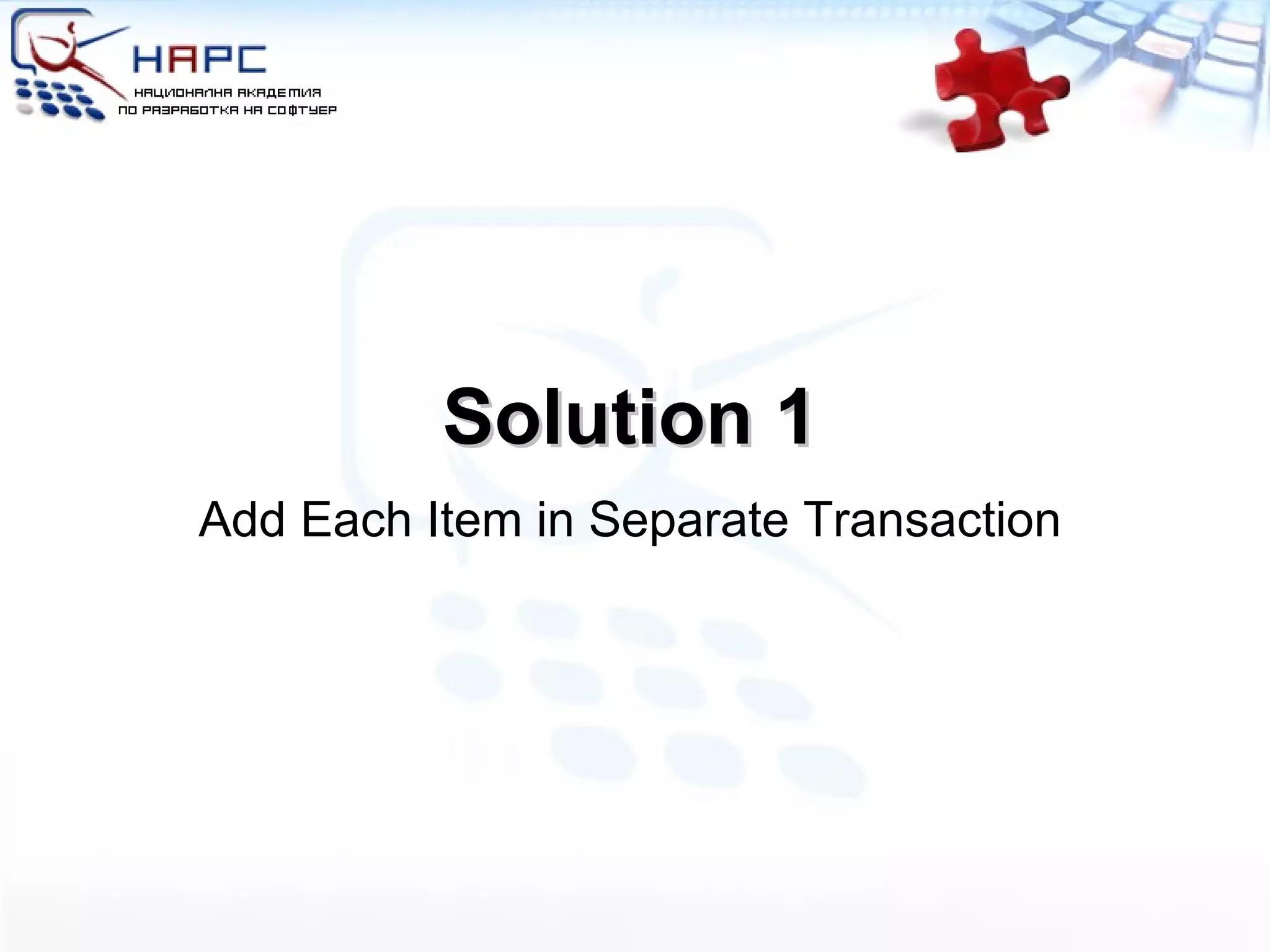

3. Solution 1 Add Each Item in Separate Transaction

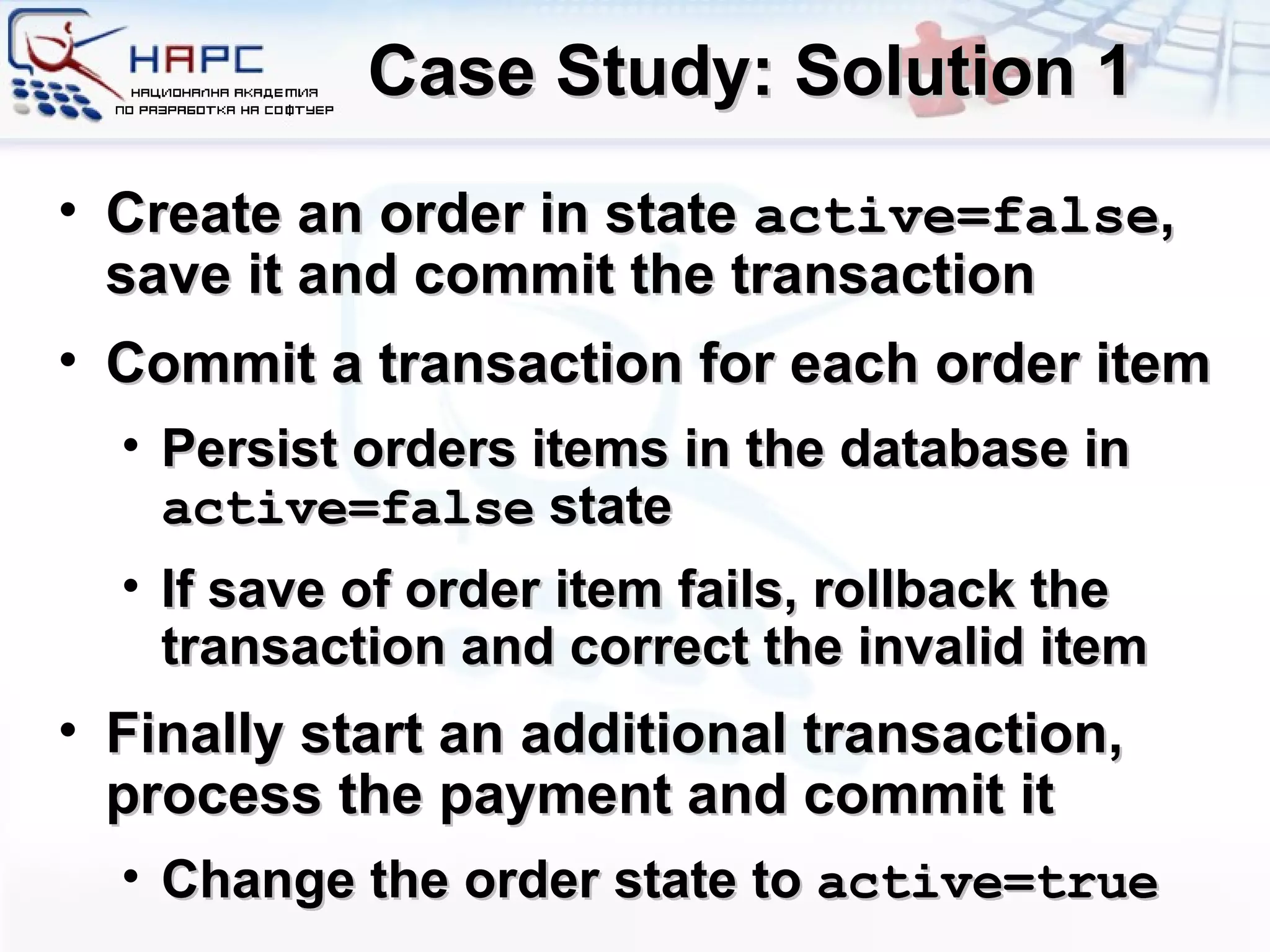

4. Case Study: Solution 1 Create an order in state active=false , save it and commit the transaction Commit a transaction for each order item Persist orders items in the database in active=false state If save of order item fails, rollback the transaction and correct the invalid item Finally start an additional transaction, process the payment and commit it Change the order state to active=true

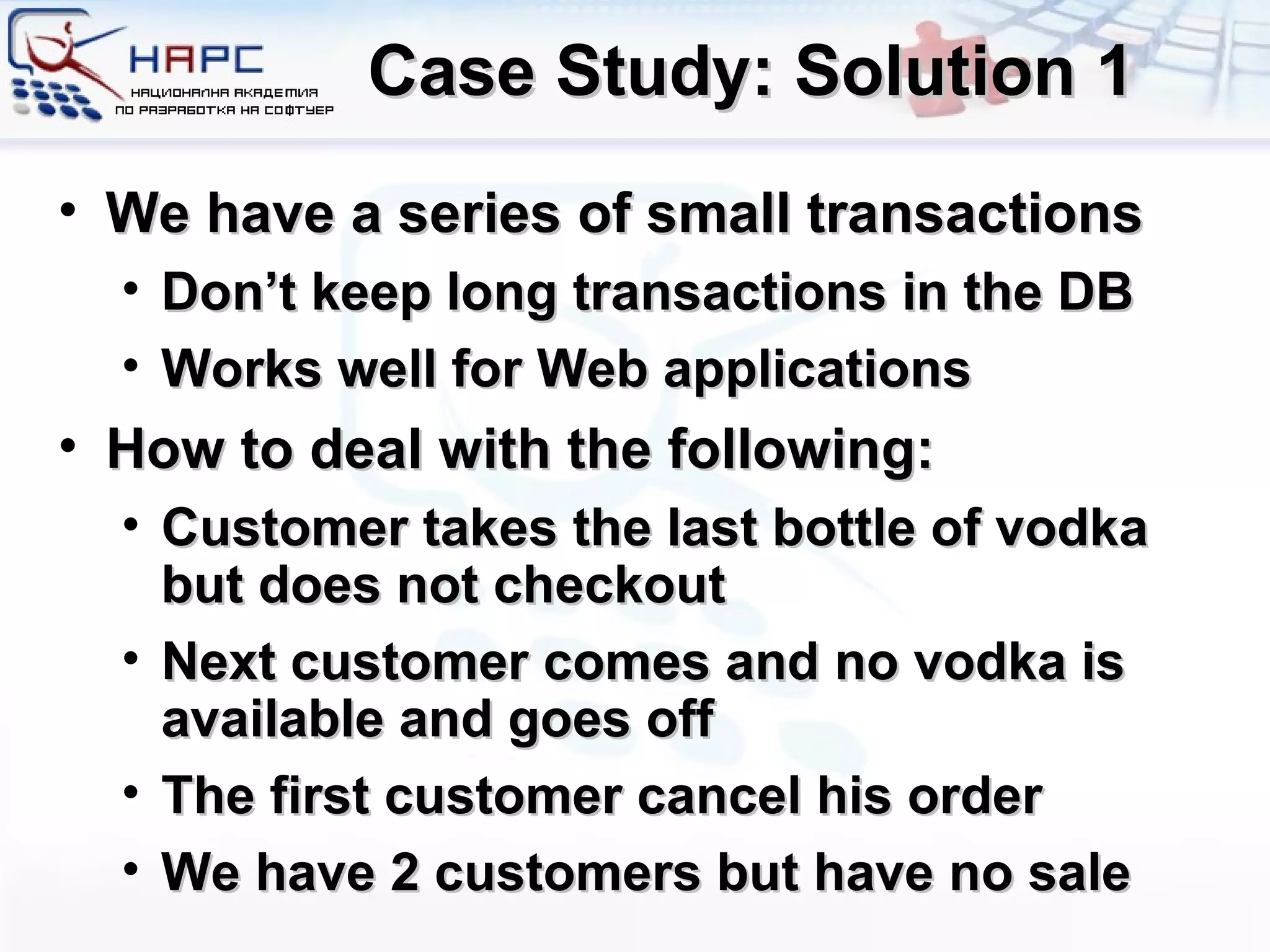

5. Case Study: Solution 1 We have a series of small transactions Don’t keep long transactions in the DB Works well for Web applications How to deal with the following: Customer takes the last bottle of vodka but does not checkout Next customer comes and no vodka is available and goes off The first customer cancel his order We have 2 customers but have no sale

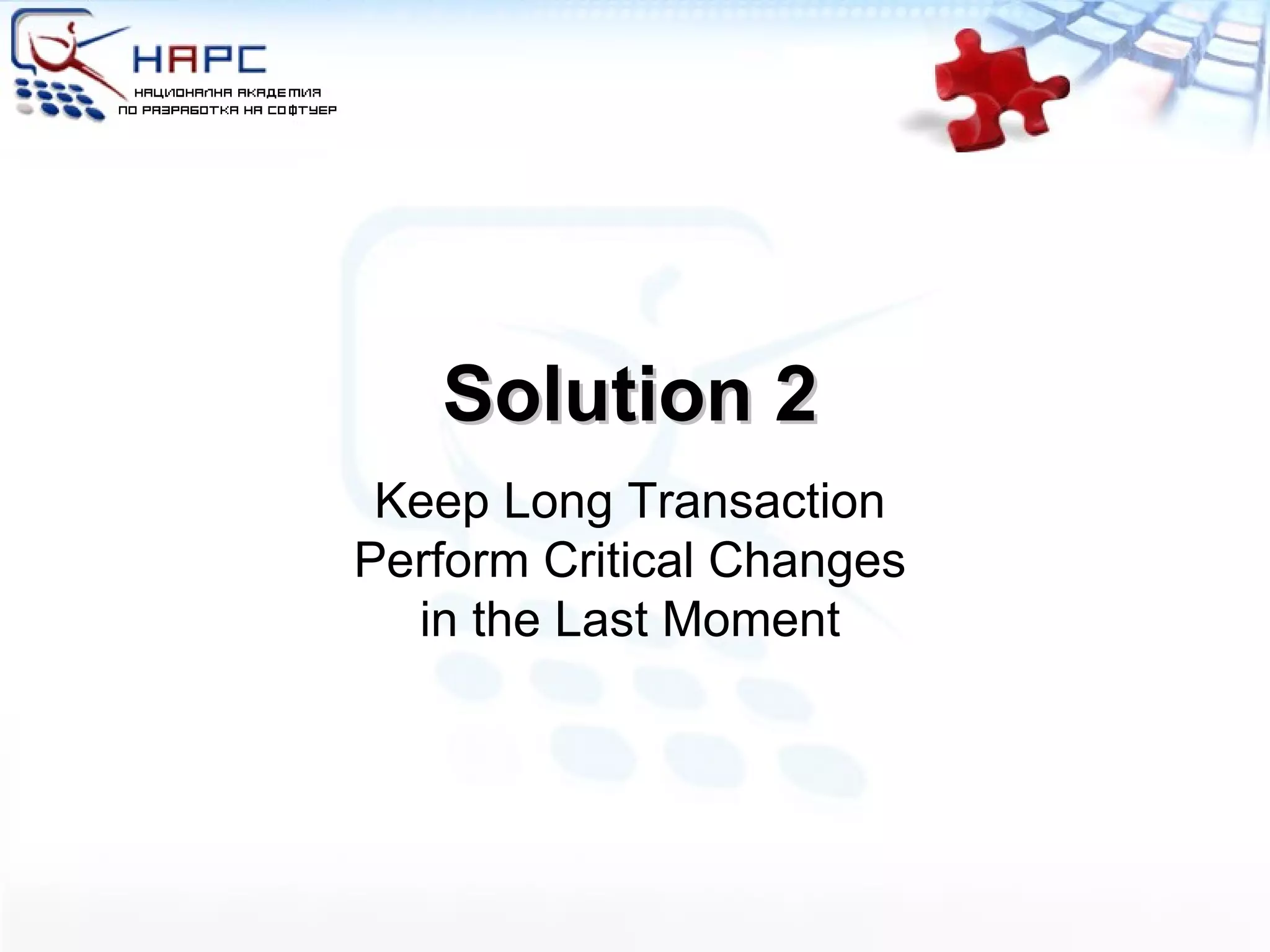

6. Solution 2 Keep Long Transaction Perform Critical Changes in the Last Moment

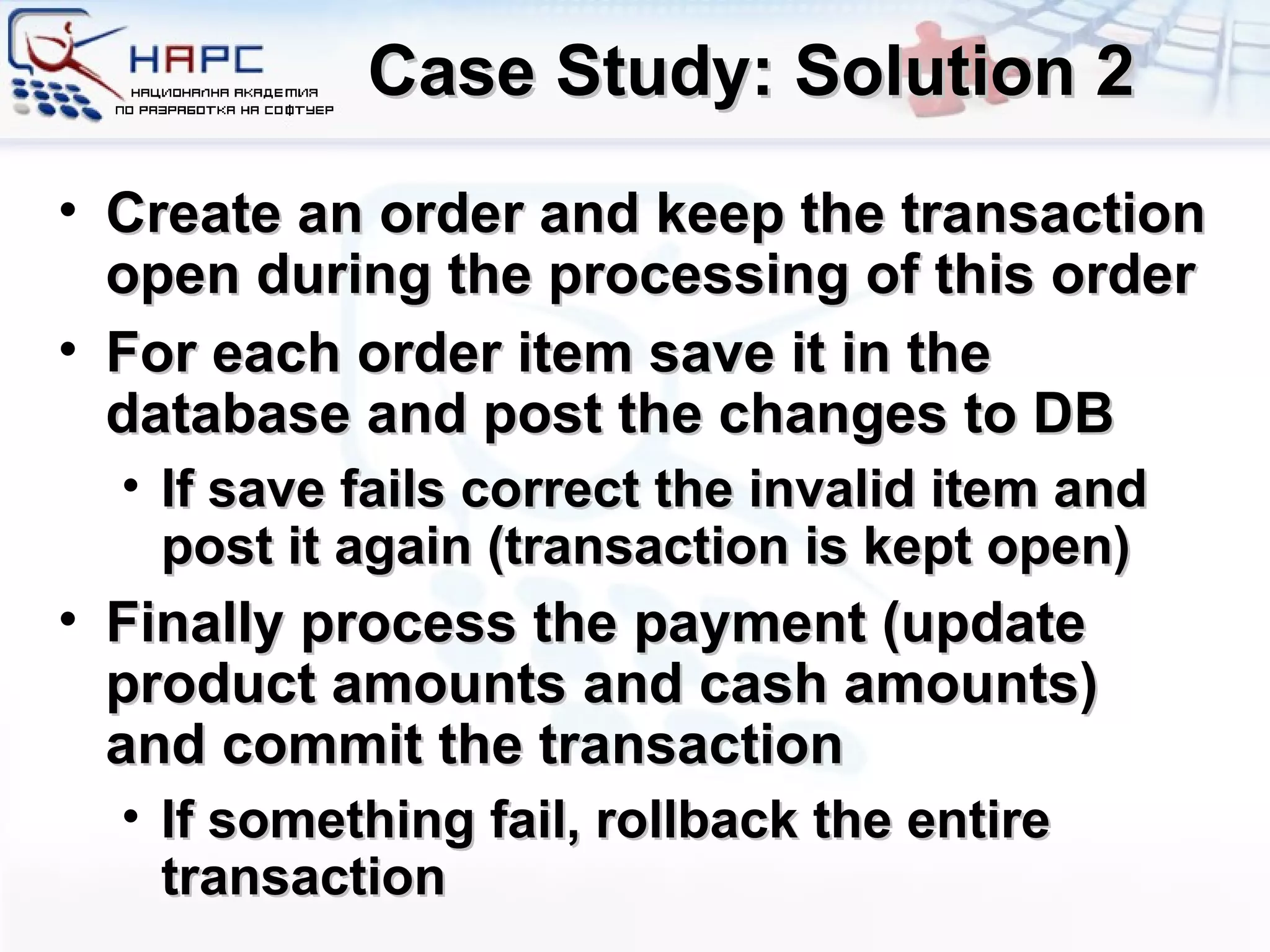

7. Case Study: Solution 2 Create an order and keep the transaction open during the processing of this order For each order item save it in the database and post the changes to DB If save fails c orrect the invalid item and post it again (transaction is kept open) Finally process the payment (update product amounts and cash amounts) and commit the transaction If something fail, rollback the entire transaction

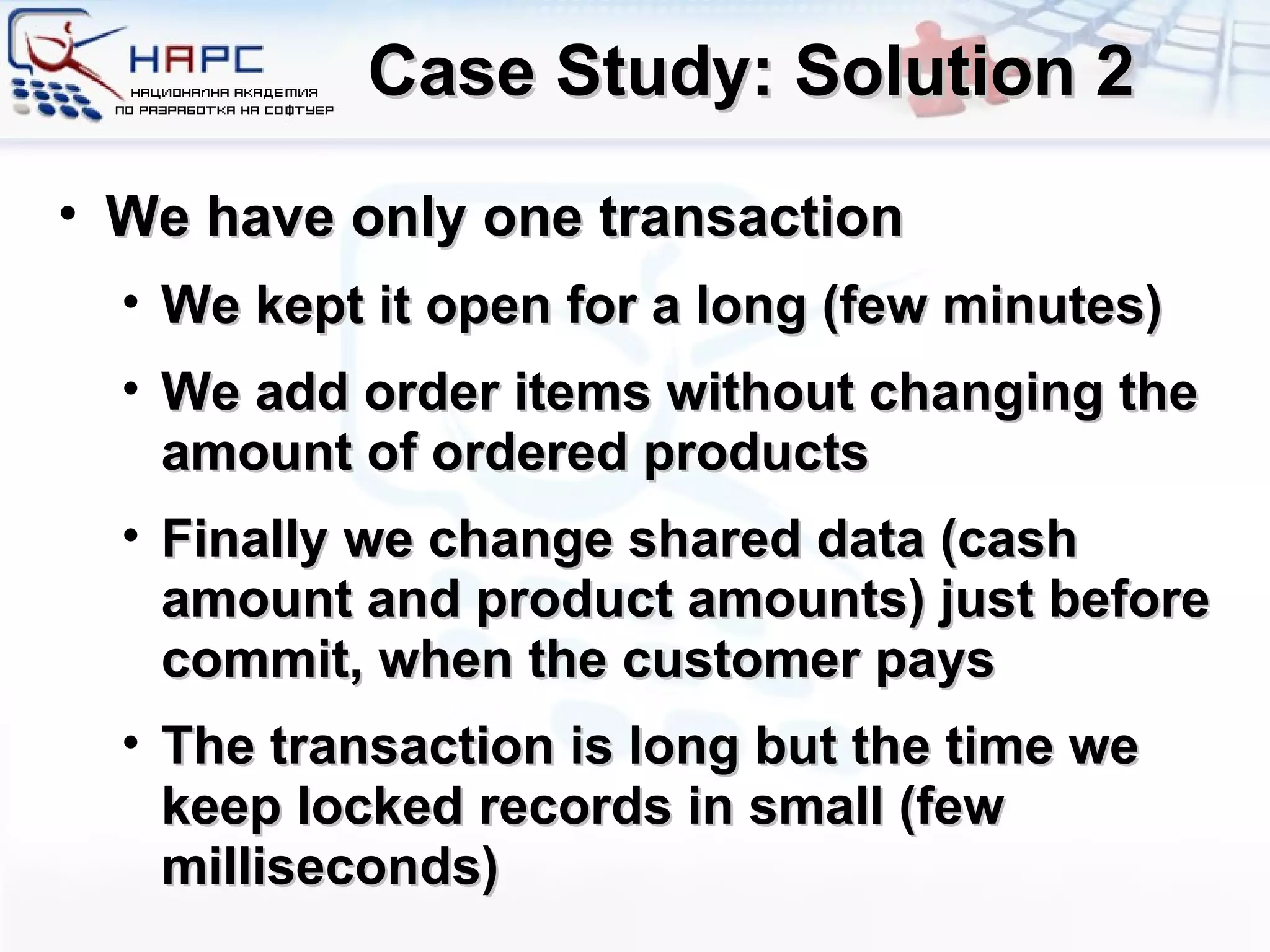

8. Case Study: Solution 2 We have only one transaction We kept it open for a long (few minutes) We add order items without changing the amount of ordered products Finally we change shared data (cash amount and product amounts) just before commit, when the customer pays The transaction is long but the time we keep locked records in small (few milliseconds)

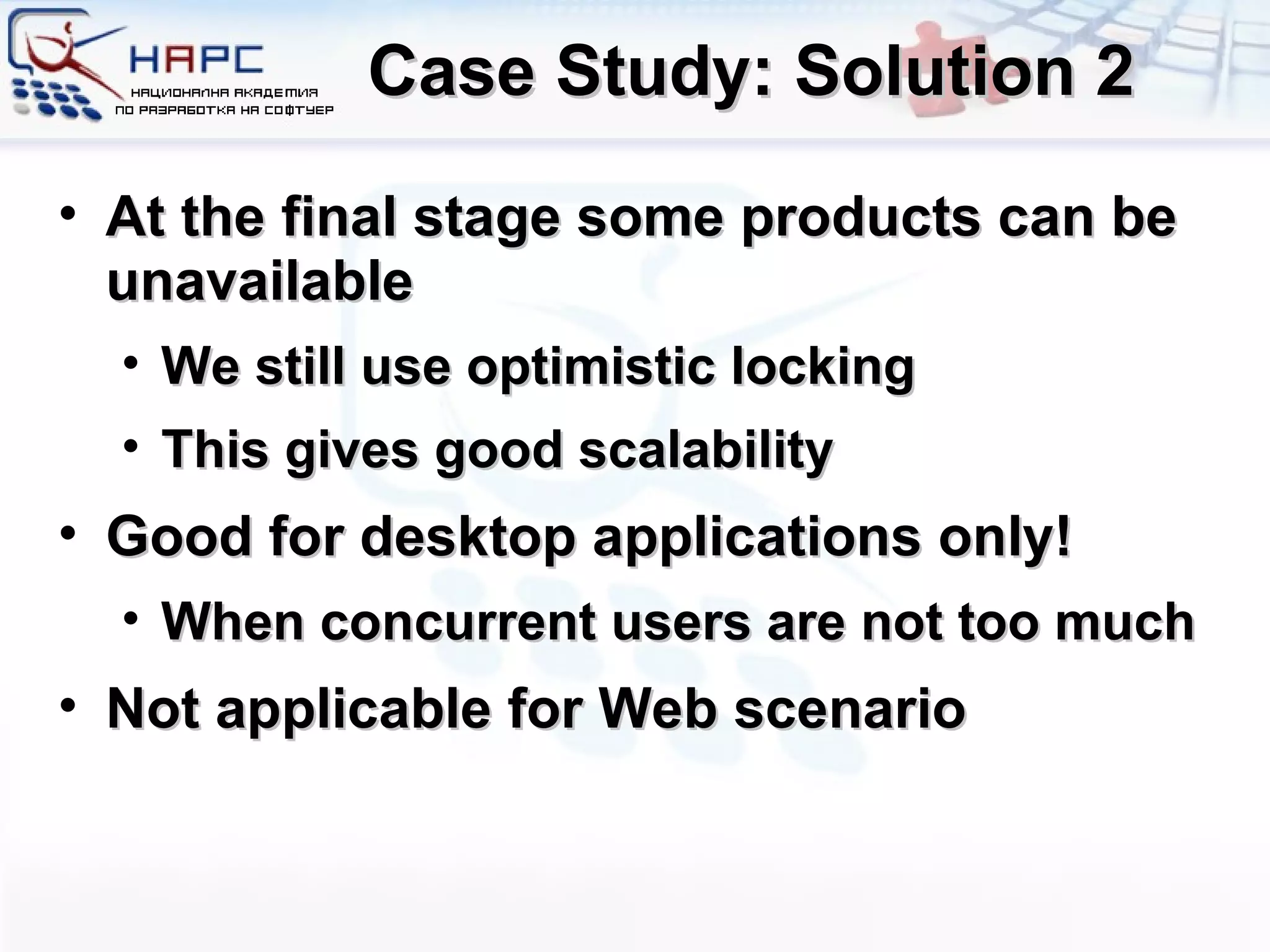

9. Case Study: Solution 2 At the final stage some products can be unavailable We still use optimistic locking This gives good scalability Good for desktop applications only! When concurrent users are not too much Not applicable for Web scenario

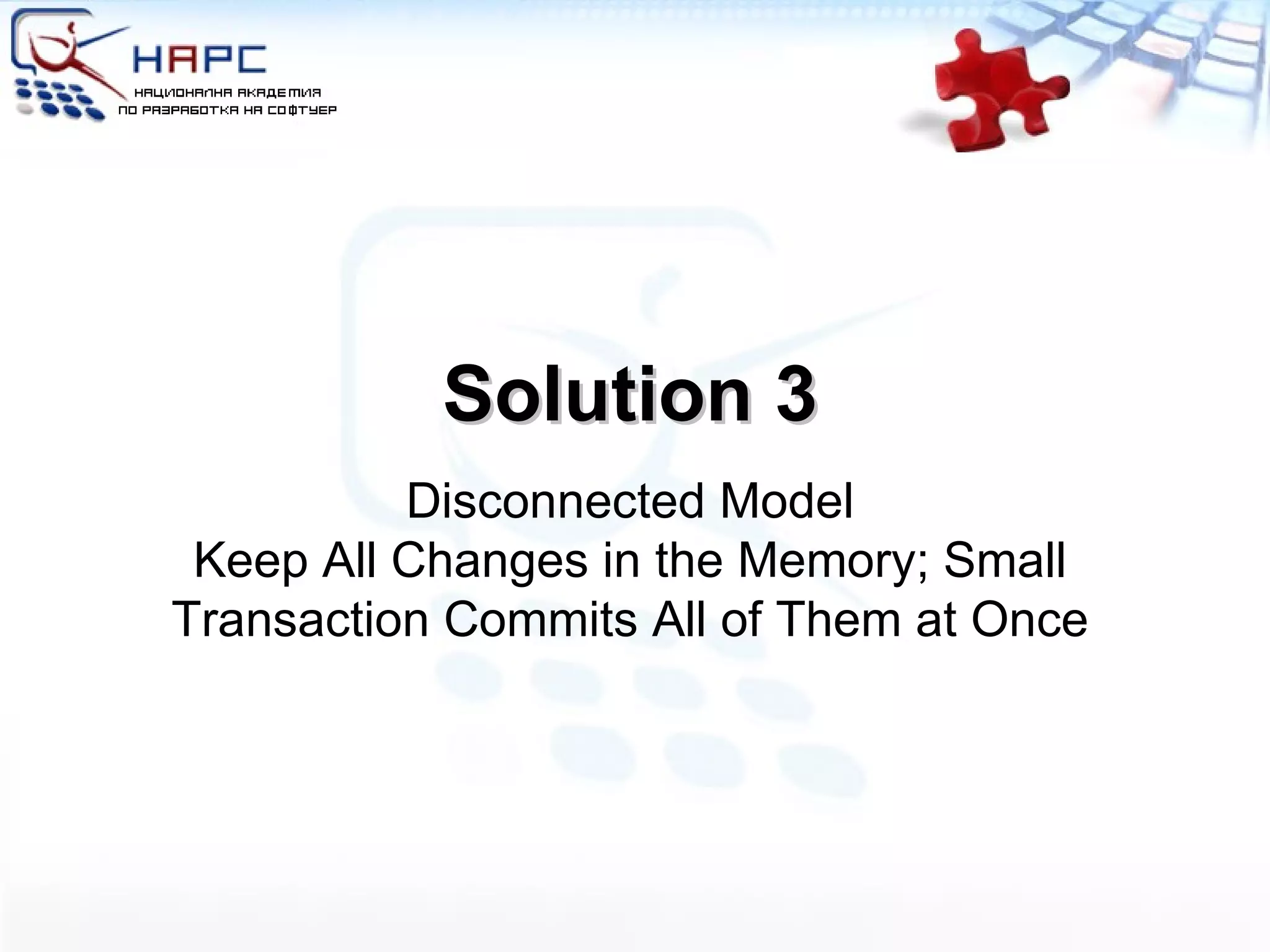

10. Solution 3 Disconnected Model Keep All Changes in the Memory; Small Transaction Commits All of Them at Once

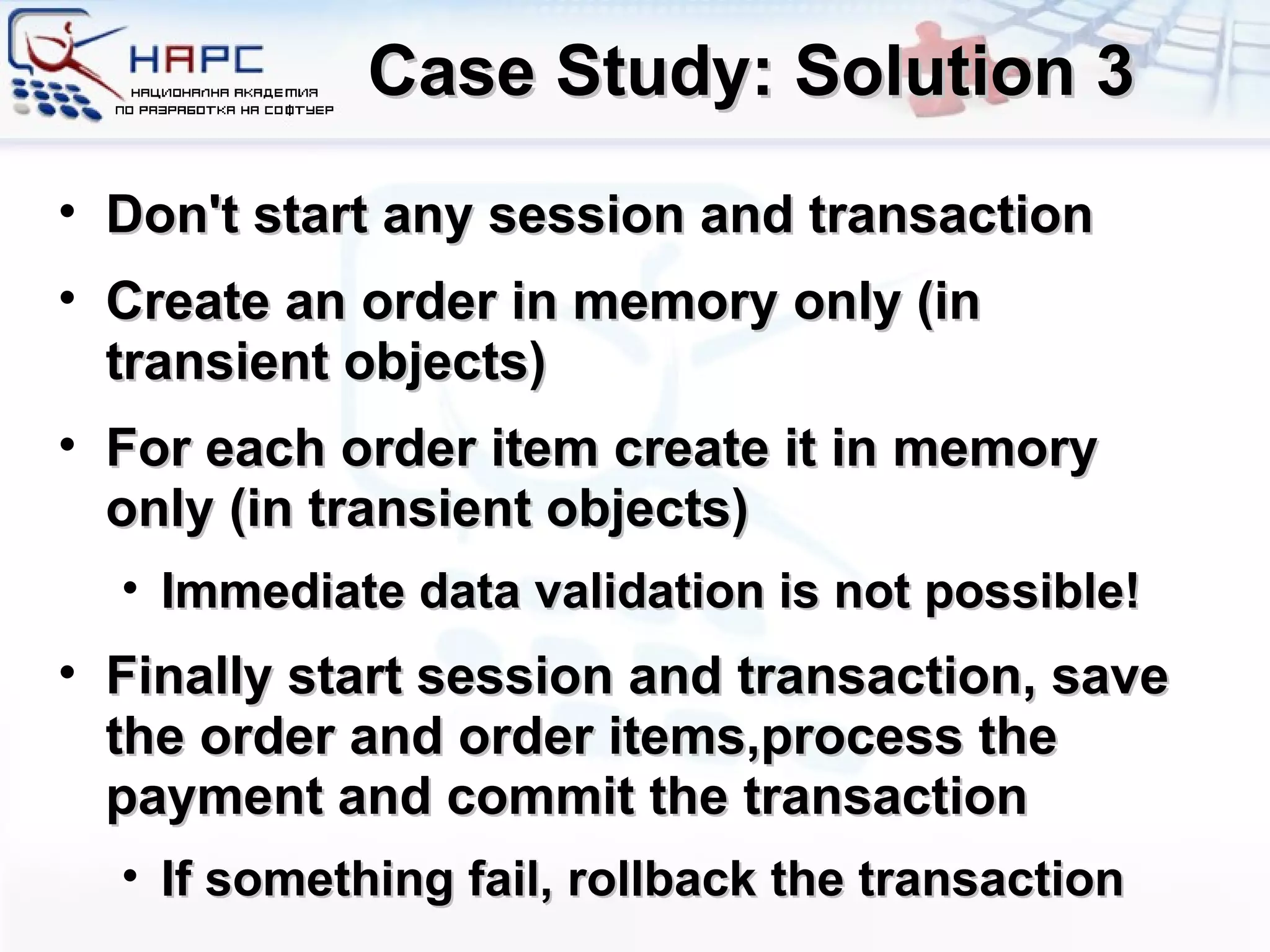

11. Case Study: Solution 3 Don't start any session and transaction Create an order in memory only (in transient objects) For each order item create it in memory only (in transient objects) Immediate data validation is not possible! Finally start session and transaction, save the order and order items , process the payment and commit the transaction If something fail, rollback the transaction

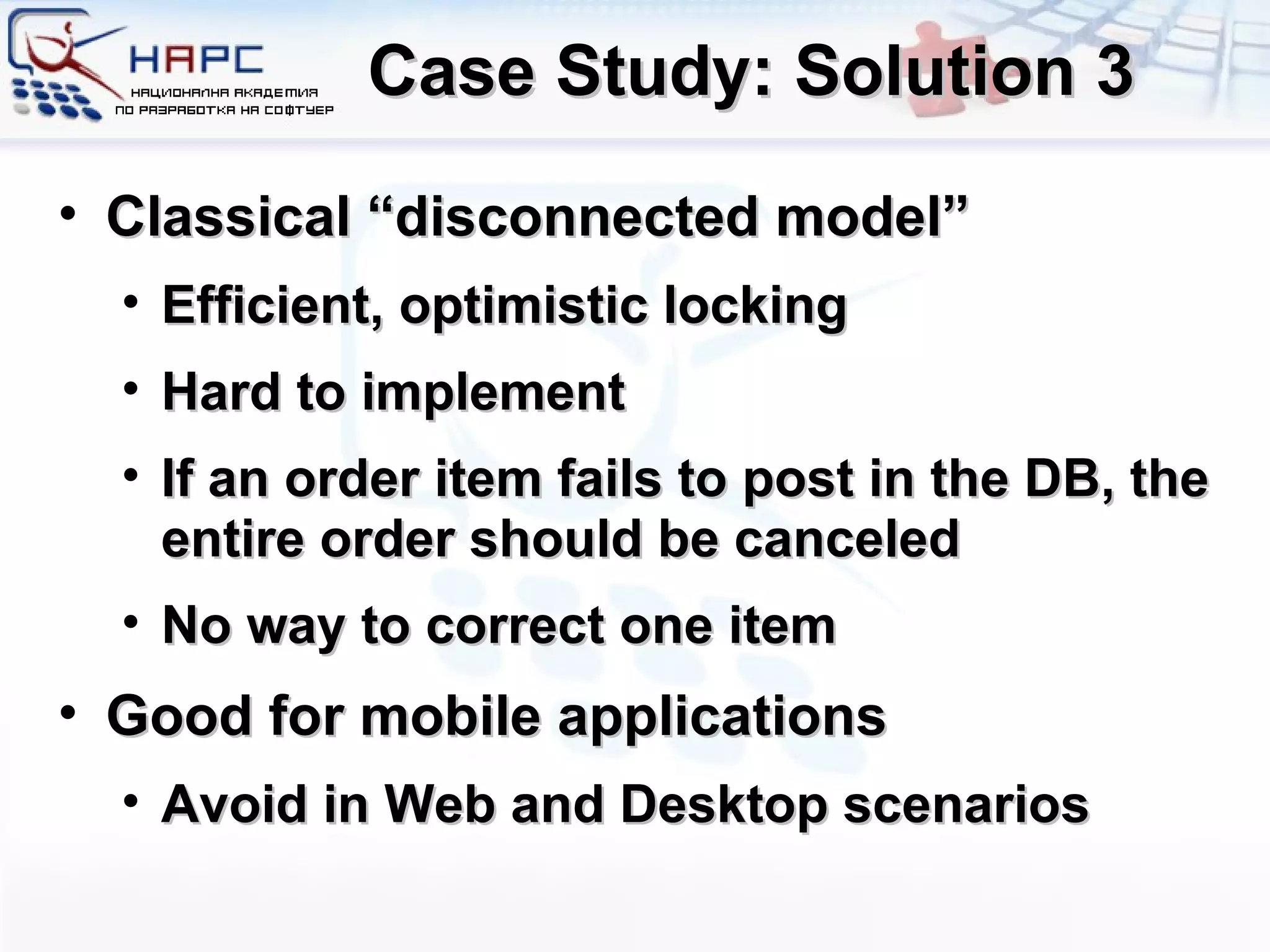

12. Case Study: Solution 3 Classical “disconnected model” Efficient, optimistic locking Hard to implement If an order item fails to post in the DB, the entire order should be canceled No way to correct one item Good for mobile applications Avoid in Web and Desktop scenarios

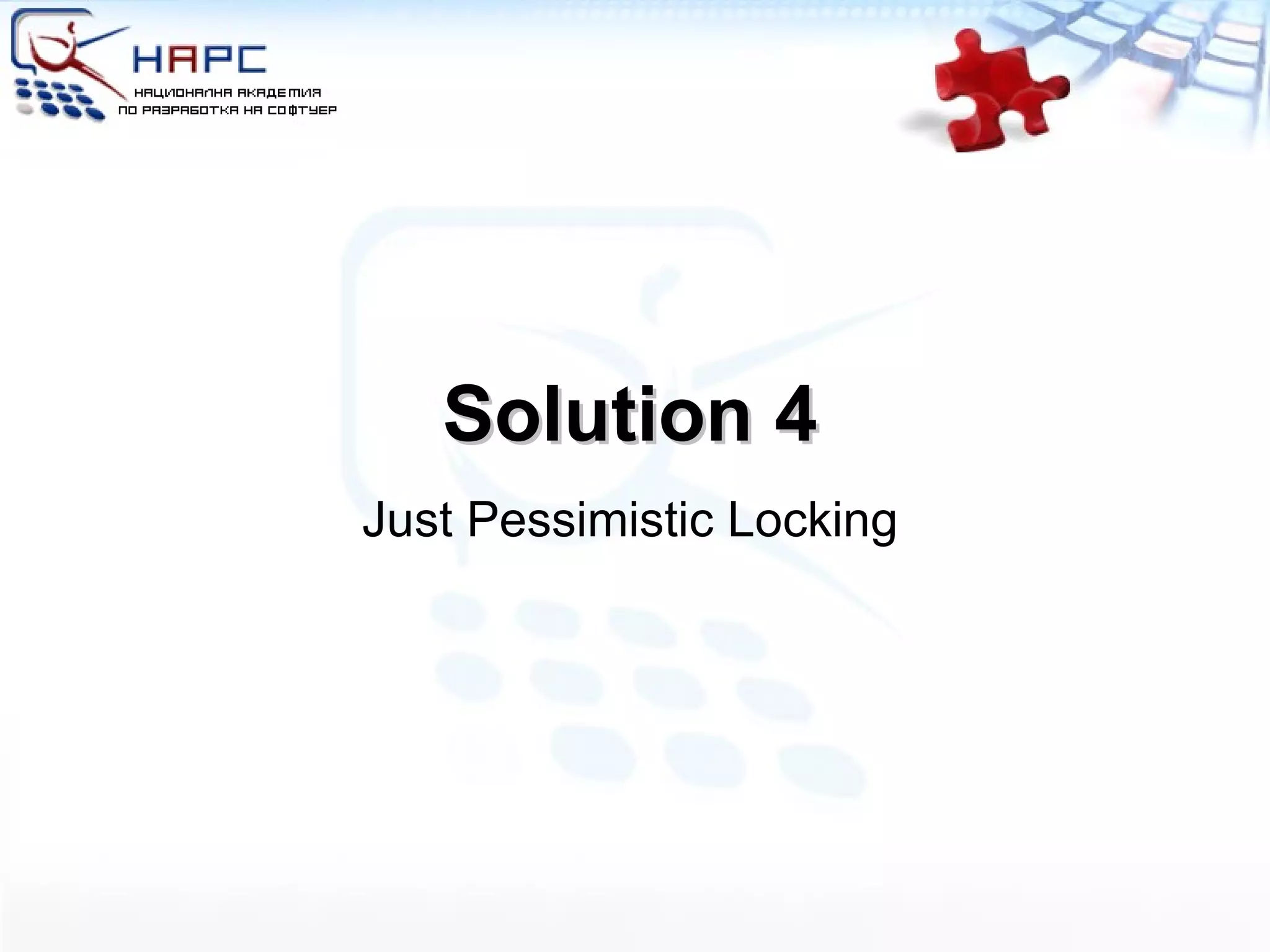

13. Solution 4 Just Pessimistic Locking

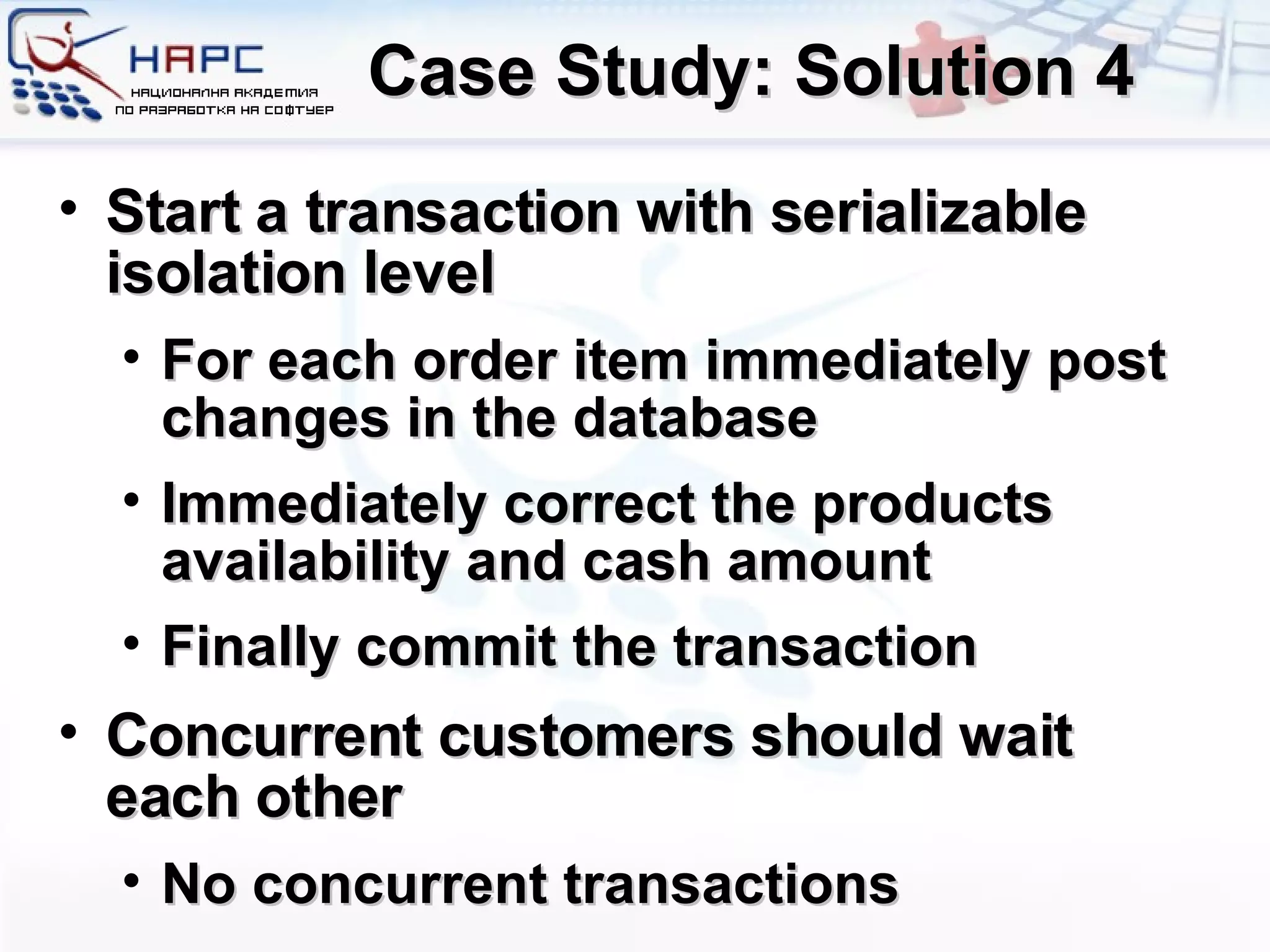

14. Case Study: Solution 4 Start a transaction with serializable isolation level For each order item immediately post changes in the database Immediately correct the products availability and cash amount Finally commit the transaction Concurrent customers should wait each other No concurrent transactions

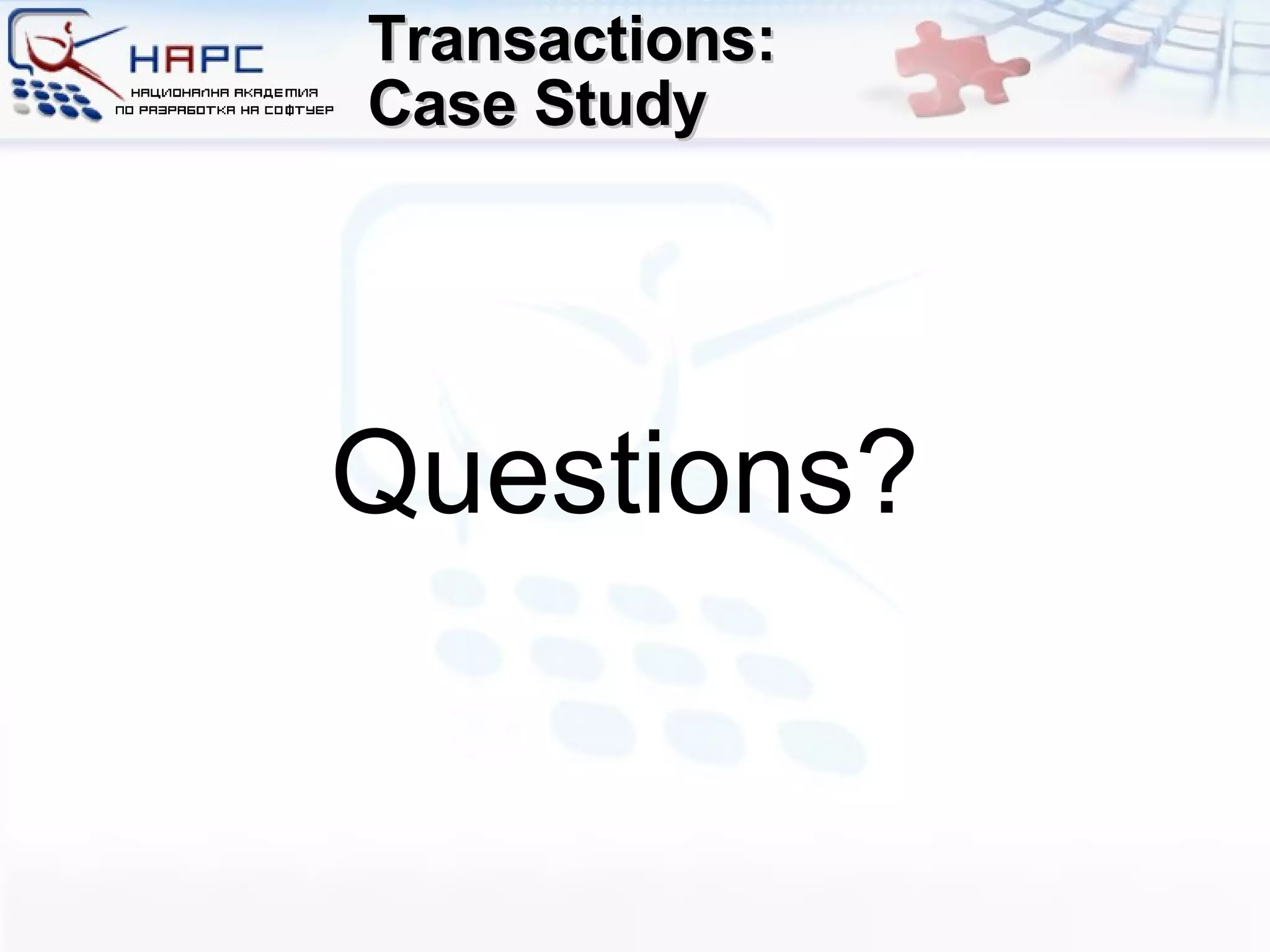

15. Transactions: Case Study Questions ?
