1. Studying the Integration Practices and the
Evolution of Ad Libraries in the Google Play Store
Md Ahasanuzzaman
Supervisor: Prof. Ahmed E. Hassan

2. 95% of 12.7 million of the Google Play Store
apps are free-to-download
2
Google Play Store

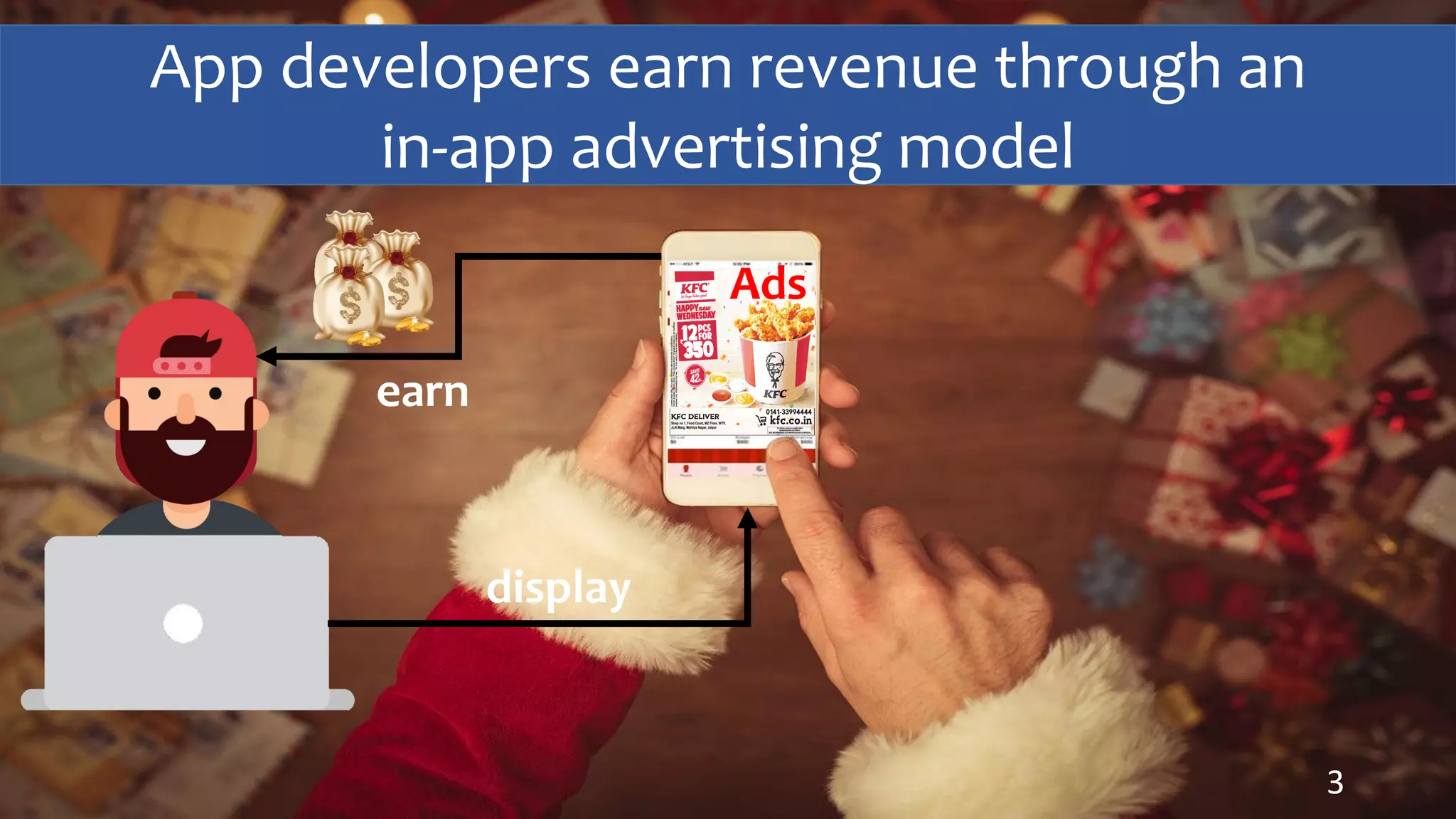

3. 3
App developers earn revenue through an
in-app advertising model
display
earn
Ads

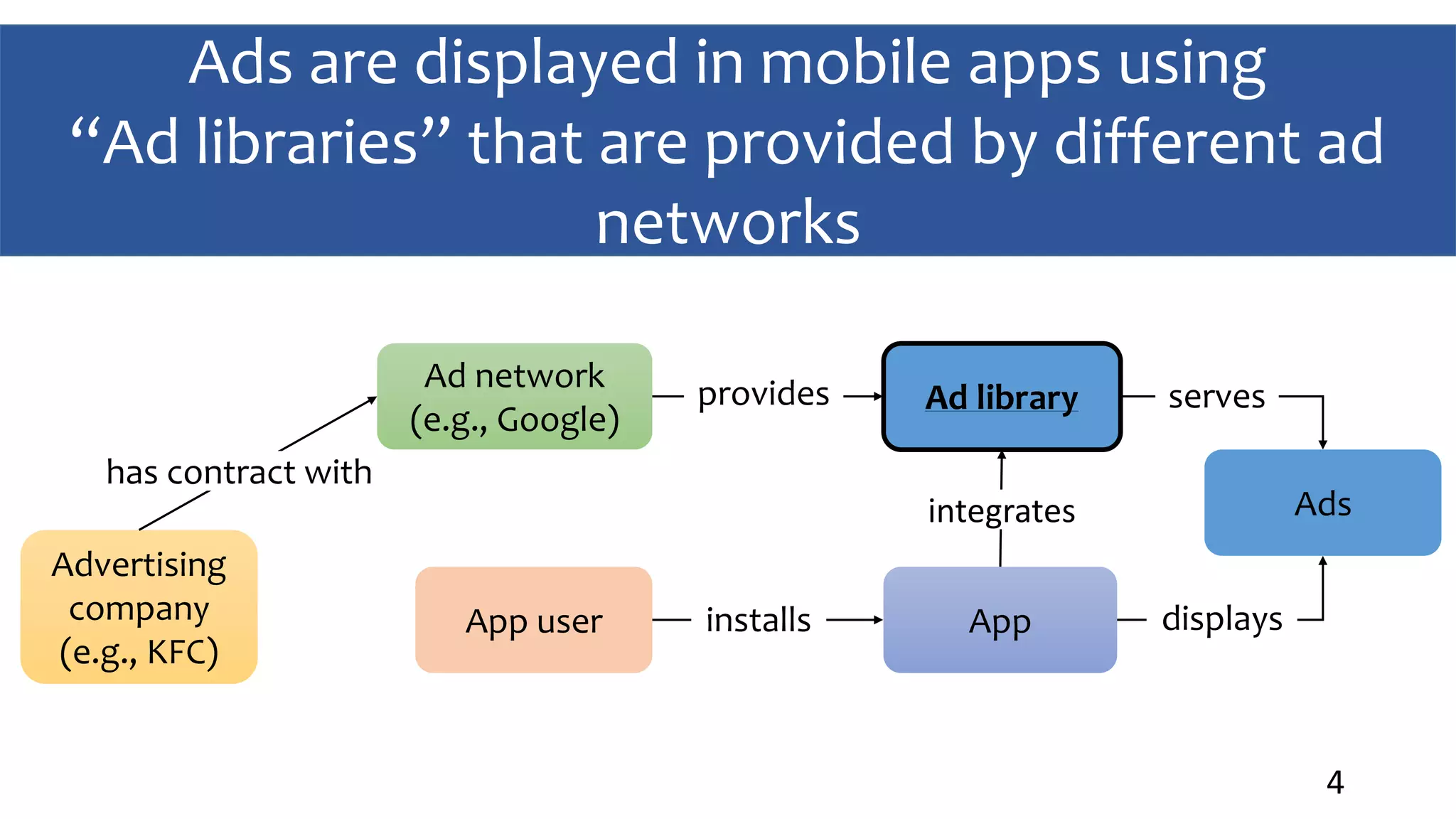

4. Ads are displayed in mobile apps using
“Ad libraries” that are provided by different ad
networks
4
Advertising
company
(e.g., KFC)
Ad network
(e.g., Google)
Ad libraryprovides
App
integrates Ads
serves
displays
has contract with
App user installs

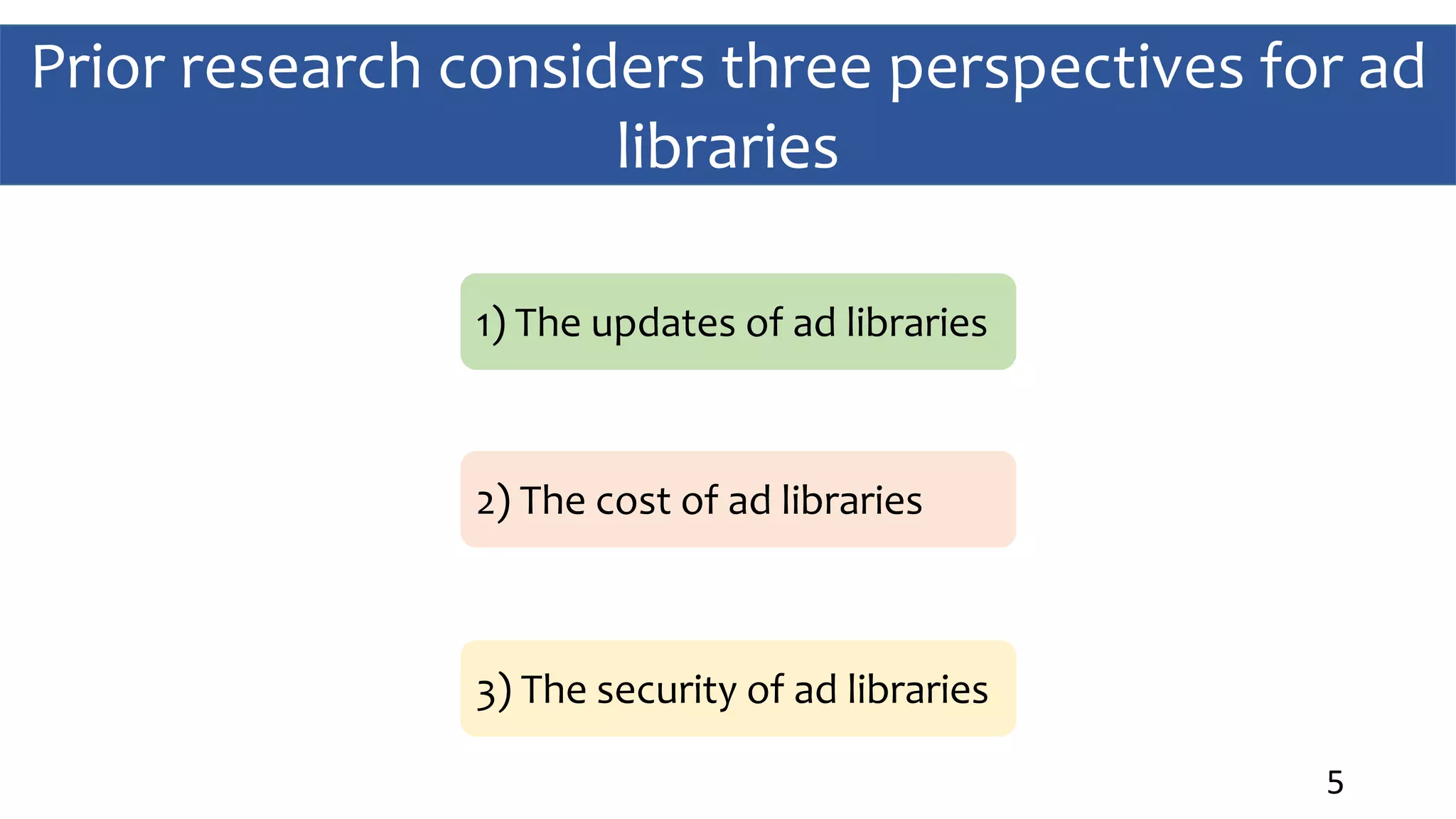

5. Prior research considers three perspectives for ad
libraries
5
1) The updates of ad libraries
2) The cost of ad libraries
3) The security of ad libraries

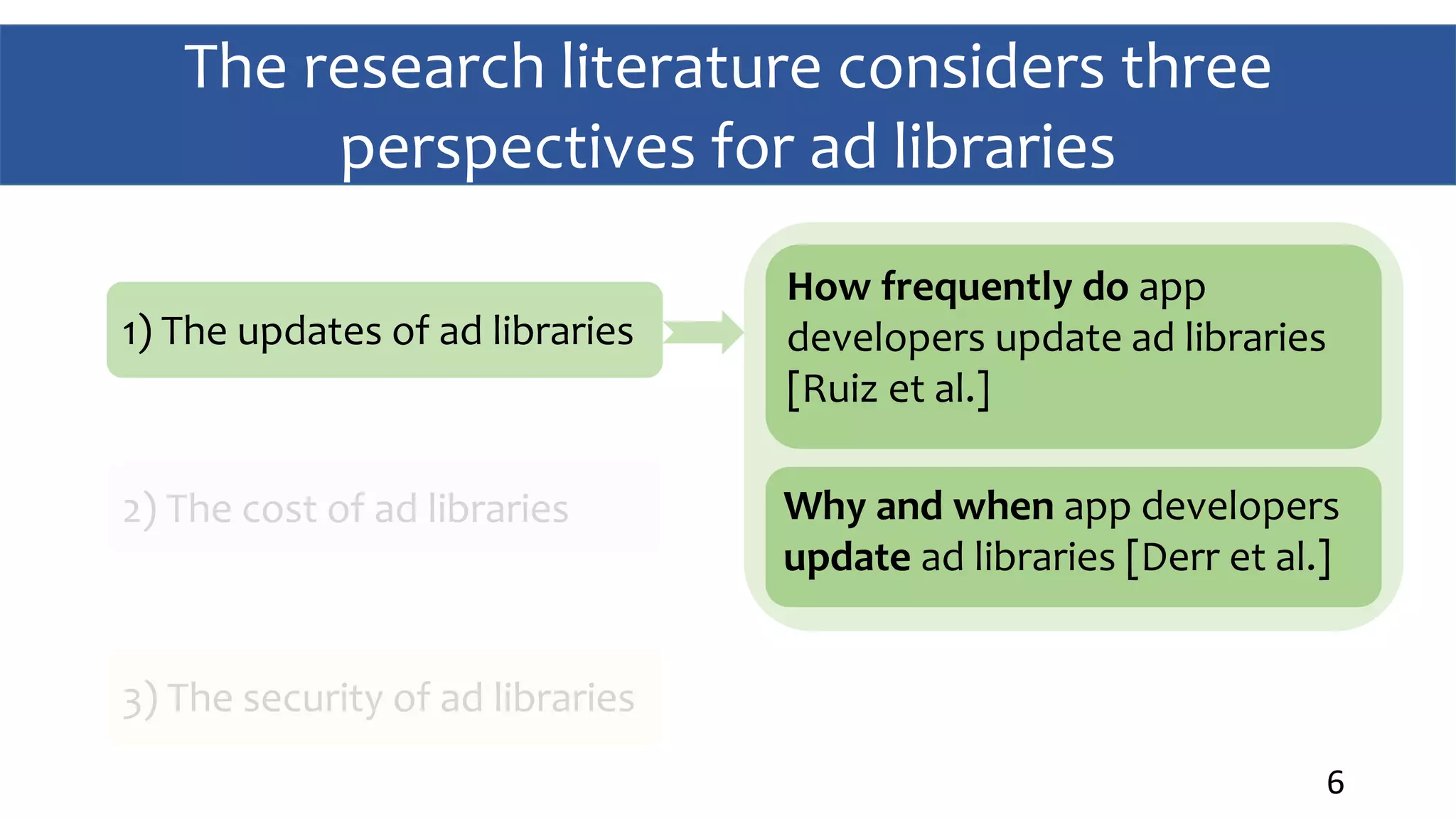

6. The research literature considers three
perspectives for ad libraries
6
1) The updates of ad libraries
2) The cost of ad libraries
3) The security of ad libraries
How frequently do app
developers update ad libraries
[Ruiz et al.]
Why and when app developers
update ad libraries [Derr et al.]

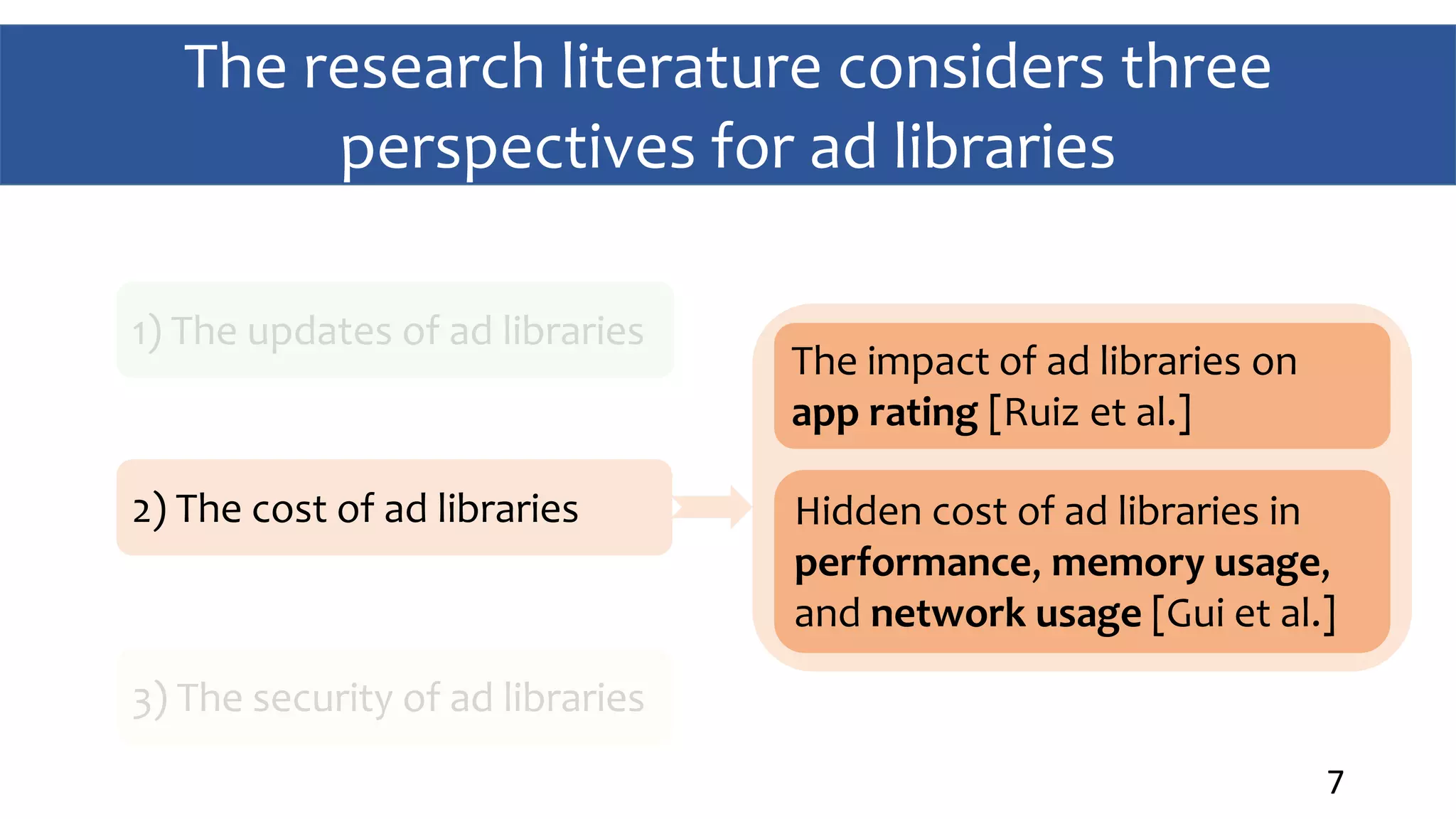

7. The research literature considers three
perspectives for ad libraries
7
1) The updates of ad libraries
2) The cost of ad libraries
3) The security of ad libraries
The impact of ad libraries on
app rating [Ruiz et al.]
Hidden cost of ad libraries in
performance, memory usage,
and network usage [Gui et al.]

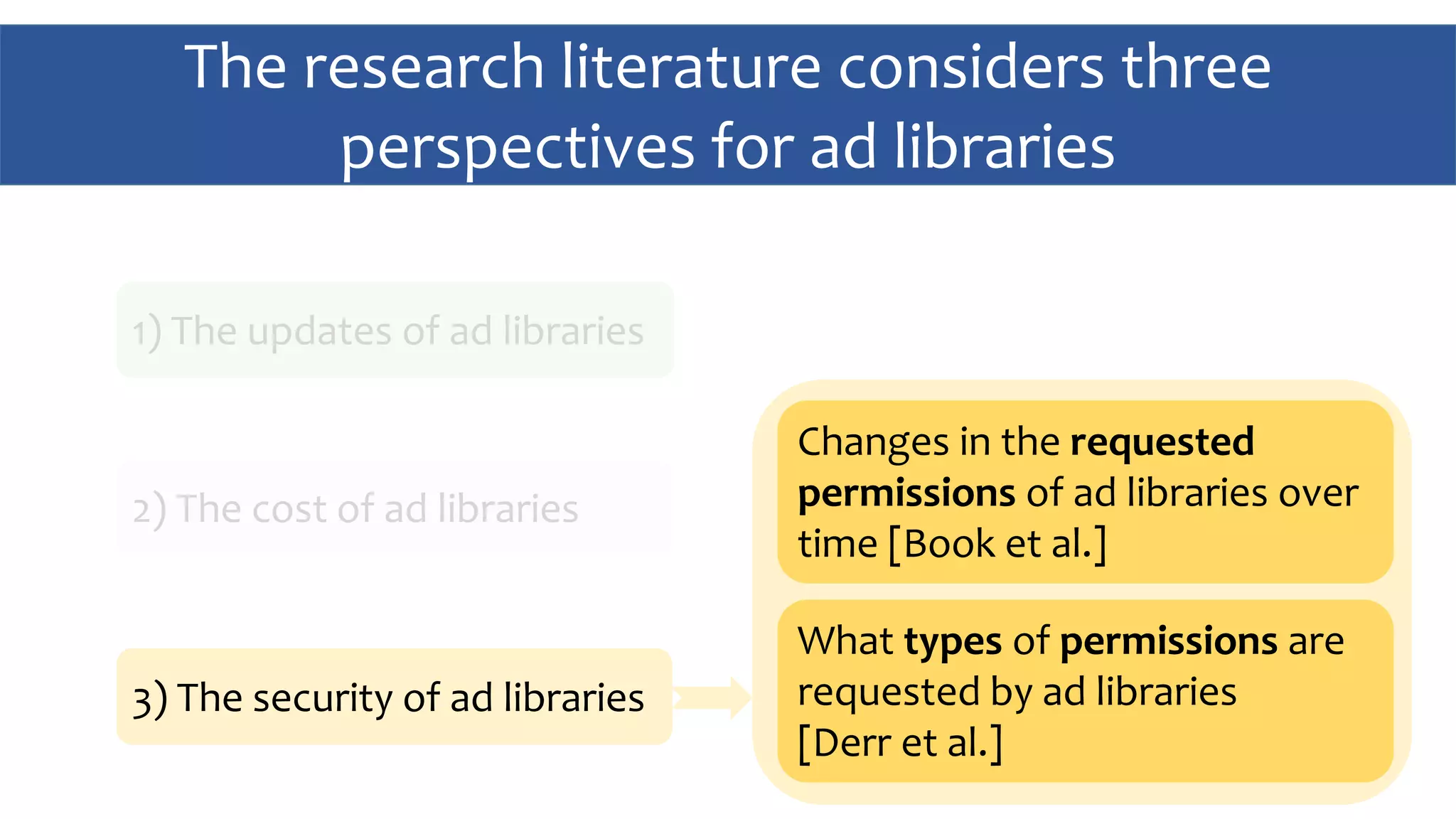

8. The research literature considers three
perspectives for ad libraries
8
1) The updates of ad libraries
2) The cost of ad libraries
3) The security of ad libraries
Changes in the requested
permissions of ad libraries over
time [Book et al.]
What types of permissions are
requested by ad libraries
[Derr et al.]

9. 9
Prior work does not examine the integration of ad
libraries and their evolution
App Ad libraries

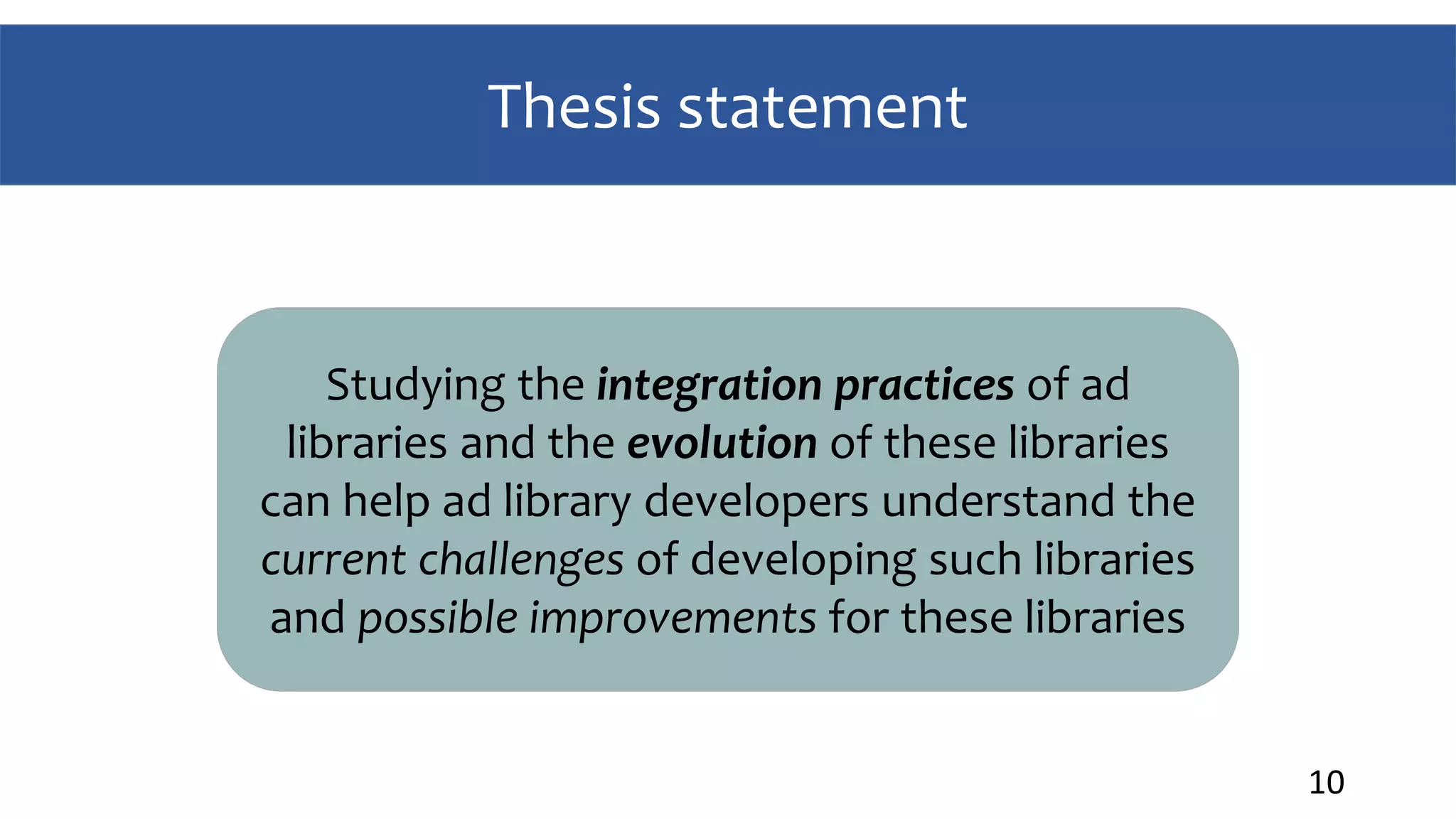

10. Thesis statement
10
Studying the integration practices of ad
libraries and the evolution of these libraries
can help ad library developers understand the
current challenges of developing such libraries
and possible improvements for these libraries

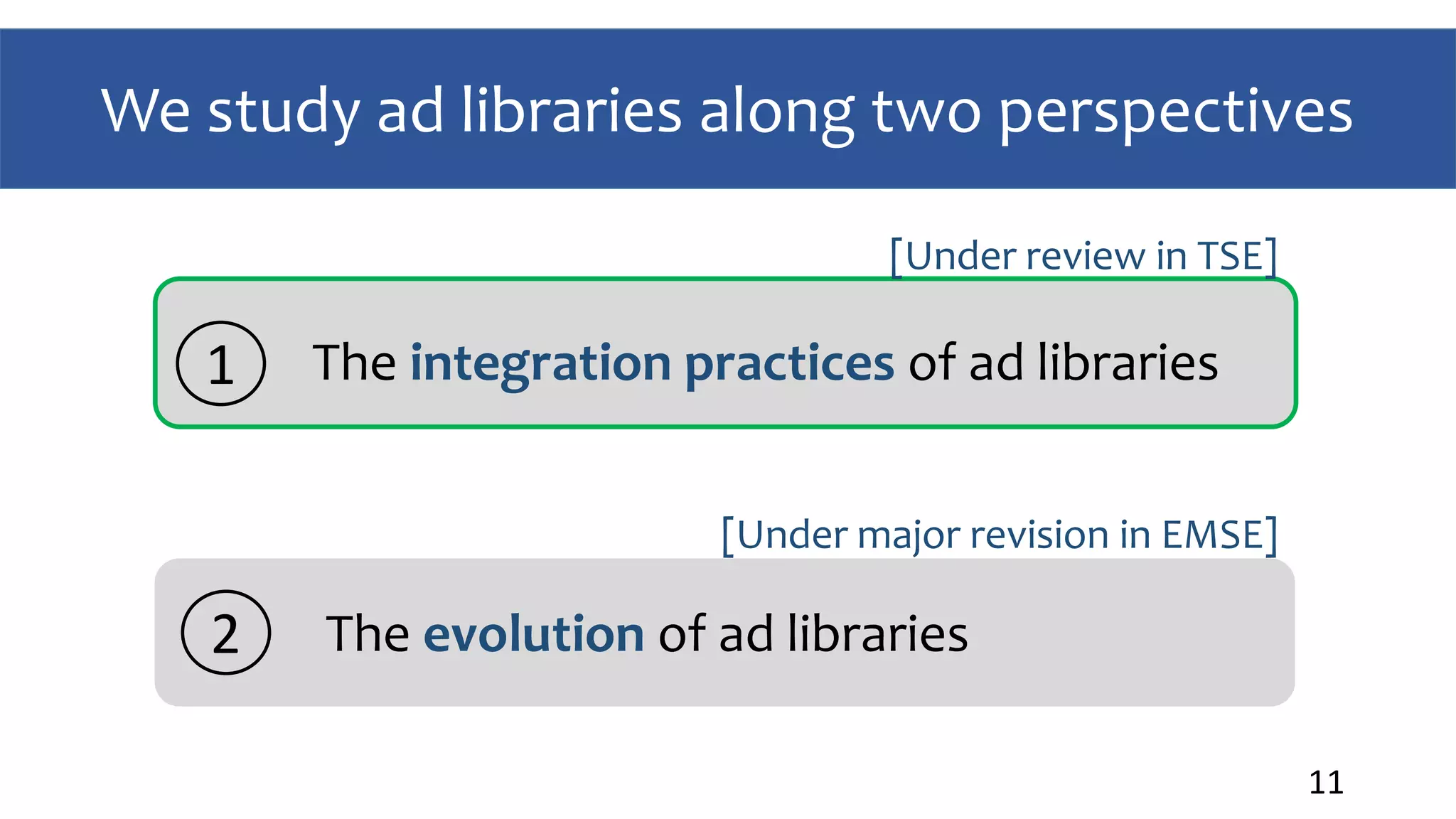

11. We study ad libraries along two perspectives
11
The integration practices of ad libraries1
The evolution of ad libraries2
[Under review in TSE]
[Under major revision in EMSE]

12. To study how app developers integrate ad
libraries, we analyzed Android apps from the
Google Play Store
12
Google Play
1,840 top free-to-download Android mobile apps
35,462 updates over a period of 18 months
from April 20th 2016 to September 20th 2017
Ad library integration practices (under review in TSE)1 The evolution of ad libraries2

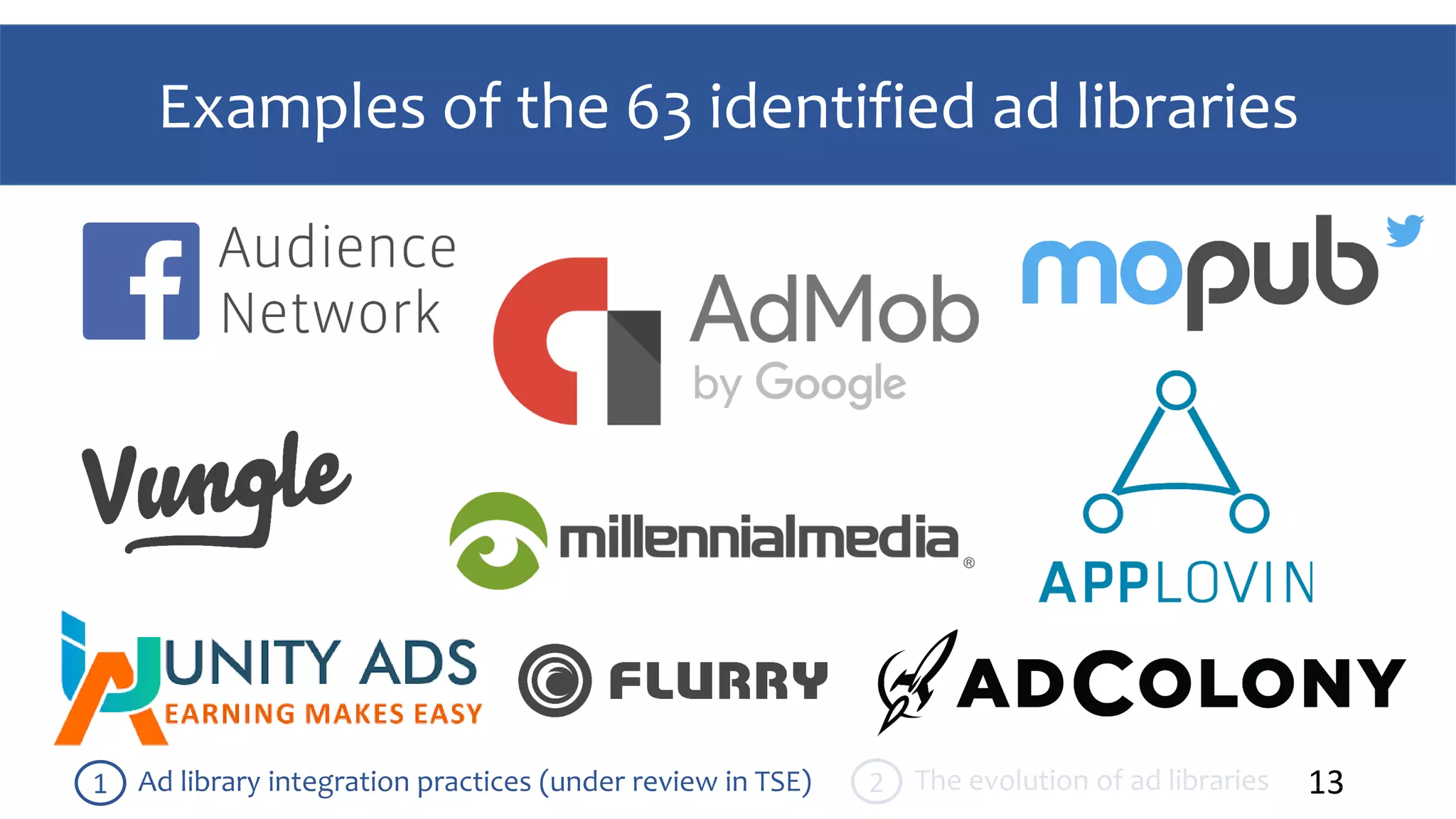

13. Examples of the 63 identified ad libraries
13Ad library integration practices (under review in TSE)1 The evolution of ad libraries2

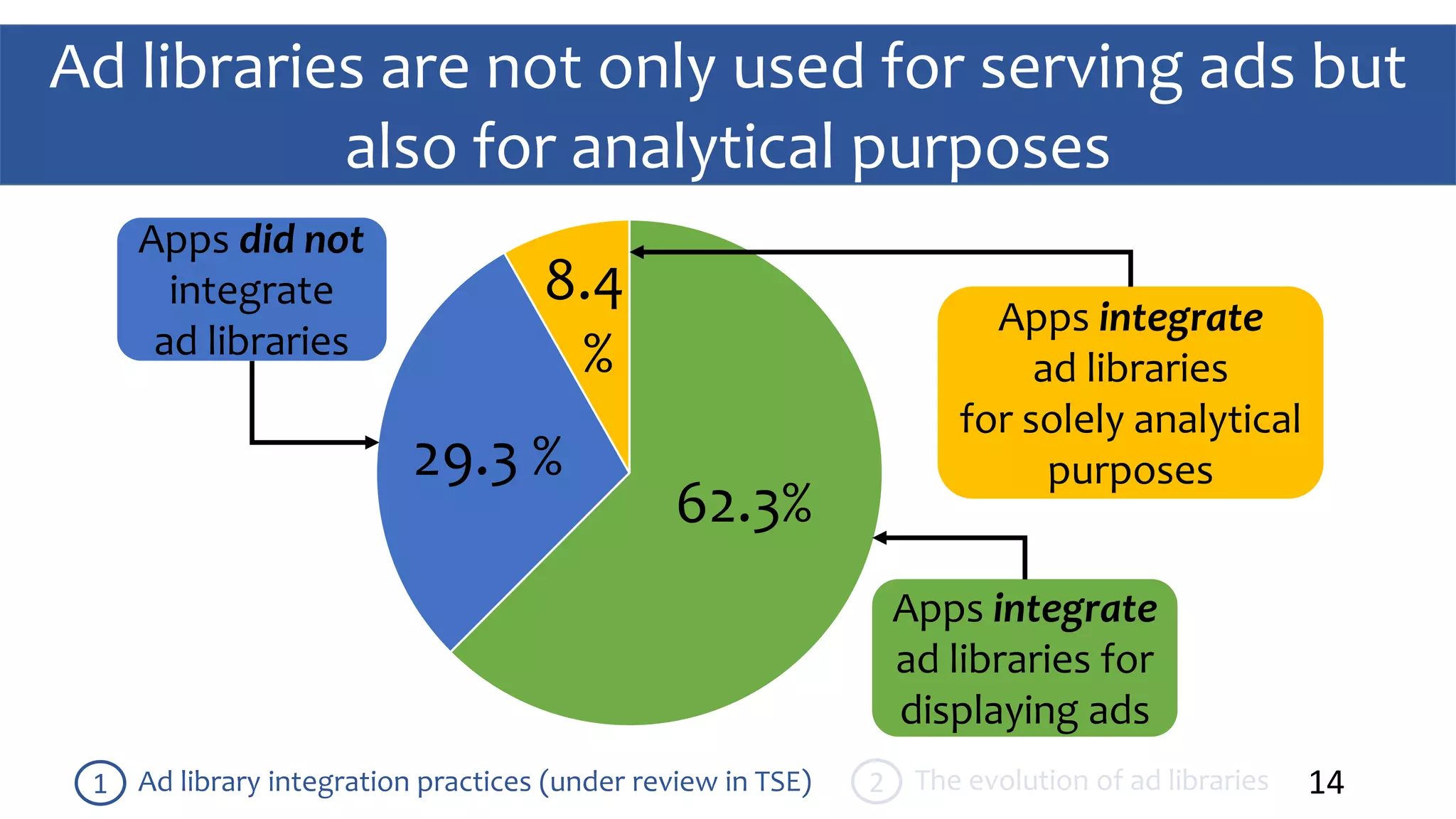

14. Ad libraries are not only used for serving ads but
also for analytical purposes
14Ad library integration practices (under review in TSE)1 The evolution of ad libraries2
29.3 %
8.4
%
62.3%
Apps did not
integrate
ad libraries
Apps integrate
ad libraries for
displaying ads
Apps integrate
ad libraries
for solely analytical
purposes

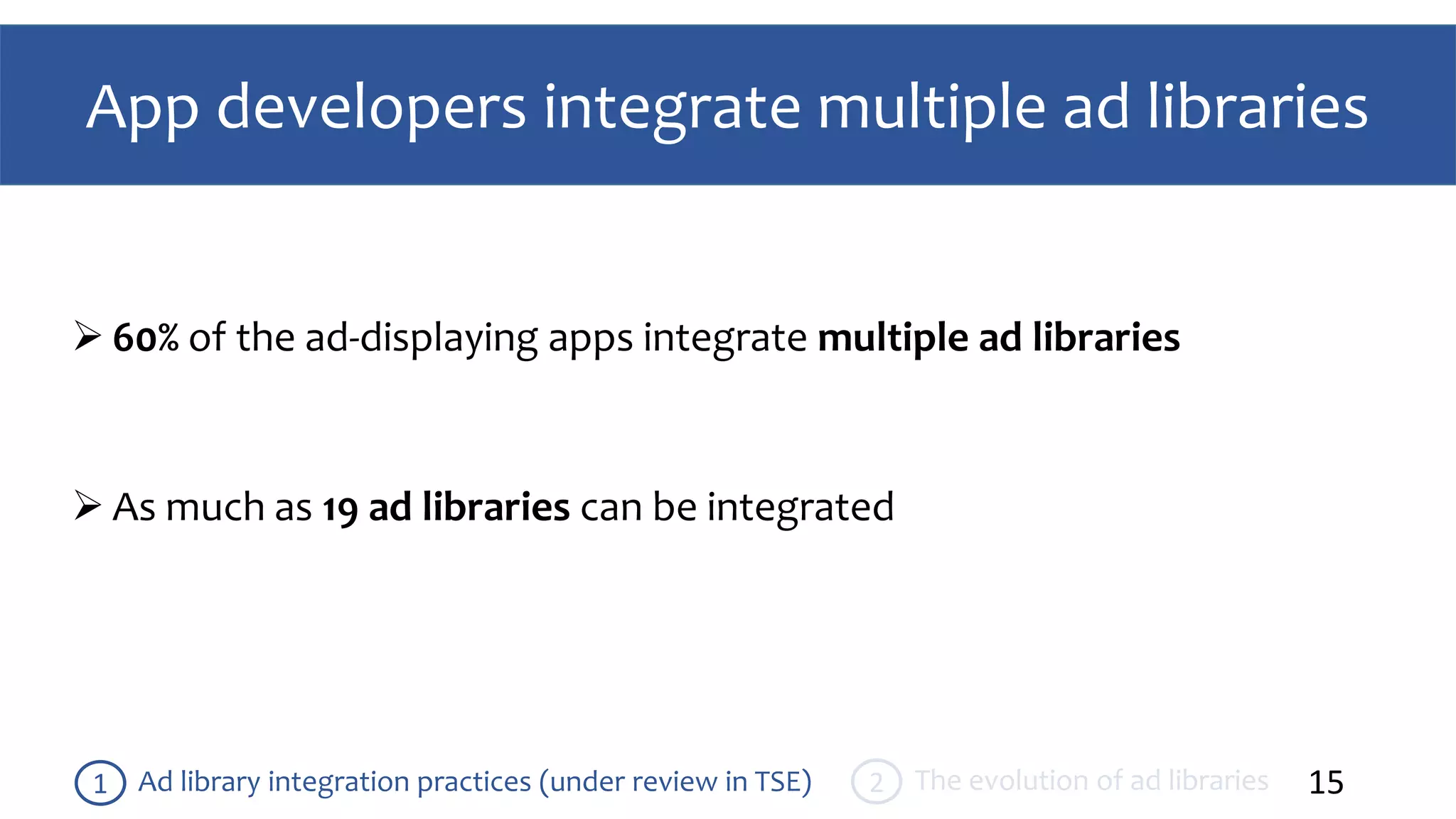

15. App developers integrate multiple ad libraries
15Ad library integration practices (under review in TSE)1 The evolution of ad libraries2
 As much as 19 ad libraries can be integrated
 60% of the ad-displaying apps integrate multiple ad libraries

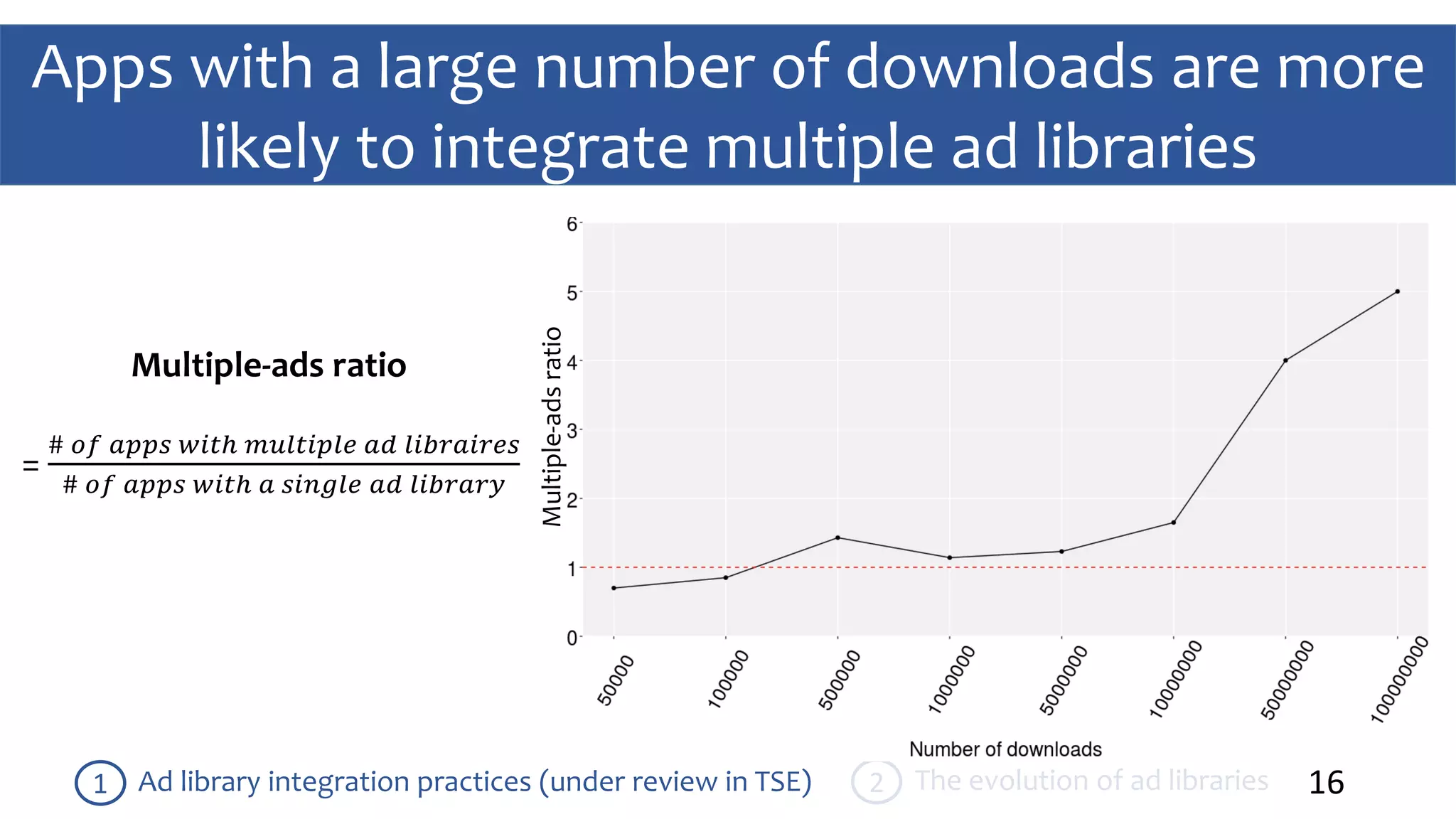

16. Apps with a large number of downloads are more
likely to integrate multiple ad libraries
16Ad library integration practices (under review in TSE)1 The evolution of ad libraries2
Multiple-adsratio
Multiple-ads ratio
=
# 𝑜𝑓 𝑎𝑝𝑝𝑠 𝑤𝑖𝑡ℎ 𝑚𝑢𝑙𝑡𝑖𝑝𝑙𝑒 𝑎𝑑 𝑙𝑖𝑏𝑟𝑎𝑖𝑟𝑒𝑠
# 𝑜𝑓 𝑎𝑝𝑝𝑠 𝑤𝑖𝑡ℎ 𝑎 𝑠𝑖𝑛𝑔𝑙𝑒 𝑎𝑑 𝑙𝑖𝑏𝑟𝑎𝑟𝑦

17. 17
Challenge: How to manage multiple ad libraries?

18. 18Ad library integration practices (under review in TSE)1 The evolution of ad libraries2
Select a
statistically
representat-
ive sample of
62 apps
Generate a
static call
graph for
each selected
app
Manually
investigate
every
selected app

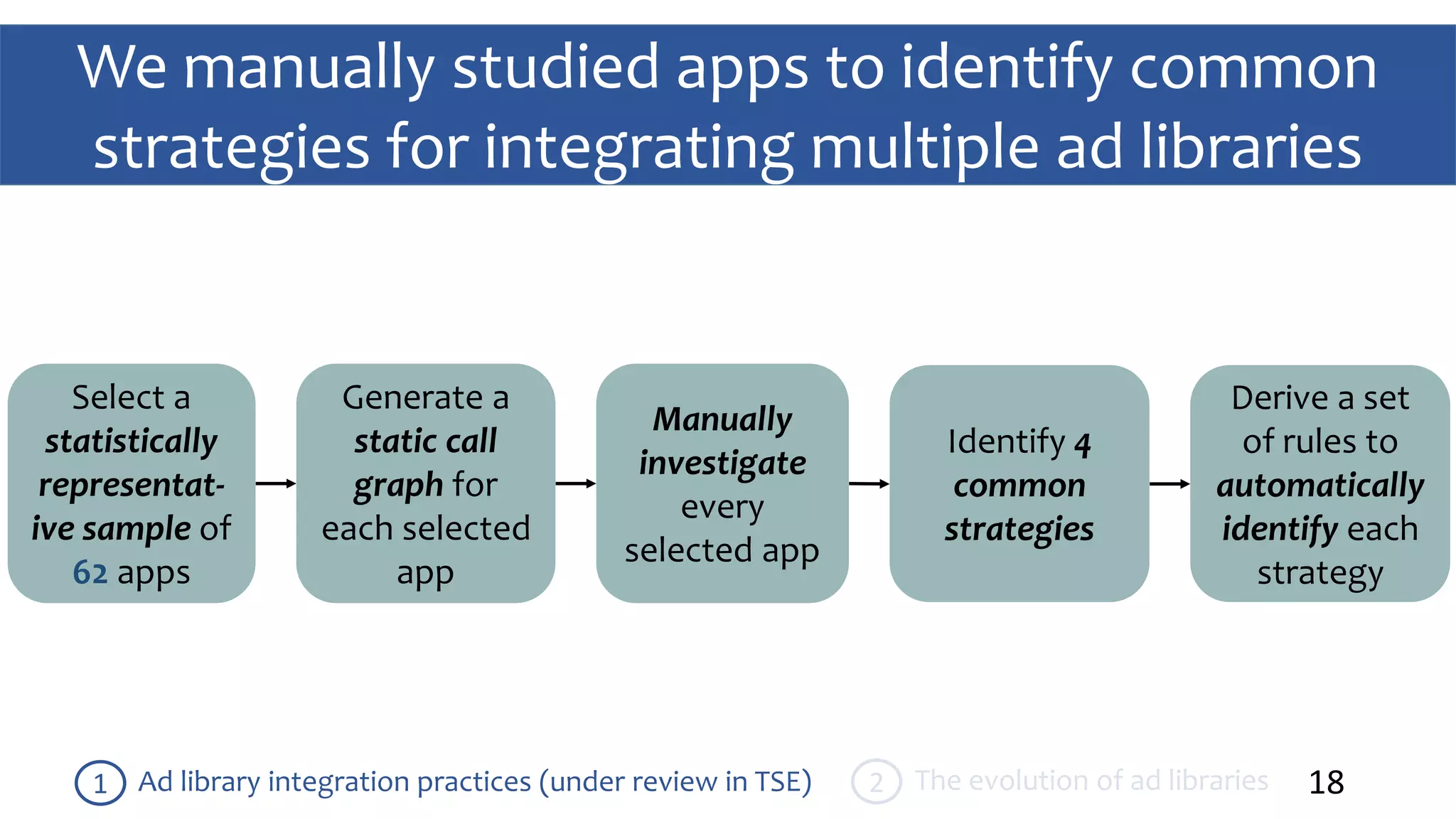

We manually studied apps to identify common
strategies for integrating multiple ad libraries
Identify 4
common
strategies
Derive a set
of rules to
automatically
identify each
strategy

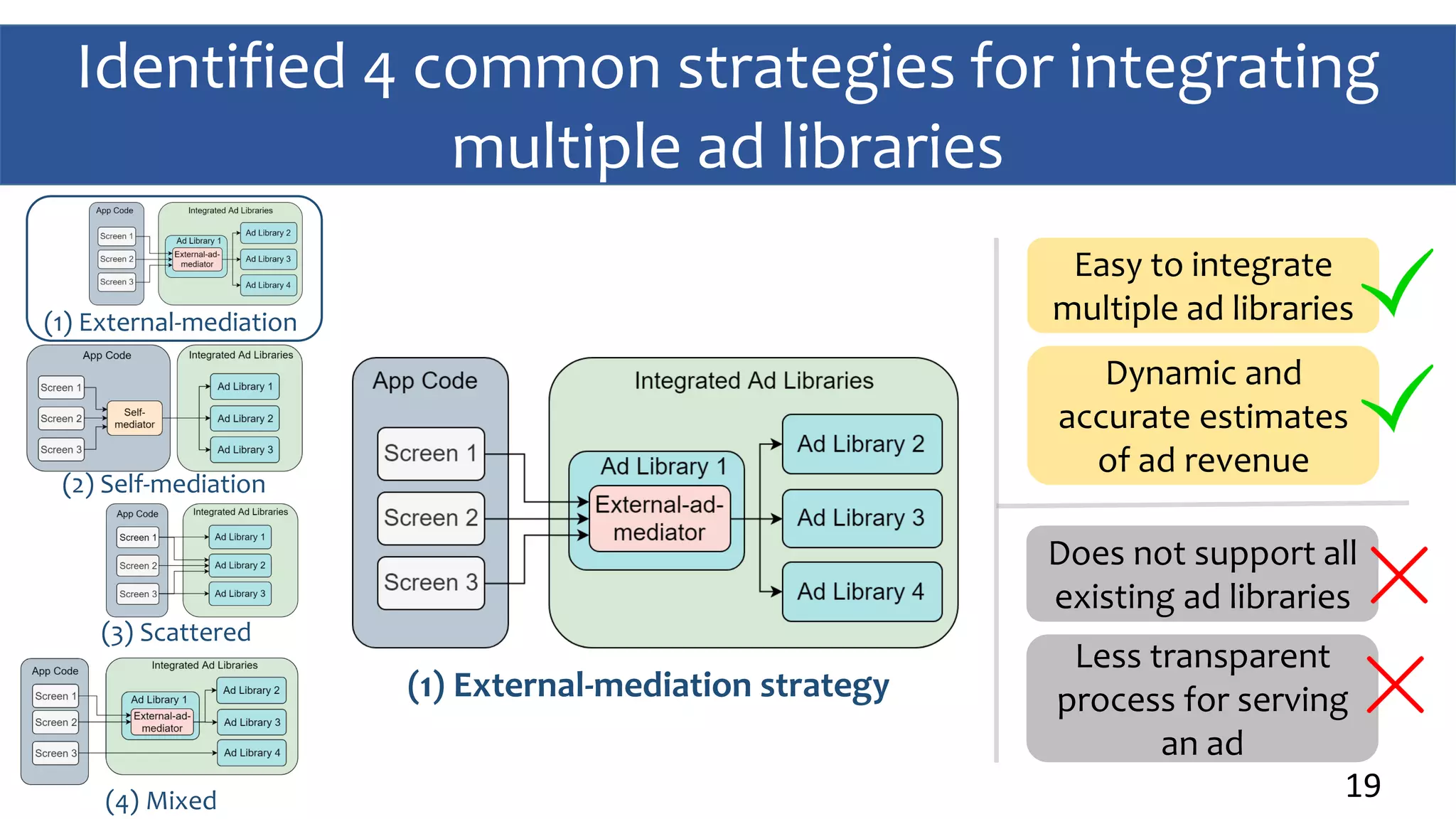

19. Identified 4 common strategies for integrating
multiple ad libraries
19
Easy to integrate
multiple ad libraries
Dynamic and
accurate estimates
of ad revenue
Does not support all
existing ad libraries
Less transparent
process for serving
an ad
(1) External-mediation strategy
(1) External-mediation
(2) Self-mediation
(3) Scattered
(4) Mixed

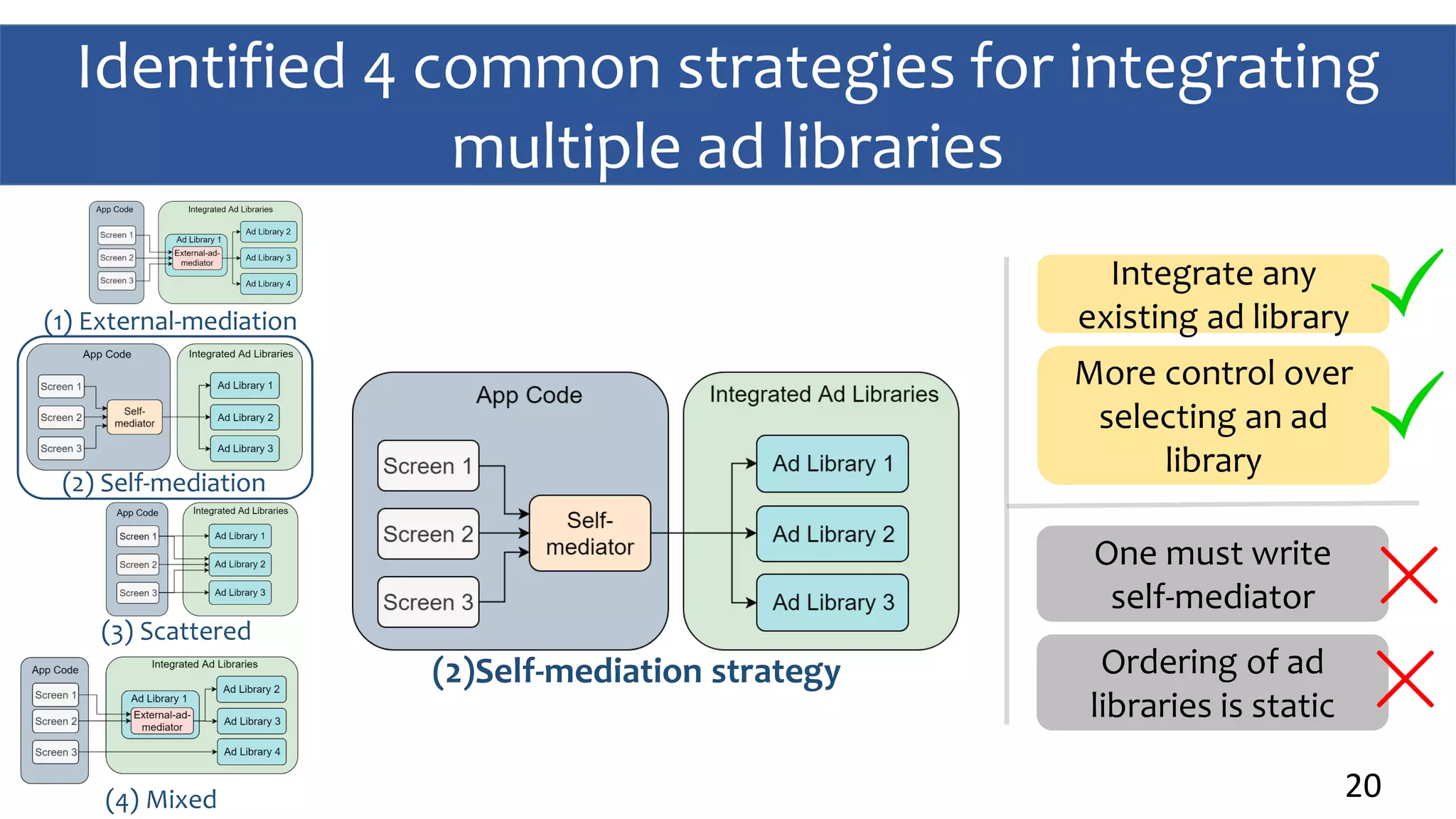

20. Identified 4 common strategies for integrating
multiple ad libraries
20
Integrate any
existing ad library
More control over
selecting an ad
library
One must write
self-mediator
Ordering of ad
libraries is static
(2)Self-mediation strategy
(1) External-mediation
(2) Self-mediation
(3) Scattered
(4) Mixed

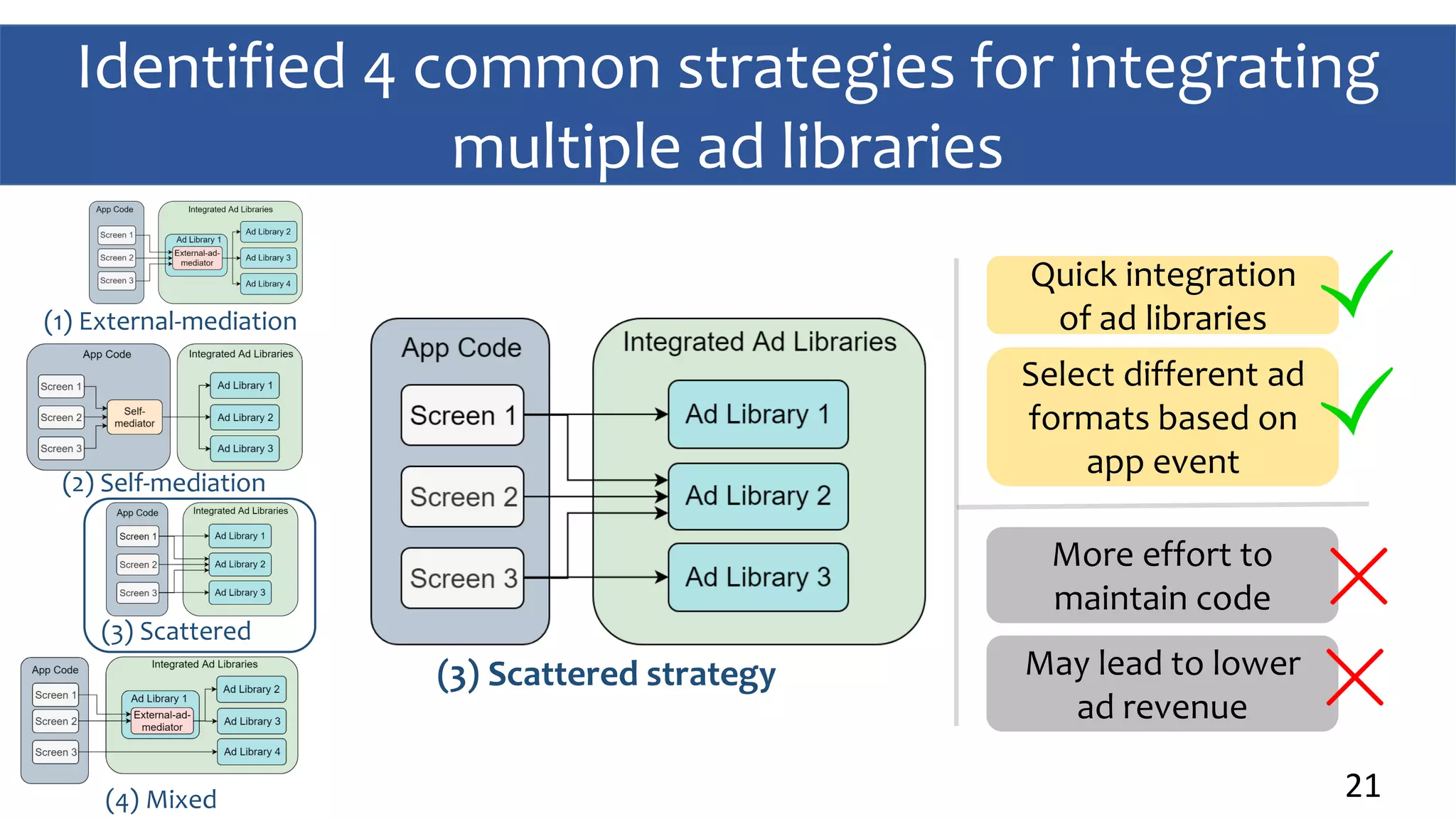

21. Identified 4 common strategies for integrating
multiple ad libraries
21
(3) Scattered strategy
Quick integration
of ad libraries
Select different ad
formats based on
app event
More effort to
maintain code
May lead to lower
ad revenue
(1) External-mediation
(2) Self-mediation
(3) Scattered
(4) Mixed

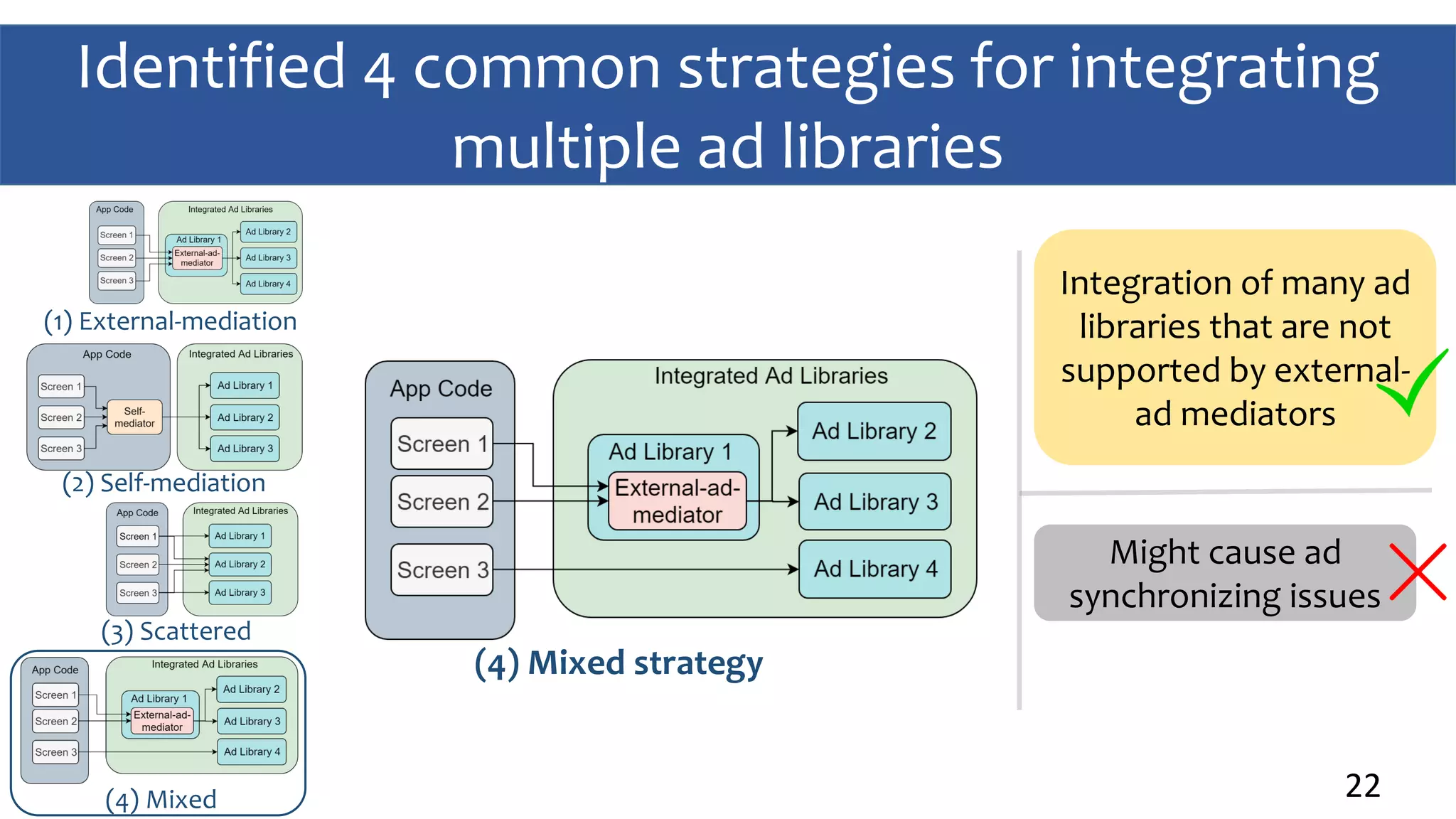

22. Identified 4 common strategies for integrating
multiple ad libraries
22
(4) Mixed strategy
Integration of many ad
libraries that are not
supported by external-
ad mediators
Might cause ad
synchronizing issues
(1) External-mediation
(2) Self-mediation
(3) Scattered
(4) Mixed

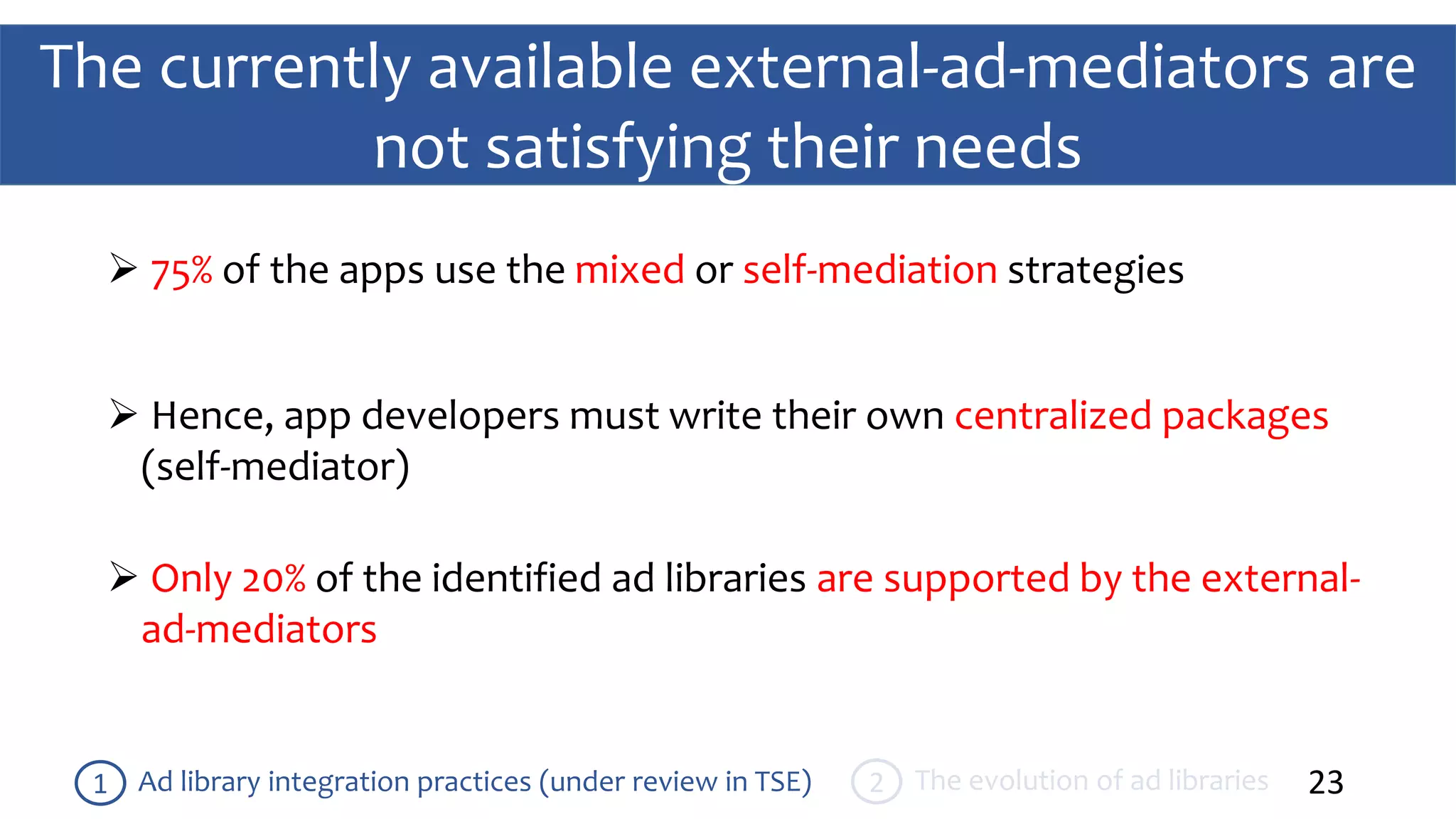

23. The currently available external-ad-mediators are
not satisfying their needs
23Ad library integration practices (under review in TSE)1 The evolution of ad libraries2
 75% of the apps use the mixed or self-mediation strategies
 Hence, app developers must write their own centralized packages
(self-mediator)
 Only 20% of the identified ad libraries are supported by the external-
ad-mediators

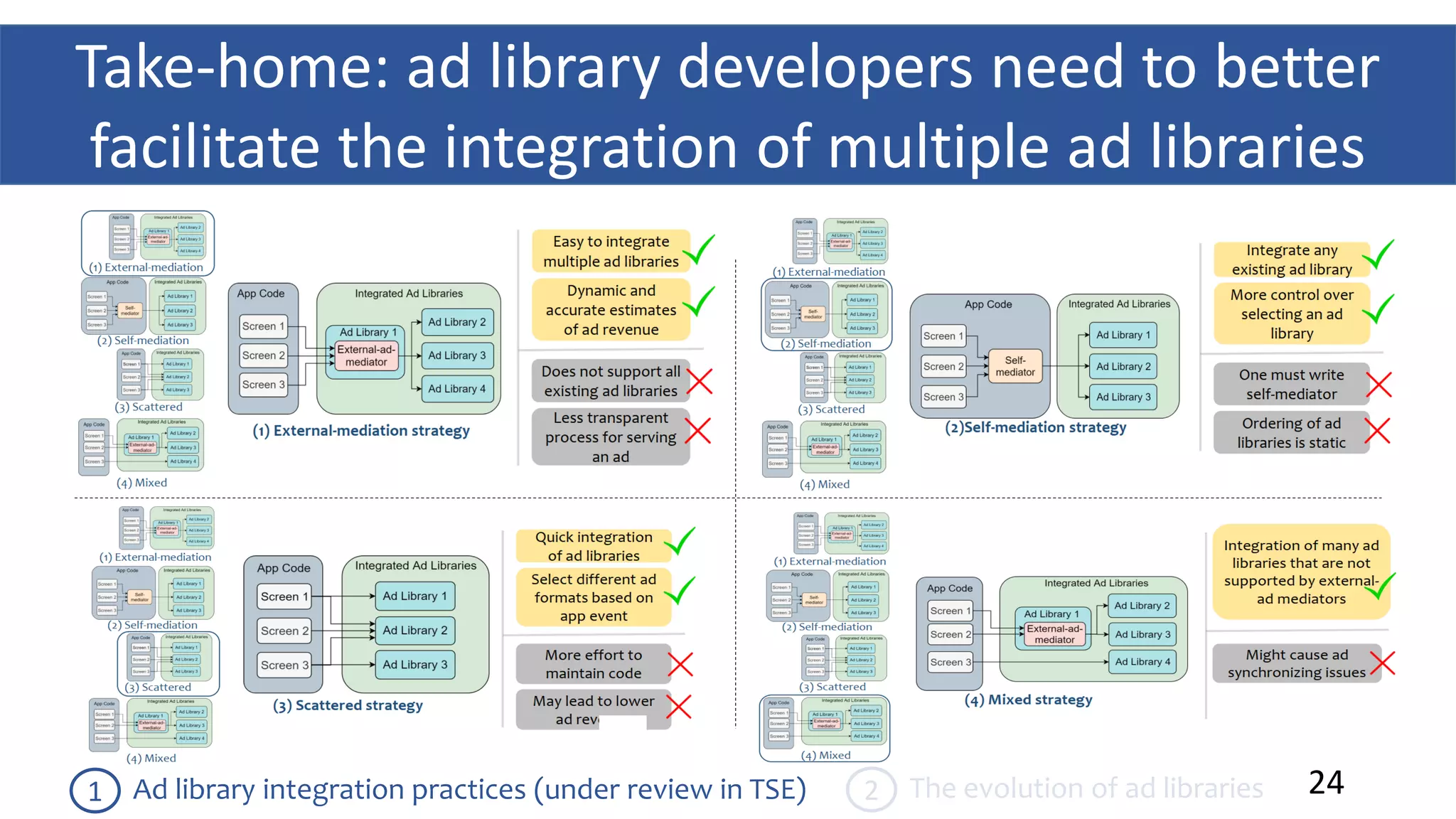

24. Ad library integration practices (under review in TSE)1 The evolution of ad libraries2
Take-home: ad library developers need to better
facilitate the integration of multiple ad libraries
24

25. We study ad libraries along two different
perspectives
25
The integration practices of ad libraries1
The evolution of ad libraries2
[Under review in TSE]
[Under major revision in EMSE]

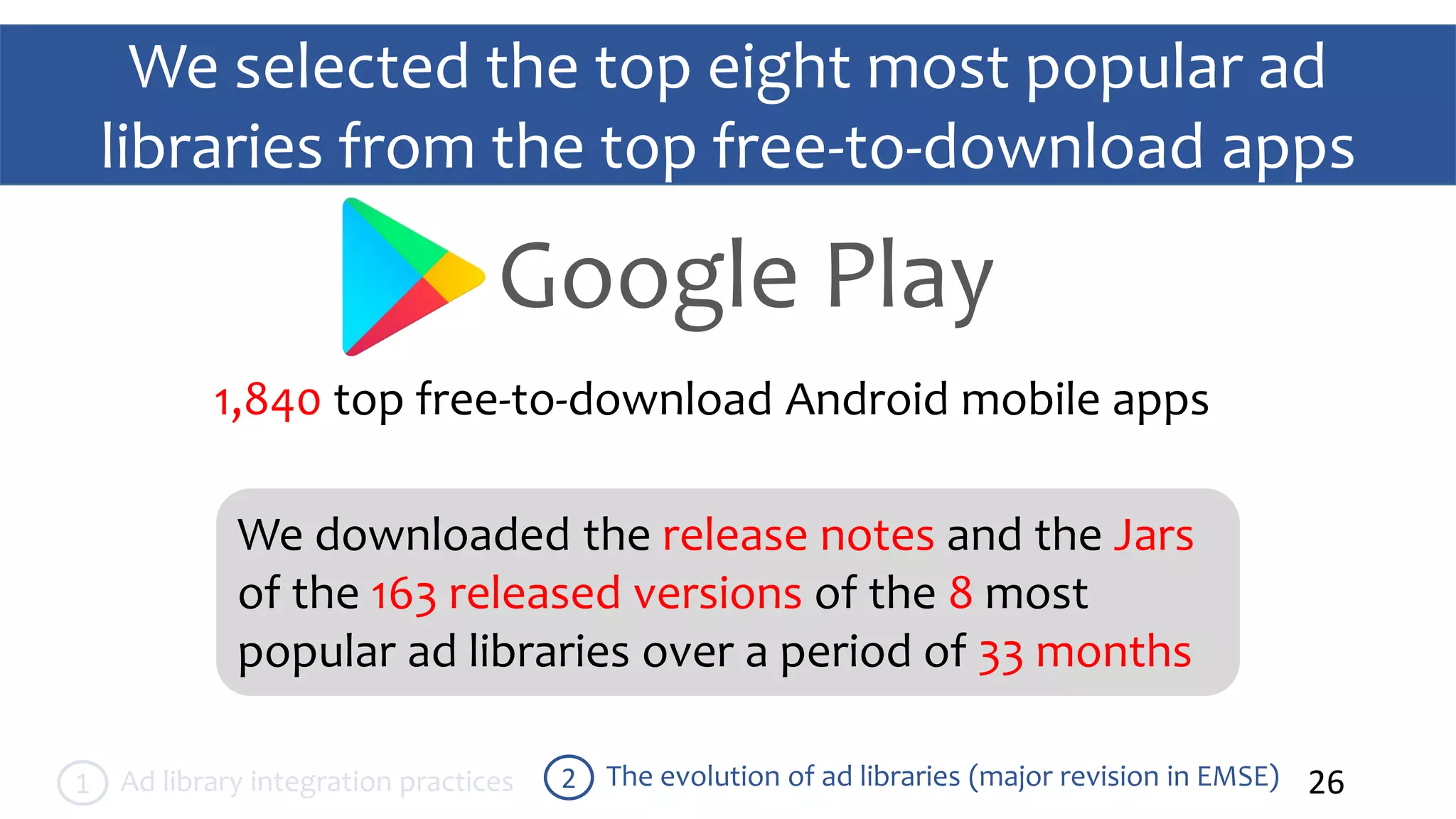

26. We selected the top eight most popular ad
libraries from the top free-to-download apps
26The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
Google Play
1,840 top free-to-download Android mobile apps
We downloaded the release notes and the Jars
of the 163 released versions of the 8 most
popular ad libraries over a period of 33 months

27. 27The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
We selected 8 popular ad libraries for our study
mobile ad network

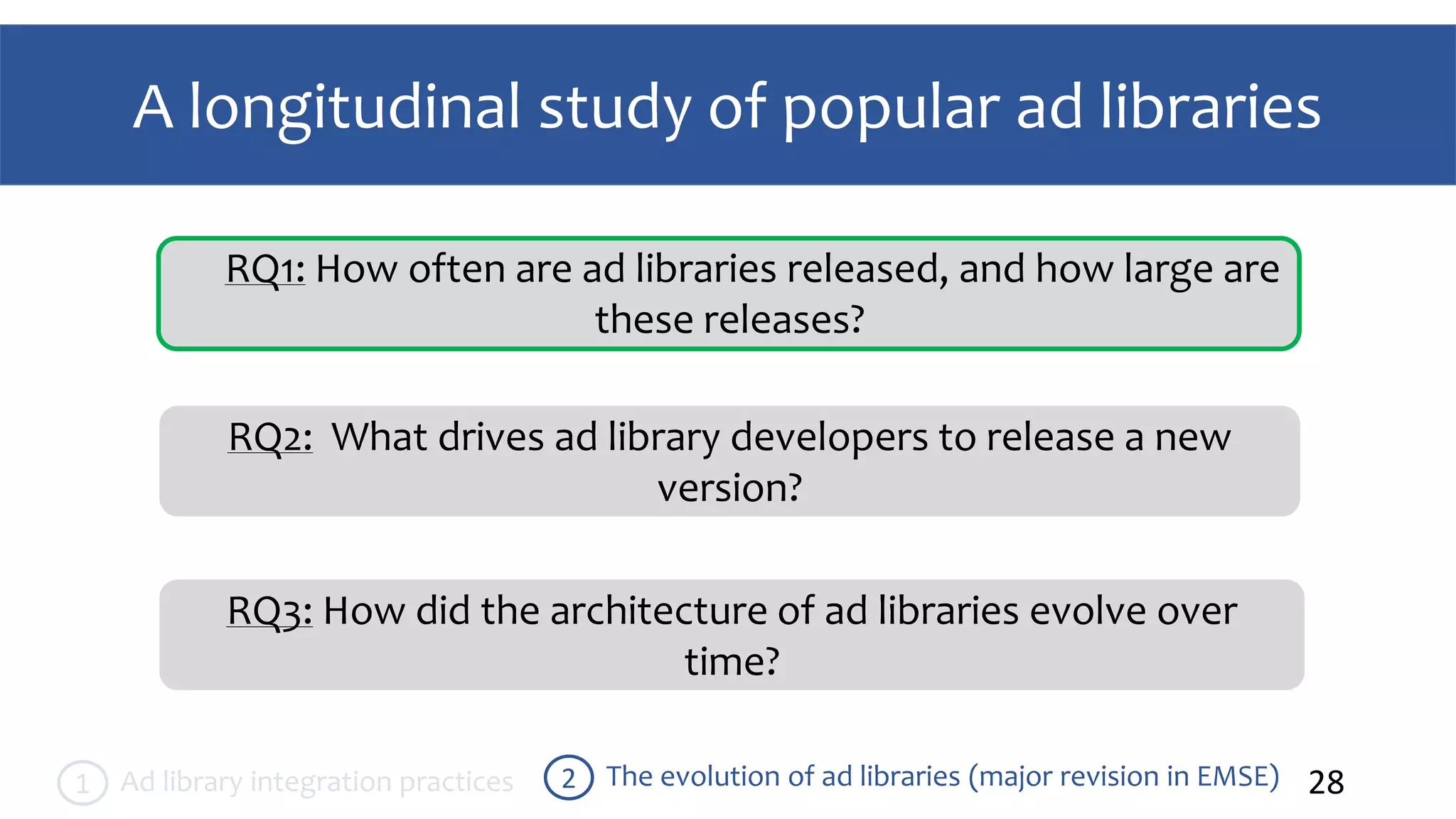

28. A longitudinal study of popular ad libraries
28The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
RQ1: How often are ad libraries released, and how large are
these releases?
RQ2: What drives ad library developers to release a new
version?
RQ3: How did the architecture of ad libraries evolve over
time?

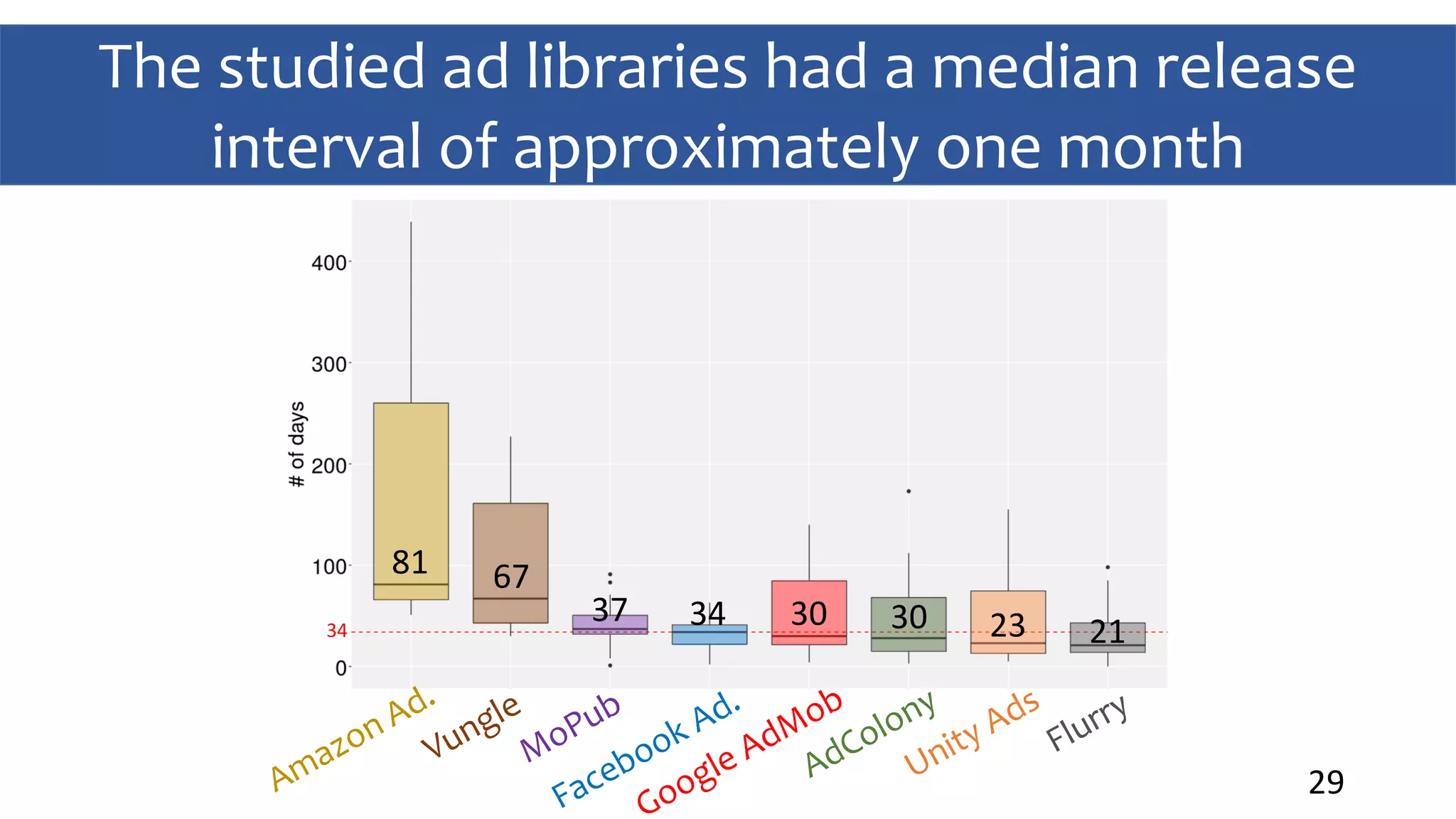

29. The studied ad libraries had a median release
interval of approximately one month
29
81 67
37 34 30 30 23 2134

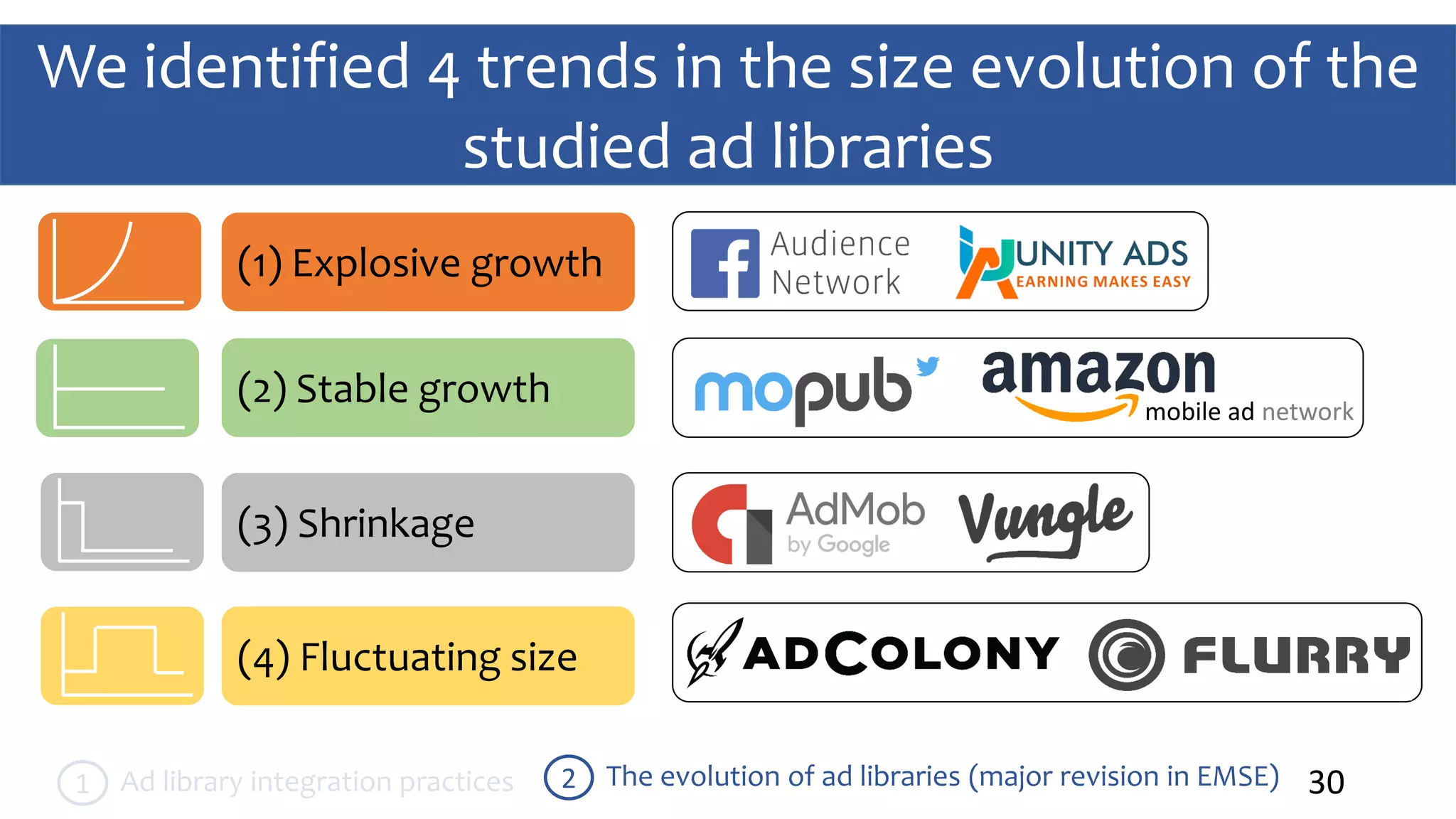

30. We identified 4 trends in the size evolution of the
studied ad libraries
30The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
(1) Explosive growth
(2) Stable growth
(3) Shrinkage
(4) Fluctuating size
mobile ad network

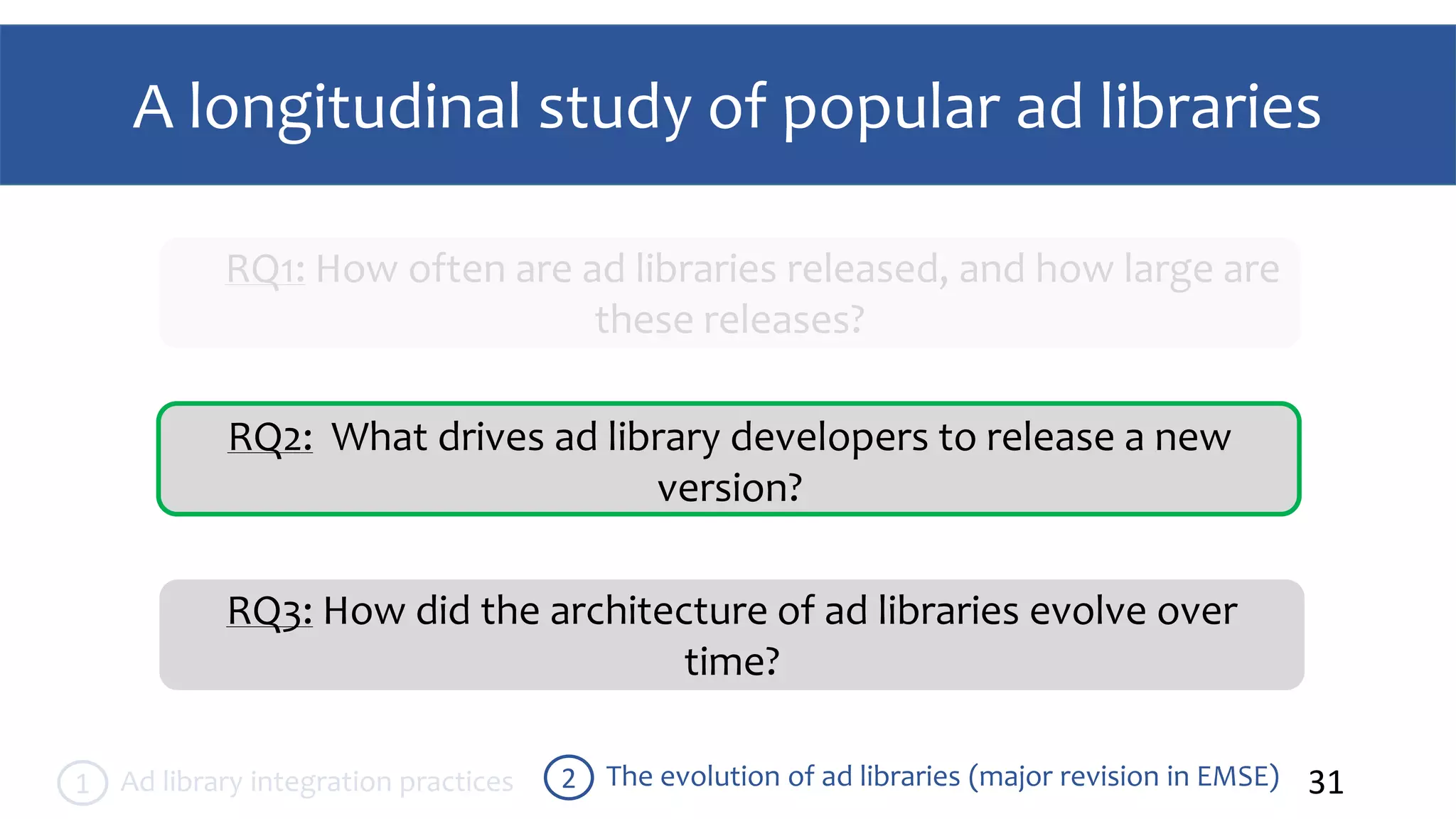

31. A longitudinal study of popular ad libraries
31The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
RQ1: How often are ad libraries released, and how large are
these releases?
RQ2: What drives ad library developers to release a new
version?
RQ3: How did the architecture of ad libraries evolve over
time?

32. We manually analyzed release notes
32The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
Release notes of the 163 released
versions of the studied ad libraries
over a period of 33 months

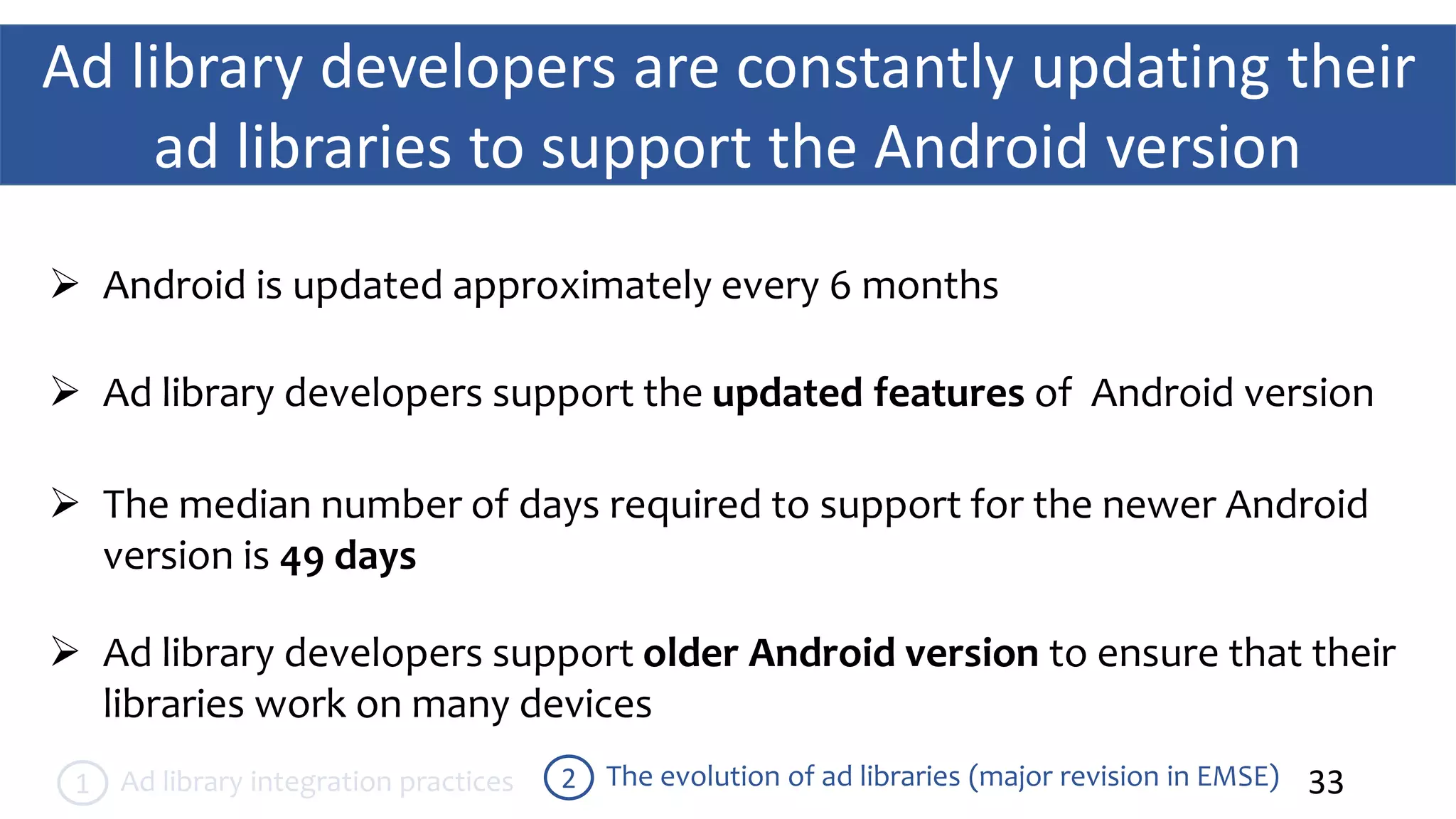

33. Ad library developers are constantly updating their
ad libraries to support the Android version
33The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
 Android is updated approximately every 6 months
 Ad library developers support the updated features of Android version
 Ad library developers support older Android version to ensure that their
libraries work on many devices
 The median number of days required to support for the newer Android
version is 49 days

34. Ad library developers are constantly updating their
ad libraries to support the Android version
34The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
Kitkat
Lollipop
MarshMallow
Nougat
Oreo
Pie
 Android is updated approximately
every 6 months
 Support the latest Android
version (Target SDK version)
 Support older Android version to
ensure ad libraries work on many
devices
“Lowered our library’s minimum SDK version to fix build issues with apps
that support earlier versions. ”

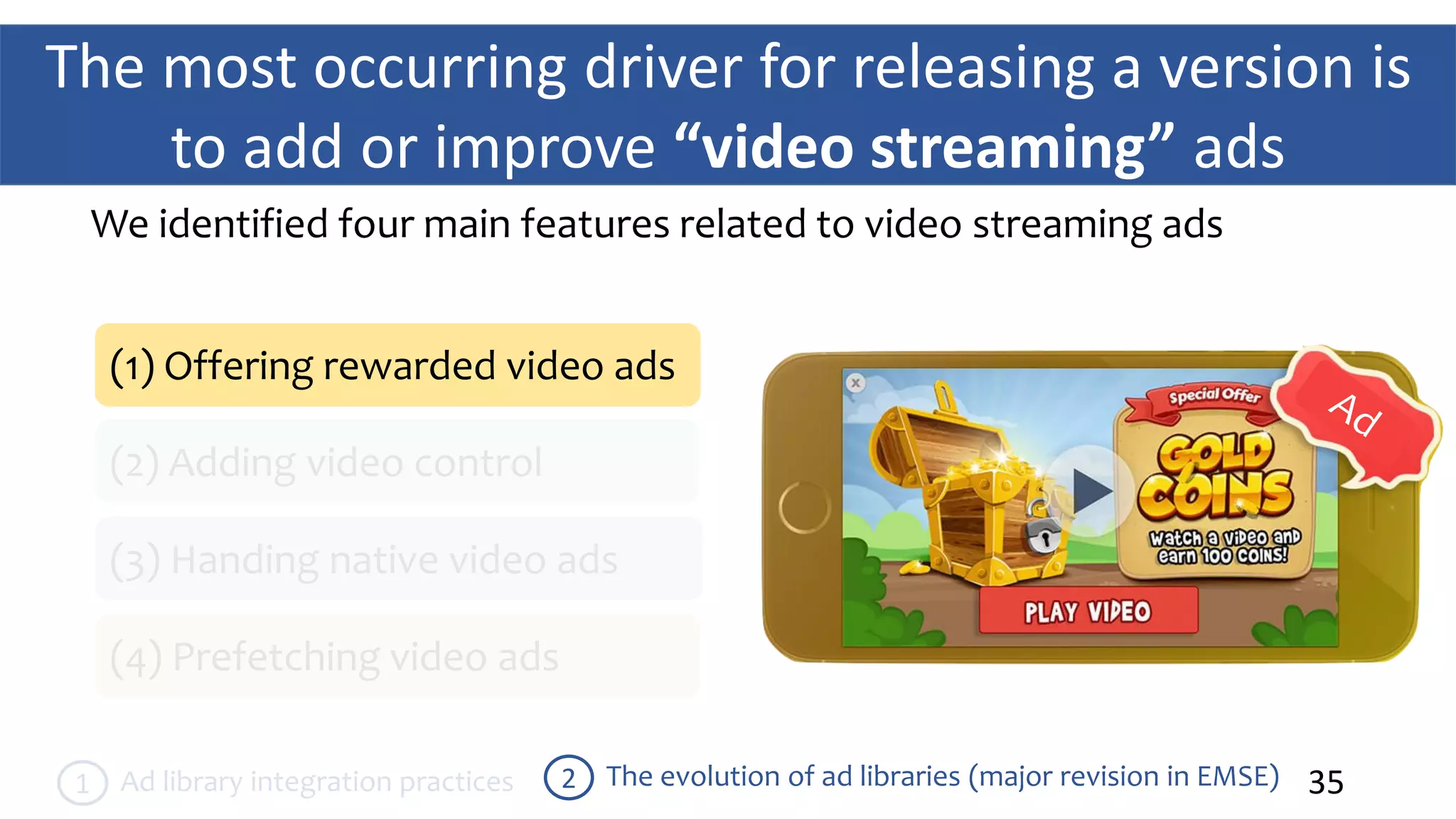

35. The most occurring driver for releasing a version is
to add or improve “video streaming” ads
35The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
We identified four main features related to video streaming ads
(1) Offering rewarded video ads
(2) Adding video control
(3) Handing native video ads
(4) Prefetching video ads

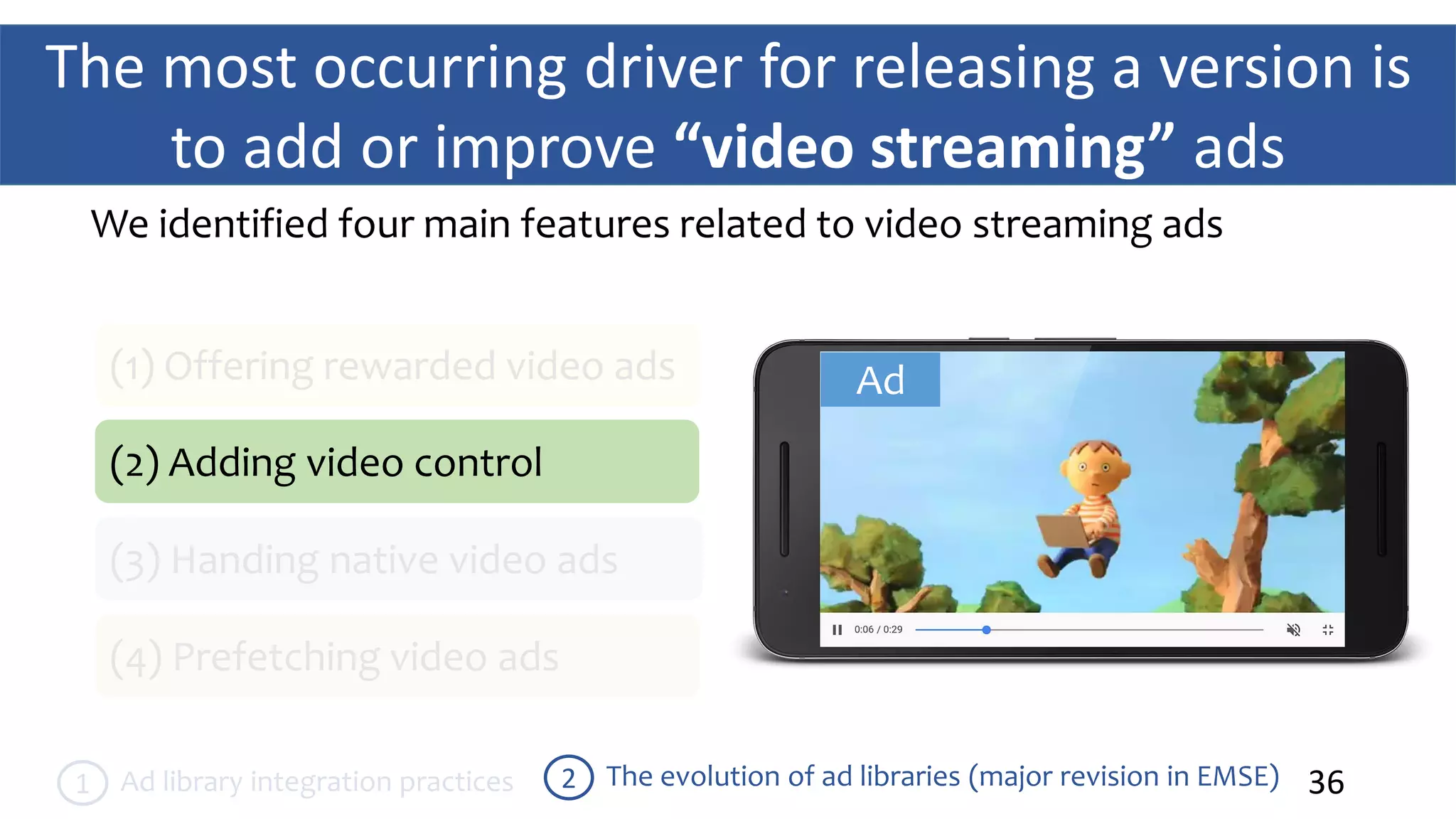

36. The most occurring driver for releasing a version is
to add or improve “video streaming” ads
36The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
We identified four main features related to video streaming ads
(1) Offering rewarded video ads
(2) Adding video control
(3) Handing native video ads
(4) Prefetching video ads
Ad

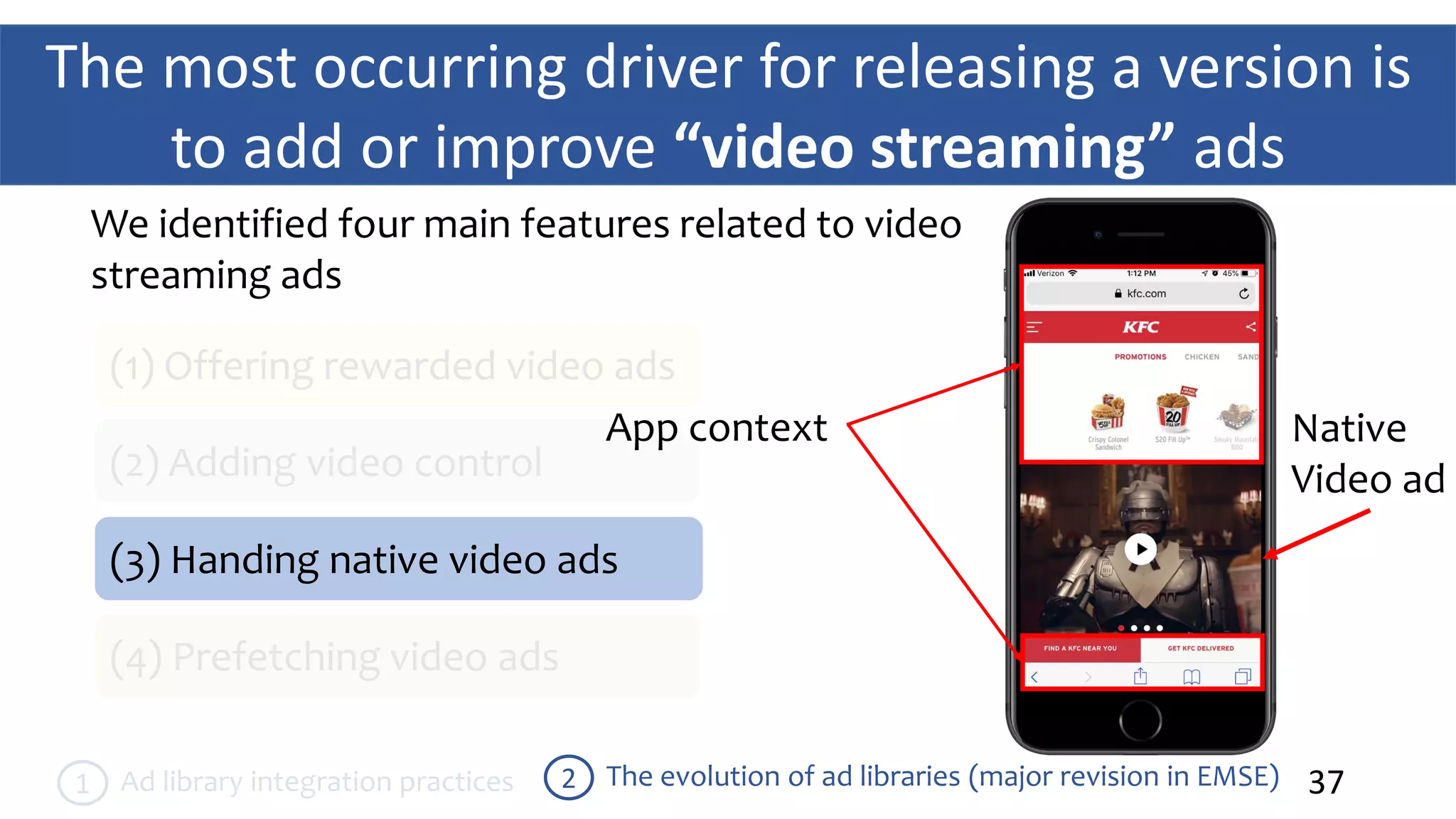

37. The most occurring driver for releasing a version is
to add or improve “video streaming” ads
37The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
We identified four main features related to video
streaming ads
(1) Offering rewarded video ads
(2) Adding video control
(3) Handing native video ads
(4) Prefetching video ads
App context Native
Video ad

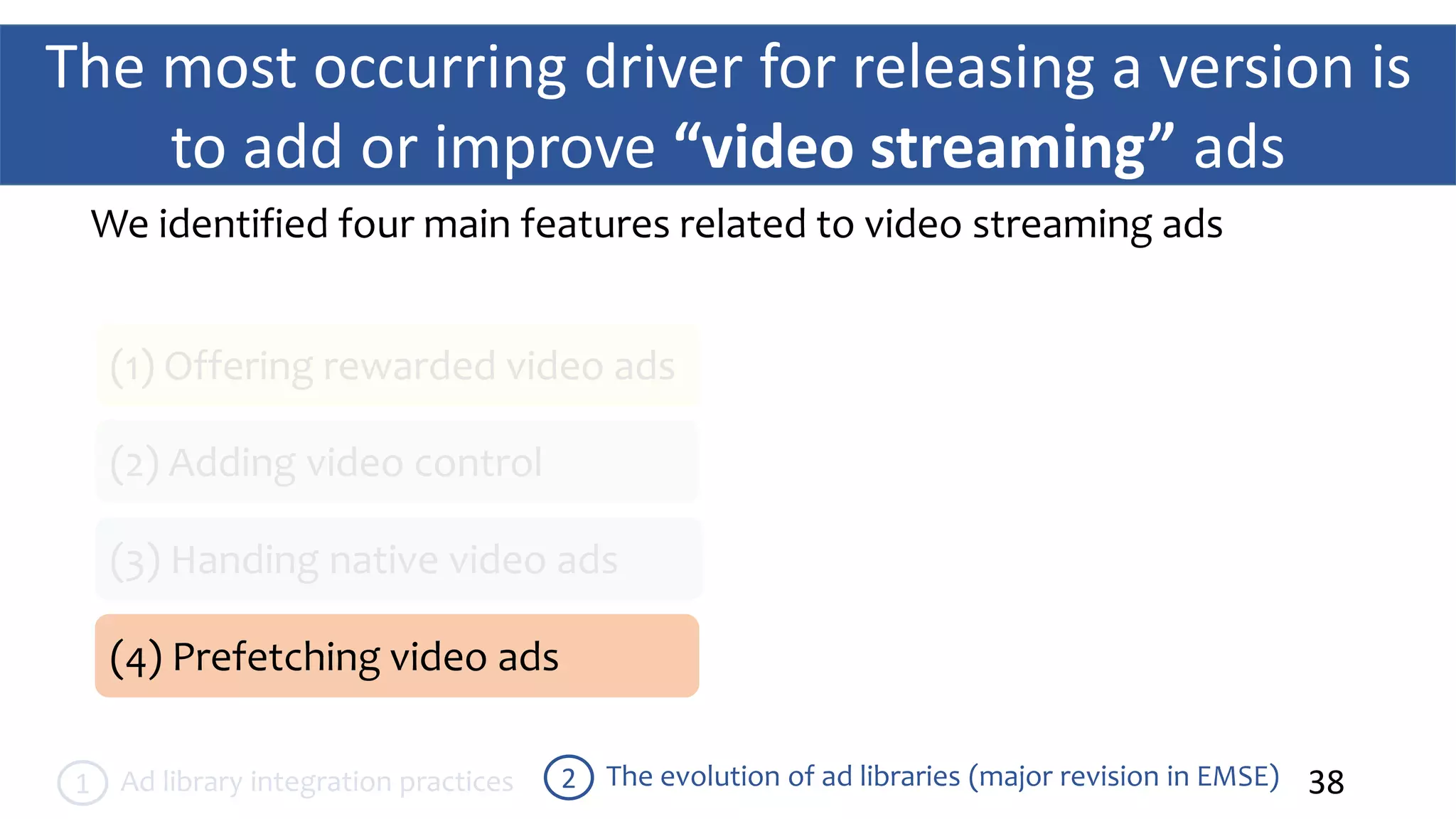

38. The most occurring driver for releasing a version is
to add or improve “video streaming” ads
38The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
We identified four main features related to video streaming ads
(1) Offering rewarded video ads
(2) Adding video control
(3) Handing native video ads
(4) Prefetching video ads

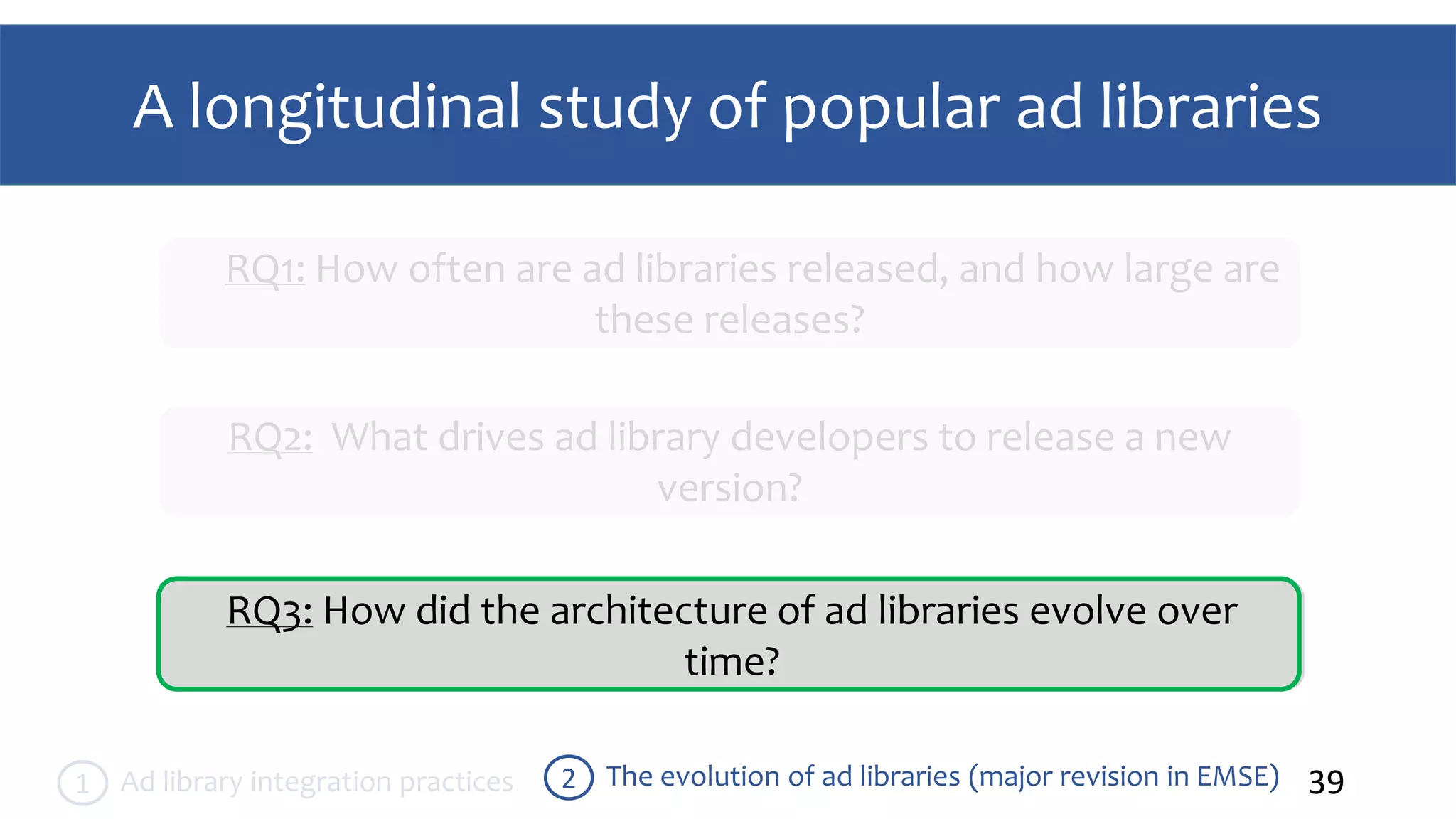

39. A longitudinal study of popular ad libraries
39The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
RQ1: How often are ad libraries released, and how large are
these releases?
RQ2: What drives ad library developers to release a new
version?
RQ3: How did the architecture of ad libraries evolve over
time?

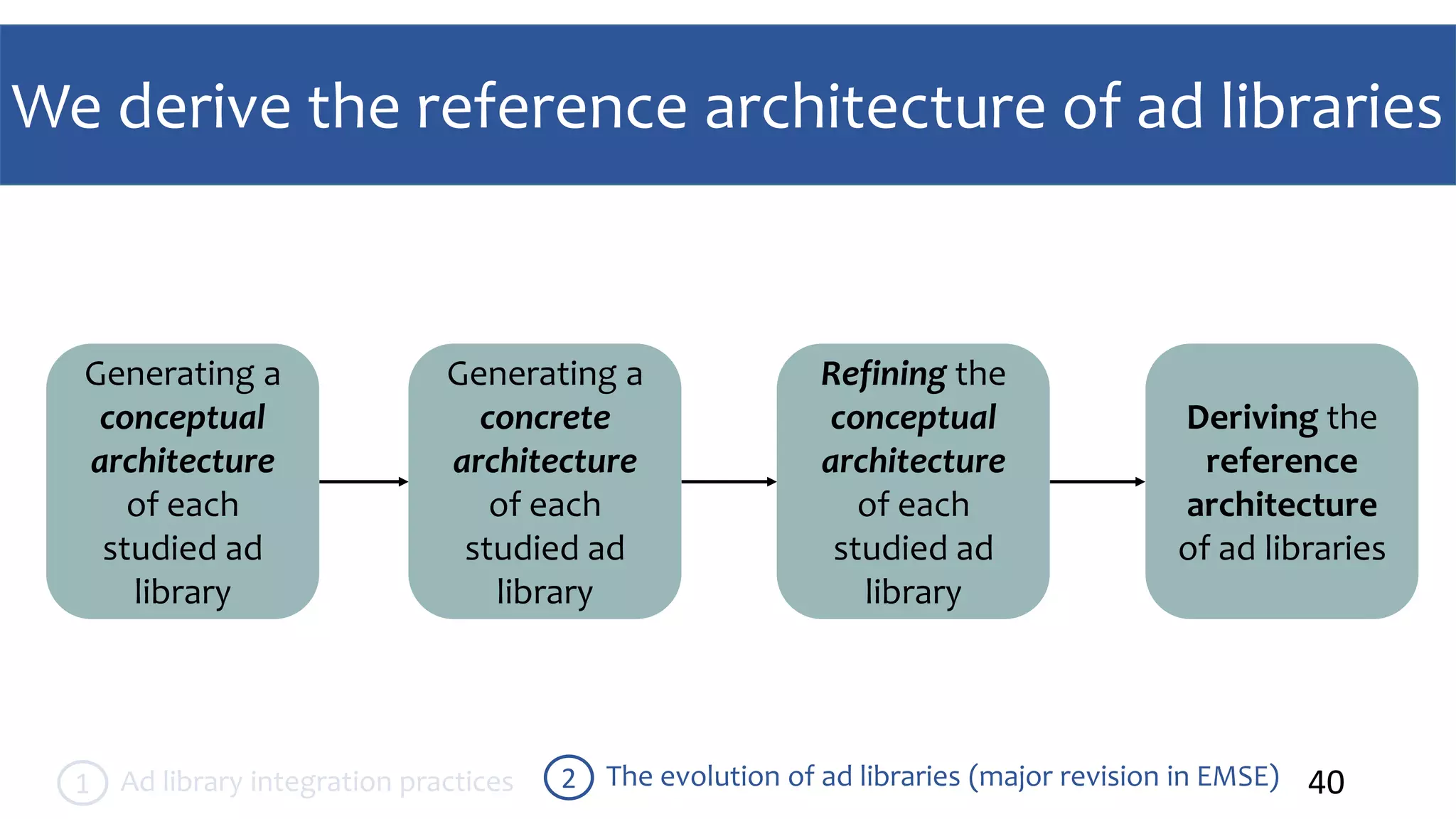

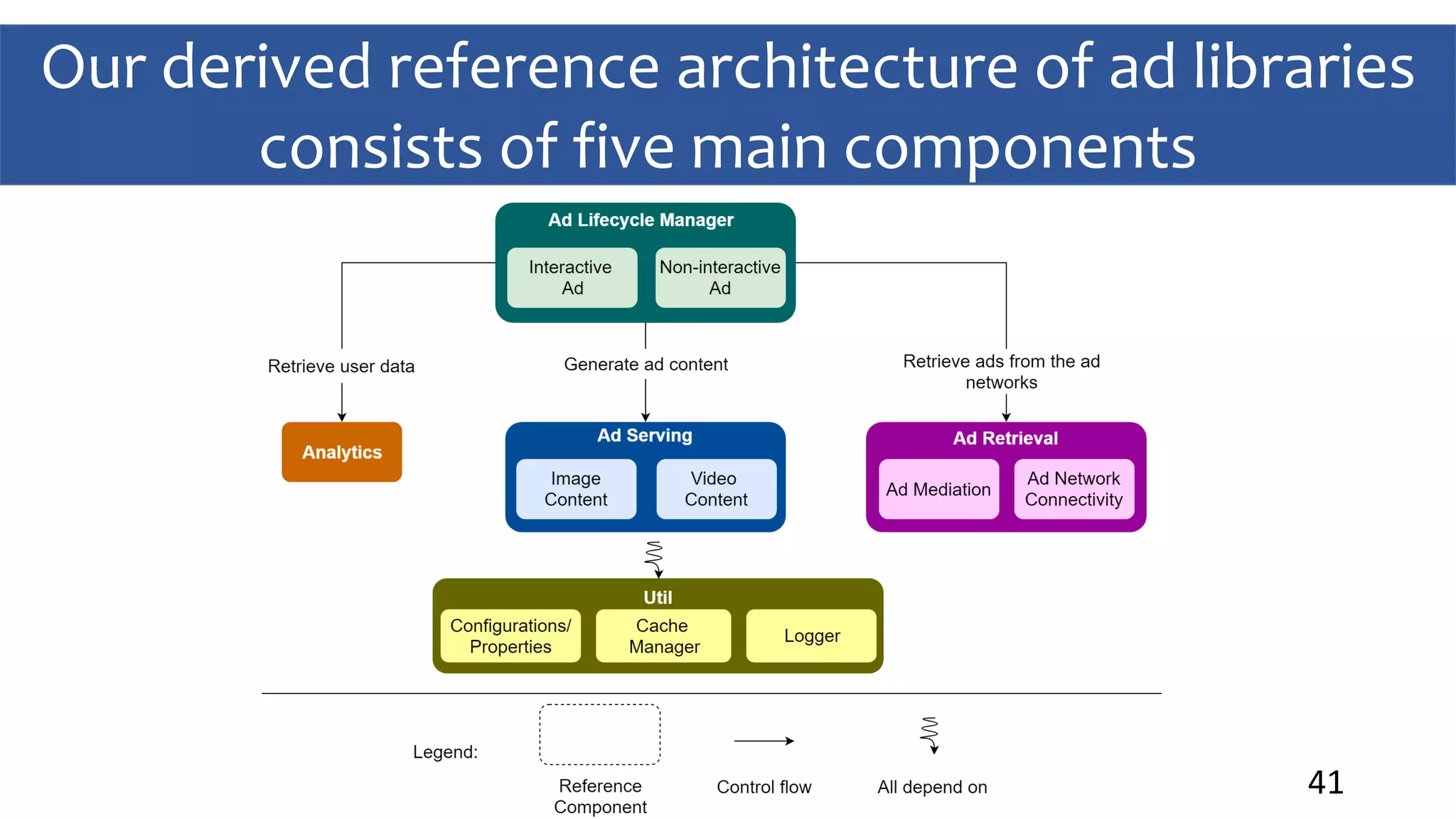

40. We derive the reference architecture of ad libraries
40The evolution of ad libraries (major revision in EMSE)2Ad library integration practices1
Generating a
conceptual
architecture
of each
studied ad
library
Generating a
concrete
architecture
of each
studied ad
library
Refining the
conceptual
architecture
of each
studied ad
library
Deriving the
reference
architecture
of ad libraries

41. 41
Our derived reference architecture of ad libraries
consists of five main components

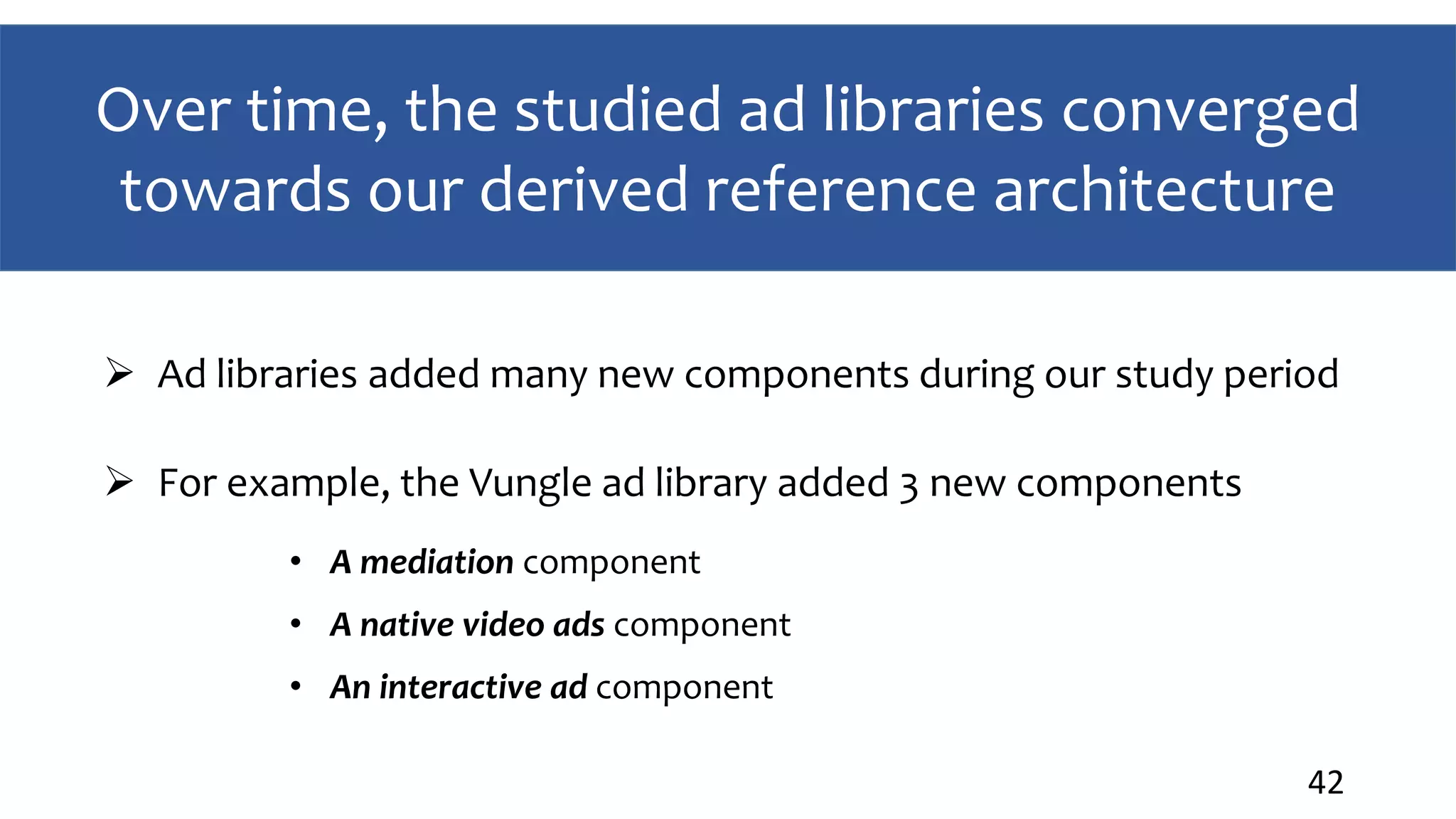

42. Over time, the studied ad libraries converged
towards our derived reference architecture
42
 Ad libraries added many new components during our study period
 For example, the Vungle ad library added 3 new components
• A mediation component
• A native video ads component
• An interactive ad component

43. Take-home: (1) ad libraries are actively evolving, and
(2) the reference architecture of ad libraries can
serve as a template for creating a new or evolving an
existing ad library
43

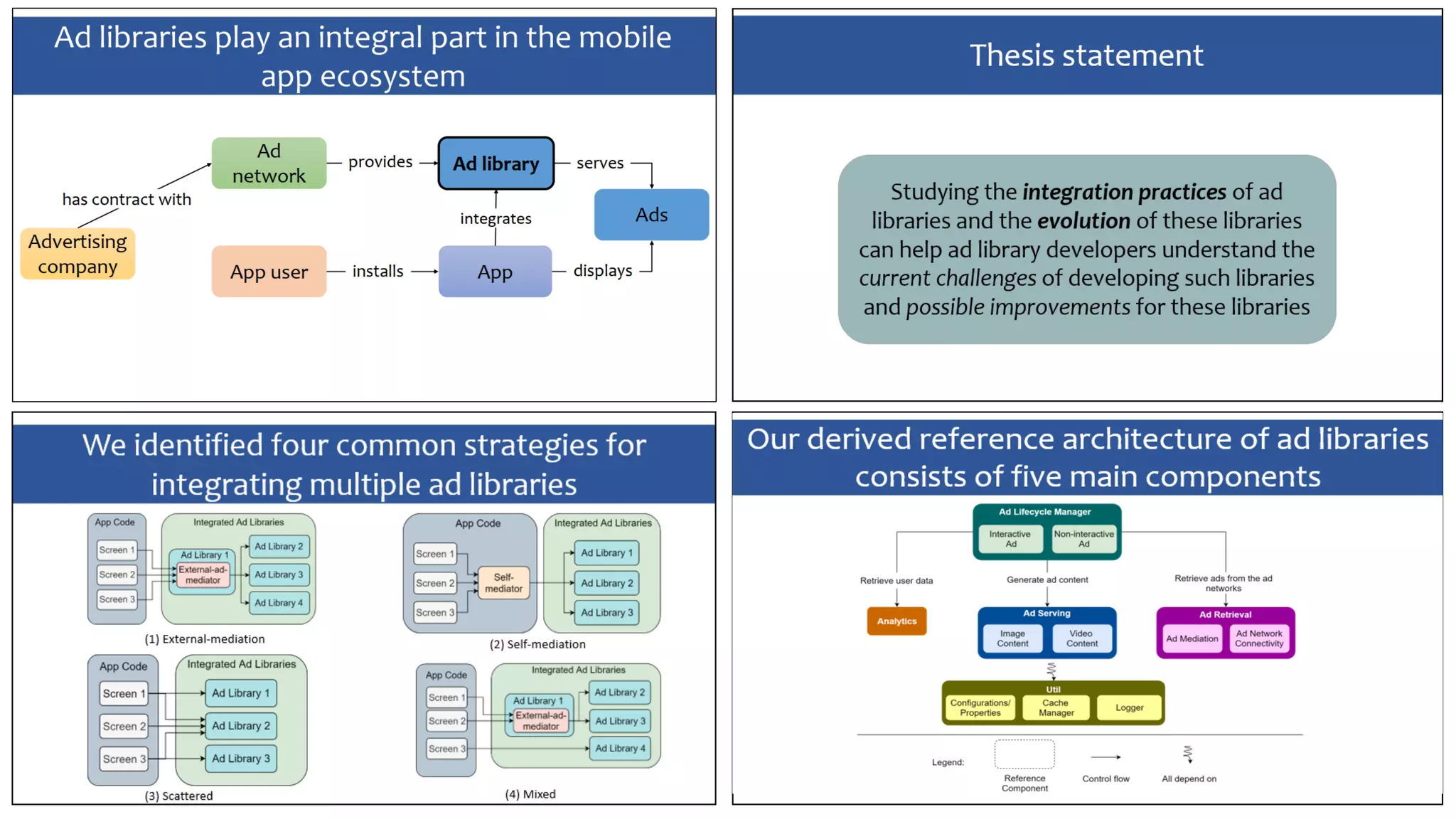

44. 44
