This document provides instructions for connecting a memory card cable to a floppy disk drive. The red stripe on the cable must be aligned with pin 1 on the floppy drive connector. A diagram labels the pins and shows that the red stripe should be next to pin 1 for proper installation.

4. memory card

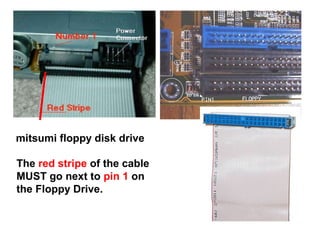

21. mitsumi floppy disk drive
The red stripe of the cable
MUST go next to pin 1 on
the Floppy Drive.

23. pin 4
pin 2
pin 6
pin 3
pin 1
pin 5
Align red
band of cable
with pin No.
1
IDE Connector
pin 40
