1. Marc Hinderickx
System Engineer
Stockage avec NetApp
Nouveautés 2014 pour
IT managers
Unbound Cloud
1

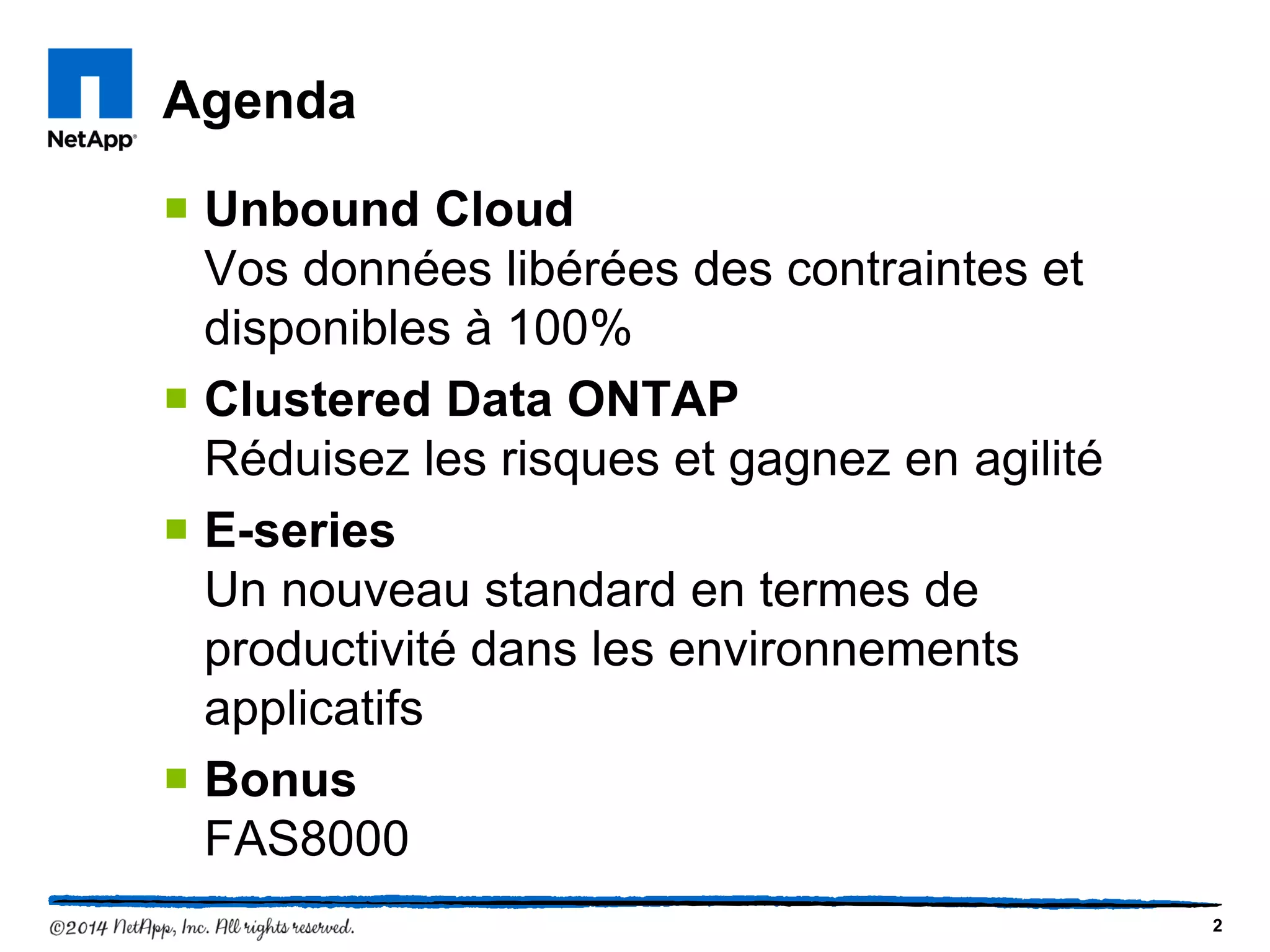

2. Agenda
 Unbound Cloud
Vos données libérées des contraintes et
disponibles à 100%
 Clustered Data ONTAP
Réduisez les risques et gagnez en agilité
 E-series
Un nouveau standard en termes de
productivité dans les environnements
applicatifs
 Bonus
FAS8000
2

3. Vos données libérées des contraintes et disponibles à 100%
Unbound Cloud est la nouvelle approche de NetApp en matière
de cloud.
Découvrez comment Unbound Cloud vous aide à obtenir une
gestion des données parfaite, quel que soit votre environnement
cloud : privé, public, hyper-évolutif ou une combinaison des trois.
3
Unbound Cloud

4. CIO Challenges
4

5. CIO Challenges
5
CIOs strive to remain efficient and look
for new IT service delivery models like
cloud to:
 Keep up with technology and innovation
changes
 Reduce overhead costs, while growing
capacity
 Lower risk with new mission-critical
applications deployments
 Manage complexity across the data
center

6. Common Inhibitors
for Moving to the
Cloud
6

7. Inhibitors for Transitioning to the Cloud
7
Perceived inhibitors for transitioning to the
cloud include:
 Lack of agility to move resources where
and when you need them
 Security risks of exposing confidential data
 Viruses
CIOs are tasked with managing complexity and
controlling data across multiple users,
services, and cloud resources.

8. The Changing Role of IT
Everyone has to think like a service provider
8

9. How NetApp Enables
Cloud Solutions
9

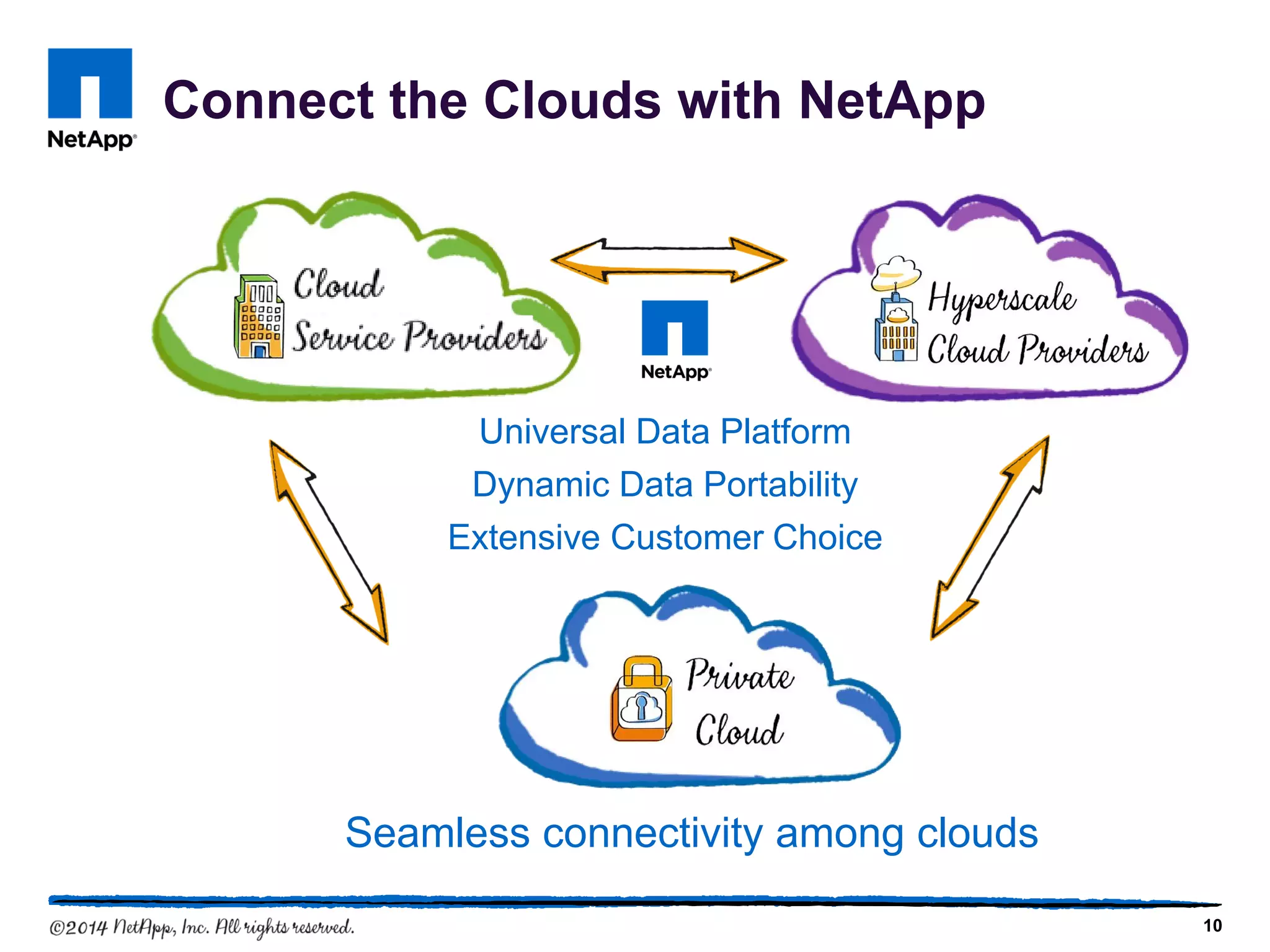

10. Connect the Clouds with NetApp
Seamless connectivity among clouds
Universal Data Platform
Dynamic Data Portability
Extensive Customer Choice
10

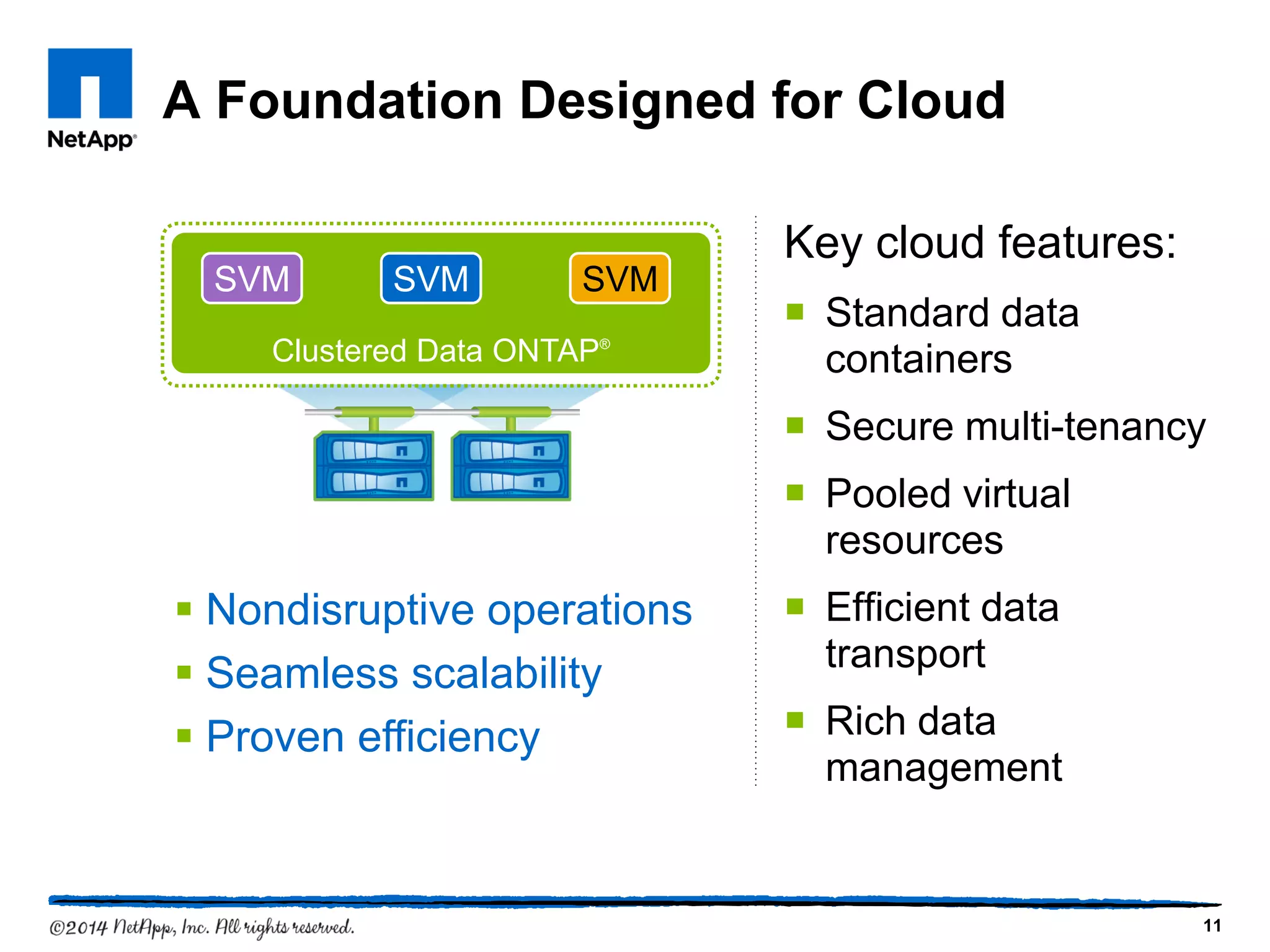

11. A Foundation Designed for Cloud
Key cloud features:
 Standard data
containers
 Secure multi-tenancy
 Pooled virtual
resources
 Efficient data
transport
 Rich data
management
Clustered Data ONTAP®
SVM SVM SVM
 Nondisruptive operations
 Seamless scalability
 Proven efficiency
11

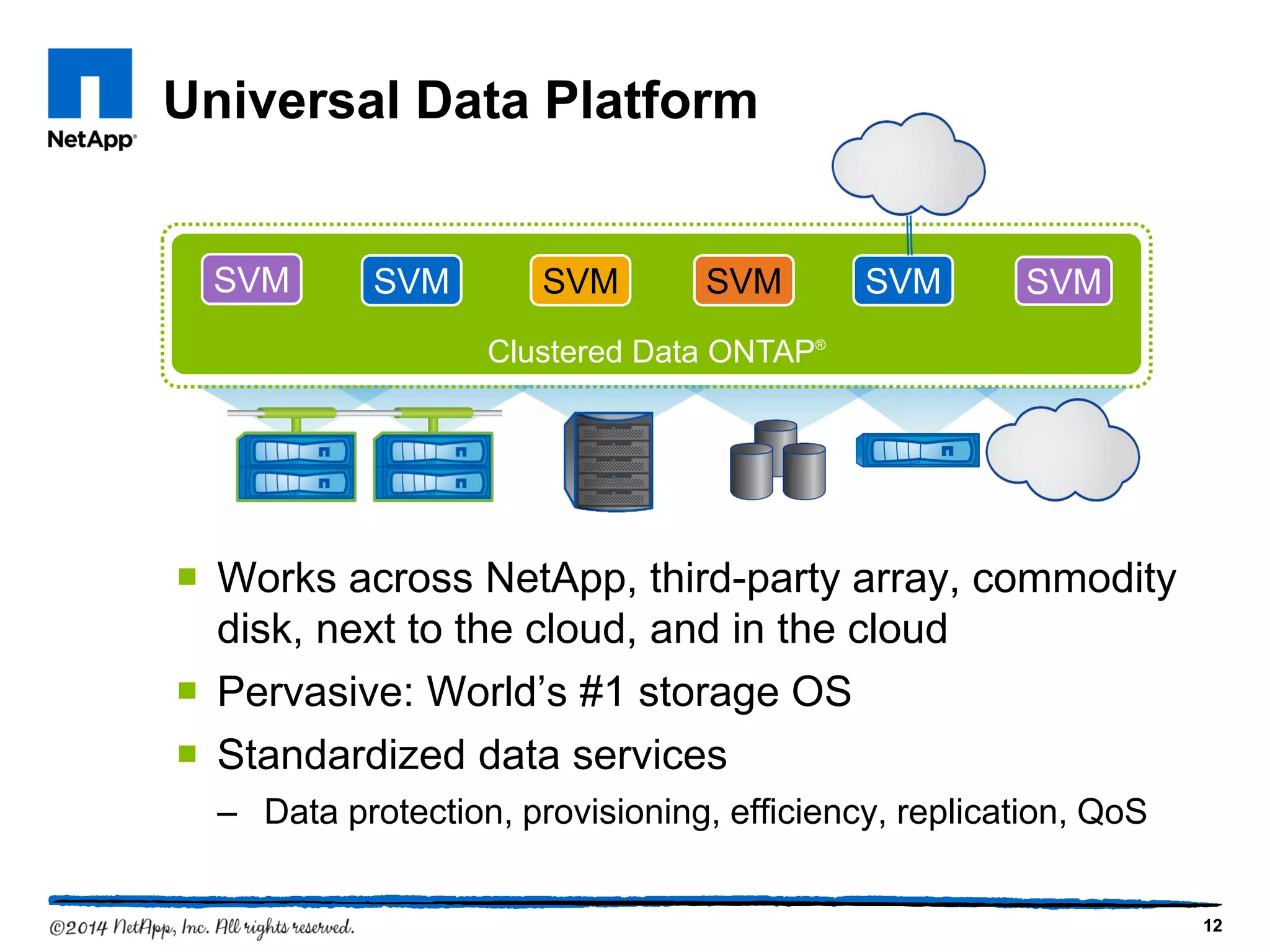

12. Universal Data Platform
 Works across NetApp, third-party array, commodity
disk, next to the cloud, and in the cloud
 Pervasive: World’s #1 storage OS
 Standardized data services
– Data protection, provisioning, efficiency, replication, QoS
Clustered Data ONTAP®
SVM SVM SVM SVM SVMSVM
12

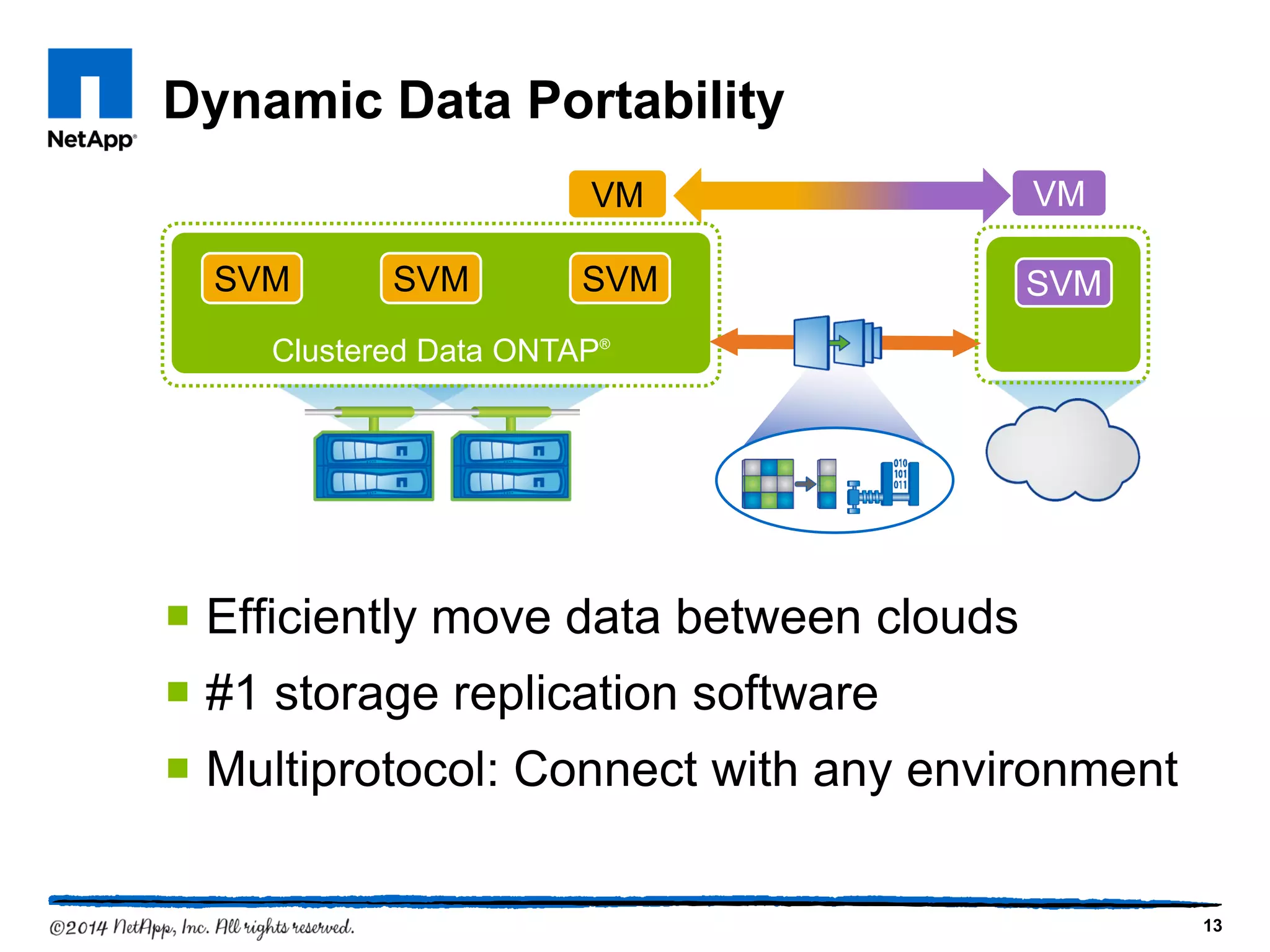

13. Dynamic Data Portability
 Efficiently move data between clouds
 #1 storage replication software
 Multiprotocol: Connect with any environment
Clustered Data ONTAP®
SVM SVM SVM SVM
VMVM
13

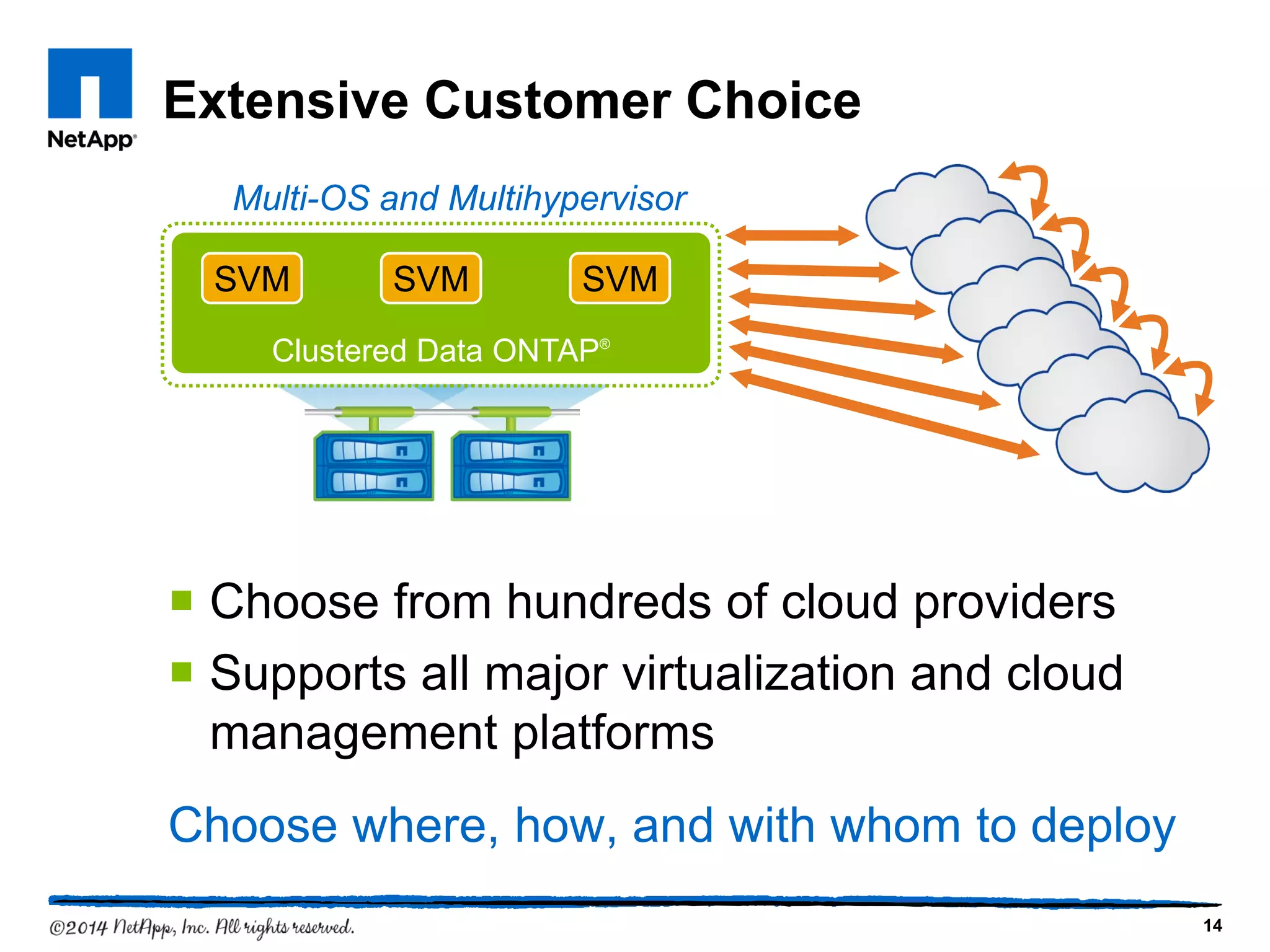

14. Extensive Customer Choice
 Choose from hundreds of cloud providers
 Supports all major virtualization and cloud
management platforms
Choose where, how, and with whom to deploy
Clustered Data ONTAP®
SVM SVM SVM
14
Multi-OS and Multihypervisor

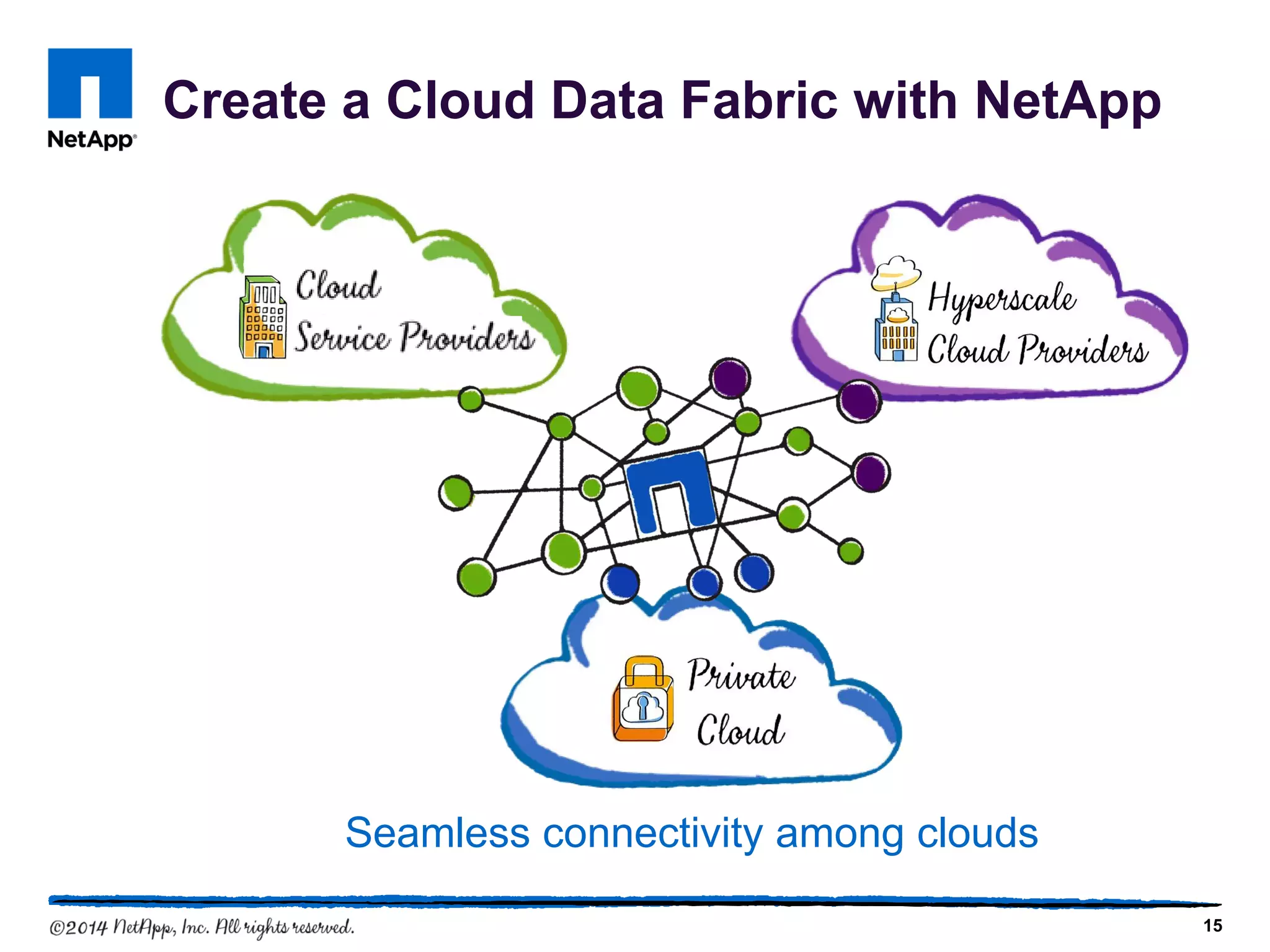

15. Create a Cloud Data Fabric with NetApp
Seamless connectivity among clouds
15

16. NetApp Cloud
Solutions
16

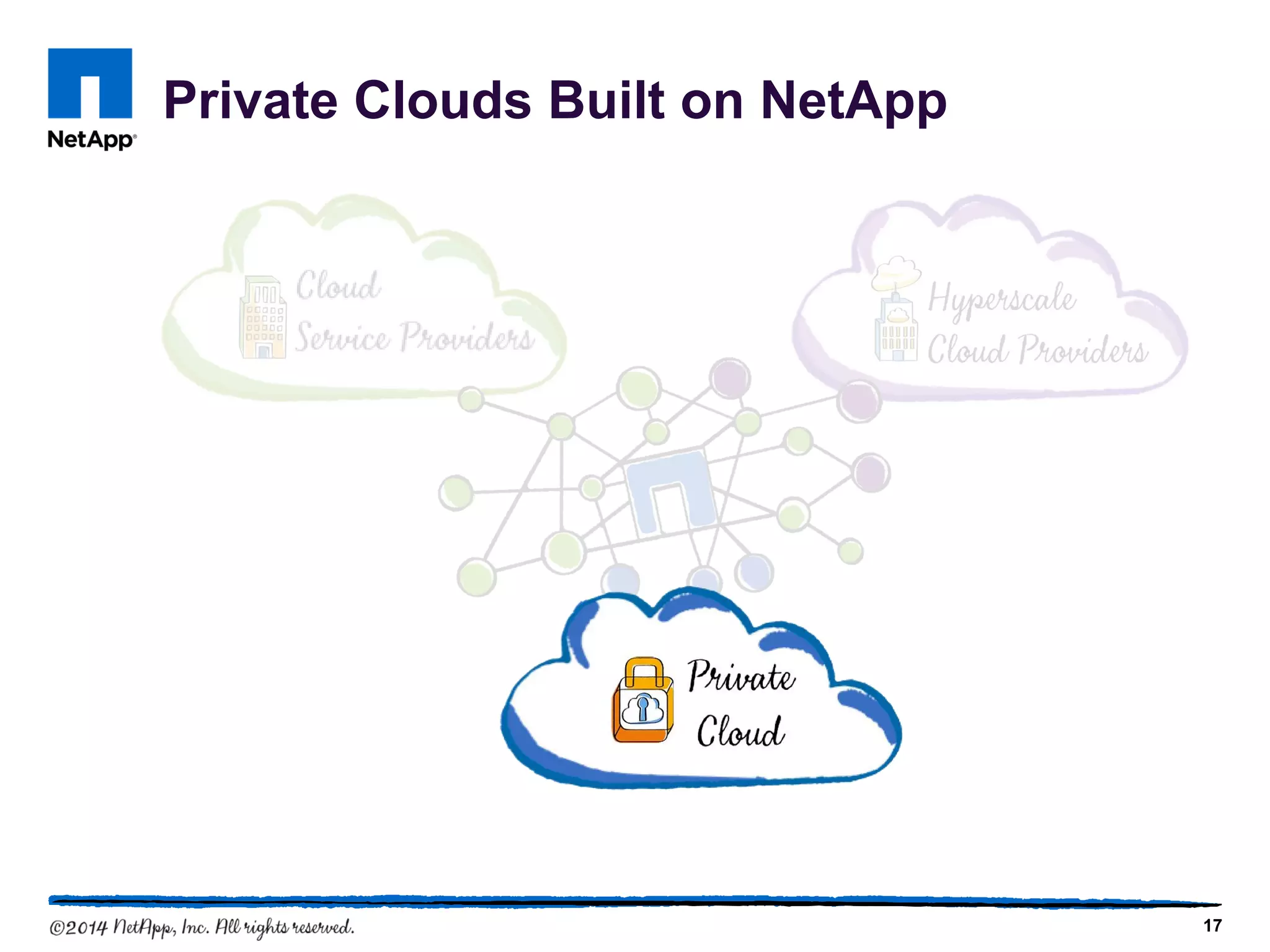

17. Private Clouds Built on NetApp
17

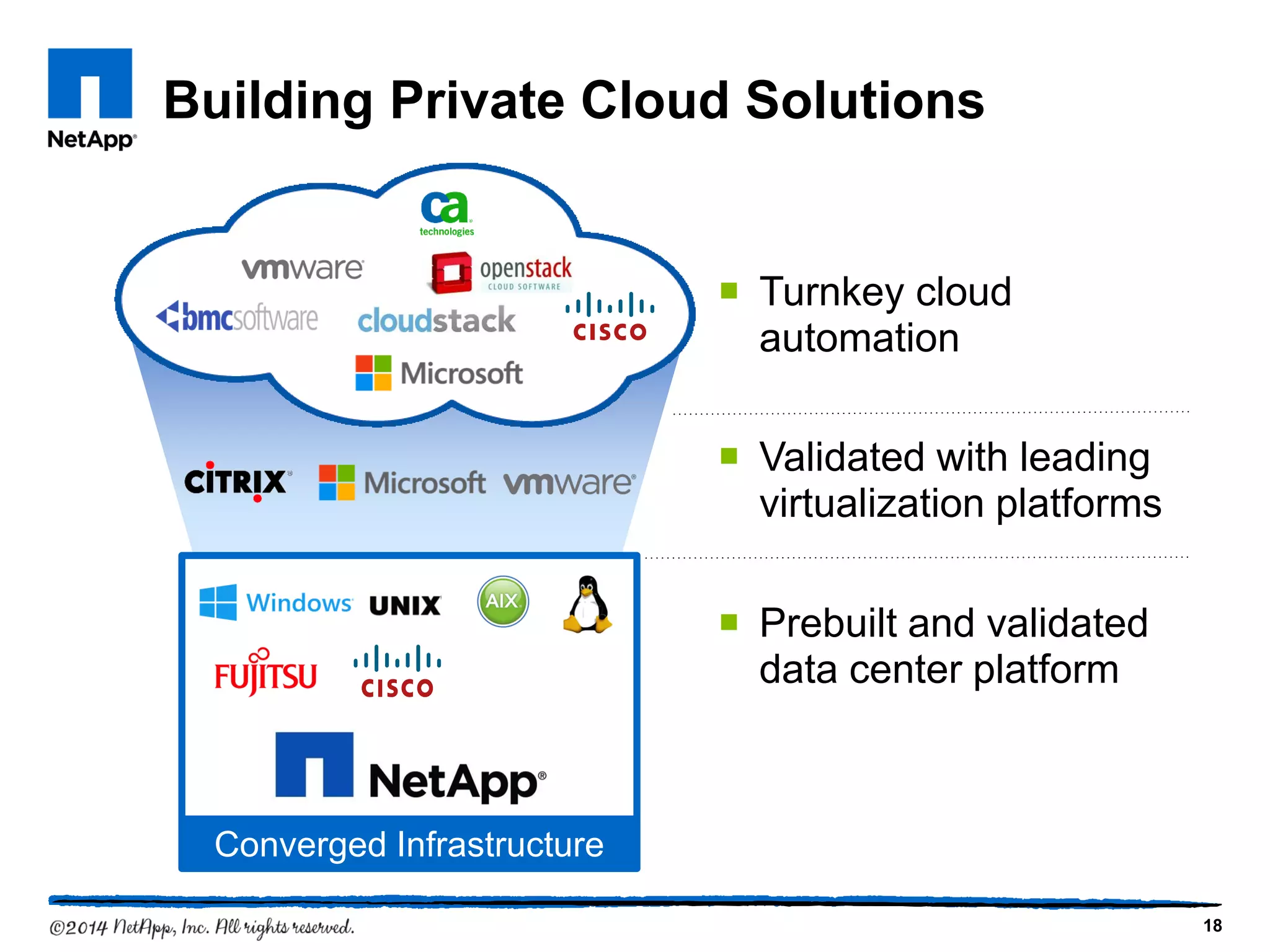

18. Building Private Cloud Solutions
 Validated with leading
virtualization platforms
 Prebuilt and validated
data center platform
 Turnkey cloud
automation
Converged Infrastructure
18

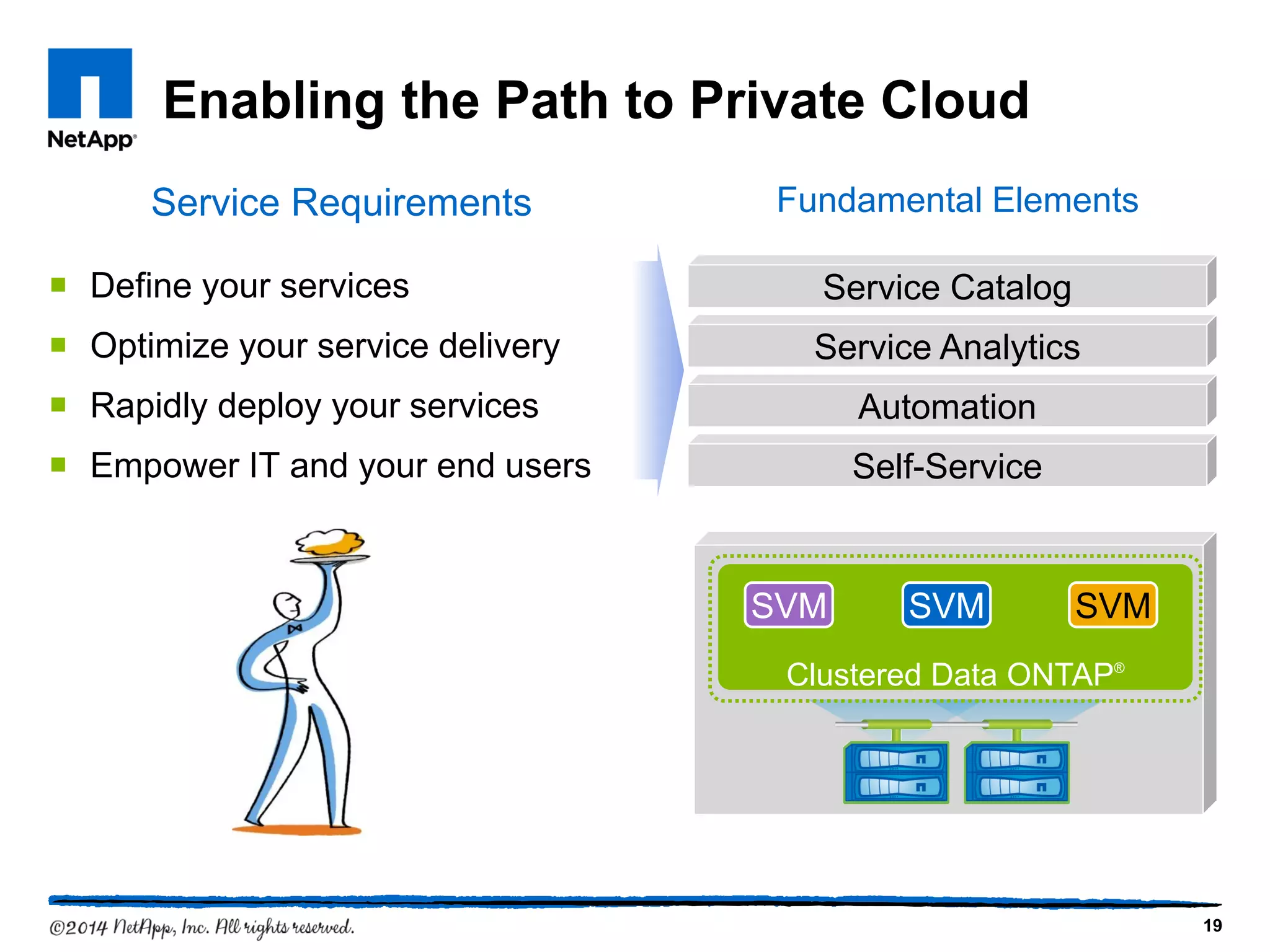

19. Enabling the Path to Private Cloud
Service Requirements
 Define your services
 Optimize your service delivery
 Rapidly deploy your services
 Empower IT and your end users
19
Self-Service
Automation
Service Analytics
Service Catalog
Fundamental Elements
Clustered Data ONTAP®
SVM SVM SVM

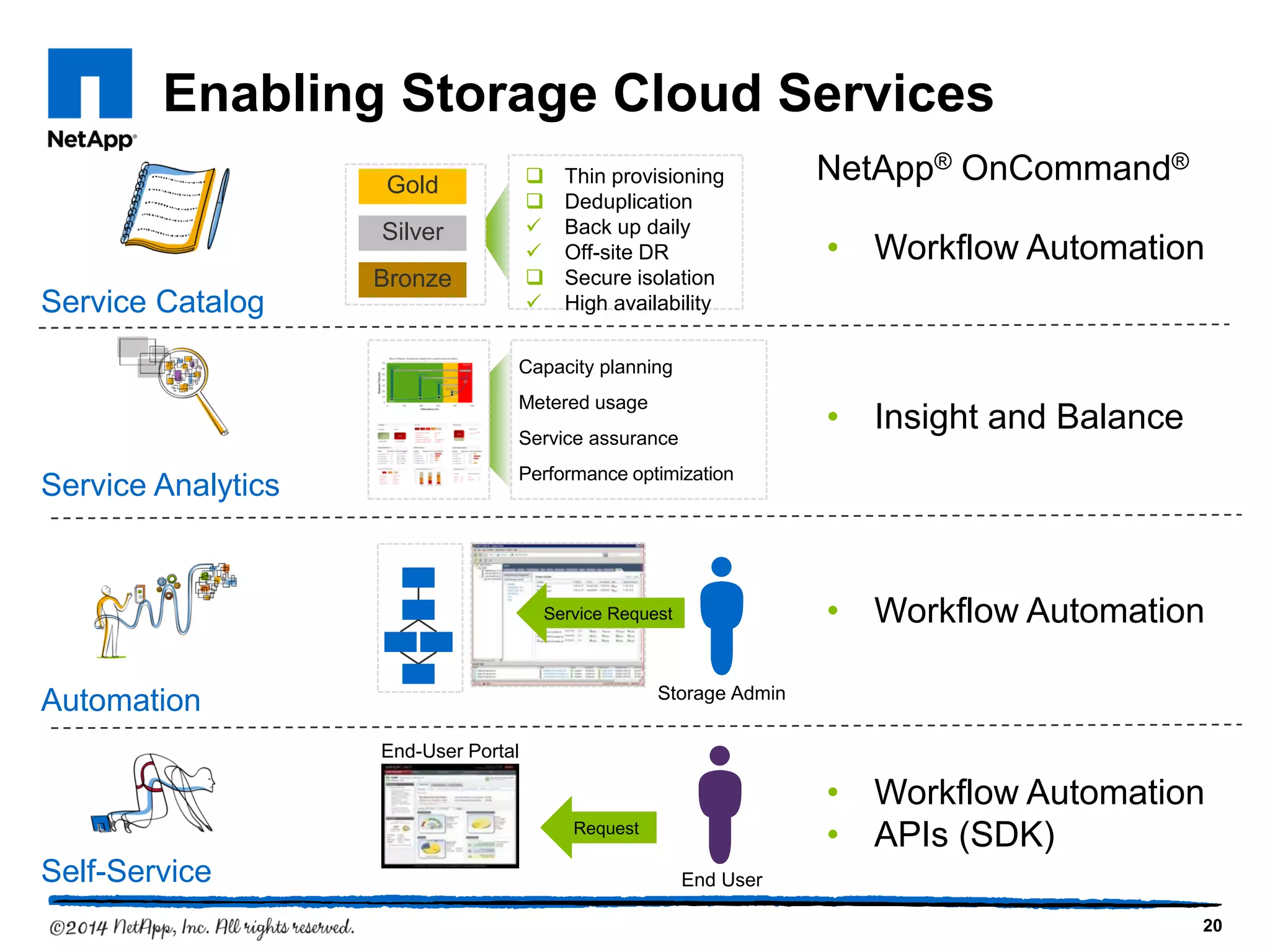

20. Enabling Storage Cloud Services
20
Service Analytics
Service Catalog
Automation
Self-Service
 Thin provisioning
 Deduplication
 Back up daily
 Off-site DR
 Secure isolation
 High availability
Gold
Silver
Bronze
Service Request
Storage Admin
End-User Portal
End User
Request
Capacity planning
Metered usage
Service assurance
Performance optimization
NetApp® OnCommand®
• Workflow Automation
• Insight and Balance
• Workflow Automation
• Workflow Automation
• APIs (SDK)

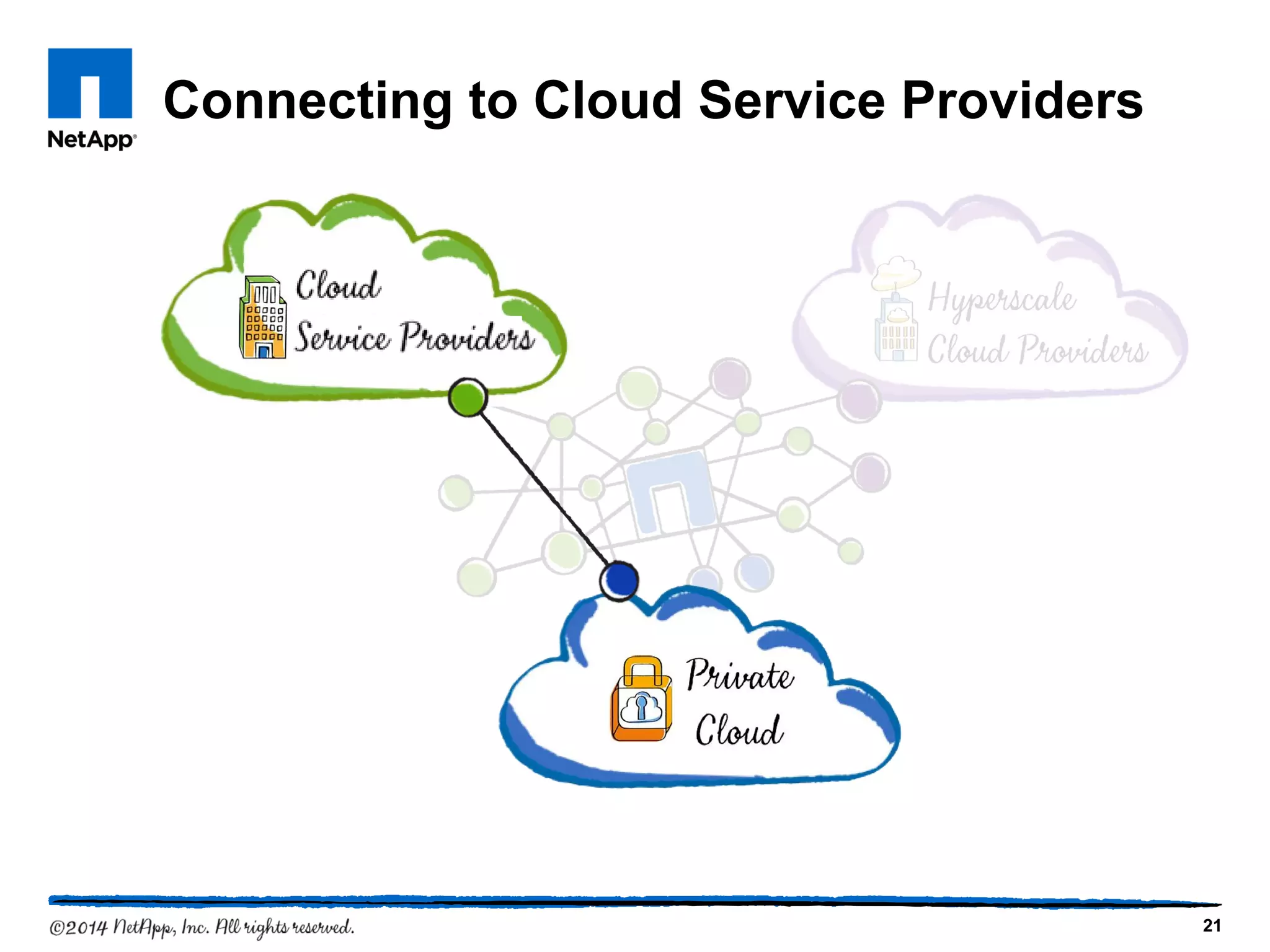

21. Connecting to Cloud Service Providers
21

22. Cloud Service Providers Built on NetApp
 Native Data ONTAP® data
services
 Seamlessly extend private
environment
 Wide variety of workloads and
specialized services
 Local services available
worldwide
 Providers with global
coverage
22

23. Other
as a Service
Infrastructure
as a Service
Data Protection
as a Service
Messaging and
Collaboration
as a Service
Desktop
as a Service
SAP
as a Service

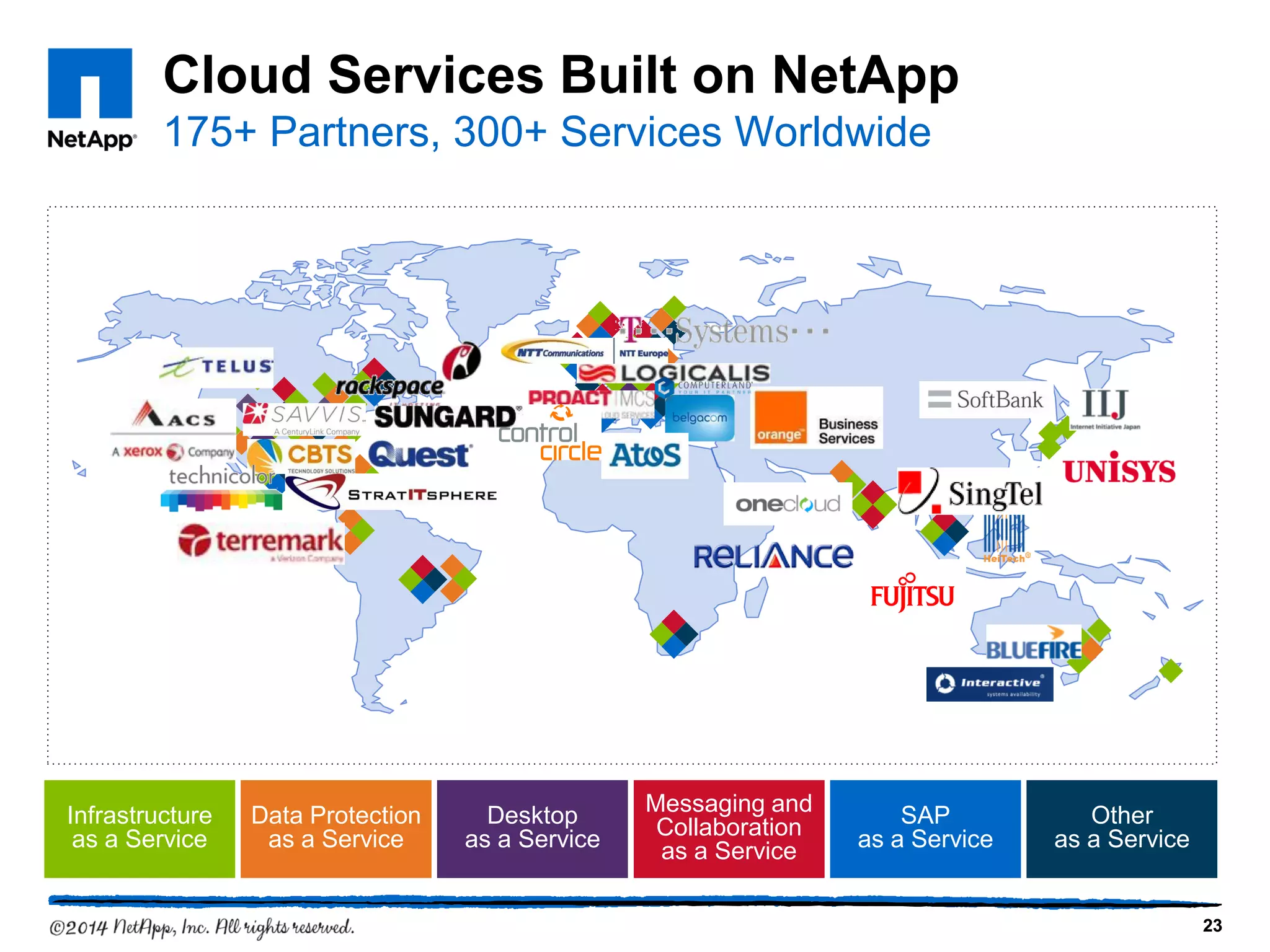

Cloud Services Built on NetApp
175+ Partners, 300+ Services Worldwide
2323

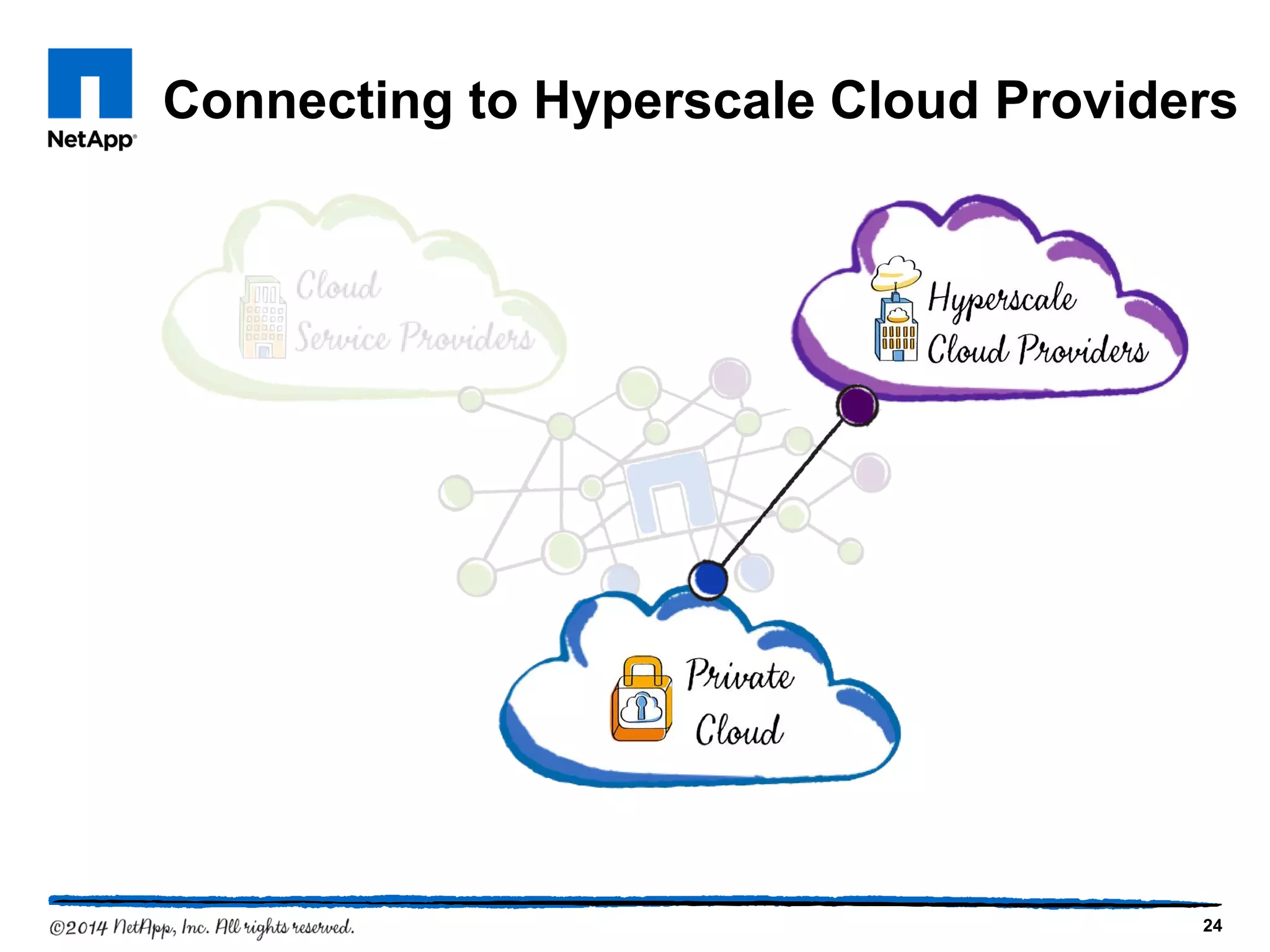

24. Connecting to Hyperscale Cloud Providers
24

25. Customers Embracing Hyperscale
Customer with a public cloud mandate
 Could not scale to peaks
 Data security was essential
NetApp Private Storage for AWS
 Agility of cloud, with control of on-premises storage
 Moving 90% of VMs to Amazon EC2, saving 70% of cost
 Secure replication to meet compliance requirements
 Provision Oracle®
RDS instances in <10 minutes
25
“NetApp private storage for AWS gives us 90% of the
benefits of cloud, with only 10% of the risk.”
- Infrastructure ArchitectEC2: Elastic Compute Cloud
RDS: Relational Database Service

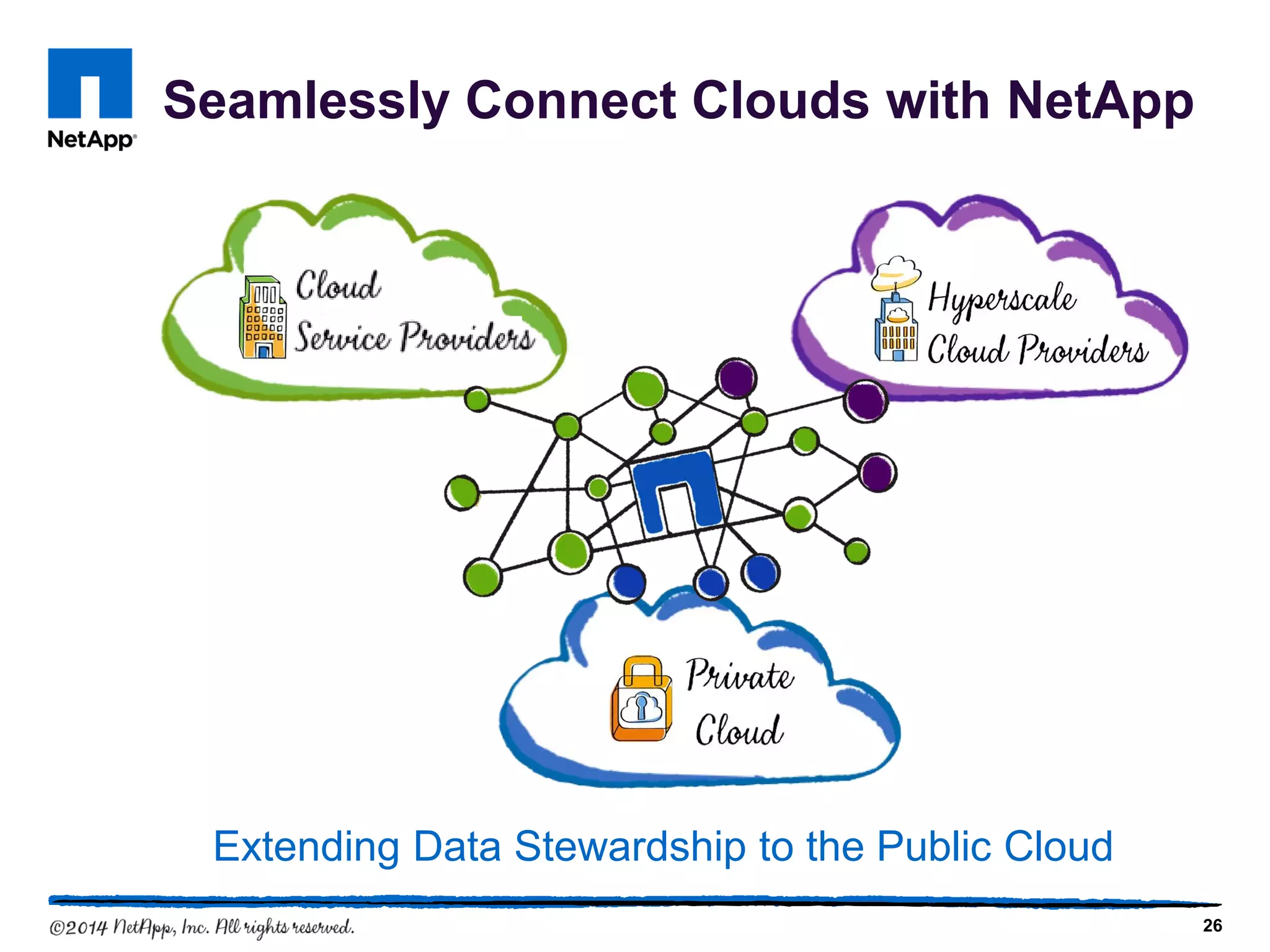

26. Seamlessly Connect Clouds with NetApp
Extending Data Stewardship to the Public Cloud
26

27. Continue on Your Journey to the Cloud
Only NetApp delivers:
 Universal data platform
 Dynamic data portability
 Extensive customer choice
Your data, any cloud, endless possibilities
27

28. Réduisez les risques et gagnez en agilité.
Data ONTAP 8 offre une architecture en cluster unifiée
qui évolue et s'adapte à vos besoins, réduisant ainsi les
coûts et les risques.
Clustered data ONTAP a été conçu pour éliminer les
temps d'indisponibilité.
28
Clustered Data ONTAP

29. 29

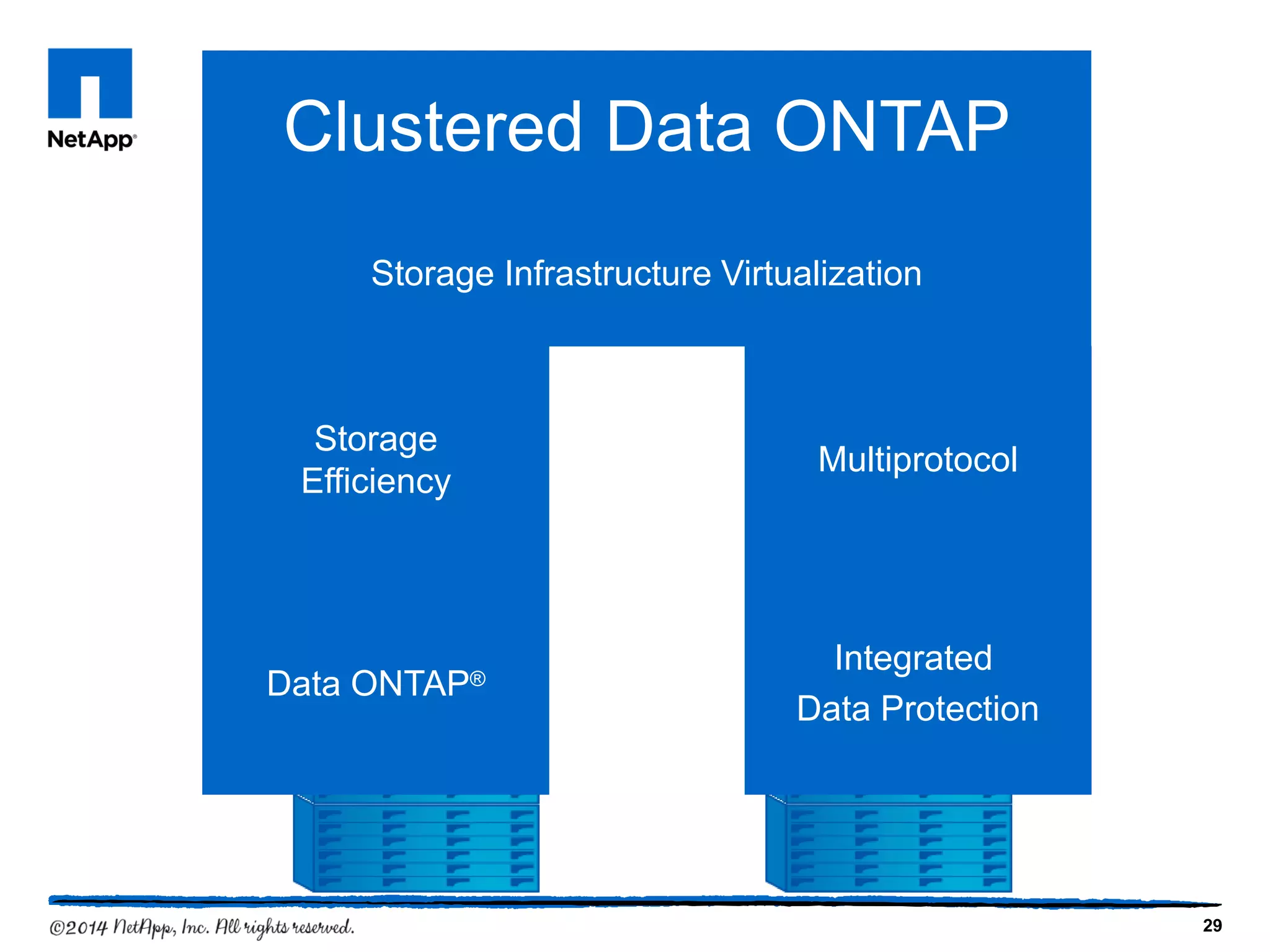

Clustered Data ONTAP
Data ONTAP®
Storage
Efficiency
Storage Infrastructure Virtualization
Integrated
Data Protection
Multiprotocol
Clustered Data ONTAP

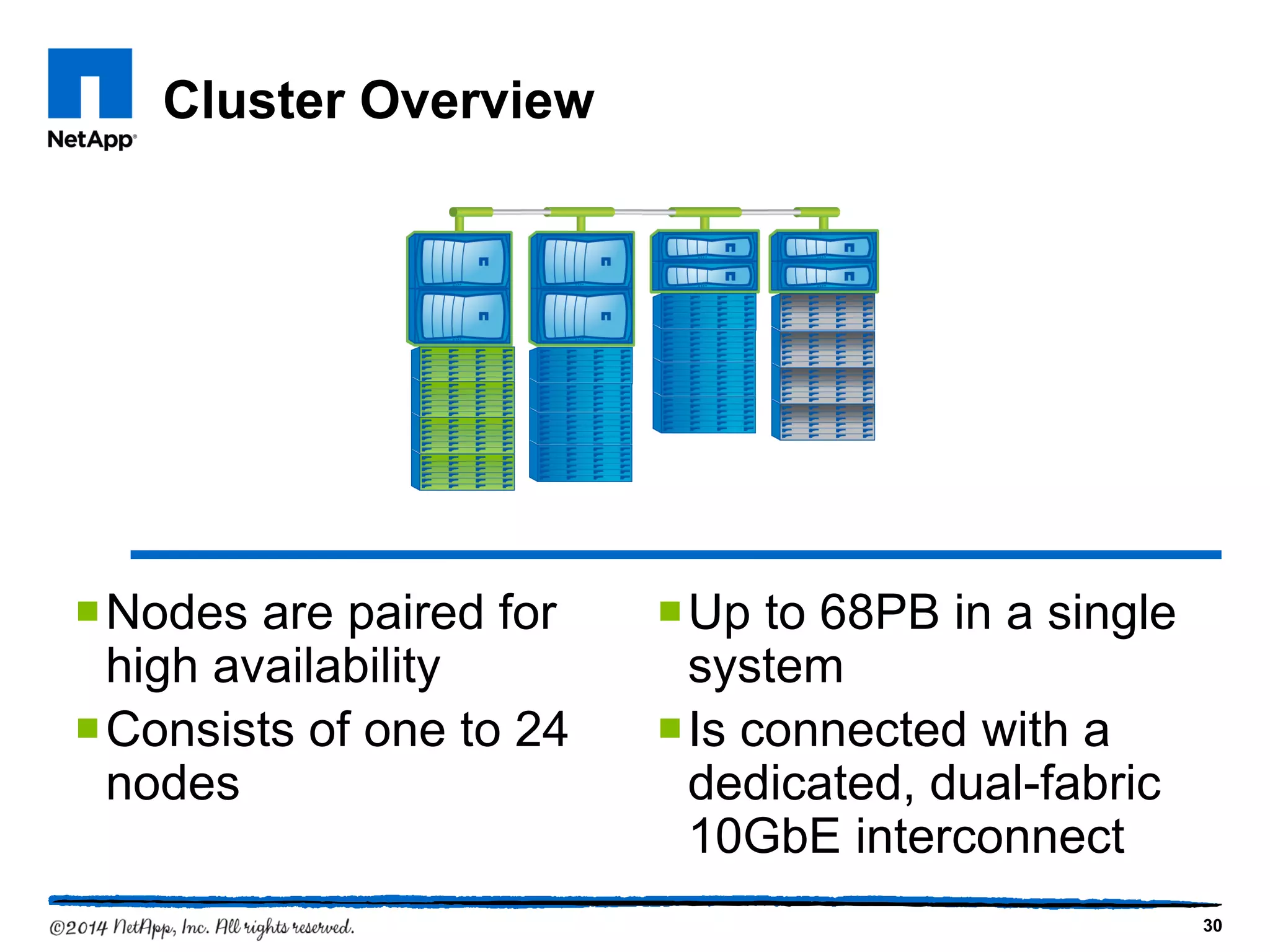

30. Cluster Overview
Nodes are paired for
high availability
Consists of one to 24
nodes
Up to 68PB in a single
system
Is connected with a
dedicated, dual-fabric
10GbE interconnect
30

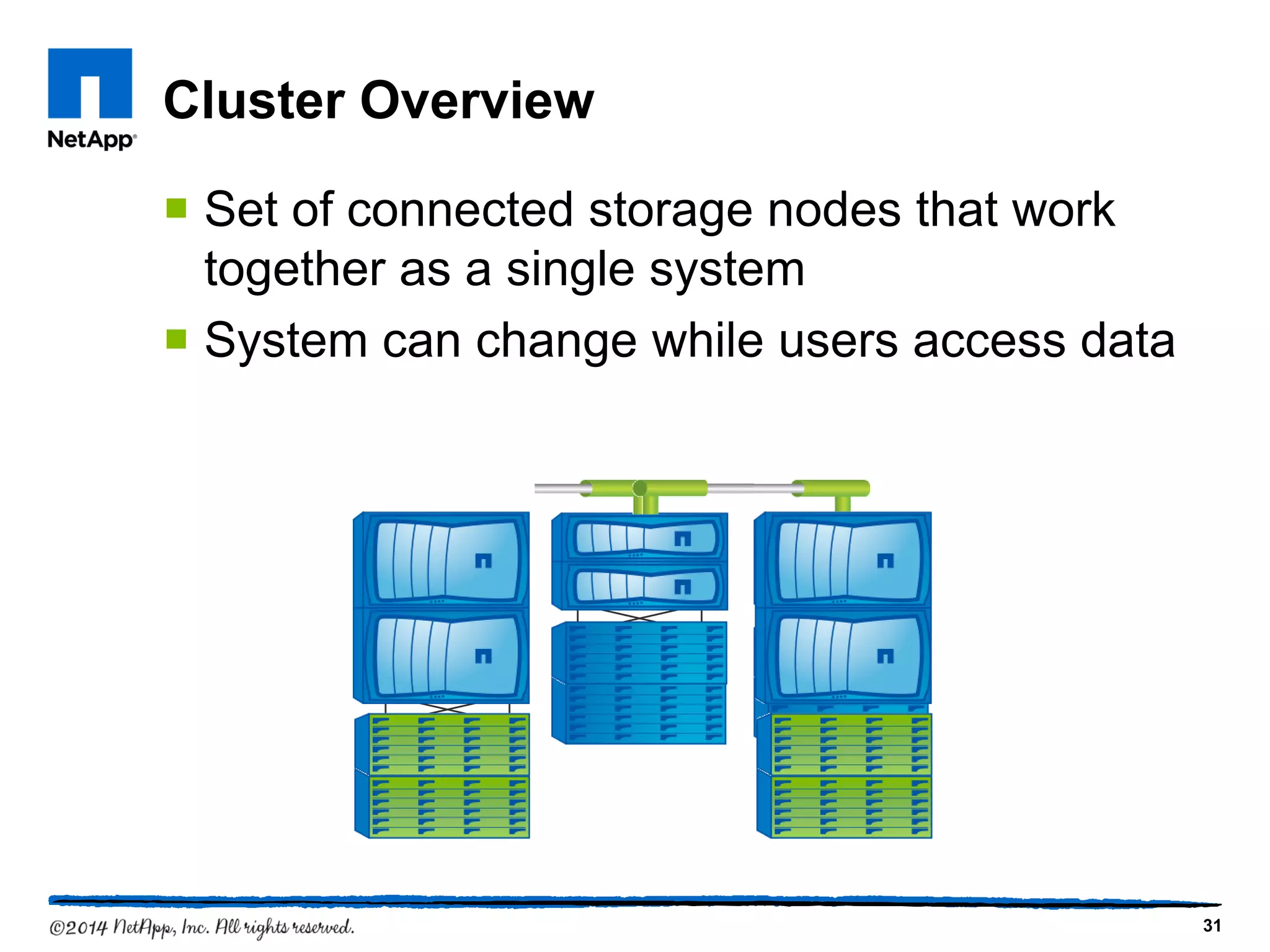

31. Cluster Overview
 Set of connected storage nodes that work
together as a single system
 System can change while users access data
31

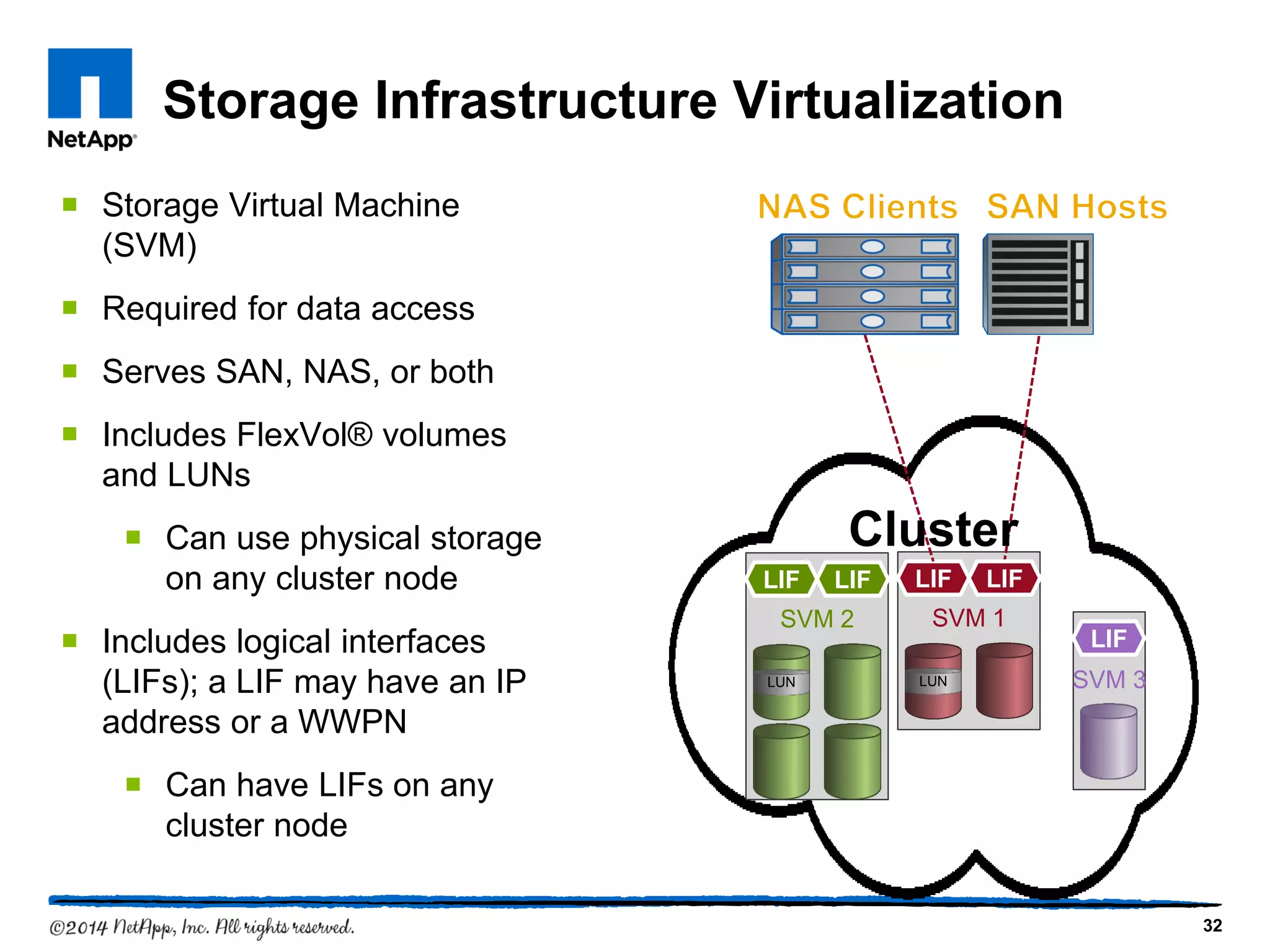

32. Storage Infrastructure Virtualization
 Storage Virtual Machine
(SVM)
 Required for data access
 Serves SAN, NAS, or both
 Includes FlexVol® volumes
and LUNs
 Can use physical storage
on any cluster node
 Includes logical interfaces
(LIFs); a LIF may have an IP
address or a WWPN
 Can have LIFs on any
cluster node
32
LIF
SVM 1
LIF
LUN
LIF
SVM 2
LIF
LUN
LIF
SVM 3
Cluster

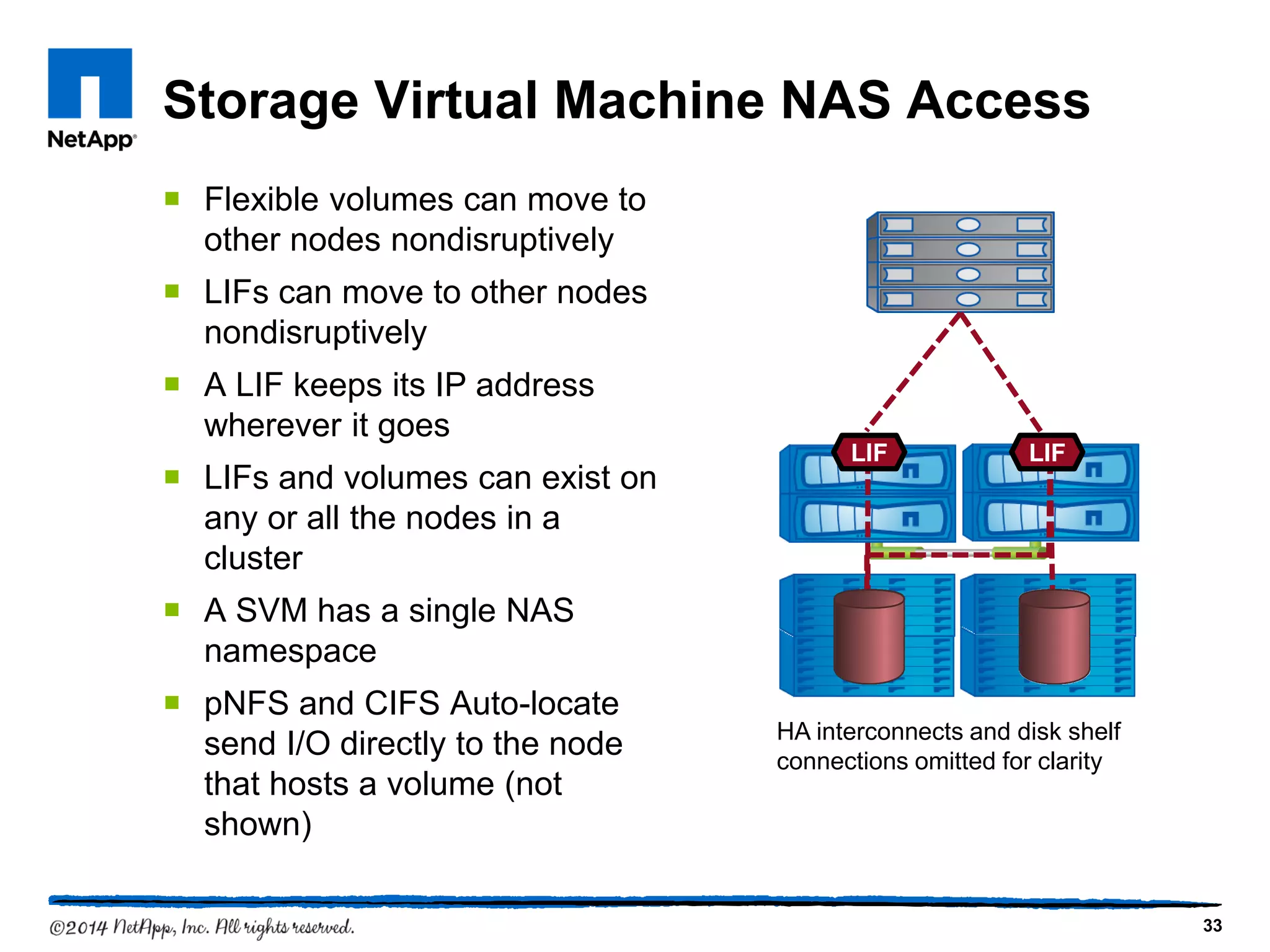

33. Storage Virtual Machine NAS Access
 Flexible volumes can move to
other nodes nondisruptively
 LIFs can move to other nodes
nondisruptively
 A LIF keeps its IP address
wherever it goes
 LIFs and volumes can exist on
any or all the nodes in a
cluster
 A SVM has a single NAS
namespace
 pNFS and CIFS Auto-locate
send I/O directly to the node
that hosts a volume (not
shown)
33
HA interconnects and disk shelf
connections omitted for clarity
LIF LIF

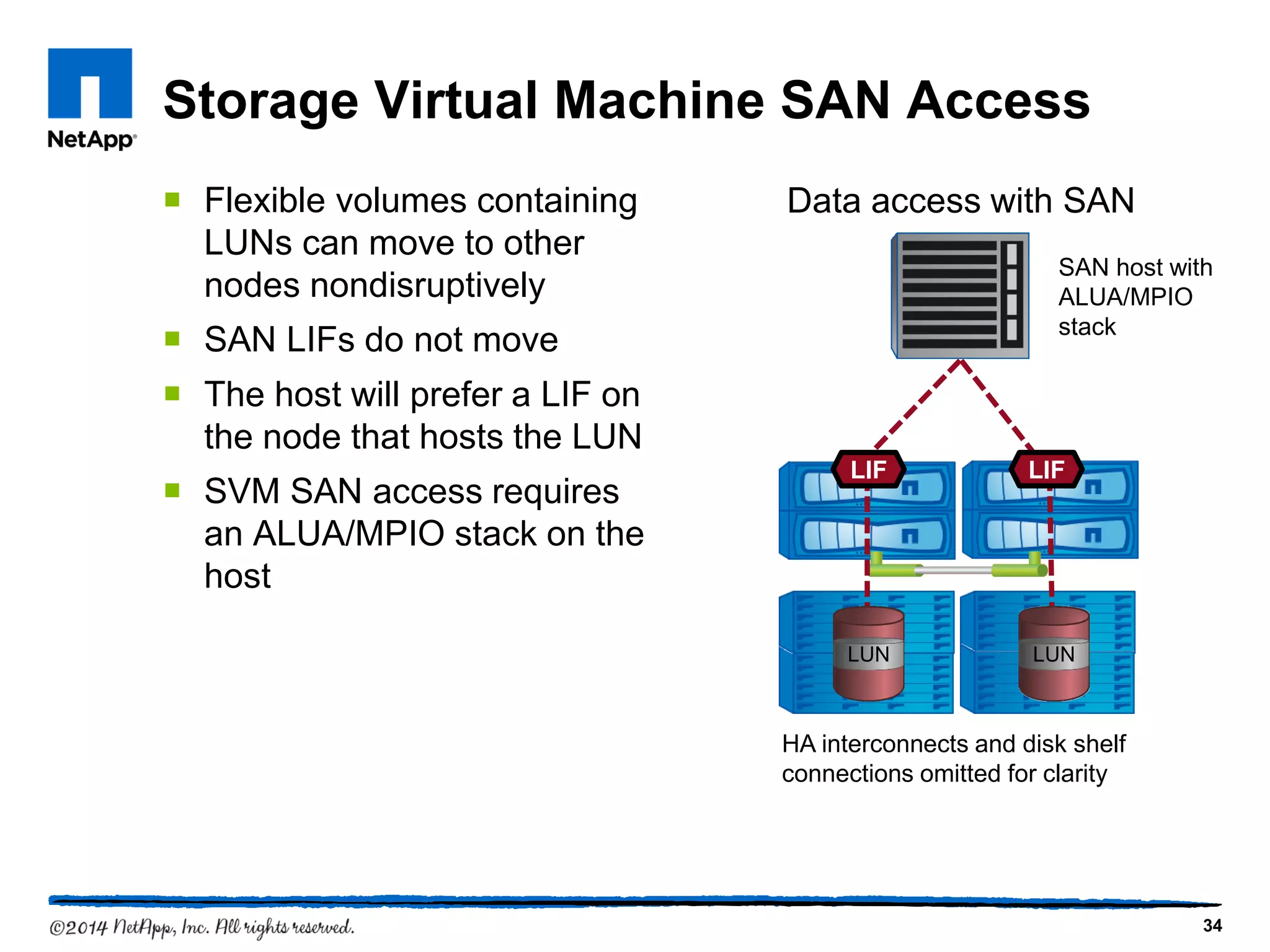

34. Storage Virtual Machine SAN Access
 Flexible volumes containing
LUNs can move to other
nodes nondisruptively
 SAN LIFs do not move
 The host will prefer a LIF on
the node that hosts the LUN
 SVM SAN access requires
an ALUA/MPIO stack on the
host
34
LIF
Data access with SAN
LIF
LUNLUN
HA interconnects and disk shelf
connections omitted for clarity
SAN host with
ALUA/MPIO
stack

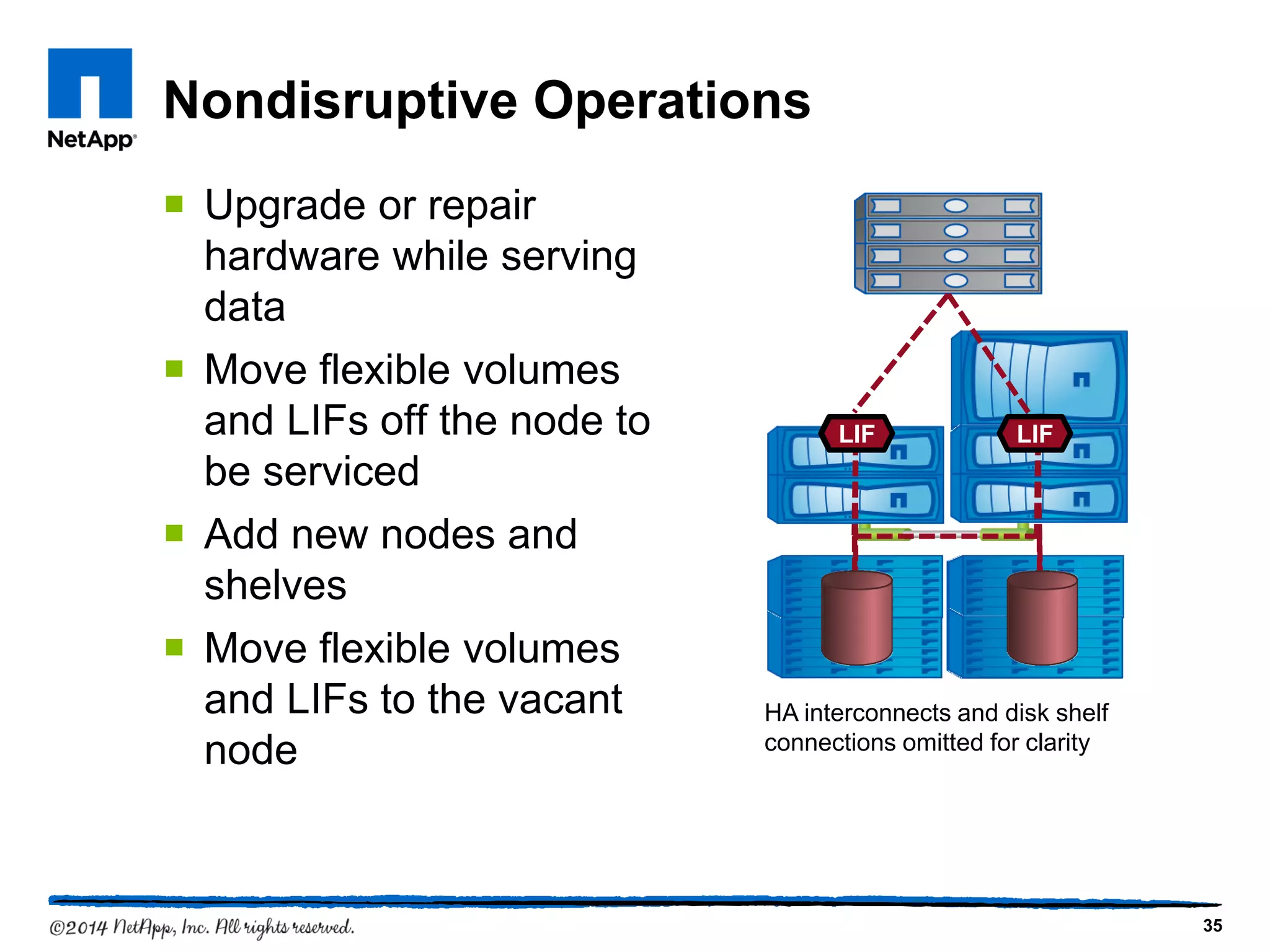

35. Nondisruptive Operations
 Upgrade or repair
hardware while serving
data
 Move flexible volumes
and LIFs off the node to
be serviced
 Add new nodes and
shelves
 Move flexible volumes
and LIFs to the vacant
node
35
HA interconnects and disk shelf
connections omitted for clarity
LIF LIF

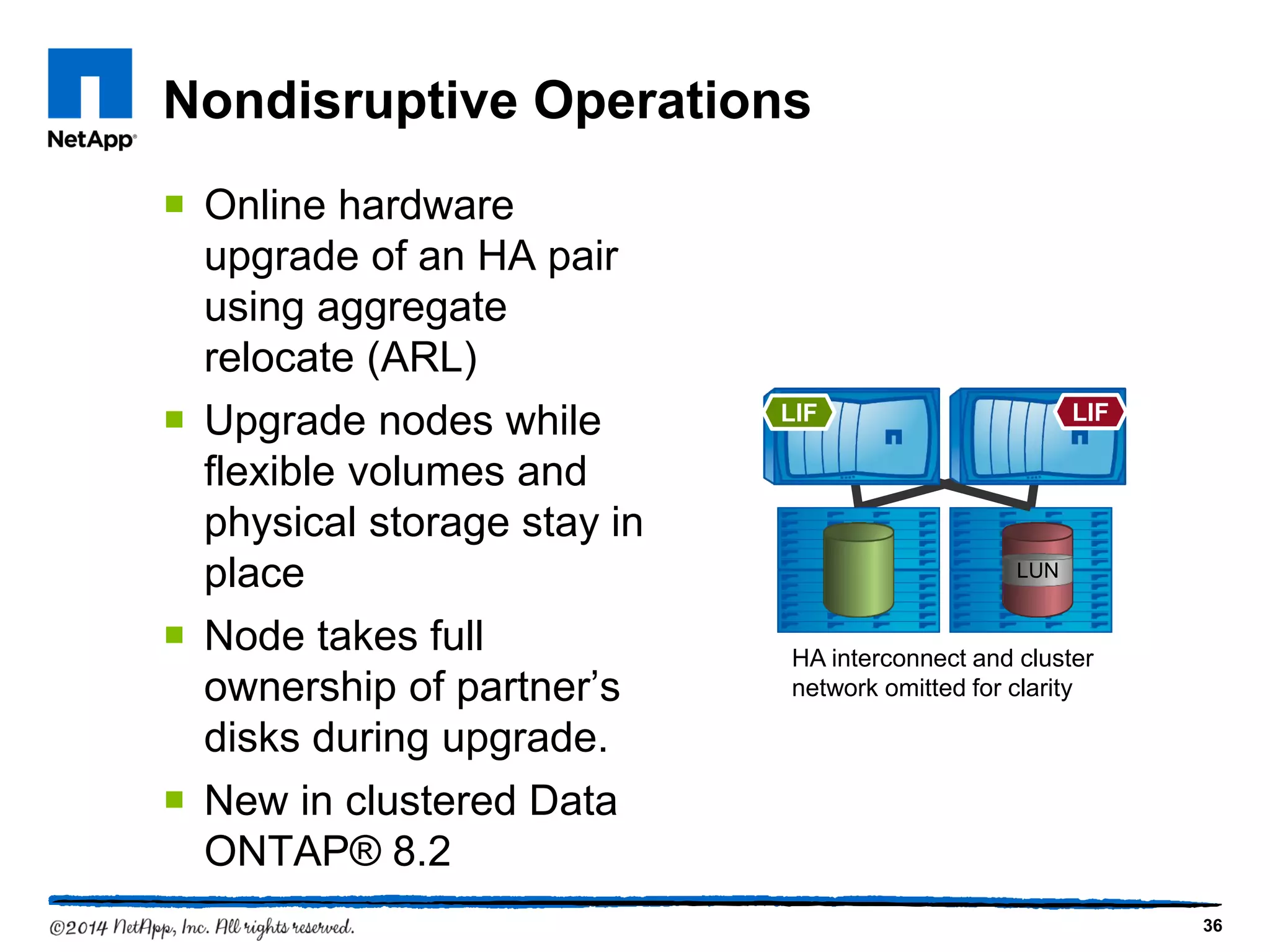

36. Nondisruptive Operations
 Online hardware
upgrade of an HA pair
using aggregate
relocate (ARL)
 Upgrade nodes while
flexible volumes and
physical storage stay in
place
 Node takes full
ownership of partner’s
disks during upgrade.
 New in clustered Data
ONTAP® 8.2
36
LIFLIF
HA interconnect and cluster
network omitted for clarity
LUN

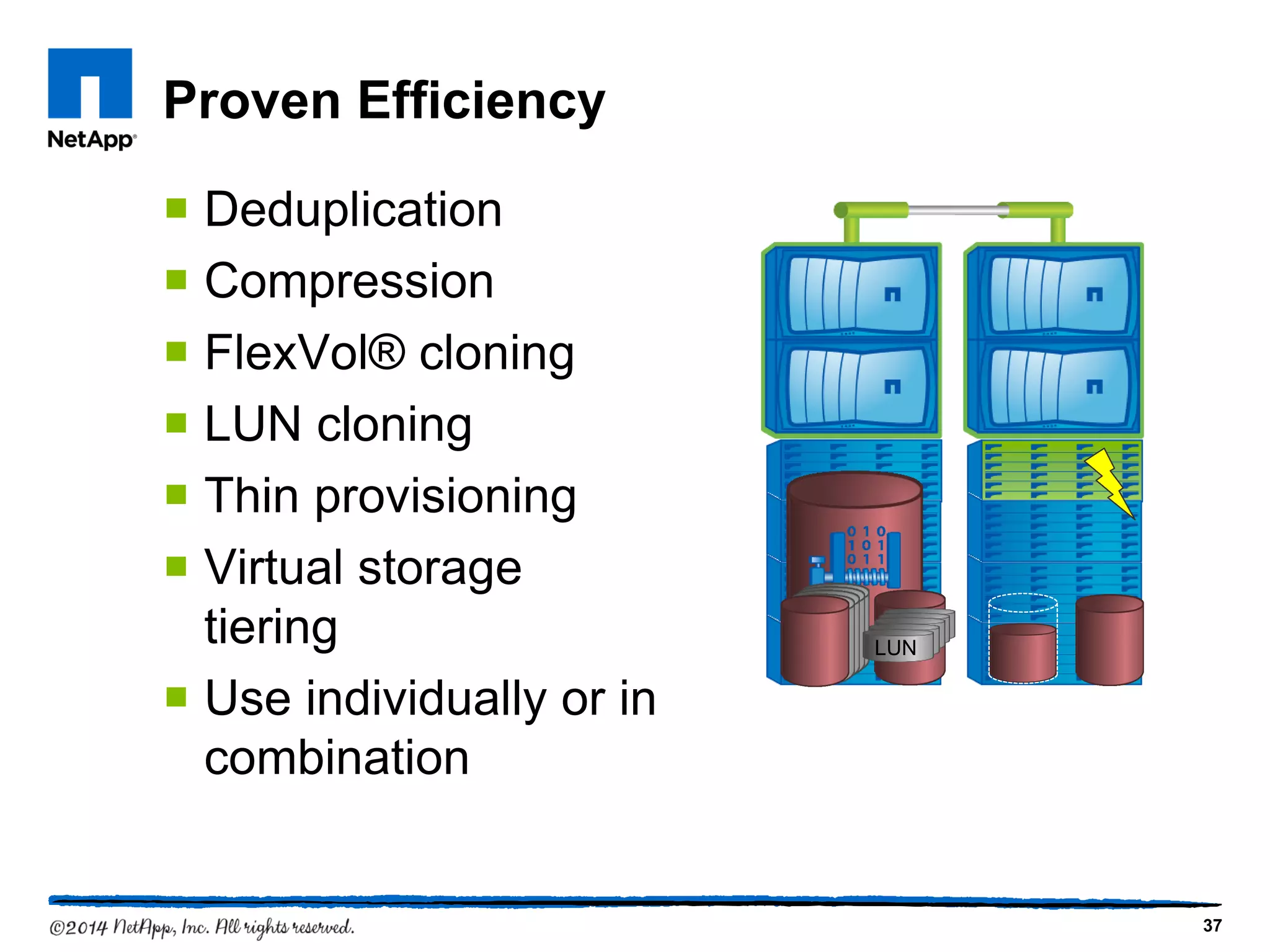

37. Proven Efficiency
 Deduplication
 Compression
 FlexVol® cloning
 LUN cloning
 Thin provisioning
 Virtual storage
tiering
 Use individually or in
combination
37
LUNLUNLUNLUNLUN

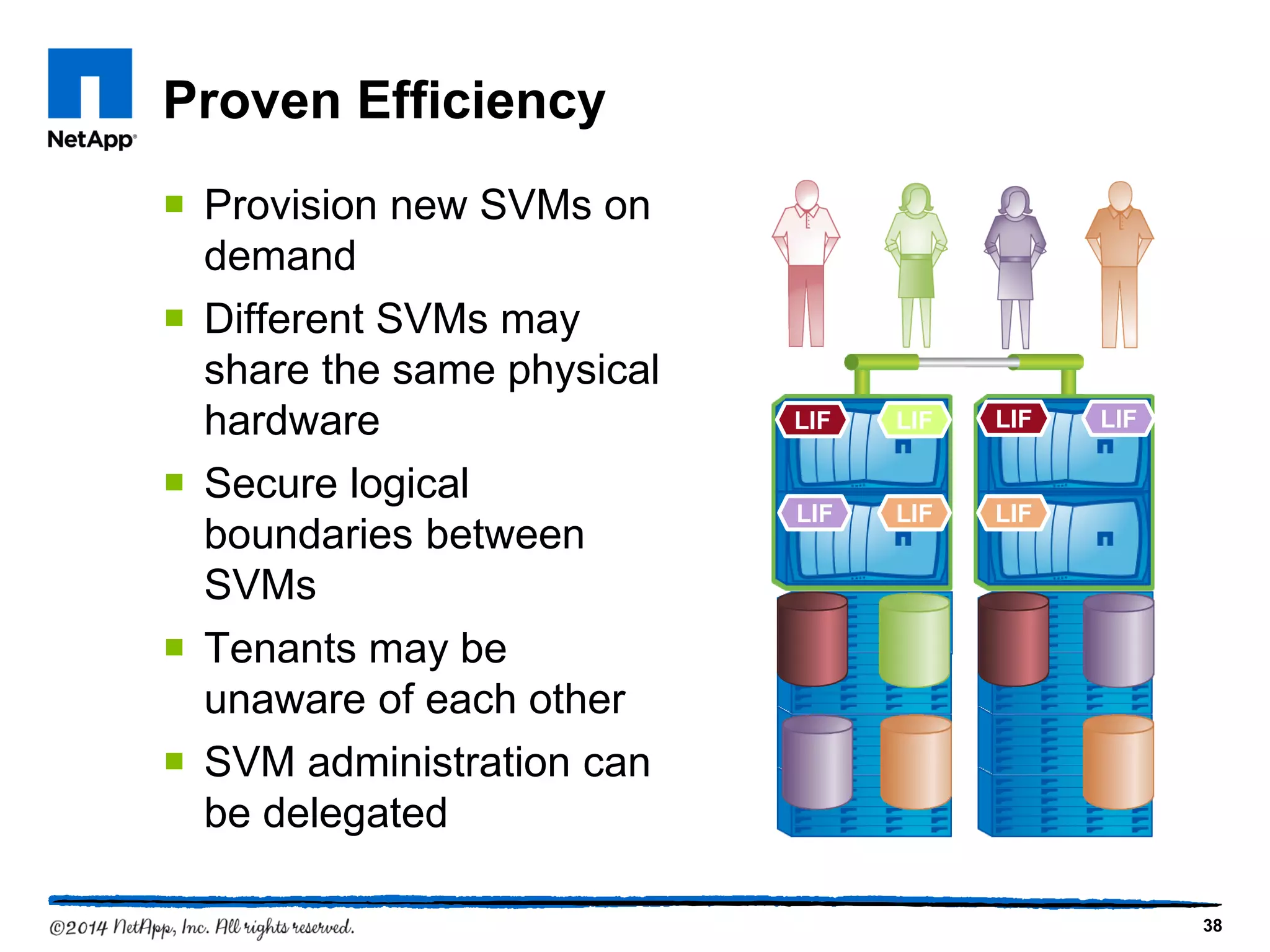

38. Proven Efficiency
 Provision new SVMs on
demand
 Different SVMs may
share the same physical
hardware
 Secure logical
boundaries between
SVMs
 Tenants may be
unaware of each other
 SVM administration can
be delegated
38
LIF LIFLIF LIF
LIF LIF LIF

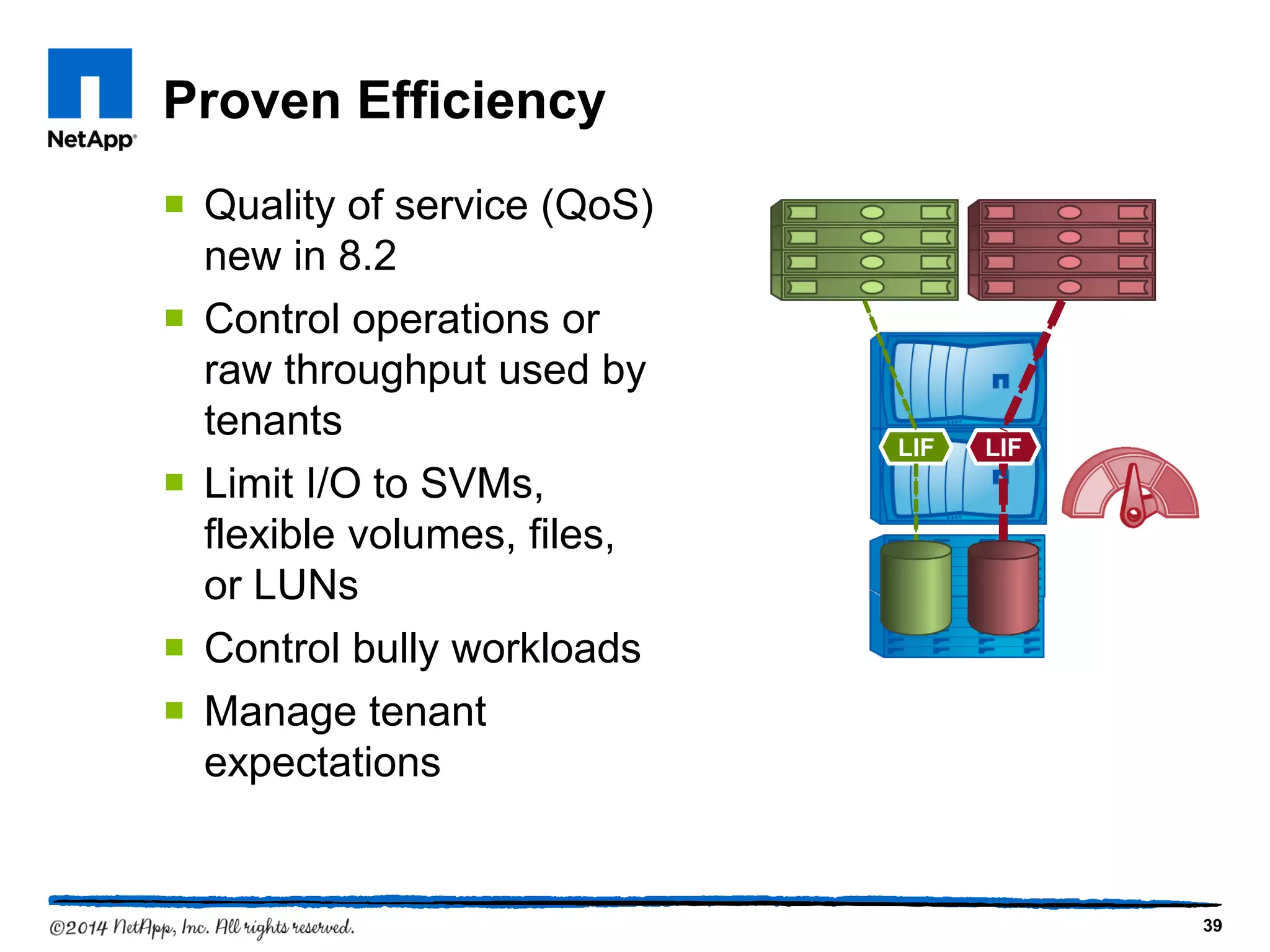

39. Proven Efficiency
 Quality of service (QoS)
new in 8.2
 Control operations or
raw throughput used by
tenants
 Limit I/O to SVMs,
flexible volumes, files,
or LUNs
 Control bully workloads
 Manage tenant
expectations
39
LIFLIF

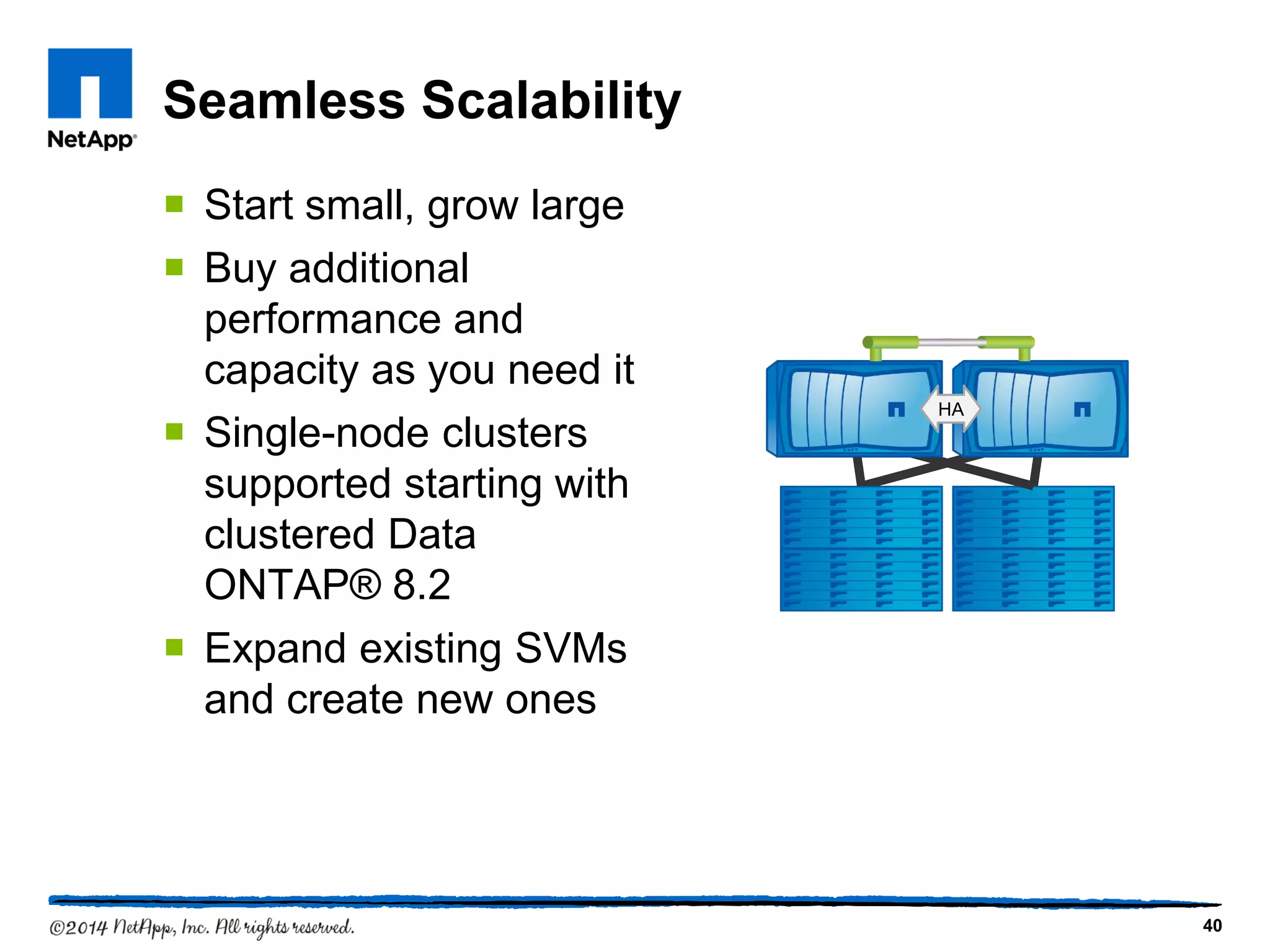

40. Seamless Scalability
 Start small, grow large
 Buy additional
performance and
capacity as you need it
 Single-node clusters
supported starting with
clustered Data
ONTAP® 8.2
 Expand existing SVMs
and create new ones
40
HA

41. Why Clustered Data ONTAP?
 Nondisruptive operations
 Proven efficiency
 Seamless scalability
 All in a single system
41

42. Un nouveau standard en termes de productivité dans les
environnements applicatifs.
L'efficacité de la baie de stockage NetApp E-series
combine une performance à forte bande passante, des
IOPS élevés, et une densité extrême pour créer un
système parfaitement adapté aux solutions qui exploitent
les données de manière intensive.
42
E-series

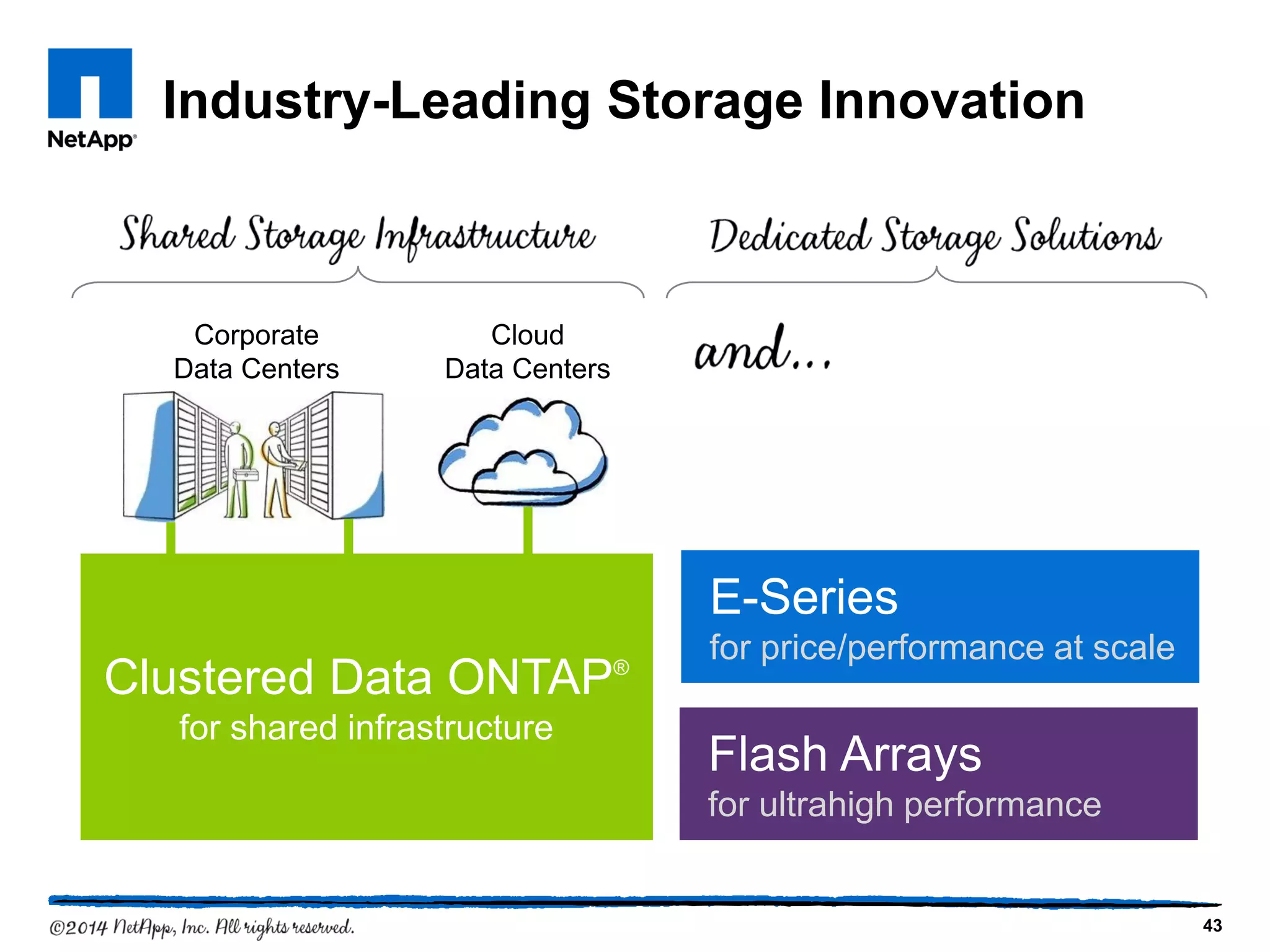

43. Industry-Leading Storage Innovation
43
Flash Arrays
for ultrahigh performance
E-Series
for price/performance at scale
Clustered Data ONTAP®
for shared infrastructure
Corporate
Data Centers
Cloud
Data Centers

44. E-Series By The Numbers
Innovative
Dynamic Disk Pool
technology
More than 30 years of
Industry knowledge
and leadership
Impressive
99.999% availability
44
Technology embedded into
worlds largest data warehouses & databases
Attached to the worlds
largest supercomputers
NetApp Confidential - Limited Use

45. E-Series Customer Value
 Performance Efficiency
– Storage cost savings based on performance and
density reducing power, cooling, and space
– Investment protection through easy to upgrade
modular architecture, storage that grows with your
business
– Enterprise features in base product provide
operational flexibility and growth
 Enterprise Reliability & Availability
– 99.999% availability, nearly zero downtime
– NetApp AutoSupport
 Effortless Management
– “Set it and Forget it” management
– Elimination of complex RAID concepts through DDP
– Enterprise application integration: VMware,
Exchange, SQL
45

46. 46

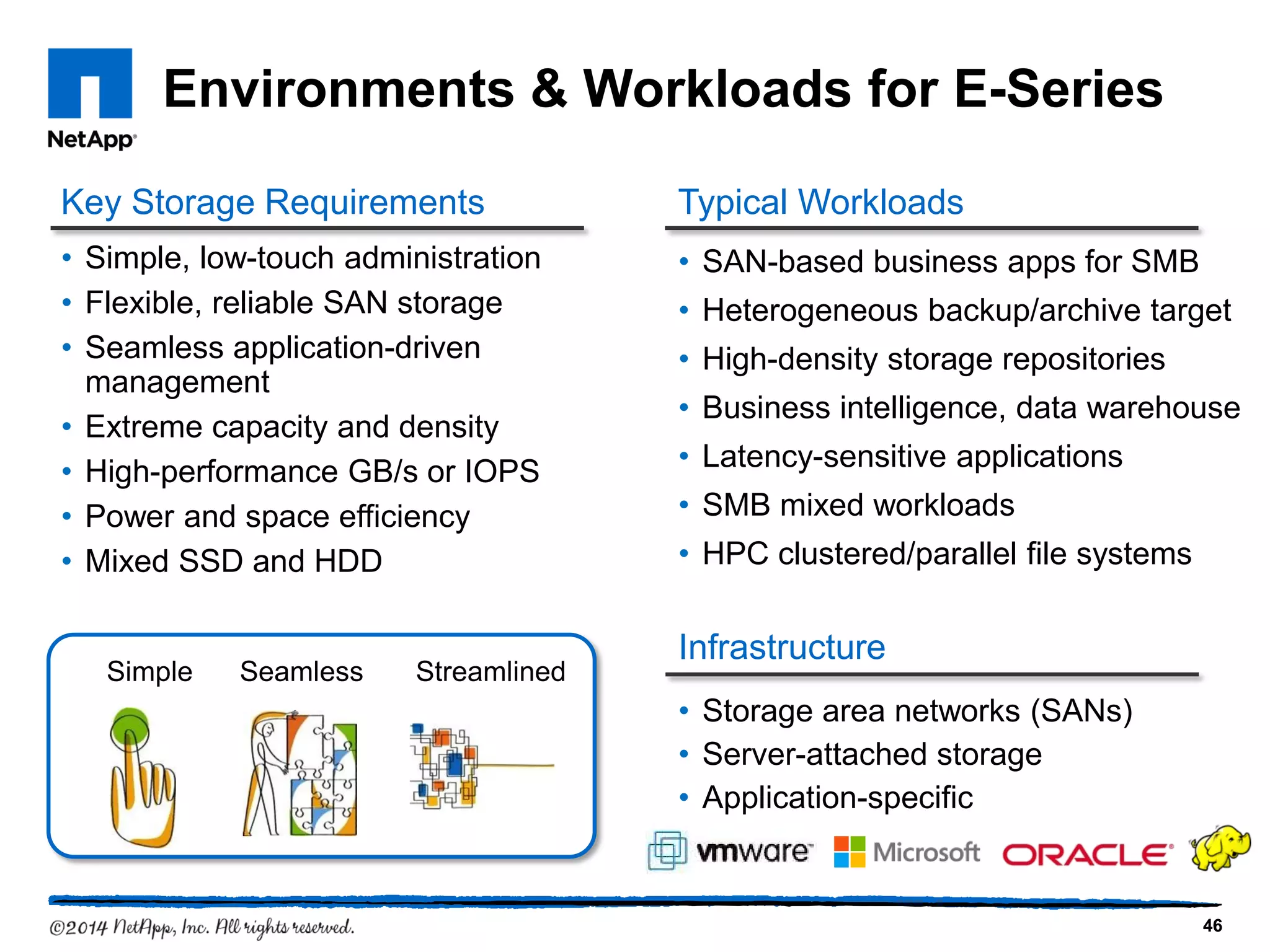

Environments & Workloads for E-Series
46
• SAN-based business apps for SMB
• Heterogeneous backup/archive target
• High-density storage repositories
• Business intelligence, data warehouse
• Latency-sensitive applications
• SMB mixed workloads
• HPC clustered/parallel file systems
• Simple, low-touch administration
• Flexible, reliable SAN storage
• Seamless application-driven
management
• Extreme capacity and density
• High-performance GB/s or IOPS
• Power and space efficiency
• Mixed SSD and HDD
Typical WorkloadsKey Storage Requirements
• Storage area networks (SANs)
• Server-attached storage
• Application-specific
Infrastructure
StreamlinedSimple Seamless

47. 47

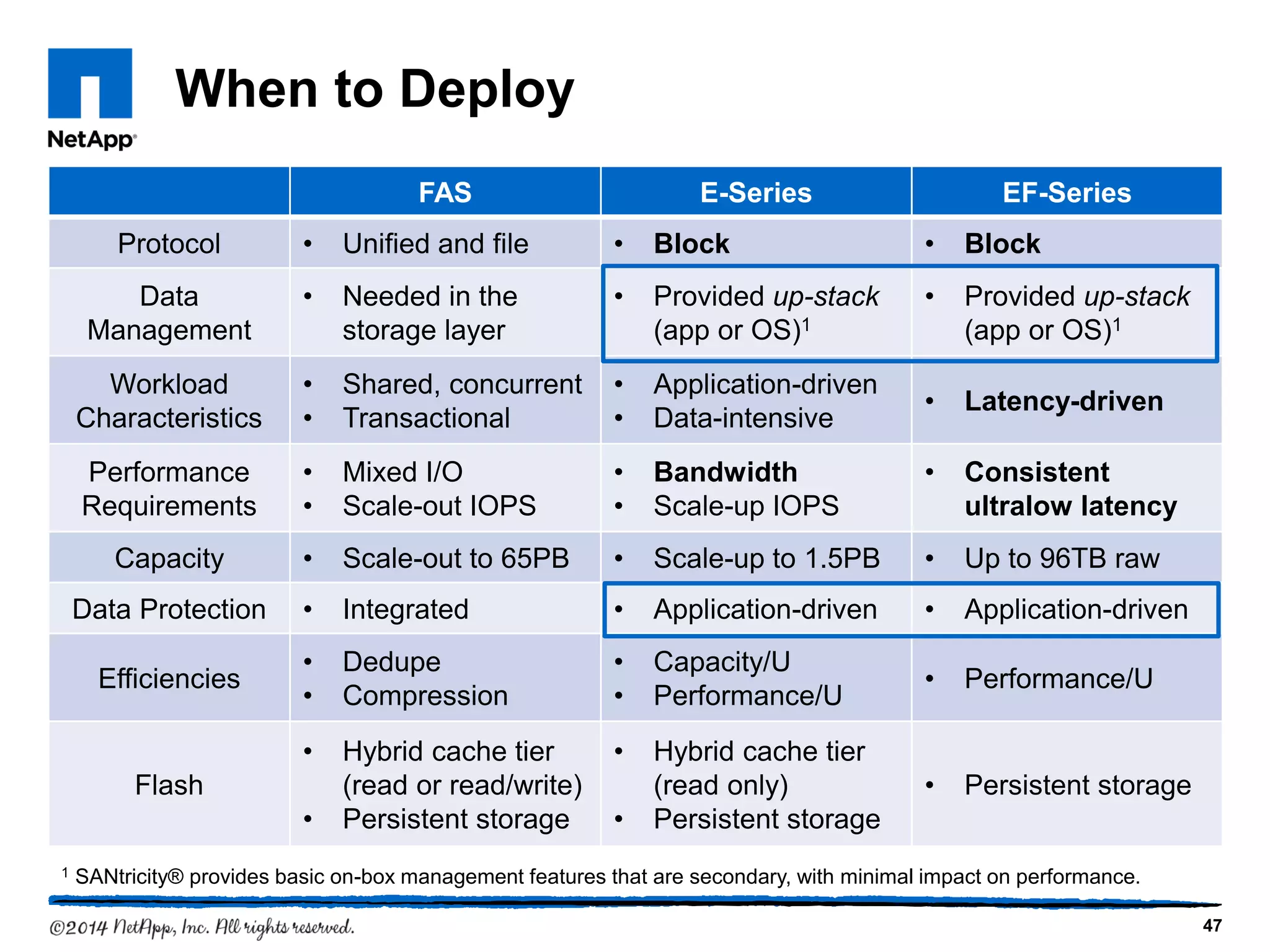

When to Deploy
FAS E-Series EF-Series
Protocol • Unified and file • Block • Block
Data
Management
• Needed in the
storage layer
• Provided up-stack
(app or OS)1
• Provided up-stack
(app or OS)1
Workload
Characteristics
• Shared, concurrent
• Transactional
• Application-driven
• Data-intensive
• Latency-driven
Performance
Requirements
• Mixed I/O
• Scale-out IOPS
• Bandwidth
• Scale-up IOPS
• Consistent
ultralow latency
Capacity • Scale-out to 65PB • Scale-up to 1.5PB • Up to 96TB raw
Data Protection • Integrated • Application-driven • Application-driven
Efficiencies
• Dedupe
• Compression
• Capacity/U
• Performance/U
• Performance/U
Flash
• Hybrid cache tier
(read or read/write)
• Persistent storage
• Hybrid cache tier
(read only)
• Persistent storage
• Persistent storage
1 SANtricity® provides basic on-box management features that are secondary, with minimal impact on performance.

48. FAS 8000 family
48
Bonus

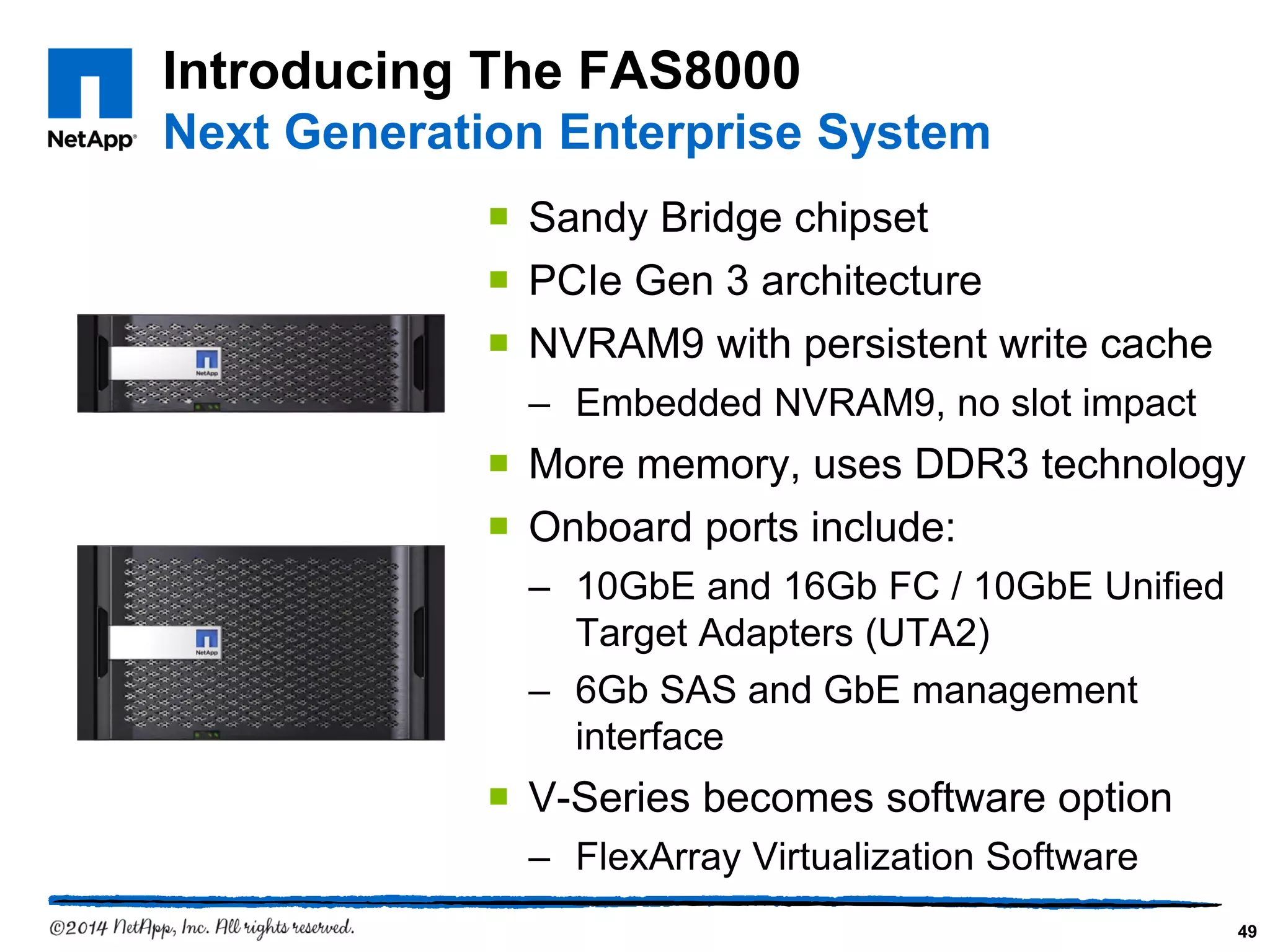

49. Introducing The FAS8000
Next Generation Enterprise System
 Sandy Bridge chipset
 PCIe Gen 3 architecture
 NVRAM9 with persistent write cache
– Embedded NVRAM9, no slot impact
 More memory, uses DDR3 technology
 Onboard ports include:
– 10GbE and 16Gb FC / 10GbE Unified
Target Adapters (UTA2)
– 6Gb SAS and GbE management
interface
 V-Series becomes software option
– FlexArray Virtualization Software
49

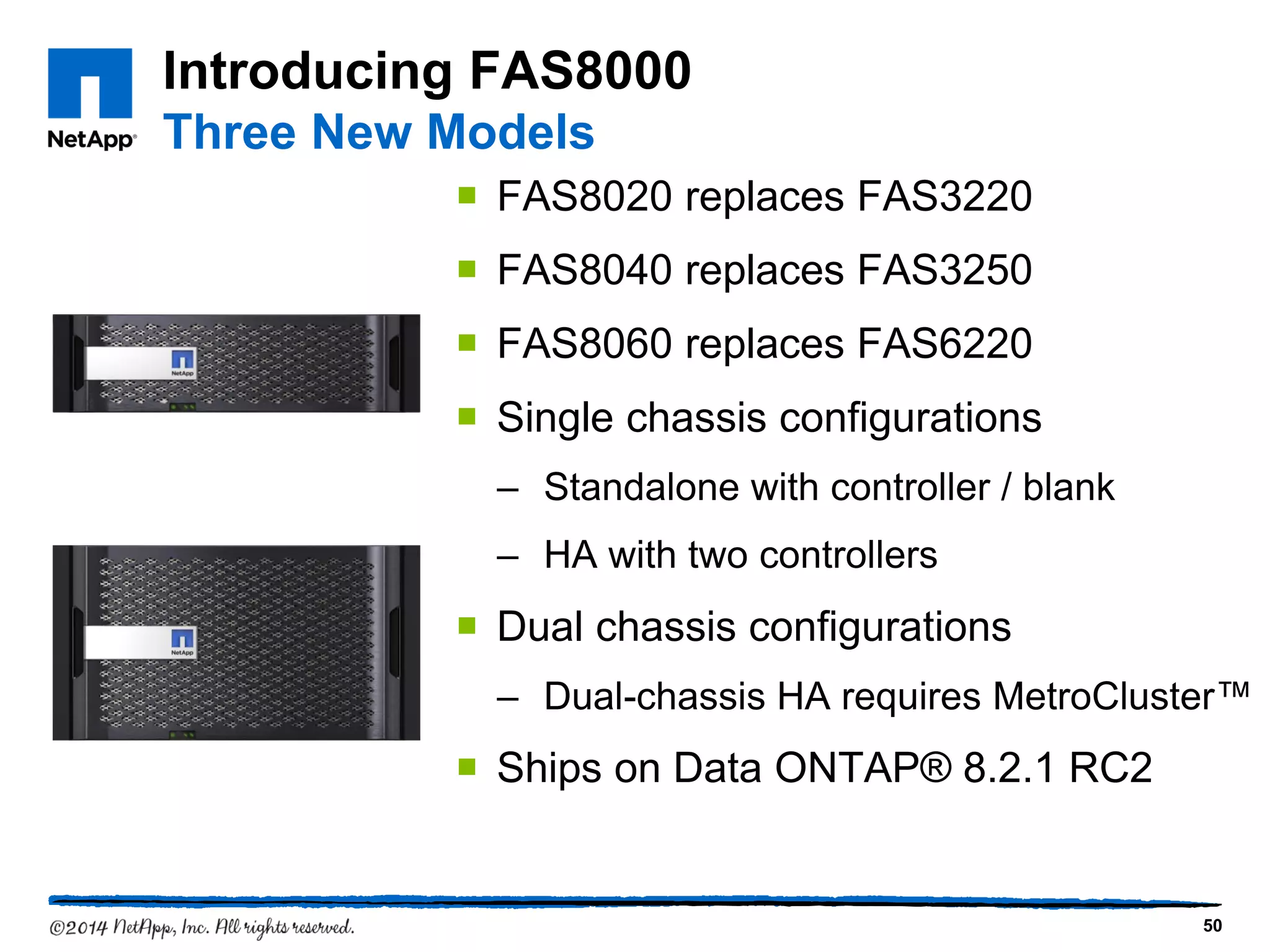

50. Introducing FAS8000
Three New Models
 FAS8020 replaces FAS3220
 FAS8040 replaces FAS3250
 FAS8060 replaces FAS6220
 Single chassis configurations
– Standalone with controller / blank
– HA with two controllers
 Dual chassis configurations
– Dual-chassis HA requires MetroCluster™
 Ships on Data ONTAP® 8.2.1 RC2
50

51. 51
