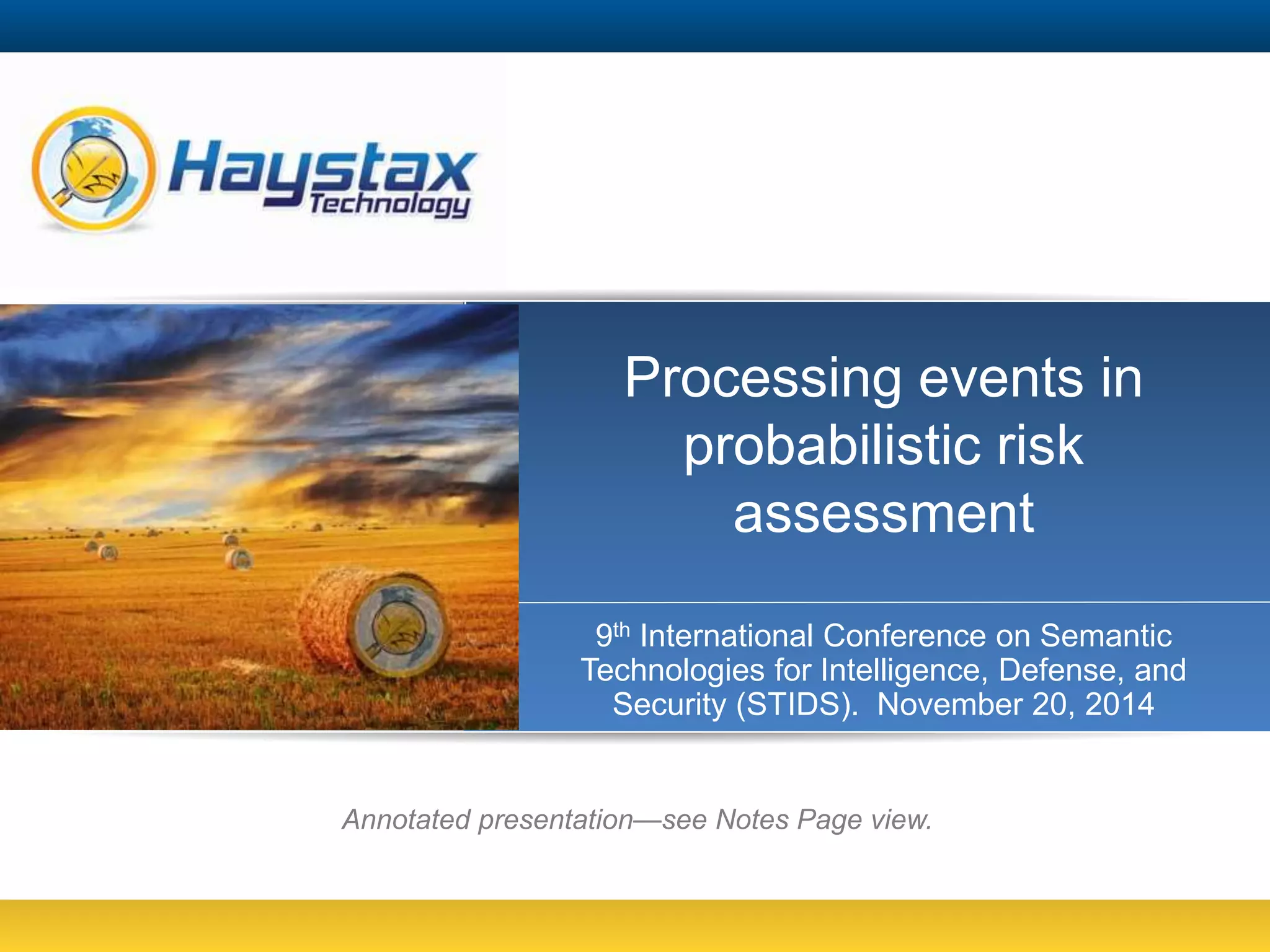

Haystax Technology Labs presentation of white-paper on advanced threat analytics at 9th International Semantic Technologies Intelligence for Defense and Security (STIDS)

1. Processing events in
probabilistic risk
assessment
9th International Conference on Semantic
Technologies for Intelligence, Defense, and
Security (STIDS). November 20, 2014
Annotated presentation—see Notes Page view.

2. Three event-informed person risk models
1. MC (“Carbon”):
Information disclosure risk
 Belief that a (candidate) member person
P will disclose an organization’s private
information
Life (“macro”) events
 Education, employment
 Crime, civil judgment
 Bankruptcy, credit
 …
2. MS (“Silicon”):
IT system insider exploitation risk
 Belief that a user will access, disclose,
or destroy an organization’s computer
network-resident information)
Computer network (“micro”) events
 Log in after hours
 Access “decoy” file
 Copy file to…
 External location
 Thumb drive
3. MG = MC • MS
NOTE: Carbon and Silicon are names of Haystax Analytic Products

3. 2
Theme
Issue: Apply event evidence to person attribute concept random variables
(RVs) in a risk assessment Bayesian network (BN), modeling events’ changing
relevance over time.
Given:
 Person P
 Events E, in P’s past or present
 Generic person BN B
 Risk-related person attribute concept RVs (Boolean)
 Concept-relating probabilistic influences
 A reference time t (in an ordered set T of such points)
Develop:
 Person-specific BN BP reflecting E
 Beliefs in P’s attribute concept at t, per BP
 (P’s historical risk profile over T)

4. 3
Elided B with ingested event categories (MC)
Trustworthy
Reliable
CommitsMisdemeanor
CommittedToSchool … CommittedToCareeer
School events Employment events
Law
enforcement
events
…
…

5. Approaches to realizing BP
1. Event “ingestion”:
For each event e in E, …
 Include a new event RV δ indicating
person attribute concept π in BP
 Specify per-event half life decay as
new temporal relevance RV ρ
 Enter hard evidence finding on δ
 Appropriate when events are of a
given type τ are individually salient
 Feasible when |E| << |nodes(B )|
Ingestion
π ρ
concept relevance
δ
event

6. 5
Life events timeline (MC)

7. Three event-informed person risk models
1. MC (“Carbon”):
Information disclosure risk
 100s of RVs
 B extracted from official policy /
guidelines (under in situ test)
Life (“macro”) events
 10s of types
 10s of events / person
 10s of years of data
Ingestion only (“hard” salience)
 10s of rules
2. MS (“Silicon”):
IT system insider exploitation risk
 10s of RVs
 B eyeballed (preliminary proof of
concept)
Computer network (“micro”) events
 10s of types
 100Ks of events / person
 1.5 years of data
Summarization, primarily (“soft”
salience)
 1s of ingestion rules
3. MG = MC • MS

8. Three event-informed person risk models
2. MS (“Silicon”):
IT system insider exploitation risk
 Belief that a user will access, disclose,
or destroy an organization’s computer
network-resident information)
Computer network (“micro”) events
 Log in after hours
 Access “decoy” file
 Copy file to…
 External location
 Thumb drive
3. MG = MC • MS

9. Approaches to realizing BP
2. Event “summarization”:
For each event type τ represented in
E, …
 Include an event “summary” RV Δ
indicating π in B
 Develop a likelihood summarizing the
impact of events τ collected into
temporal buckets
 Enter likelihood finding on Δ
 Appropriate when the salience of
events type τ tends to depend on
trends w.r.t. an individual or a
population thereof
 Useful when ⌐(|E| << |nodes(B )|)
Summarization
concept relevance
π ρ
Δ
summary
events δ1 δ2 … δn

10. 9
Summarization elements (per RV)
Summarize events over a practically unlimited duration, by using temporal
buckets of geometrically increasing size.
Infer salience from event volume variation w.r.t. a person’s own and the
population’s history.
Weight buckets per desired temporal relevance decay.

11. 10
MS
Summarization metric: Count (CopyDecoyToExternal)
600
500
400
300
200
100
0
64 16 4 1
Day
Count
Bucket

12. 11
MS
Summarization metric: Variation re self (CopyDecoyToExternal)
1
0.8
0.6
0.4
0.2
0
64 16 4 1
Day
Variation: self
Bucket

13. 12
MS
Summarization metric: Variation re all (CopyDecoyToExternal)
1
0.8
0.6
0.4
0.2
0
1 4 16 64
Day
Variation: all
Bucket

14. 13
MS
Summarization metric: Variations mean (CopyDecoyToExternal)
1
0.8
0.6
0.4
0.2
0
64 16 4 1
Day
Variations mean
Bucket

15. 14
MS
Summarization metric: Suspicion warrant (CopyDecoyToExternal)
1
0.8
0.6
0.4
0.2
0
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 51 53 55 57 59 61 63
Suspicion warrant
Day

16. Approaches to realizing BP
2. Event “summarization”:
For each event type τ represented in
E, …
 Include an event “summary” RV Δ
indicating π in B
 Develop a likelihood summarizing the
impact of events τ collected into
temporal buckets
 Enter likelihood finding on Δ
 Appropriate when the salience of
events type τ tends to depend on
trends w.r.t. an individual or a
population thereof
 Useful when ⌐(|E| << |nodes(B )|)
Summarization
concept relevance
π ρ
Δ
summary
events δ1 δ2 … δn

17. 16
Computer network events timeline (MS)

18. 17
Influence graph specification (MS)
(defparameter *Influences*
'((ExploitsITSystemAsInsider
(:ImpliedByDisjunction
(CommitsITExploitation
(:ImpliedBy (DestroysInformationUnauthorized)
(AccessesInformationUnauthorized) ; Ingested: HandlesKeylogger_Event
(DisclosesInformationUnauthorized) ; Ingested: CopyFileToWikileaks_Event
(StealsInformation))) ; Ingested: CopyFileToCompetitor_Event
(WarrantsITExploitationSuspicion
(:ImpliedBy (WarrantsInformationDestructionSuspicion
(:IndicatedBy (:Strongly (DeleteFileOnOthersPC_Summary))
(:Moderately (DeleteFileOnLabsPC_Summary))))
(WarrantsUnauthorizedInformationAccessSuspicion
(:IndicatedBy (:Moderately (AfterHoursLogin_Summary))
(:Weakly (OpenFileOnOthersPC_Summary))))
(WarrantsUnauthorizedInformationDisclosureSuspicion
(:IndicatedBy (:Strongly (CopyOthersFileToThumb_Summary)
(CopyDecoyToExternal_Summary))
(:Moderately (OpenDecoyFile_Summary)
(AcquireDecoyFile_Summary)
(CopyFileToExternal_Summary))
(:Weakly (CopyFromThumbToOwnPC_Summary)
(CopyOwnFileToThumb_Summary)
(CopyOthersFileToExternal_Summary)))))
(:RelevantIf (:Locally (:Absolutely (Untrustworthy))))
(:MitigatedBy (:Locally (:Strongly (HasRole-ITAdmin)))))))))

19. 18
Computer network events timeline (MS)

20. Combined timeline (MG = MC • MS)

21. 20
Ingestion issue: Interacting temporal relevance nodes
Temporal relevance nodes participate in belief propagation in BP—making
their beliefs (so, effective temporal relevance) subject to departure from
nominal specification.
Multiple temporal and/or semantically close events’ relevance nodes
reinforce each other—inducing temporal relevance beyond nominal
specification.
 5 simultaneous events’ decay only 6% after half life interval.
 We might naively expect 50%.
Summarization largely insulates a temporal relevance node from surrounding
belief propagation.

22. 21
Supporting software “stack”
Allegro Common Lisp® (ACL)
AllegoGraph® Lisp direct client
Allegro Prolog macros (e.g., select)
Lisp macros (e.g., iterate-cursor)
ACL API to the Netica® API
Netica® API

23. 22
Ingestion rule (MC)
(defIngestionRule RestrainingOrder
(+process-reportedEvent ?person ?*asOfDate)
(reportedEvent ?person
?*asOfDate
?event
!agent:ProtectiveRestrainingOrder
?*startDate
?*endDate
?*ongoing?
?*reportDate)
(lisp (create-EventConceptIndication
?person
:IndicatedConcept CommitsDomesticViolence
:+IndicatingEvent ?event
:Terminus :end
:DeltaDays (- ?*asOfDate ?*endDate)
:HalfLife (* 6 365)
:Strength :strong
:Polarity :positive)))

24. 23
Ontology and data specifications (MC)
(defOntologyInstance !data:P (Person))
(defOntologyInstance
!data:PHighSchoolAttendance
(SchoolAttendance)
(riskRatingSubject !data:P)
(schoolCredentialAward !data:PDiplomaAward)
(startDate "2000-09-04")
(endDate "2004-06-15"))
(defOntologyInstance !data:PDiplomaAward
(SchoolCredentialAward)
(riskRatingSubject !data:P)
(startDate "2004-06-15")
(schoolCredentialAwarded HighSchoolDiploma))
(defOntologyInstance !data:PEmployment
(Employment)
(riskRatingSubject !data:P)
(startDate "2004-07-05")
(endDate "2009-09-05"))
(defOntologyInstance !data:PMisdemeanorAssault
(PoliceOffense)
(riskRatingSubject !data:P)
(offenseChargeSchedule Misdemeanor)
(startDate "2007-06-30"))
(defOntologyClass Person (Thing)
(hasGender Gender :Functional))
(defOntologyClass Gender (Thing)
(:enumeration Male Female OtherGender))
(defOntologyType Date !xsd:date)
(defOntologyClass Event (Thing)
(riskRatingSubject Person :Functional)
(startDate Date (:cardinality 1))
(endDate Date :Functional)
(sourceReport Report :Functional))
(defOntologyClass PointEvent (Event)
(hasConsequentEvent Event))
(defOntologyClass DurativeEvent (Event)
(hasSubEvent Event))
(defOntologyClass ProtectiveRestrainingOrder
(PointEvent))

25. 24
Thank you.
Questions ?

26. 25
Extras…

27. Approaches to realizing BP
1. Event “ingestion”:
For each event e in E, …
 Include a new event RV δ indicating
person attribute concept π in BP
 Specify per-event half life decay as
new temporal relevance RV ρ
 Enter hard evidence finding on δ
 Appropriate when events are of a
given type τ are individually salient
 Feasible when |E| << |nodes(B )|
2. Event “summarization”:
For each event type τ represented in
E, …
 Include an event “summary” RV Δ
indicating π in B
 Develop a likelihood summarizing the
impact of events τ collected into
geometrically larger buckets
 Enter likelihood finding on Δ
 Appropriate when the salience of
events type τ tends to depend on
trends w.r.t. an individual or a
population thereof
 Needed when ⌐(|E| << |nodes(B )|)

28. Approaches to realizing BP
Ingestion
π ρ
concept relevance
δ
event
Summarization
concept relevance
π ρ
Δ
summary
events δ1 δ2 … δn

29. 28
π ρ
δ
π ρ
Δ
δ1 δn δ2 …
BN fragment patterns
Ingestion
Multi-ingestion
(bridge to summarization)

30. 29
Life events timeline (MC)

31. 30
MS
Summarization metric: Count (CopyDecoyToExternal)
Event type instance count

32. 31
MS
Summarization metric: Variation re self (CopyDecoyToExternal)
Event type historical variation re self

33. 32
MS
Summarization metric: Variation re all (CopyDecoyToExternal)
Event type historical variation re all

34. 33
MS
Summarization metric: Suspicion warrant (CopyDecoyToExternal)
Event type summary RV likelihood (suspicion warrant)
