State of Crypto in Python (OSCON)
- 1. StateofcryptoinPythonA library createdby people who make poor life choices.
- 2. HowDidWeGetHere At Rackspace wework on an OpenStack, key management product named Barbican. We needed to use crypto. Cue the 80s working montage

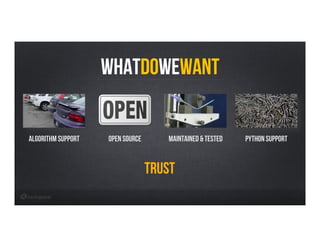

- 3. WhatDoWeWant Algorithm support OpenSource MAINTAINED & Tested Python Support Trust
- 4. WHyc? All major cryptographiclibraries are currently implemented in a low level language, mostly C or C++. Reviewed Code Several C libraries have been sponsored through the review process for professional crypto review including various compliances that some customers care about. Future possibilities There are some exciting options for future work in the crypto space with languages like Rust / Go. Unfortunately, these aren’t usable from Python right now. Timing / Memory Attacks These attacks relate to exploiting timing differentials or securely wiping memory. They are difficult or impossible to remediate without the low level control exposed by C. Existing Code Writing good crypto code is hard. Most existing libraries have a long history including significant bug-fixing / research.
- 5. StateofC OSS X-Platform Maintained Ubiquitous Std. Algorithms FIPS OpenSSL NSS NaCl Botan CommonCrypto MS CSP Libgcrypt LibreSSL
- 6. StateOfPython Backend Maintained PythonSupport Reviewed Completeness m2crypto openssl recently active pypy with patch, no py3 no openssl swig pycrypto bespoke* yes no pypy no no AEAD (without alpha) pyopenssl openssl* yes yes (with crypto) no Thin openssl bindings python-nss NSS low unknown no exposes some of NSS botan botan yes py3, maybe pypy no exposes most of botan Most of these libraries require / assume the user understands how to use the underlying C library correctly.

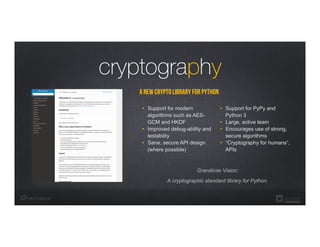

- 7. a new cryptolibrary for Python • Support for PyPy and Python 3 • Large, active team • Encourages use of strong, secure algorithms • “Cryptography for humans”, APIs • Support for modern algorithms such as AES- GCM and HKDF • Improved debug-ability and testability • Sane, secure API design (where possible) cryptography Grandiose Vision: A cryptographic standard library for Python.

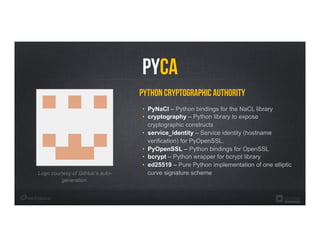

- 8. Python Cryptographic Authority • PyNaCl – Python bindings for the NaCL library • cryptography – Python library to expose cryptographic constructs • service_identity – Service identity (hostname verification) for PyOpenSSL. • PyOpenSSL – Python bindings for OpenSSL • bcrypt – Python wrapper for bcrypt library • ed25519 – Pure Python implementation of one elliptic curve signature schemeLogo courtesy of GitHub’s auto- generation. PYCA

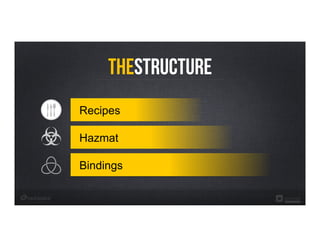

- 9.

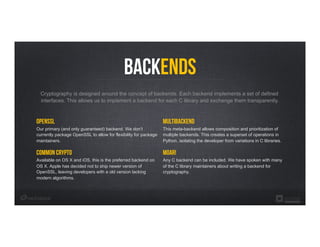

- 10. Backends OpenSSL Our primary (andonly guaranteed) backend. We don’t currently package OpenSSL to allow for flexibility for package maintainers. Common Crypto Available on OS X and iOS, this is the preferred backend on OS X. Apple has decided not to ship newer version of OpenSSL, leaving developers with a old version lacking modern algorithms. Cryptography is designed around the concept of backends. Each backend implements a set of defined interfaces. This allows us to implement a backend for each C library and exchange them transparently. MULTIBACKEND This meta-backend allows composition and prioritization of multiple backends. This creates a superset of operations in Python, isolating the developer from variations in C libraries. Moar! Any C backend can be included. We have spoken with many of the C library maintainers about writing a backend for cryptography.

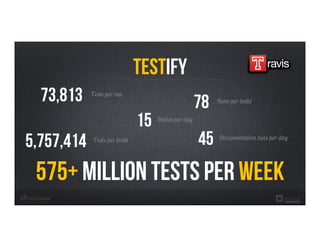

- 11. Tests per run Testify 73,813 575+Million tests per week 78 Runs per build 5,757,414 Tests per build 15 Builds per day 45 Documentation runs per day
- 12. Alex Gaynor (Alex_gaynor)Paul Kehrer (reaperhulk) David Reid (dreid) Alex Stapleton (alexs) ourPeople 5+ Commit Club aryx, skeuomorf, lvh, dstufft, cyli, exarkun, hynek, ashfall, juliankrause, wallrj, lvoz, phibos, chrisglass + 22 more contributors

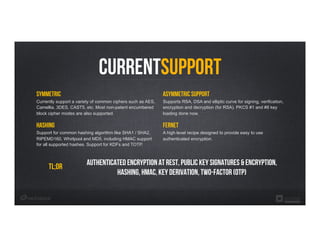

- 13. currentSupport Symmetric Currently support avariety of common ciphers such as AES, Camellia, 3DES, CAST5, etc. Most non-patent encumbered block cipher modes are also supported. hashing Support for common hashing algorithm like SHA1 / SHA2, RIPEMD160, Whirlpool and MD5, including HMAC support for all supported hashes. Support for KDFs and TOTP. Asymmetric Support Supports RSA, DSA and elliptic curve for signing, verification, encryption and decryption (for RSA). PKCS #1 and #8 key loading done now. fernet A high level recipe designed to provide easy to use authenticated encryption. Tl;dr Authenticated Encryption at rest, Public key signatures & encryption, Hashing, HMAC, Key derivation, two-factor (OTP)

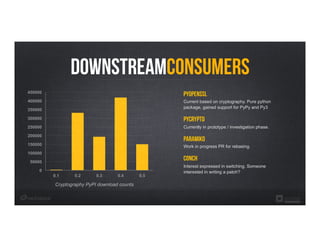

- 14. DownstreamConsumers PyOpenssl Current based oncryptography. Pure python package, gained support for PyPy and Py3 Pycrypto Currently in prototype / investigation phase. Paramiko Work in progress PR for rebasing. Conch Interest expressed in switching. Someone interested in writing a patch?0 50000 100000 150000 200000 250000 300000 350000 400000 450000 0.1 0.2 0.3 0.4 0.5 Cryptography PyPI download counts
- 15. DualLicensing Project Licensing Cryptography islicensed using Apache 2 and two-clause BSD (in-progress). Backend Licensing Set by the backend author, can accommodate any license structure. • Van Lindberg • Chairman of the Python Software Foundation • Wrote “Intellectual Property and Open Source” • Rackspace IP Head Honcho if you don’t like it, blame van
- 16. LetsReview Algorithm support OpenSource MAINTAINED & Tested Python Support Multi-Backend & Openssl Apache 2 & BSD 575+ Million Tests 40+ contributors 2.6, 2.7, 3.2, 3.3, 3.4, & pypy

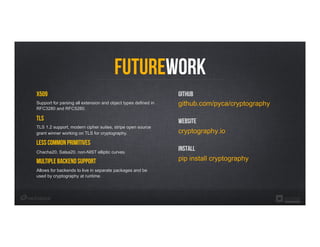

- 17. FutureWork X509 Support for parsingall extension and object types defined in RFC3280 and RFC5280. TLS TLS 1.2 support, modern cipher suites, stripe open source grant winner working on TLS for cryptography. Less Common Primitives Chacha20, Salsa20, non-NIST elliptic curves. Multiple backend support Allows for backends to live in separate packages and be used by cryptography at runtime. Github github.com/pyca/cryptography Website cryptography.io Install pip install cryptography
