1. STARSTRAND LED Tape Accent & Task Lighting

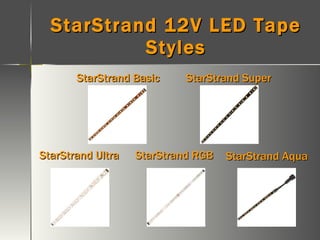

2. StarStrand 12V LED Tape Styles StarStrand Super StarStrand Ultra StarStrand RGB StarStrand Basic StarStrand Aqua

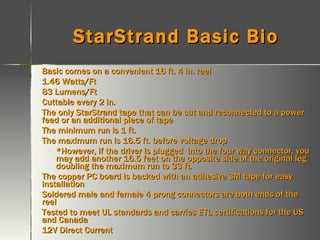

3. StarStrand Basic Bio Basic comes on a convenient 16 ft. 4 in. reel 1.46 Watts/Ft 83 Lumens/Ft Cuttable every 2 in. The only StarStrand tape that can be cut and reconnected to a power feed or an additional piece of tape The minimum run is 1 ft. The maximum run is 16.5 ft. before voltage drop *However, if the driver is plugged into the four way connector, you may add another 16.5 feet on the opposite side of the original leg doubling the maximum run to 33 ft. The copper PC board is backed with an adhesive 3M tape for easy installation Soldered male and female 4 prong connectors are both ends of the reel Tested to meet UL standards and carries ETL certifications for the US and Canada 12V Direct Current

4. StarStrand Basic Included Accessories What comes with every reel of StarStrand Basic? 2 End Power Feeds E53260 1 Tape Splicer E53261 Additional accessories are optional depending on the application of the system

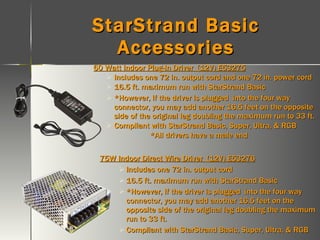

5. StarStrand Basic Accessories 60 Watt Indoor Plug-In Driver (12V) E53275 Includes one 72 in. output cord and one 72 in. power cord 16.5 ft. maximum run with StarStrand Basic *However, if the driver is plugged into the four way connector, you may add another 16.5 feet on the opposite side of the original leg doubling the maximum run to 33 ft. Compliant with StarStrand Basic, Super, Ultra, & RGB *All drivers have a male end 75W Indoor Direct Wire Driver (12V) E53276 Includes one 72 in. output cord 16.5 ft. maximum run with StarStrand Basic *However, if the driver is plugged into the four way connector, you may add another 16.5 feet on the opposite side of the original leg doubling the maximum run to 33 ft. Compliant with StarStrand Basic, Super, Ultra, & RGB

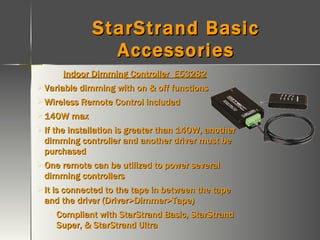

6. StarStrand Basic Accessories Indoor Dimming Controller E53282 Variable dimming with on & off functions Wireless Remote Control included 140W max If the installation is greater than 140W, another dimming controller and another driver must be purchased One remote can be utilized to power several dimming controllers It is connected to the tape in between the tape and the driver (Driver>Dimmer>Tape) Compliant with StarStrand Basic, StarStrand Super, & StarStrand Ultra

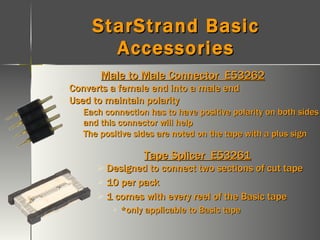

7. StarStrand Basic Accessories Male to Male Connector E53262 Converts a female end into a male end Used to maintain polarity Each connection has to have positive polarity on both sides and this connector will help The positive sides are noted on the tape with a plus sign Tape Splicer E53261 Designed to connect two sections of cut tape 10 per pack 1 comes with every reel of the Basic tape *only applicable to Basic tape

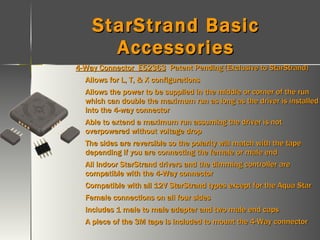

8. StarStrand Basic Accessories 4-Way Connector E52363 Patent Pending (Exclusive to StarStrand) Allows for L, T, & X configurations Allows the power to be supplied in the middle or corner of the run which can double the maximum run as long as the driver is installed into the 4-way connector Able to extend a maximum run assuming the driver is not overpowered without voltage drop The sides are reversible so the polarity will match with the tape depending if you are connecting the female or male end All indoor StarStrand drivers and the dimming controller are compatible with the 4-Way connector Compatible with all 12V StarStrand types except for the Aqua Star Female connections on all four sides Includes 1 male to male adapter and two male end caps A piece of the 3M tape is included to mount the 4-Way connector

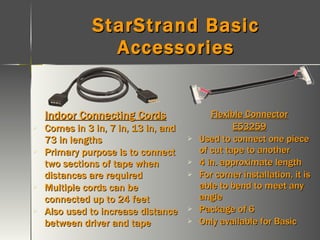

9. StarStrand Basic Accessories Indoor Connecting Cords Comes in 3 in, 7 in, 13 in, and 73 in lengths Primary purpose is to connect two sections of tape when distances are required Multiple cords can be connected up to 24 feet Also used to increase distance between driver and tape Flexible Connector E53259 Used to connect one piece of cut tape to another 4 in. approximate length For corner installation, it is able to bend to meet any angle Package of 6 Only available for Basic

10. StarStrand Basic Accessories End Power Feed E53260 Utilize to power an end that has been cut 2 are included with every reel of Basic Only applies to Basic 6 in a package Silicone End Cap E53269 Place on terminated end of run Protection from dust and debris Works with Basic, Super, Ultra, & RGB One is supplied with every 5 ft., 10 ft., & 20 ft. section of Super, Ultra, & RGB 10 in one package

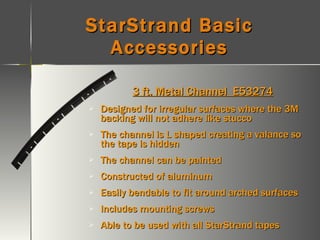

11. StarStrand Basic Accessories 3 ft. Metal Channel E53274 Designed for irregular surfaces where the 3M backing will not adhere like stucco The channel is L shaped creating a valance so the tape is hidden The channel can be painted Constructed of aluminum Easily bendable to fit around arched surfaces Includes mounting screws Able to be used with all StarStrand tapes

12. StarStrand Basic Accessories Plastic Wire Clip E53255 (Package of 10) Used to secure Connecting Cords & Driver Output Cords to surface Backed with 3M adhesive tape Heat Shrink Wrap E53256 (Package of 10) Secure 2 Connector Cords when in walls Waterproof in damp location installation

13. StarStrand Basic Accessories Rough In Terminal Block E53257 Rough in for new installations Addition of StarStrand at later date 3” female 4 prong connector

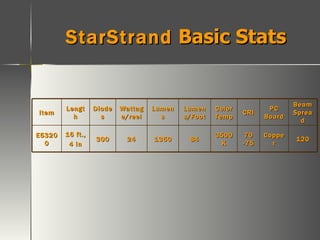

14. StarStrand Basic Stats Item Length Diodes Wattage/reel Lumens Lumens/Foot Color Temp CRI PC Board Beam Spread E53200 16 ft., 4 in 300 24 1350 84 3500K 70 -75 Copper 120

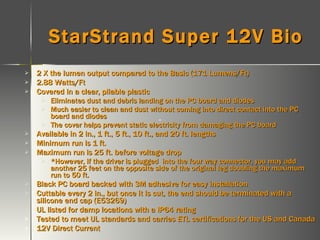

15. StarStrand Super 12V Bio 2 X the lumen output compared to the Basic (171 Lumens/Ft) 2.88 Watts/Ft Covered in a clear, pliable plastic Eliminates dust and debris landing on the PC board and diodes Much easier to clean and dust without coming into direct contact into the PC board and diodes The cover helps prevent static electricity from damaging the PC board Available in 2 in., 1 ft., 5 ft., 10 ft., and 20 ft. lengths Minimum run is 1 ft. Maximum run is 25 ft. before voltage drop *However, if the driver is plugged into the four way connector, you may add another 25 feet on the opposite side of the original leg doubling the maximum run to 50 ft. Black PC board backed with 3M adhesive for easy installation Cuttable every 2 in., but once it is cut, the end should be terminated with a silicone end cap (E53269) UL listed for damp locations with a IP64 rating Tested to meet UL standards and carries ETL certifications for the US and Canada 12V Direct Current

16. StarStrand Starchip Technology Every 3 diodes, an IC chip (Integrated Circuit) is placed on the PC board The IC chip’s purpose: Maintain constant voltage allowing for longer runs without light loss Due to this, it prevents diodes closest to the driver from experiencing premature burnout Therefore, the smooth current increases diode life Prevents over voltage to diodes The IC chip is standard with the Super, Ultra, RGB, and Aqua’s PC boards

17. StarStrand Super 12V Driver Info 60W Indoor Plug-in Driver (12V) E53275 Maximum run is 21 ft. for the Super 72 in. power cord included Compatible with Super, Ultra, & RGB 75W Direct Wire Driver (12V) E53276 Maximum run is 25 ft. for Super 72 in. power cord included Compatible with Super, Ultra, & RGB

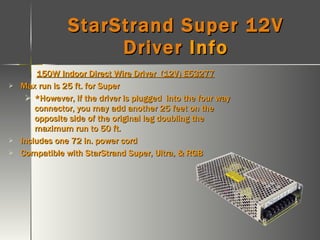

18. StarStrand Super 12V Driver Info 150W Indoor Direct Wire Driver (12V) E53277 Max run is 25 ft. for Super *However, if the driver is plugged into the four way connector, you may add another 25 feet on the opposite side of the original leg doubling the maximum run to 50 ft. Includes one 72 in. power cord Compatible with StarStrand Super, Ultra, & RGB

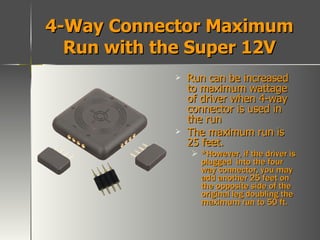

19. 4-Way Connector Maximum Run with the Super 12V Run can be increased to maximum wattage of driver when 4-way connector is used in the run The maximum run is 25 feet. *However, if the driver is plugged into the four way connector, you may add another 25 feet on the opposite side of the original leg doubling the maximum run to 50 ft.

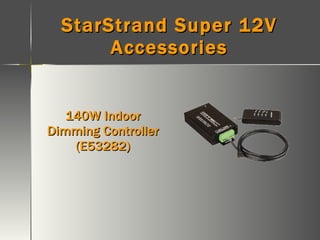

20. StarStrand Super 12V Accessories 140W Indoor Dimming Controller (E53282)

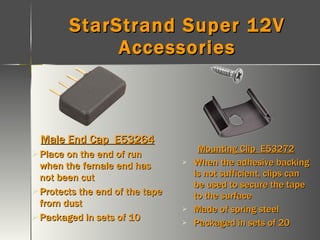

21. StarStrand Super 12V Accessories Male End Cap E53264 Place on the end of run when the female end has not been cut Protects the end of the tape from dust Packaged in sets of 10 Mounting Clip E53272 When the adhesive backing is not sufficient, clips can be used to secure the tape to the surface Made of spring steel Packaged in sets of 20

22. StarStrand Super 12V Accessories Male to Male Connector 3 ft. Metal Channel Indoor Connecting Cords Silicone End Cap

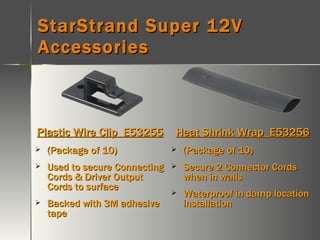

23. StarStrand Super 12V Accessories Plastic Wire Clip E53255 (Package of 10) Used to secure Connecting Cords & Driver Output Cords to surface Backed with 3M adhesive tape Heat Shrink Wrap E53256 (Package of 10) Secure 2 Connector Cords when in walls Waterproof in damp location installation

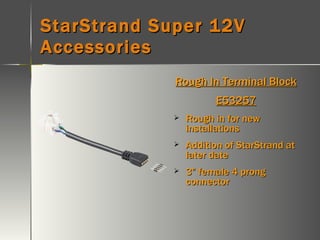

24. StarStrand Super 12V Accessories Rough In Terminal Block E53257 Rough in for new installations Addition of StarStrand at later date 3” female 4 prong connector

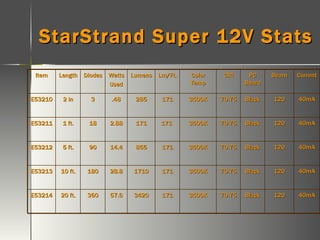

25. StarStrand Super 12V Stats Item Length Diodes Watts Used Lumens Lm/Ft. Color Temp CRI PC Board Beam Current E53210 2 in 3 .48 285 171 3500K 70-75 Black 120 40mA E53211 1 ft. 18 2.88 171 171 3500K 70-75 Black 120 40mA E53212 5 ft. 90 14.4 855 171 3500K 70-75 Black 120 40mA E53213 10 ft. 180 28.8 1710 171 3500K 70-75 Black 120 40mA E53214 20 ft. 360 57.6 3420 171 3500K 70-75 Black 120 40mA

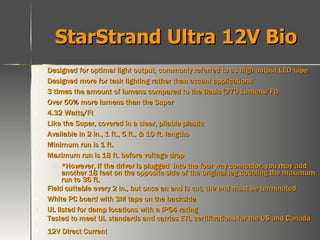

26. StarStrand Ultra 12V Bio Designed for optimal light output, commonly referred to as high output LED tape Designed more for task lighting rather than accent applications 3 times the amount of lumens compared to the Basic (270 Lumens/Ft) Over 50% more lumens than the Super 4.32 Watts/Ft Like the Super, covered in a clear, pliable plastic Available in 2 in., 1 ft., 5 ft., & 10 ft. lengths Minimum run is 1 ft. Maximum run is 18 ft. before voltage drop *However, if the driver is plugged into the four way connector, you may add another 18 feet on the opposite side of the original leg doubling the maximum run to 36 ft. Field cuttable every 2 in., but once an end is cut, the end must be terminated White PC board with 3M tape on the backside UL listed for damp locations with a IP64 rating Tested to meet UL standards and carries ETL certifications for the US and Canada 12V Direct Current

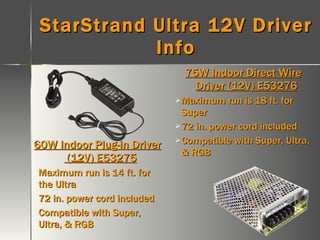

27. StarStrand Ultra 12V Driver Info 60W Indoor Plug-in Driver (12V) E53275 Maximum run is 14 ft. for the Ultra 72 in. power cord included Compatible with Super, Ultra, & RGB 75W Indoor Direct Wire Driver (12V) E53276 Maximum run is 18 ft. for Super 72 in. power cord included Compatible with Super, Ultra, & RGB

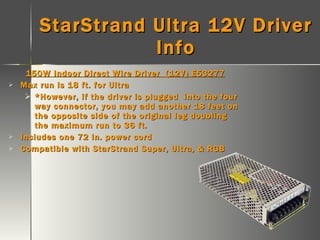

28. StarStrand Ultra 12V Driver Info 150W Indoor Direct Wire Driver (12V) E53277 Max run is 18 ft. for Ultra *However, if the driver is plugged into the four way connector, you may add another 18 feet on the opposite side of the original leg doubling the maximum run to 36 ft. Includes one 72 in. power cord Compatible with StarStrand Super, Ultra, & RGB

29. 4-Way Connector Maximum Run with the 12V Ultra Run can be increased to maximum wattage of driver when 4-way connector is used in the run 18 ft. is the maximum run with the Ultra when the 4-way connector is used. *However, if the driver is connected to the four way connector you may add another 18 feet on the opposite side of the original leg making the maximum run 36 ft.

30. StarStrand Ultra 12V Accessories All StarStrand Ultra & Super components are compatible with each other Therefore, all of the same information provided for Super’s accessories are exactly the same for the Ultra

31. StarStrand Ultra 12V Stats Item Length Diodes Watts Used Lumens Lm/Ft. Color Temp CRI PC Board Beam Current E53210 2 in. 3 .72 45 270 3500K 70-75 White 120 60mA E53211 1 ft. 18 4.32 270 270 3500K 70-75 White 120 60mA E53212 5 ft. 90 21.6 1350 270 3500K 70-75 White 120 60mA E53213 10 ft. 180 43.2 2700 270 3500K 70-75 White 120 60mA

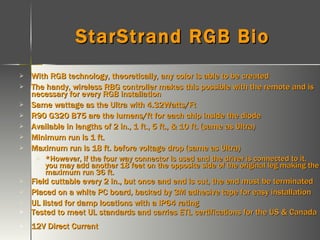

32. StarStrand RGB Bio With RGB technology, theoretically, any color is able to be created The handy, wireless RBG controller makes this possible with the remote and is necessary for every RGB installation Same wattage as the Ultra with 4.32Watts/Ft R90 G320 B75 are the lumens/ft for each chip inside the diode Available in lengths of 2 in., 1 ft., 5 ft., & 10 ft. (same as Ultra) Minimum run is 1 ft. Maximum run is 18 ft. before voltage drop (same as Ultra) *However, if the four way connector is used and the driver is connected to it, you may add another 18 feet on the opposite side of the original leg making the maximum run 36 ft. Field cuttable every 2 in., but once and end is cut, the end must be terminated Placed on a white PC board, backed by 3M adhesive tape for easy installation UL listed for damp locations with a IP64 rating Tested to meet UL standards and carries ETL certifications for the US & Canada 12V Direct Current

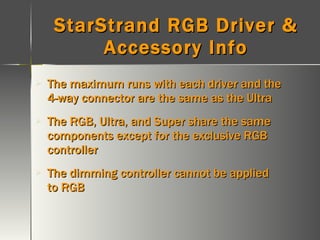

33. StarStrand RGB Driver & Accessory Info The maximum runs with each driver and the 4-way connector are the same as the Ultra The RGB, Ultra, and Super share the same components except for the exclusive RGB controller The dimming controller cannot be applied to RGB

34. RGB Essential Indoor RGB Controller E53284 Allows for numerous combinations of colors 20 separate modes include: static red, green, blue, cyan, yellow, purple, and white 2 custom color modes 4 modes for alternating colors 4 blinking modes You may speed up or slow down alternating colors and the blinking modes 2 modes are available to create a custom color 140W max Same idea as the dimmer 2 controllers can be used on one run, yet another driver must be added The installation of the RBG controller is between the driver and tape One remote can operate multiple controllers RGB is not dimmable

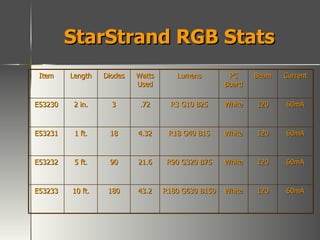

35. StarStrand RGB Stats Item Length Diodes Watts Used Lumens PC Board Beam Current E53230 2 in. 3 .72 R3 G10 B25 White 120 60mA E53231 1 ft. 18 4.32 R18 G40 B15 White 120 60mA E53232 5 ft. 90 21.6 R90 G320 B75 White 120 60mA E53233 10 ft. 180 43.2 R180 G630 B150 White 120 60mA

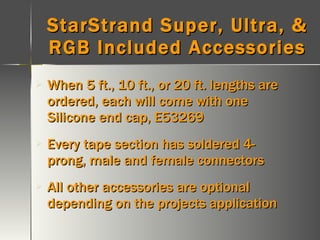

36. StarStrand Super, Ultra, & RGB Included Accessories When 5 ft., 10 ft., or 20 ft. lengths are ordered, each will come with one Silicone end cap, E53269 Every tape section has soldered 4-prong, male and female connectors All other accessories are optional depending on the projects application

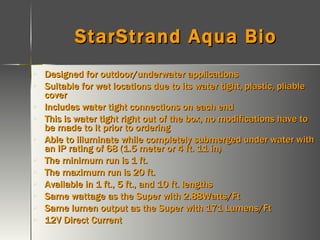

37. StarStrand Aqua Bio Designed for outdoor/underwater applications Suitable for wet locations due to its water tight, plastic, pliable cover Includes water tight connections on each end This is water tight right out of the box, no modifications have to be made to it prior to ordering Able to illuminate while completely submerged under water with an IP rating of 68 (1.5 meter or 4 ft. 11 in) The minimum run is 1 ft. The maximum run is 20 ft. Available in 1 ft., 5 ft., and 10 ft. lengths Same wattage as the Super with 2.88Watts/Ft Same lumen output as the Super with 171 Lumens/Ft 12V Direct Current

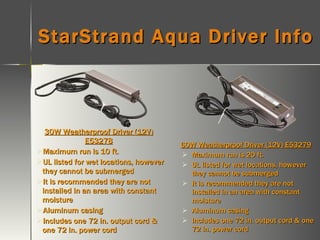

38. StarStrand Aqua Driver Info 30W Weatherproof Driver (12V) E53278 Maximum run is 10 ft. UL listed for wet locations, however they cannot be submerged It is recommended they are not installed in an area with constant moisture Aluminum casing Includes one 72 in. output cord & one 72 in. power cord 60W Weatherproof Driver (12V) E53279 Maximum run is 20 ft. UL listed for wet locations, however they cannot be submerged It is recommended they are not installed in an area with constant moisture Aluminum casing Includes one 72 in. output cord & one 72 in. power cord

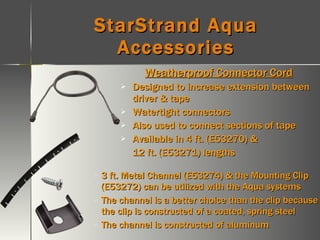

39. StarStrand Aqua Accessories Weatherproof Connector Cord Designed to increase extension between driver & tape Watertight connectors Also used to connect sections of tape Available in 4 ft. (E53270) & 12 ft. (E53271) lengths 3 ft. Metal Channel (E53274) & the Mounting Clip (E53272) can be utilized with the Aqua systems The channel is a better choice than the clip because the clip is constructed of a coated, spring steel The channel is constructed of aluminum

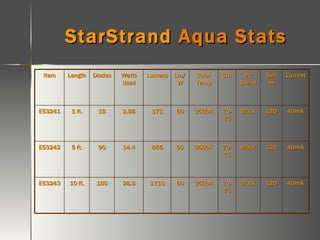

40. StarStrand Aqua Stats Item Length Diodes Watts Used Lumens Lm/W Color Temp CRI PC Board Beam Current E53241 1 ft. 18 2.88 171 60 3500K 70-75 Black 120 40mA E53242 5 ft. 90 14.4 855 60 3500K 70-75 Black 120 40mA E53243 10 ft. 180 28.8 1710 60 3500K 70-75 Black 120 40mA

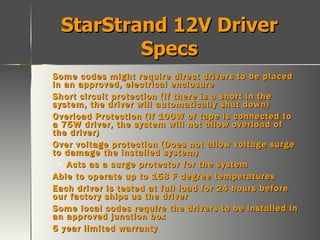

41. StarStrand 12V Driver Specs Some codes might require direct drivers to be placed in an approved, electrical enclosure Short circuit protection (If there is a short in the system, the driver will automatically shut down) Overload Protection (If 100W of tape is connected to a 75W driver, the system will not allow overload of the driver) Over voltage protection (Does not allow voltage surge to damage the installed system) Acts as a surge protector for the system Able to operate up to 158 F degree temperatures Each driver is tested at full load for 24 hours before our factory ships us the driver Some local codes require the drivers to be installed in an approved junction box 5 year limited warranty

42. StarStrand 12V Technology All phosphor based diodes except RGB Must easier to control the color temperature The CRI is in the 70’s for the Phosphor technology, when the RGB technology’s CRI is in less than 30 RBG technology’s colors are harder to consistently control RGB technology is significantly more expensive Basic has a single chip for each diode Super & Aqua have a double chip for each diode Ultra & RGB have three chips per diode Using multiple chips in the diodes produces more lumens without overpowering a single chip diode By utilizing the 4 prong, soldered connections, the installation is full proof and secure Failure rate is high when using non-soldered connectors Very important with any low voltage connections 5 Year limited warranty

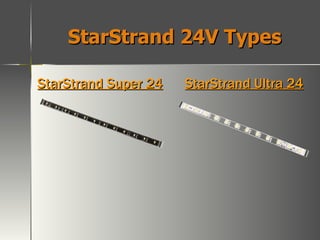

43. StarStrand 24V Types StarStrand Super 24 StarStrand Ultra 24

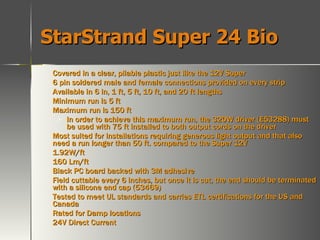

44. StarStrand Super 24 Bio Covered in a clear, pliable plastic just like the 12V Super 6 pin soldered male and female connections provided on every strip Available in 6 in, 1 ft, 5 ft, 10 ft, and 20 ft lengths Minimum run is 5 ft Maximum run is 150 ft In order to achieve this maximum run, the 320W driver (E53288) must be used with 75 ft installed to both output cords on the driver Most suited for installations requiring generous light output and that also need a run longer than 50 ft. compared to the Super 12V 1.92W/ft 160 Lm/ft Black PC board backed with 3M adhesive Field cuttable every 6 inches, but once it is cut, the end should be terminated with a silicone end cap (53469) Tested to meet UL standards and carries ETL certifications for the US and Canada Rated for Damp locations 24V Direct Current

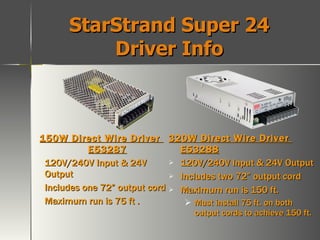

45. StarStrand Super 24 Driver Info 150W Direct Wire Driver E53287 120V/240V Input & 24V Output Includes one 72” output cord Maximum run is 75 ft . 320W Direct Wire Driver E53288 120V/240V Input & 24V Output Includes two 72” output cord Maximum run is 150 ft. Must install 75 ft. on both output cords to achieve 150 ft.

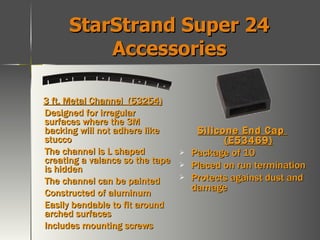

46. StarStrand Super 24 Accessories 3 ft. Metal Channel (53254) Designed for irregular surfaces where the 3M backing will not adhere like stucco The channel is L shaped creating a valance so the tape is hidden The channel can be painted Constructed of aluminum Easily bendable to fit around arched surfaces Includes mounting screws Silicone End Cap (E53469) Package of 10 Placed on run termination Protects against dust and damage

47. StarStrand Super 24 Accessories 90° Connector (E53464) For 90° corners, reversible One end male, one end female 3M tape for easy mounting included Indoor Connecting Cords E53465 5” 53467 13” 53468 73” Extend distance between driver and tape

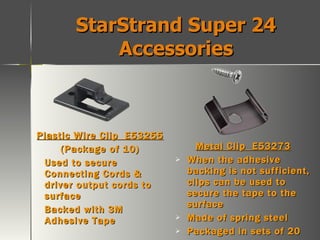

48. StarStrand Super 24 Accessories Plastic Wire Clip E53255 (Package of 10) Used to secure Connecting Cords & driver output cords to surface Backed with 3M Adhesive Tape Metal Clip E53273 When the adhesive backing is not sufficient, clips can be used to secure the tape to the surface Made of spring steel Packaged in sets of 20

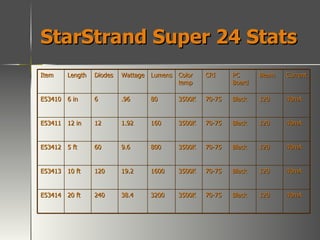

49. StarStrand Super 24 Stats Item Length Diodes Wattage Lumens Color temp CRI PC Board Beam Current E53410 6 in 6 .96 80 3500K 70-75 Black 120 40mA E53411 12 in 12 1.92 160 3500K 70-75 Black 120 40mA E53412 5 ft 60 9.6 800 3500K 70-75 Black 120 40mA E53413 10 ft 120 19.2 1600 3500K 70-75 Black 120 40mA E53414 20 ft 240 38.4 3200 3500K 70-75 Black 120 40mA

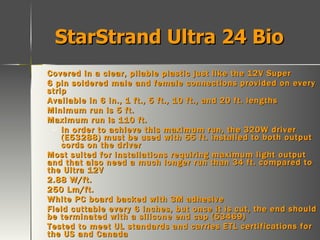

50. StarStrand Ultra 24 Bio Covered in a clear, pliable plastic just like the 12V Super 6 pin soldered male and female connections provided on every strip Available in 6 in., 1 ft., 5 ft., 10 ft., and 20 ft. lengths Minimum run is 5 ft. Maximum run is 110 ft. In order to achieve this maximum run, the 320W driver (E53288) must be used with 55 ft. installed to both output cords on the driver Most suited for installations requiring maximum light output and that also need a much longer run than 34 ft. compared to the Ultra 12V 2.88 W/ft. 250 Lm/ft. White PC board backed with 3M adhesive Field cuttable every 6 inches, but once it is cut, the end should be terminated with a silicone end cap (53469) Tested to meet UL standards and carries ETL certifications for the US and Canada Rated for Damp locations 24V Direct Current

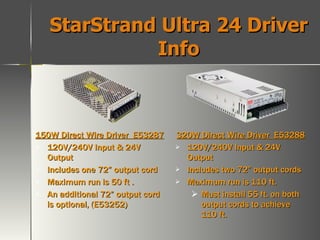

51. StarStrand Ultra 24 Driver Info 150W Direct Wire Driver E53287 120V/240V Input & 24V Output Includes one 72” output cord Maximum run is 50 ft . An additional 72” output cord is optional, (E53252) 320W Direct Wire Driver E53288 120V/240V Input & 24V Output Includes two 72” output cords Maximum run is 110 ft. Must install 55 ft. on both output cords to achieve 110 ft.

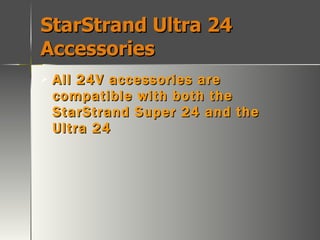

52. StarStrand Ultra 24 Accessories All 24V accessories are compatible with both the StarStrand Super 24 and the Ultra 24

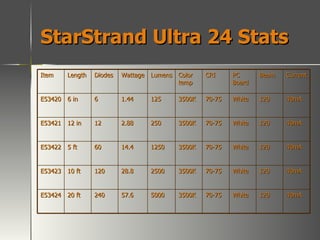

53. StarStrand Ultra 24 Stats Item Length Diodes Wattage Lumens Color temp CRI PC Board Beam Current E53420 6 in 6 1.44 125 3500K 70-75 White 120 40mA E53421 12 in 12 2.88 250 3500K 70-75 White 120 40mA E53422 5 ft 60 14.4 1250 3500K 70-75 White 120 40mA E53423 10 ft 120 28.8 2500 3500K 70-75 White 120 40mA E53424 20 ft 240 57.6 5000 3500K 70-75 White 120 40mA

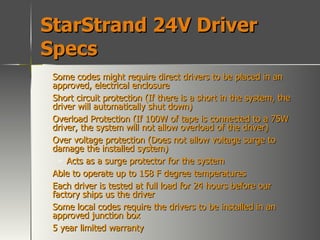

54. StarStrand 24V Driver Specs Some codes might require direct drivers to be placed in an approved, electrical enclosure Short circuit protection (If there is a short in the system, the driver will automatically shut down) Overload Protection (If 100W of tape is connected to a 75W driver, the system will not allow overload of the driver) Over voltage protection (Does not allow voltage surge to damage the installed system) Acts as a surge protector for the system Able to operate up to 158 F degree temperatures Each driver is tested at full load for 24 hours before our factory ships us the driver Some local codes require the drivers to be installed in an approved junction box 5 year limited warranty

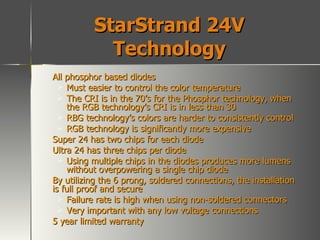

55. StarStrand 24V Technology All phosphor based diodes Must easier to control the color temperature The CRI is in the 70’s for the Phosphor technology, when the RGB technology’s CRI is in less than 30 RBG technology’s colors are harder to consistently control RGB technology is significantly more expensive Super 24 has two chips for each diode Ultra 24 has three chips per diode Using multiple chips in the diodes produces more lumens without overpowering a single chip diode By utilizing the 6 prong, soldered connections, the installation is full proof and secure Failure rate is high when using non-soldered connectors Very important with any low voltage connections 5 year limited warranty
