1. Stainless Steel Wire Mesh
Hebei General Metal Netting Co., Ltd produces a complete range of first-class
stainless steel woven wire mesh and wire cloth products, including Square
Opening Series Stainless Steel Wire Mesh (varies from 1 mesh to 635 meshes)
and Cloth and Dutch Woven Series Stainless Steel Wire Cloth (from 12x64mesh
to 400x2800mesh).
General Weaving Patterns of Stainless Steel Wire Mesh and Wire Cloth:
Stainless Steel Wire Mesh and Wire Cloth, Plain Weave
Stainless Steel Wire Mesh and Wire Cloth, Twill Weave
Stainless Steel Wire Mesh and Wire Cloth, Dutch Plain Weave
Stainless Steel Wire Mesh and Wire Cloth, Dutch Twill Weave
We can supply stainless steel square woven wire mesh from 1mesh to
635mesh.Stainless steel dutch plain wire cloth from 12meshX64mesh to
80meshX700mesh.Stainless steel Dutch twill weave wire cloth from
20meshX250mesh to 400meshX2800mesh.
Specification List of Stainless Steel Wire Mesh
Wire Mesh Opening Wire Mesh Opening
Weight
Mesh Dia Opening Area Mesh Dia Opening Area Weight
(kg/sq
/Inch mm mm A /Inch mm mm A (kg/sq
m)
d w % d w % m)
2 1.600 11.100 76% 2.560 40 0.250 0.385 37% 1.250
3 2.000 6.467 58% 6.000 40 0.234 0.401 40% 1.095
3 1.600 6.867 66% 3.840 40 0.220 0.415 43% 0.968
4 1.600 4.750 56% 5.120 40 0.190 0.445 49% 0.722
4 1.200 5.150 66% 2.880 50 0.190 0.318 39% 0.903
5 1.200 3.880 58% 3.600 50 0.180 0.328 42% 0.810
5 1.000 4.080 65% 2.500 50 0.153 0.355 49% 0.585
6 1.200 3.033 51% 4.320 60 0.160 0.263 39% 0.768
6 0.900 3.333 62% 2.430 60 0.122 0.301 51% 0.447
8 0.610 2.565 65% 1.488 70 0.120 0.243 45% 0.504

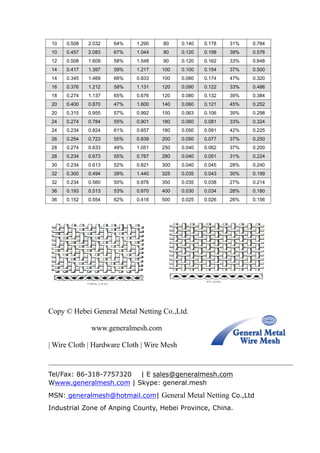

2. 10 0.508 2.032 64% 1.290 80 0.140 0.178 31% 0.784
10 0.457 2.083 67% 1.044 80 0.120 0.198 39% 0.576
12 0.508 1.609 58% 1.548 90 0.120 0.162 33% 0.648
14 0.417 1.397 59% 1.217 100 0.100 0.154 37% 0.500
14 0.345 1.469 66% 0.833 100 0.080 0.174 47% 0.320
16 0.376 1.212 58% 1.131 120 0.090 0.122 33% 0.486
18 0.274 1.137 65% 0.676 120 0.080 0.132 39% 0.384
20 0.400 0.870 47% 1.600 140 0.060 0.121 45% 0.252
20 0.315 0.955 57% 0.992 150 0.063 0.106 39% 0.298
24 0.274 0.784 55% 0.901 180 0.060 0.081 33% 0.324
24 0.234 0.824 61% 0.657 180 0.050 0.091 42% 0.225
26 0.254 0.723 55% 0.839 200 0.050 0.077 37% 0.250
28 0.274 0.633 49% 1.051 250 0.040 0.062 37% 0.200
28 0.234 0.673 55% 0.767 280 0.040 0.051 31% 0.224
30 0.234 0.613 52% 0.821 300 0.040 0.045 28% 0.240
32 0.300 0.494 39% 1.440 325 0.035 0.043 30% 0.199
32 0.234 0.560 50% 0.876 350 0.035 0.038 27% 0.214
36 0.193 0.513 53% 0.670 400 0.030 0.034 28% 0.180
36 0.152 0.554 62% 0.416 500 0.025 0.026 26% 0.156
