CJSC «VILED Svetotronika» produces high-quality LED lighting devices for public, office, and industrial applications in Russia and the EU. The company has patented energy-saving LED products that provide high light output with long lifetime, low maintenance needs, and energy cost savings. The document provides specifications for various ViLED 100 LED street and road lighting models ranging from 36 to 216 watts that are suitable for industrial, commercial, and road applications.

1. Street lighting
1

2. 2
Patents

3. 3
About company
CJSC «VILED Svetotronika» (brand VILED) produces and markets high-
quality LED lighting devices for different applications: public and office
buildings, highways and industrial enterprises in the Russian Federation
and the European Union.
Our company has patented unique developments among energy-
saving products that have high level of light output, ecological safety, long
warranty assurance and economic benefits by minimizing energy costs and
service.
Benefits of our products:
- saving of electricity
- pulsing factor< 5%
- high level of effiency> 0,97
- lighting spector close to day light
- service is not needed
- permanent working time – unlimited
- unique cooling system
- without any blind effect because of unique disposition of LED’s
- Time life - 100 000 hours
- uniform filling light, without any spots
- we cooperate with best producing companies on the market:
Samsung and Seoul Semiconductor
viled.net
info@viled.net
+7 (812) 346-68-47
+7 (800) 775-68-37

4. Street lighting
4
ViLED 100
СС М1-36-К-1
A mono-unit 36 Wt LED light with single-
sided support. This light has a most wide
use: designed both for industrial application,
in workshops with high concentrations of
moisture and dust, and for illuminating
neighborhood roads. Can be used as a
spotlight.
Luminous flux of the Light 3 150 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 36 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 1,4 kg
Dimensions 450*100*95 mm

5. Street lighting
5
Luminous flux of the Light 6 300 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 72 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 2,5 kg
Dimensions 450*215*95 mm
ViLED 100
СС М1-72-К-2
A double-unit 72 Wt LED light with single-
sided support. This light has a most wide
use: designed both for industrial application,
in workshops with high concentrations of
moisture and dust, and for illuminating
neighborhood roads. Can be used as a
spotlight.

6. Street lighting
6
ViLED 100
СС М1-108-К-3
A triple-unit 108 Wt LED light with single-
sided support. This lighthas a most wide use:
designed both for industrial application,
in workshops with high concentrations of
moisture and dust, and for illuminating
neighborhood roads. Can be used as a
spotlight.
Luminous flux of the Light 9 450 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 108 Wt
Ingress protection IP 68
Ambient temperature range +40/-50 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 3,9 kg
Dimensions 450*328*95 mm

7. Street lighting
7
ViLED 100
СС М1-72-МК-2
A double-unit 72 Wt LED light with road
single-sided support. This light is designed for
illuminating B, C category roads.
Luminous flux of the Light 6 300 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 72 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 2,5 kg
Dimensions 450*200*95 mm

8. Street lighting
8
ViLED 100
СС М1-108-МК-3
A triple-unit 72 Wt LED light with road single-
sided support. This light is designed for
illuminating B, C category roads.
Luminous flux of the Light 9 450 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 108 Wt
Ingress protection IP 68
Ambient temperature range +40/-50 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 3,9 kg
Dimensions 450*300*95 mm

9. Street lighting
9
ViLED 100
СС М1-72-К-1
A mono-unit 72 Wt LED light with single-
sided support. This light has a most wide
use: designed both for industrial application,
in workshops with high concentrations of
moisture and dust, and for illuminating
neighborhood roads. Can be used as a
spotlight.
Luminous flux of the Light 6 300 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 72 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 1,2 kg
Dimensions 634*103*95 mm

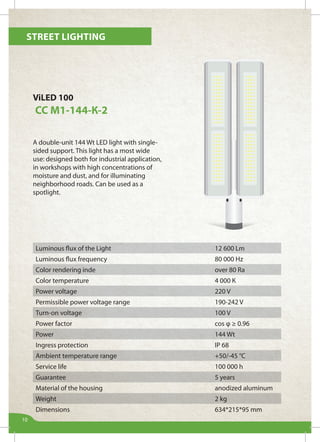

10. Street lighting
10
ViLED 100
СС М1-144-К-2
A double-unit 144 Wt LED light with single-
sided support. This light has a most wide
use: designed both for industrial application,
in workshops with high concentrations of
moisture and dust, and for illuminating
neighborhood roads. Can be used as a
spotlight.
Luminous flux of the Light 12 600 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 144 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 2 kg
Dimensions 634*215*95 mm

11. Street lighting
11
ViLED 100
СС М1-216-К-3
A triple-unit 216 Wt LED light with single-
sided support. This light has a most wide
use: designed both for industrial application,
in workshops with high concentrations of
moisture and dust, and for illuminating
neighborhood roads. Can be used as a
spotlight.
Luminous flux of the Light 18 900 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 216 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 3 kg
Dimensions 634*328*95 mm

12. Street lighting
12
ViLED 100
СС М1-144-МК-2
A double-unit 144 Wt LED light with road
single-sided support. This light is designed for
illuminating B, C category roads.
Luminous flux of the Light 12 600 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 144 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 2 kg
Dimensions 634*224*95 mm

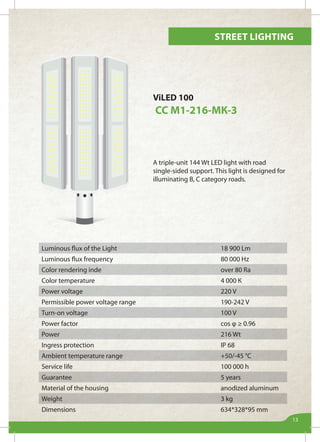

13. Street lighting
13
ViLED 100
СС М1-216-МК-3
A triple-unit 144 Wt LED light with road
single-sided support. This light is designed for
illuminating B, C category roads.
Luminous flux of the Light 18 900 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 216 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 3 kg
Dimensions 634*328*95 mm

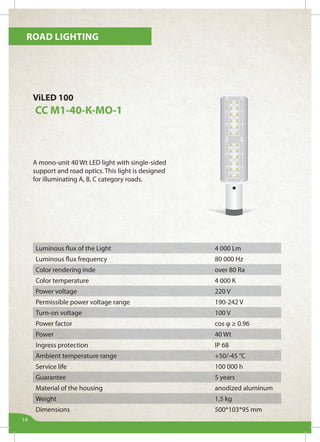

14. Road lighting
14
ViLED 100
СС М1-40-К-МО-1
A mono-unit 40 Wt LED light with single-sided
support and road optics. This light is designed
for illuminating А, B, C category roads.
Luminous flux of the Light 4 000 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 40 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 1,5 kg
Dimensions 500*103*95 mm

15. Road lighting
15
ViLED 100
СС M1-80-K-МО-2
A double-unit 40 Wt LED light with single-
sided support and road optics. This light is
designed for illuminating А, B, C category
roads.
Luminous flux of the Light 8 000 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 40 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 2,6 kg
Dimensions 500*215*95 mm

16. Road lighting
16
ViLED 100
СС М1-120-К-МО-3
A triple-unit 120 Wt LED light with single-
sided support and road optics. This light is
designed for illuminating А, B, C category
roads.
Luminous flux of the Light 12 000 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 120 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 3,8 kg
Dimensions 500*328*95 mm

17. Road lighting
17
ViLED 100
СС М1-60-К-МО-1
A mono-unit 60 Wt LED light with single-sided
support and road optics. This light is designed
for illuminating А, B, C category roads.
Luminous flux of the Light 6 000 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 60 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 1,9 kg
Dimensions 680*103*95 mm

18. Road lighting
18
ViLED 100
СС М1-120-К-МО-2
A double-unit 120 Wt LED light with single-
sided support and road optics. This light is
designed for illuminating А, B, C category
roads.
Luminous flux of the Light 12 000 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 120 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 3,5 kg
Dimensions 680*215*95 mm

19. Road lighting
19
ViLED 100
СС М1-180-К-МО-3
A triple-unit 180 Wt LED light with single-
sided support and road optics. This light is
designed for illuminating А, B, C category
roads.
Luminous flux of the Light 12 000 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 180 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 5 kg
Dimensions 680*328*95 mm

20. Road lighting
20
ViLED 100
СС М1-80-К-МО-1
A mono-unit 80 Wt LED light with single-sided
support and road optics. This light is designed
for illuminating А, B, C category roads.
Luminous flux of the Light 8 000 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 80 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 2,4 kg
Dimensions 855*103*95 mm

21. Road lighting
21
ViLED 100
СС М1-160-К-МО-2
A double-unit 160 Wt LED light with single-
sided support and road optics. This light is
designed for illuminating А, B, C category
roads.
Luminous flux of the Light 16 000 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 160 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 4,4 kg
Dimensions 855*215*95 mm

22. Road lighting
22
ViLED 100
СС М1-240-К-МО-3
A triple-unit 240 Wt LED light with single-
sided support and road optics. This light is
designed for illuminating А, B, C category
roads.
Luminous flux of the Light 16 000 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 240 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 6,4 kg
Dimensions 855*328*95 mm

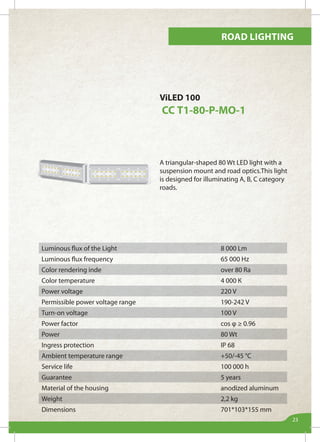

23. Road lighting
23
ViLED 100
СС Т1-80-Р-МО-1
A triangular-shaped 80 Wt LED light with a
suspension mount and road optics.This light
is designed for illuminating А, B, C category
roads.
Luminous flux of the Light 8 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 80 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 2,2 kg
Dimensions 701*103*155 mm

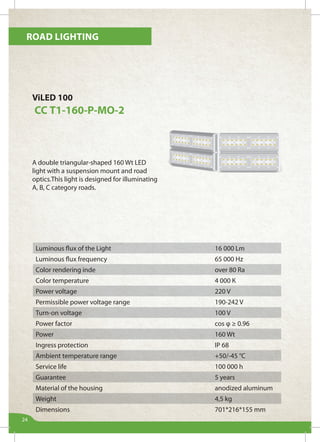

24. Road lighting
24
ViLED 100
СС Т1-160-Р-МО-2
A double triangular-shaped 160 Wt LED
light with a suspension mount and road
optics.This light is designed for illuminating
А, B, C category roads.
Luminous flux of the Light 16 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 160 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 4,5 kg
Dimensions 701*216*155 mm

25. Road lighting
25
ViLED 100
СС Т1-240-Р-МО-3
A triple triangular-shaped 240 Wt LED light
with a suspension mount and road optics.
This light is designed for illuminating А, B, C
category roads.
Luminous flux of the Light 24 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 240 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 6,4 kg
Dimensions 701*329*155 mm

26. Road lighting
26
ViLED 100
СС Т1-80-РТ-МО-1
A triangular-shaped 80 Wt LED light with a
suspension mount on cable and road optics.
This light is designed for illuminating А, B, C
category roads.
Luminous flux of the Light 8 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 80 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 2,3 kg
Dimensions 701*103*255 mm

27. Road lighting
27
ViLED 100
СС Т1-160-РТ-МО-2
A double triangular-shaped 160 Wt LED
light with a suspension mount on cable
and road optics.This light is designed for
illuminating А, B, C category roads.
Luminous flux of the Light 16 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 160 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 4,5 kg
Dimensions 701*216*155 mm

28. Road lighting
28
ViLED 100
СС Т1-240-РТ-МО-3
A triple triangular-shaped 240 Wt LED light
with a suspension mount on cable and road
optics. This light is designed for illuminating
А, B, C category roads.
Luminous flux of the Light 24 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 240 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 6,4 kg
Dimensions 701*329*255 mm

29. Road lighting
29
ViLED 100
СС Т1-40-РТ-МО-1
A triangular-shaped 40 Wt LED light with a
suspension mount on cable and road optics.
This lightis designed for illuminating А, B, C
category roads.
Luminous flux of the Light 4 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 40 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 1,8 kg
Dimensions 470*100*150 mm

30. Road lighting
30
ViLED 100
СС Т1-40-Р-МО-1
A triangular-shaped 40 Wt LED light with a
suspension mount and road optics. This light
is designed for illuminating А, B, C category
roads.
Luminous flux of the Light 4 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 40 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 1,8 kg
Dimensions 470*100*150 mm

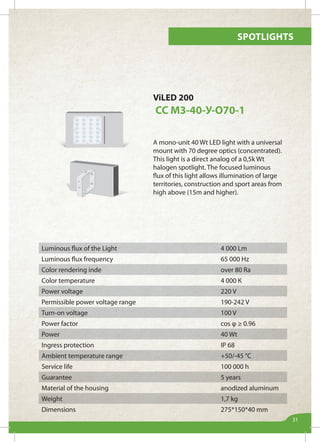

31. Spotlights
31
ViLED 200
СС М3-40-У-О70-1
A mono-unit 40 Wt LED light with a universal
mount with 70 degree optics (concentrated).
This light is a direct analog of a 0,5k Wt
halogen spotlight. The focused luminous
flux of this light allows illumination of large
territories, construction and sport areas from
high above (15m and higher).
Luminous flux of the Light 4 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 40 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 1,7 kg
Dimensions 275*150*40 mm

32. Spotlights
32
ViLED 200
СС М3-40-Н-О70-1
A mono-unit 40 Wt LED light with a spotlight
mount with 70 degree optics (concentrated).
This light is a direct analog of a 0,5k Wt
halogen spotlight. The focused luminous
flux of this light allows illumination of large
territories, construction and sport areas from
high above (15m and higher).
Luminous flux of the Light 4 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 40 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 1,7 kg
Dimensions 275*150*40 mm

33. Spotlights
33
ViLED 200
СС ТЗ-80-У-О70-1
A tringular-shaped 80 Wt LED light with
a universal mount with 70 degree optics
(concentrated). This lightis a direct analog
of a 1k Wt halogen spotlight. The focused
luminous flux of this light allows illumination
of large territories, construction and sport
areas from high above (15m and higher).
Luminous flux of the Light 8 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 80 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 3 kg
Dimensions 495*150*155 mm

34. Spotlights
34
ViLED 200
СС Т3-160-У-О70-2
A double tringular-shaped 160 Wt LED light
with a universal mount with 70 degree optics
(concentrated). This lightis a direct analog
of a 2k Wt halogen spotlight. The focused
luminous flux of this light allows illumination
of large territories, construction and sport
areas from high above (15m and higher).
Luminous flux of the Light 16 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 160 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 6 kg
Dimensions 495*305*155 mm

35. Spotlights
35
ViLED 200
СС Т3-240-У-О70-3
A double tringular-shaped 240 Wt LED light
with a universal mount with 70 degree optics
(concentrated). This lightis a direct analog
of a 3k Wt halogen spotlight. The focused
luminous flux of this light allows illumination
of large territories, construction and sport
areas from high above (15m and higher).
Luminous flux of the Light 24 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 240 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 9 kg
Dimensions 495*460*155 mm

36. Spotlights
36
ViLED 200
СС Т3-80-Н-О70-1
A tringular-shaped 80 Wt LED light with
a spotlight mount with 70 degree optics
(concentrated). This lightis a direct analog
of a 1k Wt halogen spotlight. The focused
luminous flux of this light allows illumination
of large territories, construction and sport
areas from high above (15m and higher).
Luminous flux of the Light 8 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 80 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 3 kg
Dimensions 495*150*155 mm

37. Spotlights
37
ViLED 200
СС Т3-160-Н-О70-2
A double tringular-shaped 160 Wt LED light
with a spotlight mount with 70 degree optics
(concentrated). This lightis a direct analog
of a 2k Wt halogen spotlight. The focused
luminous flux of this light allows illumination
of large territories, construction and sport
areas from high above (15m and higher).
Luminous flux of the Light 16 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 160 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 6 kg
Dimensions 495*305*155 mm

38. Spotlights
38
Luminous flux of the Ligh 24 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 240 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 9 kg
Dimensions 495*460*155 mm
ViLED 200
СС Т3-240-Н-О70-3
A triple tringular-shaped 240 Wt LED light
with a spotlight mount with 70 degree optics
(concentrated). This lightis a direct analog
of a 3k Wt halogen spotlight. The focused
luminous flux of this light allows illumination
of large territories, construction and sport
areas from high above (15m and higher).

39. Spotlights
39
Luminous flux of the Light 8 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power facto cos φ ≥ 0.96
Power 80 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 3 kg
Dimensions 495*150*155 mm
ViLED 200
СС Т3-80-Р-О70-1
A tringular-shaped 80 Wt LED light with a
suspension mount with 70 degree optics
(concentrated). This lightis a direct analog
of a 1k Wt halogen spotlight. The focused
luminous flux of this light allows illumination
of large territories, construction and sport
areas from high above (15m and higher).

40. Spotlights
40
Luminous flux of the Light 16 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 160 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 6 kg
Dimensions 495*305*155 mm
ViLED 200
СС Т3-160-Р-О70-2
A double tringular-shaped 160 Wt LED light
with a suspension mount with 70 degree
optics (concentrated). This lightis a direct
analog of a 2k Wt halogen spotlight. The
focused luminous flux of this light allows
illumination of large territories, construction
and sport areas from high above (15m and
higher).

41. Spotlights
41
Luminous flux of the Light 24 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 240 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 9 kg
Dimensions 495*460*155 mm
ViLED 200
СС Т3-240-Р-О70-3
A triple tringular-shaped 240 Wt LED light with
a suspension mount with 70 degree optics
(concentrated). This lightis a direct analog
of a 3k Wt halogen spotlight. The focused
luminous flux of this light allows illumination
of large territories, construction and sport
areas from high above (15m and higher).

42. Industrial lighting
42
Luminous flux of the Light 1 500 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 18 Wt
Ingress protection IP 20
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing plastic
Material of the diffuser light stabilized polystyrene
Weight 1 kg
Dimensions 1250*50*45 mm
A LED light assembled in the housing of a standard light LPO 1х36 «Kristall», with
anti-glare film applied to the diffuser. The lightis designed for general illumination of
public buildings and other similar premises.
ViLED 002
СС 32-136

43. Industrial lighting
43
Luminous flux of the Light 1 500 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 18 Wt
Ingress protection IP 20
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing plastic
Material of the diffuser light stabilized polystyrene
Weight 0,7 kg
Dimensions 600*150*45 mm
ViLED 002
СС 32-218
A LED light assembled in the housing of a standard light LPO 2х18 «Kristall», with anti-
glare film applied to the diffuser. The lightis designed for general illumination of public
buildings and other similar premises.

44. Industrial lighting
44
Luminous flux of the Light 3 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 38 Wt
Ingress protection IP 20
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing plastic
Material of the diffuser light stabilized polystyrene
Weight 1,4 kg
Dimensions 1250*150*45 mm
ViLED 002
СС 64-236
A LED light assembled in the housing of a standard light LPO 2х36 «Kristall», with
anti-glare film applied to the diffuser. The lightis designed for general illumination of
public buildings and other similar premises.

45. Industrial lighting
45
Luminous flux of the Light 4 100 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 52 Wt
Ingress protection IP 20
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing plastic
Material of the diffuser light stabilized polystyrene
Weight 1,4 kg
Dimensions 1250*150*45 mm
ViLED 002
СС 96-258
A LED light assembled in the housing of a standard light LPO 2х58 «Kristall», with anti-
glare film applied to the diffuser. The lightis designed for general illumination of public
buildings and other similar premises.

46. Industrial lighting
46
Luminous flux of the Light 1 500 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 18 Wt
Ingress protection IP 65
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing plastic
Material of the diffuser light stabilized polystyrene
Weight 1,2 kg
Dimensions 600*150*110 mm
ViLED 002
СС 32-218-ВЗ
A dust- and moisture-proof LED light assembled in the housing of a standard lightLSP
2х18, « Iceberg» with anti-glare film applied to the diffuser. The lightis designed for
illuminating premises with high concentrations of moisture and dust.

47. Industrial lighting
47
Luminous flux of the Light 1 500 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 18 Wt
Ingress protection IP 65
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing plastic
Material of the diffuser light stabilized polystyrene
Weight 1 kg
Dimensions 1250*100*95 mm
ViLED 002
СС 32-136-В3
A dust- and moisture-proof LED light assembled in the housing of a standard lightLSP
1х36, « Iceberg» with anti-glare film applied to the diffuser. The lightis designed for
illuminating premises with high concentrations of moisture and dust.

48. Industrial lighting
48
Luminous flux of the Light 3 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 38 Wt
Ingress protection IP 65
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing plastic
Material of the diffuser light stabilized polystyrene
Weight 1,4 kg
Dimensions 1250*150*110 mm
ViLED 002
СС 64-236-В3
A dust- and moisture-proof LED light assembled in the housing of a standard lightLSP
2х36, « Iceberg» with anti-glare film applied to the diffuser. The lightis designed for
illuminating premises with high concentrations of moisture and dust.

49. Industrial lighting
49
Luminous flux of the Light 4 100 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 54 Wt
Ingress protection IP 65
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing plastic
Material of the diffuser light stabilized polystyrene
Weight 1,4 kg
Dimensions 1250*150*110 mm
ViLED 002
СС 96-258-В3
Adust-andmoisture-proofLEDlightassembledinthehousingofastandardlightLSP2х58,
«Iceberg»withanti-glarefilmappliedtothediffuser.Thelightisdesignedforilluminating
premiseswithhighconcentrationsofmoistureanddust.

50. Industrial lighting
50
Luminous flux of the Light 3 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 38 Wt
Ingress protection IP 20
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing anodized aluminum
Material of the diffuser monolithic polycarbonate
«Split Ice»
Weight 2,1 kg
Dimensions 785*65*110 mm
ViLED 004
СС 64-158-КЛ-СО
A LED light is manufactured from a firm aluminum housing with a «Split Ice» diffuser.The
light is designed for illuminating stores and other public premises.

51. Industrial lighting
51
Luminous flux of the Light 3 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 38 Wt
Ingress protection IP 20
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing anodized aluminum
Material of the diffuser monolithic polycarbonate
«Pinspot»
Weight 2,1 kg
Dimensions 785*65*110 mm
ViLED 004
СС 64-158-ПС-СО
A LED light is manufactured from a firm aluminum housing with a «Pinspot» diffuser.
The light is designed for illuminating stores and other public premises.

52. Industrial lighting
52
Luminous flux of the Light 6 400 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 75 Wt
Ingress protection IP 20
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing anodized aluminum
Material of the diffuser monolithic polycarbonate
«Split Ice»
Weight 4 kg
Dimensions 1450*65*110 mm
ViLED 004
СС 128-258-КЛ-СО
A LED light is manufactured from a firm aluminum housing with a «Split Ice» diffuser.The
light is designed for illuminating stores and other public premises.

53. Industrial lighting
53
Luminous flux of the Light 6 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 75 Wt
Ingress protection IP 20
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing anodized aluminum
Material of the diffuser monolithic polycarbonate
«Pinspot»
Weight 4 kg
Dimensions 1450*65*110 mm
ViLED 004
СС 128-258-ПС-СО
A LED light is manufactured from a firm aluminum housing with a «Pinspot» diffuser.
The light is designed for illuminating stores and other public premises.

54. Industrial lighting
54
Luminous flux of the Light 3 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 38 Wt
Ingress protection IP 20
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing anodized aluminum
Material of the diffuser monolithic polycarbonate
«Split Ice»
Weight 1,4 kg
Dimensions 785*75*75 mm
ViLED 004
СС 64-158-КЛ
A LED light is manufactured from a firm aluminum housing with a «Split Ice» diffuser.The
light is designed for illuminating stores and other public premises.

55. Industrial lighting
55
Luminous flux of the Light 3 100 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 38 Wt
Ingress protection IP 20
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing anodized aluminum
Material of the diffuser monolithic polycarbonate
«Pinspot»
Weight 1,4 kg
Dimensions 785*75*75 mm
ViLED 004
СС 64-158-ПС
A LED light is manufactured from a firm aluminum housing with a «Pinspot» diffuser.
The light is designed for illuminating stores and other public premises.

56. Industrial lighting
56
Luminous flux of the Light 6 400 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 75 Wt
Ingress protection IP 20
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing anodized aluminum
Material of the diffuser monolithic polycarbonate
«Split Ice»
Weight 2,7 kg
Dimensions 785*75*75 mm
ViLED 004
СС 128-258-КЛ
A LED light is manufactured from a firm aluminum housing with a «Split Ice» diffuser.The
light is designed for illuminating stores and other public premises.

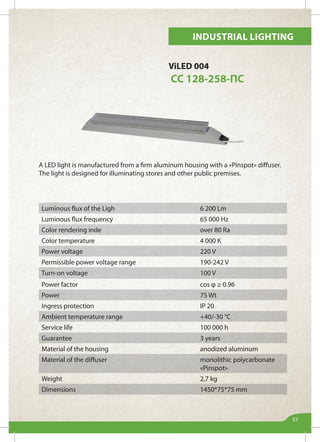

57. Industrial lighting
57
Luminous flux of the Ligh 6 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 75 Wt
Ingress protection IP 20
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing anodized aluminum
Material of the diffuser monolithic polycarbonate
«Pinspot»
Weight 2,7 kg
Dimensions 1450*75*75 mm
ViLED 004
СС 128-258-ПС
A LED light is manufactured from a firm aluminum housing with a «Pinspot» diffuser.
The light is designed for illuminating stores and other public premises.

58. Industrial lighting
58
ViLED 100
СС М1-36-У-1
A mono-unit 36 Wt LED light with universal
support. This light has a most wide use:
designed both for industrial application,
in workshops with high concentrations of
moisture and dust, and for illuminating
neighborhood roads. Can be used as a
spotlight.
Luminous flux of the Light 3 150 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 36 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 0,9 kg
Dimensions 305*103*39 mm

59. Industrial lighting
59
Luminous flux of the Light 7 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 70 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 2,2 kg
Dimensions 490*103*155 mm
ViLED 100
СС Т1-70-У-1
A triangular-shaped 70 Wt LED light with a
universal mount. This light has a most wide
use: designed both for industrial application,
in workshops with high concentrations of
moisture and dust, and for illuminating
neighborhood roads. Can be used as a
spotlight.

60. Industrial lighting
60
Luminous flux of the Light 14 400 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 140 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 4,3 kg
Dimensions 490*216*155 mm
ViLED 100
СС Т1-140-У-2
A double triangular-shaped 140 Wt LED
light with a universal mount. This light
has a most wide use: designed both for
industrial application, in workshops with high
concentrations of moisture and dust, and for
illuminating neighborhood roads. Can be
used as a spotlight.

61. Industrial lighting
61
Luminous flux of the Ligh 24 000 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 210 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 6,5 kg
Dimensions 490*329*155 mm
ViLED 100
СС Т1-210-У-3
A triple triangular-shaped 210 Wt LED light
with a universal mount. This light has a
most wide use: designed both for industrial
application, in workshops with high
concentrations of moisture and dust, and for
illuminating neighborhood roads. Can be
used as a spotlight.

62. Industrial lighting
62
Luminous flux of the Light 7 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 70 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 2,2 kg
Dimensions 490*103*155 mm
ViLED 100
СС Т1-70-Р-1
A 70 Wt LED light with a suspension mount.
This light has a most wide use: designed both
for industrial application, in workshops with
high concentrations of moisture and dust, and
for illuminating neighborhood roads. Can be
used as a spotlight.

63. Industrial lighting
63
Luminous flux of the Light 14 400 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 140 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 4,3 kg
Dimensions 490*216*205 mm
ViLED 100
СС Т1-140-Р-2
A double triangular-shaped 140 Wt LED
light with a suspension mount. This light
has a most wide use: designed both for
industrial application, in workshops with high
concentrations of moisture and dust, and for
illuminating neighborhood roads. Can be
used as a spotlight.

64. Industrial lighting
64
Luminous flux of the Light 21 600 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 210 Wt
Ingress protection IP 68
Ambient temperature range +50/-45 °С
Service life 100 000 h
Guarantee 5 years
Material of the housing anodized aluminum
Weight 6,4 kg
Dimensions 490*329*205 mm
ViLED 100
СС Т1-210-Р-3
A triple triangular-shaped 210 Wt LED
light with a suspension mount. This light
has a most wide use: designed both for
industrial application, in workshops with high
concentrations of moisture and dust, and for
illuminating neighborhood roads. Can be
used as a spotlight.

65. Office lighting
65
Luminous flux of the Light 3 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 38 Wt
Ingress protection IP 68
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing non-combustible PVC
Weight 2,2 kg
Dimensions 595*595*65 mm
ViLED 001
СС 64-418-КЛ
A LED light built into Armstrong and Griliato
ceilings, with a «Split Ice» diffuser. The housing
has a trapezoid shape with LED boards
located along the perimeter at the angle 35°
to the diffuser. This lightis designed to achieve
the effect of uniform lighting of public to
residential rooms

66. Office lighting
66
Luminous flux of the Light 3 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 38 Wt
Ingress protection IP 68
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing non-combustible PVC
Weight 2,2 kg
Dimensions 595*595*65 mm
ViLED 001
СС 64-418-М
A LED light built into Armstrong and Griliato
ceilings, with a «Matte polystyren» diffuser.
The housing has a trapezoid shape with LED
boards located along the perimeter at the
angle 35° to the diffuser. This lightis designed
to achieve the effect of uniform lighting of
public to residential rooms

67. Office lighting
67
Luminous flux of the Light 3 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 38 Wt
Ingress protection IP 68
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing non-combustible PVC
Weight 2,2 kg
Dimensions 595*595*65 mm
ViLED 001
СС 64-418-МП
A LED light built into Armstrong and Griliato
ceilings, with a «Matte cellular polycarbonate»
diffuser. The housing has a trapezoid shape
with LED boards located along the perimeter
at the angle 35° to the diffuser. This lightis
designed to achieve the effect of uniform
lighting of public to residential rooms

68. Office lighting
68
Luminous flux of the Light 3 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 38 Wt
Ingress protection IP 68
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing non-combustible PVC
Weight 2,2 kg
Dimensions 595*595*65 mm
ViLED 001
СС 64-418-ПС
A LED light built into Armstrong and Griliato
ceilings, with a «Pinspot» diffuser. The housing
has a trapezoid shape with LED boards
located along the perimeter at the angle 35°
to the diffuser. This lightis designed to achieve
the effect of uniform lighting of public to
residential rooms

69. Office lighting
69
Luminous flux of the Light 3 200 Lm
Luminous flux frequency 65 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 190-242 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 38 Wt
Ingress protection IP 68
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing non-combustible PVC
Weight 2,2 kg
Dimensions 595*595*65 mm
ViLED 001
СС 64-418-ПЗ
A LED light built into Armstrong and Griliato
ceilings, with a «Prismatic» diffuser. The
housing has a trapezoid shape with LED
boards located along the perimeter at the
angle 35° to the diffuser. This lightis designed
to achieve the effect of uniform lighting of
public to residential rooms

70. universal lighting
70
ViLED 10
A LED light is manufactured from a firm aluminum housing, with a
unique cooling system, a matte diffuser, and exquisite plastic end covers,
which are at the same time power plugs. This light has a wide sphere
of application, including for lighting residential premises, industrial
workshops, stores, educational establishments, outdoor and indoor
backlighting, parking lots, etc.
The advantages:
1. Unique dimensions (25mm wide, 40mm high)
2. High light efficiency (over 110 Lm/Wt from a light)
3. An option of a built-in surface suspension mount(a universal mount
set supplied with each light)
4. Protection from exterior effects IP 54 with an option of IP 65.
5. An option of successive connection of lights without an additional
input of a power cable (at the edges of each light in the end covers
there are power plugs in parallel with each other, and the set of each
light has a connector to switch up several lights and a plug with
power cable)
6. No blinding effect (uniform positioning of LEDs along the entire
length of the light, a matte diffuser)

71. universal lighting
71
Luminous flux of the Light 1 600 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 100-265 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 18 Wt
Ingress protection IP 54
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing anodized aluminum
Weight 0,2 kg
Dimensions 600*25*40 mm
ViLED 10
СС 600-16

72. universal lighting
72
Luminous flux of the Light 2 400 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 100-265 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 24 Wt
Ingress protection IP 54
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing anodized aluminum
Weight 0,3 kg
Dimensions 900*25*40 mm
ViLED 10
СС 900-24

73. universal lighting
73
Luminous flux of the Light 3 200 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 100-265 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 32 Wt
Ingress protection IP 68
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing anodized aluminum
Weight 0,4 kg
Dimensions 1200*25*40 mm
ViLED 10
СС 1200-32

74. universal lighting
74
Luminous flux of the Light 4 000 Lm
Luminous flux frequency 80 000 Hz
Color rendering inde over 80 Ra
Color temperature 4 000 К
Power voltage 220 V
Permissible power voltage range 100-265 V
Turn-on voltage 100 V
Power factor cos φ ≥ 0.96
Power 40 Wt
Ingress protection IP 54
Ambient temperature range +40/-30 °С
Service life 100 000 h
Guarantee 3 years
Material of the housing anodized aluminum
Weight 0,5 kg
Dimensions 1500*25*40 mm
ViLED 10
СС 1500-40

75. 75
Manufacturer’s commercial department:
198206, Russian Federation, Saint Petersburg, Pionerstroya str., 23, lit.B
contacts

76. 76
viled.net
