This document provides specifications for multiple LED street light models produced by Kingsun. It describes that each model uses a special quadric optical lens that casts light from the LED source onto a rectangular area to minimize light waste and pollution. The light distribution system can be designed through software to meet various lighting demands. Tables are included listing the wattage, voltage, mounting height, dimensions, coverage area, and light flux measurements for each model.

1. LED Light’s “Flux”
EGYRIA Construction, Engineering and Trade CO.
New Damietta, District II - Central Area - as opposed-
to Al Kafrawy (Saiedy) street.
P.O. Box : 60, New Damietta, Egypt,
Tel : 0020 (0) 57 2410904, Fax : 0020 (0) 57 2410907
Mobile : 0020 1227 559762 , 0020 1008 802866

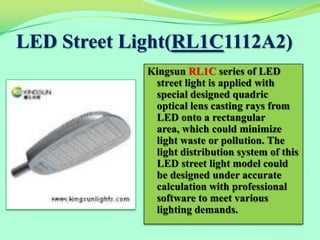

2. LED Street Light(RL1C1112A2)
Kingsun RL1C series of LED
street light is applied with
special designed quadric
optical lens casting rays from
LED onto a rectangular
area, which could minimize
light waste or pollution. The
light distribution system of this
LED street light model could
be designed under accurate
calculation with professional
software to meet various
lighting demands.

3. LED Street Light(RL1C1112A2)
Input LED
Watts Voltag Initial Height W L M2 Flux
e Flux
AC170
112W 10080 6M 7 21 147
-250V 82.50
"" "" "" 8M 10 28 280
46.00
"" "" "" 10M 12 35 420 30
"" "" "" 12M 15 42 630 20.5

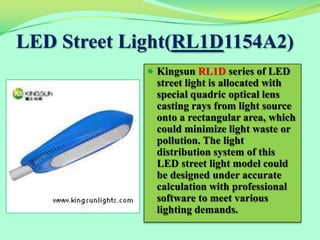

4. LED Street Light(RL1D1154A2)
 Kingsun RL1D series of LED
street light is allocated with
special quadric optical lens
casting rays from light source
onto a rectangular area, which
could minimize light waste or
pollution. The light
distribution system of this
LED street light model could
be designed under accurate
calculation with professional
software to meet various
lighting demands.

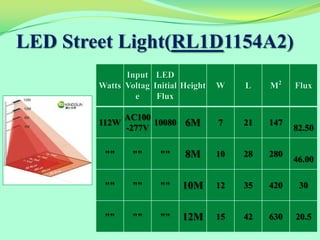

5. LED Street Light(RL1D1154A2)
Input LED
Watts Voltag Initial Height W L M2 Flux
e Flux
AC100
112W 10080 6M 7 21 147
-277V 82.50
"" "" "" 8M 10 28 280
46.00
"" "" "" 10M 12 35 420 30
"" "" "" 12M 15 42 630 20.5

6. LED Street Light(RL1E1112A2)
 Kingsun RL1E series of LED
street light is allocated with
special quadric optical lens
casting rays from light source
onto a rectangular area, which
could minimize light waste or
pollution. The light
distribution system of this
LED street light model could
be designed under accurate
calculation with professional
software to meet various
lighting demands.

7. LED Street Light(RL1E1112A2)
Input LED
Watts Voltag Initial Height W L M2 Flux
e Flux
AC100-
277V,
112W
DC12V,
10080 6M 7 21 147
82.50
DC24V
"" "" "" 8M 10 28 280
46.00
"" "" "" 10M 12 35 420 30
"" "" "" 12M 15 42 630 20.5

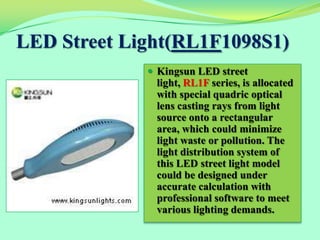

8. LED Street Light(RL1F1098S1)
 Kingsun LED street
light, RL1F series, is allocated
with special quadric optical
lens casting rays from light
source onto a rectangular
area, which could minimize
light waste or pollution. The
light distribution system of
this LED street light model
could be designed under
accurate calculation with
professional software to meet
various lighting demands.

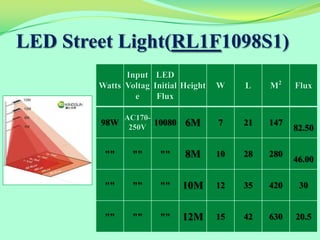

9. LED Street Light(RL1F1098S1)
Input LED
Watts Voltag Initial Height W L M2 Flux
e Flux
AC170-
98W
250V
10080 6M 7 21 147
82.50
"" "" "" 8M 10 28 280
46.00
"" "" "" 10M 12 35 420 30
"" "" "" 12M 15 42 630 20.5
