LED street light ,modular LED street light,Solar DC24V LED street light,30W 45W 60W 90W 120W 150W 180W for option. Cree LED chip/Philips LED chip,Meanwell LED driver,Sales@auroraslighting.com

1. Auroras Lighting Solution Co., Ltd
Tel:86-756-8530887 Sales@auroraslighting.com Whatsapp:86-18023075361
NO.639,Huayu St,Qianshan,Zhuhai,Guangdong, China519075

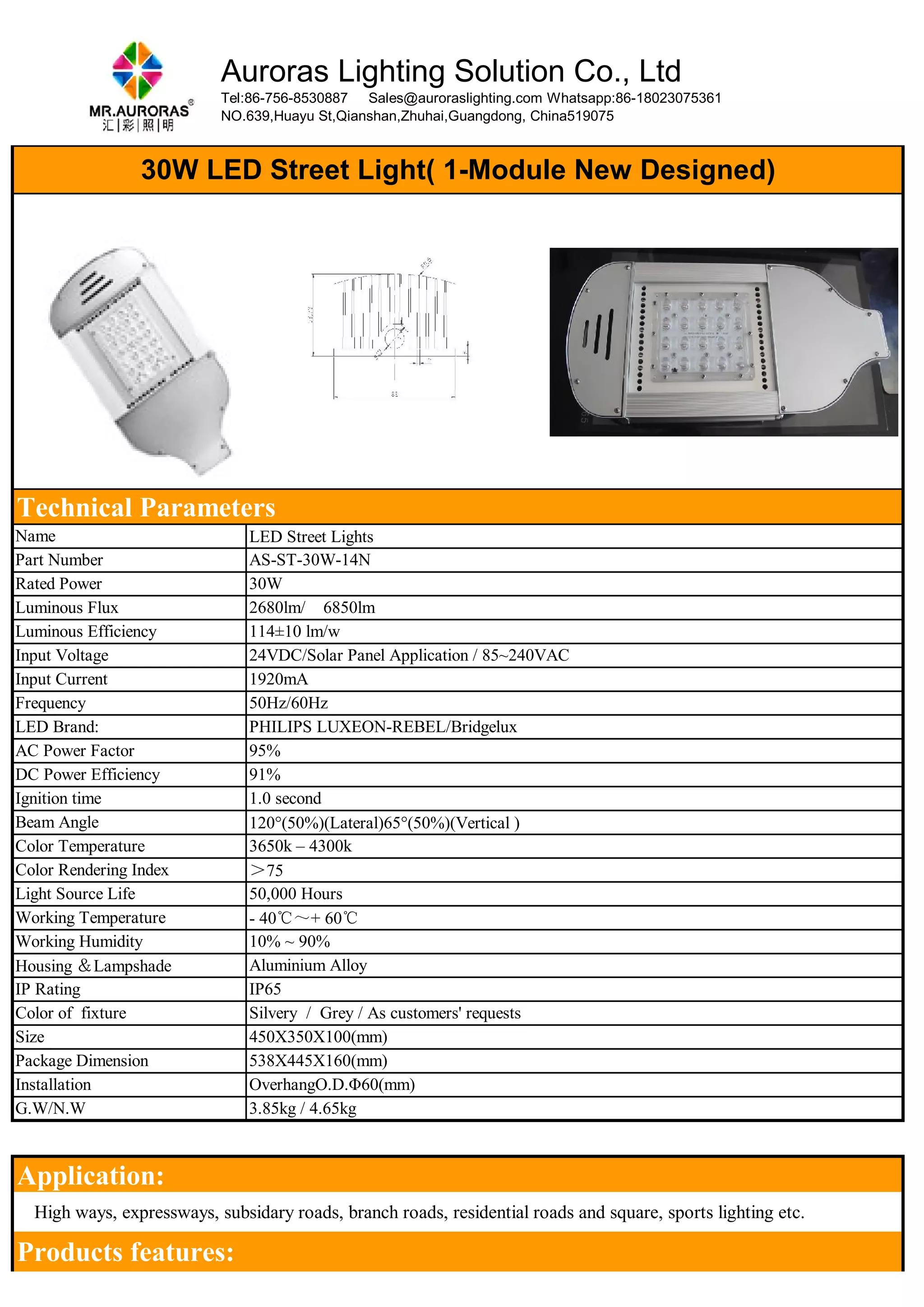

30W LED Street Light( 1-Module New Designed)
Technical Parameters
Name LED Street Lights
Part Number AS-ST-30W-14N
Rated Power 30W
Luminous Flux 2680lm/ 6850lm
Luminous Efficiency 114±10 lm/w
Input Voltage 24VDC/Solar Panel Application / 85~240VAC
Input Current 1920mA
Frequency 50Hz/60Hz
LED Brand: PHILIPS LUXEON-REBEL/Bridgelux
AC Power Factor 95%
DC Power Efficiency 91%
Ignition time 1.0 second
Beam Angle 120°(50%)(Lateral)65°(50%)(Vertical )
Color Temperature 3650k – 4300k
Color Rendering Index ＞75
Light Source Life 50,000 Hours
Working Temperature - 40℃～+ 60℃
Working Humidity 10% ~ 90%
Housing ＆Lampshade Aluminium Alloy
IP Rating IP65
Color of fixture Silvery / Grey / As customers' requests
Size 450X350X100(mm)
Package Dimension 538X445X160(mm)
Installation OverhangO.D.Φ60(mm)
G.W/N.W 3.85kg / 4.65kg
Application:
High ways, expressways, subsidary roads, branch roads, residential roads and square, sports lighting etc.
Products features:

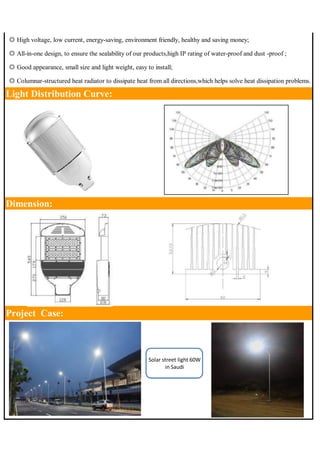

2. ◎ High voltage, low current, energy-saving, environment friendly, healthy and saving money;
◎ All-in-one design, to ensure the sealability of our products,high IP rating of water-proof and dust -proof ;
◎ Good appearance, small size and light weight, easy to install;
◎ Columnar-structured heat radiator to dissipate heat from all directions,which helps solve heat dissipation problems.
Light Distribution Curve:
Dimension:
Project Case:
Solar street light 60W
in Saudi

3. Auroras Lighting Solution Co., Ltd
Tel:86-756-8530887 Sales@auroraslighting.com Whatsapp:86-18023075361
NO.639,Huayu St,Qianshan,Zhuhai,Guangdong, China519075
45W/60W LED Street Light(2-Modules New Designed)
Technical Parameters
Name LED Street Lights
Part Number AS-ST-60W-14N
Rated Power 45W/60W
Luminous Flux 3690lm/ 6850lm
Luminous Efficiency 114±10 lm/w
Input Voltage 24VDC/Solar Panel Application / 85~240VAC
Input Current 1920mA
Frequency 50Hz/60Hz
LED Brand: PHILIPS LUXEON-REBEL/Bridgelux
AC Power Factor 95%
DC Power Efficiency 91%
Ignition time 1.0 second
Beam Angle 120°(50%)(Lateral)65°(50%)(Vertical )
Color Temperature 3650k – 4300k
Color Rendering Index ＞75
Light Source Life 100,000 Hours
Working Temperature - 40℃～+ 60℃
Working Humidity 10% ~ 90%
Housing ＆Lampshade Aluminium Alloy
IP Rating IP65
Color of fixture Silvery / Grey / As customers' requests
Size 550X350X100(mm)
Package Dimension 638X445X160(mm)
Installation OverhangO.D.Φ60(mm)
G.W/N.W 4.85kg / 5.65kg
Application:
High ways, expressways, subsidary roads, branch roads, residential roads and square, sports lighting etc.

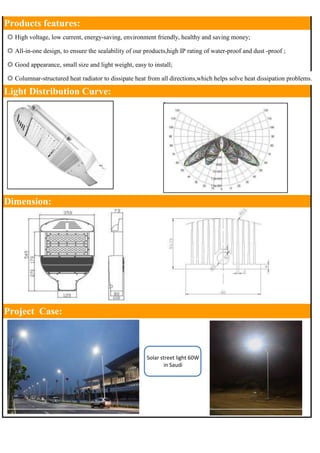

4. Products features:
◎ High voltage, low current, energy-saving, environment friendly, healthy and saving money;
◎ All-in-one design, to ensure the sealability of our products,high IP rating of water-proof and dust -proof ;
◎ Good appearance, small size and light weight, easy to install;
◎ Columnar-structured heat radiator to dissipate heat from all directions,which helps solve heat dissipation problems.
Light Distribution Curve:
Dimension:
Project Case:
Solar street light 60W
in Saudi

5. Auroras Lighting Solution Co., Ltd
Tel:86-756-8530887 Sales@auroraslighting.com Whatsapp:86-18023075361
NO.639,Huayu St,Qianshan,Zhuhai,Guangdong, China519075

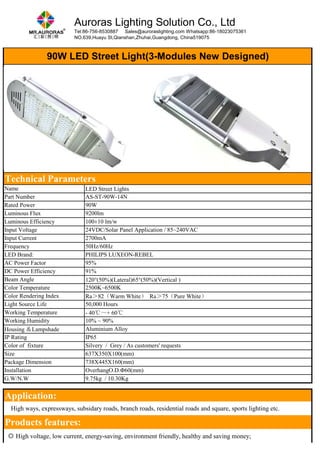

90W LED Street Light(3-Modules New Designed)
Technical Parameters
Name LED Street Lights
Part Number AS-ST-90W-14N
Rated Power 90W
Luminous Flux 9200lm
Luminous Efficiency 100±10 lm/w
Input Voltage 24VDC/Solar Panel Application / 85~240VAC
Input Current 2700mA
Frequency 50Hz/60Hz
LED Brand: PHILIPS LUXEON-REBEL
AC Power Factor 95%
DC Power Efficiency 91%
Beam Angle 120°(50%)(Lateral)65°(50%)(Vertical )
Color Temperature 2500K~6500K
Color Rendering Index Ra＞82（Warm White） Ra＞75（Pure White）
Light Source Life 50,000 Hours
Working Temperature - 40℃～+ 60℃
Working Humidity 10% ~ 90%
Housing ＆Lampshade Aluminium Alloy
IP Rating IP65
Color of fixture Silvery / Grey / As customers' requests
Size 637X350X100(mm)
Package Dimension 738X445X160(mm)
Installation OverhangO.D.Φ60(mm)
G.W/N.W 9.75kg / 10.30Kg
Application:
High ways, expressways, subsidary roads, branch roads, residential roads and square, sports lighting etc.
Products features:
◎ High voltage, low current, energy-saving, environment friendly, healthy and saving money;

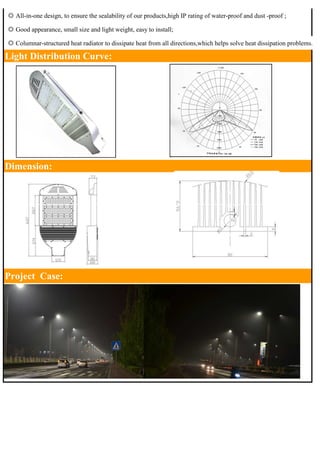

6. ◎ All-in-one design, to ensure the sealability of our products,high IP rating of water-proof and dust -proof ;
◎ Good appearance, small size and light weight, easy to install;
◎ Columnar-structured heat radiator to dissipate heat from all directions,which helps solve heat dissipation problems.
Light Distribution Curve:
Dimension:
Project Case:

7. Auroras Lighting Solution Co., Ltd
Tel:86-756-8530887 Sales@auroraslighting.com Whatsapp:86-18023075361
NO.639,Huayu St,Qianshan,Zhuhai,Guangdong, China519075

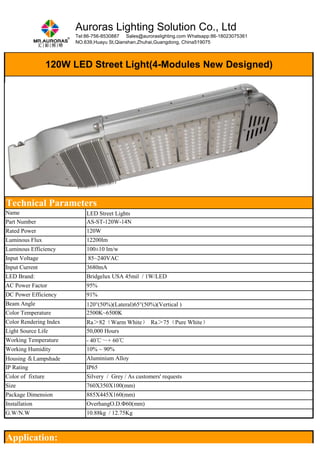

120W LED Street Light(4-Modules New Designed)
Technical Parameters
Name LED Street Lights
Part Number AS-ST-120W-14N
Rated Power 120W
Luminous Flux 12200lm
Luminous Efficiency 100±10 lm/w
Input Voltage 85~240VAC
Input Current 3680mA
LED Brand: Bridgelux USA 45mil / 1W/LED
AC Power Factor 95%
DC Power Efficiency 91%
Beam Angle 120°(50%)(Lateral)65°(50%)(Vertical )
Color Temperature 2500K~6500K
Color Rendering Index Ra＞82（Warm White） Ra＞75（Pure White）
Light Source Life 50,000 Hours
Working Temperature - 40℃～+ 60℃
Working Humidity 10% ~ 90%
Housing ＆Lampshade Aluminium Alloy
IP Rating IP65
Color of fixture Silvery / Grey / As customers' requests
Size 760X350X100(mm)
Package Dimension 885X445X160(mm)
Installation OverhangO.D.Φ60(mm)
G.W/N.W 10.88kg / 12.75Kg
Application:

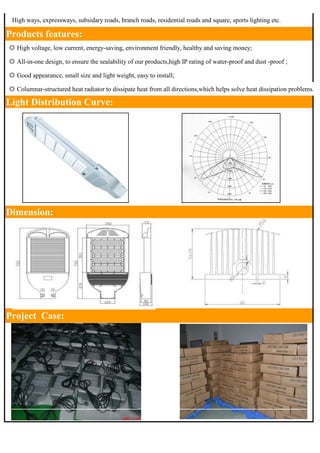

8. High ways, expressways, subsidary roads, branch roads, residential roads and square, sports lighting etc.
Products features:
◎ High voltage, low current, energy-saving, environment friendly, healthy and saving money;
◎ All-in-one design, to ensure the sealability of our products,high IP rating of water-proof and dust -proof ;
◎ Good appearance, small size and light weight, easy to install;
◎ Columnar-structured heat radiator to dissipate heat from all directions,which helps solve heat dissipation problems.
Light Distribution Curve:
Dimension:
Project Case:

9. Auroras Lighting Solution Co., Ltd
Tel:86-756-8530887 Sales@auroraslighting.com Whatsapp:86-18023075361
NO.639,Huayu St,Qianshan,Zhuhai,Guangdong, China519075
150W LED Street Light(5-Modules New Designed)
Technical Parameters
Name LED Street Lights
Part Number AS-ST-150W-14N
Rated Power 150W
Luminous Flux 14600lm
Luminous Efficiency 100±10 lm/w
Input Voltage 85~240VAC
Input Current 4550mA
LED Brand: Bridgelux USA 45mil / 1W/LED
AC Power Factor 95%
DC Power Efficiency 91%
Beam Angle 120°(50%)(Lateral)65°(50%)(Vertical )
Color Temperature 2500K~6500K
Color Rendering Index Ra＞82（Warm White） Ra＞75（Pure White）
Light Source Life 50,000 Hours
Working Temperature - 40℃～+ 60℃
Working Humidity 10% ~ 90%
Housing ＆Lampshade Aluminium Alloy
IP Rating IP65
Color of fixture Silvery / Grey / As customers' requests
Size 810X350X100(mm)
Package Dimension 938X445X160(mm)
Installation OverhangO.D.Φ60(mm)
G.W/N.W 12.75kg / 13.20Kg

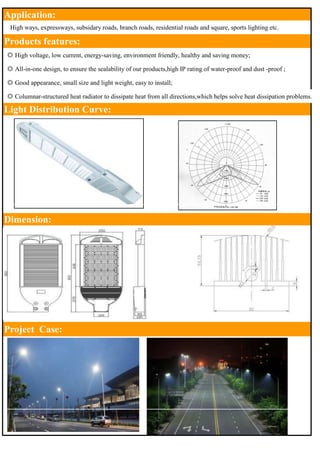

10. Application:
High ways, expressways, subsidary roads, branch roads, residential roads and square, sports lighting etc.
Products features:
◎ High voltage, low current, energy-saving, environment friendly, healthy and saving money;
◎ All-in-one design, to ensure the sealability of our products,high IP rating of water-proof and dust -proof ;
◎ Good appearance, small size and light weight, easy to install;
◎ Columnar-structured heat radiator to dissipate heat from all directions,which helps solve heat dissipation problems.
Light Distribution Curve:
Dimension:
Project Case:
