عضات الافاعي والعقارب محاضره توعويه لكليات التمريص

1. SNAKE BITE

2. Classification of snakes
Poisonous snakes belong to three Families on
the basis of poison secreted :
• 1. Elapidae : Neurotoxic
• 2. Viperidae : Vasculotoxic
• 3. Hydrophidae : Myotoxic

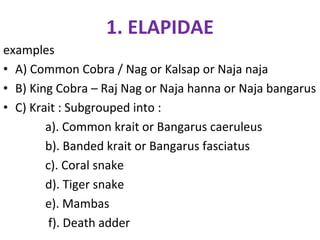

3. 1. ELAPIDAE
examples
• A) Common Cobra / Nag or Kalsap or Naja naja
• B) King Cobra – Raj Nag or Naja hanna or Naja bangarus
• C) Krait : Subgrouped into :
a). Common krait or Bangarus caeruleus
b). Banded krait or Bangarus fasciatus
c). Coral snake
d). Tiger snake
e). Mambas
f). Death adder

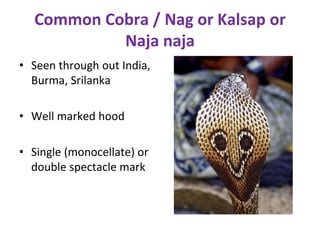

4. Common Cobra / Nag or Kalsap or
Naja naja
• Seen through out India,
Burma, Srilanka
• Well marked hood
• Single (monocellate) or
double spectacle mark

6. Monocellate Cobra
Naja Naja Kaouthia

7. 1. Common krait
Bungarus Caeruleus
Neurotoxic

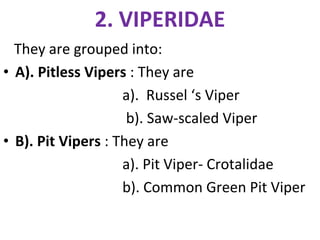

8. 2. VIPERIDAE
They are grouped into:
• A). Pitless Vipers : They are
a). Russel ‘s Viper
b). Saw-scaled Viper
• B). Pit Vipers : They are
a). Pit Viper- Crotalidae
b). Common Green Pit Viper

9. 1. Saw scaled viper
)repiv teprac)
Echis carinatus
Haematotoxic

10. 1. Russell’s viper
Daboia russelli
Haematotoxic

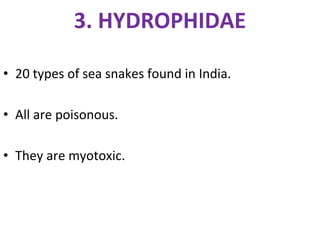

11. 3. HYDROPHIDAE
• 20 types of sea snakes found in India.
• All are poisonous.
• They are myotoxic.

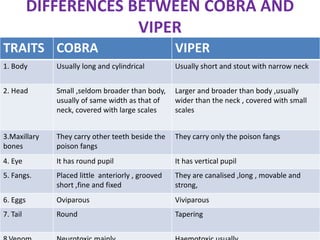

12. DIFFERENCES BETWEEN COBRA AND
VIPER
TRAITS COBRA VIPER
1. Body Usually long and cylindrical Usually short and stout with narrow neck
2. Head Small ,seldom broader than body,
usually of same width as that of
neck, covered with large scales
Larger and broader than body ,usually
wider than the neck , covered with small
scales
3.Maxillary
bones
They carry other teeth beside the
poison fangs
They carry only the poison fangs
4. Eye It has round pupil It has vertical pupil
5. Fangs. Placed little anteriorly , grooved
short ,fine and fixed
They are canalised ,long , movable and
strong,
6. Eggs Oviparous Viviparous
7. Tail Round Tapering

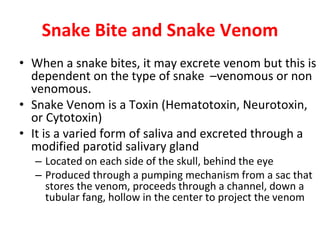

13. Snake Bite and Snake Venom
• When a snake bites, it may excrete venom but this is
dependent on the type of snake –venomous or non
venomous.
• Snake Venom is a Toxin (Hematotoxin, Neurotoxin,
or Cytotoxin)
• It is a varied form of saliva and excreted through a
modified parotid salivary gland
– Located on each side of the skull, behind the eye
– Produced through a pumping mechanism from a sac that
stores the venom, proceeds through a channel, down a
tubular fang, hollow in the center to project the venom

14. SNAKE VENOM
• Snake venoms are
– A combination of proteins and enzymes
– 90
% protein by dry weight & most of these are
enzymes
– Have 25 different enzymes found in various venoms
and 10 of these occur frequently in most venoms
– Synergistic in effects: different venoms contain
different combinations of enzymes causing a more
potent effect than any of the individual effects (very
similar to drug synergism)

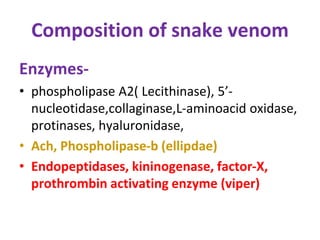

15. Composition of snake venom
Enzymes-
• phospholipase A2) Lecithinase), 5’-
nucleotidase,collaginase,L-aminoacid oxidase,
protinases, hyaluronidase,
• Ach, Phospholipase-b (ellipdae)
• Endopeptidases, kininogenase, factor-X,
prothrombin activating enzyme (viper)

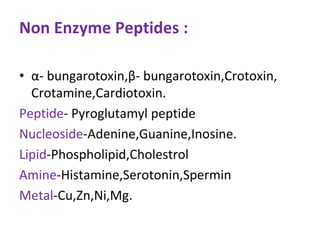

16. Non Enzyme Peptides :
• α- bungarotoxin,β- bungarotoxin,Crotoxin,
Crotamine,Cardiotoxin.
Peptide- Pyroglutamyl peptide
Nucleoside-Adenine,Guanine,Inosine.
Lipid-Phospholipid,Cholestrol
Amine-Histamine,Serotonin,Spermin
Metal-Cu,Zn,Ni,Mg.

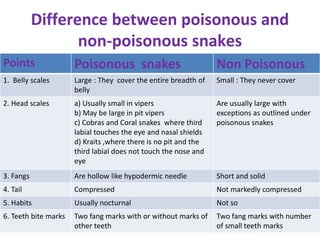

17. Difference between poisonous and
non-poisonous snakes
Points Poisonous snakes Non Poisonous
1. Belly scales Large : They cover the entire breadth of
belly
Small : They never cover
2. Head scales a) Usually small in vipers
b) May be large in pit vipers
c) Cobras and Coral snakes where third
labial touches the eye and nasal shields
d) Kraits ,where there is no pit and the
third labial does not touch the nose and
eye
Are usually large with
exceptions as outlined under
poisonous snakes
3. Fangs Are hollow like hypodermic needle Short and solid
4. Tail Compressed Not markedly compressed
5. Habits Usually nocturnal Not so
6. Teeth bite marks Two fang marks with or without marks of
other teeth
Two fang marks with number
of small teeth marks

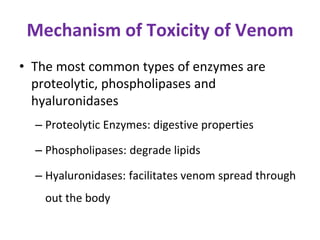

18. Mechanism of Toxicity of Venom
• The most common types of enzymes are
proteolytic, phospholipases and
hyaluronidases
– Proteolytic Enzymes: digestive properties
– Phospholipases: degrade lipids
– Hyaluronidases: facilitates venom spread through
out the body

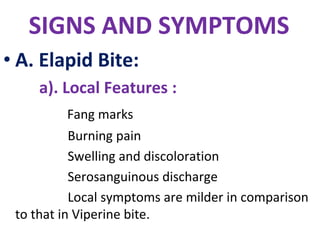

19. SIGNS AND SYMPTOMS
• A. Elapid Bite:
a). Local Features :
Fang marks
Burning pain
Swelling and discoloration
Serosanguinous discharge
Local symptoms are milder in comparison
to that in Viperine bite.

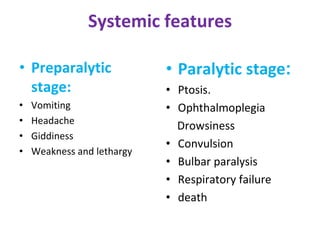

20. Systemic features
• Preparalytic
stage:
• Vomiting
• Headache
• Giddiness
• Weakness and lethargy
• Paralytic stage:
• Ptosis.
• Ophthalmoplegia
Drowsiness
• Convulsion
• Bulbar paralysis
• Respiratory failure
• death

21. • B. Viperid bite :
• Local features : Rapid swelling at bite site
Discoloration
Blister formation
Bleeding from bite site
Pain

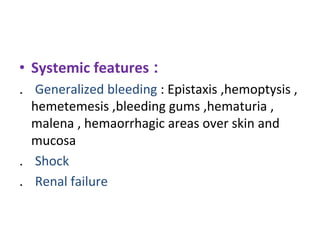

22. • Systemic features :
. Generalized bleeding : Epistaxis ,hemoptysis ,
hemetemesis ,bleeding gums ,hematuria ,
malena , hemaorrhagic areas over skin and
mucosa
. Shock
. Renal failure

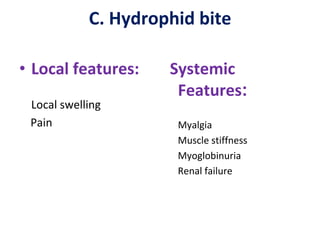

23. C. Hydrophid bite
• Local features:
Local swelling
Pain
Systemic
Features:
Myalgia
Muscle stiffness
Myoglobinuria
Renal failure

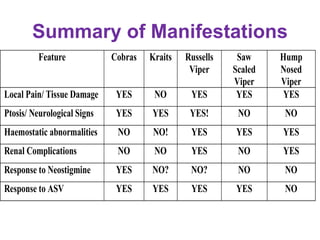

24. Summary of Manifestations
Feature Cobras Kraits Russells
Viper
Saw
Scaled
Viper
Hump
Nosed
Viper
Local Pain/ Tissue Damage YES NO YES YES YES
Ptosis/ Neurological Signs YES YES YES! NO NO
Haemostatic abnormalities NO NO! YES YES YES
Renal Complications NO NO YES NO YES
Response to Neostigmine YES NO? NO? NO NO
Response to ASV YES YES YES YES NO

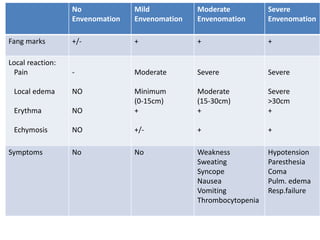

25. No
Envenomation
Mild
Envenomation
Moderate
Envenomation
Severe
Envenomation
Fang marks +/- + + +
Local reaction:
Pain
Local edema
Erythma
Echymosis
-
NO
NO
NO
Moderate
Minimum
(0-15cm)
+
+/-
Severe
Moderate
(15-30cm)
+
+
Severe
Severe
>30cm
+
+
Symptoms No No Weakness
Sweating
Syncope
Nausea
Vomiting
Thrombocytopenia
Hypotension
Paresthesia
Coma
Pulm. edema
Resp.failure

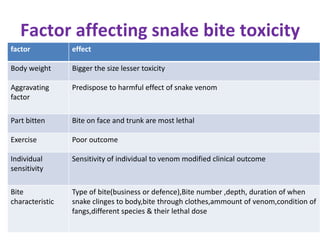

26. Factor affecting snake bite toxicity
factor effect
Body weight Bigger the size lesser toxicity
Aggravating
factor
Predispose to harmful effect of snake venom
Part bitten Bite on face and trunk are most lethal
Exercise Poor outcome
Individual
sensitivity
Sensitivity of individual to venom modified clinical outcome
Bite
characteristic
Type of bite(business or defence),Bite number ,depth, duration of when
snake clinges to body,bite through clothes,ammount of venom,condition of
fangs,different species & their lethal dose

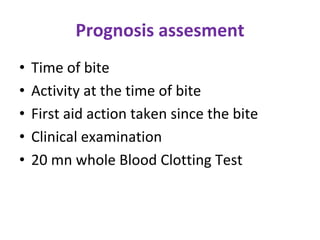

27. Prognosis assesment
• Time of bite
• Activity at the time of bite
• First aid action taken since the bite
• Clinical examination
• 20 mn whole Blood Clotting Test

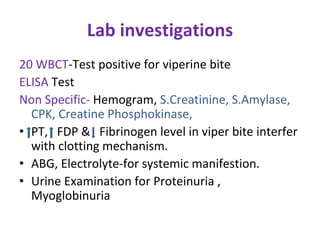

28. Lab investigations
20 WBCT-Test positive for viperine bite
ELISA Test
Non Specific- Hemogram, S.Creatinine, S.Amylase,
CPK, Creatine Phosphokinase,
• PT, FDP & Fibrinogen level in viper bite interfer
with clotting mechanism.
• ABG, Electrolyte-for systemic manifestion.
• Urine Examination for Proteinuria ,
Myoglobinuria

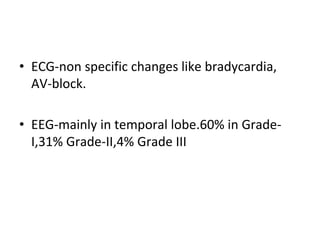

29. • ECG-non specific changes like bradycardia,
AV-block.
• EEG-mainly in temporal lobe.60% in Grade-
I,31% Grade-II,4% Grade III

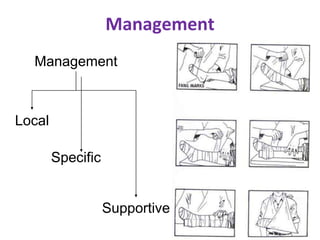

30. Management
Management
Local
Specific
Supportive

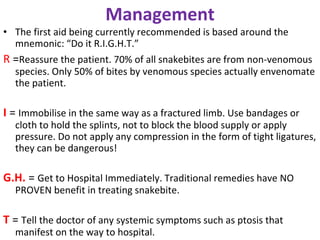

31. Management
• The first aid being currently recommended is based around the
mnemonic: “Do it R.I.G.H.T.”
R =Reassure the patient. 70% of all snakebites are from non-venomous
species. Only 50% of bites by venomous species actually envenomate
the patient.
I = Immobilise in the same way as a fractured limb. Use bandages or
cloth to hold the splints, not to block the blood supply or apply
pressure. Do not apply any compression in the form of tight ligatures,
they can be dangerous!
G.H. = Get to Hospital Immediately. Traditional remedies have NO
PROVEN benefit in treating snakebite.
T = Tell the doctor of any systemic symptoms such as ptosis that
manifest on the way to hospital.

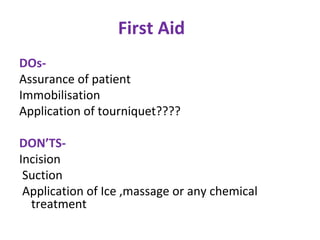

32. First Aid
DOs-
Assurance of patient
Immobilisation
Application of tourniquet????
DON’TS-
Incision
Suction
Application of Ice ,massage or any chemical
treatment

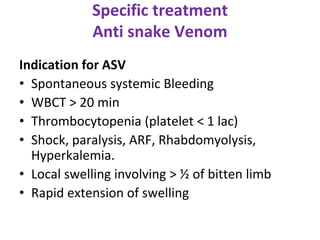

33. Specific treatment
Anti snake Venom
Indication for ASV
• Spontaneous systemic Bleeding
• WBCT > 20 min
• Thrombocytopenia (platelet < 1 lac)
• Shock, paralysis, ARF, Rhabdomyolysis,
Hyperkalemia.
• Local swelling involving > ½ of bitten limb
• Rapid extension of swelling

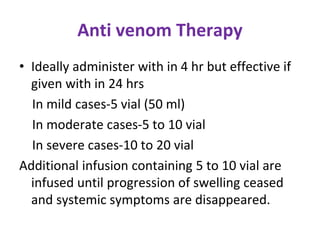

34. Anti venom Therapy
• Ideally administer with in 4 hr but effective if
given with in 24 hrs
In mild cases-5 vial (50 ml)
In moderate cases-5 to 10 vial
In severe cases-10 to 20 vial
Additional infusion containing 5 to 10 vial are
infused until progression of swelling ceased
and systemic symptoms are disappeared.

35. • ASV can be administer slow i.v. injection or
infusion @ rate of 2ml/min
• AVS dilute 5-10 ml/kg body weight of normal
saline or 5% dextrose and infused over 1 hr
• ASV should never given locally at site of snake
bite.

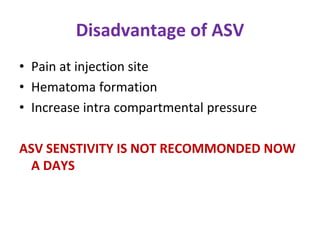

36. Disadvantage of ASV
• Pain at injection site
• Hematoma formation
• Increase intra compartmental pressure
ASV SENSTIVITY IS NOT RECOMMONDED NOW
A DAYS

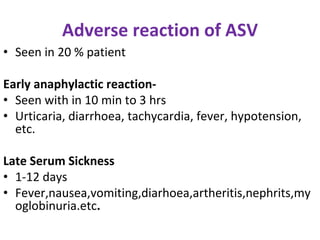

37. Adverse reaction of ASV
• Seen in 20 % patient
Early anaphylactic reaction-
• Seen with in 10 min to 3 hrs
• Urticaria, diarrhoea, tachycardia, fever, hypotension,
etc.
Late Serum Sickness
• 1-12 days
• Fever,nausea,vomiting,diarhoea,artheritis,nephrits,my
oglobinuria.etc.

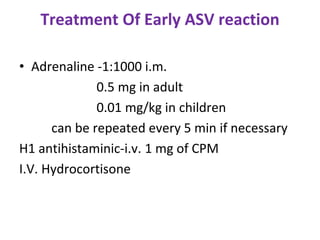

38. Treatment Of Early ASV reaction
• Adrenaline -1:1000 i.m.
0.5 mg in adult
0.01 mg/kg in children
can be repeated every 5 min if necessary
H1 antihistaminic-i.v. 1 mg of CPM
I.V. Hydrocortisone

39. Treatment Of Late ASV reaction
• 5 days course of oral anti histaminic CPM
2mg/6hour-adult
0.25 mg/kg/day in divided dose
Patient who fail to response with in 24 hr
Predinisolone-
5mg/6h in adult
0.7 mg/kg/day in divided dose in children

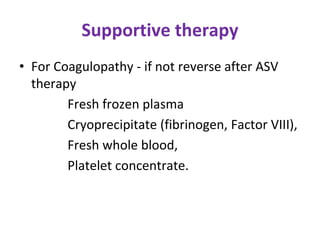

40. Supportive therapy
• For Coagulopathy - if not reverse after ASV
therapy
Fresh frozen plasma
Cryoprecipitate (fibrinogen, Factor VIII),
Fresh whole blood,
Platelet concentrate.

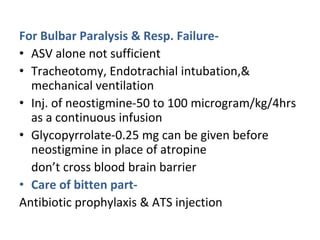

41. For Bulbar Paralysis & Resp. Failure-
• ASV alone not sufficient
• Tracheotomy, Endotrachial intubation,&
mechanical ventilation
• Inj. of neostigmine-50 to 100 microgram/kg/4hrs
as a continuous infusion
• Glycopyrrolate-0.25 mg can be given before
neostigmine in place of atropine
don’t cross blood brain barrier
• Care of bitten part-
Antibiotic prophylaxis & ATS injection

42. Scorpions

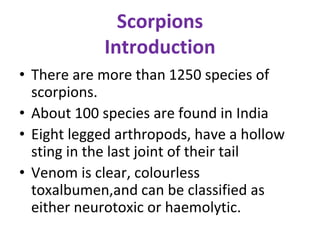

43. Scorpions
Introduction
• There are more than 1250 species of
scorpions.
• About 100 species are found in India
• Eight legged arthropods, have a hollow
sting in the last joint of their tail
• Venom is clear, colourless
toxalbumen,and can be classified as
either neurotoxic or haemolytic.

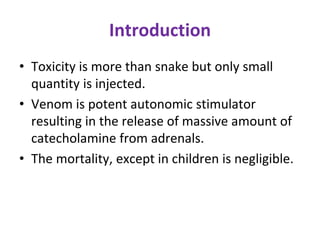

44. Introduction
• Toxicity is more than snake but only small
quantity is injected.
• Venom is potent autonomic stimulator
resulting in the release of massive amount of
catecholamine from adrenals.
• The mortality, except in children is negligible.

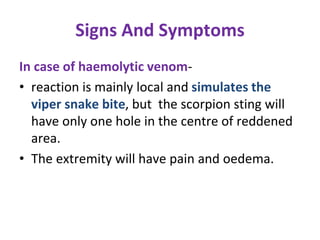

45. Signs And Symptoms
In case of haemolytic venom-
• reaction is mainly local and simulates the
viper snake bite, but the scorpion sting will
have only one hole in the centre of reddened
area.
• The extremity will have pain and oedema.

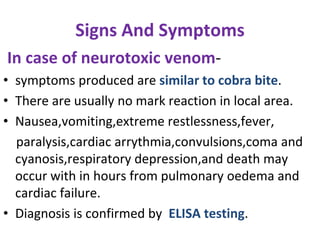

46. Signs And Symptoms
In case of neurotoxic venom-
• symptoms produced are similar to cobra bite.
• There are usually no mark reaction in local area.
• Nausea,vomiting,extreme restlessness,fever,
paralysis,cardiac arrythmia,convulsions,coma and
cyanosis,respiratory depression,and death may
occur with in hours from pulmonary oedema and
cardiac failure.
• Diagnosis is confirmed by ELISA testing.

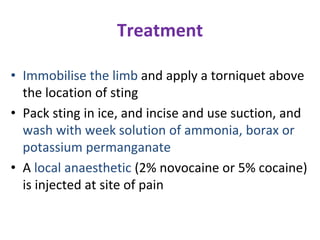

47. Treatment
• Immobilise the limb and apply a torniquet above
the location of sting
• Pack sting in ice, and incise and use suction, and
wash with week solution of ammonia, borax or
potassium permanganate
• A local anaesthetic (2% novocaine or 5% cocaine)
is injected at site of pain

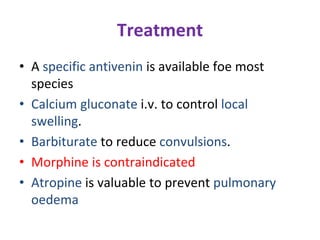

48. Treatment
• A specific antivenin is available foe most
species
• Calcium gluconate i.v. to control local
swelling.
• Barbiturate to reduce convulsions.
• Morphine is contraindicated
• Atropine is valuable to prevent pulmonary
oedema

49. Questions

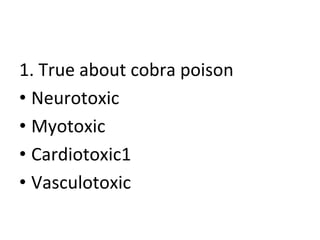

50. 1. True about cobra poison
• Neurotoxic
• Myotoxic
• Cardiotoxic1
• Vasculotoxic

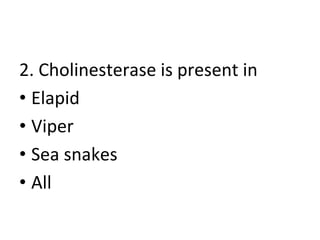

51. 2. Cholinesterase is present in
• Elapid
• Viper
• Sea snakes
• All

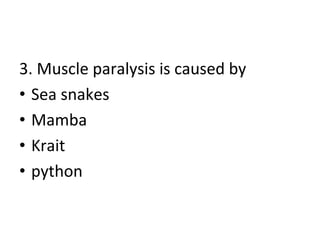

52. 3. Muscle paralysis is caused by
• Sea snakes
• Mamba
• Krait
• python

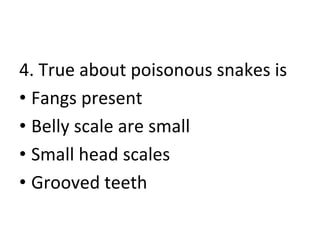

53. 4. True about poisonous snakes is
• Fangs present
• Belly scale are small
• Small head scales
• Grooved teeth

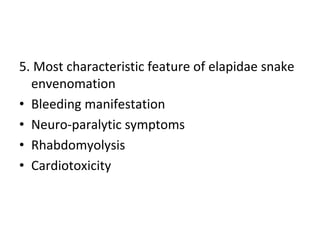

54. 5. Most characteristic feature of elapidae snake
envenomation
• Bleeding manifestation
• Neuro-paralytic symptoms
• Rhabdomyolysis
• Cardiotoxicity
