Sring pump

1. ——— Share With The World ———

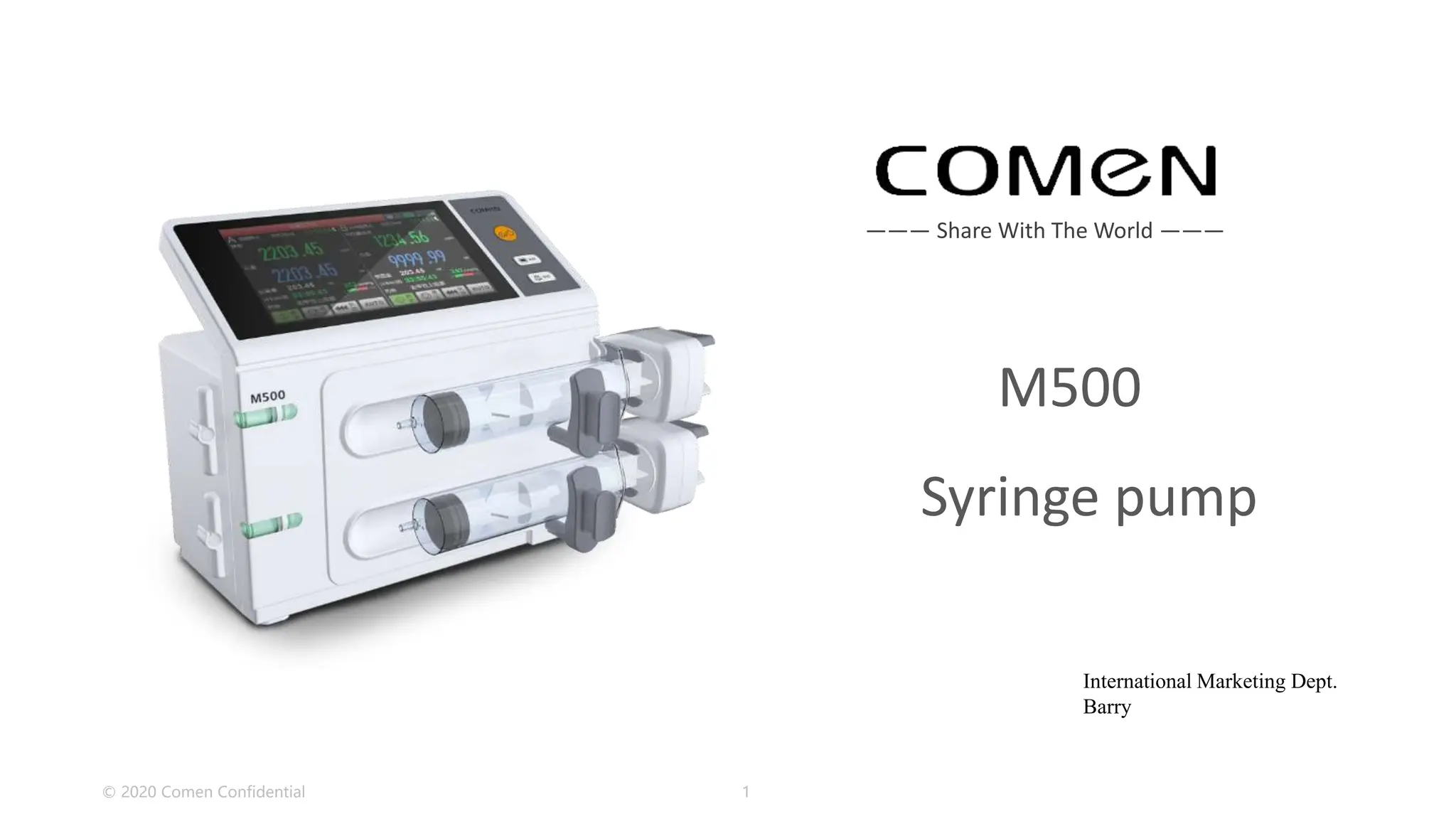

M500
Syringe pump
International Marketing Dept.
Barry
© 2020 Comen Confidential 1

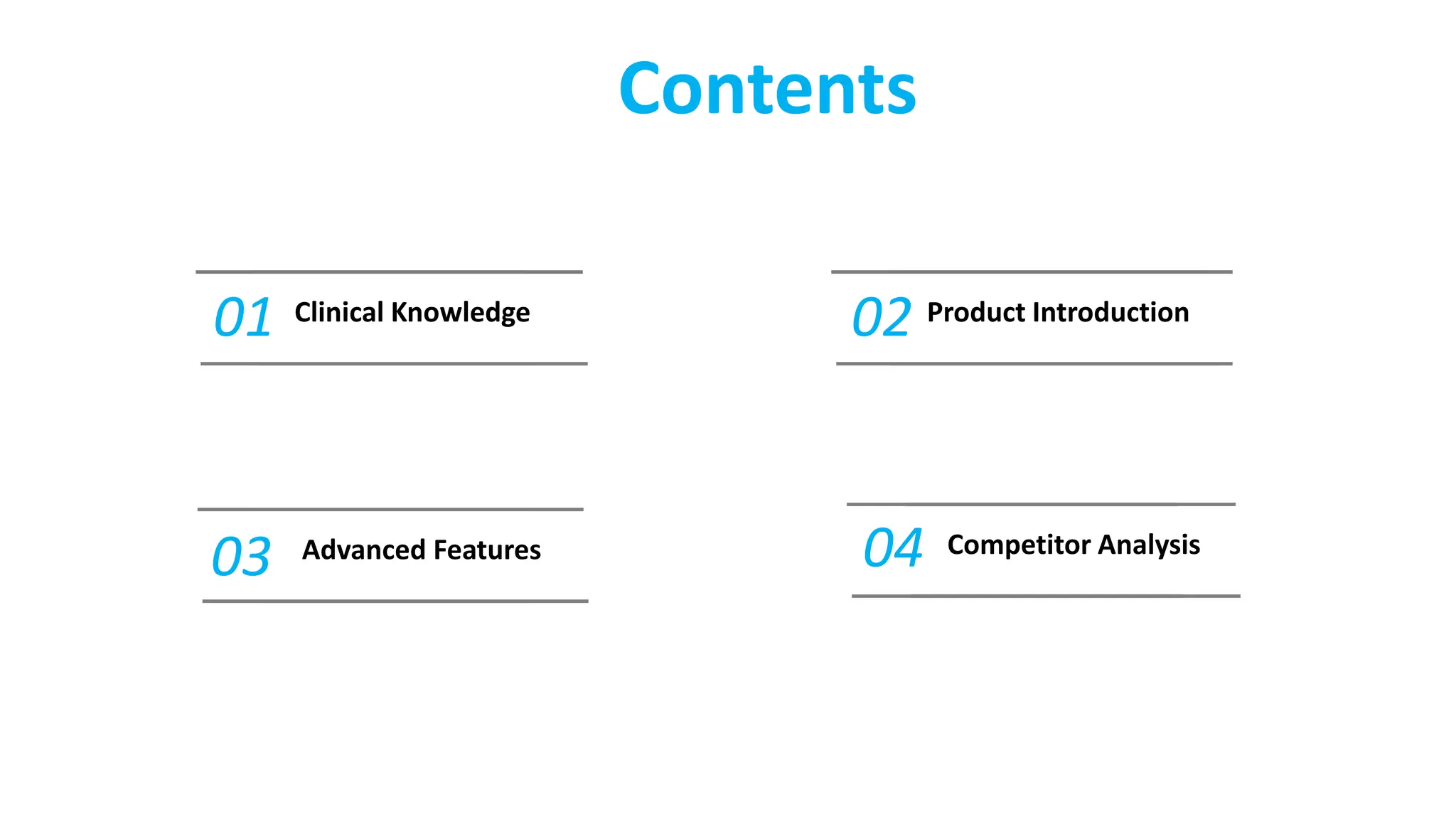

2. Contents
Clinical Knowledge Product Introduction
Advanced Features Competitor Analysis
01 02
03 04

3. Clinical knowledge of syringe pump

4. Single/Dual Pump
COMEN M500
Stackable
COMEN MX8900
One is portable design with single/dual channels. The other is stackable design which support multiple dose injection
simultaneously.
There’re two major types of Syringe Pumps.
© 2020 Comen Confidential 4
Classification

5. © 2020 Comen Confidential 5

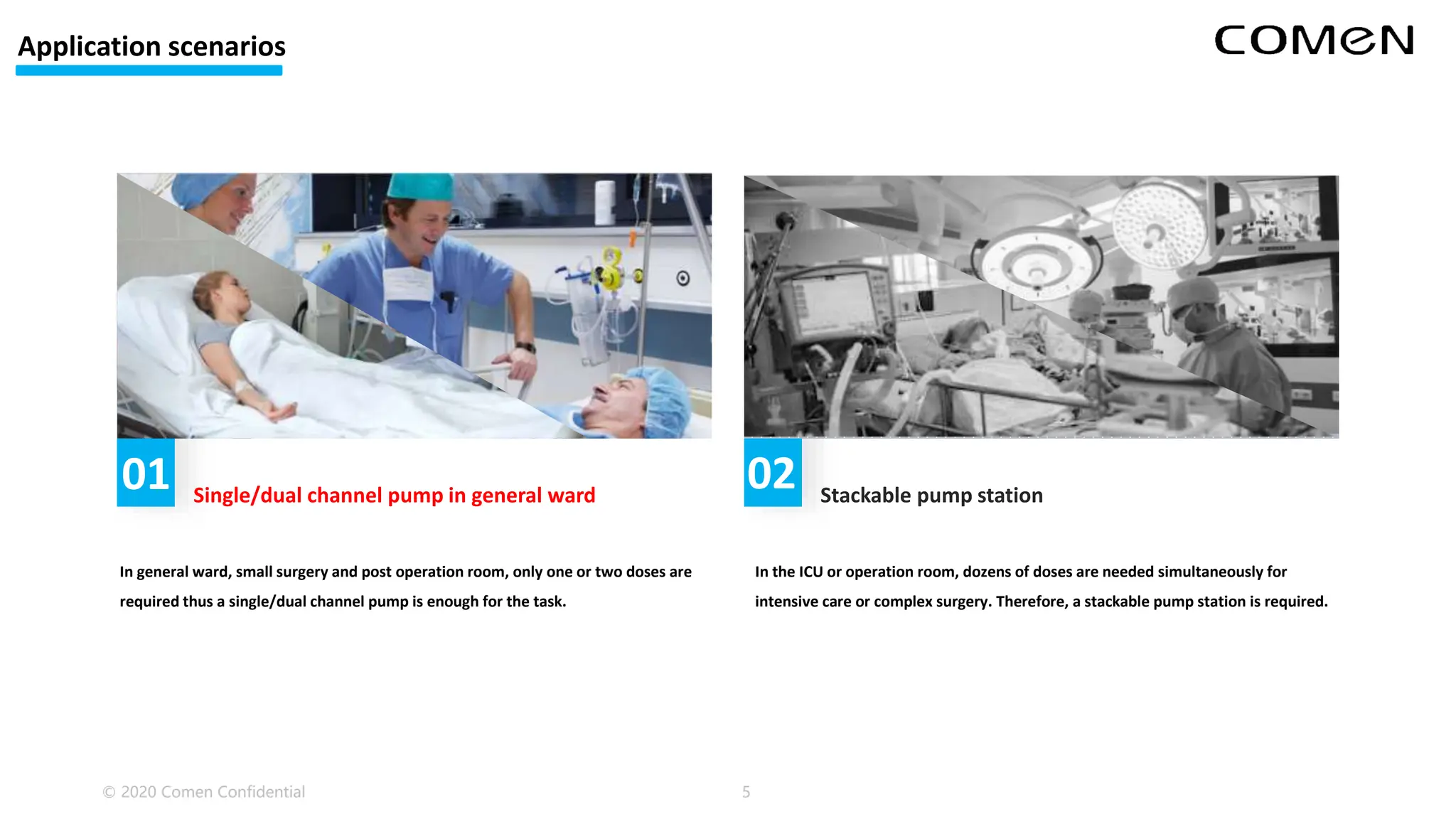

In general ward, small surgery and post operation room, only one or two doses are
required thus a single/dual channel pump is enough for the task.
01 Single/dual channel pump in general ward
02
In the ICU or operation room, dozens of doses are needed simultaneously for
intensive care or complex surgery. Therefore, a stackable pump station is required.
Stackable pump station
Application scenarios

6. Product introduction

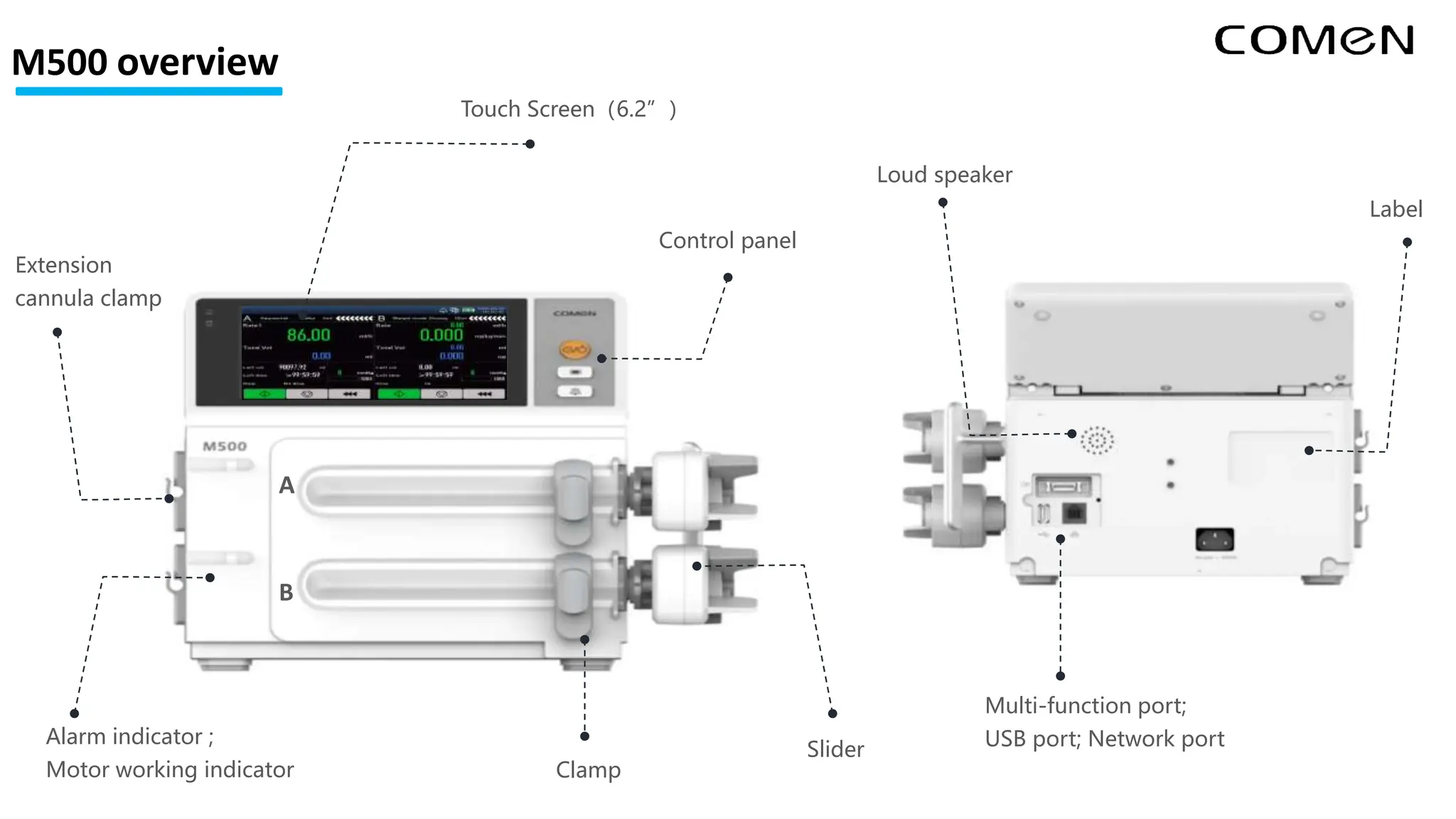

7. Touch Screen（6.2”）
M500 overview
Alarm indicator ;
Motor working indicator
Extension
cannula clamp
Slider
Clamp
Control panel
A
B
Loud speaker
Label
Multi-function port;
USB port; Network port

8. Advanced features

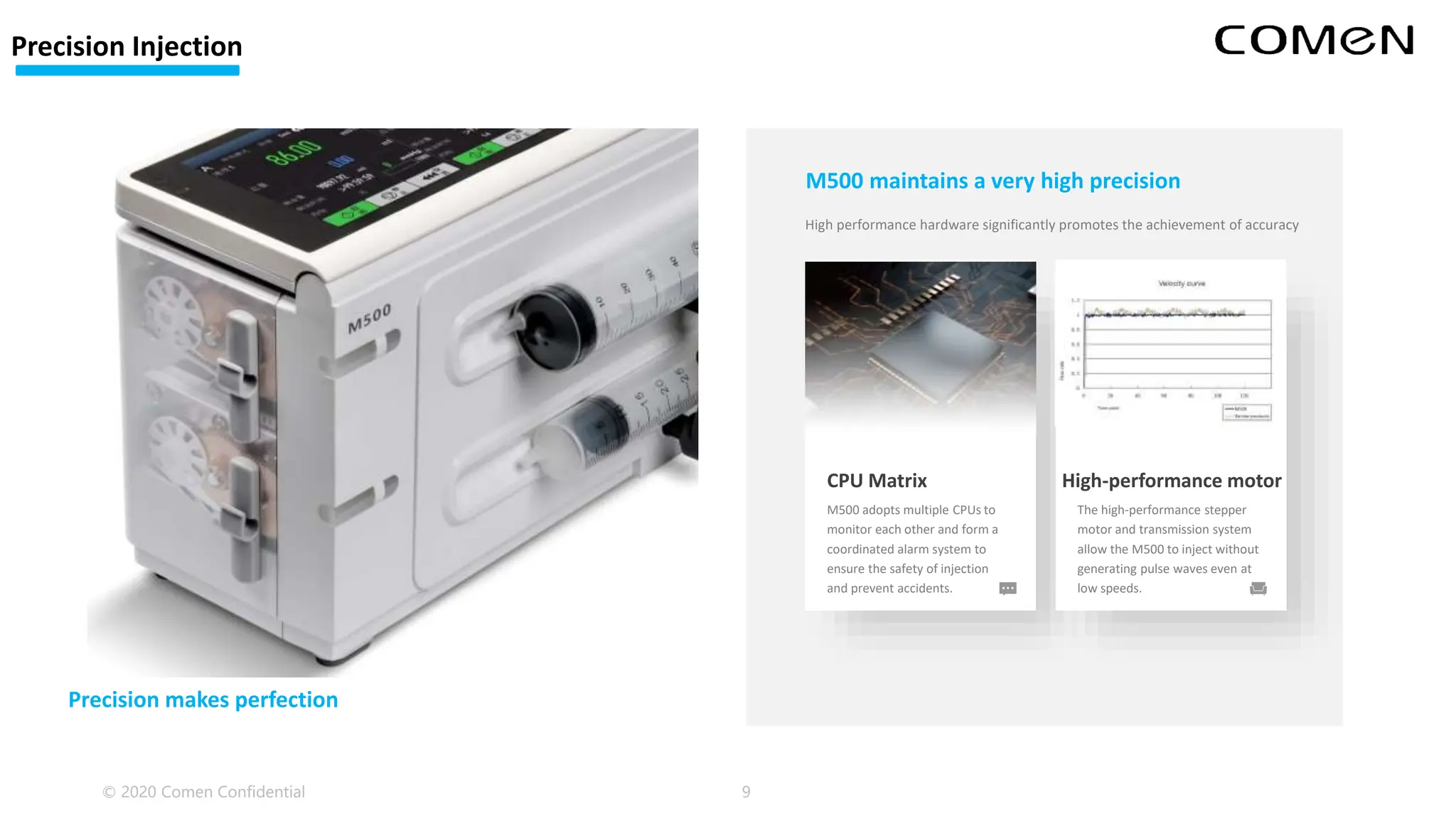

9. High performance hardware significantly promotes the achievement of accuracy
M500 maintains a very high precision
M500 adopts multiple CPUs to
monitor each other and form a
coordinated alarm system to
ensure the safety of injection
and prevent accidents.
CPU Matrix
The high-performance stepper
motor and transmission system
allow the M500 to inject without
generating pulse waves even at
low speeds.
High-performance motor
© 2020 Comen Confidential 9
Precision makes perfection
Precision Injection

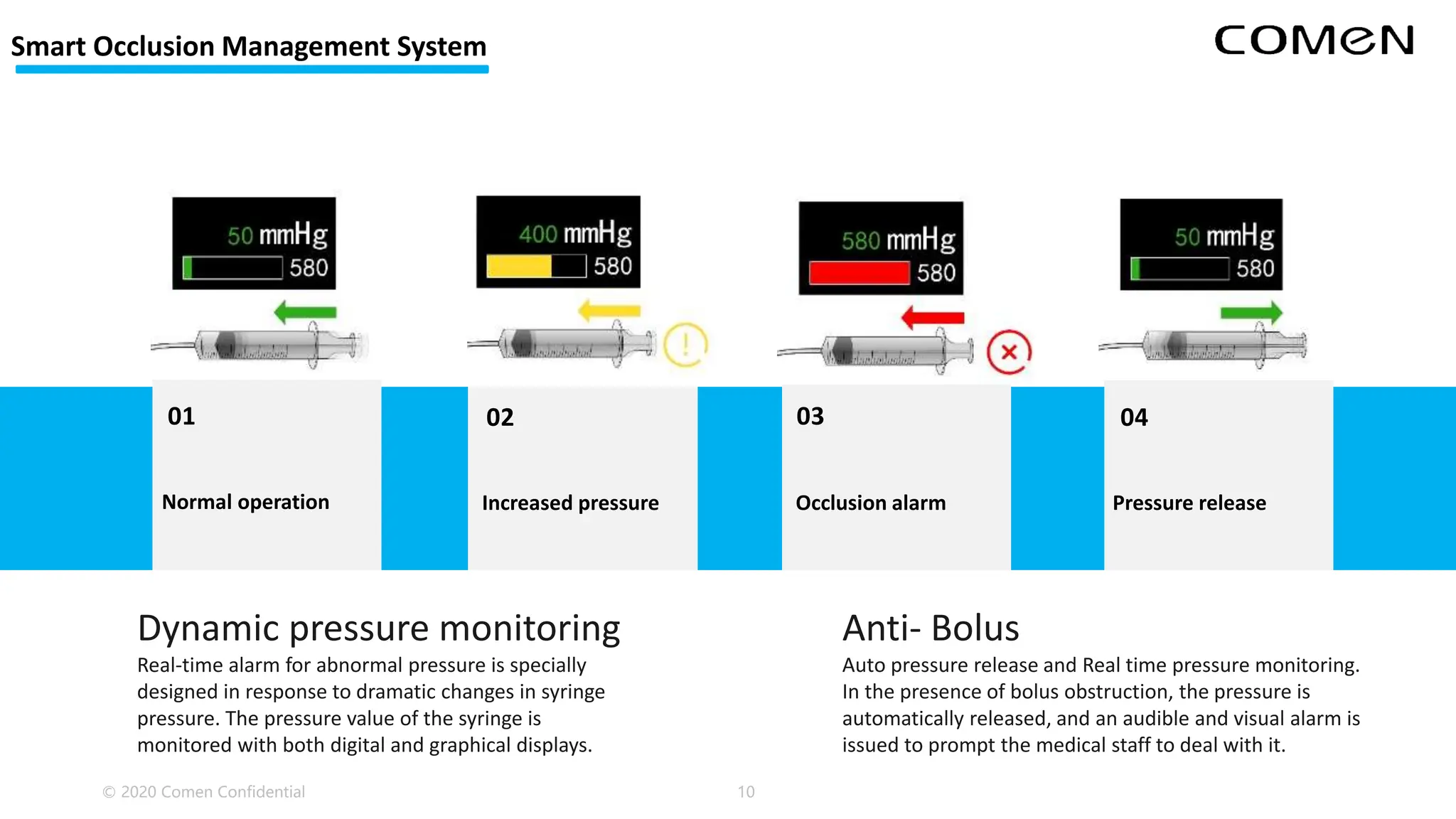

10. Normal operation Increased pressure Occlusion alarm Pressure release
01 02 03 04
Anti- Bolus
Auto pressure release and Real time pressure monitoring.
In the presence of bolus obstruction, the pressure is
automatically released, and an audible and visual alarm is
issued to prompt the medical staff to deal with it.
Dynamic pressure monitoring
Real-time alarm for abnormal pressure is specially
designed in response to dramatic changes in syringe
pressure. The pressure value of the syringe is
monitored with both digital and graphical displays.
© 2020 Comen Confidential 10
Smart Occlusion Management System

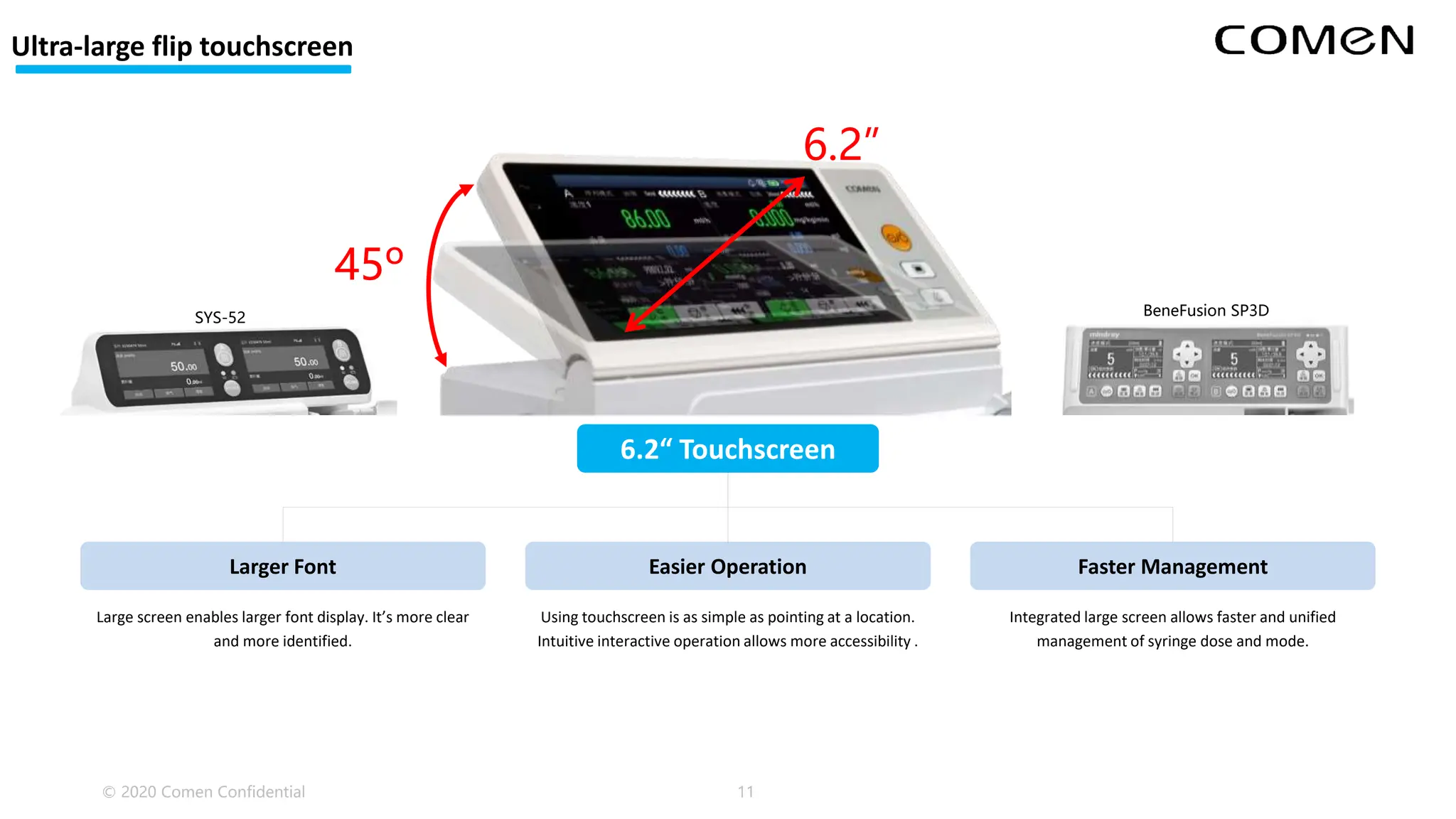

11. 6.2“ Touchscreen
Larger Font Easier Operation Faster Management
Large screen enables larger font display. It’s more clear
and more identified.
Using touchscreen is as simple as pointing at a location.
Intuitive interactive operation allows more accessibility .
Integrated large screen allows faster and unified
management of syringe dose and mode.
6.2”
45º
© 2020 Comen Confidential 11
BeneFusion SP3D
SYS-52
Ultra-large flip touchscreen

12. It provides a relay mode that
allows for simultaneous injection
of multiple drugs.
It’s more accurate and cost-
effective than using multiple
single pumps.
Cascade administration of the
same drug to achieve continuous
drug infusion.
The maximum continuous single
infusion is 120 ml of drug solution.
© 2020 Comen Confidential 12
Dual Channel (cascade)
Dual-channel design
Continuous injection

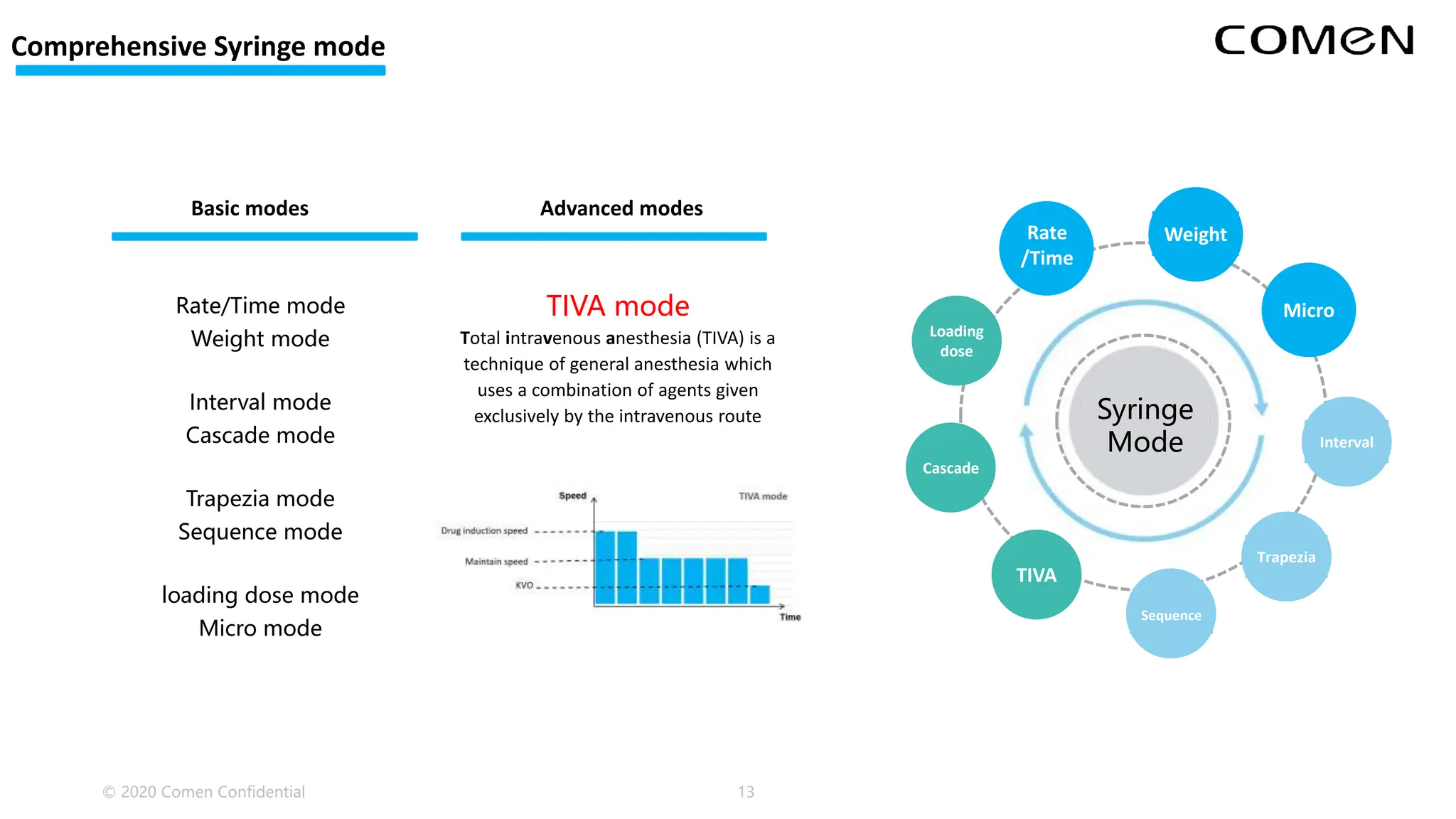

13. Rate/Time mode
Weight mode
Interval mode
Cascade mode
Trapezia mode
Sequence mode
loading dose mode
Micro mode
TIVA mode
Total intravenous anesthesia (TIVA) is a
technique of general anesthesia which
uses a combination of agents given
exclusively by the intravenous route Syringe
Mode Interval
Trapezia
Sequence
Rate
/Time
Weight
Micro
TIVA
Cascade
Loading
dose
© 2020 Comen Confidential 13
Comprehensive Syringe mode
Basic modes Advanced modes

14. When the syringe is installed on
the pump, the syringe size will
be automatically recognized and
displayed on the screen.
01 Auto Identification
The infusion parameters setting
can be modified without
stopping it.
02 Continuous Titration
M500 provides a library of 2100
drugs and is customizable for
new entries, giving medical
personnel essential drug options
for infusion records to ensure
medication safety.
03 Extensive Drug library
The bright display of the traditional
infusion pump causes light pollution
at night and further affects treatment.
M500 provides night mode which
reduces acousto-optic interference.
04 Night mode
Extensive assistant Tools

15. Competitor Analysis

17. VS

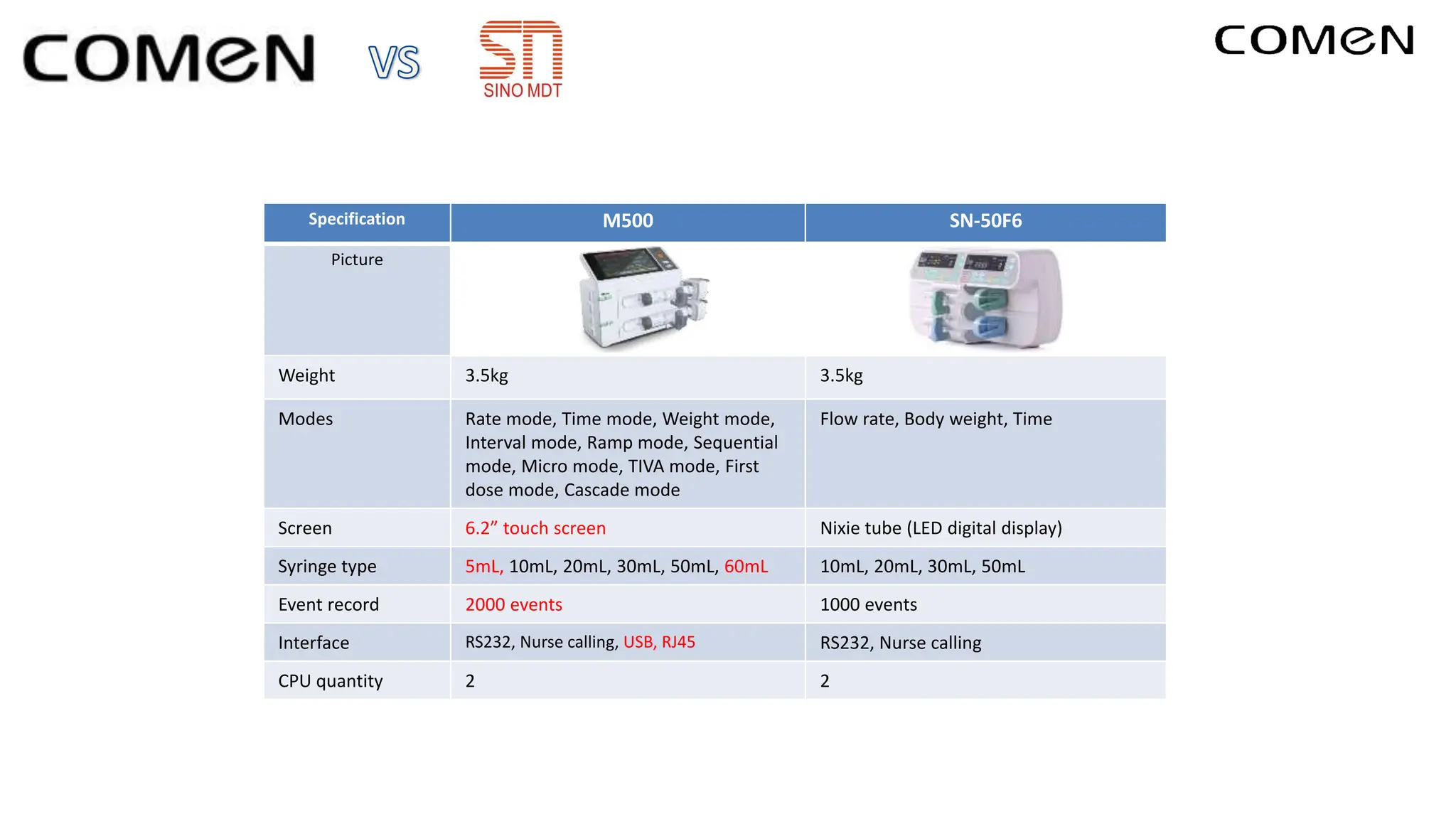

18. Specification M500 SN-50F6
Weight 3.5kg 3.5kg
Modes Rate mode, Time mode, Weight mode,
Interval mode, Ramp mode, Sequential
mode, Micro mode, TIVA mode, First
dose mode, Cascade mode
Flow rate, Body weight, Time
Screen 6.2” touch screen Nixie tube (LED digital display)
Syringe type 5mL, 10mL, 20mL, 30mL, 50mL, 60mL 10mL, 20mL, 30mL, 50mL
Event record 2000 events 1000 events
Interface RS232, Nurse calling, USB, RJ45 RS232, Nurse calling
CPU quantity 2 2

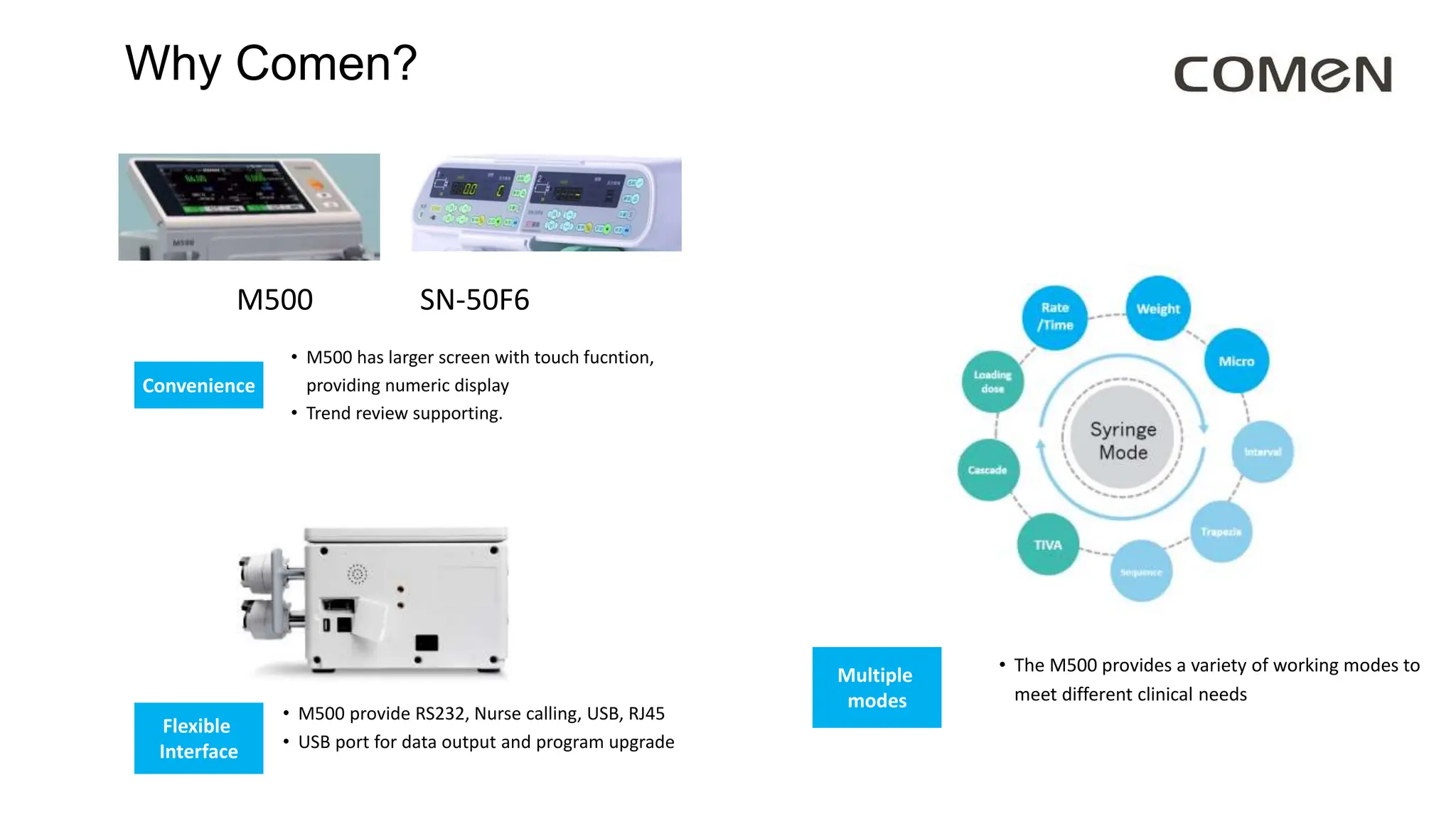

19. Convenience
• M500 has larger screen with touch fucntion,
providing numeric display
• Trend review supporting.
Flexible
Interface
• M500 provide RS232, Nurse calling, USB, RJ45
• USB port for data output and program upgrade
M500 SN-50F6
Multiple
modes
• The M500 provides a variety of working modes to
meet different clinical needs
Why Comen?

20. VS

21. Specification M500 BeneFusion SP3D
Weight 3.5kg 3.6kg
Modes Rate mode, Time mode, Weight mode,
Interval mode, Ramp mode, Sequential
mode, Micro mode, TIVA mode, First
dose mode, Cascade mode
Rate mode, Time mode, Body weight
Mode, Intermittent administration mode
Screen 6.2” touch screen
800 × 480 pixels
3.0'' LCD monochrome screen
240 x 128 pixels
Syringe type 5mL, 10mL, 20mL, 30mL, 50mL, 60ml 5mL, 10mL, 20mL, 30mL, 50mL, 60ml
Event record 2000 events 1500 events
Interface RS232, Nurse calling, USB, RJ45 RS232, Nurse calling
Drug library 2100 drugs 200 drugs

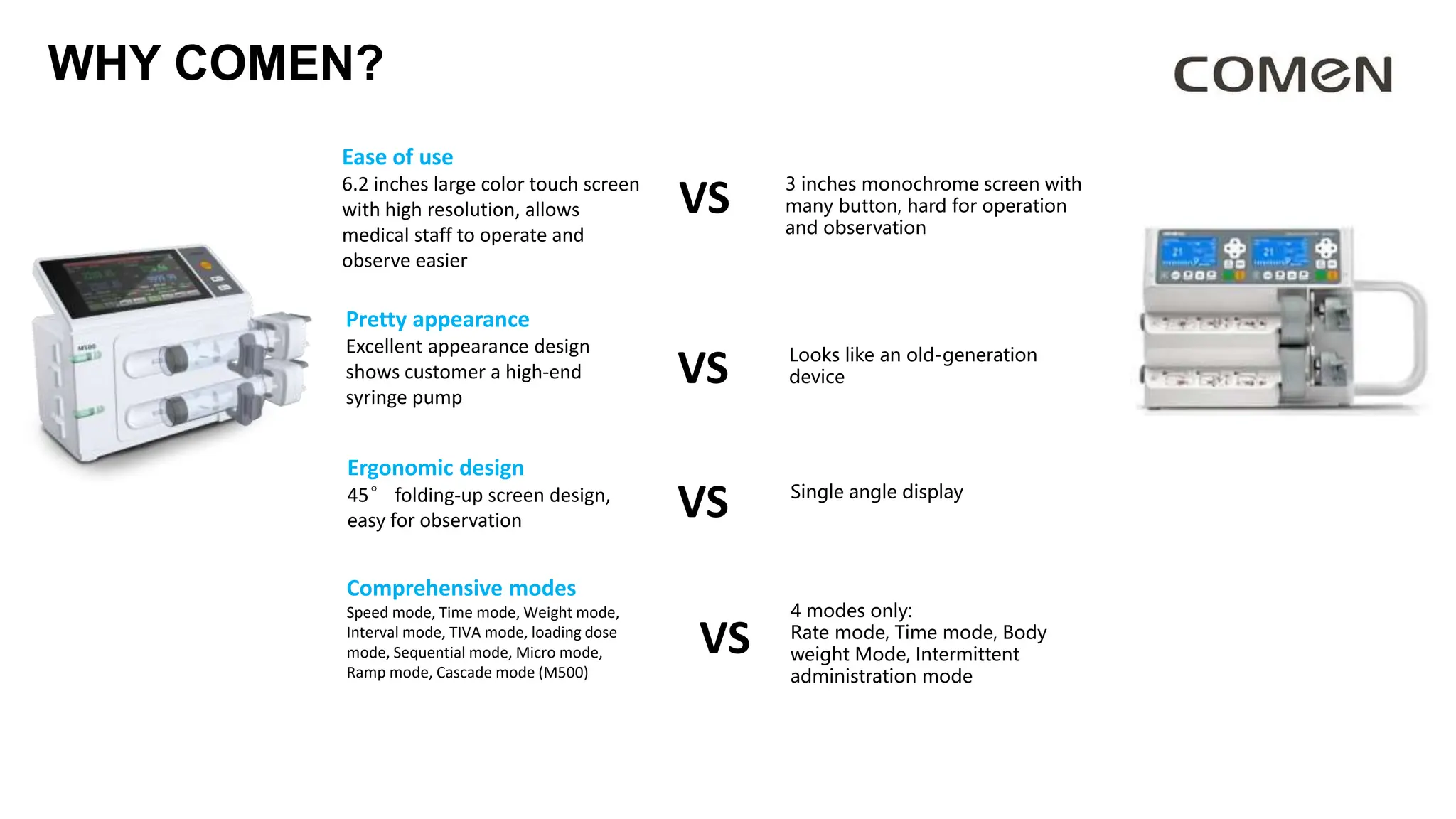

22. Ease of use
6.2 inches large color touch screen
with high resolution, allows
medical staff to operate and
observe easier
Pretty appearance
Excellent appearance design
shows customer a high-end
syringe pump
Ergonomic design
45° folding-up screen design,
easy for observation
VS 3 inches monochrome screen with
many button, hard for operation
and observation
VS
VS Single angle display
Looks like an old-generation
device
Comprehensive modes
Speed mode, Time mode, Weight mode,
Interval mode, TIVA mode, loading dose
mode, Sequential mode, Micro mode,
Ramp mode, Cascade mode (M500)
VS
4 modes only:
Rate mode, Time mode, Body
weight Mode, Intermittent
administration mode
WHY COMEN?

23. VS

24. Specification M500 SYS-52
Weight 3.5kg 3.6kg
Modes Rate mode, Time mode, Weight mode,
Micro mode, TIVA mode, Interval mode,
Ramp mode, Sequential mode, , First
dose mode, Cascade mode
Rate mode, Time mode, Wight mode,
Micro mode, TIVA mode, Trapezia mode,
Loading dose mode, Relay mode,
Screen 6.2” touch screen
800 × 480 pixels
3.5’’+3.5’’ touch screen
Syringe type 5mL, 10mL, 20mL, 30mL, 50mL, 60ml 5mL, 10mL, 20mL, 30mL, 50mL, 60ml
Rate setting 0.1-2200ml/h 0.1-2000ml/h
Ingress protection IP23 IP24
Drug library 2100 drugs ---
Accuracy 2% 2%

25. Why COMEN?
Single product line
MedCaptain only produce one
product as the Syringe pumps. It’s
less profitable compared to
integrated solution
Unstable Development
MedCaptain invested millions of
dollars to develop IVD and gained
no profit so far. It’s miserable for
startups
Insufficient Support
MedCaptain has only 200+
employs worldwide. There’s no
prompt support from marketing,
service and technician

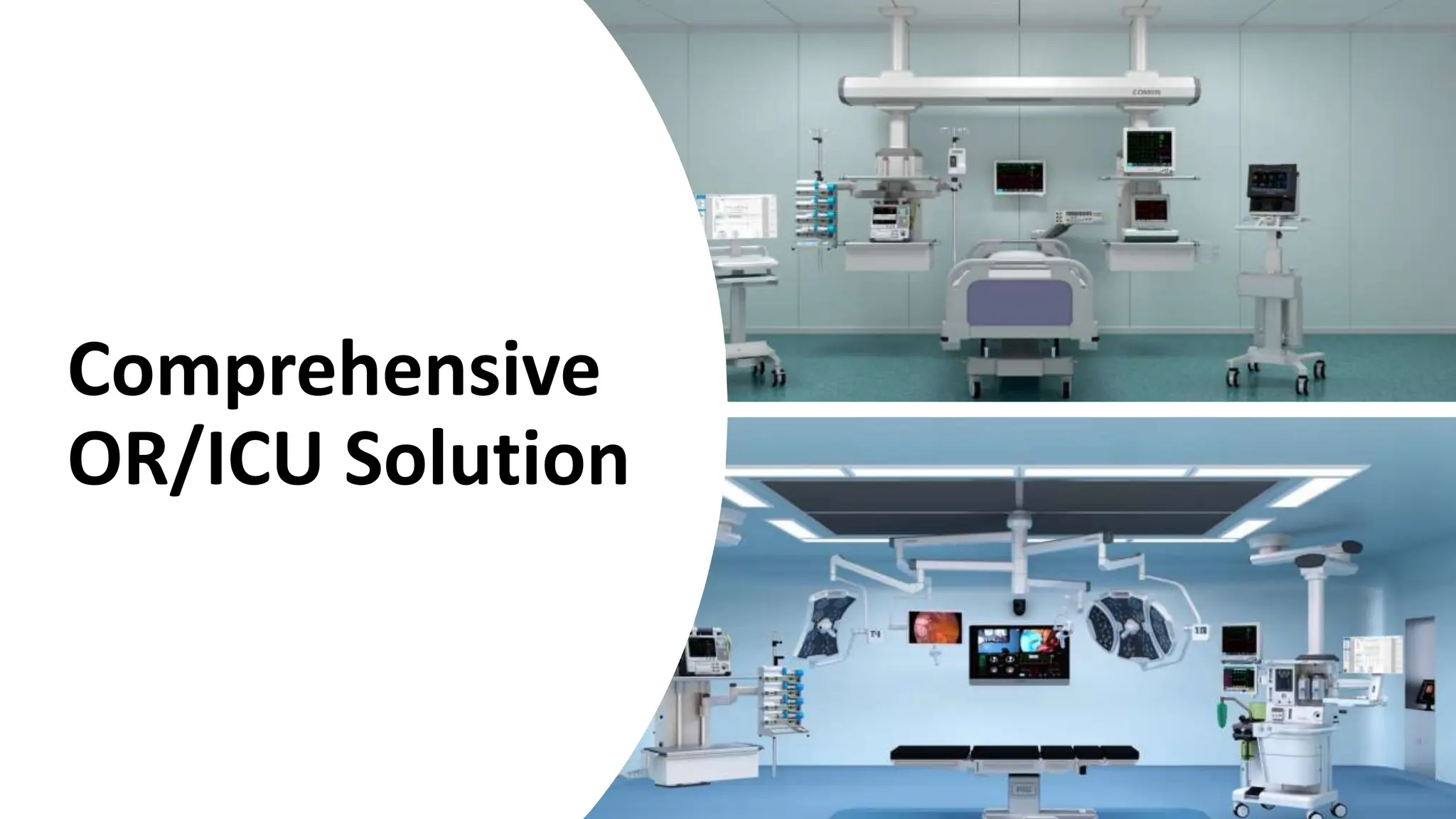

26. Comprehensive
OR/ICU Solution

27. Appreciate for Your
Listening!
Copyright © 2020 Shenzhen Comen Medical Instruments Co.,Ltd. All rights reserved.
