1. Squire: A polyglot application combining
Neo4j, MongoDB, Ruby and Scala
FOSDEM 2013 Alberto Perdomo
Graph Processing DevRoom @albertoperdomo

2. About me

3. About me
Co-Founder of Aentos

4. About me
Co-Founder of Aentos
Living my dream* (CNY)

5. About me
Co-Founder of Aentos
Living my dream* (CNY)
Web developer

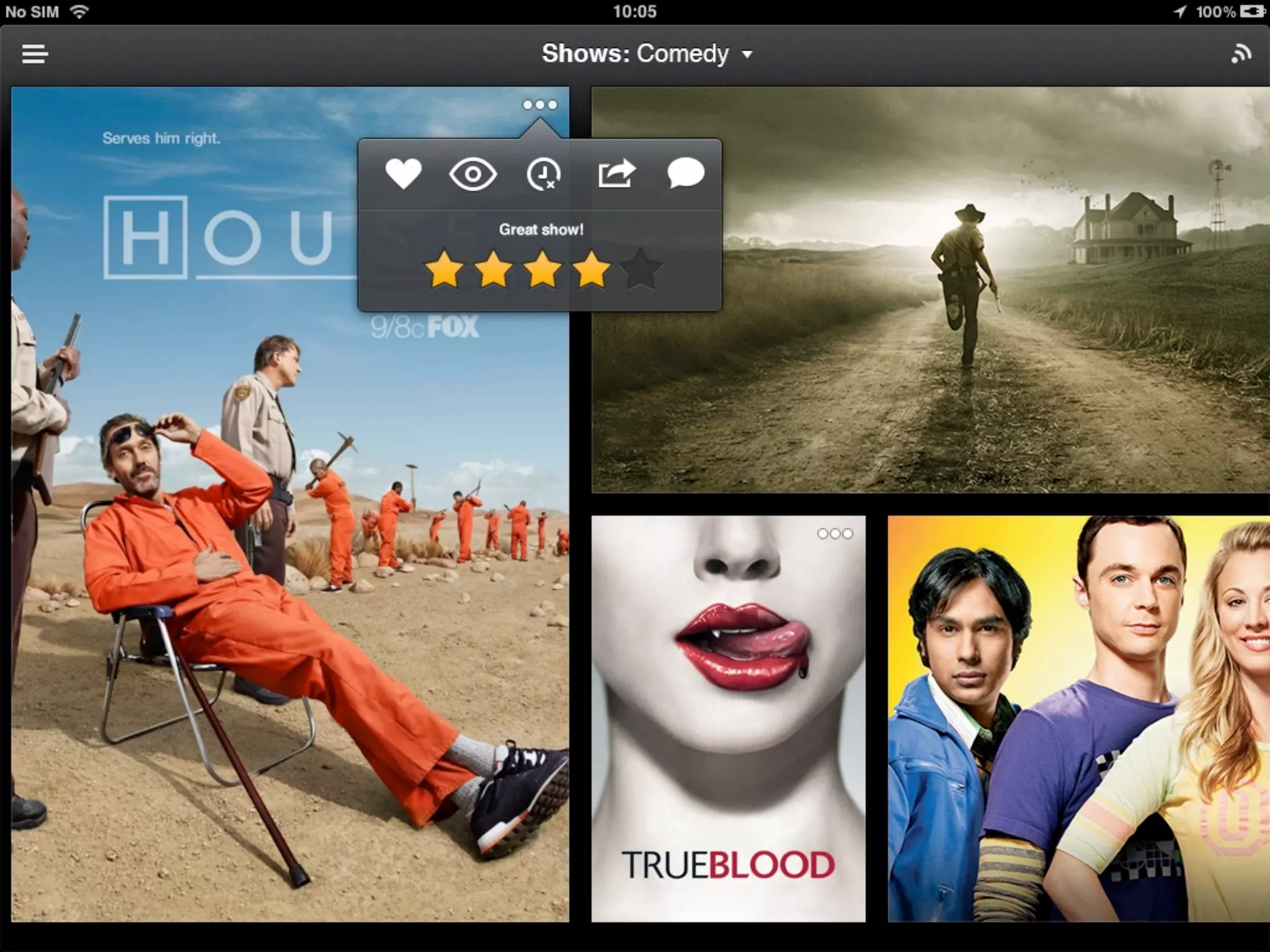

7. d

9. Features

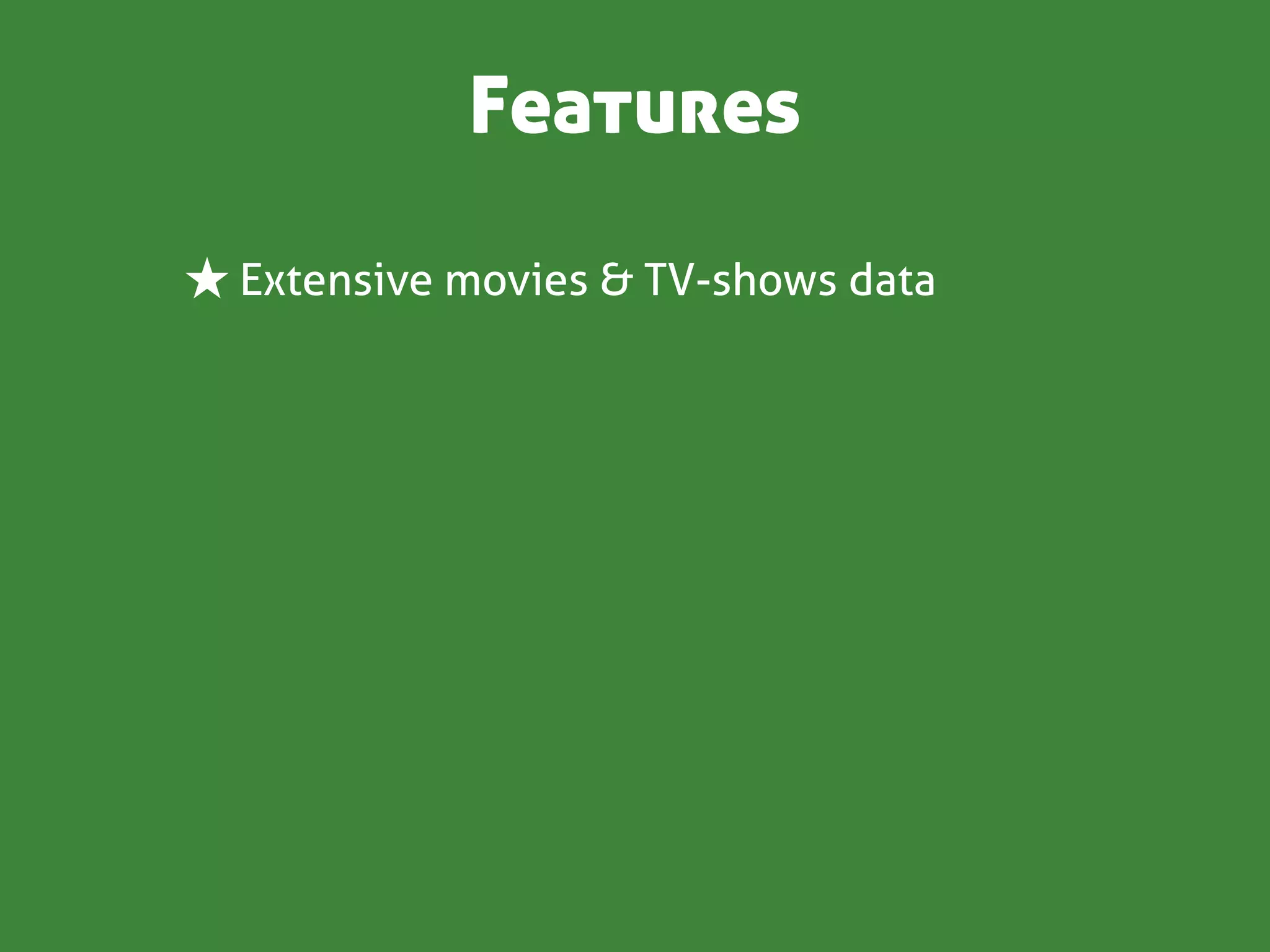

10. Features
★ Extensive movies & TV-shows data

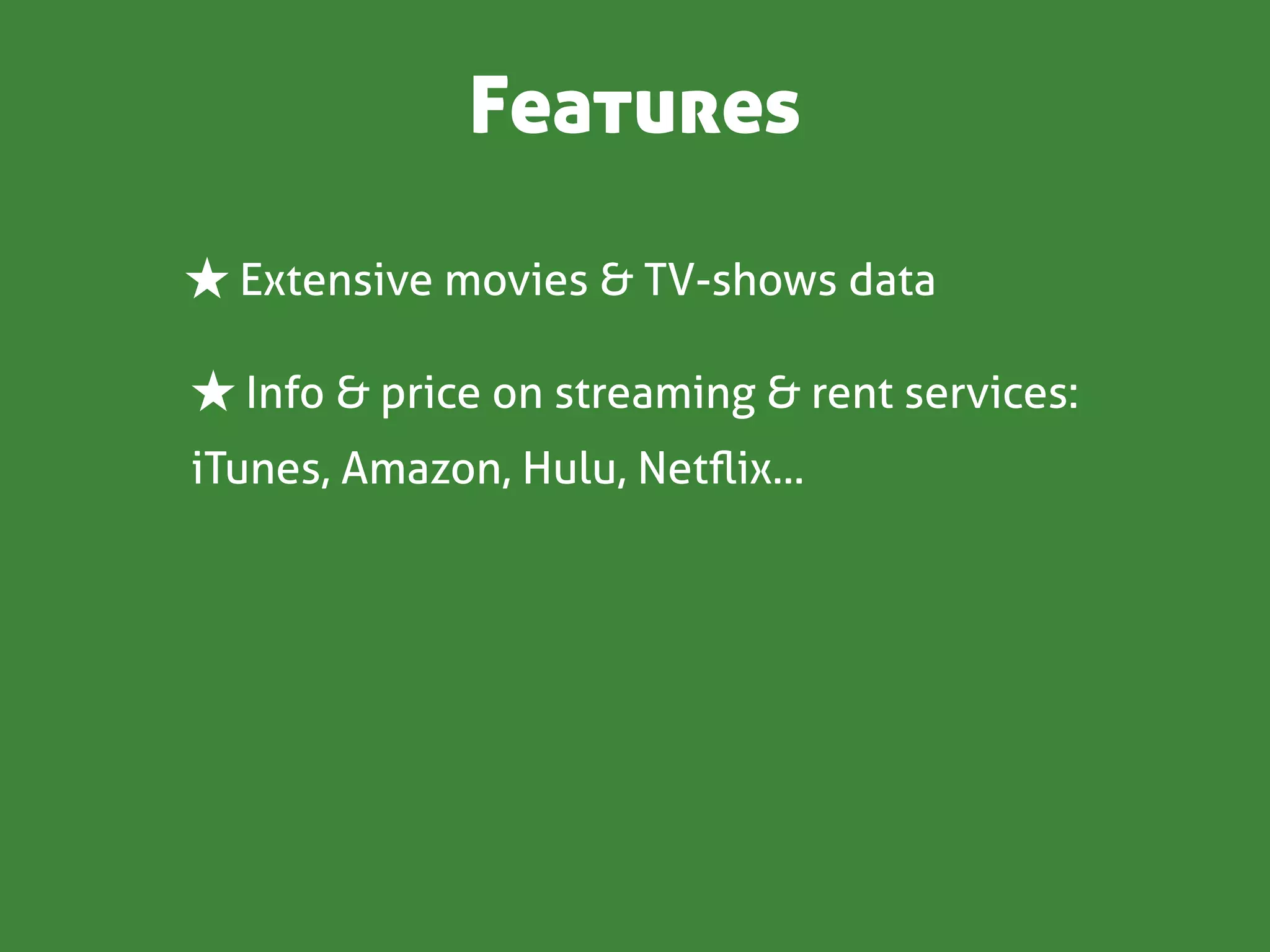

11. Features
★ Extensive movies & TV-shows data
★ Info & price on streaming & rent services:
iTunes, Amazon, Hulu, Netflix...

12. Features
★ Extensive movies & TV-shows data
★ Info & price on streaming & rent services:
iTunes, Amazon, Hulu, Netflix...
★ Social features (contacts, comments)

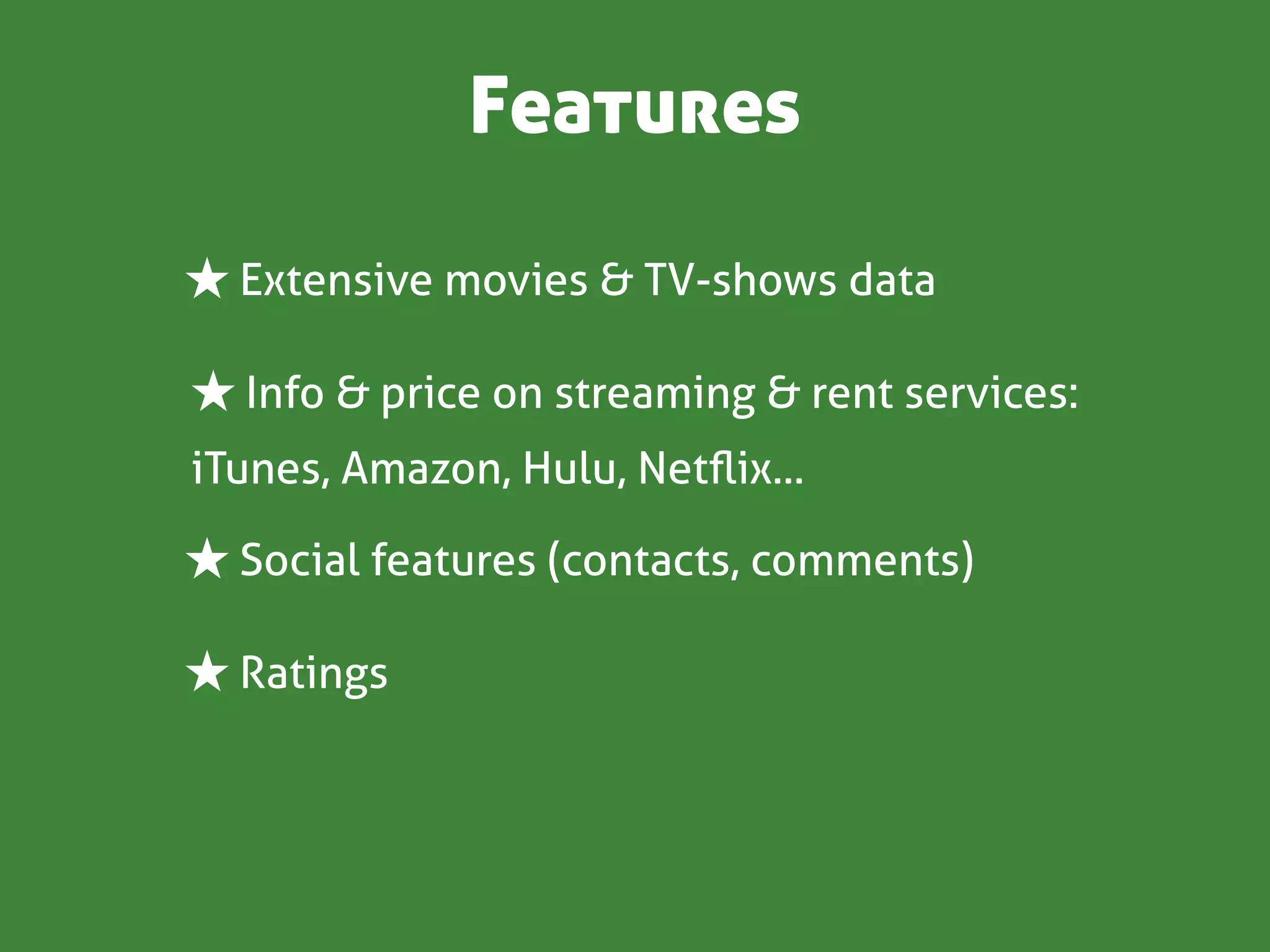

13. Features
★ Extensive movies & TV-shows data
★ Info & price on streaming & rent services:
iTunes, Amazon, Hulu, Netflix...
★ Social features (contacts, comments)
★ Ratings

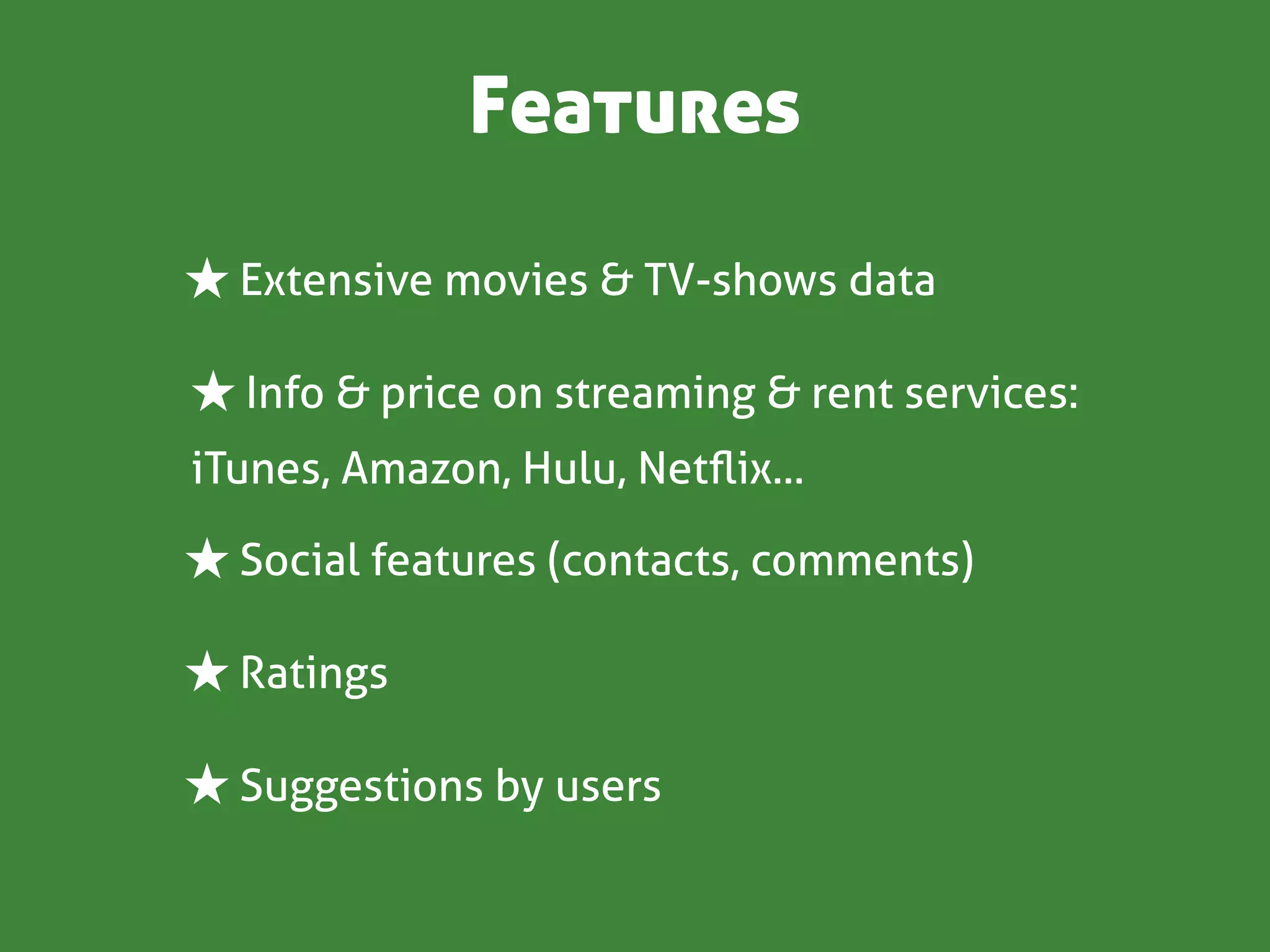

14. Features
★ Extensive movies & TV-shows data
★ Info & price on streaming & rent services:
iTunes, Amazon, Hulu, Netflix...
★ Social features (contacts, comments)
★ Ratings
★ Suggestions by users

15. Features
★ Extensive movies & TV-shows data
★ Info & price on streaming & rent services:
iTunes, Amazon, Hulu, Netflix...
★ Social features (contacts, comments)
★ Ratings
★ Suggestions by users
★ System recommendations

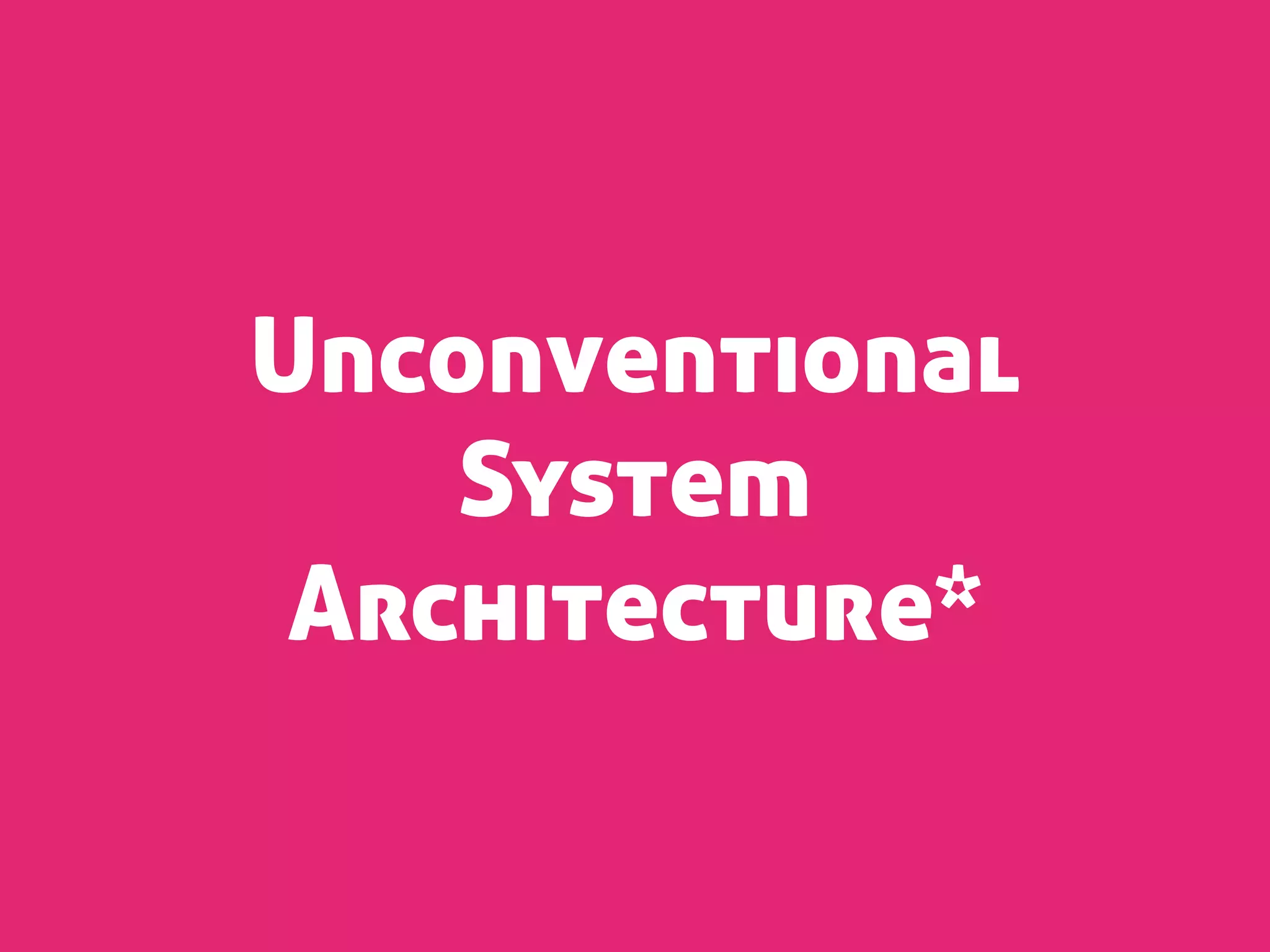

16. Unconventional
System
Architecture*

17. Ingredients

18. Ingredients
✔ MongoDB

19. Ingredients
✔ MongoDB
✔ Neo4j

20. Ingredients
✔ MongoDB
✔ Neo4j
✔ Ruby

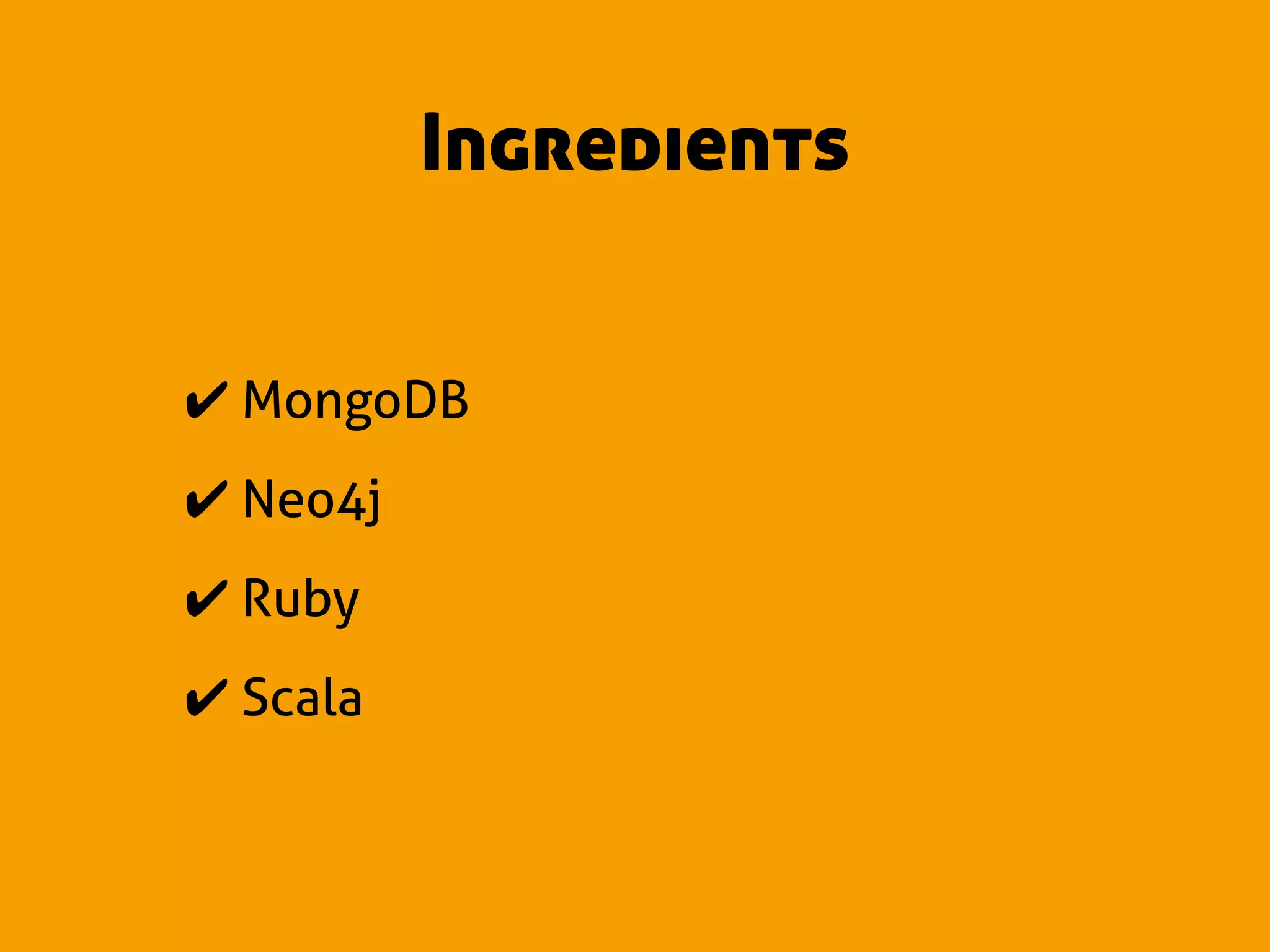

21. Ingredients
✔ MongoDB
✔ Neo4j
✔ Ruby
✔ Scala

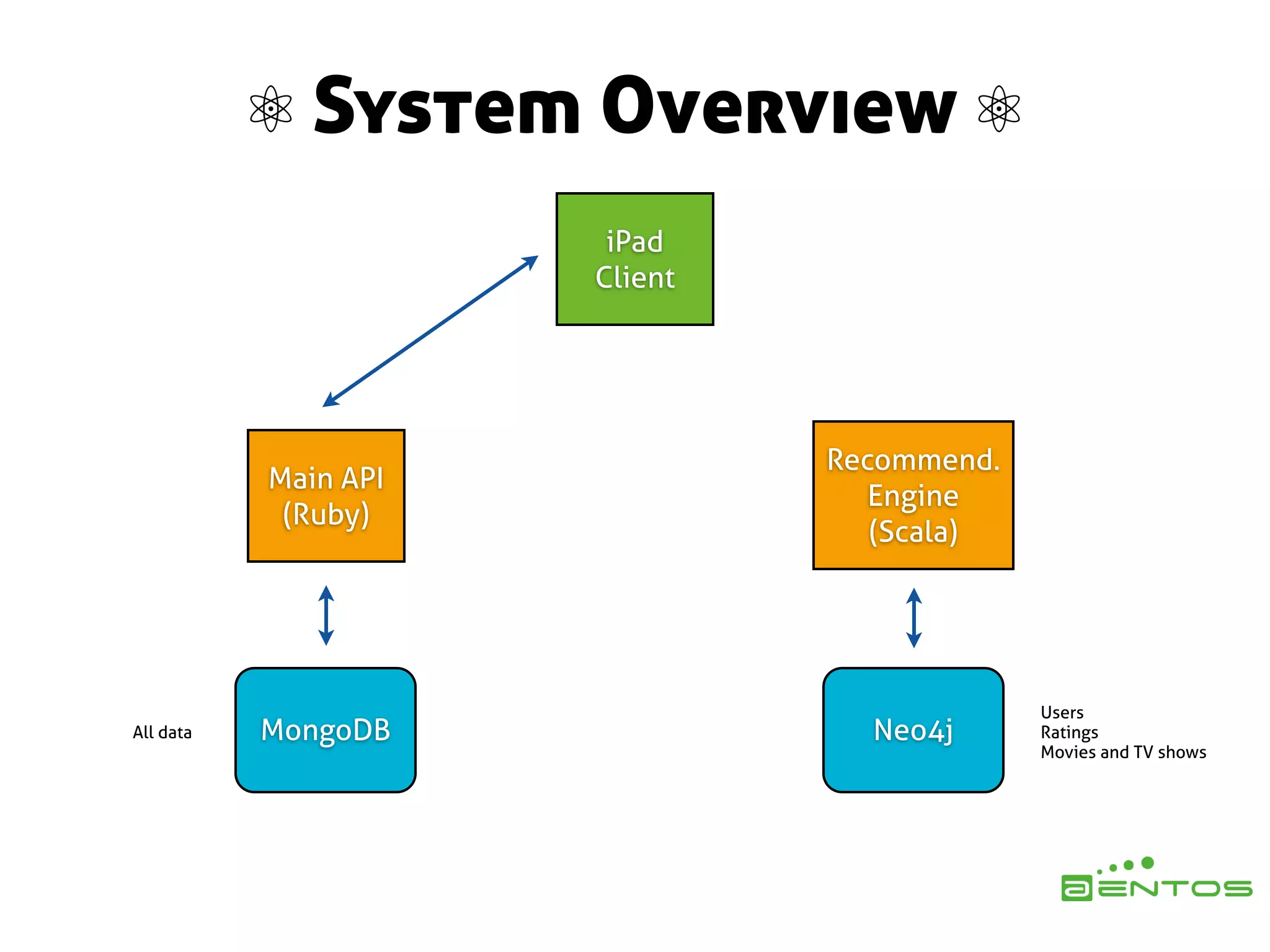

22. ⚛ System Overview ⚛
iPad
Client
Recommend.
Main API
Engine
(Ruby)
(Scala)
Users
All data MongoDB Neo4j Ratings
Movies and TV shows

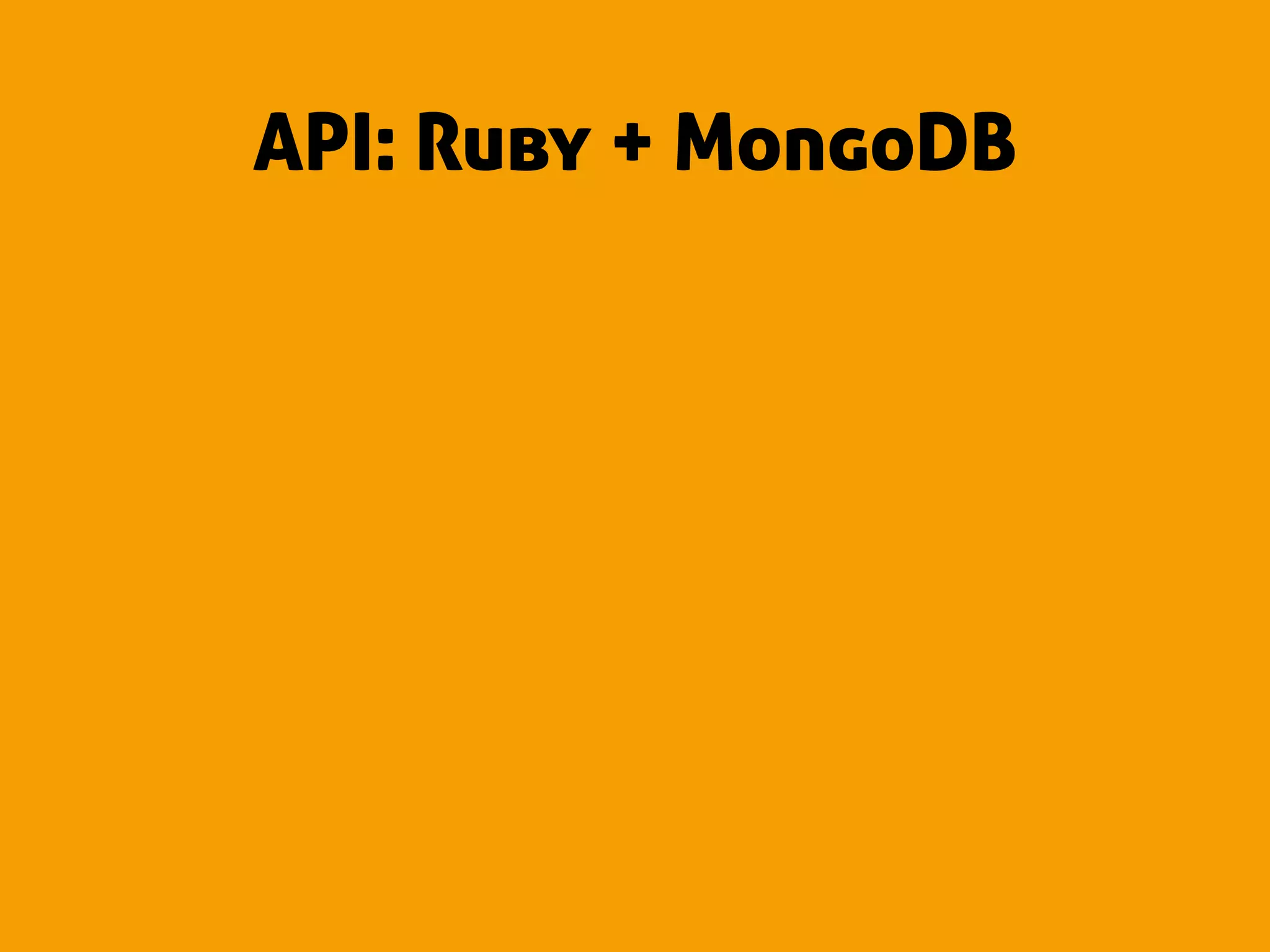

23. API: Ruby + MongoDB

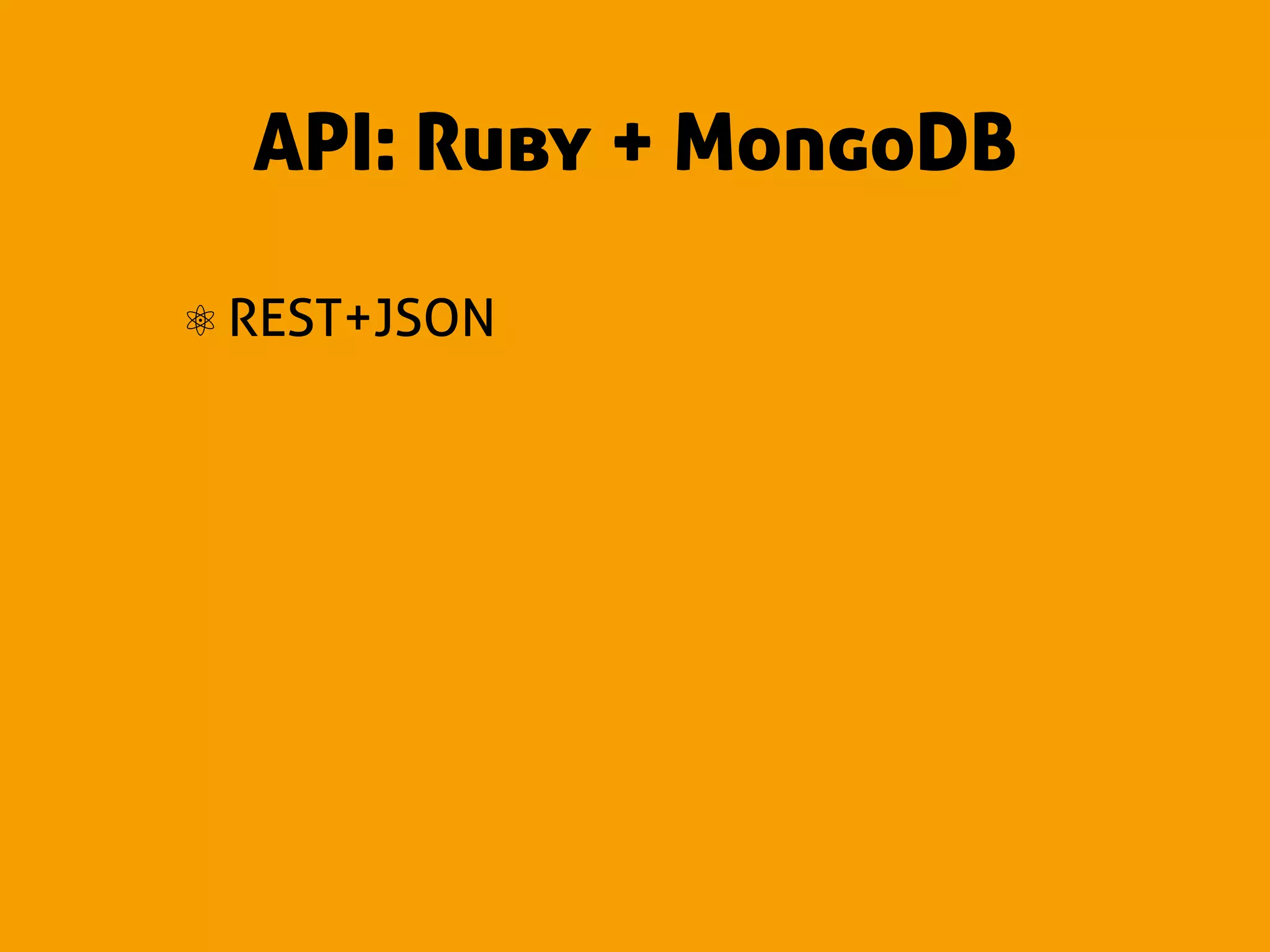

24. API: Ruby + MongoDB
⚛ REST+JSON

25. API: Ruby + MongoDB
⚛ REST+JSON
⚛ Accounts & sessions

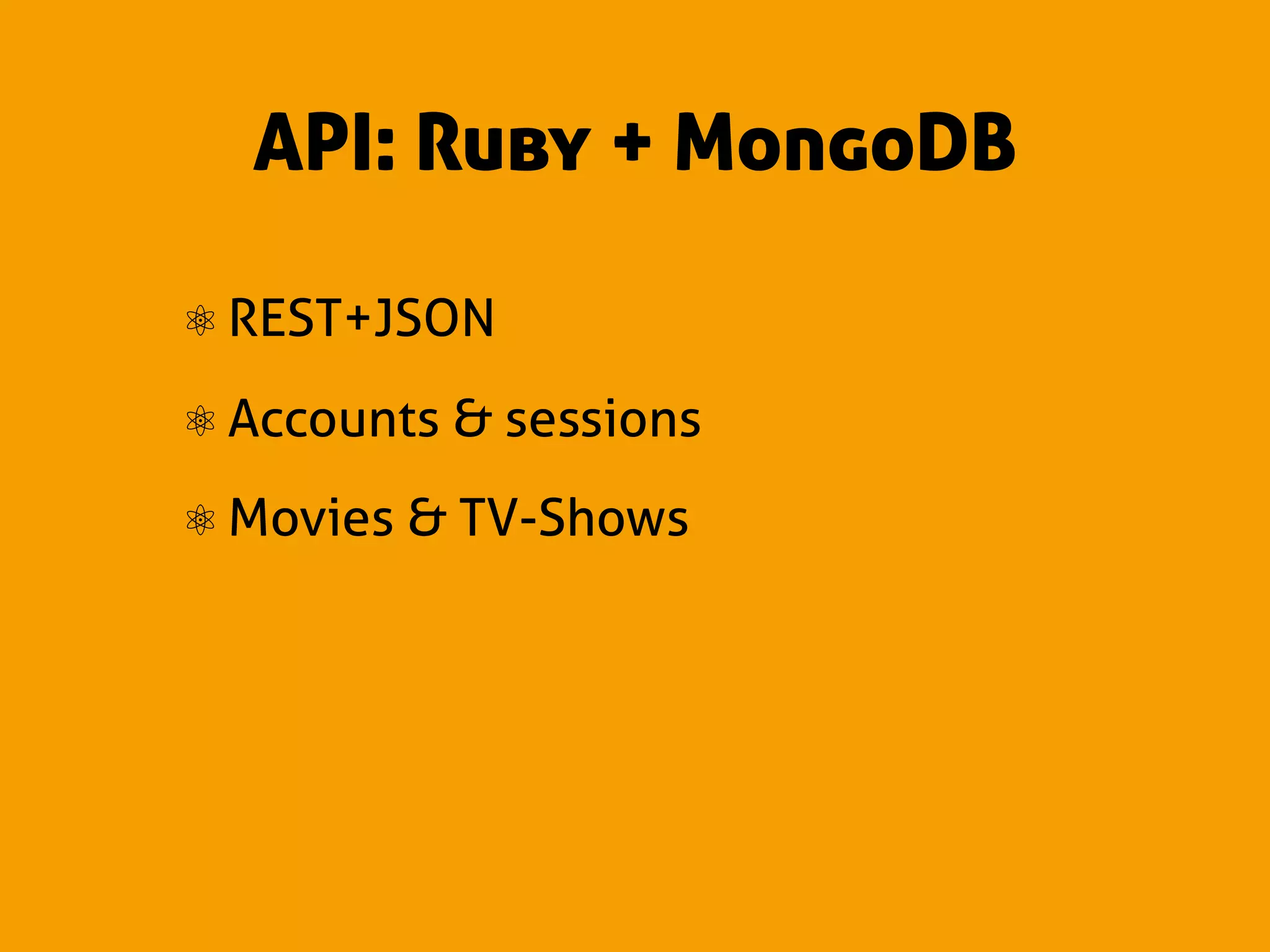

26. API: Ruby + MongoDB
⚛ REST+JSON
⚛ Accounts & sessions
⚛ Movies & TV-Shows

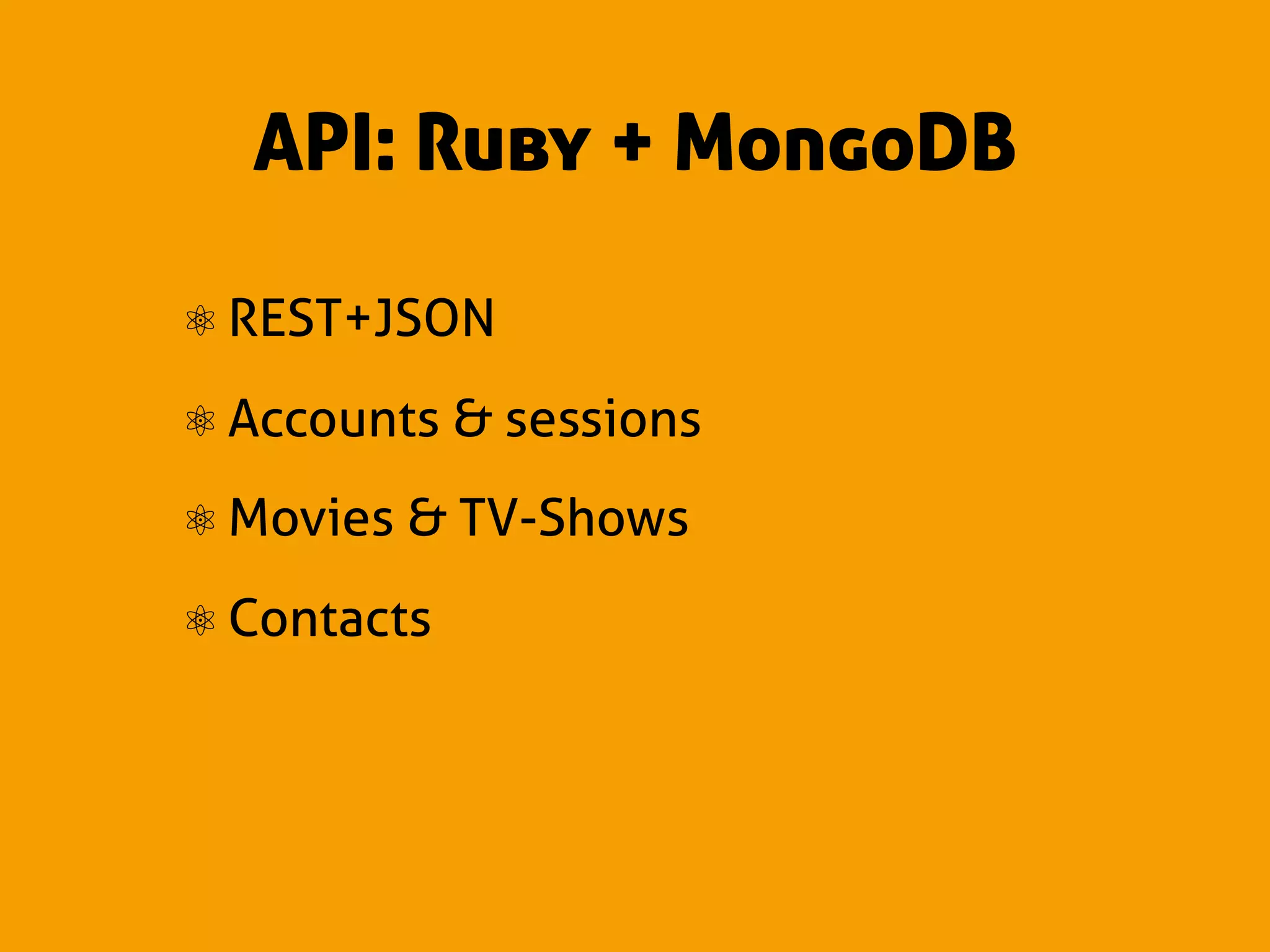

27. API: Ruby + MongoDB
⚛ REST+JSON
⚛ Accounts & sessions
⚛ Movies & TV-Shows
⚛ Contacts

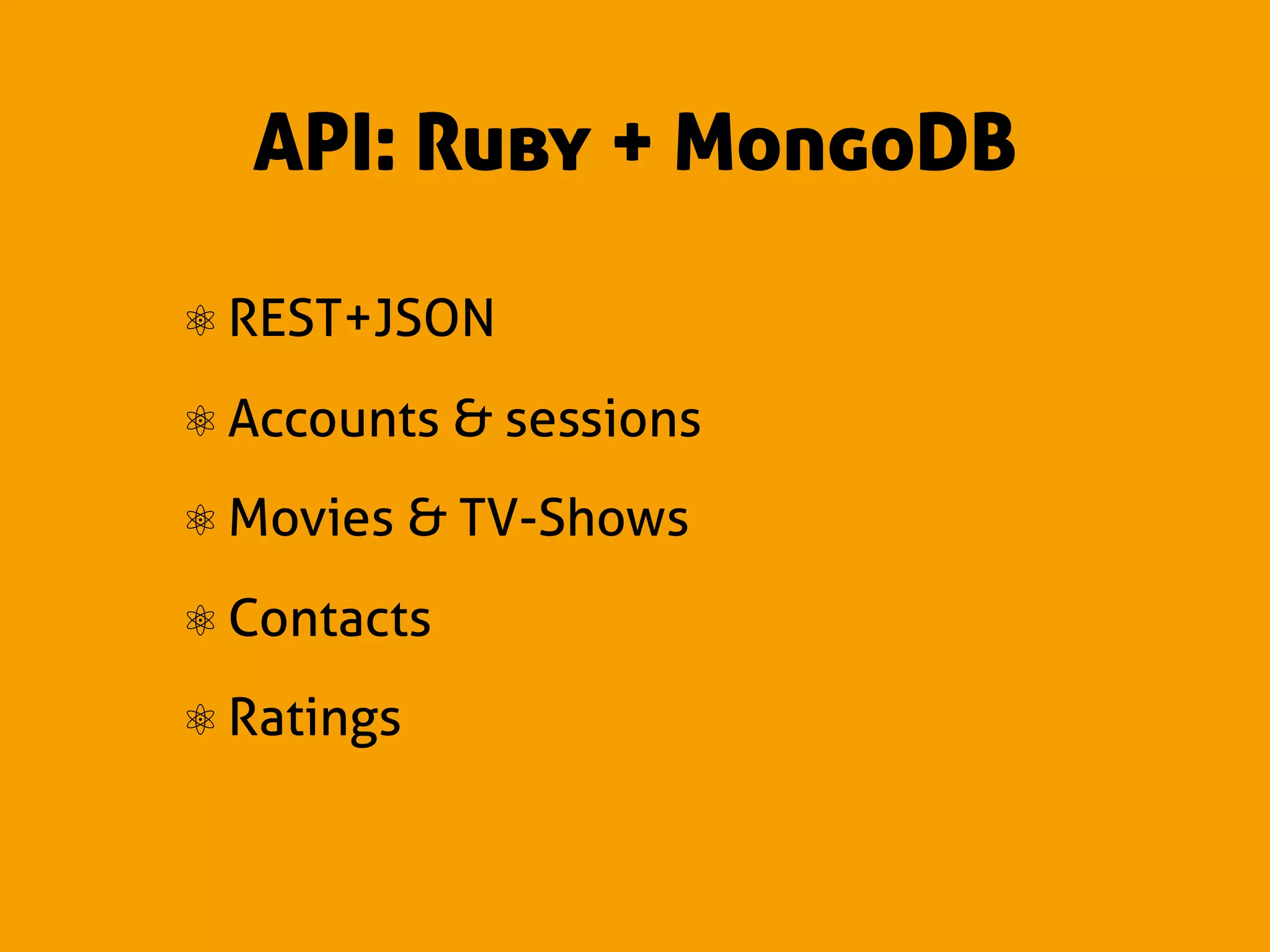

28. API: Ruby + MongoDB
⚛ REST+JSON
⚛ Accounts & sessions
⚛ Movies & TV-Shows
⚛ Contacts
⚛ Ratings

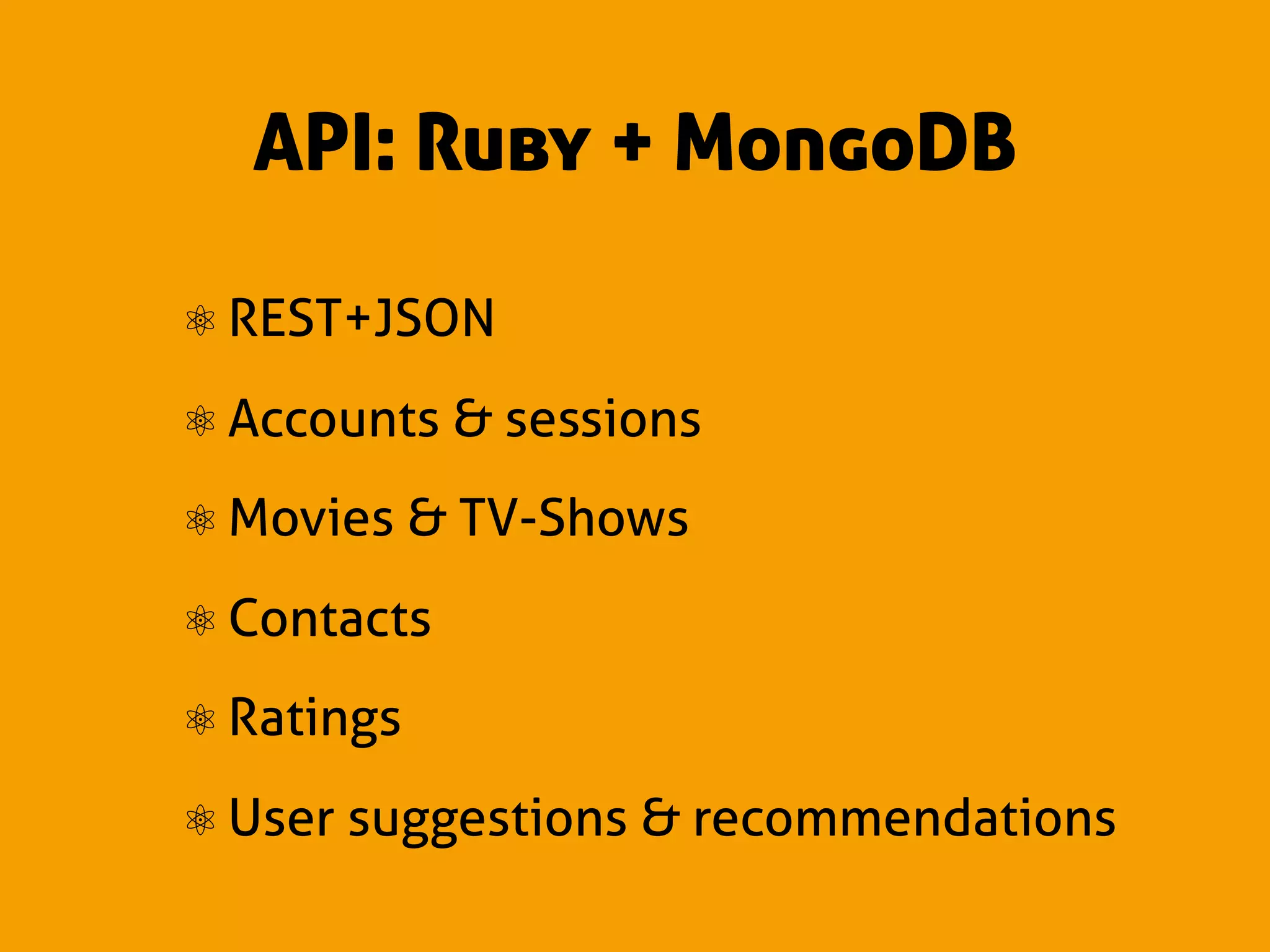

29. API: Ruby + MongoDB
⚛ REST+JSON
⚛ Accounts & sessions
⚛ Movies & TV-Shows
⚛ Contacts
⚛ Ratings
⚛ User suggestions & recommendations

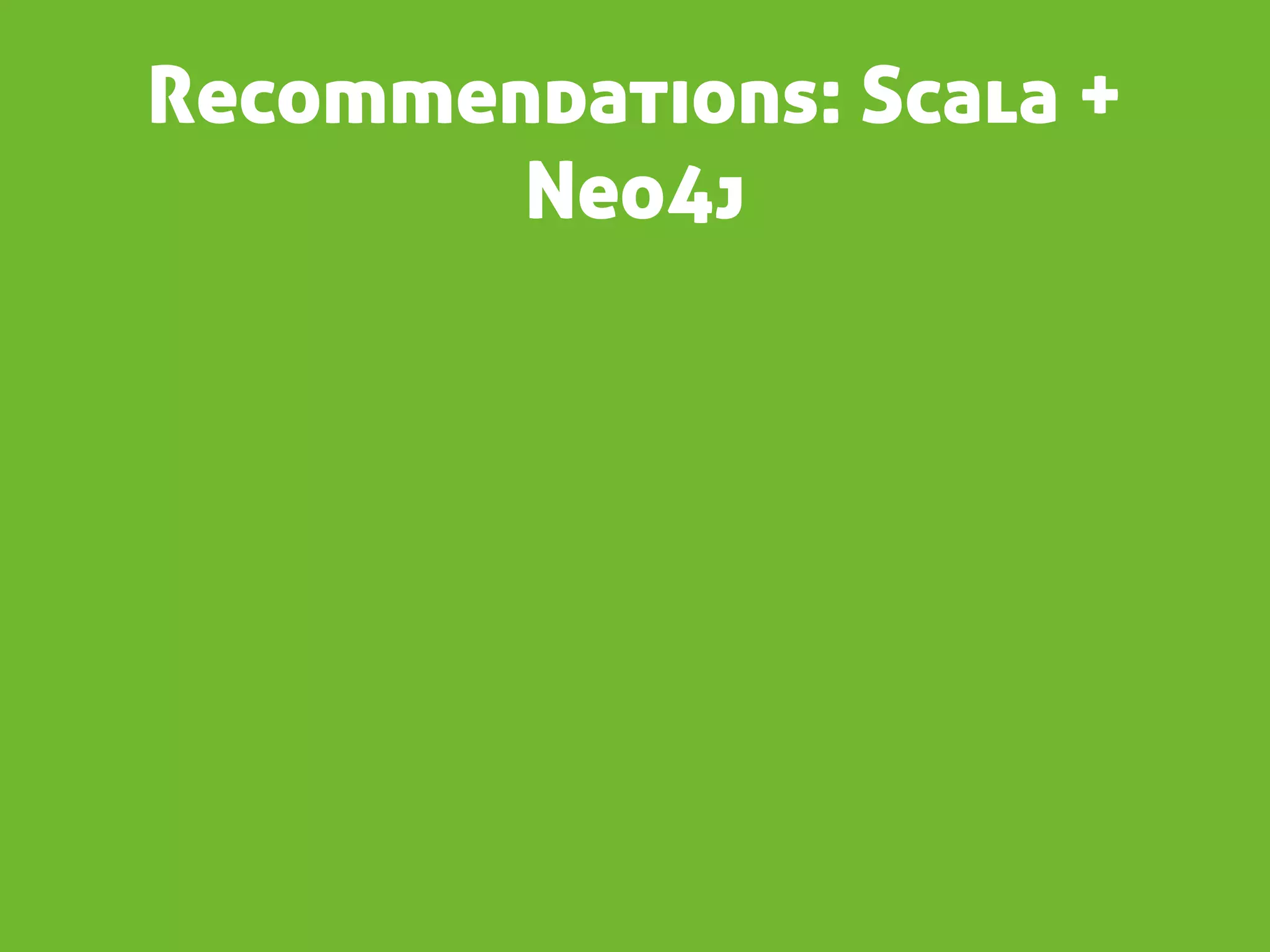

30. Recommendations: Scala +
Neo4j

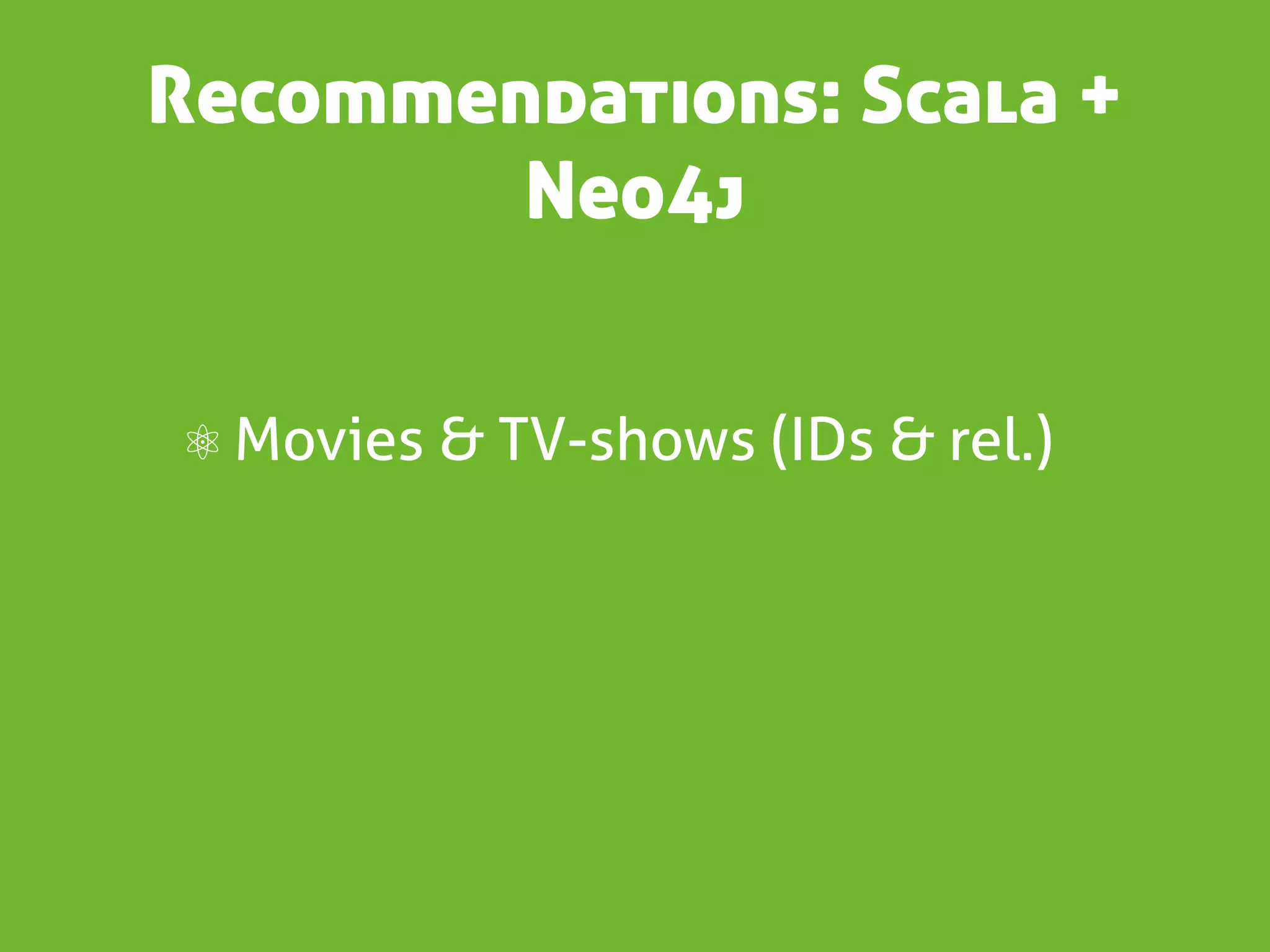

31. Recommendations: Scala +
Neo4j
⚛ Movies & TV-shows (IDs & rel.)

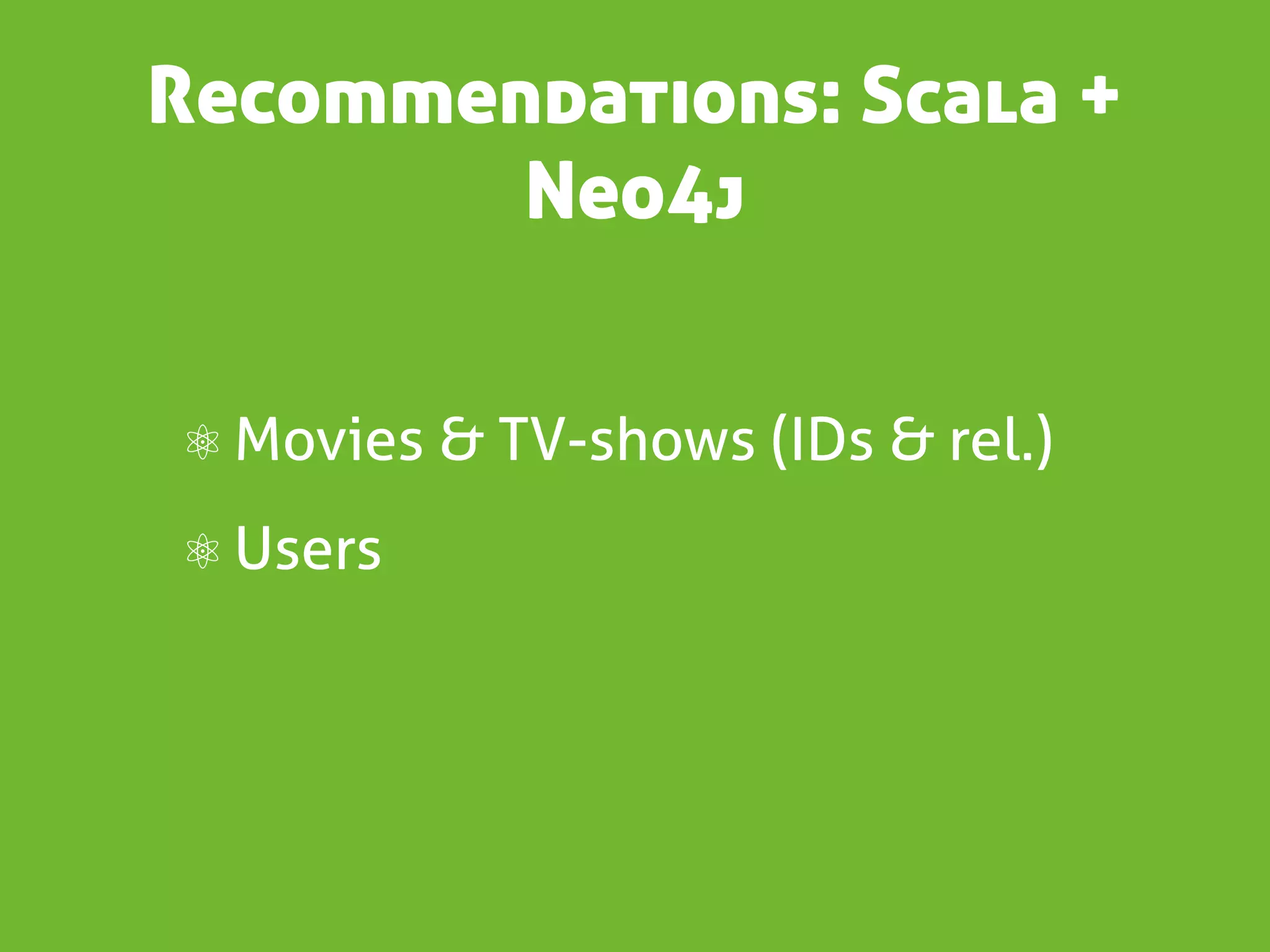

32. Recommendations: Scala +
Neo4j
⚛ Movies & TV-shows (IDs & rel.)
⚛ Users

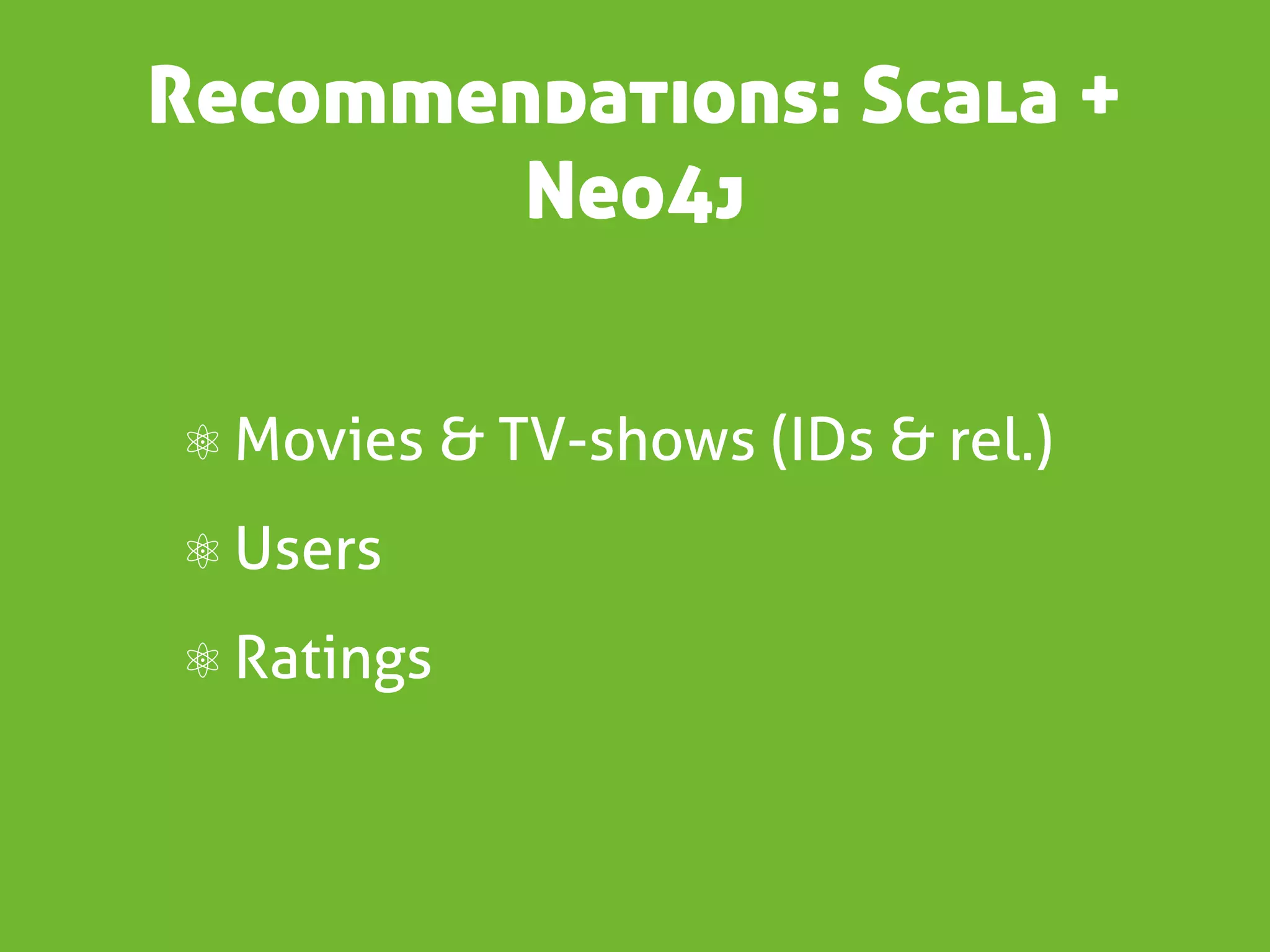

33. Recommendations: Scala +
Neo4j
⚛ Movies & TV-shows (IDs & rel.)
⚛ Users
⚛ Ratings

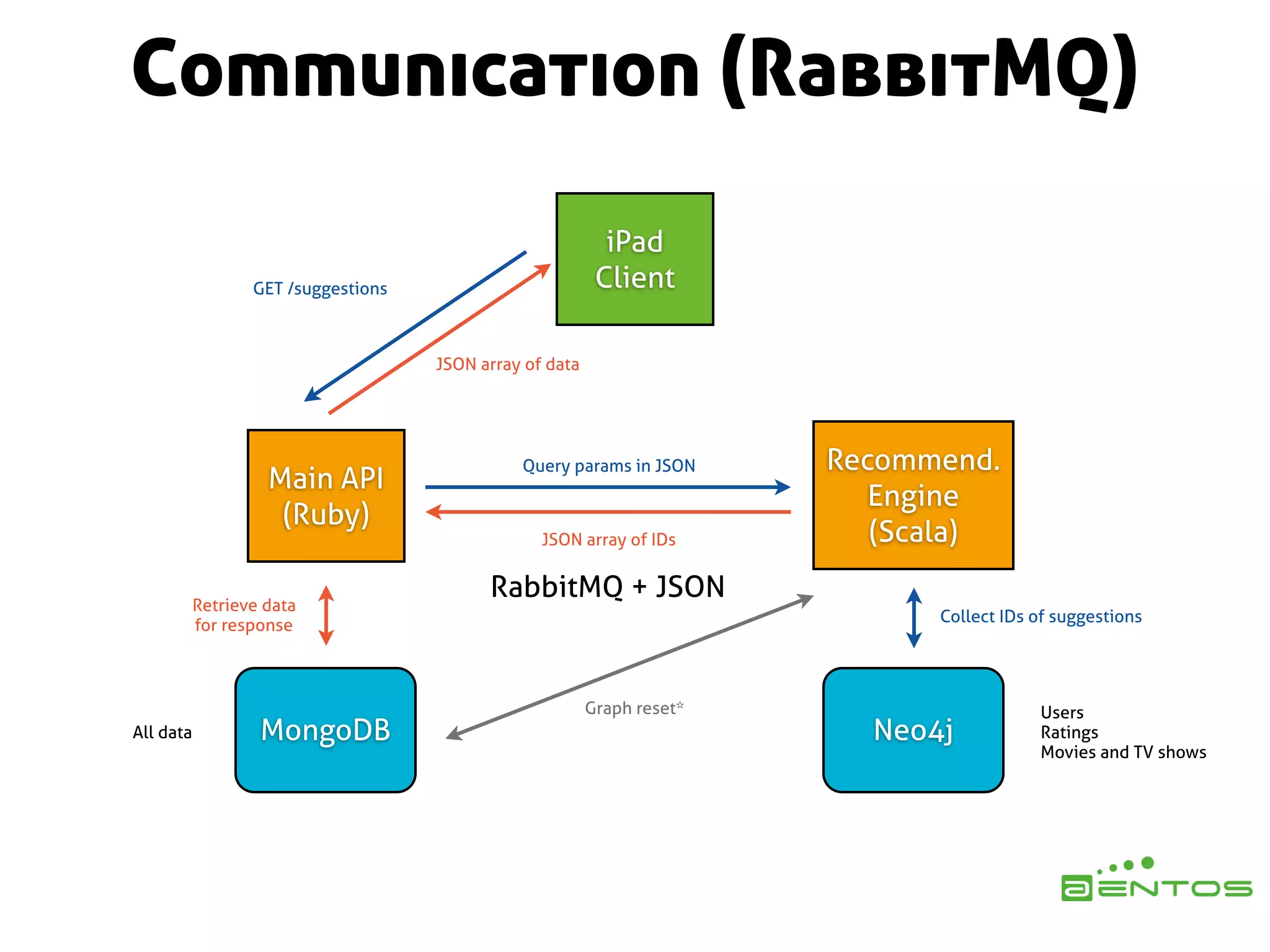

34. Communication (RabbitMQ)
iPad
GET /suggestions Client
JSON array of data
Query params in JSON Recommend.
Main API
Engine
(Ruby)
JSON array of IDs (Scala)
Retrieve data
RabbitMQ + JSON
Collect IDs of suggestions
for response
Graph reset* Users
All data MongoDB Neo4j Ratings
Movies and TV shows

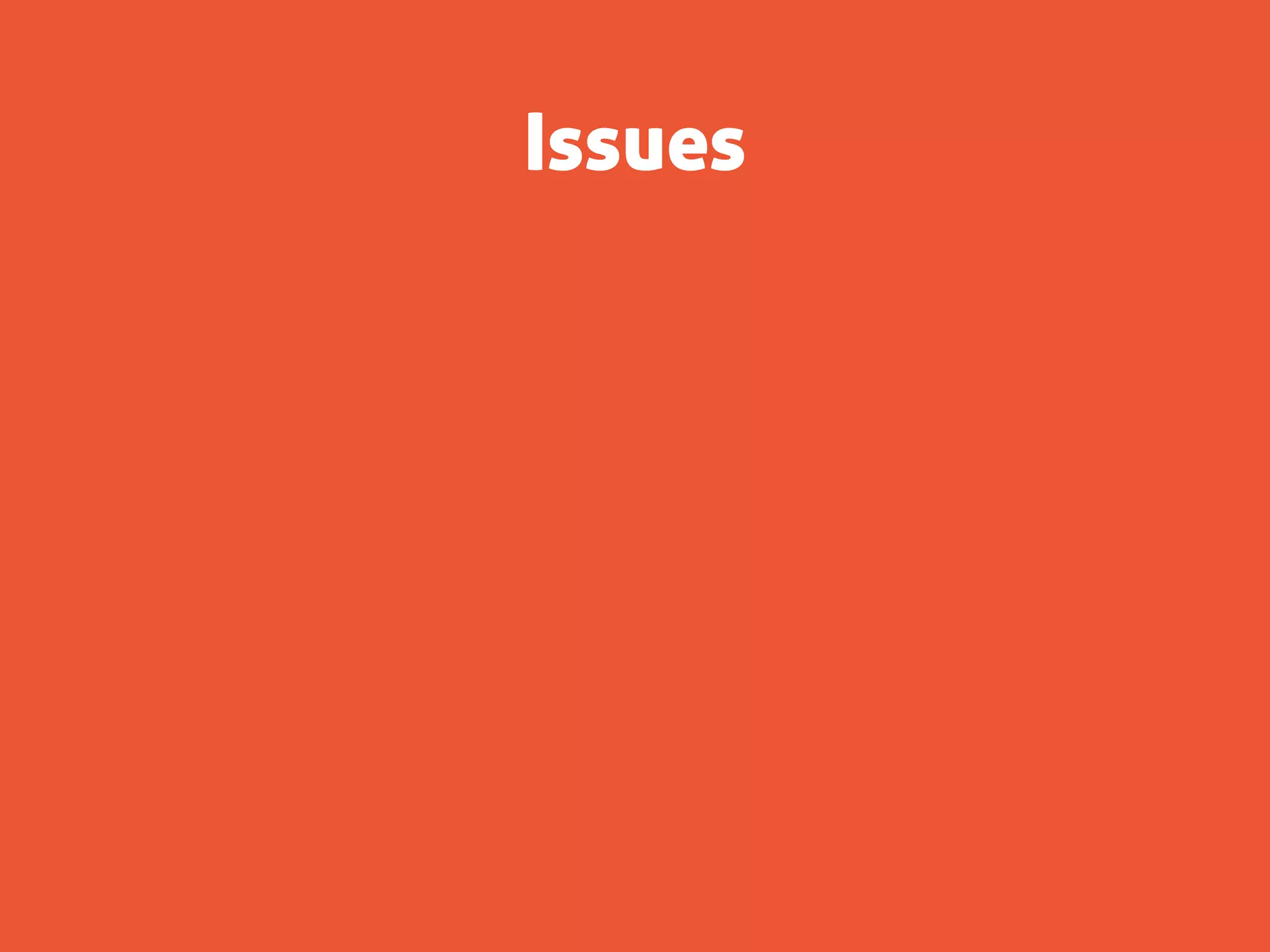

35. Issues

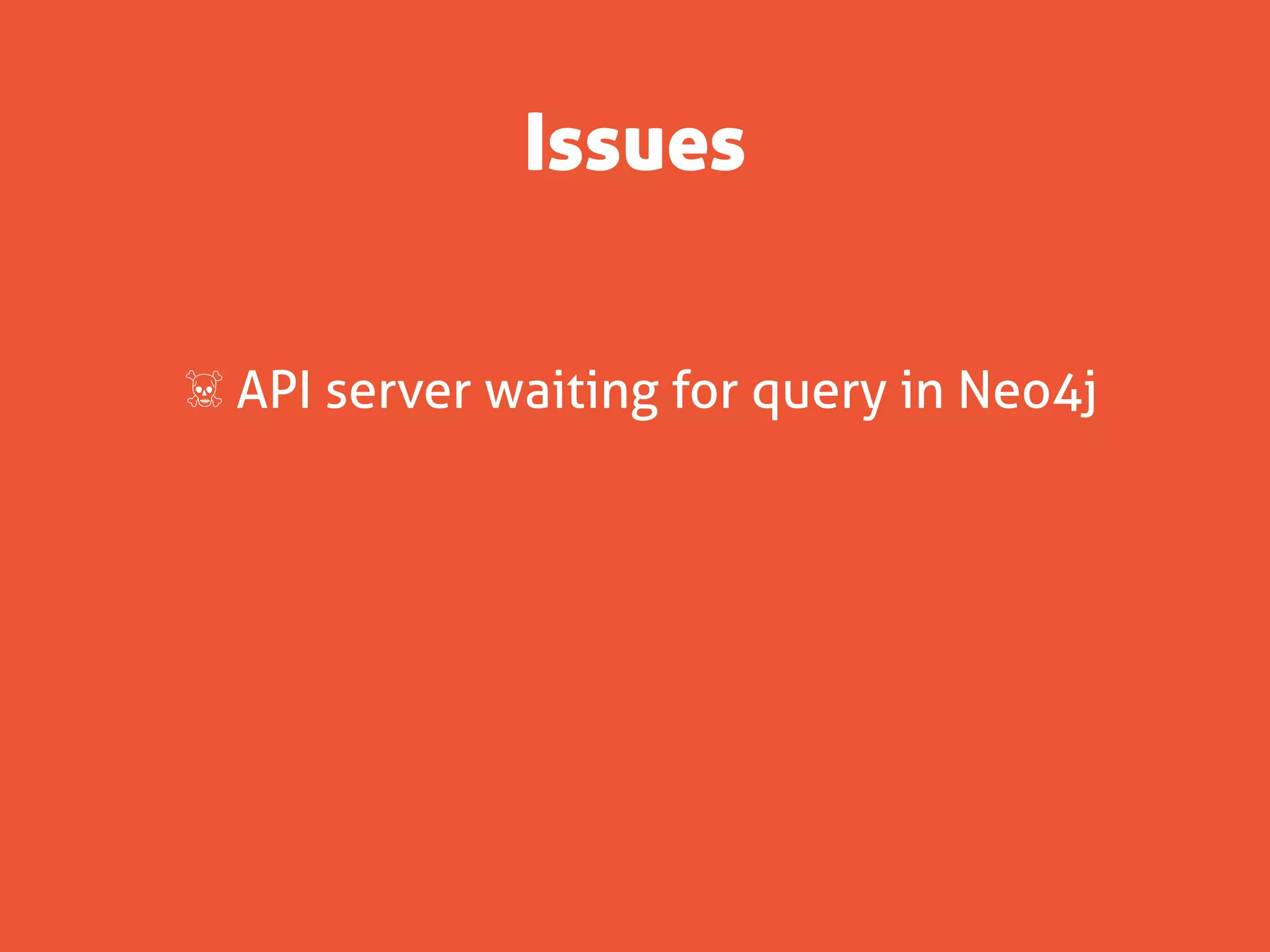

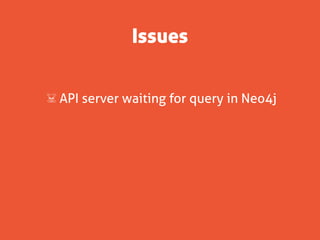

36. Issues
☠ API server waiting for query in Neo4j

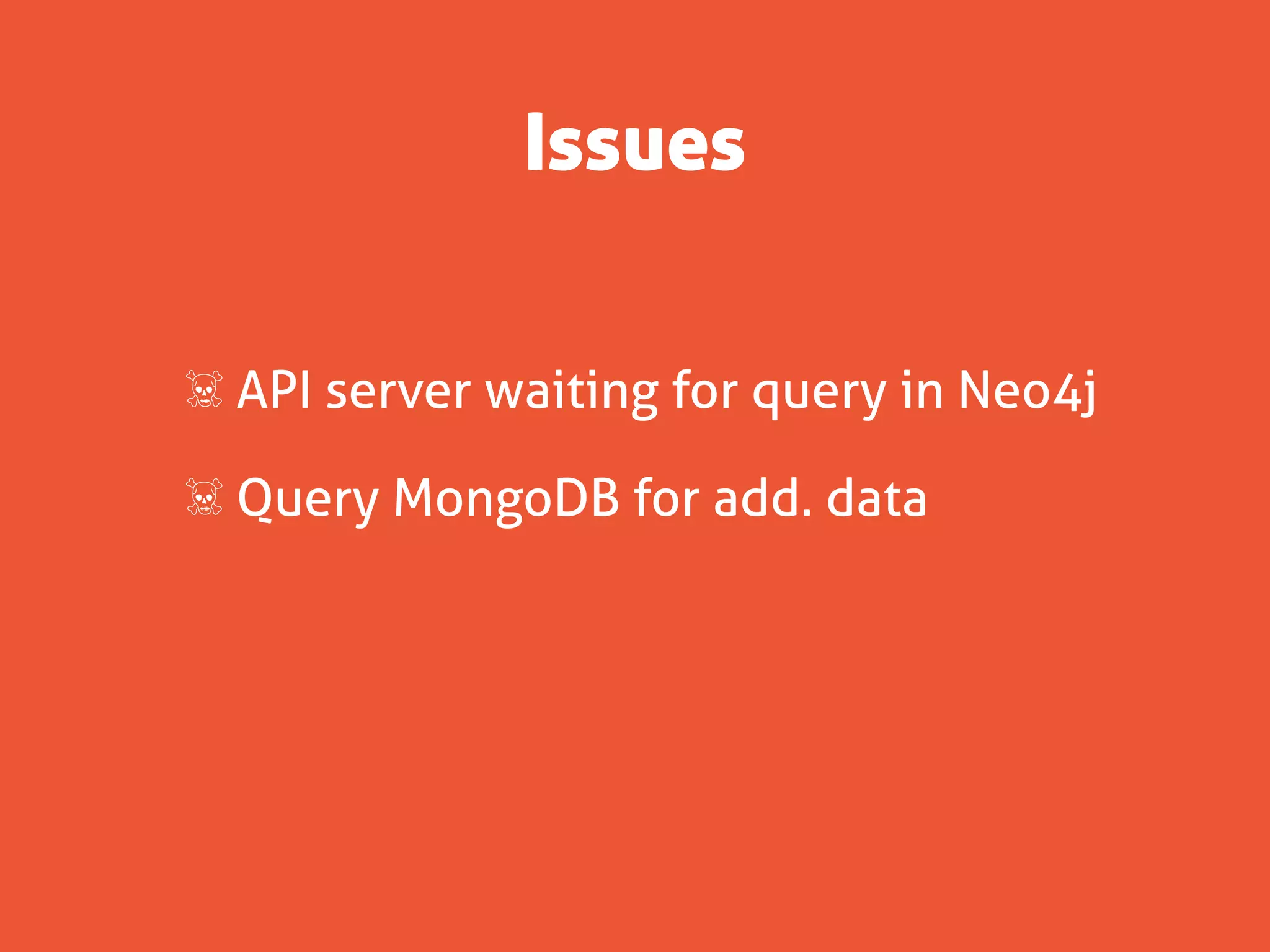

37. Issues
☠ API server waiting for query in Neo4j
☠ Query MongoDB for add. data

38. Issues
☠ API server waiting for query in Neo4j
☠ Query MongoDB for add. data
☠ Transform data

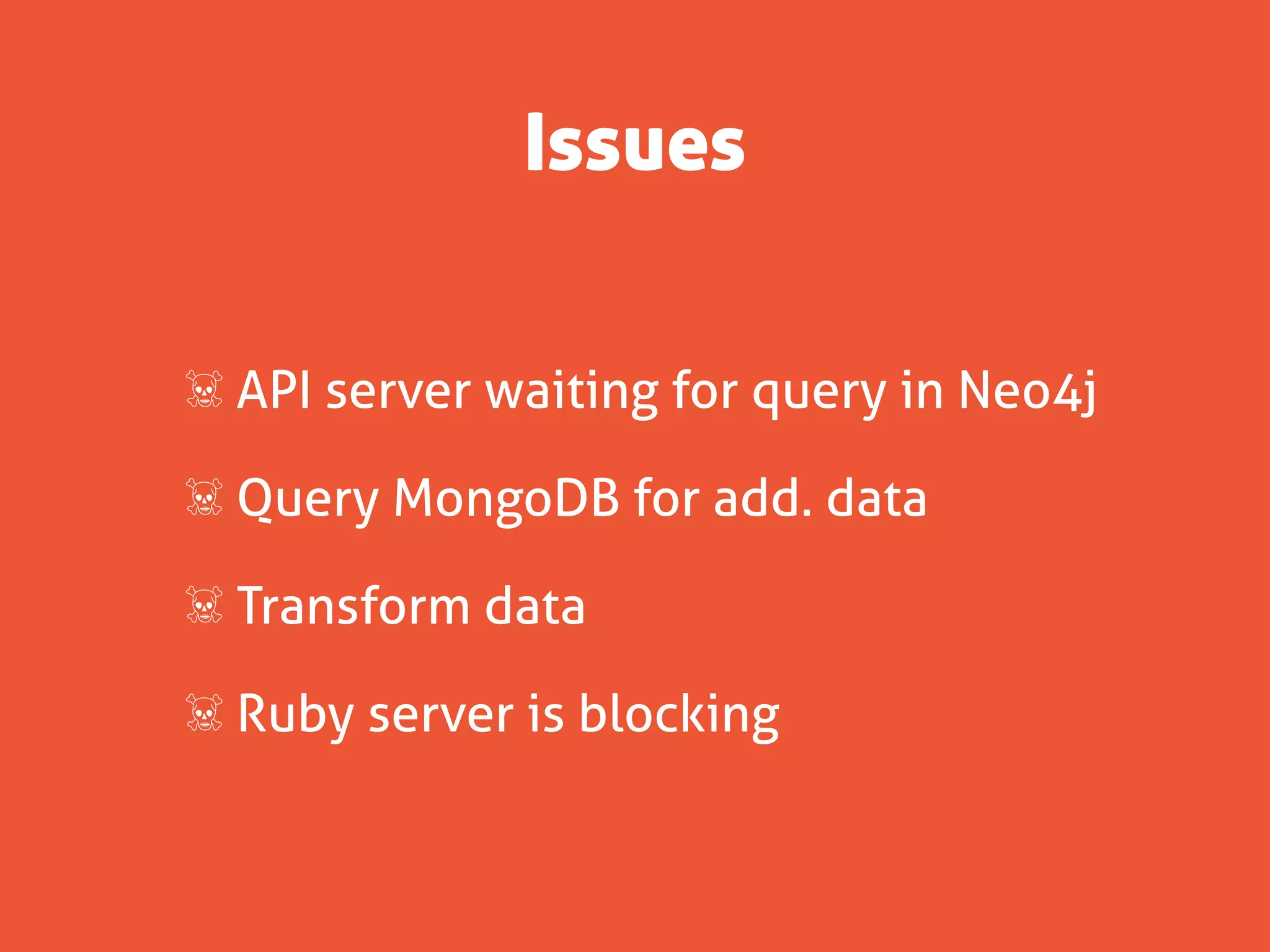

39. Issues
☠ API server waiting for query in Neo4j
☠ Query MongoDB for add. data
☠ Transform data
☠ Ruby server is blocking

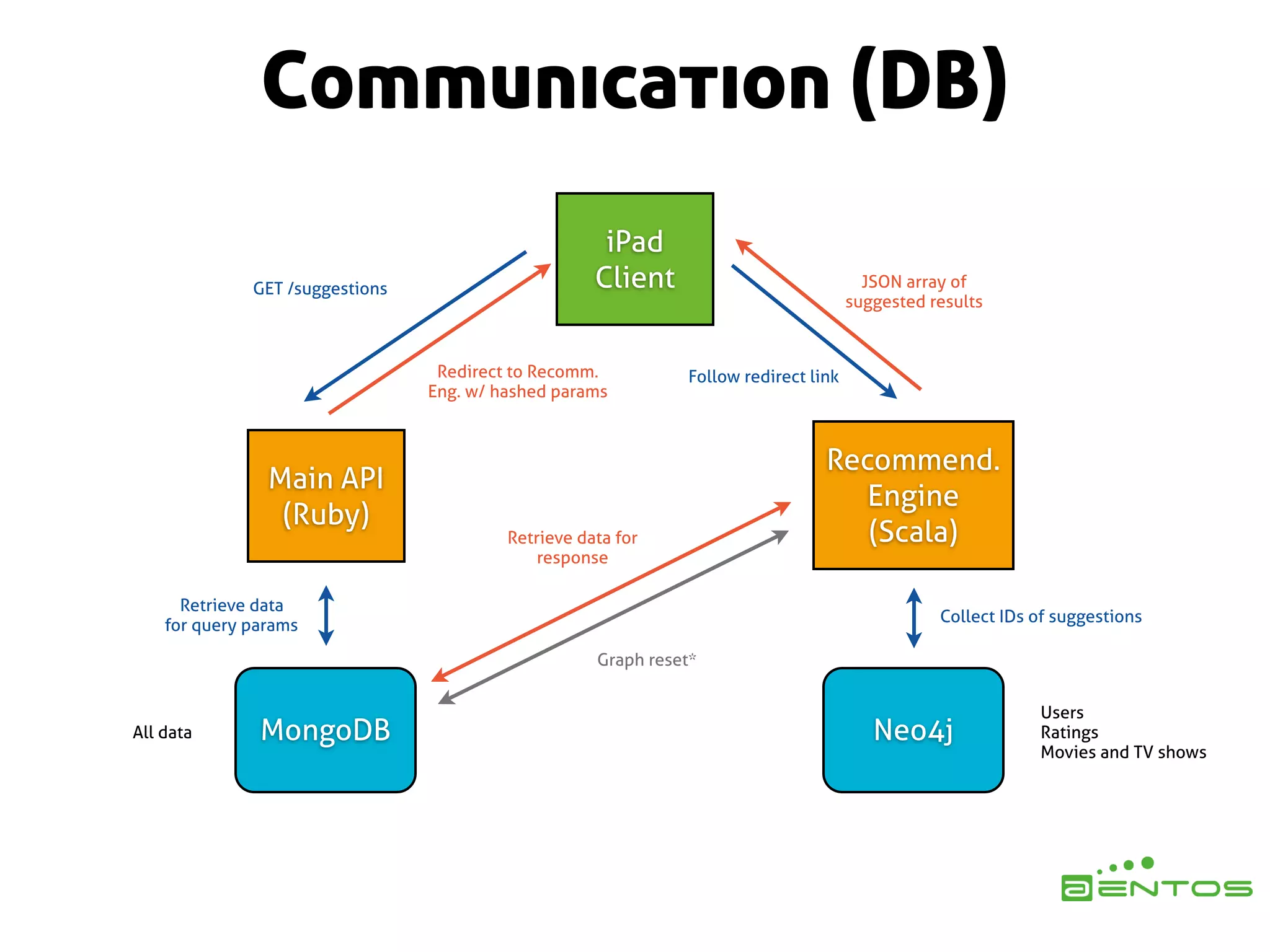

40. Communication (DB)
iPad
GET /suggestions Client JSON array of
suggested results
Redirect to Recomm. Follow redirect link
Eng. w/ hashed params
Recommend.
Main API
Engine
(Ruby)
Retrieve data for (Scala)
response
Retrieve data
Collect IDs of suggestions
for query params
Graph reset*
Users
All data MongoDB Neo4j Ratings
Movies and TV shows

41. Improvements

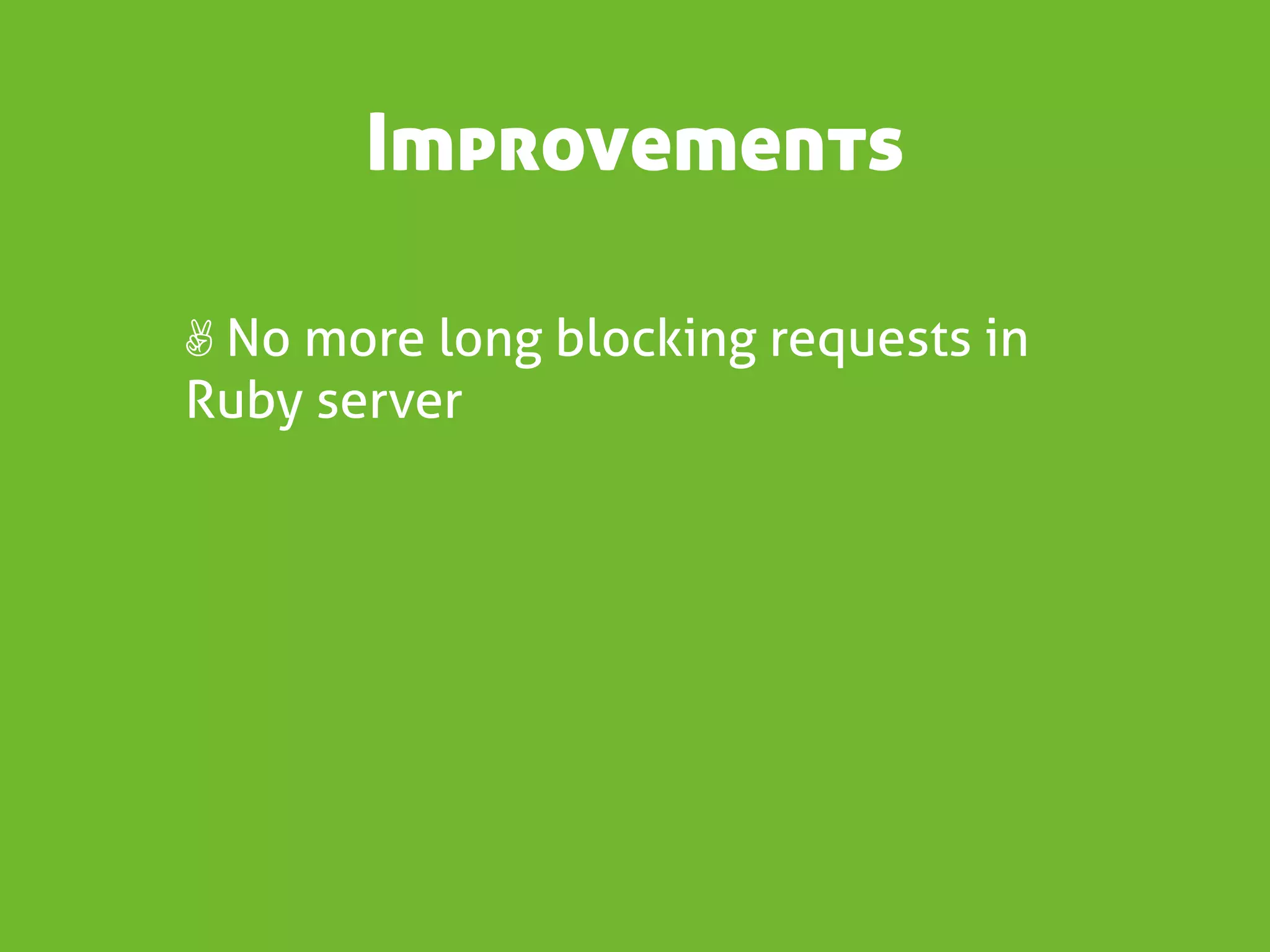

42. Improvements
✌ No more long blocking requests in
Ruby server

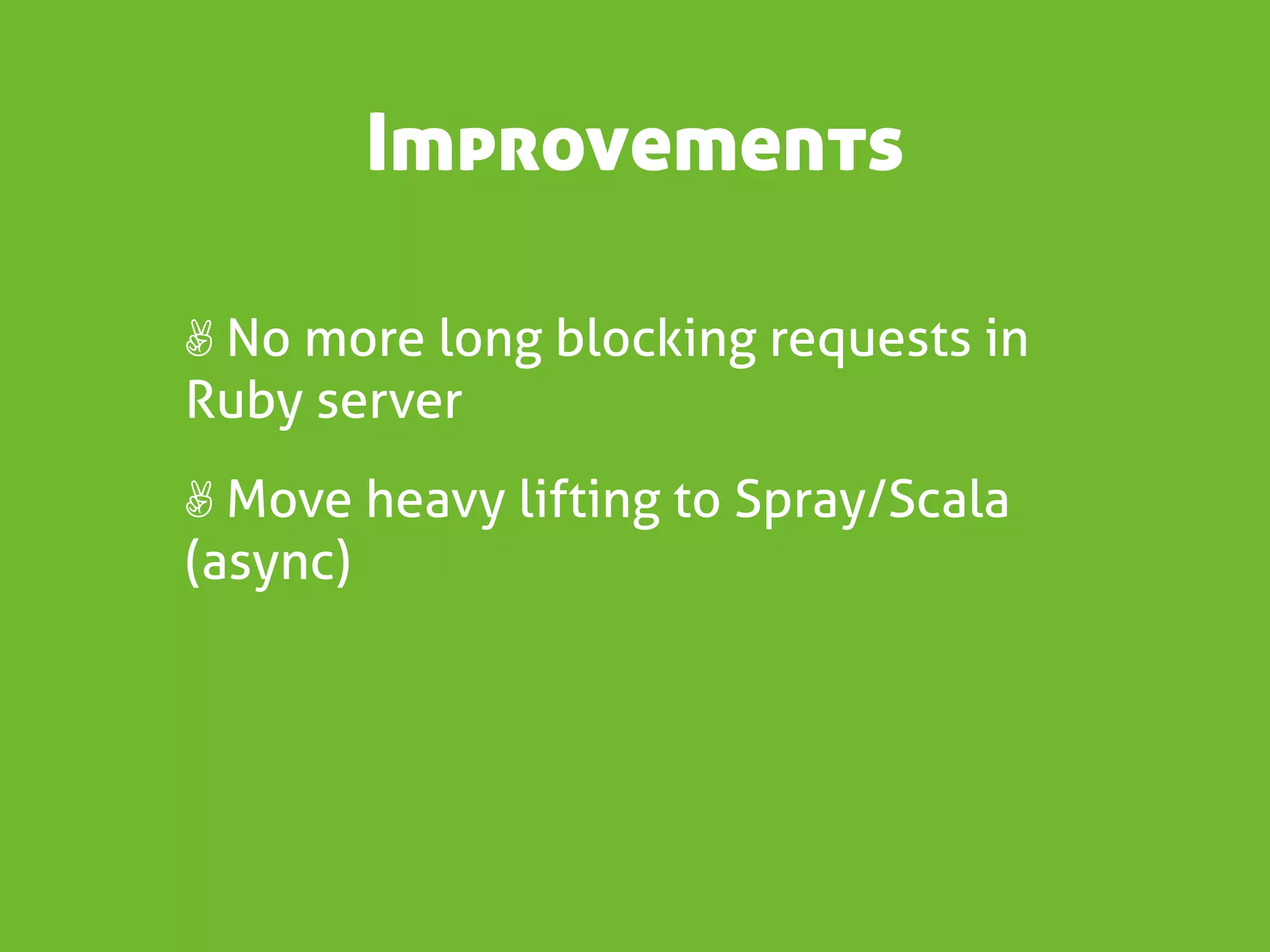

43. Improvements
✌ No more long blocking requests in
Ruby server
✌ Move heavy lifting to Spray/Scala
(async)

44. Improvements
✌ No more long blocking requests in
Ruby server
✌ Move heavy lifting to Spray/Scala
(async)
✌ Add cache layer

45. Improvements
✌ No more long blocking requests in
Ruby server
✌ Move heavy lifting to Spray/Scala
(async)
✌ Add cache layer

46. Additional Cache Layer

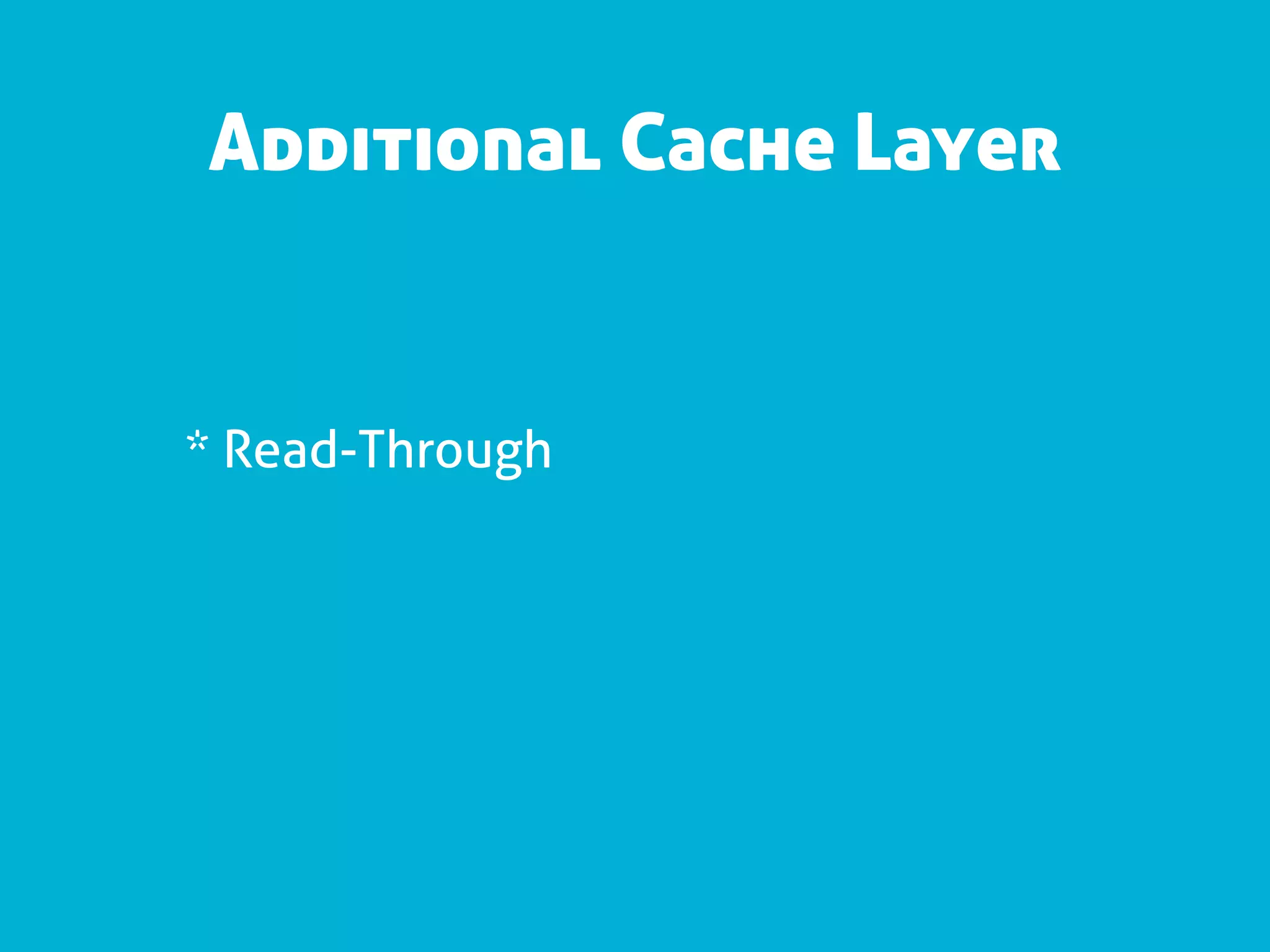

47. Additional Cache Layer
* Read-Through

48. Additional Cache Layer
* Read-Through
* Stores transformed data

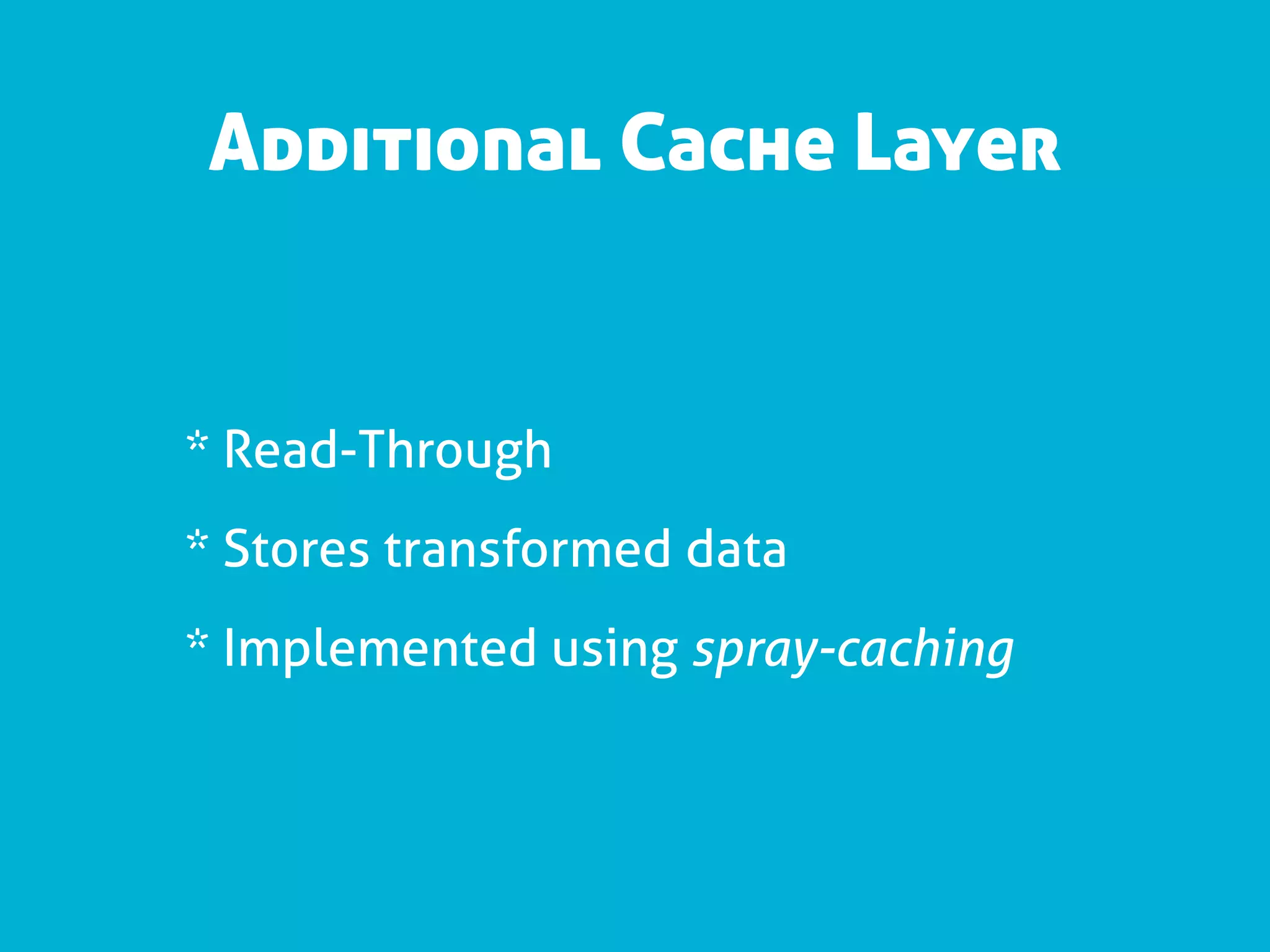

49. Additional Cache Layer
* Read-Through
* Stores transformed data
* Implemented using spray-caching

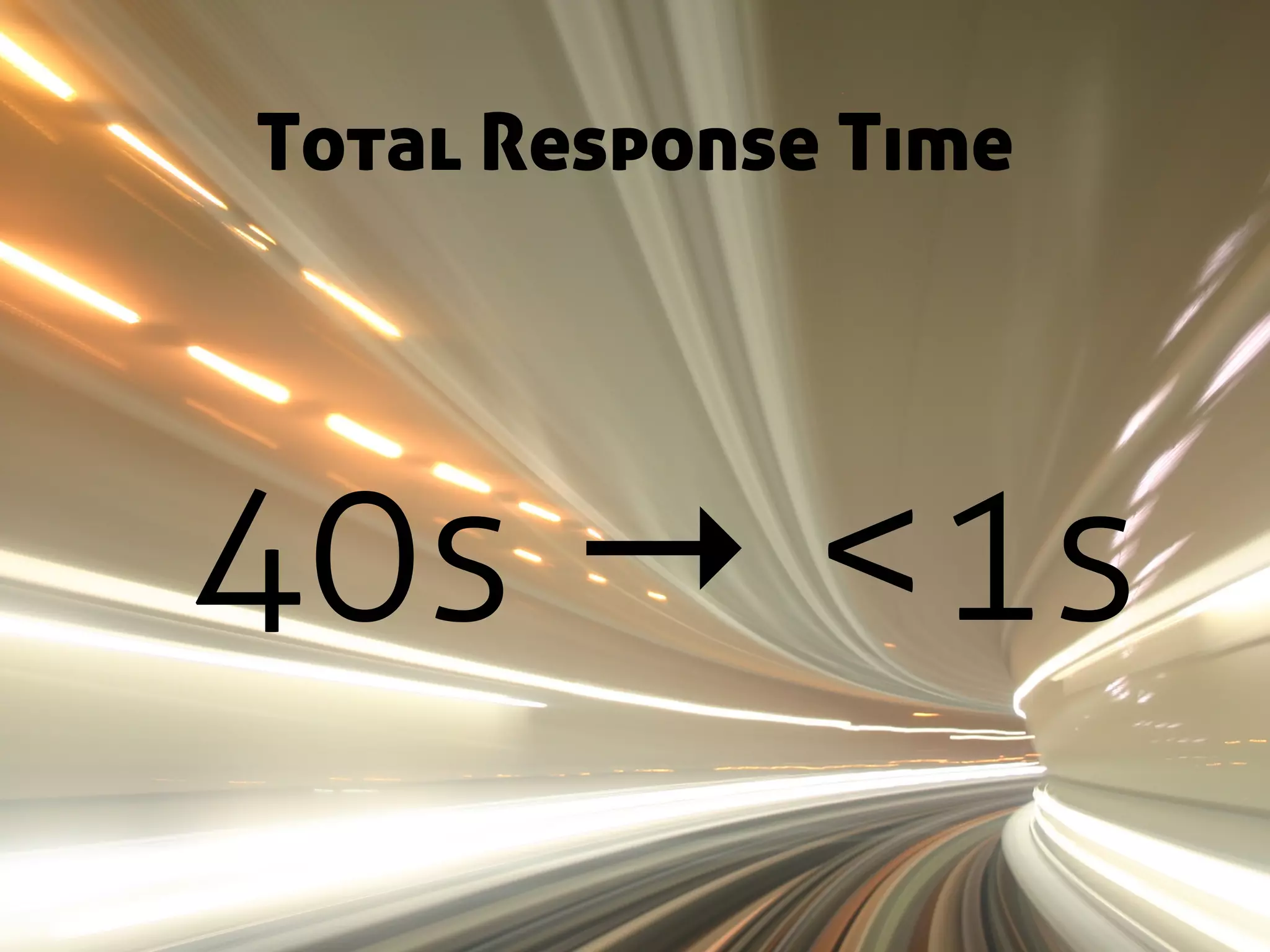

50. Total Response Time
40s → <1s

51. Delta Updates

52. Delta Updates
* API: New ratings in queue collection
(MongoDB)

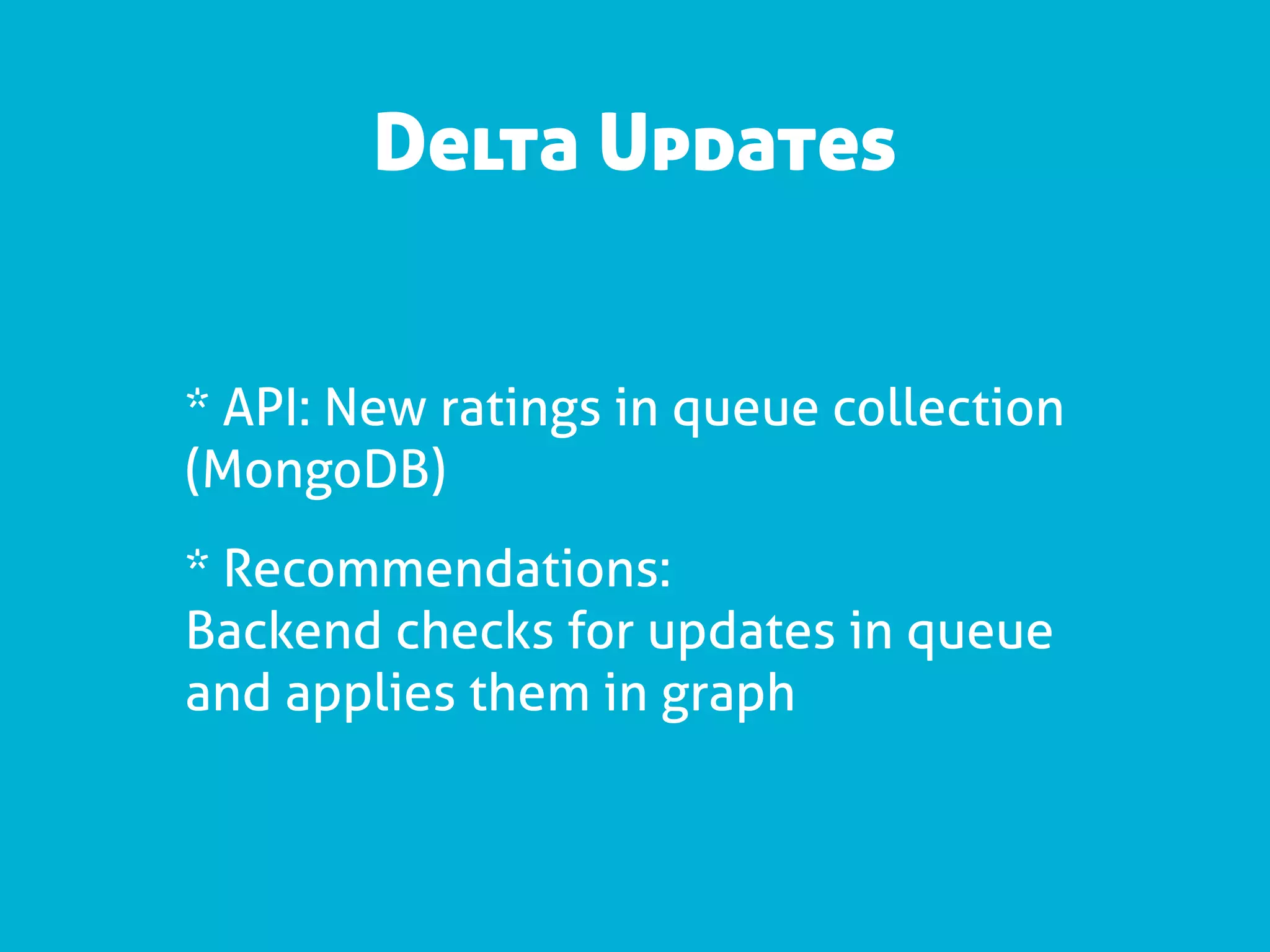

53. Delta Updates
* API: New ratings in queue collection
(MongoDB)
* Recommendations:
Backend checks for updates in queue
and applies them in graph

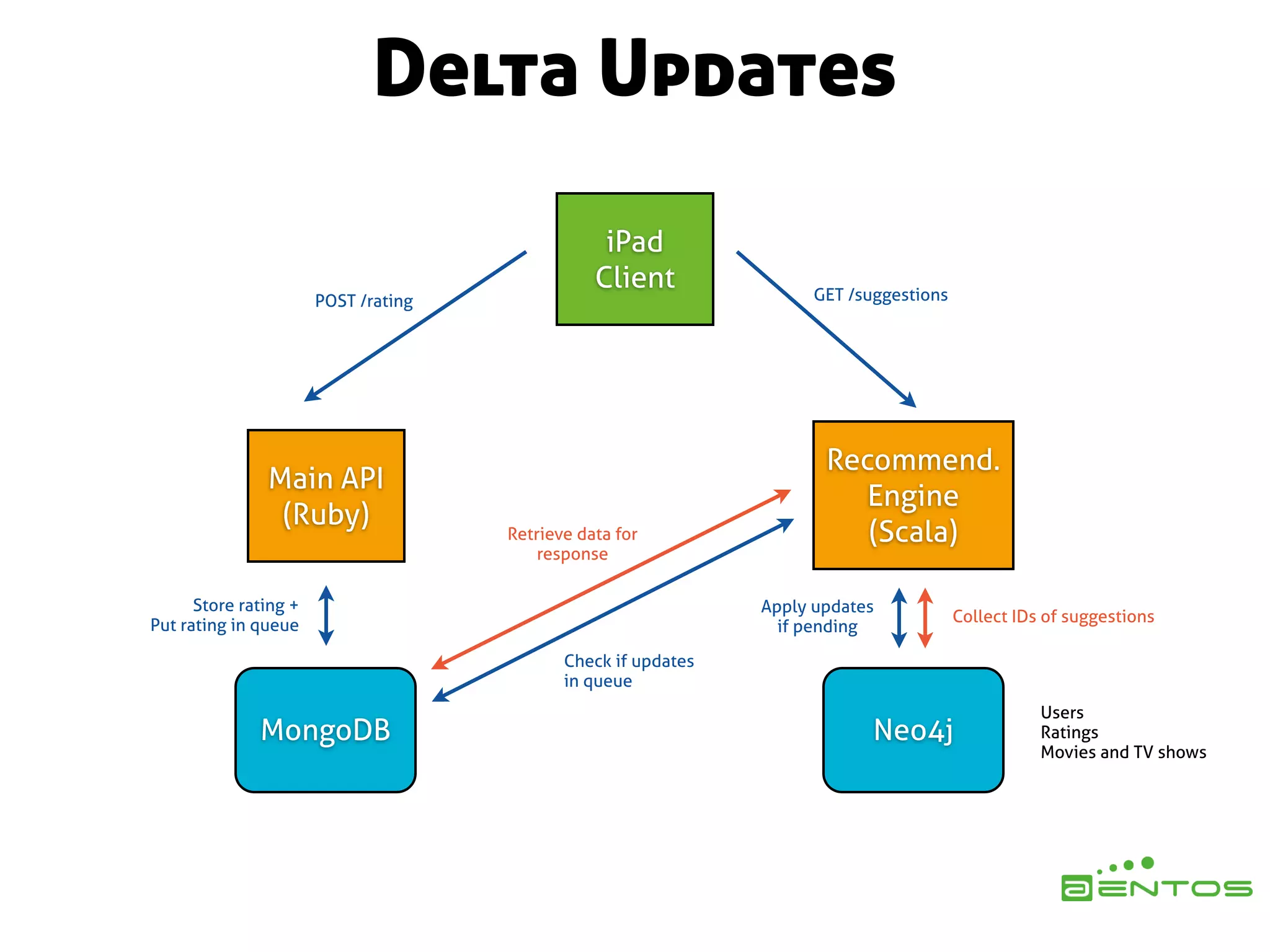

54. Delta Updates
iPad
Client GET /suggestions
POST /rating
Recommend.
Main API
Engine
(Ruby)
Retrieve data for (Scala)
response
Store rating + Apply updates
Collect IDs of suggestions
Put rating in queue if pending
Check if updates
in queue
Users
MongoDB Neo4j Ratings
Movies and TV shows

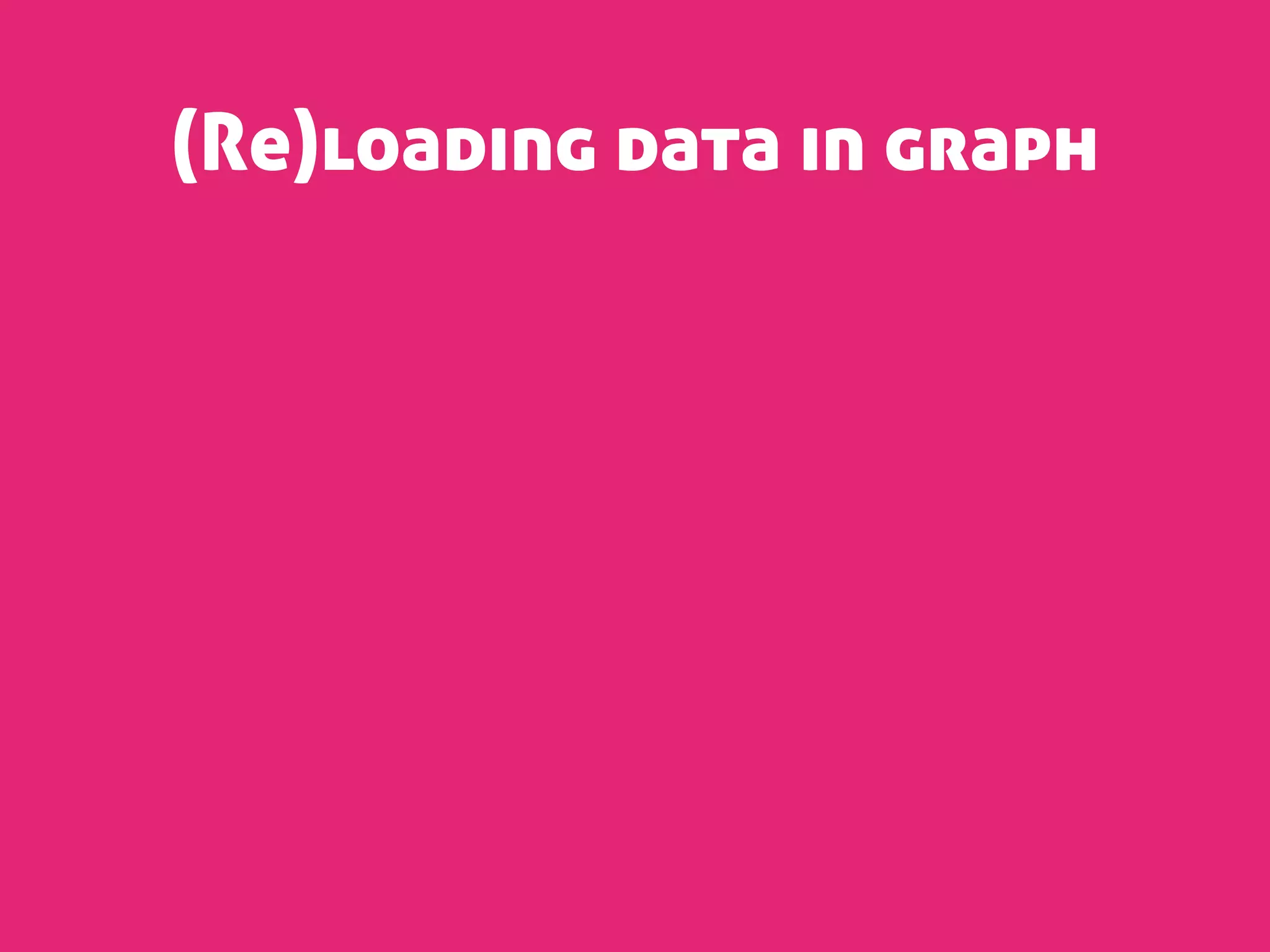

55. (Re)loading data in graph

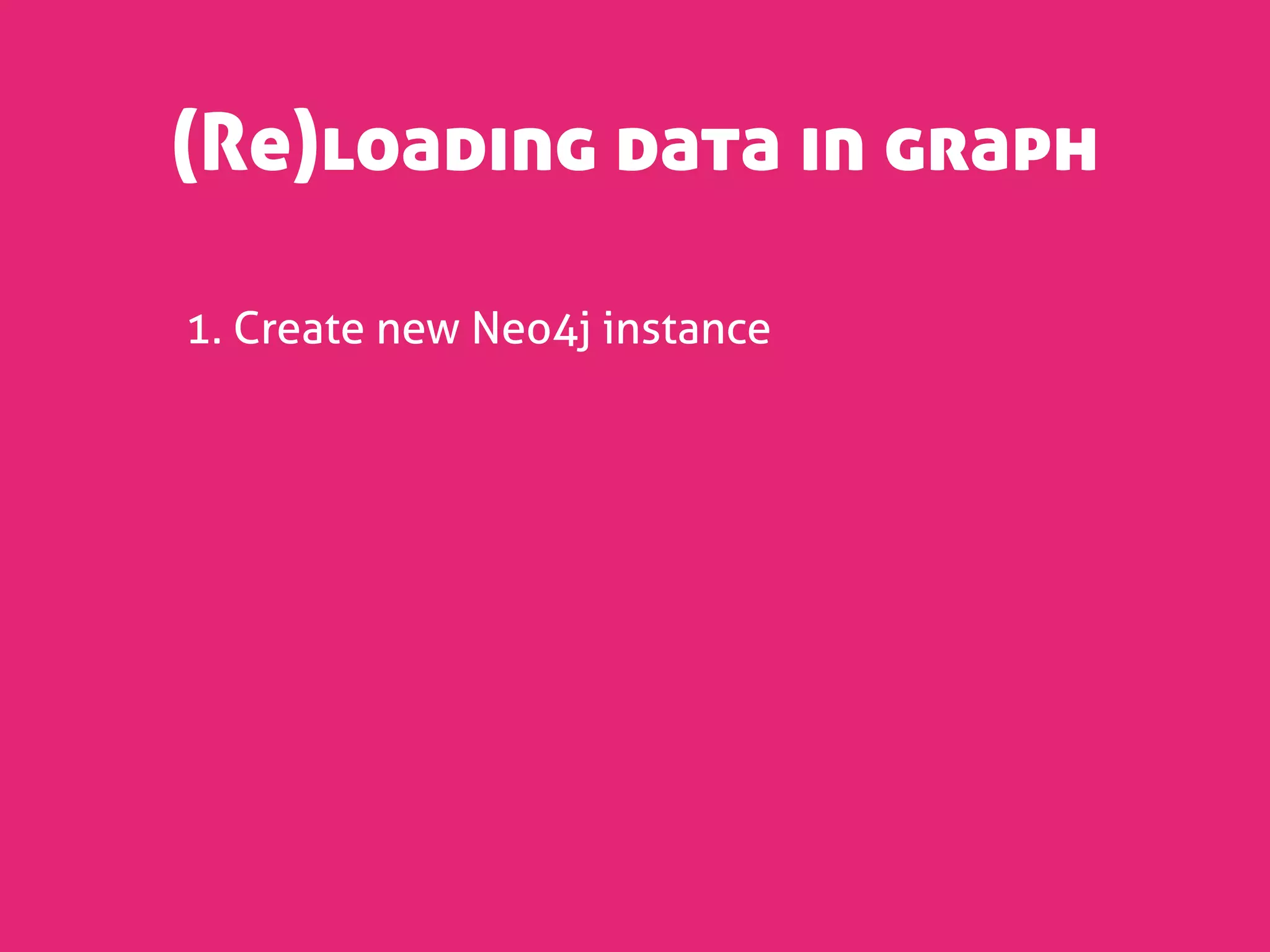

56. (Re)loading data in graph
1. Create new Neo4j instance

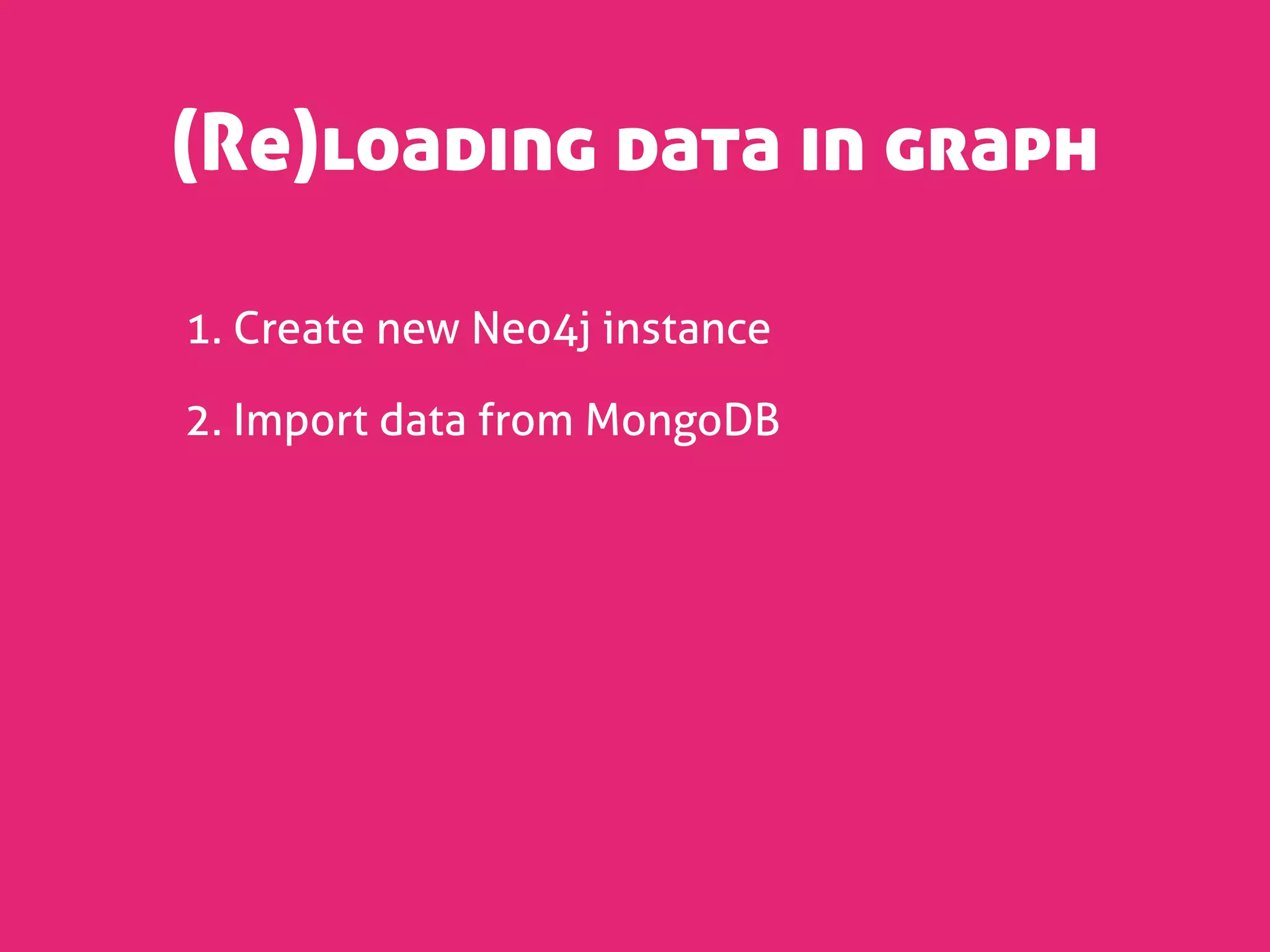

57. (Re)loading data in graph
1. Create new Neo4j instance
2. Import data from MongoDB

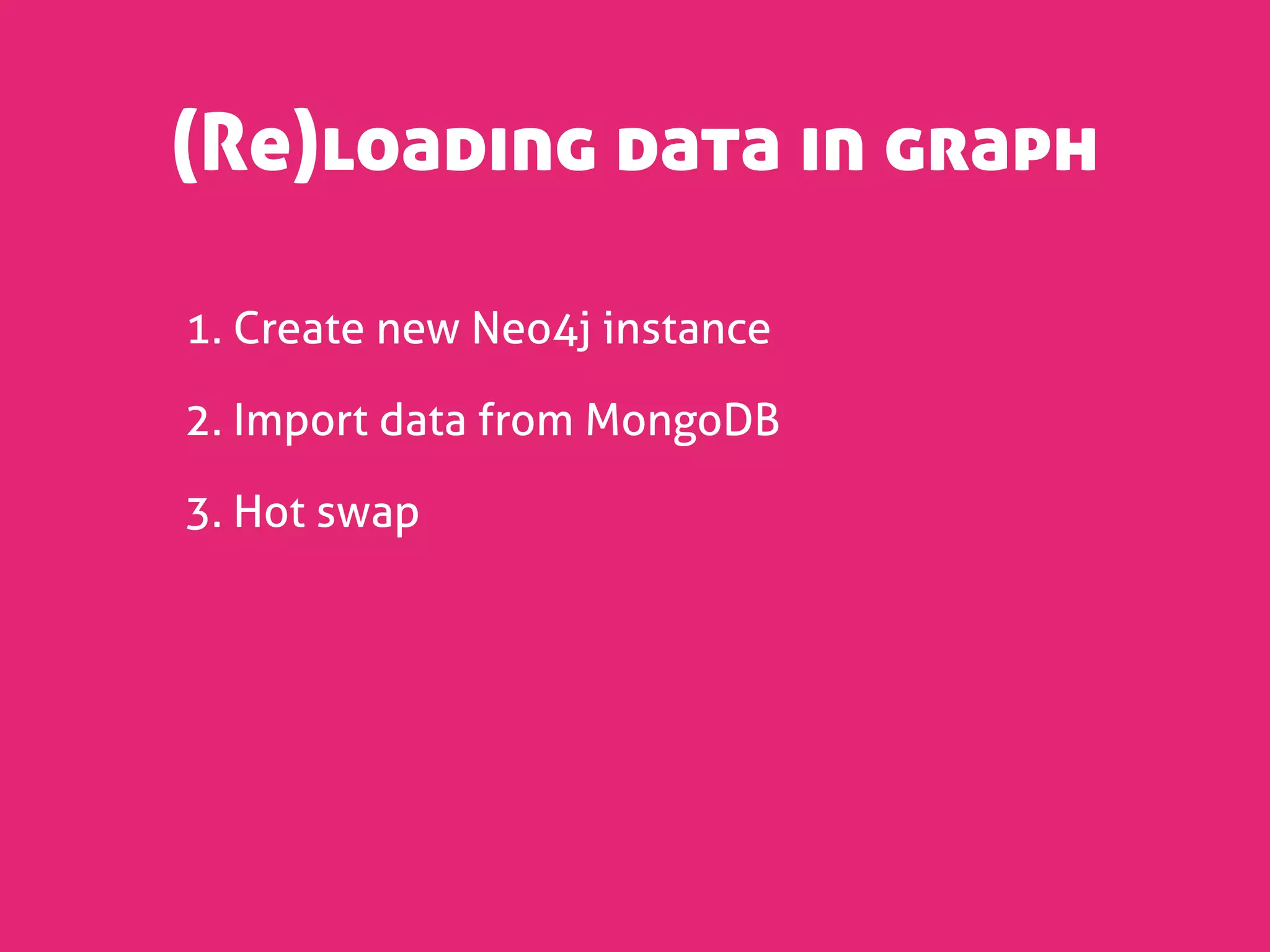

58. (Re)loading data in graph
1. Create new Neo4j instance
2. Import data from MongoDB
3. Hot swap

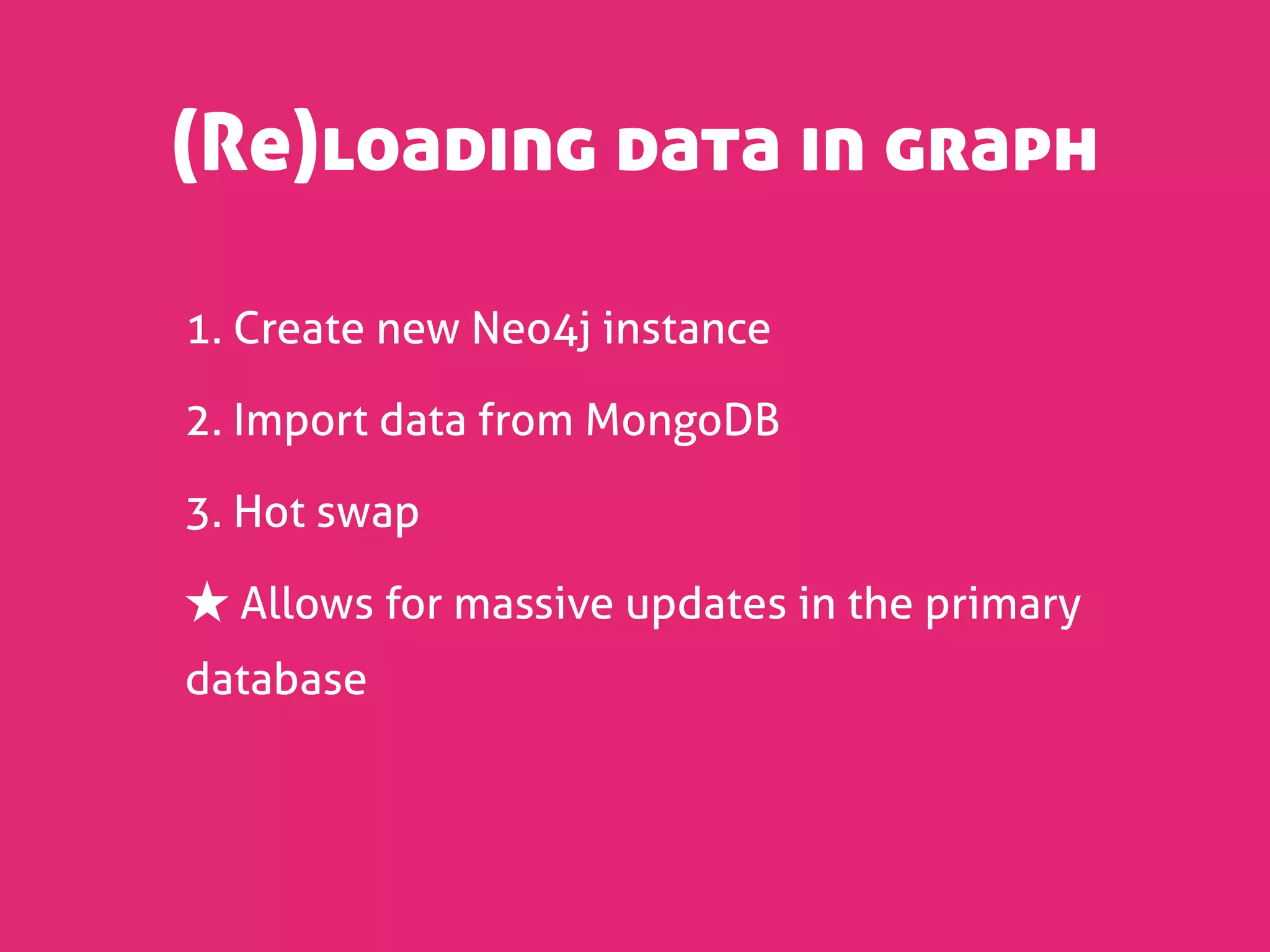

59. (Re)loading data in graph
1. Create new Neo4j instance
2. Import data from MongoDB
3. Hot swap
★ Allows for massive updates in the primary
database

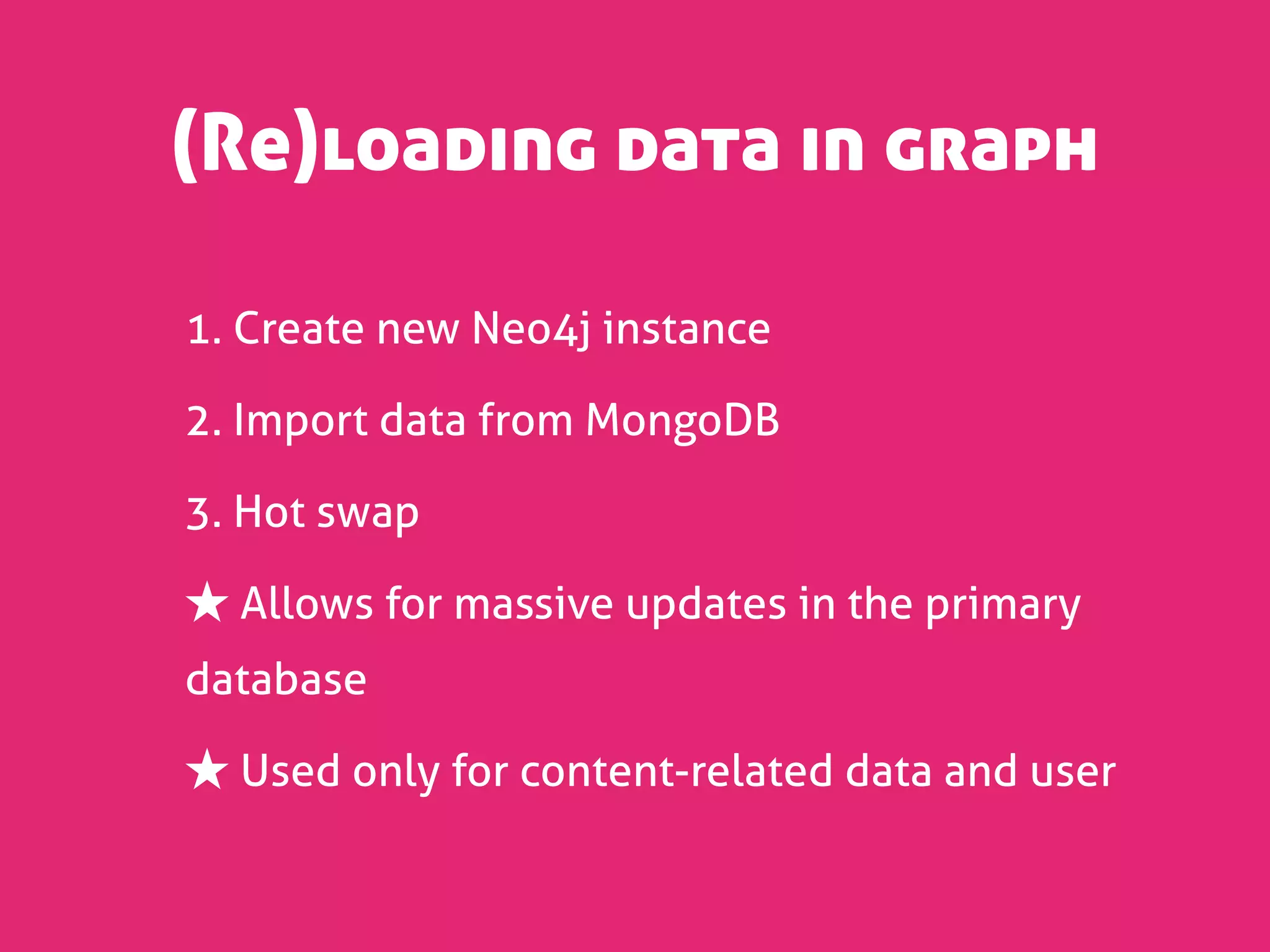

60. (Re)loading data in graph
1. Create new Neo4j instance
2. Import data from MongoDB
3. Hot swap
★ Allows for massive updates in the primary
database
★ Used only for content-related data and user

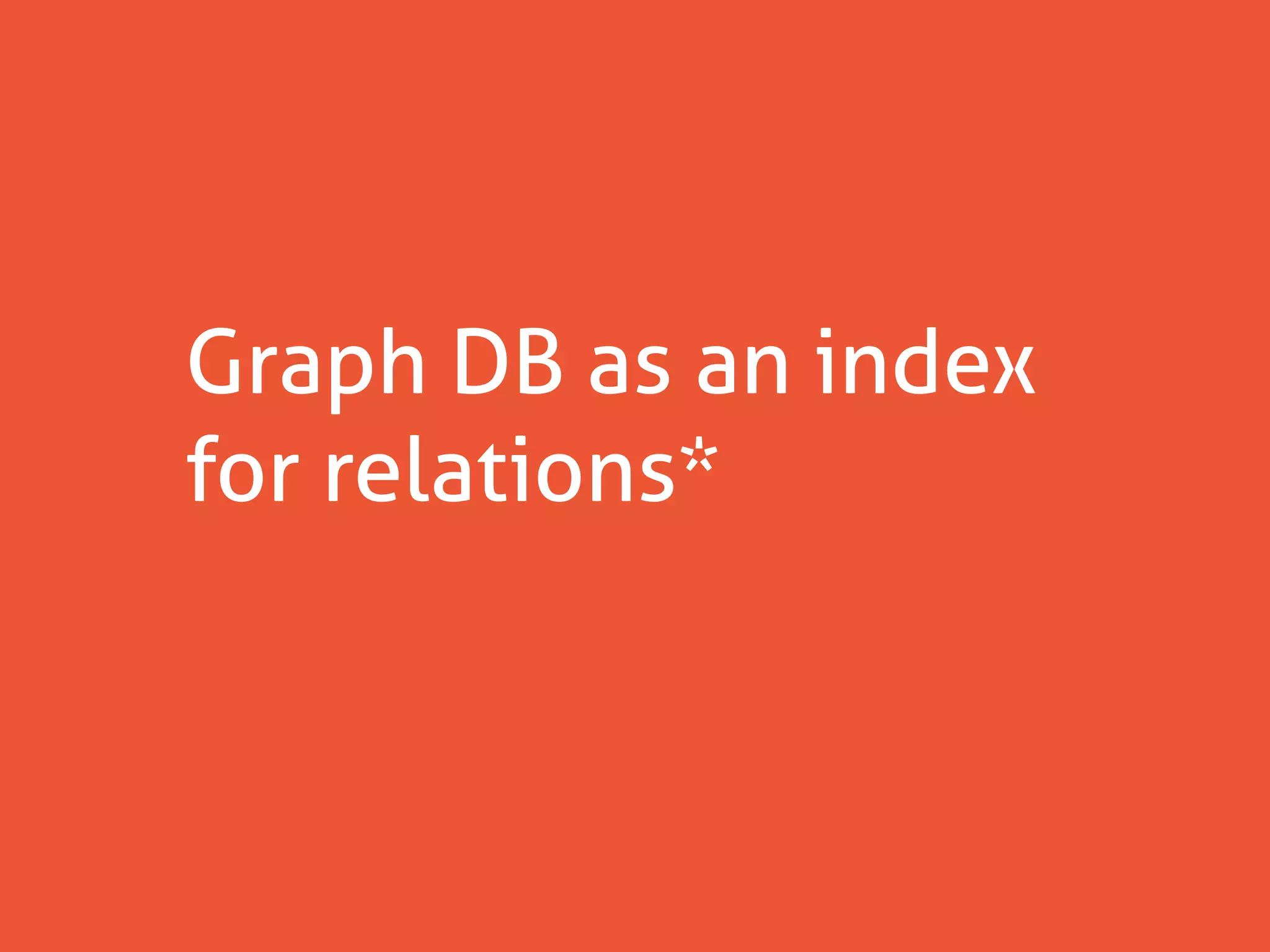

62. Graph DB as an index
for relations*

63. Graph DB as an index
for relations*
powerful queries on relations

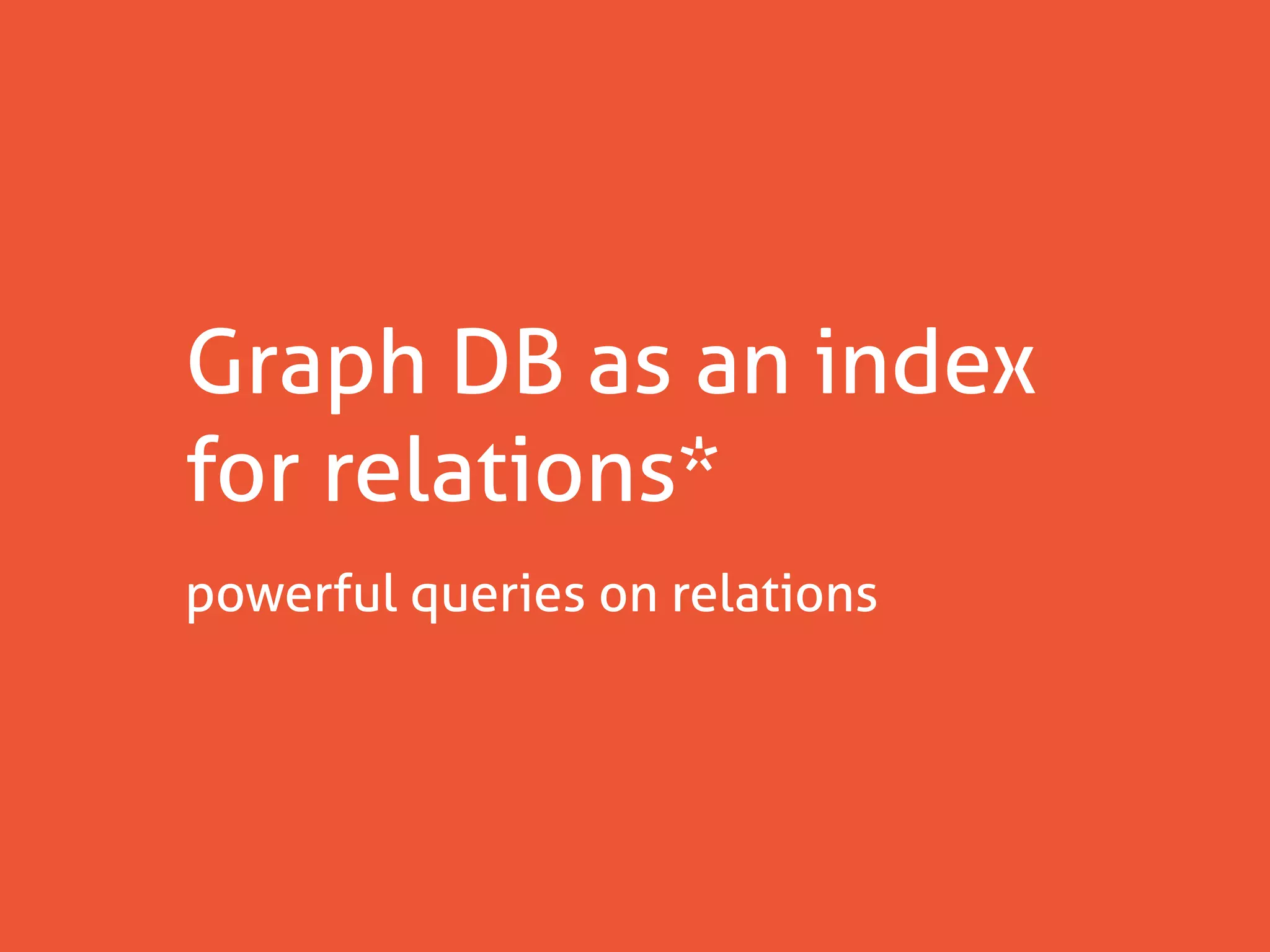

64. Graph DB as an index
for relations*
powerful queries on relations

65. Graph DB as an index
for relations*
powerful queries on relations
⁂ like full text search for strings

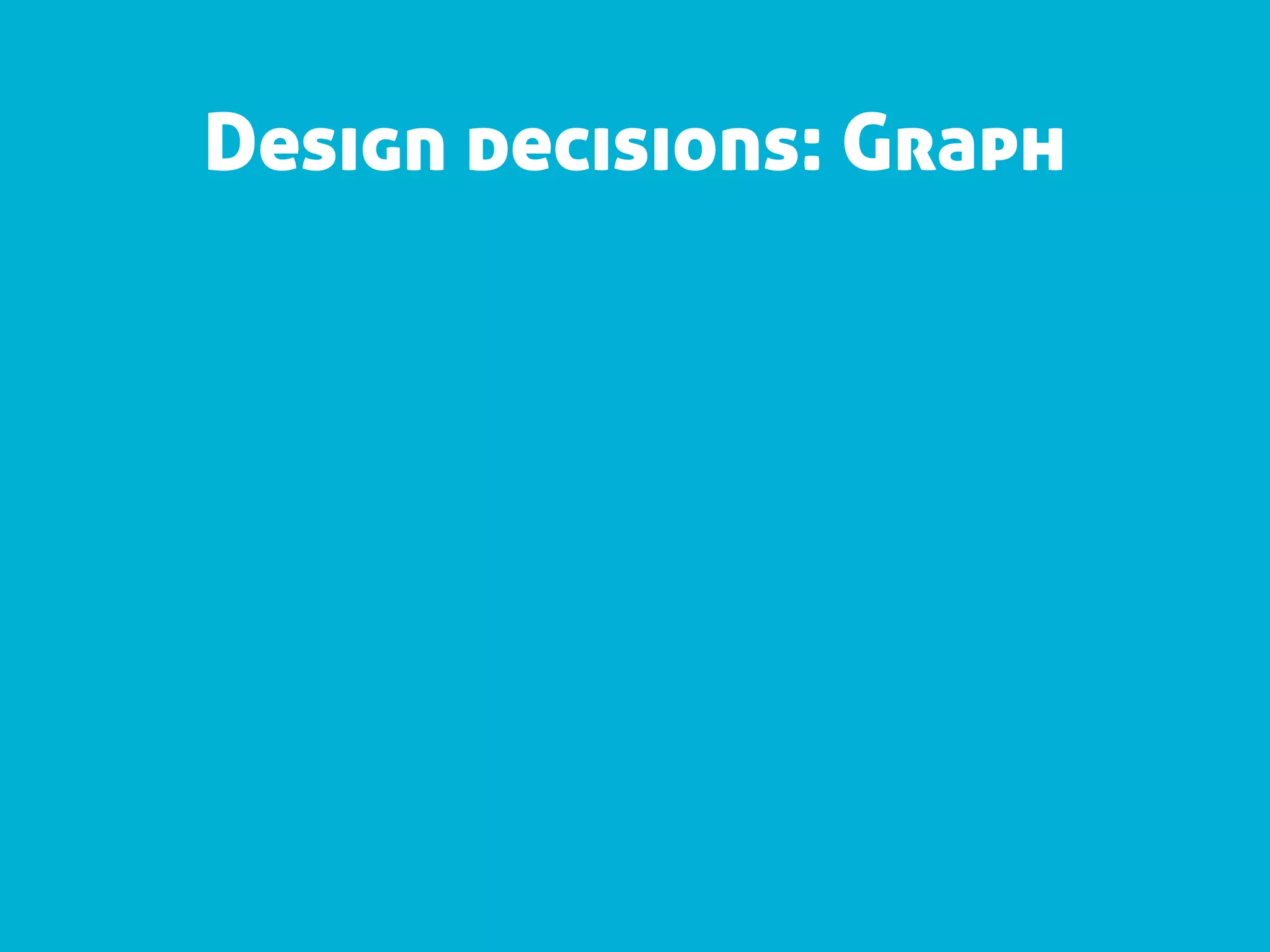

66. Design decisions: Graph

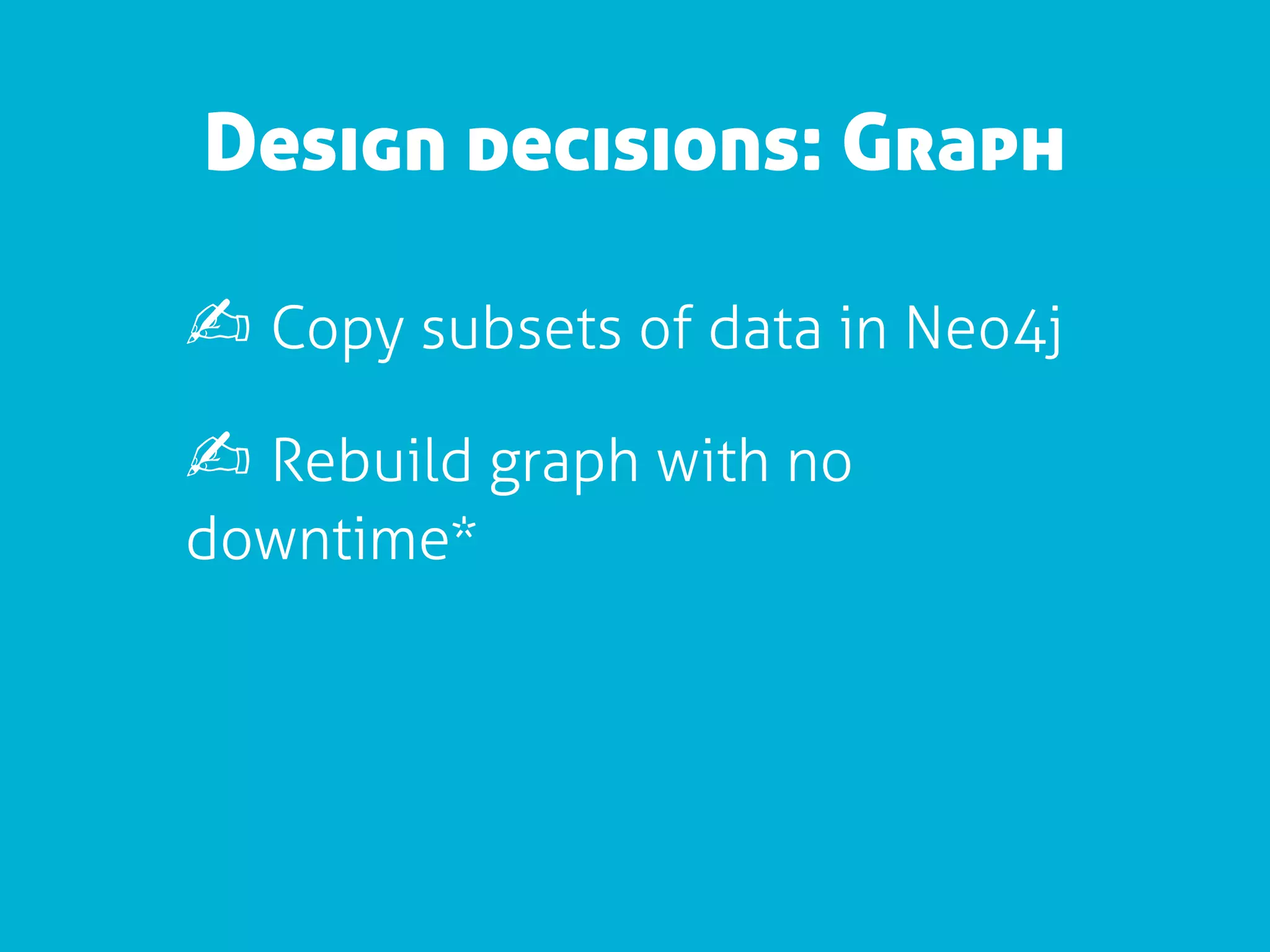

67. Design decisions: Graph
✍ Copy subsets of data in Neo4j

68. Design decisions: Graph
✍ Copy subsets of data in Neo4j
✍ Rebuild graph with no
downtime*

69. Design decisions: Graph
✍ Copy subsets of data in Neo4j
✍ Rebuild graph with no
downtime*
✍ Massive updates blazingly fast

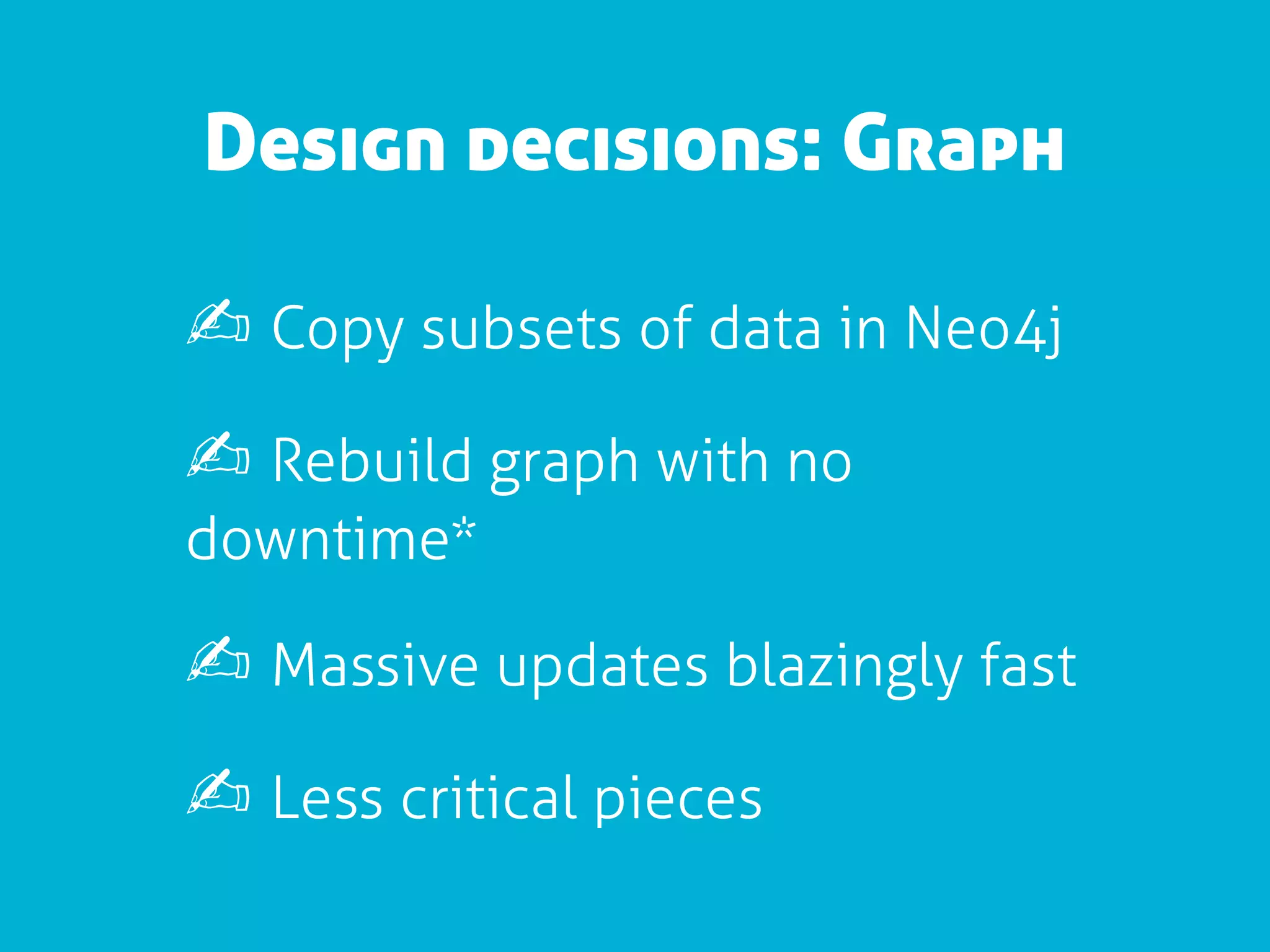

70. Design decisions: Graph
✍ Copy subsets of data in Neo4j
✍ Rebuild graph with no
downtime*
✍ Massive updates blazingly fast
✍ Less critical pieces

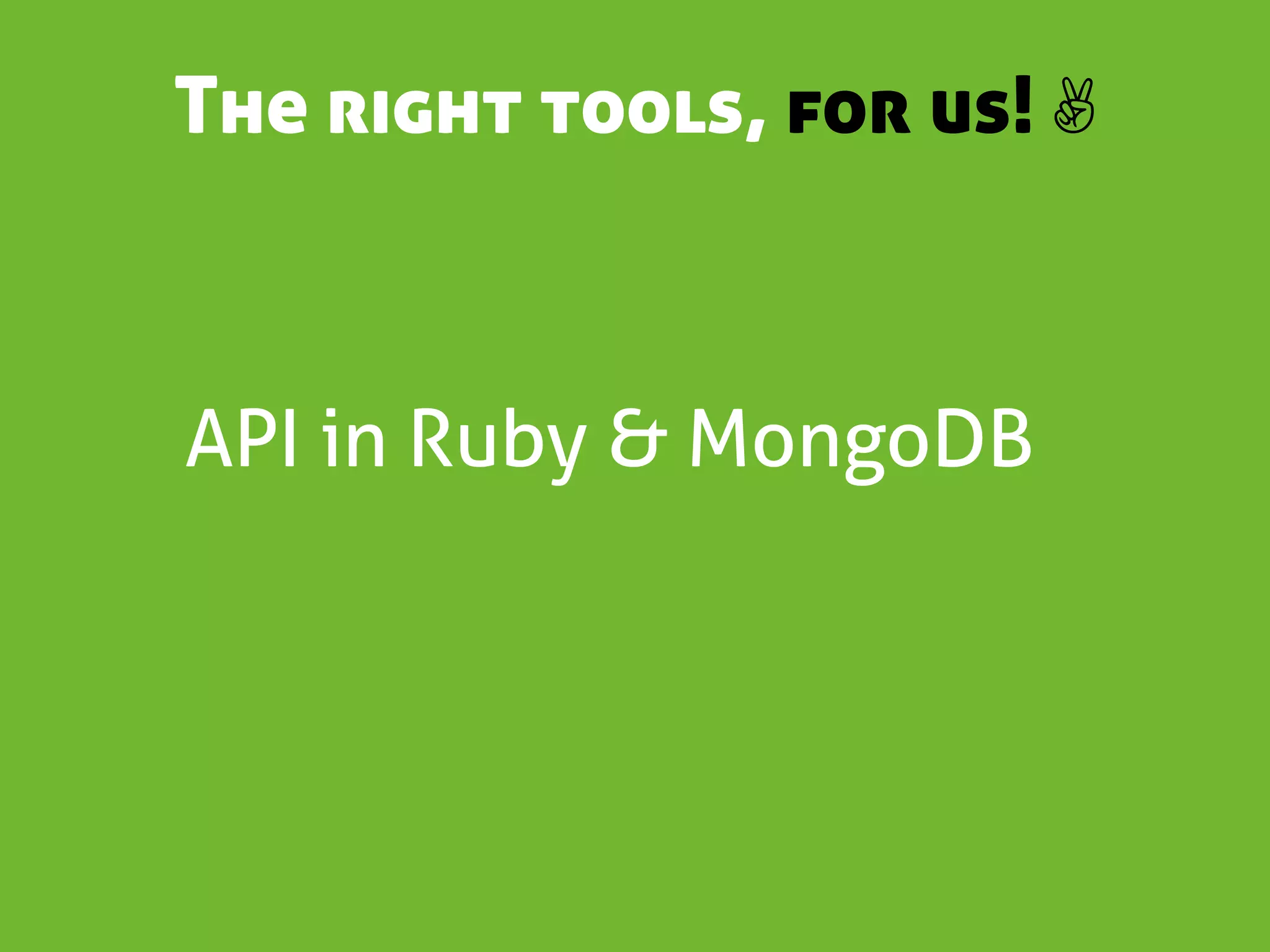

71. The right tools, for us! ✌
API in Ruby & MongoDB

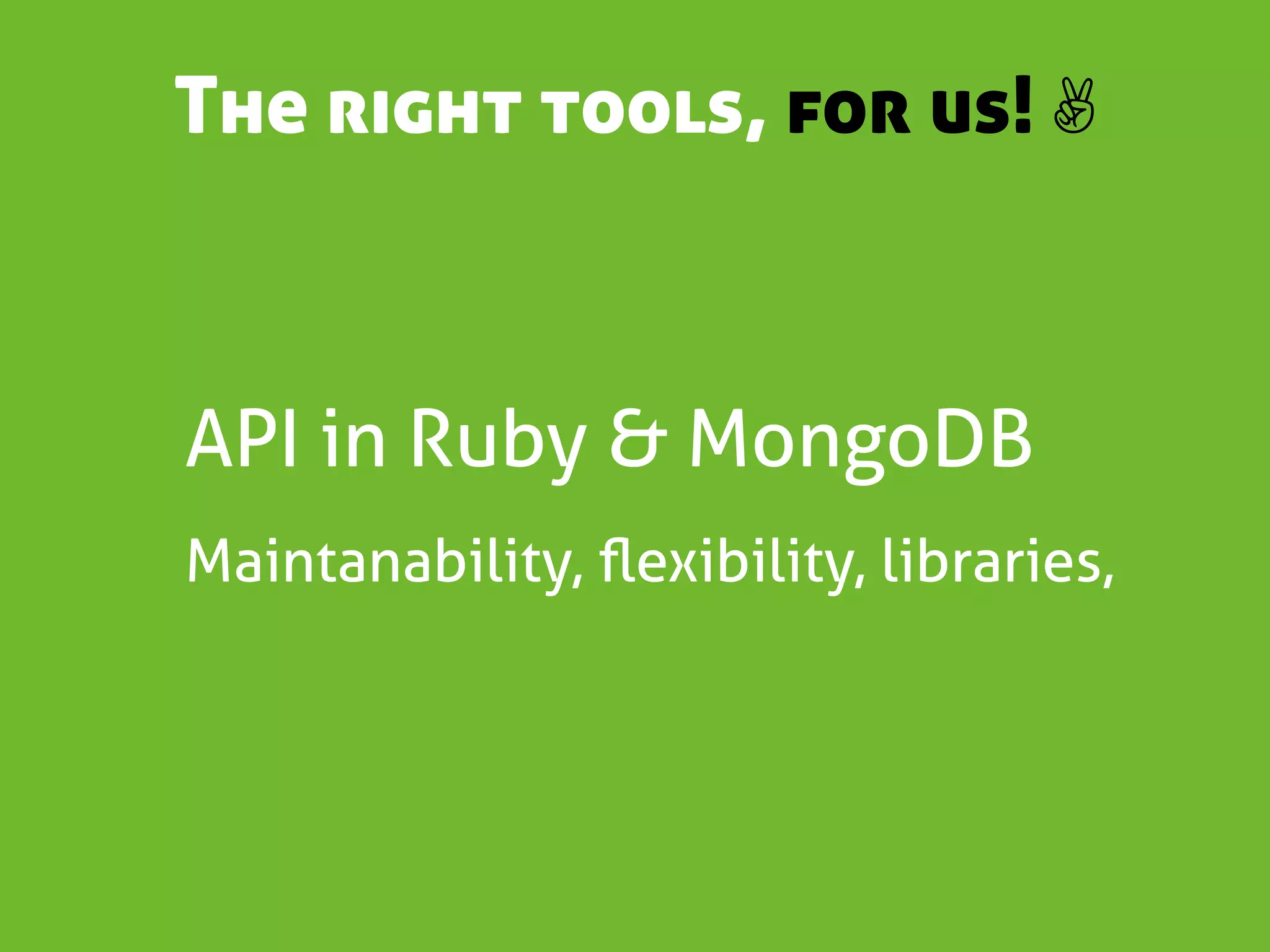

72. The right tools, for us! ✌
API in Ruby & MongoDB
Maintanability, flexibility, libraries,

73. The right tools, for us! ✌
API in Ruby & MongoDB
Maintanability, flexibility, libraries,
schema-free!, development speed

74. The right tools, for us! ✌
Recommendations

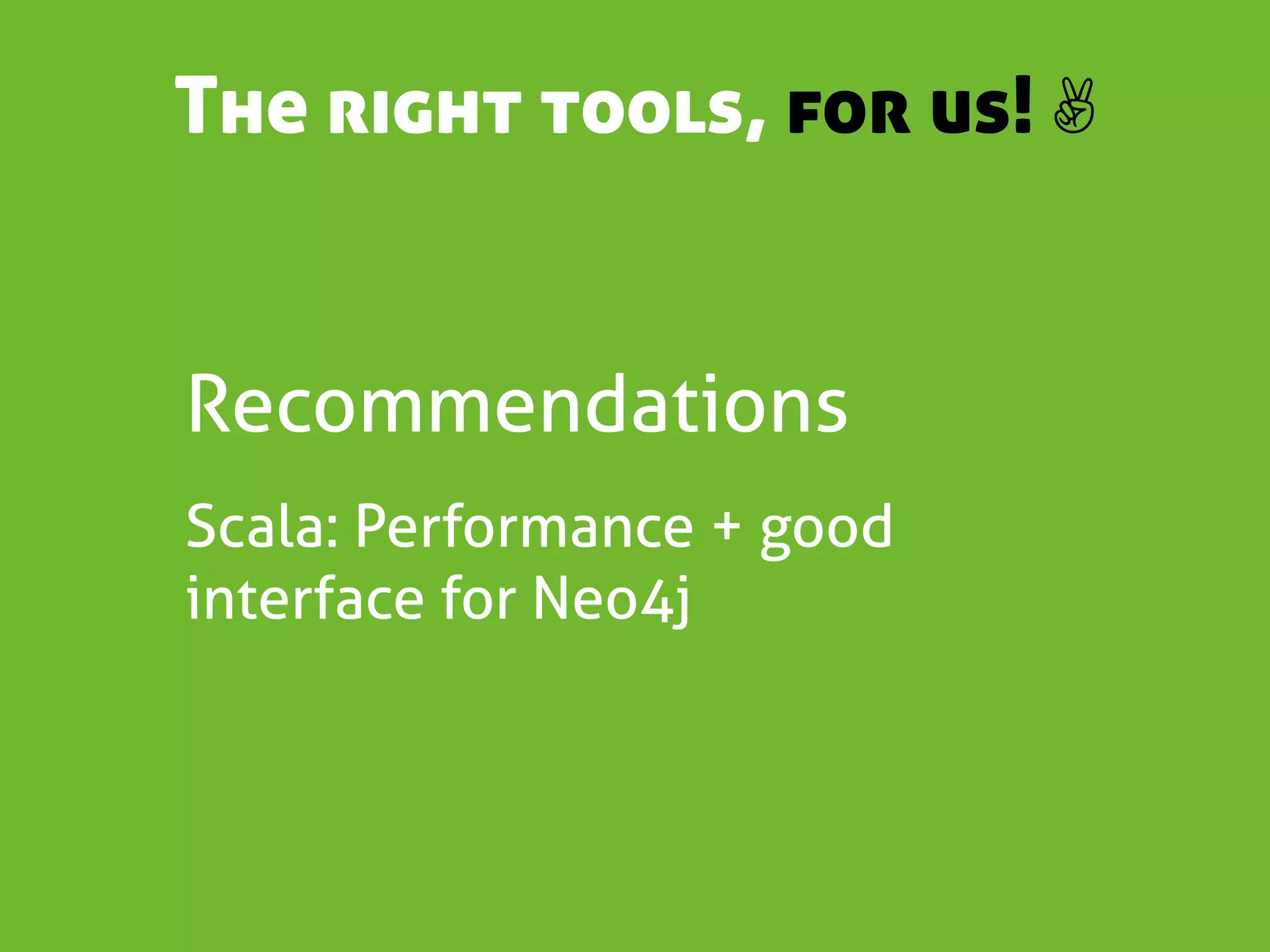

75. The right tools, for us! ✌
Recommendations
Scala: Performance + good
interface for Neo4j

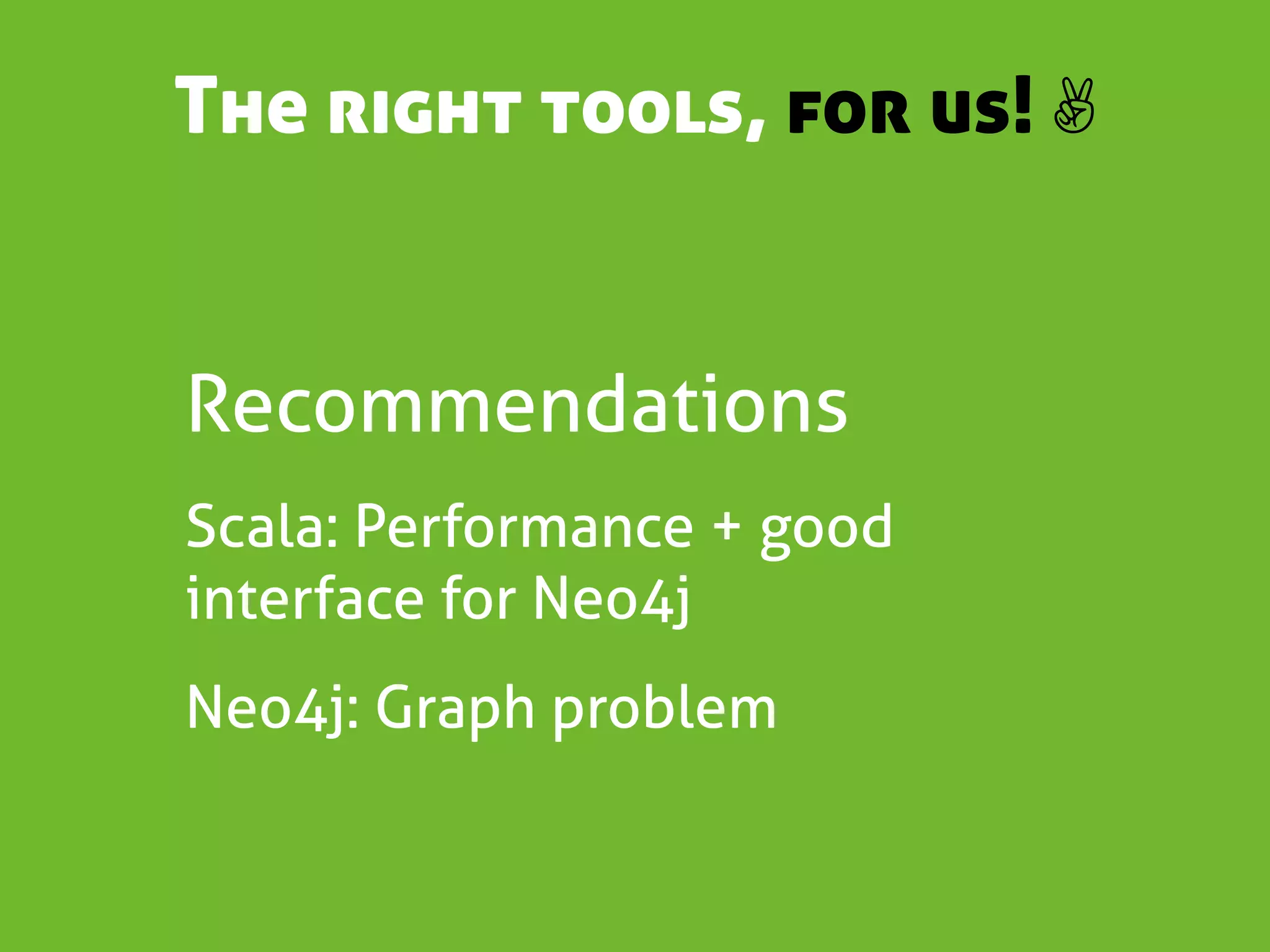

76. The right tools, for us! ✌
Recommendations
Scala: Performance + good
interface for Neo4j
Neo4j: Graph problem

77. Thanks! ☃
Alberto Perdomo
@albertoperdomo

78. ❤ Credits ❤
Entering Hyperspace by Éole Wind
