SQLite is a widely popular database format that is used extensively pretty much everywhere. Both iOS and Android employ SQLite as a storage format of choice, with built-in and third-party applications relying on SQLite to keep their data. A wide range of desktop and mobile Web browsers (Chrome, Firefox) and instant messaging applications use SQLite, which includes newer versions of Skype (the older versions don’t work anyway without a forced upgrade), WhatsApp, iMessages, and many other messengers. Forensic analysis of SQLite databases is often concluded by simply opening a database file in one or another database viewer. One common drawback of using a free or commercially available database viewer for examining SQLite databases is the inherent inability of such viewers to access and display recently deleted (erased) as well as recently added (but not yet committed) records. Here we examine the forensic implications of three features of the SQLite database engine: Free Lists, Write Ahead Log and Unallocated Space. More information: http://belkasoft.com/sqlite-analysis

1. http://belkasoft.com
SQLite Forensics
Yuri Gubanov, Belkasoft

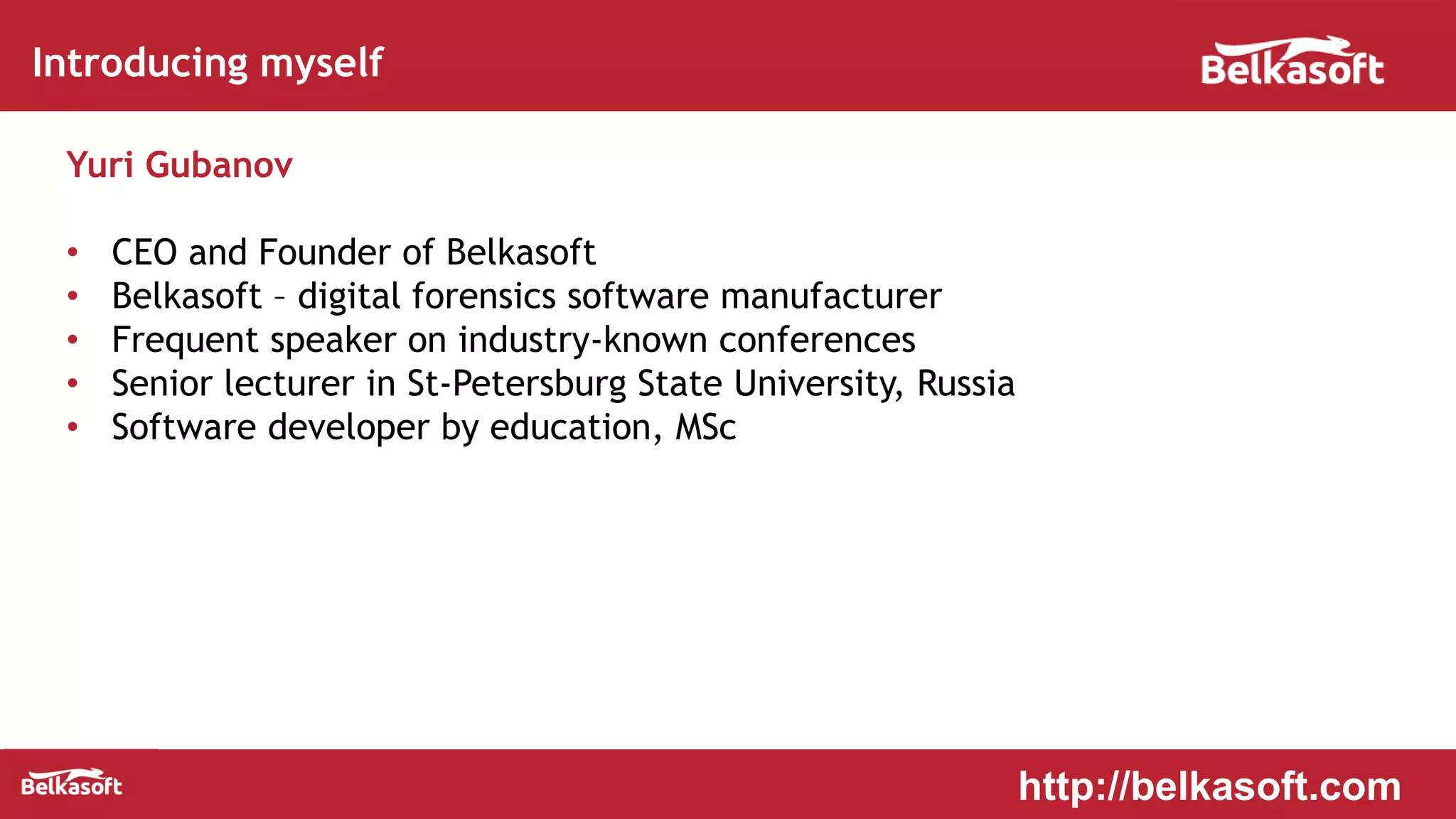

2. Introducing myself
Yuri Gubanov
• CEO and Founder of Belkasoft
• Belkasoft – digital forensics software manufacturer
• Frequent speaker on industry-known conferences
• Senior lecturer in St-Petersburg State University, Russia
• Software developer by education, MSc
http://belkasoft.com

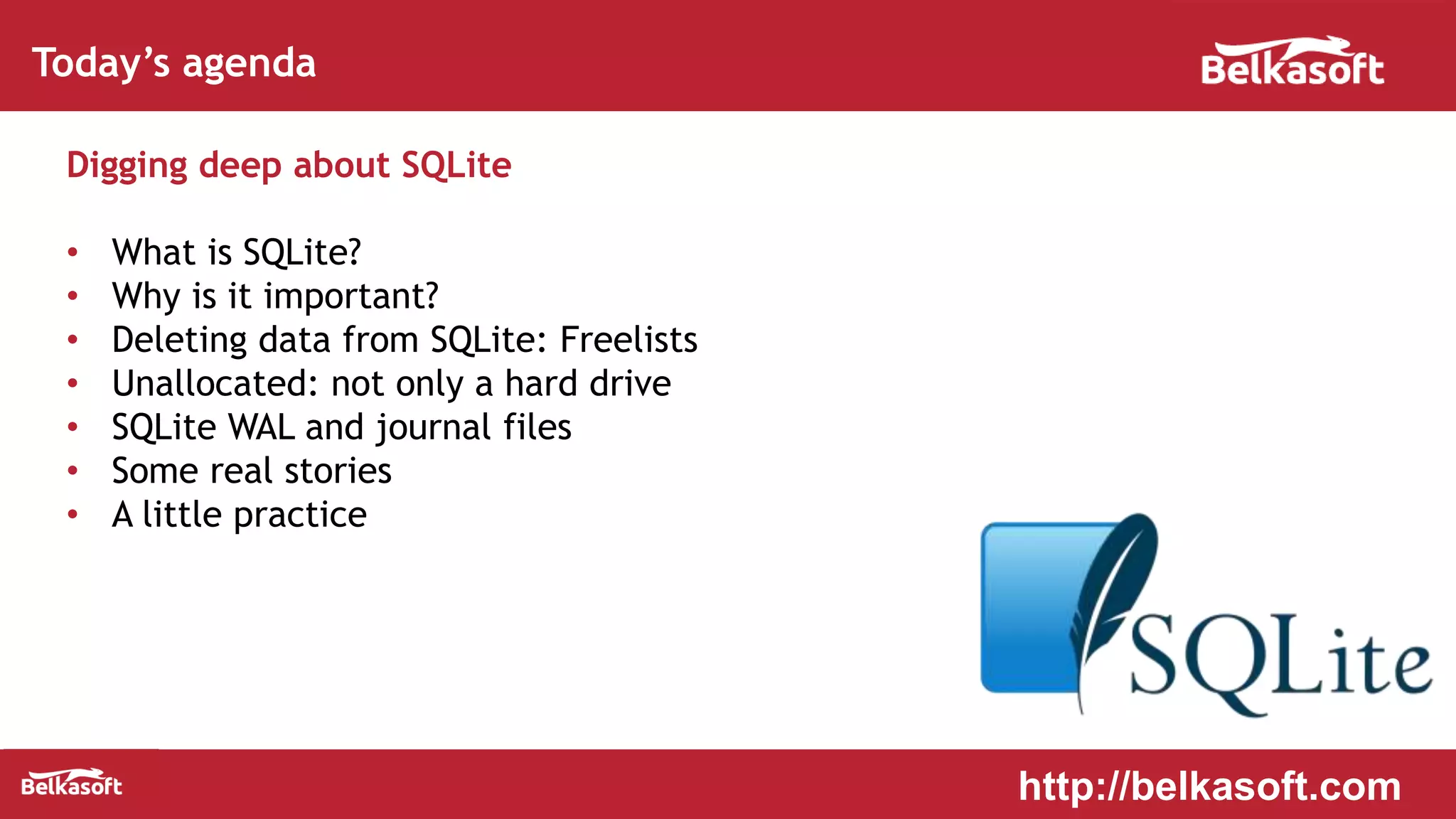

3. Today’s agenda
Digging deep about SQLite
• What is SQLite?
• Why is it important?
• Deleting data from SQLite: Freelists
• Unallocated: not only a hard drive
• SQLite WAL and journal files
• Some real stories
• A little practice
http://belkasoft.com

4. Before we start: my Skype profile
http://belkasoft.com

5. What is SQLite?
Popular database engine
• Relational SQL-based database
• Lightweight
• Does not require installation
• Just a file on disk
• Well, sometimes more than one
• Does not require system services
http://belkasoft.com

6. Why SQLite is important?
SQLite is massively used in modern apps
• Database of choice for 90+% of new apps
• Especially mobile ones
• Most of apps in Android/iOS
• E.g.: messengers Skype, WhatsApp, Viber
• E.g.: Major browsers such as Firefox, Chrome, Safari
• E.g. iPhone SMS database
http://belkasoft.com

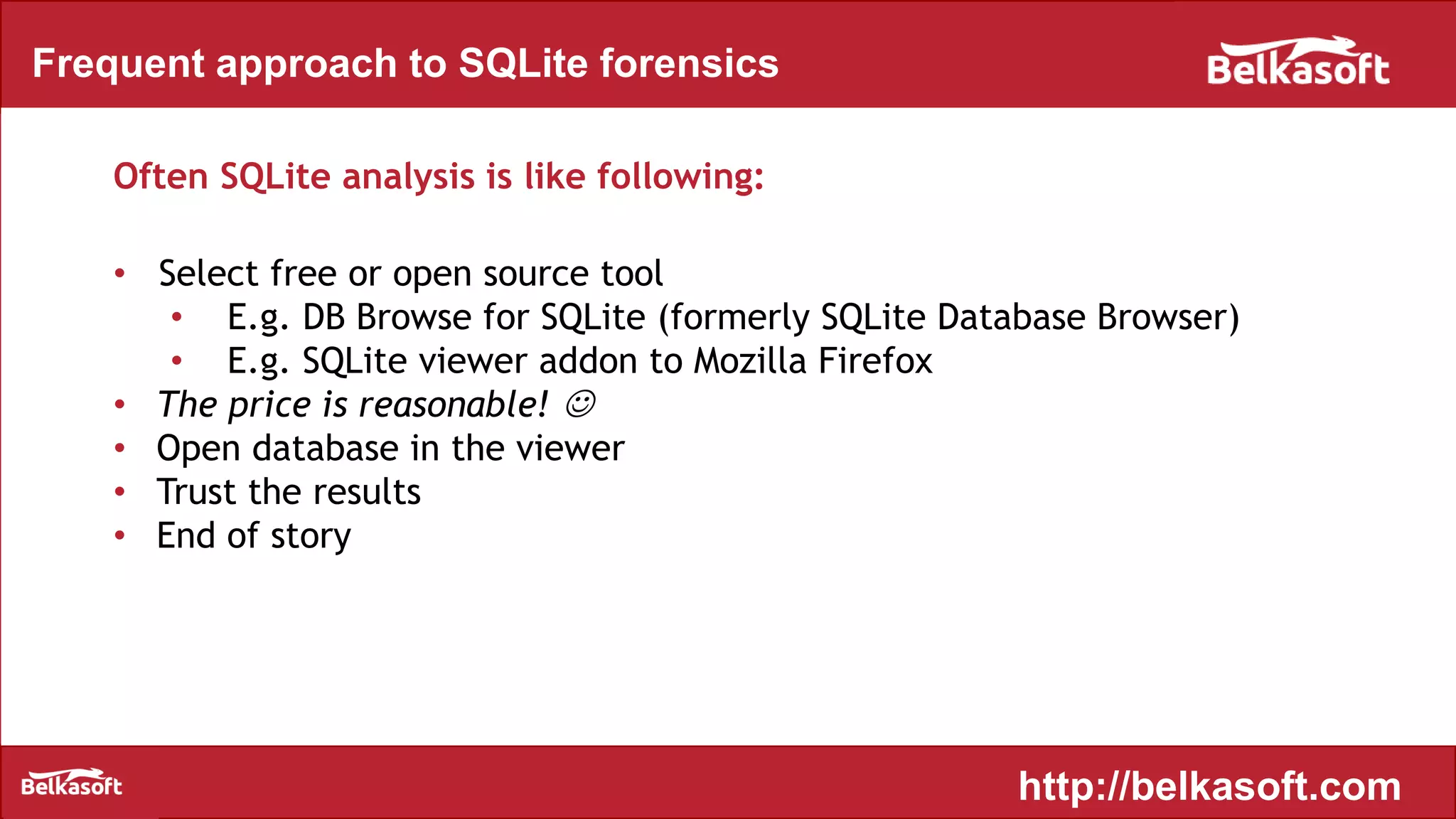

7. Frequent approach to SQLite forensics
Often SQLite analysis is like following:
• Select free or open source tool
• E.g. DB Browse for SQLite (formerly SQLite Database Browser)
• E.g. SQLite viewer addon to Mozilla Firefox
• The price is reasonable! 
• Open database in the viewer
• Trust the results
• End of story
http://belkasoft.com

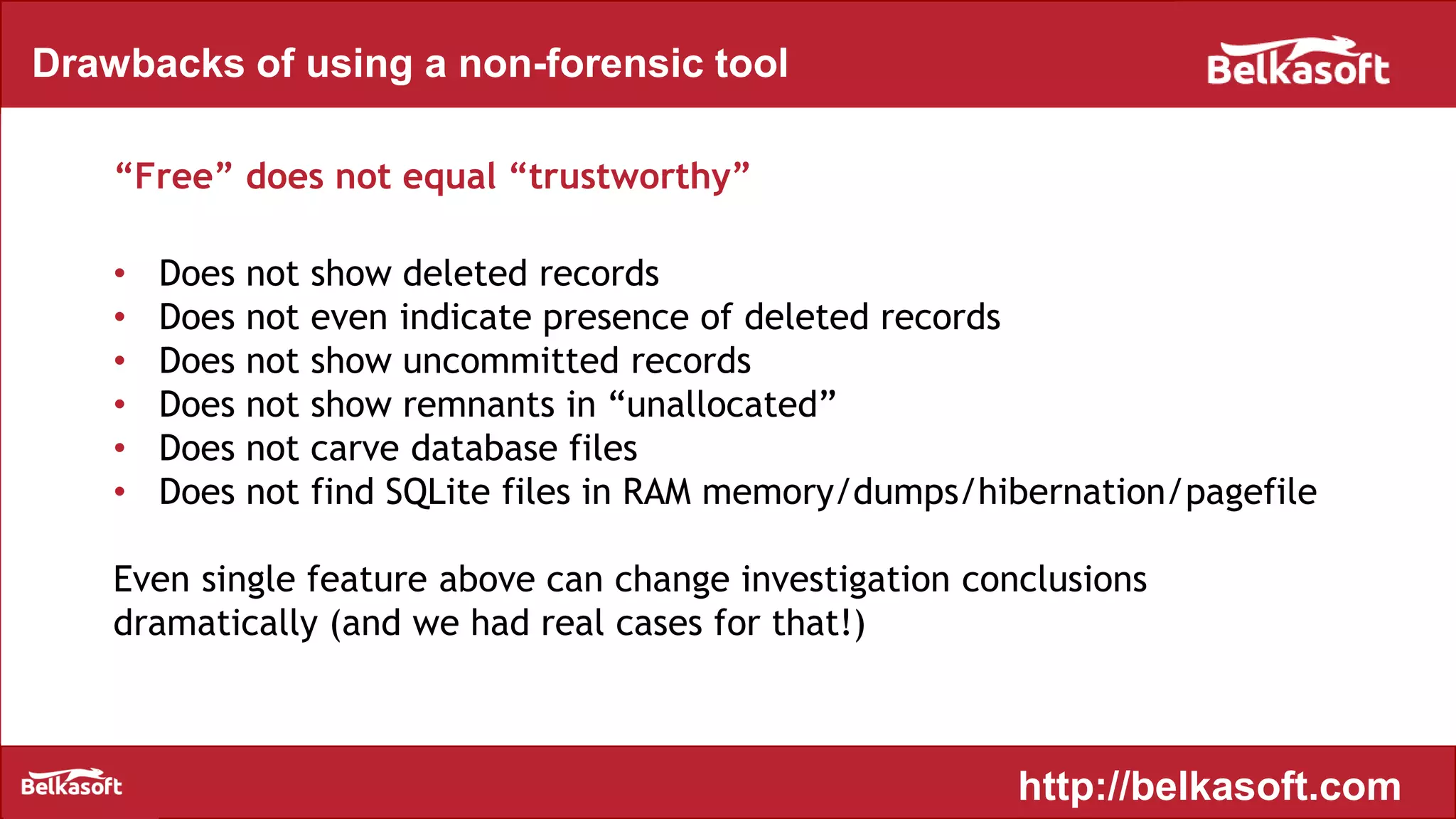

8. Drawbacks of using a non-forensic tool
“Free” does not equal “trustworthy”
• Does not show deleted records
• Does not even indicate presence of deleted records
• Does not show uncommitted records
• Does not show remnants in “unallocated”
• Does not carve database files
• Does not find SQLite files in RAM memory/dumps/hibernation/pagefile
Even single feature above can change investigation conclusions
dramatically (and we had real cases for that!)
http://belkasoft.com

9. Tool used for demos today
To demonstrate SQLite forensics today we will use
Belkasoft Evidence Center 2015 (Ultimate edition):
• Shows deleted records (“freelists”)
• Shows uncommitted records (WAL/journal files)
• Shows remnants in “unallocated”
• Carves SQLite files
• Find SQLite in RAM memory/dumps/hibernation/pagefile
• Has built-in SQLite Viewer
• Allows to review SQLite database in binary mode in built-in HexViewer
http://belkasoft.com

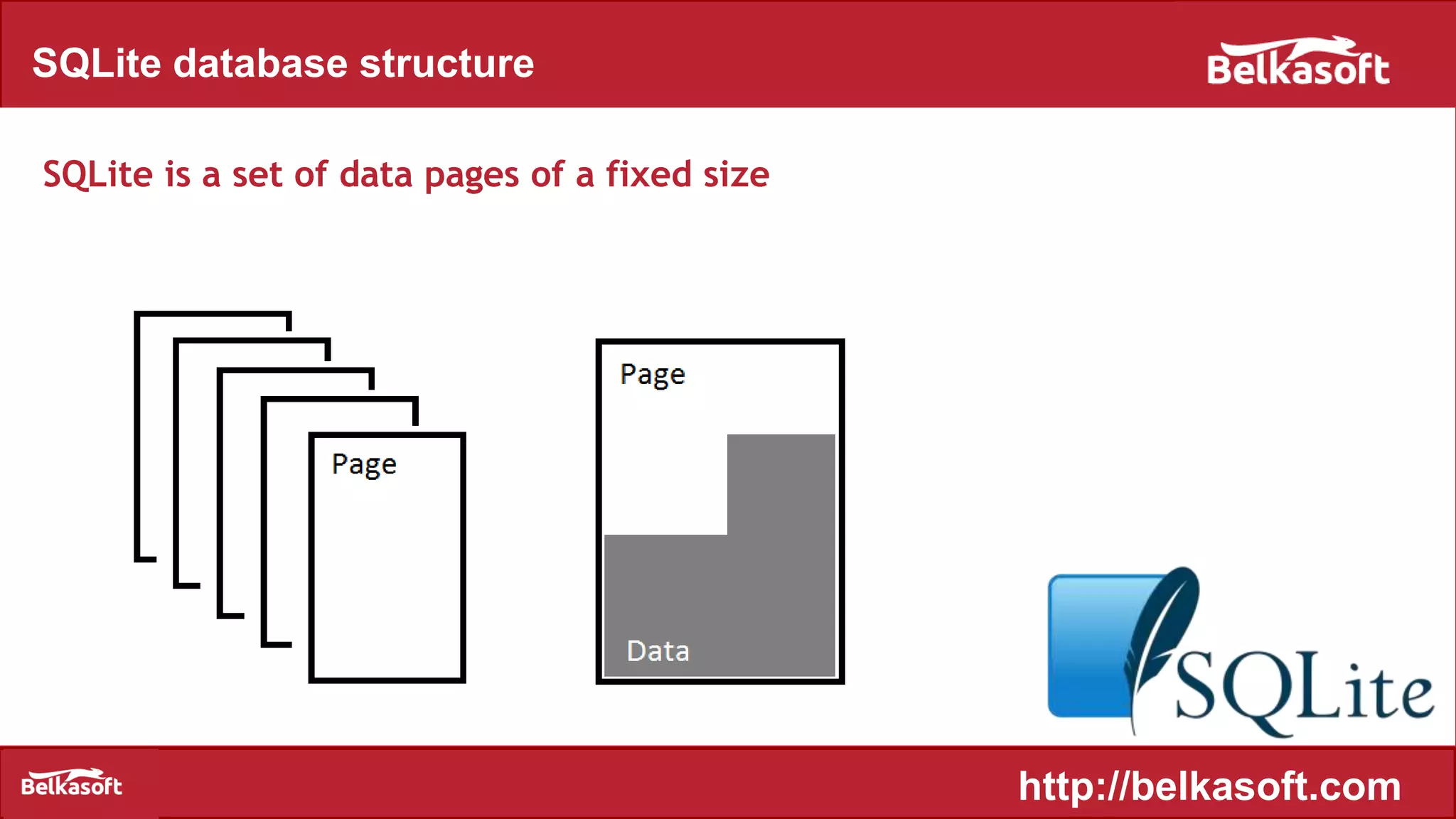

10. SQLite database structure
SQLite is a set of data pages of a fixed size
http://belkasoft.com

11. Freelist
Freelist: a list of free pages in a SQLite database
http://belkasoft.com

12. What is freelist
http://belkasoft.com
SQLite.org
“A database file might contain one or more pages that are not in active use.
Unused pages can come about, for example, when information is deleted from the
database. Unused pages are stored on the freelist and are reused when additional
pages are required.”

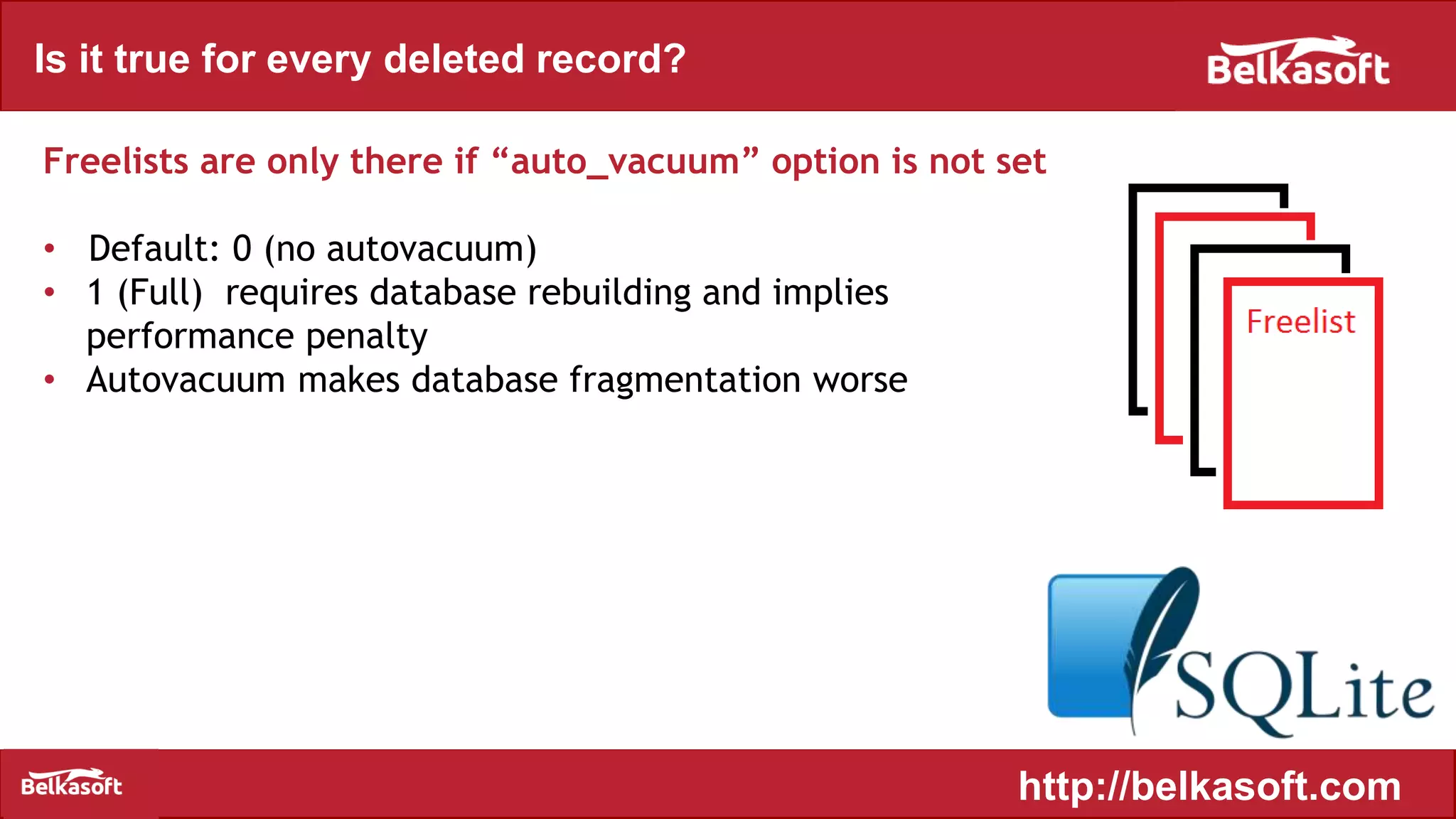

13. Is it true for every deleted record?
Freelists are only there if “auto_vacuum” option is not set
• Default: 0 (no autovacuum)
• 1 (Full) requires database rebuilding and implies
performance penalty
• Autovacuum makes database fragmentation worse
http://belkasoft.com

14. www.belkasoft.com

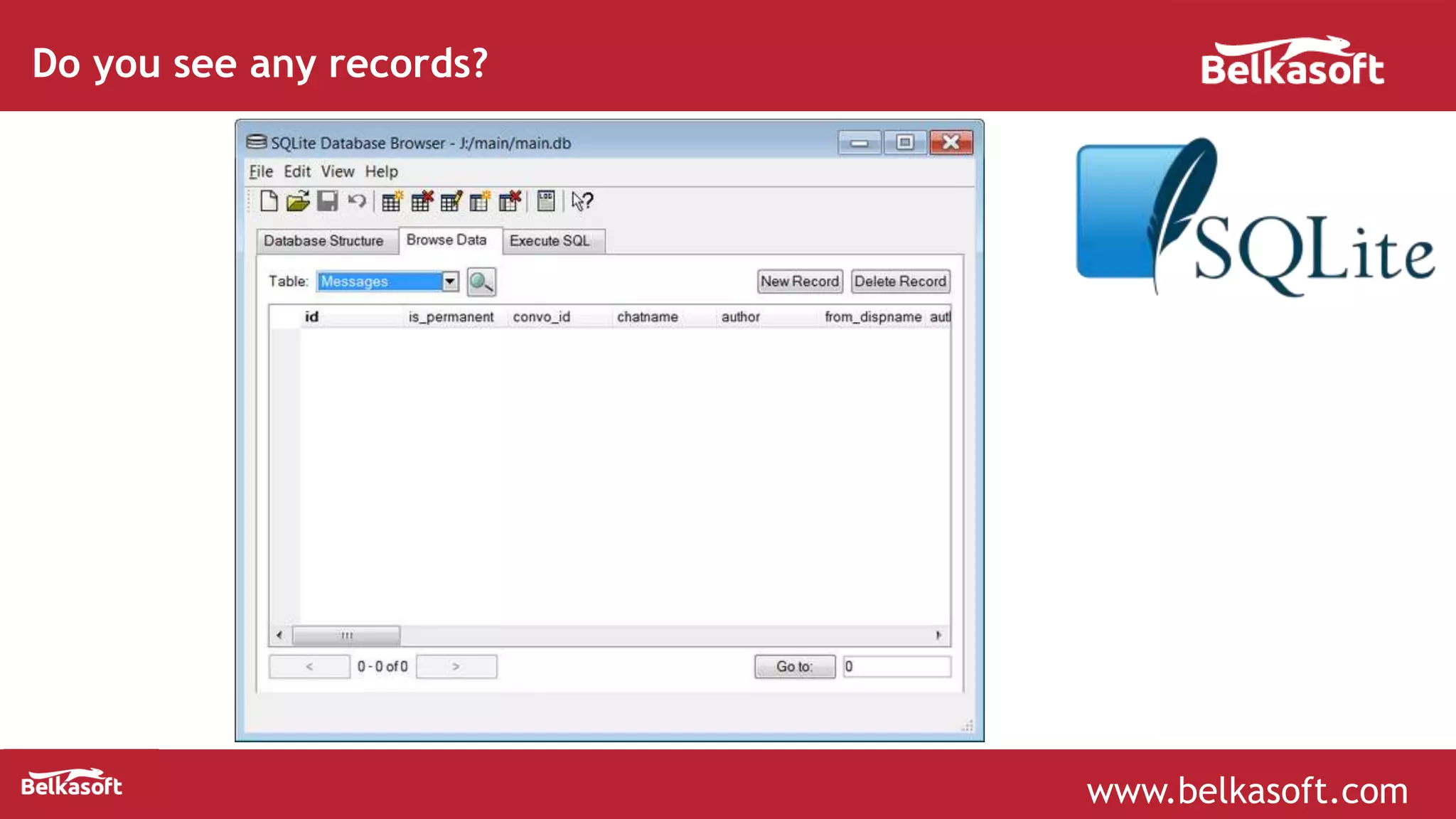

Do you see any records?

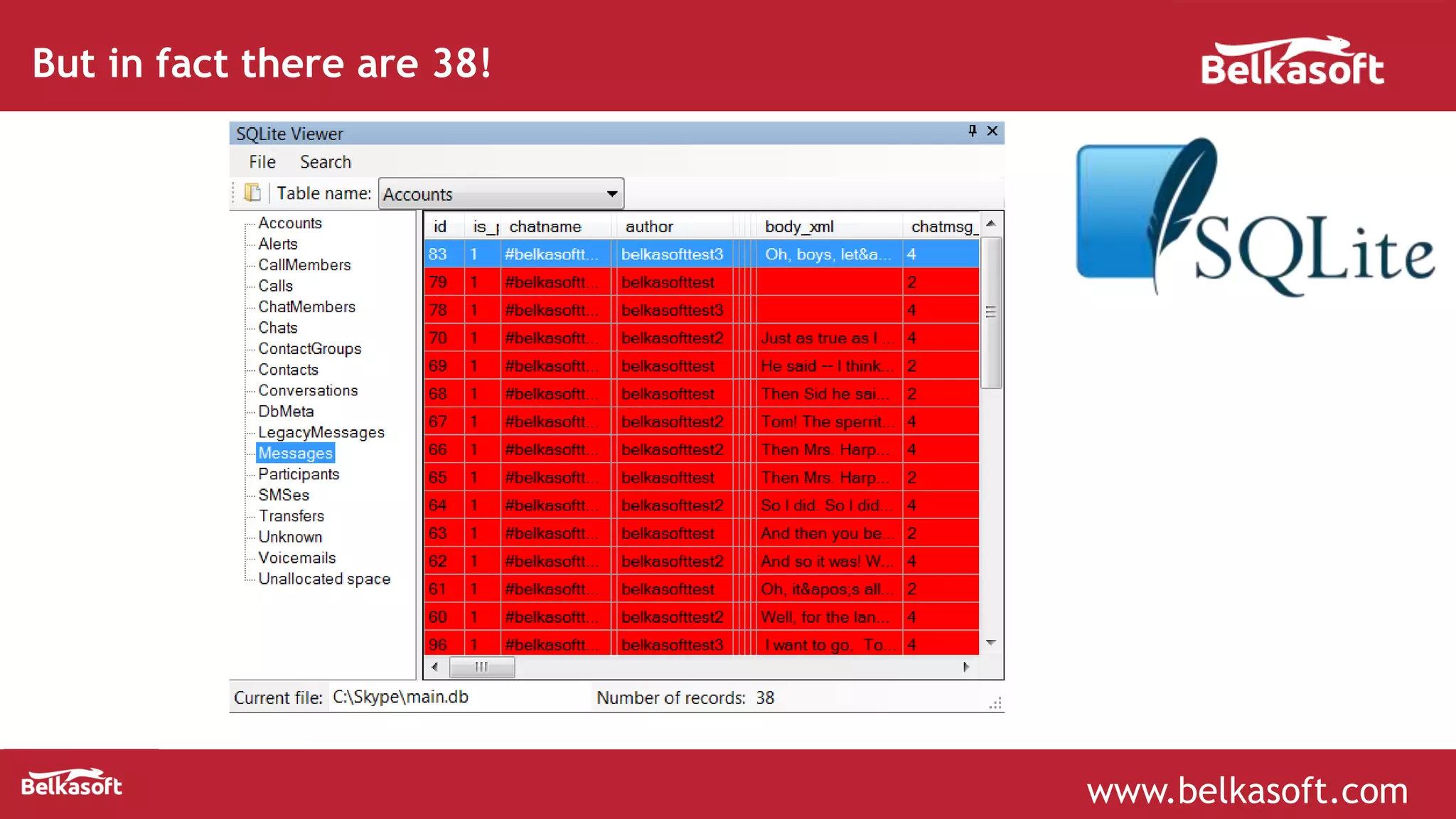

15. www.belkasoft.com
But in fact there are 38!

16. www.belkasoft.com
But why?!?
Why standard viewer does not show freelist information?
Because freelist is a technical trick to improve performance. It is not supposed
that regular user can see what’s inside.
What are you going to miss:
• Deleted SMSes on iPhone
• Deleted Chrome/Firefox browsing history
• Deleted Skype, WhatsApp, Kik chats
• and hundreds of other apps’ data stored in SQLite

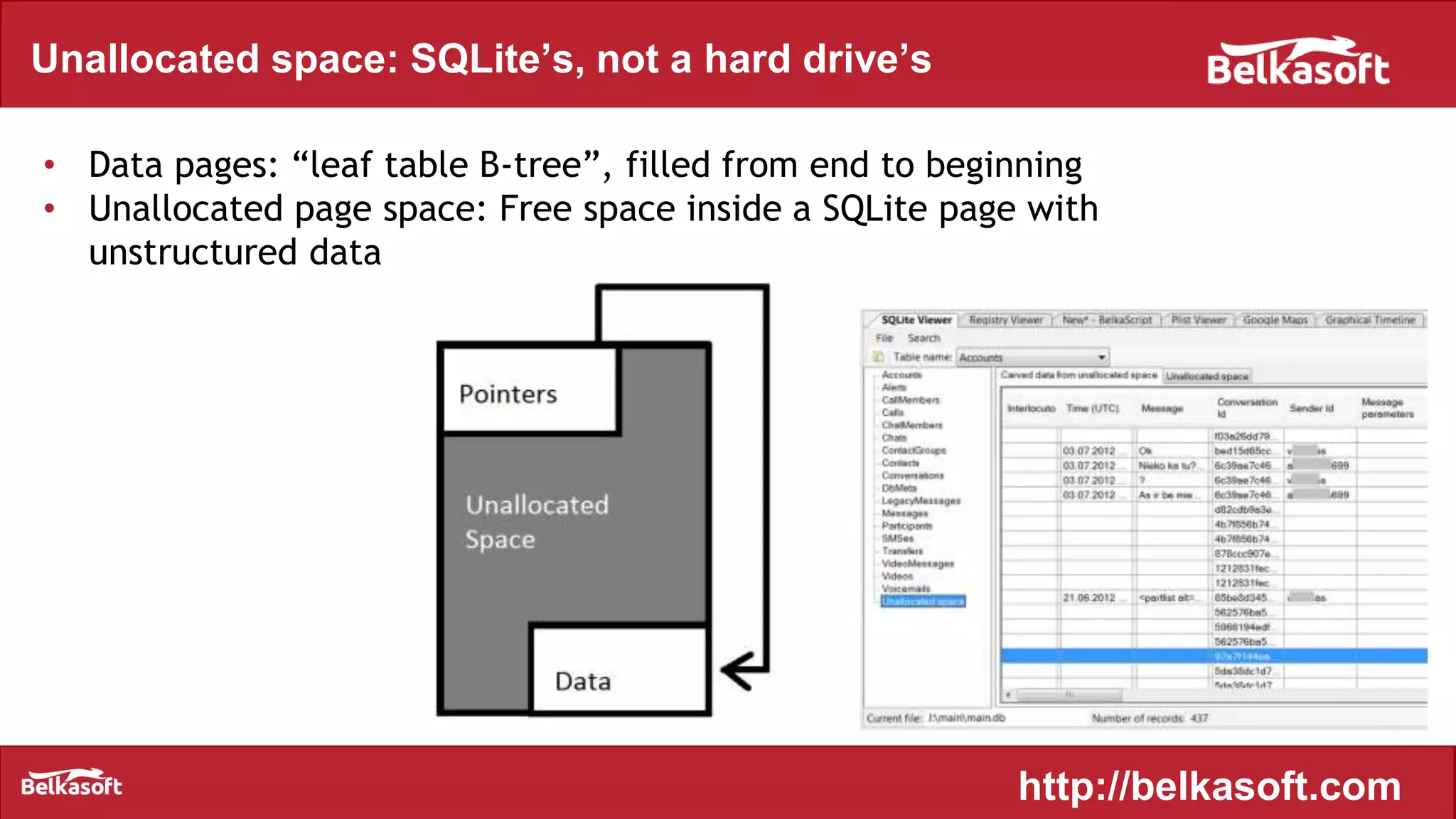

17. Unallocated space: SQLite’s, not a hard drive’s
• Data pages: “leaf table B-tree”, filled from end to beginning
• Unallocated page space: Free space inside a SQLite page with
unstructured data
http://belkasoft.com

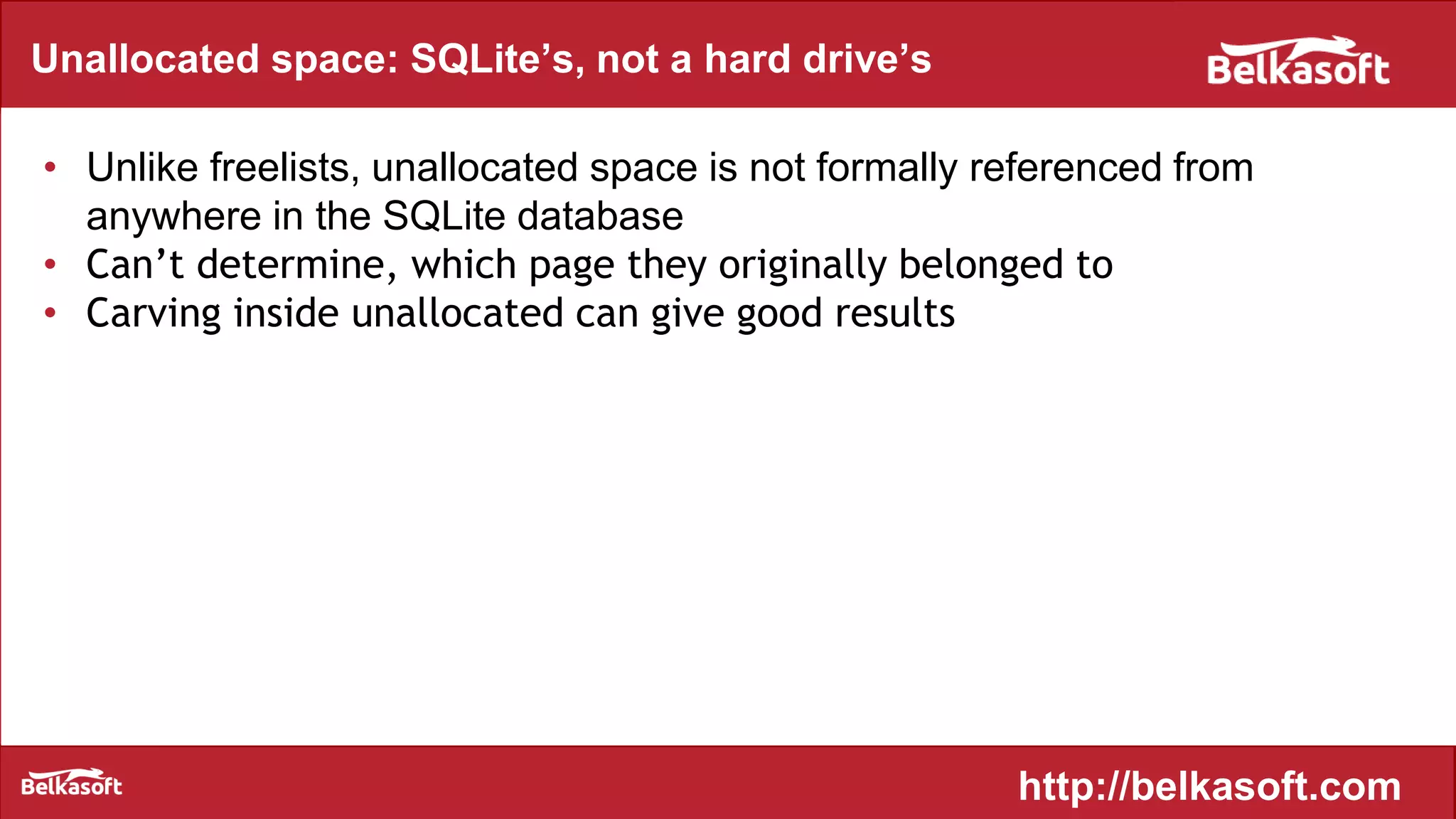

18. Unallocated space: SQLite’s, not a hard drive’s
• Unlike freelists, unallocated space is not formally referenced from
anywhere in the SQLite database
• Can’t determine, which page they originally belonged to
• Carving inside unallocated can give good results
http://belkasoft.com

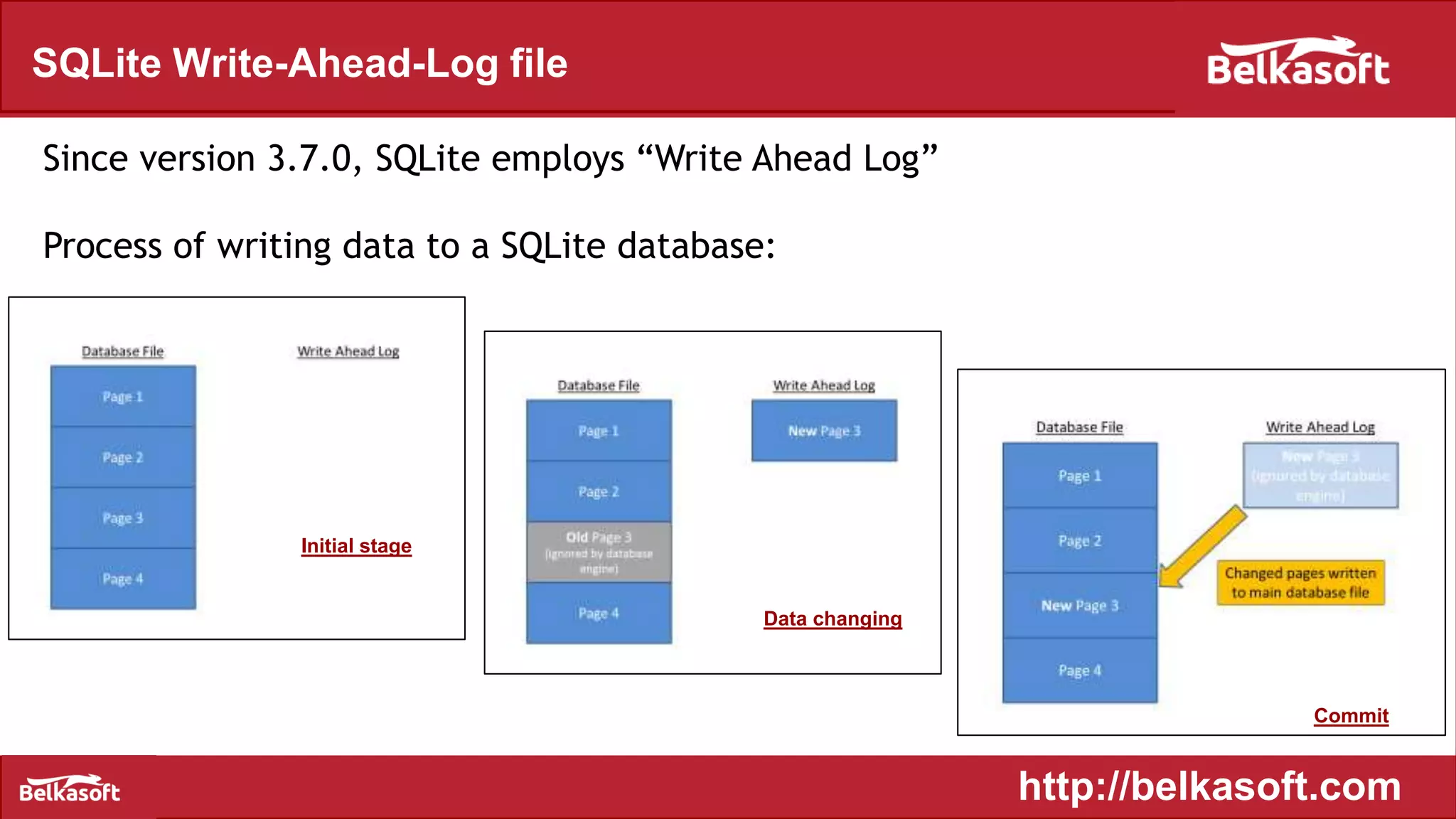

19. SQLite Write-Ahead-Log file
Initial stage
Data changing
Commit
Since version 3.7.0, SQLite employs “Write Ahead Log”
Process of writing data to a SQLite database:
http://belkasoft.com

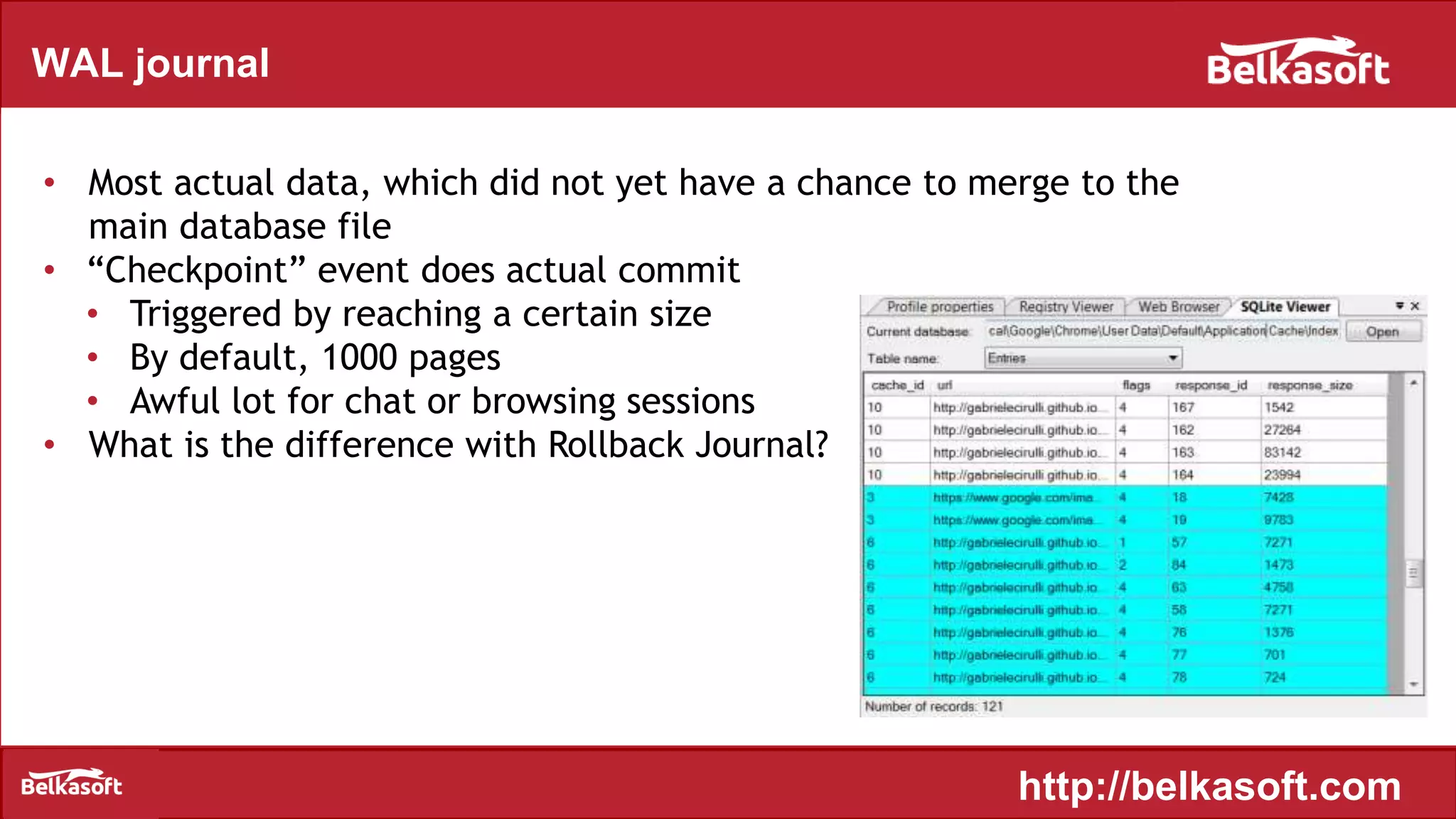

20. WAL journal
• Most actual data, which did not yet have a chance to merge to the
main database file
• “Checkpoint” event does actual commit
• Triggered by reaching a certain size
• By default, 1000 pages
• Awful lot for chat or browsing sessions
• What is the difference with Rollback Journal?
http://belkasoft.com

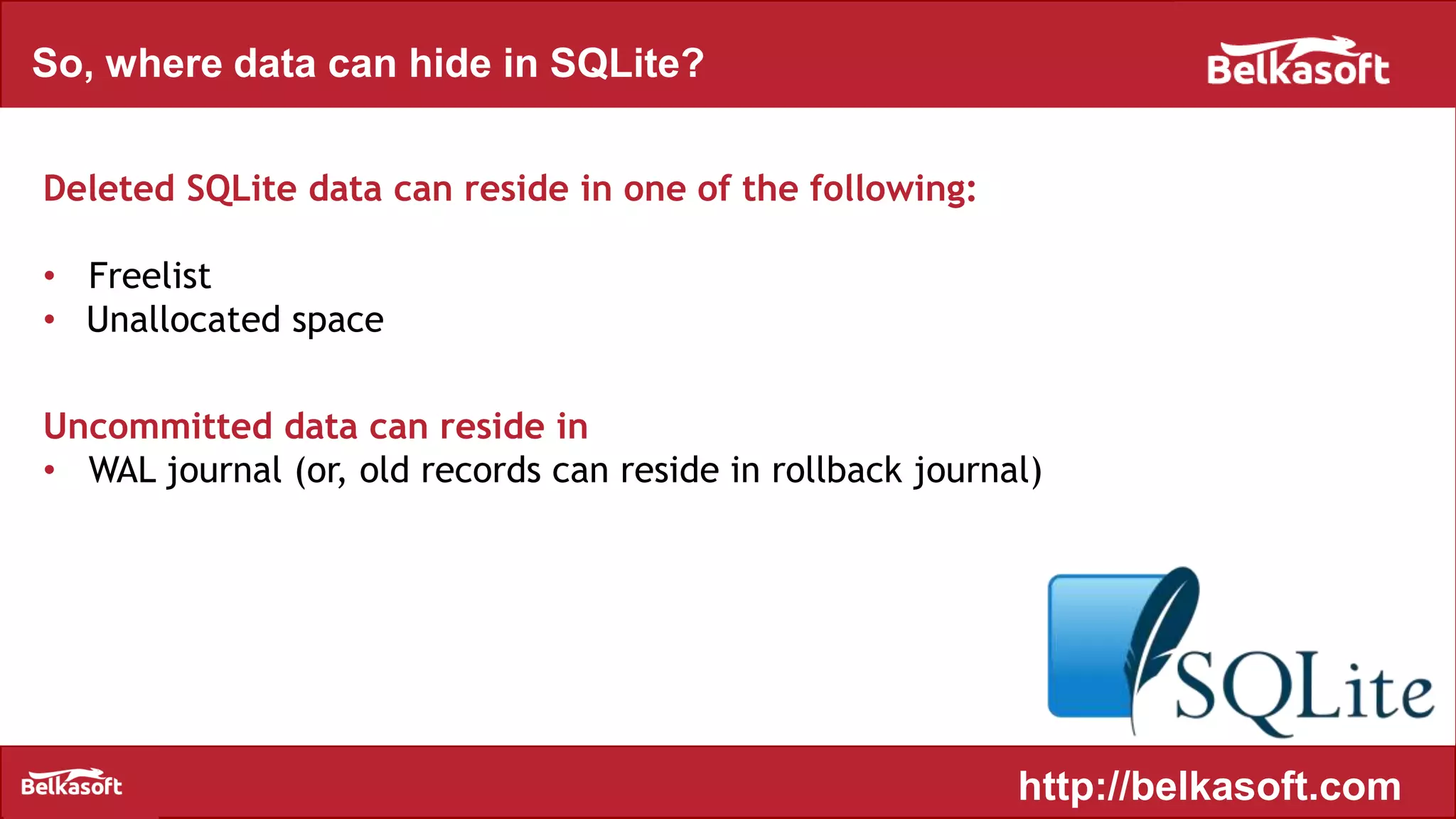

21. So, where data can hide in SQLite?
Deleted SQLite data can reside in one of the following:
• Freelist
• Unallocated space
Uncommitted data can reside in
• WAL journal (or, old records can reside in rollback journal)
http://belkasoft.com

22. Carving SQLite databases
SQLite has excellent header signature, what’s the difficulty?
• Indeed: “SQLite format 3”
• Easy to find, no false positives
• But… where’s the footer?
• There is no footer for SQLite database!
• There is also no data on DB size in DB header
http://belkasoft.com

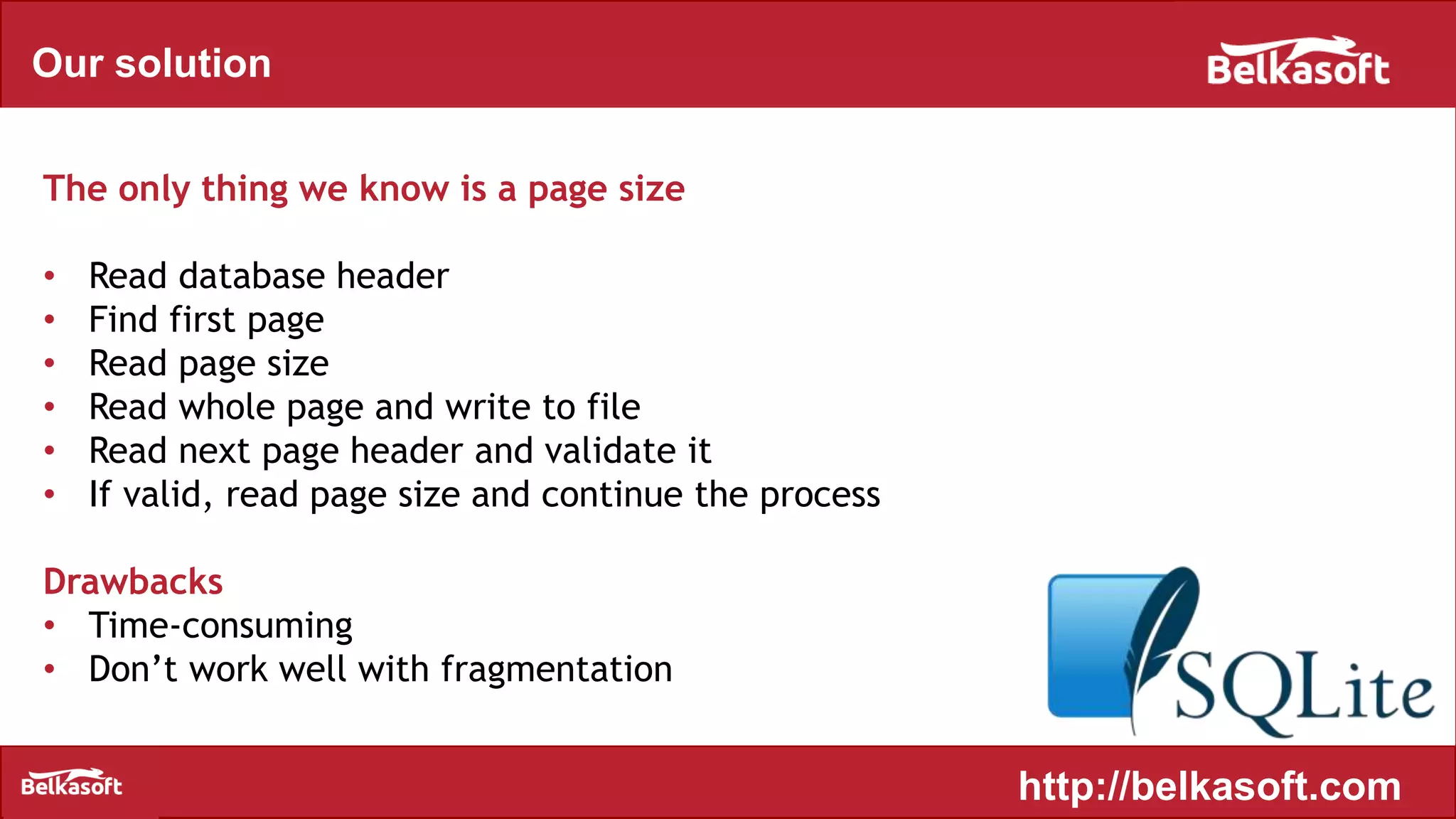

23. Our solution
The only thing we know is a page size
• Read database header
• Find first page
• Read page size
• Read whole page and write to file
• Read next page header and validate it
• If valid, read page size and continue the process
Drawbacks
• Time-consuming
• Don’t work well with fragmentation
http://belkasoft.com

24. Case: Trade Secret Disclosed

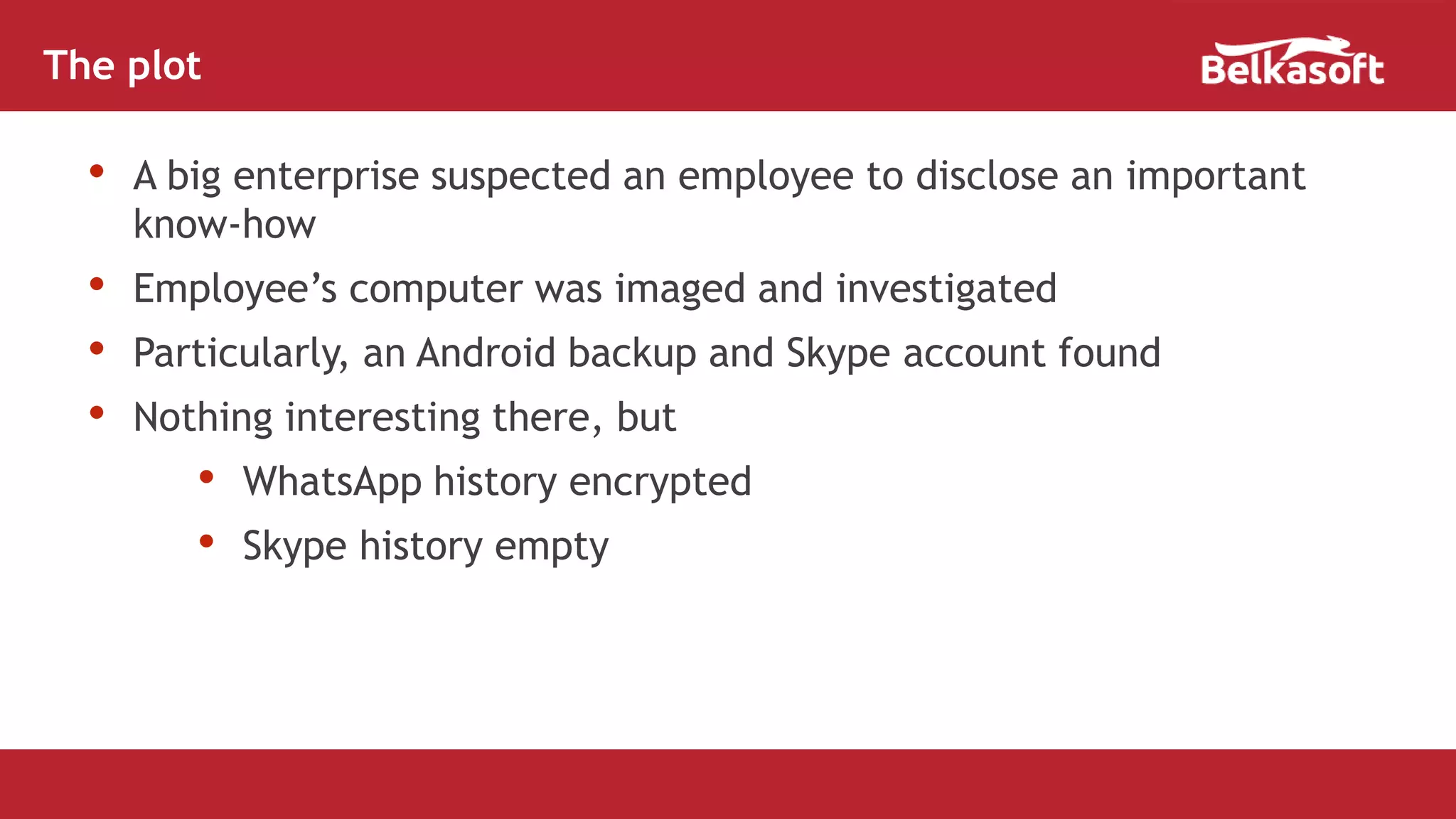

25. • A big enterprise suspected an employee to disclose an important
know-how
• Employee’s computer was imaged and investigated
• Particularly, an Android backup and Skype account found
• Nothing interesting there, but
• WhatsApp history encrypted
• Skype history empty
The plot

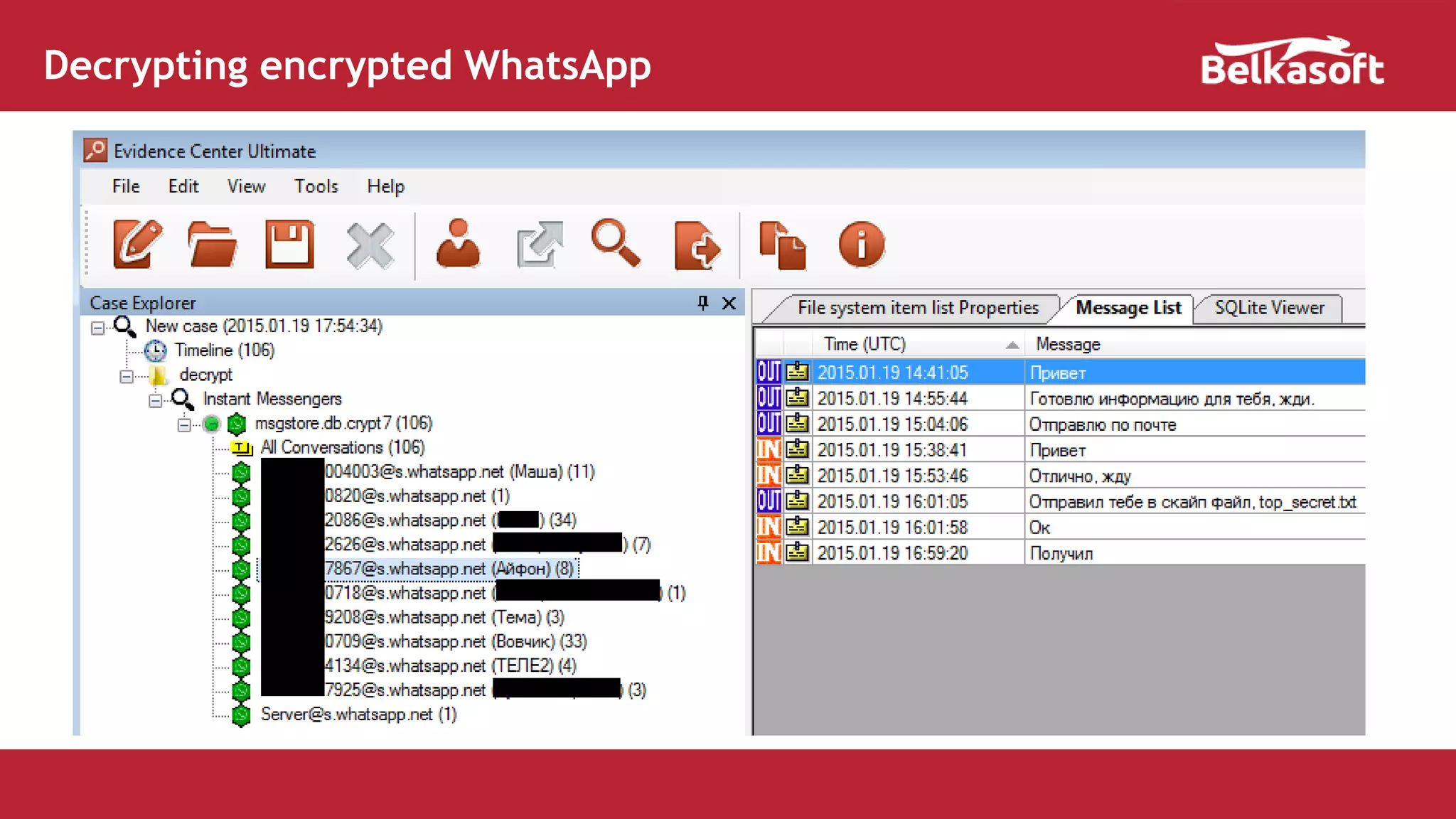

26. Decrypting encrypted WhatsApp

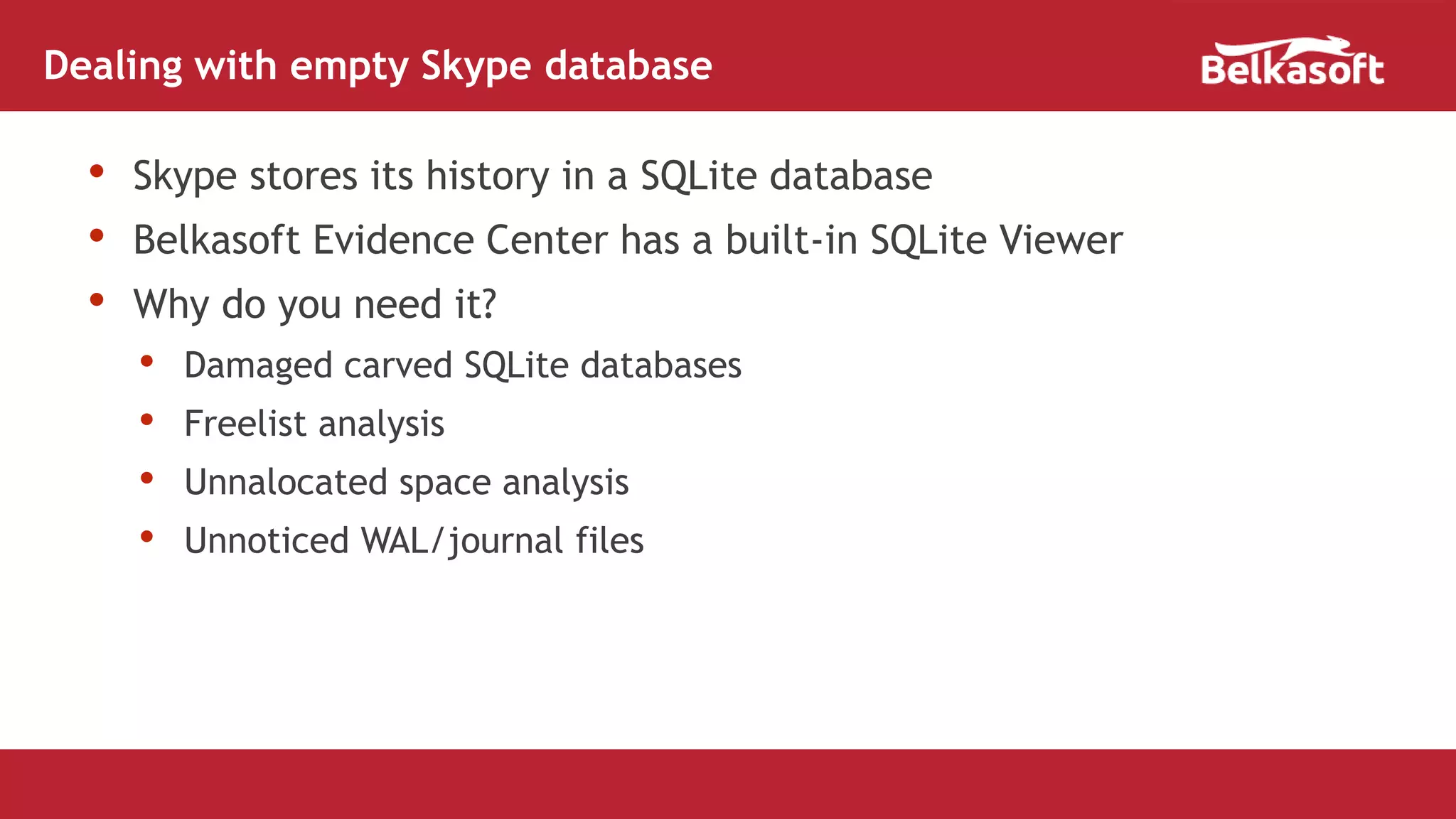

27. • Skype stores its history in a SQLite database
• Belkasoft Evidence Center has a built-in SQLite Viewer
• Why do you need it?
• Damaged carved SQLite databases
• Freelist analysis
• Unnalocated space analysis
• Unnoticed WAL/journal files
Dealing with empty Skype database

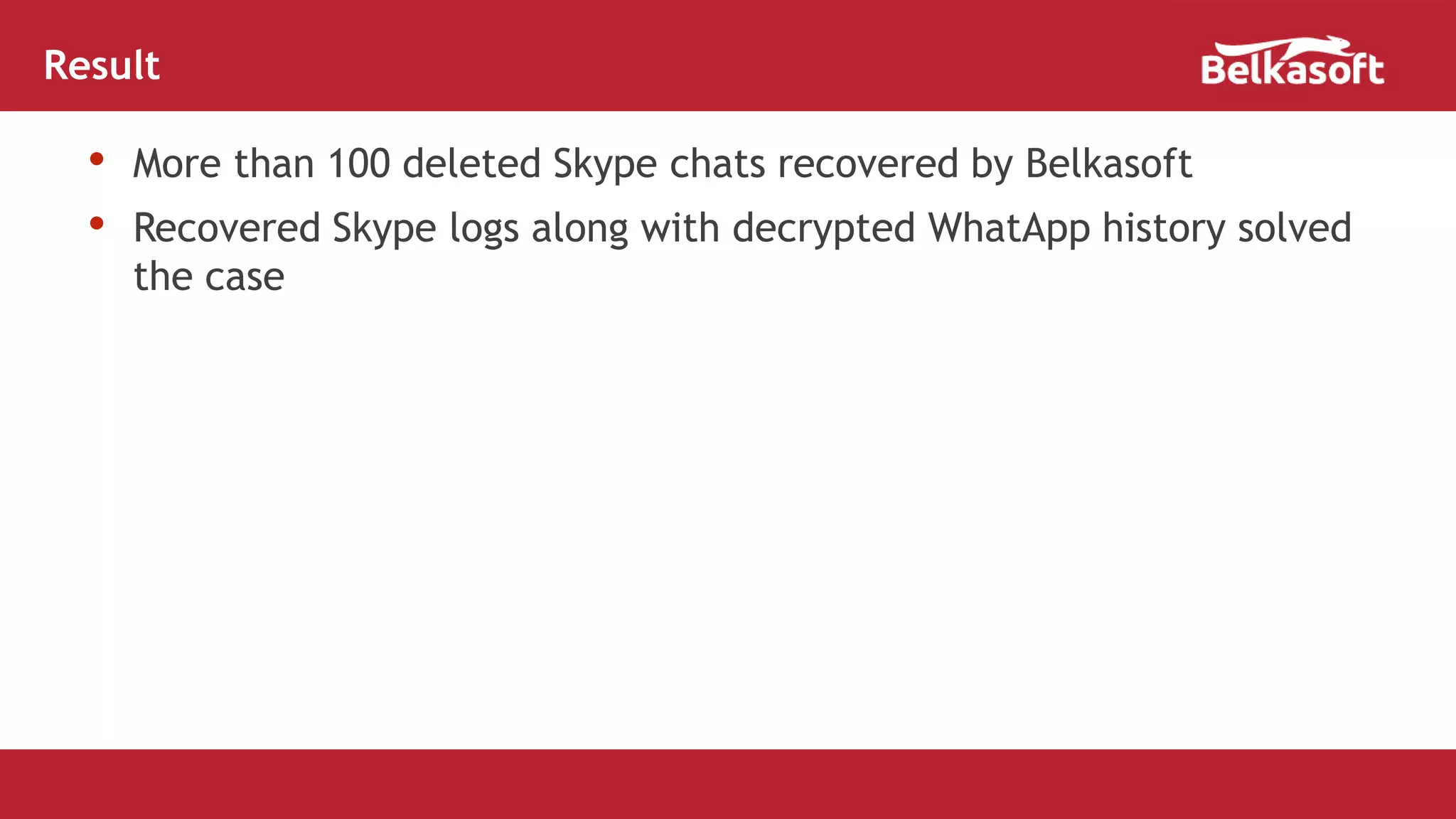

28. • More than 100 deleted Skype chats recovered by Belkasoft
• Recovered Skype logs along with decrypted WhatApp history solved
the case
Result

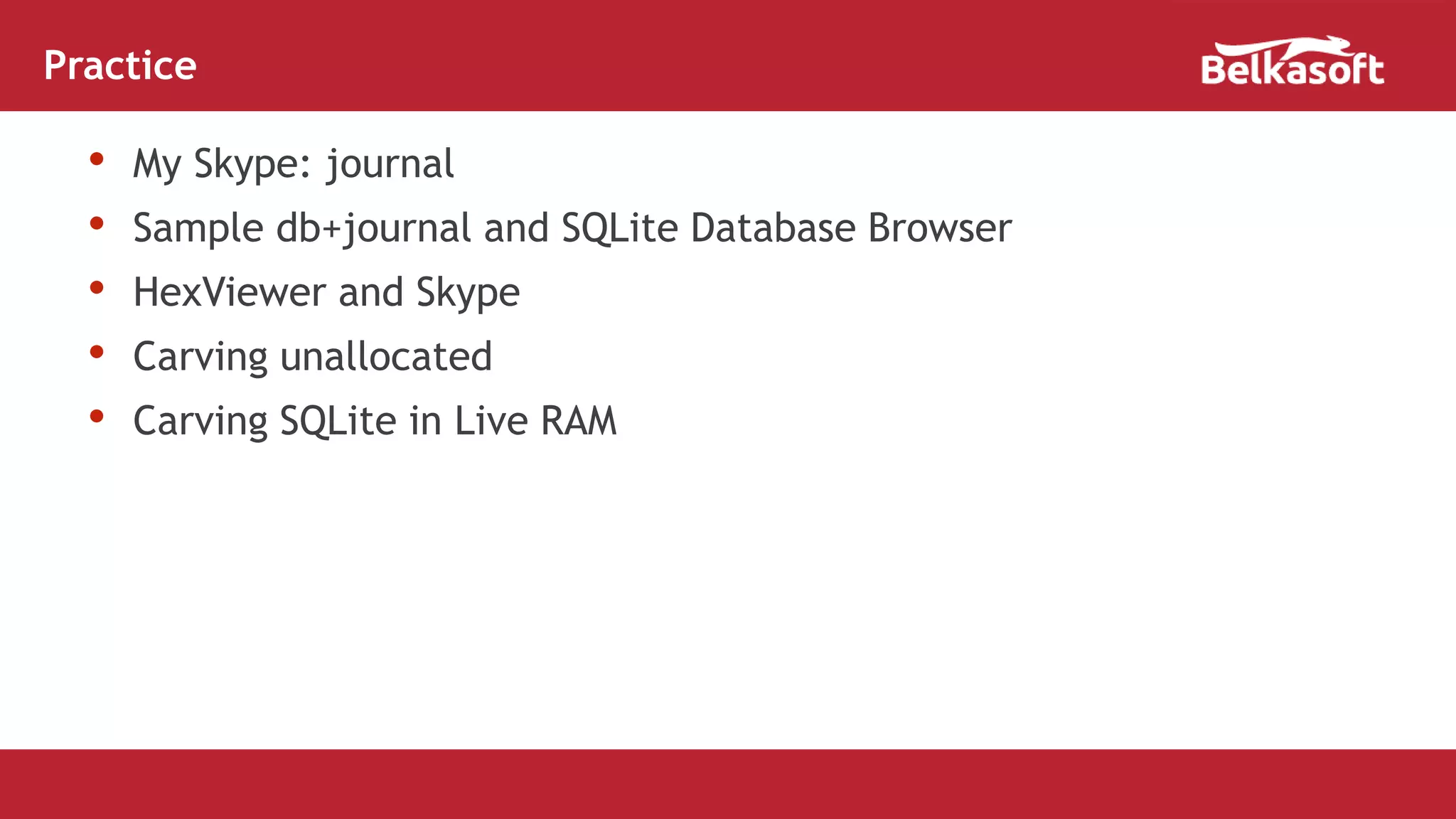

29. • My Skype: journal
• Sample db+journal and SQLite Database Browser
• HexViewer and Skype
• Carving unallocated
• Carving SQLite in Live RAM
Practice

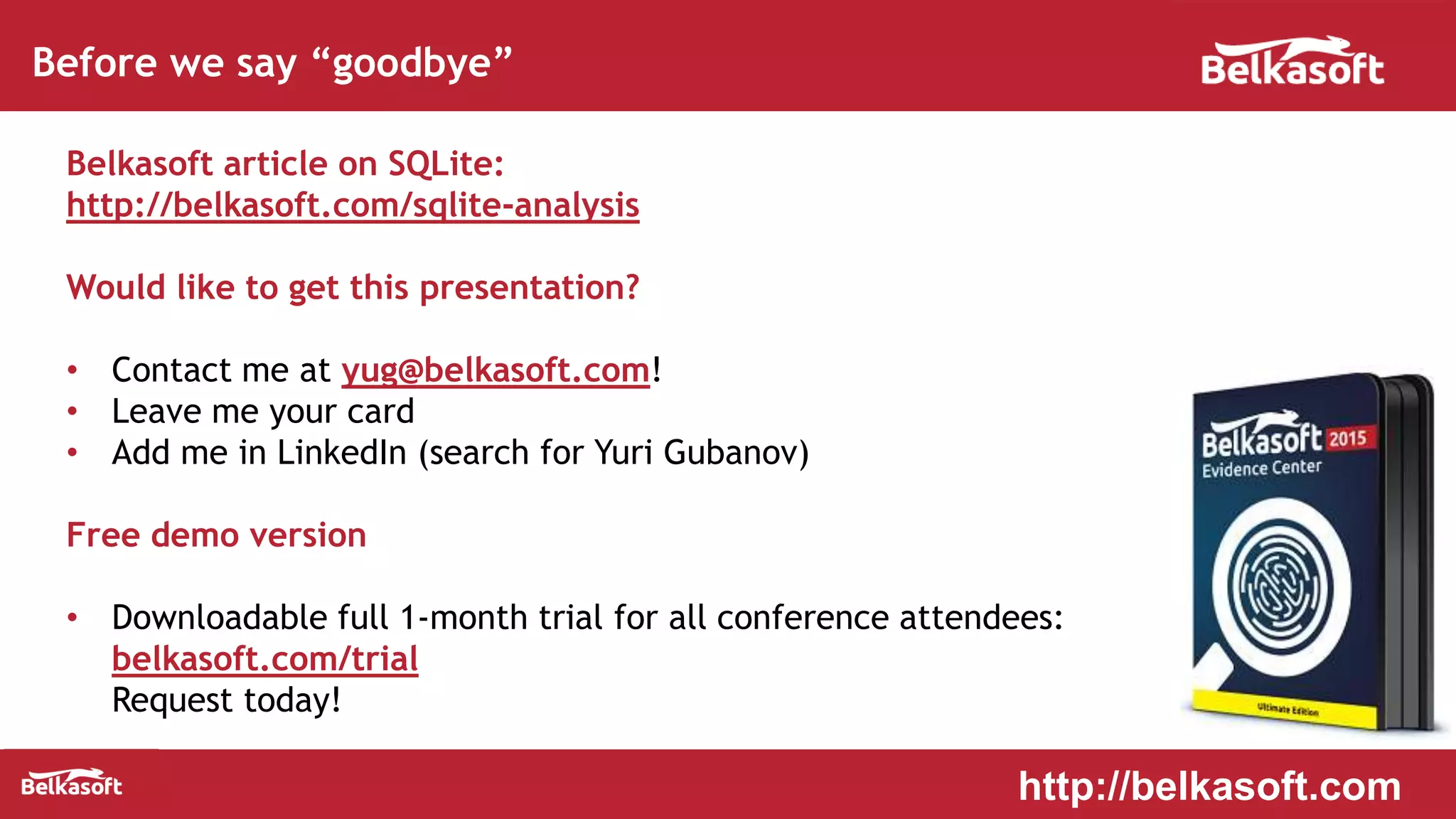

30. Before we say “goodbye”
Belkasoft article on SQLite:
http://belkasoft.com/sqlite-analysis
Would like to get this presentation?
• Contact me at yug@belkasoft.com!
• Leave me your card
• Add me in LinkedIn (search for Yuri Gubanov)
Free demo version
• Downloadable full 1-month trial for all conference attendees:
belkasoft.com/trial
Request today!
