1. Deploy Office Web Apps Server 2013
in Azure
#SPSSTHLM11
Thorbjørn Værp
January 25th, 2014
SharePoint Saturday
Stockholm

2. Gold
SharePint
Bronze
Raffle

3. Welcome 
• Thorbjørn Værp, Technical Evangelist
• @vaerpn
• http://sharepoint13.net
#SPSSTHLM

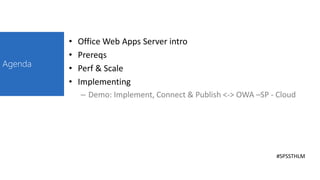

4. Agenda
•
•
•
•
Office Web Apps Server intro
Prereqs
Perf & Scale
Implementing
– Demo: Implement, Connect & Publish <-> OWA –SP - Cloud
#SPSSTHLM

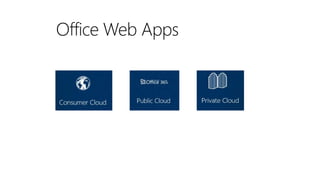

5. Office Web Apps

6. Office Web Apps

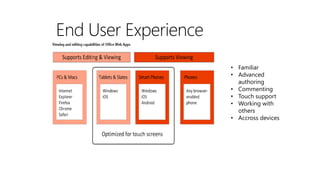

7. End User Experience
• Familiar
• Advanced
authoring
• Commenting
• Touch support
• Working with
others
• Accross devices

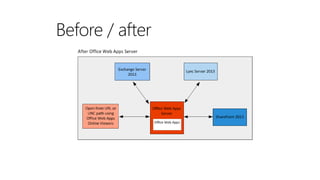

8. Before / after

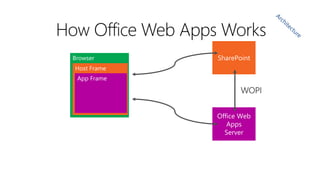

9. How Office Web Apps Works
Host Frame
App Frame

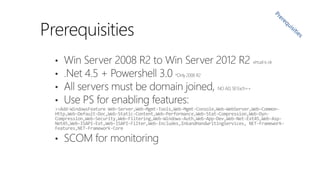

10. Prerequisities
>>Add-WindowsFeature Web-Server,Web-Mgmt-Tools,Web-Mgmt-Console,Web-WebServer,Web-CommonHttp,Web-Default-Doc,Web-Static-Content,Web-Performance,Web-Stat-Compression,Web-DynCompression,Web-Security,Web-Filtering,Web-Windows-Auth,Web-App-Dev,Web-Net-Ext45,Web-AspNet45,Web-ISAPI-Ext,Web-ISAPI-Filter,Web-Includes,InkandHandwritingServices, NET-FrameworkFeatures,NET-Framework-Core

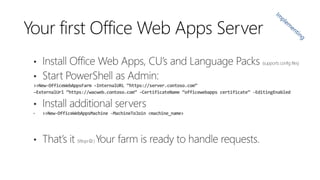

11. Your first Office Web Apps Server
>>New-OfficeWebAppsFarm –InternalURL “https://server.contoso.com”
–ExternalUrl “https://wacweb.contoso.com” -CertificateName “officewebapps certificate” -EditingEnabled
•
>>New-OfficeWebAppsMachine -MachineToJoin <machine_name>

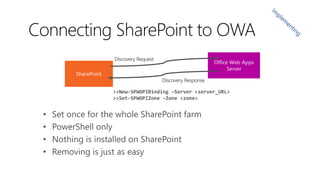

12. Connecting SharePoint to OWA
>>New-SPWOPIBinding –Server <server_URL>
>>Set-SPWOPIZone –Zone <zone>
•
•
•
•
Set once for the whole SharePoint farm
PowerShell only
Nothing is installed on SharePoint
Removing is just as easy

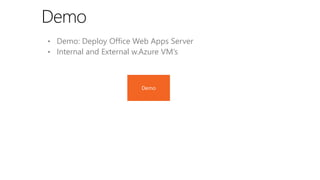

13. Demo
• Demo: Deploy Office Web Apps Server
• Internal and External w.Azure VM’s

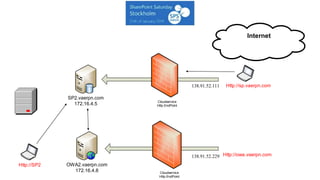

14. Internet
138.91.52.111
SP2.vaerpn.com
172.16.4.5
Http://sp.vaerpn.com
Cloudservice
Http EndPoint
138.91.52.229 Http://owa.vaerpn.com
Http://SP2
OWA2.vaerpn.com
172.16.4.8
Cloudservice
Http EndPoint

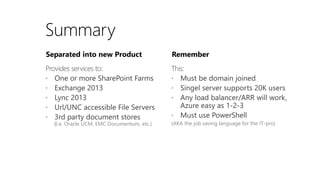

15. Summary
Separated into new Product
I.e. Oracle UCM, EMC Documentum, etc.)
Remember
(AKA the job saving language for the IT-pro)

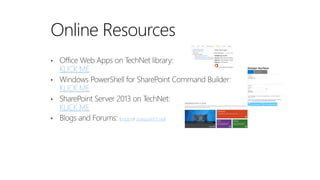

16. Online Resources
KLICK ME
KLICK ME
KLICK ME
(msdn or sharepoint13.net)

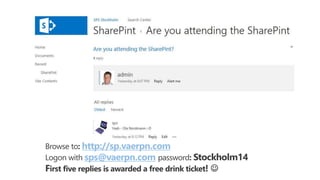

18. http://sp.vaerpn.com
