Spice park 2005 autumn pdf version

【スパイス・パーク】商品説明会
2005年11月11日

http://www.bee-tech.com/
株式会社ビー・テクノロジー
All Rights Reserved Copyright (C) Bee Technologies Inc.

説明会の流れ

13:00-14:30
1．「スパイス・パーク」のコンセプト及び概要
2．半導体のスパイスモデルについて
3．受動部品のスパイスモデルについて

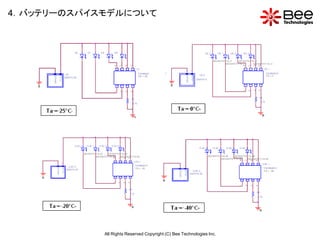

4．バッテリーのスパイスモデルについて

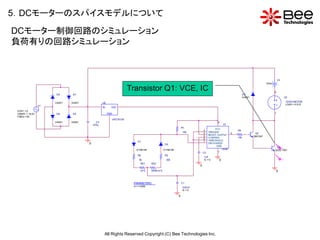

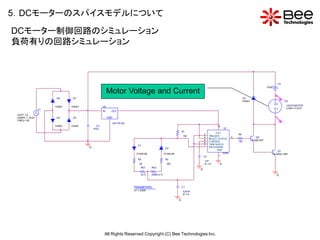

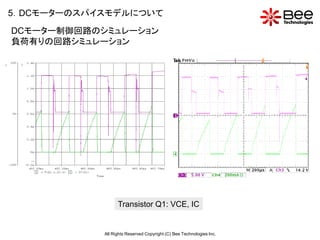

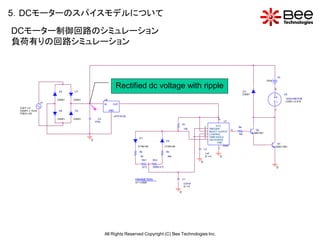

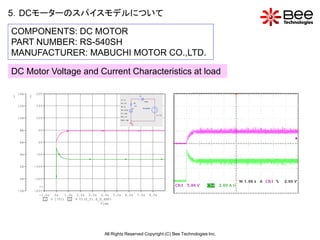

5．DCモーターのスパイスモデルについて
6．ランプのスパイスモデルについて

14:30-15:00
7．質疑応答

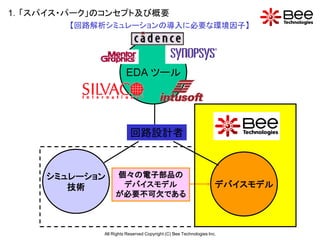

【回路解析シミュレーションの導入に必要な環境因子】

EDA ツール

回路設計者

シミュレーション個々の電子部品の
技術デバイスモデルデバイスモデル
が必要不可欠である


回路解析シミュレーション導入前の姿
基板に実装

回路図作成

回路図変更回路動作の検証

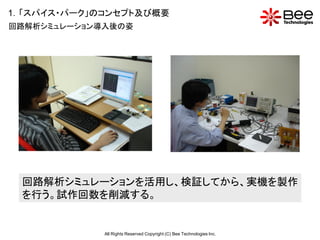

回路解析シミュレーション導入後の姿

回路解析シミュレーションを活用し、検証してから、実機を製作
を行う。試作回数を削減する。

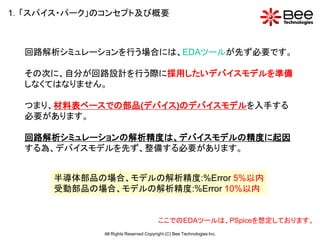

回路解析シミュレーションを行う場合には、EDAツールが先ず必要です。

その次に、自分が回路設計を行う際に採用したいデバイスモデルを準備
しなくてはなりません。

つまり、材料表ベースでの部品(デバイス)のデバイスモデルを入手する
必要があります。

回路解析シミュレーションの解析精度は、デバイスモデルの精度に起因
する為、デバイスモデルを先ず、整備する必要があります。

半導体部品の場合、モデルの解析精度:%Error 5%以内
受動部品の場合、モデルの解析精度:%Error 10%以内

ここでのEDAツールは、PSpiceを想定しております。

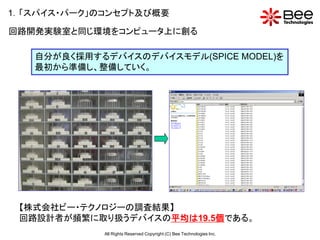

回路開発実験室と同じ環境をコンピュータ上に創る

自分が良く採用するデバイスのデバイスモデル(SPICE MODEL)を
最初から準備し、整備していく。

【株式会社ビー・テクノロジーの調査結果】
回路設計者が頻繁に取り扱うデバイスの平均は19.5個である。

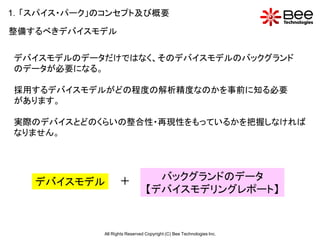

整備するべきデバイスモデル

デバイスモデルのデータだけではなく、そのデバイスモデルのバックグランド
のデータが必要になる。

採用するデバイスモデルがどの程度の解析精度なのかを事前に知る必要
があります。

実際のデバイスとどのくらいの整合性・再現性をもっているかを把握しなければ
なりません。

デバイスモデル＋バックグランドのデータ
【デバイスモデリングレポート】

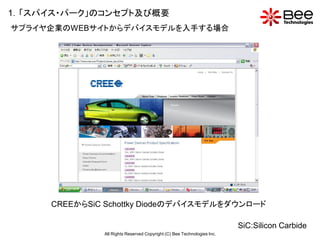

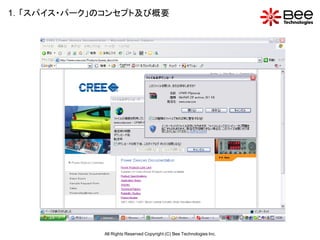

サプライヤ企業のWEBサイトからデバイスモデルを入手する場合

CREEからSiC Schottky Diodeのデバイスモデルをダウンロード

SiC:Silicon Carbide

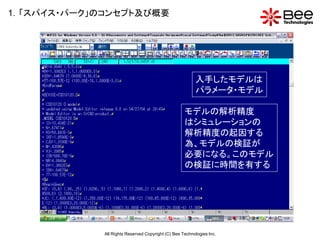

入手したモデルは
パラメータ・モデル

モデルの解析精度
はシミュレーションの
解析精度の起因する
為、モデルの検証が
必要になる。このモデル
の検証に時間を有する

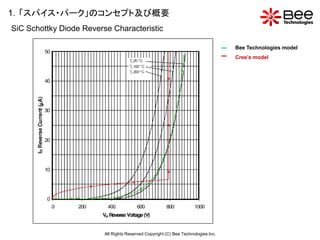

SiC Schottky Diode Reverse Characteristic

Bee Technologies model
Cree’s model

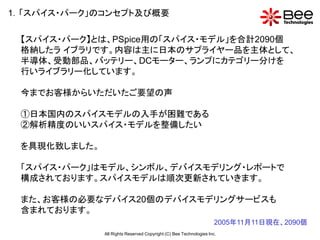

【スパイス・パーク】とは、PSpice用の「スパイス・モデル」を合計2090個
格納したライブラリです。内容は主に日本のサプライヤー品を主体として、
半導体、受動部品、バッテリー、DCモーター、ランプにカテゴリー分けを
行いライブラリー化しています。

今までお客様からいただいたご要望の声

①日本国内のスパイスモデルの入手が困難である
②解析精度のいいスパイス・モデルを整備したい

を具現化致しました。

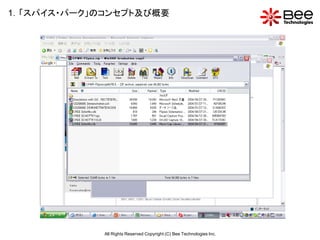

「スパイス・パーク」はモデル、シンボル、デバイスモデリング・レポートで
構成されております。スパイスモデルは順次更新されていきます。

また、お客様の必要なデバイス20個のデバイスモデリングサービスも
含まれております。
2005年11月11日現在、2090個

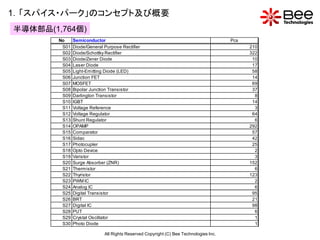

半導体部品(1,764個)
No Semiconductor Pcs
S01 Diode/General Purpose Rectifier 210
S02 Diode/Schottky Rectifier 322
S03 Diode/Zener Diode 10
S04 Laser Diode 17
S05 Light-Emitting Diode (LED) 58
S06 Junction FET 14

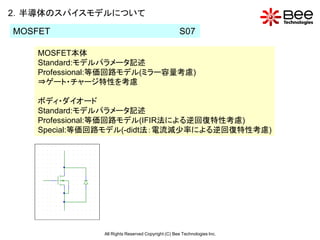

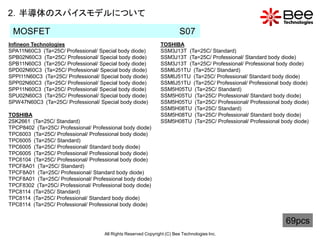

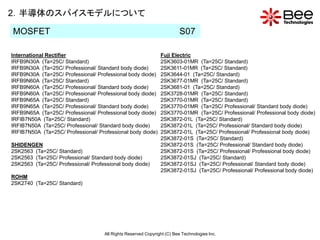

S07 MOSFET 69

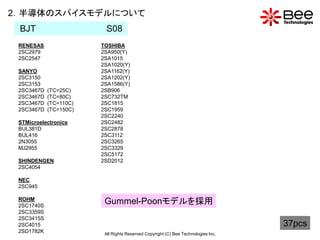

S08 Bipolar Junction Transistor 37

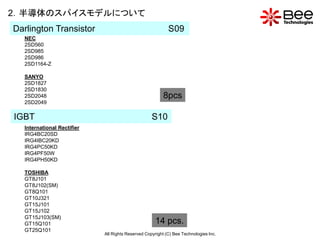

S09 Darlington Transistor 8
S10 IGBT 14

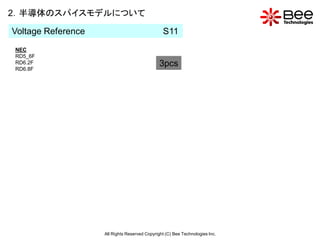

S11 Voltage Reference 3

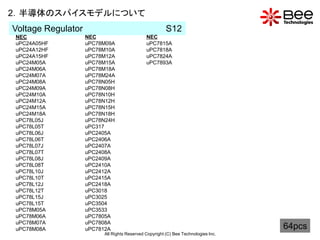

S12 Voltage Regulator 64

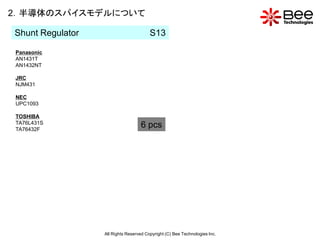

S13 Shunt Regulator 6

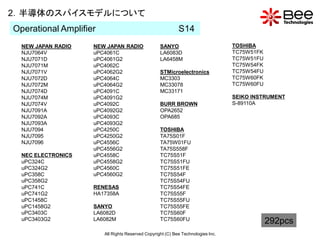

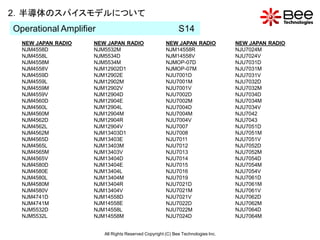

S14 OPAMP 292

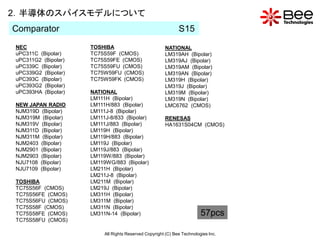

S15 Comparator 57

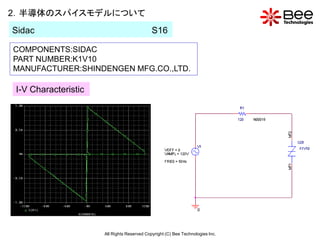

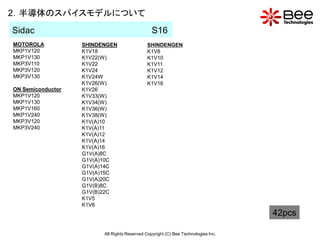

S16 Sidac 42

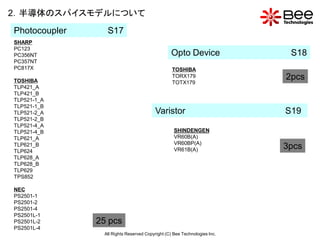

S17 Photocupler 25
S18 Opto Device 2
S19 Varistor 3

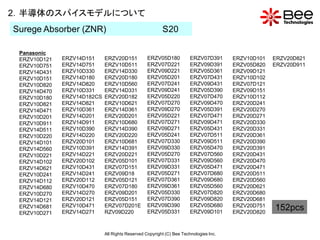

S20 Surge Absorber (ZNR) 152

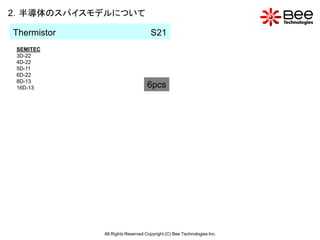

S21 Thermistor 6

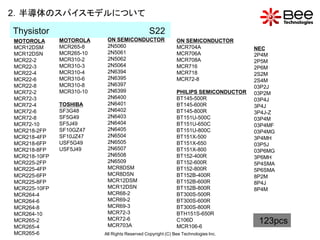

S22 Thyristor 123

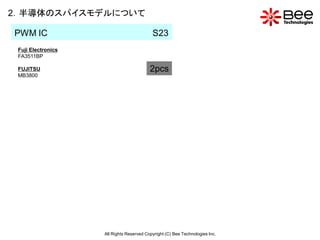

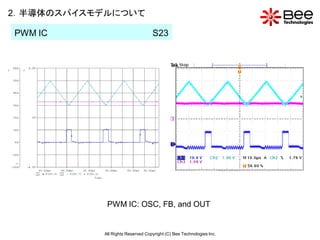

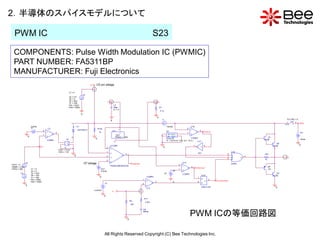

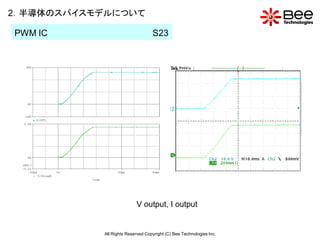

S23 PWM IC 2
S24 Analog IC 6

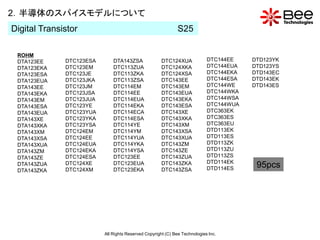

S25 Digital Transistor 95

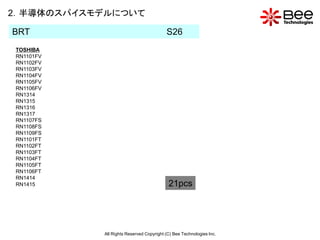

S26 BRT 21

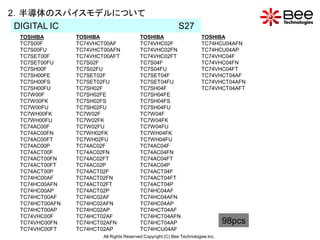

S27 Digital IC 98

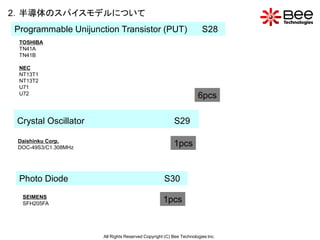

S28 PUT 6
S29 Crystal Oscillator 1
S30 Photo Diode 1

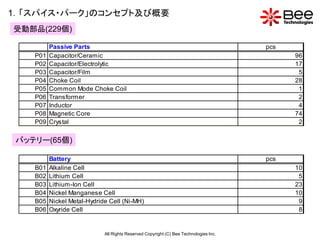

受動部品(229個)

Passive Parts pcs

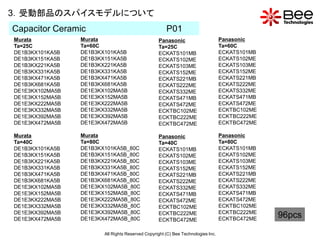

P01 Capacitor/Ceramic 96

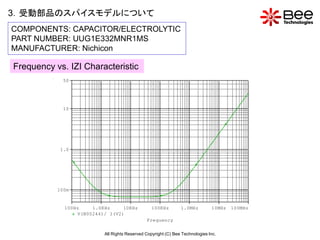

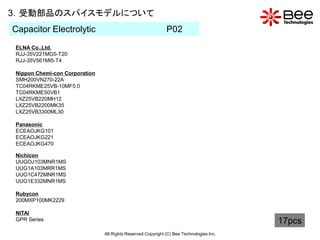

P02 Capacitor/Electrolytic 17
P03 Capacitor/Film 5

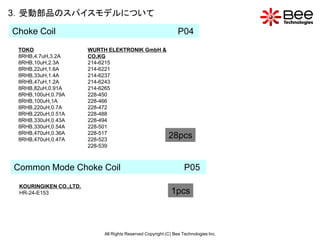

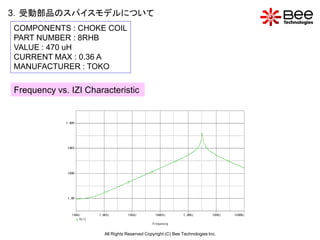

P04 Choke Coil 28
P05 Common Mode Choke Coil 1

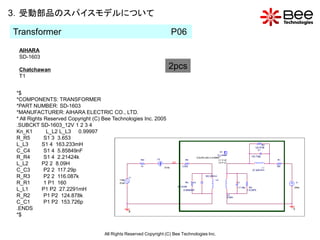

P06 Transformer 2

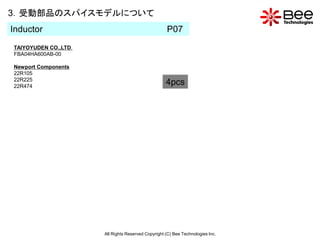

P07 Inductor 4

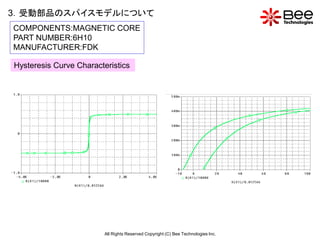

P08 Magnetic Core 74

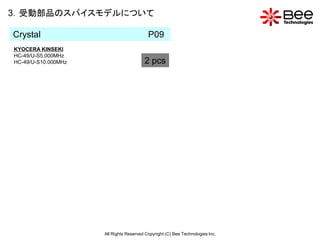

P09 Crystal 2

バッテリー(65個)

Battery pcs

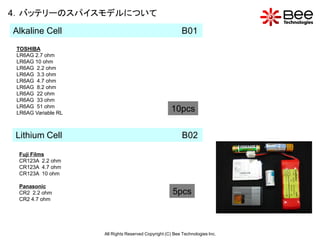

B01 Alkaline Cell 10
B02 Lithium Cell 5
B03 Lithium-Ion Cell 23

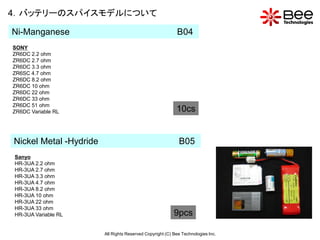

B04 Nickel Manganese Cell 10
B05 Nickel Metal-Hydride Cell (Ni-MH) 9

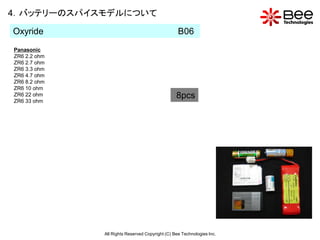

B06 Oxyride Cell 8

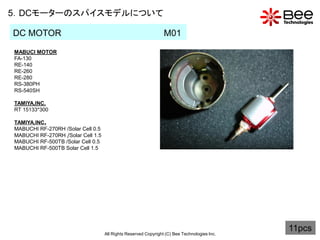

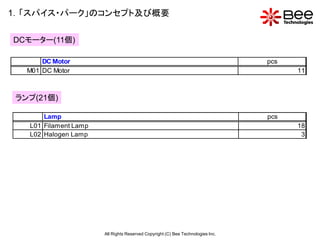

DCモーター(11個)

DC Motor pcs
M01 DC Motor 11

ランプ(21個)

Lamp pcs
L01 Filament Lamp 18
L02 Halogen Lamp 3

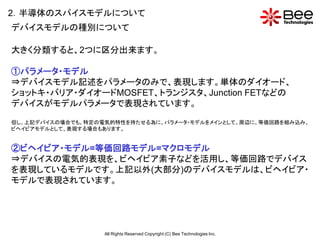

デバイスモデルの種別について

大きく分類すると、2つに区分出来ます。

①パラメータ・モデル
⇒デバイスモデル記述をパラメータのみで、表現します。単体のダイオード、
ショットキ・バリア・ダイオードMOSFET、トランジスタ、Junction FETなどの
デバイスがモデルパラメータで表現されています。

但し、上記デバイスの場合でも、特定の電気的特性を持たせる為に、パラメータ・モデルをメインとして、周辺に、等価回路を組み込み、
ビヘイビアモデルとして、表現する場合もあります。

②ビヘイビア・モデル=等価回路モデル=マクロモデル
⇒デバイスの電気的表現を、ビヘイビア素子などを活用し、等価回路でデバイス
を表現しているモデルです。上記以外(大部分)のデバイスモデルは、ビヘイビア・
モデルで表現されています。


パラメータ・モデルの事例(一般ダイオード)

*$
*Part number:SF20LC30
*Manufacturer:SHINDENGEN
*All Rights Reserved Copyright (C) Bee Technologies Inc.
.MODEL SF20LC30 D
+ IS=85.678E-6
+ N=3.1502
+ RS=6.8466E-3
+ IKF=1.0882
+ CJO=309.32E-12
+ M=.41724
+ VJ=.53477
+ ISR=0
+ BV=300
+ IBV=250.00E-9
+ TT=11.542E-9
*$


ビヘイビア・モデルの事例
(一般ダイオード:逆回復特性trj,trbを考慮したモデル)

パラメータ・モデルビヘイビア・モデル=等価回路モデル
*$
* PART NUMBER: 1SR139-400
*$ * MANUFACTURER: ROHM
* PART NUMBER: 1SR139-400 * VRM=400,Io=1.0A=IFSM=40A
* MANUFACTURER: ROHM * All Rights Reserved Copyright (C) Bee Technologies Inc. 2004
.SUBCKT D1SR139-400 A K
* VRM=400,Io=1.0A=IFSM=40A
R_R2 5 6 3500
* All Rights Reserved Copyright (C) Bee Technologies Inc. 2004 R_R1 3 4 1
.MODEL 1SR139-400 D C_C1 5 6 100p
+ IS=11.797E-12 E_E1 5 K 3 4 1
S_S1 6 K 4 K _S1
+ N=1.3533
RS_S1 4 K 1G
+ RS=52.928E-3 .MODEL _S1 VSWITCH Roff=50MEG Ron=1m Voff=90mV Von=100mV
+ IKF=.20632 G_G1 K A VALUE { V(3,4)-V(5,6) }
+ ISR=0 D_D1 2 K D1SR139-400
+ CJO=22.539E-12 D_D2 4 K D1SR139-400
F_F1 K 3 VF_F1 1
+ M=.36819 VF_F1 A 2 0V
+ VJ=.46505 .MODEL D1SR139-400 D
+ BV=400 + IS=11.801E-12
+ N=1.3533
+ IBV=10.000E-6
+ RS=52.928E-3
+ TT=7.6751E-6 + IKF=.20632
.ENDS + ISR=0
*$ + CJO=22.539E-12
+ M=.36819
+ VJ=.46505
+ BV=400
COMPONENTS: + IBV=10.000E-6
+ TT=3.8551E-6
DIODE/ GENERAL PURPOSE RECTIFIER .ENDS
PART NUMBER: 1SR139-400 *$

MANUFACTURER: ROHM

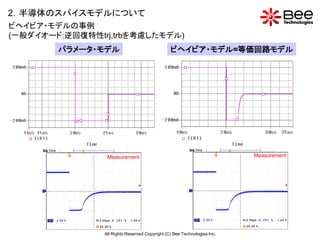

ビヘイビア・モデルの事例
(一般ダイオード:逆回復特性trj,trbを考慮したモデル)
パラメータ・モデルビヘイビア・モデル=等価回路モデル

Measurement Measurement



Diode/General Purpose Rectifier S01
FAIRCHILD FUJI SHINDENGEN
RURD460S (TC=80C/ Professional) YG963S6R (Professional) D1NL20U (Professional)
RURD460S (TC=80C/ Standard) YG963S6R (Standard) D1NL20U (Standard)
RURD460S (TC=110C/ Professional) D3SB80 (Professional)
RURD460S (TC=110C / Standard) D5LC20U (Professional)
RURD460S (TC=150C / Professional) International Rectifier D5LC20U (Standard)
RURD460S (TC=150C/ Standard) HFA08TB60 (TC=80C/ Professional) D25XB80 (Professional)
RURD460S (Professional) HFA08TB60 (TC=80C/ Standard) SF3L60U (Professional)
RURD460S (Standard) HFA08TB60 (Professional) SF3L60U (Standard)
RURD660S (TC=80C/ Professional) HFA08TB60 (Standard) SF20LC30 (Professional)
RURD660S (TC=80C / Standard) SF20LC30 (Standard)
RURD660S (TC=110C / Professional) Micro Commercial Component
RURD660S (TC=110C / Standard) MB252W (Professional) WISHAY
RURD660S (TC=150C / Professional) MB252W (Standard) UF5401 (Professional)
RURD660S (TC=150C / Standard) UF5401 (Standard)
RURD660S (Professional) PHILIPS UF5402 (Professional)
RURD660S (Standard) BYW29E (Professional) UF5402 (Standard)
RURG3060 (TC=80C/ Professional) BYW29E (Standard) UF5404 (Professional)
RURG3060 (TC=80C / Standard) UF5404 (Standard)
RURG3060 (TC=110C / Professional) SANKEN UF5406 (Professional)
RURG3060 (TC=110C / Standard) FML-G14S (Professional) UF5406 (Standard)
RURG3060 (TC=150C / Professional) FML-G14S (Standard) UF5408 (Professional)
RURG3060 (TC=150C / Standard) UF5408 (Standard)
RURG3060 (Professional)
RURG3060 (Standard)

Standard:モデルパラメータ記述
Professional:等価回路モデル(逆回復時間考慮)

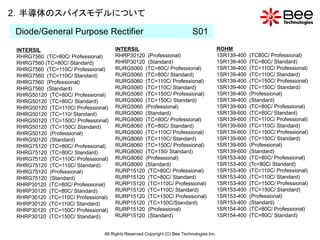

INTERSIL INTERSIL ROHM
RHRG7560 (TC=80C/ Professional) RHRP30120 (Professional) 1SR139-400 (TC80C/ Professional)
RHRG7560 (TC=80C/ Standard) RHRP30120 (Standard) 1SR139-400 (TC=80C/ Standard)
RHRG7560 (TC=110C/ Professional) RURG5060 (TC=80C/ Professional) 1SR139-400 (TC=110C/ Professional)
RHRG7560 (TC=110C/ Standard) RURG5060 (TC=80C/ Standard) 1SR139-400 (TC=110C/ Standard)
RHRG7560 (Professional) RURG5060 (TC=110C/ Professional) 1SR139-400 (TC=150C/ Professional)
RHRG7560 (Standard) RURG5060 (TC=110C/ Standard) 1SR139-400 (TC=150C/ Standard)
RHRG50120 (TC=80C/ Professional) RURG5060 (TC=150C/ Professional) 1SR139-400 (Professional)
RHRG50120 (TC=80C/ Standard) RURG5060 (TC=150C/ Standard) 1SR139-400 (Standard)
RHRG50120 (TC=110C/ Professional) RURG5060 (Professional) 1SR139-600 (TC=80C/ Professional)
RHRG50120 (TC=110/ Standard) RURG5060 (Standard) 1SR139-600 (TC=80C/ Standard)
RHRG50120 (TC=150C/ Professional) RURG8060 (TC=80C/ Professional) 1SR139-600 (TC=110C/ Professional)
RHRG50120 (TC=150C/ Standard) RURG8060 (TC=80C/ Standard) 1SR139-600 (TC=110C/ Standard)
RHRG50120 (Professional) RURG8060 (TC=110C/ Professional) 1SR139-600 (TC=150C/ Professional)
RHRG50120 (Standard) RURG8060 (TC=110C/ Standard) 1SR139-600 (TC=150C/ Standard)
RHRG75120 (TC=80C/ Professional) RURG8060 (TC=150C/ Professional) 1SR139-600 (Professional)
RHRG75120 (TC=80C/ Standard) RURG8060 (TC=150/ Standard) 1SR139-600 (Standard)
RHRG75120 (TC=110C/ Professional) RURG8060 (Professional) 1SR153-400 (TC=80C/ Professional)
RHRG75120 (TC=110C/ Standard) RURG8060 (Standard) 1SR153-400 (Tc=80C/ Standard)
RHRG75120 (Professional) RURP15120 (TC=80C/ Professional) 1SR153-400 (TC=110C/ Professional)
RHRG75120 (Standard) RURP15120 (TC=80C/ Standard) 1SR153-400 (TC=110C/ Standard)
RHRP30120 (TC=80C/ Professional) RURP15120 (TC=110C/ Professional) 1SR153-400 (TC=150C/ Professional)
RHRP30120 (TC=80C/ Standard) RURP15120 (TC=110C/ Standard) 1SR153-400 (TC=150C/ Standard)
RHRP30120 (TC=110C/ Professional) RURP15120 (TC=150C/ Professional) 1SR153-400 (Professional)
RHRP30120 (TC=110C/ Standard) RURP15120 (TC=150C/Standard) 1SR153-400 (Standard)
RHRP30120 (TC=150C/ Professional) RURP15120 (Professional) 1SR154-400 (TC=80C/ Professional)
RHRP30120 (TC=150C/ Standard) RURP15120 (Standard) 1SR154-400 (TC=80C/ Standard)

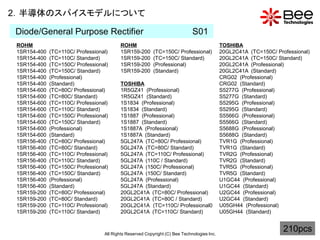

ROHM ROHM TOSHIBA
1SR154-400 (TC=110C/ Professional) 1SR159-200 (TC=150C/ Professional) 20GL2C41A (TC=150C/ Professional)
1SR154-400 (TC=110C/ Standard) 1SR159-200 (TC=150C/ Standard) 20GL2C41A (TC=150C/ Standard)
1SR154-400 (TC=150C/ Professional) 1SR159-200 (Professional) 20GL2C41A (Professional)
1SR154-400 (TC=150C/ Standard) 1SR159-200 (Standard) 20GL2C41A (Standard)
1SR154-400 (Professional) CRG02 (Professional)
1SR154-400 (Standard) TOSHIBA CRG02 (Standard)
1SR154-600 (TC=80C/ Professional) 1R5GZ41 (Professional) S5277G (Professional)
1SR154-600 (TC=80C/ Standard) 1R5GZ41 (Standard) S5277G (Standard)
1SR154-600 (TC=110C/ Professional) 1S1834 (Professional) S5295G (Professional)
1SR154-600 (TC=110C/ Standard) 1S1834 (Standard) S5295G (Standard)
1SR154-600 (TC=150C/ Professional) 1S1887 (Professional) S5566G (Professional)
1SR154-600 (TC=150C/ Standard) 1S1887 (Standard) S5566G (Standard)
1SR154-600 (Professional) 1S1887A (Professional) S5688G (Professional)
1SR154-600 (Standard) 1S1887A (Standard) S5688G (Standard)
1SR156-400 (TC=80C/ Professional) 5GL247A (TC=80C/ Professional) TVR1G (Professional)
1SR156-400 (TC=80C/ Standard) 5GL247A (TC=80C/ Standard) TVR1G (Standard)
1SR156-400 (TC=110C/ Professional) 5GL247A (TC=110C/ Professional) TVR2G (Professional)
1SR156-400 (TC=110C/ Standard) 5GL247A (110C / Standard) TVR2G (Standard)
1SR156-400 (TC=150C/ Professional) 5GL247A (150C/ Professional) TVR5G (Professional)
1SR156-400 (TC=150C/ Standard) 5GL247A (150C/ Standard) TVR5G (Standard)
1SR156-400 (Professional) 5GL247A (Professional) U1GC44 (Professional)
1SR156-400 (Standard) 5GL247A (Standard) U1GC44 (Standard)
1SR159-200 (TC=80C/ Professional) 20GL2C41A (TC=80C/ Professional) U2GC44 (Professional)
1SR159-200 (TC=80C/ Standard) 20GL2C41A (TC=80C / Standard) U2GC44 (Standard)
1SR159-200 (TC=110C/ Professional) 20GL2C41A (TC=110C/ Professional0 U05GH44 (Professional)
1SR159-200 (TC=110C/ Standard) 20GL2C41A (TC=110C/ Standard) U05GH44 (Standard)

210pcs

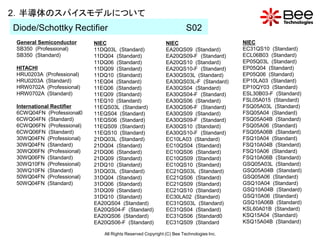

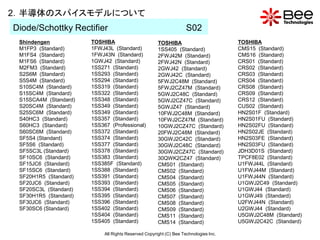

Diode/Schottky Rectifier S02
General Semiconductor NIEC NIEC NIEC
SB350 (Professional) 11DQ03L (Standard) EA20QS09 (Standard) EC31QS10 (Standard)
SB350 (Standard) 11DQ04 (Standard) EA20QS09-F (Standard) ECL06B03 (Standard)
11DQ06 (Standard) EA20QS10 (Standard) EP05Q03L (Standard)
HITACHI 11DQ09 (Standard) EA20QS10-F (Standard) EP05Q04 (Standard)
HRU0203A (Professional) 11DQ10 (Standard) EA30QS03L (Standard) EP05Q06 (Standard)
HRU0203A (Standard) 11EQ04 (Standard) EA30QS03L-F (Standard) EP10LA03 (Standard)
HRW0702A (Professional) 11EQ06 (Standard) EA30QS04 (Standard) EP10QY03 (Standard)
HRW0702A (Standard) 11EQ09 (Standard) EA30QS04-F (Standard) ESL30B03-F (Standard)
11EQ10 (Standard) EA30QS06 (Standard) FSL05A015 (Standard)
International Rectifier 11EQS03L (Standard) EA30QS06-F (Standard) FSQ05A03L (Standard)
6CWQ04FN (Professional0 11EQS04 (Standard) EA30QS09 (Standard) FSQ05A04 (Standard)
6CWQ04FN (Standard) 11EQS06 (Standard) EA30QS09-F (Standard) FSQ05A04B (Standard)
6CWQ06FN (Professional) 11EQS09 (Standard) EA30QS10 (Standard) FSQ05A06 (Standard)
6CWQ06FN (Standard) 11EQS10 (Standard) EA30QS10-F (Standard) FSQ05A06B (Standard)
30WQ04FN (Professional) 21DQ03L (Standard) EC10LA03 (Standard) FSQ10A04 (Standard)
30WQ04FN (Standard) 21DQ04 (Standard) EC10QS04 (Standard) FSQ10A04B (Standard)
30WQ06FN (Professional) 21DQ06 (Standard) EC10QS06 (Standard) FSQ10A06 (Standard)
30WQ06FN (Standard) 21DQ09 (Standard) EC10QS09 (Standard) FSQ10A06B (Standard)
30WQ10FN (Professional) 21DQ10 (Standard) EC10QS10 (Standard) GSQ05A03L (Standard)
30WQ10FN (Standard) 31DQ03L (Standard) EC21QS03L (Standard) GSQ05A04B (Standard)
50WQ04FN (Professional) 31DQ04 (Standard) EC21QS06 (Standard) GSQ05A06 (Standard)
50WQ04FN (Standard) 31DQ06 (Standard) EC21QS09 (Standard) GSQ10A04 (Standard)
31DQ09 (Standard) EC21QS10 (Standard) GSQ10A04B (Standard)
31DQ10 (Standard) EC30LA02 (Standard) GSQ10A06 (Standard)
EA20QS04 (Standard) EC31QS03L (Standard) GSQ10A06B (Standard)
EA20QS04-F (Standard) EC31QS04 (Standard) KSL60A01B (Standard)
EA20QS06 (Standard) EC31QS06 (Standard0 KSQ15A04 (Standard)
EA20QS06-F (Standard) EC31QS09 (Standard KSQ15A04B (Standard)


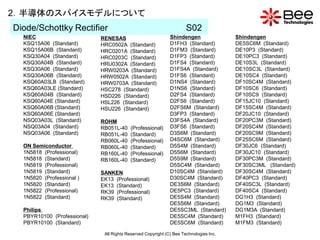

NIEC RENESAS Shindengen Shindengen
KSQ15A06 (Standard) HRC0502A (Standard) D1FH3 (Standard) DE5SC6M (Standard)
KSQ15A06B (Standard) HRC0201A (Standard) D1FM3 (Standard) DE10P3 (Standard)
KSQ30A04 (Standard) HRC0203C (Standard) D1FP3 (Standard) DE10PC3 (Standard)
KSQ30A04B (Standard) HRU0302A (Standard) D1FS4 (Standard) DE10S3L (Standard)
KSQ30A06 (Standard) HRW0203A (Standard) D1FS4A (Standard) DE10SC3L (Standard)
KSQ30A06B (Standard) HRW0502A (Standard) D1FS6 (Standard) DE10SC4 (Standard)
KSQ60A03LB (Standard) HRW0703A (Standard) D1NS4 (Standard) DF10SC4M (Standard)
KSQ60A03LE (Standard) HSC278 (Standard) D1NS6 (Standard) DF10SC6 (Standard)
KSQ60A04B (Standard) HSD226 (Standard) D2FS4 (Standard) DF10SC9 (Standard)
KSQ60A04E (Standard) HSL226 (Standard) D2FS6 (Standard) DF15JC10 (Standard)
KSQ60A06B (Standard) HSU226 (Standard) D2FS6M (Standard) DF15SC4M (Standard)
KSQ60A06E (Standard) D3FP3 (Standard) DF20JC10 (Standard)
NSQ03A03L (Standard) ROHM D3FS4A (Standard) DF20PC3M (Standard)
NSQ03A04 (Standard) RB051L-40 (Professional) D3FS6 (Standard) DF20SC4M (Standard)
NSQ03A06 (Standard) RB051L-40 (Standard) D3S6M (Standard) DF20SC9M (Standard)
RB060L-40 (Professional) D4SC6M (Standard) DF25SC6M (Standard)
ON Semiconductor RB060L-40 (Standard) D5S4M (Standard) DF30JC6 (Standard)
1N5818 (Professional) RB160L-40 (Professional) D5S6M (Standard) DF30JC10 (Standard)
1N5818 (Standard) RB160L-40 (Standard) D5S9M (Standard) DF30PC3M (Standard)
1N5819 (Professional) D5SC4M (Standard) DF30SC3ML (Standard)
1N5819 (Standard) SANKEN D10SC4M (Standard) DF30SC4M (Standard)
1N5820 (Professional ) EK13 (Professional) D30SC4M (Standard) DF40PC3 (Standard)
1N5820 (Standard) EK13 (Standard) DE3S6M (Standard) DF40SC3L (Standard)
1N5822 (Professional) RK39 (Professional) DE5PC3 (Standard) DF40SC4 (Standard)
1N5822 (Standard) RK39 (Standard) DE5S4M (Standard) DG1H3 (Standard)
DE5S6M (Standard) DG1M3 (Standard)
Philips DE5SC3ML (Standard) DG1M3A (Standard)
PBYR10100 (Professional) DE5SC4M (Standard) M1FH3 (Standard)
PBYR10100 (Standard) DE5SC6M (Standard) M1FM3 (Standard)


Shindengen TOSHIBA TOSHIBA TOSHIBA
M1FP3 (Standard) 1FWJ43L (Standard) 1SS405 (Standard) CMS15 (Standard)
M1FS4 (Standard) 1FWJ43N (Standard) 2FWJ42M (Standard) CMS16 (Standard)
M1FS6 (Standard) 1GWJ42 (Standard) 2FWJ42N (Standard) CRS01 (Standard)
M2FM3 (Standard) 1SS271 (Standard) 2GWJ42 (Standard) CRS02 (Standard)
S2S6M (Standard) 1SS293 (Standard) 2GWJ42C (Standard) CRS03 (Standard)
S5S4M (Standard) 1SS294 (Standard) 5FWJ2C48M (Standard) CRS04 (Standard)
S10SC4M (Standard) 1SS319 (Standard) 5FWJ2CZ47M (Standard) CRS08 (Standard)
S15SC4M (Standard) 1SS322 (Standard) 5GWJ2C48C (Standard) CRS09 (Standard)
S15SCA4M (Standard) 1SS348 (Standard) 5GWJ2CZ47C (Standard) CRS12 (Standard)
S20SC4M (Standard) 1SS349 (Standard) 5GWJZ47 (Standard) CUS02 (Standard)
S25SC6M (Standard) 1SS349 (Standard) 10FWJ2C48M (Standard) HN2S01F (Standard)
S40HC3 (Standard) 1SS357 (Standard) 10FWJ2CZ47M (Standard) HN2S01FU (Standard)
S60HC3 (Standard) 1SS367 (Professional) 10GWJ2CZ47C (Standard) HN2S02FU (Standard)
S60SC6M (Standard) 1SS372 (Standard) 20FWJ2C48M (Standard) HN2S02JE (Standard)
SF5S4 (Standard) 1SS374 (Standard) 30GWJ2C42C (Standard) HN2S03FE (Standard)
SF5S6 (Standard) 1SS377 (Standard) 30GWJ2C48C (Standard) HN2S03FU (Standard)
SF5SC3L (Standard) 1SS378 (Standard) 30GWJ2CZ47C (Standard) JDH3D01S (Standard)
SF10SC6 (Standard) 1SS383 (Standard) 30QWK2CZ47 (Standard) TPCF8E02 (Standard)
SF15JC6 (Standard) 1SS385F (Standard) CMS01 (Standard) U1FWJ44L (Standard)
SF15SC6 (Standard) 1SS388 (Standard) CMS02 (Standard) U1FWJ44M (Standard)
SF20H1R5 (Standard) 1SS391 (Standard) CMS04 (Standard) U1FWJ44N (Standard)
SF20JC6 (Standard) 1SS393 (Standard) CMS05 (Standard) U1GWJ2C49 (Standard)
SF20SC3L (Standard) 1SS394 (Standard) CMS06 (Standard) U1GWJ44 (Standard)
SF30H1R5 (Standard) 1SS395 (Standard) CMS07 (Standard) U1GWJ49 (Standard)
SF30JC6 (Standard) 1SS396 (Standard) CMS08 (Standard) U2FWJ44N (Standard)
SF30SC6 (Standard) 1SS402 (Standard) CMS09 (Standard) U2GWJ44 (Standard)
1SS404 (Standard) CMS11 (Standard) U5GWJ2C48M (Standard)
1SS405 (Standard) CMS14 (Standard) U5GWJ2C42C (Standard)


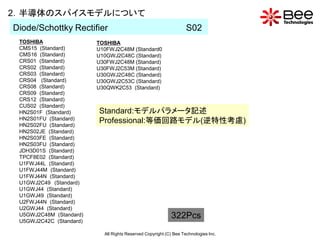

TOSHIBA TOSHIBA
CMS15 (Standard) U10FWJ2C48M (Standard0
CMS16 (Standard) U10GWJ2C48C (Standard)
CRS01 (Standard) U30FWJ2C48M (Standard)
CRS02 (Standard) U30FWJ2C53M (Standard)
CRS03 (Standard) U30GWJ2C48C (Standard)
CRS04 (Standard) U30GWJ2C53C (Standard)
CRS08 (Standard) U30QWK2C53 (Standard)
CRS09 (Standard)
CRS12 (Standard)
CUS02 (Standard)
HN2S01F (Standard) Standard:モデルパラメータ記述
HN2S01FU (Standard) Professional:等価回路モデル(逆特性考慮)
HN2S02FU (Standard)
HN2S02JE (Standard)
HN2S03FE (Standard)
HN2S03FU (Standard)
JDH3D01S (Standard)
TPCF8E02 (Standard)
U1FWJ44L (Standard)
U1FWJ44M (Standard)
U1FWJ44N (Standard)
U1GWJ2C49 (Standard)
U1GWJ44 (Standard)
U1GWJ49 (Standard)
U2FWJ44N (Standard)
U2GWJ44 (Standard)
U5GWJ2C48M (Standard) 322Pcs
U5GWJ2C42C (Standard)


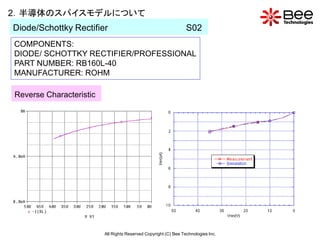

COMPONENTS:
DIODE/ SCHOTTKY RECTIFIER/PROFESSIONAL
PART NUMBER: RB160L-40
MANUFACTURER: ROHM

Reverse Characteristic



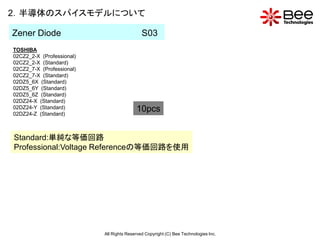

Zener Diode S03
TOSHIBA
02CZ2_2-X (Professional)
02CZ2_2-X (Standard)
02CZ2_7-X (Professional)
02CZ2_7-X (Standard)
02DZ5_6X (Standard)
02DZ5_6Y (Standard)
02DZ5_6Z (Standard)
02DZ24-X (Standard)
02DZ24-Y (Standard)
02DZ24-Z (Standard)
10pcs

Standard:単純な等価回路
Professional:Voltage Referenceの等価回路を使用



Laser Diode S04

MITSUBISHI
ML120G14
ML120G18
ML120G20
ML776H10
ML976H10
ML7924

NICHIA
Ultra Violet NDHU110APAE2
Violet NDHV310ACA
Violet NDHV310APC

SANYO
DL-3147-060
DL-3148-025
DL-7240-201P

SONY
SLD301V
SLD302V
SLD1121VS
SLD1133VS
SLD1137VS 17pcs


Light-Emitting Diode (LED) S05
Opto Supply PARA Light Stanley
OSWT5111A (Ta=0C/ Professional) EP204K-35G1R1B1-CA (Blue/ Professional) EFR53655 (Professional)
OSWT5111A (Ta=0C/ Standard) EP204K-35G1R1B1-CA (Blue/ Standard) EFR53655 (Standard)
OSWT5111A (Ta=25C/ Professional) EP204K-35G1R1B1-CA (Green/ Professional) FY3863X (Professional)
OSWT5111A (Ta=25C/ Standard) EP204K-35G1R1B1-CA (Green/ Standard) FY3863X (Standard)
OSWT5111A (Ta=40C/ Professional) EP204K-35G1R1B1-CA (Red/ Professional)
OSWT5111A (Ta=40C/ Standard) EP204K-35G1R1B1-CA (Red/ Standard) TOSHIBA
OSWT5111A (Ta=60C/ Professional) TLWH1100 (TA=25C/ Professional)
OSWT5111A (Ta=60C/ Standard) TOYODA GOSEI TLWH1100 (Ta=25C/ Standard)
OSWT5111A (Ta=-20C/ Professional) E1J5-CY1A TLWH1100 (Ta=40C/ Professional)
OSWT5111A (Ta=-20C/ Standard) TLWH1100 (TA=40C/ Standard)
OSWT5111A (Ta=-40C/ Professional) SANYO TLWH1100 (Ta=60C/ Professional)
OSWT5111A (Ta=-40C/ Standard) SLP-0H118A-51 TLWH1100 (Ta=60C/ Standard)
OSWT5161A (Ta=0C/ Professional) SLP-WB89A-51 (Ta=0C/ Professional) TLWH1100 (Ta=-20C/ Professional)
OSWT5161A (Ta=0C/ Standard) SLP-WB89A-51 (Ta=0C/ Standard) TLWH1100 (Ta=-20C/ Standard)
OSWT5161A (Ta=25C/ Professional) SLP-WB89A-51 (Ta=25C/ Professional) TLWH1100 (Ta=-40C/ Professional)
OSWT5161A (Ta=25C/ Standard) SLP-WB89A-51 (Ta=25C/ Standard) TLWH1100 (Ta=-40C/ Standard)
OSWT5161A (Ta=40C/ Professional) SLP-WB89A-51 (Ta=40C/ Professional)
OSWT5161A (Ta=40C/ Standard) SLP-WB89A-51 (Ta=40C/ Standard)
OSWT5161A (Ta=60C/ Professional) SLP-WB89A-51 (Ta=60C/ Professional)
OSWT5161A (Ta=60C/ Standard) SLP-WB89A-51 (Ta=60C/ Standard)
OSWT5161A (Ta=-20C/ Professional) SLP-WB89A-51 (Ta=20C/ Professional)
OSWT5161A (Ta=-20C/ Standard) SLP-WB89A-51 (Ta=-20C/ Standard)
OSWT5161A (Ta=-40C/ Professional) SLP-WB89A-51 (Ta=-40C/ Professional)
OSWT5161A (Ta=-40C/ Standard) SLP-WB89A-51 (Ta=-40C/ Standard)

LEDのモデルはケース・バイ・ケースで等価回路を考慮
58pcs


Junction FET S06
Vishay Siliconix
2N3819
2N4416
2N4416A
2N5484
2N5485
2N5486
J270
J271
SST270
SST271
SST4416
SST5484
SST5485 14pcs
SST5486



MOSFET S07

International Rectifier Fuji Electric
IRFB9N30A (Ta=25C/ Standard) 2SK3603-01MR (Ta=25C/ Standard)
IRFB9N30A (Ta=25C/ Professional/ Standard body diode) 2SK3611-01MR (Ta=25C/ Standard)
IRFB9N30A (Ta=25C/ Professional/ Professional body diode) 2SK3644-01 (Ta=25C/ Standard)
IRFB9N60A (Ta=25C/ Professional/ Standard body diode) 2SK3681-01 (Ta=25C/ Standard)
IRFB9N60A (Ta=25C/ Professional/ Professional body diode) 2SK3728-01MR (Ta=25C/ Standard)
IRFB9N65A (Ta=25C/ Professional/ Standard body diode) 2SK3770-01MR (Ta=25C/ Professional/ Standard body diode)
IRFB9N65A (Ta=25C/ Professional/ Professional body diode) 2SK3770-01MR (Ta=25C/ Professional/ Professional body diode)
IRFIB7N50A (Ta=25C/ Standard) 2SK3872-01L (Ta=25C/ Standard)
IRFIB7N50A (Ta=25C/ Professional/ Standard body diode) 2SK3872-01L (Ta=25C/ Professional/ Standard body diode)
IRFIB7N50A (Ta=25C/ Professional/ Professional body diode) 2SK3872-01L (Ta=25C/ Professional/ Professional body diode)
2SK3872-01S (Ta=25C/ Standard)
SHIDENGEN 2SK3872-01S (Ta=25C/ Professional/ Standard body diode)
2SK2563 (Ta=25C/ Standard) 2SK3872-01S (Ta=25C/ Professional/ Professional body diode)
2SK2563 (Ta=25C/ Professional/ Standard body diode) 2SK3872-01SJ (Ta=25C/ Standard)
2SK2563 (Ta=25C/ Professional/ Professional body diode) 2SK3872-01SJ (Ta=25C/ Professional/ Standard body diode)
2SK3872-01SJ (Ta=25C/ Professional/ Professional body diode)
ROHM
2SK2740 (Ta=25C/ Standard)



MOSFET S07
Infineon Technologies TOSHIBA
SPA11N60C3 (Ta=25C/ Professional/ Special body diode) SSM3J13T (Ta=25C/ Standard)
SPB02N60C3 (Ta=25C/ Professional/ Special body diode) SSM3J13T (Ta=25C/ Professional/ Standard body diode)
SPB11N60C3 (Ta=25C/ Professional/ Special body diode) SSM3J13T (Ta=25C/ Professional/ Professional body diode)
SPD02N60C3 (Ta=25C/ Professional/ Special body diode) SSM6J51TU (Ta=25C/ Standard)
SPPI11N60C3 (Ta=25C/ Professional/ Special body diode) SSM6J51TU (Ta=25C/ Professional/ Standard body diode)
SPP02N60C3 (Ta=25C/ Professional/ Special body diode) SSM6J51TU (Ta=25C/ Professional/ Professional body diode)
SPP11N60C3 (Ta=25C/ Professional/ Special body diode) SSM5H05TU (Ta=25C/ Standard)
SPU02N60C3 (Ta=25C/ Professional/ Special body diode) SSM5H05TU (Ta=25C/ Professional/ Standard body diode)
SPW47N60C3 (Ta=25C/ Professional/ Special body diode) SSM5H05TU (Ta=25C/ Professional/ Professional body diode)
SSM5H08TU (Ta=25C/ Standard)
TOSHIBA SSM5H08TU (Ta=25C/ Professional/ Standard body diode)
2SK2661 (Ta=25C/ Standard) SSM5H08TU (Ta=25C/ Professional/ Professional body diode)
TPCP8402 (Ta=25C/ Professional/ Professional body diode)
TPC6003 (Ta=25C/ Professional/ Professional body diode)
TPC6005 (Ta=25C/ Standard)
TPC6005 (Ta=25C/ Professional/ Standard body diode)
TPCF8A01 (Ta=25C/ Standard)
TPCF8A01 (Ta=25C/ Professional/ Standard body diode)
TPCF8A01 (Ta=25C/ Professional/ Professional body diode)
TPCF8302 (Ta=25C/ Professional/ Professional body diode)
TPC8114 (Ta=25C/ Standard)
TPC8114 (Ta=25C/ Professional/ Standard body diode)

69pcs


MOSFET S07

MOSFET本体
Professional:等価回路モデル(ミラー容量考慮)
⇒ゲート・チャージ特性を考慮

ボディ・ダイオード
Professional:等価回路モデル(IFIR法による逆回復特性考慮)
Special:等価回路モデル(-didt法：電流減少率による逆回復特性考慮)



MOSFET S07

COMPONENTS: Power MOSFET (Professional) Cool MOS
PART NUMBER: SPD02N60C3
MANUFACTURER: Infineon technologies
REMARK: Body Diode (Special)

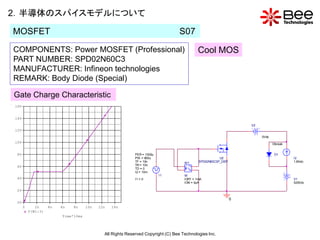

Gate Charge Characteristic
16V

14V
V2
12V
0Vdc
10V Dbreak

8V PER = 1000u D1
PW = 600u U2 I2
TF = 10n W1 SPD02N60C3P_DSP 1.8Adc
6V TR = 10n +
TD = 0
-
I2 = 10m
I1 W
4V I1 = 0 IOFF = 1mA V1
ION = 0uA 520Vdc

2V

0
0V
0 2n 4n 6n 8n 10n 12n 14n
V(W1:3)
Time*10ms



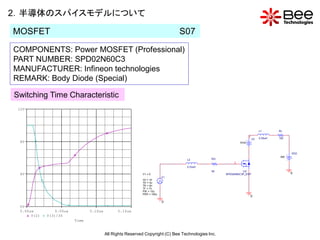

MOSFET S07

COMPONENTS: Power MOSFET (Professional)

Switching Time Characteristic
12V

L1 RL

3
V3 0.05uH 192
8V 0Vdc

VDD
350
L2 RG
2
0.03uH
50 U2
4V V1 = 0 SPD02N60C3P_DSP 0
V1
V2 = 10
TD = 5u
TR = 6n
TF = 7n
PW = 10u
PER = 100u
0
0
0V
5.00us 5.05us 5.10us 5.15us
V(2) V(3)/35
Time



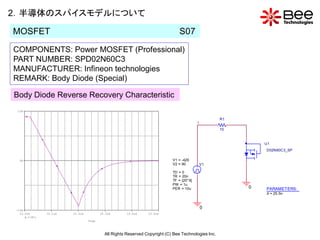

MOSFET S07

COMPONENTS: Power MOSFET (Professional)

Body Diode Reverse Recovery Characteristic
10A

R1
1
10

U1
D02N60C3_SP

0A V1 = -420
V2 = 90 V1

TD = 0
TR = 20n
TF = {20*X}
PW = 1u
PER = 10u 0 PARAMETERS:
X = 25.5n

-10A
0
10.0us 10.1us 10.2us 10.3us 10.4us 10.5us
I(R1)
Time



MOSFET S07

電流減少率-didtモデル

このモデルは、デバイス自体の特性よりも外部回路による
電流減少率を如何に表現するかがポイントとなる。

電流減少率は、構成される回路定数で決定される為である。

モデルの等価回路において、外部回路により決定される
電流減少率を検出し、それをデバイス自体の振る舞いに
反映させる機能を持たせなければならない。


BJT S08
RENESAS TOSHIBA
2SC2979 2SA950(Y)
2SC2547 2SA1015
2SA1020(Y)
SANYO 2SA1162(Y)
2SC3150 2SA1202(Y)
2SC3153 2SA1586(Y)
2SC3467D (TC=25C) 2SB906
2SC3467D (TC=80C) 2SC732TM
2SC3467D (TC=110C) 2SC1815
2SC3467D (TC=150C) 2SC1959
2SC2240
STMicroelectronics 2SC2482
BUL381D 2SC2878
BUL416 2SC3112
2N3055 2SC3265
MJ2955 2SC3329
2SC5172
SHINDENGEN 2SD2012
2SC4054

NEC
2SC945

ROHM
2SC1740S
Gummel-Poonモデルを採用
2SC3359S
2SC3415S
2SC4015 37pcs
2SD1782K All Rights Reserved Copyright (C) Bee Technologies Inc.

Darlington Transistor S09
NEC
2SD560
2SD985
2SD986
2SD1164-Z

SANYO
2SD1827
2SD1830
2SD2048 8pcs
2SD2049

IGBT S10
International Rectifier
IRG4BC20SD
IRG4IBC20KD
IRG4PC50KD
IRG4PF50W
IRG4PH50KD

TOSHIBA
GT8J101
GT8J102(SM)
GT8Q101
GT10J321
GT15J101
GT15J102
GT15J103(SM)
GT15Q101 14 pcs.
GT25Q101


Voltage Reference S11
NEC
RD5_6F
RD6.2F 3pcs
RD6.8F


Voltage Regulator S12
NEC NEC NEC
uPC24A05HF uPC78M09A uPC7815A
uPC24M05A uPC78M15A uPC7893A
uPC24M06A uPC78M18A
uPC24M07A uPC78M24A
uPC24M08A uPC78N05H
uPC24M09A uPC78N08H
uPC24M10A uPC78N10H
uPC24M12A uPC78N12H
uPC24M15A uPC78N15H
uPC24M18A uPC78N18H
uPC78L05J uPC78N24H
uPC78L05T uPC317
uPC78L06J uPC2405A
uPC78L06T uPC2406A
uPC78L07J uPC2407A
uPC78L07T uPC2408A
uPC78L08J uPC2409A
uPC78L08T uPC2410A
uPC78L10J uPC2412A
uPC78L10T uPC2415A
uPC78L12J uPC2418A
uPC78L12T uPC3018
uPC78L15J uPC3025
uPC78L15T uPC3504
uPC78M05A uPC3533
uPC78M06A uPC7805A
uPC78M07A uPC7808A
uPC78M08A uPC7812A 64pcs


Shunt Regulator S13

Panasonic
AN1431T
AN1432NT

JRC
NJM431

NEC
UPC1093

TOSHIBA
TA76L431S
TA76432F
6 pcs


Operational Amplifier S14
NEW JAPAN RADIO NEW JAPAN RADIO NEW JAPAN RADIO NEW JAPAN RADIO
NJM022 NJM072M NJM2060V NJM2164V
NJM022D NJM074 NJM2068D NJM2730
NJM022L NJM082 NJM2068L NJM2732
NJM022M NJM082B NJM2068M NJM2742D
NJM022V NJM082BD NJM2068V NJM2742M
NJM022B NJM082BL NJM2107F NJM2742RB1
NJM022BD NJM082BM NJM2107F3 NJM2742V
NJM022BL NJM082BV NJM2112 NJM2746
NJM022BM NJM082D NJM2115 NJM2902N
NJM022BV NJM082L NJM2119 NJM2902M
NJM062 NJM082M NJM2120 NJM2902V
NJM062D NJM084 NJM2121 NJM2904D
NJM062L NJM353D NJM2130F NJM2904L
NJM062M NJM353M NJM2130F3 NJM2904M
NJM062V NJM1458D NJM2132D NJM2904V
NJM064 NJM1458M NJM2132L NJM3403AD
NJM064D NJM2041D NJM2132M NJM3403AM
NJM064M NJM2041M NJM2132V NJM3403AV
NJM064V NJM2041L NJM2141 NJM3404AD
NJM072 NJM2058D NJM2147D NJM3404AL
NJM072B NJM2058M NJM2147M NJM3404AM
NJM072BD NJM2058V NJM2162D NJM3404AV
NJM072BL NJM2059D NJM2162L NJM3414A
NJM072BM NJM2059M NJM2162M NJM4556AD
NJM072BV NJM2059V NJM2162V NJM4556AL
NJM072D NJM2060D NJM2164D NJM4556AM
NJM072L NJM2060M NJM2164M NJM4556AV


NEW JAPAN RADIO NEW JAPAN RADIO NEW JAPAN RADIO NEW JAPAN RADIO
NJM4558D NJM5532M NJM14558R NJU7024M
NJM4558L NJM5534D NJM14558V NJU7024V
NJM4558M NJM5534M NJMOP-07D NJU7031D
NJM4558V NJM12902D1 NJMOP-07M NJU7031M
NJM4559D NJM12902E NJU7001D NJU7031V
NJM4559L NJM12902M NJU7001M NJU7032D
NJM4559M NJM12902V NJU7001V NJU7032M
NJM4559V NJM12904D NJU7002D NJU7034D
NJM4560D NJM12904E NJU7002M NJU7034M
NJM4560L NJM12904L NJU7004D NJU7034V
NJM4560M NJM12904M NJU7004M NJU7042
NJM4562D NJM12904R NJU7004V NJU7043
NJM4562L NJM12904V NJU7007 NJU7051D
NJM4562M NJM13403D1 NJU7008 NJU7051M
NJM4565D NJM13403E NJU7011 NJU7051V
NJM4565L NJM13403M NJU7012 NJU7052D
NJM4565M NJM13403V NJU7013 NJU7052M
NJM4565V NJM13404D NJU7014 NJU7054D
NJM4580D NJM13404E NJU7015 NJU7054M
NJM4580E NJM13404L NJU7016 NJU7054V
NJM4580L NJM13404M NJU7019 NJU7061D
NJM4580M NJM13404R NJU7021D NJU7061M
NJM4580V NJM13404V NJU7021M NJU7061V
NJM4741D NJM14558D NJU7021V NJU7062D
NJM4741M NJM14558E NJU7022D NJU7062M
NJM5532D NJM14558L NJU7022M NJU7064D
NJM5532L NJM14558M NJU7024D NJU7064M


NEW JAPAN RADIO NEW JAPAN RADIO SANYO TOSHIBA
NJU7064V uPC4061C LA6083D TC75W51FK
NJU7071D uPC4061G2 LA6458M TC75W51FU
NJU7071M uPC4062C TC75W54FK
NJU7071V uPC4062G2 STMicroelectronics TC75W54FU
NJU7072D uPC4064C MC3303 TC75W60FK
NJU7072M uPC4064G2 MC33078 TC75W60FU
NJU7074D uPC4091C MC33171
NJU7074M uPC4091G2 SEIKO INSTRUMENT
NJU7074V uPC4092C BURR BROWN S-89110A
NJU7091A uPC4092G2 OPA2652
NJU7092A uPC4093C OPA685
NJU7093A uPC4093G2
NJU7094 uPC4250C TOSHIBA
NJU7095 uPC4250G2 TA75S01F
NJU7096 uPC4556C TA75W01FU
uPC4556G2 TA75S558F
NEC ELECTRONICS uPC4558C TC75S51F
uPC324C uPC4558G2 TC75S51FU
uPC324G2 uPC4560C TC75S51FE
uPC358C uPC4560G2 TC75S54F
uPC358G2 TC75S54FU
uPC741C RENESAS TC75S54FE
uPC741G2 HA17358A TC75S55F
uPC1458C TC75S55FU
uPC1458G2 SANYO TC75S55FE
uPC3403C LA6082D TC75S60F
uPC3403G2 LA6082M TC75S60FU 292pcs

Comparator S15
NEC TOSHIBA NATIONAL
uPC311C (Bipolar) TC75S59F (CMOS) LM319AH (Bipolar)
uPC311G2 (Bipolar) TC75S59FE (CMOS) LM319AJ (Bipolar)
uPC339C (Bipolar) TC75S59FU (CMOS) LM319AM (Bipolar)
uPC339G2 (Bipolar) TC75W59FU (CMOS) LM319AN (Bipolar)
uPC393C (Bipolar) TC75W59FK (CMOS) LM319H (Bipolar)
uPC393G2 (Bipolar) LM319J (Bipolar)
uPC393HA (Bipolar) NATIONAL LM319M (Bipolar)
LM111H (Bipolar) LM319N (Bipolar)
NEW JAPAN RADIO LM111H/883 (Bipolar) LMC6762 (CMOS)
NJM319D (Bipolar) LM111J-8 (Bipolar)
NJM319M (Bipolar) LM111J-8/833 (Bipolar) RENESAS
NJM319V (Bipolar) LM111J/883 (Bipolar) HA1631S04CM (CMOS)
NJM311D (Bipolar) LM119H (Bipolar)
NJM311M (Bipolar) LM119H/883 (Bipolar)
NJM2403 (Bipolar) LM119J (Bipolar)
NJM2901 (Bipolar) LM119J/883 (Bipolar)
NJM2903 (Bipolar) LM119W/883 (Bipolar)
NJU7108 (Bipolar) LM119WG/883 (Bipolar)
NJU7109 (Bipolar) LM211H (Bipolar)
LM211J-8 (Bipolar)
TOSHIBA LM211M (Bipolar)
TC75S56F (CMOS) LM219J (Bipolar)
TC75S56FE (CMOS) LM311H (Bipolar)
TC75S56FU (CMOS) LM311M (Bipolar)
TC75S58F (CMOS) LM311N (Bipolar)
TC75S58FE (CMOS) LM311N-14 (Bipolar) 57pcs
TC75S58FU (CMOS)


Sidac S16
MOTOROLA SHINDENGEN SHINDENGEN
MKP1V120 K1V18 K1V8
MKP1V130 K1V22(W) K1V10
MKP3V110 K1V22 K1V11
MKP3V120 K1V24 K1V12
MKP3V130 K1V24W K1V14
K1V26(W) K1V16
ON Semiconductor K1V26
MKP1V120 K1V33(W)
MKP1V130 K1V34(W)
MKP1V160 K1V36(W)
MKP1V240 K1V38(W)
MKP3V120 K1V(A)10
MKP3V240 K1V(A)11
K1V(A)12
K1V(A)14
K1V(A)16
G1V(A)8C
G1V(A)10C
G1V(A)14C
G1V(A)15C
G1V(A)20C
G1V(B)8C
G1V(B)22C
K1V5
K1V6
42pcs


Sidac S16

COMPONENTS:SIDAC
PART NUMBER:K1V10
MANUFACTURER:SHINDENGEN MFG.CO.,LTD.

I-V Characteristic


Photocoupler S17
SHARP
PC123
PC356NT Opto Device S18
PC357NT
PC817X TOSHIBA

TOSHIBA
TORX179 2pcs
TOTX179
TLP421_A
TLP421_B
TLP521-1_A
TLP521-1_B
TLP521-2_A Varistor S19
TLP521-2_B
TLP521-4_A
TLP521-4_B SHINDENGEN
TLP621_A VR60B(A)
VR60BP(A)
TLP621_B
TLP624 VR61B(A) 3pcs
TLP628_A
TLP628_B
TLP629
TPS852

NEC
PS2501-1
PS2501-2
PS2501-4
PS2501L-1
PS2501L-2 25 pcs
PS2501L-4

Surege Absorber (ZNR) S20

Panasonic
ERZV10D121 ERZV14D151 ERZV20D151 ERZV05D180 ERZV07D391 ERZV10D101 ERZV20D821
ERZV10D751 ERZV14D751 ERZV10D511 ERZV07D221 ERZV09D391 ERZV05D820 ERZV20D911
ERZV14D431 ERZV10D330 ERZV14D330 ERZV09D221 ERZV05D361 ERZV09D121
ERZV10D180 ERZV14D182CS ERZV20D182 ERZV05D220 ERZV07D470 ERZV10D112
ERZV10D471 ERZV07D201E ERZV09D390 ERZV05D680 ERZV20D751
ERZV14D681
ERZV14D271 RZV09D220 ERZV05D331 ERZV09D101 ERZV20D820
152pcs
ERZV10D271



Thermistor S21
SEMITEC
3D-22
4D-22
5D-11
6D-22
8D-13
16D-13 6pcs


Thysistor S22
MOTOROLA MOTOROLA ON SEMICONDUCTOR ON SEMICONDUCTOR
MCR12DSM MCR265-8 2N5060 MCR704A NEC
MCR12DSN MCR265-10 2N5061 MCR706A 2P4M
MCR22-2 MCR310-2 2N5062 MCR708A 2P5M
MCR22-3 MCR310-3 2N5064 MCR716 2P6M
MCR22-4 MCR310-4 2N6394 MCR718 2S2M
MCR22-6 MCR310-6 2N6395 MCR72-8 2S4M
MCR22-8 MCR310-8 2N6397 03P2J
MCR72-2 MCR310-10 2N6399 PHILIPS SEMICONDUCTOR 03P2M
MCR72-3 2N6400 BT145-500R 03P4J
MCR72-4 TOSHIBA 2N6401 BT145-600R 3P4J
MCR72-6 SF3G48 2N6402 BT145-800R 3P4J-Z
MCR72-8 SF5G49 2N6403 BT151U-500C 03P4M
MCR72-10 SF5J49 2N6404 BT151U-650C 03P4MF
MCR218-2FP SF10GZ47 2N6405 BT151U-800C 03P4MG
MCR218-4FP SF10JZ47 2N6504 BT151X-500 3P4MH
MCR218-6FP USF5G49 2N6505 BT151X-650 03P5J
MCR218-8FP USF5J49 2N6507 BT151X-800 03P6MG
MCR218-10FP 2N6508 BT152-400R 3P6MH
MCR225-2FP 2N6509 BT152-600R 5P4SMA
MCR225-4FP MCR8DSM BT152-800R 5P6SMA
MCR225-6FP MCR8DSN BT152B-400R 8P2M
MCR225-8FP MCR12DSM BT152B-600R 8P4J
MCR225-10FP MCR12DSN BT152B-800R 8P4M
MCR264-4 MCR68-2 BT300S-500R
MCR264-6 MCR69-2 BT300S-600R
MCR264-8 MCR69-3 BT300S-800R
MCR264-10 MCR72-3 BTH151S-650R
MCR72-6
MCR265-2
MCR703A
C106D 123pcs
MCR265-4 MCR106-6
MCR265-6 All Rights Reserved Copyright (C) Bee Technologies Inc.


PWM IC S23
Fuji Electronics
FA3511BP

FUJITSU 2pcs
MB3800



PWM IC S23

COMPONENTS: Pulse Width Modulation IC (PWMIC)
PART NUMBER: FA5311BP
MANUFACTURER: Fuji Electronics
8 CS pin voltage

V1 = 0
V2
V2 = 3.6
TD = 0
TR = 50U
7 1
TF = 10N
PW = 200U CT
PER = 500U 360p RT
IC = 0
5.1k
0
0
I1 TCLOSE = 0
0
1 2
6
1

U12
2.8Vdc U1 10uAdc U16
2

V1 C3 Rcsp 0
1

0 DZFA531X U11 1 2
1 1G E2 3 UVLO
1

2 1 Vcc
7

1 3 OSC IN+ OUT+ 2
0 2 IN- OUT-
1

FREQ = 135K Q1
0

0 EVALUE COMP2
COMP2 S1 QN 18Vdc
IF ( V(UVLO) >0.8, 9.2, 15.5 ) U17
0

+ +
Q2
- - UCOMP 1 0 0
2 QN
S 0 0 2 1
VOFF = 0.0V 1
VON = 1.0V 1 U19
2 INV
4 0 R21
0 2 5 1 1 3
3 2 6 5
2
3 1k
3
4 U14
V4 DT voltage pwmout NOR3
VOFF = 0 0
PWMCOMPARATOR 1 QP
VAMPL = 0.25 2
3 OSCCLK
FREQ = 50K V1 = 5 VDT 1 Q4
V2 = 2 2.2Vdc V8 2
V3 TD = 20U 2V COMP2 Q3
TR = 10U U15 QN
TF = 10N 0 COMP2 1
PW = 200U 1 8 2
2 2 ov ercurrent
PER = 500U 2 0 0
V7 0 3 6
0 1
RSFFLOP 0
U13
0.24Vdc
3

0
R11
R9
0.001
220

C6

0
6800p

PWM ICの等価回路図



PWM IC S23

sec
U11 D4 U7
out
L21
5D-11 SF6L20U

U1
U4

+

+

+
C1 R1 U5 U6 R11 U8

5

6_7
D2SBA6 0 2.2k Rload
220u 22k C21 C22 C23
48
1

2

3

4

C2
R9 D3 3 8_9
3300p
2
D1 VDT1 ERA 91-02
0Vdc 2.2 18k
R15
D1NS4
D2
R12

1
R16
S2L60 2.2k
T1 910
V1 = 0 UT2 UT1 U9
V2 = 6 VS3 2SK1 006-01MR 2SK1 006-01MR C7 PC817
TD = 3 .76m
TR = 2.32ms
TF = 0.48ms R2 0.047 u R13 C8
PW = 1n C3 0
PER = 20ms 2200p
4.7k 680 0.22u
V1 = 0 2.2k
V2 = 144 VS1 R3 R14
TD = 0 Q2SA115 0 R10
TR = 3.76ms Q1 C4 330k
TF = 3.44ms 4.7k U2 U10
PW = 2.8m MTZJ24B 47u TL431
PER = 20ms IC = 22.7 5
R4
PER = 20ms 0.22 2.2k
PW = 2.8m R17
TF = 3.44ms
TR = 3.76ms
TD = 1 0m
V2 = 144 0
V1 = 0 VS2
R5
PER = 20ms
PW = 1n 100
TF = 0.48ms
TR = 2.32ms 0
TD = 1 3.76m CS CT
V2 = 6 VS4
V1 = 0 0.22u 1500p
IC = 0.89 IC = 0

U3 V
8

7

6

5

V
R6
FA5311BP
220 FOS C = 30K
1

2

3

4

V

R8

RT R7 0.001

5.6k 220 C5
6800p

0



PWM IC S23

V output, I output



PWM IC S23

PWM IC: OSC, FB, and OUT


Analog IC S24
New Japan Radio
NJM78LR05
NJM2887
NJM2172

TOSHIBA
TAH8N401K
TAH6N201U

Rohm
BA00ASFP 6pcs


Digital Transistor S25

ROHM
DTA123EE DTC123ESA DTA143ZSA DTC124XUA DTC144EE DTD123YK
DTA123EKA DTC123EM DTC113ZUA DTC124XKA DTC144EUA DTD123YS
DTA123ESA DTC123JE DTC113ZKA DTC124XSA DTC144EKA DTD143EC
DTA123EUA DTC123JKA DTC113ZSA DTC143EE DTC144ESA DTD143EK
DTA143EE DTC123JM DTC114EM DTC143EM DTC144WE DTD143ES
DTA143EKA DTC123JSA DTC114EE DTC143EUA DTC144WKA
DTA143EM DTC123JUA DTC114EUA DTC143EKA DTC144WSA
DTA143ESA DTC123YE DTC114EKA DTC143ESA DTC144WUA
DTA143EUA DTC123YUA DTC114ECA DTC143XE DTC363EK
DTA143XE DTC123YKA DTC114ESA DTC143XKA DTC363ES
DTA143XKA DTC123YSA DTC114YE DTC143XM DTC363EU
DTA143XM DTC124EM DTC114YM DTC143XSA DTD113EK
DTA143XSA DTC124EE DTC114YUA DTC143XUA DTD113ES
DTA143XUA DTC124EUA DTC114YKA DTC143ZM DTD113ZK
DTA143ZM DTC124EKA DTC114YSA DTC143ZE DTD113ZU
DTA143ZE DTC124ESA DTC123EE DTC143ZUA DTD113ZS
DTD114EK
DTA143ZUA DTC124XE
DTC124XM
DTC123EUA
DTC123EKA
DTC143ZKA
DTC143ZSA DTD114ES 95pcs
DTA143ZKA



BRT S26
TOSHIBA
RN1101FV
RN1102FV
RN1103FV
RN1104FV
RN1105FV
RN1106FV
RN1314
RN1315
RN1316
RN1317
RN1107FS
RN1108FS
RN1109FS
RN1101FT
RN1102FT
RN1103FT
RN1104FT
RN1105FT
RN1106FT
RN1414
RN1415 21pcs


DIGITAL IC S27
TOSHIBA TOSHIBA TOSHIBA TOSHIBA
TC7S00F TC74VHCT00AF TC74VHC02F TC74HCU04AFN
TC7S00FU TC74VHCT00AFN TC74VHC02FN TC74HCU04AP
TC7SET00F TC74VHCT00AFT TC74VHC02FT TC74VHC04F
TC7SET00FU TC7S02F TC7S04F TC74VHC04FN
TC7SH00F TC7S02FU TC7S04FU TC74VHC04FT
TC7SH00FE TC7SET02F TC7SET04F TC74VHCT04AF
TC7SH00FS TC7SET02FU TC7SET04FU TC74VHCT04AFN
TC7SH00FU TC7SH02F TC7SH04F TC74VHCT04AFT
TC7W00F TC7SH02FE TC7SH04FE
TC7W00FK TC7SH02FS TC7SH04FS
TC7W00FU TC7SH02FU TC7SH04FU
TC7WH00FK TC7W02F TC7W04F
TC7WH00FU TC7W02FK TC7W04FK
TC74AC00F TC7W02FU TC7W04FU
TC74AC00FN TC7WH02FK TC7WH04FK
TC74AC00FT TC7WH02FU TC7WH04FU
TC74AC00P TC74AC02F TC74AC04F
TC74ACT00F TC74AC02FN TC74AC04FN
TC74ACT00FN TC74AC02FT TC74AC04FT
TC74ACT00FT TC74AC02P TC74AC04P
TC74ACT00P TC74ACT02F TC74ACT04F
TC74HC00AF TC74ACT02FN TC74ACT04FT
TC74HC00AFN TC74ACT02FT TC74ACT04P
TC74HC00AP TC74ACT02P TC74HC04AF
TC74HCT00AF TC74HC02AF TC74HC04AFN
TC74HCT00AFN TC74HC02AFN TC74HC04AP
TC74HCT00AP TC74HC02AP TC74HCT04AF
TC74VHC00F TC74HCT02AF TC74HCT04AFN
TC74VHC00FN TC74HCT02AFN TC74HCT04AP 98pcs
TC74VHC00FT TC74HCT02AP TC74HCU04AF

Programmable Unijunction Transistor (PUT) S28
TOSHIBA
TN41A
TN41B

NEC
NT13T1
NT13T2
U71
U72
6pcs

Crystal Oscillator S29

Daishinku Corp.
DOC-49S3/C1.308MHz
1pcs

Photo Diode S30
SEIMENS
SFH205FA
1pcs


Capacitor Ceramic P01
Murata Murata Panasonic Panasonic
Ta=25C Ta=60C Ta=25C Ta=60C
DE1B3KX101KA5B DE1B3KX101KA5B ECKATS101MB ECKATS101MB
DE1B3KX151KA5B DE1B3KX151KA5B ECKATS102ME ECKATS102ME
DE1B3KX471KA5B DE1B3KX471KA5B ECKATS221MB ECKATS221MB
DE1E3KX102MA5B DE1E3KX102MA5B ECKATS332ME ECKATS332ME
DE1E3KX152MA5B DE1E3KX152MA5B ECKATS471MB ECKATS471MB
DE1E3KX222MA5B DE1E3KX222MA5B ECKATS472ME ECKATS472ME
DE1E3KX332MA5B DE1E3KX332MA5B ECKTBC102ME ECKTBC102ME

Murata Murata Panasonic Panasonic
Ta=40C Ta=80C Ta=40C Ta=80C
DE1B3KX101KA5B DE1B3KX101KA5B_80C ECKATS101MB ECKATS101MB
DE1B3KX151KA5B DE1B3KX151KA5B_80C ECKATS102ME ECKATS102ME
DE1B3KX471KA5B DE1B3KX471KA5B_80C ECKATS221MB ECKATS221MB
DE1E3KX102MA5B DE1E3KX102MA5B_80C ECKATS332ME ECKATS332ME
DE1E3KX152MA5B DE1E3KX152MA5B_80C ECKATS471MB ECKATS471MB
DE1E3KX222MA5B DE1E3KX222MA5B_80C ECKATS472ME ECKATS472ME
DE1E3KX332MA5B DE1E3KX332MA5B_80C ECKTBC102ME ECKTBC102ME
96pcs

Capacitor Electrolytic P02
ELNA Co.,Ltd.
RJJ-35V221MG5-T20
RJJ-35V561MI5-T4

Nippon Chemi-con Corporation
SMH200VN270-22A
TC04RKME25VB-10MF5.0
TC04RKME50VB1
LXZ25VB220MH12
LXZ25VB2200MK35
LXZ25VB3300ML30

Panasonic
ECEAOJKG101
ECEAOJKG221
ECEAOJKG470

Nichicon
UUGOJ103MNR1MS
UUG1A103MRR1MS
UUG1C472MNR1MS
UUG1E332MNR1MS

Rubycon
200MXP100MK2229

NITAI
GPR Series 17pcs

Capacitor Films P03
Matsushita Electric Industrial Co.,Ltd.

ECQ-B1H102JF3
ECQ-B1H103JF3
ECQV1H104JL3
ECQV1H473JL3
ECQV1H473JL3

Okaya Electric Industries Co.,Ltd.
PA104-C
5pcs

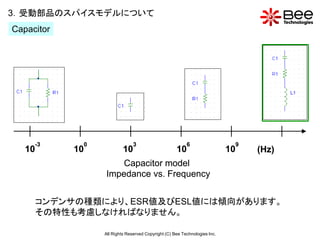

Capacitor

-3 0 3 6 9
10 10 10 10 10 (Hz)
Capacitor model
Impedance vs. Frequency

コンデンサの種類により、ESR値及びESL値には傾向があります。
その特性も考慮しなければなりません。


COMPONENTS: CAPACITOR/CERAMIC
PART NUMBER: DE1B3KX101KA5B
MANUFACTURER: MURATA

Frequency vs. IZI Characteristic


COMPONENTS: CAPACITOR/ELECTROLYTIC
PART NUMBER: UUG1E332MNR1MS
MANUFACTURER: Nichicon

50

10

1.0

100m

100Hz 1.0KHz 10KHz 100KHz 1.0MHz 10MHz 100MHz
V(N00244)/ I(V2)
Frequency



Choke Coil P04
TOKO WURTH ELEKTRONIK GmbH &
8RHB,4.7uH,3.2A CO.KG
8RHB,10uH,2.3A 214-6215
8RHB,22uH,1.6A 214-6221
8RHB,33uH,1.4A 214-6237
8RHB,47uH,1.2A 214-6243
8RHB,82uH,0.91A 214-6265
8RHB,100uH,0.79A 228-450
8RHB,100uH,1A 228-466
8RHB,220uH,0.7A 228-472
8RHB,220uH,0.51A 228-488
8RHB,330uH,0.43A 228-494
8RHB,330uH,0.54A 228-501
8RHB,470uH,0.36A 228-517
8RHB,470uH,0.47A 228-523
28pcs
228-539

Common Mode Choke Coil P05

KOURINGIKEN CO.,LTD.
HR-24-E153 1pcs

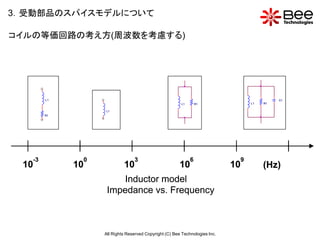

コイルの等価回路の考え方(周波数を考慮する)

L1 C1
L1 R1 L1 R1

L1
R1

-3 0 3 6 9
10 10 10 10 10 (Hz)
Inductor model
Impedance vs. Frequency


COMPONENTS : CHOKE COIL
PART NUMBER : 8RHB
VALUE : 470 uH
CURRENT MAX : 0.36 A
MANUFACTURER : TOKO




Transformer P06
AIHARA
SD-1603

Chatchawan 2pcs
T1

*$
*COMPONENTS: TRANSFORMER
*PART NUMBER: SD-1603
*MANUFACTURER: AIHARA ELECTRIC CO., LTD.
* All Rights Reserved Copyright (C) Bee Technologies Inc. 2005
.SUBCKT SD-1603_12V 1 2 3 4
Kn_K1 L_L2 L_L3 0.99997
R_R5 S1 3 3.653
L_L3 S1 4 163.233mH
C_C4 S1 4 5.85849nF
R_R4 S1 4 2.21424k
L_L2 P2 2 8.09H
C_C3 P2 2 117.29p
R_R3 P2 2 116.087k
R_R1 1 P1 160
L_L1 P1 P2 27.2291mH
R_R2 P1 P2 124.878k
C_C1 P1 P2 153.726p
.ENDS
*$


Inductor P07
TAIYOYUDEN CO.,LTD.
FBA04HA600AB-00

Newport Components
22R105
22R225
22R474
4pcs


Magnetic Core P08
FDK TDK Ferroxcube Ferroxcube
2H04 DN70 4E1 3C91
2H06 H5A 3E5 3C92
2H07 H5B2 3E6 3C93
2H10 H5C2 3E7 3C94
2H15 H5C3 3E8 3C96
2H15B HP5 3E9 3D3
6H10 HS10 3E25 3F3
6H20 HS52 3E26 3F35
6H40 HS72 3E27 3F4
6H41 PC40 3E28 3F45
6H42 PC44 3E55 3F5
7H10 PC45 2P40 3H3
7H20 PC46 2P50 3R1
PC47 2P65 3S1
PC50 2P80 3S3
2P90 3S4
3B1 4A11
3B7 4A15
3C11 4B1
3C30 4C65
3C34 4D2
3C81 4F1
3C90 4S2

74pcs

COMPONENTS:MAGNETIC CORE
PART NUMBER:6H10
MANUFACTURER:FDK

Hysteresis Curve Characteristics



Crystal P09
KYOCERA KINSEKI
HC-49/U-S5.000MHz
HC-49/U-S10.000MHz 2 pcs


Alkaline Cell B01
TOSHIBA
LR6AG 2.7 ohm
LR6AG 10 ohm
LR6AG 2.2 ohm
LR6AG 3.3 ohm
LR6AG 4.7 ohm
LR6AG 8.2 ohm
LR6AG 22 ohm
LR6AG 33 ohm
LR6AG 51 ohm
LR6AG Variable RL
10pcs

Lithium Cell B02

Fuji Films
CR123A 2.2 ohm
CR123A 4.7 ohm
CR123A 10 ohm

Panasonic
CR2 2.2 ohm 5pcs
CR2 4.7 ohm

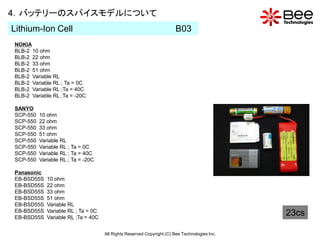

Lithium-Ion Cell B03
NOKIA
BLB-2 10 ohm
BLB-2 22 ohm
BLB-2 33 ohm
BLB-2 51 ohm
BLB-2 Variable RL
BLB-2 Variable RL ; Ta = 0C
BLB-2 Variable RL ;Ta = 40C
BLB-2 Variable RL ;Ta = -20C

SANYO
SCP-550 10 ohm
SCP-550 22 ohm
SCP-550 33 ohm
SCP-550 51 ohm
SCP-550 Variable RL
SCP-550 Variable RL ; Ta = 0C
SCP-550 Variable RL ; Ta = 40C
SCP-550 Variable RL ; Ta = -20C

Panasonic
EB-BSD55S 10 ohm
EB-BSD55S 22 ohm
EB-BSD55S 33 ohm
EB-BSD55S 51 ohm
EB-BSD55S Variable RL
EB-BSD55S Variable RL ; Ta = 0C
EB-BSD55S Variable RL ;Ta = 40C
23cs



Ni-Manganese B04
SONY
ZR6DC 2.2 ohm
ZR6DC 2.7 ohm
ZR6DC 3.3 ohm
ZR6SC 4.7 ohm
ZR6DC 8.2 ohm
ZR6DC 10 ohm
ZR6DC 22 ohm
ZR6DC 33 ohm
ZR6DC 51 ohm
ZR6DC Variable RL 10cs

Nickel Metal -Hydride B05
Sanyo
HR-3UA 2.2 ohm
HR-3UA 2.7 ohm
HR-3UA 3.3 ohm
HR-3UA 4.7 ohm
HR-3UA 8.2 ohm
HR-3UA 10 ohm
HR-3UA 22 ohm
HR-3UA 33 ohm
HR-3UA Variable RL 9pcs



Oxyride B06
Panasonic
ZR6 2.2 ohm
ZR6 2.7 ohm
ZR6 3.3 ohm
ZR6 4.7 ohm
ZR6 8.2 ohm
ZR6 10 ohm
ZR6 22 ohm 8pcs
ZR6 33 ohm


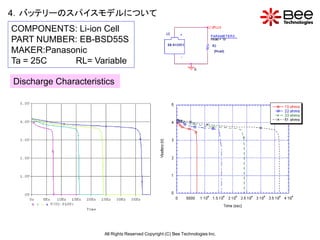

COMPONENTS: Li-ion Cell
PART NUMBER: EB-BSD55S
MAKER:Panasonic
Ta = 25C RL= Variable

Discharge Characteristics

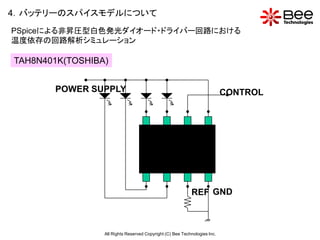

PSpiceによる非昇圧型白色発光ダイオード・ドライバー回路における
温度依存の回路解析シミュレーション

TAH8N401K(TOSHIBA)

POWER SUPPLY CONTROL

REF GND



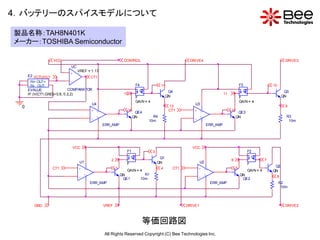

製品名称：TAH8N401K
メーカー：TOSHIBA Semiconductor

VCC CONTROL DRIVE4 DRIVE3
UC
VREF = 1.17
+
E2 VCTUVLO CT1
IN+ OUT+ -
IN- OUT- F4 14 F3 10
EVALUE COMPARATOR
Q4 Q3
IF (V(CT1,GND)>0.8, 0.2,2) 15 11
F QN F QN
GAIN = 4 GAIN = 4
U4 U3
0 13 9
+ V+ 16
QE4
CT1 + V+ 12
QE3
V- QN R4 V- QN R3
- 10m - 10m
ERR_AMP ERR_AMP

VCC VCC
F1 3 F2
Q1
2 6 7
U1 F QN U2 F
Q2
CT1 + V+ 1
GAIN = 4
4 CT1 + V+ 5
GAIN = 4 QN
V- QN R1 V- QN
- QE1 10m - QE2
8
ERR_AMP ERR_AMP R2
10m

GND VREF DRIVE1 DRIVE2

等価回路図


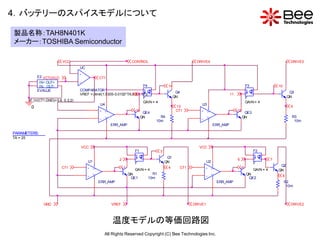

製品名称：TAH8N401K
メーカー：TOSHIBA Semiconductor

VCC CONTROL DRIVE4 DRIVE3
UC
+
E2 VCTUVLO CT1
IN+ OUT+ -
IN- OUT- F4 14 F3 10
EVALUE COMPARATOR
Q4 Q3
VREF = { limit(1.5305- 0.0103*TA,0.5,1.17)}
15 11
F QN F QN
IF (V(CT1,GND)>0.8, 0.2,2) GAIN = 4 GAIN = 4
U4 U3
0 13 9
+ V+ 16
QE4
CT1 + V+ 12
QE3
V- QN R4 V- QN R3
- 10m - 10m
ERR_AMP ERR_AMP

PARAMETERS:
TA = 25

VCC VCC
F1 3 F2
Q1
2 6 7
U1 F QN U2 F
Q2
CT1 + V+ 1
GAIN = 4
4 CT1 + V+ 5
GAIN = 4 QN
V- QN R1 V- QN
- QE1 10m - QE2
8
ERR_AMP ERR_AMP R2
10m

GND VREF DRIVE1 DRIVE2

温度モデルの等価回路図


Ta = 40°C

Ta = 25°C

Ta = 0°C

Ta = -20°C

Ta = -40°C



DC MOTOR M01
MABUCI MOTOR
FA-130
RE-140
RE-260
RE-280
RS-380PH
RS-540SH

TAMIYA,INC.
RT 15133*300

TAMIYA,INC.
MABUCHI RF-270RH /Solar Cell 0.5
MABUCHI RF-270RH /Solar Cell 1.5
MABUCHI RF-500TB /Solar Cell 0.5
MABUCHI RF-500TB Solar Cell 1.5

11pcs


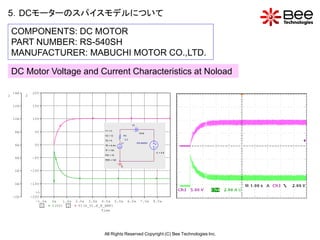

COMPONENTS: DC MOTOR
PART NUMBER: RS-540SH
MANUFACTURER: MABUCHI MOTOR CO.,LTD.

DC Motor Voltage and Current Characteristics at Noload

14A 20V
1 2

12A 15V

10A 10V
V2

V1 = 0
8A 5V 0Vdc
V2 = 12 R3

TD = 0 2.2
V1 RS-540SH
6A 0V TR = 6.4m +
-
TF = 10n
IL = 0.8
PW = 10
4A -5V
PER = 100

0
2A -10V

0A -15V

>>
-2A -20V
-1.0s 0s 1.0s 2.0s 3.0s 4.0s 5.0s 6.0s 7.0s 8.0s
1 I(V2) 2 V1(X_U1.E_E_EMF)
Time



COMPONENTS: DC MOTOR
PART NUMBER: RS-540SH
MANUFACTURER: MABUCHI MOTOR CO.,LTD.

DC Motor Voltage and Current Characteristics at load

14A 20V
1 2 V2

V1 = 0
0Vdc
V2 = 12 R3
12A 15V TD = 0 2.2
V1 RS-540SH
TR = 6.4m +
-
TF = 10n
IL = 3.2

10A 10V PW = 10

PER = 100

0

8A 5V

6A 0V

4A -5V

2A -10V

0A -15V

>>
-2A -20V
-1.0s 0s 1.0s 2.0s 3.0s 4.0s 5.0s 6.0s 7.0s 8.0s
1 I(V2) 2 V1(X_U1.E_E_EMF)
Time


DCモーター制御回路のシミュレーション
負荷有りの回路シミュレーション

V3
0Vdc

Rectified dc voltage with ripple 0
D4 D7 D3
D4001 U3
+ 12VDCMOTOR
D4001 D4001 U2
V1
IN OUT
- LOAD = 0.615

VOFF = 0 V
VAMPL = 19.2V D6 D5 GND 1
FREQ = 50
uPC7 812A
D4001 D4001 C3 8
470u U1
R1
VCC
2 R4
10k 4 TRIGGER 3 Q2
5 RES ET OUTPUT
10k QBC547
6 CONTROL
D1 7 THRE SHOLD
0 D2 DIS CHARGE
GND Q1
D1N4148 D1N4148 555B Q2SC1061
C2 1
R2 R3
1nF
5k 30k IC = 0 0
RV1 RV2
0
{vr1} {500k-vr1} 0

PARAMETERS: C1
vr1 = 2 50K 0.97nF
IC = 0

0



Rectified dc voltage with ripple



V3
0Vdc

Transistor Q1: VCE, IC 0
D4 D7 D3
D4001 U3
+ 12VDCMOTOR
D4001 D4001 U2
V1
IN OUT
- LOAD = 0.615

VOFF = 0
FREQ = 50
uPC7 812A
D4001 D4001 C3 8
470u U1
R1
VCC
2 R4
10k 4 TRIGGER 3 Q2
5 RES ET OUTPUT
10k QBC547
6 CONTROL
D1 7 THRE SHOLD
0 D2 DIS CHARGE
GND Q1
555B V+
D1N4148 D1N4148 Q2SC1061
C2 1
R2 R3
1nF
5k 30k IC = 0 0 V-
RV1 RV2
0
{vr1} {500k-vr1} 0

PARAMETERS: C1
vr1 = 2 50K 0.97nF
IC = 0

0



Transistor Q1: VCE, IC



V3
0Vdc

Motor Voltage and Current 0
D4 D7 D3
V+
D4001 U3
+ 12VDCMOTOR
D4001 D4001 U2
V1
IN OUT
- LOAD = 0.615

VOFF = 0
FREQ = 50
V-
uPC7 812A
D4001 D4001 C3 8
470u U1
R1
VCC
2 R4
10k 4 TRIGGER 3 Q2
5 RES ET OUTPUT
10k QBC547
6 CONTROL
D1 7 THRE SHOLD
0 D2 DIS CHARGE
GND Q1
D1N4148 D1N4148 555B Q2SC1061
C2 1
R2 R3
1nF
5k 30k IC = 0 0
RV1 RV2
0
{vr1} {500k-vr1} 0

PARAMETERS: C1
vr1 = 2 50K 0.97nF
IC = 0

0



Motor Voltage and Current



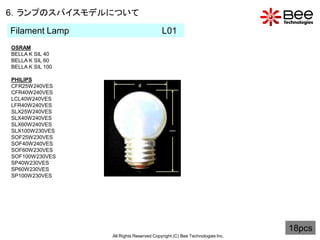

Filament Lamp L01
OSRAM
BELLA K SIL 40
BELLA K SIL 60
BELLA K SIL 100

PHILIPS
CFR25W240VES
CFR40W240VES
LCL40W240VES
LFR40W240VES
SLX25W240VES
SLX40W240VES
SLX60W240VES
SLX100W230VES
SOF25W230VES
SOF40W240VES
SOF60W230VES
SOF100W230VES
SP40W230VES
SP60W230VES
SP100W230VES

18pcs

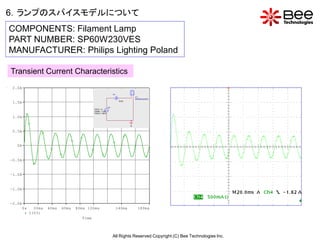

COMPONENTS: Filament Lamp
PART NUMBER: SP60W230VES
MANUFACTURER: Philips Lighting Poland

Transient Current Characteristics
2.0A
V3
U1
SP60W230VES
1.5A 0Vdc

VS
VOFF = 0
VAMPL = 309
FREQ = 50Hz

1.0A

0

0.5A

0A

-0.5A

-1.0A

-1.5A

-2.0A
0s 20ms 40ms 60ms 80ms 100ms 140ms 180ms
I(V3)
Time


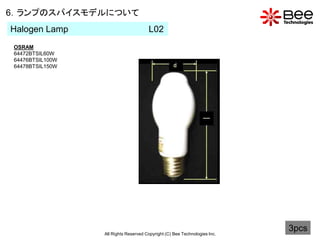

Halogen Lamp L02
OSRAM
64472BTSIL60W
64476BTSIL100W
64478BTSIL150W

3pcs

COMPONENTS: Halogen Lamp
PART NUMBER: 64476BT SIL
MANUFACTURER: OSRAM GmbH

Transient Current Characteristics
2.5A

V3
U1
2.0A 0Vdc
64476BT_SIL

VS
VOFF = 0
VAMPL = 309
1.5A FREQ = 50Hz

0
1.0A

0.5A

0A

-0.5A

-1.0A

-1.5A
0s 20ms 40ms 60ms 80ms 100ms 140ms 180ms
I(V3)
Time


デザインキットについて
ゼロから回路解析シミュレーションを行うのは大変です。
回路解析シミュレーションのテンプレート集としてご利用下さい。

現在、ご提供しているデザインキットは4種類です。

Forward Coupling Converter(FCC回路)
Ringing Choke Converter(RCC回路)
低損失リニアレギュレータ
高精度リニアレギュレータ

【内容】
デバイスモデル(スパイスモデル)
回路図シンボル
デバイスモデリング・レポート
回路解析シミュレーションに必要な全てのファイル
回路解析シミュレーションの解説書(考え方)

ご購入のその日から、回路解析シミュレーションを行う事が出来ます。
デザインキットは、PSpiceで動作致します。

現在開発中のデザインキットの回路方式について(25回路方式)

降圧チョッパ電流共振
昇圧チョッパ共振
昇降圧チョッパ E級共振
フォワード複共振
フライバックアクティブクランプ
フルブリッジ位相シフト
ハーフブリッジ同期整流
プッシュプル電流モード
CUK 力率改善
SEPIC マルチフェーズ
ZETA 電流型
絶縁CUK 三相フルブリッジインバータ
電圧共振

2005年11月11日現在

デバイスモデリング教材について

ダイオード・モデル編
ダイオード・モデル+ノイズ・シミュレーション編
逆回復特性(trj+trb=trr)を考慮したダイオード・モデル編
パワーMOSFET・モデル編(Ver.1.3)
バイポーラ・ジャンクション・トランジスタ編
白色LED+バックライト制御回路シミュレーション編【NEW】
IGBT編 (2005年11月28日発売予定) 【NEW】

デバイスモデリングの学習にご活用下さい。
詳細は、株式会社ビー・テクノロジーのWEBサイトをご覧下さい。
http://www.bee-tech.com/

質疑応答
Bee Technologies Group

【本社】
株式会社ビー・テクノロジー
〒105-0012 東京都港区芝大門一丁目5番3号大門梅澤ビル3階
設立日:2002年9月10日
資本金:7,330万円
【子会社】お問合わせ先)
Bee Technologies Corporation (アメリカ)
Siam Bee Technologies Co.,Ltd. (タイランド) horigome@bee-tech.com

Spice park 2005 autumn pdf version

More Related Content

What's hot

Similar to Spice park 2005 autumn pdf version

More from Tsuyoshi Horigome

Spice park 2005 autumn pdf version
