Speleothems are cave formations like stalactites and stalagmites that form from calcium carbonate deposited by dripping water. Their layered structure (laminae) can provide annual records similar to tree rings. Different laminae types - fluorescent, visible, calcite-aragonite couplets, trace elements - record climate factors like temperature and precipitation. Studies of laminae in speleothems from various regions confirmed their annual nature and showed correlations between laminae characteristics and climate records, validating their use in paleoclimate reconstruction over thousands of years.

1. By: Josephine Molé

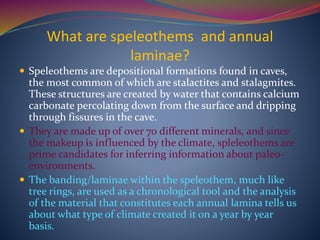

2. What are speleothems and annual
laminae?
 Speleothems are depositional formations found in caves,
the most common of which are stalactites and stalagmites.
These structures are created by water that contains calcium
carbonate percolating down from the surface and dripping
through fissures in the cave.
 They are made up of over 70 different minerals, and since
the makeup is influenced by the climate, spleleothems are
prime candidates for inferring information about paleo-
environments.
 The banding/laminae within the speleothem, much like
tree rings, are used as a chronological tool and the analysis
of the material that constitutes each annual lamina tells us
about what type of climate created it on a year by year
basis.

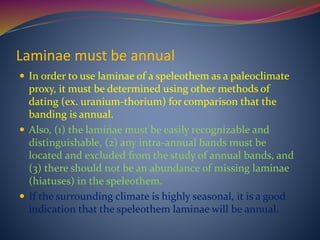

3. Laminae must be annual
 In order to use laminae of a speleothem as a paleoclimate
proxy, it must be determined using other methods of
dating (ex. uranium-thorium) for comparison that the
banding is annual.
 Also, (1) the laminae must be easily recognizable and
distinguishable, (2) any intra-annual bands must be
located and excluded from the study of annual bands, and
(3) there should not be an abundance of missing laminae
(hiatuses) in the speleothem.
 If the surrounding climate is highly seasonal, it is a good
indication that the speleothem laminae will be annual.

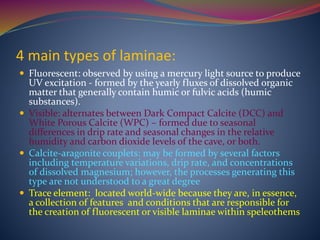

4. 4 main types of laminae:
 Fluorescent: observed by using a mercury light source to produce
UV excitation - formed by the yearly fluxes of dissolved organic
matter that generally contain humic or fulvic acids (humic
substances).
 Visible: alternates between Dark Compact Calcite (DCC) and
White Porous Calcite (WPC) – formed due to seasonal
differences in drip rate and seasonal changes in the relative
humidity and carbon dioxide levels of the cave, or both.
 Calcite-aragonite couplets: may be formed by several factors
including temperature variations, drip rate, and concentrations
of dissolved magnesium; however, the processes generating this
type are not understood to a great degree
 Trace element: located world-wide because they are, in essence,
a collection of features and conditions that are responsible for
the creation of fluorescent or visible laminae within speleothems

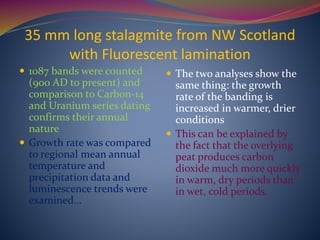

5. 35 mm long stalagmite from NW Scotland
with Fluorescent lamination
 1087 bands were counted
(900 AD to present) and
comparison to Carbon-14
and Uranium series dating
confirms their annual
nature
 Growth rate was compared
to regional mean annual
temperature and
precipitation data and
luminescence trends were
examined…
 The two analyses show the
same thing: the growth
rate of the banding is
increased in warmer, drier
conditions
 This can be explained by
the fact that the overlying
peat produces carbon
dioxide much more quickly
in warm, dry periods than
in wet, cold periods.

6. 1 meter long aragonitic stalagmite with
visible lamination from NE South Africa
 Comparison with
uranium series dating
and dendochronology
confirms laminae are
annual.
 Precipitation was
found to correspond
to band width (2 yr
lag); while
temperature
correlates to intensity
of the color of the
bands (no lag).

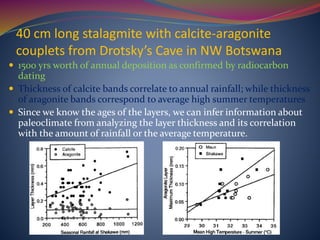

7. 40 cm long stalagmite with calcite-aragonite
couplets from Drotsky’s Cave in NW Botswana
 1500 yrs worth of annual deposition as confirmed by radiocarbon
dating
 Thickness of calcite bands correlate to annual rainfall; while thickness
of aragonite bands correspond to average high summer temperatures
 Since we know the ages of the layers, we can infer information about
paleoclimate from analyzing the layer thickness and its correlation
with the amount of rainfall or the average temperature.

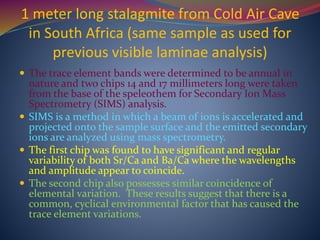

8. 1 meter long stalagmite from Cold Air Cave
in South Africa (same sample as used for
previous visible laminae analysis)
 The trace element bands were determined to be annual in
nature and two chips 14 and 17 millimeters long were taken
from the base of the speleothem for Secondary Ion Mass
Spectrometry (SIMS) analysis.
 SIMS is a method in which a beam of ions is accelerated and
projected onto the sample surface and the emitted secondary
ions are analyzed using mass spectrometry.

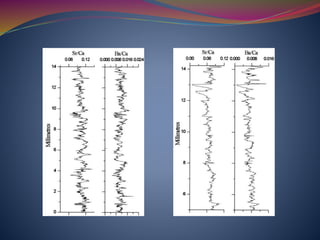

 The first chip was found to have significant and regular
variability of both Sr/Ca and Ba/Ca where the wavelengths
and amplitude appear to coincide.
 The second chip also possesses similar coincidence of
elemental variation. These results suggest that there is a
common, cyclical environmental factor that has caused the
trace element variations.

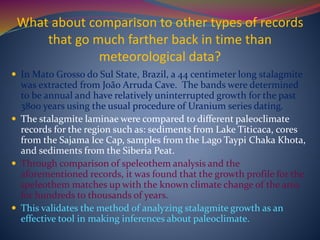

10. What about comparison to other types of records
that go much farther back in time than
meteorological data?
 In Mato Grosso do Sul State, Brazil, a 44 centimeter long stalagmite
was extracted from João Arruda Cave. The bands were determined
to be annual and have relatively uninterrupted growth for the past
3800 years using the usual procedure of Uranium series dating.
 The stalagmite laminae were compared to different paleoclimate
records for the region such as: sediments from Lake Titicaca, cores
from the Sajama Ice Cap, samples from the Lago Taypi Chaka Khota,
and sediments from the Siberia Peat.
 Through comparison of speleothem analysis and the
aforementioned records, it was found that the growth profile for the
speleothem matches up with the known climate change of the area
for hundreds to thousands of years.
 This validates the method of analyzing stalagmite growth as an
effective tool in making inferences about paleoclimate.

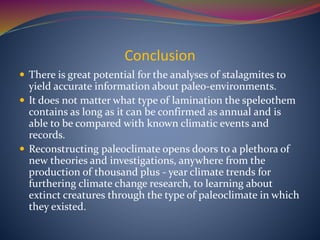

11. Conclusion
 There is great potential for the analyses of stalagmites to
yield accurate information about paleo-environments.
 It does not matter what type of lamination the speleothem
contains as long as it can be confirmed as annual and is
able to be compared with known climatic events and
records.
 Reconstructing paleoclimate opens doors to a plethora of
new theories and investigations, anywhere from the
production of thousand plus - year climate trends for
furthering climate change research, to learning about
extinct creatures through the type of paleoclimate in which
they existed.

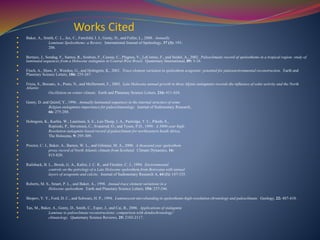

12. Works Cited
 Baker, A., Smith, C. L., Jex, C., Fairchild, I. J., Genty, D., and Fuller, L., 2008. Annually
 Laminate Speleothems: a Review. International Journal of Speleology, 37 (3): 193-
 206.

 Bertaux, J., Sondag, F., Santos, R., Soubies, F., Causse, C., Plagnes, V., LeCornec, F., and Seidel, A., 2002. Paleoclimatic record of speleothems in a tropical region: study of
laminated sequences from a Holocene stalagmite in Central-West Brazil. Quaternary International, 89: 3-16.

 Finch, A., Shaw, P., Weedon, G., and Holmgren, K., 2001. Trace element variation in speleothem aragonite: potential for paleoenvironmental reconstruction. Earth and
Planetary Science Letters, 186: 255-267.

 Frisia, S., Borsato, A., Preto, N., and McDermott, F., 2003. Late Holocene annual growth in three Alpine stalagmites records the influence of solar activity and the North
Atlantic
 Oscillation on winter climate. Earth and Planetary Science Letters, 216: 411-424.

 Genty, D. and Quinif, Y., 1996. Annually laminated sequences in the internal structure of some
 Belgian stalagmites-importance for paleoclimatology. Journal of Sedimentary Research,
 66: 275-288.

 Holmgren, K., Karlén, W., Lauritzen, S. E., Lee-Thorp, J. A., Partridge, T. C., Piketh, S.,
 Repinski, P., Stevenson, C., Svanered, O., and Tyson, P.D., 1999. A 3000-year high-
 Resolution stalagmite-based record of paleoclimate for northeastern South Africa.
 The Holocene, 9: 295-309.

 Proctor, C. J., Baker, A., Barnes, W. L., and Gilmour, M. A., 2000. A thousand year speleothem
 proxy record of North Atlantic climate from Scotland. Climate Dynamics, 16:
 815-820.

 Railsback, B. L., Brook, G. A., Kalini, J. C. R., and Fleisher, C. J., 1994. Environmental
 controls on the petrology of a Late Holocene speleothem from Botswana with annual
 layers of aragonite and calcite. Journal of Sedimentary Research A, 64 (1): 147-155.

 Roberts, M. S., Smart, P. L., and Baker, A., 1998. Annual trace element variations in a
 Holocene speleothem. Earth and Planetary Science Letters, 154: 237-246.

 Shopov, Y. Y., Ford, D. C., and Schwarz, H. P., 1994. Luminescent microbanding in speleothems-high-resolution chronology and paleoclimate. Geology, 22: 407-410.

 Tan, M., Baker, A., Genty, D., Smith, C., Esper, J., and Cai, B., 2006. Applications of stalagmite
 Laminae to paleoclimate reconstructions: comparison with dendochronology/
 climatology. Quaternary Science Reviews, 25: 2103-2117.
