1. User Content after JCR
Warning: This will be a low level technical presentation.
Dr Ian Boston
Timefields Ltd
OAE Server Team Lead

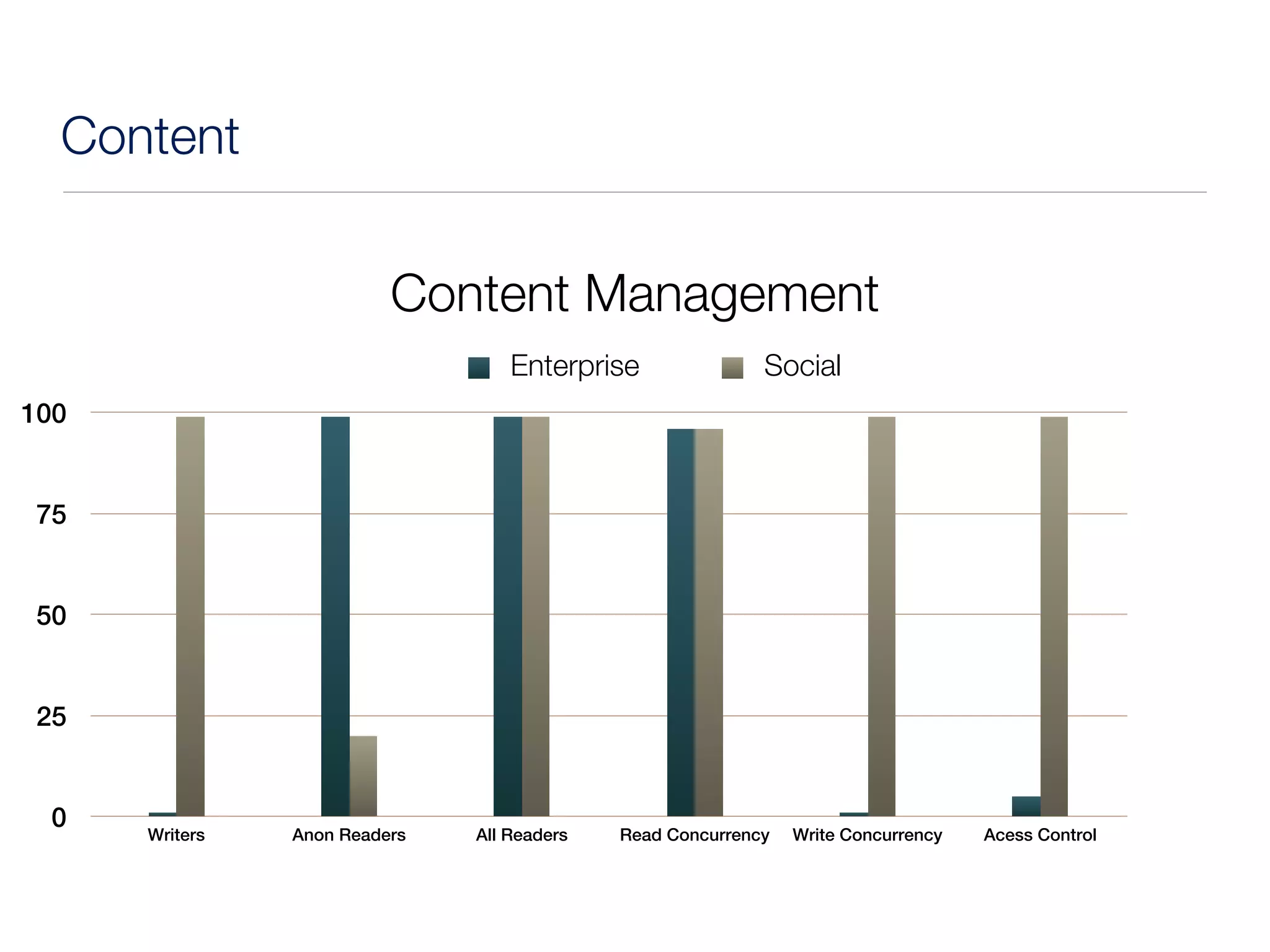

2. Content
Content Management
Enterprise Social
100
75
50
25
0
Writers Anon Readers All Readers Read Concurrency Write Concurrency Acess Control

3. JSR-170, JSR-283, JSR-333, JCR
Any guesses what type of content management ?

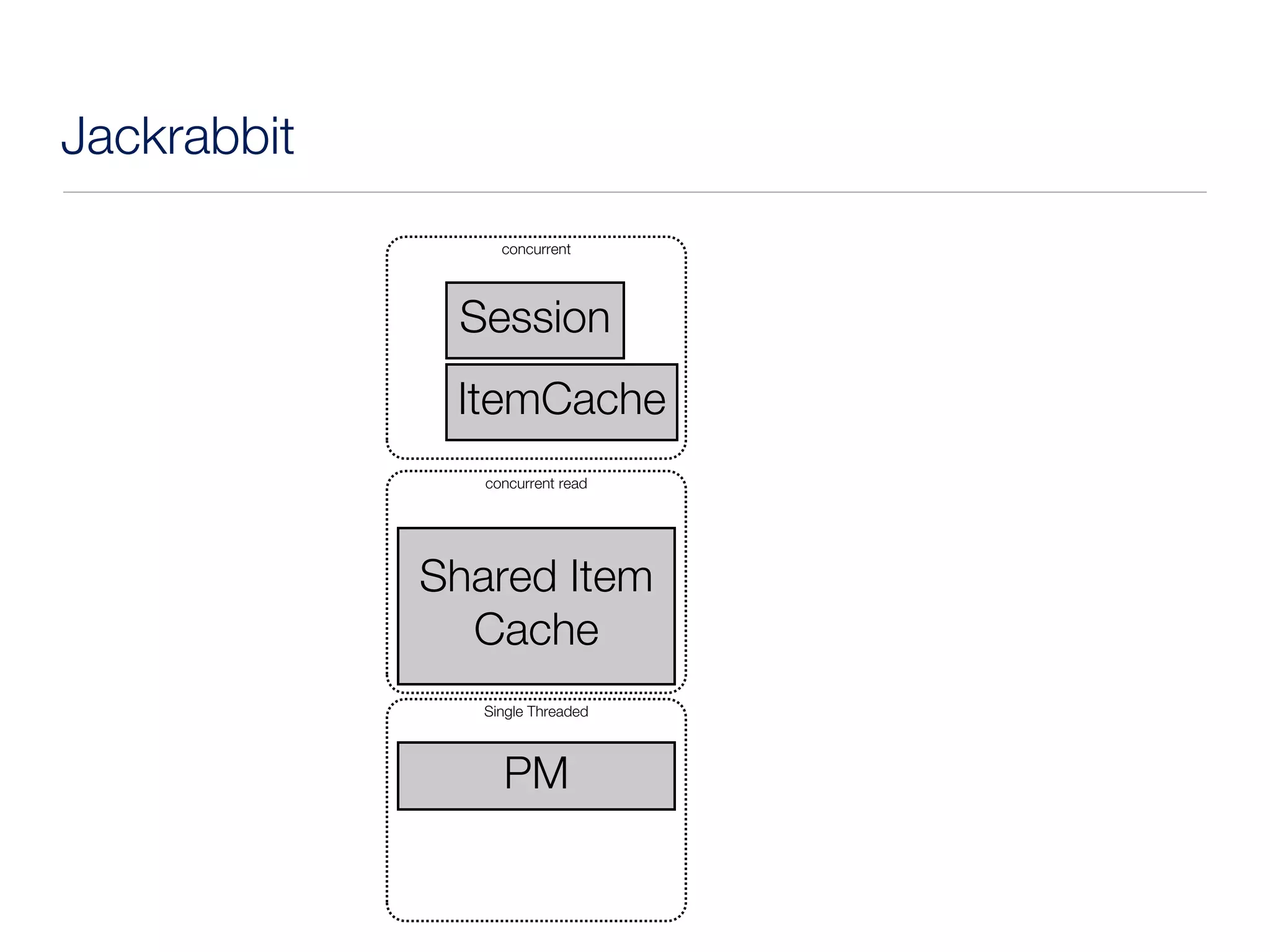

4. Jackrabbit
concurrent
Session
ItemCache
concurrent read
Shared Item
Cache
Single Threaded
PM

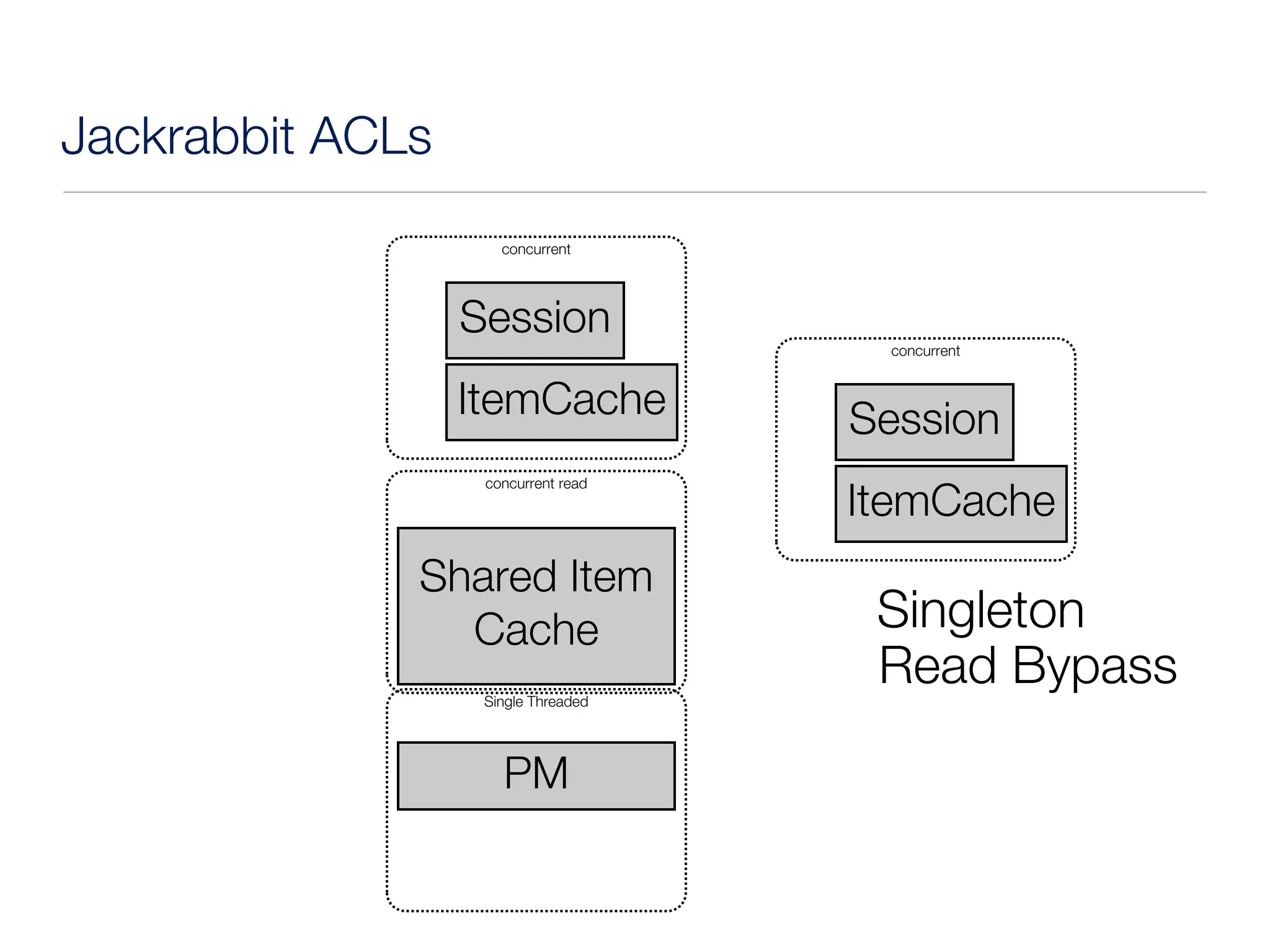

5. Jackrabbit ACLs
concurrent
Session
concurrent
ItemCache Session
concurrent read
ItemCache
Shared Item
Cache Singleton
Single Threaded
Read Bypass
PM

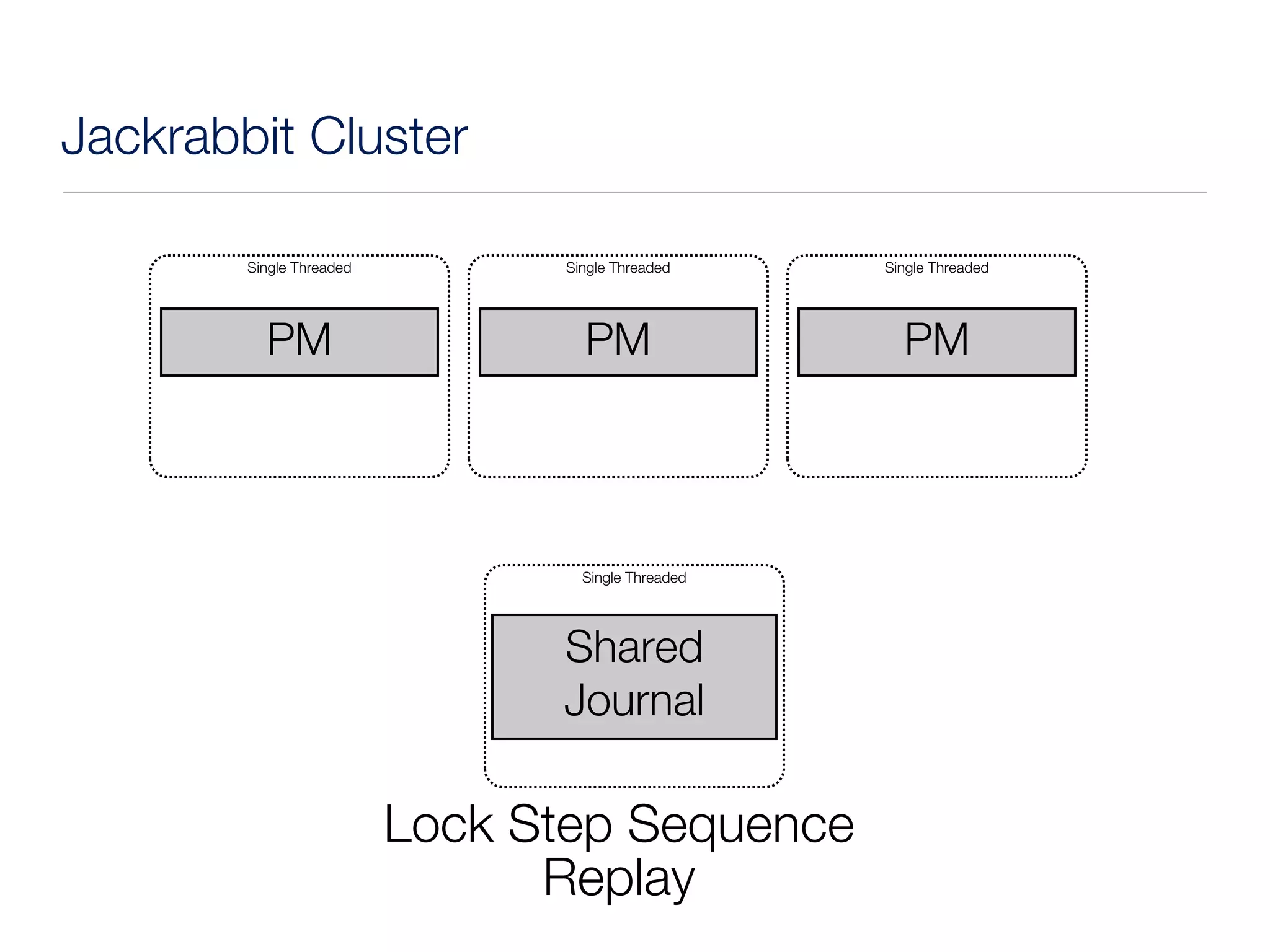

6. Jackrabbit Cluster
Single Threaded Single Threaded Single Threaded
PM PM PM
Single Threaded
Shared
Journal
Lock Step Sequence
Replay

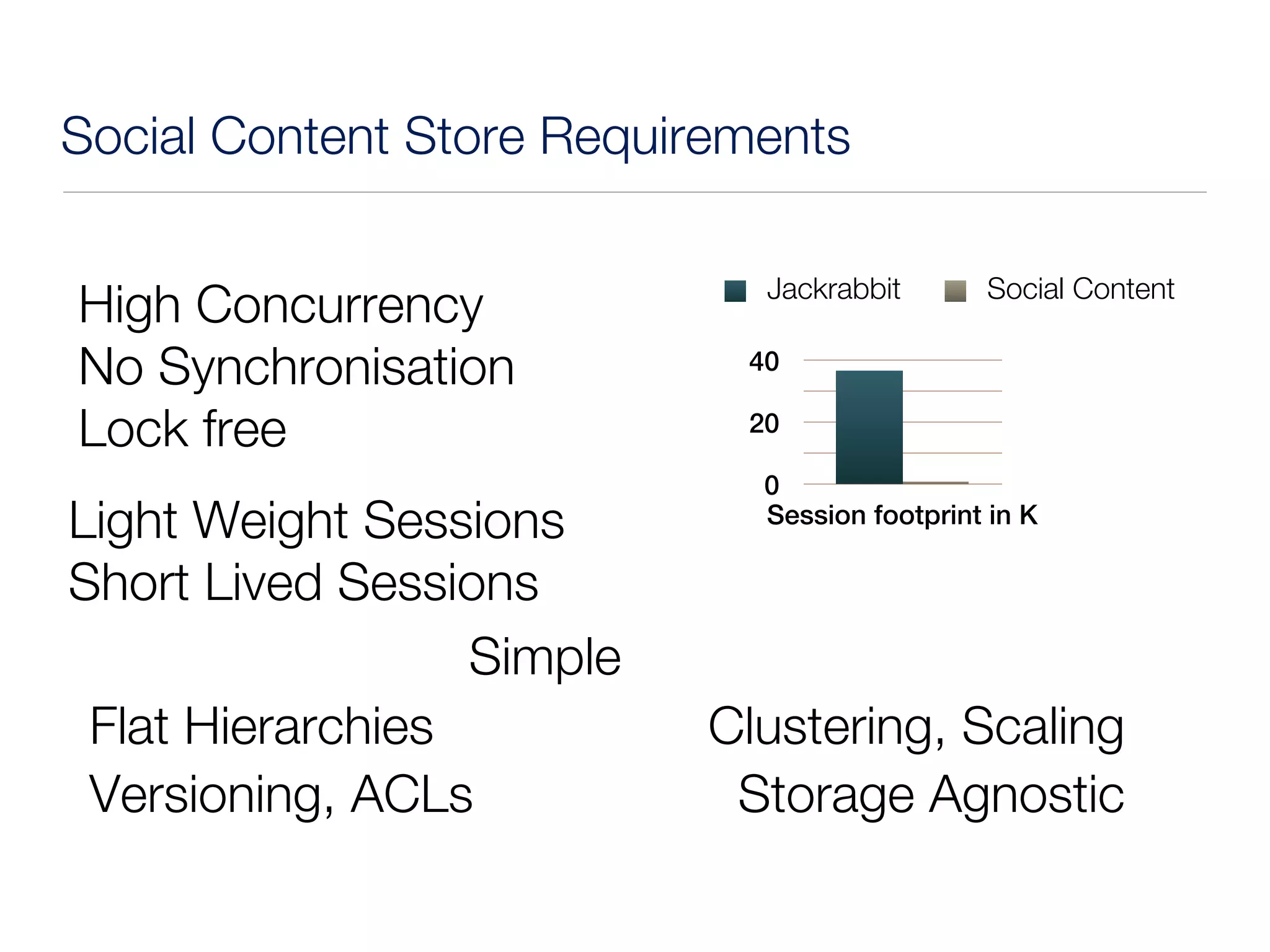

7. Social Content Store Requirements
Jackrabbit Social Content
High Concurrency
40
No Synchronisation
20
Lock free
0
Session footprint in K
Light Weight Sessions
Short Lived Sessions
Simple
Flat Hierarchies Clustering, Scaling
Versioning, ACLs Storage Agnostic

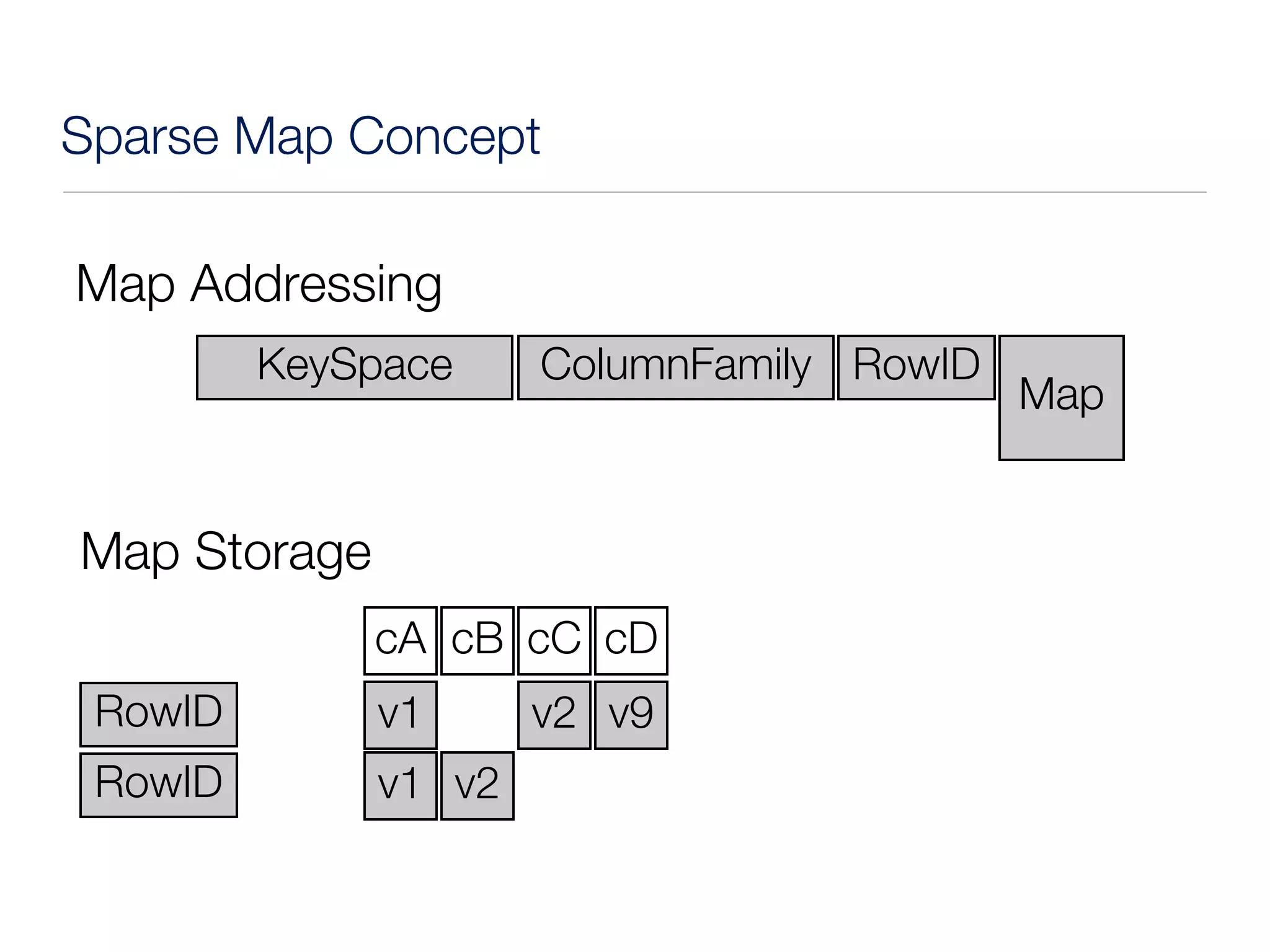

8. Sparse Map Concept
Map Addressing
KeySpace ColumnFamily RowID
Map
Map Storage
cA cB cC cD
RowID v1 v2 v9
RowID v1 v2

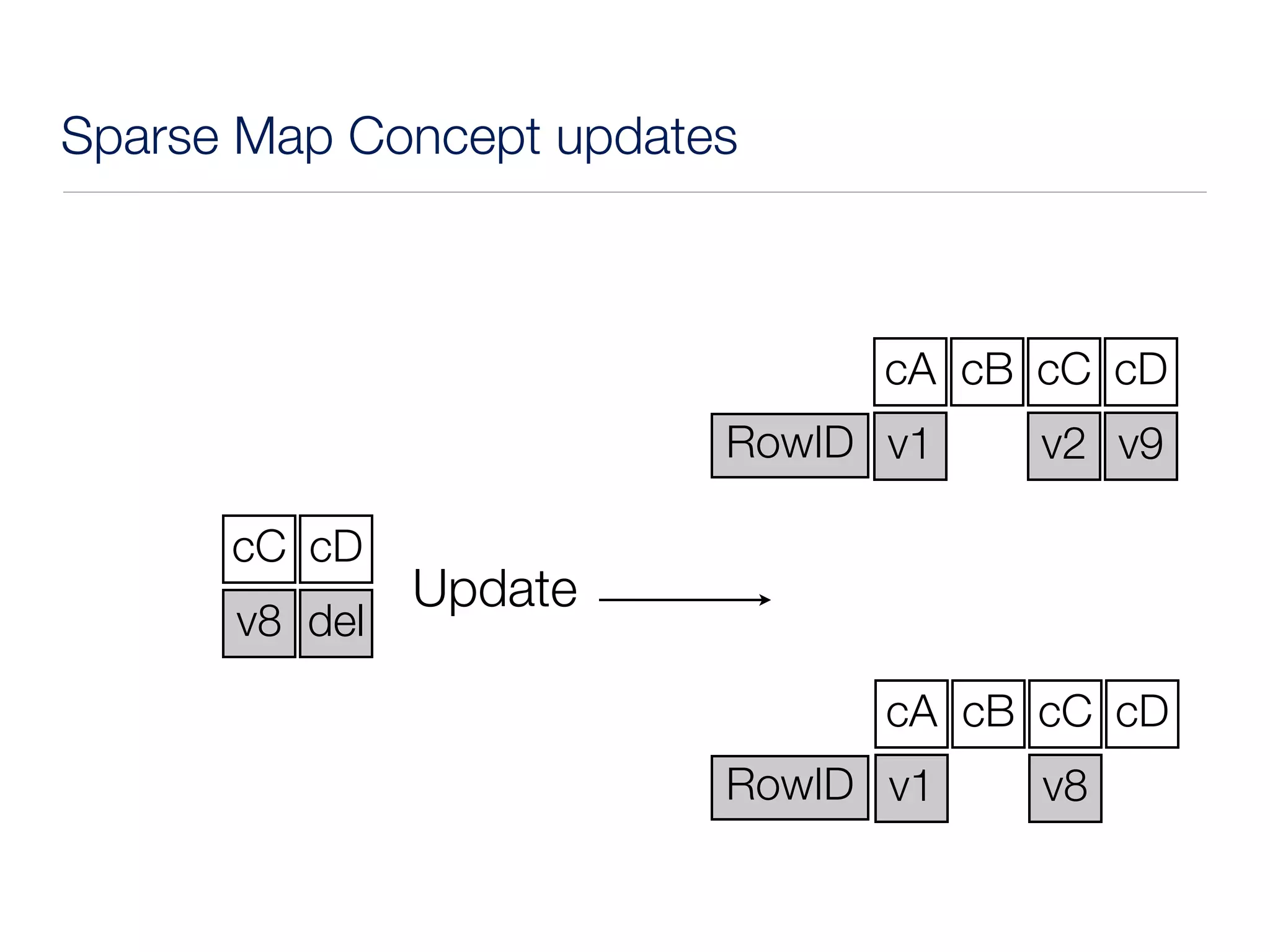

9. Sparse Map Concept updates
cA cB cC cD
RowID v1 v2 v9
cC cD
Update
v8 del
cA cB cC cD
RowID v1 v8

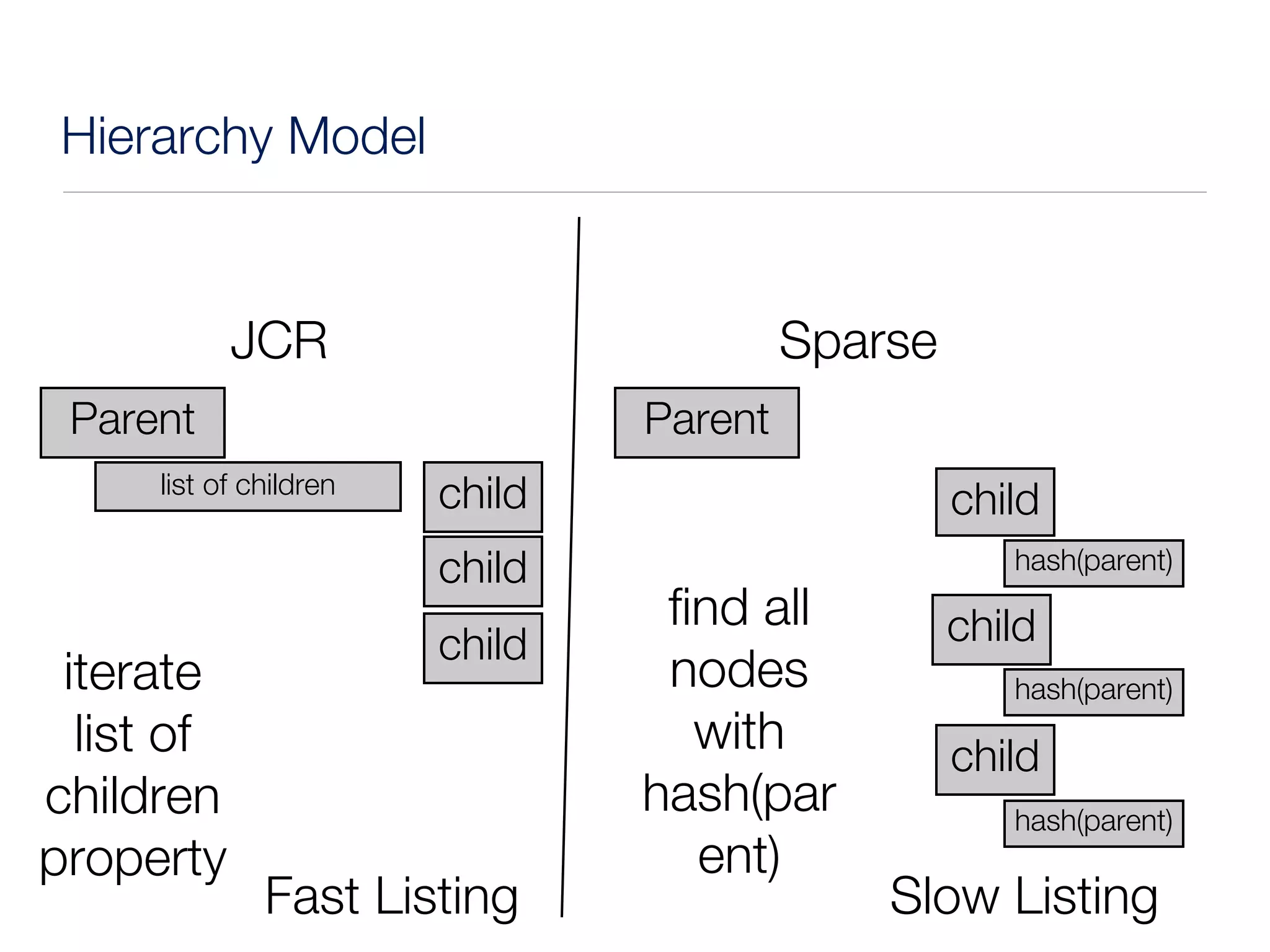

10. Hierarchy Model
JCR Sparse
Parent Parent
list of children child child
child hash(parent)
find all child
child
iterate nodes hash(parent)
list of with child
children hash(par hash(parent)
property ent)
Fast Listing Slow Listing

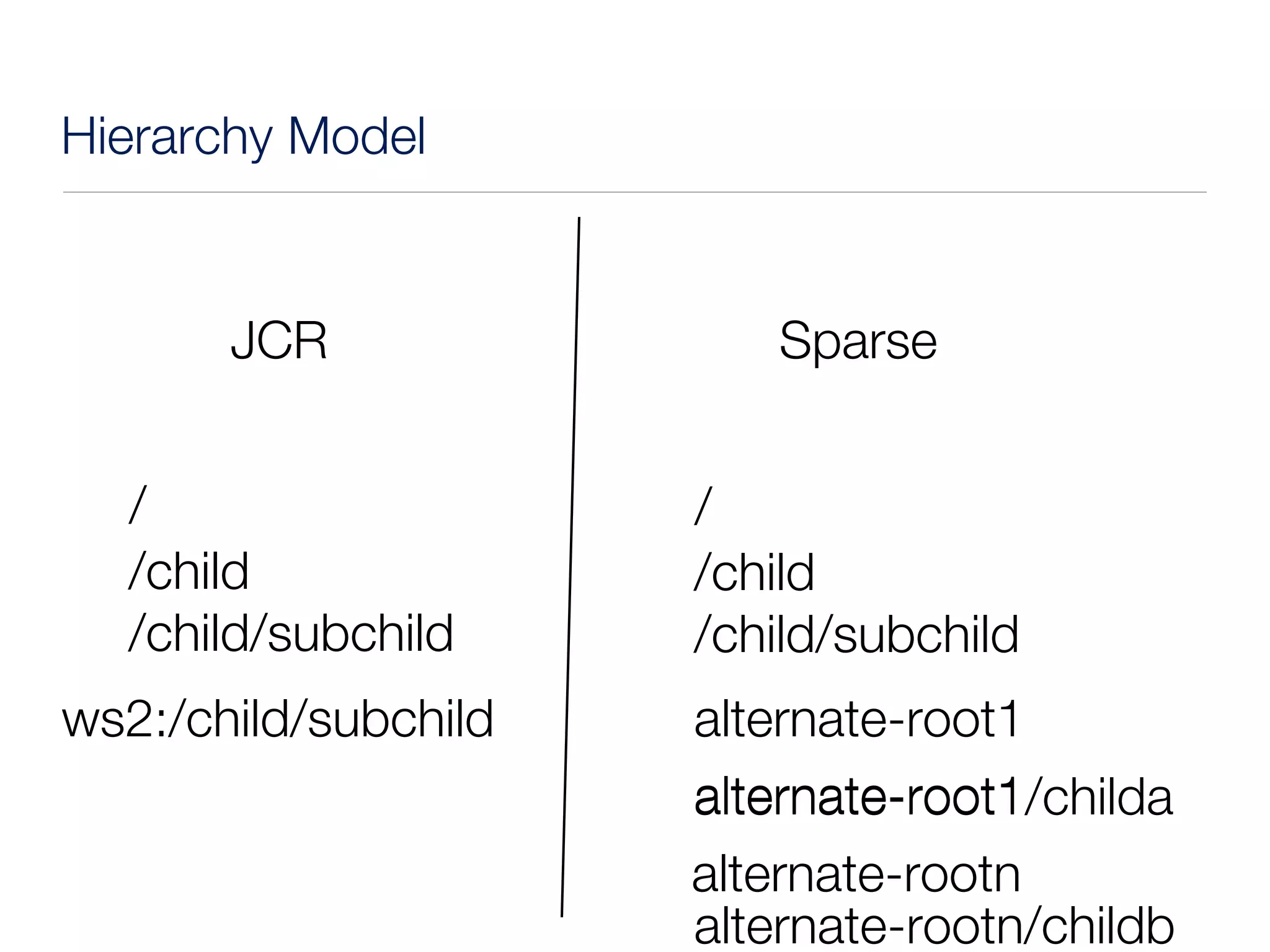

11. Hierarchy Model
JCR Sparse
/ /
/child /child
/child/subchild /child/subchild
ws2:/child/subchild alternate-root1
alternate-root1
alternate-root1/childa
alternate-rootn
alternate-rootn/childb

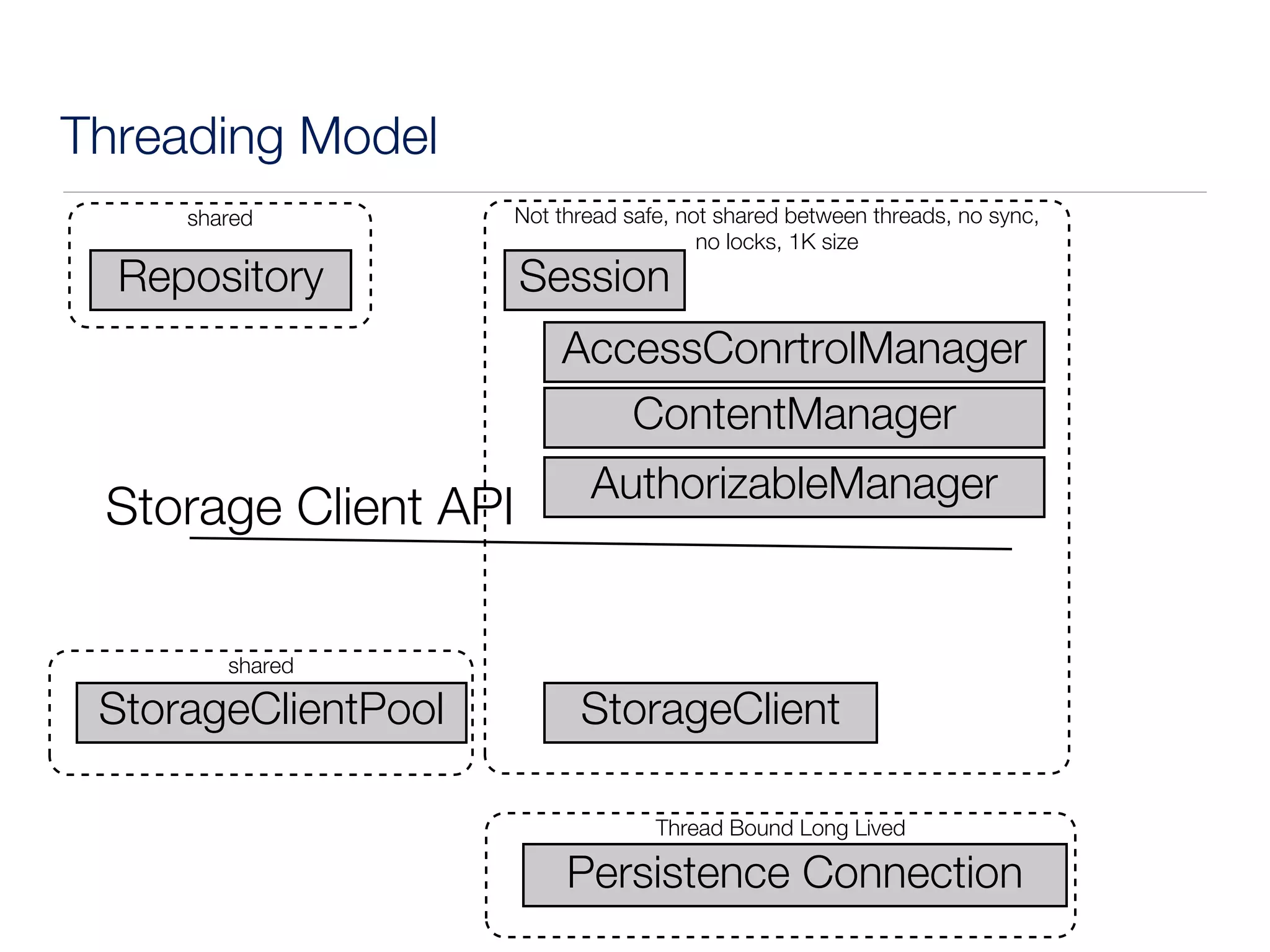

12. Threading Model
shared Not thread safe, not shared between threads, no sync,
no locks, 1K size
Repository Session
AccessConrtrolManager
ContentManager
AuthorizableManager
Storage Client API
shared
StorageClientPool StorageClient
Thread Bound Long Lived
Persistence Connection

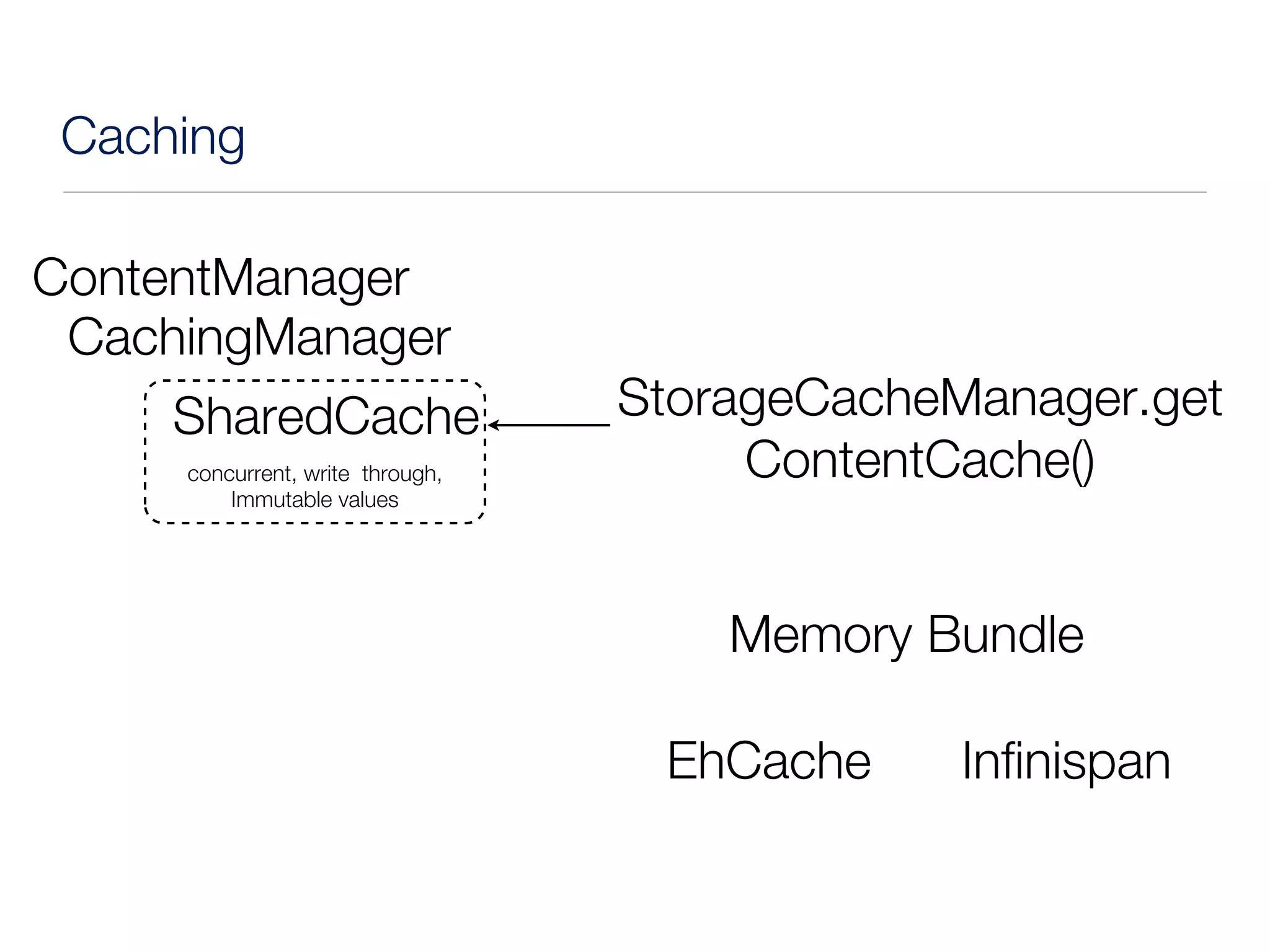

13. Caching
ContentManager
CachingManager
SharedCache StorageCacheManager.get
concurrent, write through, ContentCache()
Immutable values
Memory Bundle
EhCache Infinispan

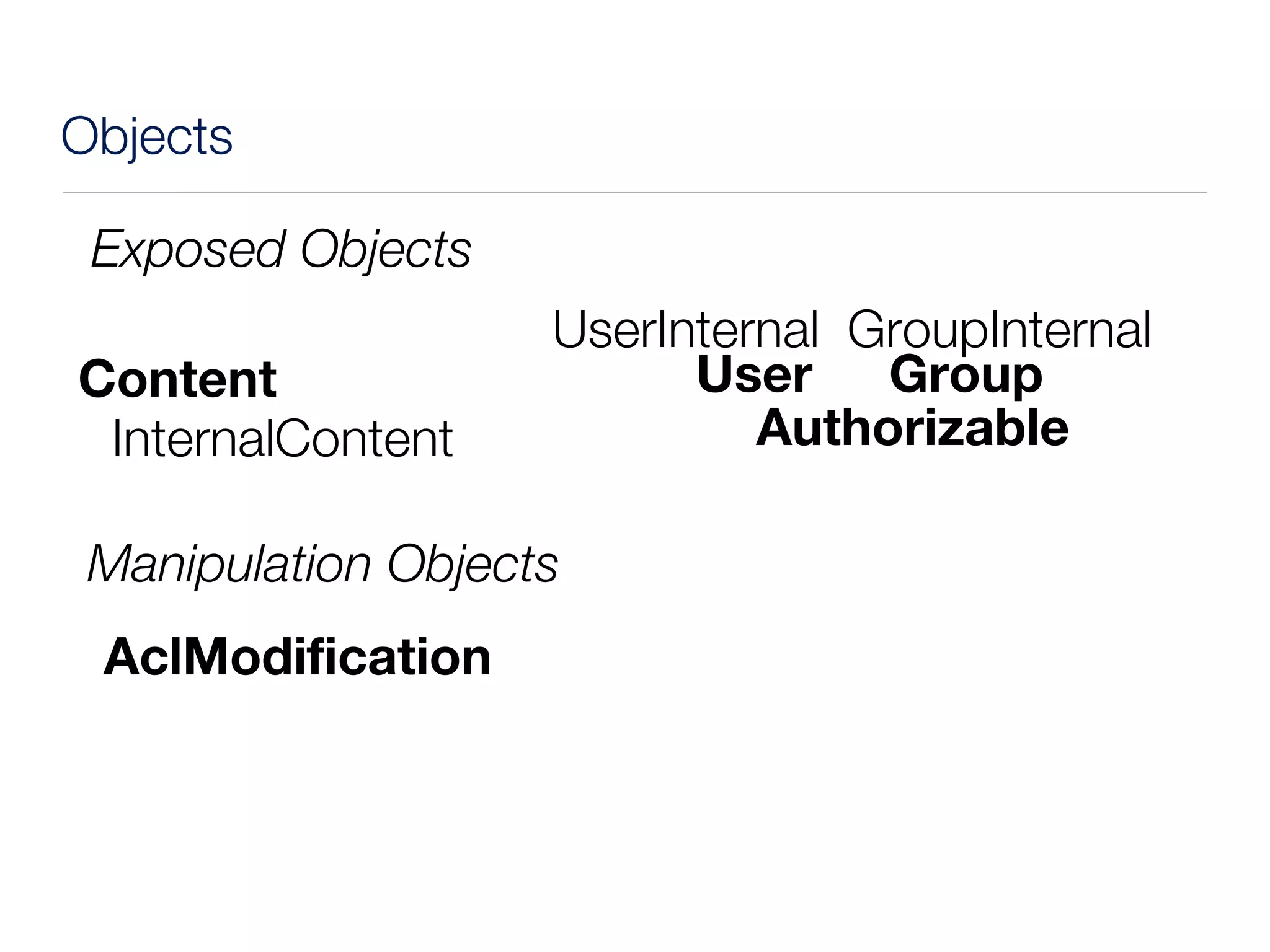

14. Objects
Exposed Objects
UserInternal GroupInternal
Content User Group
InternalContent Authorizable
Manipulation Objects
AclModification

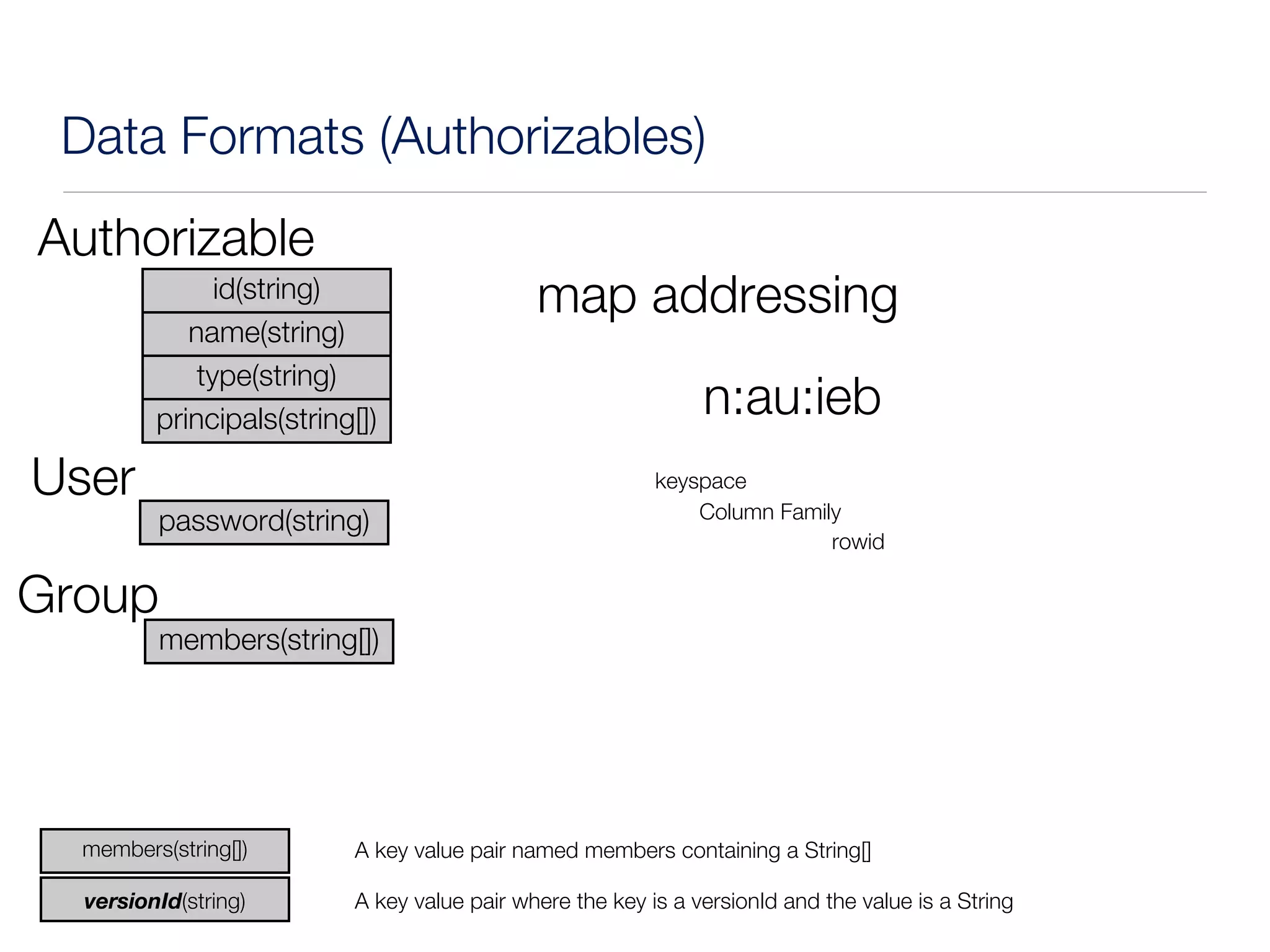

15. Data Formats (Authorizables)
Authorizable
id(string) map addressing
name(string)
type(string)
principals(string[]) n:au:ieb
User keyspace
Column Family
password(string)
rowid
Group
members(string[])
members(string[]) A key value pair named members containing a String[]
versionId(string) A key value pair where the key is a versionId and the value is a String

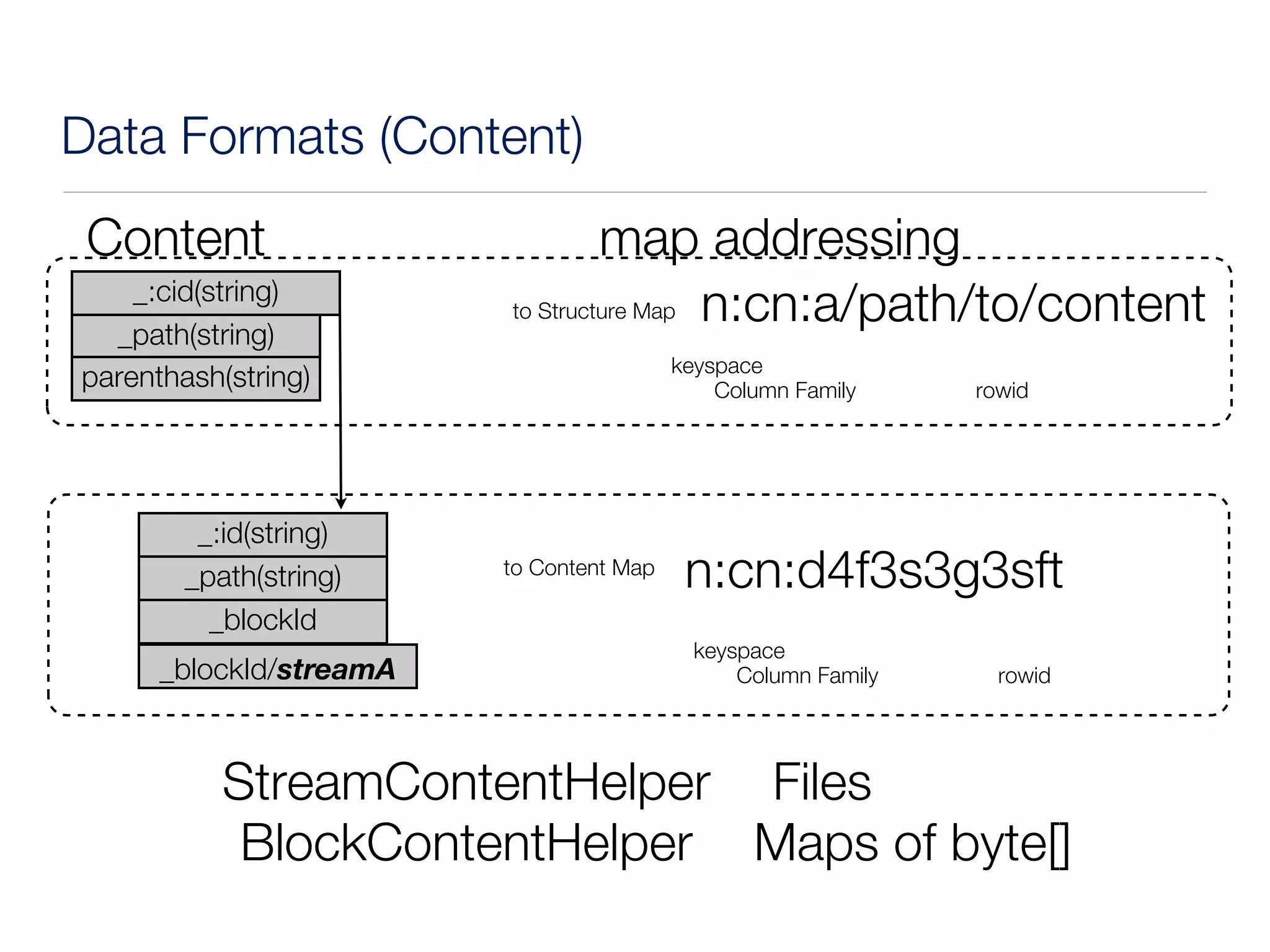

16. Data Formats (Content)
Content map addressing
_:cid(string)
to Structure Map n:cn:a/path/to/content
_path(string)
keyspace
parenthash(string) Column Family rowid
_:id(string)
_path(string) to Content Map
n:cn:d4f3s3g3sft
_blockId
keyspace
_blockId/streamA Column Family rowid
StreamContentHelper Files
BlockContentHelper Maps of byte[]

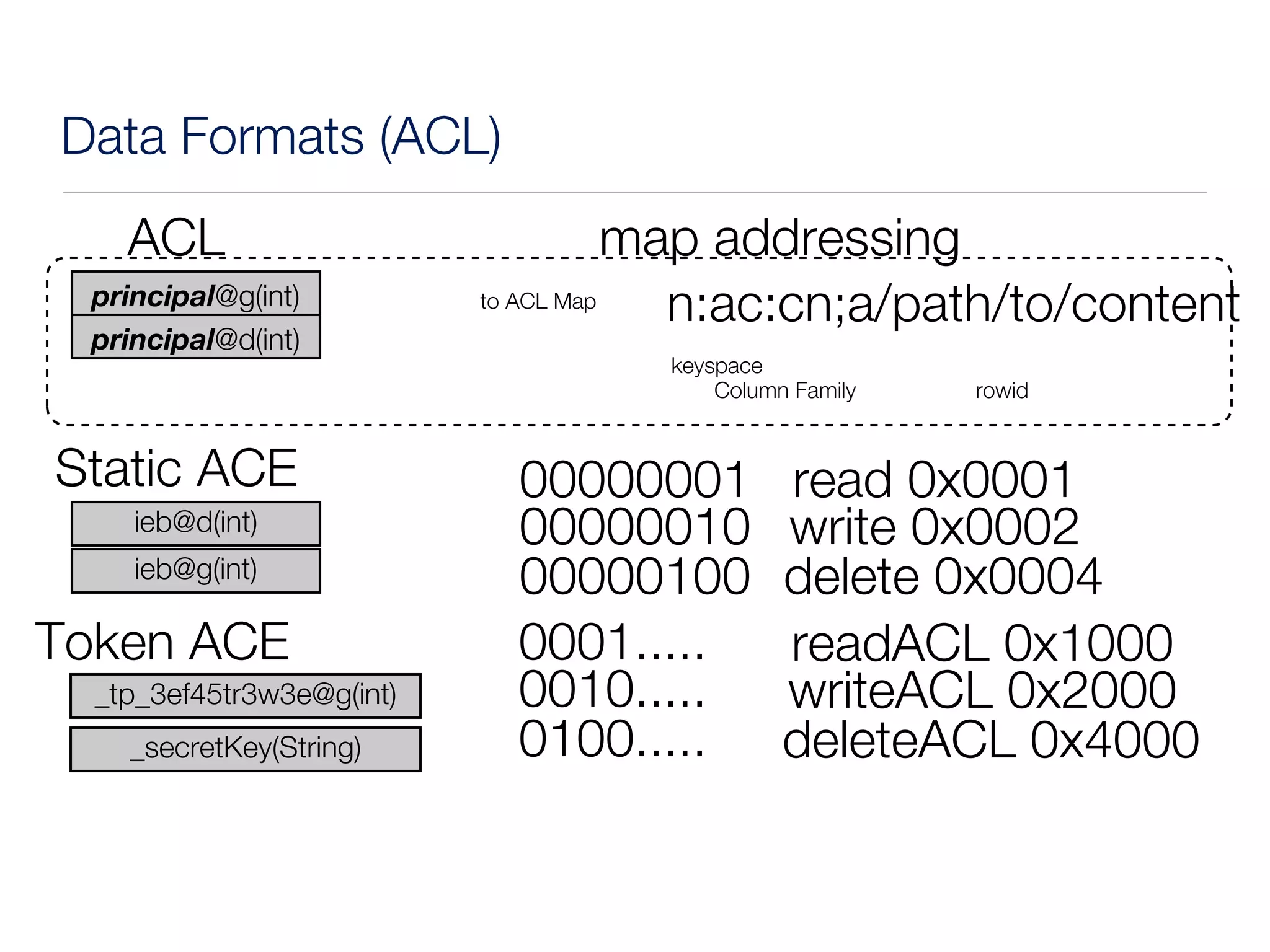

17. Data Formats (ACL)
ACL map addressing
principal@g(int) to ACL Map
n:ac:cn;a/path/to/content
principal@d(int)
keyspace
Column Family rowid
Static ACE 00000001 read 0x0001
ieb@d(int) 00000010 write 0x0002
ieb@g(int) 00000100 delete 0x0004
Token ACE 0001..... readACL 0x1000
_tp_3ef45tr3w3e@g(int) 0010..... writeACL 0x2000
_secretKey(String) 0100..... deleteACL 0x4000

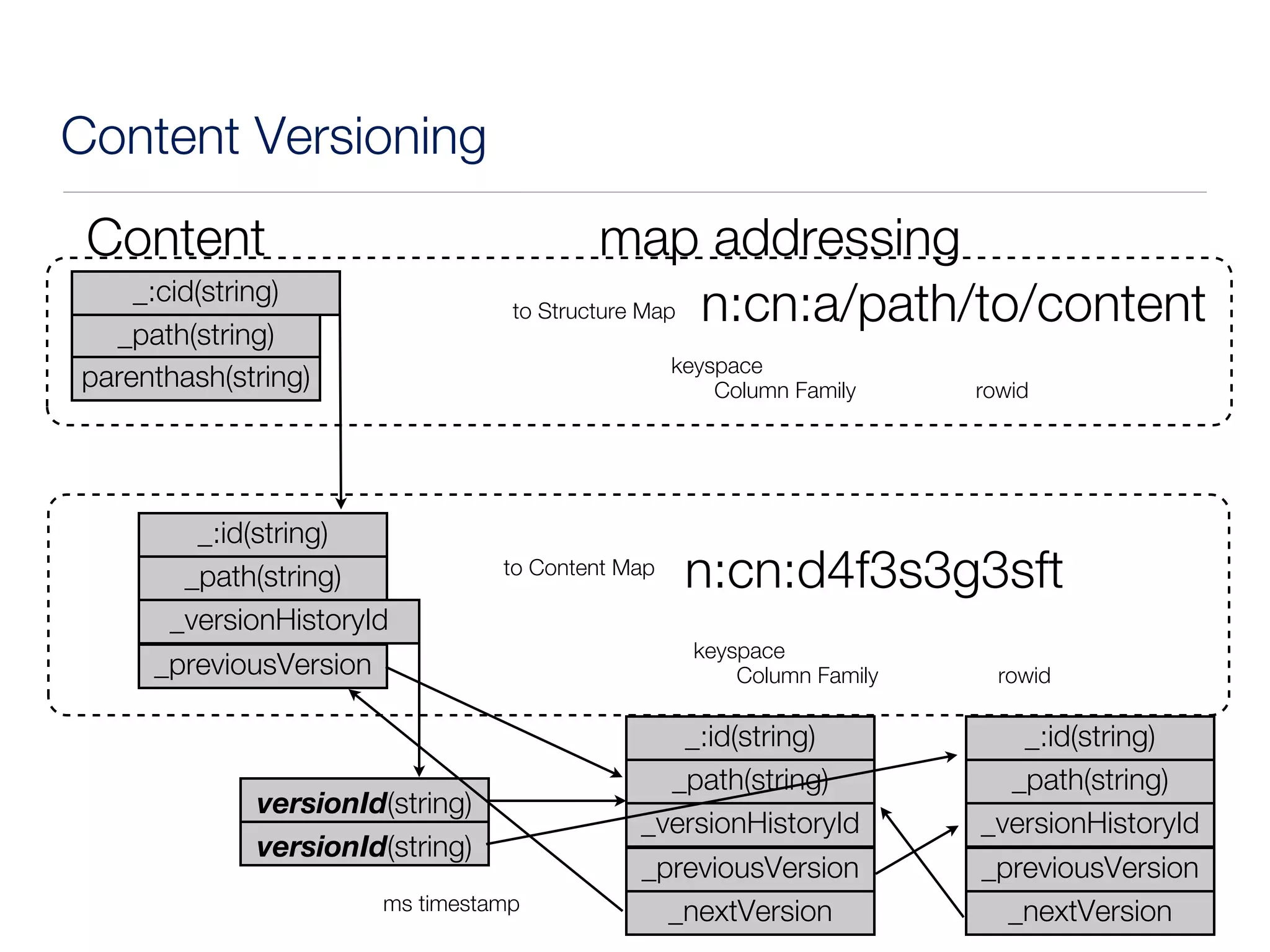

18. Content Versioning
Content map addressing
_:cid(string)
to Structure Map n:cn:a/path/to/content
_path(string)
keyspace
parenthash(string) Column Family rowid
_:id(string)
_path(string) to Content Map
n:cn:d4f3s3g3sft
_versionHistoryId
keyspace
_previousVersion Column Family rowid
_:id(string) _:id(string)
_path(string) _path(string)
versionId(string)
_versionHistoryId _versionHistoryId
versionId(string)
_previousVersion _previousVersion
ms timestamp _nextVersion _nextVersion

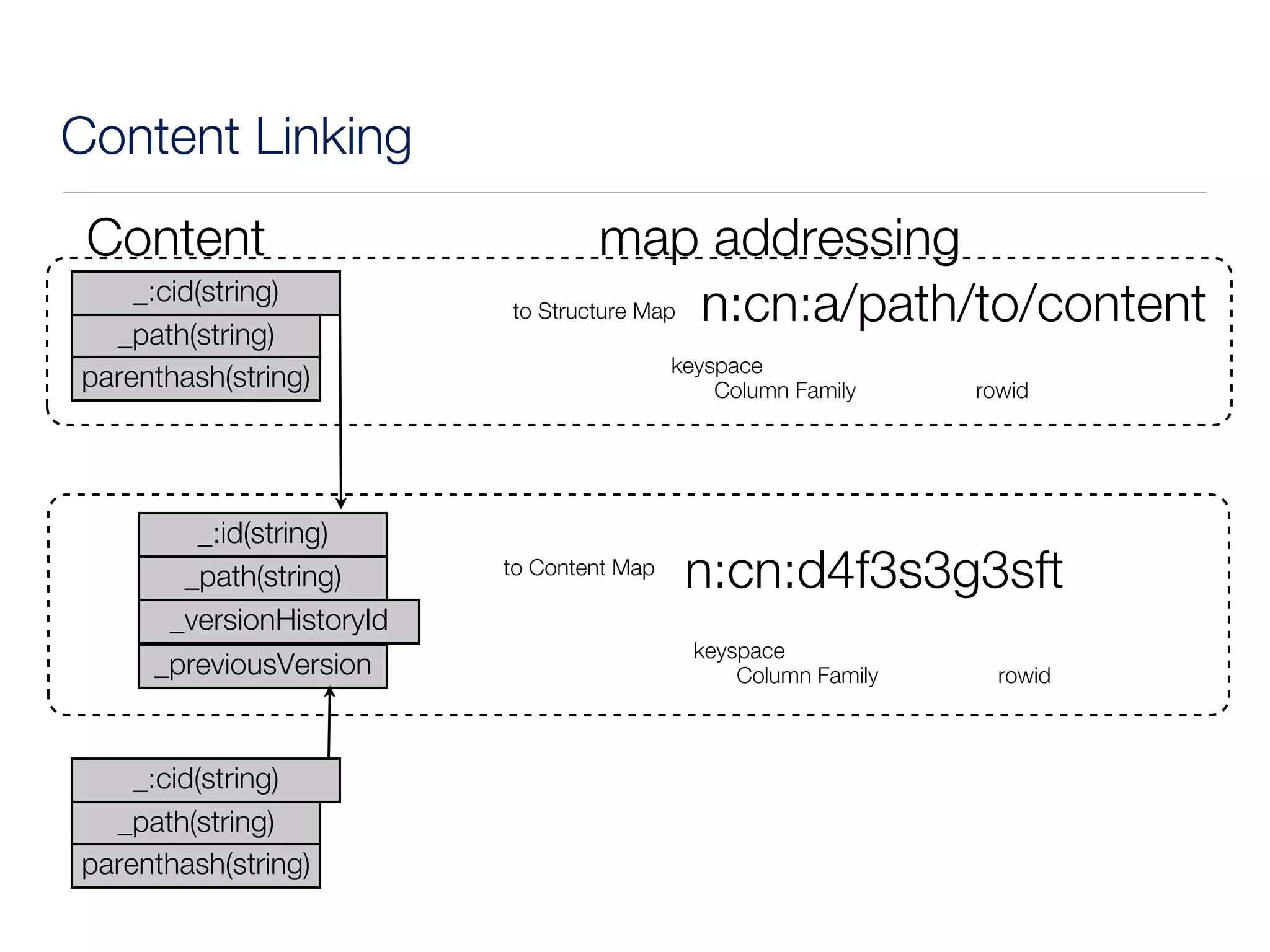

19. Content Linking
Content map addressing
_:cid(string)
to Structure Map n:cn:a/path/to/content
_path(string)
keyspace
parenthash(string) Column Family rowid
_:id(string)
_path(string) to Content Map
n:cn:d4f3s3g3sft
_versionHistoryId
keyspace
_previousVersion Column Family rowid
_:cid(string)
_path(string)
parenthash(string)

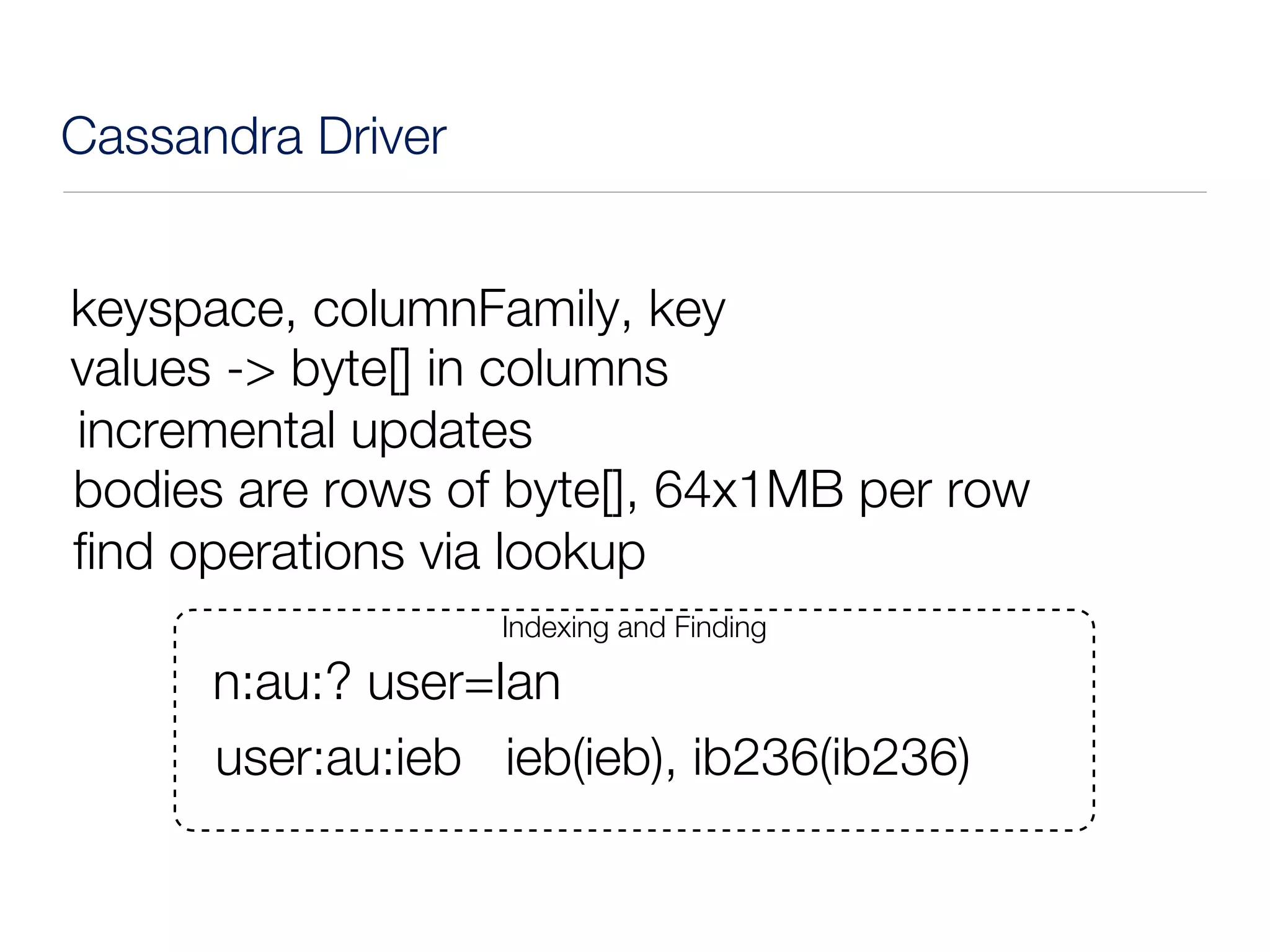

20. Cassandra Driver
keyspace, columnFamily, key
values -> byte[] in columns
incremental updates
bodies are rows of byte[], 64x1MB per row
find operations via lookup
Indexing and Finding
n:au:? user=Ian
user:au:ieb ieb(ieb), ib236(ib236)

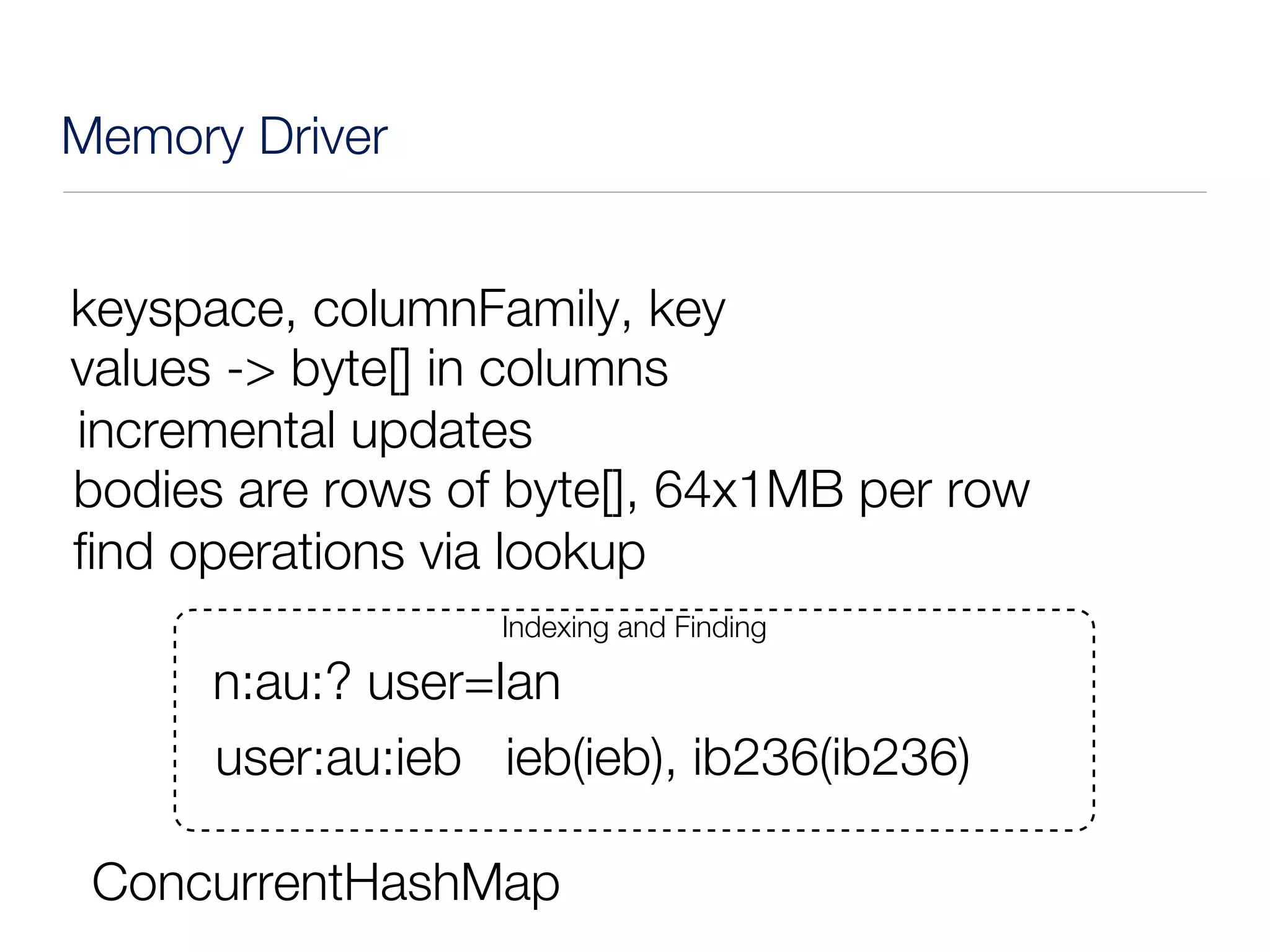

21. Memory Driver
keyspace, columnFamily, key
values -> byte[] in columns
incremental updates
bodies are rows of byte[], 64x1MB per row
find operations via lookup
Indexing and Finding
n:au:? user=Ian
user:au:ieb ieb(ieb), ib236(ib236)
ConcurrentHashMap

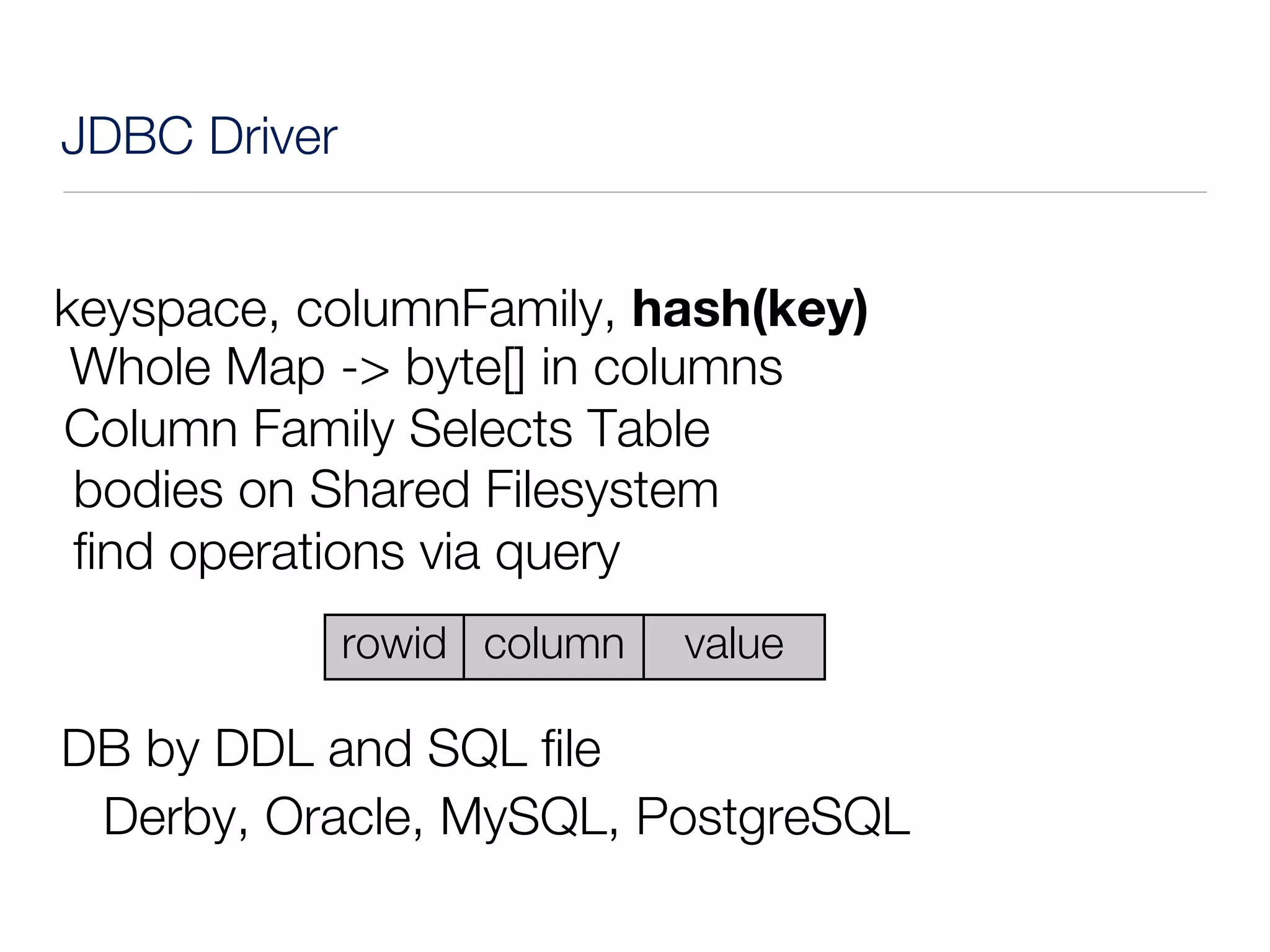

22. JDBC Driver
keyspace, columnFamily, hash(key)
Whole Map -> byte[] in columns
Column Family Selects Table
bodies on Shared Filesystem
find operations via query
rowid column value
DB by DDL and SQL file
Derby, Oracle, MySQL, PostgreSQL

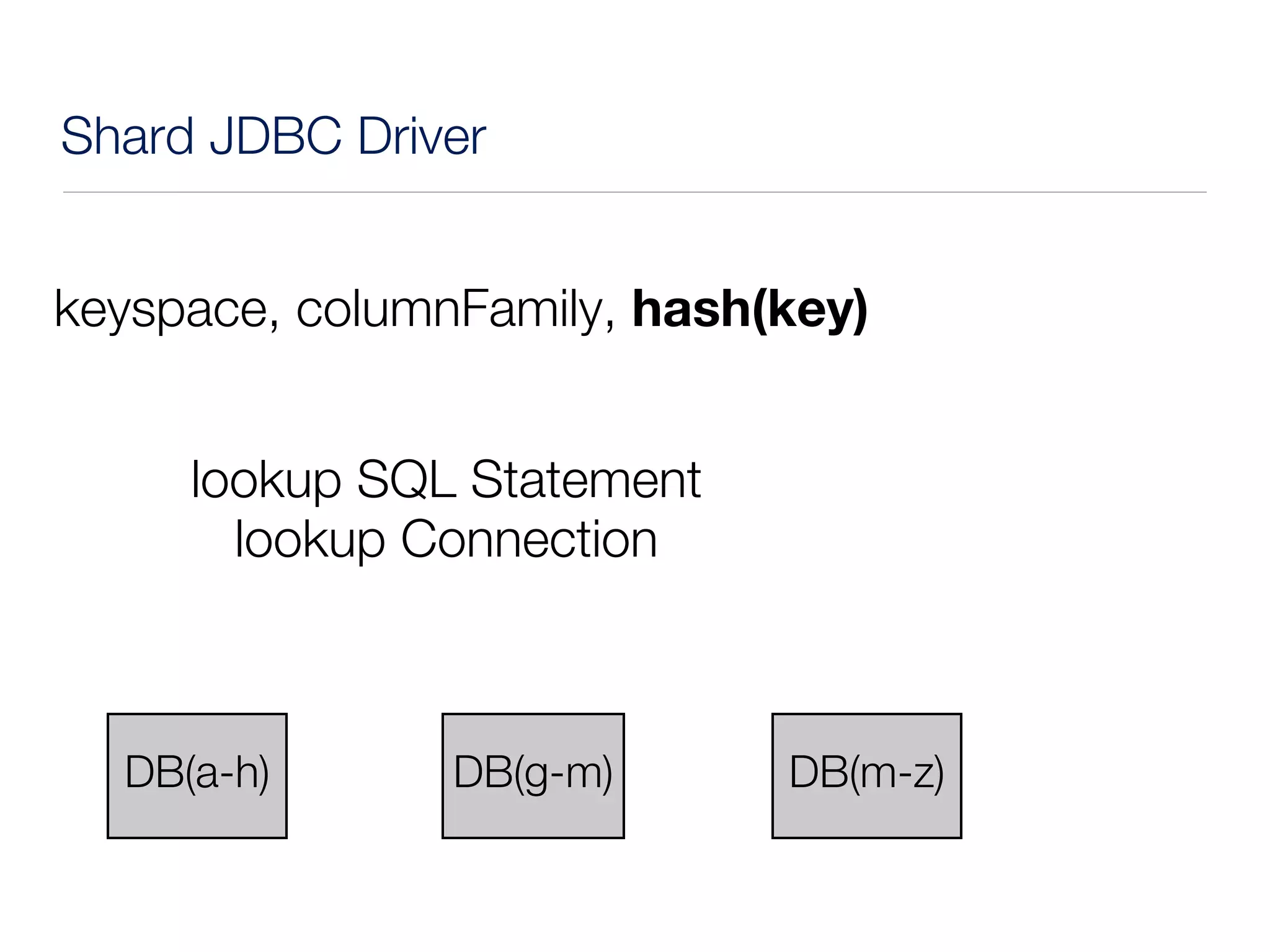

23. Shard JDBC Driver
keyspace, columnFamily, hash(key)
lookup SQL Statement
lookup Connection
DB(a-h) DB(g-m) DB(m-z)

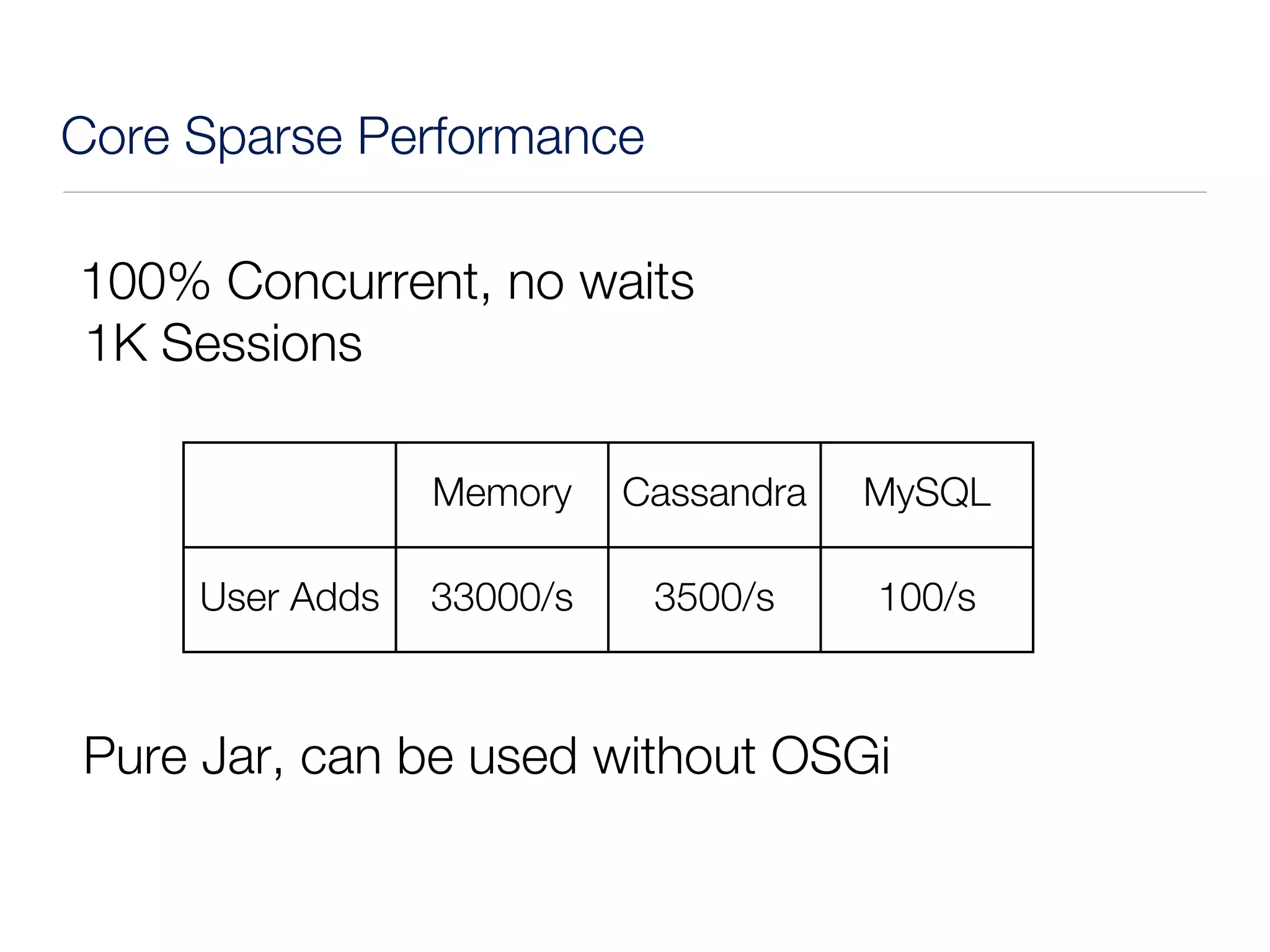

24. Core Sparse Performance
100% Concurrent, no waits
1K Sessions
Memory Cassandra MySQL
User Adds 33000/s 3500/s 100/s
Pure Jar, can be used without OSGi

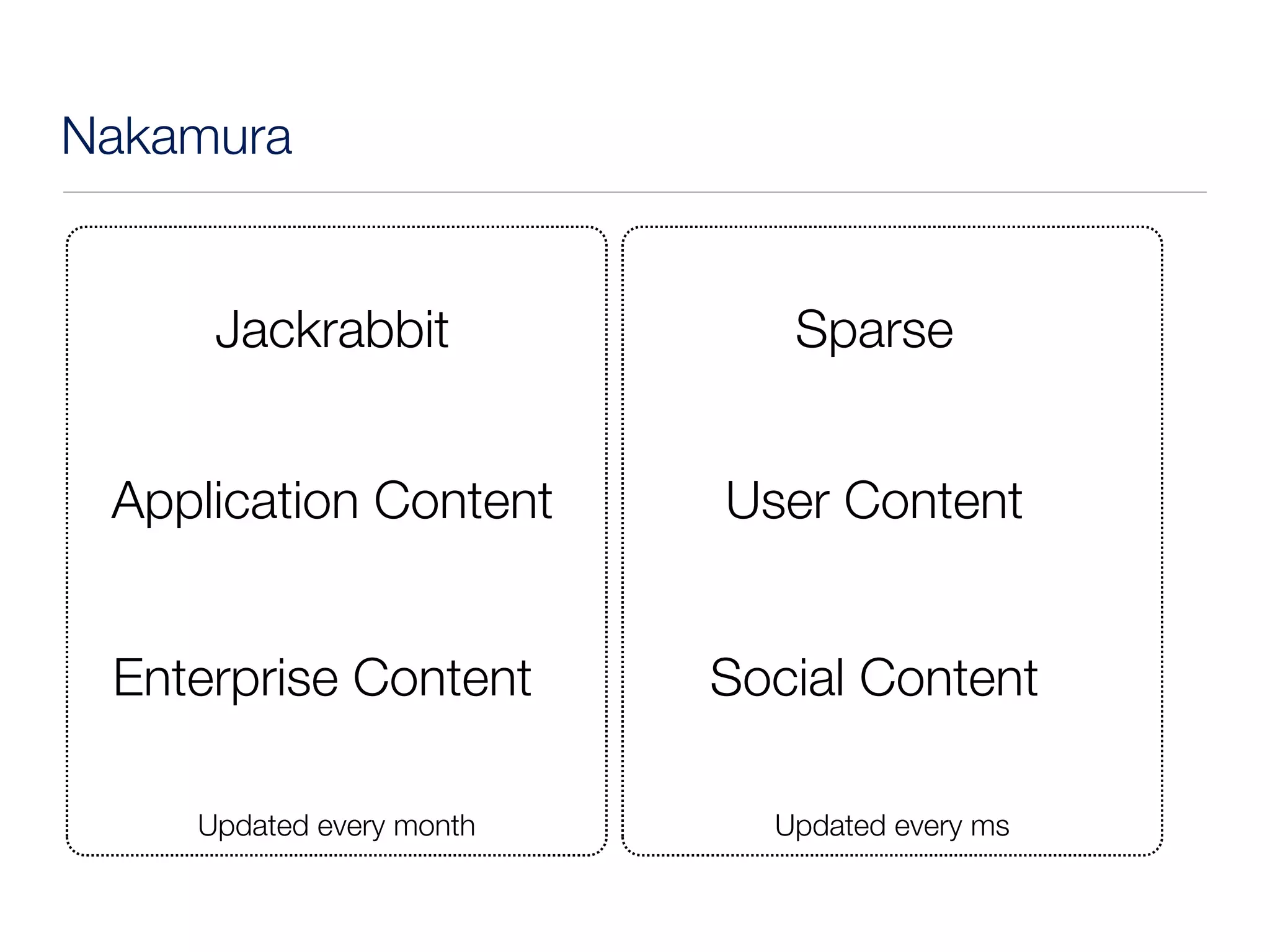

25. Nakamura
Jackrabbit Sparse
Application Content User Content
Enterprise Content Social Content
Updated every month Updated every ms
