The document provides documentation on how to perform various operations on files, folders, and libraries using the SharePoint REST API. It includes the URL structures and request types for common actions like creating, getting, updating, and deleting folders and files. It also provides examples of more advanced concepts like uploading documents, binding attachments, and creating subfolders. The document is intended as a quick reference for anyone working with the SharePoint REST API and PowerShell.

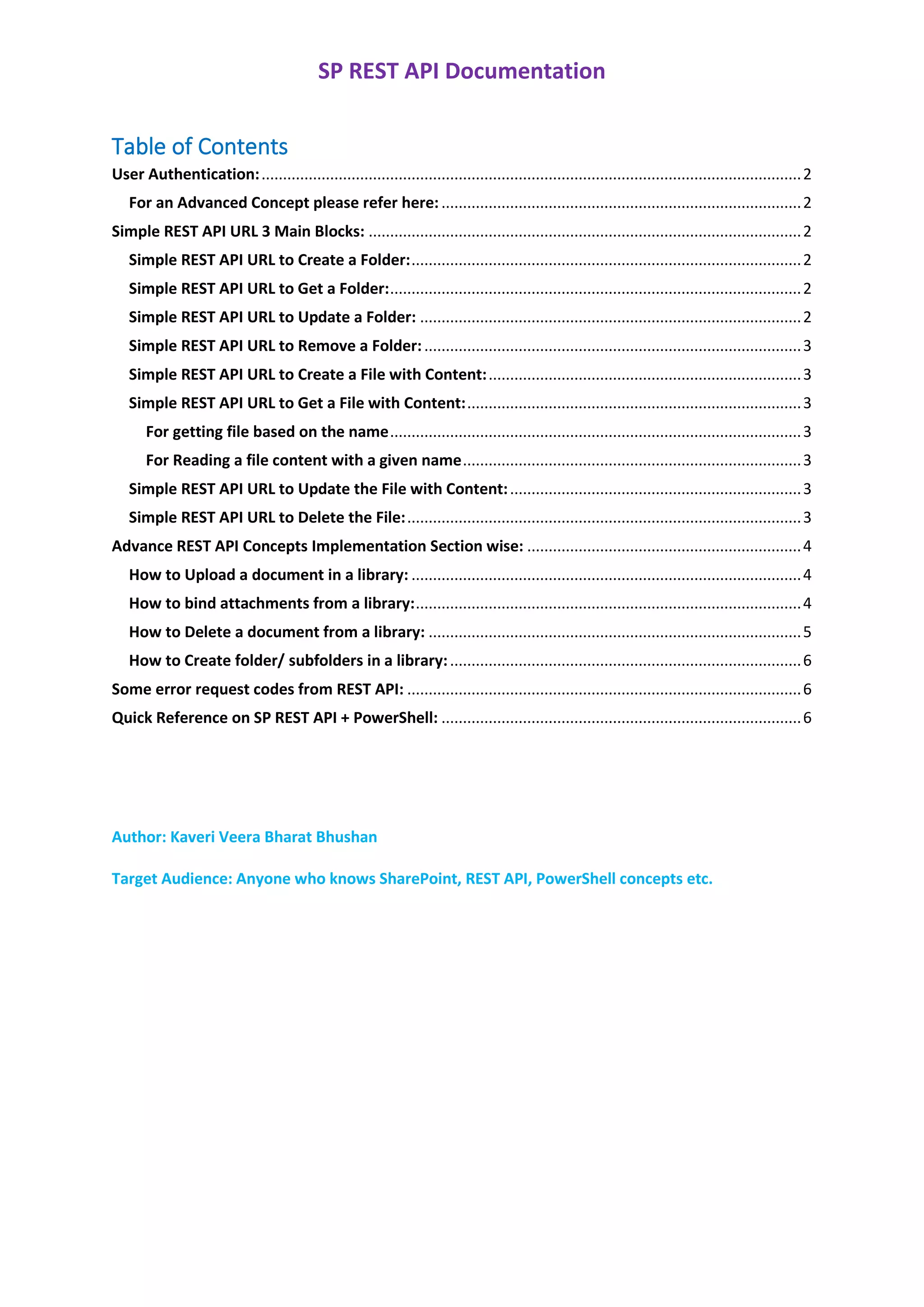

1. SP REST API Documentation
Table of Contents
User Authentication:..............................................................................................................................2
For an Advanced Concept please refer here:....................................................................................2
Simple REST API URL 3 Main Blocks: .....................................................................................................2
Simple REST API URL to Create a Folder:...........................................................................................2
Simple REST API URL to Get a Folder:................................................................................................2
Simple REST API URL to Update a Folder: .........................................................................................2
Simple REST API URL to Remove a Folder:........................................................................................3
Simple REST API URL to Create a File with Content:.........................................................................3
Simple REST API URL to Get a File with Content:..............................................................................3
For getting file based on the name................................................................................................3
For Reading a file content with a given name...............................................................................3
Simple REST API URL to Update the File with Content:....................................................................3
Simple REST API URL to Delete the File:............................................................................................3
Advance REST API Concepts Implementation Section wise: ................................................................4
How to Upload a document in a library: ...........................................................................................4
How to bind attachments from a library:..........................................................................................4
How to Delete a document from a library: .......................................................................................5
How to Create folder/ subfolders in a library:..................................................................................6
Some error request codes from REST API: ............................................................................................6
Quick Reference on SP REST API + PowerShell: ....................................................................................6
Author: Kaveri Veera Bharat Bhushan
Target Audience: Anyone who knows SharePoint, REST API, PowerShell concepts etc.

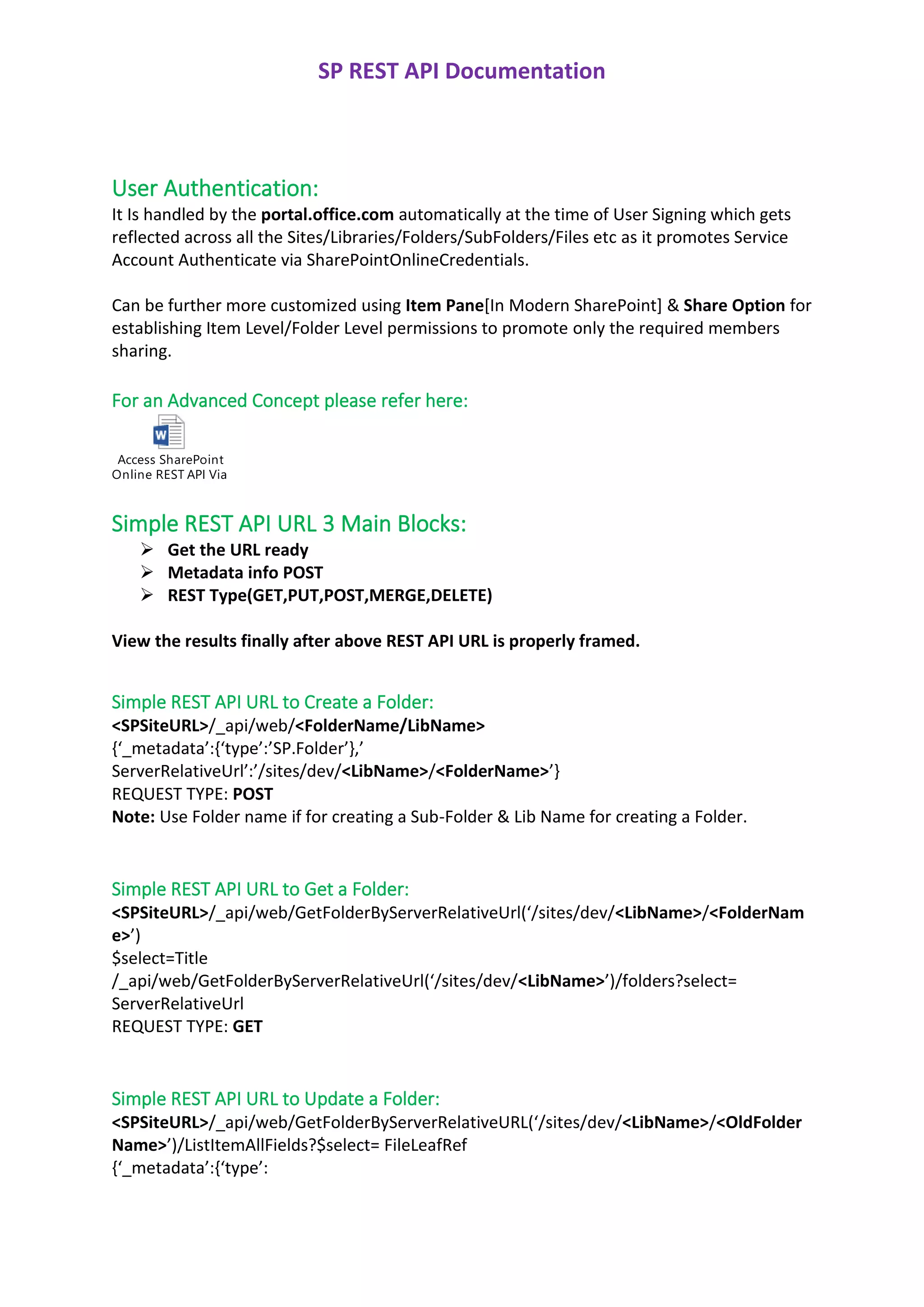

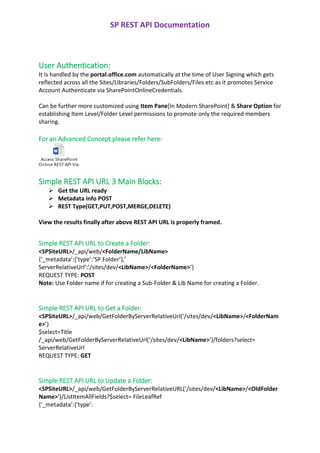

2. SP REST API Documentation
User Authentication:
It Is handled by the portal.office.com automatically at the time of User Signing which gets
reflected across all the Sites/Libraries/Folders/SubFolders/Files etc as it promotes Service
Account Authenticate via SharePointOnlineCredentials.
Can be further more customized using Item Pane[In Modern SharePoint] & Share Option for
establishing Item Level/Folder Level permissions to promote only the required members
sharing.
For an Advanced Concept please refer here:
Access SharePoint
Online REST API Via Postman With User Context.docx
Simple REST API URL 3 Main Blocks:
➢ Get the URL ready
➢ Metadata info POST
➢ REST Type(GET,PUT,POST,MERGE,DELETE)
View the results finally after above REST API URL is properly framed.
Simple REST API URL to Create a Folder:
<SPSiteURL>/_api/web/<FolderName/LibName>
{‘_metadata’:{‘type’:’SP.Folder’},’
ServerRelativeUrl’:’/sites/dev/<LibName>/<FolderName>’}
REQUEST TYPE: POST
Note: Use Folder name if for creating a Sub-Folder & Lib Name for creating a Folder.
Simple REST API URL to Get a Folder:
<SPSiteURL>/_api/web/GetFolderByServerRelativeUrl(‘/sites/dev/<LibName>/<FolderNam
e>’)
$select=Title
/_api/web/GetFolderByServerRelativeUrl(‘/sites/dev/<LibName>’)/folders?select=
ServerRelativeUrl
REQUEST TYPE: GET
Simple REST API URL to Update a Folder:
<SPSiteURL>/_api/web/GetFolderByServerRelativeURL(‘/sites/dev/<LibName>/<OldFolder
Name>’)/ListItemAllFields?$select= FileLeafRef
{‘_metadata’:{‘type’:

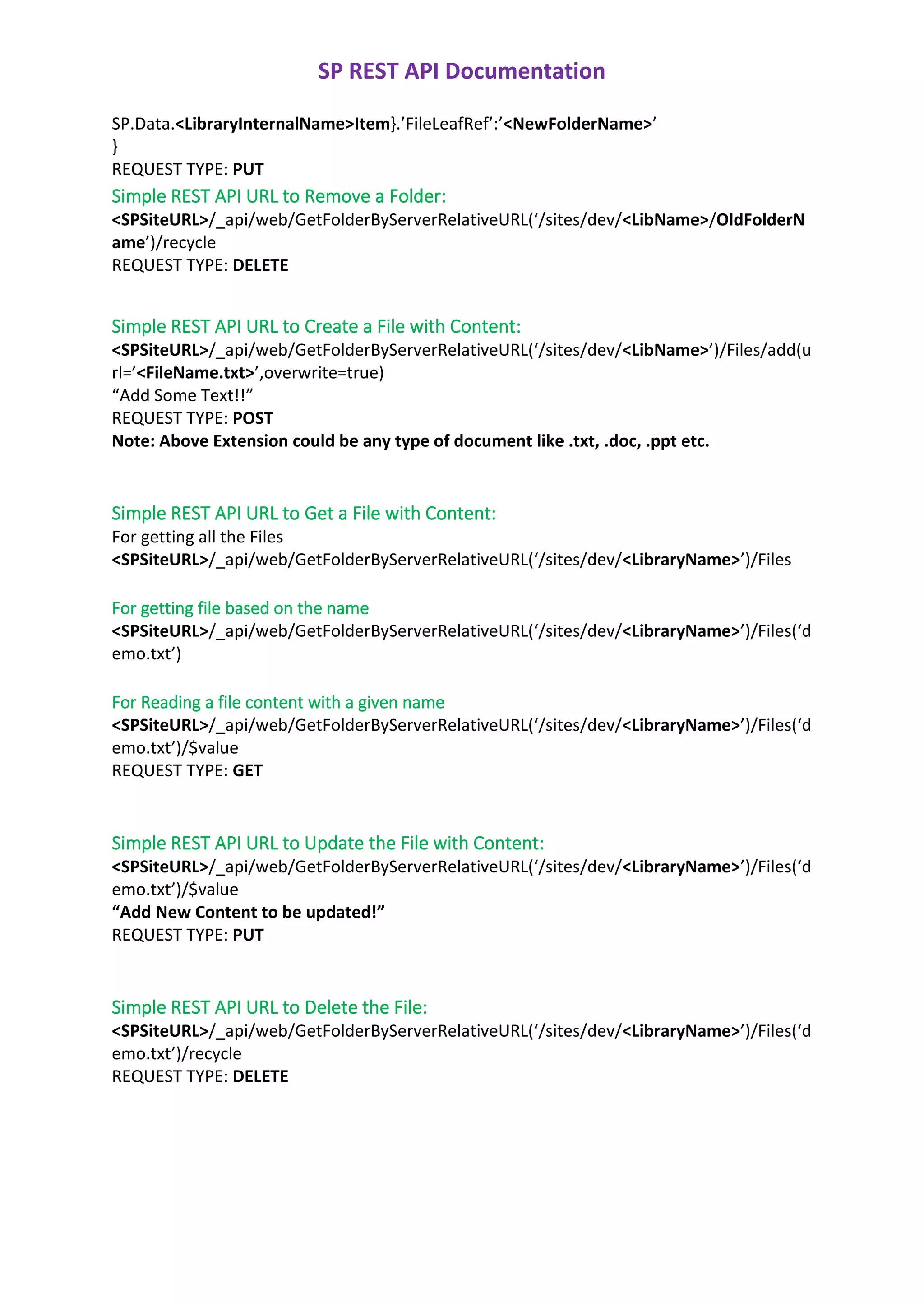

3. SP REST API Documentation
SP.Data.<LibraryInternalName>Item}.’FileLeafRef’:’<NewFolderName>’
}
REQUEST TYPE: PUT
Simple REST API URL to Remove a Folder:
<SPSiteURL>/_api/web/GetFolderByServerRelativeURL(‘/sites/dev/<LibName>/OldFolderN
ame’)/recycle
REQUEST TYPE: DELETE
Simple REST API URL to Create a File with Content:
<SPSiteURL>/_api/web/GetFolderByServerRelativeURL(‘/sites/dev/<LibName>’)/Files/add(u
rl=’<FileName.txt>’,overwrite=true)
“Add Some Text!!”
REQUEST TYPE: POST
Note: Above Extension could be any type of document like .txt, .doc, .ppt etc.
Simple REST API URL to Get a File with Content:
For getting all the Files
<SPSiteURL>/_api/web/GetFolderByServerRelativeURL(‘/sites/dev/<LibraryName>’)/Files
For getting file based on the name
<SPSiteURL>/_api/web/GetFolderByServerRelativeURL(‘/sites/dev/<LibraryName>’)/Files(‘d
emo.txt’)
For Reading a file content with a given name
<SPSiteURL>/_api/web/GetFolderByServerRelativeURL(‘/sites/dev/<LibraryName>’)/Files(‘d
emo.txt’)/$value
REQUEST TYPE: GET
Simple REST API URL to Update the File with Content:
<SPSiteURL>/_api/web/GetFolderByServerRelativeURL(‘/sites/dev/<LibraryName>’)/Files(‘d
emo.txt’)/$value
“Add New Content to be updated!”
REQUEST TYPE: PUT
Simple REST API URL to Delete the File:
<SPSiteURL>/_api/web/GetFolderByServerRelativeURL(‘/sites/dev/<LibraryName>’)/Files(‘d
emo.txt’)/recycle
REQUEST TYPE: DELETE

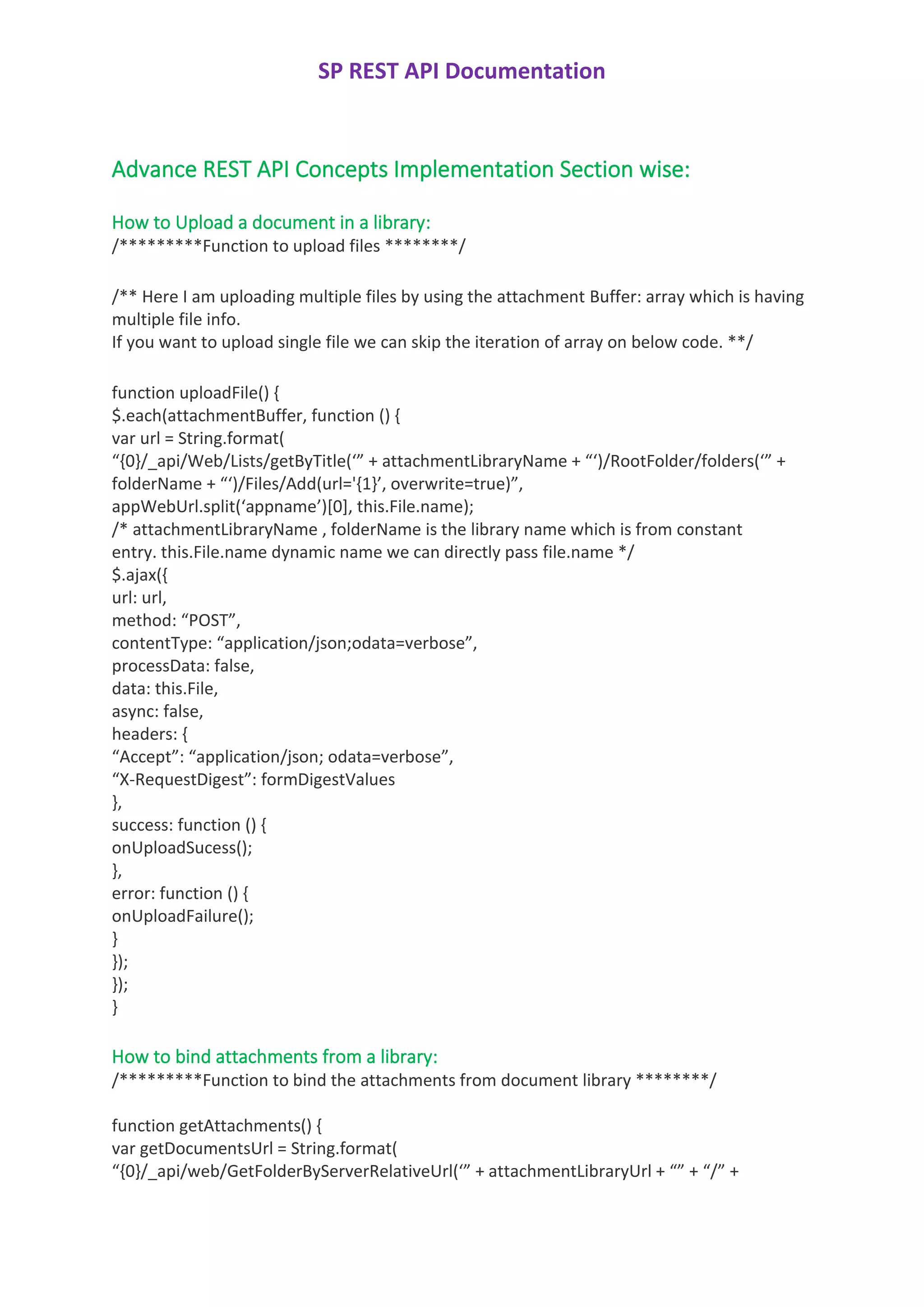

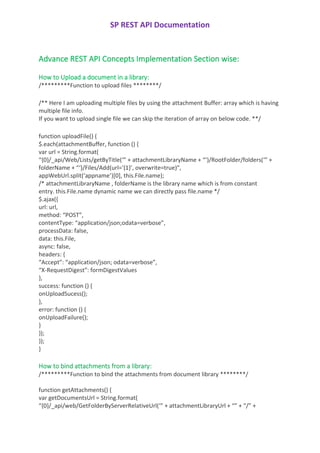

4. SP REST API Documentation
Advance REST API Concepts Implementation Section wise:
How to Upload a document in a library:
/*********Function to upload files ********/
/** Here I am uploading multiple files by using the attachment Buffer: array which is having
multiple file info.
If you want to upload single file we can skip the iteration of array on below code. **/
function uploadFile() {
$.each(attachmentBuffer, function () {
var url = String.format(
“{0}/_api/Web/Lists/getByTitle(‘” + attachmentLibraryName + “‘)/RootFolder/folders(‘” +
folderName + “‘)/Files/Add(url='{1}’, overwrite=true)”,
appWebUrl.split(‘appname’)[0], this.File.name);
/* attachmentLibraryName , folderName is the library name which is from constant
entry. this.File.name dynamic name we can directly pass file.name */
$.ajax({
url: url,
method: “POST”,
contentType: “application/json;odata=verbose”,
processData: false,
data: this.File,
async: false,
headers: {
“Accept”: “application/json; odata=verbose”,
“X-RequestDigest”: formDigestValues
},
success: function () {
onUploadSucess();
},
error: function () {
onUploadFailure();
}
});
});
}
How to bind attachments from a library:
/*********Function to bind the attachments from document library ********/
function getAttachments() {
var getDocumentsUrl = String.format(
“{0}/_api/web/GetFolderByServerRelativeUrl(‘” + attachmentLibraryUrl + “” + “/” +

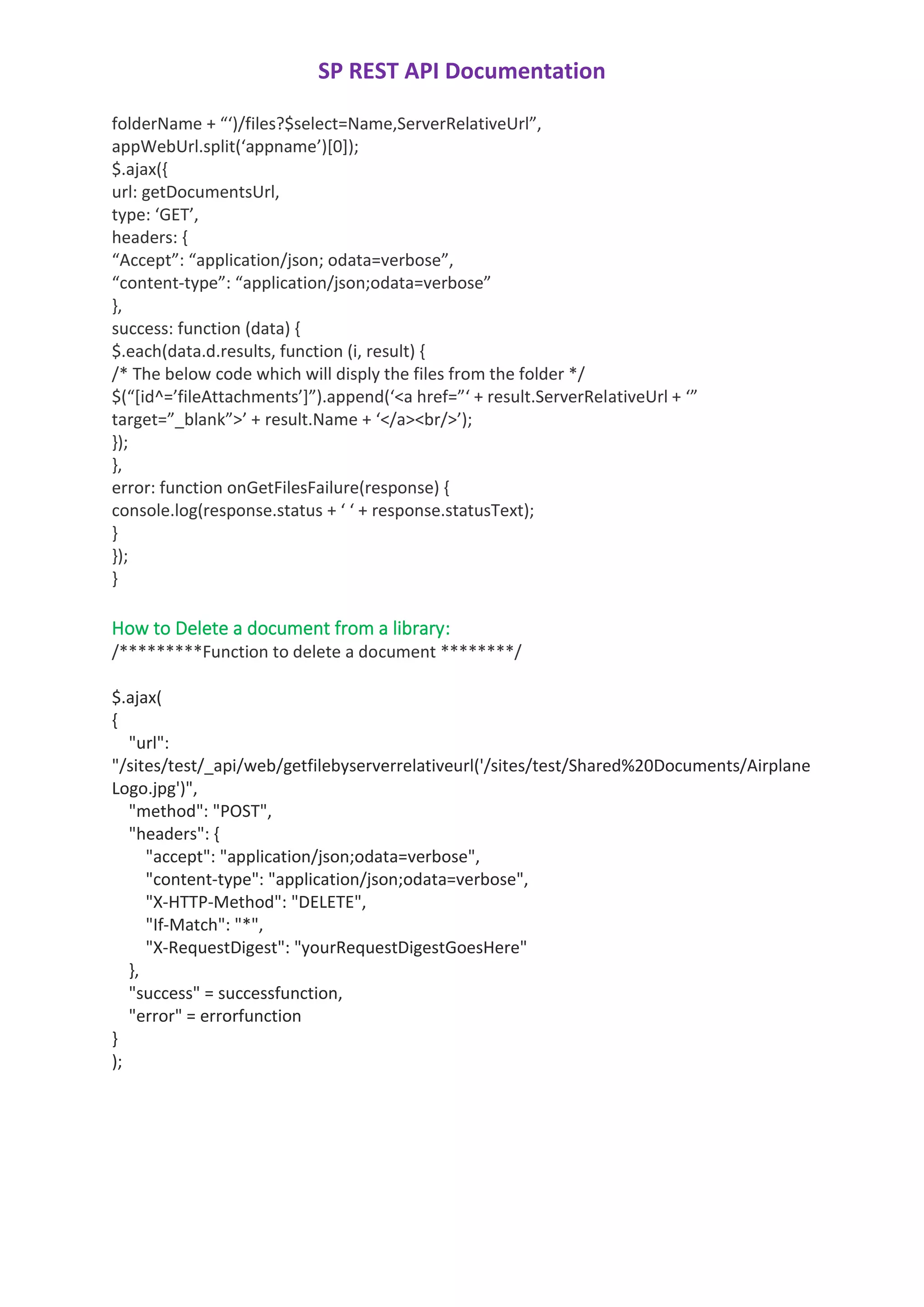

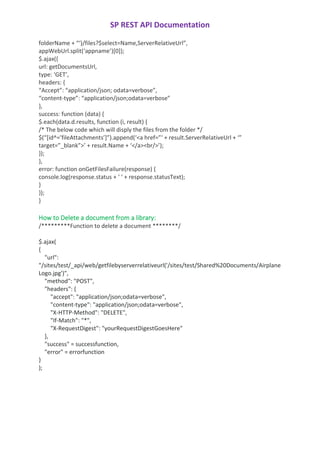

5. SP REST API Documentation
folderName + “‘)/files?$select=Name,ServerRelativeUrl”,
appWebUrl.split(‘appname’)[0]);
$.ajax({
url: getDocumentsUrl,
type: ‘GET’,
headers: {
“Accept”: “application/json; odata=verbose”,
“content-type”: “application/json;odata=verbose”
},
success: function (data) {
$.each(data.d.results, function (i, result) {
/* The below code which will disply the files from the folder */
$(“[id^=’fileAttachments’]”).append(‘<a href=”‘ + result.ServerRelativeUrl + ‘”
target=”_blank”>’ + result.Name + ‘</a><br/>’);
});
},
error: function onGetFilesFailure(response) {
console.log(response.status + ‘ ‘ + response.statusText);
}
});
}
How to Delete a document from a library:
/*********Function to delete a document ********/
$.ajax(
{
"url":
"/sites/test/_api/web/getfilebyserverrelativeurl('/sites/test/Shared%20Documents/Airplane
Logo.jpg')",
"method": "POST",
"headers": {
"accept": "application/json;odata=verbose",
"content-type": "application/json;odata=verbose",
"X-HTTP-Method": "DELETE",
"If-Match": "*",
"X-RequestDigest": "yourRequestDigestGoesHere"
},
"success" = successfunction,
"error" = errorfunction
}
);

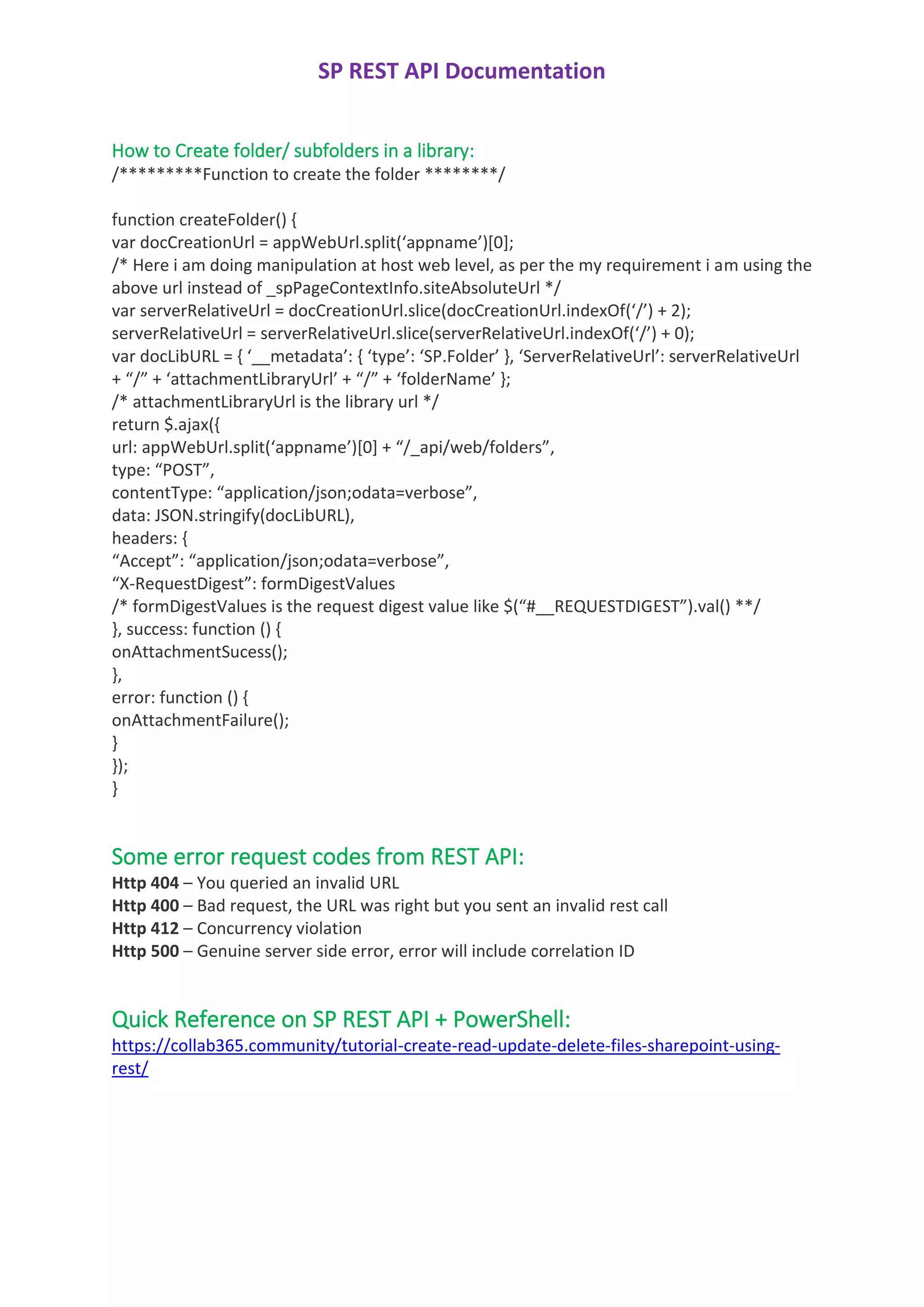

6. SP REST API Documentation
How to Create folder/ subfolders in a library:
/*********Function to create the folder ********/
function createFolder() {
var docCreationUrl = appWebUrl.split(‘appname’)[0];
/* Here i am doing manipulation at host web level, as per the my requirement i am using the
above url instead of _spPageContextInfo.siteAbsoluteUrl */
var serverRelativeUrl = docCreationUrl.slice(docCreationUrl.indexOf(‘/’) + 2);
serverRelativeUrl = serverRelativeUrl.slice(serverRelativeUrl.indexOf(‘/’) + 0);
var docLibURL = { ‘__metadata’: { ‘type’: ‘SP.Folder’ }, ‘ServerRelativeUrl’: serverRelativeUrl
+ “/” + ‘attachmentLibraryUrl’ + “/” + ‘folderName’ };
/* attachmentLibraryUrl is the library url */
return $.ajax({
url: appWebUrl.split(‘appname’)[0] + “/_api/web/folders”,
type: “POST”,
contentType: “application/json;odata=verbose”,
data: JSON.stringify(docLibURL),
headers: {
“Accept”: “application/json;odata=verbose”,
“X-RequestDigest”: formDigestValues
/* formDigestValues is the request digest value like $(“#__REQUESTDIGEST”).val() **/
}, success: function () {
onAttachmentSucess();
},
error: function () {
onAttachmentFailure();
}
});
}
Some error request codes from REST API:
Http 404 – You queried an invalid URL
Http 400 – Bad request, the URL was right but you sent an invalid rest call
Http 412 – Concurrency violation
Http 500 – Genuine server side error, error will include correlation ID
Quick Reference on SP REST API + PowerShell:
https://collab365.community/tutorial-create-read-update-delete-files-sharepoint-using-
rest/
