- The document describes an e-commerce website called ThriftShop.Kolhapur that allows customers to browse and purchase products online. It outlines the tools and technologies used to develop the website such as HTML, CSS, Java, Spring MVC, MySQL database, and Apache Tomcat server. - The system design section includes use case diagrams, sequence diagrams, and activity diagrams that illustrate the functionality for administrators and customers. Screenshots demonstrate features for registration, login, adding products, viewing products, shopping cart, and checkout. - Benefits of the proposed system include availability 24/7, time and cost savings compared to physical stores, and secure user profiles and payment processing. Future enhancements may include email notifications,

1. VISVESVARAYA TECHNOLOGICAL UNIVERSITY,
“JNANA SANGAMA”, BELGAUM – 590018,
KARNATAKA STATE
DEPARTMENT OF MASTER OF COMPUTER APPLICATIONS

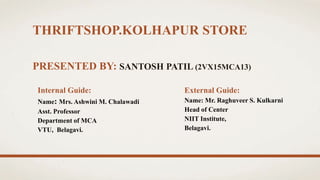

2. THRIFTSHOP.KOLHAPUR STORE
PRESENTED BY: SANTOSH PATIL (2VX15MCA13)
Internal Guide:
Name: Mrs. Ashwini M. Chalawadi
Asst. Professor
Department of MCA
VTU, Belagavi.
External Guide:
Name: Mr. Raghuveer S. Kulkarni
Head of Center
NIIT Institute,
Belagavi.

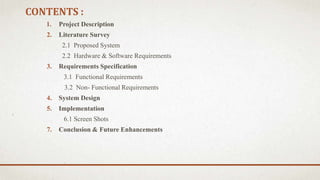

3. CONTENTS :
1. Project Description
2. Literature Survey
2.1 Proposed System
2.2 Hardware & Software Requirements
3. Requirements Specification
3.1 Functional Requirements
3.2 Non- Functional Requirements
4. System Design
5. Implementation
6.1 Screen Shots
7. Conclusion & Future Enhancements

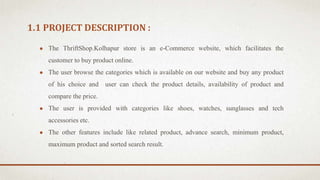

4. 1.1 PROJECT DESCRIPTION :
● The ThriftShop.Kolhapur store is an e-Commerce website, which facilitates the
customer to buy product online.
● The user browse the categories which is available on our website and buy any product
of his choice and user can check the product details, availability of product and
compare the price.
● The user is provided with categories like shoes, watches, sunglasses and tech
accessories etc.
● The other features include like related product, advance search, minimum product,
maximum product and sorted search result.

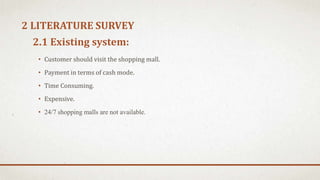

5. 2.1 Existing system:
• Customer should visit the shopping mall.
• Payment in terms of cash mode.
• Time Consuming.
• Expensive.
• 24/7 shopping malls are not available.
2 LITERATURE SURVEY

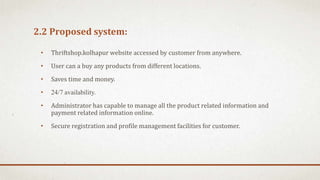

6. 2.2 Proposed system:
• Thriftshop.kolhapur website accessed by customer from anywhere.
• User can a buy any products from different locations.
• Saves time and money.
• 24/7 availability.
• Administrator has capable to manage all the product related information and
payment related information online.
• Secure registration and profile management facilities for customer.

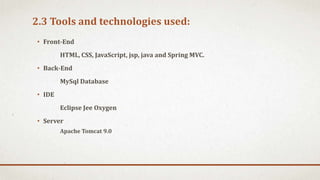

7. 2.3 Tools and technologies used:
• Front-End
HTML, CSS, JavaScript, jsp, java and Spring MVC.
• Back-End
MySql Database
• IDE
Eclipse Jee Oxygen
• Server
Apache Tomcat 9.0

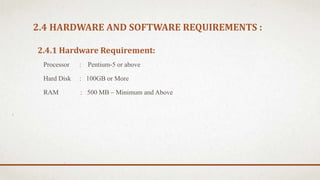

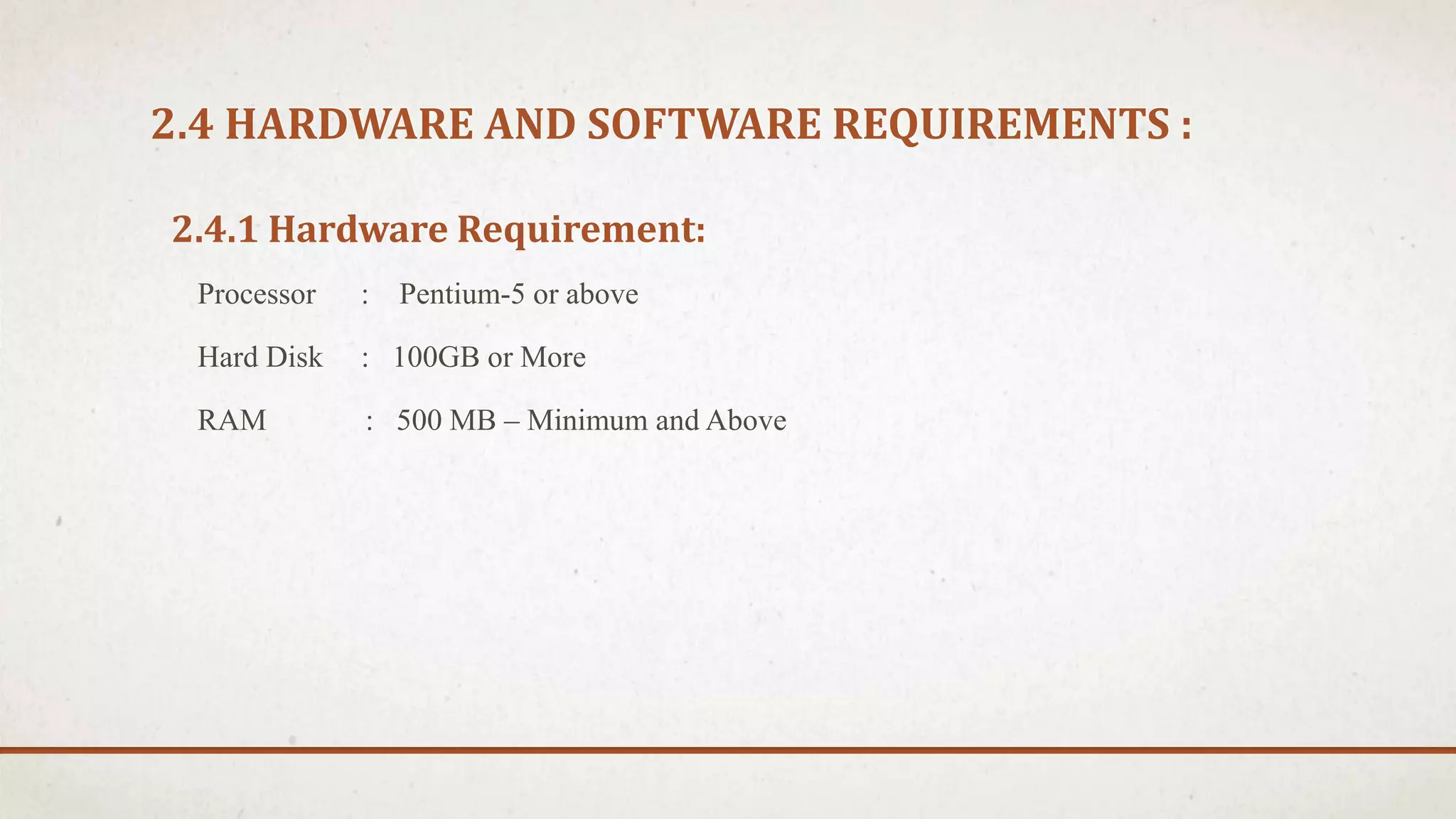

8. 2.4 HARDWARE AND SOFTWARE REQUIREMENTS :
2.4.1 Hardware Requirement:
Processor : Pentium-5 or above
Hard Disk : 100GB or More
RAM : 500 MB – Minimum and Above

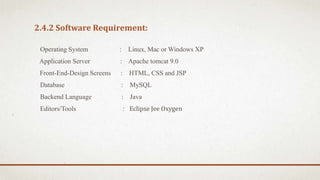

9. 2.4.2 Software Requirement:
Operating System : Linux, Mac or Windows XP
Application Server : Apache tomcat 9.0
Front-End-Design Screens : HTML, CSS and JSP
Database : MySQL
Backend Language : Java
Editors/Tools : Eclipse Jee Oxygen

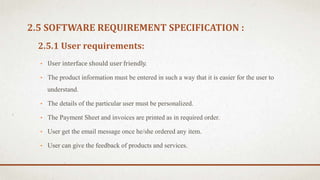

10. 2.5.1 User requirements:
• User interface should user friendly.
• The product information must be entered in such a way that it is easier for the user to
understand.
• The details of the particular user must be personalized.
• The Payment Sheet and invoices are printed as in required order.
• User get the email message once he/she ordered any item.
• User can give the feedback of products and services.
2.5 SOFTWARE REQUIREMENT SPECIFICATION :

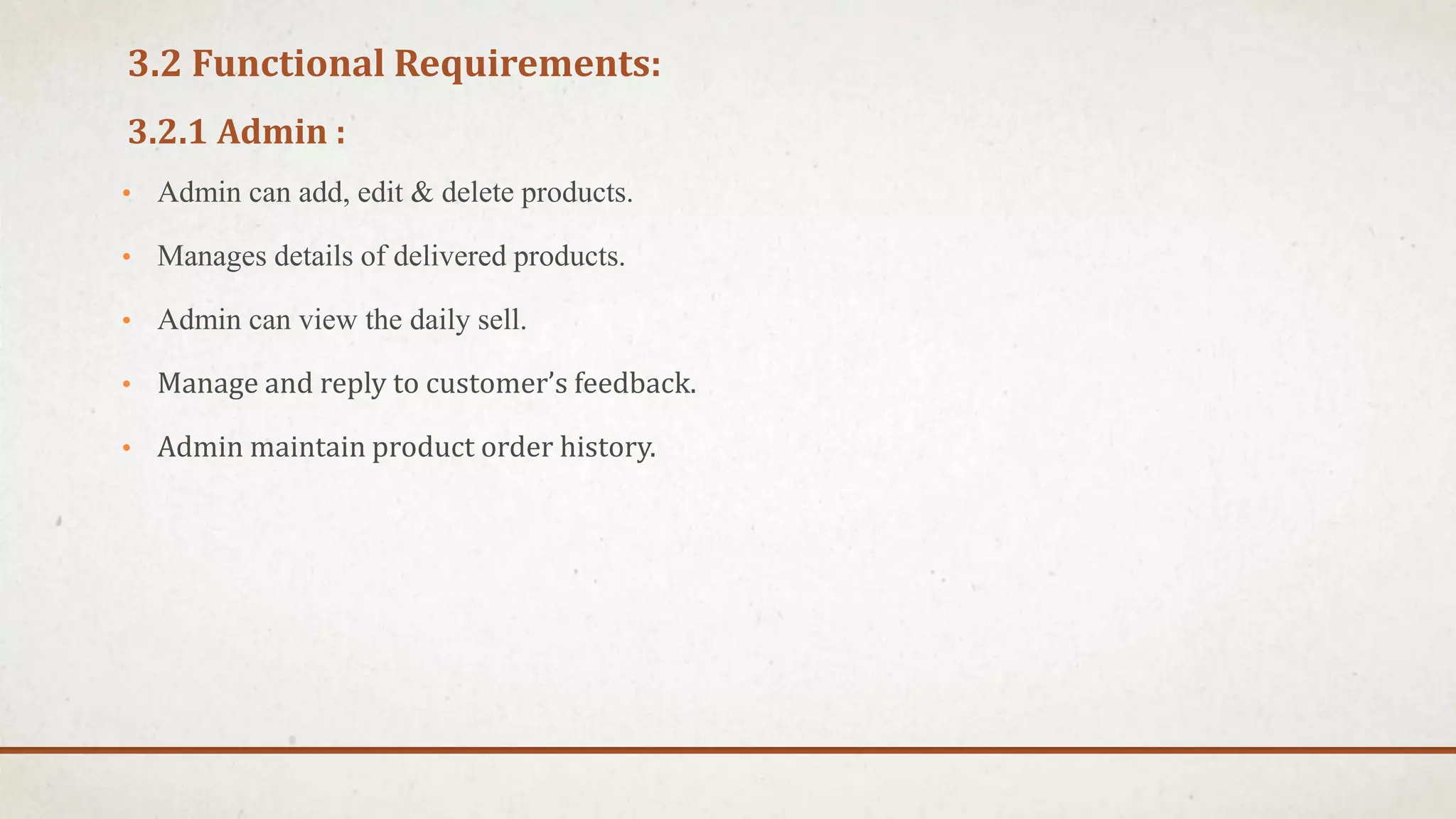

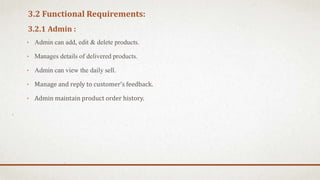

11. 3.2 Functional Requirements:
3.2.1 Admin :
• Admin can add, edit & delete products.
• Manages details of delivered products.
• Admin can view the daily sell.
• Manage and reply to customer’s feedback.
• Admin maintain product order history.

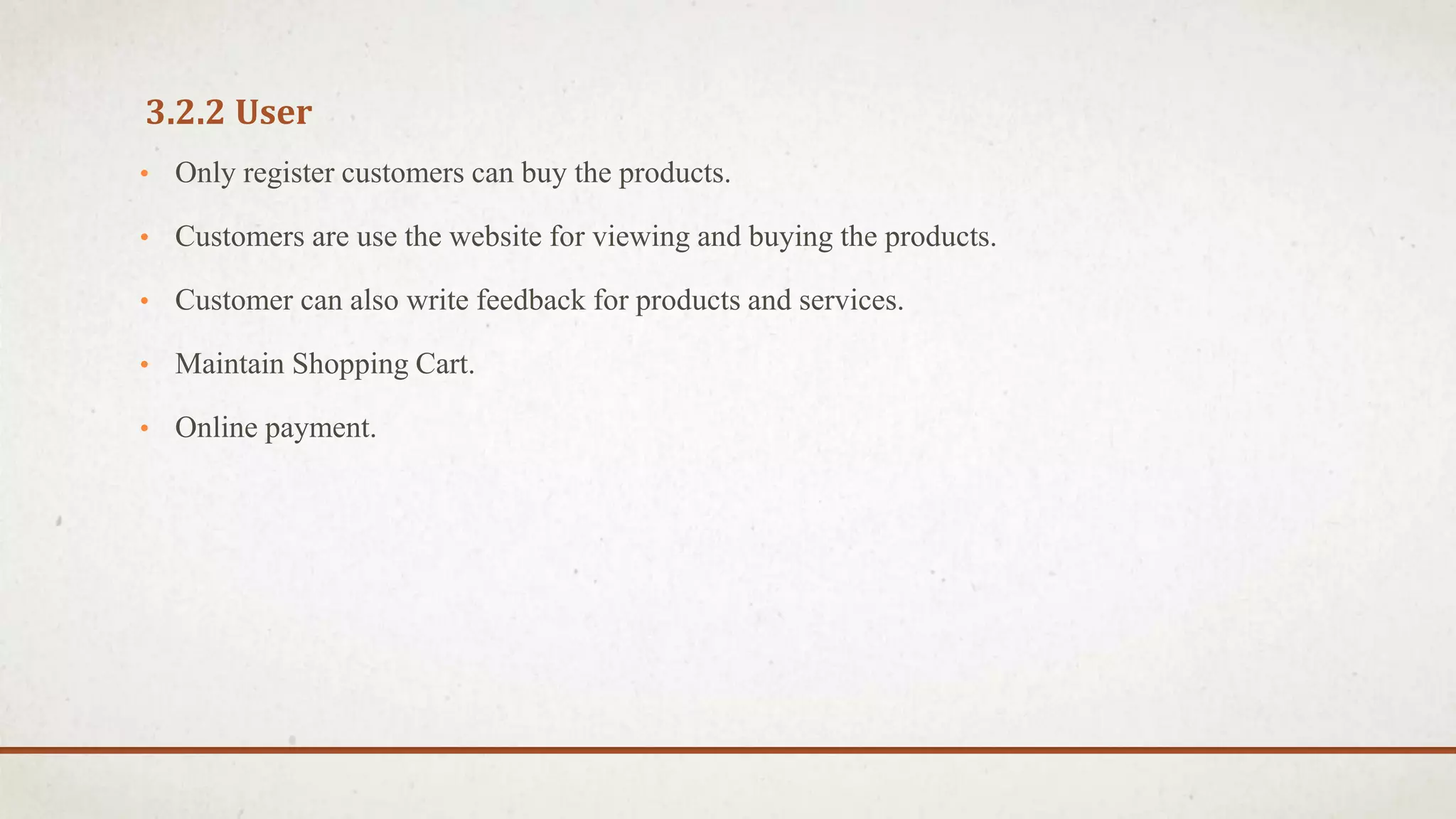

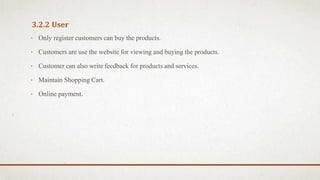

12. 3.2.2 User
• Only register customers can buy the products.
• Customers are use the website for viewing and buying the products.
• Customer can also write feedback for products and services.
• Maintain Shopping Cart.
• Online payment.

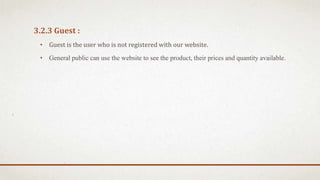

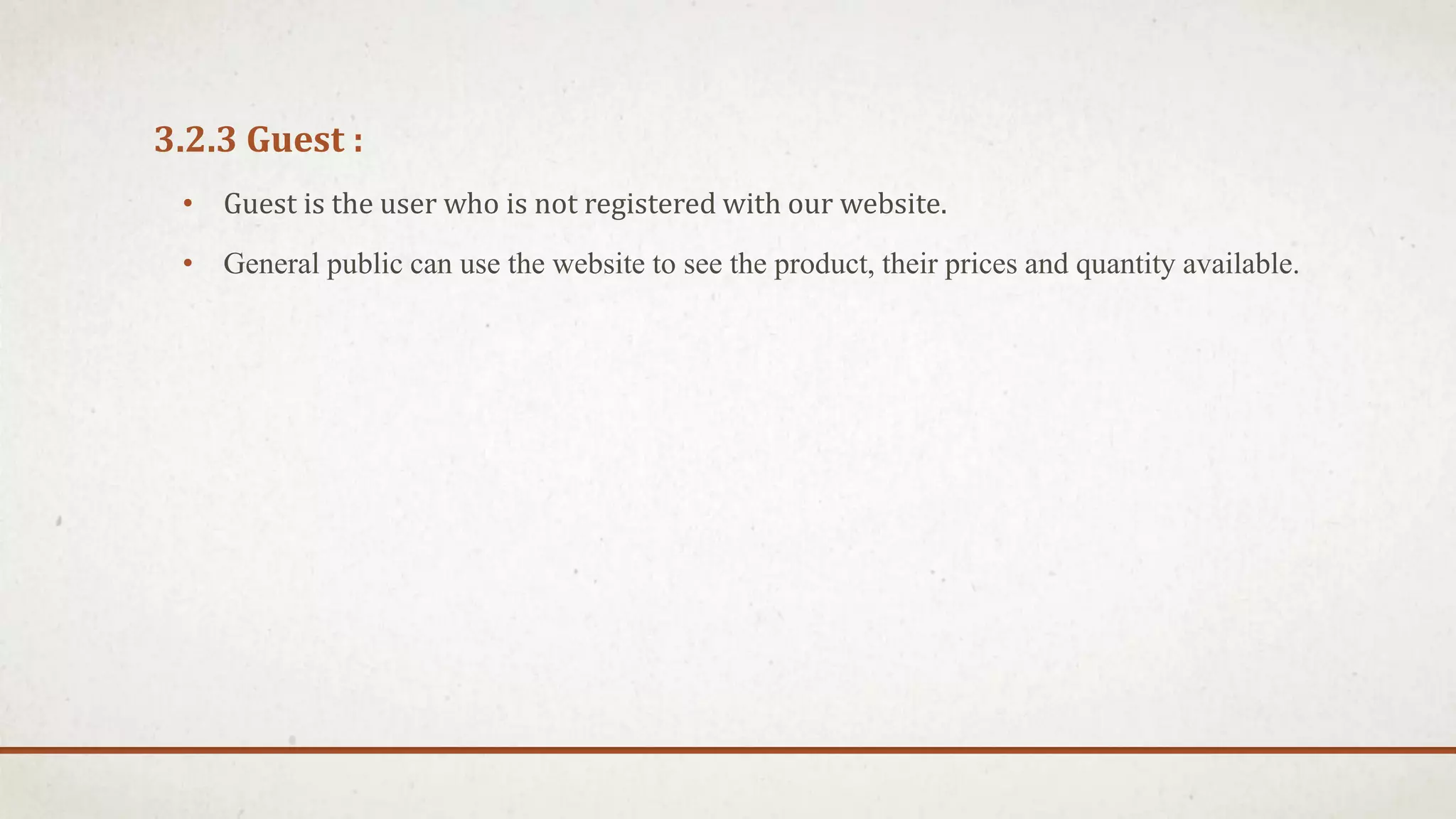

13. 3.2.3 Guest :
• Guest is the user who is not registered with our website.
• General public can use the website to see the product, their prices and quantity available.

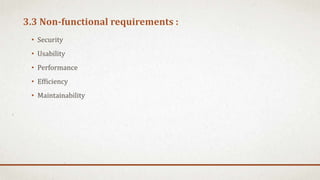

14. 3.3 Non-functional requirements :
• Security
• Usability
• Performance
• Efficiency
• Maintainability

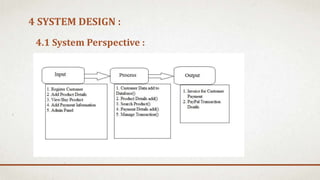

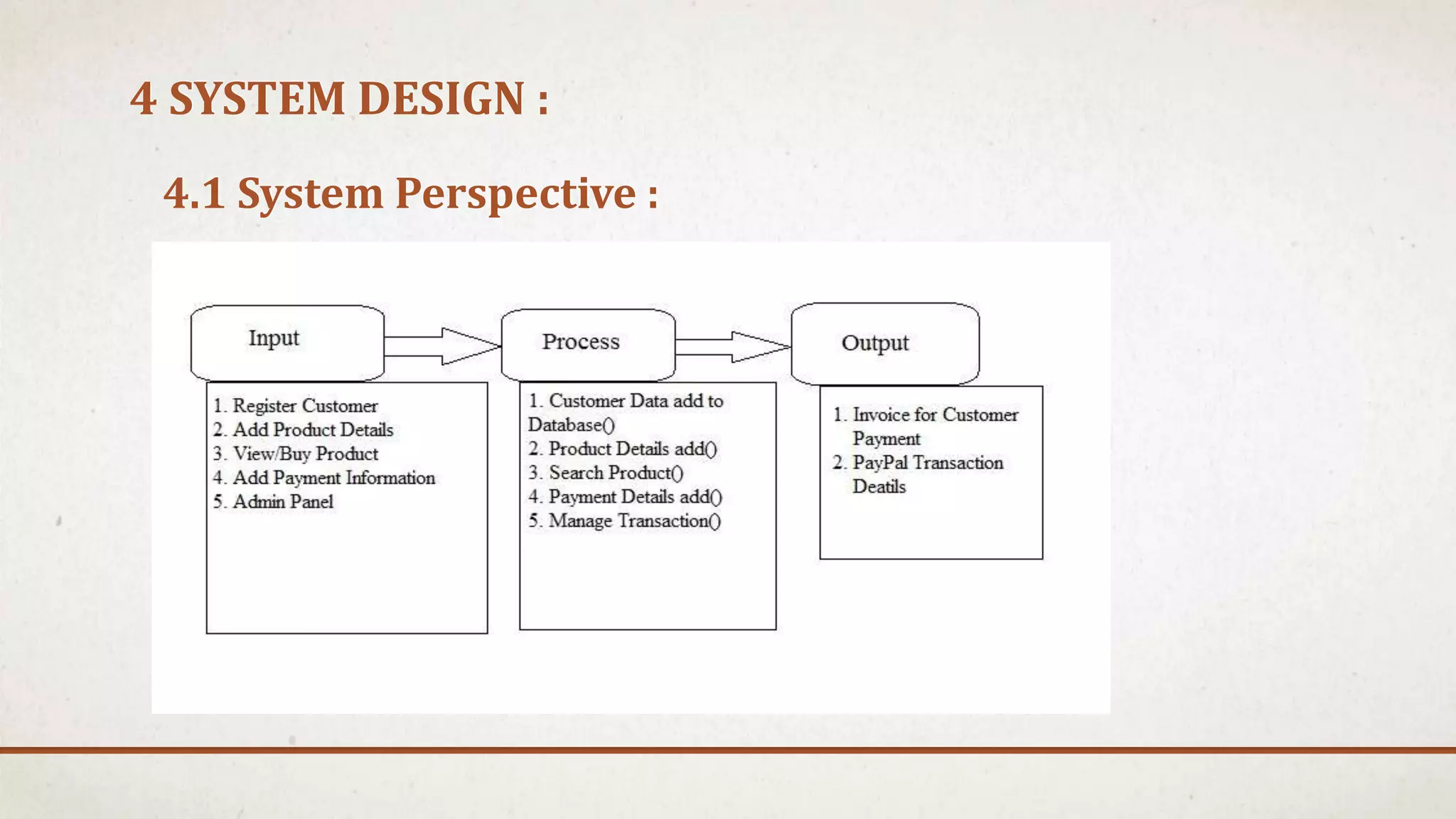

15. 4 SYSTEM DESIGN :
4.1 System Perspective :

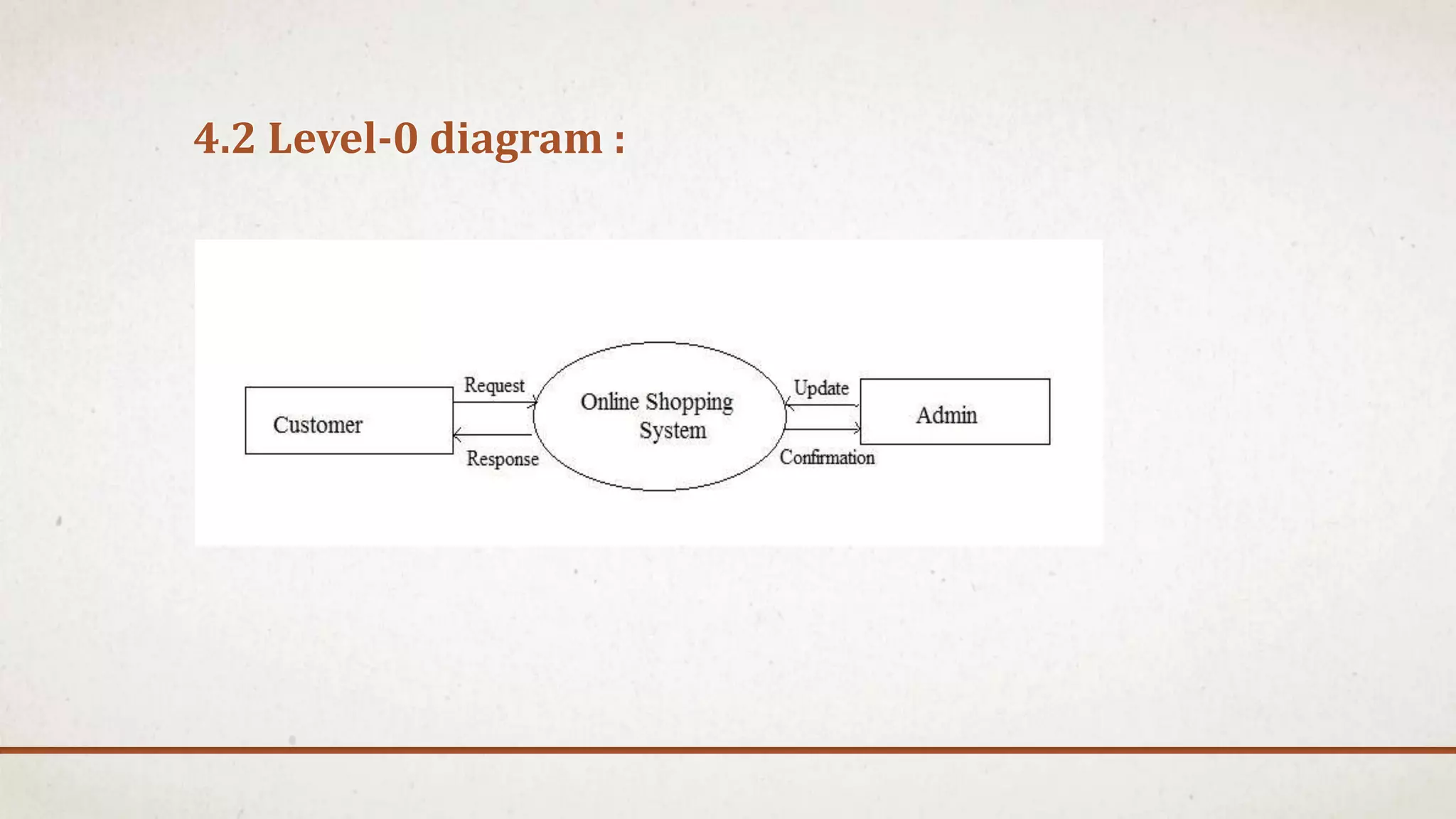

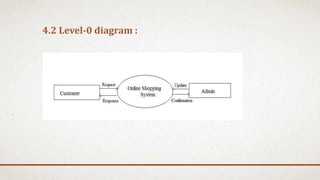

16. 4.2 Level-0 diagram :

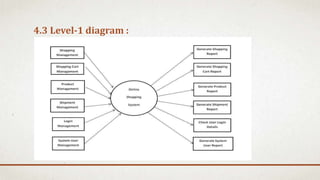

17. 4.3 Level-1 diagram :

18. 5.1.1 Use case diagram for admin :
5 DETAILED DESIGN :

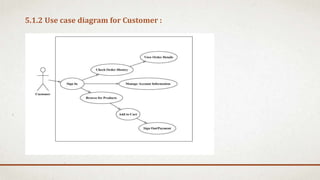

19. 5.1.2 Use case diagram for Customer :

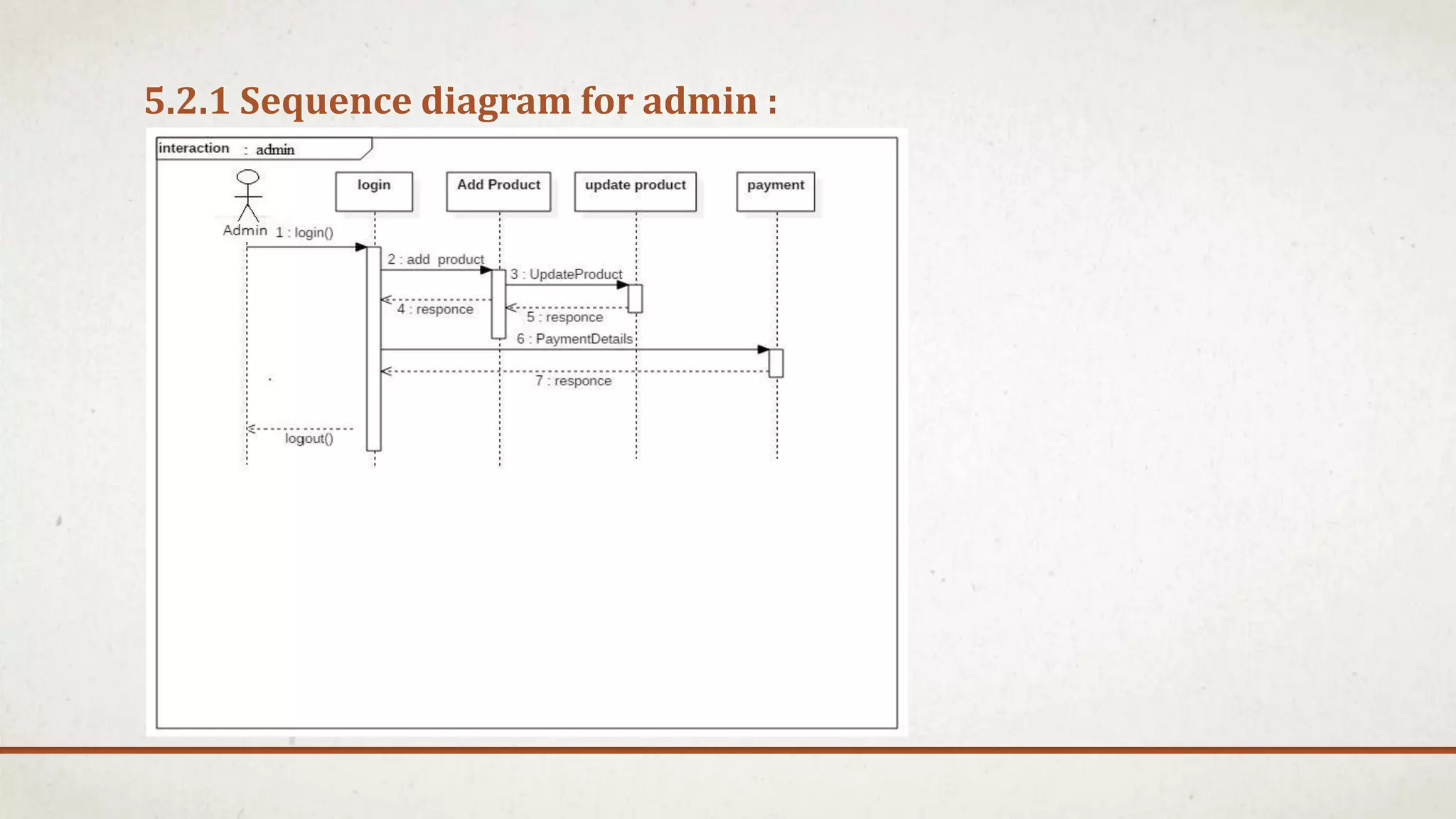

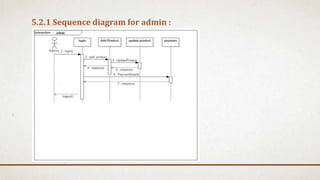

20. 5.2.1 Sequence diagram for admin :

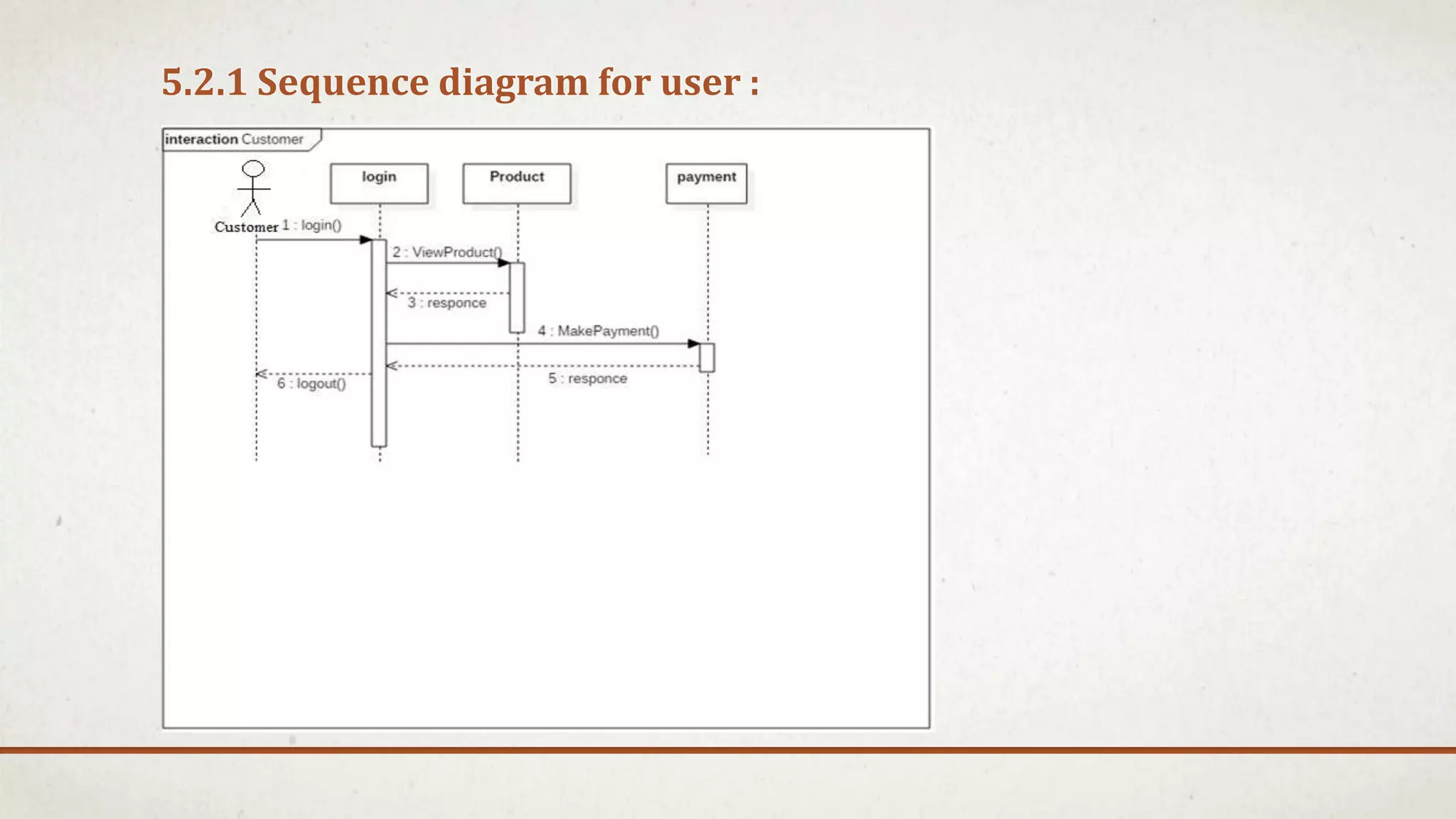

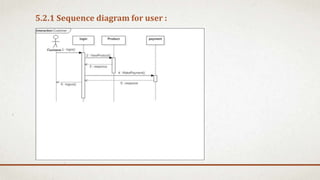

21. 5.2.1 Sequence diagram for user :

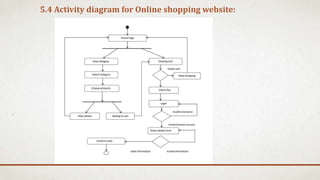

22. 5.4 Activity diagram for Online shopping website:

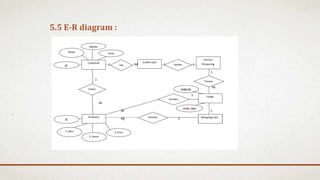

23. 5.5 E-R diagram :

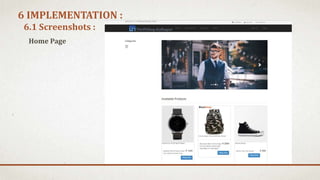

24. 6 IMPLEMENTATION :
Home Page
6.1 Screenshots :

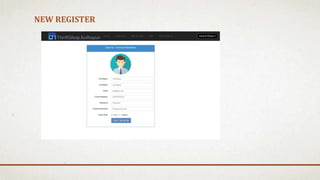

25. NEW REGISTER

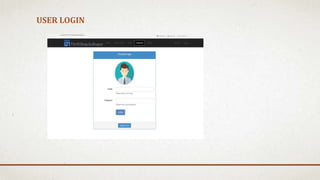

26. USER LOGIN

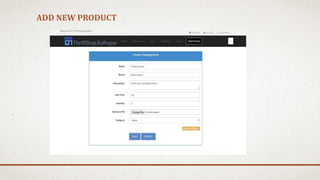

27. ADD NEW PRODUCT

28. PRODUCT VIEW: OUT OF STOCK PRODUCT:

29. AVAILABLE PRODUCTS LIST: SHOPPING CART:

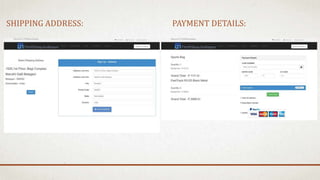

30. SHIPPING ADDRESS: PAYMENT DETAILS:

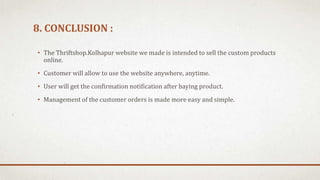

31. 8. CONCLUSION :
• The Thriftshop.Kolhapur website we made is intended to sell the custom products
online.
• Customer will allow to use the website anywhere, anytime.
• User will get the confirmation notification after baying product.
• Management of the customer orders is made more easy and simple.

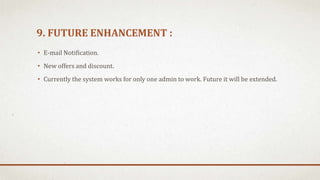

32. 9. FUTURE ENHANCEMENT :
• E-mail Notification.
• New offers and discount.
• Currently the system works for only one admin to work. Future it will be extended.

33. THANK YOU
