The document summarizes the SOLID principles of object-oriented design, including the Single Responsibility Principle, Open/Closed Principle, Liskov Substitution Principle, Interface Segregation Principle, and Dependency Inversion Principle. It also discusses Inversion of Control and Dependency Injection, explaining how following these principles helps make software more reusable, extensible, replaceable, loosely coupled, cohesive, and testable. The document provides definitions and examples for each principle and design pattern.

1. eleks.comeleks.com
SOLID AND IOC PRINCIPLES
The first five principles of OOP design… And the
additional one
Mykhailo Romaniuk

2. Single Responsibility Principle

3. SRP
A class should have only one reason to change
Robert C. Martin

4. SRP
States that every module or class should have
responsibility over a single part of the
functionality provided by the software, and that
responsibility should be entirely encapsulated
by the class

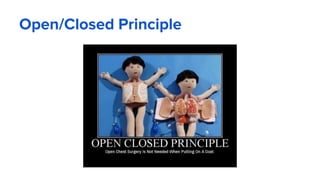

5. Open/Closed Principle

6. OCP
Objects or entities should be open for
extension, but closed for modification
Bertrand Meyer

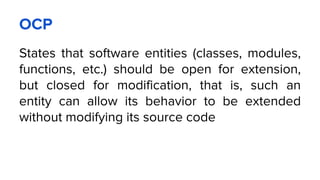

7. OCP
States that software entities (classes, modules,
functions, etc.) should be open for extension,
but closed for modification, that is, such an
entity can allow its behavior to be extended
without modifying its source code

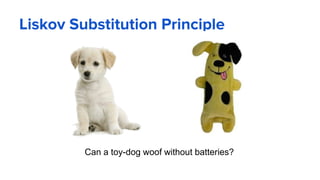

8. Liskov Substitution Principle
Can a toy-dog woof without batteries?

9. LSP
Let f(x) be a property of objects X of type T.
Then f(y) should be true for objects Y of type S
where S is a subtype of T
Barbara Liskov

10. LSP
States that if S is a subtype of T, then objects of
type T may be replaced with objects of type S
without altering any of the desirable properties
of that program (correctness, task performed)

11. Interface Segregation Principle

12. ISP
Many client-specific interfaces are better than
one general-purpose interface
Robert C. Martin

13. ISP
States that no client should be forced to depend
on methods it does not use. Thus having
multiple grained interfaces is better that one.

14. Dependency Inversion Principle

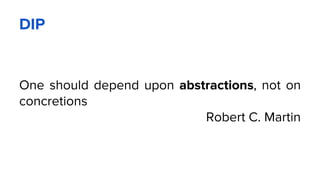

15. DIP
One should depend upon abstractions, not on
concretions
Robert C. Martin

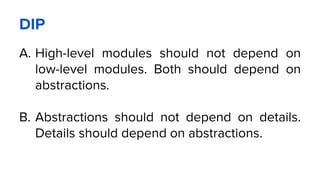

16. DIP
A. High-level modules should not depend on
low-level modules. Both should depend on
abstractions.
B. Abstractions should not depend on details.
Details should depend on abstractions.

17. Inversion of Control Principle

18. What Is IoC?
In software engineering, IoC describes a design in which
custom-written portions of a computer program receive the
flow of control from a generic, reusable library.
Wikipedia

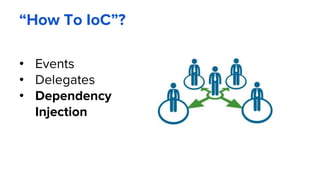

19. “How To IoC”?
• Events
• Delegates
• Dependency
Injection

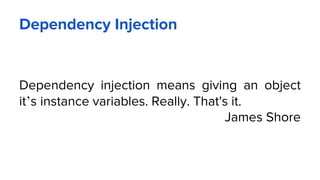

20. Dependency Injection
Dependency injection means giving an object
it’s instance variables. Really. That's it.
James Shore

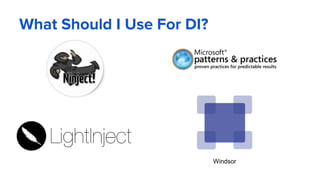

21. What Should I Use For DI?
Windsor

22. Injection Types
• Constructor
Injection
• Using Property
• Thru Initialization
Method

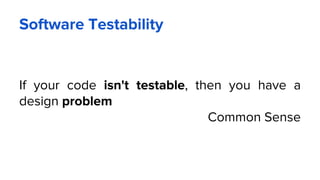

23. Software Testability
If your code isn't testable, then you have a
design problem
Common Sense

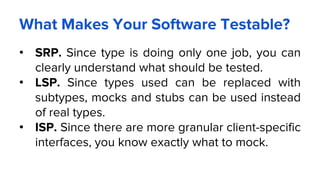

24. What Makes Your Software Testable?
• SRP. Since type is doing only one job, you can
clearly understand what should be tested.
• LSP. Since types used can be replaced with
subtypes, mocks and stubs can be used instead
of real types.
• ISP. Since there are more granular client-specific
interfaces, you know exactly what to mock.

25. Let’s Review Some Concepts
• Reusable. Higher-level
components can be reused if
lower-lever components change
with time to meet the
requirements.
• Extensible. Software is easily
extended with new components
and features because design is
based on abstractions.
• Replaceable. Lower-level
components can be replaced to
meet new requirements without
modifying existing code.
• Loosely Coupled. Allows
components to perform on their
own with as little knowledge as
possible about other
components.
• Cohesive. Build you software
easily with different components
as building blocks.
• Testable. It is easy to understand
what and how to test in each
component because components
are loosely-coupled.

26. Thanks! Any Questions?

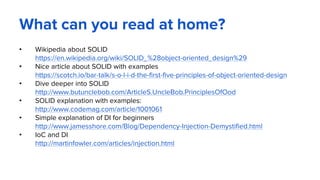

27. What can you read at home?
• Wikipedia about SOLID
https://en.wikipedia.org/wiki/SOLID_%28object-oriented_design%29
• Nice article about SOLID with examples
https://scotch.io/bar-talk/s-o-l-i-d-the-first-five-principles-of-object-oriented-design
• Dive deeper into SOLID
http://www.butunclebob.com/ArticleS.UncleBob.PrinciplesOfOod
• SOLID explanation with examples:
http://www.codemag.com/article/1001061
• Simple explanation of DI for beginners
http://www.jamesshore.com/Blog/Dependency-Injection-Demystified.html
• IoC and DI
http://martinfowler.com/articles/injection.html
