1. Abeynayake A.A.D.I- 180002H
Residential solar
energy system
1
ENERGY TECHNOLOGY AND ENVIRONMENT
ME 4242

2. 2

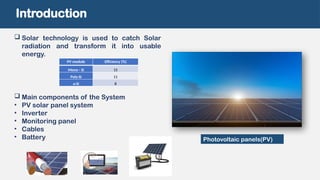

 Solar technology is used to catch Solar
radiation and transform it into usable
energy.
Photovoltaic panels(PV)
 Main components of the System
• PV solar panel system
• Inverter
• Monitoring panel
• Cables
• Battery
Introduction
PV module Efficiency (%)
Mono - Si 15
Poly-Si 11
a-Si 8

3. Selected best field
3
Length = 370 inches
Width = 180 inches
Roof (inches) Panel (inches) Number of panels
Length 370 39 9
Width 180 65 2
Required number of panels 18
 Required number of solar panels = 18
 Estimation of the Required number of solar
panels

4. 4
Maximum possible daily electricity generation

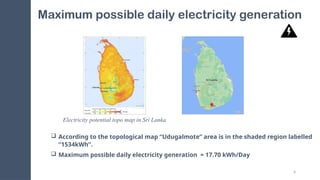

 According to the topological map “Udugalmote” area is in the shaded region labelled
“1534kWh”.
 Maximum possible daily electricity generation = 17.70 kWh/Day
Electricity potential topo map in Sri Lanka

5. 5

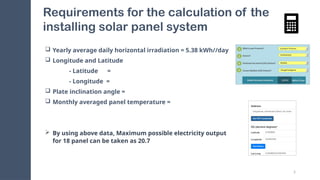

Requirements for the calculation of the
installing solar panel system
 Yearly average daily horizontal irradiation = 5.38 kWh//day
 Longitude and Latitude
- Latitude =
- Longitude =
 Plate inclination angle =
 Monthly averaged panel temperature =
 By using above data, Maximum possible electricity output
for 18 panel can be taken as 20.7

6. 6

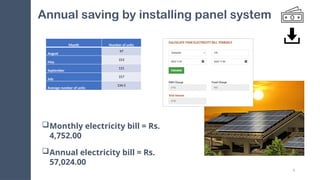

Annual saving by installing panel system
Month Number of units
August
97
May
153
September
131
July
157
Average number of units
134.5
Monthly electricity bill = Rs.
4,752.00
Annual electricity bill = Rs.
57,024.00

7. 7
Simple payback period of cost for installing
solar panel system
Initial cost
1 Cost for panels
2 Inverter
3 Solar net meter and other components
4 Transportation and labor cost
Rs 1,219,600.00
 Energy generated by panels per month = 20.7 *30 = 621 kWh
 Annual energy generated and exported to the grid = (621 – 135) *12 = 5,832 kWh
 Annual income from the energy exported to the grid in first 7 years = Rs. 898,128.00

8. 8
Simple payback period of cost for installing
solar panel system ctd…
Initial cost
Annual income from the energy exported to the grid in the first 7 years
Annual income from the energy exported to the grid after 7 years
Annual savings from your project during the first YY year by installing solar panels
Payback Period = 6 years 6 months.
898,128.00 + 5,832 * 15 * (YY-7) + 57,024.00 * YY = 1,219,600.00

9. 9
Used Inverter to the system
 Used to DC AC
 Types of inverters
- String inverters
- Grid tie inverter
- Micro inverters
- Power optimizers
- Hybrid inverters
Grid tie inverter is used because,
 It is shut off immediately in the event of a power
outage
 It has built-in monitor
