1. Software Inspections

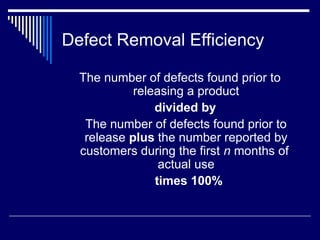

2. Defect Removal Efficiency
The number of defects found prior to
releasing a product
divided by
The number of defects found prior to
release plus the number reported by
customers during the first n months of
actual use
times 100%

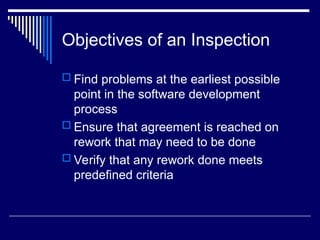

3. Objectives of an Inspection
 Find problems at the earliest possible
point in the software development
process
 Ensure that agreement is reached on
rework that may need to be done
 Verify that any rework done meets
predefined criteria

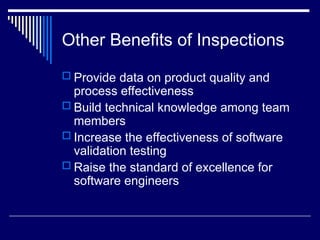

4. Other Benefits of Inspections
 Provide data on product quality and
process effectiveness
 Build technical knowledge among team
members
 Increase the effectiveness of software
validation testing
 Raise the standard of excellence for
software engineers

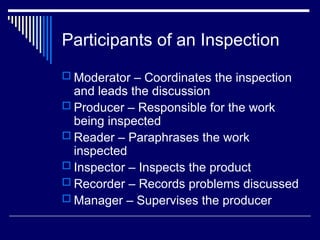

5. Participants of an Inspection
 Moderator – Coordinates the inspection
and leads the discussion
 Producer – Responsible for the work
being inspected
 Reader – Paraphrases the work
inspected
 Inspector – Inspects the product
 Recorder – Records problems discussed
 Manager – Supervises the producer

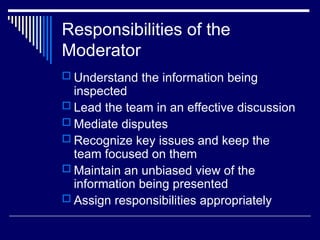

6. Responsibilities of the
Moderator
 Understand the information being
inspected
 Lead the team in an effective discussion
 Mediate disputes
 Recognize key issues and keep the
team focused on them
 Maintain an unbiased view of the
information being presented
 Assign responsibilities appropriately

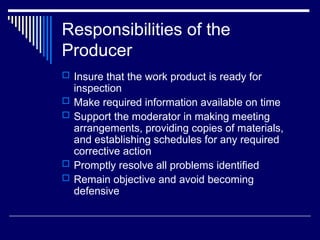

7. Responsibilities of the
Producer
 Insure that the work product is ready for
inspection
 Make required information available on time
 Support the moderator in making meeting
arrangements, providing copies of materials,
and establishing schedules for any required
corrective action
 Promptly resolve all problems identified
 Remain objective and avoid becoming
defensive

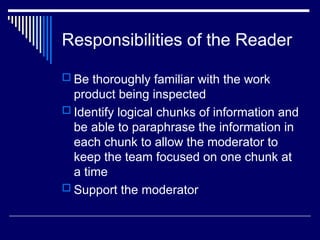

8. Responsibilities of the Reader
 Be thoroughly familiar with the work
product being inspected
 Identify logical chunks of information and
be able to paraphrase the information in
each chunk to allow the moderator to
keep the team focused on one chunk at
a time
 Support the moderator

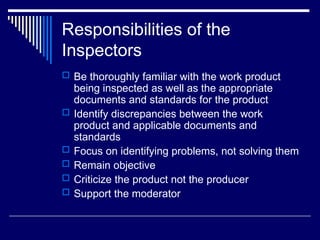

9. Responsibilities of the
Inspectors
 Be thoroughly familiar with the work product
being inspected as well as the appropriate
documents and standards for the product
 Identify discrepancies between the work
product and applicable documents and
standards
 Focus on identifying problems, not solving them
 Remain objective
 Criticize the product not the producer
 Support the moderator

10. Responsibilities of the
Recorder
 Be thoroughly familiar with the work
product being inspected
 Record all issues raised by the team and
ensure that they are recorded correctly
 Record additional information as
requested by the moderator
 Support the moderator

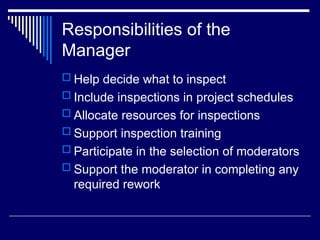

11. Responsibilities of the
Manager
 Help decide what to inspect
 Include inspections in project schedules
 Allocate resources for inspections
 Support inspection training
 Participate in the selection of moderators
 Support the moderator in completing any
required rework

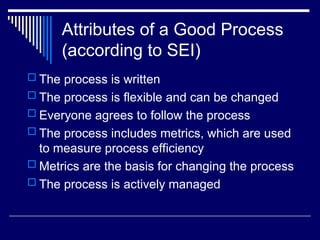

12. Attributes of a Good Process
(according to SEI)
 The process is written
 The process is flexible and can be changed
 Everyone agrees to follow the process
 The process includes metrics, which are used
to measure process efficiency
 Metrics are the basis for changing the process
 The process is actively managed

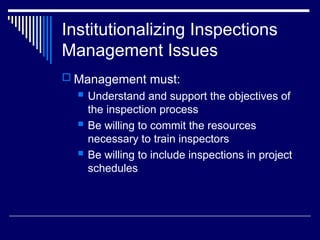

13. Institutionalizing Inspections
Management Issues
 Management must:
 Understand and support the objectives of
the inspection process
 Be willing to commit the resources
necessary to train inspectors
 Be willing to include inspections in project
schedules

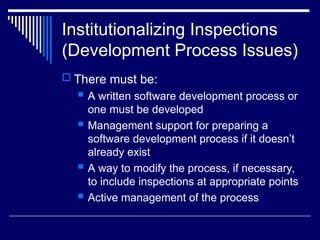

14. Institutionalizing Inspections
(Development Process Issues)
 There must be:
 A written software development process or
one must be developed
 Management support for preparing a
software development process if it doesn’t
already exist
 A way to modify the process, if necessary,
to include inspections at appropriate points
 Active management of the process

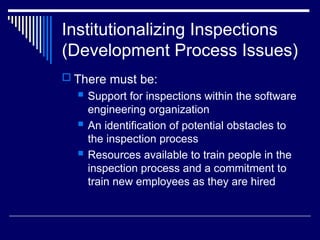

15. Institutionalizing Inspections
(Development Process Issues)
 There must be:
 Support for inspections within the software
engineering organization
 An identification of potential obstacles to
the inspection process
 Resources available to train people in the
inspection process and a commitment to
train new employees as they are hired

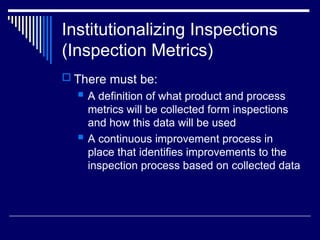

16. Institutionalizing Inspections
(Inspection Metrics)
 There must be:
 A definition of what product and process
metrics will be collected form inspections
and how this data will be used
 A continuous improvement process in
place that identifies improvements to the
inspection process based on collected data

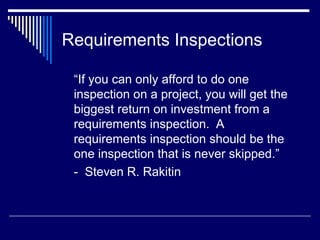

17. Requirements Inspections
“If you can only afford to do one
inspection on a project, you will get the
biggest return on investment from a
requirements inspection. A
requirements inspection should be the
one inspection that is never skipped.”
- Steven R. Rakitin

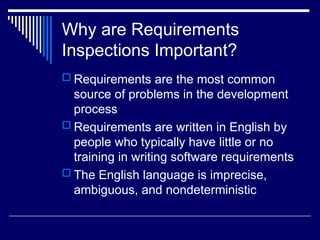

18. Why are Requirements
Inspections Important?
 Requirements are the most common
source of problems in the development
process
 Requirements are written in English by
people who typically have little or no
training in writing software requirements
 The English language is imprecise,
ambiguous, and nondeterministic

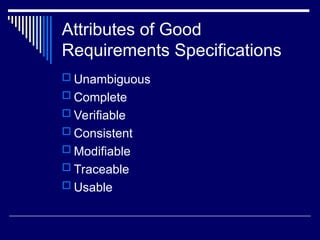

19. Attributes of Good
Requirements Specifications
 Unambiguous
 Complete
 Verifiable
 Consistent
 Modifiable
 Traceable
 Usable

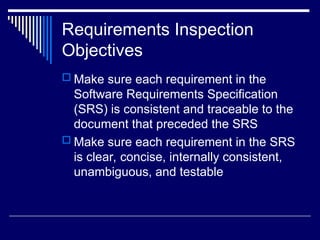

20. Requirements Inspection
Objectives
 Make sure each requirement in the
Software Requirements Specification
(SRS) is consistent and traceable to the
document that preceded the SRS
 Make sure each requirement in the SRS
is clear, concise, internally consistent,
unambiguous, and testable

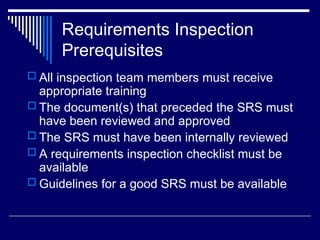

21. Requirements Inspection
Prerequisites
 All inspection team members must receive
appropriate training
 The document(s) that preceded the SRS must
have been reviewed and approved
 The SRS must have been internally reviewed
 A requirements inspection checklist must be
available
 Guidelines for a good SRS must be available

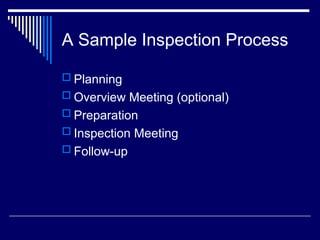

22. A Sample Inspection Process
 Planning
 Overview Meeting (optional)
 Preparation
 Inspection Meeting
 Follow-up

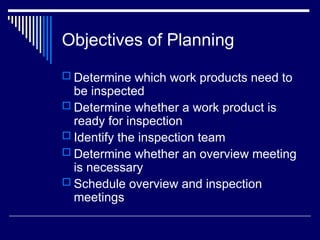

23. Objectives of Planning
 Determine which work products need to
be inspected
 Determine whether a work product is
ready for inspection
 Identify the inspection team
 Determine whether an overview meeting
is necessary
 Schedule overview and inspection
meetings

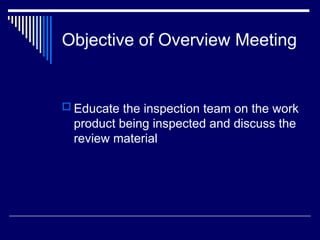

24. Objective of Overview Meeting
 Educate the inspection team on the work
product being inspected and discuss the
review material

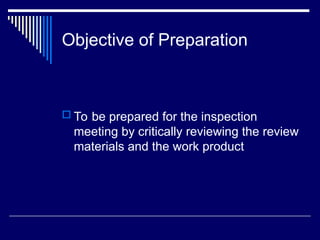

25. Objective of Preparation
 To be prepared for the inspection
meeting by critically reviewing the review
materials and the work product

26. Objective of the Inspection
Meeting
 Identify errors and defects in the work
product being inspected
An error is a problem in which the software or
documentation does not meet defined requirements and
is found at the point of origin
A defect is a problem in which the software or its
documentation does not meet defined requirements and
is found beyond the point of origin.

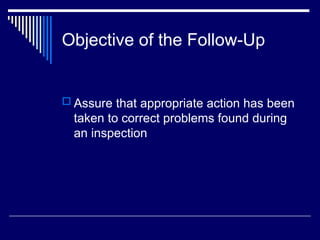

27. Objective of the Follow-Up
 Assure that appropriate action has been
taken to correct problems found during
an inspection
