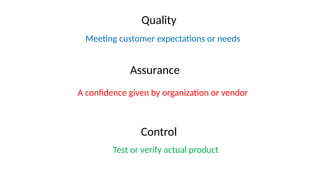

1. Software Testing

2. Control
Meeting customer expectations or needs
Assurance
A confidence given by organization or vendor
Quality
Test or verify actual product

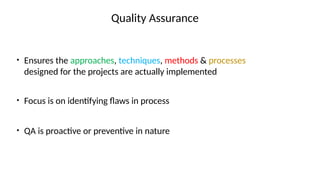

3. Quality Assurance
• Ensures the approaches, techniques, methods & processes
designed for the projects are actually implemented
• Focus is on identifying flaws in process
• QA is proactive or preventive in nature

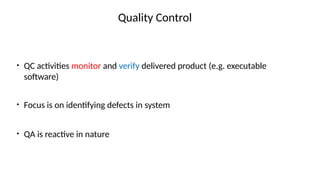

4. Quality Control
• QC activities monitor and verify delivered product (e.g. executable
software)
• Focus is on identifying defects in system
• QA is reactive in nature

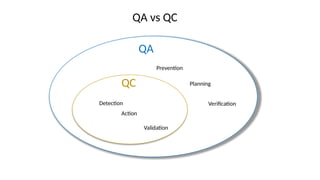

5. QA vs QC
QA
Prevention
Planning
Verification
QC
Validation
Action
Detection

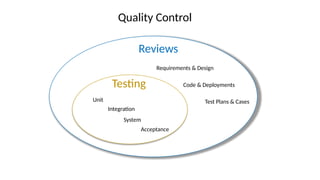

6. Quality Control
Reviews
Requirements & Design
Code & Deployments
Test Plans & Cases
Testing
System
Integration
Unit
Acceptance

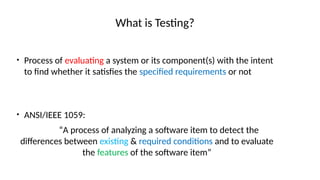

7. What is Testing?
• Process of evaluating a system or its component(s) with the intent
to find whether it satisfies the specified requirements or not
• ANSI/IEEE 1059:
“A process of analyzing a software item to detect the
differences between existing & required conditions and to evaluate
the features of the software item”

8. Who Does Testing?
Developers
Project Manager End Users
Testers

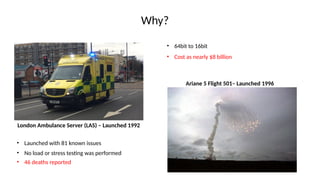

9. Why?
London Ambulance Server (LAS) – Launched 1992
• Launched with 81 known issues
• 46 deaths reported
Ariane 5 Flight 501– Launched 1996
• No load or stress testing was performed
• 64bit to 16bit
• Cost as nearly $8 billion

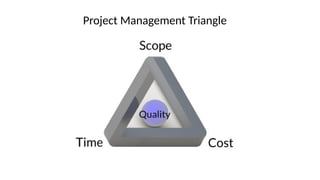

10. Project Management Triangle

11. Misunderstandings or Myths
Myth Fact
TESTING
Testing is expensive ($ + ) Maintenance effort and cost is much higher
Only starts after developments finishes Commence with start of the project
Testing ensures 100% defect free software Not all paths are possible to test
Clicking or typing randomly Well defined steps/cases
TESTERS
It’s easy and anyone can do testing It’s complete discipline and need to be learned
If you are not good in DEV, join TESTING Automation testing is performed by testers
It’s low pay and no fame job A complete career path

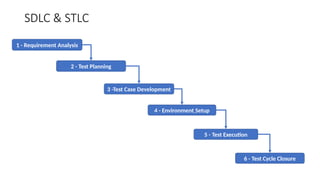

12. SDLC & STLC
1 - Requirement Analysis
2 - Test Planning
3 -Test Case Development
4 - Environment Setup
5 - Test Execution
6 - Test Cycle Closure

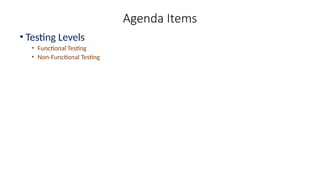

13. Agenda Items
• Testing Levels
• Functional Testing
• Non-Functional Testing

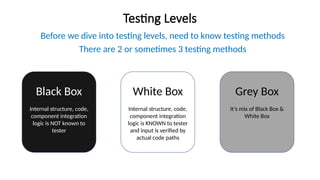

14. Testing Levels
Before we dive into testing levels, need to know testing methods
There are 2 or sometimes 3 testing methods
Black Box
Internal structure, code,
component integration
logic is NOT known to
tester
White Box
Internal structure, code,
component integration
logic is KNOWN to tester
and input is verified by
actual code paths
Grey Box
It’s mix of Black Box &
White Box

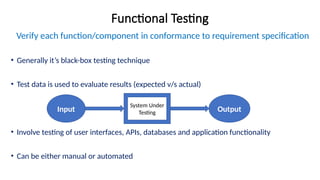

15. Functional Testing
Verify each function/component in conformance to requirement specification
• Generally it’s black-box testing technique
• Test data is used to evaluate results (expected v/s actual)
• Involve testing of user interfaces, APIs, databases and application functionality
• Can be either manual or automated
Input
System Under
Testing Output

16. Functional Testing- Steps
Identify expected functions or features of software/application
Create or formulate test data (input)
Compute expected result based on test data
Execute test cases (with test data)
Compare actual with expected results

17. Functional Testing – Guideline
• Simulate actual system usage
• Doesn’t consider any structural
assumptions
• High potential of missing logical errors
• Possibility of redundant testing
Formulate test conditions directly from BRS;
using SRS, defects in document will not reflect the end user

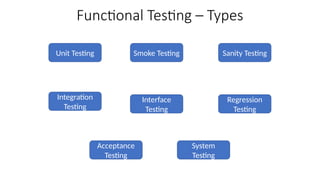

18. Functional Testing – Types
Unit Testing
Integration
Testing
Smoke Testing Sanity Testing
System
Testing
Acceptance
Testing
Interface
Testing
Regression
Testing

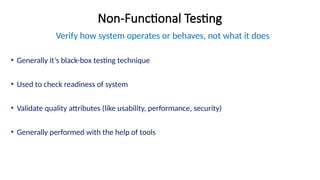

19. Non-Functional Testing
Verify how system operates or behaves, not what it does
• Generally it’s black-box testing technique
• Used to check readiness of system
• Validate quality attributes (like usability, performance, security)
• Generally performed with the help of tools

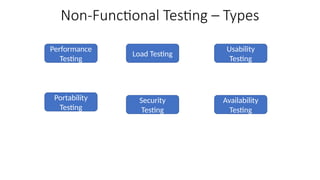

20. Non-Functional Testing – Types
Performance
Testing
Portability
Testing
Load Testing
Usability
Testing
Availability
Testing
Security
Testing

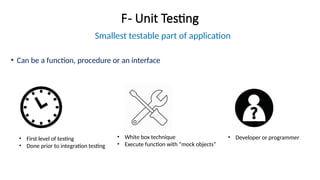

21. F- Unit Testing
Smallest testable part of application
• Can be a function, procedure or an interface
• First level of testing
• Done prior to integration testing
• White box technique
• Execute function with “mock objects”
• Developer or programmer

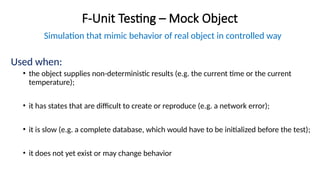

22. F-Unit Testing – Mock Object
Simulation that mimic behavior of real object in controlled way
Used when:
• the object supplies non-deterministic results (e.g. the current time or the current
temperature);
• it has states that are difficult to create or reproduce (e.g. a network error);
• it is slow (e.g. a complete database, which would have to be initialized before the test);
• it does not yet exist or may change behavior

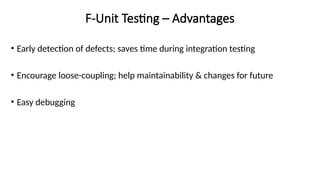

23. F-Unit Testing – Advantages
• Early detection of defects; saves time during integration testing
• Encourage loose-coupling; help maintainability & changes for future
• Easy debugging

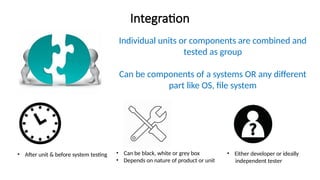

24. Integration
Individual units or components are combined and
tested as group
Can be components of a systems OR any different
part like OS, file system
• After unit & before system testing • Can be black, white or grey box
• Depends on nature of product or unit
• Either developer or ideally
independent tester

25. Integration Testing

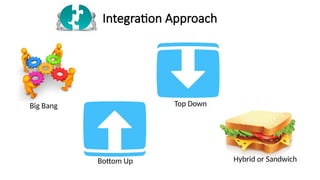

26. Integration Approach
Big Bang Top Down
Bottom Up Hybrid or Sandwich

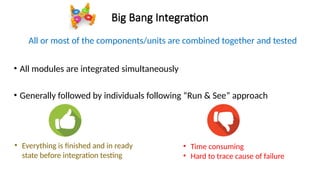

27. Big Bang Integration
All or most of the components/units are combined together and tested
• All modules are integrated simultaneously
• Generally followed by individuals following “Run & See” approach
• Everything is finished and in ready
state before integration testing
• Time consuming
• Hard to trace cause of failure

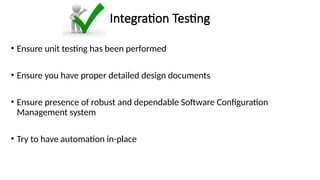

28. Integration Testing
• Ensure unit testing has been performed
• Ensure you have proper detailed design documents
• Ensure presence of robust and dependable Software Configuration
Management system
• Try to have automation in-place

29. Smoke Testing
Ensures, major functionalities of the application
are working fine
ALSO KNOWN AS
“Build Verification Testing”
• Originated from “hardware testing”
• Shouldn’t be any major issues when build is handed over to QA
• It’s important to have choose right set of test cases
• Generally performed with positive scenarios

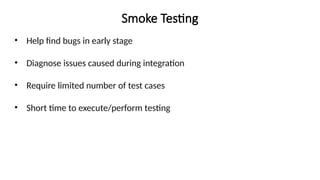

30. Smoke Testing
• Help find bugs in early stage
• Diagnose issues caused during integration
• Require limited number of test cases
• Short time to execute/perform testing

31. Sanity Testing
Performed after minor big fixes or change in
functionality
• Focus only on changed functionalities or fixes
• It’s prerequisite to regression testing
• Usually not scripted; performed manually.

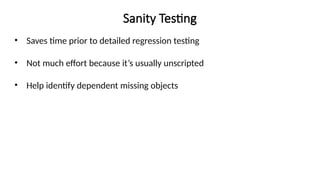

32. Sanity Testing
• Saves time prior to detailed regression testing
• Not much effort because it’s usually unscripted
• Help identify dependent missing objects

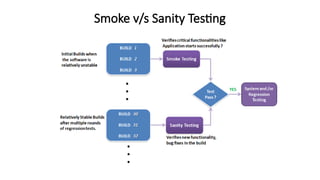

33. Smoke v/s Sanity Testing

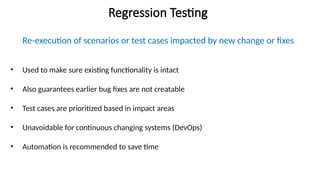

34. Regression Testing
Re-execution of scenarios or test cases impacted by new change or fixes
• Used to make sure existing functionality is intact
• Also guarantees earlier bug fixes are not creatable
• Test cases are prioritized based in impact areas
• Unavoidable for continuous changing systems (DevOps)
• Automation is recommended to save time

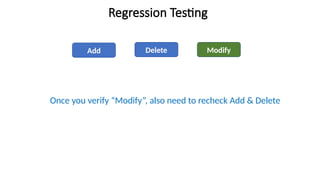

35. Regression Testing
Add Delete Modify
Once you verify “Modify”, also need to recheck Add & Delete

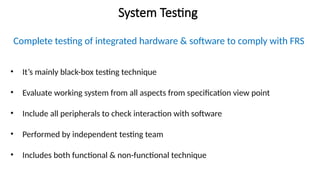

36. System Testing
Complete testing of integrated hardware & software to comply with FRS
• It’s mainly black-box testing technique
• Evaluate working system from all aspects from specification view point
• Include all peripherals to check interaction with software
• Performed by independent testing team
• Includes both functional & non-functional technique

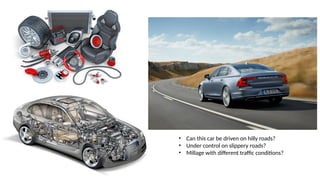

37. • Can this car be driven on hilly roads?
• Under control on slippery roads?
• Millage with different traffic conditions?

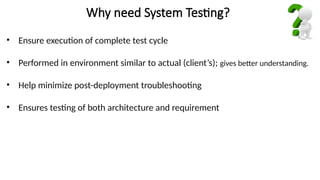

38. Why need System Testing?
• Ensure execution of complete test cycle
• Performed in environment similar to actual (client’s); gives better understanding.
• Help minimize post-deployment troubleshooting
• Ensures testing of both architecture and requirement

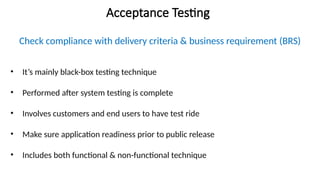

39. Acceptance Testing
Check compliance with delivery criteria & business requirement (BRS)
• It’s mainly black-box testing technique
• Performed after system testing is complete
• Involves customers and end users to have test ride
• Make sure application readiness prior to public release
• Includes both functional & non-functional technique

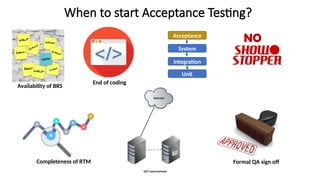

40. When to start Acceptance Testing?
Unit
Integration
System
Acceptance
Availability of BRS
End of coding
NO
Completeness of RTM Formal QA sign off

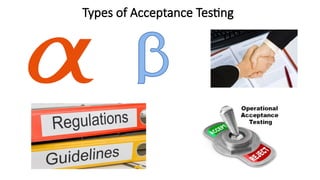

41. Types of Acceptance Testing

42. Acceptance Testing
Performed by organization who developed software
• Performed in-house (developer’s site)
• May involve both white-box & black-box
• Not by those who are directly involved in creating software
• Performed by product management, sales or customer support group
• Ensures quality before handing over to customer for testing
• May take long time to perform execution cycles

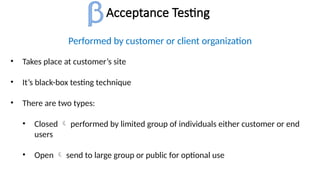

43. Acceptance Testing
Performed by customer or client organization
• Takes place at customer’s site
• It’s black-box testing technique
• There are two types:
• Closed  performed by limited group of individuals either customer or end
users
• Open  send to large group or public for optional use

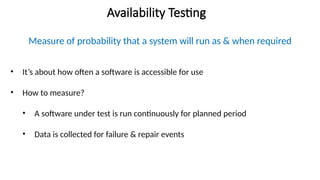

44. Availability Testing
Measure of probability that a system will run as & when required
• It’s about how often a software is accessible for use
• How to measure?
• A software under test is run continuously for planned period
• Data is collected for failure & repair events

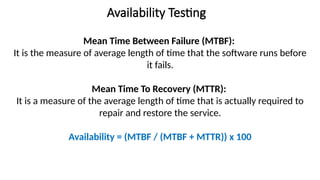

45. Availability Testing
Mean Time Between Failure (MTBF):
It is the measure of average length of time that the software runs before
it fails.
Mean Time To Recovery (MTTR):
It is a measure of the average length of time that is actually required to
repair and restore the service.
Availability = (MTBF / (MTBF + MTTR)) x 100
