Software Defined Networking for Community
Network Testbeds
E. Dimogerontakis1
I. Vilata2
L. Navarro1
1 Department
of Computer Architecture
Universitat Polit`cnica de Catalunya
e
2 Pangea
NGO
CNBuB, 2013
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
1 / 37

2. Introduction
Architecture
Implementation
Evaluation
Conclusion
Introduction
Motivation
Community-Lab
Software Defined Networking
Architecture
Implementation
Evaluation
Conclusion
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
2 / 37

3. Introduction
Architecture
Implementation
Evaluation
Conclusion
Motivation
Daydreaming
Imagine a Community-owned Wireless IP Network:
• Easily Deployable
• Self-Managed
• Interconnected
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
3 / 37

4. Introduction
Architecture
Implementation
Evaluation
Conclusion
Motivation
Daydreaming
Imagine a Community-owned Wireless IP Network:
• Easily Deployable
• Self-Managed
• Interconnected
How do we reach there?
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
3 / 37

5. Introduction
Architecture
Implementation
Evaluation
Conclusion
Motivation
Community Network Testbed
A Community Network Testbed.
1
1
Source: Commmunity-Lab, demo at the IEEE Peer-to-Peer Conference, Sept 3, 2012
http://wiki.confine-project.eu/_media/pub:community-lab.pdf
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
4 / 37

6. Introduction
Architecture
Implementation
Evaluation
Conclusion
Community-Lab
Community-Lab

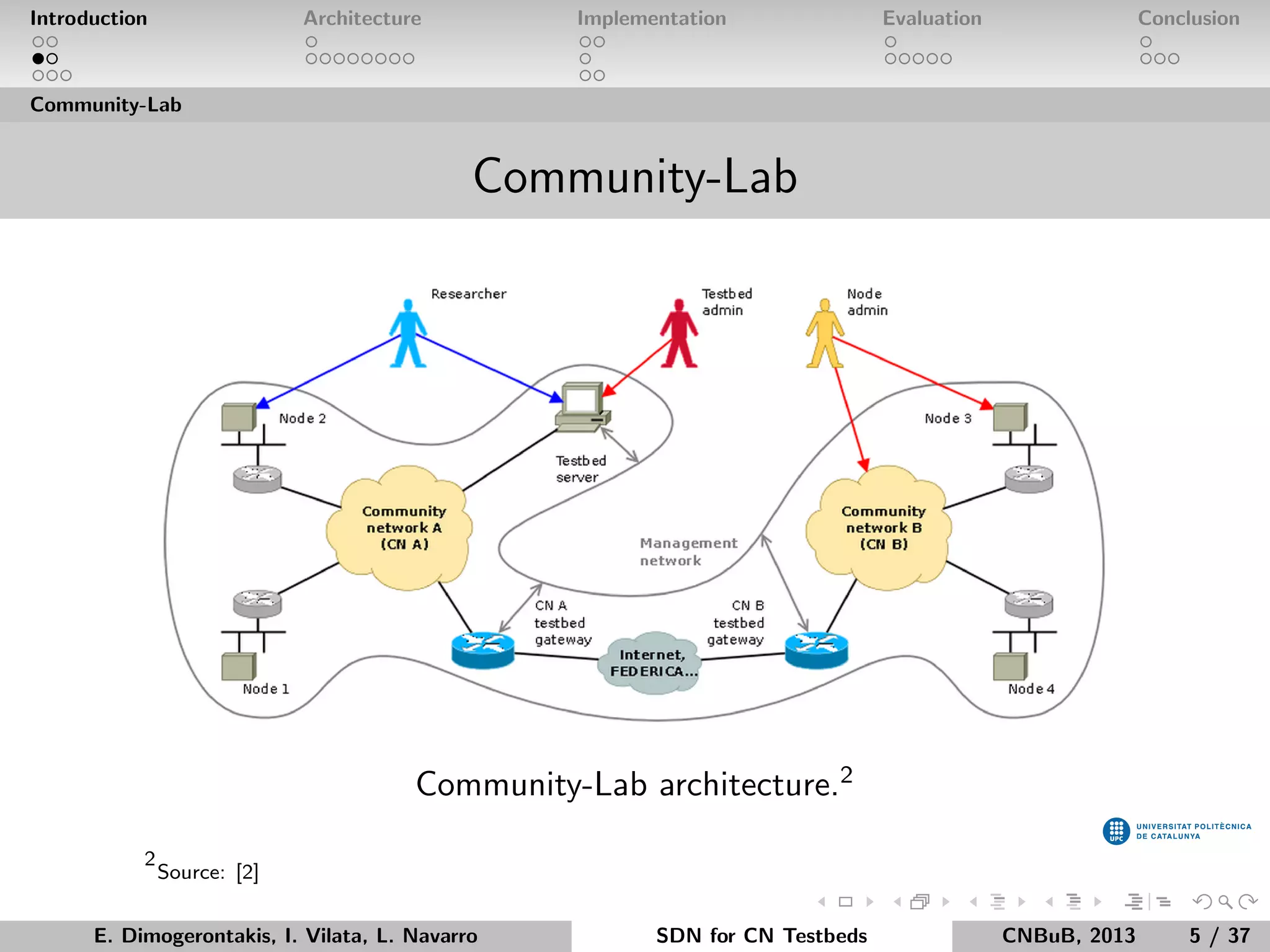

Community-Lab architecture.2
2
Source: [2]
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
5 / 37

7. Introduction
Architecture
Implementation
Evaluation
Conclusion
Community-Lab
Study Case
Case:
No L2 experiments in Community-Lab.
Goal:
Design and implement a system for a CN testbed that allows L2
experiments.
Scenario:
Manage the L2 topology of a set of nodes
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
6 / 37

8. Introduction
Architecture
Implementation
Evaluation
Conclusion
Community-Lab
Study Case
Case:
No L2 experiments in Community-Lab.
Goal:
Design and implement a system for a CN testbed that allows L2
experiments.
Scenario:
Manage the L2 topology of a set of nodes
How do we achieve that?
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
6 / 37

9. Introduction
Architecture
Implementation
Evaluation
Conclusion
Software Defined Networking
Overview
Abstract view of SDN.3
3
Source: [4]
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
7 / 37

10. Introduction
Architecture
Implementation
Evaluation
Conclusion
Software Defined Networking
OpenFlow Idea
OpenFlow idea.
4
4
Source: Brand Hedlund’s blog
http://bradhedlund.com/2011/04/21/data-center-scale-openflow-sdn/
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
8 / 37

11. Introduction
Architecture
Implementation
Evaluation
Conclusion
Software Defined Networking
OpenFlow Switch
Idealized OpenFlow Switch.5
5
Source:
[3]
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
9 / 37

12. Introduction
Architecture
Implementation
Evaluation
Conclusion

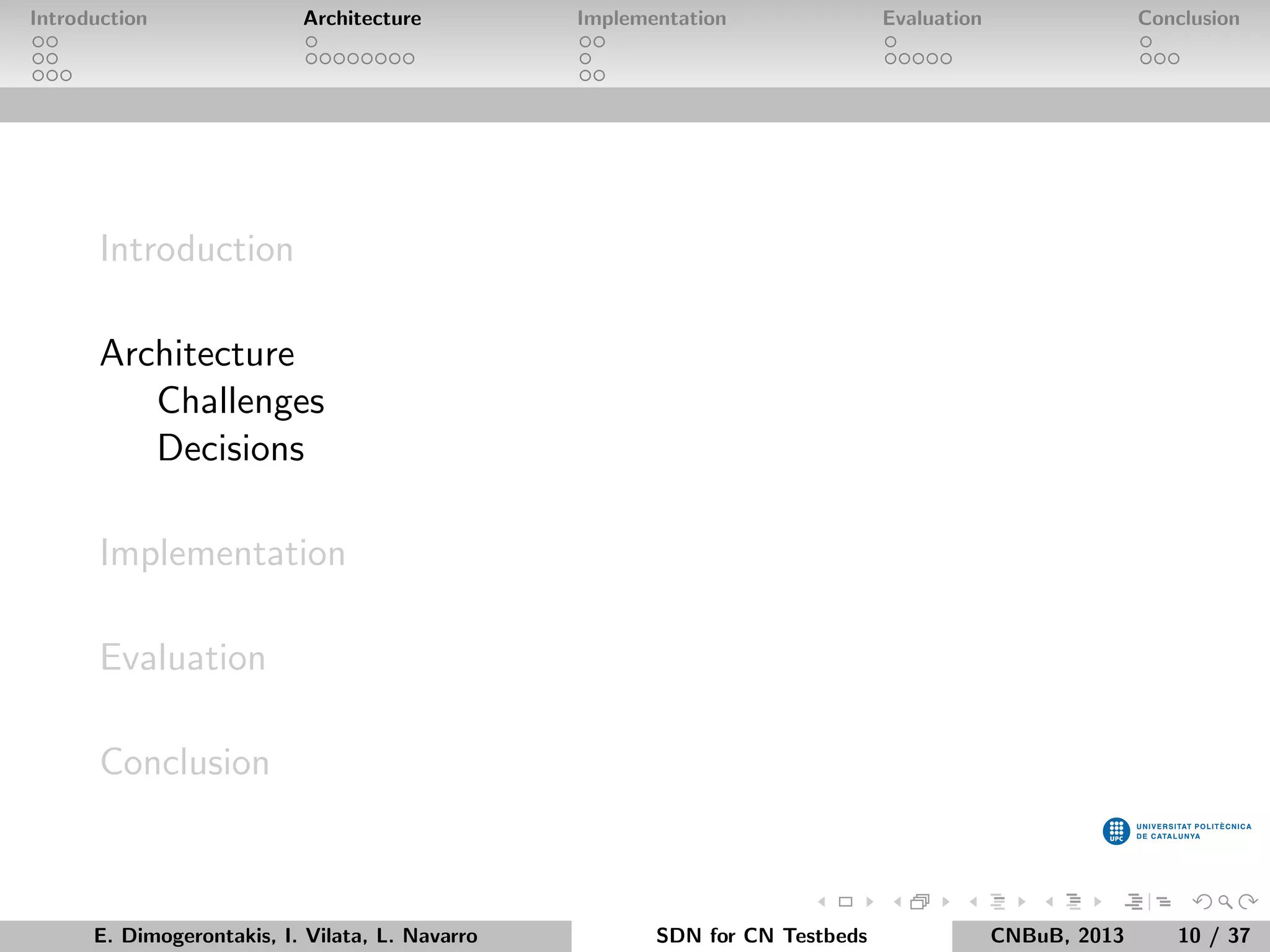

Introduction
Architecture
Challenges
Decisions
Implementation
Evaluation
Conclusion
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
10 / 37

13. Introduction
Architecture
Implementation
Evaluation
Conclusion

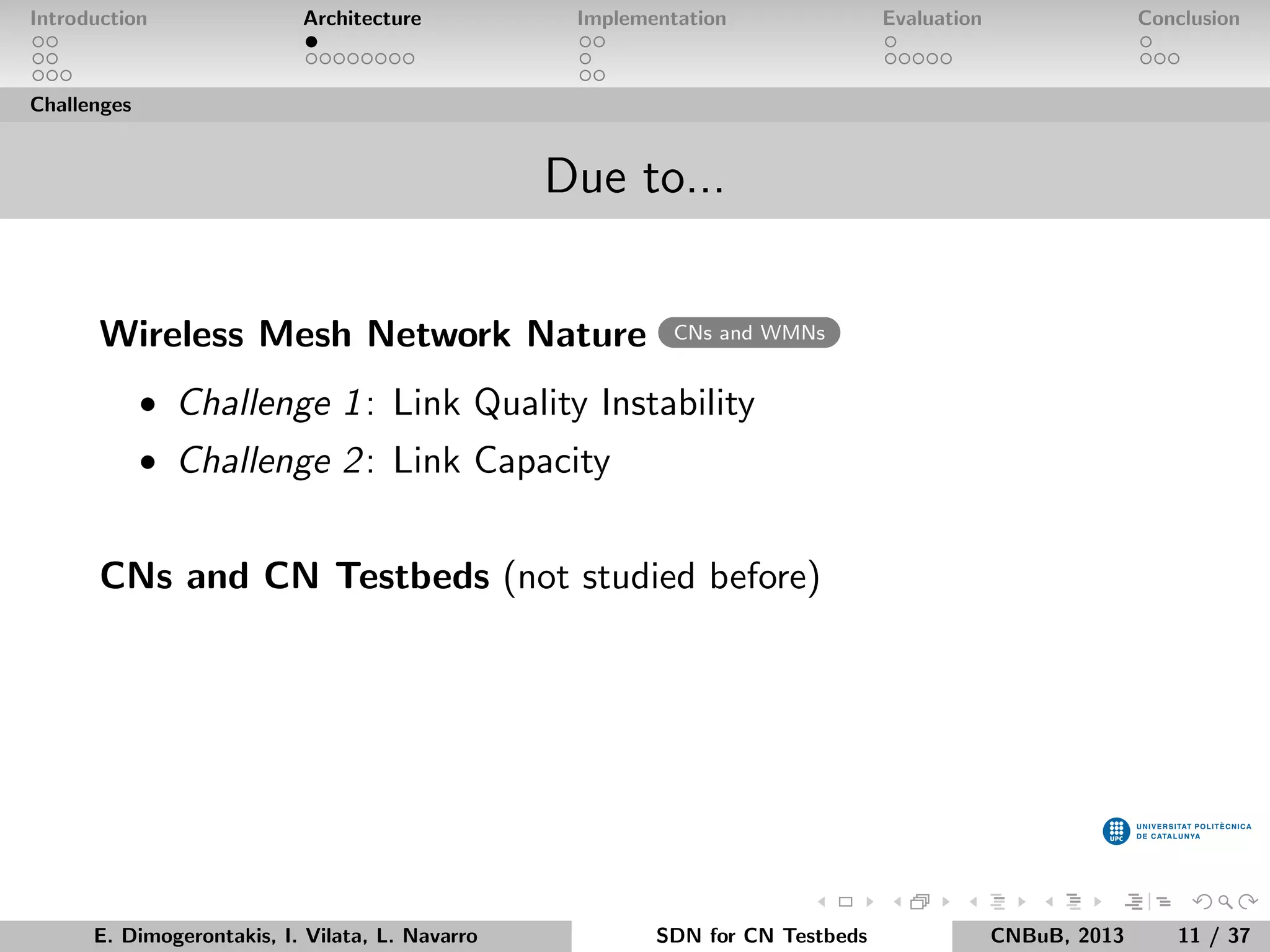

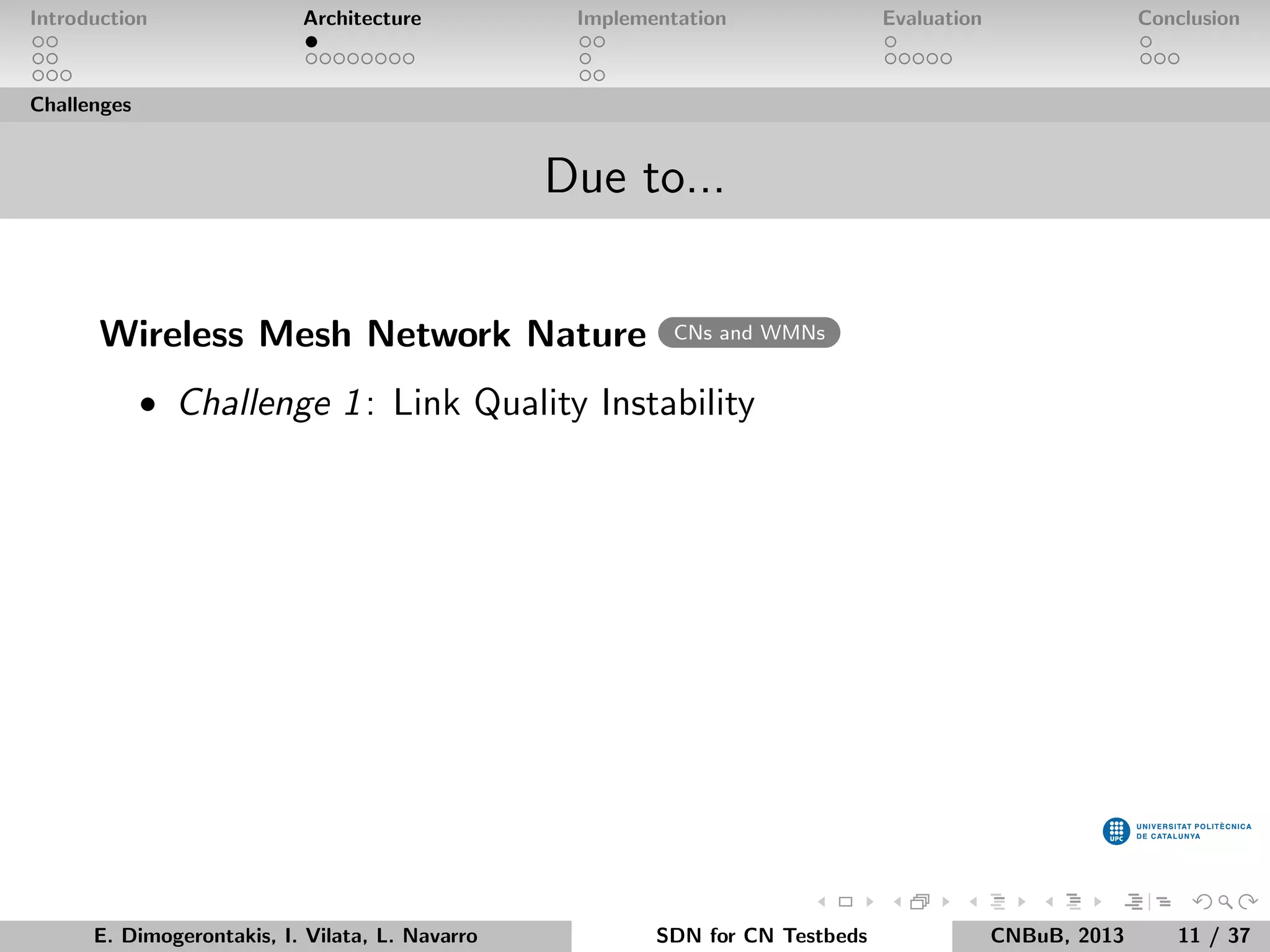

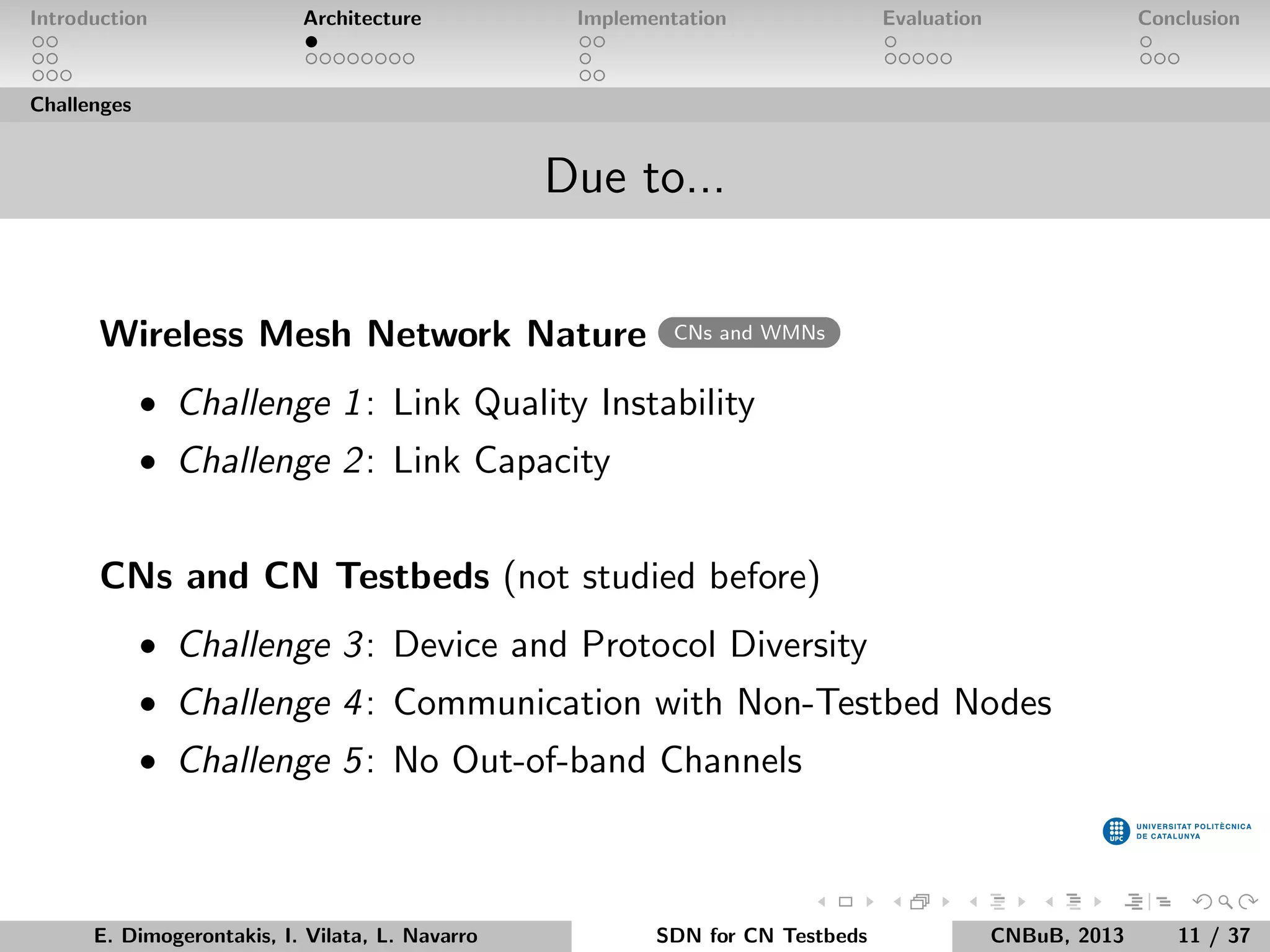

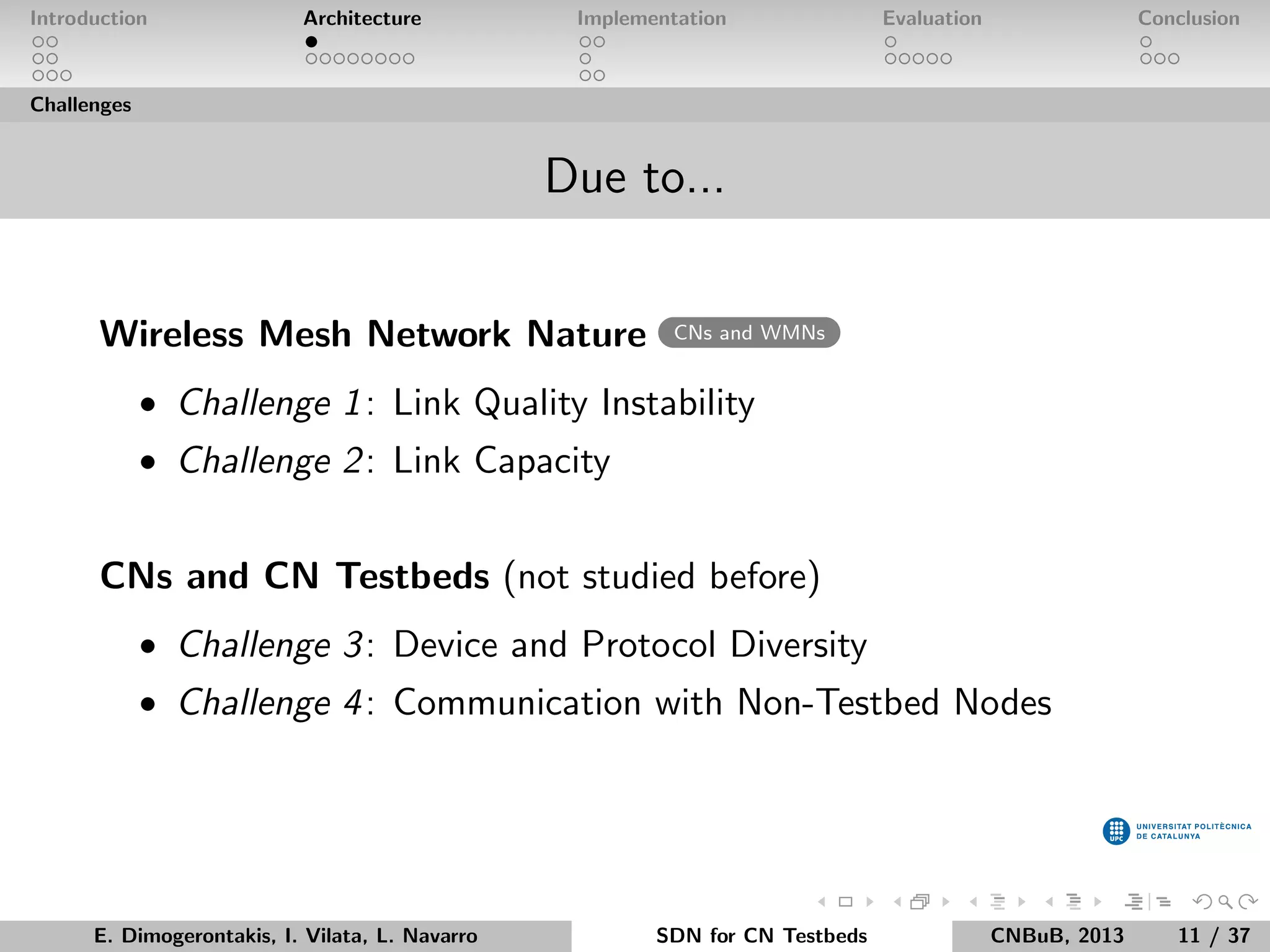

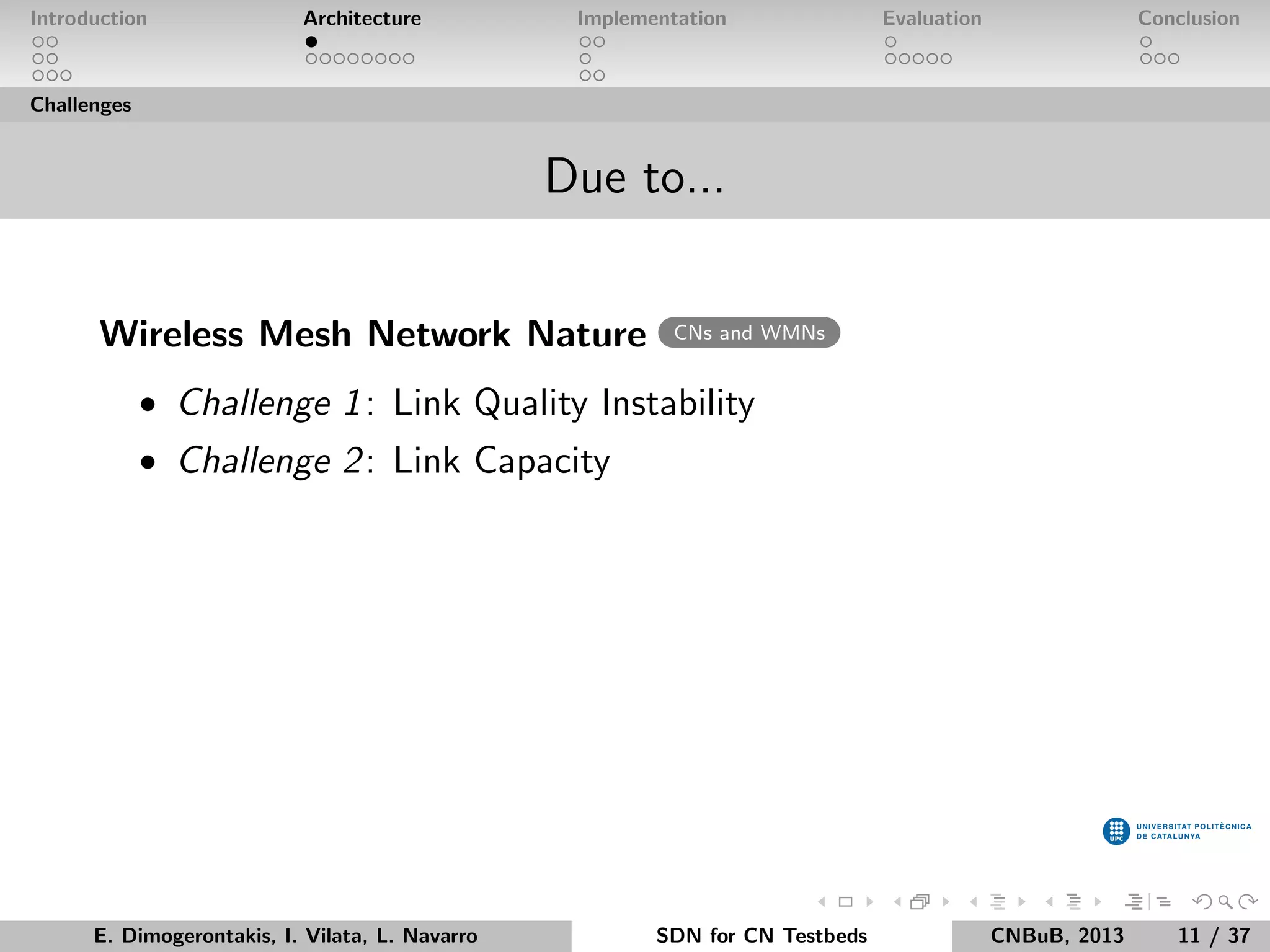

Challenges
Due to...
Wireless Mesh Network Nature
E. Dimogerontakis, I. Vilata, L. Navarro
CNs and WMNs
SDN for CN Testbeds
CNBuB, 2013
11 / 37

14. Introduction
Architecture
Implementation
Evaluation
Conclusion
Challenges
Due to...
Wireless Mesh Network Nature
CNs and WMNs
• Challenge 1 : Link Quality Instability
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
11 / 37

15. Introduction
Architecture
Implementation
Evaluation
Conclusion
Challenges
Due to...
Wireless Mesh Network Nature
CNs and WMNs
• Challenge 1 : Link Quality Instability
• Challenge 2 : Link Capacity
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
11 / 37

16. Introduction
Architecture
Implementation
Evaluation
Conclusion
Challenges
Due to...
Wireless Mesh Network Nature
CNs and WMNs
• Challenge 1 : Link Quality Instability
• Challenge 2 : Link Capacity
CNs and CN Testbeds (not studied before)
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
11 / 37

17. Introduction
Architecture
Implementation
Evaluation
Conclusion
Challenges
Due to...
Wireless Mesh Network Nature
CNs and WMNs
• Challenge 1 : Link Quality Instability
• Challenge 2 : Link Capacity
CNs and CN Testbeds (not studied before)
• Challenge 3 : Device and Protocol Diversity
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
11 / 37

18. Introduction
Architecture
Implementation
Evaluation
Conclusion
Challenges
Due to...
Wireless Mesh Network Nature
CNs and WMNs
• Challenge 1 : Link Quality Instability
• Challenge 2 : Link Capacity
CNs and CN Testbeds (not studied before)
• Challenge 3 : Device and Protocol Diversity
• Challenge 4 : Communication with Non-Testbed Nodes
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
11 / 37

19. Introduction
Architecture
Implementation
Evaluation
Conclusion
Challenges
Due to...
Wireless Mesh Network Nature
CNs and WMNs
• Challenge 1 : Link Quality Instability
• Challenge 2 : Link Capacity
CNs and CN Testbeds (not studied before)
• Challenge 3 : Device and Protocol Diversity
• Challenge 4 : Communication with Non-Testbed Nodes
• Challenge 5 : No Out-of-band Channels
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
11 / 37

20. Introduction
Architecture
Implementation
Evaluation
Conclusion

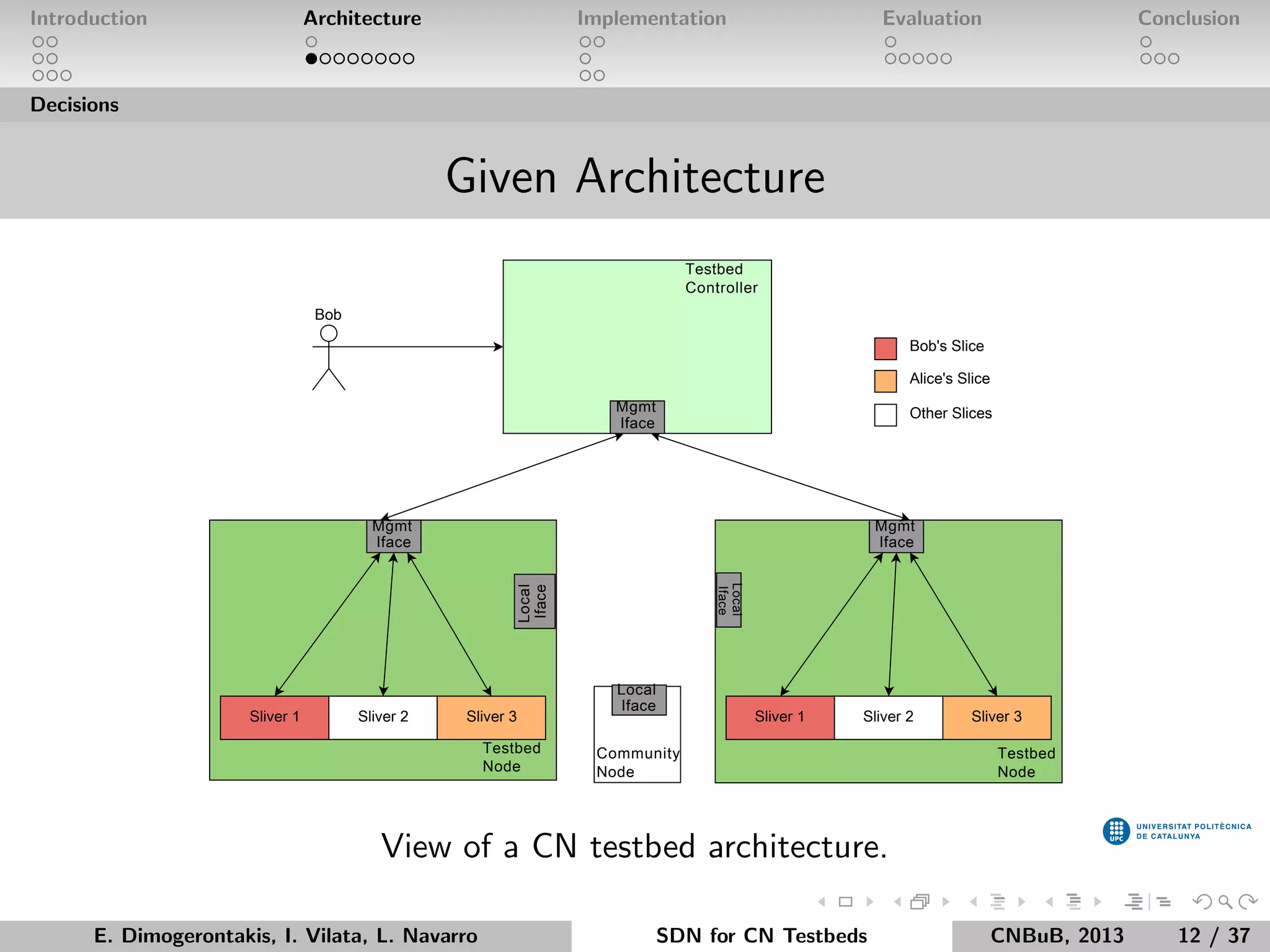

Decisions
Given Architecture
Testbed
Controller
Bob
Bob's Slice
Alice's Slice
Mgmt
Iface
Other Slices
Mgmt
Iface
Mgmt
Iface
Local
Iface
Local
Iface
Sliver 1
Sliver 2
Sliver 3
Testbed
Node
Local
Iface
Sliver 1
Sliver 2
Community
Node
Sliver 3
Testbed
Node
View of a CN testbed architecture.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
12 / 37

21. Introduction
Architecture
Implementation
Evaluation
Conclusion
Decisions

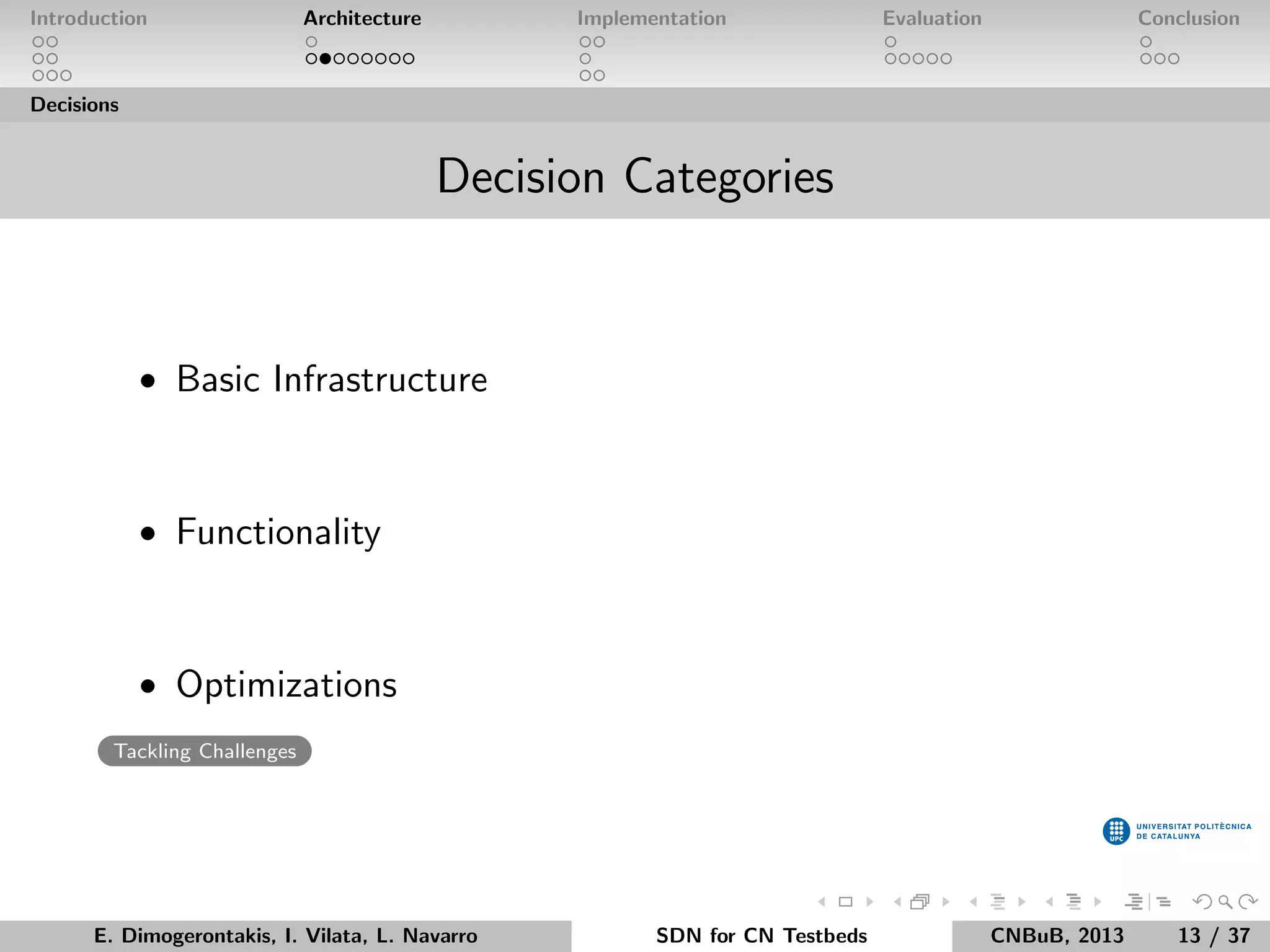

Decision Categories
• Basic Infrastructure
• Functionality
• Optimizations
Tackling Challenges
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
13 / 37

22. Introduction
Architecture
Implementation
Evaluation
Conclusion
Decisions
Basic Infrastructure

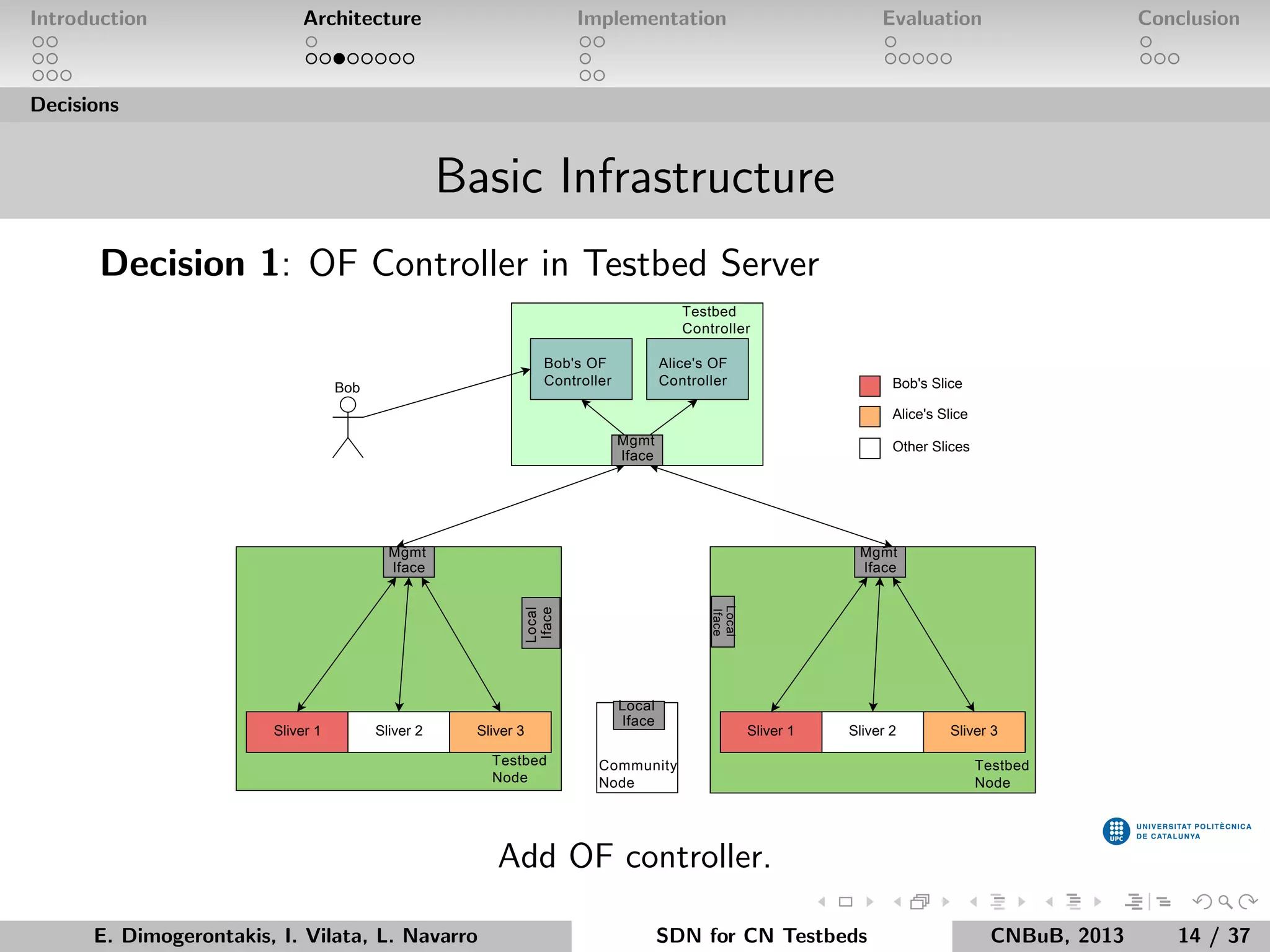

Decision 1: OF Controller in Testbed Server
Testbed
Controller
Bob's OF
Controller
Bob
Alice's OF
Controller
Bob's Slice
Alice's Slice
Mgmt
Iface
Other Slices
Mgmt
Iface
Mgmt
Iface
Local
Iface
Local
Iface
Sliver 1
Sliver 2
Sliver 3
Testbed
Node
Local
Iface
Sliver 1
Sliver 2
Community
Node
Sliver 3
Testbed
Node
Add OF controller.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
14 / 37

23. Introduction
Architecture
Implementation
Evaluation
Conclusion
Decisions
Basic Infrastructure

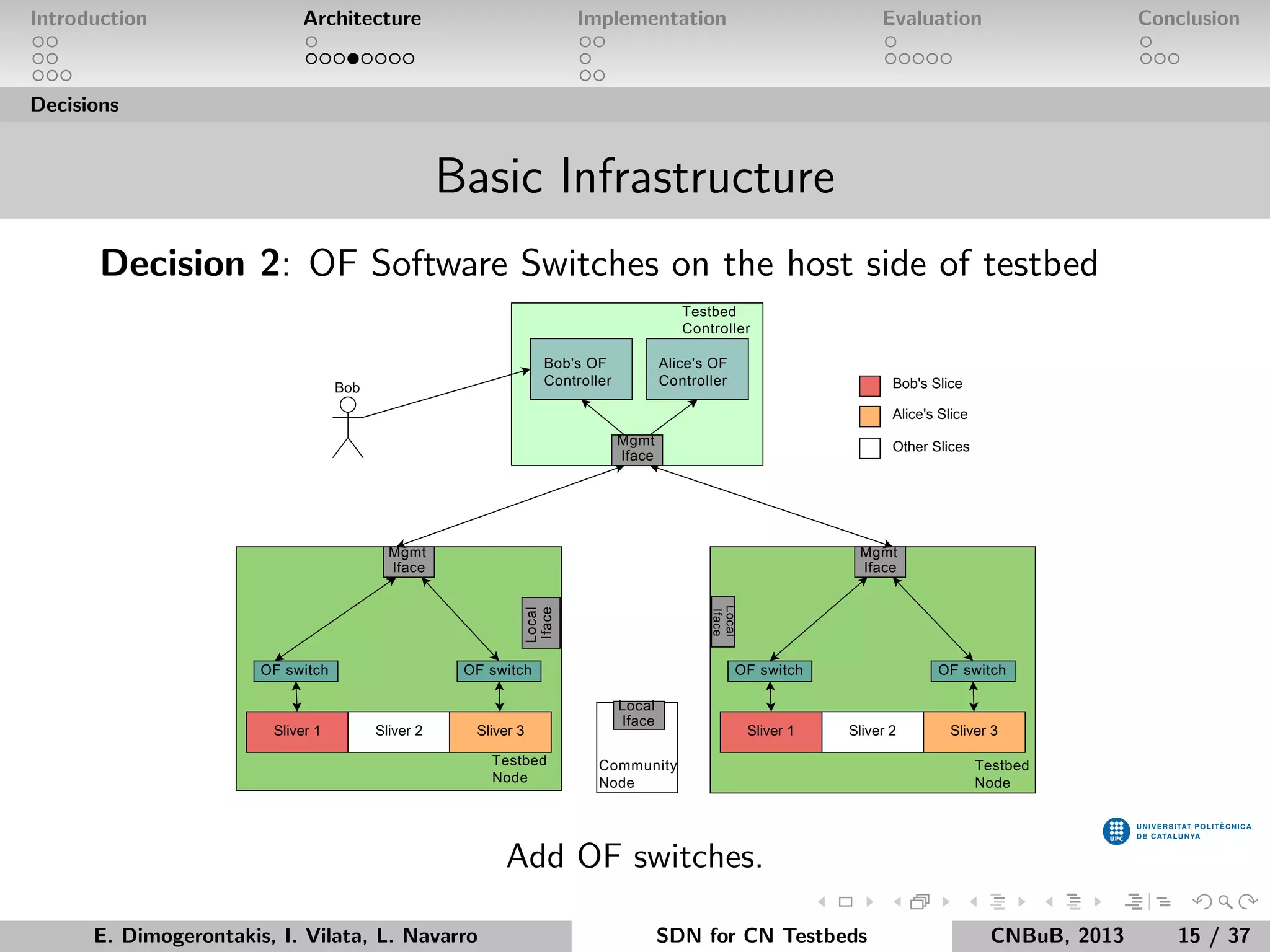

Decision 2: OF Software Switches on the host side of testbed
Testbed
Controller
Bob's OF
Controller
Bob
Alice's OF
Controller
Bob's Slice
Alice's Slice
Mgmt
Iface
Other Slices
Mgmt
Iface
Mgmt
Iface
Local
Iface
Local
Iface
OF switch
Sliver 1
OF switch
Sliver 2
Sliver 3
Testbed
Node
OF switch
Local
Iface
Sliver 1
OF switch
Sliver 2
Community
Node
Sliver 3
Testbed
Node
Add OF switches.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
15 / 37

24. Introduction
Architecture
Implementation
Evaluation
Conclusion
Decisions
Functionality

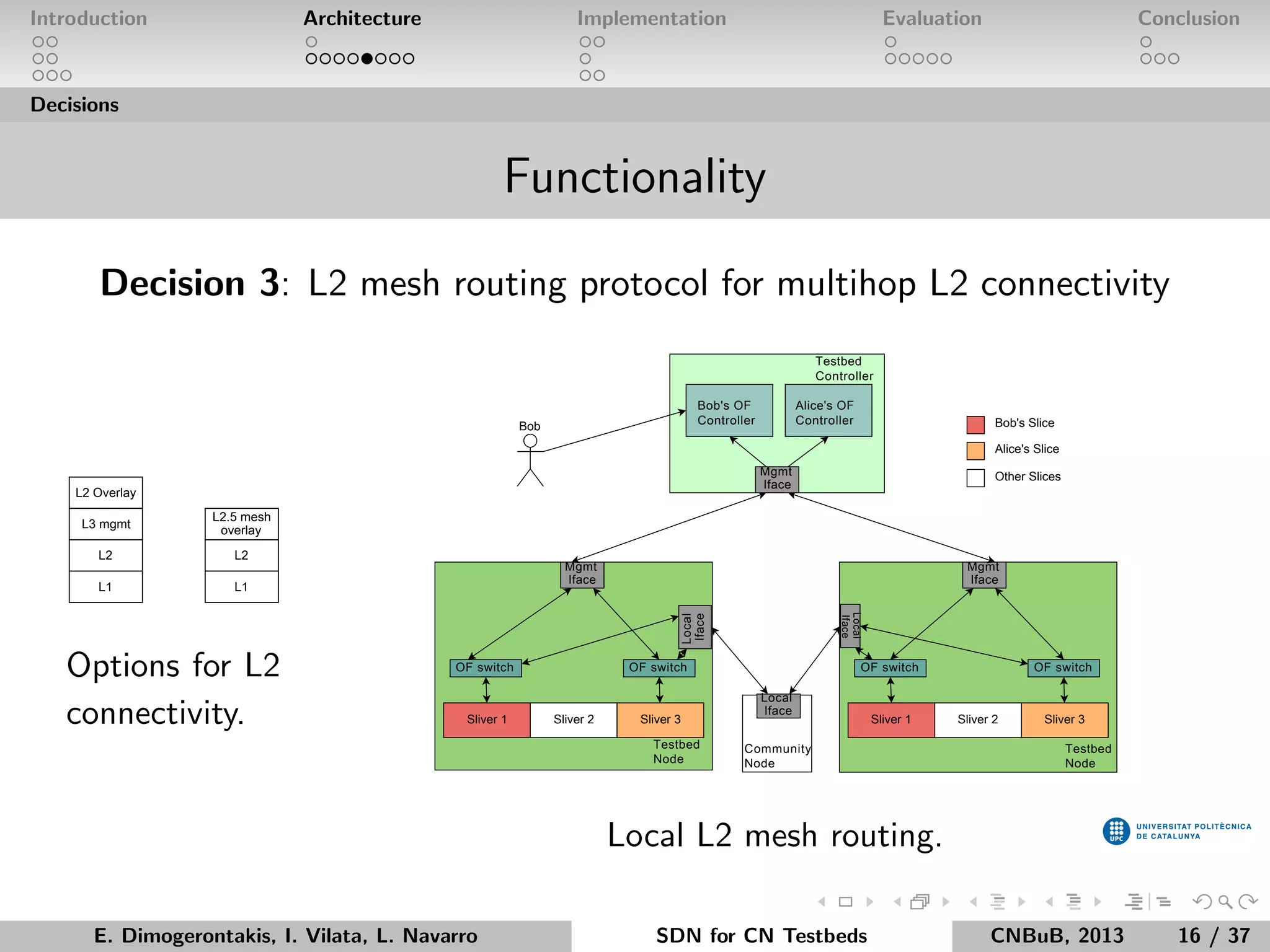

Decision 3: L2 mesh routing protocol for multihop L2 connectivity
Testbed
Controller
Bob's OF
Controller
Bob
Alice's OF
Controller
Bob's Slice
Alice's Slice
Mgmt
Iface
L2 Overlay
L2
L2
L1
L1
Other Slices
L2.5 mesh
overlay
Mgmt
Iface
Mgmt
Iface
Local
Iface
Local
Iface
L3 mgmt
Options for L2
connectivity.
OF switch
Sliver 1
OF switch
Sliver 2
Sliver 3
Testbed
Node
OF switch
Local
Iface
Sliver 1
Community
Node
OF switch
Sliver 2
Sliver 3
Testbed
Node
Local L2 mesh routing.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
16 / 37

25. Introduction
Architecture
Implementation
Evaluation
Conclusion
Decisions
Functionality

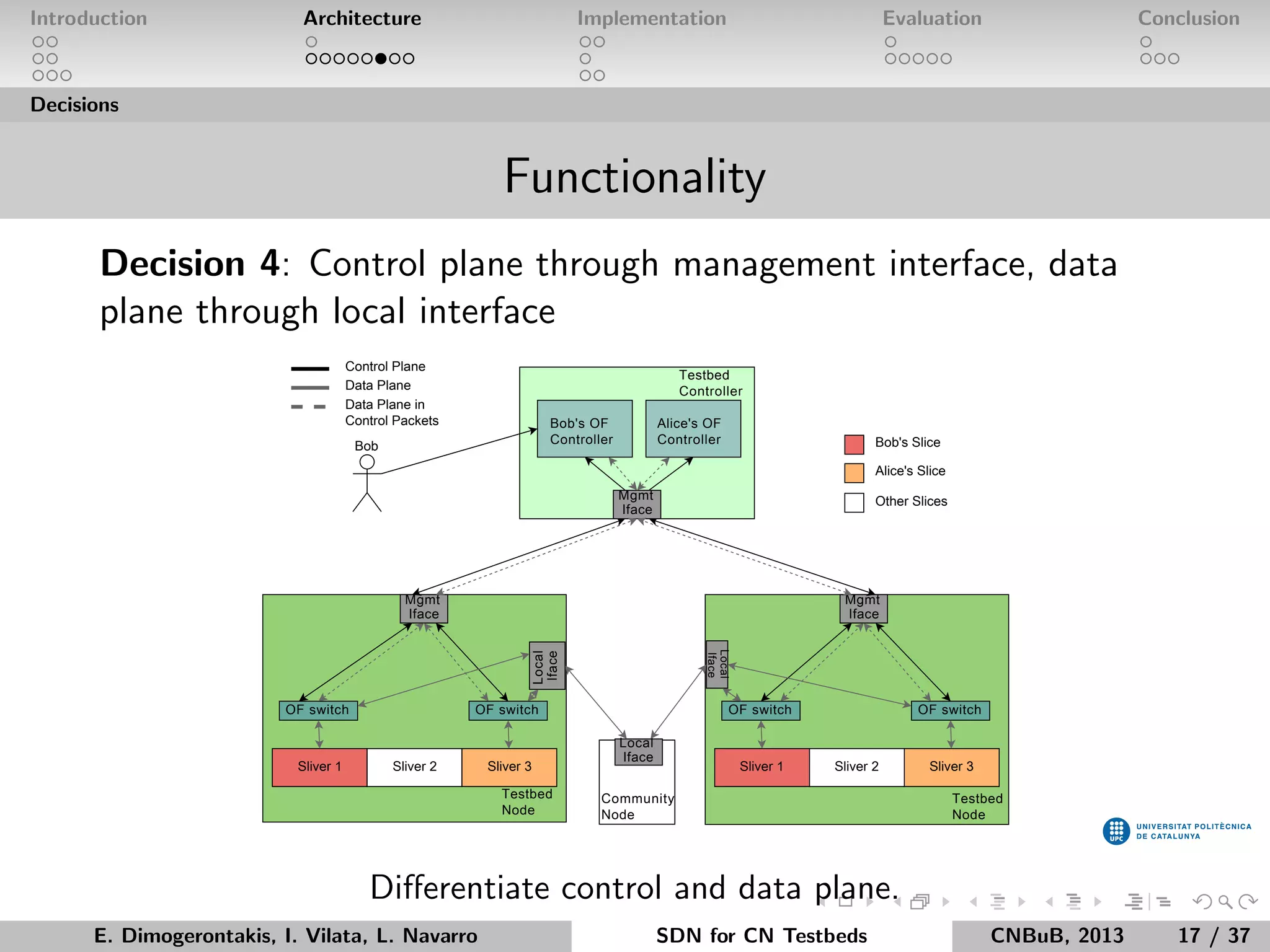

Decision 4: Control plane through management interface, data
plane through local interface
Control Plane
Data Plane
Data Plane in
Control Packets
Testbed
Controller
Bob's OF
Controller
Bob
Alice's OF
Controller
Bob's Slice
Alice's Slice
Mgmt
Iface
Other Slices
Mgmt
Iface
Mgmt
Iface
Local
Iface
Local
Iface
OF switch
Sliver 1
OF switch
Sliver 2
Sliver 3
Testbed
Node
OF switch
Local
Iface
Sliver 1
OF switch
Sliver 2
Community
Node
Sliver 3
Testbed
Node
Differentiate control and data plane.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
17 / 37

26. Introduction
Architecture
Implementation
Evaluation
Conclusion
Decisions
Optimizations
Decision 5: Use OF in proactive mode
Testbed
Controller
Control Plane
Data Plane
Bob's OF
Controller
Bob
Alice's OF
Controller
Bob's Slice
Alice's Slice
Mgmt
Iface
Other Slices
Mgmt
Iface
Mgmt
Iface
Local
Iface
Local
Iface
OF switch
Sliver 1
OF switch
Sliver 2
Sliver 3
Testbed
Node
OF switch
Local
Iface
Sliver 1
OF switch
Sliver 2
Community
Node
Sliver 3
Testbed
Node
OF in proactive mode.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
18 / 37

27. Introduction
Architecture
Implementation
Evaluation
Conclusion
Decisions
Optimizations
Decision 6: Local Proxy OF controller in testbed nodes
Testbed
Controller
Control Plane
Data Plane
Bob's OF
Controller
Bob
Alice's OF
Controller
Bob's Slice
Alice's Slice
Mgmt
Iface
Other Slices
Mgmt
Iface
Proxy OF Controller
Proxy OF Controller
OF switch
Sliver 1
Local
Iface
Local
Iface
Mgmt
Iface
OF switch
Sliver 2
Sliver 3
Testbed
Node
OF switch
Local
Iface
Sliver 1
OF switch
Sliver 2
Community
Node
Sliver 3
Testbed
Node

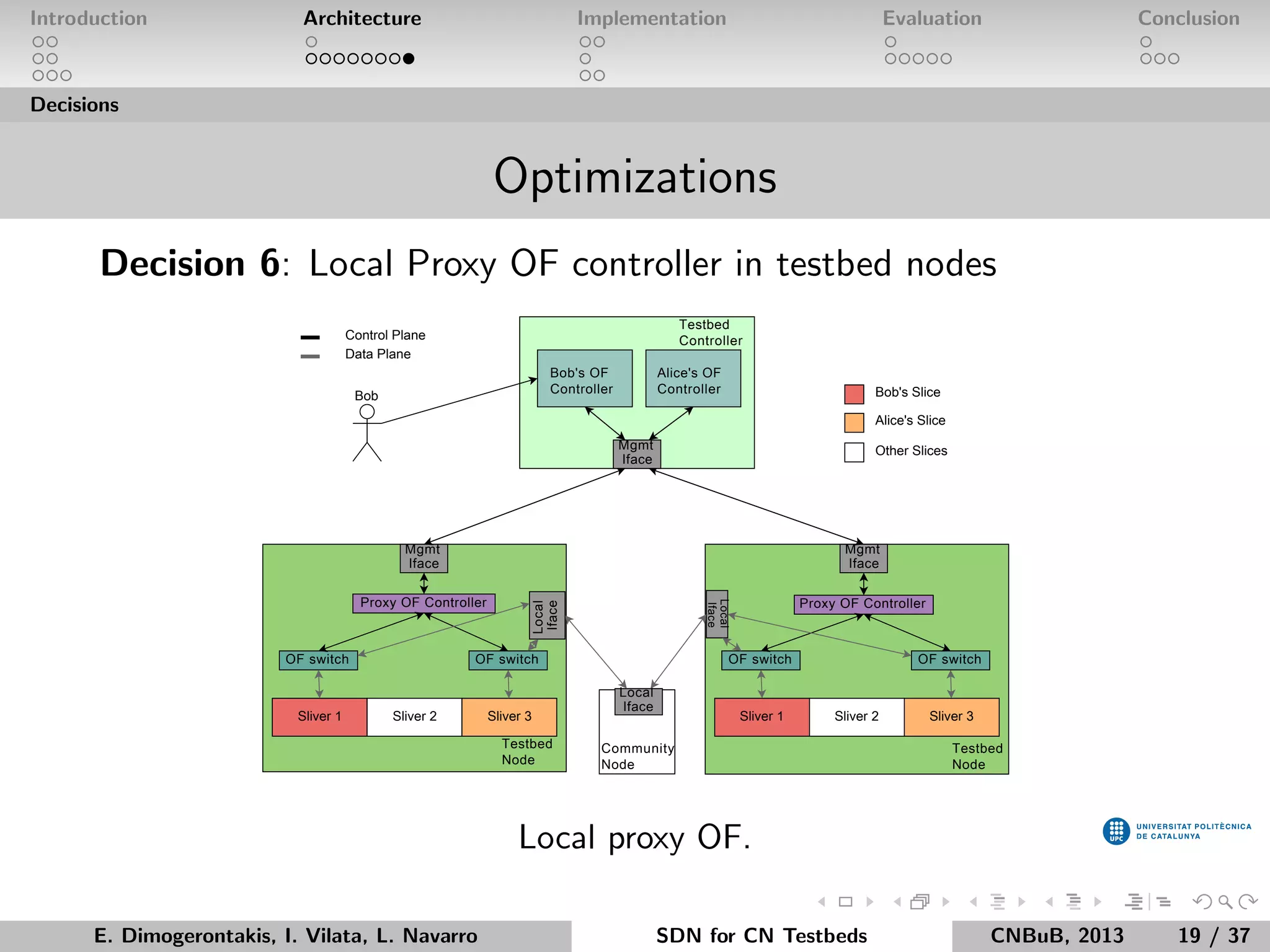

Local proxy OF.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
19 / 37

28. Introduction
Architecture
Implementation
Evaluation
Conclusion

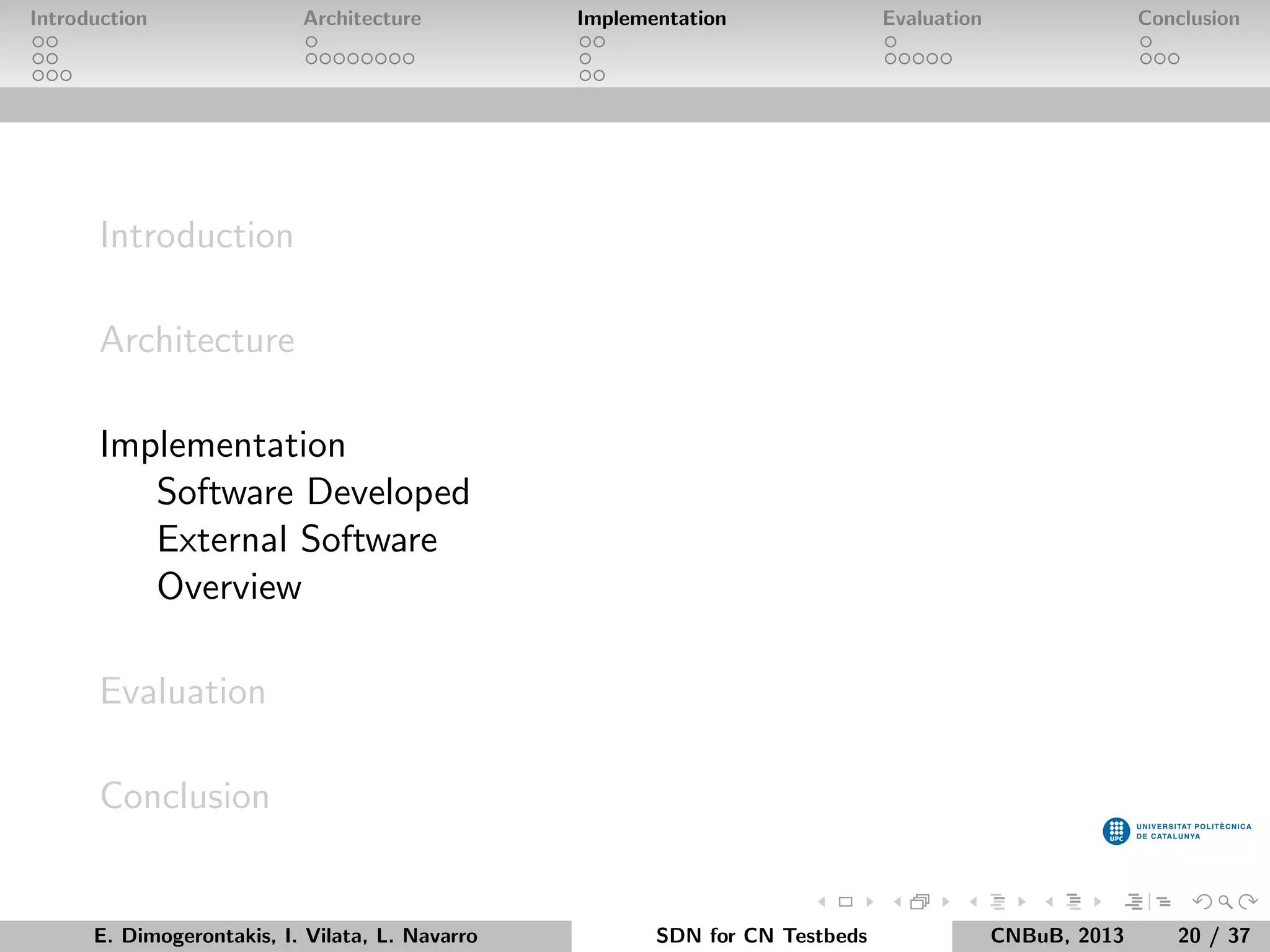

Introduction
Architecture
Implementation
Software Developed
External Software
Overview
Evaluation
Conclusion
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
20 / 37

29. Introduction
Architecture
Implementation
Evaluation
Conclusion
Software Developed
Poxy
Poxy implements a proxy for the controller-switch OFP connection,
on top of the POX OF controller.
Normal OpenFlow
Scenario
Poxy OpenFlow
Scenario
OpenFlow Controller
OpenFlow Controller
Poxy
OpenFlow Connection
OpenFlow Switch
OpenFlow Switch
Nodes
Nodes

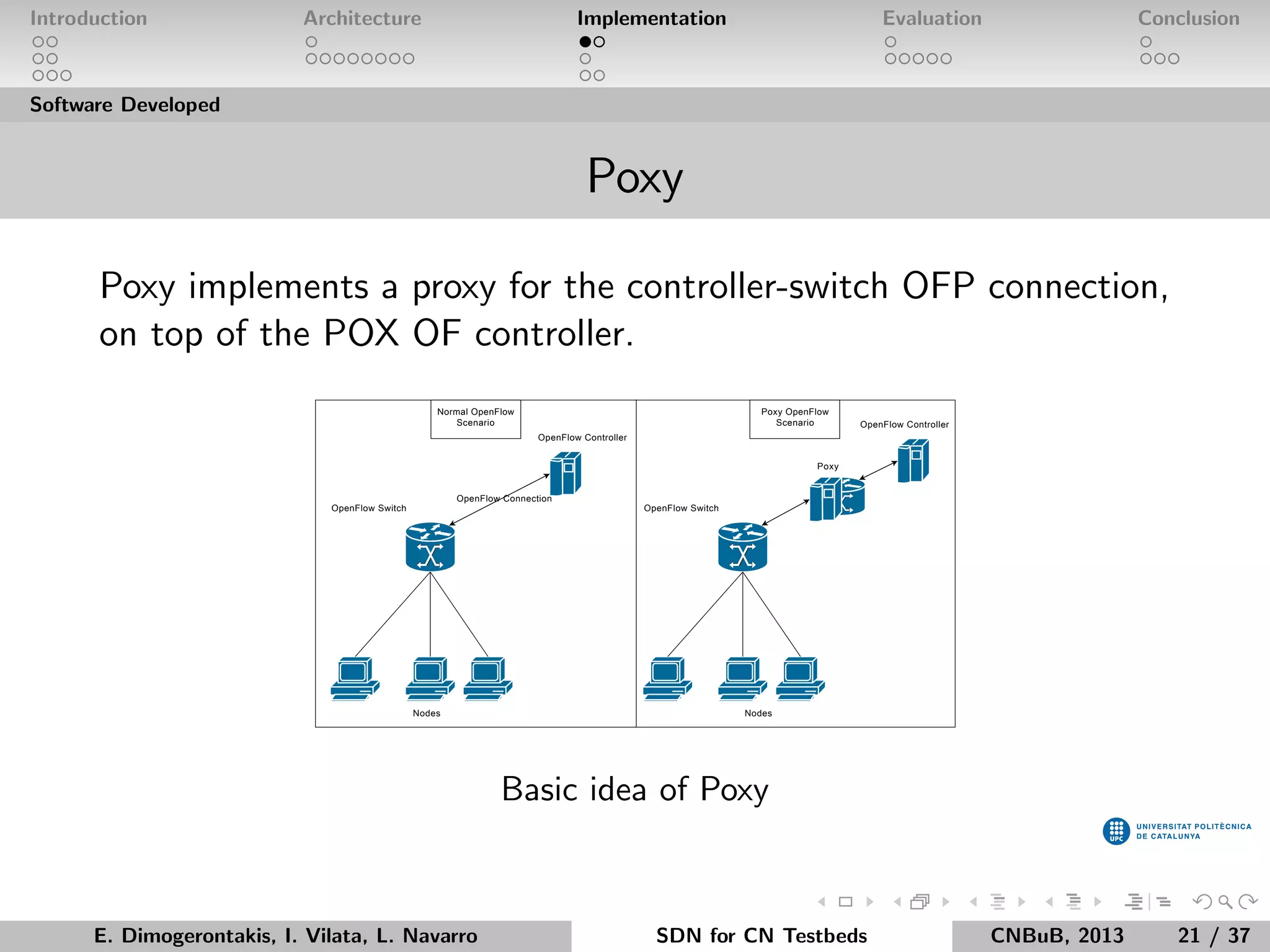

Basic idea of Poxy
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
21 / 37

30. Introduction
Architecture
Implementation
Evaluation
Conclusion
Software Developed
Pongo

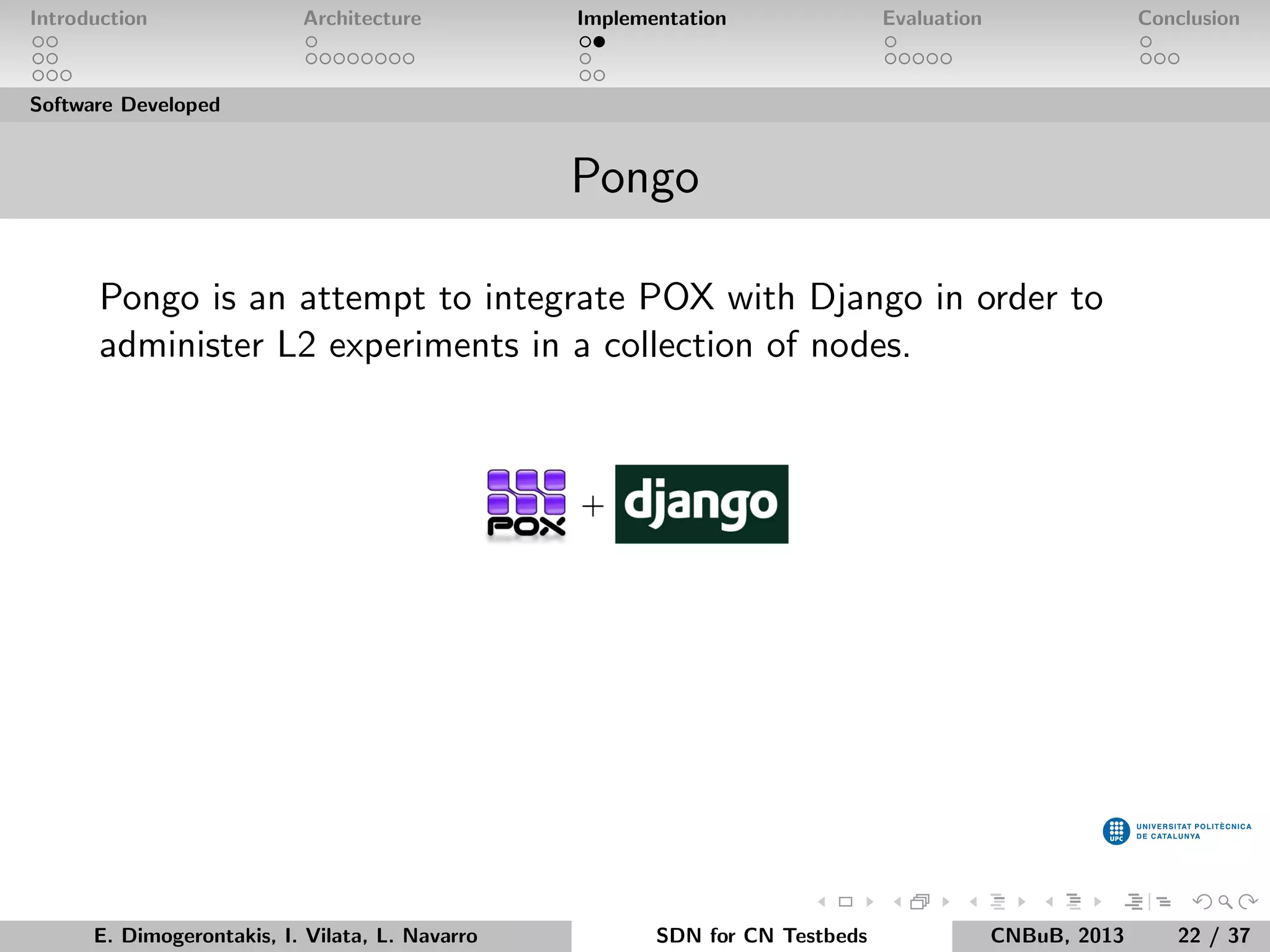

Pongo is an attempt to integrate POX with Django in order to
administer L2 experiments in a collection of nodes.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
22 / 37

31. Introduction
Architecture
Implementation
Evaluation
Conclusion

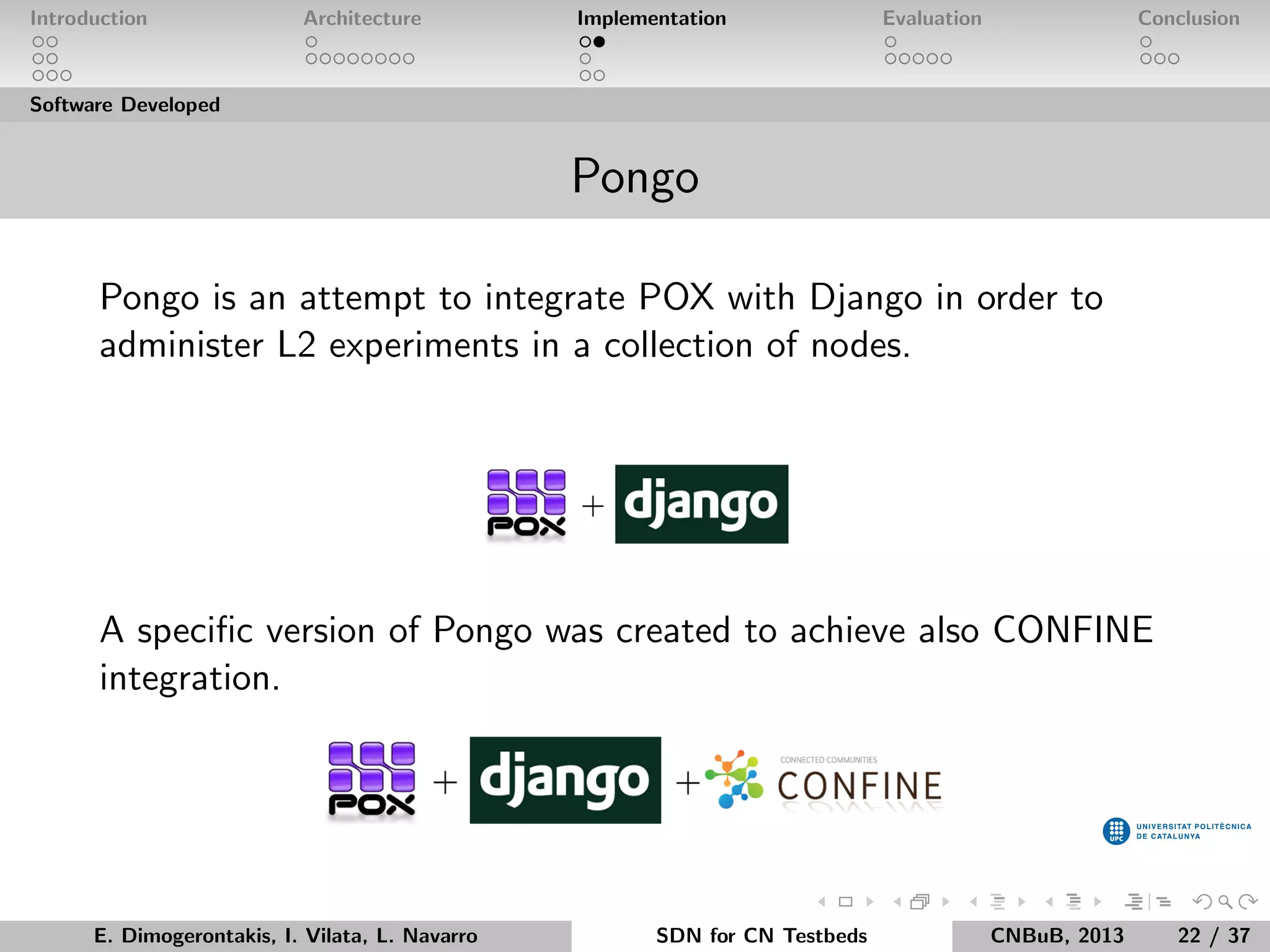

Software Developed
Pongo
Pongo is an attempt to integrate POX with Django in order to
administer L2 experiments in a collection of nodes.
A specific version of Pongo was created to achieve also CONFINE
integration.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
22 / 37

32. Introduction
Architecture
Implementation
Evaluation
Conclusion
External Software

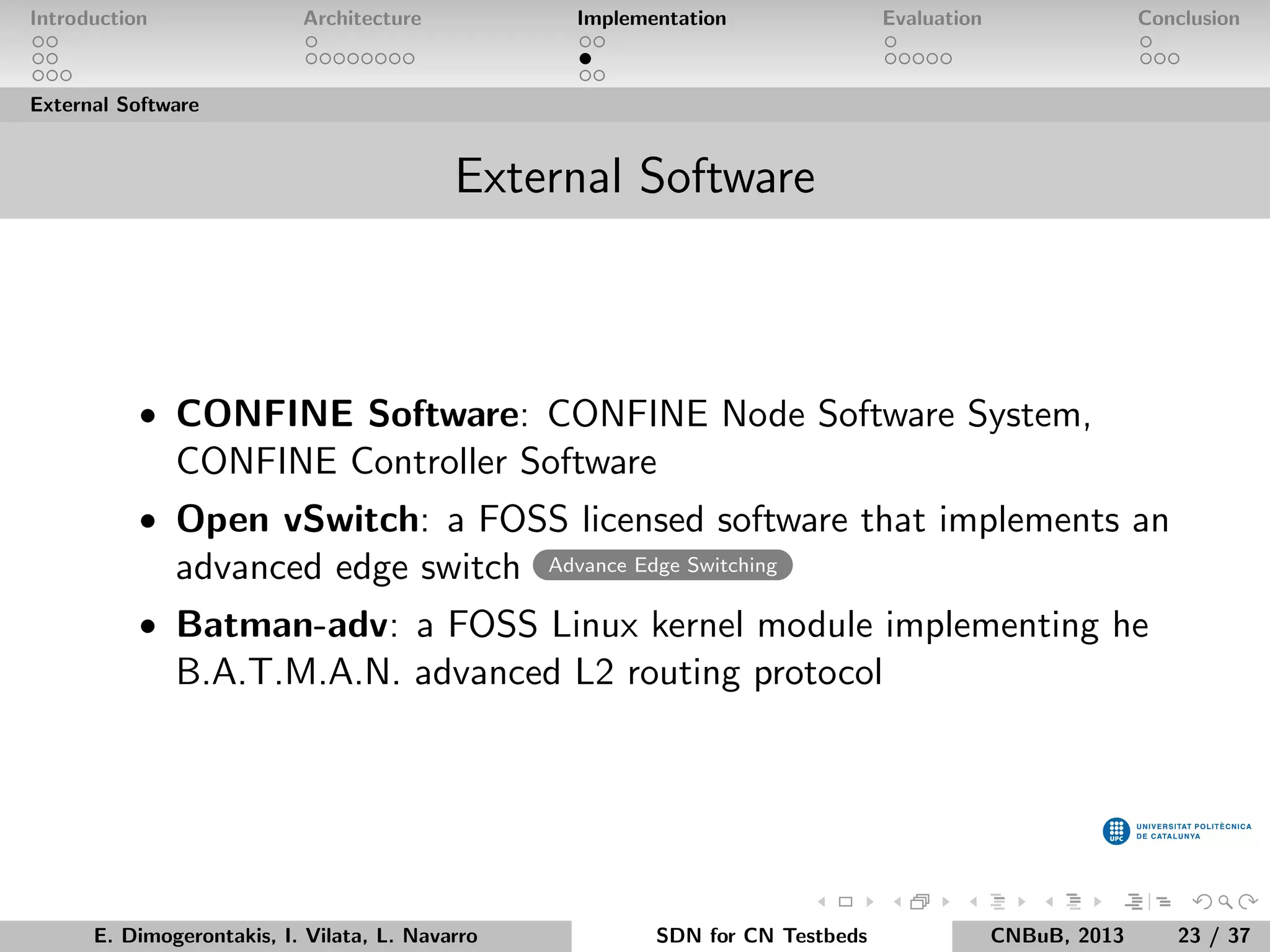

External Software
• CONFINE Software: CONFINE Node Software System,
CONFINE Controller Software
• Open vSwitch: a FOSS licensed software that implements an
advanced edge switch
Advance Edge Switching
• Batman-adv: a FOSS Linux kernel module implementing he
B.A.T.M.A.N. advanced L2 routing protocol
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
23 / 37

33. Introduction
Architecture
Implementation
Evaluation
Conclusion
Overview
Implementation Overview
Bob
Community-Lab
Server
HTTPS
CONFINE Controller Software
Bob's Pongo
REST
Alice's Pongo
OF
REST
OF
OFP Control Plane
New Components/
New Software
mgmt0
REST traffic
Bob's Slice
batman-adv traffic
Alice's Slice
Data Plane
Other Slices
Management
Network
HTTPS
mgmt0
mgmt0
Poxy
CONFINE Node Software
Open Vswitch
Sliver 1
Open Vswitch
Sliver 2
Sliver 3
Community-Lab
Node
Poxy
bat0
bat0
CONFINE Node Software
Local
Island
Open Vswitch
bat0
Sliver 1
Open Vswitch
Sliver 2
Community
Node
Sliver 3
Community-Lab
Node

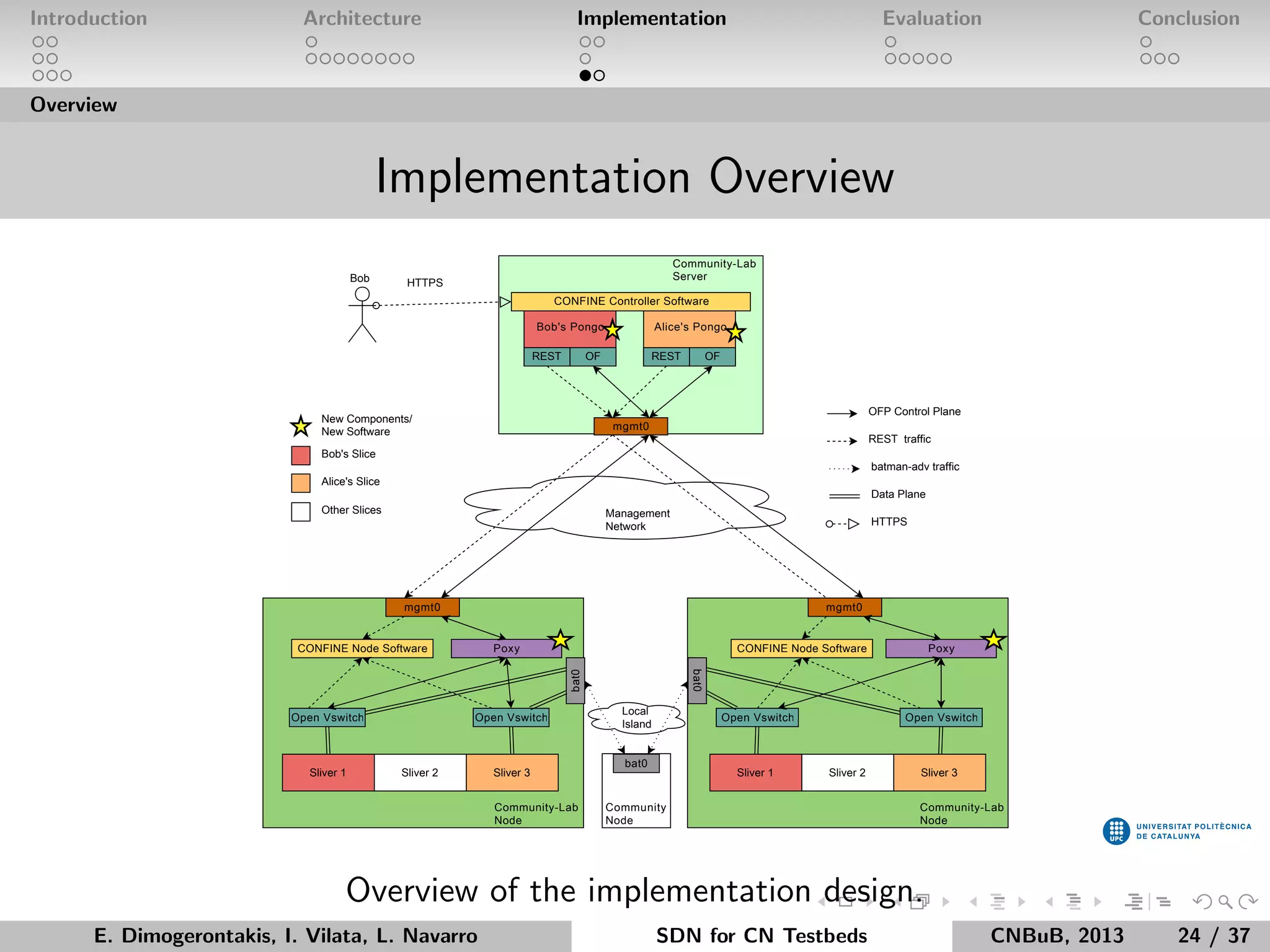

Overview of the implementation design.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
24 / 37

34. Introduction
Architecture
Implementation
Evaluation
Conclusion
Overview
User View
Sliver 1 @ node 3
Sliver 3 @ node 3
Link 1
Link 1
Link 2
Link 2
Sliver 1 @ node 2
Sliver 3 @ node 2
Sliver 1 @ node 1
Link 3
Sliver 3 @ node 1
Link 3

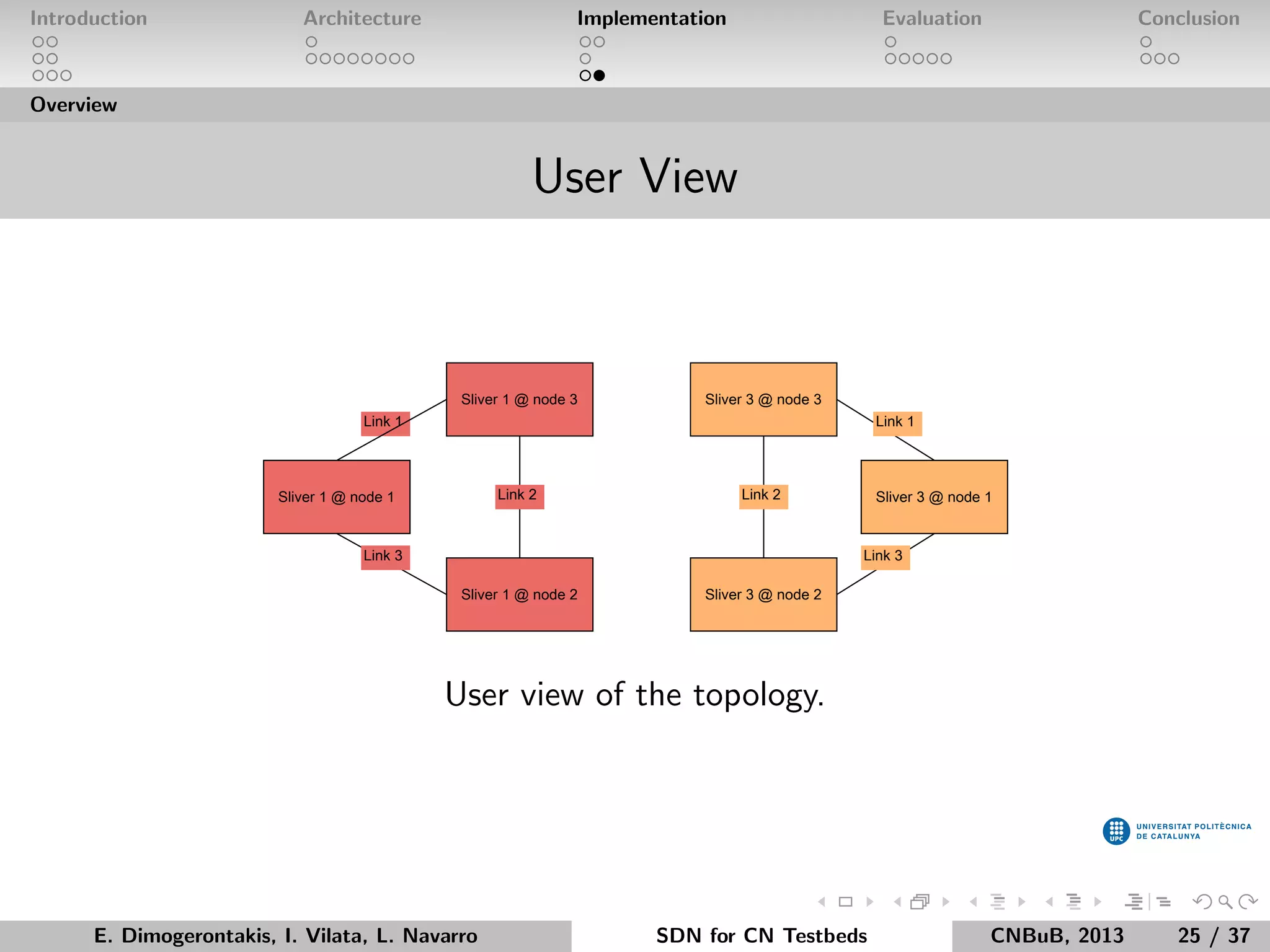

User view of the topology.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
25 / 37

35. Introduction
Architecture
Implementation
Evaluation
Conclusion
Introduction
Architecture
Implementation

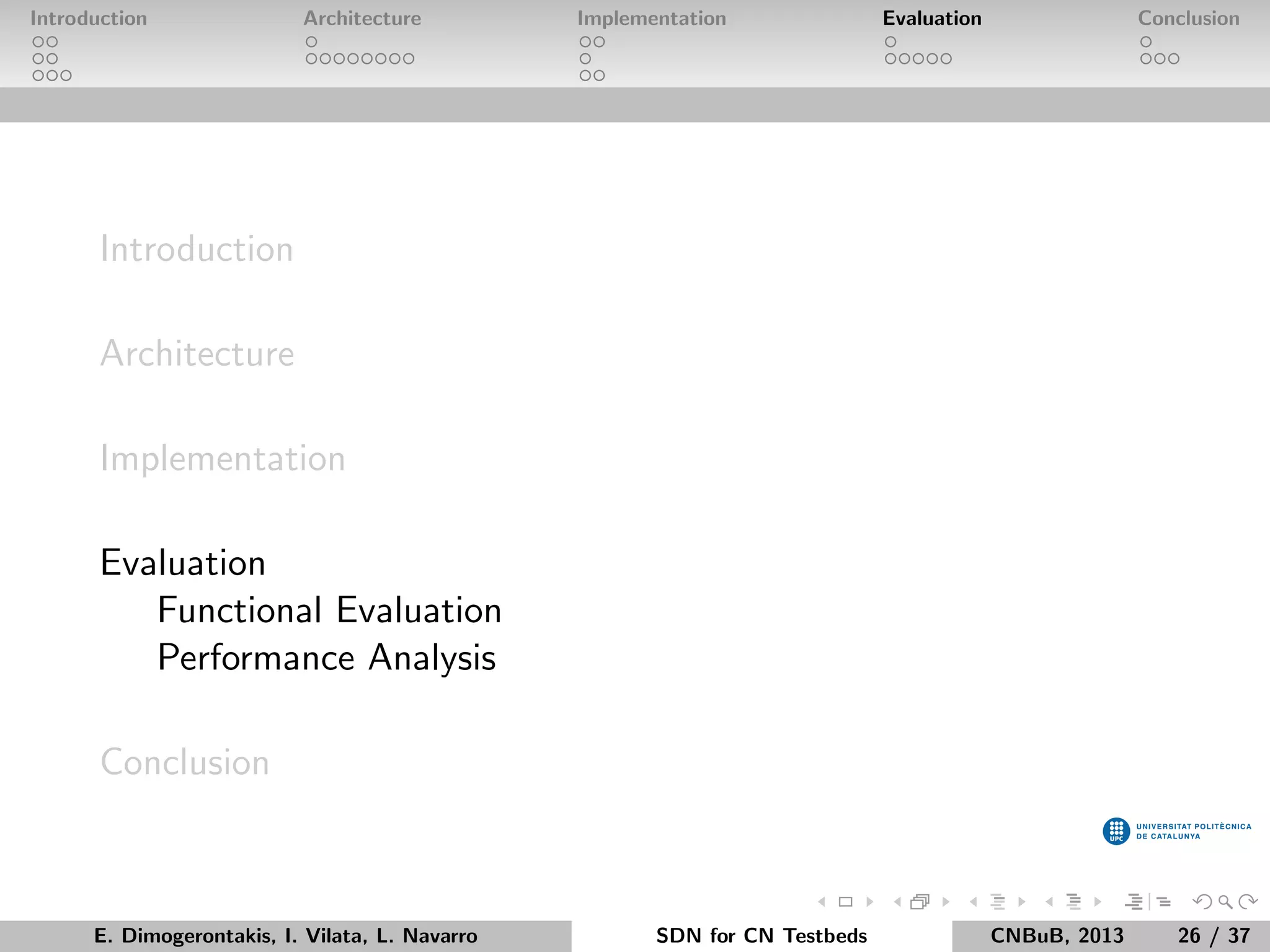

Evaluation
Functional Evaluation
Performance Analysis
Conclusion
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
26 / 37

36. Introduction
Architecture
Implementation
Evaluation
Conclusion
Functional Evaluation

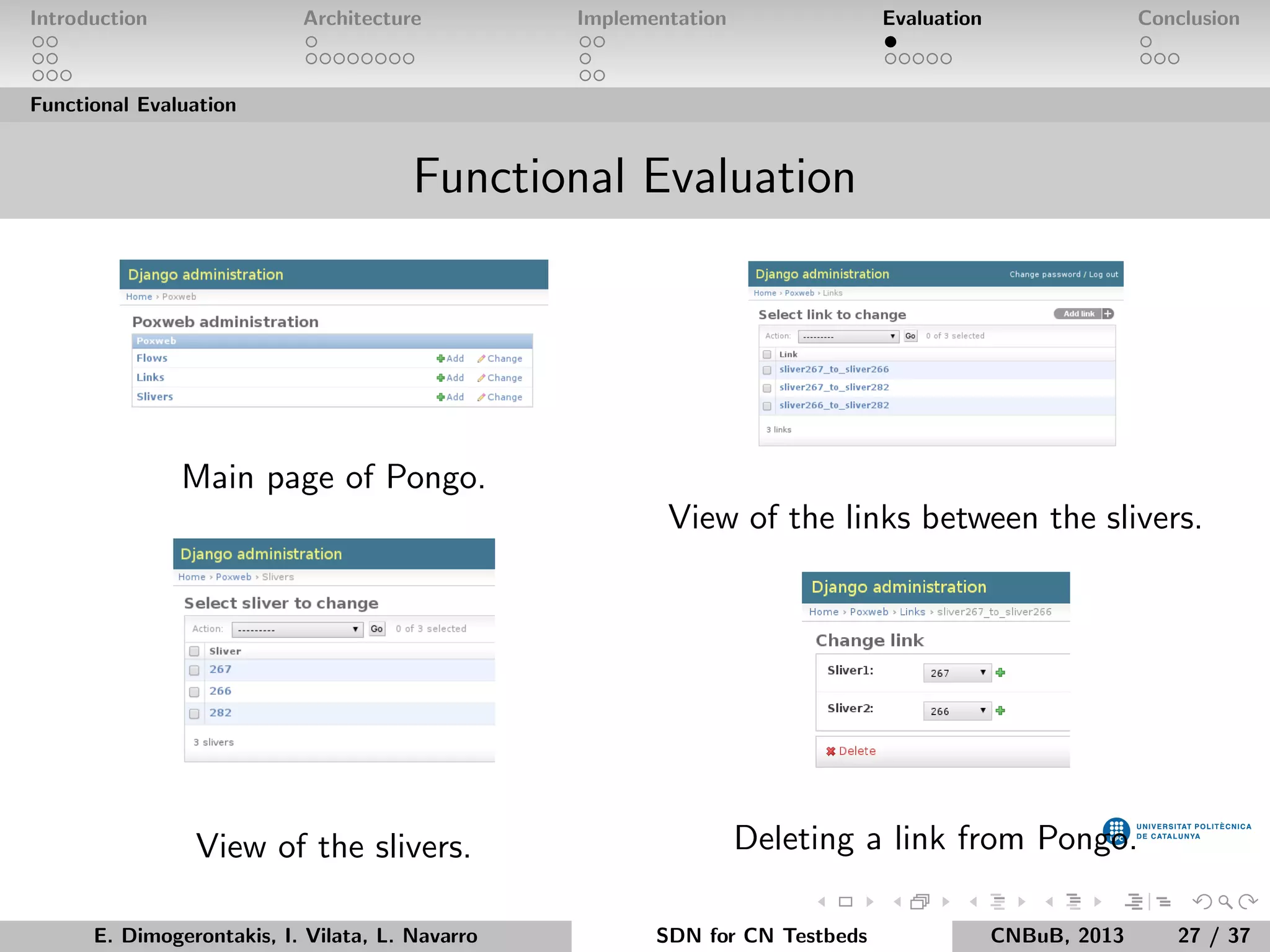

Functional Evaluation
Main page of Pongo.
View of the links between the slivers.
View of the slivers.
E. Dimogerontakis, I. Vilata, L. Navarro
Deleting a link from Pongo.
SDN for CN Testbeds
CNBuB, 2013
27 / 37

37. Introduction
Architecture
Implementation
Evaluation
Conclusion
Performance Analysis

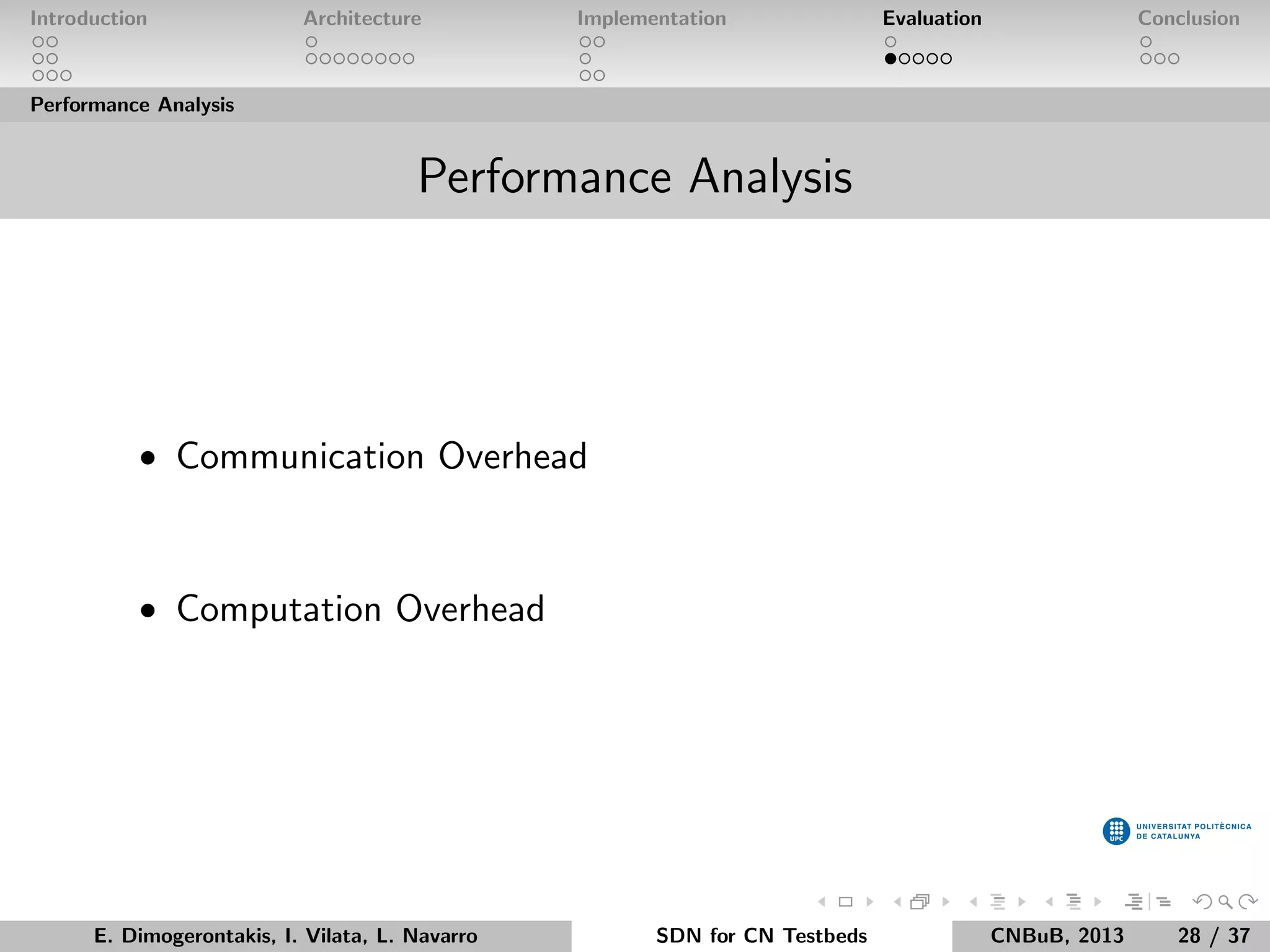

Performance Analysis
• Communication Overhead
• Computation Overhead
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
28 / 37

38. Introduction
Architecture
Implementation
Evaluation
Conclusion
Performance Analysis
Communication Overhead: Management Overlay
Bob
Community-Lab
Server
HTTPS
CONFINE Controller Software
Bob's Pongo
REST
Alice's Pongo
OF
REST
OF
OFP Control Plane
mgmt0
REST traffic
Bob's Slice
batman-adv traffic
Alice's Slice
Data Plane
Other Slices
Management
Network
HTTPS
mgmt0
mgmt0
Poxy
CONFINE Node Software
Open Vswitch
Sliver 1
Open Vswitch
Sliver 2
Sliver 3
Community-Lab
Node
Poxy
bat0
bat0
CONFINE Node Software
Local
Island
Open Vswitch
bat0
Sliver 1
Open Vswitch
Sliver 2
Community
Node
Sliver 3
Community-Lab
Node
Management Overlay Communication
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
29 / 37

39. Introduction
Architecture
Implementation
Evaluation
Conclusion
Performance Analysis
Communication Overhead: Local Mesh Network
Bob
Community-Lab
Server
HTTPS
CONFINE Controller Software
Bob's Pongo
REST
Alice's Pongo
OF
REST
OF
OFP Control Plane
mgmt0
REST traffic
Bob's Slice
batman-adv traffic
Alice's Slice
Data Plane
Other Slices
Management
Network
HTTPS
mgmt0
mgmt0
Poxy
CONFINE Node Software
Open Vswitch
Sliver 1
Open Vswitch
Sliver 2
Sliver 3
Community-Lab
Node
Poxy
bat0
bat0
CONFINE Node Software
Local
Island
Open Vswitch
bat0
Sliver 1
Open Vswitch
Sliver 2
Community
Node
Sliver 3
Community-Lab
Node

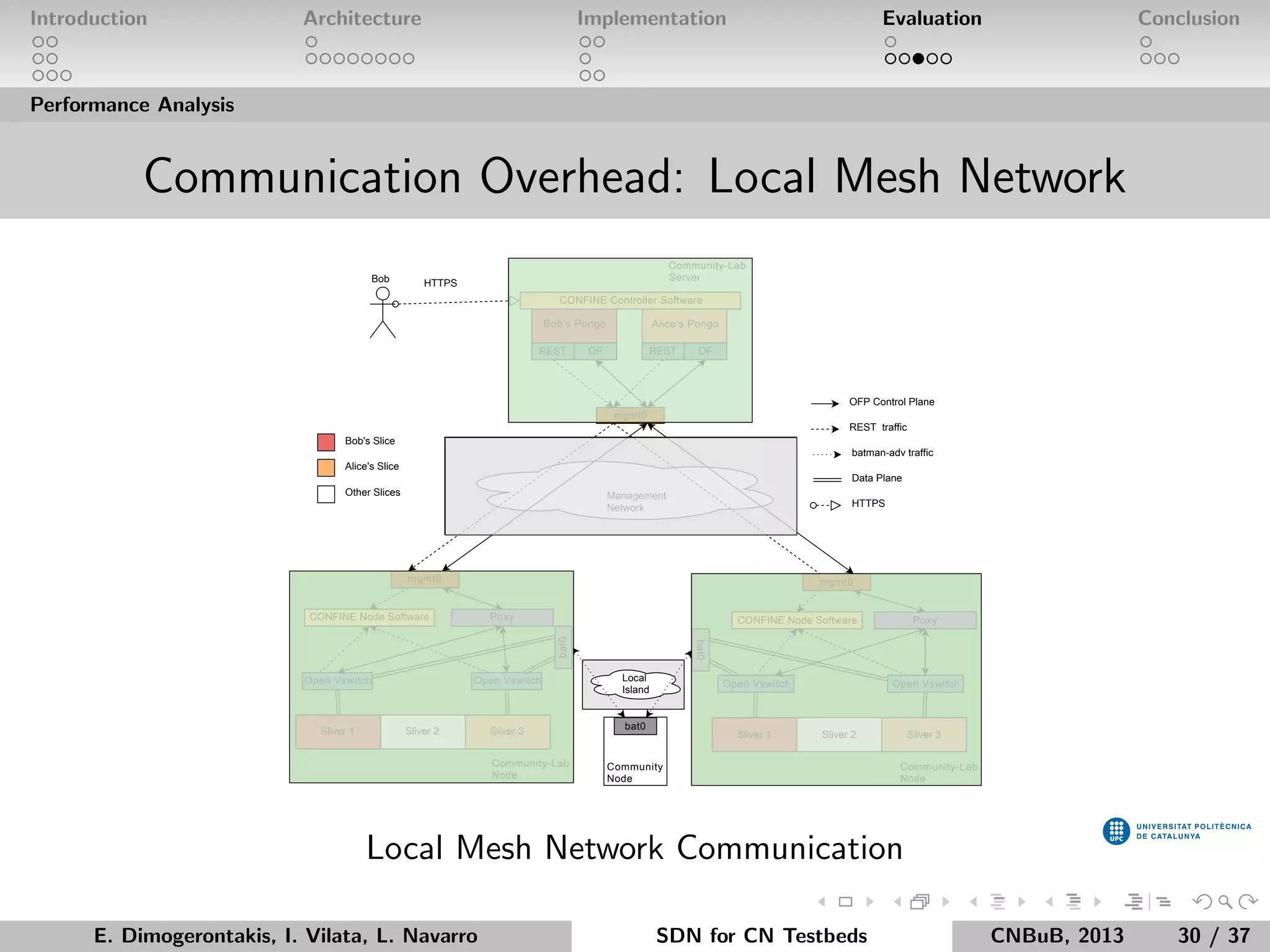

Local Mesh Network Communication
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
30 / 37

40. Introduction
Architecture
Implementation
Evaluation
Conclusion
Performance Analysis
Computation Overhead: Controller
Bob
Community-Lab
Server
HTTPS
CONFINE Controller Software
OFP Control Plane
Bob's Pongo
Alice's Pongo
REST traffic
REST
OF
REST
OF
HTTPS
Bob's Slice
Alice's Slice
mgmt0
Architecture of the server.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
31 / 37

41. Introduction
Architecture
Implementation
Evaluation
Conclusion
Performance Analysis
Computation Overhead: Node
mgmt0
Poxy
bat0
CONFINE Node Software
Bob's Slice
Alice's Slice
REST traffic
Data Plane
Open Vswitch
Open Vswitch
Other Slices
HTTPS
Sliver 1
Sliver 2
Sliver 3
Community-Lab
Node
Architecture of the node.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
32 / 37

42. Introduction
Architecture
Implementation
Evaluation
Conclusion
Introduction
Architecture
Implementation
Evaluation
Conclusion
Conclusions
Future Work
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
33 / 37

43. Introduction
Architecture
Implementation
Evaluation
Conclusion
Conclusions
Conclusions

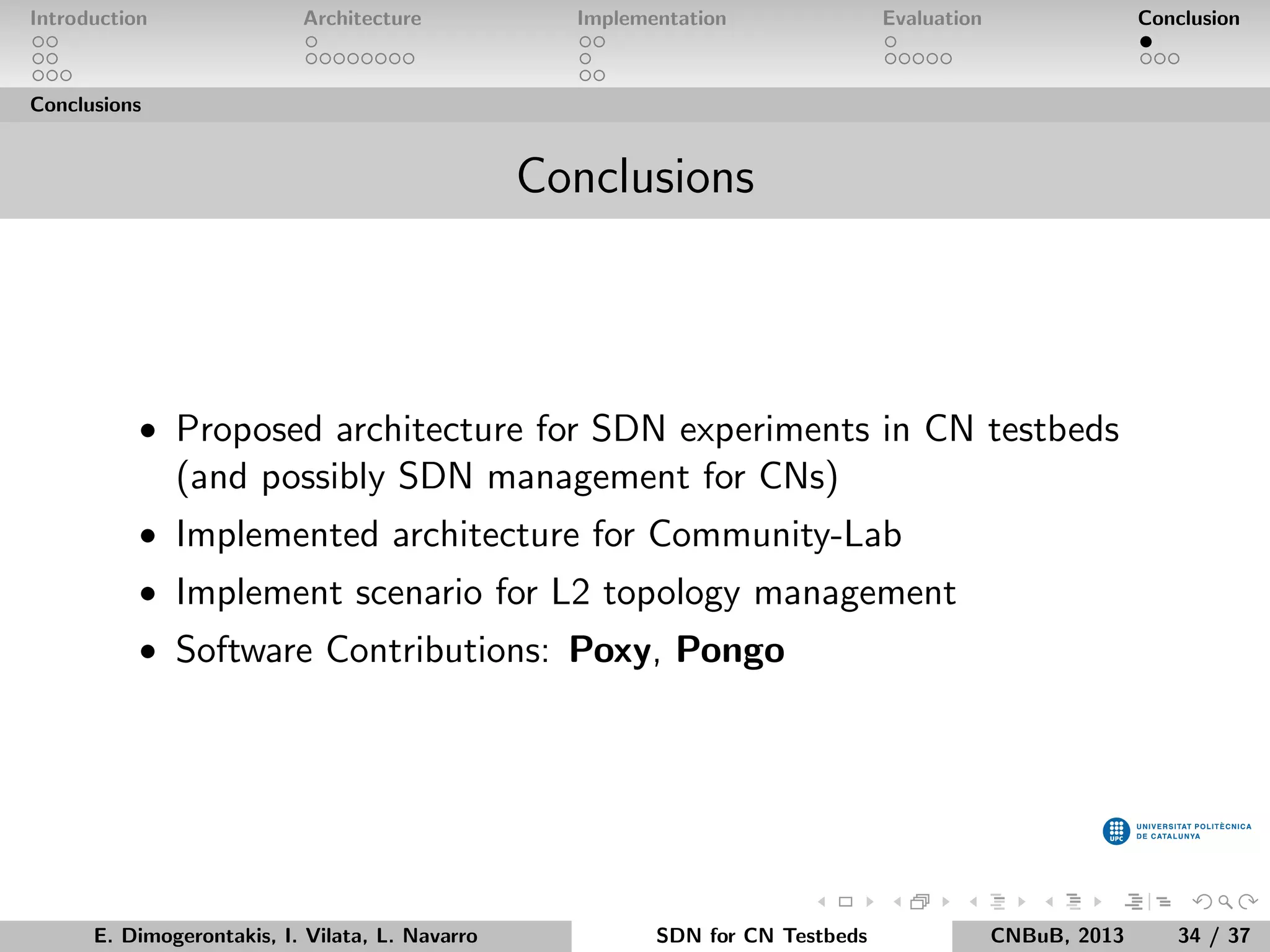

• Proposed architecture for SDN experiments in CN testbeds
(and possibly SDN management for CNs)
• Implemented architecture for Community-Lab
• Implement scenario for L2 topology management
• Software Contributions: Poxy, Pongo
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
34 / 37

44. Introduction
Architecture
Implementation
Evaluation
Conclusion
Future Work
Future Work

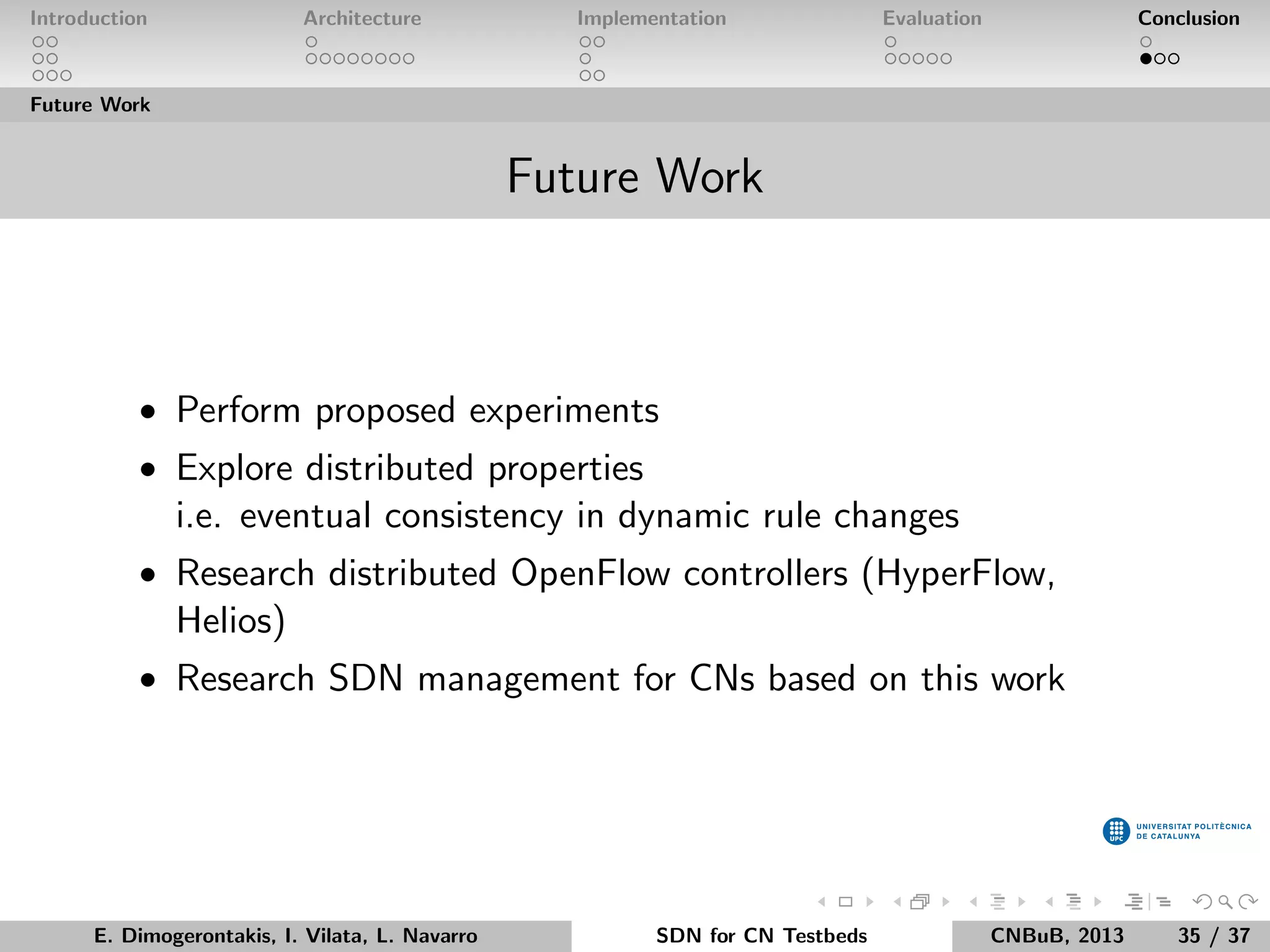

• Perform proposed experiments
• Explore distributed properties
i.e. eventual consistency in dynamic rule changes
• Research distributed OpenFlow controllers (HyperFlow,
Helios)
• Research SDN management for CNs based on this work
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
35 / 37

45. Introduction
Architecture
Implementation
Evaluation
Conclusion
Future Work

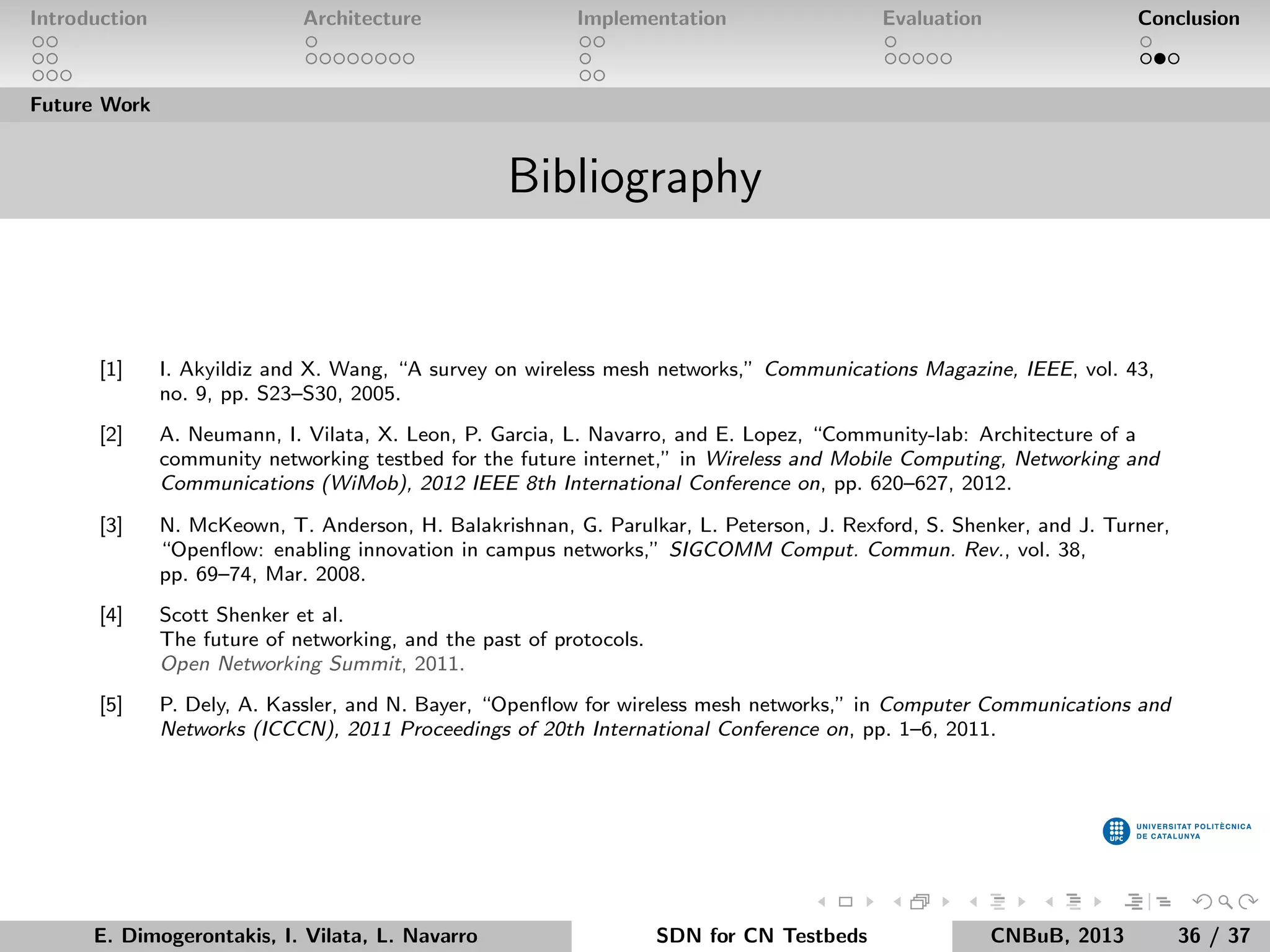

Bibliography
[1]
I. Akyildiz and X. Wang, “A survey on wireless mesh networks,” Communications Magazine, IEEE, vol. 43,
no. 9, pp. S23–S30, 2005.
[2]
A. Neumann, I. Vilata, X. Leon, P. Garcia, L. Navarro, and E. Lopez, “Community-lab: Architecture of a
community networking testbed for the future internet,” in Wireless and Mobile Computing, Networking and
Communications (WiMob), 2012 IEEE 8th International Conference on, pp. 620–627, 2012.
[3]
N. McKeown, T. Anderson, H. Balakrishnan, G. Parulkar, L. Peterson, J. Rexford, S. Shenker, and J. Turner,
“Openflow: enabling innovation in campus networks,” SIGCOMM Comput. Commun. Rev., vol. 38,
pp. 69–74, Mar. 2008.
[4]
Scott Shenker et al.
The future of networking, and the past of protocols.
Open Networking Summit, 2011.
[5]
P. Dely, A. Kassler, and N. Bayer, “Openflow for wireless mesh networks,” in Computer Communications and
Networks (ICCCN), 2011 Proceedings of 20th International Conference on, pp. 1–6, 2011.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
36 / 37

46. Introduction
Architecture
Implementation
Evaluation
Conclusion
Future Work

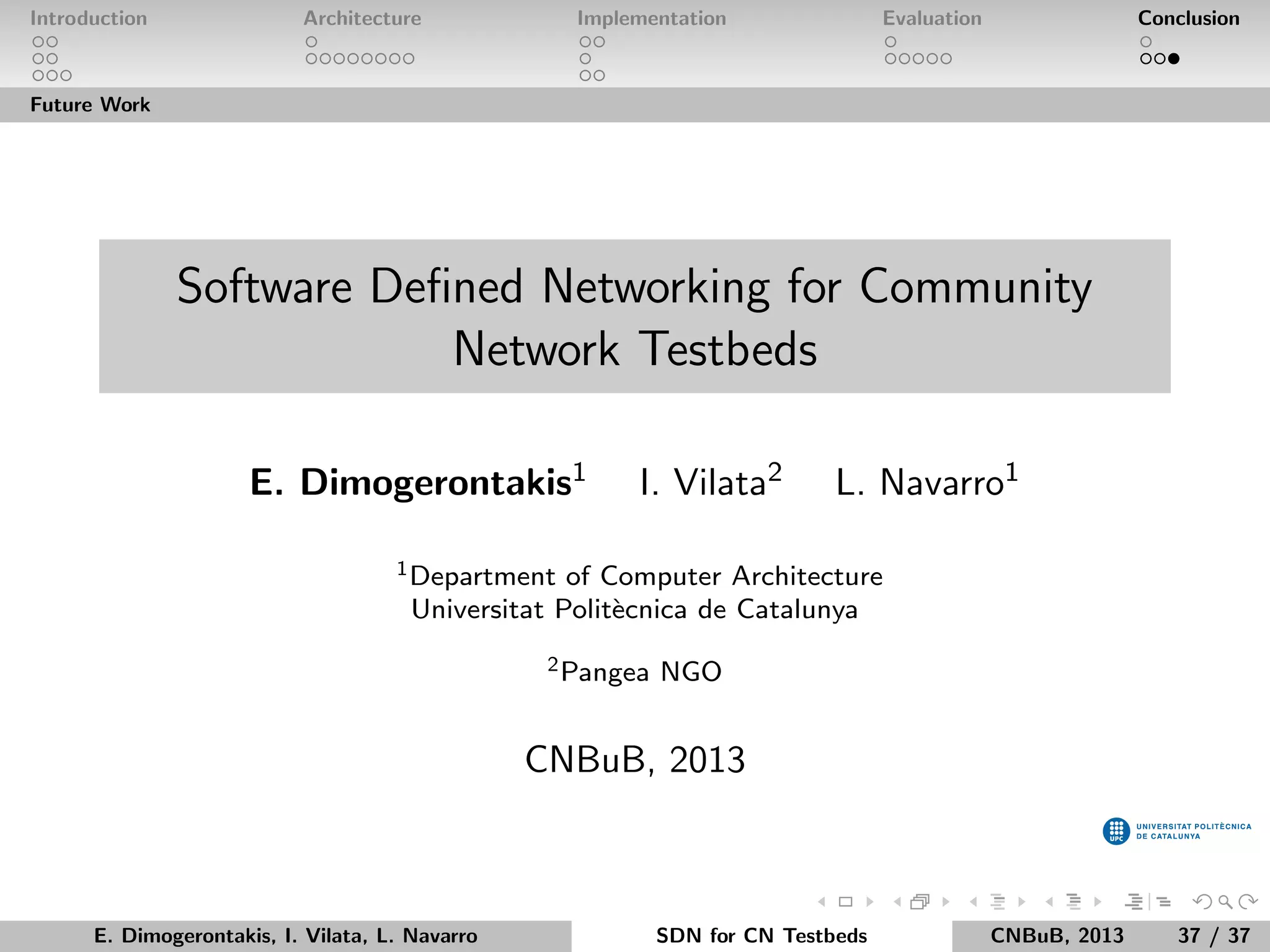

Software Defined Networking for Community
Network Testbeds
E. Dimogerontakis1
I. Vilata2
L. Navarro1
1 Department
of Computer Architecture
Universitat Polit`cnica de Catalunya
e
2 Pangea
NGO
CNBuB, 2013
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
37 / 37

47. Tackling the Challenges
CN Example
Advanced Edge Switching

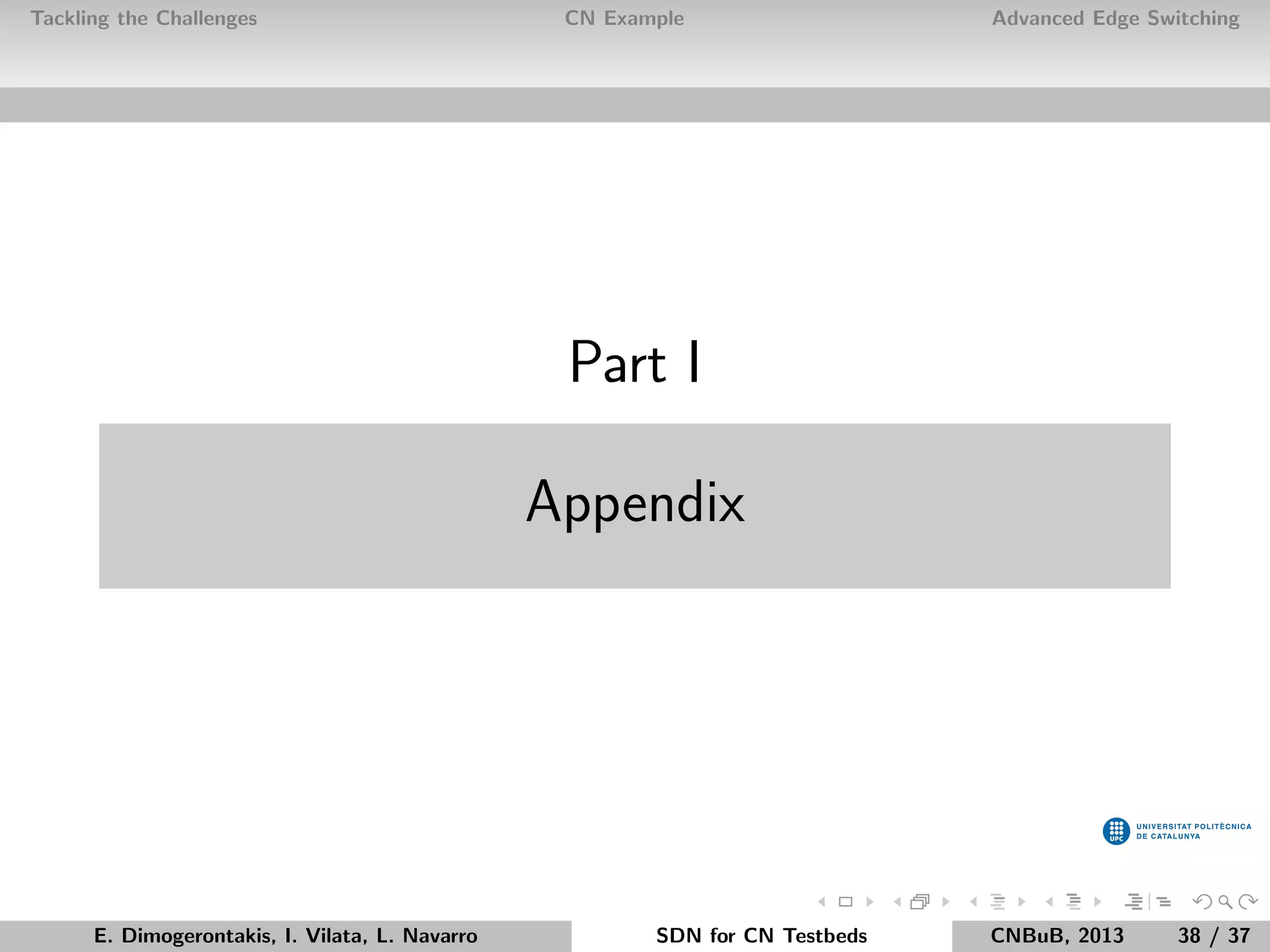

Part I
Appendix
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
38 / 37

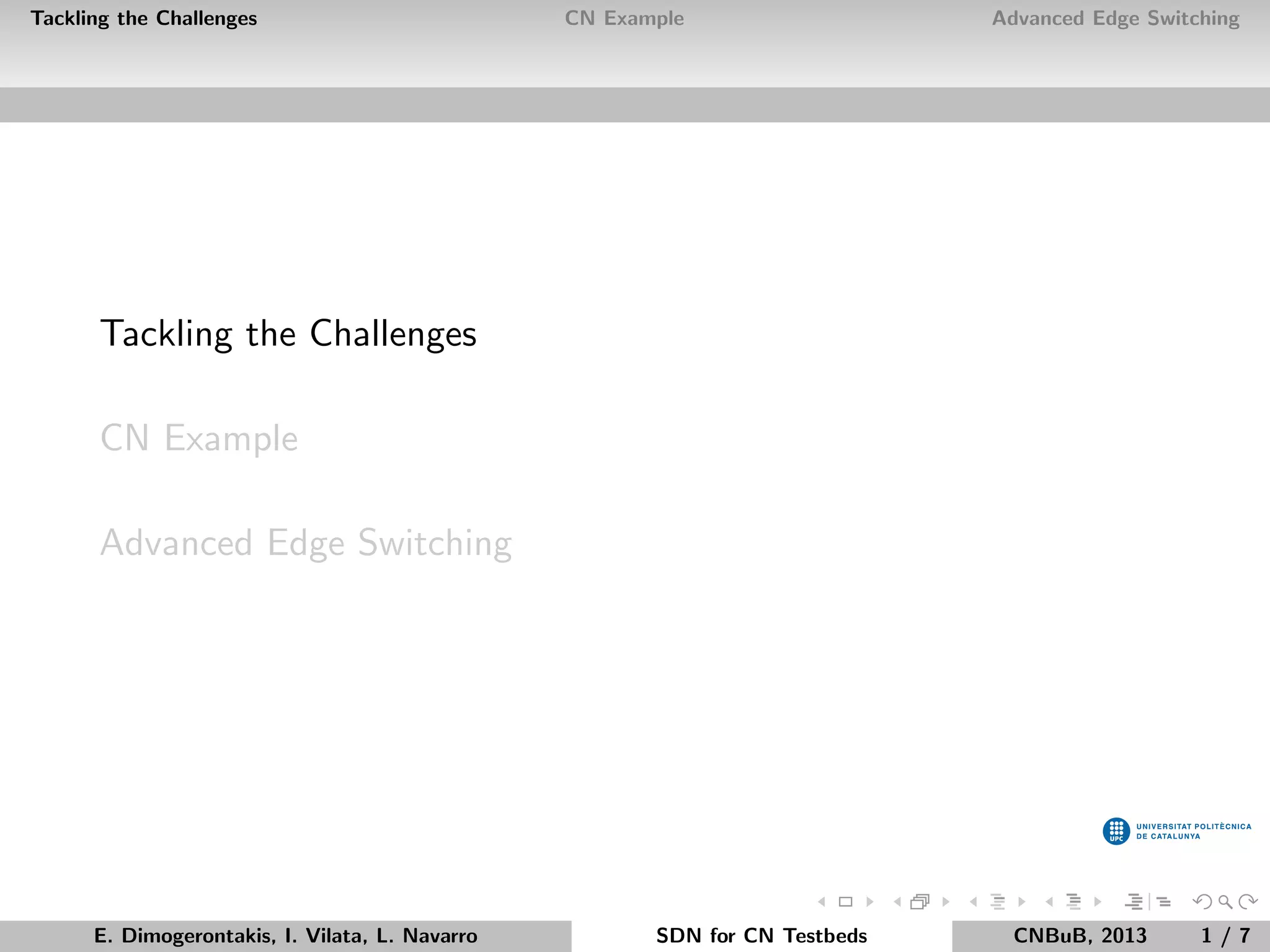

48. Tackling the Challenges
CN Example
Advanced Edge Switching
Tackling the Challenges
CN Example
Advanced Edge Switching
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
1/7

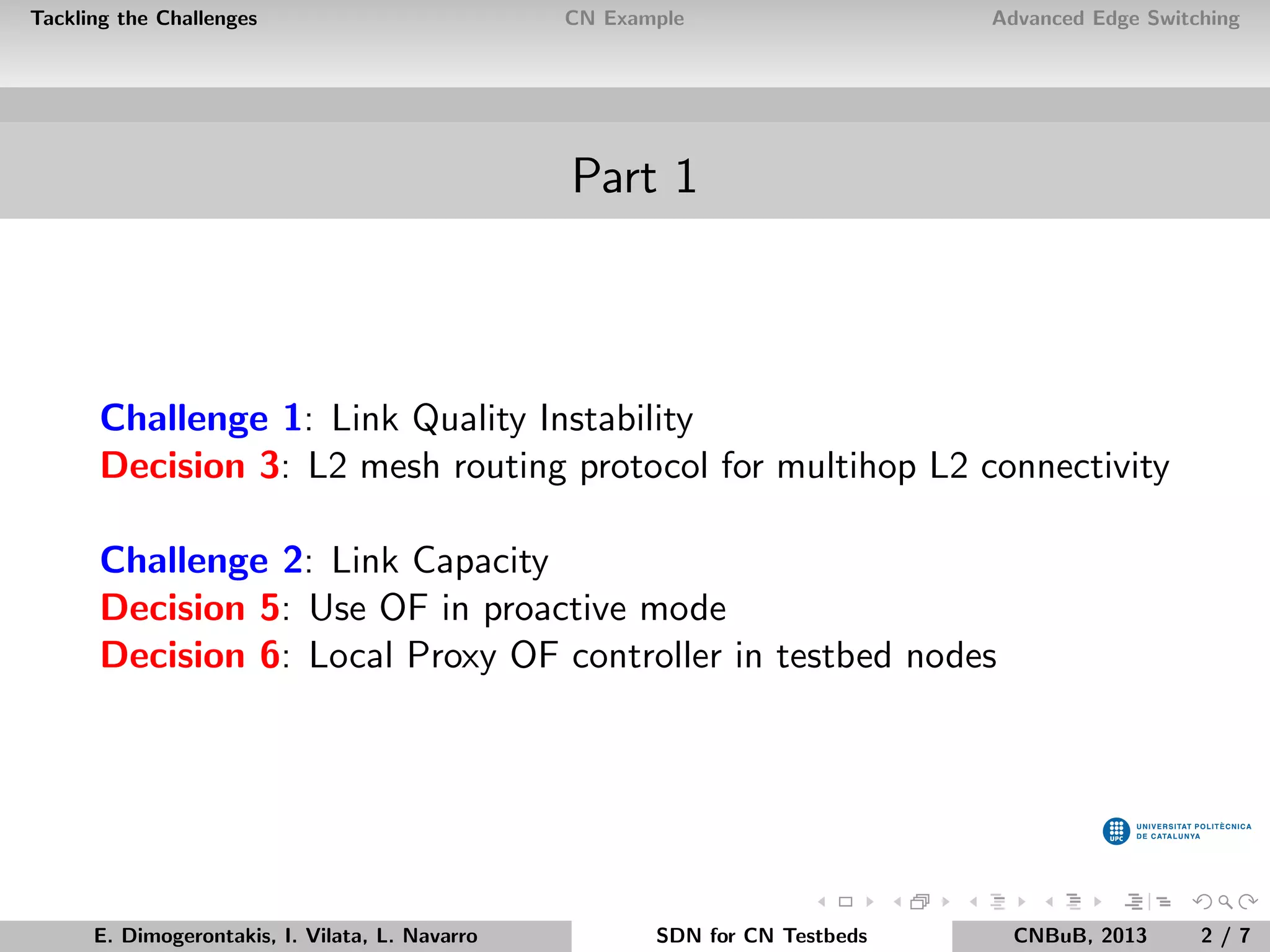

49. Tackling the Challenges
CN Example
Advanced Edge Switching
Part 1
Challenge 1: Link Quality Instability
Decision 3: L2 mesh routing protocol for multihop L2 connectivity
Challenge 2: Link Capacity
Decision 5: Use OF in proactive mode
Decision 6: Local Proxy OF controller in testbed nodes
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
2/7

50. Tackling the Challenges
CN Example
Advanced Edge Switching
Part 2

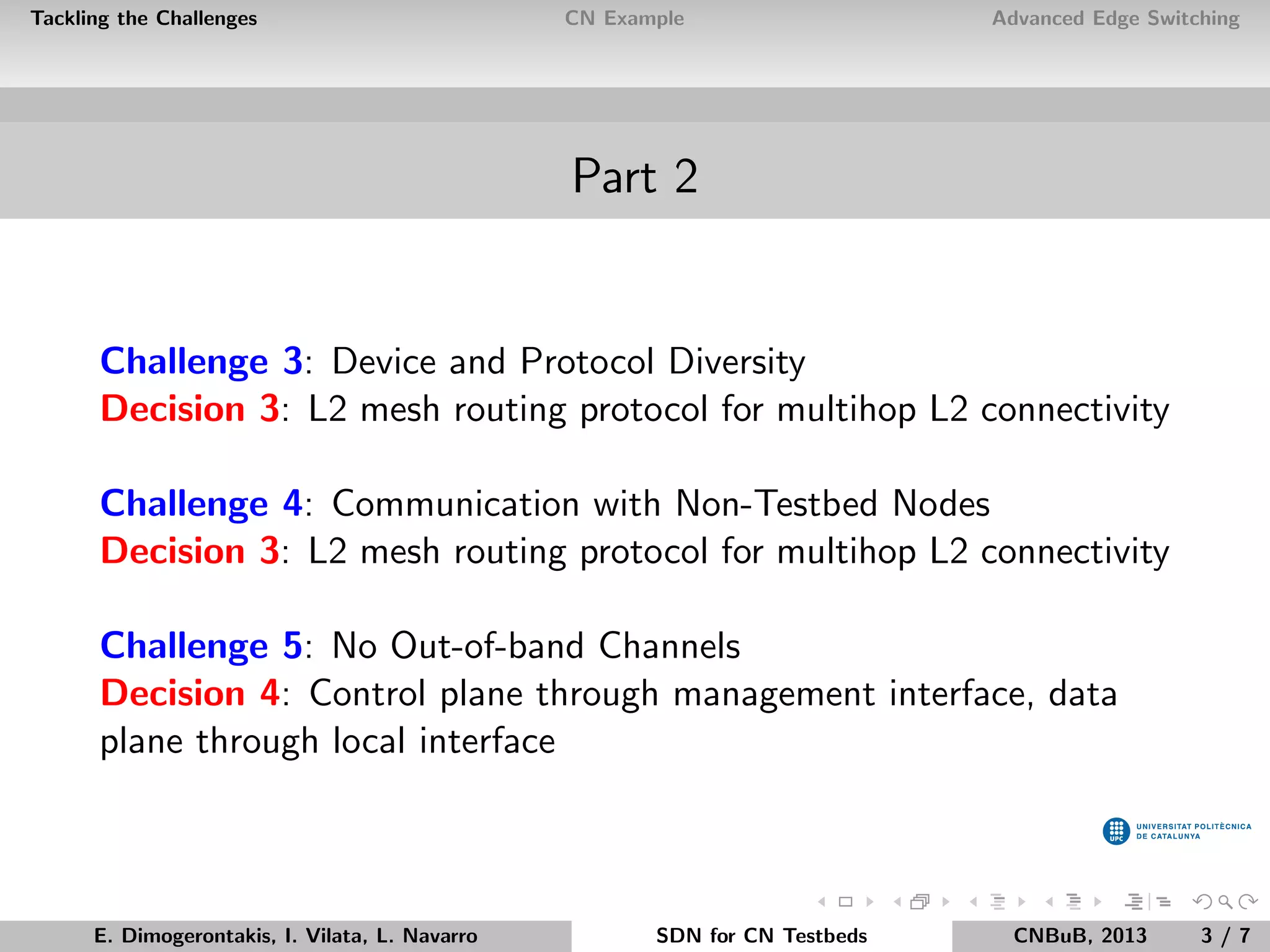

Challenge 3: Device and Protocol Diversity
Decision 3: L2 mesh routing protocol for multihop L2 connectivity
Challenge 4: Communication with Non-Testbed Nodes
Decision 3: L2 mesh routing protocol for multihop L2 connectivity
Challenge 5: No Out-of-band Channels
Decision 4: Control plane through management interface, data
plane through local interface
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
3/7

51. Tackling the Challenges
CN Example
Advanced Edge Switching
Tackling the Challenges
CN Example
Advanced Edge Switching
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
4/7

52. Tackling the Challenges
CN Example
Advanced Edge Switching

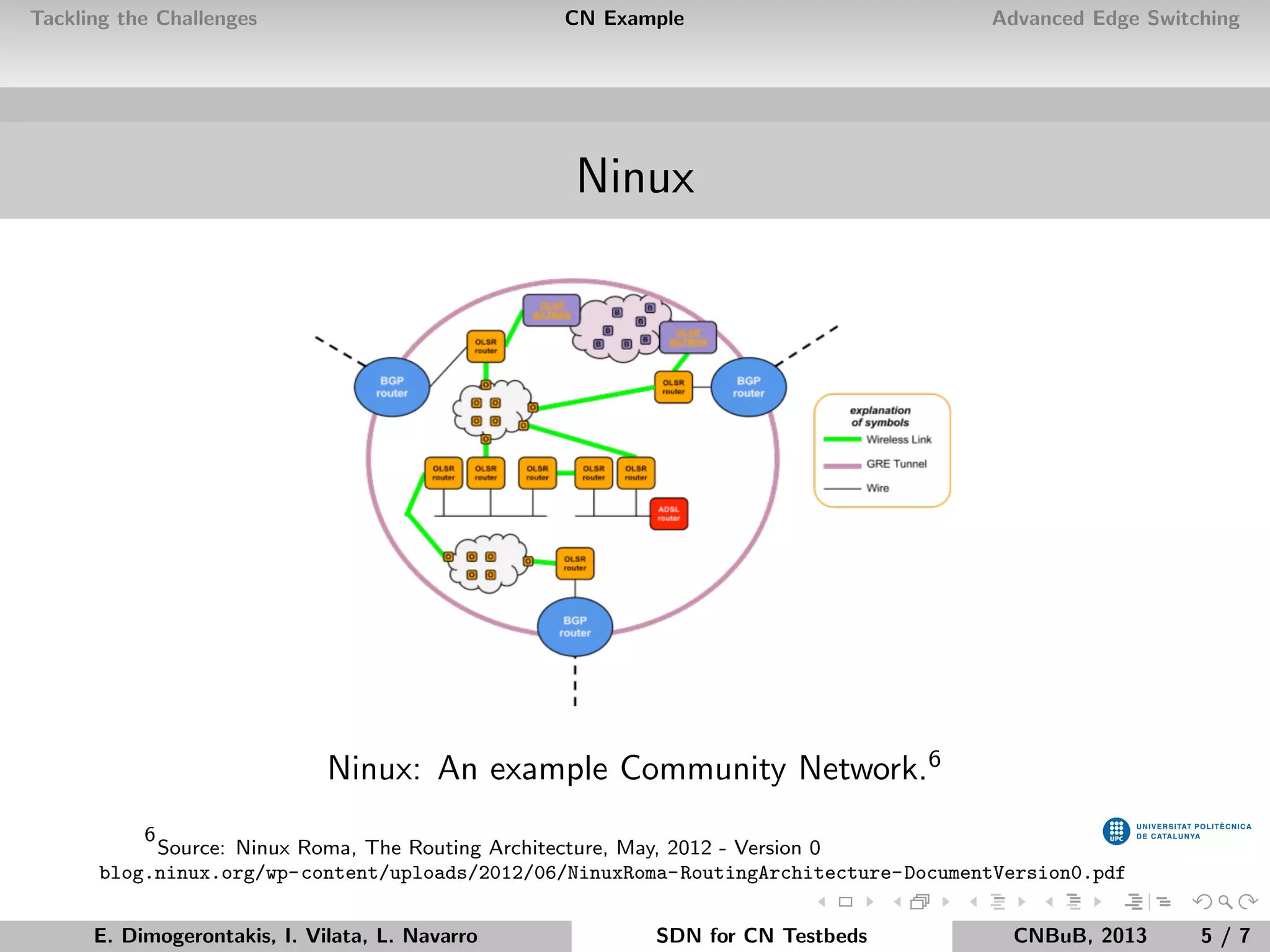

Ninux
Ninux: An example Community Network.6
6
Source: Ninux Roma, The Routing Architecture, May, 2012 - Version 0
blog.ninux.org/wp-content/uploads/2012/06/NinuxRoma-RoutingArchitecture-DocumentVersion0.pdf
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
5/7

53. Tackling the Challenges
CN Example
Advanced Edge Switching
Tackling the Challenges
CN Example
Advanced Edge Switching
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
6/7

54. Tackling the Challenges
CN Example
Advanced Edge Switching

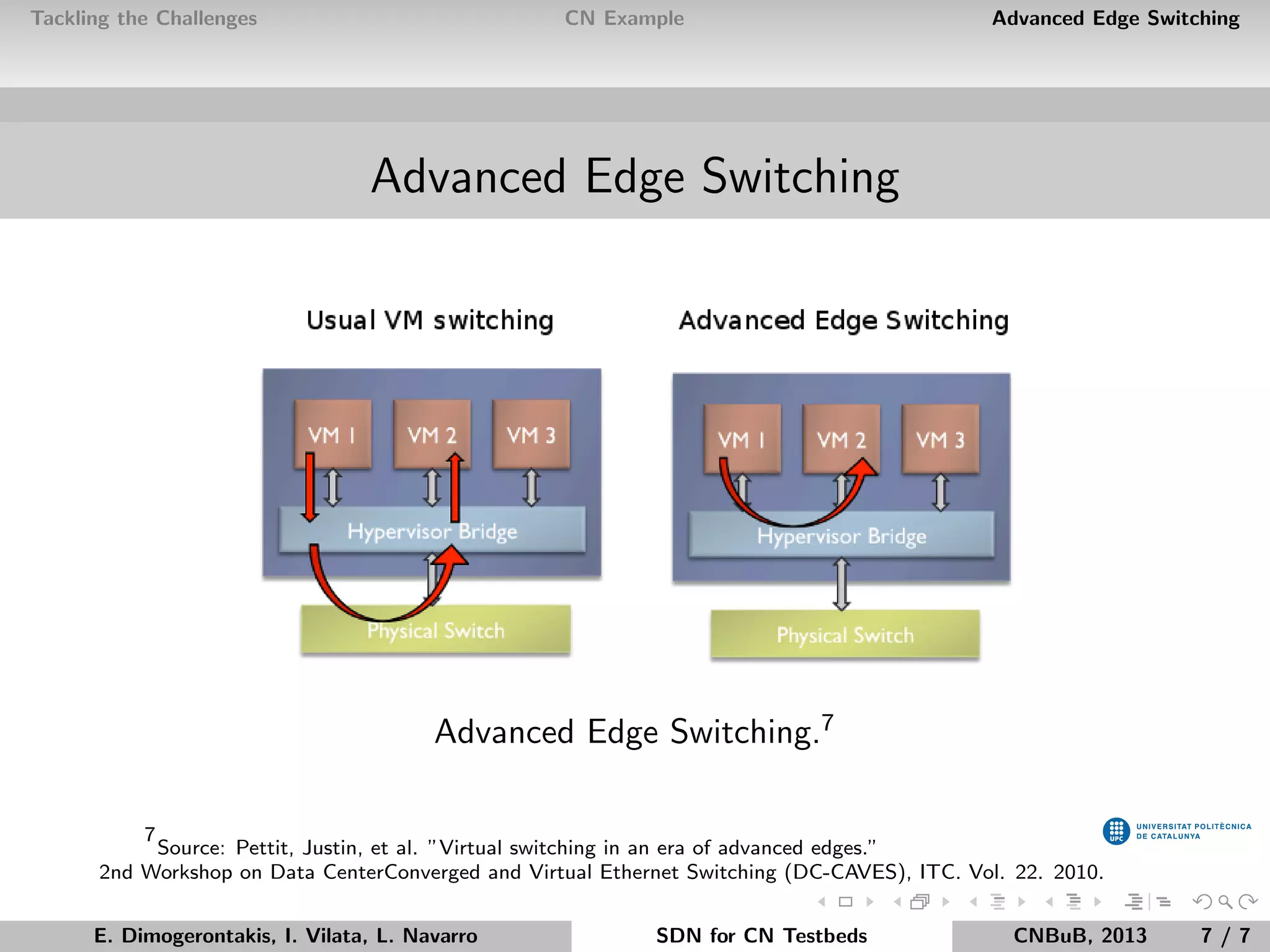

Advanced Edge Switching
Advanced Edge Switching.7
7
Source: Pettit, Justin, et al. ”Virtual switching in an era of advanced edges.”
2nd Workshop on Data CenterConverged and Virtual Ethernet Switching (DC-CAVES), ITC. Vol. 22. 2010.
E. Dimogerontakis, I. Vilata, L. Navarro
SDN for CN Testbeds
CNBuB, 2013
7/7
